Clarke CIR 450C, 4500633 User guide

CORDLESS IMPACT WRENCH

MODEL NO: CIR450C

PART NO: 4500633

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0415

INTRODUCTION

Thank you for purchasing this CLARKE Impact Wrench.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a recycling centre and
disposed of according to the laws governing Waste Electrical and Electronic
Equipment.

Through the purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling & recovery and environmentally sound disposal of
the WEEE. In effect, this means that this product must not be disposed of with
general household waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic Equipment (WEEE) at a recognised
disposal facility.

BATTERY DISPOSAL

Dispose of old batteries in accordance with local authority regulations. Do not
incinerate or crush, as this will increase the risk of explosion and
contamination. If the battery contents come into contact with skin or the eyes,
rinse with clean water for several minutes and seek medical advice
immediately afterwards.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SAFETY PRECAUTIONS

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair
out of the way.

3. Keep children and visitors away - do not let children handle the wrench.

4. DO NOT use in damp or wet conditions. Keep the work area well lit. Do not
use where a risk of fire or explosion is present.

5. Although the impact wrench may be used outdoors, DO NOT leave it
exposed to the elements. Avoid direct sunlight, direct heat, rain/moisture
etc.

6. Always keep body and clothing dry. Never work in damp area without
adequate insulation against electric shock.

7. Do not fit the wrench to a stand or clamping device that may damage it.

GENERAL USE

1. 1.This product vibrates during use. Vibration may be harmful to your hands
or arms. Stop using the machine if discomfort, a tingling feeling or pain
occurs and seek medical advice before resuming use.

2. ALWAYS use ear defenders.

3. ALWAYS stay alert and use common sense - do not use this product when
you are tired or under the influence of alcohol or medication.

4. ALWAYS ensure that the socket is correctly installed before switching on.

5. ALWAYS only use sockets which are specified for impact wrench use.

6. ALWAYS ensure the workpiece is firmly secured leaving both hands free to
control the impact wrench.

7. ALWAYS store this product in a dry, secure place out of reach of children or
untrained users.

8. ALWAYS keep all equipment dry especially the battery & battery charger.

9. ALWAYS keep metal objects such as coins, keys, nails or other small metal
objects which could make a connection from one terminal to another,
away from the battery cartridge. A short circuit across the terminals could
cause sparks, burns or start a fire.

10. ALWAYS ensure the machine has stopped before putting it down after use.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

11. ALWAYS set the forward/reverse Switch-bar to neutral when changing bits
or when the machine is not required for immediate use. This will avoid
accidental starting.

12. ALWAYS check for any damage or any condition that could affect its
operation. Any damaged part should be properly repaired.

13. NEVER force or misuse the machine. It will do a better and safer job at the
rate for which it was designed.

14. NEVER use this product if it is defective / operating abnormally.

15. NEVER carry the machine with your finger on the trigger.

16. NEVER abuse the mains cable of the battery charger. Never yank the
cable to disconnect it from the socket. Keep the cable away from sharp
edges/hot surfaces.

17. NEVER over-reach. Keep proper footing and balance at all times.

18. NEVER use this product for any other purpose than that described in this
booklet.

19. NEVER carry out any alterations or modifications to this product.

20. NEVER attempt to wipe the machine clean with solvents. Wipe plastic parts
with a soft cloth, slightly dampened with soapy water.

21. NEVER attempt any repairs yourself. If you have a problem with this product
contact your local CLARKE dealer.

IMPACT WRENCH SAFETY INSTRUCTIONS

1. ALWAYS use the impact wrench in the manner and for the functions
described in these instructions.

2. ALWAYS ensure the machine is not moving with the switchbar in the centre

position when changing sockets etc. Use only Impact Wrench sockets....DO

NOT use standard sockets.

3. ALWAYS finish tightening wheel nuts or engine parts with a torque wrench
or suitable spanner to the correct torque as recommended by the vehicle
manufacturer.

4. ALWAYS avoid excessive use of the wrench. When tightening a nut or bolt,
never allow the wrench to impact more than 8 times - to avoid over
tightening - 3 to 4 impacts is normally sufficient.

5. ALWAYS use outdoor extension leads if working outdoors. Always use an
approved cable extension suitable for the power rating of the battery
charger (see specifications), the conductor size should also be at least the
same size or larger than that on the charger. When using a cable reel,
always unwind the cable completely.

Please keep these instructions in a safe place for future reference.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ELECTRICAL CONNECTIONS

This product is provided with a 13 amp, 230 volt (50Hz), BS 1363 plug, for
connection to a standard, domestic electrical supply. Should the plug need
changing at any time, ensure that a plug of identical specification is used.

The battery charger for this appliance is of double insulated design

No earth conductor is provided. The two wires in the mains lead should be
wired up in accordance with the following colour code:

Blue -- Neutral

Brown -- Live

Connect the BROWN coloured cord to the plug terminal marked a letter “L”

Connect the BLUE coloured cord to the plug terminal marked a letter “N”

If the battery charger for this appliance is fitted with a plug which is moulded
on to the electric cable (i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace the fuse cover, ensure that the correct
replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local Clarke dealer
or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.

CABLE EXTENSION

Do not use an extension longer than 10 metres and one where the
conductors, are less than 1.5mm2.

If used outdoors, ensure the extension cable is designed for outdoor use.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SAFETY SYMBOLS

The full technical specification of the battery charger is printed on a label on
the charger. The meanings of the markings and symbols are shown below.

Class II appliance which does not need an earth connection.

For indoor use only.

Read the manual before operating this product.

Falls under the Waste Electrical & Electronic Equipment directive
(WEEE).

COMPONENT INVENTORY

The CIR450 is a professional, cordless impact wrench which is rechargeable
using the mains power adaptor.

Upon receipt, unpack and lay out the components, checking against the
following list. Any damage or deficiency should be reported to your CLARKE
dealer immediately.

1. 24V Impact Wrench with 1.7 Ah battery pack

2. Battery-charging unit

3. Side handle

4. Moulded tool-case

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

COMPONENT IDENTIFICATION

1. 1/2” Square Socket Drive

2. Battery Release Button

3. Forward/Reverse Switch-bar

4. Battery Pack

5. Trigger

6. Wrist Strap

7. Hand Grip

NOTE: The CIR450C charger is not

compatible with the
earlier CIR450/450B
battery.

BATTERY CHARGING

1. The new battery pack will require
charging before use.

2. Squeeze the battery release buttons on
either side of the battery pack and pull
gently down to disengage the battery
pack from the machine as in Fig 1.

3. Plug the charger into a 230v (mains)
power supply and switch ON.

4. Insert the battery pack into the battery
charger, as shown in Fig 2, noting that it
will only fit one way.

• The green POWER ON light will

illuminate to show the unit is
connected to the mains supply.

5. Press the “SET” button and the green
light will turn off ,the RED charging light
will illuminate and charging will begin.

7

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

• If charging does not take place,

ensure all connections are clean
and free of grease etc.

• If the red charging light will not stay

on for more than a few moments,
the battery pack is likely to be
defective and it must be replaced
with a new one.

• When charging is complete

(typically after about 1/2 hour), the
RED charging light goes off and the
green light turns back on. The
battery pack can be considered
charged and be removed. The
charging time will be dependant
upon the initial state of the batteries.

• When charging a new battery pack it may initially not accept full

charge. This is common & does not indicate a fault. It can be
recharged fully after it has been discharged a couple of times.

6. After charging, switch off and unplug the charger from the power supply.

7. Remove the battery pack from the charger and slide it back into the
machine until it clips into place.

The battery pack should slide in easily.If the battery pack is not to be fitted
immediately, ensure that the metal contacts are protected so as to avoid the
possibility of a short circuit which would cause damage.

Remember to avoid extremes of heat or cold when charging. Avoid
temperatures outside the range of Minimum 4°C /Maximum 50°C. Avo id
placing batteries in direct strong sunlight or other heat source.

NOTE: Ni-Cad batteries as used in Clarke cordless power tools should be

given a full charge when first supplied new. Maximum battery
performance will be achieved after approximately 5 complete
charge/discharge cycles.

NOTE: The battery should be fully discharged before recharging in order

to achieve its optimum performance. Constant topping up after

only a small amount of charge has been used will, in effect,
reduce its capacity.

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

Nickel cadmium batteries will slowly lose their power whilst in storage. If they
become fully discharged, do not leave the batteries in this state for any length
of time.

OPERATION

CAUTION: ALWAYS BE SURE THAT THE TOOL IS SWITCHED OFF BEFORE
ATTACHING OR REMOVING A SOCKET. ALWAYS TAKE CARE TO USE THE
CORRECT SIZE SOCKET FOR BOLTS AND NUTS. AN INCORRECT SOCKET
WILL CAUSE DAMAGE TO THE BOLT OR NUT.

1. Align the chosen socket and simply push it onto the anvil. Use only ½”
square drive impact sockets as listed on page 14.

2. Squeeze the trigger to start the machine. Release the trigger to stop.

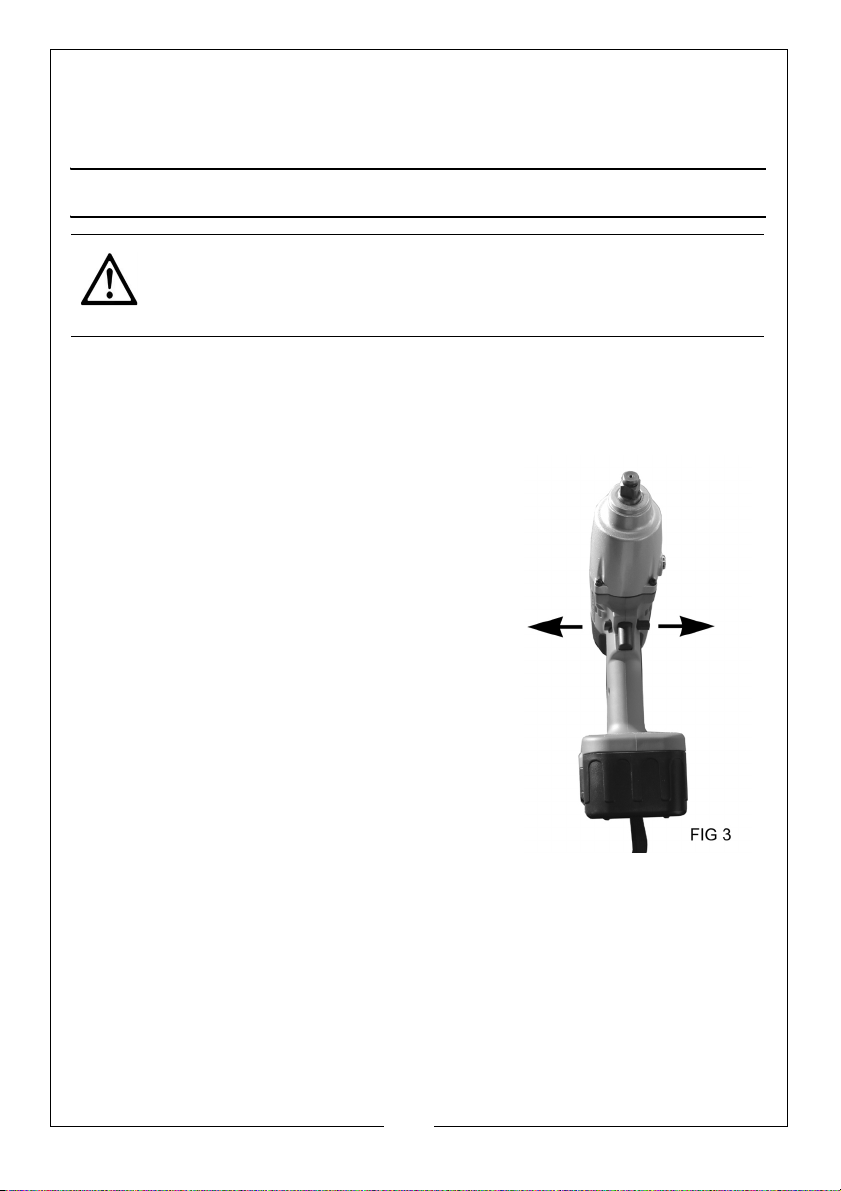

3. To run the impact wrench in reverse, push
the switch-bar through the drive unit as
shown in Fig 3. The direction of rotation is
shown on the end face of the switch-bar.

• The 3-position switch bar controls forward

or reverse direction of rotation. Select the
appropriate position ONLY when the
machine is STATIONARY. Do not move the
switch-bar when the spindle is moving.
When the switch-bar is in the central
position the trigger is locked.

4. Always check the direction of rotation
before operation.

5. Turn off the machine as soon as the impact
sound is heard.

Note: As the battery becomes discharged, the

power available will drop. Operating the
machine at low speed will cause a reduction in torque.

6. After use, recharge the battery pack as shown on pages 8-9. Avoid leaving
your batteries in a discharged state.

LOOSENING A WHEEL NUT

1. Remove any wheel trim, before selecting the appropriate socket and
placing firmly on the square drive of the wrench.

2. With the FORWARD/NEUTRAL/REVERSE switchbar in the REVERSE running
position, and holding the wrench firmly in BOTH HANDS, pull the trigger. The

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

nut will be impacted repeatedly until it is loosened. IMPORTANT! Release
the trigger immediately the nut begins to loosen.

3. Jack up the vehicle according to the vehicle handbook so that the wheel
is clear of the ground, then proceed to fully undo the wheel nuts.

WARNING: ENSURE THAT THE CORRECT SOCKET IS BEING USED FOR THE
NUTS ON YOUR PARTICULAR VEHICLE. AN INCORRECT SOCKET SIZE IS
LIKELY TO DAMAGE THE HEADS OF THE BOLTS/NUTS.

TIGHTENING A NUT

1. Start the nut by hand, ensuring it is not cross threaded, then with the
appropriate socket installed on the wrench, place it on the nut.

2. With the FORWARD/NEUTRAL/REVERSE switch-bar in the clockwise
(FORWARD) running position, and holding the wrench firmly in BOTH
HANDS, pull the trigger.

3. Run each nut up in turn until it is ‘nipped’ up only - do not tighten. When all
nuts are nipped up, tighten progressively by pulling the trigger fully and
allowing the action to operate for 3 to 4 impacts only to prevent
overtightening.

4. ALWAYS finish tightening with a torque wrench. The weight of the vehicle
will need to be placed on the wheel to prevent it from rotating while the
nuts are tightened. Ensure the final torque applied to the nuts meets the
vehicle manufacturer’s recommendations.

RECHARGING

Recharge the battery pack following each period of use as described on
pages 7-8.

1. Check that the red CHARGING light illuminates and remains on during the
charging process.

2. If the red CHARGING light goes out almost straight away after repeating
this procedure a couple of times, although the green POWER ON light is lit,
the battery pack should be replaced with a new one.

3. The charging light should remain on for about 1 hour, after which, the
battery cartridge may be removed and used.

4. After charging, remove the charger from the power supply.

5. For maximum battery life, we recommend that you maintain the battery in
a fully charged state at all times.

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

MAINTENANCE

Ensure all fixings remain tight to ensure the machine is in safe working
condition.

All bearings etc, in this machine are lubricated with a sufficient amount of high
grade lubricant for the machines lifetime under normal operating conditions,
therefore no further lubrication is required.

Refer to your CLARKE dealer if internal maintenance is required.

Check the battery charger power cable to ensure it is free from cracks, bare
wires etc.

Avoid using solvents when cleaning plastic parts, most plastics are susceptible
to damage from the various types of commercial solvents. Keep the unit clean
by wiping with a dry cloth. DO NOT use solvents as a cleaning agent.

Your Clarke Impact Wrench has been designed to give long and trouble free
service. If, however, having followed the instructions in this booklet carefully,
you encounter problems, take the unit to your local Clarke dealer.

STORAGE

Make sure that the machine is stored in a clean, dry place, out of reach of
children when not in use.

Always store the machine and its charger in the case supplied.

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

PARTS LIST

No Description No Description

1Screw 18Shaft

2 Spring Gasket 19 Gear Housing

3 Nose Housing 20 Gear Ring

4 Front Bearing 21 Planetary Gear

5 Rubber Gasket 22 Gasket

6Shim 23Motor Gear

7 Spindle 24 Screw

8 Screw 25 Gasket

9 Airtight Gasket 26 Motor

10 Steel Ball 27 Switching Bar

11 Impact Block 28 Trigger

12 Steel ball 29 Battery Cartridge

13 Gasket 30 Housing (L/H)

14 Spring 31 Wrist Strap

15 Gasket 32 Face Plate

16 Baffle 33 Housing (R/H)

17 Bearing 34 Screw

Battery charger (not shown) is available separatly.

A wide range of accessories is available from your nearest CLARKE dealer, for
further information, contact your nearest dealer, or telephone CLARKE
International Sales department on 01992 565300.

Suitable impact wrench compatible socket sets include the following:

3110437 CAT37B 11 piece 1/2”square drive(metric)

1800310 CIS12/17 17 piece 1/2”square drive(metric/AF)

1800305 CIS9/32 32 piece 3/8” & 1/2”square drive (metric/AF)

1800345 CIS12/7M 7 piece 1/2”square drive universal joint (metric)

1800350 CIS12/7MD 7 piece 1/2”square drive universal joint (deep) metric

1800355 CIS12/6H 6 piece 1/2”square drive hex key set (metric)

1800360 CIS12/6S 7 piece 1/2”square drive TRX-Star

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

COMPONENT PARTS

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SPECIFICATION

FEATURE SPECIFICATION

Weight 3.44 kg

Dimensions (L x W x H) 254 x 97 x 262 mm

No-Load Speed 2000 rpm nominal

Max tightening torque 450 Nm

Impacts/minute 2600

Input voltage 230V/50Hz

Output voltage 24V DC

Battery Type Nickel Cadmium

Battery pack capacity 1.7 Amp/hr

Sound pressure level 88 dB LpA

Sound power level 99 dB LWA

Guaranteed sound power 101.0 dB LWA

Vibration Level 13.48 m/s

2

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
