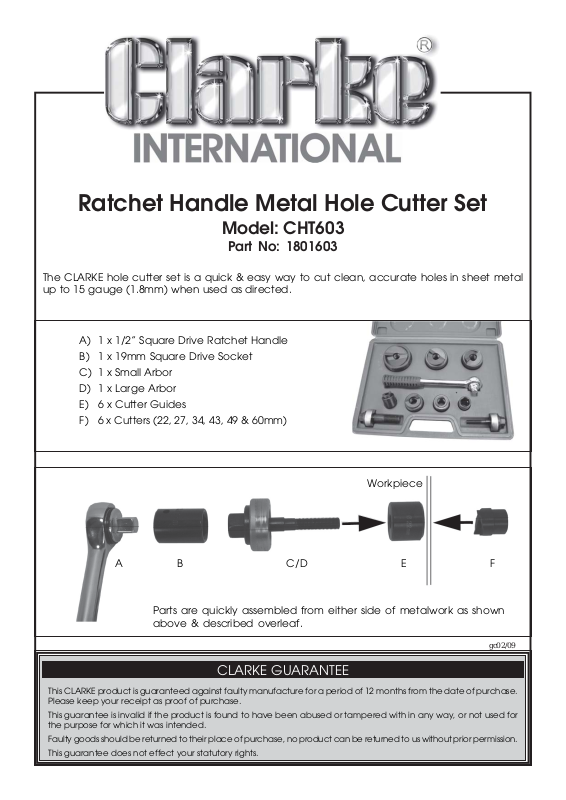

Clarke CHT 603, 1801603 User guide

Ratchet Handle Metal Hole Cutter Set

Model: CHT603

Part No: 1801603

The CLARKE hole cutter set is a quick & easy way to cut clean, accurate holes in sheet metal
up to 15 gauge (1.8mm) when used as directed.

A) 1 x 1/2” Square Drive Ratchet Handle

B) 1 x 19mm Square Drive Socket

C) 1 x Small Arbor

D) 1 x Large Arbor

E) 6 x Cutter Guides

F) 6 x Cutters (22, 27, 34, 43, 49 & 60mm)

Workpiece

A B C/D E F

Parts are quickly assembled from either side of metalwork as shown
above & described overleaf.

gc02/09

CLARKE GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for
the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.

This guarantee does not effect your statutory rights.

PARTS & SERVICE

SAFETY PRECAUTIONS

Thank you for purchasing this CLARKE Ratchet Handle Metal Hole Cutter Set.

Please read this information sheet thoroughly and follow the instructions carefully, in doing so you will ensure the
safety of yourself and that of others around you, and you can look forward to the tool giving you long and

satisfactory service.

1. ALWAYS learn the applications, limitations and the specific potential hazards peculiar to the tool you are
using. Read and become familiar with all operating instructons.

2. ALWAYS wear good quality industrial gloves.

3. ALWAYS wear safety goggles, manufactured to the latest European Safety Standards. Everyday eye-glasses
do not have impact resistant lenses, they are not safety glasses.

4. ALWAYS check for damage. Before using the tool, any damaged part should be checked to ensure
that it will operate properly and perform its intended function. Check for,breakage of parts, mountings, and
any other condition that may affect the tool’s operation. Any damage should be properly repaired or the
part replaced. If in doubt, DO NOT use the tool. Consult your local dealer.

5. ALWAYS keep work area clean. Cluttered areas and benches invite accidents.

6. ALWAYS keep children away. All visitors should be kept a safe distance from the work area, especially whilst
using the tool.

7. ALWAYS keep tools clean and maintain them in good condition for optimum performance.

DIRECTIONS FOR USE

1. Drill a 10mm pilot hole in the workpiece.

2. Pass the small arbor through the 22mm diameter guide with the
open end of the guide facing the work, and then through the pilot
hole as shown on the previous page.

3. Screw the 22mm diameter cutter onto the arbor with the cutter
facing the workpiece and tighten until the cutter bites into the
workpiece.

4. Locate the 19mm socket onto the arbor and attach the ratchet
handle.

5. Use the ratchet & socket to tighten the arbor assembly as shown
until the cutter cuts through the metal.

6. When the hole is created, unscrew the components and discard
the disc of waste metal removed.

7. The hole produced by the 22mm cutter will be suitable for use as
a pilot hole for the large arbor which is then used with all the
larger cutters in the same way.

8. Dismantle and store all components in the case provided.

For Parts & Servicing, please contact your nearest dealer or CLARKE International on

one of the following numbers.

PARTS SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

Please note that the details contained herein are correct at the time of going to print. However CLARKE International reserve the right to change

specifications at any time without prior notice.
