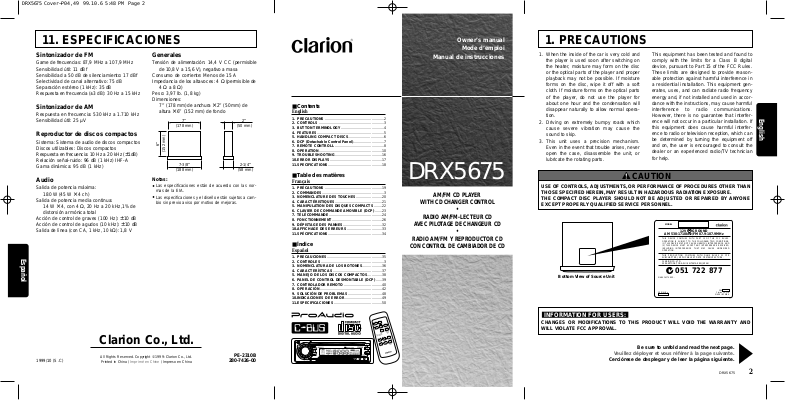

Page 1
2”
2-1/4”
7”
7-3/8”
6”
(50 mm)(178 mm)
(58 mm)(188 mm)
(152 mm)
11. ESPECIFICACIONES
Bottom View of Source Unit
DRX5675
AM 530-1710kHz/FM 87.9-107.9MHz
12V GROUND
MODEL
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR
SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD.
50 KAMITODA,TODA-SHI,SAITAMA-KEN,JAPAN
MANUFACTURED:
SERIAL No.
PE-2310B
286- 324-00
Clarion Co.,Ltd.
MADE IN CHINA
051 722 877
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Sintonizador de FM
Game de frecuencias
Sensibilidad útil: 11 dBf
Sensibilidad a 50 dB de silenciamiento: 17 dBf
Selectividad de canal alternativo: 75 dB
Separación estéreo (1 kHz): 35 dB
Respuesta en frecuencia (±3 dB)
Sintonizador de AM
Respuesta en frecuencia: 530 kHz a 1.710 kHz
Sensibilidad útil: 25 µV
Reproductor de discos compactos
Sistema: Sistema de audio de discos compactos
Discos utilizables: Discos compactos
Respuesta en frecuencia: 10 Hz a 20 kHz (±1dB)
Relación señal-ruido: 96 dB (1 kHz) IHF-A
Gama dinámica: 95 dB (1 kHz)
Audio
Salida de potencia máxima:
180 W (45 W × 4 ch)
Salida de potencia media continua:
14 W × 4, con 4 Ω, 20 Hz a 20 kHz,1% de
distorsión armónica total
Acción de control de graves (100 Hz): ±10 dB
Acción de control de agudos (10 kHz): ±10 dB
Salida de línea (con CA, 1 kHz, 10 kΩ):
Español
1999/10 (S•C)
: 87,9 MHz a 107,9 MHz
: 30 Hz a 15 kHz
Clarion Co., Ltd.
All Rights Reserved. Copyright © 1999: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
Owner’s manual
1. PRECAUTIONS
Mode d’emploi
1,8 V
Generales
Tensión de alimentación: 14,4 V CC (permisible
de 10,8 V a 15,6 V), negativo a masa
Consumo de corriente: Menos de 15 A
Impedancia de los altavoces: 4 Ω (permisible de
4 Ω a 8 Ω)
Peso: 3,97 lb. (1,8 kg)
Dimensiones:
7” (178 mm) de anchura × 2” (50 mm) de
altura × 6” (152 mm) de fondo
Notas:
Las especificaciones están de acuerdo con las nor-
•
mas de la EIA.
Las especificaciones y el diseño están sujetos a cam-
•
bio sin previo aviso por motivo de mejoras.
■Contents
English
1. PRECAUTIONS ..........................................................2
2. CONTROLS ................................................................3
3. BUTTON TERMINOLOGY..........................................4
4. FEATURES..................................................................5
5. HANDLING COMPACT DISCS...................................6
6. DCP (Detachable Control Panel)..............................7
7. REMOTE CONTROLL................................................8
8. OPERATION..............................................................10
9. TROUBLESHOOTING..............................................16
10.ERROR DISPLAYS...................................................17
11.SPECIFICATIONS.....................................................18
■Table des matières
Français
1. PRÉCAUTIONS ........................................................19
2. COMMANDES.............................................................3
3. NOMENCLATURE DES TOUCHES.........................20
4. CARACTÉRISTIQUES..............................................21
5. MANIPULATION DES DISQUES COMPACTS........22
6. CLAVIER DE COMMANDE AMOVIBLE (DCP).......23
7. TÉLÉCOMMANDE....................................................24
8. FONCTIONNEMENT.................................................26
9. DÉPISTAGE DES PANNES......................................32
10.AFFICHAGE DES ERREURS ..................................33
11.SPÉCIFICATIONS.....................................................34
Manual de instrucciones
DRX5 675
AM/FM CD PLAYER
WITH CD CHANGER CONTROL
•
RADIO AM/FM-LECTEUR CD
AVEC PILOTAGE DE CHANGEUR CD
•
1. When the inside of the car is very cold and
the player is used soon after switching on
the heater, moisture may form on the disc
or the optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with a soft
cloth. If moisture forms on the optical parts
of the player, do not use the player for
about one hour and the condensation will
disappear naturally to allow normal operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the
sound to skip.
3. This unit uses a precision mechanism.
Even in the event that trouble arises, never
open the case, disassemble the unit, or
lubricate the rotating parts.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off
and on, the user is encouraged to consult the
dealer or an experienced radio/TV technician
for help.
English
RADIO AM/FM Y REPRODUCTOR CD
■Índice
Español
1. PRECAUCIONES......................................................35
2. CONTROLES..............................................................3
3. NOMENCLATURA DE LOS BOTONES...................36
4. CARACTERÍSTICAS ................................................37
5. MANEJO DE LOS DISCOS COMPACTOS..............38
6. PANEL DE CONTROL DESMONTABLE (DCP) ......39
7. CONTROLADOR REMOTO .....................................40
8. OPERACIÓN.............................................................42
9. SOLUCIÓN DE PROBLEMAS .................................48
PE-2310B
280-7426-00
10.INDICACIONES DE ERROR ....................................49
11.ESPECIFICACIONES ...............................................50
CON CONTROL DE CAMBIADOR DE CD
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS PRODUCT WILL VOID THE WARRANTY AND
WILL VIOLATE FCC APPROVAL.
Be sure to unfold and read the next page.
Veuillez déployer et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
DRX5675 2
Page 2
2.
SOURCE UNIT / APPAREIL PILOTE / UNIDAD FUENTE
DISPLAY
AFFICHEUR
VISUALIZADOR
1
789
3
6
24
@0$#%
5
CD Insertion Slot
Fente d’insertion de CD
Ranura de inserción del disco compacto
!
Indicación de error Solución
Esta indicación de error significa que se ha producido un problema
en el mecanismo de la unidad fuente o del cambiador de discos
compactos (por ejemplo, el disco no puede cambiar ni expulsarse).
➜ Compruebe la unidad fuente y el cambiador de discos
compactos.
Esta indicación de error significa que el captor se ha desenfocado
debido a un disco rayado o a otro factor durante la reproducción
de la unidad fuente o del cambiador de discos compactos.
➜ Compruebe el disco compacto.
Indica que el índice (TOC) del disco compacto no puede ser
leído debido a que, por ejemplo, el disco seleccionado está al
revés.
CONTROLS / COMMANDES / CONTROLES
3. BUTTON TERMINOLOGY
10. INDICACIONES DE ERROR
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déployer cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
English
Français
Note:
Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).
•
1 DCP Release Button
2 A-M (Audio Mode) Button
LD (Loudness) Button
3 POWER Button
English
FNC (Function) Button
4 Eject ( ) Button
5 DISP (Display) Button
6 ISR (Instant Station Recall) Button
7 RDM (Random) Button
8 RPT (Repeat) Button
9 SCN (Scan) Button
PS/AS (Preset Scan/Auto Store) Button
0 Preset Buttons (1 to 6)
Direct Buttons (1 to 6)
! Z-EHCR (Z-enhancer) Button
■ Para proteger el sistema, esta unidad posee funciones de diagnóstico automático. Cuando
se presente algún problema, éste se notificará con indicaciones de error. Tome las medidas
indicadas para solucionar el problema.
Español
3 DRX5675 4 DRX5675
@ BND (Band) Button
TOP (Top Play) Button
MAG (Magazine) Button
# SRCH (Search) Left and Right ( and ) Buttons
$ Rotary Knob
% Play/Pause ( ) Button
MUTE Button
Español
DRX5675 49
Page 3
English
DRX5675 5
■ Rotary Encoder Volume Control
■ DIN Chassis with Detachable Control Panel
■ Z-Enhancer with 3 Mode Sound Selector
■
®
FM Reception System
■ AM/FM Bands-1 AM, 3 FM/18 FM/6 AM Touchbutton Memory
■ 8-Times Oversampling Digital Filter and Dual 1-Bit D/A Converters
■ Zero-Bit Detector™ Mute Circuit
■ Repeat/Random Play/Intro Music Scan
■ Multi-Color LC Display
■ 4-Channel RCA Line Level Output with Fader Control
■ 180 W (45 W × 4) Maximum Power Output
■ Infrared Remote Control
4. FEATURES
Page 4
6 DRX5675
English
5. HANDLING COMPACT DISCS
This unit has been designed specifically for playback of compact discs bearing the mark.
No other discs can be played.
To remove the compact disc from its storage
case, press down on the center of the case and
lift the disc out, holding it carefully by the edges.
Always handle the compact disc by the edges.
Never touch the surface.
To remove fingermarks and dust, use a soft
cloth, and wipe in a straight line from the center
of the compact disc to the circumference.
New discs may have some roughness around
the edges. The unit may not work or the sound
may skip if such discs are used. Use a ball-point
pen, etc. to remove roughness from the edge of
the disc.
Note on Compact Discs
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
Do not use any solvents such as commercially
available cleaners, anti-static spray, or thinner to
clean compact discs.
Do not use compact discs that have large
scratches, are misshapen, or cracked, etc. Use
of such discs will cause misoperation or damage.
Do not expose compact discs to direct sunlight
or any heat source.
No
No
No
No
Ball-point pen
Roughness
No
Proper way to hold
the compact disc
Removing the disc
Note:
•
Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These
may get caught in the internal mechanism and damage the disc.
Page 5
DRX5675 7
English
6. DCP (Detachable Control Panel)
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the included DCP case to prevent scratches.
We recommend taking the detachable control
panel with you when leaving the car.
Removing the DCP
1. Turn off the power.
2. Press the DCP Release button
1.
*
The DCP is unlocked.
3. Remove the DCP.
Attaching the DCP
Insert the DCP into the right side of the source
unit and press the left side to lock it.
Do not insert the DCP from the left side. Doing so
may damage it.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orientation.)
• The DCP can easily be damaged by shocks. After
removing it, place it in a protective case and be
careful not to drop it or subject it to strong shocks.
•
When the release button is pressed and the DCP is
unlocked, the car’s vibrations may cause it to fall.
To prevent damage to the DCP, always store it in a
protective case after detaching it.
•
The rear connector that connects the source unit
and the DCP is an extremely important part. Be
careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Note:
•
If the DCP is dirty, wipe off with a soft, dry cloth only.
DCP Rear Panel Source Unit Front
Source unit connector
DCP
connector
CAUTION
CAUTION
Page 6
8 DRX5675
English
Rear side
AA (UM-3/1.5 V)
Batteries
Rear cover

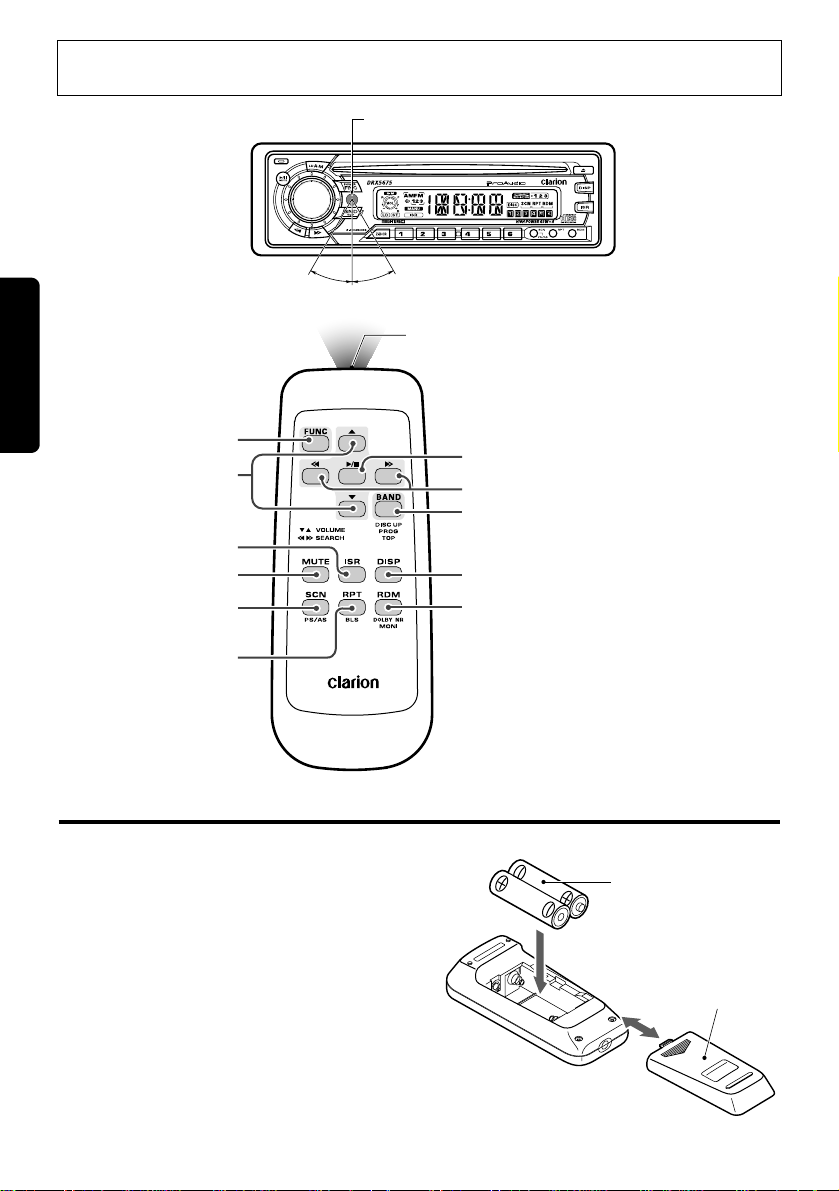

1. Turn the remote control unit over, then slide
the rear cover in the direction of the arrow.
2. Insert the AA (UM-3/1.5 V) batteries that
came with the remote control unit facing in
the directions shown in the figure, then close
the rear cover.
Notes:
Using batteries improperly can cause them to explode.
Take note of the following points:
• When replacing batteries, replace both batteries with
new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
7. REMOTE CONTROL
Receiver for remote control unit
Signal transmitter
Operating range: 30° in all directions
¥
*
™
¡
¢
∞
)
(
&
£
§
Remote Control Unit
Inserting the Batteries
Page 7
DRX5675 9
English
Functions of Remote Control Unit Buttons
Mode
Button
FUNC
BAND
DISC UP
PROG
TOP
Radio
Turns power on and off. When pressed and held for 1 second: Turns power off.
Switches between radio, CD and CD changer.
VOLUME
* Some of the corresponding buttons on the source unit and remote control unit have different functions.
Increases and decreases volume (in all modes).
MUTE
ISR Recalls ISR radio station in memory.
Press and hold for more than 2 seconds: Stores current station into ISR memory
(radio mode only).
DISP Switches among main display, sub display and clock display.
CD CD changer
Switches reception band. Plays the first track.
Top play.
Moves the next disc in
increasing order.
PLAY/PAUSE Turns mute on and off. Switches between
playback and pause.
Switches between
playback and pause.
Turns mute on and off. Switches between
playback and pause.
Switches between
playback and pause.
SCAN
PS/AS
Preset scan.
When pressed and held for
2 seconds: Auto store.
Scan play. Scan play.
When pressed and held for
2 seconds: Disc scan play.
RPT
BLS
No function. Repeat play. Repeat play.
When pressed and held for
2 seconds: Disc repeat
play.
RDM
DOLBY NR
MONI
No function. Random play. Random play.
When pressed and held for
2 seconds: Disc random
play.
SEARCH Moves preset channels up
and down.
Moves tracks up and
down.
When pressed and held for
1 second:
Fast-forward/
fast-backward.
Moves tracks up and
down.
When pressed and held for
1 second:
Fast-forward/
fast-backward.
¥
&
*
(
)
¡
™
£
¢
∞
§
Page 8
Basic Operations
When this unit is turned on, starting and stopping the engine of a car with its volume raised
to the maximum level may harm your hearing.
Be careful about adjusting the volume.
Turning ON the Power and Adjusting
the Volume
1) Press the POWER button 3.
*
To turn off the power, press the POWER button
3 for 1 second or longer.
2) Press the FNC button 3 and select another
operation mode. Every time the FNC button
3 is pressed, the display changes the operation mode as:
Radio ➜ CD ➜ CD changer ➜ Radio
Notes:
•
The operation mode not connected to the unit will not
be selected.
•
If the CD mode is selected when no disc is inserted,
the display flashes “ DISC”.
3) Turning the Rotary knob $ clockwise
increases the volume; turning it counterclockwise decreases the volume.
*
The volume level is from 0 (minimum) to 33 (maximum).
Audio Mode Adjustments
Press the A-M button 2 to select the adjustment
mode. The mode switches as follows each time
the A-M button is pressed:
BASS ➜ TREB ➜ BAL ➜ FAD ➜ Previous
mode
Adjusting the Bass
1) Press A-M button 2 and select “BASS”.
2) T urning the Rotary knob
$ clockwise emphasizes the bass; turning it counterclockwise
attenuates the bass.
*
The factory default setting is “0”. (Adjustment
range: –6 to +6)
3) When the adjustment is complete, press A-M
button 2 several times until the function
mode is reached.
Adjusting the Treble
1) Press A-M button 2 and select “TREB”.
2) T urning the Rotary knob
$ clockwise emphasizes the treble; turning it counterclockwise
attenuates the treble.
*
The factory default setting is “0”. (Adjustment
range: –6 to +6)
3) When the adjustment is complete, press A-M
button
2 several times until the function
mode is reached.
Adjusting the Balance
1) Press A-M button 2 and select “BAL”.
2) T urning the Rotary knob
$ clockwise emphasizes the sound from the right speaker; turning it counterclockwise emphasizes the sound
from the left speaker.
*
The factory default setting is “0”. (Adjustment
range: L9 to R9)
3) When the adjustment is complete, press A-M
button 2 several times until the function
mode is reached.
Adjusting the Fader
1) Press A-M button 2 and select “FAD”.
2) T urning the Rotary knob
$ clockwise emphasizes the sound from the front speakers; turning it counterclockwise emphasizes the sound
from the rear speakers.
*
The factory default setting is “0”. (Adjustment
range: F9 to R9)
3) When the adjustment is complete, press A-M
button 2 several times until the function
mode is reached.
10 DRX5675
English
8. OPERATION
CAUTION
Note:
•
Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).
Page 9
Setting the Z-enhancer
This unit comes with three types of sound tone
effects stored in memory . Select the one you prefer.
*
The factory default setting is “Z-EHCR OFF”.
Each time you press Z-EHCR button !, the
tone effect changes in the following order.
“Z-ENHANCER 1” ➜ “Z-ENHANCER 2” ➜
“Z-ENHANCER 3” ➜ “Z-EHCR OFF” ➜
“Z-ENHANCER 1”...
• Z-ENHANCER 1: bass emphasized
• Z-ENHANCER 2: treble emphasized
• Z-ENHANCER 3: bass and treble emphasized
• Z-EHCR OFF: no sound effect
Loudness Effect
In order to turn on/off the loudness effect, use
the LD button 2 for 2 seconds or longer. Every
time the LD button 2 is pressed and held for 2
seconds or longer, the loudness effect switches
on and off.
*
When the loudness effect is on, the display will show
“LD”.
Switching the Clock Display
Every time the DISP button 5 is pressed, the
display will change between the operation mode
and the clock display.
Setting the Clock
1) Press the DISP button 5 to display the clock
display.
2) Press and hold the DISP button
5 for 2 sec-
onds or longer.
3) Press the SRCH Left button
#, then set the
current hour.
4) Press the SRCH Right button
#, then set the
current minute.
5) Press the DISP button
5, then the clock is
set.
Notes:
•
If you select another operation mode while you are
setting the clock, the clock setting operation will be
canceled.
•
If you remove the vehicle’s battery for a check or
repair, the clock will be reset, so you must set it again.
Radio Mode Operations
FM Reception
For enhanced FM performance the
®
tuner includes signal actuated stereo control and
Multipath noise reduction circuits.
Listening to the Radio
1) Press the FNC button 3 to select the radio
mode, then the radio will be on.
2) To select a preset band, press the BND button
@, then select one of the preset bands
such as FM1, FM2, FM3, or AM. Every time
the BND button @ is pressed, the display will
change as:
FM1 ➜ FM2 ➜ FM3 ➜ AM ➜ FM1
3) Press the SRCH Left/Right button
#, then
the station at which there is a broadcast will
be selected (Seek selection).
Mute
Use this function to turn off the sound immediately.
Press the MUTE button %. The sound turns off
and “MUTE” appears on the display. Press the
MUTE button again to cancel the mute mode.
Manual Tuning
1) Press the BND button @, then select FM1,
FM2, FM3 or AM.
2) Press and hold the BND button
@ for 2 seconds or longer, then the display will show
“MANU”, which means that a manual selection function is on.
3) Press the SRCH Left/Right button
# and
select the right station.
Seek Tuning
1) Press the BND button @, then select FM1,
FM2, FM3 or AM.
2) If the “
MANU” on the display is on, press and
hold the BND button @ for 2 seconds or
longer. When the “MANU” display is off, the
Seek Selection function is on.
3) Press the SRCH Left/Right button
#, then
when it selects the station in which there is a
broadcast, it automatically stops.
DRX5675 11
English
Page 10
Preset Memory Function
Preset Memory Function can store up to 24 stations: six stations for each of FM1, FM2, FM3
and AM.
Note:
•
When the present memory function is used, all the
content of the memory will be erased.
Manual memory function
1) Press the BND button @, and select the
band you want to store in the memory.
2) Press the SRCH Left/Right button
# then
select the station you want to store in the
memory.
3) Press and hold the Preset button
0 for 2
seconds or longer, then the station will be
stored in the memory.
Auto store function (Automatic Station Store)
1) Press the BND button @, then select the
band you want to store in the memory.
2) Press and hold the AS button
9 for 2 seconds or longer, then the station at which the
reception is the strongest will be automatically stored in the memory.
Note:
•
When the number of stations stored is less than six,
the previous content of the memory for each direct
button will be retained.
Preset Scanning (Preset Station Scan)
When the PS button 9 is pressed, the preset
memory numbers flash and the stations are
tuned in for 7 seconds each in the order in which
they were stored. Press the PS button again to
cancel the preset scanning mode.
Instant Station Recall (ISR)
With this function, a specific radio station can be
recalled from any mode.
ISR memory
1) Press the FNC button 3, then select the
radio mode.
2) Select the radio station which you want to
store in the memory.
3) Press and hold the ISR button
6 for 2 sec-
onds or longer.
Recalling ISR
Press the ISR button 6 then the display will
show “ISR”, then the radio station previously
memorized will be selected. Press the ISR button 6 again to disengage the unit from the
Recalling ISR function.
Area Change
Use this function when you are using the car
stereo anywhere outside the U.S.
Switchable frequency spacing
This car stereo is initially set to tune in frequency intervals of 10 kHz for AM and 200 kHz for
FM, the standard calibrations in the U.S. When
using the unit outside the U.S., use the following
procedure to switch the frequency range.
The table below lists the frequency specifications for the U.S. and other countries.
Switching the area change
Outside U.S. (New Setting)
While pressing the BND button @, press the
SRCH Left button #, then “outside U.S.” will be
selected.
Inside U.S. standard (Initial Setting)
While pressing the BND button @, press the
SRCH Right button #, then the “U.S. standard”
will be selected.
AM
FM
Frequency
spacing
Frequency
range
Frequency
spacing
Frequency
range
Initial Setting
(U.S. standard)
New Setting
(outside U.S.)
10 kHz
530 to
1,710 kHz
200 kHz
87.9 to
107.9 MHz
9 kHz
531 to
1,629 kHz
50 kHz
87.5 to
108 MHz
12 DRX5675
English
Page 11
CD Mode Operations
Loading a Disc
Insert the disc into the CD insertion slot with its
label side up, then the CD will start playing.
*
When inserting a single CD (3”(8 cm)), insert it from
the center of the slot.
*
When inserting a single CD (3”(8 cm)), do not connect an adapter.
*
Press the DISP button 5, then the display will show
the play time.
Notes:
•
Some CDs recorded in CD-R mode may not be
usable.
•
Even when recorded in CD-R/W mode, some CDs
may not be usable.
Listening to the Disc already Inserted
Press the FNC button 3 to select the CD mode,
the CD will start playing.
Stopping (pausing) Playback
Press the Play/Pause button %.
Press the Play/Pause button % again to resume
playback.
Ejecting the CD
Press the Eject button 4, then the CD will be
ejected.
Note:
•
If the ejected CD is left as it is, it will be reloaded after
15 seconds. However, single CDs will not be
reloaded, so make sure to remove them.
Top Function
Press the TOP button @, then the CD will start
playing from the first song (track number 1).
Selecting Tracks (songs)
Press the SRCH Left/Right button #.
: Playback will start from the next track.
: Playback will start from the beginning of
the track currently playing. When this
button is pressed again, the CD will play
from the previous track.
Fast-Forward and Fast-Backward
Press and hold the SRCH Left/Right button #.
: To fast-forward
: To fast-backward
*
Pressing the SRCH Left/Right button for 1 second or
longer will move forward or backward 5 times faster
than normal play, and pressing it for 3 seconds or
longer will do the operation 30 times faster.
Scan Play (Intro Music Scan)
Press the SCN button 9, then the display
shows “SCN”, then the CD will play the first 10
seconds of each track of the whole disc. Press
the SCN button 9 again to disengage the unit
from scan play.
*
A scan play will start from the track following the one
currently playing.
Repeat Play
Press the RPT button 8, then the display shows
“RPT”, then the track currently playing will be
played repeatedly. Press the RPT button 8
again to disengage the unit from repeat play.
Random Play
Press the RDM button 7, then the display will
show “RDM”, then the entire tracks on the disc
will be played at random. Press the RDM button
7 again to disengage the unit from random play.
For 5-inch (12 cm) CD For 3-inch (8 cm) single CD
DRX5675 13
English
Page 12
CD Changer Mode Operations
Listening to the Disc
Press the FNC button 3 and select the CD
changer mode, then the CD starts playing.
Stopping (pausing) Playback
Press the Play/Pause button %.
Press the Play/Pause button % again to resume
playback.
Selection of CDs
Press the Direct button (1 to 6) 0 then select
the CD you wish to play.
Top Function
Press the TOP button @, then the CD will start
playing from the first song (track number. 1).
Selecting Tracks (songs)
Press the SRCH Left/Right button #.
: Playback will start from the next track.
: Playback will start from the beginning of
the track currently playing. When this
button is pressed again, the CD will play
from the previous track.
Fast-Forward and Fast-Backward
Press and hold the SRCH Left/Right button #.
: To fast-forward
: To fast-backward
*
Pressing the SRCH Left/Right button for 1 second or
longer will move forward or backward 5 times faster
than normal play, and pressing it for 3 seconds or
longer will do the operation 30 times faster.
Scan Play (Intro Music Scan)
Press the SCN button 9, then the display
shows “SCN”, then the CD will play the first 10
seconds of all the tracks of all CDs. Press the
SCN button 9 again to disengage the unit from
scan play.
*
A scan play will start from the track following the one
currently playing.
Disc scan play
Press and hold the SCN button 9 for 2 seconds
or longer, then the display will show “” and
“SCN”, and plays the first 10 seconds of the first
song of all the CDs in the CD changer.
Press the SCN button 9 again to disengage the
unit from disc play.
*
A scan play will start from the first tracks of next CDs
following the one currently playing.
Repeat Play
Press the RPT button 8, then the display shows
“RPT”, then the track currently playing will be
played repeatedly. Press the RPT button 8
again to disengage the unit from repeat play.
Disc repeat play
Press and hold the RPT button 8 for 2 seconds
or longer, then the display shows both the
“” and “RPT”, then the disc currently being
played will be played repeatedly.
Press the RPT button 8 again to disengage the
unit from disc repeat play.
Random Play
Press the RDM button 7, then the display will
show “RDM”, then the entire tracks on the disc
will be played at random.
Press the RDM button 7 again to disengage the
unit from disc random play.
Disc random playback
Press and hold the RDM button 7 for 2 seconds
or longer, then the display will show both the
“” and “RDM”, then the entire tracks of all
the discs in the CD changer will be played at random.
Press the RDM button 7 again to disengage the
unit from disc play.
14 DRX5675
English
Page 13
DRX5675 15
English
Switching Magazine
This function can be used only when the connected CD changer can store a multiple number
of magazines.
Every time the MAG button @ is pressed, the
next magazine will be selected.
Page 14
Problem Cause Solution
Power does not turn on.
(No sound is produced.)
Fuse is blown.
Replace with a fuse of the same
amperage. If the fuse blows again,
consult your store of purchase.
Incorrect wiring.
Consult your store of purchase.
Compact disc cannot be
loaded.
Another compact disc is
already loaded.
Eject the compact disc before loading
the new one.
Sound skips or is noisy.
Compact disc is dirty.
Clean the compact disc with a soft
cloth.
Compact disc is heaviiy
scratched or warped.
Replace with a compact disc with no
scratches.
Sound is bad directly after
power is turned on.
Water droplets may form
on the internal lens when
the car is parked in a
humid place.
Let dry for about 1 hour with the
power on.
Nothing happens when
buttons are pressed.
Display is not accurate.
Microprocessor has
malfunctioned due to
noise, etc.
Turn off the power, then press the
DCP Release button 1 and remove
the DCP.
Press the reset button for about 2
seconds with a thin rod.
DCP or source unit
connectors are dirty.
Wipe the dirt off with a soft cloth
moistened with cleaning alcohol.
Reset button
16 DRX5675
English
9. TROUBLESHOOTING
Page 15
DRX5675 17
English
■ To protect the system, this unit has been equipped with self diagnostic functions. If a fault
arises, a warning is issued by various error displays. Follow the corrective measures and
remove the fault.
Error Display Corrective Measure
This error display indicates that a fault has arisen in the
mechanism of the source unit or CD changer (for example, the
disc cannot be changed or ejected).
➜ Check the source unit and CD changer.
This error display indicates that the pickup focus is off because
of a scratched disc or some other factor during source unit or
CD changer play.
➜ Check the compact disc.
This indicates that the CD’s TOC (table of contents) cannot be
read, for example because the selected disc is upside-down.
10. ERROR DISPLAYS
Page 16
18 DRX5675
English
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 11 dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1,710 kHz
Usable Sensitivity: 25 µV
CD Player
System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response: 10 Hz to 20 kHz (±1 dB)
Signal-to-Noise Ratio: 96 dB (1 kHz) IHF-A
Dynamic Range: 95 dB (1 kHz)
Audio
Maximum Power Output:
180 W (45 W × 4 ch)
Continuous Average Power Output:
14 W × 4, into 4 Ω, 20 Hz to 20 kHz,1%THD
Bass Control Action (100 Hz): ±10 dB
Treble Control Action (10 kHz): ±10 dB
Line Output (with A/C 1 kHz, 10 kΩ): 1.8 V
General
Power Supply Voltage: 14.4 V DC (10.8 V to
15.6 V allowable), negative ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 Ω (4 Ω to 8 Ω allowable)
Weight: 3.97 lb. (1.8 kg)
Dimensions:
7” (178 mm) Width × 2” (50 mm) Height ×
6” (152 mm) Depth
Notes:
•
Specifications comply with EIA Standards.
•
Specifications and design are subject to change without notice for further improvement.
2”
2-1/4”
7”
7-3/8”
6”
(50 mm)(178 mm)
(58 mm)(188 mm)
(152 mm)
11. SPECIFICATIONS
Loading...
