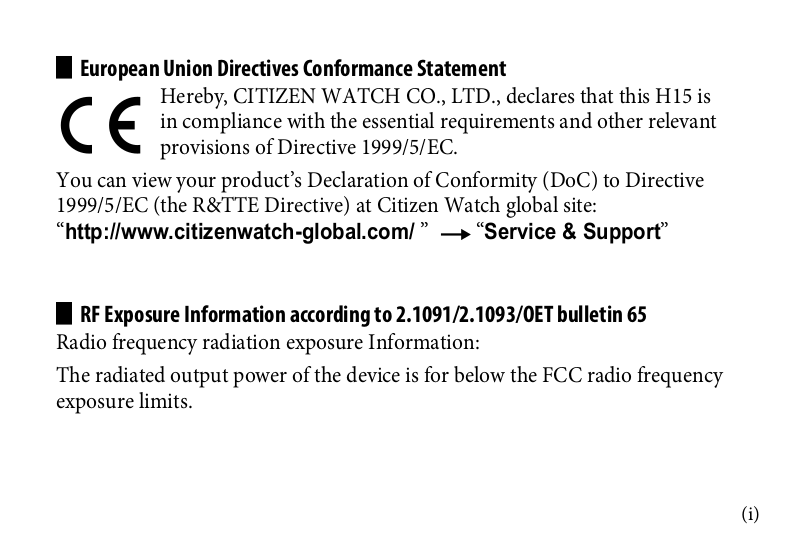

European Union Directives Conformance Statement
Hereby, CITIZEN WATCH CO., LTD., declares that this H15 is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (the R&TTE Directive) at Citizen Watch global site:
“
http://www.citizenwatch-global.com/
” “
Service & Support
”
RF Exposure Information according to 2.1091/2.1093/OET bulletin 65
Radio frequency radiation exposure Information:
The radiated output power of the device is for below the FCC radio frequency
exposure limits.
(i)
FCC statements
This device complies with part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
(ii)
Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure correct
use.
After reading the manual, store it in a safe place for future reference.
Be sure to visit the Citizen website at http://www.citizenwatch-global.com/ . Here
you will find a variety of information such as electronic setting guides, answers to
frequently asked questions, Eco-Drive recharging information and more.
To check the movement number
A case number—4 alphanumeric characters
Engraving position example
and 6 or more alphanumeric characters—is
engraved on the case back. (Figure on the right)
The first 4 characters of the case number
represent the movement number of the watch.
In the example on the right, “
movement number.
” is the
The engraving position may differ
depending on watch model.
1
Safety precautions — IMPORTANT
This manual contains instructions that should be strictly followed at all times
not only for optimal use, but to prevent any injuries to yourself, other persons or
property. We encourage you to read the entire booklet (especially, pages 84 to 96)
and understand the meaning of the following symbols:
■ Safety advisories are categorized and depicted in this manual as follows:
DANGER
WARNING
CAUTION
■ Important instructions are categorized and depicted in this manual as follows:
2
Highly likely to cause death or serious injury
Can cause serious injury or death
Can or will cause minor or moderate injury or damage
Warning (caution) symbol followed by instructions that should be
followed or precautions that should be observed.
Warning (caution) symbol followed by prohibited matters.
Before using this watch
After unpacking, the following must be done before using the watch:
• Checking the power reserve see page
For optimal performance, ensure your watch is fully charged prior to use. Refer
to pages 10 to 15 for charging procedures and times.
• Setting the correct time and date for your locale
The time may be adjusted either manually (see pages 62 to 67), or by receiving
time information when connected with iPhone, a mobile digital device, using the
app available from the App Store (see page 47).
This watch has a rechargeable cell which is
charged by exposing the dial to light.
Expose the dial to direct sunlight regularly to
charge the watch.
For details of charging, see pages 10 to 15.
16
3
Before using this watch
Band adjustment
We do not recommend attempting to adjust the watch band yourself. Special
expertise and experience is required for proper adjustment. If not adjusted
correctly, the band may become detached leading to an injury or loss of your watch.
(Some retailers may supply a band adjustment tool with your purchase).
For band adjustment, we recommend you consult the retailer where the watch was
purchased or your nearest Authorized Citizen Service Center.
Some repair shops may charge a nominal fee for adjustment if the watch was not
purchased directly from them.
Protective stickers
Be sure to remove any protective stickers that may be on your watch (case back,
band, clasp, etc.).Otherwise, perspiration or moisture may enter the gaps between
the protective stickers and the parts, which may result in a skin rash and/or
corrosion of the metal parts.
How to use a specially designed crown/push button
Some models are equipped with a specially designed crown and/or push button(s)
to prevent accidental operation. Please refer to the following chart for use.
4
Screw down crown and screw down push button
Unlock the crown prior to operate your watch.
Unlock Lock
Screw down
crown
Screw down
push button
Rotate the crown
counterclockwise until it
releases from the case.
Rotate the locking screw
counterclockwise, and
loosen until it stops.
Recessed buttons
Press the button with a narrow-tipped object such
as a wooden toothpick.
Before using this watch
Push the crown in to the
case. With gentle pressure
towards the case, rotate the
crown clockwise to secure
it to the case. Be sure to
tighten firmly.
Rotate the locking screw
clockwise, and tighten
firmly.
5
Table of contents
Features ...................................8
Component identification .........9
Charging your watch ..............10
Checking the current power
reserve ................................ 16
Changing the mode ................ 18
Before connecting to iPhone .. 24
Registering (Pairing)
your iPhone [
6
PR
] ................ 35
Disconnecting with iPhone
[
DCT
] ................................ 41
Connecting to the registered
iPhone [
CT
] ........................ 44
Activating the functions of the
dedicated app ..................... 46
Receiving email reception
notification [Email Alert] ..... 52
Shortcut for registration
(pairing) .............................. 58
Bluetooth 4.0 wireless
technology .......................... 59
Adjusting the time and calendar
manually [
Using local time [
TME
]/[
CAL
L-TM
] .... 62
] ........ 68
Using the chronograph
[
CHR
]................................ 70
Checking and correcting the
reference position [
302
] .... 72
Troubleshooting .................... 76
Resetting the watch
— All Reset ........................ 81
Eco-Drive (solar powered) watch
handling precautions........... 84
Water resistance .................... 88
Precautionary items and usage
limitations .......................... 91
Information ........................... 97
Specifications ......................... 98
7
Features
Connectable with your iPhone using Bluetooth4.0 through the
dedicated app, and equipped with the following features:
• Automatic Time Sync on page
• Incoming Call Alert on page
• Link Loss Alert on page
Eco-Drive (solar powered): Never needs a new battery. This watch is fueled by
light.
Chronograph: Measure elapsed time up to 60 minutes.
Local time: Easy to see the time for a second time zone, anywhere in the world.
Perpetual calendar: Once set, the date will automatically adjust for months shorter
than 31 days as well as leap years.
* “Eco-Drive” is Citizen’s proprietary technology.
8
• iPhone Search on page
47
• Email Alert on page
48
• Schedule Alert on page
50
51
52
49
Component identification
1
Upper right
button (
2
3
4
The illustrations in this instruction manual may
differ from the actual appearance of your watch.
Lower right
button (
5
6
Crown
7
8
Hour hand
1
Notification indication for
2
connecting to iPhone (see pages 32)
24-hour hand on the upper left sub
3
)
dial
Second hand/Chronograph second
4
hand
Function hand and function
5
indications on the upper right sub
dial
• C onnection status (see page 32)/
Power reserve level (see pages 16
and 17)
)
• Chronograph minute hand
• Day of the week
Minute hand
6
Date indication
7
Mode hand on the lower sub dial
8
(see pages 18 to 23)
9
Charging your watch
This watch has a rechargeable cell which is charged by
exposing the dial to light, such as direct sunlight or
fluorescent lamps (refer to pages 12 and 13 for charging
guidelines).
After taking off the watch, put it in a location where the
dial is exposed to bright light, such as by a window.
For optimal performance, be sure to:
• Expose the watch to direct sunlight half a day at least
once a week.
• Avoid leaving the watch in dark places for long periods of time.
Caution
• Do not charge the watch at high temperature (about 60°C (140°F) or higher).
• If the watch is obscured from light by long sleeves frequently, supplemental
charging may be needed to ensure continual operation. Refer to pages 12 and
.
13
10
Charging your watch
When the watch reaches a low charge state (insufficient charge warning
function)
When the power reserve becomes low, the second hand
moves once every two seconds. This is the insufficient
charge warning function. Be sure to fully charge your
watch as outlined on pages 12 and 13.
• When the watch is sufficiently charged, the second
hand will move normally.
• If you do not charge the watch for 10 days or longer
after the insufficient charge warning movement has begun, the watch will be
depleted of all power and stop.
Caution
• When in the insufficient charge warning state, the current time and date are
indicated. However, other features and functions of the watch will not be
available for use.
11
Charging your watch
Charging time by environment
Below are the approximate times required for charging when exposing the watch
dial to light continuously. Please use this table as a reference only.
Environment
Outdoors (sunny) 100,000
Outdoors (cloudy) 10,000
20 cm (7-7/8
inches) away from
a fluorescent lamp
(30W)
Interior lighting 500
Illuminance
(lx)
3,000
To work for
one day
12 minutes 3.5 hours 13 hours
30 minutes 6.5 hours 30 hours
1.5 hours 15 hours 90 hours
8 hours 80 hours 600 hours
Charging time (approx.)
To start working
normally when the cell
is discharged
*
To become fully
charged when the cell is
discharged
12
Charging your watch
• To charge your watch, it is recommended to expose the dial to direct sunlight.
Optimal charging is achieved by exposing the dial to direct sunlight outdoors for
a short time each day.
Power reserve in normal use from fully charged without additional charging
With connecting to iPhone Without connecting to iPhone
About 8 months
*
When the watch is connected to your iPhone about 6 hours a day and received messages
about 10 times a day, you can use the connecting feature between the watch and your iPhone
about 30 days in 8 months. For details, see page 17.
Caution when connecting to iPhone
• C onnecting to iPhone requires a substantial amount of power, especially if receiving many
notifications. Be sure to keep your watch fully charged when utilizing this feature.
• We recommend disconnecting with iPhone when not needed (see page 41).
• C onnecting feature does affect battery usage on your iPhone. Be sure to check the charge
level of your iPhone.
*
About 17 months
13
Charging your watch
Power save function
If your watch is not exposed to light sufficient for charging for 30 minutes or more,
the second hand will stop in order to conserve power. Although the second hand is
not moving, the correct seconds are stored in memory.
The power save function cannot be activated manually; it is an automatic feature
only. The power save function does not operate under the following conditions:
• The crown is in position
• The current mode is Chronograph [
• The second hand is indicating a notification (“
or .
] or Calendar [
CHR
MAIL
”/ “
CAL
CALL
].
”/ “LL”).
14
Charging your watch
Canceling the power save function
The power save function is automatically canceled when the watch is exposed to
light sufficient for charging. The second hand will then resume normal movement.
• The power save function will also be canceled if a notification is received from
your iPhone. Note: the watch must be sufficiently charged and the dedicated app
running on your iPhone in order to receive notifications.
• If the watch is in the power save state for long period of time, adjust the time and
date before use through the iPhone connection (see page 47) or manually (see
page 62).
15
Checking the current power reserve
This watch has a power reserve display feature when in [
] mode.
or [
DCT
Power reserve indication (Function hand on the upper right sub dial)
TME
], [
L-TM
], [PR], [CT],
Without iPhone connection
• If the current power reserve is not displayed (the watch is in [
mode), change the mode (see page 18).
• When connecting to iPhone, pay particular attention to the power reserve to
ensure sufficient power is available.
With iPhone connection
] or [
CAL
16
CHR
]
Checking the current power reserve
The power reserve level
Level 3 2 1 0
With connecting to iPhone within 6 hours a day
Up to 10 days Up to 15 days Up to 5 days
Without connecting to iPhone
Approximate
duration of
indication at
this level
*
When the power reserve is at level “0”, basic watch functions can be used. However, registering
(see pages 35 to 40) and connecting to iPhone (see pages 44 and 45) are not available. If the
watch is connected to your iPhone and the power reserve becomes at level “0”, the connection
will be disconnected automatically.
Up to 3 months Up to 5 months Up to 2 months
Power reserve
is sufficient for
all features and
functions. Optimal
performance is
achieved at this
level.
Power reserve is
sufficient for all
operations at this
level.
Power reserve is
getting low. The
watch should be
fully charged to
ensure optimal
performance.
Charge the watch immediately.
7 months
Power reserve
is not sufficient
for normal
operation. The
watch must be
fully charged.
*
17
Changing the mode
This watch features eight different modes (functions). Change the mode by rotating
the mode hand on the lower sub dial before using each mode.
1
Pull the crown out to position .
The second hand moves to indicate the 30 seconds
position.
The second hand indicates the 30 seconds position.
18
Changing the mode
2
Rotate the crown to select a mode.
• Each time you rotate the crown, the mode hand on the lower sub dial moves.
Rotate the crown until the mode hand indicates the mode you wish to use.
Proper location Improper location
Ex. When selecting [
• You may turn the mode hand either clockwise or counterclockwise.
• The hands/indications function differently in each mode. See pages 20 to 23
for more details of each mode and the functions of the hands/indications in
each mode.
3
Push the crown in to position to finish the procedure.
L-TM
]
19
Changing the mode
Mode indications and functions
Function hand24-hour hand
Mode hand
20
Time — [
• Normally, use the watch in [
[
L-TM
The currently set time is displayed.
• The function hand on the upper
right sub dial indicates the power
reserve in this mode.
TME
] mode.
]
[
]
TME
TME
] or
Pairing/Connecting/Disconnecting of iPhone — [
[PR] (Pairing) [CT] (Connect) [
PR
]/[CT]/[
Changing the mode
]
DCT
] (Disconnect)
DCT
Select this when you want
to connect (pair/register)
the watch to your iPhone
for the first time. (See
page 35.)
• Time indication is same as either [
Select this mode when
you want to connect your
watch to your iPhone after
initial pairing. (See page
.)
44
TME
] or [
Select this when you
disconnect the watch from
your iPhone. (See page
.)
41
].
L-TM
21
Changing the mode
Local time — [
L-TM
[
L-TM
]
]
Chronograph — [
CHR
[
CHR
]
]
Select this to display the time of
another area (local time). (See page
.)
68
• The 24-hour hand on the upper left
sub dial, date and day of the week
display local time.
• The function hand on the upper
right sub dial indicates the power
reserve in this mode.
22
Select this when you want to use the
chronograph. (
• The second hand: Indicates the
chronograph seconds.
• The function hand on the upper
right sub dial: Indicates the
chronograph minutes.
• The hour, minute and 24-hour
hands will continue to reflect the
time set in [
See page
TME
] or [
70.)
L-TM
] mode.
Calendar — [
CAL
]
[
CAL
Changing the mode
302
The reference position — [
]
302
[
]
]
Select this to display the calendar. (See
page 64.)
• The second hand: Indicates the
year/month.
• The function hand on the upper
right sub dial: Indicates the day of
the week.
• The hour, minute and 24-hour
hands will continue to reflect the
current time set in [
TME
] mode.
The current reference position of each
hand/indication is indicated. (See page
.)
72
23
Before connecting to iPhone
This watch communicates with iPhone
through the connection of Bluetooth 4.0,
which is featured Bluetooth Low Energy
(BLE) power-saving technology.
It is required for connection to install
and start up a dedicated app “
ECO-DRIVE Proximity
iPhone.
The flow for connection is shown as
follows.
• Screen in this manual may differ from
the actual app.
24
CITIZEN
” on a compatible
Install the dedicated app
Start up the app
Registration/Pairing
Connection
Disconnection
Before connecting to iPhone
iPhone connectable with this watch
To check the latest information on compatible iPhone and iOS, visit the following
sites:
• Citizen Watch global site: “
“
Service & Support
”
http://www.citizenwatch-global.com/
”
Set the mode to [
such as an airplane, where electronic devices are limited to use.
iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
] (see page 42) to use this watch as a standard one in places
DCT
25
Before connecting to iPhone
Functions available with the connection
Automatic adjustment of time and calendar [Time Sync]
The watch adjusts time and calendar automatically using time info provided from
the iPhone.
Time info
ACT
26
Cellular phone network
The second hand points “
while receiving time info from
iPhone.
ACT
”
Before connecting to iPhone
Incoming call notification [Incoming Call]
Incoming call alert comes to the watch since iPhone’s call reception.
CALL
Incoming Call
Cellular phone network
Incoming call info
The watch vibrates twice
and the second hand points
” as it receives
“
CALL
incoming call info.
27
Before connecting to iPhone
Schedule notification [Schedule Alert]
The watch receives schedule notification from the built-in Calendar app on your
iPhone, corresponding to the setting of the app.
MAIL
Schedule
notification
Schedule notification info
The watch vibrates twice
and the second hand
points “
notification info.
” as it receives
MAIL
28
Loading...
