Cisco Systems VIP4 User Manual

Introduction

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

Product Numbers: VIP4-50=, VIP4-80=, MEM-VIP4-64M-SD=, MEM-VIP4-128M-SD=, MEM-VIP4-256M-SD=

This guide provides instructions for installing, configuring, and maintaining the fourth-generation Versatile Interface Processor (VIP4). The VIP4 operates with the Cisco 7505, Cisco 7507, Cisco 7507-MX, Cisco 7513, Cisco 7513-MX, and the Cisco 7576 routers with the Route Switch Processor (RSP1, RSP2, RSP4, RSP4+, or RSP8), and with the Cisco 7000 series routers using the 7000 Series Route Switch Processor(RSP7000) and 7000 Series Chassis Interface (RSP7000CI). See the “Software

Requirements” section on page 9 for specific compatibility requirements.

The VIP4 supports online insertion and removal(OIR), which allows you to remove and replace a VIP4 without first shutting down the system. Online insertion and removal maximizes router availability by letting you add or remove VIP4s during system operation. See the “Guidelines for VIP4 Removal and

Installation” section on page 15 for more information on removing and installing the VIP4.

The VIP4 supports LAN and WAN port adapters (PAs), including Fast Ethernet, T1/E1, High-Speed Serial Interface (HSSI), T3/E3, T3/E3 ATM, multichannel T1/E1, multichannel T3/E3, OC-3 ATM, Packet over SONET (POS), and OC-12 ATM. For a list of supported port adapters, refer to the “VIP4

and Port Adapter Compatibility” section on page 7.

The VIP4 port adapters do not support OIR, so when removing or inserting a port adapter, the system must be shut down first. The VIP42 must be removed from its interface processor slot before removing or installing a port adapter.

For complete descriptions of interface subcommands and the configuration options available for VIP4-related interfaces, refer to the configuration note for each of the port adapters installed on your VIP4 and to the appropriate Cisco IOS software configuration publications. (See the “Related

Documentation” section on page 2.)

Corporate Headquarters: Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Contents

This guide includes the following sections:

• Related Documentation, page 2

• VIP4 Overview, page 3

• Installation Prerequisites, page 9

• Agency Approvals, page 11

• Safety Guidelines, page 12

• VIP4 Installation Procedures, page 15

• Checking the VIP4 Installation, page 21

• VIP4 Maintenance Procedures, page 28

• VIP4 Troubleshooting, page 40

• Obtaining Documentation, page 40

• Obtaining Technical Assistance, page 41

VIP4 Overview

This section describes the VIP4 and discusses VIP4-specific features and functions, such as:

• What is the VIP4?, page 3

• How to Identify the VIP4 Model, page 3

• Specifications, page 6

• VIP4 Port Adapter Overview, page 6

• VIP4 and Port Adapter Compatibility, page 7

–

“World Wide Web” section on page 40

–

“Documentation CD-ROM” section on page 40

–

“Obtaining Technical Assistance” section on page 41

VIP4 Overview

What is the VIP4?

The VIP4 is the fourth generation of Versatile Interface Processors for use with Cisco 7500 or Cisco 7000 series routers. The VIP4 installs in any interface processor slot on your router, as noted below:

• Slots 0, 1, 2, 3, or 4 in the Cisco 7000 router

• Slots 0, 1, or 2 in the Cisco 7010 router

• Slots 0, 1, 2, or 3 of the Cisco 7505 router

• Slots 0, 1, 4, 5, or 6 of the Cisco 7507 router

• Slots 0, 1, 2, 3, 4, or 5, and 8, 9, 10, 11, or 12 of the Cisco 7513 router

• Slots 0, 1, 2, 3, 4, or 5 of Router A, and slots 8, 9, 10, 11, or 12 of Router B in the Cisco 7576 router

For more information on interface processor slots on your router, refer to the Cisco 7500 Series Installation and Configuration Guide or the appropriate Quick Start Guide for the Cisco 7500 series

routers, or refer to Cisco 7000 HardwareInstallation and Maintenance manual for the Cisco 7000 series routers.

How to Identify the VIP4 Model

There are two different versions of the VIP4: the VIP4-50 and the VIP4-80. Both VIP4 versions support two single-width port adapters or one dual-width port adapter and identical ECC-protected memory expansion options. Each VIP4 operates with the Cisco 7505, Cisco 7507, Cisco 7507-MX, Cisco 7513, Cisco 7513-MX, and the Cisco 7576 routers.

OL-3673-01

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

VIP4 Overview

Using the show diag command, you can distinguish between the VIP4-50 and VIP4-80, as indicated in the following example, and in Table 1.

Table 1 Distinguishing the VIP4 Models

EEPROM contents (hex) Value VIP4 Model

0x31 VIP4-50 0x22 VIP4-80

In the example below, the VIP is a VIP4-80:

Router# show diag 1 Slot 1: Physical slot 1, ~physical slot 0xE, logical slot 1, CBus 0 Microcode Status 0x4 Master Enable, LED, WCS Loaded Board is analyzed Pending I/O Status:None EEPROM format version 1 VIP4-80 RM7000 controller, HW rev 2.01, board revision A0 Serial number:14773010 Part number:73-3143-02 Test history:0x00 RMA number:00-00-00 Flags:cisco 7000 board; 7500 compatible

EEPROM contents (hex): 0x20:01 22 02 01 00 E1 6B 12 49 0C 47 02 00 00 00 00 0x30:50 06 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information: Flags:0x4 Insertion time:0x5168 (2w1d ago)

Controller Memory Size:64 MBytes CPU SDRAM, 64 MBytes Packet SDRAM

PA Bay 0 Information: Fast-Ethernet PA, 1 ports, 100BaseTX-ISL EEPROM format version 1 HW rev 1.00, Board revision A0 Serial number:03536381 Part number:73-1688-03

PA Bay 1 Information: Dual Port Fast Ethernet (RJ45), 2 ports EEPROM format version 4 HW rev 1.00, Board revision 04 Serial number:MIC043929WV Part number:73-5419-03

--Boot log begin--

Cisco Internetwork Operating System Software IOS (tm) VIP Software (SVIP-DW-M), Version 12.0(16.5)S, EARLY DEPLOYMENT MAINTENANCE INTERIM SOFTWARE TAC Support:http://www.cisco.com/cgi-bin/ibld/view.pl?i=support Copyright (c) 1986-2001 by cisco Systems, Inc. Compiled Thu 29-Mar-01 16:33 by ninahung Image text-base:0x60010938, data-base:0x60340000

--Boot log end--

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

OL-3673-01

Table 2 outlines features of the VIP4 models, and Table 3 provides a list of the VIP4 internal

components.

Note You can use any combination of available CPU memory configurations and packet memory

configurationson the VIP4. You do not need to haveequal amounts of CPU memory and packet memory installed. (For information about upgrading memory, see the “Upgrading VIP4 Memory” section on

page 31.)

Table 2 VIP4 Model Features

VIP4 Overview

Packets Forwarding

Product

(PPS)

Bandwidth

VIP4-50 ~140,000 750+ MB Yes;

Distributed Switching/ Services (DSW) Usage

Distributed switching

Moderate to high DSW

Moderate link utilization Cisco Express Forwarding (CEF)

VIP4-80 ~170,000 750+ MB Yes;

Very high DSW

High distributed switching performance Multiple high-speed PAs with high link utilization Extensive use of distributed IP services Cisco Content Networking (CCN)

1. PPS = Packets per Second

Table 3 VIP4 Internal Components

Type Size/Speed Description

CPU (for VIP4-50) 200 megahertz (MHz)

internal operating frequency

CPU (for VIP4-80) 250 megahertz (MHz)

internal operating frequency

SDRAM DIMMs

64 (default), 128, or 256 MB 100-MHz synchronous dynamic random-access (program or CPU memory)

SDRAM DIMMs

64 MB 100-MHz synchronous dynamic random-access (packet memory)

Reduced Instruction Set Computer (RISC), IPSR5271 processor

Reduced Instruction Set Computer (RISC), MIPS R7000 processor

memory (SDRAM) as CPU memory contained on dual in-line memory modules (DIMMs)

memory (SDRAM) as packet memory contained on dual in-line memory modules (DIMMs)

1. 8-bit error correction code (ECC), rather than byte parity, for single error-bit correction and double error-bit detection

Location (see Figure 1)

CPU

OL-3673-01

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

VIP4 Overview

Specifications

The VIP4 physical specifications are listed in Table 4.

Table 4 VIP4 Speciﬁcations

Description Specifications

Physical dimensions The VIP4 occupies one chassis slot and can only be operated in a

Shipping weight 5 lb (2.25 kg) Operating temperature 32 to 104˚F (0 to 40˚C) Relative humidity 10 to 90 percent, noncondensing Storage temperature -4 to 149˚F (-20 to 65˚C)

VIP4 Port Adapter Overview

Cisco 7500 series, or Cisco 7000 series routers using the 7000 Series Route Switch Processor (RSP7000) and 7000 Series Chassis Interface (RSP7000CI)

The VIP4, a single motherboard, supports up to two single-width port adapters, or one dual-width port adapter.Figure 1 shows a VIP4 with two installed single-width port adapters. A dual-width port adapter occupies both port adapter slots (not shown).

Note To ensure proper airflow in the router and compliance with EMI prevention standards, a VIP4 with one

single-width port adapter must have a blank port adapter installed in the empty port adapterslot location.

Note A VIP4 without at least one installed port adapter is not supported.

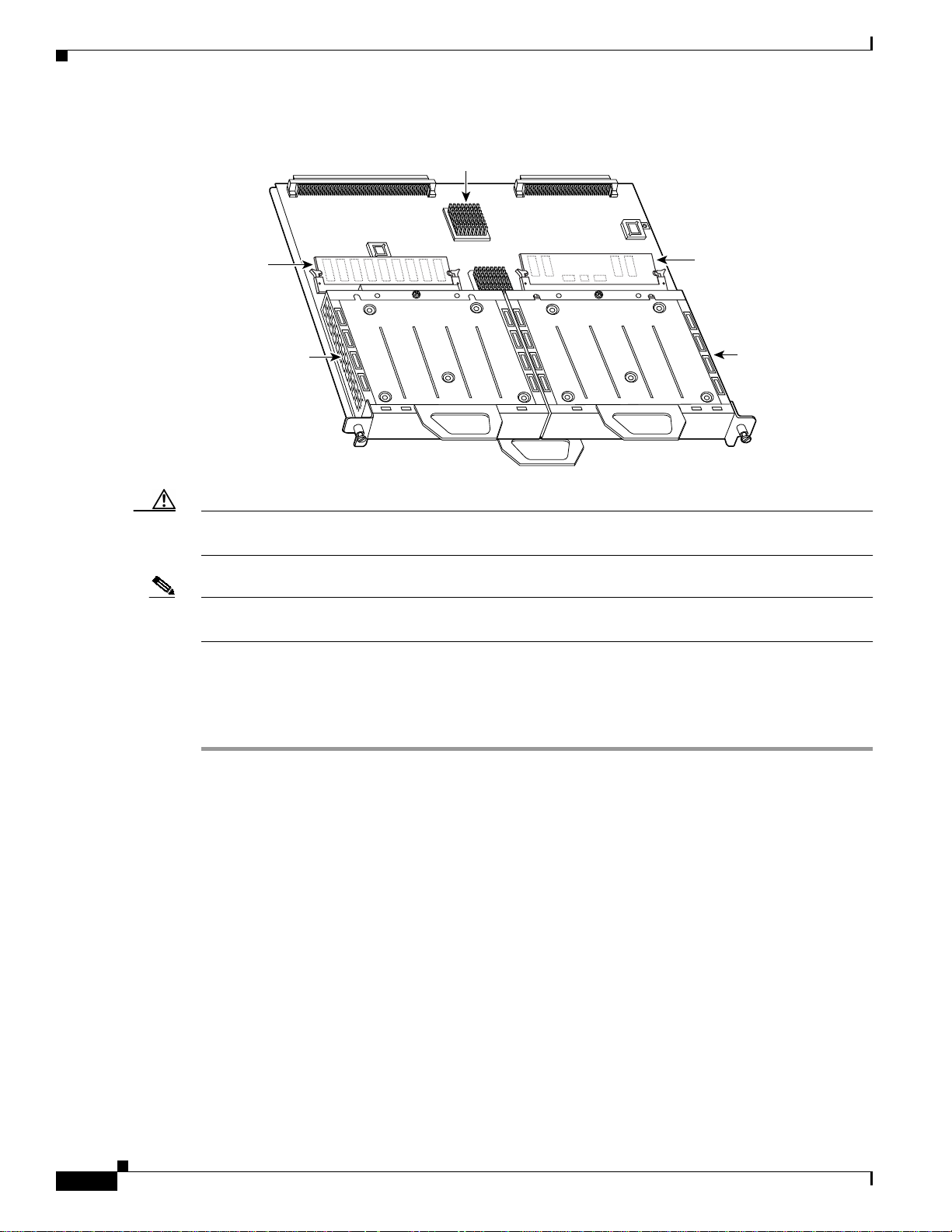

Figure 1 VIP4 with Two Single-Width Port Adapters—Horizontal Orientation Shown

Bus connector

Packet

memory

DIMM U5

CPU

CPU memory DIMM U1

Port adapter

in slot 0

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

Port adapter in slot 1

26561

OL-3673-01

VIP4 and Port Adapter Compatibility

For more information on the available port adapters supported by the VIP4, refer to the Cisco Product Catalog online, or contact a Cisco sales representative in your area. For more information on a specific

port adapter, refer to the specific port adapter installation and configuration guide. The port adapters, including part numbers for ordering, are listed in the Cisco Port Adapter Documentation flyer. This document is available online at http://www.cisco.com/univercd/cc/td/doc/product/core/12939paf.htm or in print (DOC-7812939).

Note The VIP4 does not support the PA-GE. However, the VIP4-80 supports the Enhanced Gigabit Ethernet

Interface Processor (GEIP+), an assembly consisting of a VIP4-80 with a permanently attached dual-width Enhanced Gigabit Ethernet port adapter.

Table 5 identifies the port adapters supported by the VIP4 at the time of this writing, and Table 6

identifies the interface processors and service adapters that are supported by the VIP4.

Note The following table does not address which software release applies to the VIP6-80 port adapters. For

more information, refer to the Software Advisor at

http://www.cisco.com/cgi-bin/Support/CompNav/Index.pl.

VIP4 Overview

Table 5 List of Port Adapters Supported by VIP4

Number of

Product Number Description

Ports Single/Dual Width

PA-A3-T3 ATM DS3 port adapter, enhanced 1 Single PA-A3-E3 ATM E3 port adapter, enhanced 1 Single PA-A3-8T1IMA ATM inverse multiplexer over ATM port adapter 8 Single PA-A3-8E1IMA ATM inverse multiplexer over ATM port adapter 8 Single PA-A3-OC3MM ATM OC-3c/STM-1 multimode, enhanced 1 Single PA-A3-OC3SMI ATM OC-3c/STM-1 single-mode (IR), enhanced 1 Single PA-A3-OC3SML ATM OC-3c/STM-1 single-mode (LR), enhanced 1 Single PA-A3-OC12-MM ATM OC-12/STM-4 single-mode (IR); multimode 1 Dual PA-A3-OC12-SMI ATM OC-12/STM-4 single-mode (IR); multimode 1 Dual PA-POS-OC3- MM Single-wide OC-3c/STM-1 1 Single PA-POS-OC3- SMI Single-wide OC-3c/STM-1 1 Single PA-POS-OC3- SML Single-wide OC-3c/STM-1 1 Single PA-A1-OC3SM ATM OC3 Single-Mode Intermediate Reach 1 Single PA-A1-OC3MM ATM OC3 Multimode 1 Single PA-FE-TX Fast Ethernet 100BaseTX 1 Single PA-FE-FX Fast Ethernet 100BaseFX 1 Single PA-2FE-TX Dual-Port Fast Ethernet 100BaseTX 2 Single PA-2FE-FX Dual-Port Fast Ethernet 100BaseFX 2 Single PA-4E Ethernet 10BaseT 4 Single

OL-3673-01

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

VIP4 Overview

Table 5 List of Port Adapters Supported by VIP4 (continued)

Number of

Product Number Description

Ports Single/Dual Width

PA-8E Ethernet 10BaseT 8 Single PA-F-MM FDDI Multimode 1 Single PA-F-SM FDDI Single-Mode 1 Single PA-FD-MM FDDI Full Duplex Multimode 1 Single PA-FD-SM FDDI Full Duplex Single-mode 1 Single PA-4T+ Serial, Enhanced 4 Single PA-8T-V35 Serial, V.35 8 Single PA-8T-232 Serial, RS232 8 Single PA-8T-X21 Serial, X.21 8 Single PA-T3/PA-T3+ T3 Serial Interface/T3 Serial Interface enhanced 1 Single PA-2T3/ PA-2T3+ T3 Serial Interface/T3 Serial Interface enhanced 2 Single PA-E3 E3 Serial Interface 1 Single PA-2E3 E3 Serial Interface 2 Single PA-4E1G/75 E1 G.703 Serial (75 ohm/Unbalanced) 4 Single PA-4E1G/120 E1 G.703 Serial (120 ohm/Balanced) 4 Single PA-MC-T3 Multichannel T3 1 Single PA-MC-E3 Multichannel E3 1 Single PA-MC-2T1 Multichannel DS1/PRI T1 (100 ohm) 2 Single PA-MC-4T1 Multichannel DS1/PRI T1 (100 ohm) 4 Single PA-MC-8T1 Multichannel DS1/PRI T1 (100 ohm) 8 Single PA-MC-2T3+ Multichannel with two T3 interfaces 2 Single PA-MC-8DSX1 Multichannel DS1/PRI T1 (100 ohm) 8 Single PA-MC-2E1/120 Multichannel E1 with G.703 120-ohm interface 2 Single PA-MC-8E1/120 Multichannel E1 with G.703 120-ohm interface 8 Single PA-MC-STM-1MM Multichannel STM-1 Port Adapter 1 Single PA-MC-STM-1SMI

Multichannel STM-1 Port Adapter 1 Single PA-H HSSI 1 Single PA-2H HSSI 2 Single PA-VXC-2TE1 High-Capacity Digital Voice 2 Single PA-VXC-2TE1+ High-Capacity Digital Voice 2 Single PA-VXB-2TE1 Moderate-Capacity Digital Voice 2 Single PA-VXB-2TE1+ Moderate-Capacity Digital Voice 2 Single PA-SRP-OC12MM PA-SRP-OC12SMI

Multimode fiber 2 Dual

Single-mode fiber, intermediate reach 2 Dual

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

OL-3673-01

Table 5 List of Port Adapters Supported by VIP4 (continued)

Product Number Description

PA-SRP-OC12SML PA-SRP-OC12SMX

1. Supported on VIP4-80 only.

2. Requires Cisco IOS release 12.1(12)E or later, or Cisco IOS release 12.1(21)S or later.

Table 6 List of Interface Processors Supported by VIP4

Single-mode fiber, long reach 2 Dual Single-mode fiber, extended reach 2 Dual

Product Number Description Number of Ports

GEIP Gigabit Ethernet Interface Processor 1 GEIP+ Gigabit Ethernet Interface Processor, enhanced 1

Note All interface processors are dual-width.

Installation Prerequisites

Number of Ports Single/Dual Width

Installation Prerequisites

This section providesinstallation prerequisites to ensure a successful VIP4 installation, and includes the following sections:

• Software Requirements, page 9

• Hardware Requirements, page 10

• Microcode Overview, page 10

• ROM Monitor Overview, page 11

• Tools and Parts Required, page 11

Software Requirements

The minimum Cisco IOS Release requirements for VIP4-50 and VIP4-80 are listed in Table 7. For configuration information and support, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware.

Note You can access Cisco IOS software configuration and hardware installation and maintenance

documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

OL-3673-01

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

Installation Prerequisites

Table 7 VIP4 Minimum Software Release Requirements

VIP Release Minimum Cisco IOS Supported Releases

VIP4-50 Cisco IOS Release 12.0(13)S2 or later release of Cisco IOS Release 12.0 S

Cisco IOS Release 12.1(6) or later release of Cisco IOS Release 12.1 mainline Cisco IOS Release 12.1(5)E or later release of Cisco IOS Release 12.1 E Cisco IOS Release 12.1(5.3)T or later release of Cisco IOS Release 12.1 T Cisco IOS Release 12.2(1) or later release of Cisco IOS Release 12.2 mainline Cisco IOS Release 12.2(1)T or later release of Cisco IOS Release 12.2 T

VIP4-80 Cisco IOS Release 12.0(10)S1 or later release of Cisco IOS Release 12.0 S

Cisco IOS Release 12.1(3) or later release of Cisco IOS Release 12.1 mainline Cisco IOS Release 12.1(3)E or later release of Cisco IOS Release 12.1 E Cisco IOS Release 12.1(3)T or later release of Cisco IOS Release 12.1 T Cisco IOS Release 12.2(1) or later release of Cisco IOS Release 12.2 mainline Cisco IOS Release 12.2(1)T or later release of Cisco IOS Release 12.2 T

Traffic Management

• Simple Network Management Protocol (SNMP) agent V1 (RFCs 1155-1157)

• Management Information Base (MIB) II (RFC 1213)

Hardware Requirements

The VIP4 is a single motherboard. It operates with:

• Cisco 7505, Cisco 7507, Cisco 7507-MX, Cisco 7513, Cisco 7513-MX, and the Cisco 7576 routers

with the Route Switch Processor (RSP1, RSP2, RSP4, RSP4+, or RSP8); the RSP should have at least 64 MB of DRAM.

• Cisco 7000 series routers with the 7000 Series Route Switch Processor (RSP7000) and 7000 Series

Chassis Interface (RSP7000CI), the RSP7000 should have at least 64 MB of DRAM.

• Two single-width port adapters, or one dual-width port adapter, supporting multiple LAN and WAN

port adapter types, including Ethernet, Fast Ethernet, Gigabit Ethernet, serial, channelized serial, multichannel, HSSI, ATM, and POS.

Note The VIP4 requires at leastone port adapter installed inorder to be supported. Asingle-width port adapter

must have a blank port adapter installed in the empty port adapter slot location.

Microcode Overview

The VIP4 microcode (firmware) is an image that provides card-specific software instructions. A programmable read-only memory (PROM) device on the VIP4 contains a default microcode boot image that assists the system in finding and loading the microcode image from the Cisco IOS bundle or Flash memory. The router supports downloadable microcode, which enables you to upgrade microcode versions by downloading new microcode images, storing them in system Flash memory, and instructing the system to load its image from Flash memory.You can storemultiple images for an interface type and, with a configuration command, instruct the system to load any one of them or the default microcode image.

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

OL-3673-01

The microcode boot image in the PROM initializes the VIP4 and then assists downloading the VIP4 microcode image. Allinterfaces of the same type (VIP4, and so on) will load the same microcode image, either from the microcode image bundled with the Cisco IOS or from an image stored in system Flash memory. Although multiple microcode versions for a specific interface type can be stored concurrently in Flash memory, only one image can load at startup.

The show controllers cbus command displays the currently loaded and running microcode version for each interface processor and VIP4. The show startup-config EXEC command showsthe current system instructions for loading microcode at startup.

Software and interface processor microcode images are carefully optimized and bundled to work together. Overriding the bundle can result in system incompatibilities. We recommend that you use the microcode included in the software bundle. For a complete description of microcode and downloading procedures, refer to the “Upgrading VIP4 Microcode” section on page 28.

ROM Monitor Overview

The VIP4 read-only memory (ROM) monitor, known as Rommon, is firmware. It runs a brief set of system diagnostics, initializes the VIP4 hardware, and downloads a copy of the Cisco IOS image.The ROM monitor loads the Cisco IOS image from Flash memory or from a TFTP server. While multiple Cisco IOS images can be stored in RSP Flash memory, just one can be loaded at system startup.

The VIP4 ROM monitor functions similarly to the boot loader image on the RSP, which runs a copy of the Cisco IOS image. The boot loader image allows the router to access the Cisco IOS image when powering up or initializing the system.

Agency Approvals

Tools and Parts Required

You need the following tools and parts to install or upgrade a VIP4:

• Number 1 Phillips and a 3/16-inch flat-blade screwdriver

• ESD-prevention equipment or disposable grounding wrist strap, included with all Cisco products

• VIP4 (For specific compatibility requirements, see the “Software Requirements” section on page 9.)

Note The VIP4 requires at leastone port adapter installed inorder to be supported. Asingle-width port adapter

must have a blank port adapter installed in the empty port adapter slot location.

If you need additional equipment, contact a service representative for ordering information.

Agency Approvals

The VIP4 is designed to comply with and meet the following agency approvals:

OL-3673-01

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

Safety Guidelines

Approvals Agencies

Safety CSA-C22.2 No. 950 (Canada)

Emissions CE marking (Europe)

Safety Guidelines

Following are safety guidelines that you should follow when working with any equipment that connects to electrical power or telephone wiring.

EN60950 (Europe) IEC 950 (International) UL 1950 (United States)

CISPR 22 Class B (International) FCC Part 15 Class A (United States) EN55022 Class B (Europe) ICES-003 Class A (Canada) VCCI Class B (Japan)

Safety Warnings

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each warning statement.

Warning

Waarschuwing

Varoitus

Thiswarning symbol means work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the accompanied this device.

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document (Informatie over naleving vanveiligheids- en andere voorschriften) raadplegen dat bij dit toestelis ingesloten.

Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta

-kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

danger

.Youareinasituationthat could cause bodily injury. Before you

Regulatory Compliance and Safety Information

document that

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

OL-3673-01

Safety Guidelines

Attention

Warnung

Avvertenza

Advarsel

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d’avertissements figurant dans cette publication, consultez le document

and Safety Information

appareil.

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit derArbeitanirgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento

Compliance and Safety Information

accompagna questo dispositivo.

Dette varselsymbolet betyr fare.Du befinnerdegi en situasjon somkan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer,samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet

Regulatory Compliance and Safety Information

sikkerhetsinformasjon) som ble levert med denne enheten.

(Conformité aux règlements et consignes de sécurité) qui accompagne cet

Regulatory Compliance and Safety Information

(Conformità alle norme e informazioni sulla sicurezza) che

(Overholdelse av forskrifter og

Regulatory Compliance

Regulatory

Aviso

¡Advertencia!

Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Disposições Reguladoras) que acompanha este dispositivo.

Estesímbolo de aviso significapeligro. Existeriesgoparasu integridad física. Antes de manipular cualquier equipo, considerar losriesgosque entraña la corrienteeléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado

Regulatory Compliance and Safety Information

Compliance and Safety Information

disposiciones reglamentarias) que se acompaña con este dispositivo.

Electrical Equipment Guidelines

Follow these basic guidelines when working with any electrical equipment:

• Before beginning any procedures requiring access to the router interior, locate the emergency

power-off switch for the room in which you are working.

• Disconnect all power and external cables before moving a router.

(Informação de Segurança e

Regulatory

(Información sobre seguridad y conformidad con las

OL-3673-01

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

Safety Guidelines

• Do not work alone when potentially hazardous conditions exist.

• Never assume that power has been disconnected from a circuit; always check.

• Do not perform any action that creates a potential hazard or makes the equipment unsafe.

• Carefully examine your work area for possible hazards such as moist floors, ungrounded power

extension cables, and missing safety grounds.

Telephone Wiring Guidelines

Use the followingguidelines when working with anyequipment that is connected to telephone wiring or to other network cabling:

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is specifically designed for wet

locations.

• Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures.

Use the following guidelines for preventing ESD damage:

• Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

• Connect the equipment end of the strap to an unfinished chassis surface.

• When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane.

• When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

• Place a removed board component-side-up on an antistatic surface or in a static shielding container;

otherwise, immediately place it in a static shielding container.

• Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be

between 1 and 10 megohms (Mohms).

Fourth Generation Versatile Interface Processor (VIP4) Installation and Configuration Guide

OL-3673-01

+ 30 hidden pages
