Cisco Valet Plus, Valet Plus M20, Valet M10 User Manual

Download

user guide

Table of Contents

Contents

Chapter 1: Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2: Cisco Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 3: Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Appendix A: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Appendix B: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Appendix C: Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Appendix D: Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Appendix E: Software End User License Agreement . . . . . . . . . . . . . . . . . .42

Chapter 1: Product Overview

Thank you for choosing a Cisco Valet wireless hotspot. This User Guide covers both the Valet (M10) and Valet Plus (M20) models. Valet will be used as a general reference to both models and all details in this User Guide apply to both models unless a specific model number is noted.

The Valet lets you and others in your home access the Internet wirelessly with a wireless equipped device such as a laptop or desktop computer, gaming device, or phone. The Valet wireless hotspot also has Fast Ethernet ports that allow you to connect up to four wired devices. The Valet Plus features Gigabit Ethernet ports for even faster wired speeds. You can also use your Valet wireless hotspot to share resources, such as computers. A variety of security features help to protect your data and your privacy while online.

The Valet includes the Cisco Connect software that helps to manage your Valet settings, local and guest access, and parental control settings.

Top

Wi-Fi Protected Setup Button If you have

client devices, such as wireless adapters, that support Wi-Fi Protected Setup™, then you can use the Wi-Fi Protected Setup button to automatically configure wireless security for your wireless network(s).

To use Wi-Fi Protected Setup, refer to Wi-Fi

Protected Setup, page 20.

Wireless (Blue) The Wireless LED lights up

when the wireless feature is enabled. It flashes when the Valet sends or receives data over the wireless network.

Internet (Blue) The Internet LED lights up

when there is a connection made through the Internet port. It flashes to indicate network activity over the Internet port.

(M20 Only) (Green/Blue) The LED

lights up green when the port is connected to a gigabit port or blue when the port is connected to a 10/100 port.

Power (Blue) The Power LED lights up when

the Valet is powered on. When the Valet goes through its self-diagnostic mode during every boot-up, the LED flashes. When the diagnostic is complete, the LED is continuously lit.

Top of Valet

Top of Valet Plus

1, 2, 3, 4 (Blue) These numbered LEDs,

corresponding with the numbered ports on the back of the Valet, serve two purposes. The LED is continuously lit when the Valet is connected to a device through that port. It flashes to indicate network activity over that port.

(M20 Only) (Green/Blue) The LED

lights up green when the port is connected to a gigabit port or blue when the port is connected to a 10/100 port.

Back

Internet Ethernet4 3 2 1 Reset

Back

12VDC

Power

Internet The Internet port is where you

connect the network (Ethernet) cable from your Internet connection. In most cases you will be connecting one end of the network cable to the Ethernet port on your cable or DSL modem and the other end to the Internet port on your Valet wireless hotspot.

4, 3, 2, 1 Using network cables, these Ethernet

ports (4, 3, 2, 1) connect the Valet to computers or other devices on your wired network that have Ethernet ports such as gaming consoles, HDTVs, Blu-ray disc players, or printers.

Reset There are two ways to reset the Valet

to its factory defaults. Either press and hold the Reset Button for approximately five seconds, or restore the defaults from the Administration > Factory  Defaults screen in the Valet’s browser-based utility (refer to

Administration > Factory Defaults, page 33).

Power The Power port is where you connect

the power adapter.

Chapter 1: Product Overview

Horizontal Placement

The Valet has four rubber feet on its bottom panel. Place the Valet on a level surface near an electrical outlet.

Horizontal Placement

Wall-Mounting Placement

The Valet has two wall-mount slots on its bottom panel. The distance between the slots is 152 mm.

Two screws are needed to mount the Valet.

Suggested Mounting Hardware

2.5-3.0 mm

Follow these instructions:

1. Determine where you want to mount the Valet. Make sure that the wall you use is smooth, flat, dry, and sturdy. Also make sure the location is within reach of an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are 152 mm apart.

3. Insert a screw into each hole and leave 3 mm of its head exposed.

4. Position the Valet so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the Valet down until the screws fit snugly into the wall-mount slots.

4-5 mm 1-1.5 mm

NOTE: Cisco is not responsible for damages

incurred by unsecured wall-mounting hardware.

Print this page at 100% size.

Wall-Mounting Template

152 mm

Cut along the dotted line, and place on the wall to drill precise spacing.

DVD/CD-RW Drive (E:) Linksys Router Setup

Always do this for software and games:

Install or run program

General options

Connect to your Cisco Valet

Published by Cisco Consumer Products LLC

Open folder to view files

using Windows Explorer

Chapter 2: Cisco Connect

During installation, the setup software installs the Cisco Connect software on your computer. Cisco Connect offers options to connect additional computers or devices to your Valet and allows you to modify the Valet’s settings.

Installation

To install the Valet:

1. Insert the Easy Setup Key into a USB port on your computer.

Windows XP

a. Go to Start > My Computer and select Easy Setup

Key.

b. Double-click Connect.exe.

Mac OS X

a. Double-click on the CD on your desktop.

b. Double-click Connect.

3. Read the Software End User License Agreement. To accept the agreement and continue with the installation, click Next.

Insert Easy Setup Key

2. Click Connect to your Cisco Valet.

AutoPlay

Connect your Cisco

Always do this for software and games:

Install or run program

Connect to your Cisco Valet

Published by Cisco Consumer Products LLC

General options

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

Set AutoPlay defaults in Control Panel

Connect to your Cisco Valet

If you do not see this, open the Easy Setup Key folder and double-click Connect. To do so, perform the following steps for your specific operating system:

Windows 7

a. Go to Start > Computer.

b. Double-click Easy Setup Key in the list of available

drives.

License Agreement

4. The connection steps are displayed.

Connection Overview

a. Plug the power cord into the Power port on the

back of the Valet.

Internet Ethernet4 3 2 1 Reset

12VDC

Power

c. Double-click on Connect.exe.

Windows Vista

a. Go to Start > Computer.

b. Double-click Easy Setup Key in the list of available

drives.

c. Double-click on Connect.exe.

Connect to Power Port

Chapter 2: Cisco Connect

b. Plug the power adapter into an electrical outlet.

Connect to Electrical Outlet

c. Unplug the existing network cable from your

computer and plug it into the yellow port labeled Internet on the back of the Valet. Click Next.

12VDC

Internet Ethernet4 3 2 1 Reset

Power

6. When you see the Congratulations screen, your computer is connected to the Internet. Remove your Easy Setup Key and keep it in a safe place. You can use it to connect additional computers to your Valet’s local network. Click OK.

Installation is Complete

NOTE: If you have any trouble during the

installation process, refer to the FAQs in the setup software or use a computer with an active Internet connection to visit www.ciscovalet.com/support.

Connect Network Cable

NOTE: You can view detailed connection steps

by clicking

in the setup software.

NOTE: If the setup software detects multiple

Valets, select your Valet from the list of detected Valets by verifying the last 5 digits of the serial number on your Valet. The serial number is located on the left side of the product label, which is on the bottom panel of the Valet.

5. Please wait while your Valet is being set up.

Please Wait

Main Menu

The main menu offers four options: Computers and Devices, Parental Controls, Guest Access, and Valet settings. To select an option, click on it.

Main Menu

Local Access versus Guest Access

You can connect computers or devices to your Valet by giving them local access (Computers and Devices option) or Guest Access (Guest Access option).

Computers and Devices with local access will have access to the Internet and to other devices on your local network, including shared computers and printers which are connected to the Valet. Local access can be given to a wired or wireless device. Refer to Computers and Other Devices, page 5 for more information.

Chapter 2: Cisco Connect

Guest Access allows you to provide guests visiting your home with Internet access. Your guests will not have access to your other computers or personal data. Provide your guest with the Guest Network name and password. Guest computers must connect to your network using a wireless network connection. Refer to Main Menu –

Guest Access, page 5 and Guest Access Settings, page 10 for more information.

The following diagram shows a typical example of how local access and guest access are used in the same home.

Guest Access versus Local Access Sample Diagram

Internet

Printer

Modem

Valet

Guest Laptop

Family Laptop

NOTE: Guest Access provides Internet access

only; it does not provide access to your local network and its resources or your personal information. For example, the guest computer cannot print to a printer on the local network or access files on a computer on the local network. Guest access helps minimize exposure of your local network and your family’s private information.

Guests can connect to x-guest using the password xyz When a guest wants Internet access in your home,

have the guest do the following:

1. Connect to the wireless guest network, which is the name of your wireless network followed by -guest.

2. Open a web browser.

3. On the login screen, enter the guest access password and click Login.

Change To disable guest access or change settings, click

Change and go to Guest Access Settings, page 10.

Main Menu – Valet Settings

Use this option to personalize the Valet’s settings.

Guest Access (Internet Access Only)

Local Access

Main Menu – Computers and Devices

Use this option to connect other computers or devices to your Valet’s local network, one at a time.

There is x device(s) connected to your Valet The

number of devices connected to the Valet is displayed.

Add device To connect another computer or device to

the Valet, click Add device and go to Computers and Other Devices, page 5.

Main Menu – Parental Controls

Parental controls restrict Internet access for up to five computers. For the computers you select, you can block or limit Internet access to specific times. You can also block specific websites.

Parental controls restrictions are being applied to x device(s) The number of devices with parental controls

restrictions is displayed.

Valet name is x The name of the Valet is displayed.

Safe Web Surfing Displays the on/off status of Safe Web

Surfing option.

Change To change settings, click Change and go to

Valet Settings, page 11.

Computers and Other Devices

The computers or devices you connect will have access to the Internet and your local network, including computers or other devices, such as a printer, connected to the Valet. If you have a guest visiting your home, you can provide Internet access only (no access to your local network) through the guest access feature. Refer to Guest Access

Settings, page 10 for more information.

Change To enable parental controls or change settings,

click Change and go to Parental Controls, page 8.

Main Menu – Guest Access

The guest network provides Internet access only. To grant Internet access to friends or family, provide the guest network name and password displayed on this screen.

Connect Another Computer or Device

Computer Click this option to connect another computer

in your home. Go to Computer, page 6.

Chapter 2: Cisco Connect

Wireless printer Click this option to connect a wireless

printer. Go to Wireless printer, page 7.

Other devices Click this option to connect a device that

is not a computer, such as a smartphone or game console. Go to Device, page 8.

Computer

Your Cisco Valet came with an Easy Setup Key. The Easy Setup Key holds the settings for the Valet. There are three options available when you choose to add a computer.

• Yes, I have an Easy Setup Key If you already have an

Easy Setup Key, select this option. Click Next and go to Connect with the Easy Setup Key, page 6.

• No, I don’t have an Easy Setup Key — create a new

one now If you want to create or update an Easy Setup

Key, select this option. Click Next and go to Update or create an Easy Setup Key, page 6.

• I want to connect manually using my wireless

settings If you want to connect manually (without an

Easy Setup Key), select this option. Click Next and go to Connect without the Easy Setup Key, page 7

4. Return to the original computer running the Cisco Connect software and enter a name that will be used to identify the device. Click Finish.

Name Your Device

Update or create an Easy Setup Key

1. Insert the Easy Setup Key or your own USB flash drive into an available USB port on your computer.

Connecting Another Computer

Connect with the Easy Setup Key

1. Insert the Easy Setup Key into an available USB port on the computer that you want to connect to the Valet.

2. On that computer, click Connect to your Cisco Valet. If you do not see this, open the Easy Setup Key folder and double-click Connect.

3. Follow the on-screen instructions to connect that computer to your Valet.

Update or Create an Easy Setup Key

2. Please wait while the settings are copied to the Easy Setup Key.

Copying Files to the Easy Setup Key

Chapter 2: Cisco Connect

3. Remove the Easy Setup Key and click Close. You can now use it to connect other computers to the Valet. Refer to Connect with the Easy Setup Key, page 6 to complete the process of adding another computer.

Easy Setup Key Has Been Updated

Connect without the Easy Setup Key

1. Enter the  Network  name  (SSID), Security  Key, and Security Type settings on your wireless device. To print this information, click Print these settings.

3. Enter a name that will be used to identify this device. Then click Finish.

Name Your Device

Wireless printer

1. Refer to your printer’s documentation to learn how to connect it to a wireless network.

2. Enter the  Network  name  (SSID), Security  Key, and Security Type settings on your wireless device. To print this information, click Print these settings.

Wireless Network Settings

2. After connecting your device, click Next.

Wireless Network Settings

3. Wait until your printer connects. On the Connecting a  wireless printer screen, click Next.

4. Enter a name that will be used to easily identify your printer.

Name Your Printer

Chapter 2: Cisco Connect

Device

1. Enter the  Network  name  (SSID), Security  Key, and Security Type settings on your wireless device. To print this information, click Print these settings.

Wireless Network Settings

2. After connecting your device, click Next.

Parental Controls

For the computers you select, you can block or limit Internet access to specific times. You can also block specific websites.

Parental Controls Password

First-Time Access of Parental Controls

1. The first time you access parental controls, you will be asked to create a parental controls password. Complete the following:

• Parental controls password Create a password that

protects access to parental controls.

3. Enter a name that will be used to identify the device and click Finish.

Name Your Device

• Verify password Re-enter the password.

• Secret question Create a secret question and answer

pair. If you forget the password, you can reset it by correctly answering the secret question. Enter your question.

• Answer Enter the answer to your secret question.

Click OK to save your settings.

2. Select the computer that you want to set up parental controls for. Then click OK.

Set Up Parental Controls For

Chapter 2: Cisco Connect

3. The Parental controls main screen appears.

Manage Parental Controls

You have the following options:

Restrict Internet access on The list of computer(s) you

have selected for parental controls is displayed. To add, remove, or rename computers on this list, refer to Restrict Internet Access List, page 9. To set up parental controls on a computer, refer to Set Up Parental Controls, page 9.

Change parental controls password Click this option

to change the password that protects access to parental controls. Refer to Change Parental Controls Password, page 10.

Select the computer whose parental controls you want to set up. Then click OK.

Remove If there is a computer that should not have

parental controls applied, select the computer and click Remove.

Rename To give a computer a new name, select the

computer and click Rename.

If you clicked Rename, the Rename  the  device screen appears.

Rename the Device

Enter the new name. Then click Rename.

Restrict Internet Access List

Parental Controls

Add If you want to apply parental controls to additional

computers, click Add.

If you clicked Add, the Set up parental controls for screen appears.

Set Up Parental Controls

To set up parental controls for a computer, follow these instructions:

1. Select the computer from the Restrict Internet access on list. (If the computer is not listed, click Add to select the computer.)

Parental Controls

2. The Block Internet access option offers the following:

• Always To always block Internet access, select this

option.

• Specific times To block Internet access during

specific days and times, select this option and set the schedule:

Set Up Parental Controls For

– School nights Select the appropriate start and

end times.

– Weekends Select the appropriate start and

end times

Chapter 2: Cisco Connect

• Never To always allow Internet access, keep the

default, Never.

3. The Block  sites  inappropriate  for option allows you to block websites based on content. The following options are available:

• Don’t Block Does not block any websites.

• Teen Blocks websites that contain content

inappropriate for teenagers.

• Child Blocks websites that contain content

inappropriate for children.

4. For the Block specific sites option, click Edit to create a list of websites you want to block. The default is None.

If you clicked Edit, the Block these sites screen appears.

• New password Enter a new password of 4-32

characters.

• Verify password Re-enter the new password.

Click Change to save your setting.

Blocked Sites

When you attempt to access a website that has been blocked on your computer, you will see a screen telling you that the site has been blocked and the reason it was blocked. You can override the blocking for an hour by entering the parental controls password in the Password field and clicking Unblock.

Block These Sites

a. Enter a website address on each line.

b. Click Save to save your settings.

5. On the Parental  controls  screen, click Finish to save your settings.

NOTE: Repeat steps 1-4 to set up parental

controls for different computers.

Change Parental Controls Password

If you clicked Change parental controls password, the Change your parental controls password screen appears.

Blocked Site

Guest Access Settings

Allow guest access By default, Guest Access is enabled.

To disable Guest Access, select no.

Guest network name By default, the setup software sets

up the name of the guest network.

Password By default, the setup software sets up the

password for the guest network. To change the password, click Change.

Change Your Parental Controls Password

• Old password Enter the old password.

If you clicked Change, the Change guest password screen appears.

Change Guest Password

• Enter a new guest password Enter a password of

4-32 characters.

• Click Change to save your setting.

Total guests allowed By default, 5 guests are allowed

Internet access through your guest network. If you want to allow more or less, select the desired number of guests from the drop-down menu ; you can select up to 10 guests.

Chapter 2: Cisco Connect

Easy Setup Key

Update or create key The Easy Setup Key is a USB flash

drive that holds the settings for the Valet. To create or update the Easy Setup Key, click Create or update key. For more information, refer to Update or create an Easy Setup Key, page 6.

Safe Web Surfing

On/off Safe web surfing alerts you when you are about

to visit a potentially harmful website. You can choose whether to visit the site or not. Safe web surfing is enabled by default.

Other Options

Valet details To view more information about the Valet,

click Valet details and go to Valet Details, page 12.

NOTE: Computers that are connected to the

local network do not count towards the number of guests allowed.

Click Finish to save your settings.

Valet Settings

Personalize

Valet name The name of your Valet is displayed (this is

also the name of your wireless network). To change the name, click Change and go to Change Valet Name or

Password, page 11.

Advanced settings To access settings for advanced

users, click Advanced settings and go to Advanced Settings, page 12.

Click Finish to save your settings.

Change Valet Name or Password

NOTE: If you change the Valet name or

password, then the wireless computers or other devices connected to the Valet will need to be reconnected using the new name or password (for more information, refer to Computers and Other Devices, page 5).

If you clicked Change, the Changing  Valet  name  or  password screen appears.

1. To change the Valet name or password, click Yes. Otherwise, click No.

Password The password that protects access to the

Valet’s settings is displayed (this also protects wireless access to your local network). To change the password, click Change and go to Change Valet Name or Password, page 11.

Changing Valet Name or Password

2. Complete the following:

• Valet name Enter a name of 1-32 characters.

• Password Enter a password of 8-63 characters.

Chapter 2: Cisco Connect

• Click Change to save your settings.

Changing Valet Name and Password

Valet Details

The Valet  details screen appears, displaying the Model name, Model number, Serial number, Firmware version, Operating system, Software version, Connection type (WAN), IP address (LAN), IP address (WAN), and Computer IP address. (WAN stands for Wide Area Network, such as the Internet. IP stands for Internet Protocol. LAN stands for Local Area Network.)

Copy To copy the details to a text file, click Copy and

follow these instructions:

Password Enter this password to access the

browser-based utility.

Copy password To copy the password to the Clipboard,

click this option.

Advanced Settings

Click OK to open the web browser and access the browser-based utility. For more information, refer to How

to Access the Browser-Based Utility, page 13. Click Cancel to return to the Valet settings screen.

How to Exit Cisco Connect

To exit Cisco Connect, click Close on the main menu.

1. Open a text editor, such as Microsoft Word or Notepad.

2. Go to Edit > Paste.

3. Go to File > Save.

Valet Details

Click Close to return to the Valet settings screen.

Advanced Settings

If you are an advanced user, you can access the browser-based utility to access the advanced configuration settings of the Valet.

Main Menu

How to Access Cisco Connect

Windows

To access Cisco Connect, go to Start > All Programs > Cisco Connect.

Mac

To access Cisco Connect, go to Go > Applications > Cisco

Connect.

WARNING: Modifying some settings in the

browser-based utility may disable settings you’ve already applied using the Easy Setup Key.

Username Enter this username to access the

browser-based utility.

Chapter 3: Advanced Configuration

After setting up the Valet with the Setup Wizard (located on the Setup Key), the Valet is ready for use. For more technically knowledgeable users, the Valet does include Advanced Configuration settings. If you’d like to change some of the Valet’s advanced settings, you can modify settings using the browser-based utility.

WARNING: Modifying some settings in the

browser-based utility may disable settings you’ve already applied using the Easy Setup Key.

This chapter describes each web page of the utility and the key functions on each page. You can access the utility via a web browser on a computer connected to the Valet.

The browser-based utility has the following main tabs:

• Setup

• Wireless

• Security

• Access Restrictions

NOTE: You can also access the browser-based

utility through the Cisco Connect software. For more information, refer to Valet Settings, page 11.

Setup > Basic Setup

The first screen that appears is the Basic  Setup screen. This screen allows you to change the language of the text displayed in the browser-based utility, configure the Internet connection settings, configure the network settings, and select time zone settings.

• Applications & Gaming

• Administration

• Status

Additional sub tabs become available after you click one of the main tabs.

How to Access the Browser-Based Utility

To access the browser-based utility, launch the web browser on your computer, and enter the IP address of the Valet in the Address field. The default IP address of the Valet is 192.168.1.1

http://192.168.1.1

Then, press Enter.

A login screen will appear. (Non-Windows 7 users will see a similar screen.) In the User name field, enter admin. Then enter the password created during the setup software. (If you did not run the setup software, then use the default password, admin. You can set a new password on the Administration > Management screen (refer to Administration > Management, page 31.) Click OK to continue.

Setup > Basic Setup

Language

The Language section allows you to change the language of the text displayed in the browser-based utility.

Internet Setup

The Internet  Setup section configures the Valet to your Internet connection. Most of this information can be obtained through your Internet Sevice Provider (ISP).

Windows 7 Login Screen

Internet Connection Type

Select the type of Internet connection your ISP provides from the drop-down menu. These are the available types:

• Automatic Configuration - DHCP

• Static IP

• PPPoE

• PPTP

Chapter 3: Advanced Configuration

Internet Connection Type > PPPoE

• L2TP

• Telstra Cable

Automatic Configuration - DHCP

The default Internet Connection Type is Automatic Configuration - DHCP. Keep the default only if your ISP supports DHCP (Dynamic Host Configuration Protocol) or if you connect using a dynamic IP address.

Internet Connection Type > Automatic Configuration - DHCP

Static IP

If you are required to use a permanent IP address to connect to the Internet, select Static IP.

Username and Password Enter the Username and

Password provided by your ISP.

Service Name If provided by your ISP, enter the Service

Name.

Connect on Demand: Max Idle Time You can configure

the Valet to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand automatically reestablishes the connection as soon as you attempt to access the Internet again. To use this option, select Connect on Demand. In the Max  Idle  Time field, enter the number of minutes you want to elapse before your Internet connection terminates. The default Max Idle Time is 5 minutes.

Keep Alive: Redial Period If you select this option, the

Valet will periodically check your Internet connection. If you are disconnected, your connection will automatically be reestablished. To use this option, select Keep Alive. In the Redial Period field, you specify how often you want the Internet connection checked on. The default Redial Period is 30 seconds.

Internet Connection Type > Static IP

Internet IP Address This is the Valet’s IP address, when

seen from the Internet. Your ISP will provide you with the IP address you need to specify here.

Subnet Mask This is the Valet’s Subnet Mask, as seen by

users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Default Gateway Your ISP will provide you with the IP

address of the ISP server.

DNS 1-3 Your ISP will provide you with at least one DNS

(Domain Name System) server IP address.

PPPoE

Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable PPPoE.

PPTP

Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe only.

Internet Connection Type > PPTP

If your ISP supports DHCP or you are connecting through a dynamic IP address, then select Obtain an IP Address Automatically. If you are required to use a permanent IP

Chapter 3: Advanced Configuration

address to connect to the Internet, then select Specify an IP Address. Then configure the following:

• Specify an IP Address This is the Valet’s IP address, as

seen from the Internet. Your ISP will provide you with the IP address you need to specify here.

• Subnet Mask This is the Valet’s Subnet Mask, as seen

by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

• Default Gateway Your ISP will provide you with the

IP address of the ISP server.

• DNS 1-3 Your ISP will provide you with at least one

DNS (Domain Name System) server IP address.

PPTP Server IP Address Your ISP will provide you with

the IP address of the PPTP server.

Username and Password Enter the Username and

Password provided by your ISP.

Connect on Demand: Max Idle Time You can configure

the Valet to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand automatically reestablishes the connection as soon as you attempt to access the Internet again. To use this option, select Connect on Demand. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates. The default Max Idle Time is 5 minutes.

Connect on Demand: Max Idle Time You can configure

the Valet to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand automatically reestablishes the connection as soon as you attempt to access the Internet again. To use this option, select Connect on Demand. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates. The default Max Idle Time is 5 minutes.

Keep Alive: Redial Period If you select this option,

the Valet will periodically check your Internet connection. If you are disconnected, then the Valet will automatically re-establish your connection. To use this option, select Keep Alive. In the Redial Period field, you specify how often you want the Internet connection checked on. The default Redial Period is 30 seconds.

Telstra Cable

Telstra Cable is a service that applies to connections in Australia only.

Keep Alive: Redial Period If you select this option, the

Valet will periodically check your Internet connection. If you are disconnected, your connection will automatically be reestablished.

To use this option, select Keep Alive.

In the Redial Period field, you specify how often you want the Internet connection checked on.

The default value is 30

seconds.

L2TP

L2TP is a service that applies to connections in Israel only.

Internet Connection Type > L2TP

Server IP Address This is the IP address of the L2TP

Server. Your ISP will provide you with the IP address you need to specify here.

Username and Password Enter the Username and

Password provided by your ISP.

Internet Connection Type > Telstra Cable

Server IP Address This is the IP address of the Heartbeat

Server. Your ISP will provide you with the IP address you need to specify here.

Username and Password Enter the Username and

Password provided by your ISP.

Connect on Demand: Max Idle Time You can configure

the Valet to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand automatically reestablishes the connection as soon as you attempt to access the Internet again. To use this option, select Connect on Demand. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates. The default Max Idle Time is 5 minutes.

Keep Alive: Redial Period If you select this option, the

Valet will periodically check your Internet connection. If you are disconnected, your connection will automatically be reestablished.

To use this option, select Keep Alive.

In the Redial Period field, you specify how often you want the Internet connection checked on.

The default value is 30

seconds.

Chapter 3: Advanced Configuration

Optional Settings

Some of these settings may be required by your ISP. Verify these settings with your ISP before making any changes.

Optional Settings

Host Name and Domain Name These fields allow you to

supply a host and domain name. Some ISPs, usually cable ISPs, require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.

MTU MTU is the Maximum Transmission Unit. It specifies

the largest packet size permitted for Internet transmission. Select Manual if you want to manually enter the largest packet size that is transmitted. To allow the Valet to select the best MTU for your Internet connection, keep the default setting, Auto.

Size When Manual is selected in the MTU field, this option

is enabled. Leave this value in the 1200 to 1500 range. The default size depends on the Internet Connection Type:

• DHCP, Static IP, or Telstra: 1500

• PPPoE: 1492

• PPTP or L2TP: 1460

Network Setup

The Network  Setup section configures the IP settings for your local network.

Router IP

This presents the IP Address of the Valet, Subnet Mask, and URL as seen by your network.

DHCP Server Setting

The Valet includes a DHCP server that automatically assigns IP addresses to computers, cell phones, gaming systems, and other DHCP enabled devices on your home network.

NOTE: If you choose to enable the DHCP server

option, make sure there is no other DHCP server on your network.

DHCP Server Setting

DHCP Server DHCP is enabled by factory default. If you

already have a DHCP server on your network, or you do not want a DHCP server, then select Disabled (no other DHCP features will be available).

NOTE: If you disconnect a computer or device

from your network and reconnect it to the network at a later time, it may be assigned a new IP address. If you want to ensure that the computer or device uses the same IP address all the time, you can use the DHCP Reservation option.

DHCP Reservation Click this button if you want to

assign a fixed local IP address to a specific device on your network. This is helpful if you have a device you need to access at the same address all the time such as a media server or print server. You can reserve the IP address for the specific device by selecting it from the list of devices or by manually entering the MAC address of the device.

Router IP

IP Address This is the IP address of the Valet and is used

as the base for all of your local network settings.

Subnet Mask This is the subnet mask address for your

Valet. It offers a selection of addresses from a drop-down menu. Most users will not need to change this setting.

URL Address This value entered here can be typed

into a web browser’s address field to access the Valet’s browser-based utility instead of typing in the IP address of the Valet.

DHCP Reservation

You will see a list of DHCP clients with the following information: Client Name, Interface, IP Address, and MAC Address.

Chapter 3: Advanced Configuration

DHCP Reservation

• Select Clients from DHCP Table Click the Select

check box to reserve a client’s IP address. Then click Add Clients.

• Manually Adding Client To manually assign an IP

address, enter the client’s name in the Enter  Client  Name field. Enter the IP address you want it to have in the Assign IP Address field. Enter its MAC address in the

To This MAC Address field. Then click Add.

Static DNS 1-3

the Internet translates domain or website names into Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. If you wish to use another, enter that IP Address in one of these fields. You can enter up to three DNS Server IP Addresses here. The Valet will use these for quicker access to functioning DNS servers

WINS The Windows Internet Naming Service (WINS)

manages each PC’s interaction with the Internet. If you use a WINS server, enter that server’s IP Address here. Otherwise, leave this blank.

The Domain Name System (DNS) is how

Time Settings

Time Zone Select the time zone in which your network

functions from this drop-down menu. (You can even automatically adjust for daylight saving time.)

Time Setting

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Clients Already Reserved

A list of DHCP clients and their fixed local IP addresses will be displayed at the bottom of the screen. If you want to remove a client from this list, click Remove.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes. To view the most up-todate information, click Refresh. To exit this screen, click

Close.

Start IP Address Enter a value for the DHCP server to

start with when is default IP address is 192.168.1.1, the Start IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.253. The default Starting IP Address is 192.168.1.100

Maximum Number of Users Enter the maximum

number of PCs that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 50.

IP Address Range Displayed here is the range of available

IP addresses.

Client Lease Time Client Lease Time is the amount of

time that a device will be “leased” a dynamic IP address. After the time is up, the user will be automatically assigned a new dynamic IP address, or the lease will be renewed with the same IP address. The default is 0 minutes, which means one day.

suing IP addresses. Because the Valet’s

Setup > DDNS

The Valet offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Valet.

Before you can use this feature, you need to sign up for DDNS service with a DDNS service provider, www.dyndns.org or www.TZO.com. If you do not want to use this feature, keep the default setting, Disabled.

DDNS

DDNS Service

If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary, depending on which DDNS service provider you use.

Chapter 3: Advanced Configuration

DynDNS.org

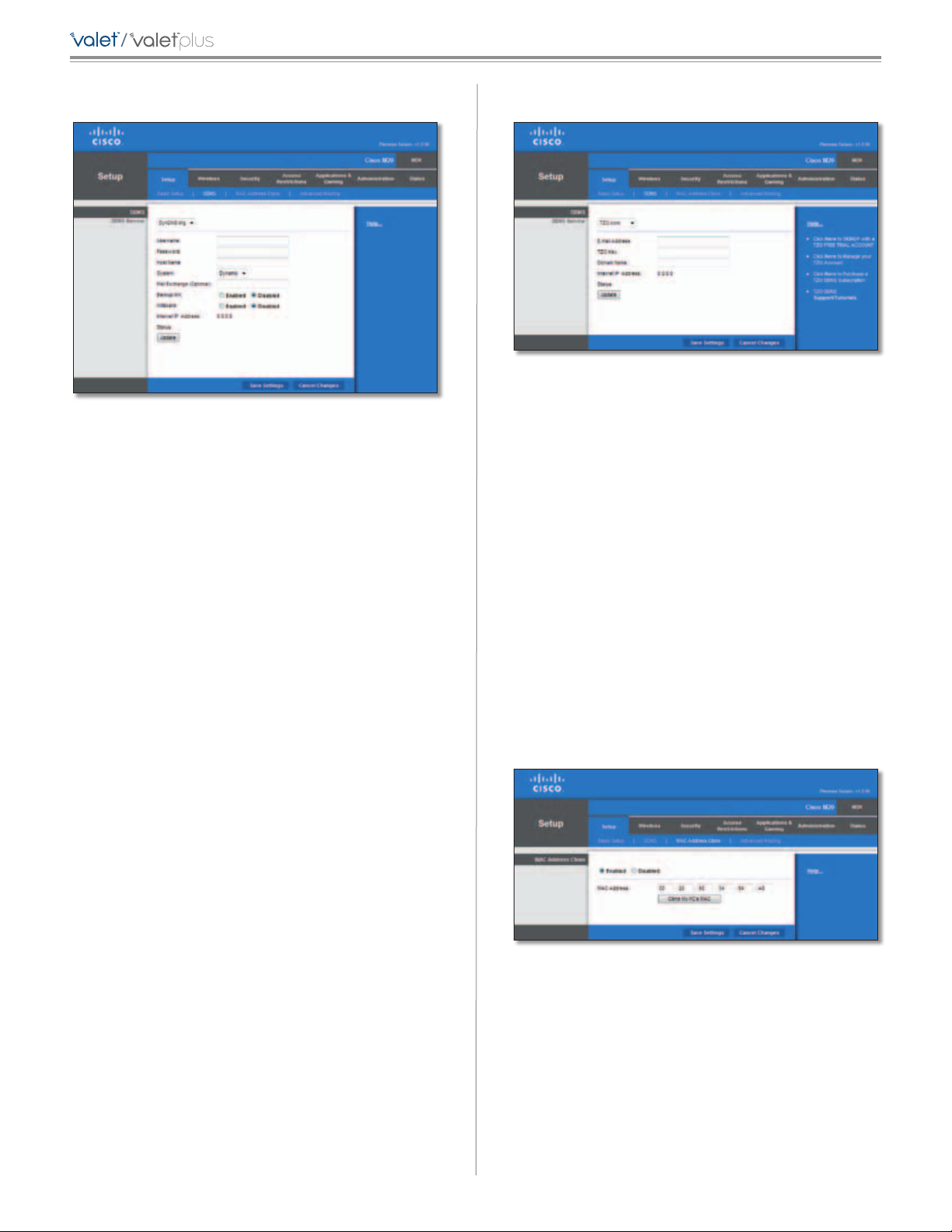

Setup > DDNS > DynDNS

Username Enter the Username for your DDNS account.

Password Enter the Password for your DDNS account.

Host Name The is the DDNS URL assigned by the DDNS

service.

System Select the DynDNS service you use: Dynamic,

Static, or Custom. The default selection is Dynamic.

Mail Exchange (Optional) Enter the address of your mail

exchange server, so e-mails to your DynDNS address go to your mail server.

Backup MX This feature allows the mail exchange server

to be a backup. To disable this feature, keep the default, Disabled. To enable the feature, select Enabled. If you are not sure which setting to select, keep the default,

Disabled.

Wildcard This setting enables or disables wildcards

for your host. For example, if your DDNS address is

myplace.dyndns.org and you enable wildcards, then x.myplace.dyndns.org will work as well (x is the wildcard).

To disable wildcards, keep the default, Disabled. To enable wildcards, select Enabled. If you are not sure which setting to select, keep the default, Disabled.

TZO.com

Setup > DDNS > TZO

E-mail Address, TZO Key, and Domain Name Enter the

settings of the account you set up with TZO.

Internet IP Address The Valet’s Internet IP address is

displayed here. Because it is dynamic, it will change.

Status The status of the DDNS service connection is

displayed here.

Update To manually trigger an update, click this button.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Setup > MAC Address Clone

A MAC address is a 12-digit code assigned to a unique piece of hardware for identification. Some ISPs will require you to register a MAC address in order to access the Internet. If you do not wish to re-register the MAC address with your ISP, you can use the MAC Address Clone feature to assign the currently registered MAC address to the Valet.

Internet IP Address The Valet’s Internet IP address is

displayed here. Because it is dynamic, it will change.

Status The status of the DDNS service connection is

displayed here.

Update To manually trigger an update, click this button.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Setup > MAC Address Clone

MAC Address Clone

Enabled/Disabled To have the MAC Address cloned,

select Enabled.

MAC Address Enter the MAC Address registered with

your ISP here.

Clone My PC’s MAC Click this button to clone the MAC

address of the computer you are using.

Chapter 3: Advanced Configuration

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Setup > Advanced Routing

This screen is used to set up the Valet’s advanced functions. Operating Mode allows you to select the type(s) of advanced functions you use. Dynamic Routing automatically adjusts how packets travel on your network. Static Routing sets up a fixed route to another network destination.

Enter Route Name Enter a name for the Route here,

using a maximum of 25 alphanumeric characters.

Destination LAN IP The Destination LAN IP is the address

of the remote network or host to which you want to assign a static route.

Subnet Mask The Subnet Mask determines which

portion of a Destination LAN IP address is the network portion, and which portion is the host portion.

Gateway This is the IP address of the gateway device

that allows for contact between the Valet and the remote network or host.

Interface This interface tells you whether the Destination

IP Address is on the LAN & Wireless (Ethernet and wireless networks) or the Internet (WAN).

Click Show Routing Table to view the static routes you have already set up.

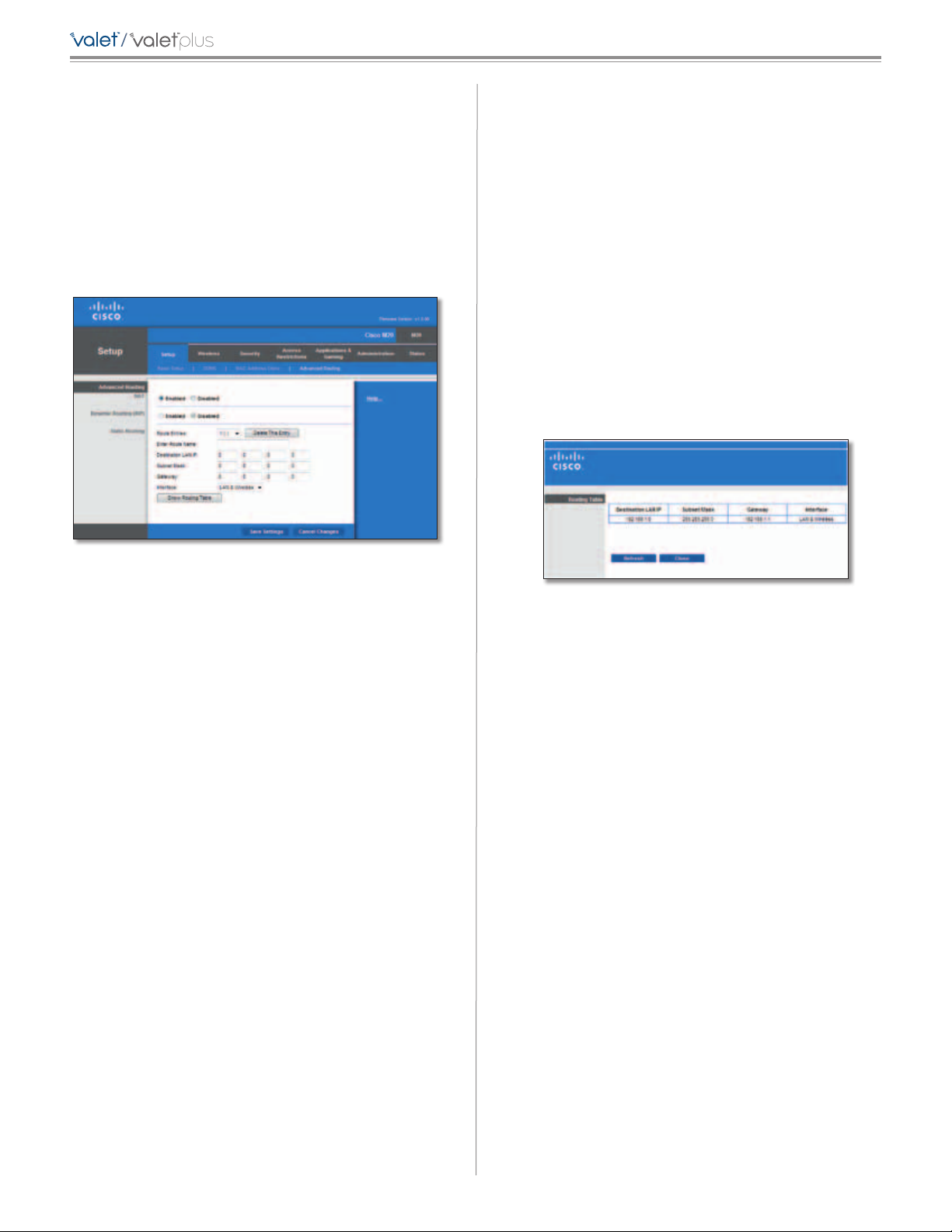

Setup > Advanced Routing

Advanced Routing

NAT

Enabled/Disabled If the Valet is hosting your network’s

connection to the Internet, keep the default, Enabled. If another router exists on your network, select Disabled. When the NAT setting is disabled, dynamic routing will be enabled.

Dynamic Routing (RIP)

Enabled/Disabled This feature enables the Valet to

automatically adjust to physical changes in the network’s layout and exchange routing tables with the other router(s). The Valet determines the network packets’ route based on the fewest number of hops between the source and the destination. When the NAT setting is enabled, the Dynamic Routing feature is automatically disabled. When the NAT setting is disabled, this feature is available. Select Enabled to use the Dynamic Routing feature.

Static Routing

A static route is a pre-determined pathway that network information must travel to reach a specific host or network. Enter the information described below to set up a new static route.

Route Entries To set up a static route between the Valet

and another network, select a number from the dropdown list. Click Delete This Entry to delete a static route.

Advanced Routing > Routing Table

Routing Table

For each route, the Destination LAN IP address, Subnet Mask, Gateway, and Interface are displayed. Click Refresh to update the information. Click Close to exit this screen.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

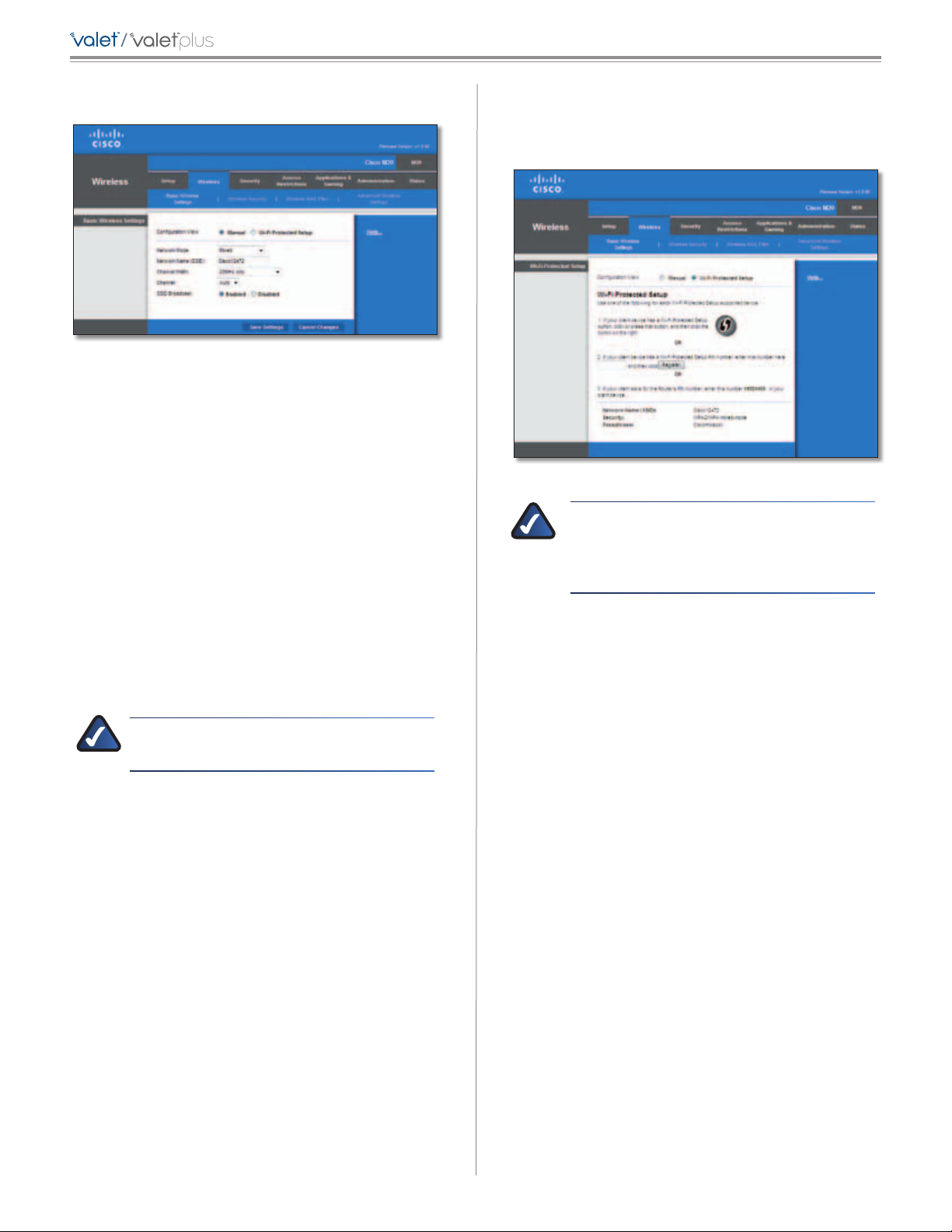

Wireless > Basic Wireless Settings

The basic settings for wireless networking are set on this screen.

There are two ways to configure the Valet’s wireless network(s), manual and Wi-Fi Protected Setup.

Wi-Fi Protected Setup is a feature that makes it easy to set up your wireless network. If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup, then you can use Wi-Fi Protected Setup.

Configuration View To manually configure your wireless

network, select Manual. Proceed to the “Basic Wireless Settings” section. To use Wi-Fi Protected Setup, select Wi-Fi Protected Setup. Proceed to the “Wi-Fi Protected Setup” section.

Chapter 3: Advanced Configuration

Basic Wireless Settings (Manual)

Wireless > Basic Wireless Settings (Manual Setup)

Network Mode From the drop-down menu, select the

wireless standards running on your network:

• Mixed Use this option if you have Wireless-N,

Wireless-G, and Wireless-B devices on your network.

• BG-Mixed Use this option if you have only Wireless-G

and Wireless-B devices on your network.

• Wireless-G Only Use this option if you have only

Wireless-G devices on your network.

• Wireless-B Only Use this option if you have only

Wireless-B devices on your network.

Wi-Fi Protected Setup

There are three methods available. Use the method that applies to the client device you are configuring.

Wireless > Basic Wireless Settings (Wi-Fi Protected Setup)

NOTE: Wi-Fi Protected Setup configures one

client device at a time. Repeat the instructions for each client device that supports Wi-Fi Protected Setup.

• Wireless-N Only Use this option if you have only

Wireless-N devices on your network.

• Disabled Use this option if your network has no

wireless devices, or if you want to disable wireless networking.

NOTE: If you are unsure of what network mode

to use, keep the default Mixed setting.

Network Name (SSID) The SSID is the network name

shared among all points in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 characters (use any of the characters on the keyboard).

Channel Width Select Auto if you want the Valet to

automatically determine the proper channel width (20MHz or 40MHz) to use. For best performance, select

Auto, otherwise keep the default 20MHz only.

Channel Select a channel from 1 to 11, or Auto (default).

SSID Broadcast When wireless clients survey the local

area for wireless networks to associate with, they will detect the SSID broadcast by the Valet. To broadcast the Valet’s SSID, keep the default setting, Enabled. If you do not want to broadcast the Valet’s SSID, then select Disabled.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

1. Use the Wi-Fi Protected Setup Button Use this

method if your client device has a Wi-Fi Protected Setup button.

a. Click or press the Wi-Fi Protected Setup button on

the client device.

b. Click the Wi-Fi Protected Setup button on this

screen.

The Wi-Fi Protected Setup LED on the Valet flashes blue for two minutes during the setup process and lights up solid blue when the Wi-Fi Protected Setup process is successful.

The LED lights up amber if there is an error during the Wi-Fi Protected Setup process. Make sure the client device supports Wi-Fi Protected Setup. Wait until the LED is off, and then try again.

The LED flashes when a Wi-Fi Protected Setup session is active. The Valet supports one session at a time. Wait until the LED is solidly lit, or off before starting the next Wi-Fi Protected Setup session.

c. After the client device has been configured, click

OK. Then refer back to your client device or its documentation for further instructions.

2. Enter the client device’s PIN on the Valet Use this

method if your client device has a Wi-Fi Protected Setup PIN number.

a. Enter the PIN number in the field on this screen.

Chapter 3: Advanced Configuration

b. Click Register.

c. After the client device has been configured, click

OK. Then refer back to your client device or its documentation for further instructions.

3. Enter the Valet’s PIN on your client device Use this

method if your client device asks for the Valet’s PIN number.

a. Enter the PIN number listed on this screen. (It is

also listed on the label on the bottom of the Valet.)

b. After the client device has been configured, click

OK. Then refer back to your client device or its documentation for further instructions.

The Wi-Fi Protected Setup Status, Network Name (SSID), Security, Encryption, and Passphrase are displayed at the bottom of the screen.

NOTE: If you have client devices that do not

support Wi-Fi Protected Setup, note the wireless settings, and then manually configure those client devices.

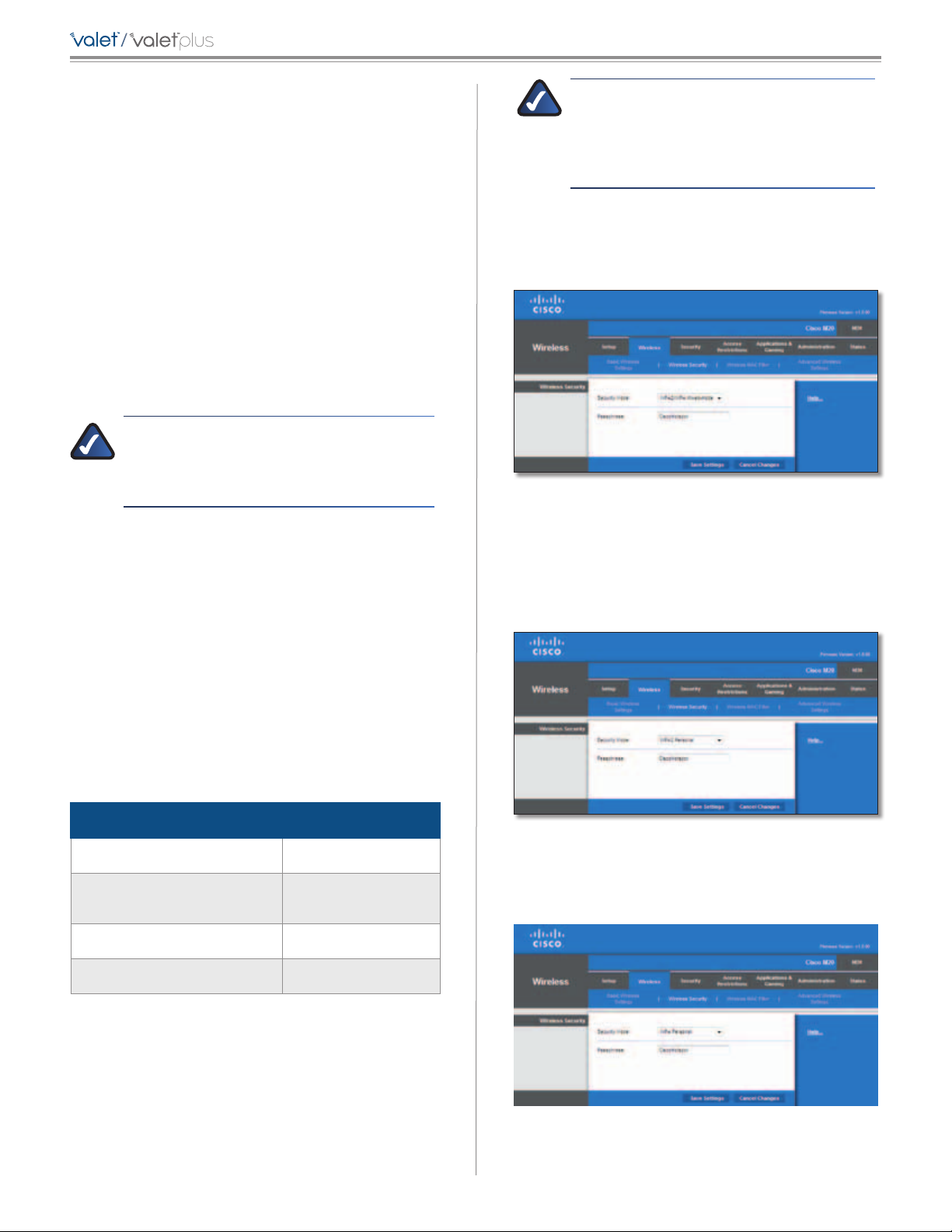

Wireless > Wireless Security

The wireless security settings configure the security of your wireless network(s). The Valet supports the following wireless security options: WPA/WPA2 Mixed Mode (default), WPA2 Personal, WPA Personal, WEP, and RADIUS. (WPA stands for Wi-Fi Protected Access. WEP stands for Wireless Equivalent Privacy. RADIUS stands for Remote Authentication Dial-In User Service.)

NOTE: If you are not using WPA2/WPA

Mixed-Mode then each device in your wireless network MUST use the same encryption method and shared key, or else the network will not function properly.

WPA/WPA2 Mixed Mode

WPA/WPA2 Mixed Mode allows you to use devices on your network that use either WPA or WPA2 security mode.

Security Mode > WPA/WPA2 Mixed Mode

Passphrase Enter a Passphrase of 8-63 characters.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

WPA2 Personal

The default option is WPA/WPA2 Mixed Mode, which allows your devices to connect using the strongest security option they support, WPA2 or WPA.

Personal Options

Security Option Strength

WPA2 Personal Strongest

WPA/WPA2 Mixed Mode (default)

WPA Personal Strong

WEP Basic

WPA2: Strongest WPA: Strong

Office Option

RADIUS is the security option offered for networks that use a RADIUS server for authentication.

Security Mode

Select the security method for your wireless network. If you do not want to use wireless security, keep the default, Disabled.

Security Mode > WPA2 Personal

Passphrase Enter a Passphrase of 8-63 characters.

WPA Personal

Security Mode > WPA Personal

Passphrase Enter a Passphrase of 8-63 characters.

Chapter 3: Advanced Configuration

WEP

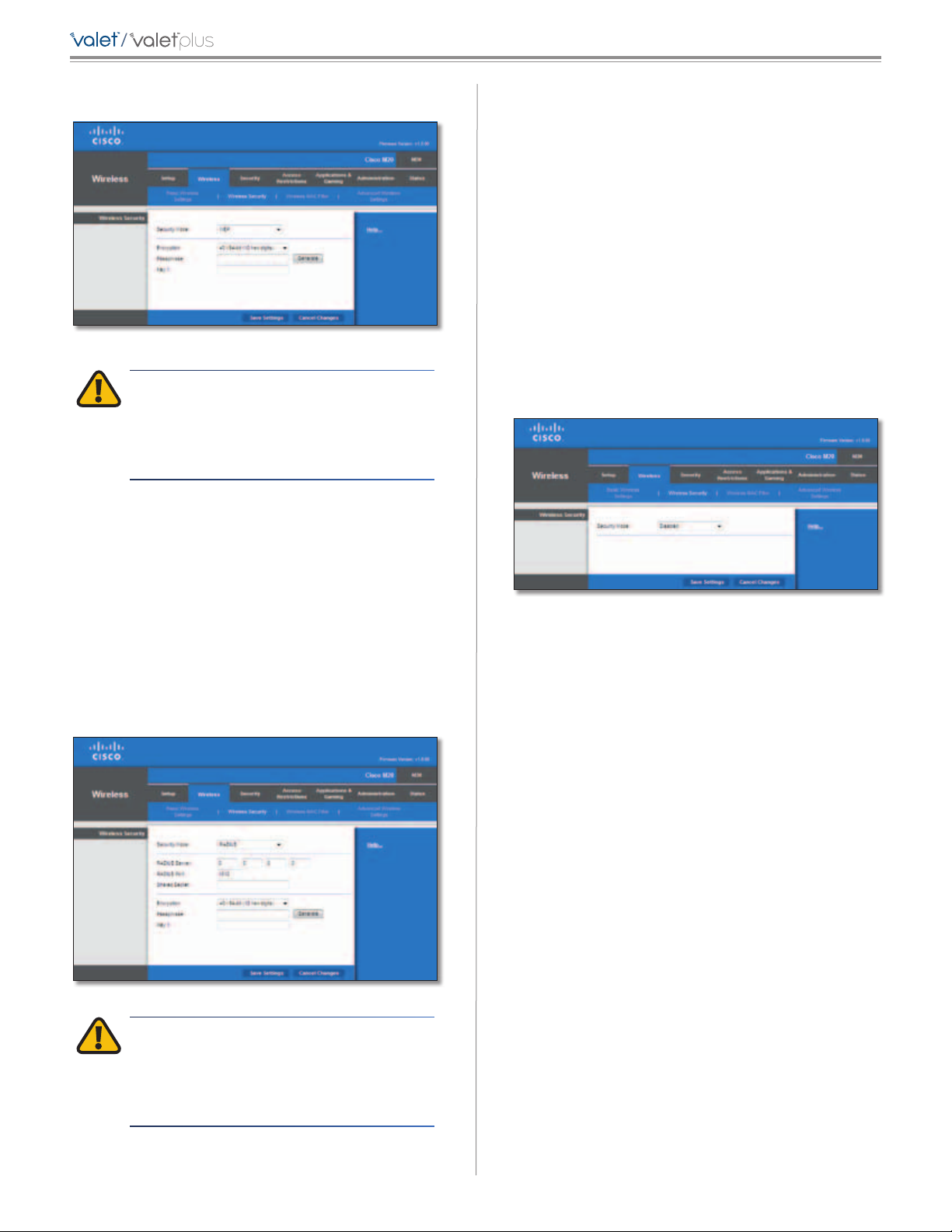

Security Mode > WEP

IMPORTANT: If you are using WEP encryption,

always remember that each device in your wireless network MUST use the same WEP encryption method and encryption key, or else your wireless network will not function properly.

Encryption Select a level of WEP encryption,

40/64 bits (10 hex digits) or 104/128 bits (26 hex digits). The default is 40/64 bits (10 hex digits).

RADIUS Port Enter the port number of the RADIUS

server. The default value is 1812.

Shared Secret Enter the key shared between the Valet

and the server.

Encryption Select a level of WEP encryption,

40/64 bits (10 hex digits) or 104/128 bits (26 hex digits). The default is 40/64 bits (10 hex digits).

Passphrase Enter a Passphrase to automatically generate

WEP keys. Then click Generate.

Key 1 If you did not enter a Passphrase, enter the WEP

key manually.

Disabled

When wireless security is disabled on your network, anyone can access your network at any time.

Passphrase Enter a Passphrase to automatically generate

WEP keys. Then click Generate.

Key 1 If you did not enter a Passphrase, enter the WEP

key manually.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

RADIUS

Security Mode > RADIUS

Security Mode > Disabled

IMPORTANT: If you are using WEP encryption,

always remember that each device in your wireless network MUST use the same WEP encryption method and encryption key, or else your wireless network will not function properly.

RADIUS Server Enter the IP Address of the RADIUS server.

Chapter 3: Advanced Configuration

Wireless > Wireless MAC Filter

The Wireless  MAC  Filter option allows you to block or grant access to your network based on the device’s MAC address. Each device on your network has a unique MAC address that was assigned to it by the manufacturer.

MAC Address Filter List

Wireless Client List Click this to open the Wireless Client 

List screen.

Wireless Client List

This screen shows computers and other devices on the wireless network. The list can be sorted by IP Address, MAC Address, Status, Interface, and Client Name.

Select Save to MAC Address Filter List for any device you want to add to the MAC Address Filter List. Then click Add.

To retrieve the most up-to-date information, click

Refresh. To exit this screen and return to the Wireless  MAC Filter screen, click Close.

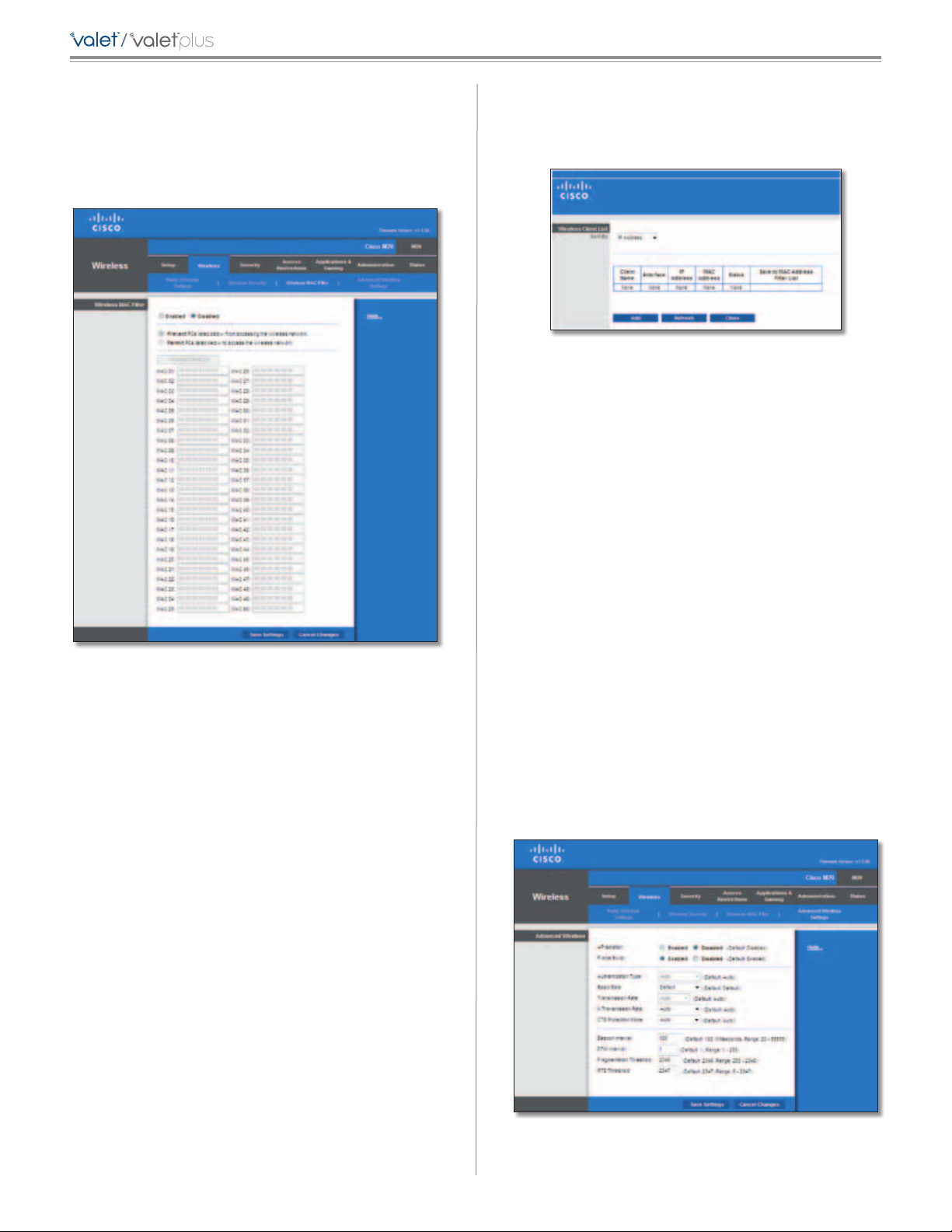

Wireless > Wireless MAC Filter

Wireless MAC Filter

Enabled/Disabled

either permitting or blocking access, select Enabled. If you do not wish to filter users by MAC Address, keep the default setting, Disabled

Access Restriction

Prevent Select this option to block a specific device or

multiple devices from accessing your wireless network. You can manually enter the unwanted MAC address(es) or select the device(s) from the Wireless Client List. When wireless mac filtering is enabled, this option is selected by default.

Permit Select this option to specify which devices can

access your wireless network. When this option is enabled, only devices that have their MAC address listed in the Wireless MAC Filter list will be able to access your wireless network. You can enter MAC addresses manually or select them from the Wireless Client List.

To filter wireless users by MAC Address,

MAC 01-50 Enter the MAC addresses of the devices

whose wireless access you want to block or allow.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Wireless > Advanced Wireless Settings

This Advanced Wireless Settings screen is used to set up the Valet’s advanced wireless functions. These settings should only be adjusted by an advanced user because incorrect settings can reduce wireless performance. In most cases, keep the default settings.

Wireless > Advanced Wireless Settings

Chapter 3: Advanced Configuration

Advanced Wireless

AP Isolation This isolates all wireless clients and wireless

devices on your network from each other. Wireless devices will be able to communicate with the Valet but not with each other. To use this function, select Enabled. AP Isolation is disabled by default.

Frame Burst Enabling this option should provide your

network with greater performance, depending on the manufacturer of your wireless products. To use this option, keep the default, Enabled. Otherwise, select Disabled.

Authentication Type The default is set to Auto, which

allows either Open System or Shared Key authentication to be used. With Open System authentication, the sender and the recipient do NOT use a WEP key for authentication. With Shared Key authentication, the sender and recipient use a WEP key for authentication. Select Shared Key to only use Shared Key authentication.

Basic Rate The Basic Rate setting is not actually one rate

of transmission but a series of rates at which the Valet can transmit. The Valet will advertise its Basic Rate to the other wireless devices in your network, so they know which rates will be used. The Valet will also advertise that it will automatically select the best rate for transmission. The default setting is Default, for transmission at all standard wireless rates (1-2 Mbps, 5.5 Mbps, 11 Mbps, 18 Mbps, and 24 Mbps). Other options are 1-2Mbps, for use with older wireless technology, and All, when the Valet can transmit at all wireless rates. The Basic Rate is not the actual rate of data transmission. If you want to specify the Valet’s rate of data transmission, configure the Transmission Rate setting.

Transmission Rate The rate of data transmission should

be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto to have the Valet automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Valet and a wireless client. The default is Auto.

Beacon Interval Enter a value between 1 and 65,535

milliseconds. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Valet to synchronize the wireless network. The default value is 100.

DTIM Interval This value, between 1 and 255, indicates

the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Valet has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1.

Fragmentation Threshold This value specifies the

maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346.

RTS Threshold Should you encounter inconsistent data

flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Valet sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. The RTS Threshold value should remain at its default value of 2347.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Security > Firewall

The Firewall screen is used to configure a firewall that can filter out various types of unwanted traffic on the Valet’s local network.

N Transmission Rate The rate of data transmission

should be set depending on the speed of your Wireless-N networking. You can select from a range of transmission speeds, or you can select Auto to have the Valet automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Valet and a wireless client. The default is Auto.

CTS Protection Mode The Valet will automatically

use CTS (Clear-To-Send) Protection Mode when your Wireless-N and Wireless-G products are experiencing severe problems and are not able to transmit to the Valet in an environment with heavy 802.11b traffic. This function boosts the Valet’s ability to catch all Wireless-N and Wireless-G transmissions but will severely decrease performance. The default is Auto.

Security > Firewall

Chapter 3: Advanced Configuration

Firewall

SPI Firewall Protection To use firewall protection,

keep the default selection, Enabled. To turn off firewall protection, select Disabled.

Internet Filter

Filter Anonymous Internet Requests This feature

makes it more difficult for outside users to work their way into your network. This feature is selected by default. Deselect the feature to allow anonymous Internet requests

Filter Multicast Multicasting allows for multiple

transmissions to specific recipients at the same time. If multicasting is permitted, then the Valet will allow IP multicast packets to be forwarded to the appropriate computers. Select this feature to filter multicasting. This feature is not selected by default.

Filter Internet NAT Redirection This feature uses port

forwarding to block access to local servers from local networked computers. Select this feature to filter Internet NAT redirection. It is not selected by default.

Filter IDENT (Port 113) This feature keeps port 113 from

being scanned by devices outside of your local network. This feature is selected by default. Deselect this feature to disable it.

Web Filter

Proxy Use of WAN proxy servers may compromise the

Gateway’s security. Denying Proxy will disable access to any WAN proxy servers. Select this feature to enable proxy filtering. Deselect the feature to allow proxy access

Security > VPN Passthrough

The VPN  Passthrough screen allows you to enable VPN tunnels using IPSec, PPTP, or L2TP protocols to pass through the Valet’s firewall.

Security > VPN Passthrough

VPN Passthrough

IPSec Passthrough Internet Protocol Security (IPSec) is

a suite of protocols used to implement secure exchange of packets at the IP layer. To allow IPSec tunnels to pass through the Valet, keep the default, Enabled.

PPTP Passthrough Point-to-Point Tunneling Protocol

(PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Valet, keep the default, Enabled.

L2TP Passthrough Layer 2 Tunneling Protocol is the

method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Valet, keep the default, Enabled.

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes.

Java Java is a programming language for websites. If you

deny Java, you run the risk of not having access to Internet sites created using this programming language. Select this feature to enable Java filtering. Deselect the feature to allow Java usage

ActiveX ActiveX is a programming language for websites.

If you deny ActiveX, you run the risk of not having access to Internet sites created using this programming language. Select this feature to enable ActiveX filtering. Deselect the feature to allow ActiveX usage

Cookies A cookie is data stored on your computer and

used by Internet sites when you interact with them. Select this feature to filter cookies. Deselect the feature to allow cookie usage

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Access Restrictions > Internet Access Policy

The Internet Access  Policy screen allows you to block or allow specific kinds of Internet usage and traffic, such as Internet access, designated services, and websites during specific days and times.

Chapter 3: Advanced Configuration

Summary

Status Policies are disabled by default. To enable a policy,

select the policy number from the drop-down menu, and select Enabled.

To create a policy, follow steps 1-11. Repeat these steps to create additional policies, one at a time.

1. Select a number from the Access  Policy drop-down

menu.

2. Enter a Policy Name in the field provided.

3. To enable this policy, select Enabled.

4. Click Edit List to select which PCs will be affected by

the policy. The List  of  PCs screen appears. You can select a PC by MAC address or IP address. You can also enter a range of IP addresses if you want this policy to affect a group of PCs. After making your changes, click

Save Settings to apply your changes, or click Cancel Changes to cancel your changes. Then click Close.

Access Restrictions > Internet Access

Internet Access Policy

Access Policy Access can be managed by a policy. Use

the settings on this screen to establish an access policy (after Save Settings is clicked). Selecting a policy from the drop-down menu will display that policy’s settings. To delete a policy, select that policy’s number and click Delete This Policy. To view all the policies, click Summary.

Summary

The policies are listed with the following information: No., Policy Name, Access, Days, Time, and status (Enabled). To enable a policy, select Enabled. To delete a policy, click

Delete. Click Save Settings to save your changes, or click Cancel Changes to cancel your changes. To return to the

Internet Access Policy screen, click Close.

List of PCs

5. Select the appropriate option, Deny or Allow,

depending on whether you want to block or allow Internet access for the PCs you listed on the List of PCs screen.

6. Decide which days and what times you want this

policy to be enforced. Select the individual days during which the policy will be in effect, or select Everyday. Then enter a range of hours and minutes during which the policy will be in effect, or select 24 Hours.

7. You can block websites with specific URL addresses.

Enter each URL in a separate URL field.

8. You can also block websites using specific keywords.

Enter each keyword in a separate Keyword field.

Chapter 3: Advanced Configuration

9. You can filter access to various services accessed over the Internet, such as FTP or telnet. (You can block up to three applications per policy.)

From the Applications list, select the application you want to block. Then click the >> button to move it to the Blocked List. To remove an application from the Blocked List, select it and click the << button.

10. If the application you want to block is not listed or you want to edit a service’s settings, enter the application’s name in the  Application  Name field. Enter its range in the Port Range fields. Select its protocol from the Protocol drop-down menu. Then click Add.

To modify a service, select it from the Application list. Change its name, port range, and/or protocol setting. Then click Modify.

To delete a service, select it from the Application list. Then click Delete.

11. Click Save Settings to save the policy’s settings. To cancel the policy’s settings, click Cancel Changes.

Applications and Gaming > Single Port Forwarding

The Single  Port  Forwarding screen allows you to customize port services for common applications on this screen.

When users send these types of requests to your network via the Internet, the Valet will forward those requests to the appropriate servers (computers). Before using forwarding, you should assign static IP addresses to the designated servers (use the DHCP Reservation feature on the Basic  Setup screen, refer to DHCP Reservation, page 16 for more details).

Single Port Forwarding

Common applications are available for the first five entries. Select the appropriate application. Then enter the IP address of the server that should receive these requests. Select Enabled to activate this entry.

For additional applications, complete the following fields:

Application Name Enter the name you wish to give the

application. Each name can be up to 12 characters.

External Port Enter the external port number used by

the server or Internet application. Check with the Internet application documentation for more information.

Internal Port Enter the internal port number used by

the server or Internet application. Check with the Internet application documentation for more information.

Protocol Select the protocol used for this application,

either TCP or UDP, or Both.

To IP Address For each application, enter the IP address

of the PC that should receive the requests. If you assigned a static IP address to the PC, then you can click DHCP Reservation on the Basic Setup screen to look up its static IP address ( details)

Enabled For each application, select Enabled to enable

port forwarding.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

refer to DHCP Reservation, page 16 for more

Applications and Gaming > Port Range Forwarding

The  Port  Range  Forwarding screen allows you to set up public services on your network, such as web servers, FTP servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.)

Applications and Gaming > Single Port Forwarding

If you need to forward all ports to one computer, click the DMZ tab.

Chapter 3: Advanced Configuration

Applications and Gaming > Port Range Forwarding

Port Range Forwarding

To forward a port, enter the information on each line for the criteria required.

Application Name In this field, enter the name you

wish to give the application. Each name can be up to 12 characters.

Start~End Port Enter the number or range of port(s)

used by the server or Internet applications. Check with the Internet application documentation for more information.

Protocol Select the protocol used for this application,

either TCP or UDP, or Both.

To IP Address For each application, enter the IP address

of the PC running the specific application. If you assigned a static IP address to the PC, then you can click DHCP Reservation on the Basic Setup screen to look up its static IP address ( details)

Enabled Select Enabled to enable port forwarding for

the applications you have defined.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

refer to DHCP Reservation, page 16 for more

Applications & Gaming > Port Range Triggering

Applications and Gaming > Port Range Triggering

Port Range Triggering

Application Name Enter the application name of the

trigger.

Triggered Range For each application, enter the starting

and ending port numbers of the triggered port number range. Check with the Internet application documentation for the port number(s) needed.

Forwarded Range For each application, enter the

starting and ending port numbers of the forwarded port number range. Check with the Internet application documentation for the port number(s) needed.

Enabled Select Enabled to enable port triggering for the

applications you have defined.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Applications and Gaming > DMZ

The DMZ feature allows one network computer to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one PC. The Port Range Forwarding feature is more secure because it only opens the ports you want to have opened, while DMZ hosting opens all the ports of one computer, exposing the computer to the Internet.

The Port  Range  Triggering screen allows the Valet to watch outgoing data for specific port numbers. The IP address of the computer that sends the matching data is remembered by the Valet, so that when the requested data returns through the Valet, the data is pulled back to the proper computer by way of IP address and port mapping rules.

Applications and Gaming > DMZ

Chapter 3: Advanced Configuration

DMZ

Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP address assigned to it because its IP address may change when using the DHCP function.

Enabled/Disabled To disable DMZ hosting, select

Disabled. To expose one PC, select Enabled. Then

configure the following settings:

Source IP Address If you want any IP address to be the

source, select Any IP Address. If you want to specify an IP address or range of IP addresses as the designated source, select and complete the IP address range fields.

Destination If you want to specify the DMZ host by IP

address, select IP Address and enter the IP address in the field provided. If you want to specify the DMZ host by MAC address, select MAC Address and enter the MAC address in the field provided. To retrieve this information, click DHCP Client Table.

Applications and Gaming > QoS

Quality of Service (QoS) ensures better service to high-priority types of network traffic, which may involve demanding, real-time applications, such as videoconferencing.

Applications and Gaming > QoS

QoS (Quality of Service)

DMZ > DHCP Client Table

DHCP Client Table

The DHCP Client Table lists computers and other devices that have been assigned IP addresses by the Valet. The list can be sorted by Client Name, Interface, IP Address, MAC Address, and Expired Time (how much time is left for the current IP address). To select a DHCP client, click Select. To retrieve the most upto-date information, click Refresh. To exit this screen and return to the DMZ screen, click Close.

Click Save Settings to apply your changes, or click Cancel Changes to cancel your changes.

Wireless

You can configure the WMM Support and No Acknowledgement settings in this section.

WMM Support If you have other devices that support Wi-

Fi Multimedia (WMM) on your network, keep the default,

Enabled. Otherwise, select Disabled.

No Acknowledgement If you want to disable the Valet’s

Acknowledgement feature, so the Valet will not re-send data if an error occurs, then select Enabled. Otherwise, keep the default, Disabled.

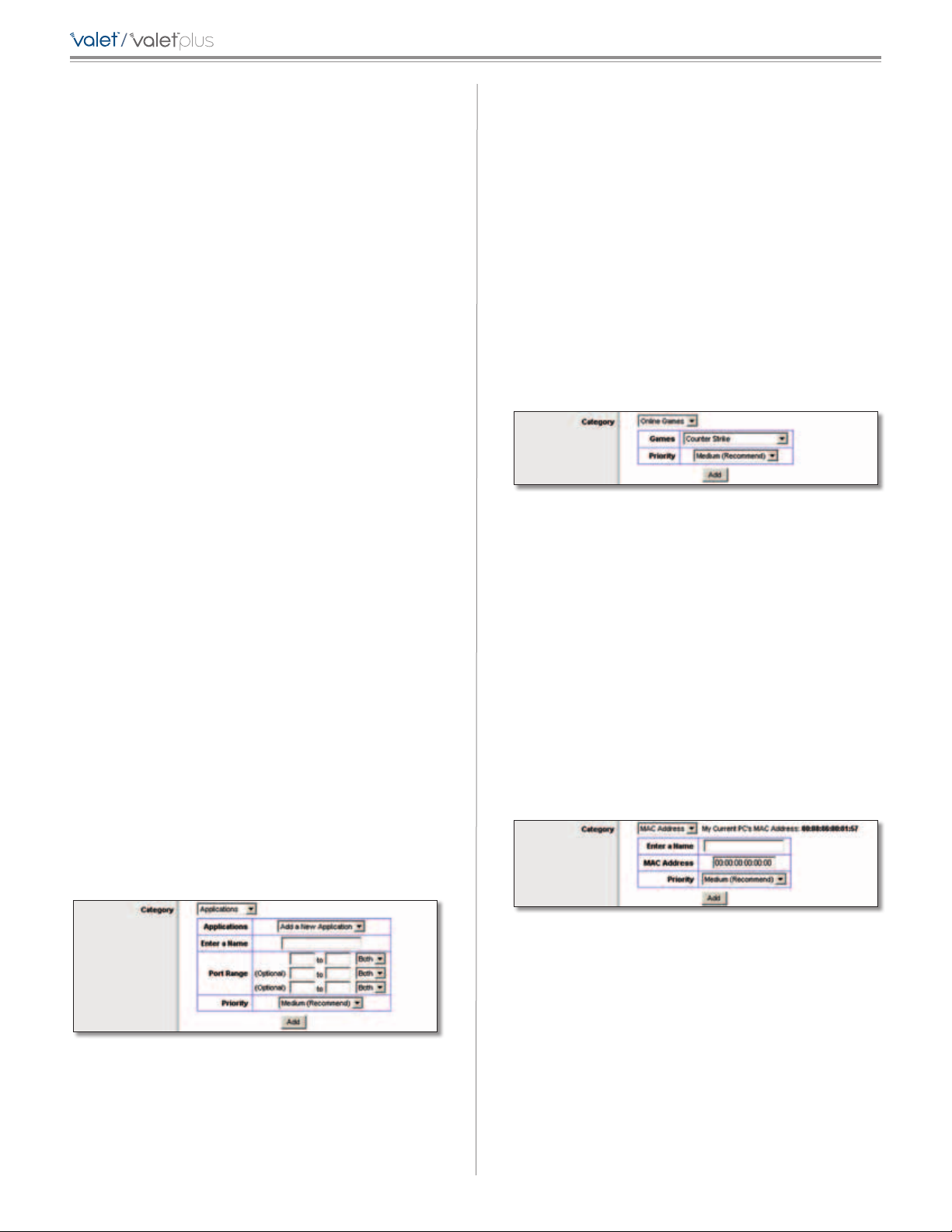

Internet Access Priority

In this section, you can set the bandwidth priority for a variety of applications and devices. There are four levels priority: High, Medium, Normal, or Low. When you set priority, do not set all applications to High, because this will defeat the purpose of allocating the available bandwidth. If you want to select below normal bandwidth, select Low. Depending on the application, a few attempts may be needed to set the appropriate bandwidth priority.

Enabled/Disabled To use the QoS policies you have set,

select, Enabled. Otherwise, keep the default Disabled.

Upstream Bandwidth Select Auto or Manual from

the drop-down menu. Manual allows you to specify the maximum outgoing bandwidth that applications can utilize.

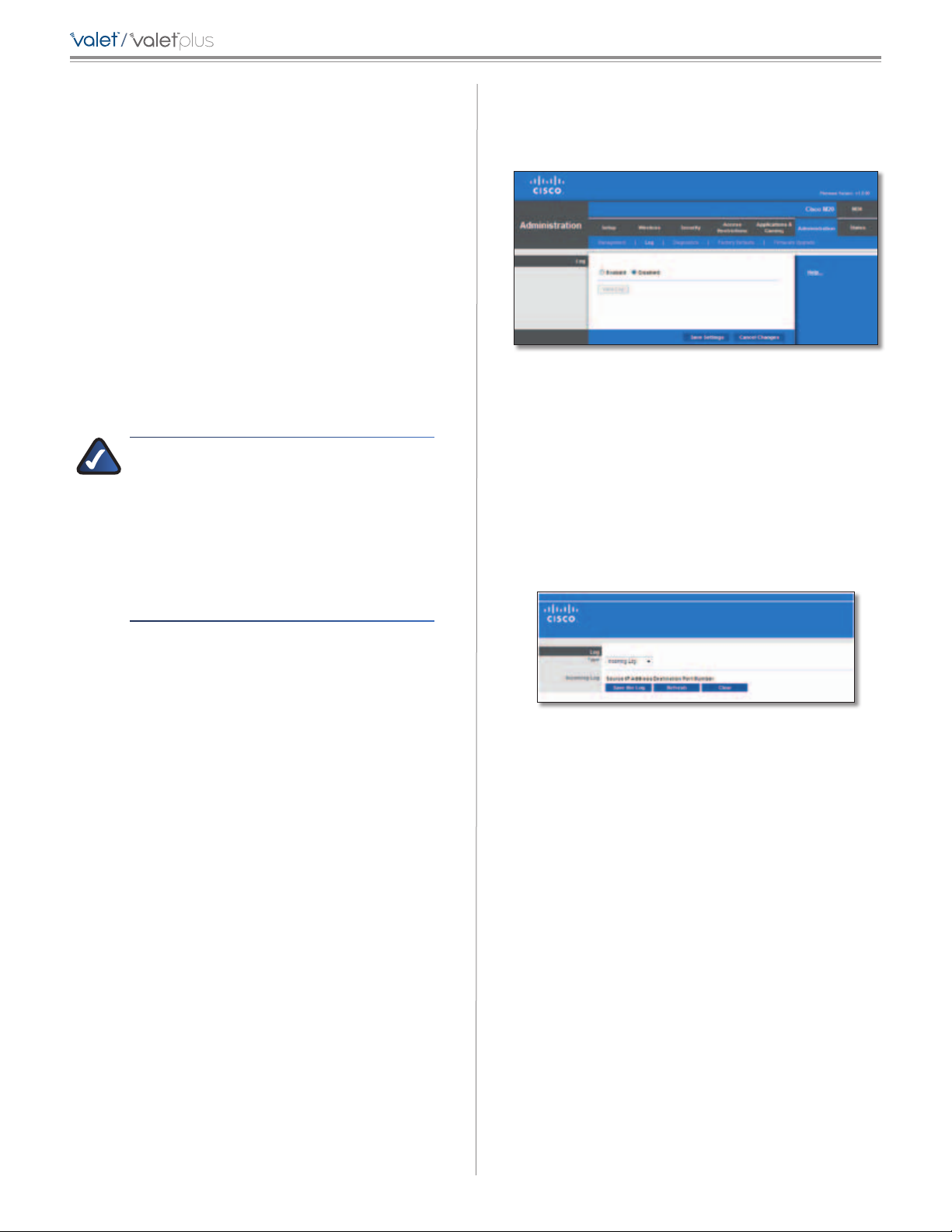

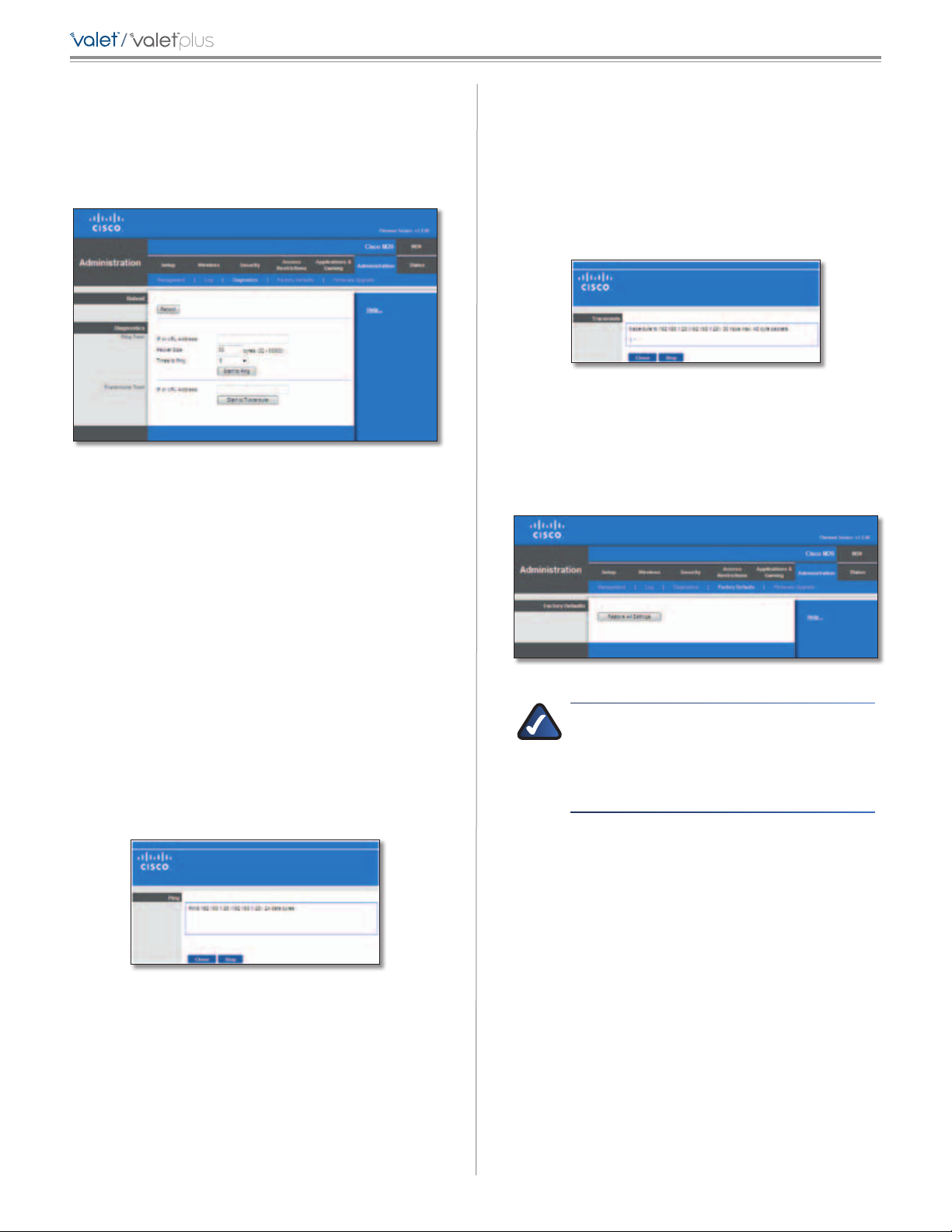

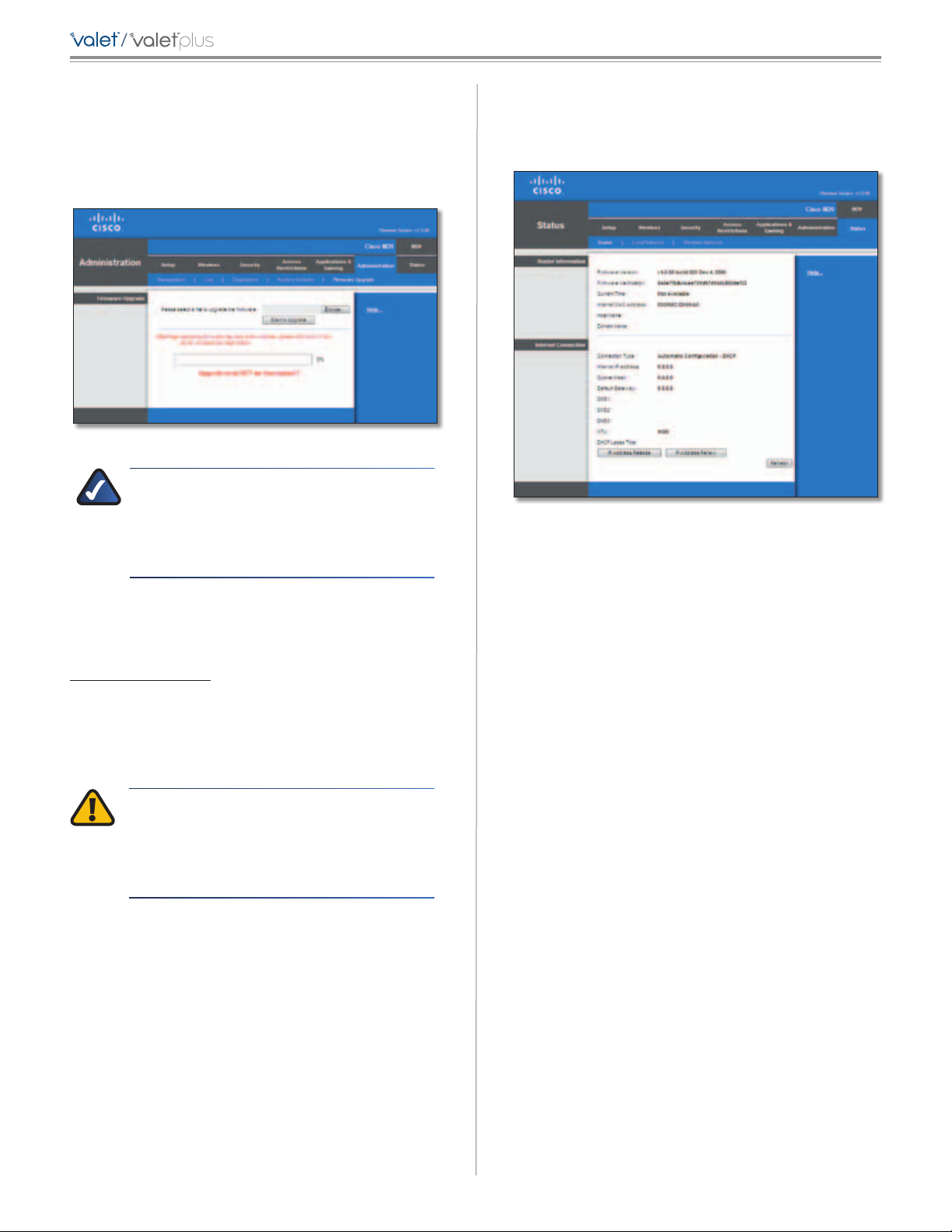

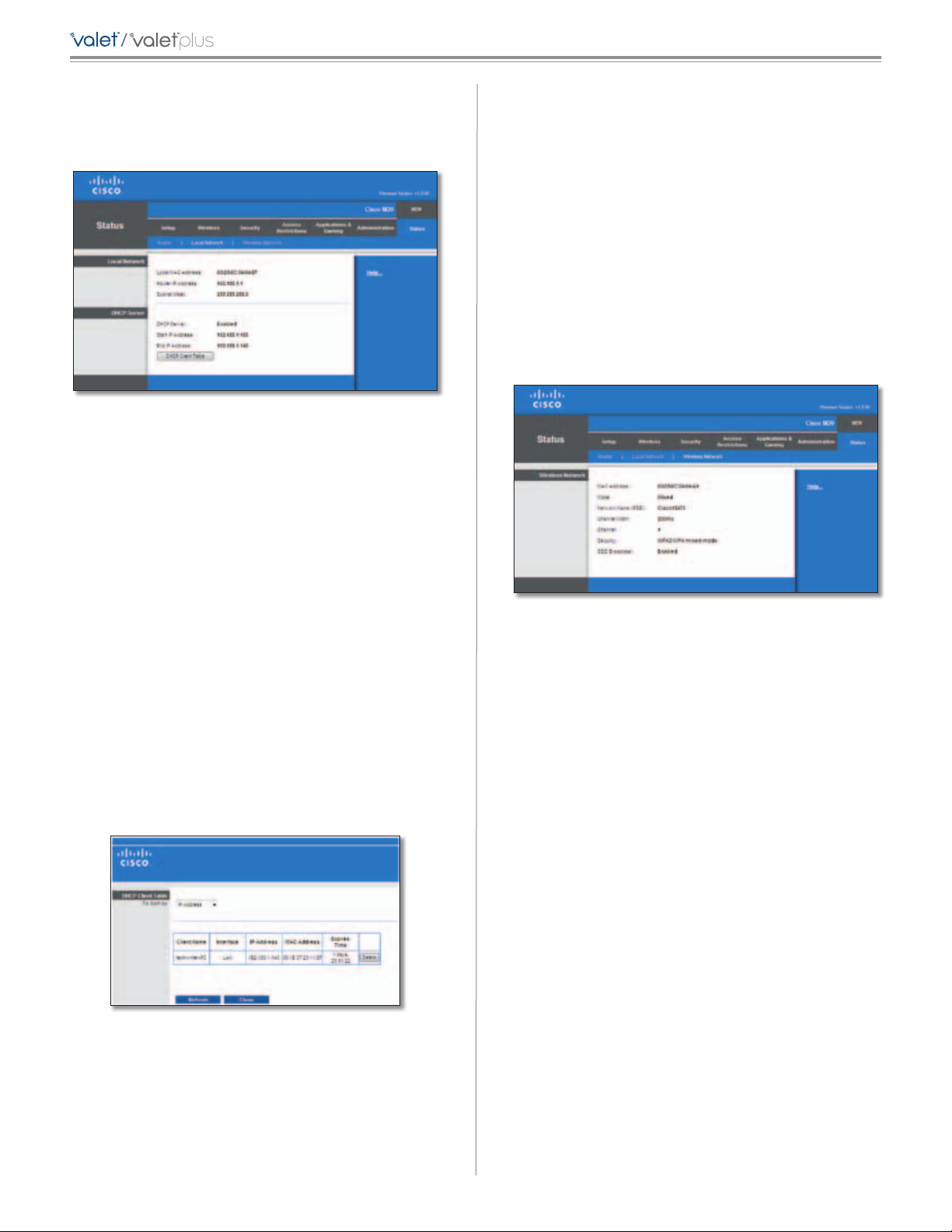

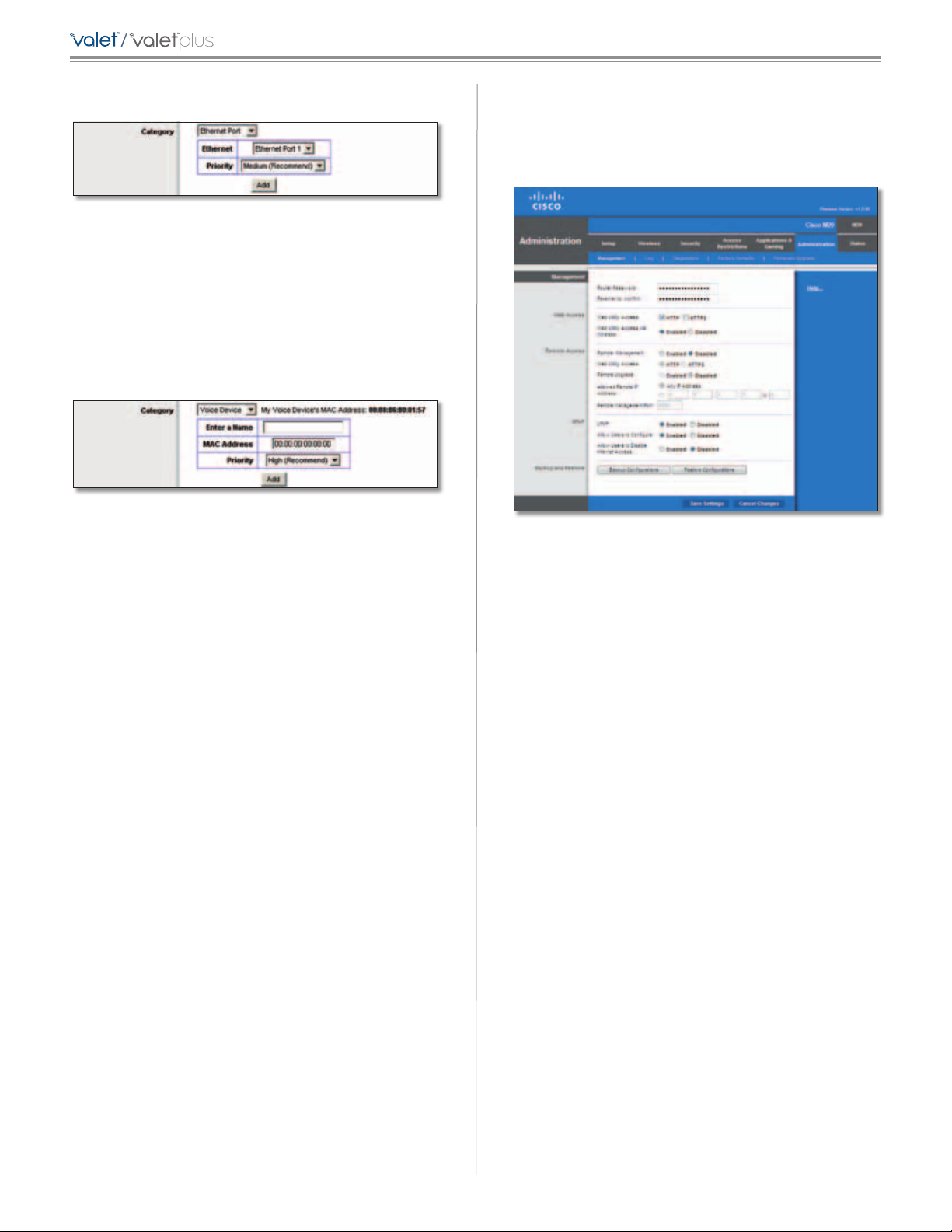

Chapter 3: Advanced Configuration

Appendix A: Troubleshooting

Your computer cannot connect to the Internet.

Follow these instructions until your computer can connect to the Internet:

• Make sure that the Valet is powered on. The Power

LED should be blue and not flashing.

• If the Power LED is flashing, then power off all of

your network devices, including the modem, Valet, and computers. Then power on each device in the following order:

1. Cable or DSL modem

2. Valet

3. Computer

• Check the cable connections. The computer should

be connected to one of the ports numbered 1-4 on the Valet, and the modem must be connected to the Internet port on the Valet.

The modem does not have an Ethernet port.

The modem is a dial-up modem for traditional dial-up service. To use the Valet, you need a cable/DSL modem and high-speed Internet connection.

You cannot use the DSL service to connect manually to the Internet.

After you have installed the Valet, it will automatically connect to your Internet Service Provider (ISP), so you no longer need to connect manually.

The DSL telephone line does not fit into the Valet’s Internet port.

The Valet does not replace your modem. You still need your DSL modem in order to use the Valet. Connect the telephone line to the DSL modem, and then insert the setup CD into your computer. Click Setup and follow the on-screen instructions.

When you double-click the web browser, you are prompted for a username and password. If you want to get rid of the prompt, follow these instructions.

Launch the web browser and perform the following steps (these steps are specific to Internet Explorer but are similar for other browsers):

1. Select Tools > Internet Options.

2. Click the Connections tab.

3. Select Never dial a connection.

4. Click OK.

The Valet does not have a coaxial port for the cable connection.

The Valet does not replace your modem. You still need your cable modem in order to use the Valet. Connect your cable connection to the cable modem, and then insert the setup CD into your computer. Click Setup and follow the on-screen instructions.

The computer cannot connect wirelessly to the network.

Make sure the wireless network name or SSID is the same on both the computer and the Valet. If you have enabled wireless security, then make sure the same security method and key are used by both the computer and the Valet.

You need to modify the settings on the Valet.

Valet settings can be modified using the Cisco Connect software, refer to How to Access Cisco Connect, page 12. To modify the advanced settings, go to Advanced Settings. Refer to Advanced Settings, page 12.

In Windows XP, you do not see the Valet in the My Network Places screen.

In the Network  Tasks section, click Show icons for networked UPnP devices. If the Valet does not appear,

follow these instructions:

1. Go to Start > Control Panel > Firewall.

2. Click the Exceptions tab.

3. Select UPnP Framework.

4. Click OK.

WEB: If your questions are not

addressed here, refer to our website at

www.ciscovalet.com/support

Appendix B: Specifications

Model Name:

Model Description: Wireless-N Hotspot

Model Number: M10

Standards IEEE 802.11n, 802.11g, 802.11b,

802.3u

Ports Internet, Fast Ethernet (1-4), Power

Buttons Reset, Wi-Fi Protected Setup™

LEDs Power, Internet, Wireless, Wi-Fi Protected Setup™, Ethernet (1-4)

Cabling Type CAT 5

# of Antennas 2 (internal)

Detachable (y/n) No

Transmitted Power

802.11n (40MHz): 13.5 ± 1.5 dBm @ CH6, mcs15

802.11n (20MHz): 15.0 ± 1.5 dBm @ CH6, mcs0~4,

mcs8~12

13.5 ± 1.5 dBm @ CH6, mcs5~7,

mcs13~15

802.11g: 14.5 ± 1.5 dBm

802.11b: 16.5 ± 1.5 dBm

Receive Sensitivity -91 dBm @ 1 Mbps

-87 dBm @ 11 Mbps

-71 dBm @ 54 Mbps

-66 dBm @ 270 Mbps

Antenna Gain 1.5 dBi

UPnP able/cert Able

Wireless Security Wi-Fi Protected Access™ 2 (WPA2), WEP, Wireless MAC Filtering

Security key bits Up to 128-bit encryption

Environmental

Dimensions 7.95" x 6.3" x 1.34" (202 x 160 x 34 mm)

Weight 9.9 oz (0.2806 kg)

Power 12V, 0.5A

Certication FCC, UL/cUL, ICES-003, RSS210, CE, Wi-Fi (IEEE 802.11b/g/n), WPA2™, WMM®, Wi-Fi Protected Setup™

Operating Temp. 32 to 104°F (0 to 40°C)

Storage Temp. -4 to 140°F (-20 to 60°C)

Operating Humidity 10 to 80% Noncondensing

Storage Humidity 5 to 90% Noncondensing

Specications are subject to change without notice.

Model Name :

Model Description: Wireless-N Hotspot

Model Number: M20 Standards IEEE 802.11n, 802.11g, 802.11b,

802.3u, 802.3ab

Ports Internet, Gigabit Ethernet (1-4), Power

Buttons Reset, Wi-Fi Protected Setup™

LEDs Power, Internet, Wireless, Wi-Fi Protected Setup™, Ethernet (1-4)

Cabling Type CAT 5

# of Antennas 3 (internal)

Detachable (y/n) No

Transmitted Power

802.11n (40 MHz): 13.0 ± 1.5 dBm @ CH6, 25°C

802.11n (20 MHz): 15.5 ± 1.5 dBm @ CH6, 25°C

802.11g: 16.5 ± 1.5 dBm @ CH 6, 25°C

802.11b: 17.5 ± 1.5 dBm @ CH 6, 25°C

Receive Sensitivity in dBm

-92dBm @ 1 Mbps

-87dBm @ 11 Mbps

-71dBm @ 54 Mbps

-66dBm @ 270 Mbps

Antenna Gain in dBi 1.5 dBi (antennas one and two)

2.2 dBi (antenna three)

UPnP able/cert Able

Wireless Security Wi-Fi Protected Access™ 2 (WPA2), WEP, Wireless MAC Filtering

Security key bits Up to 128-bit encryption

Environmental

Dimensions 7.95" x 6.3" x 1.34" (202 x 160 x 34 mm)

Weight 10.9 oz (0.309 kg)

Power 12V, 1.0A

Certication FCC, UL/cUL, ICES-003, RSS210, CE, Wi-Fi (IEEE 802.11b/g/n), WPA2™, WMM®, Wi-Fi Protected Setup™

Operating Temp. 32 to 104°F (0 to 40°C)

Storage Temp. -4 to 140°F (-20 to 60°C)

Operating Humidity 10 to 80% Noncondensing

Storage Humidity 5 to 90% Noncondensing

Specications are subject to change without notice.

Appendix C: Warranty Information

LIMITED WARRANTY

(U.S.A, Canada, Asia Pacific, Australia, New Zealand)

FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. THIS WARRANTY DOES NOT EXCLUDE, LIMIT OR SUSPEND ANY RIGHTS OF CONSUMERS ARISING OUT OF NONCONFORMITY WITH A SALES CONTRACT. SOME COUNTRIES, STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION MAY LAST, SO THE LIMITATIONS OR EXCLUSIONS DESCRIBED BELOW MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY COUNTRY, STATE OR PROVINCE. THIS LIMITED WARRANTY IS GOVERNED BY AND CONSTRUED UNDER THE LAWS OF THE COUNTRY IN WHICH THE PRODUCT PURCHASE TOOK PLACE.

This warranty is provided to you by Cisco Systems, Inc. or its subsidiary instead of Cisco Systems, Inc. (“Cisco”). Cisco warrants the hardware in this Cisco product against defects in materials and workmanship under normal use for the Warranty Period, which begins on the date of purchase by the original end-user purchaser and lasts for the period specified below:

• One (1) year for new product

• Ninety (90) days for refurbished product

Your exclusive remedy and Cisco’s entire liability under this limited warranty will be for Cisco, at its option, to (a) repair the product with new or refurbished parts, (b) replace the product with a reasonably available equivalent new or refurbished Cisco product, or (c) refund the actual purchase price of the product less any rebates and discounts, or (d) pay the cost of repair of the product. Any repaired or replacement products will be warranted for the remainder of the original Warranty Period or thirty (30) days, whichever is longer. All products and parts that are replaced become the property of Cisco.

Cisco additionally warrants that any media on which the software may be provided will be free from defects in materials and workmanship under normal use for a period of ninety (90) days from the date of original purchase. Your exclusive remedy and Cisco’s entire liability under this limited warranty will be for Cisco, at its option, to (a) replace the software media, or (b) refund the purchase price of the software media.

EXCLUSIONS AND LIMITATIONS

This limited warranty does not apply if: (a) the product assembly seal has been removed or damaged, (b) the product has been altered or modified, except by Cisco, (c) the product damage was caused by use with non-Cisco products, (d) the product has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Cisco, (e) the product has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident, (f) the serial number on the Product has been altered, defaced, or removed, or (g) the product is supplied or licensed for beta, evaluation, testing or demonstration purposes for which Cisco does not charge a purchase price or license fee.

EXCEPT FOR THE LIMITED WARRANTY ON MEDIA SET FORTH ABOVE AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ALL SOFTWARE AND SERVICES PROVIDED BY CISCO WITH THE PRODUCT, WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON MEDIA ACCOMPANYING THE PRODUCT, IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND. Without limiting the foregoing, Cisco does not warrant that the operation of the product, software or services will be uninterrupted or error free. Also, due to the continual development of new techniques for intruding upon and attacking networks, Cisco does not warrant that the product, software or services, or any equipment, system or network on which the product, software or services are used will be free of vulnerability to intrusion or attack. The product may include or be bundled with third party software or service offerings. This limited warranty shall not apply to such third party software or service offerings. This limited warranty does not guarantee any continued availability of a third party’s service for which this product’s use or operation may require.

TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED.

TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW, IN NO EVENT WILL CISCO BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, LOSS OF THE ABILITY TO USE ANY THIRD PARTY PRODUCTS, SOFTWARE OR SERVICES, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT, SOFTWARE OR ANY SERVICES PROVIDED IN RESPECT OF SUCH PRODUCT, SOFTWARE OR SERVICE, EVEN IF CISCO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE EXTENT NOT PROHIBITED BY

Appendix C: Warranty Information

APPLICABLE LAW, IN NO EVENT WILL CISCO’S LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even if any warranty or remedy provided under this limited warranty fails of its essential purpose.

If you live in and have purchased the product in Australia or New Zealand, the following two (2) paragraphs will apply in place of the preceding paragraph:

To the extent permitted by law, Cisco excludes liability for any lost data, revenue or profit, loss of the ability to use any third party products, software or services, and indirect or consequential loss, whether based in statute, common law (including negligence) or otherwise, arising out of or related to the use of or inability to use the product, software, or any services provided in respect of such product, software or service, even if Cisco has been advised of the possibility of such damages and Cisco limits its liability to an amount not exceeding the amount paid by you for the product.

Part V of the Trade Practices Act (1974) (C’th of Australia), corresponding consumer protection provisions of Australian State and Territory legislation and the Consumer Guarantees Act 1993 (New Zealand) (together, “Applicable Laws”) imply terms and warranties which operate to protect certain Australian and New Zealand purchasers of goods and services in various circumstances. Nothing in this warranty excludes, restricts or modifies any condition, warranty, right or remedy implied or imposed by any Applicable Laws which cannot lawfully be excluded, restricted or modified.

RMA number and a copy of your dated proof of original purchase when returning your product. Products received without a RMA number and dated proof of original purchase will be rejected. Do not include any other items with the product you are returning. Products returned for replacement must be returned to Cisco in the same country in which the original product was purchased. Defective product covered by this limited warranty will be repaired or replaced and returned to you without charge. Customers outside of the United States of America and Canada are responsible for all shipping and handling charges, custom duties, VAT and other associated taxes and charges. Repairs or replacements not covered under this limited warranty will be subject to charge at Cisco’s then-current rates.

TECHNICAL SUPPORT

This limited warranty is neither a service nor a support contract. Information about Cisco’s current technical support offerings and policies (including any fees for support services) can be found at www.myciscohome.com/support.

Please direct all inquiries to: Cisco, 120 Theory, Irvine, CA 92617

No Cisco employee, agent or reseller is authorized to make any verbal or written modification, extension or addition to this warranty, and Cisco expressly disclaims any such change to this warranty. If any portion of this limited warranty is found to be void or unenforceable, its remaining provisions shall remain in full force and effect.

OBTAINING WARRANTY SERVICE

If you have a question about your product or experience a problem with it, please go to www.myciscohome.com/ support where you will find a variety of online support tools and information to assist you with your product. If the product proves defective during the Warranty Period, contact Cisco Technical Support (or, if you purchased your product from a service provider, contact the service provider) for instructions on how to obtain warranty service. The telephone number for Cisco Technical Support in your area can be found by clicking the “Contact Us” link on the home page of www.myciscohome.com. Have your product serial number and proof of purchase on hand when calling. A DATED PROOF OF ORIGINAL PURCHASE IS REQUIRED TO PROCESS WARRANTY CLAIMS. If you are requested to return your product, you will be given a Return Materials Authorization (RMA) number. You are responsible for properly packaging and shipping your product at your cost and risk. You must include the

Appendix D: Regulatory Information

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or

devices

• Connect the equipment to an outlet other than the

receiver’s

• Consult a dealer or an experienced radio/TV technician

for assistance

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IEEE

802.11b or 802.11g operation of this product in the USA is

firmware-limited to channels 1 through 11.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Safety Notices

WARNING: Do not use this product near water,

for example, in a wet basement or near a swimming pool.

WARNING: Avoid using this product during an

electrical storm. There may be a remote risk of electric shock from lightning.

WARNING: This product contains lead, known

to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003 and RSS210.

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with an antenna having a maximum gain of 1.5 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.

Industry Canada Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Avis d’Industrie Canada

Cet appareil numérique de la classe B est conforme aux normes NMB-003 et RSS210 du Canada.

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :

1. il ne doit pas produire de brouillage et

2. il doit accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Le dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximum de 1.5 dBi. Les règlements d’Industrie Canada interdisent strictement l’utilisation d’antennes dont le gain est supérieur à cette limite. L’impédance requise de l’antenne est de 50 ohms.

Avis d’Industrie Canada concernant l’exposition aux radiofréquences :

Ce matériel est conforme aux limites établies par IC en matière d’exposition aux radiofréquences dans un environnement non contrôlé. Ce matériel doit être installé et utilisé à une distance d’au moins 20 cm entre l’antenne et le corps de l’utilisateur.

L’émetteur ne doit pas être placé près d’une autre antenne ou d’un autre émetteur, ou fonctionner avec une autre antenne ou un autre émetteur.

Wireless Disclaimer

The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Avis de non-responsabilité concernant les appareils sans fil

Les performances maximales pour les réseaux sans fil sont tirées des spécifications de la norme IEEE 802.11. Les performances réelles peuvent varier, notamment en fonction de la capacité du réseau sans fil, du débit de la transmission de données, de la portée et de la couverture. Les performances dépendent de facteurs, conditions et variables multiples, en particulier de la distance par rapport au point d’accès, du volume du trafic réseau, des matériaux utilisés dans le bâtiment et du type de construction, du système d’exploitation et de la combinaison de produits sans fil utilisés, des interférences et de toute autre condition défavorable.

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)

This document contains important information for users with regards to the proper disposal and recycling of Cisco products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:

Appendix D: Regulatory Information

English - Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Español (Spanish) - Información medioambiental para clientes de la Unión Europea

La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación. Es responsabilidad suya desechar este y cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos de recogida que ponen a su disposición el gobierno y las autoridades locales. Al desechar y reciclar correctamente estos aparatos estará contribuyendo a evitar posibles consecuencias negativas para el medio ambiente y la salud de las personas. Si desea obtener información más detallada sobre la eliminación segura de su aparato usado, consulte a las autoridades locales, al servicio de recogida y eliminación de residuos de su zona o pregunte en la tienda donde adquirió el producto.

Français (French) - Informations environnementales pour les clients de l’Union européenne

La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout autre matériel électrique ou électronique par les moyens de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités territoriales. L’élimination et le recyclage en bonne et due forme ont pour but de lutter contre l’impact néfaste potentiel de ce type de produits sur l’environnement et la santé publique. Pour plus d’informations sur le mode d’élimination de votre ancien équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service de traitement des déchets, ou l’endroit où vous avez acheté le produit.

WEB: For additional information, please visit

www.myciscohome.com

Appendix E: Software End User License Agreement

Cisco Products

This product from Cisco Systems, Inc. or its subsidiary licensing the Software instead of Cisco Systems, Inc. (“Cisco”) contains software (including firmware) originating from Cisco and its suppliers and may also contain software from the open source community.

Any software originating from Cisco and its suppliers is licensed under the Cisco Software License Agreement contained at Schedule 1 below. You may also be prompted to review and accept the Cisco Software License Agreement upon installation of the software.

Any software from the open source community is licensed under the specific license terms applicable to that software made available by Cisco at www.myciscohome. com/gpl, or as provided for in Schedule 2 below. By using the Software, You or the entity or company that You represent (“You”) acknowledge that You have reviewed such license terms and that You agree to be bound by the terms of such licenses. Where such specific license terms entitle You to the source code of such software, that source code is available upon request at cost from Cisco for at least three years from the purchase date of this product and may also be available for download from www.myciscohome.com/gpl. For detailed license terms and additional information on open source software in Cisco products please look at the Cisco public web site at: www.myciscohome.com/gpl or Schedule 2 below as applicable. If You would like a copy of the GPL or certain other open source code in this Software on a CD, Cisco will mail to You a CD with such code for $9.99 plus the cost of shipping, upon request.

THIS SOFTWARE END USER LICENSE AGREEMENT IS A LEGAL AGREEMENT BETWEEN YOU AND CISCO. READ IT CAREFULLY BEFORE INSTALLING AND USING THE SOFTWARE. IT PROVIDES A LICENSE TO USE THE SOFTWARE AND CONTAINS WARRANTY INFORMATION AND LIABILITY DISCLAIMERS. BY CHECKING THE “NEXT” BOX, DOWNLOADING, INSTALLING OR USING THE SOFTWARE, OR USING THE PRODUCT CONTAINING THE SOFTWARE, YOU ARE CONFIRMING YOUR ACCEPTANCE OF THE SOFTWARE AND CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THESE TERMS, THEN DO NOT CLICK ON THE “NEXT” BUTTON AND DO NOT DOWNLOAD, INSTALL OR USE THE SOFTWARE. CISCO’S ACCEPTANCE IS EXPRESSLY CONDITIONED UPON YOUR AGREEMENT TO ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT, TO THE EXCLUSION OF ALL OTHER TERMS.

In addition, if You access or otherwise use any of Cisco’s web sites, You agree to all of the terms and conditions of the web sites including the “Terms of Use” located at the web site you are using, as applicable and as amended from time to time.

Software Licenses

The software licenses applicable to software from Cisco are made available at the Cisco public web site at:

www.myciscohome.com and www.myciscohome. com/gpl respectively. For Your convenience of reference,

a copy of the Cisco Software License Agreement and the main open source code licenses used by Cisco in its products are contained in the Schedules below.

Schedule 1 Cisco Software License Agreement

License. Subject to the terms and conditions of this Agreement and compliance therewith, Cisco grants You (provided You are the original end user purchaser of the Cisco product including the Software) a personal, non-commercial, nontransferable, non-sublicensable, nonexclusive license to (i) use the Software and accompanying Documentation (each as defined below) for Your personal non-commercial use only, in object code form only, and only in accordance with the accompanying Documentation; (ii) use the Software solely as embedded in, as a stand-alone application or (where authorized in the applicable Documentation) for communication with such product, each solely at Cisco’s discretion; (iii) if the Software is purchased separately from any Cisco product, install the Software on personal computers within a single household or business location according to the maximum number of licenses You have purchased; and (iv) make one copy of the Software in machine-readable form and one copy of the Documentation, solely for backup purposes. This license may not be sublicensed, and is not transferable except to a person or entity to which You transfer ownership of the complete Cisco product containing the Software or complete Software product, provided You permanently transfer all rights under this Agreement and do not retain any full or partial copies of the Software, and the recipient agrees to the terms of this Agreement.

Service Access. Subject to the terms and conditions of this Agreement, Cisco may make available certain services through the use of the Software, as described more fully in the Software (“Services”), solely for Your own use, and not for the use or benefit of any third party. Cisco may change, suspend or discontinue the Software and Services at any time, including the availability of any feature, functionality, or content without notice or liability. Cisco may also impose limits on certain features and services or restrict Your access to parts or all of the Services without notice or liability.

Appendix E: Software End User License Agreement

“Software” includes, and this Agreement will apply to (a) the software of Cisco or its suppliers purchased separately or provided in or with the applicable Cisco product, and (b) any upgrades, updates, bug fixes or modified versions (“Upgrades”) or backup copies of the Software supplied to You by Cisco or an authorized reseller (whether or not for a fee), provided You already hold a valid license to the original software and have paid any applicable fee for the Upgrade.

“Documentation” means all documentation and other related materials supplied by Cisco to You pursuant to this Agreement.

“Technology” shall mean the Software and Services collectively.

License Restrictions. Other than as set forth in this Agreement, You may not, nor permit anyone else to, directly or indirectly (i) make, distribute, or, except in connection with the use of Your Cisco product, copy the Software or its related Documentation, or electronically transfer the Software or Documentation from one computer to another or over a network; (ii) alter, merge, modify, adapt, decrypt or translate the Software or related Documentation, or decompile, reverse engineer, disassemble, or otherwise reduce or attempt to reduce the Software to a human-perceivable form (except to the extent expressly permitted by law notwithstanding this provision or except to the extent that Cisco is legally required to permit such specific activity pursuant to any applicable open source license); (iii) share, sell, rent, lease, or sublicense the Software or related Documentation; (iv) modify the Software or create derivative works based upon the Software; (v) if You make a backup copy of the Software and Documentation, You must reproduce all copyright notices and any other proprietary legends found on the original Software and Documentation; (vi) use the Technology for management of a business network with more than 8 computers; (vii) use the Software under any circumstances for competitive evaluation, including developing competing software; (ix) to the extent permitted under applicable law, assign, sublicense or otherwise transfer the Technology unless the prospective assignee, sublicensee or transferee expressly agrees to all the terms and conditions under this Agreement.

The Technology and Documentation contain trade secrets and/or copyrighted materials of Cisco or its suppliers. You will not disclose or make available such trade secrets or copyrighted material in any form to any third party.

In the event that You fail to comply with this Agreement, the license granted to You will automatically terminate, at which time You must immediately (i) stop using the Technology and the Cisco product in which the Software is embedded, or (ii) uninstall the Software and destroy all copies of the Software and Documentation where the Technology is purchased separately. All other rights of both parties and all other provisions of this Agreement will survive this termination.

Ownership. The Technology and Documentation are licensed and not sold to You by Cisco and the relevant third parties set forth in Schedule 2. Cisco, its suppliers and its licensors respectively retain all right, title and interest, including all copyright and intellectual property rights, in and to, the Technology and Documentation and all copies, derivatives and portions thereof. All rights not specifically granted to You in this Agreement are reserved by Cisco and its licensors. Your use of any software product from an entity other than Cisco that may have been recommended by Cisco is governed by such software product’s end user license agreement.

Third Party Services, Links and Advertising. Cisco may provide from within the Software links to web sites or third party software products. In addition, third party Services may be provided with the Software which may be subject to terms and conditions from the provider of the Service. Cisco makes no representations as to the quality, suitability, functionality, or legality of any sites or products to which links may be provided or third party Services, and You hereby waive any claim You might have against Cisco with respect to such sites or third party software products or Services. Your correspondence or business dealings with, or participation in promotions of third parties found through the Software and any other terms, conditions, warranties, or representations associated with such dealings, are solely between You and such third party. You agree that Cisco is not responsible or liable for any loss or damage of any sort incurred as the result of any such dealings or as the result of the presence of such third party links, products or services in the Cisco Software, and Cisco may discontinue or modify the Services or links offered at any time.

Collection and Processing of Information. You agree that Cisco and/or its affiliates may, from time to time, collect and process information about Your Cisco product and/or the Software and/or Your use of either in order (i) to enable Cisco to offer You Upgrades; (ii) to provide support and assistance with Your product and/or the Software; (iii) to ensure that Your Cisco product and/or the Software is being used in accordance with the terms of this Agreement; (iv) to provide improvements to the way Cisco delivers technology to You and to other Cisco customers; (v) to provide reports regarding the status and health of the network, including network traffic and application usage; (vi) to enable Cisco to comply with the terms of any agreements it has with any third parties regarding Your Cisco product and/or Software; and/or (vii) to enable Cisco to comply with all applicable laws and/ or regulations, or the requirements of any regulatory authority or government agency. Cisco and/ or its affiliates may collect and process this information provided that it does not identify You personally. You agree that Cisco has no responsibility or liability for the deletion of or failure to store any data or other information related to Your Cisco product, Software or related Services.

Appendix E: Software End User License Agreement

In addition, Cisco may collect and store detailed information regarding Your network configuration and usage for the purpose of providing You technical networking support. The information is associated with You only when You provide a unique ID number to the support representative while You are receiving help. The unique ID is generated randomly on Your computer upon installation and is completely under Your control.

EXCEPT AS OTHERWISE PROVIDED FOR IN THIS AGREEMENT, CISCO HAS NO OBLIGATION OF CONFIDENTIALITY OR (EXCEPT TO THE EXTENT REQUIRED BY THE APPLICABLE DATA PROTECTION LAWS) PRIVACY OF ANY COMMUNICATION OR INFORMATION TRANSMITTED USING THE TECHNOLOGY. Cisco will not be liable for the privacy of e-mail addresses, registration and identification information, disk space, communications, confidential or trade-secret information stored on equipment, transmitted over networks accessed by the Technology, or otherwise connected with Your use of the Technology.

Your use of Your Cisco product and/or the Technology constitutes consent by You to Cisco’s and/or its affiliates’ collection and use of such information and, for Canadian or European Economic Area (EEA) customers, to the transfer of such information to a location outside Canada or the EEA. Any information collected by Your Cisco product and/or the Software is done and utilized in accordance with our Privacy Policy available at http:// www.myciscohome.com/privacy. Your election to use the Cisco product and/or Technology indicates Your acceptance and consent to Cisco’s use of Your personal data in accordance with the terms of the Cisco Privacy Policy, so please review the policy carefully and check the web site above to review updates to it.

Support; Equipment. This Agreement does not entitle You to any support, upgrades, patches, enhancements, or fixes (collectively, “Support”) for the Technology. Any such Support for the Technology that may be made available by Cisco, in its sole discretion, shall become part of the Technology and subject to this Agreement. You shall be responsible for obtaining and maintaining any equipment or ancillary services needed to connect to, access, or otherwise use the Technology, including, without limitation, modems, hardware, software, and long distance or local telephone service. You shall be responsible for ensuring that such equipment or ancillary services are compatible with the Technology.

Software Upgrades etc. If the Software enables You to receive Upgrades, You may elect at any time to receive these Upgrades either automatically or manually. If You elect to receive Upgrades manually or You otherwise elect not to receive or be notified of any Upgrades, You may expose Your Cisco product and/or the Software to serious security threats and/or some features within Your Cisco product and/or Software may become inaccessible. There may be circumstances where we apply an Upgrade automatically in order to comply with changes in legislation, legal, security or regulatory requirements or

as a result of requirements to comply with the terms of any agreements Cisco has with any third parties regarding Your Cisco product and/or the Software. You will always be notified of any Upgrades being delivered to You. In addition, Cisco reserves the right to Upgrade our user interface with or without notice to You. The terms of this license will apply to any such Upgrade unless the Upgrade in question is accompanied by a separate license, in which event the terms of that license will apply.

Term and Termination. You may terminate this License at any time by destroying all copies of the Software and documentation. Your rights under this License will terminate immediately without notice from Cisco if You fail to comply with any provision of this Agreement.

Limited Warranty. Cisco additionally warrants that any media on which the Software may be provided will be free from defects in materials and workmanship under normal use for a period of ninety (90) days from the date of original purchase. Your exclusive remedy and Cisco’s entire liability under this limited warranty will be for Cisco, at its option, to (a) replace the Software media, or (b) refund the purchase price of the Software media.

EXCEPT FOR THE WRITTEN LIMITED WARRANTY ON MEDIA SET FORTH ABOVE AND PROVIDED IN YOUR CISCO PRODUCT PACKAGING WITH THE PURCHASE OF THE RELEVANT CISCO PRODUCT AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ALL SOFTWARE AND SERVICES PROVIDED BY CISCO ARE PROVIDED “AS IS” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND. Without limiting the foregoing, Cisco does not warrant that the operation of the product, software or services will be uninterrupted, bug free or error free. Also, due to the continual development of new techniques for intruding upon and attacking networks, Cisco does not warrant that the product, software or services, or any equipment, system or network on which the product, software or services are used will be free of vulnerability to intrusion or attack. The product may include or be bundled with third party software or service offerings. This limited warranty shall not apply to such third party software or service offerings. This limited warranty does not guarantee any continued availability of a third party’s service for which this product’s use or operation may require.

CISCO DOES NOT AND CANNOT WARRANT THE RESULTS YOU MAY OBTAIN BY USING THE TECHNOLOGY. THIS SECTION CONSTITUTES AN ESSENTIAL PART OF THE AGREEMENT, AND THE FOREGOING DISCLAIMERS ALSO APPLY WITH RESPECT TO CISCO, THEIR DISTRIBUTORS, CONTRACTORS AND AGENTS. Further, Cisco has no special relationship with or fiduciary duty to You. You acknowledge that Cisco has no control over, and no duty to take any action regarding: which users gain access to the Technology. The Technology may contain, or enable You to access, information that some people may find offensive or inappropriate. Cisco makes no representations concerning any content contained in or accessed through

Appendix E: Software End User License Agreement

the Technology, and Cisco will not be responsible or liable for the accuracy, copyright compliance, legality or decency of material contained in or accessed through the Technology.

TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, NONINFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This limited warranty gives You specific legal rights, and You may also have other rights which vary by jurisdiction.

Disclaimer of Liabilities. TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW, IN NO EVENT WILL CISCO BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT, SOFTWARE OR ANY SERVICES PROVIDED IN RESPECT OF SUCH PRODUCT OR SOFTWARE, EVEN IF CISCO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW, IN NO EVENT WILL CISCO’S LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. IF YOU LIVE IN THE EUROPEAN UNION, REFERENCES TO “SPECIAL, INDIRECT, CONSEQUENTIAL, PUNITIVE OR INCIDENTAL DAMAGES” SHALL MEAN ANY LOSSES WHICH (i) WERE NOT REASONABLY FORESEEABLE BY BOTH PARTIES, AND/ OR (ii) WERE KNOWN TO YOU BUT NOT TO US AND/OR (iii) WERE REASONABLY FORESEEABLE BY BOTH PARTIES BUT COULD HAVE BEEN PREVENTED BY YOU SUCH AS, FOR EXAMPLE (BUT WITHOUT LIMITATION), LOSSES CAUSED BY VIRUSES, TROJANS OR OTHER MALICIOUS PROGRAMS, OR LOSS OF OR DAMAGE TO YOUR DATA. THE FOREGOING LIMITATIONS WILL APPLY WITH RESPECT TO CISCO, ITS DISTRIBUTORS, CONTRACTORS, AND AGENTS AND EVEN IF ANY WARRANTY OR REMEDY PROVIDED UNDER THIS LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE. NOTHING IN THIS SECTION SHALL LIMIT THE LIABILITY OF CISCO OR ITS DISTRIBUTORS, CONTRACTORS OR AGENTS IN RELATION TO DEATH OR PERSONAL INJURIES CAUSED BY THEIR NEGLIGENCE.

Indemnity. You agree that Cisco and its distributors, partners, contractors and agents shall have no liability whatsoever for any use You make of the Technology. You shall indemnify and hold harmless Cisco and its distributors, partners, contractors and agents from any claims, damages, losses, liabilities, costs and fees (including reasonable attorney fees) arising from Your use of the Technology as well as from Your failure to comply with any term of this Agreement.

Technical Support. This limited warranty is neither a service nor a support contract. Information about Cisco’s current technical support offerings and policies (including any fees for support services) can be found at www.myciscohome.com/support.

Export. Software, including technical data, may be subject to U.S. export control laws and regulations and/or export or import regulations in other countries. You agree to comply strictly with all such laws and regulations.

U.S. Government Users. The Software and Documentation qualify as “commercial items” as defined at 48 C.F.R. 2.101 and 48 C.F.R. 12.212. All Government users acquire the Software and Documentation with only those rights herein that apply to non-governmental customers. Use of either the Software or Documentation or both constitutes agreement by the Government that the Software and Documentation are “commercial computer software” and “commercial computer software documentation,” and constitutes acceptance of the rights and restrictions herein.

General Terms. This Agreement will be governed by and construed in accordance with the laws of the State of California, without reference to conflict of laws principles. The United Nations Convention on Contracts for the International Sale of Goods will not apply. If any portion of this Agreement is found to be void or unenforceable, the remaining provisions will remain in full force and effect. Each party recognizes and agrees that the warranty disclaimers and liability and remedy limitations in this Agreement are material bargained for bases of this Agreement and that they are reasonable and have been taken into account and reflected in determining the consideration to be given by each party under this Agreement and in the decision by each party to enter into this Agreement. Cisco’s distributors, contractors and agents are intended third party beneficiaries under this Agreement. This Agreement constitutes the entire agreement between the parties with respect to the Software and supersedes any conflicting or additional terms contained in any purchase order or elsewhere. Except as set forth in the above “License” Section or otherwise expressly provided under this Agreement, no amendment to or modification of this Agreement will be binding unless in writing and signed by Cisco and You.

Linksys, Cisco and the Cisco Logo and other trademarks contained in the Software and Documentation are trademarks or registered trademarks of Linksys, Cisco, its licensors and third parties, as the case may be. You may not remove or alter any trademark, trade names, product names, logo, copyright or other proprietary notices, legends, symbols or labels in the Software and Documentation. This Agreement does not authorize You to use Cisco’s or its licensors’ names or respective trademarks.

END OF SCHEDULE 1

Appendix E: Software End User License Agreement

Schedule 2 Open Source and Third Party Licenses

Schedule 2-A

If this Cisco product contains open source software licensed under Version 2 of the “GNU General Public License” then the license terms below in this Schedule 2-A will apply to that open source software. The license terms below in this Schedule 2-A are from the public web site at

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

Appendix E: Software End User License Agreement

a. You must cause the modified files to carry

prominent notices stating that you changed the files and the date of any change.

b. You must cause any work that you distribute or

publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c. If the modified program normally reads commands

interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a. Accompany it with the complete corresponding

machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b. Accompany it with a written offer, valid for at least

three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c. Accompany it with the information you received as

to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

Appendix E: Software End User License Agreement

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

END OF SCHEDULE 2-A

Appendix E: Software End User License Agreement

Schedule 2-B

If this Cisco product contains open source software licensed under Version 2.1 of the “GNU Lesser General Public License” then the license terms below in this Schedule 2-B will apply to that open source software. The license terms below in this Schedule 2-B are from the public web site at http://www.gnu.org/licenses/old-

licenses/lgpl-2.1.html

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages-typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them

with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/ or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in nonfree programs enables a greater number of people to use a large body of free software. For example, permission to

Appendix E: Software End User License Agreement

use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”.

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a. The modified work must itself be a software library.

b. You must cause the files modified to carry

prominent notices stating that you changed the files and the date of any change.

c. You must cause the whole of the work to be

licensed at no charge to all third parties under the terms of this License.

d. If a facility in the modified Library refers to a

function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the

Appendix E: Software End User License Agreement

distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked

without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a. Accompany the work with the complete

corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b. Use a suitable shared library mechanism for linking

with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

Appendix E: Software End User License Agreement

c. Accompany the work with a written offer, valid

for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d. If distribution of the work is made by offering access

to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e. Verify that the user has already received a copy of

these materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a. Accompany the combined library with a copy of

the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

b. Give prominent notice with the combined library of

the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

Appendix E: Software End User License Agreement

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

END OF SCHEDULE 2-B

Schedule 2-C OPENSSL LICENSE

If this Cisco product contains open source software licensed under the OpenSSL license:

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www. openssl.org/).

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

This product includes software written by Tim Hudson (tjh@cryptsoft.com).

In addition, if this Cisco product contains open source software licensed under the OpenSSL license then the license terms below in this Schedule 2-C will apply to that open source software. The license terms below in this Schedule 2-C are from the public web site at http://www. openssl.org/source/license.html.

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.

OpenSSL License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Appendix E: Software End User License Agreement

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ”AS IS’’ AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).

Original SSLeay License

This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).

The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with

this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).

If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

“This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)”

The word ‘cryptographic’ can be left out if the routines from the library being used are not cryptographic related.

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: “This product includes software written by Tim Hudson (tjh@ cryptsoft.com)”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The license and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution license [including the GNU Public License.]

END OF SCHEDULE 2-C

www.ciscovalet.com/support

© 2010 Cisco Systems, Inc. All rights reserved. Cisco, the Cisco logo, and Valet are trademarks or registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company.

10012210NC-RR

Cisco Valet Plus, Valet Plus M20, Valet M10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1: Product Overview

Chapter 2: Cisco Connect

Chapter 3: Advanced Configuration

Appendix A: Troubleshooting

Appendix B: Specifications

Appendix C: Warranty Information

Appendix D: Regulatory Information

Appendix E: Software End User License Agreement
