Product Overview

The Cisco CGS 2520 switches, also referred to as the switch, are Ethernet switches that you can connect devices such as Intelligent Electronic Devices (IEDs), distributed controllers, substation routers, Cisco IP Phones, Cisco Wireless Access Points, and other network devices such as redundant substation switches.
This chapter contains the following topics:
Switch Models, page 1-1
Cable Side, page 1-2
Power Supply Side, page 1-11
Management Options, page 1-13

Switch Models

CHAP T E R
1
Note The information in this document regarding China switches (part numbers ending with -C, for example,
PWR-RGD-AC-DC-C) are identical to the non-China switches, except where specified.
Table 1-1 Switch Models
Model Description
Cisco CGS-2520-24TC 24 10/100 FastEthernet ports, two dual-purpose ports
(two 10/100/1000BASE-T copper ports and two SFP and two AC and DC power supply module slots.
Cisco CGS-2520-24TC-C (For China) 24 10/100 FastEthernet ports, two dual-purpose ports
(two 10/100/1000BASE-T copper ports and two SFP module slots), and two AC and DC power supply module slots.
Cisco CGS-2520-16S-8PC 16 100BASE-FX SFP-module slots; eight 10/100 FastEthernet PoE
ports, two dual-purpose ports (two 10/100/1000BASE-T copper ports and two SFP module slots), and two AC and DC power supply module slots.
Cisco CGS-2520-16S-8PC-C (For China) 16 100BASE-FX SFP-module slots; eight 10/100
FastEthernet PoE ports, two dual-purpose ports (two 10/100/1000BASE-T copper ports and two SFP module slots), and two AC and DC power supply module slots.
1
module slots),
2
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
1-1

Cable Side

Cisco CGS 2520
7
4 92
1 3 5 6 8
207196
Cable Side
Chapter 1 Product Overview
1. SFP = small-form-factor pluggable.
2. PoE = Power over Ethernet.
The 10/100 Fast Ethernet downlink ports in Figure 1-1 are grouped in pairs. The first member of the pair (port 1) is above the second member (port 2) on the left. Port 3 is above port 4, and so on. The dual-purpose ports are numbered 1 and 2.
Figure 1-1 Cisco CGS-2520-24TC Cable-Side View
1 SD1 flash memory card slot
2 LEDs 7 USB (mini-Type B) console port
3 Express Setup button 8 Power-input terminal
4 10/100 ports 9 Alarm port
5 Dual purpose ports
1. SD = Secure Digital
The100BASE-FX SFP ports and the 10/100 PoE ports are grouped in pairs. The first member of the pair (port 1) is above the second member (port 2) on the left. Port 3 is above port 4, and so on. The dual-purpose ports are numbered 1 and 2.
6 RJ-45 console port
1-2
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 1 Product Overview
Cisco CGS 2520
POWER
OVER
ETHERNET
POWER
OVER
ETHERNET
8
4
102
1 3 65 7 9
207197
Figure 1-2 Cisco CGS-2520-16S-8PC Cable-Side View
1 SD flash memory card slot 6 Dual purpose ports
2 LEDs 7 RJ-45 console port
3 Express Setup button 8 USB (mini-Type B) console port
4 100BASE-FX SFP ports 9 Power-input terminal
5 10/100 PoE ports 10 Alarm port
Cable Side

10/100 Fast Ethernet Ports

You can set the 10/100 ports on the switch to operate in any combination of half duplex, full duplex, or 10 or 100 Mb/s. You can set the ports for speed and duplex auto-negotiation. The default setting is auto-negotiate.
When set for auto-negotiation, the switch determines the speed and duplex settings of the attached device, and advertises its own capabilities. If the connected device also supports auto-negotiation, the switch negotiates the best connection (the fastest line speed that both devices support and full-duplex transmission if the attached device supports it), and configures itself accordingly. In all cases, the attached device must be within 328 feet (100 meters).

PoE Ports

Warning
Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if interconnections are made using uninsulated exposed metal contacts, conductors, or terminals. Avoid using such interconnection methods, unless the exposed metal parts are located within a restricted access location and users and service people who are authorized within the restricted access location are made aware of the hazard. A restricted access area can be accessed only through the use of a special tool, lock and key or other means of security.
The 10/100 PoE ports on the Cisco CGS-2520-16S-8PC-C switches provide PoE support for devices that are compliant with IEEE 802.3af. The Cisco prestandard PoE is also supported for Cisco IP Phones and Cisco Aironet Access Points. The PoE ports on the switch deliver up to 15.4 W of PoE. Any four of the eight ports are designated as high priority PoE ports, while other four ports are designated as low priority
Statement 1072
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
1-3
Cable Side
Chapter 1 Product Overview
PoE ports. When both the power supply modules are installed, the system has enough power to support all the eight ports as PoE ports. In case one of the power supply module fails, the power to the low priority PoE ports is dropped, while power to the high priority PoE ports remains uninterrupted.
On a per-port basis, you control whether or not a port automatically provides power when an IP phone or an access point is connected.
The 10/100 PoE ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet (100 meters). The 100BASE-TX and 1000BASE-T traffic requires Category 5, Category 5e, or Category 6 unshielded twisted pair (UTP) cable. The 10BASE-T traffic can use Category 3 or Category 4 UTP cable.
For information about configuring and monitoring PoE ports, see the switch software configuration guide on Cisco.com.
For information about port connections and port specifications, see the Connecting Devices to the
Ethernet Ports, page 2-24 and the Connector and Cable Specifications, page B-1.
Note The output of the PoE circuit has been evaluated as a Limited Power Source (LPS) per IEC 60950-1.

Dual-Purpose Ports

You can configure the dual-purpose ports on the switch as either 10/100/1000 ports or as SFP-module ports. You can set the 10/100/1000 ports to autonegotiate, or you can configure them as fixed 10, 100, or 1000 Mb/s (Gigabit) Ethernet ports.
By default, the switch selects the medium for each dual-purpose port (10/100/1000BASE-T or SFP). When a link is achieved on one media type, the switch disables the other media type until the active link goes down. If links are active on both media, the SFP-module port has priority, but you can use the media-type interface configuration command to manually designate the port as an RJ-45 port or an SFP port.
You can configure the speed and duplex settings consistent with the selected media type. For information on configuring interfaces, see the switch software configuration guide.
SFP Modules
The switch Ethernet SFP modules provide connections to other devices. These field-replaceable transceiver modules provide the uplink interfaces.The modules have LC connectors for fiber-optic connections or RJ-45 connectors for copper connections. You can use any combination of the supported SFP modules listed in Table 1 -2.
1-4
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 1 Product Overview
126809
Table 1-2 Maximum Operating Temperature
Type of SFP Module Model
Rugged and Industrial SFPs –40 to 140°F (–40 to 60°C)
Commercial SFPs 32 to 113°F (0 to 45°C)
Cable Side
GLC-SX-MM-RGD
GLC-LX-SM-RGD
GLC-FE-100LX-RGD
GLC-FE-100FX-RGD
GLC-ZX-SM-RGD
GLC-BX-D with DOM support
GLC-BX-U with DOM support
GLC-FE-100LX
GLC-FE-100BX-D
GLC-FE-100BX-U
GLC-FE-100FX
GLC-FE-100EX
Extended temperature SFPs 23 to 140°F (–5 to 60°C)
For information about SFP modules, see your SFP module documentation and the Installing and
Removing SFP Modules, page 2-19. For cable specifications, see SFP Module Cables, page B-4
SFP Module Patch Cable
The switch uses an SFP-module patch cable, a 0.5-meter, copper, passive cable with SFP module connectors at each end (see Figure 1-3). The patch cable connects two switches in a cascaded configuration.
Figure 1-3 SFP-Module Patch Cable
GLC-FE-100ZX
CWDM SFP with DOM support
SFP-GE-L with digital optical monitoring
(DOM) support
SFP-GE-S with DOM support
SFP-GE-Z with DOM support
GLC-EX-SMD with DOM support
78-19377-02
See the Inserting and Removing the SFP Module Patch Cable, page 2-21 for information about using the SFP module patch cable.
You can order this cable (part number CAB-SFP-50CM=).
Cisco CGS 2520 Hardware Installation Guide
1-5
Cable Side
Cisc
o CG
S 2
5
2

Power-Input Terminal

The power-input terminal provides screw terminals for the AC and DC power connections. The switch can operate with one or two power supplies. If one of the power sources fail, the other continues to power the switch. See Power Supply Installation, page 3-1 for information.
Figure 1-4 Power-Input Terminal
Chapter 1 Product Overview

Alarm Ports

Alarm Input
Alarm Output
207234
The switch has four alarm inputs and one alarm output. The alarm setting is open or closed.
Open means that the normal condition has current flowing through the contact (referred to as a
normally closed contact). The alarm is generated when the current stops.
Closed means that no current flows through the contact (referred to as a normally open contact). The
alarm is generated when the current flows.
The alarm input is a dry-contact alarm port. You can connect up to four alarm inputs from devices, such as a door, a temperature gauge, or a fire alarm, to the alarm port. You can use the CLI to set the alarm severity to minor, major, or critical. An alarm generates a system message and turns on an LED. See
Alarm LEDs, page 1-9 for the LED descriptions.
The alarm output can be configured as a minor or major alarm. Output alarms often control an external alarm, such as a bell or a light. To connect an external alarm device to the relay, connect two relay contact wires to complete the electrical circuit. See Alarm Port, page B-3 for information on the alarm pinouts.

Management Ports

You can connect the switch to a PC running Microsoft Windows or to a terminal server through either the RJ-45 console port or the USB console port.
RJ-45 console port. The RJ-45 connection uses an RJ-45-to-DB-9 female cable
Cisco CGS 2520 Hardware Installation Guide
1-6
78-19377-02
Chapter 1 Product Overview
USB mini-Type B console port (5-pin connector); the USB connection uses a USB Type A-to-5-pin
The USB console interface speeds are the same as the RJ-45 console interface speeds.
To use the USB console port, you must install the Cisco Windows USB device driver on the device that is connected to the USB console port (device running with Microsoft Windows).
Note For information about downloading the Cisco USB device driver, see the Installing the Cisco Microsoft
Windows USB Device Drivers, page C-4.
With the Cisco Windows USB device driver, connecting and disconnecting the USB cable from the console port does not affect Windows HyperTerminal operations. Mac OS X or Linux require no special drivers.
Note The 5-pin mini-Type B connectors resemble the 4-pin mini-Type B connectors. They are not compatible.
Use only the 5-pin mini-Type B. See Figure 1-5.
Cable Side
mini-Type B cable

LEDs

Figure 1-5 USB Mini-Type B Port
253163
The configurable inactivity timeout reactivates the RJ-45 console port if the USB console port is activated, but no input activity occurs on it for a specified time period. When the USB console port deactivates due to a timeout, you can restore its operation by disconnecting and reconnecting the USB cable. For information on using the CLI to configure the USB console interface, see the switch software guide.
You can use the switch system and port LEDs to monitor switch activity and performance.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
1-7
Cable Side
Switch Panel LEDs
Chapter 1 Product Overview
Figure 1-6 Switch LEDs (Cable Side)
21 3 45678 9 10 11 12 13
207198
System LED
14 15
16
1 SYS (system) 9 OUT (alarm output)
2 CON (console) 10 PSU1 (power supply 1)
3 USB 11 PSU2 (power supply 2)
1
4 SD (SD flash memory card) 12 PoE
5 IN1 (alarm input 1) 13 Express Setup button
6 IN2 (alarm input 2) 14 Ethernet ports
7 IN3 (alarm input 3) 15 SFP module port
8 IN4 (alarm input 4) 16 10/100/1000 port
1. Only on the Cisco CGS-2520-16S-8PC switch.
Table 1-3 System LED
Color System Status
Off System is not powered on
1
Blinking green POST
is in progress
Green System is operating normally
Amber System is receiving power but is not functioning properly
1. POST = power-on self-test.
1-8
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 1 Product Overview
Power Supply Module LEDs
The switch power supply module LEDs are labeled PSU1 and PSU2 (on the switch) and PSU OK (on the power supply module). They show whether power supply modules 1 and 2 are receiving power. See
Figure 1-6 and Figure 1-9.
Table 1-4 Power Supply Module LEDs
Color System Status
Off Power supply module (1 or 2) is not installed
Green Valid input is present, and the output is within the operating range
Red Valid input is present, and the output is outside the operating range or is not present
Blinking red Valid input is not present
Alarm LEDs
Table 1-5 Alarm Input LEDs
Cable Side
Console LEDs
Color System Status
Off No alarm
Amber Minor alarm
Red Major alarm
Blinking red Critical alarm
Table 1-6 Alarm Output LED
Color System Status
Green No alarm
Red Relay closed, alarm present
The console LEDs show which console port is in use. See Figure 1-6 and Figure 1-9 for the LED locations.
If you connect a cable to a console port, the switch automatically uses that port for console communication. If you connect two console cables, the USB console port has priority.
Table 1-7 RJ-45 and USB Console Port LEDs
78-19377-02
LED Color Description
RJ-45 console port Green RJ-45 console port is active.; USB console port LED is off
Off Port is not active; USB console port is active
USB console port Green USB console port is active; RJ-45 console port LED is off
Off Port is not active; RJ-45 console port is active
Cisco CGS 2520 Hardware Installation Guide
1-9
Cable Side
Port LEDs
Chapter 1 Product Overview
RJ-45 ports and SFP-module slots have port LEDs. Port LEDs, as a group or individually, provide information about the switch and about the individual ports.
Table 1-8 Meaning of Port LED Colors
LED Color Meaning
Off No link or port was administratively shut down
Green Link present but not sending or receiving data
Blinking green Activity. Port is sending or receiving data
Alternating green-amber
Amber Port is blocked by Spanning Tree Protocol (STP) and is not forwarding data.
Link fault. Error frames can affect connectivity, and errors such as excessive collisions, CRC errors, and alignment and jabber errors are monitored for link faults
After a port is reconfigured, the port LED is amber for up to 30 seconds as STP searches for loops.
PoE LED
Table 1-9 PoE LED
Color Meaning
Off Not enabled
Green Enabled and ports are functioning correctly
Alternating green and amber Enabled but power is disconnected or has failed on a low-priority port
Blinking amber Enabled but power is disconnected or has failed on a high-priority port
Amber Enabled and a PoE circuit failure is detected
Dual-Purpose Port LEDs
The dual-purpose port LEDs identify the connection as either a copper-based connector or an SFP module. The ports can autonegotiate, or you can manually configure each dual-purpose port as either 10/100/1000 with copper connectors or as an SFP-module port, but not as both types at the same time. See Table 1-8 for LED descriptions.
SD Flash Memory Card LED
Table 1-10 SD Flash Memory C ard LED
1-10
Color System Status
Off / blinking green Transfer in progress
Blinking amber Not present (slow blinking); unsupported SD flash memory card is
detected (fast blinking)
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 1 Product Overview
2
1
3
207200
Cisco Connected Grid
Switch 2500 Series
PWR-RGD-LOW-DC
Table 1-10 SD Flash Memory Card LED (continued)
Color System Status
Amber Error accessing the SD flash memory card; Cisco IOS boot image
Green SD flash memory card is functioning

SD Flash Memory Card

The switch ships with the Secure Digital (SD) flash memory card installed. See Figure 1-1 and
Figure 1-2. You can remove the card from a failed switch and install it in a replacement switch. You do
not have to reconfigure the new switch. See the Replacing the SD Flash Memory Card, page 2-22 for information.

Power Supply Side

cannot be found
Warning
Be aware that the SD card contains sensitive and security relevant information, including but not limited to full device configuration information, public and private keys used for SSH and SSL (if those protocols are enabled), device passwords and others. Access to SD cards for any Cisco CGS switch should be limited to authorized personnel.
Power Supply Side
The power supply side has the LED panel and two power supply slots for the removable power supplies. See Figure 1-7 and Figure 1-8.
Figure 1-7 Switch with One Power Supply Module
1 LED panel Power supply slot 1 3 Power supply slot 2
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
1-11
Power Supply Side
207230
1
1
Cisco Connected Grid Switch 2500 Series
PWR-RGD-LOW-DC
PWR-RGD-LOW-DC
Cisco Connected Grid
Switch 2500 Series
21 3 45678 9 10 11 12
207199
13 14
15
Figure 1-8 Switch with Both Power Supply Modules
1 PSU OK LED
For a description of the PSU OK LED, see Table 1-4 on page 1-9.

Power Supply-Side LEDs

Chapter 1 Product Overview
Figure 1-9 Switch LEDs
1 SYS (system) 9 OUT (alarm output)
2 CON (console) 10 PSU1 (power supply 1)
3 USB LED 11 PSU2 (power supply 2)
4 SD (SD flash memory card) 12 PoE
5 IN1 (alarm input 1) 13 Express setup button
6 IN2 (alarm input 2) 14 Ethernet port
7 IN3 (alarm input 3) 15 10/100/1000 port
8 IN4 (alarm input 4) 16 SFP port
1
1-12
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 1 Product Overview
1. Only on the Cisco CGS-2520-16S-8PC switch.
For a description of the LEDs, see LEDs, page 1-7.

Power Supply Features

The switch has two slots for power supply modules:
PWR-RGD-LOW-DC: low-voltage DC (for voltage information, see Tabl e A - 6)
PWR-RGD-AC-DC: high-voltage AC or DC (for voltage information, see Tab l e A-5)
PWR-RGD-AC-DC-C: high-voltage AC or DC for China
The switch supports these power supply module combinations:
Single low-voltage DC
Single high-voltage AC or DC
Two high-voltage AC or DC
Two low-voltage DC
One high-voltage AC or DC and one low-voltage DC
For information on installing the power supply modules, see Power Supply Installation, page 3-1

Management Options

See Table 1-4 for information on the power supply LEDs.
Management Options
Device manager
You can use the device manager in the switch memory to manage standalone switches. For information, see the switch getting started guide and the device manager online help.
Cisco IOS CLI
You can configure and monitor the switch from the CLI. Connect your management station to the switch console port or use Telnet from a remote management station. See the switch command reference on Cisco.com for information.
CiscoWorks application
The CiscoWorks LAN Management Solution (LMS) is a suite of management tools that simplify the configuration, administration, monitoring, and troubleshooting of Cisco networks. See the LMS documentation for information:
http://www.cisco.com/en/US/products/ps7198/tsd_products_support_series_home.html
CiscoView application
The CiscoView device-management application displays a switch image that you can use to view switch status and performance information and to set configuration parameters. The CiscoView application (sold separately) can be a standalone application or part of a Simple Network Management Protocol (SNMP) platform. For information, see the CiscoView documentation:
http://www.cisco.com/en/US/products/sw/cscowork/ps4565/tsd_products_support_series_home.ht ml
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
1-13
Management Options
Chapter 1 Product Overview
Cisco Configuration Engine
The Cisco Configuration Engine automates initial configurations and configuration updates. It generates device-specific configuration changes, sends them to the device, executes the configuration changes, and logs the results. For information about Cisco Configuration Engine, see the software configuration guide on Cisco.com.
SNMP network management
You can manage switches from a Simple Network Management Protocol (SNMP)-compatible management station that is running platforms such as HP OpenView or SunNet Manager. The switch supports a comprehensive set of Management Information Base (MIB) extensions and four Remote Monitoring (RMON) groups. See the switch software configuration guide on Cisco.com and the documentation that came with your SNMP application for information.
Cisco Configuration Professional
Configuration Professional is a software program that you download from Cisco.com and run on your PC. It offers advanced options for configuring and monitoring multiple devices, including the Cisco CGS 2520 switches. Configuration Professional is available at no cost:
http://www.cisco.com/en/US/products/ps9422/index.html
See the Configuration Professional getting started guide and online help for more information.
Cisco Security Manager
Cisco Security Manager (Security Manager) manages security policies on Cisco security devices. It supports integrated provisioning of firewall, IPS, and VPN (site-to-site, remote access, and SSL) services across devices. For information, see the User Guide for Cisco Security Manager 3.2.2.
Catalyst Smart Operations
The Smart Install feature provides a single point of management (director) in a network. You can use it to provide a zero touch image and configuration upgrade of newly deployed switches and image and configuration downloads for any client switches. For information, see the Cisco Smart Install Configuration Guide on Cisco.com.
The Smartports feature provides user-defined and Cisco-default macros for creating custom switch configurations to simplify deployment. For information about configuring Smartports, see the switch software configuration guide on Cisco.com.

Network Configurations

See the switch software configuration guide on Cisco.com for an explanation of network configuration concepts. The software configuration guide also provides network configuration examples for creating dedicated network segments that are interconnected through Ethernet connections.
1-14
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
CHAP T E R
2

Switch Installation

This chapter contains the steps to install the switch. Please read the topics and follow the steps in the following order:
Warnings, page 2-1
Installation Guidelines, page 2-3
Verifying Switch Operation, page 2-3
Installing the Switch, page 2-4
Installing and Removing SFP Modules, page 2-19
Inserting and Removing the SFP Module Patch Cable, page 2-21
Replacing the SD Flash Memory Card, page 2-22
Connecting Devices to the Ethernet Ports, page 2-24
Where to Go Next, page 2-26

Warnings

Warning
Warning
Warning
78-19377-02
These warnings are translated into several languages in the Regulatory Compliance and Safety Information for the Cisco CGS 2520 document that ships on the documentation CD.
These warning statements apply to all the switches:
Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Read the installation instructions before you connect the system to its power source.
Cisco CGS 2520 Hardware Installation Guide
Statement 43
Statement 1004
2-1
Warnings
Chapter 2 Switch Installation
Warning
Warning
Warning
Warning
Warning
This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.
Statement 1017
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.
Statement 1024
This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.
Statement 1028
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Ultimate disposal of this product should be handled according to all national laws and regulations.
Statement 1040
Warning
For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection.
Warning
Warning
10/100/1000 Ethernet
To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of: 140°F (60°C)
Statement 1047
This equipment is supplied as “open type” equipment. It must be mounted within an enclosure that is
Statement 1044
suitably designed for those specific environmental conditions that will be present and appropriately designed to prevent personal injury resulting from accessibility to live parts. The interior of the enclosure must be accessible only by the use of a tool. The enclosure must meet IP 54 or NEMA type 4 minimum enclosure rating standards.
Warning
Note For U.S. installations, refer to national electrical code ANSI/NFPA 70.
Installation of the equipment must comply with local and national electrical codes.
Statement 1063
Statement 1074
2-2
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation

Installation Guidelines

Warning
To prevent airflow restriction, allow clearance around the ventilation openings to be at least:
1.75 in. (4.4 cm).
Statement 1076
Installation Guidelines
Before installing the switch, verify that these guidelines are met:
Cabling must be kept away from sources of electrical noise, such as radios, power lines, and
fluorescent lighting fixtures. Make sure that the cabling is away from other devices that might damage the cables.
Operating environment is within the ranges listed in Technical Specifications, page A-1
Relative humidity around the switch does not exceed 95 percent (noncondensing).
Altitude at the installation site is not higher than 10,000 feet.
For 10/100 and 10/100/1000 fixed ports, cable lengths from the switch to connected devices are not
more than 328 feet (100 meters).
For cable lengths for small-form-factor pluggable (SFP)-module connections, see the SFP Module
Cables, page B-4 and the module documentation.
Airflow around the switch and through the vents is unrestricted. To prevent overheating, the switch
must meet the minimum clearance of 1.75 inches (4.4 cm) at the top and bottom. For clearances needed for wall mounting, see specifications in Wall-Mounting, page 2-16.
Note If the switch is installed in a closed or multirack assembly, take into consideration that the
temperature around the switch might be greater than normal room temperature and that special accommodations in clearance must be made.

Verifying Switch Operation

Before installing the switch in a rack or on a wall, you should power on the switch and verify that the switch passes the power-on self-test (POST).
To wire the switch to the power source, see Power Supply Installation, page 3-1
When the switch begins POST, the System LED blinks green, and the other LEDs stay green. When the switch passes POST, the System LED turns green. The other LEDs turn off and return to their operating status. If the switch fails POST, the System LED is amber.
Note Contact Cisco Systems immediately if your switch fails POST.
After a successful POST, disconnect the power from the switch. For more information, see Power Supply
Installation, page 3-1 See the Installing the Switch, page 2-4 to install the switch into a rack or onto a
wall.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
2-3

Installing the Switch

Installing the Switch
The following installation information is covered in this section:
Mounting into a Rack, page 2-4
Wall-Mounting, page 2-16
Note After the switch is mounted onto the rack, connect the power source to the switch. See Power Supply
Installation, page 3-1

Mounting into a Rack

The following mounting procedures are explained in this section:
.Mounting Brackets, page 2-4
Attaching Brackets for 19-Inch Racks, page 2-5
Attaching Brackets for 19-Inch Racks (IP-30 Compliance), page 2-7
Chapter 2 Switch Installation
Attaching Brackets for 23-Inch Racks, page 2-12
Attaching Brackets for ETSI Racks, page 2-13
Mounting the Switch into a Rack, page 2-15
Warning
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it the only rack in the rack
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
.Mounting Brackets
Figure 2-1 shows the 19-inch rack mounting brackets.
Figure 2-1 19-inch Mounting Brackets
Statement 1008
2-4
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-2 shows the 23-inch rack mounting brackets.
Figure 2-2 23-inch Mounting Brackets
Figure 2-3 shows the ETSI rack mounting brackets.
Figure 2-3 ETSI Mounting Brackets
Installing the Switch
Attaching Brackets for 19-Inch Racks
Figure 2-4 and Figure 2-5 shows the 19-inch rack mounting bracket locations on the switch for
cable-side mounting and power-side mounting onto an 19-inch rack.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
2-5
Installing the Switch
Chapter 2 Switch Installation
Figure 2-4 Attaching Brackets for 19-Inch Racks
2-6
1 Mid-mount position 3 Cable-side mounting position
2 Phillips flat-head screws 4 Power supply-side mounting position
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-5 Attaching Brackets for 19-Inch Racks
Installing the Switch
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side-mounting position
Attaching Brackets for 19-Inch Racks (IP-30 Compliance)
Before installing the mounting brackets, you need to install the rubber plugs into the unused mounting holes of the switch chassis. You can get the appropriate rubber plugs by ordering kit CGS-2520-IP30KIT.
Follow the procedure below to install the rubber plugs.
Step 1 Determine whether you will install using the mid-mount, cable-side, or power supply-side positioning
by identifying your bracket mounting positions shown in Figure 2-9 and Figure 2-10.
Step 2 Insert the rubber plugs into the appropriate holes according to your mount position as shown in
Figure 2-6 and Figure 2-7. Follow the same procedure for both sides of the switch.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
2-7
Installing the Switch
Chapter 2 Switch Installation
Figure 2-6 Inserting the Rubber Plugs
2-8
1 Rubber plug 3 Cable-side mounting position
2 Mid-mount position 4 Power supply-side mounting position
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-7 Inserting the Rubber Plugs
Installing the Switch
Step 3
1 Rubber plug 3 Power supply-side mounting position
2 Cable-side mounting position
Use a screwdriver or pen to completely push in the rubber plugs. Figure 2-8 shows a close-up of the rubber plug and how they are inserted into the mounting holes.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
2-9
Installing the Switch
Chapter 2 Switch Installation
Figure 2-8 Inserting the Rubber Plugs (detail)
2-10
1 Rubber plug 3 Screwdriver
2 Switch
Step 4 Install the brackets on both sides of the switch as shown in Figure 2-9 and Figure 2-10.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-9 Attaching Brackets for 19-Inch Racks
Installing the Switch
78-19377-02
1 Mid-mount position 3 Cable-side mounting position
2 Phillips flat-head screws 4 Power supply-side mounting position
Cisco CGS 2520 Hardware Installation Guide
2-11
Installing the Switch
Chapter 2 Switch Installation
Figure 2-10 Attaching Brackets for 19-Inch Racks
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side-mounting position
Note
For IP-30 compliance: If you use 23-inch brackets or ETSI brackets, you can insert the rubber plugs in the same holes as shown in Figure 2-6 and Figure 2-7 before installing the brackets.
Attaching Brackets for 23-Inch Racks
Figure 2-11 shows the 23-inch rack mounting bracket locations on the switch for cable-side mounting
and power-side mounting onto a 23-inch rack.
2-12
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-11 Attaching Brackets for 23-Inch Racks
Installing the Switch
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side-mounting position
Note For IP-30 compliance: If you use 23-inch brackets, you can insert the rubber plugs in the same holes as
shown in Figure 2-7 or Figure 2-8 before installing the brackets.
Attaching Brackets for ETSI Racks
Figure 2-12 shows the mounting bracket locations on the switch for cable-side mounting and power-side
mounting onto an ETSI rack.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
2-13
Installing the Switch
Chapter 2 Switch Installation
Figure 2-12 Attaching Brackets for ETSI Racks
2-14
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side mounting position
Note For IP-30 compliance: If you use ETSI brackets, you can insert the rubber plugs in the same holes as
shown in Figure 2-7 or Figure 2-8 before installing the brackets.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Mounting the Switch into a Rack
After you attach the brackets onto the switch, use the four supplied number-12 Phillips machine screws to attach the brackets to the rack as shown in Figure 2-13. (Brackets for the 19-inch rack shown in this example.)
Note We recommend attaching the cable guide to prevent the cables from obscuring the LED panels on the
devices in the rack. Use the supplied black screw shown in Figure 2-13 [6] to attach the cable guide to the left or right bracket.
Figure 2-13 Rack Mounting
Installing the Switch
78-19377-02
1 Mid-mount position 4 Phillips machine screws
2 Cable screw 5 Power supply-side mounting position
3 Cable-side mounting position 6 Cable guide
Cisco CGS 2520 Hardware Installation Guide
2-15
Installing the Switch

Wall-Mounting

The following steps are covered in this section:
Attaching Brackets for Wall Mounting, page 2-16
Wall-Mounting (for IP-30 Compliance), page 2-17
Chapter 2 Switch Installation
Warning
If the switch is wall-mounted in an enclosure allow for these minimum clearances:
• Sides of switch (facing up and facing down): 3.75 in. (9.52 cm)
• Port side 3.0 in. (7.62 cm)
• Power supply side: 5.25 in. (13.33 cm)
• Cover side (side not facing wall): 1.75 in. (4.44 cm)
• Base side (facing wall): 0 in. (0 cm)
Attaching Brackets for Wall Mounting
Follow these steps to mount the switch onto a wall.
Step 1 Insert the rubber plugs into the appropriate holes. Follow the same procedure for the other side of the
switch.
Step 2 Use a screwdriver or pen to completely push in the rubber plugs (see Figure 2-8).
Step 3 Install the brackets onto both sides of the switch (see Figure 2-16).
Step 4 Secure the bracket and switch to the wall using the screws provided.
Figure 2-14 shows how to wall-mount the switch onto a wall.
2-16
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-14 Attaching 19-inch Rack Brackets for Wall Mounting
Installing the Switch
1 Phillips truss-head screws
Wall-Mounting (for IP-30 Compliance)
Follow these steps to mount the switch onto a wall and conform to IP-30 Compliance regulations.
Step 1 Insert the rubber plugs into the appropriate holes (see Figure 2-15). Follow the same procedure for the
other side of the switch.
Step 2 Use a screwdriver or pen to completely push in the rubber plugs (see Figure 2-8).
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
2-17
Installing the Switch
Chapter 2 Switch Installation
Figure 2-15 Inserting the Rubber Plugs into the Switch Holes
Step 3
1 Rubber plug
Install the brackets on both sides of the switch (see Figure 2-16).
Figure 2-16 Attaching 19-inch Rack Brackets
2-18
1 Phillips truss-head screws
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation

Installing and Removing SFP Modules

Small-form-factor pluggable (SFP) modules provide the uplink optical interfaces, laser send (TX) and laser receive (RX).
When installing or removing SFP modules, observe these guidelines:
Removing and installing an SFP module can shorten its useful life. Do not remove and insert any
module more often than is absolutely necessary.
To prevent ESD damage, follow your normal board and component handling procedures when
connecting cables to the switch and other devices.
Installing and Removing SFP Modules
Warning
Caution Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the
Class 1 laser product.
fiber-optic cable until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables from contamination and ambient light.
Caution We strongly recommend that you not install or remove the SFP module while the fiber-optic cable is
attached to it because of the potential damage to the cables, to the cable connector, or to the optical interfaces in the SFP module. Disconnect the cable before you remove or install an SFP module.

Installing SFP Modules

This section describes how to install Small Form Factor pluggable (SFP) modules. SFP modules are inserted into the SFP modules connected to the switch.
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 2 Find the send (TX) and receive (RX) markings on the module top.
Note On some SFP modules, the send and receive (TX and RX) markings might be replaced by arrows
that show the direction (send or receive) of the connection.
Statement 1008
78-19377-02
Step 3 If the module has a bale-clasp latch, move it to the open, unlocked position.
Step 4 Align the module in front of the slot opening, and insert until you feel the connector snap into place.
Step 5 If the module has a bale-clasp latch, close it to lock it into place.
Step 6 For fiber-optic SFP modules, remove the dust plugs and store them in a clean location for reuse.
Caution Do not remove the dust plugs from the fiber-optic SFP module port until you are ready to
insert the SFP cables.
Step 7 Connect the SFP cables.
Cisco CGS 2520 Hardware Installation Guide
2-19
Installing and Removing SFP Modules
Figure 2-17 Installing an SFP Module

Removing SFP Modules

Chapter 2 Switch Installation
This section describes how to replace small-form-factor pluggable (SFP) modules. SFP modules are inserted into the SFP modules connected to the switch.
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 2 Disconnect the cables from the SFP module ports. For reattachment, note which cable connector plug is
send (TX) and which is receive (RX).
Note On some SFP modules, the send and receive (TX and RX) markings might be replaced by arrows
that show the direction (send or receive) of the connection.
Caution Do not remove cables from the fiber-optic SFP module ports until you are ready to insert the
dust plugs.
Step 3 Insert a dust plug into the optical ports of the SFP module.
Step 4 If the module has a bale-clasp latch, pull the bale out and down to eject it. If the latch is obstructed and
you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument.
2-20
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-18 Removing a Bale Clasp Latch SFP Module

Inserting and Removing the SFP Module Patch Cable

Step 5
Step 6 Place the module in an anti-static bag or other protective environment.
Grasp the SFP module, and carefully remove it from the slot.
Inserting and Removing the SFP Module Patch Cable
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 2 Insert the SFP module patch cable into the slot until you feel the connector on the cable snap into place
at the rear of the slot (see Figure 2-19).
Figure 2-19 Inserting an SFP Module Patch Cable
78-19377-02
Step 3 Repeat these steps for the second switch that you want to connect to the first switch.
Cisco CGS 2520 Hardware Installation Guide
2-21

Replacing the SD Flash Memory Card

Figure 2-20 Connecting Two Switches with an SFP Module Patch Cable
Chapter 2 Switch Installation

Removing the SFP Module Patch Cable

To remove an SFP module patch cable from the SFP module slot, release the connector, and pull it from the slot.
Replacing the SD Flash Memory Card
Warning
Step 1 Locate the Secure Digital (SD) flash memory card slot on the cable-side of the switch.
Step 2 Use a number 1 Phillips screwdriver to loosen the captive screw (see Figure 2-21).
Be aware that the SD card contains sensitive and security relevant information, including but not limited to full device configuration information, public and private keys used for SSH and SSL (if those protocols are enabled), device passwords and others. Access to SD cards for any Cisco CGS switch should be limited to authorized personnel.
2-22
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation
Figure 2-21 Loosening the Captive Screw
Replacing the SD Flash Memory Card
Step 3
Pull the cover open, and pull the cover tabs from the hinge (see Figure 2-22).
Figure 2-22 Removing the SD Slot Cover
78-19377-02
Step 4
Gently push the SD flash memory card to eject it (see Figure 2-23). Place it in an antistatic bag to protect it from static discharge.
Cisco CGS 2520 Hardware Installation Guide
2-23

Connecting Devices to the Ethernet Ports

Chapter 2 Switch Installation
.
Step 5 Push the replacement card (upside down) into the slot, and press it firmly in place. The card is keyed so
Figure 2-23 Removing the SD Flash Memory Card
that you cannot insert it the wrong way.
Step 6 Begin replacing the cover by placing the SD slot cover tabs into the hinge.
Step 7 Close the cover, and use a ratcheting torque number 1 Phillips screwdriver to torque the screw to
4.5 in-lb.
Table 2-1 Ethernet Cables (Auto-MDIX Disabled)
Device Crossover Cable
1
Switch to switch Yes No
Switch to hub Yes No
Switch to computer or server No Yes
Switch to router No Yes
Switch to IP phone No Yes
1. 100BASE-TX and 1000BASE-T traffic requires twisted four-pair, Category 5, Category 5e, or Category 6 cable. 10BASE-T traffic uses Category 3 or Category 4 cable.
Connecting Devices to the Ethernet Ports
This section covers the following procedures:
Connecting to the 10/100 and 10/100/1000 Ports, page 2-25
Connecting to the 10/100 PoE Ports, page 2-25
Straight-Through Cable
1
2-24
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 2 Switch Installation

Connecting to the 10/100 and 10/100/1000 Ports

The 10/100 and 10/100/1000 Ethernet ports use standard RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet (100 meters). The 100BASE-TX and 1000BASE-T traffic requires Category 5, Category 5e, or Category 6 UTP cable. The 10BASE-T traffic uses Category 3 or Category 4 cable.
The auto-negotiation feature is enabled by default on the switch. At this setting, the switch ports configure themselves to operate at the speed of the attached device. If the device does not support auto-negotiation, you can set the switch port speed and duplex parameters. To maximize performance, either let the ports autonegotiate both speed and duplex, or set the port speed and duplex parameters on both ends of the connection.
For simplified cabling, the automatic medium-dependent interface crossover (auto-MDIX) feature is enabled by default. With auto-MDIX enabled, the switch detects the required cable type for copper Ethernet connections and configures the interface accordingly. Therefore, you can use either a crossover or a straight-through cable for connections to a 10/100/1000 Ethernet port, regardless of the type of connected device.
See the switch software configuration guide or the switch command reference on Cisco.com for more information about auto-negotiation and auto-MDIX.
Connecting Devices to the Ethernet Ports
If auto-MDIX is disabled, use the guidelines in Table 2-1 to select the cable for connecting the 10/100/1000 Ethernet ports to other devices.
See the Connector and Cable Specifications, page B-1 for cable-pinout descriptions.
Figure 2-24 Connecting to an Ethernet Port

Connecting to the 10/100 PoE Ports

The Cisco CGS-2520-16S-8PC switch (and the CGS-2520-16S-8PC-C switch) 10/100 PoE ports have the same auto-negotiation settings and cabling requirements as those in the Connecting to the 10/100 and
10/100/1000 Ports, page 2-25. These ports provide PoE power.
See the PoE Ports, page 1-3 for information on the cables and connectors.
78-19377-02
The ports provide PoE support for devices compliant with IEEE 802.3af and also provide Cisco prestandard PoE support for Cisco IP Phones and Cisco Aironet Access Points.
On a per-port basis, you can control whether or not a port automatically provides power to a connected IP phone or an access point.
To access an advanced PoE planning tool, use the Cisco Power Calculator on Cisco.com:
http://tools.cisco.com/cpc/launch.jsp
Cisco CGS 2520 Hardware Installation Guide
2-25

Where to Go Next

Chapter 2 Switch Installation
You can use this application to calculate the power supply requirements for a specific PoE configuration. The results show output current, output power, and heat dissipation.
Warning
Caution Category 5e and Category 6 cables can store high levels of static electricity. Always ground the cables
Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if interconnections are made using uninsulated exposed metal contacts, conductors, or terminals. Avoid using such interconnection methods, unless the exposed metal parts are located within a restricted access location and users and service people who are authorized within the restricted access location are made aware of the hazard. A restricted access area can be accessed only through the use of a special tool, lock and key or other means of security.
to a suitable and safe earth ground before connecting them to the switch or other devices.
Where to Go Next
After the switch is mounted onto the rack, do the following:
Wire the switch to a power source (see Power Supply Installation, page 3-1)
For configuration instructions about the CLI setup program, see Configuring the Switch with the
CLI Setup Program, page C-1
You can use the default configuration installed on the switch or use any of the management options
described in the Management Options, page 1-13 to change the switch settings
Statement 1072
2-26
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
CHAP T E R
3

Power Supply Installation

This chapter describes how to remove and install a new or replacement power supply. Your switch ships with at least one installed power supply module (AC or DC, depending on your order). The power supply modules are field-replaceable units (FRUs) and are hot-swappable.
For translations of the safety warnings in this chapter, see the Regulatory Compliance and Safety Information for the Cisco CGS 2520 on the documentation CD and also on Cisco.com.
Power Supply Modules, page 3-1
Installation Guidelines, page 3-3
Grounding the Switch, page 3-4
Installing the Power Supply Module in the Switch, page 3-6
Wiring the Power Source, page 3-7
Removing the Power Supply Module, page 3-12

Power Supply Modules

For information on the power supply modules, see the Power Supply Features, page 1-13.
Table 3-1 Power Supply Modules
Model Description
PWR-RGD-LOW-DC Low-voltage DC. For voltage information, see Table A-6 on page A-4
PWR-RGD-AC-DC High-voltage AC or DC. For voltage information, see Table A-5 on page A-3
PWR-RGD-AC-DC-C (For China) High-voltage AC or DC. For voltage information, see Table A-5
on page A-3
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
3-1

Power Supply Module Installation

207215
1
2
3
207232
1
2
3
PWR-RGD-LOW-DC
Figure 3-1 PWR-RGD-AC-DC Power Supply Module
1 Power supply module 3 Captive screw
2 PSU OK LED
Chapter 3 Power Supply Installation
Figure 3-2 PWR-RGD-LOW-DC Power Supply Module
1 Power supply module 3 Captive screw
2 PSU OK LED
For a description of the PSU OK LEDs, see the Power Supply Module LEDs, page 1-9.
Power Supply Module Installation
Installation Guidelines, page 3-3
Cisco CGS 2520 Hardware Installation Guide
3-2
Installing a Power Supply Module, page 3-3
Wiring the Power Source, page 3-7
Removing the Power Supply Module, page 3-12
78-19377-02
Chapter 3 Power Supply Installation

Installation Guidelines

Observe these guidelines when removing or installing a power supply module:
A power supply module that is only partially connected to the switch disrupts the system operation.
Power Supply Module Installation
Warning
Note You can order the blank cover (part number RPS-CG-COVER=).
Warning
Warning
Warning
Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Statement 1029
Do not reach into a vacant slot while installing or removing a module. Exposed circuitry is an energy hazard.
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Statement 206

Installing a Power Supply Module

This procedure is for installing a power supply module in the PSU1 or PSU2 slot.
Warning
Warning
Caution Equipment installation must comply with local and national electrical codes.
The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed.
This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.
Statement 1077
Statement 1028

Equipment That You Need

Ratcheting torque flathead screwdriver that exerts up to 15-inch pound (in-lb) of torque
Ring, spade, or flanged spade terminal
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
3-3
Power Supply Module Installation
Note For IP-30 compliance:
Crimping tool (such as Thomas & Bett part number WT2000, ERG-2001)
6-gauge copper ground wire (such as Belden part number 9906)
12-AWG wire (minimum) for the low-voltage power supply module and 16-AWG (minimum) wire
for the high-voltage power supply module
For power source connections, use wires rated for at least 194°F (90°C).
Chapter 3 Power Supply Installation
Ring terminal (such as Tyco part number 2-34158-1 for 16–14 AWG or 2-34852-1 for 12–10 AWG w ir e )
Spade terminal (such as Tyco part number 54367-2 for 16–14 AWG wire)
Flanged spade terminal (such as Tyco part number 2-324165-1 for 16–14 AWG wire or 1-324581-1 for 12–10 AWG wire)
Use the 16-14 AWG wire and appropriate terminals for the AC or high-voltage DC power supply
Use the12-10 AWG wire and appropriate terminals for the low-voltage DC power supply
UL- and CSA-rated style 1007 or 1569 twisted-pair copper wire (such as Belden part number 9318)
Wire-stripping tools for stripping 6-, 10-, 12-, 14-, and 16-gauge wires.
Number-2 Phillips screwdriver
Flat-blade screwdriver

Grounding the Switch

Follow the grounding procedures at your site and observe these warnings:
Warning
Warning
Caution Follow the grounding procedure instructions, and use a UL-listed lug (included with the switch) for
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.
When installing or replacing the unit, the ground connection must always be made first and disconnected last.
number-6 AWG wire and 10-32 ground-lug screws.
Statement 1024
Statement 1046
3-4
Note You can use the grounding lug to attach a wrist strap for ESD protection during servicing.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 3 Power Supply Installation
0.25 in. (6.3 mm) ± 0.02 in. (0.5 mm)
280938
100-240V
V~, 50-60Hz,2A
V
~, 50-60
~, 50-60
Follow these steps to install a dual-hole lug on the switch. Be sure to follow any grounding requirements at your site.
Step 1 Use a Phillips screwdriver or a ratcheting torque screwdriver with a Phillips head to remove the ground
screw from the cable side of the switch. You need the screw in Step 4.
Step 2 Strip the 6-gauge ground wire to 0.5 inch (12.7 mm) ± 0.02 inch (0.5 mm) (see Figure 3-3). Stripping
more than the recommended amount of wire can leave exposed wire from the connector.
Figure 3-3 Stripping the Ground Wire
Step 3 Insert the ground wire into the terminal lug, and crimp the terminal to the wire (see Figure 3-4).
Figure 3-4 Crimping the Terminal Lug
Power Supply Module Installation
Step 4
Slide the ground screw from Step 1 through the terminal lug. Insert the ground screws into the opening on the cable side.
Figure 3-5 Attaching the Terminal Lug
1 Dual-hole terminal lug
78-19377-02
Cisco CGS 2520
207217
1
Cisco CGS 2520 Hardware Installation Guide
3-5
Power Supply Module Installation
Cisco Connected Grid Switch 2500 Series
207430
Step 5 Use a ratcheting torque screwdriver to tighten the ground screws to 30 in-lb (± 2 in-lb).
Step 6 Attach the other end of the ground wire to a grounded bare metal surface, such as a ground bus or a
grounded bare rack.

Installing the Power Supply Module in the Switch

Step 1 We recommend that power be off at the AC or DC circuits. Locate the circuit breakers, turn them OFF,
and tape them in the OFF position.
Note If the power is not off at the AC or DC circuit breaker, do not touch the power-input terminal.
Step 2 Use a Phillips screwdriver to loosen the two captive screws of the blank power supply module and gently
pull it out. See Figure 3-6 and Figure 3-7.
Chapter 3 Power Supply Installation
Figure 3-6 Loosen the Screws on the Power Supply Blank
Figure 3-7 Remove the Power Supply Blank
Cisco Connected Grid
Switch 2500 Series
207431
3-6
Step 3
Insert the power supply module into the slot, and gently push it in (see Figure 3-8). The power supply module should be flush with the switch.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 3 Power Supply Installation
Figure 3-8 Insert the Power Supply Module
Power Supply Module Installation
207233
Step 4
Use a ratcheting torque screwdriver to torque each screw to 8–10 in-lb.

Wiring the Power Source

Before you wire the power source, review the warnings in this section:
Warning
Warning
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: AC: 5 A, DC: 15 A
A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Statement 1022
Only trained and qualified personnel should be allowed to install or replace this equipment.
Statement 1030
Statement 1005
78-19377-02
Warning
Hazardous voltage or energy may be present on power terminals. Always replace cover when terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in place.
Statement 1086
Step 1 Locate the AC and DC circuit breakers, turn them OFF, and tape them in the OFF position.
Note Do not connect the switch to a power source that has an ON/OFF switch.
Step 2 Use a Phillips screwdriver to loosen the captive screw on the power-input terminal, and open the cover.
Cisco CGS 2520 Hardware Installation Guide
3-7
Power Supply Module Installation
Cisco CGS 2520
207426
100-240V~, 50-60Hz, 2A
100-240V~, 50-60Hz, 2A
5
2A2A
10A
10A
5
Figure 3-9 Opening the Power-Input Terminal Cover
Chapter 3 Power Supply Installation
The terminal screws labels are on the power-input terminal cover (see Figure 3-10).
Figure 3-10 Power-Input Terminal
1 Line connection for high-voltage AC (PSU1) 8 Line connection for high-voltage AC (for
PSU2)
2 Neutral connection for high-voltage AC
(PSU1)
3 Positive connection for high-voltage DC
(PSU1)
4 Negative connection for high-voltage DC
(PSU1)
9 Neutral connection for high-voltage AC
(PSU2)
10 Positive connection for high-voltage DC
(PSU2)
11 Negative connection for high-voltage DC
(PSU2)
5 PSU1 (power supply module 1) 12 PSU2 (power supply module 2)
6 Positive connection for low-voltage DC
(PSU1)
7 Negative connection for low-voltage DC
(PSU1)
13 Positive connection for low-voltage DC
(PSU2)
14 Negative connection for low-voltage DC
(PSU2)
3-8
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 3 Power Supply Installation
0.25 in. (6.3 mm) ± 0.02 in. (0.5 mm)
Power Supply Module Installation
100-240V~, 50-60Hz, 2A
1
3
5
5
10A
100-240V~, 50-60Hz, 2A
2
4
10
5
76
13
10A
98
11
2A2A
12
14
207241
Note The power supply module 1 connection is labeled PSU1, and the power supply module 2 connection is
labeled PSU2. Make sure that you connect the wires to the correct terminal screws.
Step 3 Use twisted-pair copper wire (14- to 18-AWG) to connect from the power-input terminal to the power
source.
Note Use 12-AWG (minimum) for the low-voltage DC power supply module. Use 16-AWG
(minimum) for the high-voltage AC or DC power supply module.
Step 4 Strip each of the two wires to 0.25 inch (6.3 mm) ± 0.02 inch (0.5 mm). Do not strip more than 0.27 inch
(6.8 mm) of insulation from the wire. Stripping more than the recommended amount of wire can leave exposed wire from the connector after installation.
Step 5
Figure 3-11 Stripping the Input Power Source Wire
Insert the wire into a spade terminal, and crimp the it to the wire. You can also use a ring or flanged spade terminal as listed in the Equipment That You Need, page 3-3.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
3-9
Power Supply Module Installation
207427
Cisco
CGS
25
2
Figure 3-12 Crimping the Spade Terminal Lug
Chapter 3 Power Supply Installation
Step 6
Loosen the terminal screw, and slide the terminal under the screw and washer (see Figure 3-13 and
Figure 3-14).
Note Use the appropriate terminal screws, depending on whether you are installing a high-voltage (AC or DC)
or a low-voltage (DC) power supply.
Step 7 AC power connection:
Connect the line wire into the terminal screw labeled L and the neutral wire into the terminal screw labeled N.
Make sure that you cannot see any wire lead. Only wire with insulation should extend from the terminal screw.
Figure 3-13 Connecting the Wires to the High-Voltage AC Power (PSU1)
100-240V~, 50-60Hz, 2.2A
100-240V~, 50-60Hz, 2.2A
3-10
207429
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 3 Power Supply Installation
C
25
20
DC power connection:
Connect the positive wire into the terminal screw labeled +, and the negative wire into the terminal screw labeled –.
Make sure that you cannot see any wire lead. Only wire with insulation should extend from the terminal screw.
Note If you have a low-voltage DC power supply module, connect the wires to the terminals labeled Lo. If you
have a high-voltage DC power supply module, connect the wires to the terminals labeled Hi.
Figure 3-14 Connecting the Wires to the Low-Voltage DC Power (PSU2)
Power Supply Module Installation
207428
Step 8 Torque the captive screws (above the wires) to 8.5 in-lb (± 0.5 in-lb).
Step 9 AC Power:
Connect the other end of the line wire (the one connected to L) to the line terminal on the AC-power source, and connect the other end of the neutral wire (the one connected to N) to the neutral terminal on the AC power source.
DC power:
Connect the other end of the positive wire (the one connected to +) to the positive terminal on the DC-power source, and connect the other end of the negative wire (the one connected to –) to the negative terminal on the DC power source.
Step 10 Close the power-input terminal cover. Use a ratcheting torque screwdriver to torque the screw to 6–8
in-lb.
Step 11 Turn on the power at the AC or DC circuit, verify that the PSU1 or PSU2 LED on the switch and PSU
OK LED on the power supply module are green.
Step 12 If you have two power supplies, repeat Step 1 through Step 11. See the switch software guide for
information on how to configure the power supply settings.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
3-11

Removing the Power Supply Module

Cisco Connected Grid
Switch 2500 Series
207432
Removing the Power Supply Module
The power supply modules are hot-swappable. By removing the power supply modules, you can power off the switch without disconnect the wiring from the power-input terminal.
Step 1 We recommend that power be OFF at the AC or DC circuits. Locate the circuit breakers, turn them OFF
and tape them in the OFF position.
Note If the power is not off at the AC or DC circuit breaker, do not touch the power-input terminal.
Step 2 Verify that the PSU LED and PSU OK LED is blinking red or is off.
Step 3 Use a Phillips screwdriver to loosen the captive screws that secure the power supply module to the switch
(see Figure 3-15).
Chapter 3 Power Supply Installation
Warning
Hot surface.
Statement 1079
Figure 3-15 Removing the Screws
Step 4 Remove the power supply module from the power slot. The power supply module might be hot (see
Figure 3-16).
Step 5 Install a new power supply module or a blank cover.
Figure 3-16 Removing the Power Supply Module
Cisco Connected Grid
Switch 2500 Series
3-12
207433
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 3 Power Supply Installation
Caution To prevent exposure to hazardous voltages and to contain electromagnetic interference (EMI), either a
power supply module or a blank cover must be in each power supply module slot at all times. You can order the blank cover (part number RPS-CG-COVER=).
Removing the Power Supply Module
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
3-13
Removing the Power Supply Module
Chapter 3 Power Supply Installation
3-14
Cisco CGS 2520 Hardware Installation Guide
78-19377-02

Troubleshooting

This chapter contains the following topics:
Diagnosing Problems, page 4-1
Resetting the Switch to the Factory Default Settings, page 4-5
Finding the Switch Serial Number, page 4-5

Diagnosing Problems

The switch LEDs provide troubleshooting information about the switch. They show POST failures, port-connectivity problems, and overall switch performance. You can also get statistics from the device manager, the CLI, or an SNMP workstation. See the software configuration guide, the switch command reference guide on Cisco.com, or the documentation that came with your SNMP application for details.
CHAP T E R
4

Switch POST Results

See the Verifying Switch Operation, page 2-3 for information on POST.
Note POST failures are usually fatal. Contact your Cisco technical support representative if your switch does
not pass POST.

Switch LEDs

Look at the port LEDs information when troubleshooting the switch. See LEDs, page 1-7 for a description of the LED colors and their meanings.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
4-1
Diagnosing Problems

Switch Connections

Bad or Damaged Cable
Always examine the cable for marginal damage or failure. A cable might be just good enough to connect at the physical layer, but it could corrupt packets as a result of subtle damage to the wiring or connectors. You can identify this problem because the port has many packet errors or it constantly flaps (loses and regains link).
Exchange the copper or fiber-optic cable with a known good cable.
Look for broken or missing pins on cable connectors.
Rule out any bad patch panel connections or media convertors between the source and the
destination. If possible, bypass the patch panel, or eliminate media convertors (fiber-optic-to-copper).
Try the cable in another port to see if the problem follows the cable.
Ethernet and Fiber-Optic Cables
Chapter 4 Troubleshooting
Link Status
Make sure that you have the correct cable:
For Ethernet, use Category 3 copper cable for 10 Mb/s UTP connections. Use either Category 5,
Category 5e, or Category 6 UTP for 10/100 or 10/100/1000 Mb/s connections.
Verify that you have the correct fiber-optic cable for the distance and port type. Make sure that the
connected device ports match and use the same type encoding, optical frequency, and fiber type.
Determine if a copper crossover cable was used when a straight-through was required or the reverse.
Enable auto-MDIX on the switch, or replace the cable. See Tab le 2-1 for recommended Ethernet cables.
Verify that both sides have link. A broken wire or a shutdown port can cause one side to show link even though the other side does not have link.
A port LED that is on does not guarantee that the cable is functional. It might have encountered physical stress, causing it to function at a marginal level. If the port LED does not turn on:
Connect the cable from the switch to a known good device.
Make sure that both ends of the cable are connected to the correct ports.
Verify that both devices have power.
Verify that you are using the correct cable type. See Connector and Cable Specifications, page B-1
for information.
Look for loose connections. Sometimes a cable appears to be seated but is not. Disconnect the cable,
and then reconnect it.
10/100 and 10/100/1000 Port Connections
A port appears to malfunction:
Cisco CGS 2520 Hardware Installation Guide
4-2
78-19377-02
Chapter 4 Troubleshooting
Verify the status of all ports. See Table 1-8 on page 1-10 for descriptions of the LEDs and their
meanings.
Use the show interfaces privileged EXEC command to see if the port is error-disabled, disabled, or
shut down. Re-enable the port if necessary.
Verify the cable type. See Connector and Cable Specifications, page B-1
10/100 PoE Port Connections
A powered device connected to a PoE port does not receive power:
Verify the status of all the ports. See Table 1-8 for descriptions of the LEDs and their meanings.
Use the show interfaces privileged EXEC command to see if the port is error-disabled, disabled, or
shutdown. Re-enable the port if necessary.
Verify the cable type. Many legacy powered devices, including older Cisco IP phones and access
points that do not fully support IEEE 802.3af might not support PoE when connected to the switch by a crossover cable. Replace the crossover cable with a straight-through cable.
Diagnosing Problems
Caution Noncompliant cabling or powered devices can cause a PoE port fault. Use only compliant cabling to
SFP Module
Interface Settings
connect Cisco prestandard IP Phones, and wireless access points, or IEEE 802.3af-compliant devices.
Use only Cisco SFP modules. Each Cisco module has an internal serial EEPROM that is encoded with security information. This encoding verifies that the module meets the requirements for the switch.
Inspect the SFP module. Exchange the suspect module with a known good module.
Verify that the module is supported on this platform. (The switch release notes on Cisco.com list the
SFP modules that the switch supports.)
Use the show interfaces privileged EXEC command to see if the port or module is error-disabled,
disabled, or shutdown. Re-enable the port if needed.
Make sure that all fiber-optic connections are clean and securely connected.
Verify that the interface is not disabled or powered off. If an interface is manually shut down on either side of the link, it does not come up until you re-enable the interface. Use the show interfaces privileged EXEC command to see if the interface is error-disabled, disabled, or shut down on either side of the connection. If needed, re-enable the interface.
Ping End Device
78-19377-02
Ping from the directly connected switch first, and then work your way back port by port, interface by interface, trunk by trunk, until you find the source of the connectivity issue. Make sure that each switch can identify the end device MAC address in its Content-Addressable Memory (CAM) table.
Cisco CGS 2520 Hardware Installation Guide
4-3
Diagnosing Problems
Spanning Tree Loops
STP loops can cause serious performance issues that look like port or interface problems.
A unidirectional link can cause loops. It occurs when the traffic sent by the switch is received by the neighbor, but the traffic from the neighbor is not received by the switch. A broken cable, other cabling problems, or a port issue could cause this one-way communication.
You can enable UniDirectional Link Detection (UDLD) on the switch to help identify unidirectional link problems. For information about enabling UDLD on the switch, see the “Understanding UDLD” section in the switch software configuration guide on Cisco.com.

Switch Performance

Speed, Duplex, and Auto-Negotiation
Port statistics that show a large amount of alignment errors, Frame Check Sequence (FCS), or late collisions errors, might mean a speed or duplex mismatch.
A common issue occurs when duplex and speed settings are mismatched between two switches, between a switch and a router, or between the switch and a workstation or server. Mismatches can happen when manually setting the speed and duplex or from auto-negotiation issues between the two devices.
To maximize switch performance and to ensure a link, follow one of these guidelines when changing the duplex or the speed settings.
Chapter 4 Troubleshooting
Let both ports autonegotiate both speed and duplex.
Manually set the speed and duplex parameters for the interfaces on both ends of the connection.
If a remote device does not autonegotiate, use the same duplex settings on the two ports. The speed
parameter adjusts itself even if the connected port does not autonegotiate.
Auto-Negotiation and Network Interface Cards
Problems sometimes occur between the switch and third-party network interface cards (NICs). By default, the switch ports and interfaces autonegotiate. Laptops or other devices are commonly set to autonegotiate, yet sometimes issues occur.
To troubleshoot auto-negotiation problems, try manually setting both sides of the connection. If this does not solve the problem, there could be a problem with the firmware or software on the NIC. You can resolve this by upgrading the NIC driver to the latest version.
Cabling Distance
If the port statistics show excessive FCS, late-collision, or alignment errors, verify that the cable distance from the switch to the connected device meets the recommended guidelines. See the Cables and
Adapters, page B-4.
4-4
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Chapter 4 Troubleshooting
207769
SN: XXXNNNNXXXX
Cisco Connected Grid
Switch 2500 Series

Resetting the Switch to the Factory Default Settings

Resetting the Switch to the Factory Default Settings
Follow these steps to return your switch to the factory default settings.
Note Resetting the switch deletes the configuration and reboots the switch.
To reset the switch:
1. At the switch prompt, enter enable, and press Return or Enter.
2. At the Privileged EXEC prompt, switch#, enter setup and press Return or Enter.
The switch displays the prompt to run the initial configuration dialog. See Configuring the Switch with
the CLI Setup Program, page C-1

Finding the Switch Serial Number

If you contact Cisco Technical Assistance, you need to know the switch serial number. Figure 4-1 and
Figure 4-2 show the serial number locations. You can also use the show version privileged EXEC
command to see the switch serial number.
Figure 4-1 Serial Number Location for Cisco CGS-2520-24TC and CGS-2520-16S-8PC Switches
Figure 4-2 Serial Number Location for the Power Supply Modules
SN: XXXNNNNXXXX
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
207452
4-5
Finding the Switch Serial Number
Chapter 4 Troubleshooting
4-6
Cisco CGS 2520 Hardware Installation Guide
78-19377-02

Technical Specifications

This appendix contains the following topics:
Switch Specifications, page A-1
Power Supply Module Specifications, page A-4

Switch Specifications

Table A-1 Environmental and Physical Specifications
Environmental Ranges
Operating temperature –40 to 140°F (–40 to 60°C)
Storage temperature –40 to 185°F (–40 to 85°C)
Relative humidity 5 to 95% (noncondensing)
Operating altitude Up to 10,000 ft (3049 m)
Storage altitude Up to 15,000 ft (4570 m)
Thermal spacing 1.75 in. (4.4 cm)
Operating shock 30 g at 11 ms
Physical Specifications
Weight: Cisco CGS-2520-24TC
APPENDIX
1
9.1 lb (4.1 kg) (no power supply module)
A
78-19377-02
Cisco CGS-2520-16S-8PC
Dimensions (H x D x W): Cisco CGS-2520-24TC Cisco CGS-2520-16S-8PC
1. The maximum operating temperature of the switch varies depending on the type of SFP module that you use. See Table 1-2
on page 1-5 for information on the supported temperature ranges for the SFPs.
10 lb (4.5 kg) (no power supply module)
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm)
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm)
Cisco CGS 2520 Hardware Installation Guide
A-1
Appendix A Technical Specifications
Table A-2 Specifications for the Cisco CGS-2520-16S-8PC Switch (PWR-RGD-AC-DC)
Power Requirements
Nominal input voltage 100 to 240 VAC, 50 to 60 Hz
100 to 250 VDC
Absolute maximum (short term) input voltage 85 to 265 VAC, 47 to 63 Hz
88 to 300 VDC
Power consumption with one PWR-RGD-AC-DC power supply module
Power consumption with one PWR-RGD-AC-DC power supply module (with PoE on 4 ports)
Power consumption with two PWR-RGD-AC-DC power supply modules
Power consumption with two PWR-RGD-AC-DC power supply modules (with PoE on 8 ports)
AC: 147 BTUs per hour
43.2 W Power rating: 0.044 KVA@115 V
DC: 137 BTUs per hour
40.3 W Power rating: 0.0403 KVA@125 VDC
AC: 376 BTUs per hour
110.1 W Power rating 0.11 KVA@115 V
DC: 375 BTUs per hour
109.8 W Power rating: 0.109 KVA@125 VDC
AC: 166 BTUs per hour
48.8 W Power rating: 0.051 KVA@115 V
DC: 167 BTUs per hour
48.9 W Power rating: 0.0489 KVA@125 VDC
AC: 628 BTUs per hour
184.1 W Power rating: 0.185 KVA@115 V
DC: 622 BTUs per hour
182.2 W Power rating: 0.182 KVA@125 VDC
A-2
Table A-3 Specifications for the Cisco CGS-2520-16S-8PC Switch (PWR-RGD-LOW-DC)
Power Requirements
Nominal input voltage 24 to 60 VDC
Absolute maximum (short term) input voltage 18 to 75 VDC
Power consumption with one PWR-RGD-LOW-DC power-supply module
Power consumption with one PWR-RGD-LOW-DC power-supply module with 4 ports PoE
Cisco CGS 2520 Hardware Installation Guide
34.2W, 116 BTU per hour, power rating 0.034 KVA @ 24Vdc
106W, 363 BTU per hour, power rating 0.106KVA @ 24Vdc
78-19377-02
Appendix A Technical Specifications
Table A-3 Specifications for the Cisco CGS-2520-16S-8PC Switch (PWR-RGD-LOW-DC)
Power consumption with two PWR-RGD-LOW-DC power-supply modules
Power consumption with two PWR-RGD-LOW-DC power-supply modules with
37.1W, 127 BTU per hour, power rating 0.037 KVA @ 24Vdc
181.9W, 622 BTU per hour, power rating 0.182 KVA @ 24Vdc
8 ports PoE
Table A-4 Specifications for the Cisco CGS-2520-24TC Switch (PWR-RGD-AC-DC)
Power Requirements
Nominal input voltage 100 to 240 VAC, 50 to 60 Hz
100 to 250 VDC
Absolute maximum (short term) input voltage 85 to 265 VAC, 47 to 63 Hz
88 to 300 VDC
Power consumption with one PWR-RGD-AC-DC power supply module
AC: 102 BTUs per hour
29.8 W Power rating: 0.031 KVA@115 V
DC: 98 BTUs per hour
28.6 W Power rating: 0.0286 KVA@125 VDC
Power consumption with two PWR-RGD-AC-DC power supply modules
AC: 121 BTUs per hour
35.5 W Power rating: 0.0367 KVA@115 V
DC: 117 BTUs per hour
34.4 W Power rating: 0.0344 KVA@ 125 VDC
78-19377-02
Table A-5 Specifications for the Cisco CGS-2520-24TC Switch (PWR-RGD-LOW-DC)
Power Requirements
Nominal input voltage 24 to 60 VDC
Absolute maximum (short term) input voltage 18 to 75 VDC
Power consumption with one PWR-RGD-LOW-DC power-supply module
Power consumption with two PWR-RGD-LOW-DC power-supply modules
26.8W, 92 BTU per hour, power rating 0.027 KVA @24Vdc
30.7W, 105 BTU per hour, power rating 0.030 KVA @24Vdc
Cisco CGS 2520 Hardware Installation Guide
A-3

Power Supply Module Specifications

Table A-6 Environmental and Physical Specifications for the AC- and DC-Power Supply Modules
Environmental Ranges
Operating temperature –40 to 140°F (–40 to 60°C)
Storage temperature –49 to 185°F (–45 to 85°C)
Relative humidity 5 to 95% (noncondensing)
Altitude Up to 10,000 ft (3049 m)
Physical Specifications
Weig h t
PWR-RGD-AC-DC PWR-RGD-LOW-DC
Appendix A Technical Specifications
2.55 lb (1.15 kg)
2.5 lb (1.13 kg)
PWR-RGD-AC-DC-C
Dimensions (H x W x D)
PWR-RGD-AC-DC and PWR-RGD-LOW-DC
Table A-7 Specifications for the PWR-RGD-AC-DC Power Supply Module
Power Specifications
Maximum output power 150 W
Nominal input voltage 100 to 240 VAC, 50 to 60 Hz
Absolute maximum (short term) input voltage 85 to 265 VAC, 47 to 63 Hz
Input current AC: 2.2 to 0.7 A, 85 to 265 VAC
Total input BTU AC: 638 BTUs per hour
2.55 lb (1.15 kg)
1.58 x 7 x 5 in. (4 x 17.8 x 12.7 cm) (without mounting flanges)
1.58 x 8.15 x 5 in. (4 x 20.7 x 12.7 cm) (with mounting flanges)
100 to 250 VDC
88 to 300 VDC
DC: 2.5 to 0.6 A, 88 to 300 VDC
DC: 750 BTUs per hour
A-4
Table A-8 Specifications for the PWR-RGD-LOW-DC Power Supply Module
Power Specifications
Maximum output power 150 W
Nominal input voltage 24 to 60 VDC
Absolute maximum (short term) input voltage 18 to 75 VDC
Input current 12 to 2.5 A, 18 to 75 VDC
Total output BTU 737 BTUs per hour
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
H5318
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC

Connector and Cable Specifications

This appendix contains the following topics:
Connector Specifications, page B-1
Cables and Adapters, page B-4

Connector Specifications

10/100 Ethernet Ports, page B-1
SFP Module Connectors, page B-2
Dual-Purpose Ports, page B-3
Alarm Port, page B-3
APPENDIX
B

10/100 Ethernet Ports

78-19377-02
The 10/100 Ethernet ports use standard RJ-45 connectors and Ethernet pinouts with internal crossovers. These ports have the send (TD) and receive (RD) signals internally crossed so that a twisted-pair straight-through cable and adapter can be attached.
Figure B-1 10/100 Port Pinouts
Cisco CGS 2520 Hardware Installation Guide
B-1
Connector Specifications
Note You can use the mdix auto interface configuration command in the CLI to enable the automatic
Appendix B Connector and Cable Specifications
When connecting 10/100 ports to devices such as servers, workstations, and routers, you can use a two or four twisted-pair straight-through cable wired for 10BASE-T and 100BASE-TX. Figure B-5 shows the two twisted-pair straight-through cable schematics. Figure B-7 shows the four twisted-pair straight-through cable schematics.
When connecting the ports to other devices, such as switches or repeaters, you can use a two or four twisted-pair crossover cable. Figure B-6 shows the two twisted-pair crossover cable schematics.
Figure B-8 shows the four twisted-pair crossover cable schematics.
If auto-MDIX is disabled, use a straight-through cable to connect ports when only one port is labeled with an X. Use a crossover cable to connect ports when both ports are labeled with an X or when both ports are not labeled with an X.
You can use Category 3, 4, or 5 cabling when connecting to 10BASE-T-compatible devices. You must use Category 5 (or higher) cabling when connecting to 100BASE-TX-compatible devices.
medium-dependent interface crossover (auto-MDIX) feature. When the auto-MDIX feature is enabled, the switch detects the required cable type for copper Ethernet connections and configures the interfaces accordingly. Therefore, you can use either a crossover or a straight-through cable for connections to a copper 10/100, 10/100/1000, or 1000BASE-T SFP module port on the switch, regardless of the type of device on the other end of the connection.

SFP Module Connectors

Figure B-2 Fiber-Optic SFP Module LC Connector
Warning
Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments.
Statement 1051
B-2
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Appendix B Connector and Cable Specifications
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
207434
231 45678Pin Alarm connection
1
2
3
4
5
6
7
8
Alarm 1 input
Alarm 2 input
Normally closed
Alarm 3 input
Alarm 4 input
Normally open
Alarm output common
Alarm input common

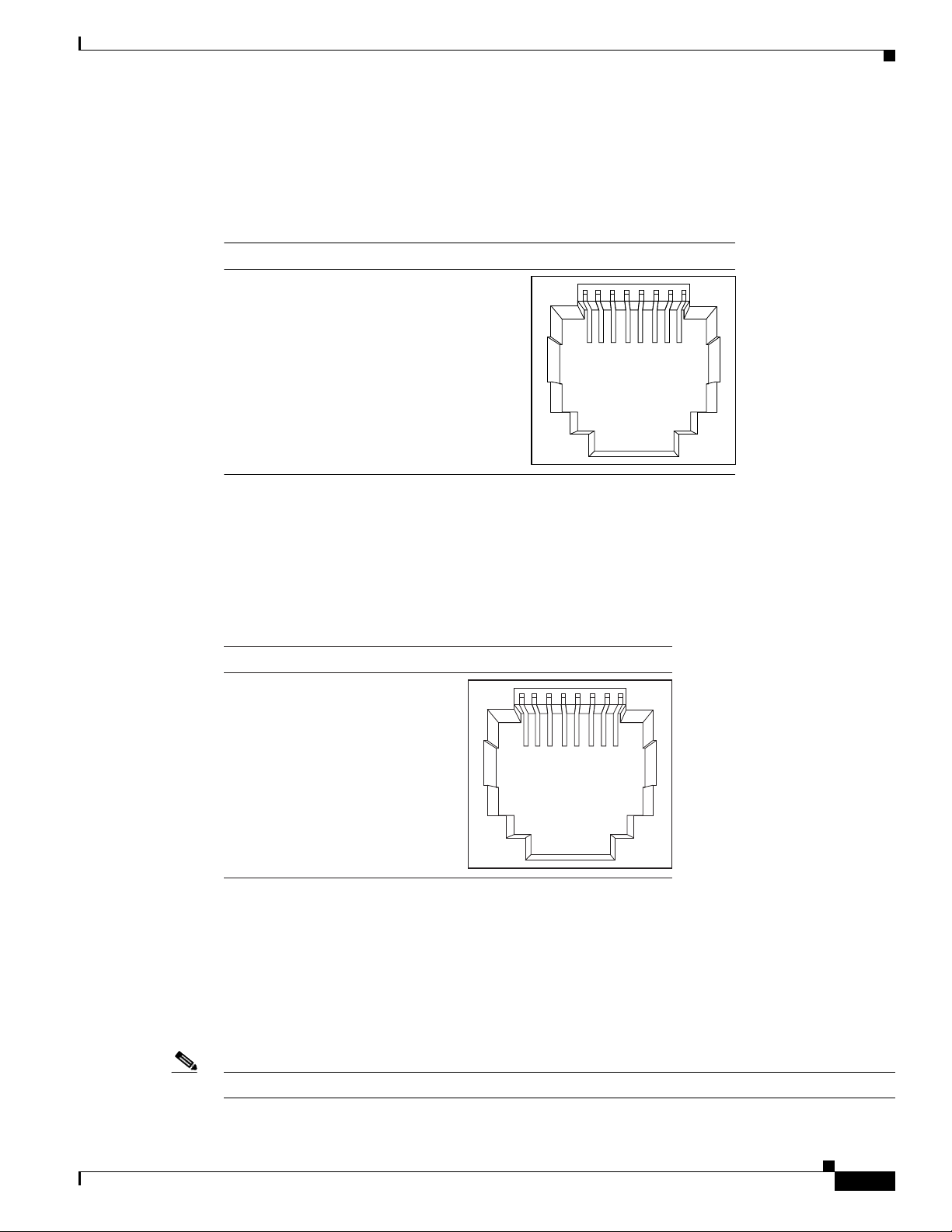

Dual-Purpose Ports

The 10/100/1000 Ethernet ports on the dual-purpose ports use RJ-45 connectors.
Figure B-3 10/100/1000 Port Pinouts
Connector Specifications

Alarm Port

Alarm Ratings

78-19377-02
The alarm port uses an RJ-45 connector. See the Alarm Ports, page 1-6 for more information.
Figure B-4 Alarm Port Pinouts
The following lists the alarm rating information
Alarm Input Electrical Specification: 8V @ 1mA
Alarm Output Electrical Specification: 30V @ 1A
Note Due the RJ-45 design (connector pin spacing), the alarm output does not support AC voltage.
Cisco CGS 2520 Hardware Installation Guide
B-3

Cables and Adapters

Cables and Adapters
SFP Module Cables, page B-4
Cable Pinouts, page B-6
Console Port Adapter Pinouts, page B-8

SFP Module Cables

Each port must match the wave-length specifications on each end of the cable, and for reliable communications, the cable must not exceed the allowable length. Copper 1000BASE-T SFP transceivers use standard four twisted-pair, Category 5 (or greater) cable at lengths up to 328 feet (100 meters).
Note The maximum operating temperature of the switch varies depending on the type of SFP module that you
use. See Table 1-2 on page 1-5 for information on the supported temperature ranges.
Table B-1 Fiber-Optic SFP Module Port Cabling Specifications
Appendix B Connector and Cable Specifications
Type of SFP Module
Wavelength (nanometers) Fiber Type
Industrial and Rugged SFPs
1000BASE-SX
850 MMF 62.5/125 (GLC-SX-MM­RGD)
1000BASE-LX/
1310 SMF G.652 LH (GLC-LX-MM­RGD)
100BASE-LX
1310 SMF G.652 (GLC-FE-100L X-RGD)
100BASE-FX
1310 MMF 50/125 (GLC-FE-100F X-RGD)
1000BASE-ZX
1550 SMF G.652 (GLC-ZX-SM­RGD)
Commercial SFPs
1000BASE-BX 10-D
1490 TX
1310 RX (GLC-BX-D)
Core Size/Cladding Size (micron)
62.5/125 50/125 50/125
62.5/125
SMF G.652
Modal Bandwidth (MHz/km)
160 200 400 500
1
Cable Distance
722 feet (220 m) 902 feet (275 m) 1640 feet (500 m) 1804 feet (550 m)
2
32,810 feet (10
km)
2
32,810 feet (10
km)
500 500
6,562 feet (2 km) 6,562 feet (2 km)
2
3
43.4 to 62 miles
(70 to 100 km)
2
32,810 feet (10
km)
B-4
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Appendix B Connector and Cable Specifications
Table B-1 Fiber-Optic SFP Module Port Cabling Specifications (continued)
Cables and Adapters
Type of SFP Module
100BASE-LX
Wavelength (nanometers) Fiber Type
1310 SMF G.652 (GLC-FE-100L X)
100BASE-BX (GLC-FE-100B
1310 TX
1550 RX
SMF G.652
X-D GLC-FE-100B X-U)
100BASE-FX
1310 MMF 50/125 (GLC-FE-100F X)
100BASE-EX
1310 SMF G.652 (GLC-FE-100E X)
100BASE-ZX
1550 SMF G.652 262,480 feet (80
(GLC-FE-100Z X)
CWDM 1470, 1490,
SMF G.652 1510, 1530, 1550, 1570, 1590, 1610
Core Size/Cladding Size (micron)
2
2
62.5/125
2
2
Modal Bandwidth (MHz/km)
1
Cable Distance
32,810 feet (10
km)
32,810 feet (10
km)
500 500
6,562 feet (2 km) 6,562 feet (2 km)
131,240 feet (40
km)
km)
62 miles (100
km)
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
B-5
Cables and Adapters
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+ 6 RD–
1 TD+ 2 TD–
Appendix B Connector and Cable Specifications
Table B-1 Fiber-Optic SFP Module Port Cabling Specifications (continued)
Type of SFP Module
Wavelength (nanometers) Fiber Type
Extended temperature SFPs
100BASE
1300 MMF or SMF 62.2 LX/LH (SFP-GE-L)
100BASE SX
850 MMF 62.5 (SFP-GE-S)
100BASE ZX
1550 SMF (SFP-GE-Z)
100BASE EX
1310 SMF G.652 (GLC-EX-SMD )
SMF
Core Size/Cladding Size (micron)
50 50 9/10
62.5
50.0
50.0
9/10 8
2
Modal Bandwidth (MHz/km)
500 400 500 —
1
Cable Distance
1804 feet (550 m) 1804 feet (550 m) 1804 feet (550 m)
6.2 miles (10 km)
160 200 400 500
722 feet (220 m) 902 feet (275 m) 1640 feet (500 m) 1804 feet (550 m)
43.5 miles (70
km)
62.1 miles (100 km)
24.9 miles (40
km)
Note When the fiber-optic cable span is less than 15.43 miles (25 km), insert a 5-decibel (dB) or 10-dB inline

Cable Pinouts

1. Modal bandwidth applies only to multimode fiber.
2. 1000BASE-ZX SFP modules can send data up to 62 miles (100 km) by using dispersion-shifted SMF or low-attenuation SMF; the distance depends on the fiber quality, the number of splices, and the connectors.
3. A mode-field diameter/cladding diameter = 9 micrometers/125 micrometers.
optical attenuator between the fiber-optic cable plant and the receiving port on the 1000BASE-ZX SFP module.
Figure B-5 Two Twisted-Pair Straight-Through Cable Schematic for 10/100 Ports
B-6
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Appendix B Connector and Cable Specifications
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+ 6 TD–
1 RD+ 2 RD–
1 TP0+
2 TP0-
3 TP1+
6 TP1-
1 TP0+
2 TP0-
3 TP1+
6 TP1-
Switch Router or PC
4 TP2+
5 TP2-
7TP3+
8TP3-
4 TP2+
5 TP2-
7TP3+
8TP3-
65271
Figure B-6 Two Twisted-Pair Crossover Cable Schematic for 10/100 Ports
Figure B-7 Four Twisted-Pair Straight-Through Cable Schematic for 1000BASE-T Ports
Cables and Adapters
Figure B-8 Four Twisted-Pair Crossover Cable Schematics for 1000BASE-T Ports
Switch Switch
1 TP0+
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
1 TP0+
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
65274
To identify a crossover cable, hold the cable ends side-by-side, with the tab at the back. The wire connected to pin 1 on the left end should be the same color as the wire connected to pin 3 on the right end. The wire connected to pin 2 on the left end should be the same color as the wire connected to pin 6 on the right end.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
B-7
Cables and Adapters
Appendix B Connector and Cable Specifications
Figure B-9 Identifying a Crossover Cable
Pin 1
Pin 2

Console Port Adapter Pinouts

The console port uses an 8-pin RJ-45 connector, which is described in Table B- 2 and Ta ble B- 3 . If you did not order a console cable, you need to provide an RJ-45-to-DB-9 adapter cable to connect the switch console port to a PC console port. You need to provide an RJ-45-to-DB-25 female DTE adapter if you want to connect the switch console port to a terminal. You can order an adapter (part number ACS-DSBUASYN=). For console port and adapter pinout information, see Tab l e B -2 and Tab l e B -3.
Table B - 2 lists the pinouts for the console port, the RJ-45-to-DB-9 adapter cable, and the console device.
Table B-2 Console Port Signaling Using a DB-9 Adapter
Switch Console Port (DTE)
Signal DB-9 Pin Signal
RTS 8 CT S
DTR 6 DSR
TxD 2 RxD
GND 5 GND
RxD 3 TxD
DSR 4 DTR
CTS 7 RTS
RJ-45-to-DB-9 Terminal Adapter
Pin 3
Pin 6
273807
Console Device
B-8
Table B - 3 lists the pinouts for the switch console port, RJ-45-to-DB-25 female DTE adapter, and the
console device.
Note The RJ-45-to-DB-25 female DTE adapter is not supplied with the switch. You can order this adapter from
Cisco (part number ACS-DSBUASYN=).
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Appendix B Connector and Cable Specifications
Table B-3 Console Port Signaling Using a DB-25 Adapter
Switch Console Port (DTE)
Signal DB-25 Pin Signal
RJ-45-to-DB-25 Adapter
RTS 5 CTS
DTR 6 DSR
TxD 3 RxD
GND 7 GND
RxD 2 TxD
DSR 20 DTR
CTS 4 RTS
Cables and Adapters
Console Device
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
B-9
Cables and Adapters
Appendix B Connector and Cable Specifications
B-10
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
APPENDIX

Configuring the Switch with the CLI Setup Program

This appendix provides a command-line interface (CLI) setup procedure for a standalone switch. To set up the switch by using Express Setup, see the Cisco CGS 2520 Getting Started Guide. Before connecting the switch to a power source, review the safety warnings in Switch Installation, page 2-1 and Power
Supply Installation, page 3-1

Accessing the CLI Through the Console Port

You can enter Cisco IOS commands and parameters through the CLI. Use one of these options to access the CLI:
RJ-45 Console Port, page C-1
USB Console Port, page C-3
C

RJ-45 Console Port

Step 1 Connect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC. Connect the other end of the
cable to the switch console port.
Step 2 Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC
application such as HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
C-1
Accessing the CLI Through the Console Port
Figure C-1 Connecting the Console Cable
Appendix C Configuring the Switch with the CLI Setup Program
1
Step 3
2
1
207536
1 RJ-45 console port 2 Console cable (RJ-45-to-DB-9 adapter cable)
Configure the baud rate and character format of the PC or terminal to match the console port characteristics:
9600 baud
8 data bits
1 stop bit
No parity
C-2
None (flow control)
Step 4 Connect power to the switch as described in Power Supply Installation, page 3-1
Step 5 The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow
the steps in the Completing the Setup Program, page C-7.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Appendix C Configuring the Switch with the CLI Setup Program

USB Console Port

Step 1 If you are connecting the switch USB console port to a Windows-based PC for the first time, install a
USB driver. See Figure C-2.
Installing the Cisco Microsoft Windows XP USB Driver, page C-4
Installing the Cisco Microsoft Windows 2000 USB Driver, page C-4
Installing the Cisco Microsoft Windows Vista USB Driver, page C-5
Figure C-2 Connecting the USB Console Cable
2
Accessing the CLI Through the Console Port
1
Cisco CGS 2520
1
2
3
207240
1 USB console port 3 USB port on the PC
2 USB cable
Step 2
Connect an USB cable to the PC USB port. Connect the other end of the cable to the switch mini-B (5-pin-connector) USB console port (see Figure C-2).
Step 3 To identify the COM port assigned to the USB console port:
Choose Start > Control Panel > Systems Click the Hardware tab and choose Device Manager. Expand the Ports section. The assigned COM port appears in parenthesis at the end of the line with this entry: Cisco USB System Management Console.
Step 4 Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC
application such as HyperTerminal or ProcommPlus, makes communication possible between the switch and your PC or terminal.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
C-3
Appendix C Configuring the Switch with the CLI Setup Program
Accessing the CLI Through the Console Port
Step 5 Configure the COM port.
Step 6 Configure the baud rate and character format of the PC or terminal to match the console port
characteristics:
9600 baud
8 data bits
1 stop bit
No parity
None (flow control)
Step 7 Connect power to the switch as described in Power Supply Installation, page 3-1
Step 8 The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow
the steps in the Completing the Setup Program, page C-7.

Installing the Cisco Microsoft Windows USB Device Drivers

Installing the Cisco Microsoft Windows XP USB Driver
Step 1 Obtain the file Cisco_usbconsole_driver.zip from Cisco.com, and unzip it.
Note You can download the driver file from the Cisco.com software download site.
Step 2 If using 32-bit Windows XP, double-click the setup.exe file in the Windows_32 folder. If using 64-bit
Windows XP, double-click the setup(x64).exe file in the Windows_64 folder.
Step 3 The Cisco Virtual Com InstallShield Wizard begins.
Step 4 The Ready to Install the Program window appears. Click Install.
Step 5 The InstallShield Wizard Completed window appears. Click Finish.
Step 6 Connect the USB cable to the PC and to the switch console port. The USB console port LED turns green,
and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.
Installing the Cisco Microsoft Windows 2000 USB Driver
Step 1 Obtain the file Cisco_usbconsole_driver.zip from Cisco.com, and unzip it.
C-4
Note You can download the driver file from the Cisco.com software download site.
Step 2 Double-click the setup.exe file.
Step 3 The Cisco Virtual Com InstallShield Wizard begins. Click Next.
Step 4 The Ready to Install the Program window appears. Click Install.
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Appendix C Configuring the Switch with the CLI Setup Program
Step 5 The InstallShield Wizard Completed window appears. Click Finish.
Step 6 Connect the USB cable to the PC and to the switch console port. The USB console port LED turns green,
and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.
Installing the Cisco Microsoft Windows Vista USB Driver
Step 1 Obtain the file Cisco_usbconsole_driver.zip from Cisco.com, and unzip it.
Note You can download the driver file from the Cisco.com software download site.
Step 2 If using 32-bit Windows Vista, double-click the setup.exe file in the Windows_32 folder. If using 64-bit
Windows Vista, double-click the setup(x64).exe file in the Windows_64 folder.
Step 3 The Cisco Virtual Com InstallShield Wizard begins. Click Next.
Step 4 The Ready to Install the Program window appears. Click Install.
Accessing the CLI Through the Console Port
Note If a User Account Control warning appears, click Allow - I trust this program.
Step 5 The InstallShield Wizard Completed window appears. Click Finish.
Step 6 Connect the USB cable to the PC and to the switch console port. The USB console port LED turns green,
and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.

Uninstalling the Cisco Microsoft Windows USB Drivers

Uninstalling the Cisco Microsoft Windows XP and 2000 USB Driver
The driver can be removed with the Windows Add or Remove Programs utility or with the setup.exe file.
Using the Add or Remove Programs Utility
Note Disconnect the switch console terminal before uninstalling the driver.
Step 1 Choose Start > Control Panel > Add or Remove Programs.
Step 2 Scroll to Cisco Virtual Com, and click Remove.
Step 3 When the Program Maintenance window appears, select the Remove radio button. Click Next.
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
C-5
Appendix C Configuring the Switch with the CLI Setup Program

Entering the Initial Configuration Information

Using the Setup.exe Program
Note Disconnect the switch console terminal before uninstalling the driver.
Step 1 Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64-bit. Click Next.
Step 2 The InstallShield Wizard for Cisco Virtual Com appears. Click Next.
Step 3 When the Program Maintenance window appears, select the Remove radio button. Click Next.
Step 4 When the Remove the Program window appears, click Remove.
Step 5 When the InstallShield Wizard Completed window appears, click Finish.
Uninstalling the Cisco Microsoft Windows Vista USB Driver
Note Disconnect the switch console terminal before uninstalling the driver.
Step 1 Run setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next.
Step 2 The InstallShield Wizard for Cisco Virtual Com appears. Click Next.
Step 3 When the Program Maintenance window appears, select the Remove radio button. Click Next.
Step 4 When the Remove the Program window appears, click Remove.
Note If a User Account Control warning appears, click Allow - I trust this program to proceed.
Step 5 When the InstallShield Wizard Completed window appears, click Finish.
Entering the Initial Configuration Information
To set up the switch, you need to complete the setup program, which runs automatically after the switch powers on. You must assign an IP address and other configuration information necessary for the switch to communicate with the local routers and the Internet.

IP Settings

Cisco CGS 2520 Hardware Installation Guide
C-6
You need this information:
Switch IP address
Subnet mask (IP netmask)
Default gateway (router)
Enable secret password
78-19377-02
Appendix C Configuring the Switch with the CLI Setup Program
Enable password
Telnet password

Completing the Setup Program

Follow these steps to complete the setup program and to create an initial configuration for the switch:
Step 1 Enter Ye s at these two prompts.
Would you like to enter the initial configuration dialog? [yes/no]: yes
At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'.
Basic management setup configures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system.
Would you like to enter basic management setup? [yes/no]: yes
Entering the Initial Configuration Information
Step 2 Enter a host name for the switch, and press Return.
On a command switch, the host name is limited to 28 characters and on a member switch to 31 characters. Do not use -n, where n is a number, as the last character in a host name for any switch.
Enter host name [Switch]: host_name
Step 3 Enter an enable secret password, and press Return.
The password can be from 1 to 25 alphanumeric characters, can start with a number, is case sensitive, allows spaces, but ignores leading spaces. The secret password is encrypted, and the enable password is in plain text.
Enter enable secret: secret_password
Step 4 Enter an enable password, and press Return.
Enter enable password: enable_password
Step 5 Enter a virtual terminal (Telnet) password, and press Return.
The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores leading spaces.
Enter virtual terminal password: terminal-password
Step 6 (Optional) Configure Simple Network Management Protocol (SNMP) by responding to the prompts.
You can also configure SNMP later through the CLI. To configure SNMP later, enter no.
Configure SNMP Network Management? [no]: no
78-19377-02
Step 7 Enter the interface name (physical interface or VLAN name) of the interface that connects to the
management network, and press Return. For this release, always use vlan1 as that interface.
Enter interface name used to connect to the management network from the above interface summary: vlan1
Cisco CGS 2520 Hardware Installation Guide
C-7
Entering the Initial Configuration Information
Step 8 Configure the interface by entering the switch IP address and subnet mask and pressing Return. The IP
address and subnet masks shown below are examples.
Configuring interface vlan1: Configure IP on this interface? [yes]: yes IP address for this interface: 10.4.120.106 Subnet mask for this interface [255.0.0.0]: 255.0.0.0
Step 9 Enter Y to configure the switch as the cluster command switch. Enter N to configure it as a member
switch or as a standalone switch.
If you enter N, you can configure the switch as a command switch later through the CLI. To configure it later, enter no.
Would you like to enable as a cluster command switch? [yes/no]: no
You have completed the initial configuration of the switch, and the switch displays its configuration. This is an example of the configuration output:
The following configuration command script was created: hostname switch1 enable secret 5 $1$Ulq8$DlA/OiaEbl90WcBPd9cOn1 enable password enable_password line vty 0 15 password terminal-password no snmp-server ! no ip routing
Appendix C Configuring the Switch with the CLI Setup Program
! interface Vlan1 no shutdown ip address 10.4.120.106 255.0.0.0 ! interface FastEthernet1/0/1 ! interface FastEthernet1/0/2
interface FastEthernet1/0/3 ! ...<output abbreviated> end
Step 10 These choices appear:
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
If you want to save the configuration and use it the next time the switch reboots, select option 2 to save it in NVRAM.
Enter your selection [2]:2
Make your selection, and press Return.
C-8
After you complete the setup program, the switch can run the default configuration that you created. To change this configuration or to perform other management tasks, enter commands at the
Cisco CGS 2520 Hardware Installation Guide
Switch> prompt.
78-19377-02

INDEX

Numerics
10/100/1000 ports 1-10, B-3
recommended cables 2-24
10/100 ports
described
1-3
10/100 ports PoE 1-3
A
adapter pinouts, terminal
RJ-45-to-DB-25
B-8
RJ-45-to-DB-9 B-8
alarm port
connectors
B-3
input 1-6
output 1-6
autonegotiation
on dual-purpose ports
1-3
troubleshooting 4-4
C
cable guide, attaching 2-15
cable lengths 2-3
cables
crossover
four twisted-pair pinout, 1000BASE-T ports
identifying B-7
two twisted-pair pinout, 10/100 ports B-7
crossover, connecting to B-2
pinouts B-6
recommended 2-24
B-7
See also connectors
SFP module
B-4
straight-through
connecting to
B-2
four twisted-pair pinout, 1000BASE-T ports B-7
two twisted-pair pinout B-6
cable side
10/100 ports
1-3
description 1-2
LEDs 1-7
PoE ports 1-4
Cisco IOS command-line interface 1-13
Cisco IP Phones, connecting to 1-3, 2-24
Cisco Power Calculator 2-25
CiscoView 1-13
CLI 1-13
accessing through the RJ-45 console port C-1
accessing through the USB console port C-3
command-line interface
See CLI
connecting
10/100 PoE ports
2-25
to AC and DC power 3-12
to console port B-8
connection procedures ?? to 2-26
connectors
alarm port
B-3
dual-purpose ports B-3
SFP module connectors B-2
console port
connecting to
B-8
described B-8
overview 1-6
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
IN-1
Index
RJ-45 console port 1-6
USB console port 1-6
crossover cable
pinout
four twisted-pair, 1000BASE-T ports
D
device manager
described
diagnosing problems 4-1
dimensions A-4
disconnect device warning 3-7
dual-purpose ports
description
LEDs 1-10
duplex
troubleshooting
1-13
1-4
4-4
E
Ethernet and fiber cable troubleshooting 4-2
G
ground conductor warning 3-4
ground connection warning 3-4
B-7
guidelines 2-3
power supply modules 3-6
rack-mounting 2-4
site requirements 2-3
starting the terminal emulation software C-1, C-3
wall-mounting 2-16
See also procedures
installation warnings
2-1
J
jewelry removal warning 2-1
L
LEDs
1-9, 1-10
alarms
console 1-9
descriptions and locations 1-7 to 1-10
dual-purpose port 1-10
POST results 4-1
PSU 1 and PSU 2 1-9
SD Flash Memory Card 1-10
system 1-8
troubleshooting with 4-1
lightning activity warning 2-1, 3-3
link status troubleshooting 4-2
H
HP OpenView 1-14
I
installation
assigning the IP Address
Cisco USB drivers C-4
grounding procedures 3-4
Cisco CGS 2520 Hardware Installation Guide
IN-2
C-6
M
management options 1-13
mounting
2-4
rack
wall 2-16
O
overcurrent protection warning 3-7
78-19377-02
Index
P
pinouts
10/100 ports
console port B-9
crossover cables
four twisted-pair, 1000BASE-T ports
two twisted-pair 10/100 ports B-7
RJ-45-to-DB-25 terminal adapter B-9
RJ-45-to-DB-9 terminal adapter B-8
SFP module ports B-2
straight-through cables
four twisted-pair 1000BASE-T ports
two twisted-pair B-6
PoE
cable lengths
ports described 1-4
power planning tool 2-25
shock hazard warning 2-26
troubleshooting 4-3
ports
1-3
10/100/1000 1-10, B-3
recommended cables 2-24
10/100 PoE
See also PoE
dual-purpose
LEDs 1-10
SFP module 1-4
POST
description
LEDs 4-1
power-input terminal
description
wiring 3-7
power specifications A-4
power-supply modules
description
features 1-13
B-2
1-4
1-4
4-1
1-6
1-11
B-7
B-7
grounding the switch 3-3
installation guidelines 3-3, 3-11
installing AC or DC 3-3 to 3-11
specifications A-4
wiring the power source 3-7
power-supply side description 1-11
procedures
connection
?? to 2-26
PSU 1 and PSU 2 LEDs 1-9
publications, related i-viii
R
rack-mounting 2-4 to 2-26
removing SFP modules 2-20
RJ-45 connector
alarm input port
B-3
console port B-8
S
safety 2-1
SD flash memory card 1-11
serial number location 4-5
setup program C-7
SFP module patch cable
description
installing 2-21
removing 2-22
SFP modules
bale-clasp latch removal
connectors B-2
installing 2-19
removing 2-20
supported 1-3
SFP module slots 1-4
short-circuit protection warning 3-7
Simple Network Management Protocol
1-5
2-20
78-19377-02
Cisco CGS 2520 Hardware Installation Guide
IN-3
Index
See SNMP
SNMP network management platforms
software switch management 1-13
specifications A-1 to A-4
speed
troubleshooting
4-4
straight-through cable pinout
four twisted-pair 1000BASE-T ports
two twisted-pair 10/100 ports B-6
SunNet Manager 1-14
switch models 1-1
switch models illustrated 1-2
T
technical specifications A-1 to A-4
Telnet, and accessing the CLI 1-13
temperature, operating A-1
troubleshooting
bad or damaged cable
connection problems 4-2
diagnosing problems 4-1
Ethernet and fiber cables 4-2
link status 4-2
ping end device 4-3
PoE connections 4-3
POST 4-1
serial number location 4-5
spanning tree loops 4-4
speed, duplex, and autonegotiation 4-4
switch performance 4-4
with LEDs 4-1
4-2
1-14
B-7
W
wall-mounting 2-16
warnings
airflow restriction
ambient temperature 2-2
ground conductor 3-4
ground connection 3-4
installation 2-1
jewelry removal 2-1
lightning activity 2-1, 3-3
national laws and regulations 2-2
PoE shock hazard 2-26
qualified personnel 2-2
restricted access areas 2-2
short-circuit (overcurrent) protection 3-7
two-poled disconnect device 3-7
2-3
U
uninstalling the Cisco Microsoft Windows USB
C-5
driver
USB console port
overview
IN-4
1-7
Cisco CGS 2520 Hardware Installation Guide
78-19377-02
Loading...
