Cisco Systems 815 User Manual

Cisco 815 Integrated Services Router Hardware Installation Guide
Corporate Headquarters
Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000
Fax: 408 526-4100
Text Part Number: OL-9558-01
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
• Turn the television or radio antenna until the interference stops.
• Move the equipment to one side or the other of the television or radio.
• Move the equipment farther away from the television or radio.
• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Pac k e t, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0601R)
Cisco 815 Integrated Services Router Hardware Installation Guide
© 2006 Cisco Systems, Inc. All rights reserved.
Preface ix
Audience and Scope ix
Organization ix
Related Documentation x
Conventions xi
Notes, Cautions, and Warnings xi Commands xviii
Accessibility xix
Obtaining Documentation xix
Cisco.com xix Product Documentation DVD xx Ordering Documentation xx

CONTENTS

CHAPTER
OL-9558-01
Documentation Feedback xxi
Cisco Product Security Overview xxi
Reporting Security Problems in Cisco Products xxii
Obtaining Technical Assistance xxiii
Cisco Technical Support & Documentation Website xxiii
Submitting a Service Request xxiv Definitions of Service Request Severity xxiv
Obtaining Additional Publications and Information xxv
1 Overview 1-1
Key Features 1-1
Cisco Product Identification Tool xxiii
Cisco 815 Integrated Services Router Hardware Installation Guide
v
Contents
Product Serial Number Location 1-3
Back Panel Ports and LEDs 1-4
Front Panel LEDs 1-6
Router Memory 1-8
Types of Memory 1-8 Amounts of Memory 1-9
Unpacking the Router 1-10
CHAPTER
CHAPTER
2 Installation 2-1
Before Installing the Router 2-1
Connecting the Router to Your Local Network 2-2
Connecting Power to the Router 2-5
Verifying Your Installation 2-6
Optional Installation Procedures 2-7
Connecting a PC 2-7 Connecting a Modem 2-9 Stacking the Router 2-10 Unstacking the Router 2-13
3 Troubleshooting 3-1
Contacting Your Cisco Reseller 3-1
Recovering a Lost Password 3-2
Determining the Configuration Register Value 3-2 Resetting the Router 3-4 Resetting the Password 3-6 Resetting the Configuration Register Value 3-6
vi
Problem Solving 3-7
OK LED Diagnostics 3-7
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Troubleshooting WICs and Cables 3-8
Example 3-9
Troubleshooting the Power System 3-11
Contents
APPENDIX
APPENDIX
APPENDIX
I
NDEX
A Technical Specifications A-1
B Cabling Specifications B-1
Ethernet Cables B-1
Ethernet Network Cabling Guidelines B-2
Console Cable and Adapter B-3
C Installing and Upgrading Memory and Virtual Private Network Modules C-1
Safety Warnings C-1
Opening the Chassis C-2
Locating Modules C-4
Installing and Removing a DIMM C-4
Removing a DIMM C-5 Installing a DIMM C-6

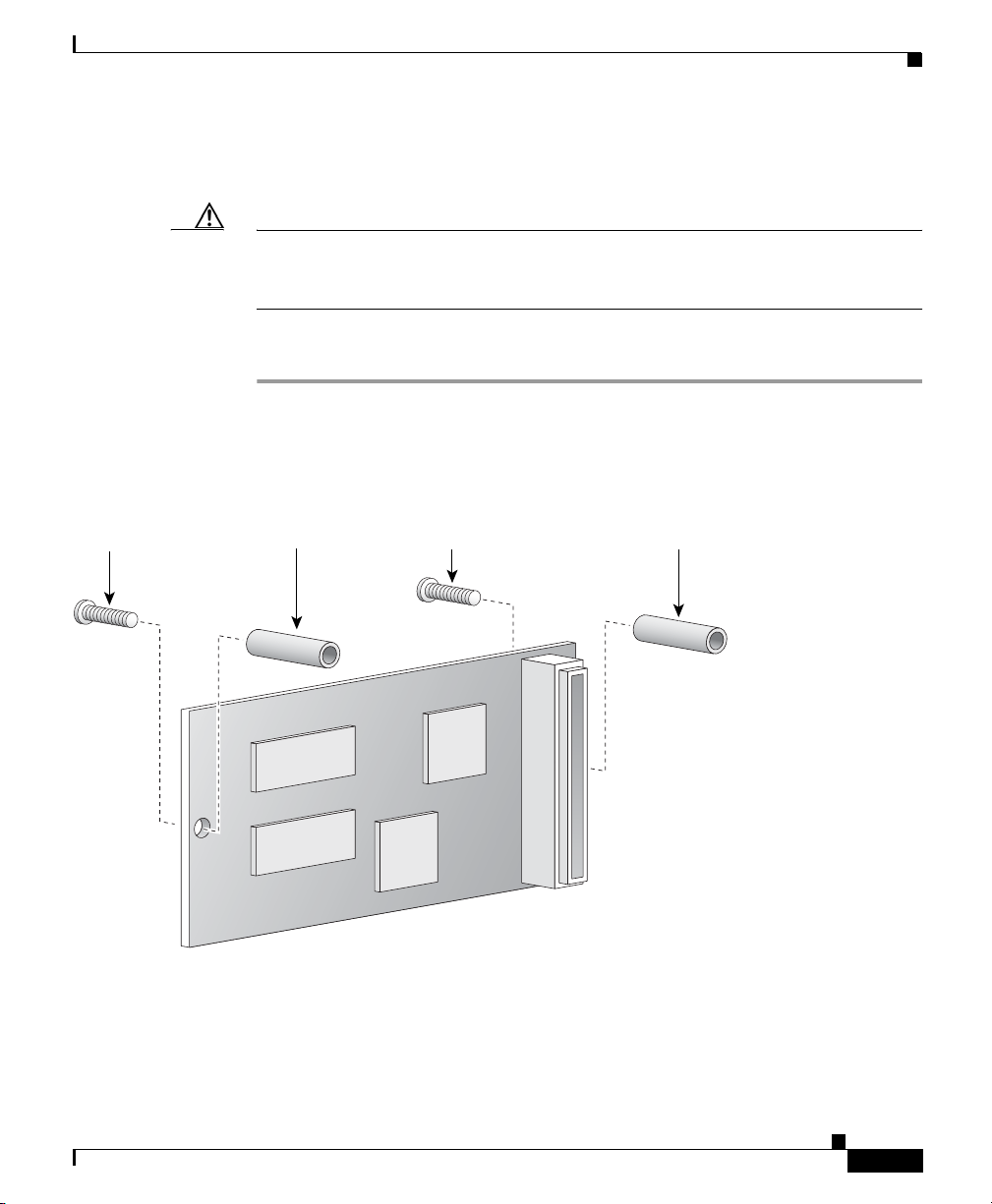

Installing a VPN Module C-7
Closing the Chassis C-13
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
vii
Contents
viii
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01

Preface

This section describes the intended audience, scope, and organization of the Cisco 815 Integrated Services Router Hardware Installation Guide and defines the conventions used to convey instructions and information.

Audience and Scope

This guide is for users who have some experience in installing and maintaining networking hardware. Cisco 815 integrated services router users should be familiar with the terminology and concepts of local Ethernet and wide-area networking.
This guide describes the functional and physical features of the Cisco 815 integrated services router and provides installation procedures, troubleshooting information, technical specifications, and cable and connector guidelines and specifications.

Organization

This guide is organized as follows:
OL-9558-01
Chapter 1, “Overview,” describes the router features, LEDs, and connectors.
Chapter 2, “Installation,” describes how to install the router by connecting
cables and power, and tells how to install WAN interface cards (WICs).
Cisco 815 Integrated Services Router Hardware Installation Guide
ix

Related Documentation

Chapter 3, “Troubleshooting,” describes some problems that you might
experience with the router and how to solve these problems.
Appendix A, “Technical Specifications,” lists the physical characteristics,
environmental requirements, and power specifications for the router.
Appendix B, “Cabling Specifications,” provides the cables and cabling
guidelines for the router.
Appendix C, “Installing and Upgrading Memory and Virtual Private Network
Modules,” describes how to install or upgrade memory modules in your
router.
Related Documentation
The following publications provide information related to this product:
The Cisco 815 Integrated Services Router Hardware Installation Guide, has
instructions for quickly cabling and powering up the router.
Cisco Cable Modem High-Speed WAN Interface Cards Feature Guide
describes some common network scenarios and how to use the Cisco IOS command-line interface (CLI) to configure the router in these scenarios.
Cisco WAN Interface Cards Hardware Installation Guide describes how to
install and configure the WAN interface cards (WICs) that are supported by the Cisco 815 router.
Preface
Cisco IOS command reference and configuration guides provide complete
information about all Cisco IOS CLI commands and how to use them, as well as information on designing and configuring LANs and WANs.
Cisco 815 Integrated Services Router Hardware Installation Guide
x
OL-9558-01
Preface

Conventions

This guide uses the following conventions for information and instructions.

Notes, Cautions, and Warnings

Notes, cautions, and warnings use the following conventions and symbols:
Note Means reader take note. Notes contain helpful suggestions or references to
materials not contained in this manual.
Caution This caution symbol means reader be careful. In this situation, you might do
something that could result in equipment damage or loss of data.
Conventions
Warning
Waarschuwing
OL-9558-01
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.
Cisco 815 Integrated Services Router Hardware Installation Guide
xi
Conventions
Preface
Varoitus
Attention
Warnung
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d’avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.
xii
Avvertenza
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Preface
Conventions
Advarsel
Aviso
¡Advertencia!
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.
Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.
OL-9558-01
Varning!
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.
Cisco 815 Integrated Services Router Hardware Installation Guide
xiii
Conventions
Preface
xiv
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Preface
Conventions
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
xv
Conventions
Preface
xvi
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Preface
Conventions
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
xvii
Conventions
Preface

Commands

Cisco 815 Integrated Services Router Hardware Installation Guide
xviii
Table 1 describes the syntax used with the commands in this document.
Table 1 Command Syntax Guide
Convention Description
boldface Commands and keywords.
italic Command input that is supplied by you.
[ ] Keywords or arguments that appear within square
brackets are optional.
{x | x | x} A choice of keywords (represented by x) appears in
braces separated by vertical bars. You must select one.
^ or Ctrl Represent the key labeled Control. For example, when
you read ^D or Ctrl-D, you should hold down the Control key while you press the D key.
screen font
Examples of information displayed on the screen.
OL-9558-01
Preface
Table 1 Command Syntax Guide (continued)
Convention Description
boldface screen font
< > Nonprinting characters, such as passwords, appear in
[ ] Default responses to system prompts appear in square

Accessibility

This product family uses a command line interface (CLI). The CLI is 508 conformant since it is text based and relies on a keyboard for navigation. All functions of the router can be configured and monitored through the CLI.
To view Cisco accessibility guidelines and product adherence, see Cisco Accessibility Products at the following URL:
http://www.cisco.com/web/about/responsibility/accessibility/products
Accessibility
Examples of information that you must enter.
angled brackets.
brackets.

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
http://www.cisco.com
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
xix
Obtaining Documentation
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml

Product Documentation DVD

The Product Documentation DVD is a comprehensive library of technical product documentation on a portable medium. The DVD enables you to access multiple versions of installation, configuration, and command guides for Cisco hardware and software products. With the DVD, you have access to the same HTML documentation that is found on the Cisco website without being connected to the Internet. Certain products also have .PDF versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com users (Cisco direct customers) can order a Product Documentation DVD (product number DOC-DOCDVD= or DOC-DOCDVD=SUB) from Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Preface

Ordering Documentation

Registered Cisco.com users may order Cisco documentation at the Product Documentation Store in the Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Nonregistered Cisco.com users can order technical documentation from 8:00 a.m. to 5:00 p.m. (0800 to 1700) PDT by calling 1 866 463-3487 in the United States and Canada, or elsewhere by calling 011 408 519-5055. You can also order documentation by e-mail at tech-doc-store-mkpl@external.cisco.com or by fax at 1 408 519-5001 in the United States and Canada, or elsewhere at 011 408 519-5001.
Cisco 815 Integrated Services Router Hardware Installation Guide
xx
OL-9558-01
Preface

Documentation Feedback

You can rate and provide feedback about Cisco technical documents by completing the online feedback form that appears with the technical documents on Cisco.com.
You can submit comments about Cisco documentation by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems Attn: Customer Document Ordering 170 West Tasman Drive San Jose, CA 95134-9883
We appreciate your comments.

Cisco Product Security Overview

Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht ml
Documentation Feedback
OL-9558-01
From this site, you will find information about how to:
Report security vulnerabilities in Cisco products.
Obtain assistance with security incidents that involve Cisco products.
Register to receive security information from Cisco.
A current list of security advisories, security notices, and security responses for Cisco products is available at this URL:
http://www.cisco.com/go/psirt
To see security advisories, security notices, and security responses as they are updated in real time, you can subscribe to the Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed. Information about how to subscribe to the PSIRT RSS feed is found at this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Cisco 815 Integrated Services Router Hardware Installation Guide
xxi
Cisco Product Security Overview

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you have identified a vulnerability in a Cisco product, contact PSIRT:
For Emergencies only— security-alert@cisco.com
An emergency is either a condition in which a system is under active attack or a condition for which a severe and urgent security vulnerability should be reported. All other conditions are considered nonemergencies.
For Nonemergencies — psirt@cisco.com
In an emergency, you can also reach PSIRT by telephone:
1 877 228-7302
1 408 525-6532
Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product (for
example, GnuPG) to encrypt any sensitive information that you send to Cisco. PSIRT can work with information that has been encrypted with PGP versions 2.x through 9.x.
Preface
xxii
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht ml
The link on this page has the current PGP key ID in use.
If you do not have or use PGP, contact PSIRT at the aforementioned e-mail addresses or phone numbers before sending any sensitive material to find other means of encrypting the data.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Preface

Obtaining Technical Assistance

Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco Technical Support & Documentation website on Cisco.com features extensive online support resources. In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not have a valid Cisco service contract, contact your reseller.

Cisco Technical Support & Documentation Website

The Cisco Technical Support & Documentation website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Cisco Product Identification Tool
Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting a web or phone request for service. You can access the CPI tool from the Cisco Technical Support & Documentation website by clicking the Tools & Resources link under Documentation & Tools. Choose Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by product ID or model name; by tree view; or for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
xxiii
Obtaining Technical Assistance

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests, or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227) EMEA: +32 2 704 55 55 USA: 1 800 553-2447
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Preface

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.
Severity 1 (S1)—An existing network is down, or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operations are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Cisco 815 Integrated Services Router Hardware Installation Guide
xxiv
OL-9558-01
Preface

Obtaining Additional Publications and Information

Severity 3 (S3)—Operational performance of the network is impaired, while most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
The Cisco Product Quick Reference Guide is a handy, compact reference tool
that includes brief product overviews, key features, sample part numbers, and abbreviated technical specifications for many Cisco products that are sold through channel partners. It is updated twice a year and includes the latest Cisco offerings. To order and find out more about the Cisco Product Quick Reference Guide, go to this URL:
http://www.cisco.com/go/guide
OL-9558-01
Cisco Marketplace provides a variety of Cisco books, reference guides,
documentation, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:
http://www.cisco.com/go/marketplace/
Cisco Press publishes a wide range of general networking, training and
certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:
http://www.ciscopress.com
Pack et magazine is the Cisco Systems technical user magazine for
maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:
http://www.cisco.com/packet
Cisco 815 Integrated Services Router Hardware Installation Guide
xxv
Obtaining Additional Publications and Information
iQ Magazine is the quarterly publication from Cisco Systems designed to
help growing companies learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
Internet Protocol Journal is a quarterly journal published by Cisco Systems
for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
Networking products offered by Cisco Systems, as well as customer support
services, can be obtained at this URL:
http://www.cisco.com/en/US/products/index.html
Preface
xxvi
Networking Professionals Connection is an interactive website for
networking professionals to share questions, suggestions, and information about networking products and technologies with Cisco experts and other networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
World-class networking training is available from Cisco. You can view
current offerings at this URL:
http://www.cisco.com/en/US/learning/index.html
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01

Overview

This chapter introduces the Cisco 815 integrated services router, also referred to in this guide as the router, and covers the following topics:
Key Features
Back Panel Ports and LEDs
Front Panel LEDs
Router Memory
Unpacking the Router

Key Features

The Cisco 815 integrated services router (see Figure 1-1) is a small, modular desktop router that provides an integrated cable solution. The Cisco 815 integrated services router communicates over a cable hybrid fiber coaxial (HFC) network for office-to-Internet connectivity or branch-to-branch connectivity. The Cisco cable modem high-speed WAN interface cards (HWICs) are installed in the router as a fixed configuration for one HWIC full-feature cable modem high-speed interaction, including quality of service (QoS) functionality.
CHA P T E R
1
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
1-1
Key Features
Figure 1-1 Cisco 815 Integrated Services Router
PWR
W
IC0
ACT/CH0
W
IC1
ACT/CH0
E
TH
OK
ACT
ACT/CH1
ACT/CH1
COL
Cisco
800
series
router
Chapter 1 Overview
146794
Table 1-1 Key Features
Feature Description
One Fast Ethernet (10/100BASE-TX) port
Two Cisco WAN interface card (WIC) slots
Operates in full- or half-duplex mode (with manual
override available).
Supports autosensing for 10- or 100-Mbps operation.
Supports IEEE 802.1Q VLAN encapsulation.
Supports a WIC-4ESW and HWIC-CABLE-D-2.
Note These slots are fixed and are not field replaceable.
1
Console port Supports router configuration and management with a
directly-connected terminal or PC. Supports up to 115.2 kbps.
Auxiliary port Supports modem connection to the router, which can be
configured and managed from a remote location. Supports up to
115.2 kbps.
SNMP support Router can be managed over a network using Simple Network
Management Protocol (SNMP).
Cisco 815 Integrated Services Router Hardware Installation Guide
1-2
OL-9558-01
Chapter 1 Overview
Key Features
Table 1-1 Key Features (continued)
Feature Description
AutoInstall support Configuration files can be easily downloaded to the router over
a WAN connection.
Kensington security slot Router can be secured to a desktop or other surface using
Kensington lockdown equipment.
Support for Cisco IOS software features
Supports IP, IPX, AppleTalk, IBM, Open Shortest Path First (OSPF) Protocol, NetWare Link Services Protocol (NLSP), Resource Reservation Protocol (RSVP), encryption, network address translation, and the Cisco IOS Firewall Feature Set.
1. The HWIC-CABLE-D-2 operates only in WIC mode with 8-Mbps downstream throughput.

Product Serial Number Location

The serial number label for the Cisco 815 integrated services router is located on the rear of the chassis, to the right of the power switch. (See Figure 1-2)
Figure 1-2 Serial Number Location on the Cisco 815 Router
CONSOLE
WIC
Cisco 815
OL-9558-01
4ESW
4xACT
LNK
ACT LNK
ACT LNK
1x
FDX LINK100WIC 0 OK WIC 1 OKMOD OK
10/100 ETHERNET
ACT LNK
2x
3x
Cisco 815 Integrated Services Router Hardware Installation Guide
HWIC-CABLE-D-2
AUX
CABLE
ONLINE
SN: NNNNNNNN
DS
LINK
US
POWER
+5, +12, -12 VDC
SN: NNNNNNNN
170141, 781-00041-01
1-3

Back Panel Ports and LEDs

Back Panel Ports and LEDs
This section describes the router back panel ports and LEDs, which are shown and identified in Figure 1-3 and are described in Tab le 1-2 and Ta b le 1-3 . Figure 1-4 shows a closer view of the WIC-4ESW module, which is installed in the WIC 0 slot on the router. Figure 1-5 shows a closer view of the HWIC-CABLE-D-2 module, which is installed in the WIC 1 slot on the router.
Figure 1-3 Back Panel Ports and LEDs
Chapter 1 Overview
1
Cisco 815
WIC 4ESW
2
ACT LNK
2x
3x
4xACT
12
LNK
ACT LNK
ACT LNK
1x
FDX LINK100WIC 0 OK WIC 1 OKMOD OK
10/100 ETHERNET
10
11
1
Kensington-compatible locking socket
2
WIC 0 slot
3
Console port
4
WIC 1 slot 10 10/100-Mbps Fast Ethernet port
5
Power switch
6
Power socket
3
CONSOLE
HWIC-CABLE-D-2
AUX
CABLE
4
DS
LINK
US
POWER
ONLINE
8
9
7
WIC 1 OK LED
8
Module OK LED
9
Auxiliary port
11
Full duplex (FDX), 100, Link LEDs
12
WIC 0 OK LED
7
5
+5, +12, -12 VDC
146791
6
1-4
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Chapter 1 Overview
Figure 1-4 WIC-4ESW
WIC 4ESW
4xACT
LNK
ACT
3x
LNK
ACT
2x
LNK
ACT
1x
Figure 1-5 HWIC-CABLE-D-2
LNK
Back Panel Ports and LEDs
95777
HWIC-CABLE-D-2
CABLE
DS
US
ONLINE
LINK
POWER
Table 1-2 Back Panel Connectors
Connector/Slot Label/Color Description
Ethernet port 10/100
ETHERNET (yellow)
Connects the router to the local Ethernet network. This port autosenses the speed (10 Mbps or 100 Mbps) and duplex mode (full- or half-) of the device to which it is connected, and then operates at the same speed and in the same duplex mode.
Auxiliary port AUX
(black)
Console port CONSOLE
(blue)
Connects to a modem for remote configuration using Cisco IOS software.
Connects to a terminal or PC for local configuration using Cisco IOS software.
WIC-4ESW (WIC 0) No label Supports interface card with four 10/100-BASE-TX
Ethernet switchports. See Figure 1-4.
HWIC-CABLE-D-2
No label Supports one Cisco cable WIC. See Figure 1-5.
(WIC 1)
146788
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
1-5
Chapter 1 Overview

Front Panel LEDs

Use the back panel LEDs during router installation to confirm that you have correctly connected all the cables to the router.
Table 1-3 Back Panel LEDs
LED Label Color Description
WIC0 OK Green On when the WIC is correctly installed in the card slot.
There are 2 LEDS associated with the WIC-4ESW: The right LED, which is labeled LNK, and the left LED, which is labeled ACT. The LNK (physical layer link) LED is on when the Cisco IOS software recognizes the switch and the connection is up. The ACT (activity) LED indicates that data is being transmitted or received on the slot.
FDX Green On solid—Ethernet port is operating in full-duplex mode.
Off—Ethernet port is operating in half-duplex mode.
100 Green On solid—Ethernet port is operating at 100 Mbps.
Off—Ethernet port is operating at 10 Mbps.
LINK Green On when the Ethernet link is up.
MOD OK Green On when the VPN hardware encryption module is installed
and recognized by the Cisco IOS software.
WIC1 OK Green On when the WIC is correctly installed in the card slot.
Front Panel LEDs
Use the router front panel LEDs to determine network activity and status on the Ethernet port and on the WIC ports. The front panel LEDs are shown in Figure 1-6 and described in Tab le 1-4.
Cisco 815 Integrated Services Router Hardware Installation Guide
1-6
OL-9558-01
Chapter 1 Overview
Figure 1-6 Front Panel LEDs
Front Panel LEDs
PWR
OK
Table 1-4 Front Panel LEDs
WIC0
ACT/CH0
ACT/CH1
WIC1
ACT/CH0
ACT/CH1
ETH
ACT
COL
65537
LED Label Color Description
PWR Green On means that DC power is being supplied to the router.
OK Green On means that the router has successfully booted up and the software is
functional. This LED blinks during the power-on self-test (POST).
See the section “OK LED Diagnostics” in Chapter 3,
“Troubleshooting,” for information on how to use this LED for router
diagnostics.
WIC0 N/A N/A.
ACT/CH0 Green Blinks when data is being sent to or received from the port on the card
in the WIC 0 slot.
2-port serial cards—Blinks when data is being sent to or received from the first port on the 2-port card in the WIC 0 slot.
ACT/CH1 Green Remains off.
2-port serial cards—Blinks when data is being sent to or received from the second port on the 2-port card in the WIC 0 slot.
WIC1 N/A N/A.
ACT/CH0 Green Blinks when data is being sent to or received from the port on the card
in the WIC 1 slot.
2-port serial cards—Blinks when data is being sent to or received from the first port on the 2-port card in the WIC 1 slot.
ACT/CH1 Green Remains off.
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
1-7
Chapter 1 Overview

Router Memory

Table 1-4 Front Panel LEDs (continued)
LED Label Color Description
2-port serial cards—Blinks when data is being sent to or received from the second port on the 2-port card in the WIC 1 slot.
ETH N/A N/A.
ACT Green Blinks when there is network activity on the Ethernet port.
COL Yellow Blinks when there are packet collisions on the local Ethernet network.
Router Memory
This section describes the types of memory stored in the router and how to find out how much of each type of memory is stored in the router.
For instruction on how to upgrade memory in the router, see Appendix C,
“Installing and Upgrading Memory and Virtual Private Network Modules.”

Types of Memory

The Cisco 815 integrated services router has the following types of memory:
Dynamic random-access memory (DRAM)—This is the main storage
Nonvolatile random-access memory (NVRAM)—This type of memory
Flash memory—This special kind of erasable, programmable memory
Cisco 815 Integrated Services Router Hardware Installation Guide
1-8
memory for the router. DRAM is also called working storage. It contains the dynamic configuration information. The DRAM in the Cisco 815 integrated services router stores a working copy of the Cisco IOS software, dynamic configuration information, and routing table information.
contains a backup copy of the router configuration. If the power is lost or the router is turned off, this backup copy enables the router to return to operation without reconfiguration.
contains a copy of the Cisco IOS software. The flash memory structure can store multiple copies of the Cisco IOS software. You can load a new level of the operating system in every router in your network and then, when convenient, upgrade the whole network to the new level.
OL-9558-01
Chapter 1 Overview

Amounts of Memory

The Cisco 815 integrated services router supports a maximum of 32 MB of flash memory and 128 MB of DRAM. Use the show version command to see how much DRAM, NVRAM, and flash memory is stored in your router. The following example of output for the show version command shows the amount of memory in this router:
815# show version Cisco IOS Software, C815 Software (C815-IPBASE-M), Version
12.4(5.13.5)PIA5 ENGINEERING WEEKLY BUILD, synced to haw_t_pi4_abu HAW_T_PI4_ABU_5_13_1_PIA4 Copyright (c) 1986-2006 by Cisco Systems, Inc. Compiled Wed 22-Mar-06 18:07 by ealyon
ROM: System Bootstrap, Version 12.2(20060221:032620) [yiye-after815rmon 101], DEVELOPMENT SOFTWARE
815B uptime is 6 days, 14 hours, 41 minutes System returned to ROM by reload at 22:59:26 PST Mon Apr 24 2006 System restarted at 23:01:51 PST Mon Apr 24 2006 System image file is "flash:c815-ipbase-mz.124-5.13.5.PIA5"
Cisco 815 (MPC860P) processor (revision 0x500) with 59569K/5967K bytes of memory. Processor board ID FOC09250KK8 (1061493493), with hardware revision 0000 MPC860P processor: part number 5, mask 2 1 Ethernet interface 5 FastEthernet interfaces 1 Cable Modem interface 32K bytes of NVRAM. 32768K bytes of processor board System flash (Read/Write) Configuration register is 0x2102 815#
Router Memory
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
1-9

Unpacking the Router

Unpacking the Router
Figure 1-7 lists the items that come with your router. All these items are in the
accessory kit that came with your router.
Figure 1-7 Items Included with the Cisco 815 Integrated Services Router
PW
R
WIC0
ACT/CH0
W
IC1
ACT/CH1
ETH ACT
OK
ACT/CH0
ACT/CH1
COL
1
2
Chapter 1 Overview
4
5
1-10
3
1
Cisco 815 integrated services router
2
Power supply
3
Power cable
Cisco 815 Integrated Services Router Hardware Installation Guide
6
4
DB-9-to-DB-25 adapter
5
Console cable (RJ-45 to DB-9)
6
Ethernet cable
146792
OL-9558-01

Installation

This chapter provides procedures for installing the Cisco 815 integrated services router and includes the following sections:
Before Installing the Router
Connecting the Router to Your Local Network
Connecting Power to the Router
Verifying Your Installation
Optional Installation Procedures

Before Installing the Router

The Cisco 815 integrated services router is shipped ready for desktop mounting. Before you connect it to the power and network, simply set the router on a desktop, shelf, or other flat surface.
Be sure to read the safety information in the Regulatory Compliance and Safety
Information for Cisco 800 Series and SOHO Series Routers document online.
CHA P T E R
2
OL-9558-01
Warning
Read the installation instructions before you connect the system to its power source.
Cisco 815 Integrated Services Router Hardware Installation Guide
2-1

Connecting the Router to Your Local Network

Chapter 2 Installation
Warning
Warning
Caution Do not place anything on top of the router that weighs more than 10 pounds
Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals. (To see translated versions of this warning, refer to the
Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers document that came with the router.)
Do not work on the system or connect or disconnect cables during periods of lightning activity.
(4.5 kg). Excessive weight on top of the router could damage the chassis.
Caution There are no field-replaceable parts inside the router. Do not open the router
enclosure to replace parts.
Caution To prevent damage to the chassis, never attempt to lift of tilt the chassis by the
plastic panel on the front. Always hold the chassis by the metal body.
Connecting the Router to Your Local Network
The Cisco 815 integrated services router is connected to your local Ethernet network through the yellow 10/100 Ethernet port. You must provide the following items for this connection:
A straight-through, RJ-45-to-RJ-45, Ethernet cable
A 10/100-Mbps Ethernet hub or switch
Cisco 815 Integrated Services Router Hardware Installation Guide
2-2
OL-9558-01
Chapter 2 Installation
Caution Do not connect a WAN cable to the card until you have completed the installation
Note For details about specific WAN interface cards (WICs), connecting the card to the
Connecting the Router to Your Local Network
procedure.
WAN line, and configuring the interface with Cisco IOS software, see the
Cisco Interface Cards Hardware Installation Guide.
Warning
The ports labeled 10/100 ETHERNET and CONSOLE are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because BRI circuits are treated like telephone-network voltage, avoid connecting the SELV circuits to the telephone network voltage (TNV) circuits. (To see translated versions of this warning, refer to the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers document that came with the router.)
Follow these steps to connect the router to the local network:
Step 1 Connect one end of the cable to the yellow Ethernet port (labeled
10/100 ETHERNET) on the back panel of the router, as shown in Figure 2-1.
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
2-3
Connecting the Router to Your Local Network
Figure 2-1 Connecting the Router to the Local Network
W
IC
4ESW
WIC0OK
A CT LN
4x
K
ACT
3x
LNK
A
CT
2x
LNK
FDX
Cisco 815
2
Chapter 2 Installation
C
O
10/100 ETHERNET
1
N
S
O
LE
HWIC-CABLE-D-2
A
U
X
DS
US
CABLE
LINK
ONLINE
POWER
MODOK
WIC1OK
+5, +12, -12 VDC
3
AC
T
1x
LN
K
100
LINK
2-4
AUI
1
10/100 Ethernet port on the
8
7
6
5
4
3
2
1
3
Ethernet hub or switch Cisco 815 integrated services router
2
Straight-through Ethernet cable
Step 2 Connect the other end of the cable to a network port on the hub or switch.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
155186
Chapter 2 Installation

Connecting Power to the Router

Read the following warnings before connecting the router to power.
Connecting Power to the Router
Warning
Warning
The power supply is designed to work with TN power systems.
This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use.
Follow these steps to connect power to the router and to turn on the router:
Step 1 Connect the attached power-supply cord to the power socket (labeled +5, +12,
-12 VDC) on the router back panel, as shown in Figure 2-2.
Figure 2-2 Connecting the Power Supply
W
IC
4ESW
Cisco 815
WIC0OK
C
TL
4 xA
N
K
A
C
T
3 x
L
N
K
A
C
T
2x
LN
K
A
C T
1
x
LN
K
FDX
100
LINK
10/100 E
CONSOLE
TH
E
R
HWIC-CABLE-D-2
N
E
T
AUX
155187
D
S
U
S
CABLE
L
IN
K O N
L IN
E
P
O
W
E
R
MODOK
WIC1OK
+5, +12, -12 VDC
OL-9558-01
2
1
Cisco 815 Integrated Services Router Hardware Installation Guide
2-5

Verifying Your Installation

Chapter 2 Installation
1
Power supply
Step 2 Connect one end of the separate power cord to the socket on the power supply.
Step 3 Connect the other end of the separate power cord to a power outlet.
Step 4 Press the router power switch to ON ( | ).
Step 5 Confirm that the router has power by checking that the PWR LED on the front
2
Power socket
panel is on.
Verifying Your Installation
You can verify that you have correctly installed the router by checking the following LEDs:
PWR (front panel)—On when power is being supplied to the router.
OK (front panel)—On when the router software is loaded and functional.
Blinking indicates that the router is performing a power-on self-test (POST).
WIC0/WIC1 OK (back panel)—On when the WIC is correctly installed in the
corresponding WIC slot.
ETH ACT (front panel)—Blinking when there is network traffic on the local
10/100 Ethernet LAN.
WIC0 ACT or WIC1 ACT (front panel)—Varies, depending on the WIC
installed. See Tab l e 1- 4 in Chapter 1, “Overview.”
2-6
LINK (back panel)—On when the router is correctly connected to the local
Ethernet LAN through the 10/100 ETHERNET port.
MOD OK (back panel)—On when the VPN hardware encryption module is
installed and recognized by the Cisco IOS software.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Chapter 2 Installation

Optional Installation Procedures

This section describes some installation procedures that you might or might not use, depending on your site and on how you are configuring the router. This section describes the following procedures:
Connecting a PC
Connecting a Modem
Stacking the Router
Unstacking the Router

Connecting a PC

If you want to use the Cisco IOS command-line interface to configure the router, you must connect the router console port to a terminal or PC. The cable and adapter required for this connection are included with the router.
If you want to use a PC to configure the router, you need to make sure that the PC has some type of terminal emulation software installed. The software should be configured with the following parameters: 9600 baud, 8 data bits, no parity bits, 1 stop bit.
Optional Installation Procedures
OL-9558-01
Follow these steps to connect the router to a terminal or PC:
Step 1 Connect the blue console cable to the blue console port on the back of the router,
as shown in Figure 2-3.
Cisco 815 Integrated Services Router Hardware Installation Guide
2-7
Optional Installation Procedures
Figure 2-3 Connecting the Console Cable to the Router
WIC 4ESW
4x
Cisco 815
WIC0OK
3x
ACT LNK ACT LNK ACT LNK
2x
ACT LNK
1x
FDX
100
LINK
10/100 ETHERNET
CONSOLE
AUX
HWIC-CABLE-D-2
DS
U
CABLE
S
LINK
O
N
LINE
PO
W
ER
MODOK
WIC1OK
+5, +12, -12 VDC
Chapter 2 Installation
4
1
Blue console cable
2
Console port
Step 2
Cisco 815 Integrated Services Router Hardware Installation Guide
2-8
1
2
3
146793
3
To PC or terminal
4
Cisco 815 integrated services router
Connect the DB-9 end of the console cable to the console port (also called the serial port) on your PC. If this adapter does not fit your PC console port, you must provide an adapter that fits.
OL-9558-01
Chapter 2 Installation

Connecting a Modem

When a modem is connected to the auxiliary port, a remote user can dial in to the router and configure it. You can use the console cable provided in the accessory kit.
Follow these steps to connect a modem to the router, using the console cable:
Step 1 Connect the RJ-45 end of the cable to the black AUX port on the back of the
router, as shown in Figure 2-4.
Figure 2-4 Connecting a Modem to the Router
Optional Installation Procedures
OL-9558-01
WIC 4ESW
ACT
Cisco 815
WIC0OK
4x
LNK
ACT LNK
3x
2
1
AUX por t (RJ-45)
2
Console cable
2xACT
LNK
1xACT
LNK
FDX
100
LINK
10/100 ETHERNET
CONSOLE
HWIC-CABLE-D-2
D
S
U
S
C
ABLE
LINK
ON
LIN
E
AUX
MODOK
WIC1OK
PO
W
ER
+5, +12, -12 VDC
1
4
3
3
DB-9-to-DB-25 adapter
4
Modem
Cisco 815 Integrated Services Router Hardware Installation Guide
155188
2-9
Optional Installation Procedures
Step 2 Connect the DB-9 end of the cable to the DB-9 end of the DB-9-to-DB-25 adapter.
Step 3 Connect the DB-25 end of the adapter to the modem.

Stacking the Router

You can stack one Cisco 815 integrated services router in a four-device stack, along with other Cisco products designed for stacking with the router. Using a stacking clip and fastener, you can stack each device directly on top of another device.
Note The Cisco 815 integrated services router is not shipped with the stacking
equipment described in this section; however, the equipment is included with all other Cisco products that are designed to be stacked.
Other Cisco products designed to be stacked with the router comes with a stacking clip and a fastener for keeping the multiple devices together in a stack. Before you stack the devices, assemble the clip and fastener as shown in Figure 2-5.
Chapter 2 Installation
2-10
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Chapter 2 Installation
Figure 2-5 Assembling Stacking Clip and Fastener
Optional Installation Procedures
Push plastic fastener
through small hole
at the end of the
stacking clip.
OL-9558-01
H11542
After assembling the clip and fastener, follow these steps to stack the router with another device:
Step 1 Place the clip on top of the lower device, as shown in Figure 2-6. Slide the clip
forward so that the front tabs slide into the vent slots. Make sure that the back hooks fit over the edge of the lower device.
Cisco 815 Integrated Services Router Hardware Installation Guide
2-11
Optional Installation Procedures
Figure 2-6 Stacking the Router (Back View)
Cisco 815
Chapter 2 Installation
1
W
IC
4
E S
W
4xACT LNK
ACT
3x
LNK
ACT
2x
W
LNK
IC
ACT
0
O
K
F
D
X
CONSOLE
1x
LNK
1
0
0
L
IN
K
10/100 E
H
W
IC
­C
A
B
D S
L
E
-D
-
THER
NET
2
U S
L I
CABLE
N
K
O
N
L I
N E
P O
AUX
W
E
R
M
O
D
O
K
W
IC
1
O
K
+5, +
12, -12 V
D
C
2
W
IC
4
E S
W
ACT
Cisco 815
4x
LNK
ACT
3x
LNK
ACT
2x
W
LNK
IC
ACT LNK
0
O
K
F
D
X
3
CONSOLE
1x
1
0
0
L
IN
K
10/100 ETH
H
W
IC
-C A
B L
E
-D
ERNE
-2
T
AUX
4
3
1
Slot on bottom of router (see also
D
S
U
S
L
IN
CABLE
K
O
N
L I
N
E
P
O
W E
R
M
O
D
O
K
W
IC
1
O
K
+
5, +
12, -1
2
V
D
C
4
Back panel of lower hub
5
155189
#5)
2
Front tabs
5
Plastic fastener, which fits into slot on bottom of router (see #1)
3
Back hooks
Step 2
Position the router onto the clip so that the back hooks fit over the edge of the router.
Step 3 Position the plastic fastener into the slot on the bottom of the router.
Step 4 Snap the router onto the clip by pushing it down.
2-12
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Chapter 2 Installation

Unstacking the Router

Follow these steps to unstack the router from another device:
Step 1 Press up on the tab over the center of the lower device to release the clip from the
vent, as shown in Figure 2-7.
Figure 2-7 Unstacking the Router
3
2
W
IC
4
E
S
W
Cisco 815
Cisco 815
A
C
TL
4
x
N
K
A
C
T
3
x
L
N
K
A
C
T
2
W
IC0O
x
L N
K
A
C TLN
1
K
x
K
FD
X
100
LIN
K
10/100 E
10/100 ETHERNET
CO
THE
RNET
1
W
IC
4
E
S
W
A
C
T
4
x
L
N
K
A
C
T
3
x
L
N
K
A
C
T
2
W
IC0O
x
L N
K
A
C T
1
K
x
L
N
K
FD
X
100
LIN
K
10/100 ETHER
C
NET
Optional Installation Procedures
N
S
O
LE
H
W
IC
-C A
B L
E
DS
-D
­2
US
CABLE
LINK
ONLINE
A
UX
O
N
SO
LE
H
W
IC
­C
A
B L
E
A
U
X
POWER
M
ODO
K
W
IC1OK
+5, +12, -12 VDC
DS
­D
­2
US
CABLE
LINK
ONLINE
POWER
M
O
DO
K
W
IC1O
K
+5, +12, -12 VDC
155190
OL-9558-01
Step 2 Slide the clip and router toward you.
Step 3 Use both hands to lift the router and the stacking clip off the lower device.
Afterward, remove the clip from the bottom of the router.
Cisco 815 Integrated Services Router Hardware Installation Guide
2-13
Optional Installation Procedures
Chapter 2 Installation
2-14
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01

Troubleshooting

Use the information in this chapter to help isolate problems you might encounter with the Cisco 815 integrated services router or to rule out the router as the source of the problem.
This appendix contains the following sections:
Contacting Your Cisco Reseller
Recovering a Lost Password
Problem Solving

Contacting Your Cisco Reseller

If you cannot locate the source of a problem, contact your local reseller for advice. Before you call, you should have the following information ready:
CHA P T E R
3
OL-9558-01
Chassis type and serial number
Maintenance agreement or warranty information
Type and version number of the Cisco IOS software that is installed on your
router
Date that you received the router
Brief description of the problem
Brief description of the steps you have taken to isolate the problem
Output from the show tech-support command
Cisco 815 Integrated Services Router Hardware Installation Guide
3-1

Recovering a Lost Password

Recovering a Lost Password
This section describes how to recover a lost enable password and how to enter a new enable secret password.
Password recovery consists of the following major processes:
Determining the Configuration Register Value
With this process, you determine the configuration of the router, so that you may restore the configuration after the password is recovered.
Resetting the Router
With this process, you reconfigure the router to its initial startup configuration. You then display the enable password, if one is used.
Resetting the Password
If you are using an enable secret password, you enter a new password with this process. You then restore the router to its previous configuration.
Resetting the Configuration Register Value
If you are using an enable password, you use this process to restore the router to its previous configuration.
Chapter 3 Troubleshooting
Note See the “Hot Tips” section on Cisco.com for additional information on replacing
enable secret passwords.

Determining the Configuration Register Value

Follow these steps to determine the configuration register value:
Step 1 Connect an ASCII terminal or a PC that is running a terminal-emulation program
to the console port on the router. See the “Connecting a PC” section in Chapter 2, “Installation.”
Step 2 Configure the terminal to operate at 9600 baud, 8 data bits, no parity, 1 stop bit
and no flow control.
Step 3 Reboot the router by pressing the power switch to the off ( 0 ) position and then
to the on ( | ) position.
Cisco 815 Integrated Services Router Hardware Installation Guide
3-2
OL-9558-01
Chapter 3 Troubleshooting
Step 4 At the user EXEC prompt (Router>), enter the show version command to display
the existing configuration register value (shown at the end of this example output):
815# show version Cisco IOS Software, C815 Software (C815-IPBASE-M), Version
12.4(5.13.5)PIA5 ENGINEERING WEEKLY BUILD, synced to haw_t_pi4_abu HAW_T_PI4_ABU_5_13_1_PIA4 Copyright (c) 1986-2006 by Cisco Systems, Inc. Compiled Wed 22-Mar-06 18:07 by ealyon
ROM: System Bootstrap, Version 12.2(20060221:032620) [yiye-after815rmon 101], DEVELOPMENT SOFTWARE
815B uptime is 6 days, 14 hours, 41 minutes System returned to ROM by reload at 22:59:26 PST Mon Apr 24 2006 System restarted at 23:01:51 PST Mon Apr 24 2006 System image file is "flash:c815-ipbase-mz.124-5.13.5.PIA5"
Cisco 815 (MPC860P) processor (revision 0x500) with 59569K/5967K bytes of memory. Processor board ID FOC09250KK8 (1061493493), with hardware revision 0000 MPC860P processor: part number 5, mask 2 1 Ethernet interface 5 FastEthernet interfaces 1 Cable Modem interface 32K bytes of NVRAM. 32768K bytes of processor board System flash (Read/Write)
Configuration register is 0x2102
815#
Recovering a Lost Password
OL-9558-01
Step 5 Record the setting of the configuration register.
Step 6 Record the break setting, as given by bit 8 of the configuration register.
Break enabled—Bit 8 is set to 0.
Break disabled (default setting)—Bit 8 is set to 1.
Cisco 815 Integrated Services Router Hardware Installation Guide
3-3
Recovering a Lost Password

Resetting the Router

Follow these steps to reset the router:
Step 1 Do one of the following:
If break is enabled, go to Step 2.
If break is disabled, turn off the router, wait 5 seconds, and turn it on again.
Within 60 seconds, press the Break key. The terminal displays the ROM monitor prompt. Go to Step 3.
Note Some terminal keyboards have a key labeled Break. If your keyboard does
not have a Break key, refer to the documentation that came with the terminal for instructions on how to send a break. To send a break in Windows HyperTerminal, press Ctrl-Break.
Step 2 Send a break. The terminal displays the following prompt:
rommon 2>
Chapter 3 Troubleshooting
3-4
Step 3 Enter confreg 0x142 to reset the configuration register:
rommon 2> confreg 0x142
Step 4 Initialize the router by entering the reset command:
rommon 2> reset
The router resets, and the configuration register is set to 0x142. The router boots the system image in flash memory and displays the following:
--- System Configuration Dialog ---
Step 5 Enter no in response to the prompts until the following message is displayed:
Press RETURN to get started!
Step 6 Press Return. The following prompt appears:
Router>
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Chapter 3 Troubleshooting
Step 7 Enter the enable command to enter privileged EXEC mode. Configuration
changes can be made only in this mode.
Router> enable
The prompt changes to the privileged EXEC prompt:
Router#
Step 8 Enter the show startup-config command to display an enable password in the
configuration file:
Router# show startup-config
If you are using an enable password, it will appear in the startup configuration. Write down the password and keep the record secure.
If you are using an enable secret password, there will be no enable password in the startup configuration.
Step 9 Enter the copy startup-config running-config command to return to your startup
configuration:
Router# copy startup-config running-config
Recovering a Lost Password
OL-9558-01
If you are recovering an enable password, skip the next section, “Resetting the
Password,” and complete the password recovery process by performing the steps
in the “Resetting the Configuration Register Value” section.
If you are resetting an enable secret password, you will not see it displayed in the show startup-config command output. Complete the password recovery process by performing the steps in the “Resetting the Password” section, which follows.
Cisco 815 Integrated Services Router Hardware Installation Guide
3-5
Recovering a Lost Password

Resetting the Password

Follow these steps to reset an enable secret password and restore the configuration of the router:
Step 1 Enter the configure terminal command to enter configuration mode:
Router# configure terminal
Step 2 Enter the enable secret command to reset the enable secret password in the
router:
Router(config)# enable secret <password>
Step 3 Enter the config-register command and the original configuration register value
that you recorded in Step 5 in the “Determining the Configuration Register
Value” section on page 3-2.
Step 4 Press Ctrl-Z to exit configuration mode.
Router(config)# Ctrl-Z
Step 5 Save your configuration changes:
Router# copy running-config startup-config
Chapter 3 Troubleshooting
Step 6 Reboot the router, and enter the enable secret password.

Resetting the Configuration Register Value

Follow these steps to restore the configuration of the router after you have recovered an enable password:
Step 1 Enter the configure terminal command to enter configuration mode:
Router# configure terminal
Step 2 Enter the config-register command and the original configuration register value
that you recorded in Step 5 in the “Determining the Configuration Register
Value” section on page 3-2.
Cisco 815 Integrated Services Router Hardware Installation Guide
3-6
OL-9558-01
Chapter 3 Troubleshooting
Step 3 Press Ctrl-Z to exit configuration mode:
Router(config)# Ctrl-Z
Step 4 Reboot the router, and enter the recovered enable password.

Problem Solving

The key to problem solving is to isolate the problem to a specific subsystem by comparing what the router is doing to what it should be doing.
In problem solving, consider the following subsystems of the router:
WICs—Refer to the LEDs on the cards and the LEDs on the router front panel
to help identify a failure. For more information on WAN interface cards (WICs), refer to the Cisco Interface Cards Hardware Installation Guide.
Cables—Check all the external cables that connect the router to the network.
Power system—Check the external power source, power cable, router power
supply, and circuit breaker. Check for inadequate ventilation or air circulation that might cause overheating.
Problem Solving

OK LED Diagnostics

Use the front panel OK LED to determine any problems with the router. When the router first boots up, it performs a power-on self-test (POST). If the router detects a problem during the POST, the OK LED blinks in different patterns (described in Table 3-1), depending on the problem. A pattern consists of a specific number of blinks that is repeated until the router is turned off. If the router experiences any of these problems, contact your Cisco reseller.
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
3-7
Problem Solving
Table 3-1 OK LED Blinking Patterns
Number of Blinks Meaning
2 The 860P dual-port random-access memory (DPRAM) has
failed.
3 The parameter RAM area of the 860P DPRAM has failed.
4 The 860P system protection control register has a write
failure.
5 The router cannot detect the dynamic random-access
memory (DRAM).
6 The user programmable machine has a write failure.
9 The router DRAM has failed.

Troubleshooting WICs and Cables

Use the show diag command to help determine problems with a card. Table 3-2 lists problems that could occur with WAN interface cards (WICs) and the possible causes of these problems.
Chapter 3 Troubleshooting
Table 3-2 Troubleshooting WICs
Symptom Possible Cause(s)
Router does not recognize WIC.
Confirm that the Cisco IOS software version installed in the router
supports the WIC. The Cisco Interface Cards Hardware
Installation Guide lists the software requirements for each card.
Use the show diag command to display information about the card
as shown in Example, page 3-9.
Router recognizes the WIC(s), but the card port(s) do not initialize.
Router does not boot
Make sure that the WIC is correctly installed in the router.
Check the external cable connections to make sure they are secure.
Make sure that the WIC is correctly installed in the router. properly, or router continuously or intermittently reboots.
Cisco 815 Integrated Services Router Hardware Installation Guide
3-8
OL-9558-01
Chapter 3 Troubleshooting
Table 3-2 Troubleshooting WICs (continued)
Symptom Possible Cause(s)
Router boots, but the console screen is frozen.
Router powers on and boots only when a particular WIC is removed from the router.
Router powers on and boots only when a particular cable
Make sure that the console cable is securely connected to the router
and to the PC or terminal.
Verify that the parameters for your terminal are set to the following:
9600 baud
8 data bits
No parity generated or checked
1 stop bit
Confirm that the Cisco IOS software version installed in the router
supports the WIC. The Cisco Interface Cards Hardware
Installation Guide lists the software requirements for each card.
The router might be overheating. Contact your Cisco reseller.
There might be a problem with the WIC or with the card cables. Consult
your Cisco reseller for warranty information. is disconnected.
Problem Solving
Example
OL-9558-01
Below is an example of the show diag command:
815# show diag Slot 0: C815 1FE 4ESW CM Mainboard Port adapter, 6 ports Port adapter is analyzed Port adapter insertion time unknown EEPROM contents at hardware discovery: Hardware Revision : 5.0 PCB Serial Number : FOC09250KK8 Part Number : 73-7546-05 Board Revision : A0 Fab Version : 04 Product (FRU) Number : Unknown Version Identifier : EEPROM format version 4 EEPROM contents (hex): 0x00: 04 FF 40 05 14 41 05 00 C1 8B 46 4F 43 30 39 32 0x10: 35 30 4B 4B 38 82 49 1D 7A 05 42 41 30 02 04 FF 0x20: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
Cisco 815 Integrated Services Router Hardware Installation Guide
3-9
Problem Solving
Chapter 3 Troubleshooting
0x30: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x40: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x50: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x60: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x70: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
WIC/VIC Slot 0: 4 Port FE Switch Daughter card-Version 4 TLV Cookie Format Hardware Revision : 1.0 Part Number : 73-8958-01 Board Revision : D0 Deviation Number : 0-0 Fab Version : 01 PCB Serial Number : FOC092153W5 RMA Test History : 00 RMA Number : 0-0-0-0 RMA History : 00 Top Assy. Part Number : 800-24817-01 Connector Type : 01 Base MAC Address : 0014.6a56.a5dc MAC Address block size : 20 Product (FRU) Number : WIC-4ESW CLEI Code : IPMED00BRA
WIC/VIC Slot 1: DOCSIS 2.0 Cable modem Daughter card-Version 4 TLV Cookie Format Hardware Revision : 2.0 Board Revision : 01 Deviation Number : 0-0 Fab Version : 02 PCB Serial Number : FHH1003007G RMA Test History : 00 RMA Number : 0-0-0-0 RMA History : 00 Processor type : 02 Top Assy. Part Number : 800-27077-02 Product (FRU) Number : HWIC-CABLE-D-2 Version Identifier : V01
Cable Modem Daughter Card Base MAC Address : 00d0.2bfe.66e6 MAC Address block size : 2 PCB Serial Number : FOC06040116 Hardware Revision : 2.0 Part Number : 74-3862-02 Board Revision : 01
3-10
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Chapter 3 Troubleshooting
EEPROM format version 4 EEPROM contents (hex): 0x00: 04 FF CF 06 00 D0 2B FE 66 E6 43 00 02 C1 8B 46 0x10: 4F 43 30 36 30 34 30 31 31 36 40 04 EA 41 02 00 0x20: 82 4A 0F 16 02 42 30 31 FF FF FF FF FF FF FF FF 0x30: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x40: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x50: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x60: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x70: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x80: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x90: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xA0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xB0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xC0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xD0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xE0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xF0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 815#

Troubleshooting the Power System

Problem Solving
If the router external power supply fails, you should return it to your Cisco reseller. Tab l e 3-3 lists symptoms and possible causes of power problems.
Table 3-3 Troubleshooting the Power System
Symptom Possible Cause(s)
The router shuts down after being on a short time.
Make sure that the area in which the router is installed
meets the environmental site requirements in Appendix A,
“Technical Specifications,” in this guide.
If the front panel PWR LED is not on, the power supply has
failed.
The router attempts to boot, but all
The power supply has failed.
LEDs remain off.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
3-11
Problem Solving
Table 3-3 Troubleshooting the Power System (continued)
Symptom Possible Cause(s)
The router is on, but the front panel PWR LED is off.
The front panel PWR LED is on, the front panel OK LED is off, and the router does not pass console or EIA data.
The power supply has failed.
The power supply has failed.
Chapter 3 Troubleshooting
3-12
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
APPENDIX
A

Technical Specifications

Table A-1 lists hardware and operating specifications for the Cisco 815 integrated
services router.
Table A-1 Cisco 815 Integrated Services Router Specifications
Description Specification
Console port RJ-45
Auxiliary port RJ-45
Ethernet port RJ-45
Dimensions—
H x W x D 3.1 x 11.2 x 8.7 in. (7.85 x 28.4 x 22.1 cm)
Weight
2.6 lb (1.18 kg)
OL-9558-01
With two WICs
Power supply
External
Onboard
Power dissipation 20W
Cisco 815 Integrated Services Router Hardware Installation Guide
2.9 lb (1.32 kg)
Locking connector on power socket
Universal AC/DC switching—Supplies +5V, +12V, and –12V
Supplies 3.3V and -5V
A-1
Appendix A Technical Specifications
Table A-1 Cisco 815 Integrated Services Router Specifications (continued)
Description Specification
Operating Specifications
Operating temperature
Storage temperature
Operating humidity
32° to 104°F (0° to 40°C)
–40° to 149°F (–40° to 65°C)
10% to 85%, noncondensing
A-2
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01

Cabling Specifications

This appendix describes cables and cabling guidelines for the Cisco 815 integrated services router and contains the following sections:
Ethernet Cables
Ethernet Network Cabling Guidelines
Console Cable and Adapter
Note For information about cables used with Cisco WAN interface cards (WICs), refer
to the Cisco Interface Cards Hardware Installation Guide.

Ethernet Cables

APPENDIX
B
OL-9558-01
This section describes the Ethernet cables that are used to connect the router to your local Ethernet network. A 10/100BASE-TX router, such as the Cisco 815 integrated services router, requires Category 5 unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable. Table B-1 gives the pinouts for an Ethernet cable.
Cisco 815 Integrated Services Router Hardware Installation Guide
B-1

Ethernet Network Cabling Guidelines

Table B-1 Ethernet Cable Pinouts
Appendix B Cabling Specifications
RJ-45
1
Pin
Signal Direction
RJ-45 Pin
1TX+ > 1
2TX > 2
3RX+ <—3
6RX <— 6
1. Pins 4, 5, 7, and 8 are not used for signaling.
Ethernet Network Cabling Guidelines
Table B-2 describes some guidelines for creating Ethernet networks. Figures
might vary, depending on the manufacturer of the network equipment.
Table B-2 Ethernet Cabling Guidelines
Specification 10BASE-T 100BASE-TX
Maximum segment length
Maximum number of segments per network
Maximum hop count
Maximum number of nodes per segment
Cable type required UTP Category 3, 4, or 5 UTP Category 5 or STP
1. Hop count = Routing metric used to measure the distance between a source and a destination.
100 meters 100 meters
5
1
4 With Class I
1024 1024
With Class I
repeaters: 1
With Class II
repeaters: 2
repeaters: none
With Class II
repeaters: 1
B-2
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Appendix B Cabling Specifications

Console Cable and Adapter

A console cable is provided with your router. Use this cable to connect the router to a PC or terminal. The router comes with a DB-9-to-DB-25 adapter that may be used for connecting the router to a modem, using the console cable.
Table B-3 describes the wiring for the console port and the console cable. This
table also includes pinouts for the DB-9-to-DB-25 adapter.
Table B-3 Console Cable and Adapter Pinouts
Console (DTE) Console Port Console Cable Adapter Terminal (DTE) Signal RJ-45 Pin DB-9 Pin DB-25 Pin Signal
RTS 1 8 5 CTS
DTR 2 6 8 DSR
TXD 3 2 3 RXD
GND 4 5 7 GND
GND 5 5 7 GND
RXD 6 3 2 TXD
DSR 7 4 20 DTR
CTS 8 7 4 RTS
Console Cable and Adapter
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
B-3
Console Cable and Adapter
Appendix B Cabling Specifications
B-4
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
APPENDIX
C

Installing and Upgrading Memory and Virtual Private Network Modules

This chapter tells how to install or upgrade memory and how to install a Virtual Private Network (VPN) module in your Cisco 815 integrated services router and includes the following sections:
Safety Warnings
Opening the Chassis
Locating Modules
Installing and Removing a DIMM
Installing a VPN Module
Closing the Chassis

Safety Warnings

Warning
Warning
OL-9558-01
During this procedure, wear grounding wrist straps to avoid ESD damage to the router. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.
Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.
Cisco 815 Integrated Services Router Hardware Installation Guide
C-1

Opening the Chassis

Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Warning
Warning
Warning
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Read the installation instructions before you connect the system to its power source.
Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.
Hazardous network voltages are present in WAN ports regardless of whether power to the router is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the router first.
Opening the Chassis
C-2
In order to upgrade the Cisco 815 integrated services router memory, you must open the chassis. Opening the chassis requires a number one Phillips screwdriver.
Follow these steps to open the chassis:
Step 1 Make sure the router is turned off and is disconnected from the power supply.
Step 2 Turn the router upside down, and rest the top of the router on a flat surface.
Step 3 Use the number one Phillips screwdriver to remove the four screws that fasten the
top and bottom of the chassis together, as shown in Figure C-1.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Figure C-1 Removing the Chassis Screws
#1 Phillips screwdriver
+5, +12, -12 VDC
WIC1OK
MODOK
ER
W
PO
K
E
LIN
LIN
N
O
US
S
D
ABLE
C
-2
-D E
L B
A
AUX
-C IC
W
H
T
E
N
R
E
TH
10/100 E
CONSOLE
LINK
100
FDX
K
LN
x
1
T C
A
K
N
L
x
2
T
C
A
K
x
3
TLN C
A
K
LN
4xA
T
WIC0OK
C
4ESW
IC
W
Cisco 815
Opening the Chassis
155191
OL-9558-01
Step 4
Holding the router assembly together, turn the router back to its original position.
Step 5 Gently remove the top of the router (which is facing up toward you) up and away
from the bottom of the router (which is resting on the flat surface).
At this point, you might have to disconnect the fan, which is inside the top of the router chassis, from the motherboard, by disconnecting the fan cable from the connector (labeled FAN) on the motherboard.
Step 6 Place the router bottom on an antistatic mat, and begin installing memory.
Cisco 815 Integrated Services Router Hardware Installation Guide
C-3
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
[][]

Locating Modules

Locating Modules
Figure C-2 shows where to find the slots for a dual in-line memory module
(DIMM) and a VPN module on the router motherboard.
Figure C-2 Cisco 815 Integrated Services Router Motherboard—Memory Locations
Back panel of router
WAN interface card slot
WAN interface card slot
DIMM slot VPN slot
VPN standoff

Installing and Removing a DIMM

You can install a DIMM to increase the amount of dynamic random-access memory (DRAM) in the router.
Cisco 815 Integrated Services Router Hardware Installation Guide
C-4
Boot ROM
65635
holes
OL-9558-01
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
DIMMs have a polarization notch on the mating edge to prevent incorrect insertion. Figure C-3 shows the polarization notch on a DRAM DIMM.
Figure C-3 DIMM Polarization Notch
Installing and Removing a DIMM

Removing a DIMM

Follow these steps to remove a DIMM on the router motherboard:
Step 1 Pull the latches away from the DIMM at both ends. This lifts the DIMM slightly.
Lift the DIMM completely out of the connector. See Figure C-4.
Figure C-4 Removing a DIMM
1
Polarization notch
155842
2
1
155843
OL-9558-01
1 Release the latches 2 Remove the DIMM
Cisco 815 Integrated Services Router Hardware Installation Guide
C-5
Installing and Removing a DIMM
Step 2 Place the DIMM in an antistatic bag to protect it from ESD damage.

Installing a DIMM

Caution Do not insert DIMMs into the same connector more than 25 times. Overuse can
damage the connector.
To install a DIMM, follow these steps:
Step 1 Make sure that both latches on the DIMM connector are open.
Step 2 Orient the DIMM so that the polarization notch lines up with the key in the
connector. See Figure C-5.
Step 3 Carefully insert the DIMM into the connector.
Step 4 Carefully and firmly press the DIMM into the connector until both latches rotate
to the closed position against the DIMM.
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
C-6
Figure C-5 Installing a DIMM
2
1 Insert the DIMM 2 Latches rotate to closed position
Cisco 815 Integrated Services Router Hardware Installation Guide
1
2
155844
OL-9558-01
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules

Installing a VPN Module

Caution To support the VPN module on the Cisco 815 integrated services router, the router
must have Cisco advanced IP services IOS software and 128 MB of DRAM installed.
Follow these steps to install a VPN module:
Step 1 Install the two standoffs on the module, as shown in Figure C-6.
Figure C-6 Installing the Standoffs on the VPN Module
into the hole just behind
Screw
Standoff
Screw
Installing a VPN Module
Standoff is installed
the large connector.
OL-9558-01
46084
Cisco 815 Integrated Services Router Hardware Installation Guide
C-7
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Installing a VPN Module
Step 2 Locate the VPN module slot, and insert the VPN module, as shown in Figure C-7.
Figure C-7 VPN Module Location
Step 3 Pushing down as indicated in Figure C-8, plug the VPN module into the slot.
Figure C-8 Seating the VPN Module
65823
C-8
65824
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Step 4 To secure the VPN board connection in the socket, you must attach a retention
clip.
a. The retention clip for the Cisco 815 integrated services router slides over the
VPN module where it connects to the socket and clips to the side of the router motherboard. The horizontal tab slides underneath the WIC 0 socket, as shown in Figure C-9.
Figure C-9 Retention Clip Location
Slide this peg beneath
the connector's edge
Installing a VPN Module
29970
OL-9558-01
b.
Align the post in the middle of the clip with the hole in the center of the socket side of the VPN card as shown in Figure C-10.
Cisco 815 Integrated Services Router Hardware Installation Guide
C-9
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Installing a VPN Module
Figure C-10 Aligning the Retention Clip Center Post
Align the post with
the hole in the board
29971
C-10
c. Attach the retention clip to the motherboard, as shown in Figure C-11.
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Figure C-11 Attaching the Retention Clip to the Motherboard
Installing a VPN Module
29972
Pull the snap
over the edge
of the board
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
C-11
Installing a VPN Module
Step 5 Turn the motherboard over, so that it is resting on its top. Use a Phillips
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
screwdriver to attach the standoffs to the motherboard by using the screws provided, as shown in Figure C-12.
Figure C-12 Securing the Standoff to the Router Motherboard
C-12
Standoff screws
Bottom of the board
45919
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules

Closing the Chassis

After installing memory or a VPN module on the motherboard, attach the router cover by following these steps:
Step 1 If you disconnected the fan from the motherboard in the “Opening the Chassis”
procedure, reconnect the fan cable to the connector labeled FAN on the motherboard.
Step 2 Locate the posts that protrude from the inside of the chassis cover, and locate the
corresponding openings on the chassis bottom.
Step 3 Line up the posts with the corresponding openings, as shown in Figure C-8, and
carefully slide the posts into the openings, taking care not to damage the router motherboard with the posts.
Closing the Chassis
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
C-13
Appendix C Installing and Upgrading Memory and Virtual Private Network Modules
Closing the Chassis
Figure C-13 Attaching the Router Cover
C-14
Step 4
Using a number one Phillips screwdriver, replace the screws that you removed when you opened the chassis. (See Figure C-1.)
Cisco 815 Integrated Services Router Hardware Installation Guide
12616
OL-9558-01

INDEX

Numerics
100 LED 1-6
A
auxiliary port
connecting
description 1-2, 1-5
illustration 1-4
2-9
B
back panel
connectors
description
illustration 1-4
LEDs
description
illustration 1-4
break, sending to router 3-4
1-5
1-6
C
cables
console
Ethernet pinout B-1
requirements for Ethernet networks B-2
caution, definition xi
chassis
closing
dimensions A-1
opening C-2
Cisco reseller, contacting 3-1
closing chassis C-13
command conventions xviii to xix
commands
config-register
configure terminal 3-6
copy 3-5, 3-6
enable 3-5
enable secret 3-6
reset 3-4
show startup-config 3-5
show version 1-9, 3-3
config-register command 3-6
configuration register
B-3
C-13
3-6
OL-9558-01
Cisco 815 Integrated Services Router Hardware Installation Guide
IN-1
Index
determining value 3-2 to 3-3
resetting 3-6 to 3-7
configure terminal command 3-6
connecting
Ethernet cable
2-2
power cord 2-5
router to a PC 2-7
console port
connecting
2-7
description 1-2, 1-5
illustration 1-4
specifications A-1
conventions
command
xviii to xix
text xi
copy command 3-5, 3-6
D
DIMM
installing
locating on router C-4
documentation, related x
DRAM 1-8
C-4
enable secret command 3-6
enable secret password, resetting 3-6
ETH ACT LED 1-8
ETH COL LED 1-8
Ethernet cable
connecting
2-2
pinouts B-1
requirements for networks B-2
Ethernet port
connecting
2-2, 2-3
description 1-2, 1-5
illustration 1-4
specifications A-1
F
FDX LED 1-6
Flash memory 1-8
front panel
illustration
LEDs
description
illustration 1-7, 1-10
1-2, 1-3
1-7 to 1-8
E
enable command 3-5
enable password, recovering 3-2
Cisco 815 Integrated Services Router Hardware Installation Guide
IN-2
H
hub, connecting to 2-4
OL-9558-01
Index
I
installing
DIMM
C-4
preparing for 2-1
stacking with other devices 2-10
verifying using LEDs 2-6
VPN C-7 to C-12
L
LEDs
back panel
front panel 1-7, 1-10
OK LED diagnostics 3-7
using to verify installation 2-6
LINK LED 1-6
1-4
show version command 1-9
modem
connecting to router
support 1-2
MOD OK LED 1-6
N
note, definition xi
NVRAM 1-8
O
OK LED
description
diagnostics 3-7
opening chassis C-2
1-7
2-9
M
memory
description
DIMM
installing
locating on router C-4
displaying amounts 1-9
DRAM 1-8
Flash 1-8
NVRAM 1-8
OL-9558-01
1-8
C-4
P
password, recovering 3-2
PC
connecting to router
terminal emulation settings 2-7
pinouts
console cable
Ethernet cable B-1
power socket
connecting
Cisco 815 Integrated Services Router Hardware Installation Guide
2-5
2-7
B-3
IN-3
Index
illustration 1-4
specifications A-1
problem solving 3-7
PWR LED 1-7
R
reset command 3-4
resetting the router 3-4 to 3-5
router
resetting
specifications A-2
unpacking 1-10
3-4 to 3-5
S
show startup-config command 3-5
show version command 3-3
specifications, operating A-2
stacking router with other devices 2-10
switch, connecting to 2-4
T
terminal emulation, settings 2-7
text conventions xi
troubleshooting
cables
contacting Cisco reseller 3-1
3-8
password recovery 3-2
using the OK LED 3-7
WAN interface cards 3-8 to 3-9
U
unpacking the router 1-10
V
VPN module
installing
location on router C-8
C-7 to C-12
W
WAN interface cards
router slots
slot specifications A-1
supported cards 1-2
troubleshooting 3-8 to 3-9
warning, definition xi
WIC0 ACT/CH0 LED 1-7
WIC0 ACT/CH1 LED 1-7
WIC0 OK LED 1-6
WIC1 OK LED 1-6
1-2
IN-4
Cisco 815 Integrated Services Router Hardware Installation Guide
OL-9558-01
