Cisco 520 User Manual

Cisco Secure Router 520 Series Hardware Installation Guide

Americas Headquarters

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: [phone]

800 553-NETS (6387)

Fax: [phone]

Text Part Number: OL-12892-01

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required
to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not
installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to
comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable
protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital
devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television
communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its
peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits
controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

CCDE, CCENT, Cisco Eos, Cisco Lumin, Cisco StadiumVision, the Cisco logo, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work,
Live, Play, and Learn is a service mark; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP,
CCVP, Cisco, the Cisco
Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone,
iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, iQuick Study, IronPort, the IronPort
Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to
Increase Your Internet Quotient, TransPath, WebEx, and the WebEx
other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (0804R)

Cisco Secure Router 520 Series Hardware Installation Guide

© 2008 Cisco Systems, Inc. All rights reserved.

Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity,

logo, LightStream, Linksys, MediaTone, MeetingPlace, MGX, Networkers,

logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain

IMPLIED, INCLUDING, WITHOUT

CONTENTS

Preface vii

Objective vii

Audience vii

Organization vii

Conventions viii

Related Documentation xiii

Obtaining Documentation and Submitting a Service Request xiv

CHAPTER

CHAPTER

1 Product Overview 1-1

Router Models 1-1

Cisco Secure Router 520 Ethernet-to-Ethernet Routers 1-1
Cisco Secure Router 520 ADSL-over-POTS Routers 1-3
Cisco Secure Router 520 ADSL-over-ISDN Routers 1-4

Hardware Features 1-5

Serial Number Label Location 1-6
LED Indicators on the Routers 1-6
Integrated 802.11b/g Radio Module—Wireless Routers Only 1-7
Router Memory 1-8
Router Hardware Security 1-8
Feature Summary 1-8

Regulatory Compliance 1-9

2 Preinstallation Information 2-1

Safety Warnings and Guidelines 2-1

Additional Warnings for Wireless Routers 2-2
General Safety Guidelines for Wireless Routers 2-3
Preventing Electrostatic Discharge Damage 2-3

OL-12892-01

Preventing Damage to the Router 2-3

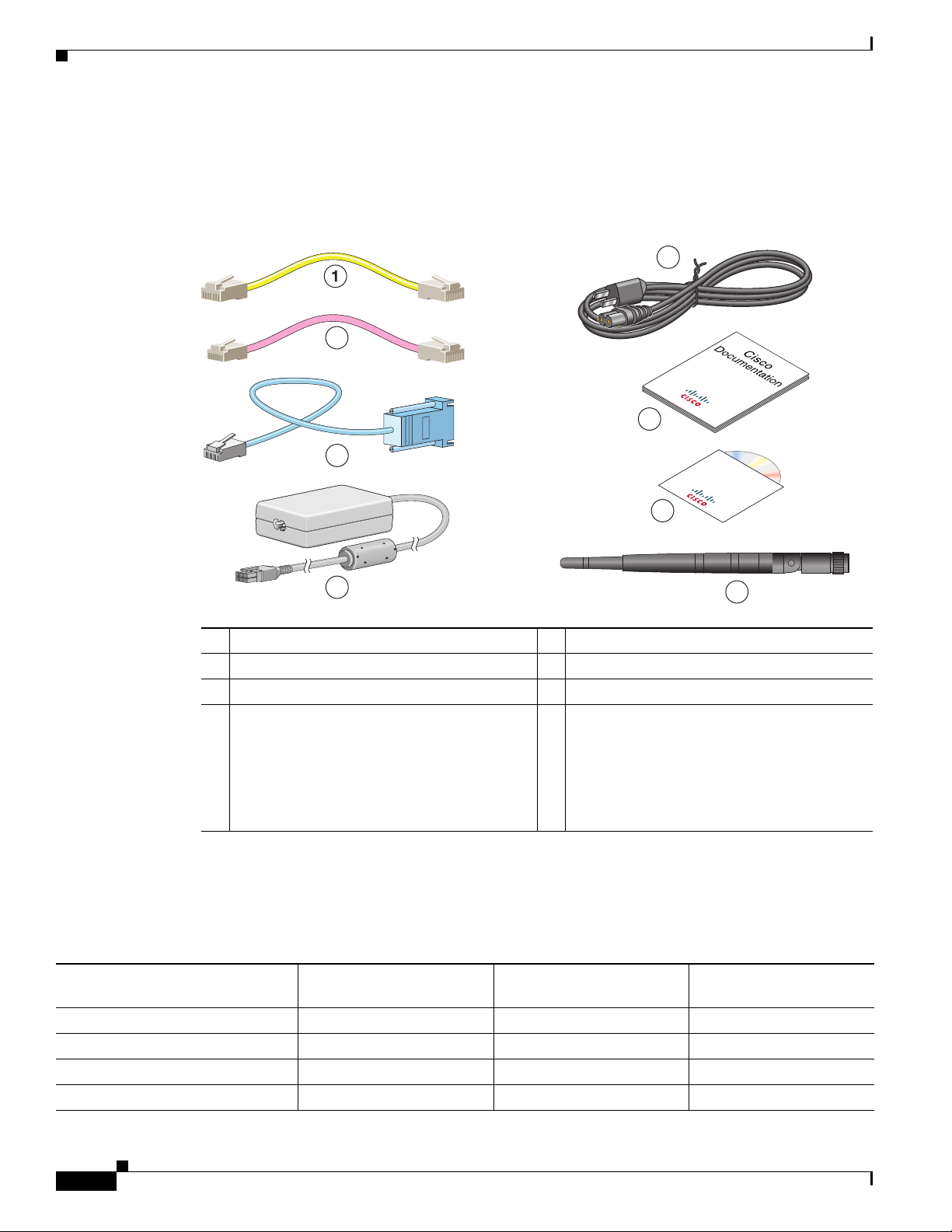

Unpacking the Box 2-4

Preparing for Installation 2-5

What to Do Next 2-5

Cisco Secure Router 520 Series Hardware Installation Guide

iii

Contents

CHAPTER

CHAPTER

3 Router Mounting Procedures 3-1

Connecting a Radio Antenna to a Wireless Router 3-1

Placing the Router on a Desktop 3-1

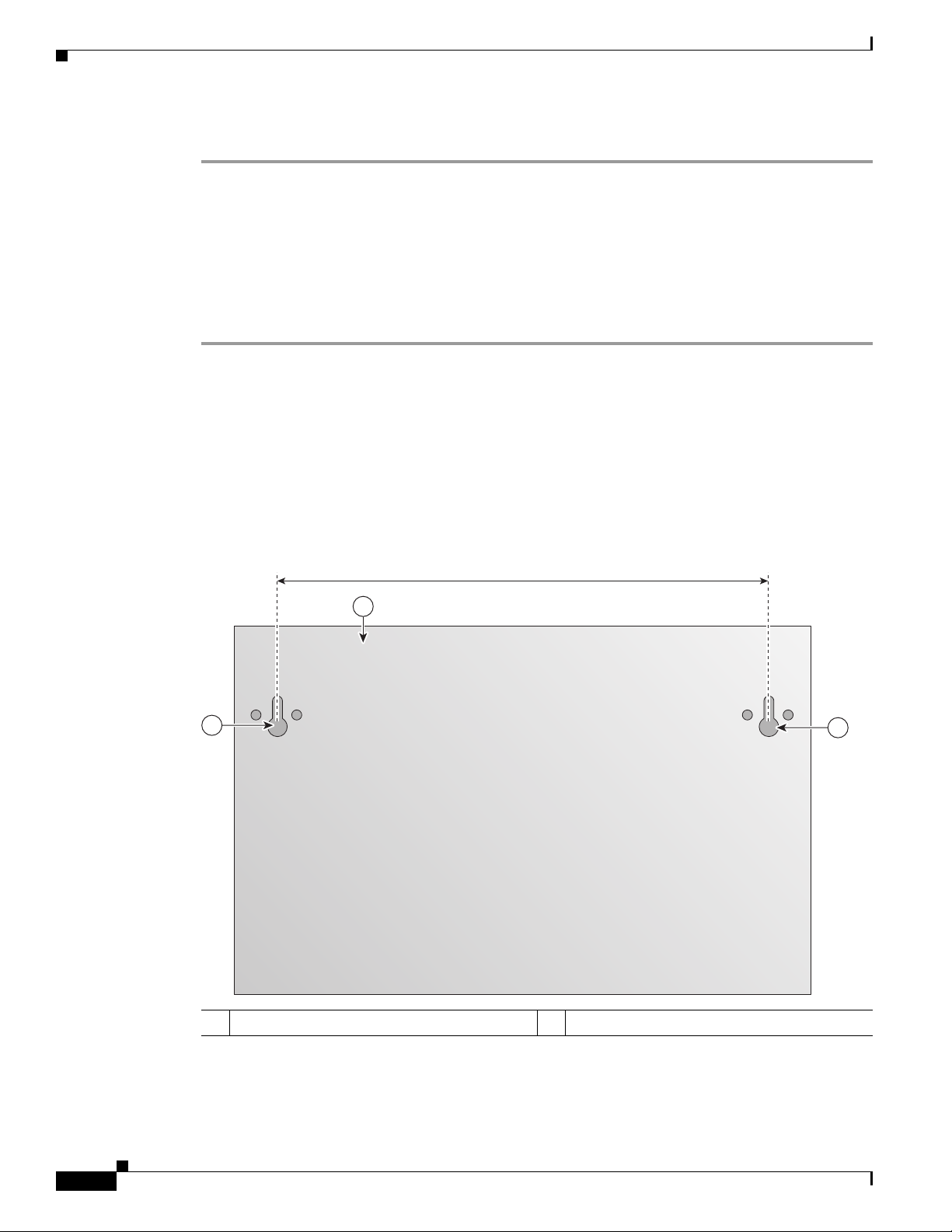

Mounting the Router on a Wall 3-2

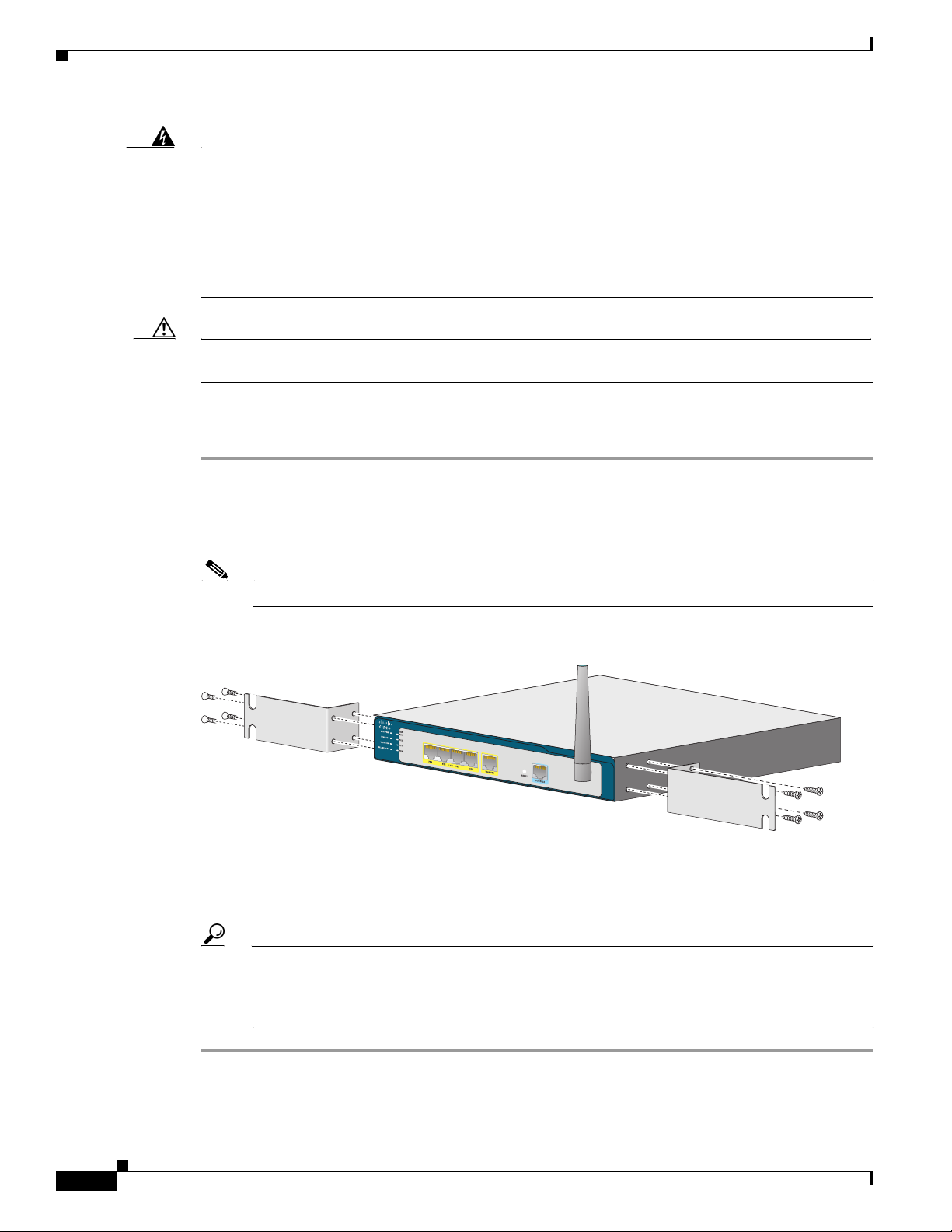

Mounting the Router in a Rack 3-3

What to Do Next 3-5

4 Router Installation 4-1

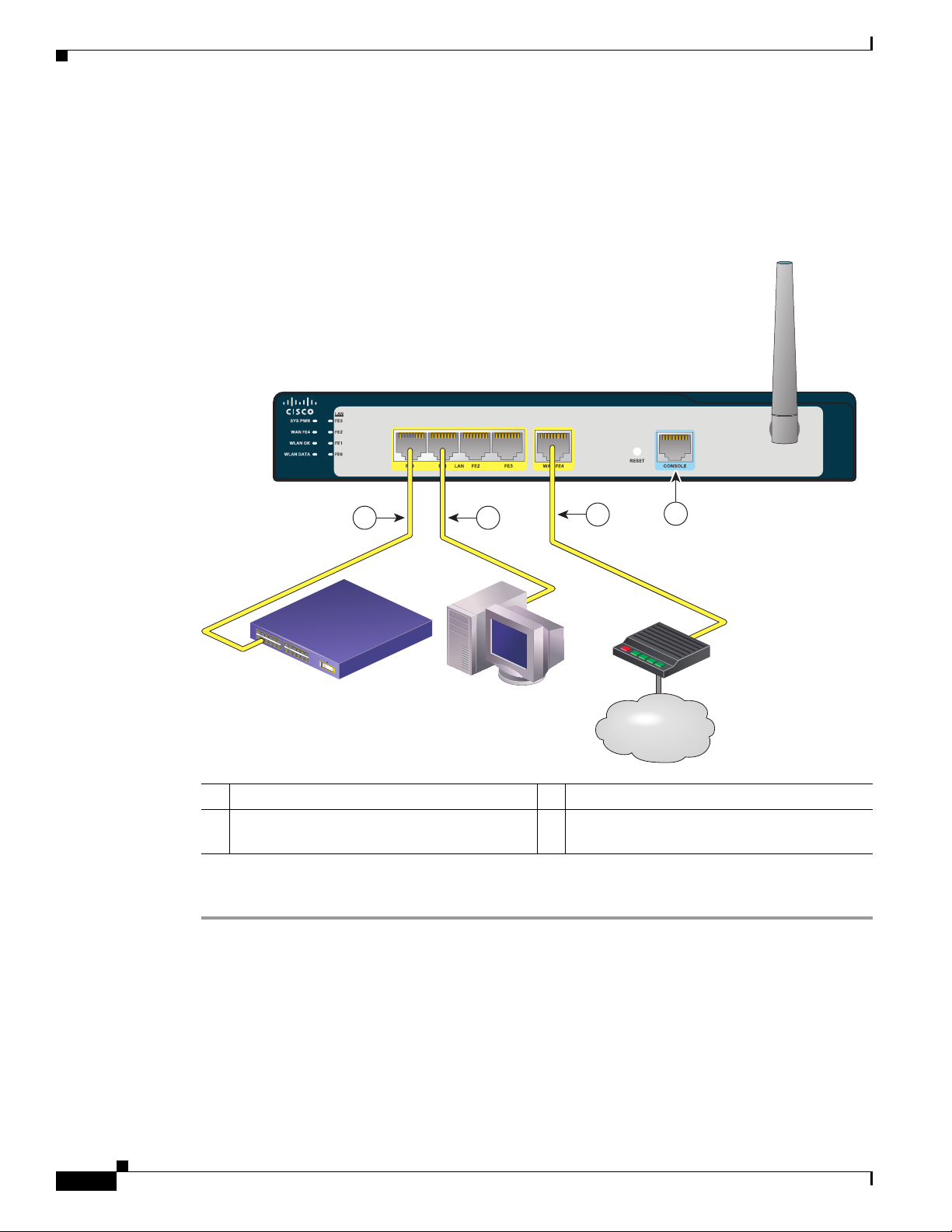

Typical Installation 4-1

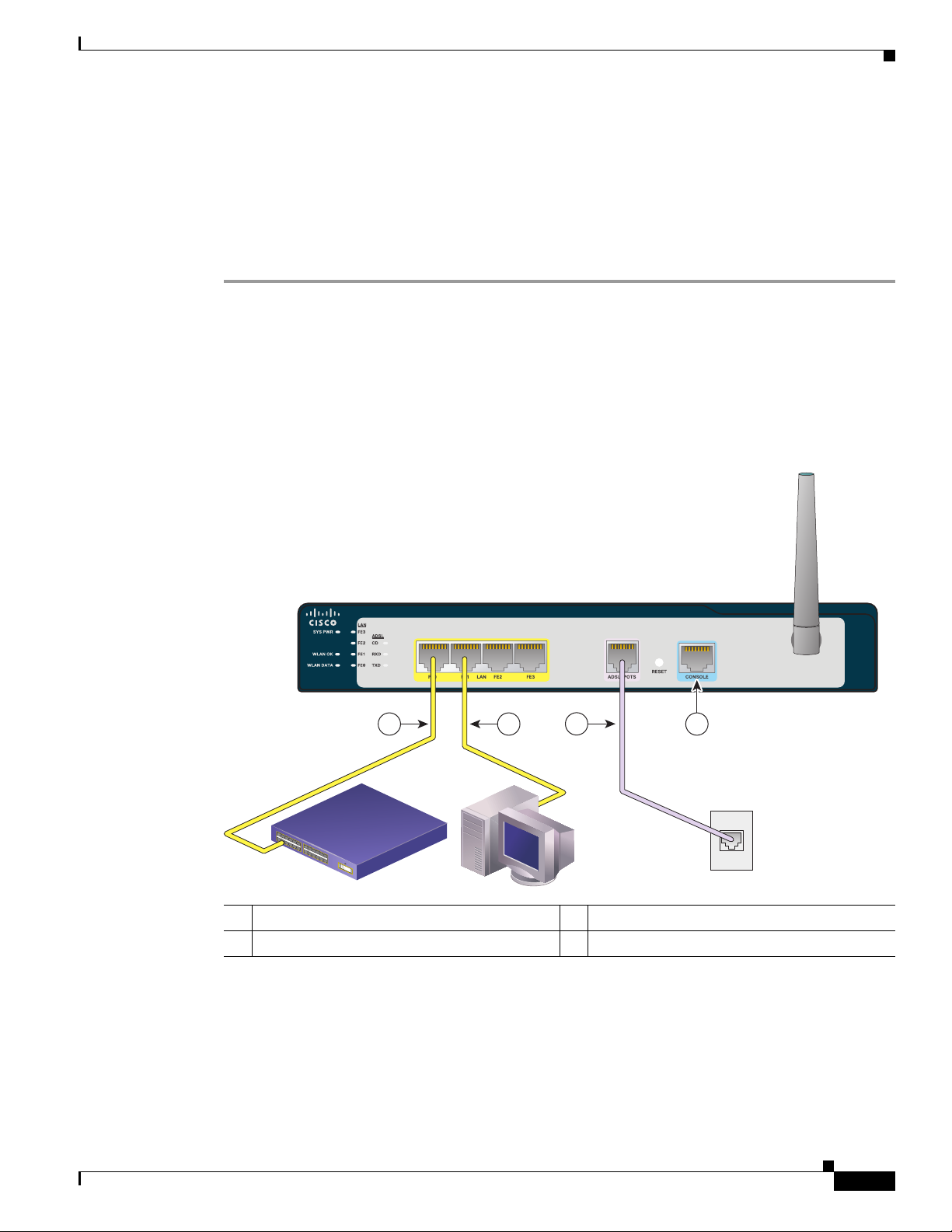

Installing the Cisco Secure Router 520 Ethernet-to-Ethernet Router 4-2

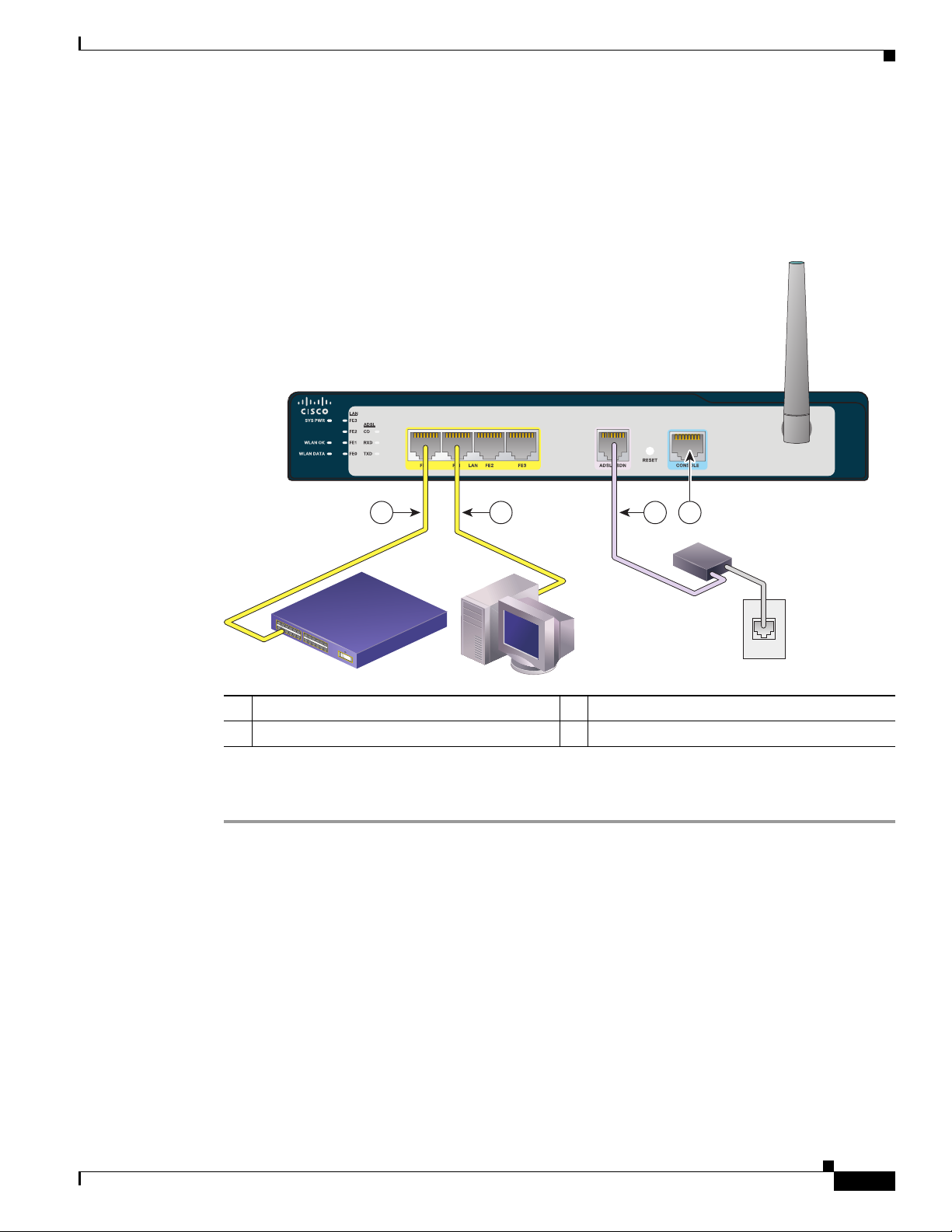

Installing the Cisco Secure Router 520 ADSL-over-POTS Router 4-3
Installing the Cisco Secure Router 520 ADSL-over-ISDN Router 4-5

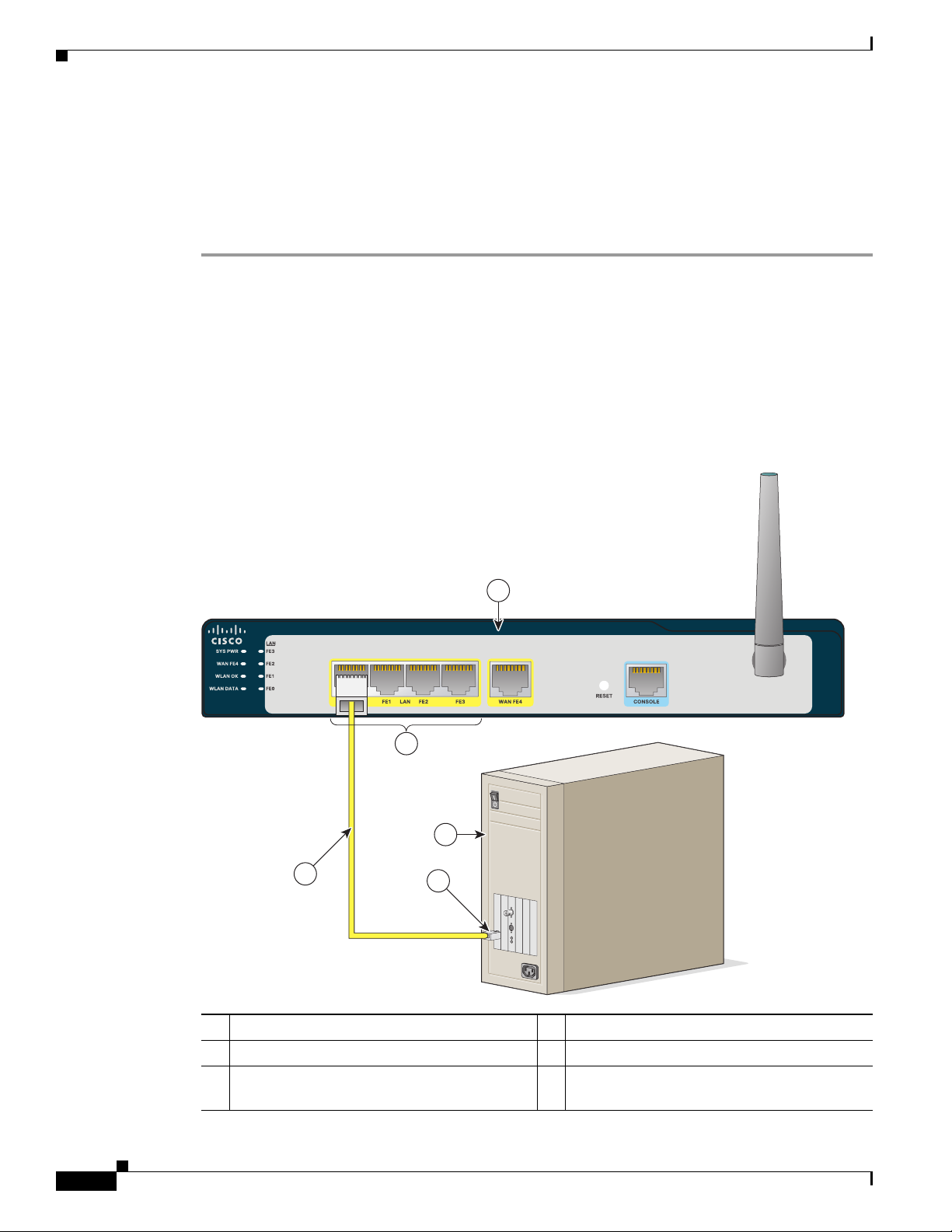

Connecting a Server, PC, or Workstation 4-6

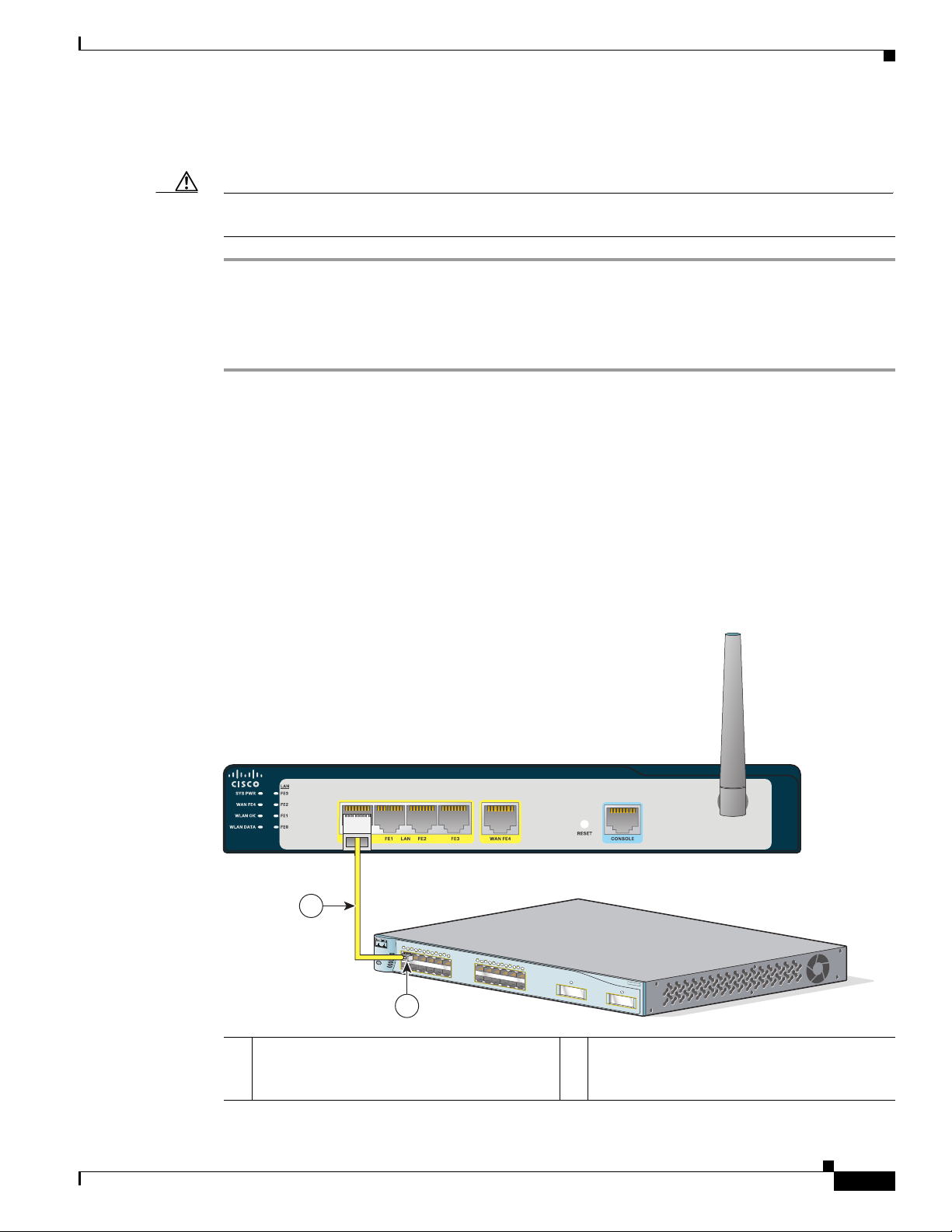

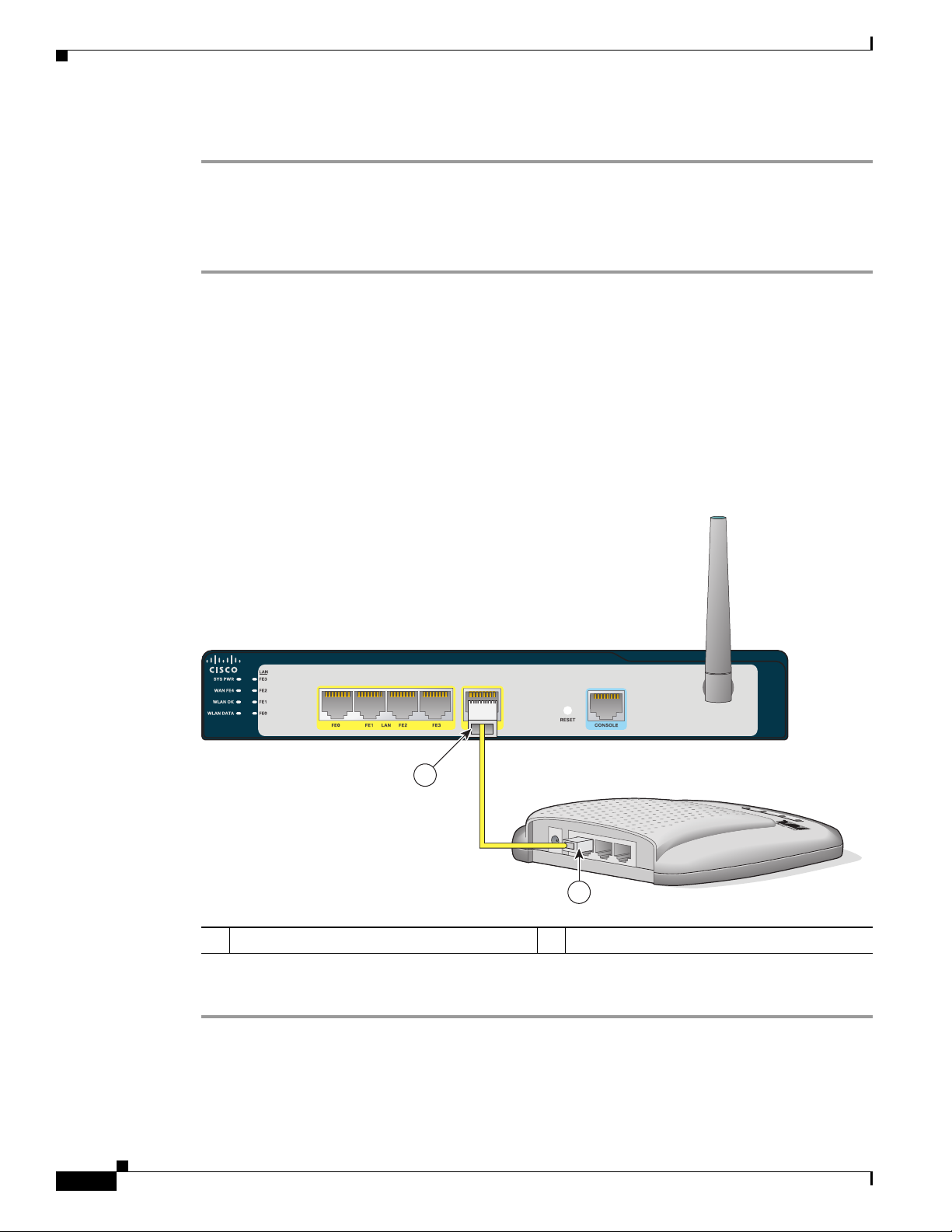

Connecting an External Ethernet Switch (Optional) 4-7

Connecting a Broadband Modem 4-8

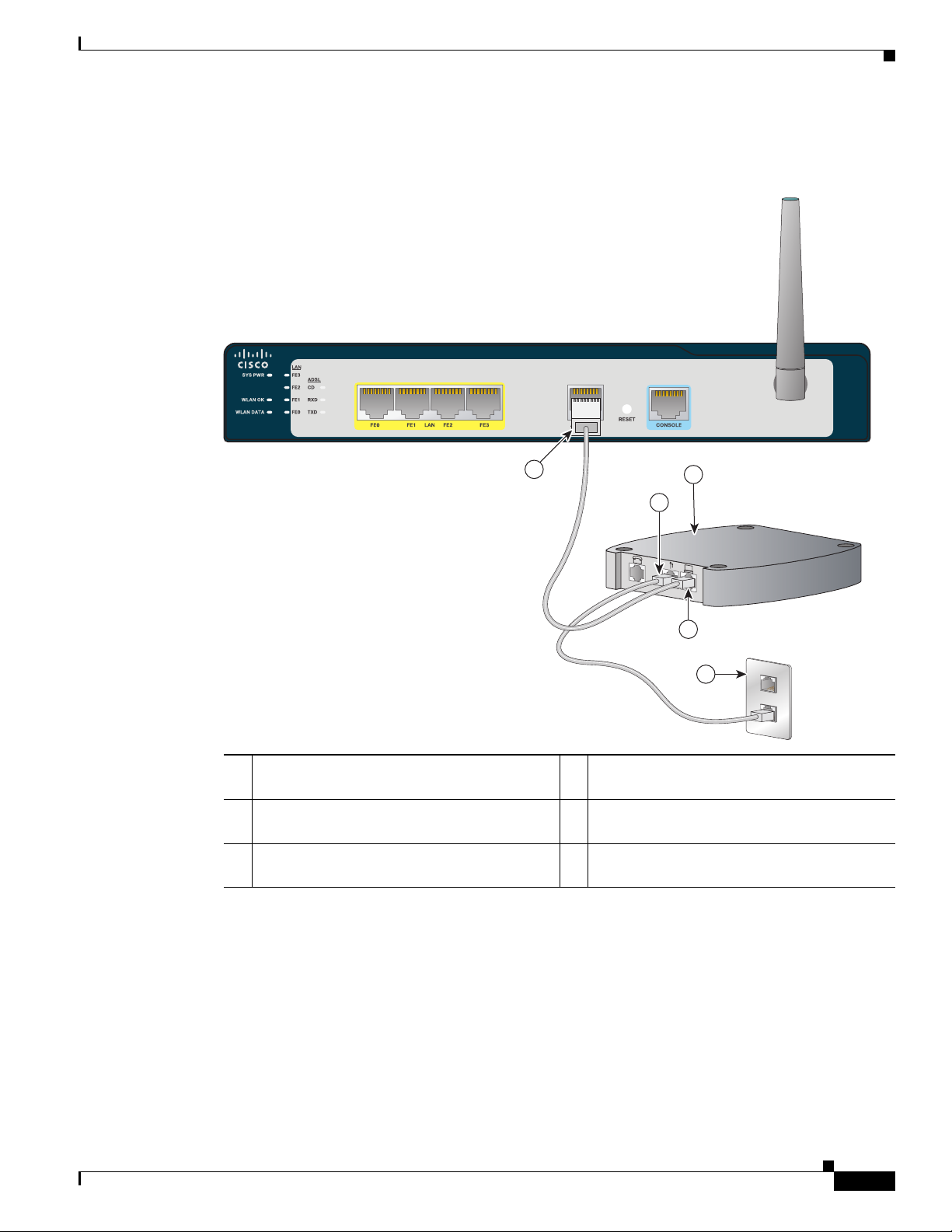

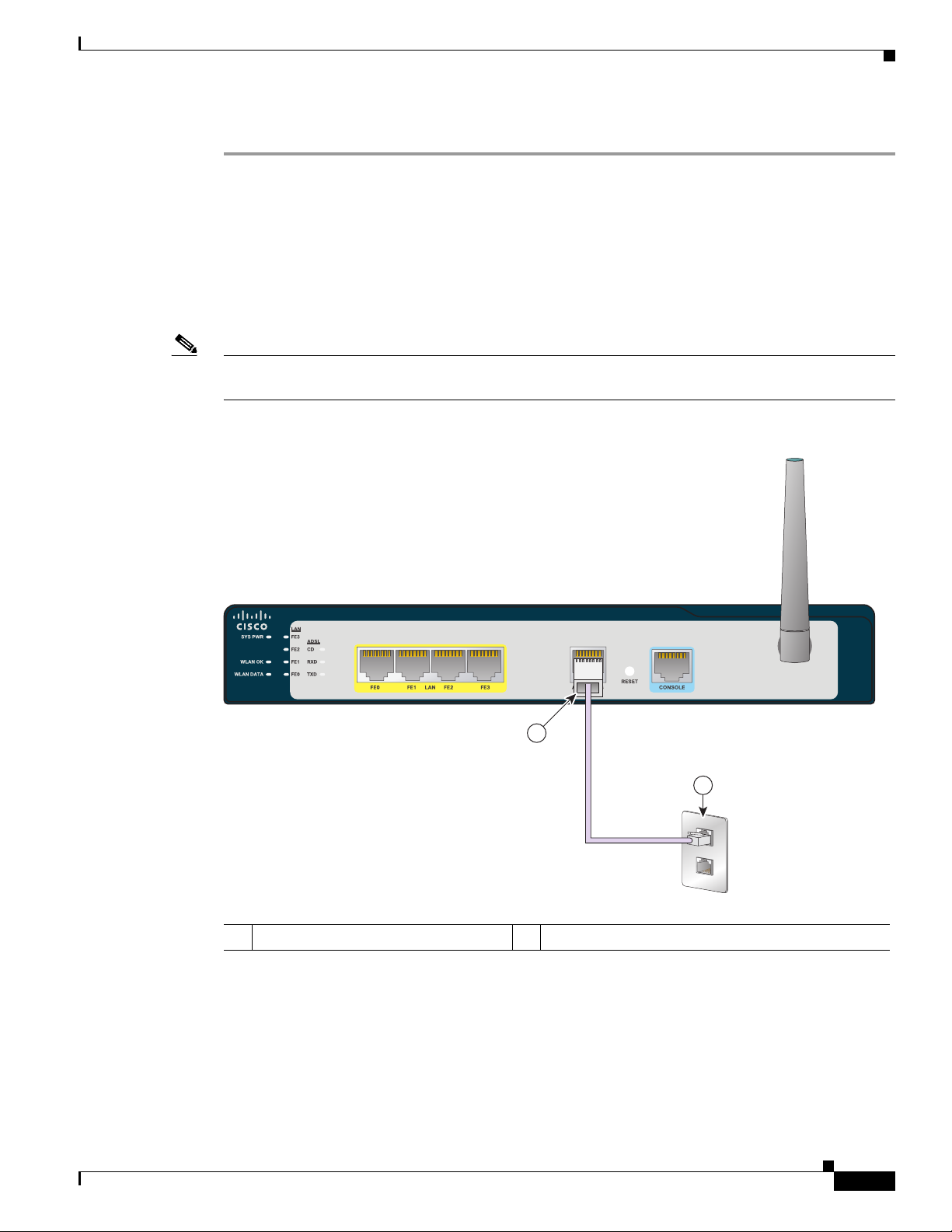

Connecting an ADSL Line—ADSLoPOTS Port 4-9

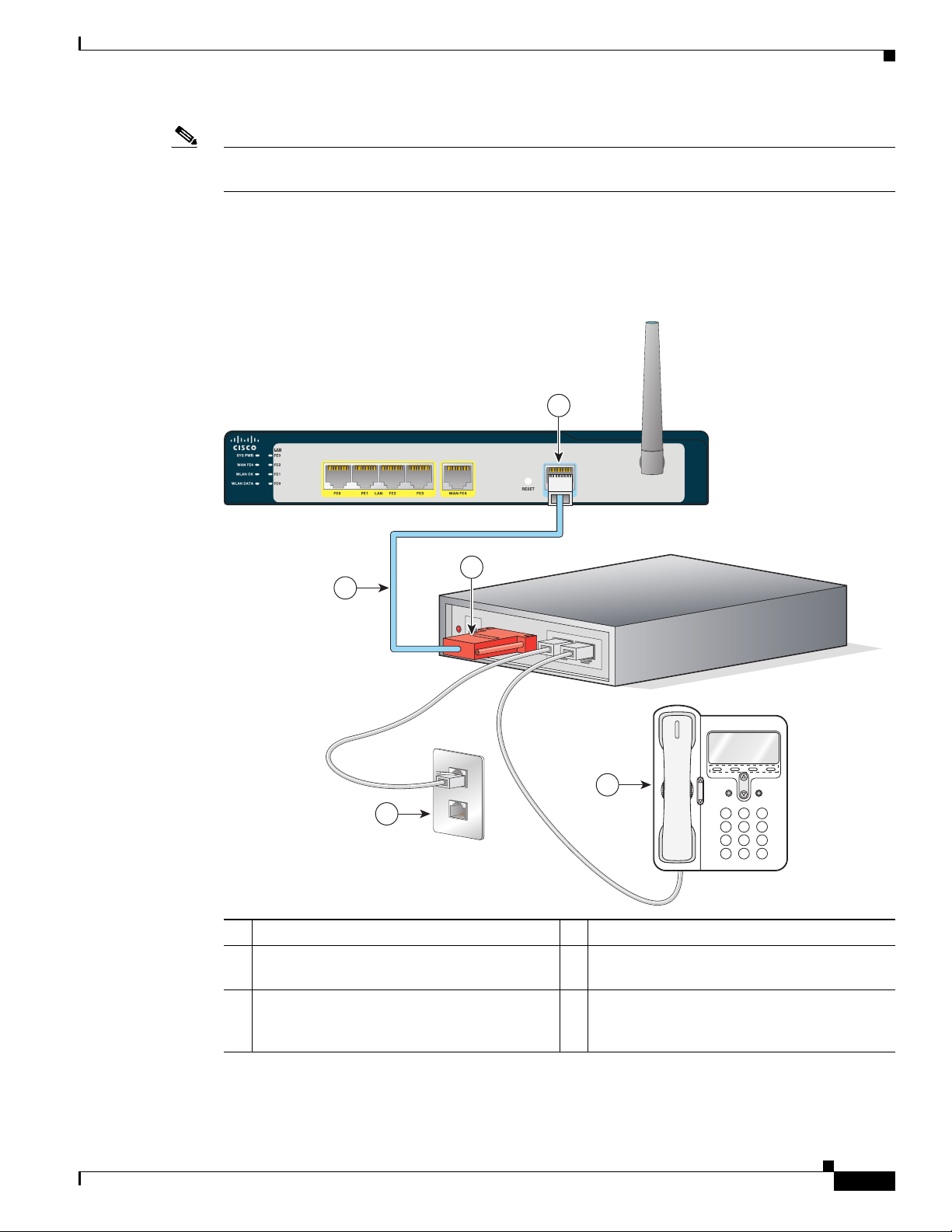

Connecting an ADSL Line—ADSLoISDN Port 4-10

CHAPTER

APPENDIX

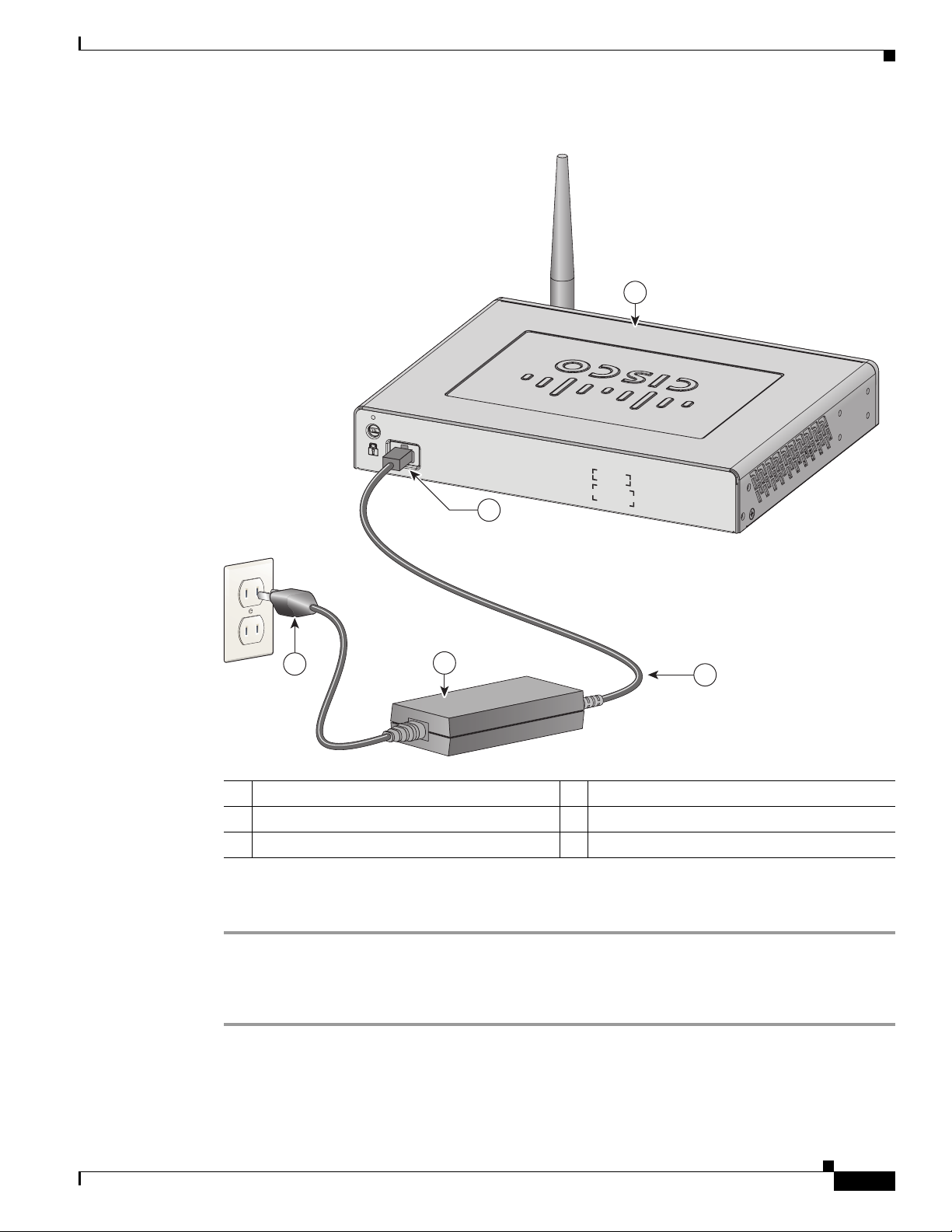

Connecting the AC Adapter 4-12

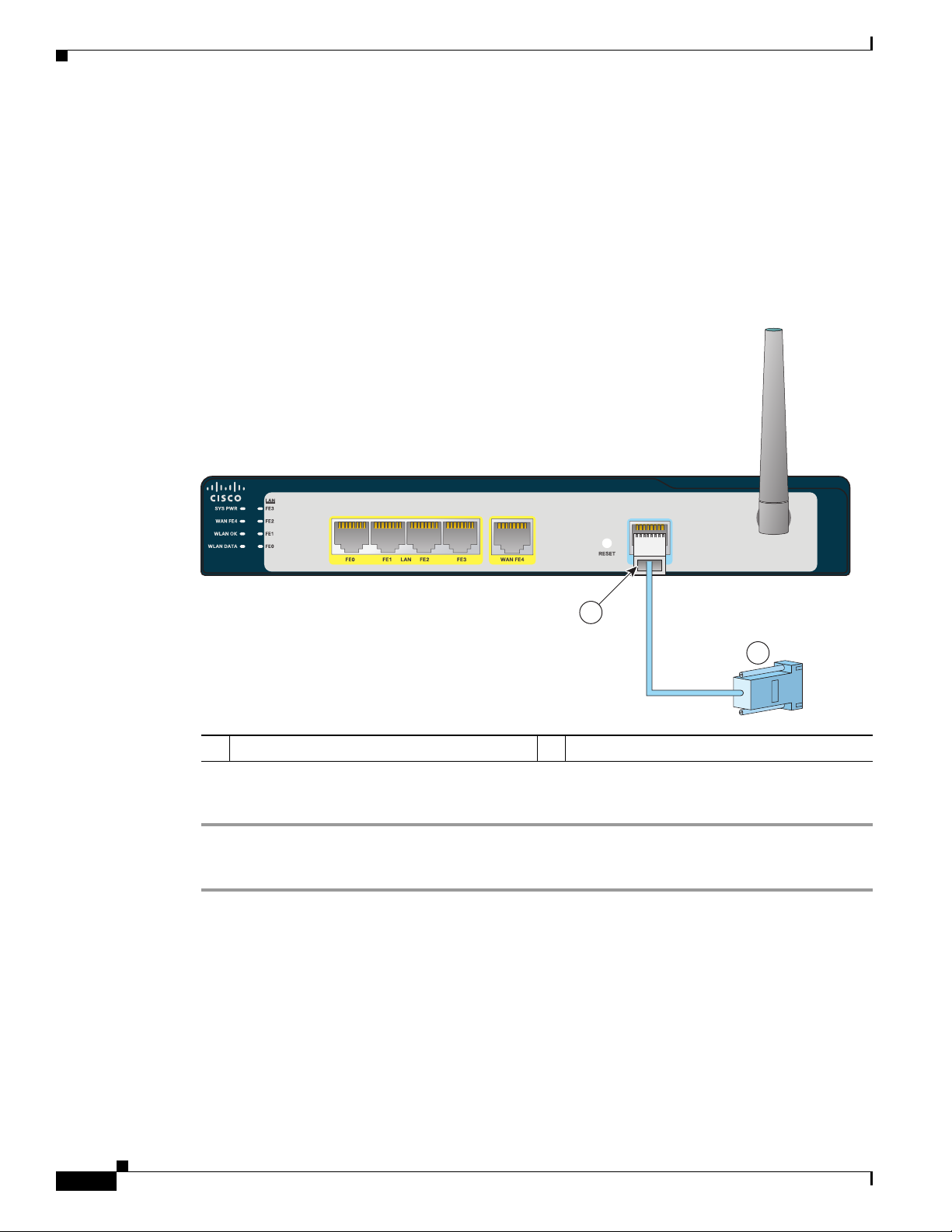

Connecting a Terminal or PC to the Console Port 4-14

Connecting an Asynchronous Modem to the Console Port 4-14

Verifying Router Operation 4-16

What to Do Next 4-16

5 Troubleshooting 5-1

Before You Call Your Cisco Reseller 5-1

Problems During First Startup 5-2

Problems After the Router Is Running 5-3

A Specifications A-1

Router Specifications A-1

LAN Port Pinouts A-2

Console Connector Pinouts A-3

ADSL Port Connector Pinouts A-3

Cable Specifications A-4

Ethernet Cable Specifications A-4
Maximum Cable Length A-4

iv

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892-01

I

NDEX

Contents

OL-12892-01

Cisco Secure Router 520 Series Hardware Installation Guide

v

Contents

vi

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892-01

Preface

This preface describes the objectives, audience, organization, and conventions of this guide, and
describes related documents that have additional information. It contains the following sections:

• Objective, page vii

• Audience, page vii

• Organization, page vii

• Conventions, page viii

• Related Documentation, page xiii

• Obtaining Documentation and Submitting a Service Request, page xiv

Objective

This guide provides an overview and explains how to install and connect the wireless and nonwireless
Cisco Secure Router 520 Series routers.

For warranty, service, and support information, see the “Cisco One-Year Limited Hardware Warranty
Terms” section in the Readme First for Cisco Secure Router 520 Series document that was shipped with
your router.

Audience

This guide is intended for service technicians who have little or no experience in installing routers and
whose goal is to connect the router to the network as quickly as possible.

Organization

This guide is organized into the following chapters and appendix.

OL-12892-01

Chapter 1, “Product Overview” Describes the router models and hardware features.

Chapter 2, “Preinstallation Information” Provides information about safety, unpacking the

router, and preparing the router for installation.

Cisco Secure Router 520 Series Hardware Installation Guide

vii

Conventions

This section describes the conventions used in this guide.

Note Means reader take note. Notes contain helpful suggestions or references to additional information and

material.

Preface

Chapter 3, “Router Mounting Procedures” Provides procedures for mounting the router on a

wall, desktop, or rack.

Chapter 4, “Router Installation” Provides procedures for cabling and installing the

router.

Chapter 5, “Troubleshooting” Describes problems that could occur with the router

hardware, possible causes of the problems, and steps
for solving the problems.

Appendix A, “Specifications” Provides router, port, and cabling specifications.

Caution This symbol means reader be careful. In this situation, you might do something that could result in

equipment damage or loss of data.

Warning

Waarschuwing

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this
device.

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard
praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de
waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt
raadplegen.

BEWAAR DEZE INSTRUCTIES

Statement 1071

viii

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892-01

Preface

Varoitus

Attention

Warnung

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin
käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu
onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen
mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien
lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez
conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures
couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen
kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und
den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder
Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

Avvertenza

Advarsel

BEWAHREN SIE DIESE HINWEISE GUT AUF.

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli
relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti.
Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le
traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du
begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med
elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten
av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne
enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

OL-12892-01

Cisco Secure Router 520 Series Hardware Installation Guide

ix

Preface

Aviso

¡Advertencia!

Varning!

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de
lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos
perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de
prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los
procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el
número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña
a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.
Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och
känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av
varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna
anordning.

SPARA DESSA ANVISNINGAR

Cisco Secure Router 520 Series Hardware Installation Guide

x

OL-12892-01

Preface

Aviso

Advarsel

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões
corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os
circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o
número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de
segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for
legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de
involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til
undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de
oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

OL-12892-01

Cisco Secure Router 520 Series Hardware Installation Guide

xi

Preface

xii

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892-01

Preface

Related Documentation

The Cisco Secure Router 520 Series product is shipped with a minimal set of printed documentation.
Additional product documentation is available on Cisco.com.

In addition to the Cisco Secure Router 520 Series Hardware Installation Guide (this document), the
Cisco Secure Router 520 Series documentation set includes the following documents.

The following documentation is shipped with the product:

• For warranty, service, and support information, see the Readme First for Cisco Secure Router 520

Series document.

• Cisco Regulatory Compliance and Safety Information Roadmap

The following Cisco Secure Router 520 Series product documentation is available on Cisco.com:

• Cisco Secure Router 520 Series Software Configuration Guide

http://www.cisco.com/en/US/docs/routers/access/500/520/software/configuration/guide/520_SCG
_Book.html

Note Use this document to configure the initial router settings by using the command-line

interface (CLI).

• Regulatory Compliance and Safety Information for Cisco Secure Router 500 Series

http://www.cisco.com/en/US/docs/routers/access/500/520/rcsi/500_rcsi.html

OL-12892-01

Cisco Secure Router 520 Series Hardware Installation Guide

xiii

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s
revised Cisco

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed
and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free
service and Cisco currently supports RSS version 2.0.

technical documentation, at:

New in Cisco Product Documentation, which also lists all new and

Preface

xiv

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892-01

Product Overview

The Cisco Secure Router 520 Series routers are designed for small businesses with up to 50 users and
teleworkers who want secure connectivity to corporate LANs and to the Internet. These routers provide
advanced security features that include secure Virtual Private Network (VPN) access and comprehensive
threat defense with Cisco IOS Firewall, Intrusion Prevention Solution (IPS), and URL filtering. The
Cisco Secure Router 520 Series routers also provide dynamic routing and advanced quality of service
(QoS) features.

The following sections provide an overview of the Cisco Secure Router 520 Series routers:

• Router Models, page 1-1

• Hardware Features, page 1-5

• Regulatory Compliance, page 1-9

Router Models

CHAP T ER

1

The Cisco Secure Router 520 Series routers are available in Ethernet and DSL models. The following
sections describe each of the routers:

• Cisco Secure Router 520 Ethernet-to-Ethernet Routers, page 1-1

• Cisco Secure Router 520 ADSL-over-POTS Routers, page 1-3

• Cisco Secure Router 520 ADSL-over-ISDN Routers, page 1-4

Cisco Secure Router 520 Ethernet-to-Ethernet Routers

The Cisco Secure Router 520 Ethernet-to-Ethernet routers can connect a small business or a teleworker
to a corporate LAN or to the Internet through an Internet service provider (ISP) over a broadband or
Ethernet connection. These switch-capable routers provide a 4-port Fast Ethernet switch for the LAN.
The routers are capable of bridging and multiprotocol routing between LAN and WAN ports.

Two router models are available:

• Cisco Secure Router 520 Ethernet-to-Ethernet (without wireless functionality).

• Cisco Secure Router 520 Ethernet-to-Ethernet Wireless (with wireless functionality). The wireless

router supports the use of a single 2.4-GHz antenna.

OL-12892--01

Cisco Secure Router 520 Series Hardware Installation Guide

1-1

Router Models

Chapter 1 Product Overview

Figure 1-1 shows the front panel of the Cisco Secure Router 520 Ethernet-to-Ethernet wireless router.

The front panel contains the LEDs, ports, reset button, and antenna. The antenna is available only with
the wireless router.

Figure 1-1 Cisco Secure Router 520 Ethernet-to-Ethernet Wireless Router—Front Panel

6

1

Cisco Secure Router 500 Series

231358

2

3

4

5

1 LEDs 2 Four 10/100BASE-T RJ-45 Fast Ethernet

switch ports

3 10/100BASE-T RJ-45 WAN Fast Ethernet

4 Reset button

port

5 RJ-45 console port 6 Antenna (wireless router only)

1-2

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892--01

Chapter 1 Product Overview

Figure 1-2 shows the back panel of the Cisco Secure Router 520 Series router. It contains the Kensington

security slot for securing the router and the input jack for the AC adapter. The back panel is identical for
all the Cisco

Figure 1-2 Cisco Secure Router 520 Series Router—Back Panel

Router Models

Secure Router 520 Series routers.

1

2

1 Kensington security slot 2 Input jack for the AC adapter

Cisco Secure Router 520 ADSL-over-POTS Routers

The Cisco Secure Router 520 ADSL-over-POTS routers use an asymmetric digital subscriber line
(ADSL) over plain old telephone service (POTS). These secure routers have an integrated 4-port Fast
Ethernet switch for the LAN and an ADSL-over-POTS physical interface for the WAN. This feature
allows the router to connect a small business or a teleworker to a corporate LAN and to the Internet.

Two router models are available:

• Cisco Secure Router 520 ADSL-over-POTS (without wireless functionality).

• Cisco Secure Router 520 ADSL-over-POTS Wireless (with wireless functionality). The wireless

router supports the use of a single 2.4-GHz antenna.

211611

OL-12892--01

Cisco Secure Router 520 Series Hardware Installation Guide

1-3

Router Models

Chapter 1 Product Overview

Figure 1-3 shows the front panel of the Cisco Secure Router 520 ADSL-over-POTS wireless router. The

front panel contains the LEDs, ports, reset button, and antenna. The antenna is available only with the
wireless router.

Figure 1-3 Cisco Secure Router 520 ADSL-over-POTS Wireless Router—Front Panel

6

1

Cisco Secure Router 500 Series

231357

2

1 LEDs 2 Four 10/100BASE-T RJ-45 Fast Ethernet

3 ADSL-over-POTS port 4 Reset button
5 RJ-45 console port 6 Antenna (wireless router only)

The back panel is identical for all the Cisco Secure Router 520 Series routers (see Figure 1-2 on

page 1-3). The back panel contains the Kensington security slot for securing the router and the input jack

for the AC adapter.

Cisco Secure Router 520 ADSL-over-ISDN Routers

The Cisco Secure Router 520 ADSL-over-ISDN router is a routing device that uses an asymmetric
digital subscriber line (ADSL) over integrated services digital network (ISDN). These routers have an
integrated 4-port Fast Ethernet switch for connecting to the LAN and an ADSL-over-ISDN physical
interface for connecting to the WAN. This feature allows the router to connect a small business or a
teleworker to a central office or an Internet service provider (ISP) over an ADSL interface.

Two router models are available:

• Cisco Secure Router 520 ADSL-over-ISDN (without wireless functionality).

• Cisco Secure Router 520 ADSL-over-ISDN Wireless (with wireless functionality). The wireless

router supports the use of a single 2.4-GHz antenna.

543

switch ports

1-4

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892--01

Chapter 1 Product Overview

Figure 1-4 shows the front panel of the Cisco Secure Router 520 ADSL-over-ISDN wireless router. The

front panel contains the LEDs, ports, reset button, and antenna. The antenna is only available with the
wireless router.

Figure 1-4 Cisco Secure Router 520 ADSL-over-ISDN Wireless Router—Front Panel

Hardware Features

6

1

Cisco Secure Router 500 Series

231356

1 LEDs 2 Four 10/100BASE-T RJ-45 Fast Ethernet

3 ADSL-over-ISDN port 4 Reset button
5 RJ-45 console port 6 Antenna (wireless router only)

The back panel is identical for all the Cisco Secure Router 520 Series routers (see Figure 1-2 on

page 1-3). The back panel contains the Kensington security slot for securing the router and the input jack

for the AC adapter.

Hardware Features

The following sections provide information about the hardware features of the

Secure Router 520 Series routers:

Cisco

• Serial Number Label Location

• LED Indicators on the Routers

• Integrated 802.11b/g Radio Module—Wireless Routers Only

• Router Memory

2

543

switch ports

OL-12892--01

• Router Hardware Security

• Feature Summary

Cisco Secure Router 520 Series Hardware Installation Guide

1-5

Hardware Features

Serial Number Label Location

Figure 1-5 shows the serial number label, which is located on the back of the

Cisco Secure Router 520 Series routers.

Figure 1-5 Serial Number Location on the Back of the Cisco Secure Router 520 Series Router

Chapter 1 Product Overview

SN: XXXNNNNXXXX

SN: XXXNNNNXXXX

LED Indicators on the Routers

The LEDs, which are located on the router’s front panel, indicate the status or activity on the router.

Table 1-1 describes the LEDs.

Ta b l e 1-1 LED Indicators on the Routers

LED Color Description Router

SYS PWR Green On when DC power is being supplied to the router.

The light blinks if an error occurs during bootup.

WA N FE 4 Green On when a device connects to the Ethernet WAN

FE4 port. Blinks when the Ethernet WAN FE4 port
receives or sends data, or when data passes through
the port.

WLAN OK Green Shows whether the wireless link status is

operational. Blinks if no client is associated. Solid
green if at least one client is associated.

All Cisco Secure Router 520 Series routers

Cisco Secure Router 520 Ethernet-to-Ethernet
router

Cisco Secure Router 520 Series wireless routers
only

231487, 781-00540-01

1-6

Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892--01
