Cisco 4G-LTE-ANTM-O-3 Installation Manual

Cisco Dual LTE-Single GPS Multi-band Antenna
Installation Guide

This document provides the description, supported features, and installation instructions of the Cisco
Dual LTE-Single GPS Multi-band (4G-LTE-ANTM-O-3) Antennas.

Caution Read the information in Safety Precautions before installing or replacing antennas.

This document contains the following sections:

• Overview of the 4G-LTE-ANTM-O-3 Antenna, page 1

• Supported Antennas, page 12

• Supported Antenna Accessories, page 12

• Antenna Options by Deployment Type, page 13

• Safety Precautions, page 13

• Installation Instructions, page 15

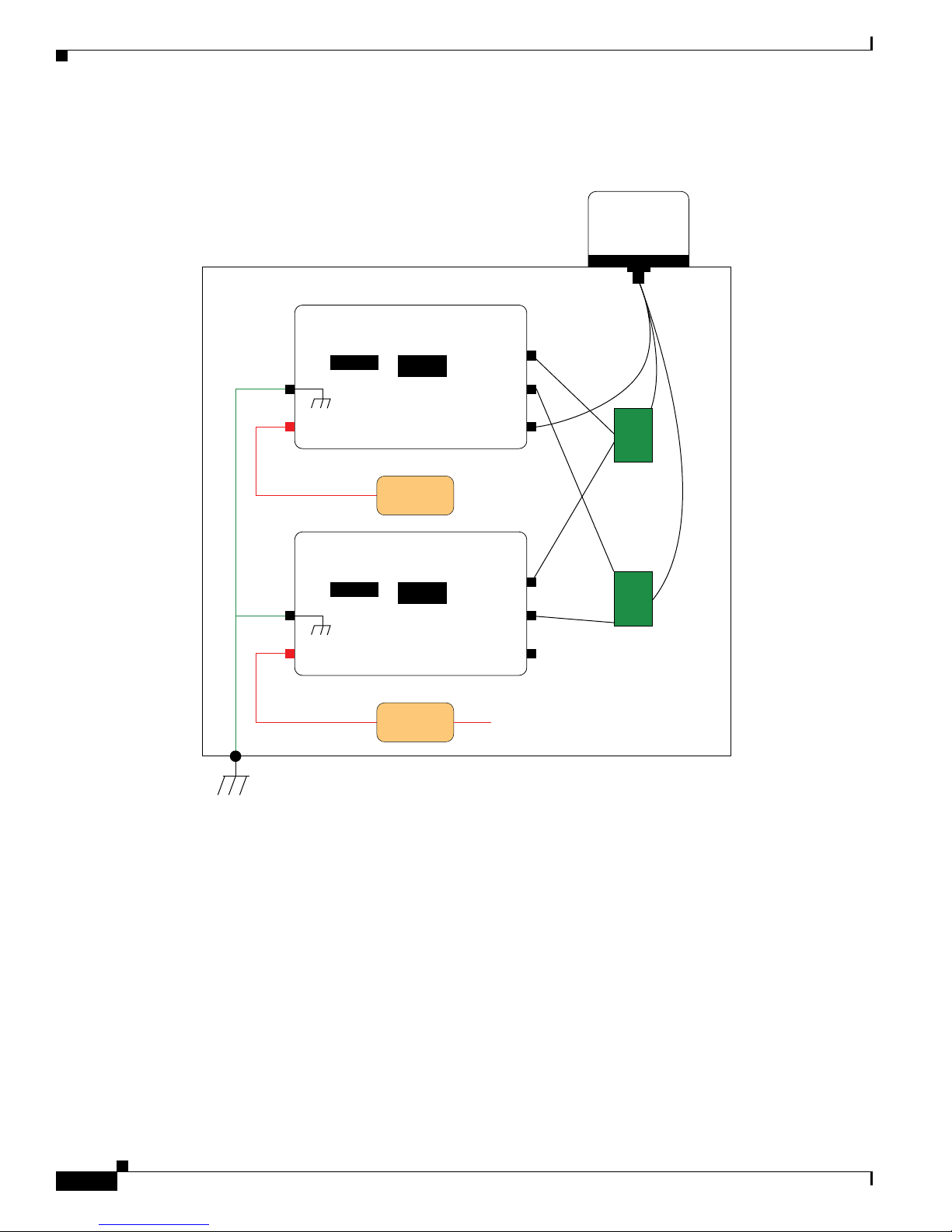

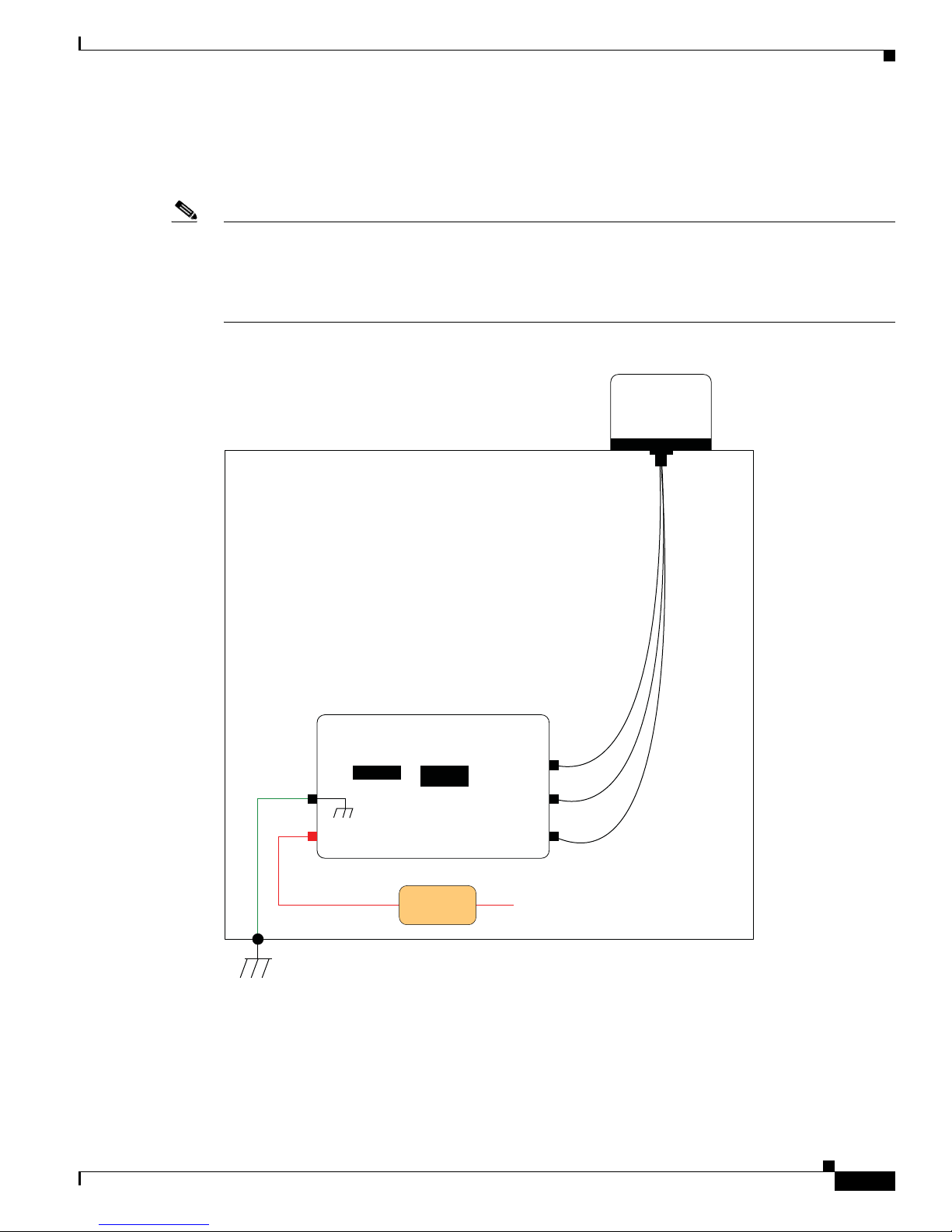

• Deployment Scenarios, page 17

• Antenna Ports, page 19

• Related Documentation, page 20

• Obtaining Documentation and Submitting a Service Request, page 20

Overview of the 4G-LTE-ANTM-O-3 Antenna

Deciding which antenna to use involves multiple factors, such as coverage area, maximum distance,
indoor location, outdoor location, and antenna height.

When an antenna is used indoors, the building construction, ceiling height, and internal obstructions
must be considered. In outdoor environments, obstructions such as trees, vehicles, buildings, and hills
must be considered. Distance is the primary factor when using outdoor-wireless communications.
However, coverage area also becomes important when you use wireless client devices to communicate
with a wireless device.

Cisco Systems, Inc.

www.cisco.com

Overview of the 4G-LTE-ANTM-O-3 Antenna

4G-LTE-ANTM-O-3 antenna is an integrated 3-in-1- indoor and outdoor antenna. It comes with two
Long Term Evolution (LTE) antennas and one Global Positioning System (GPS) antenna in a single
radome. Figure 1 shows the 4G-LTE-ANTM-O-3 antenna.

Parts List

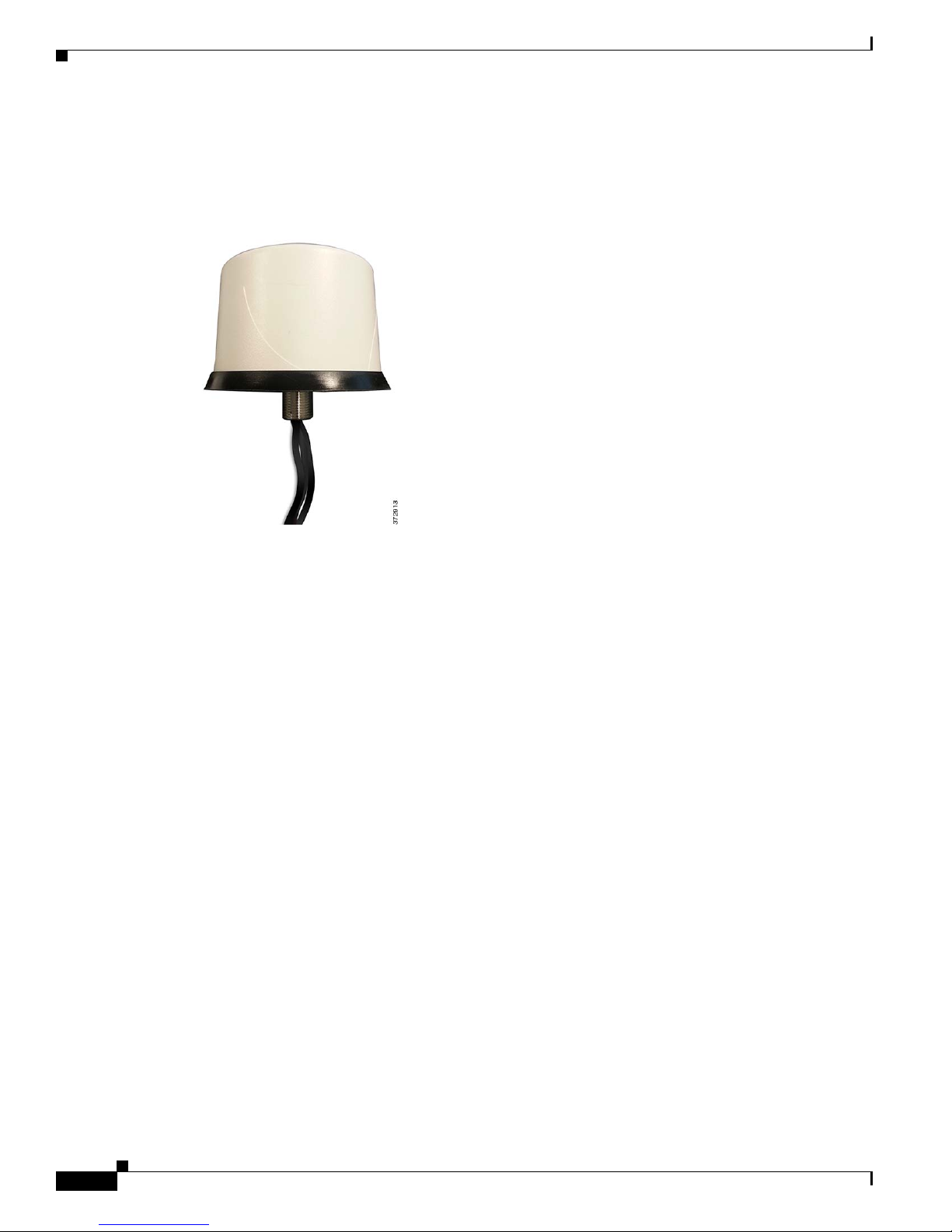

Figure 1 4G-LTE-ANTM-O-3 Antenna

The shipment of your antenna includes the following items:

• One Antenna Unit

• Two SMA-Female to TNC-Male Adapters

• Installation Guide

Features of the 4G-LTE-ANTM-O-3 Antenna

The 4G-LTE-ANTM-O-3 antenna supports the following features:

• No tune, multiband coverage, dual 4G LTE, and GPS L1 frequencies.

• Metal 5/8-inch stud mount with serrated face nut provides single cable exit for easier installation or

antenna replacement.

• Attractive low-profile housing for added overhead clearance.

• IP67-compliant design provides maximum protection against water or dust under severe

environmental conditions.

• High-performance, low-loss cable, and high-quality connectors for maximum Radio Frequency

(RF) system efficiency.

• UV-resistant red, blue, black, or white radome.

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

2

OL-32387-01

Technical Specifications

Table 1 lists the specifications for the RF antenna.

.

Table 1 Specifications of RF antenna

Operating Frequencies 698-960 MHz

Polarization Vertical, linear

Nominal Impedance 50 Ohms

1

Gain

(Typical)

Maximum Power 3 Watts

2

VSWR

Elevation Plane (3 dB Beamwidth) 30° (nominal)

Azimuth Plane (3 dB Beamwidth) Omni-directional

Connector type SMA-Male

Cable 4 ft RG174 VW-1 compliant

Height 90 mm

Base Diameter 137 mm

Color White, Black, Red or Blue

Flammability UL-94 V0

Environment Indoor and outdoor

Mounting 5/8 inch lug with serrated face nut, optional

Operating and storage temperature -40 to +85 degree C

Ingress Protection

1. Total gain, free space test when mounted on a 1-foot diameter ground plane with unused ports loaded.

2. Free space Voltage Standing Wave Ratio (VSWR) over all operating frequency ranges when mounted on a 1-foot
diameter ground plane with unused ports loaded.

3. When mounted per installation instructions.

Overview of the 4G-LTE-ANTM-O-3 Antenna

1710-2700 MHz

2.5 dBi

< 2.5:1

adhesive backing (peel-off), 17 sq. inches area
(minimum) on a flat smooth surface, 5/8 inch
diameter hole through mounting surface

3

IP67

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

3

Overview of the 4G-LTE-ANTM-O-3 Antenna

1

2

3

4

5

372740

Table 2 lists the specifications for the GPS Antenna.

Table 2 Specifications of the GPS Antenna

Frequency Band 1575.42 MHz (GPS L1)

Amplifier Gain 26 dBc ± 3 dB

Nominal Impedance 50 Ohms

Output VSWR 1.5:1 typical

DC Current 20 mA nominal; < 30 mA @ -40°C to +85° C

DC Voltage 3.3-5 V

Noise Figure 1.8 dB typical

Filtering > 40 dB rejection @ ± 50 MHz from center

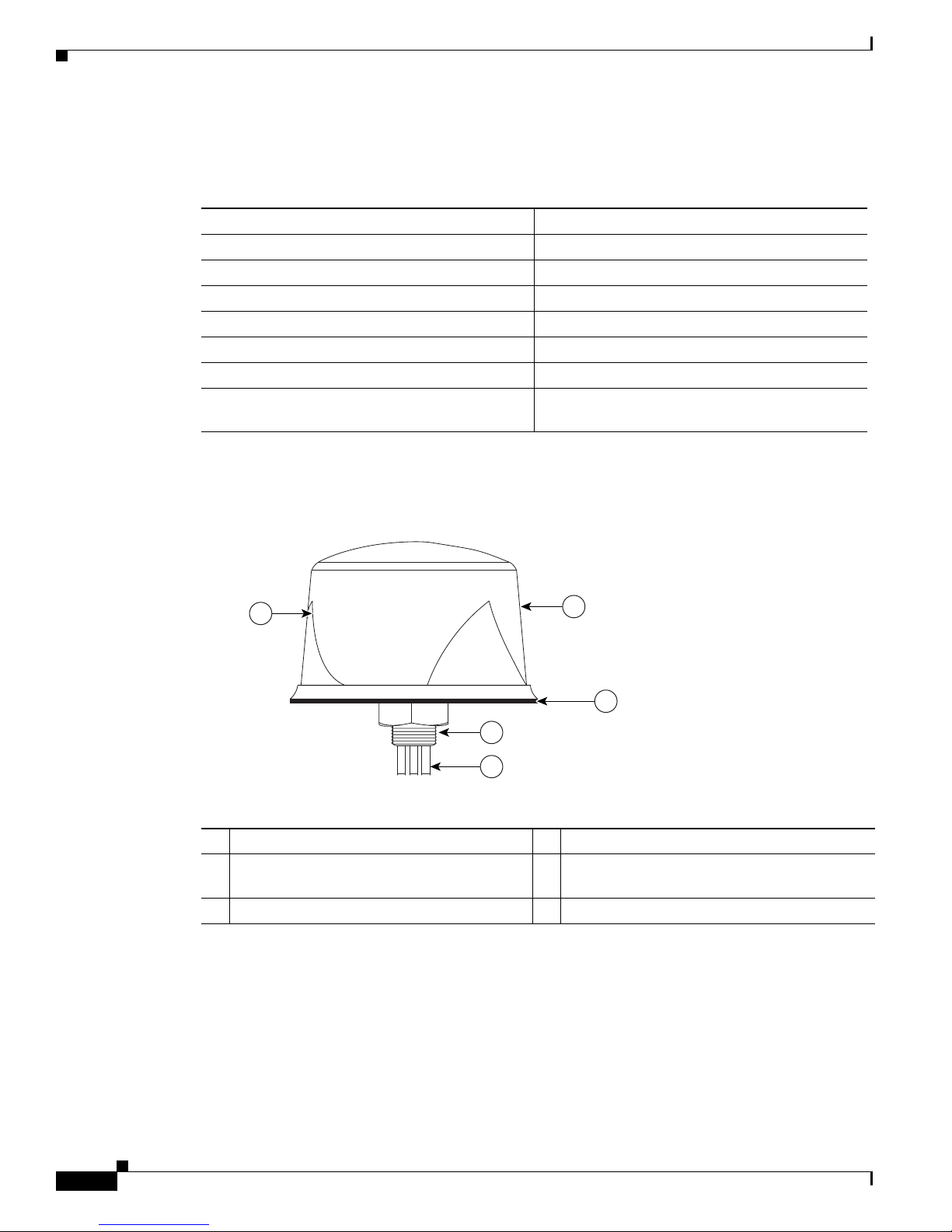

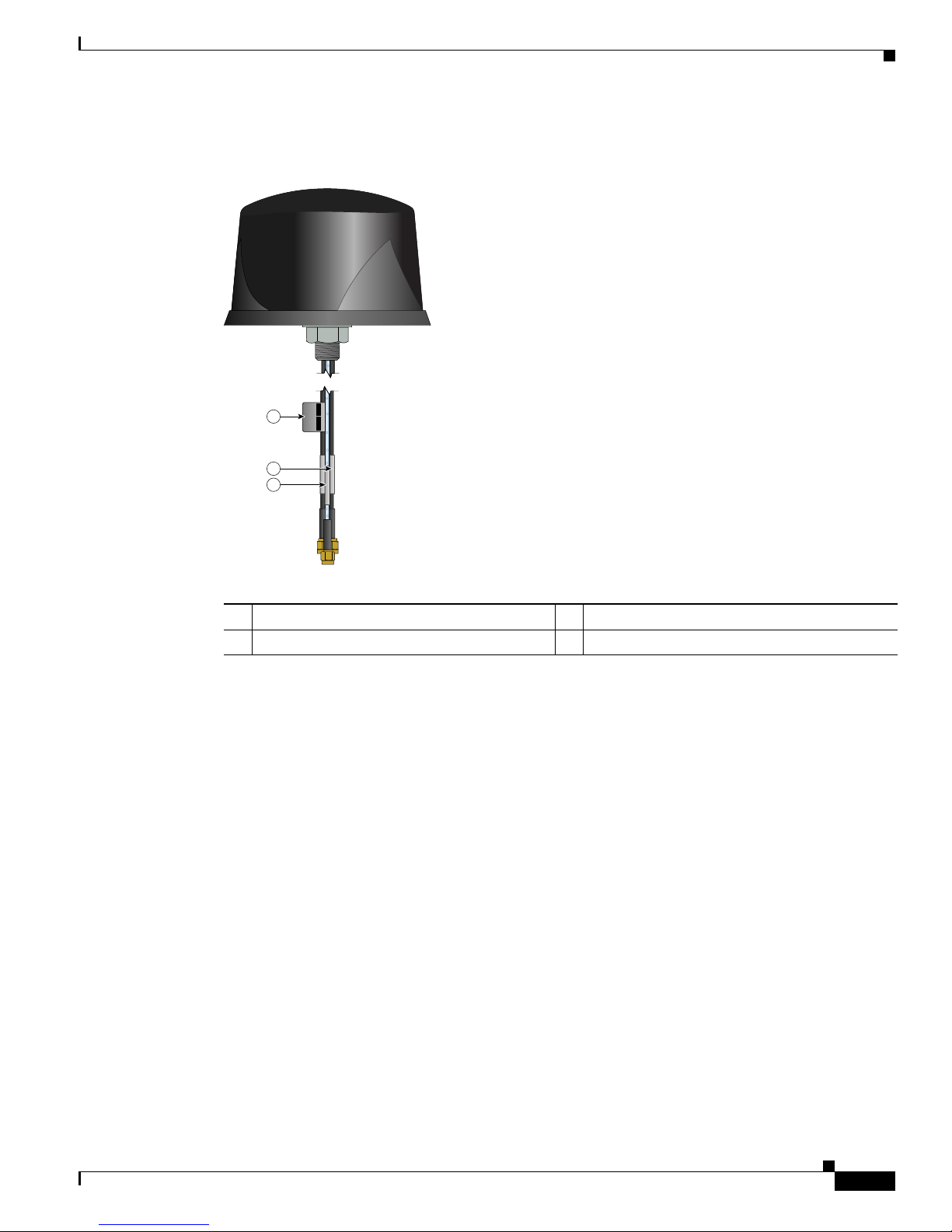

Figure 2 shows the parts of 4G-LTE-ANTM-O-3 Antenna.

frequency

Figure 2 Parts of 4G-LTE-ANTM-O-3 Antenna

1 GPS and 2 LTE antennas inside 4 Mounting stud

2 Radome available in 4 colors: White, Black,

5 Cables

Red or Blue (Indoor or Outdoor)

3 Gasket

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

4

OL-32387-01

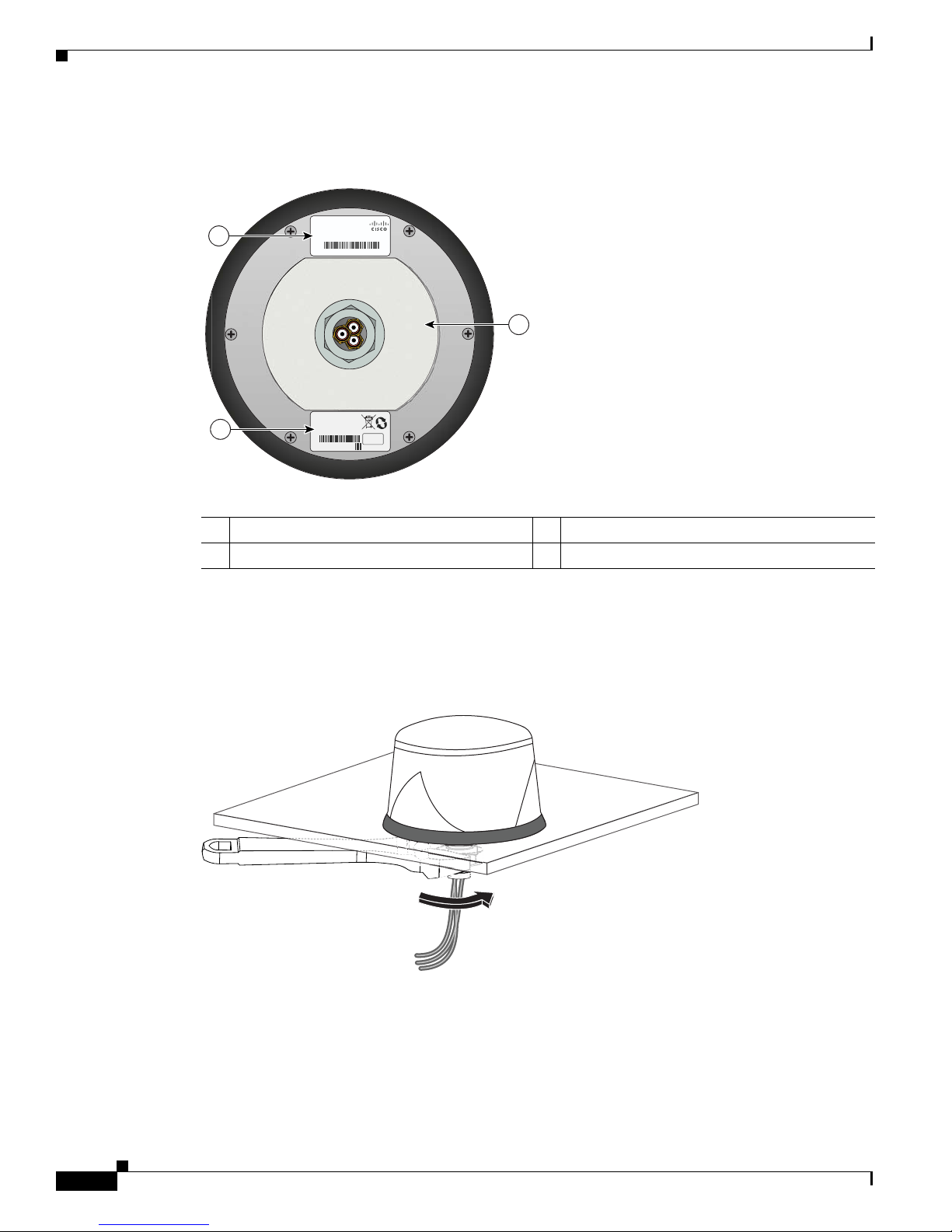

Figure 3 shows the antenna with cable labels.

Figure 3 The Antenna with Cable Labels

1

07-01329-01

MPN

LTE

2

3

LTE

GPS

Overview of the 4G-LTE-ANTM-O-3 Antenna

372914

1 MPN LABEL 2 LTE-ID LABEL 2EA

3 GPS ID LABEL

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

5

Overview of the 4G-LTE-ANTM-O-3 Antenna

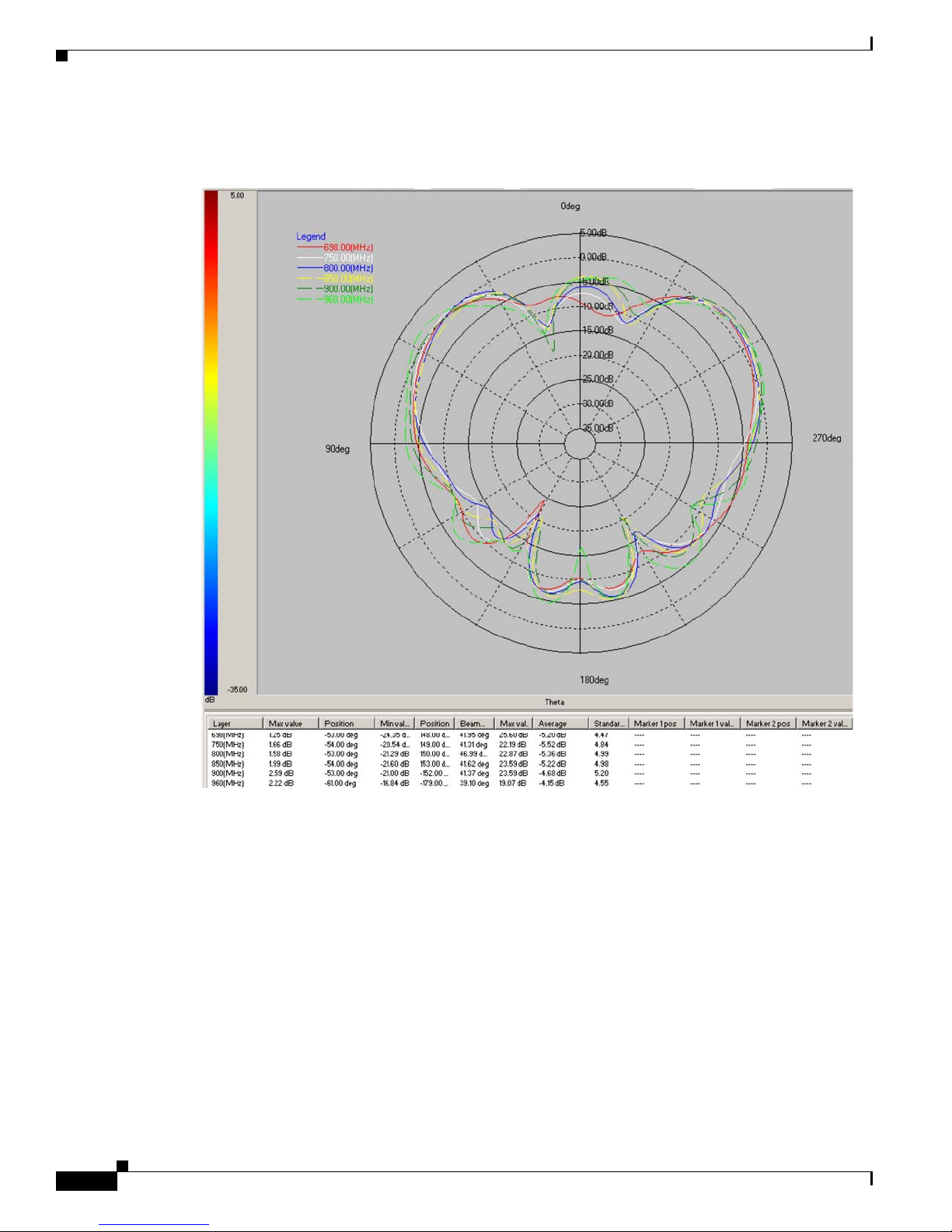

Figure 4 shows the Low Band 698-960 MHz EL (PHI=0).

Figure 4 Low band 698-960 MHz EL (PHI=0)

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

6

372742

OL-32387-01

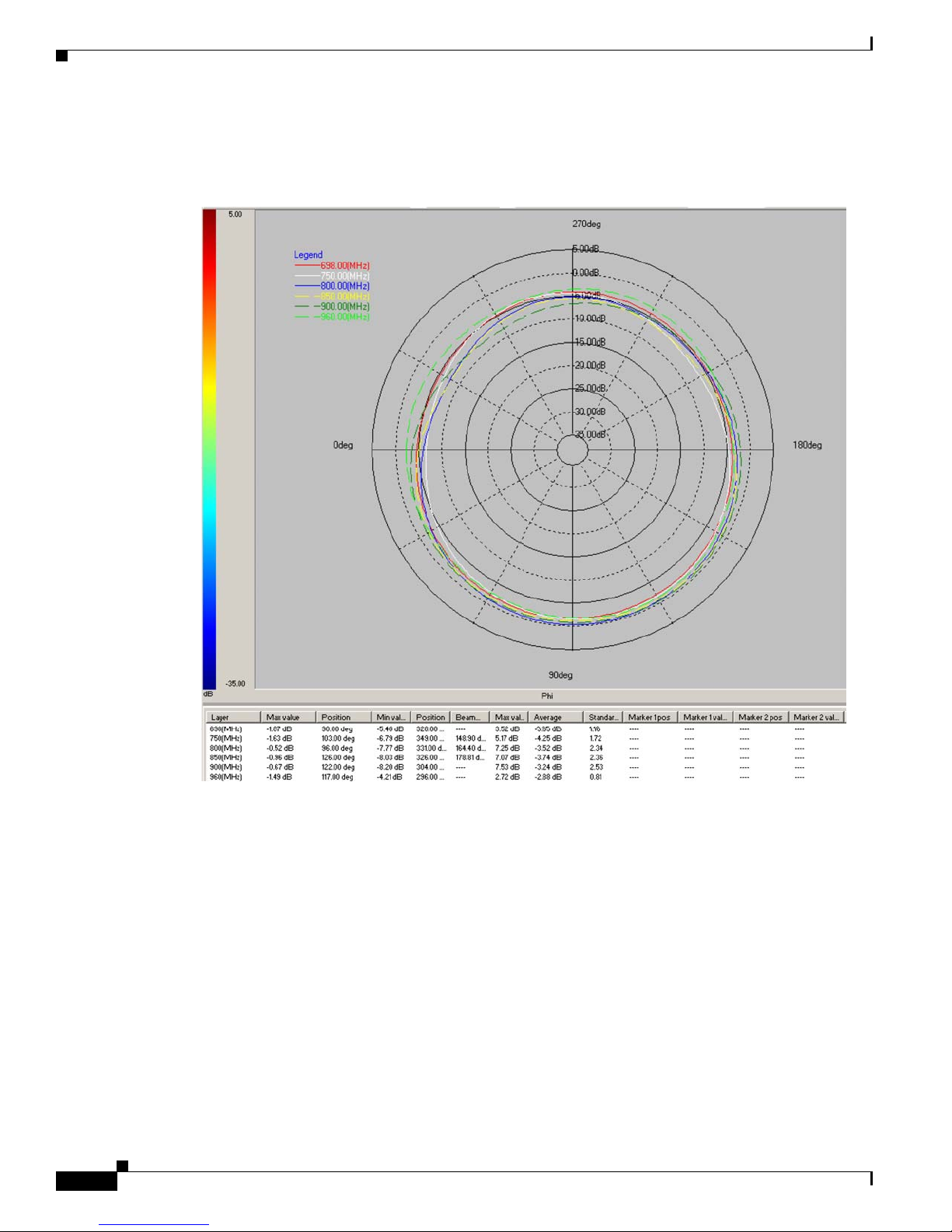

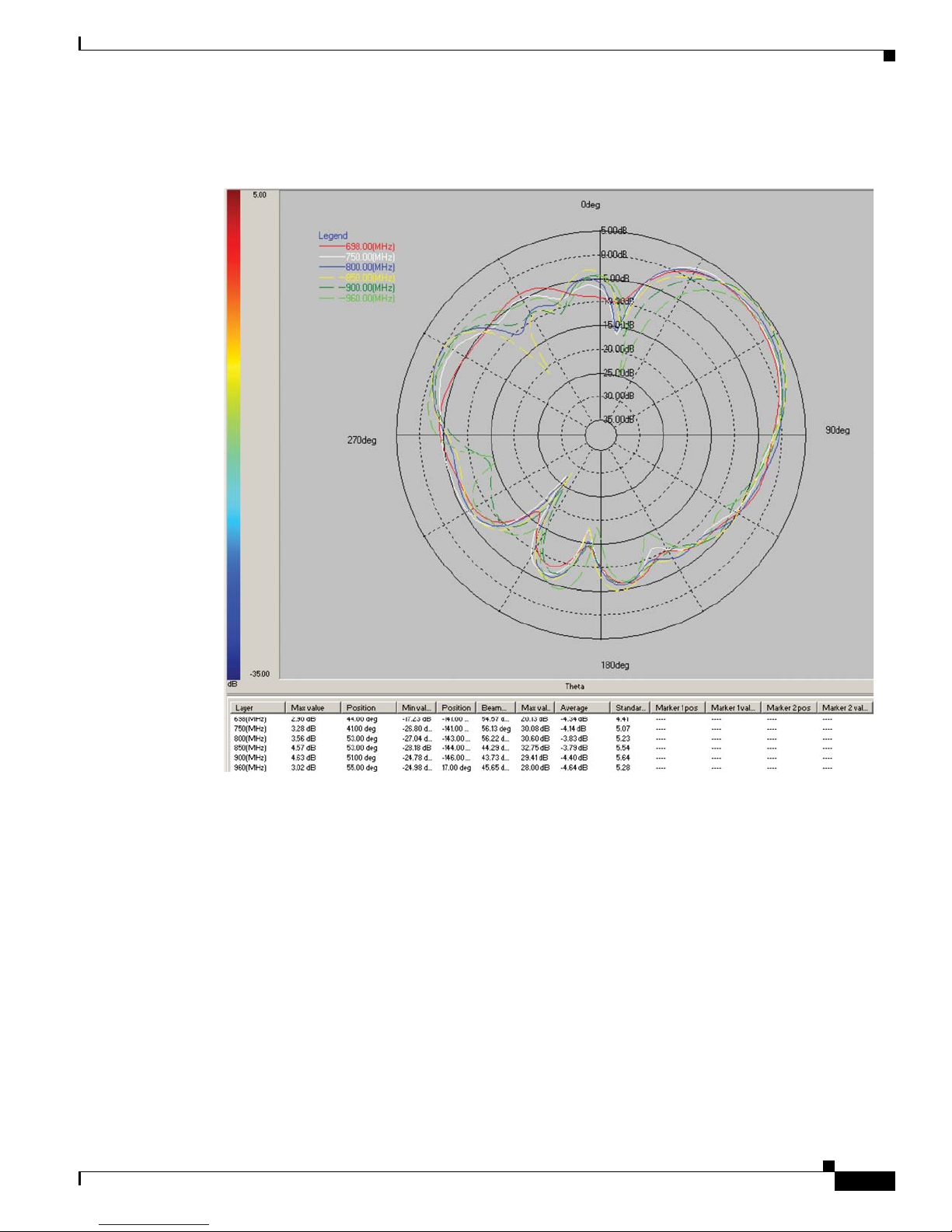

Figure 5 shows the Low Band 698-960MHz EL (PHI=90).

Figure 5 Low band 698-960MHz EL (PHI=90)

Overview of the 4G-LTE-ANTM-O-3 Antenna

OL-32387-01

372743

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

7

Overview of the 4G-LTE-ANTM-O-3 Antenna

Figure 6 shows the Low Band 698-960MHz AZ (THETA=90).

Figure 6 Low Band 698-960MHz AZ (THETA=90)

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

8

372744

OL-32387-01

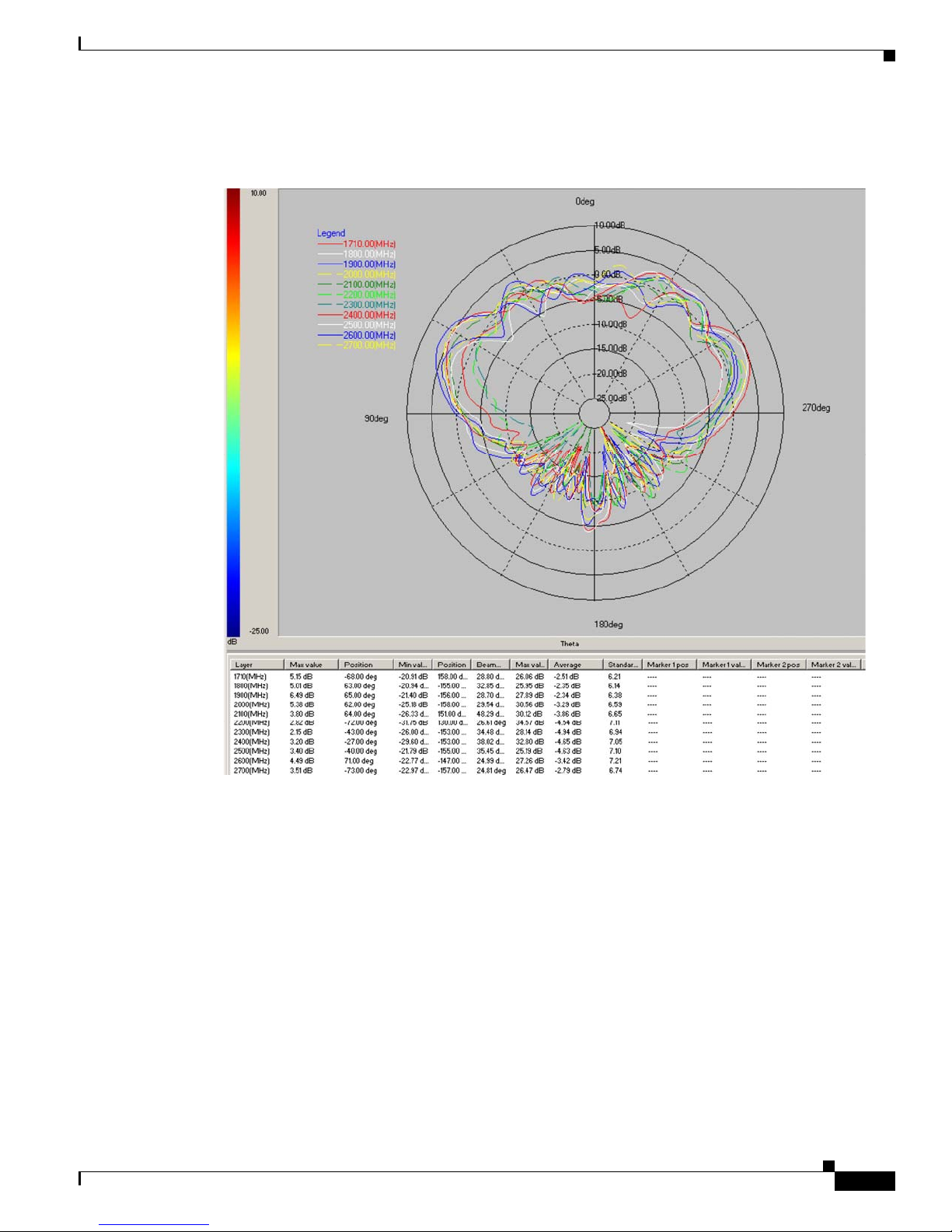

Figure 7 shows High Band 1710-2700MHz EL (PHI=0).

Figure 7 High Band 1710-2700MHz EL (PHI=0)

Overview of the 4G-LTE-ANTM-O-3 Antenna

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

9

Overview of the 4G-LTE-ANTM-O-3 Antenna

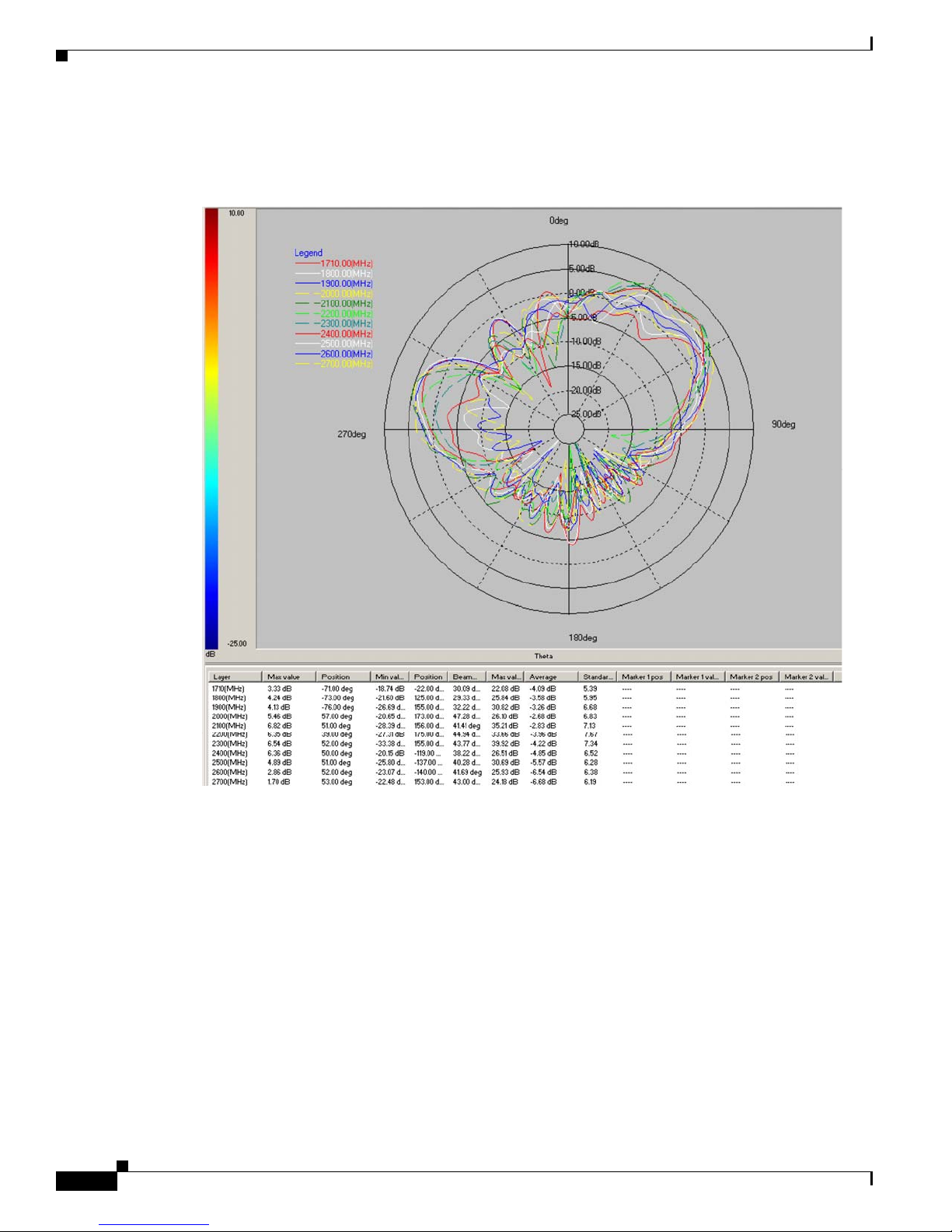

Figure 8 shows High Band 1710-2700MHz EL (PHI=90).

Figure 8 High Band 1710-2700MHz EL (PHI=90)

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

10

373009

OL-32387-01

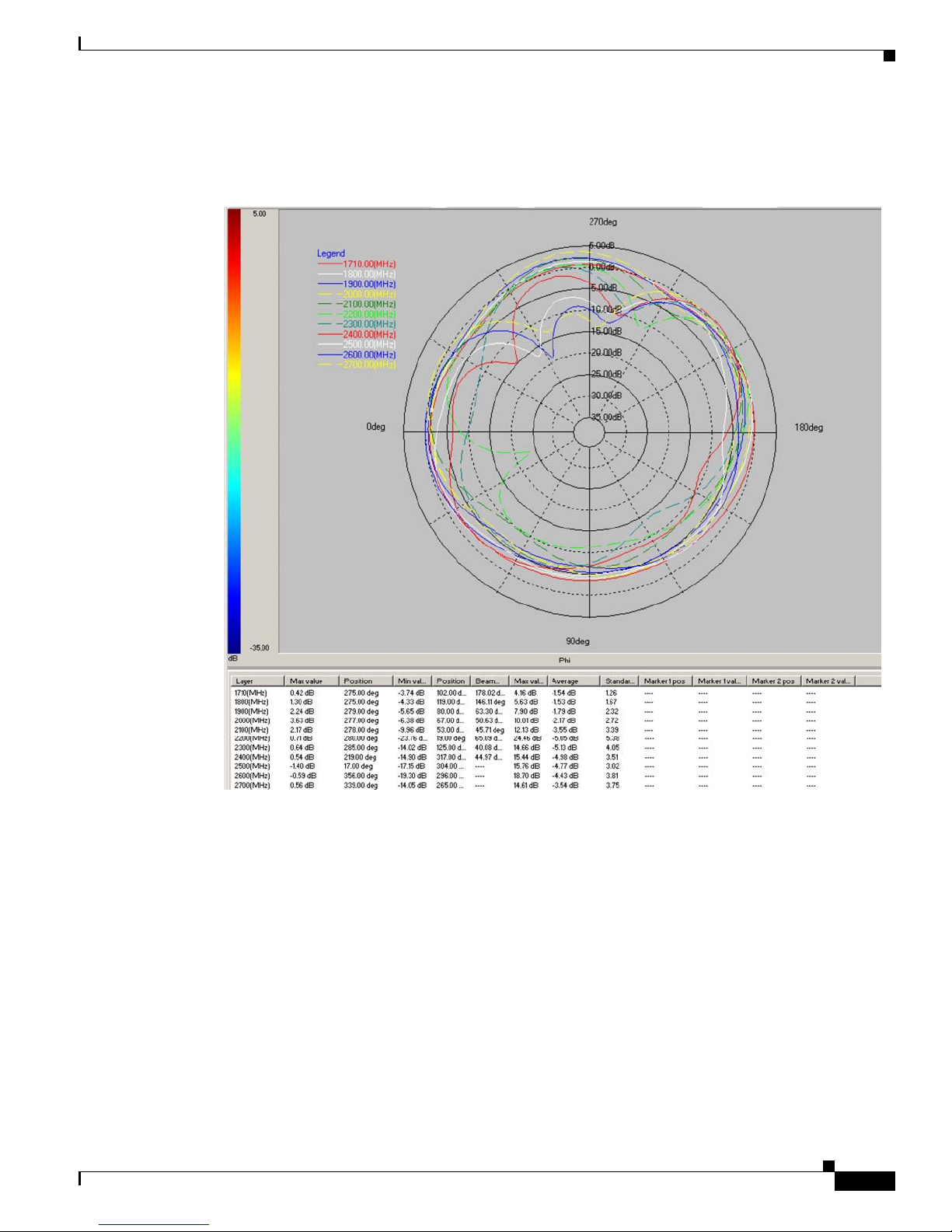

Figure 9 shows High Band 1710-2700MHz AZ (THETA=90).

Figure 9 High Band 1710-2700MHz AZ (THETA=90)

Overview of the 4G-LTE-ANTM-O-3 Antenna

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

11

Supported Antennas

Supported Antennas

Table 3 lists the supported antennas.

Table 3 Supported Antennas

Part Number Description

4G-LTE-ANTM-O-3-W Indoor or outdoor low-profile antenna with 4-foot

4G-LTE-ANTM-O-3-B Indoor or outdoor low-profile antenna with 4-foot

4G-LTE-ANTM-O-3-R Indoor or outdoor low-profile antenna with 4-foot

4G-LTE-ANTM-O-3-C Indoor or outdoor low-profile antenna with 4-foot

dongle, white radome.

dongle, black radome.

dongle, red radome.

dongle, blue radome.

Supported Antenna Accessories

Table 4 lists the supported antenna accessories.

Table 4 Supported Antenna Accessories

Part Number Cable Length Maximum Insertion Loss

4G-CAB-LMR240-25 25 ft (7.5 m) 2.1 dB @ 700 MHz

4G-CAB-LMR240-50 50 ft (15 m) 4.1 dB @ 700 MHz

4G-CAB-LMR240-75 75 ft (23 m) 6.1 dB @ 700 MHz

4G-CAB-ULL-20 20 ft (6 m) 0.90 dB @ 700 MHz

4G-CAB-ULL-50 50 ft (15 m) 2.2 dB @ 700 MHz

4.0 dB @ 2.6 GHz

7.4 dB @ 2.6 GHz

11.0 dB @ 2.6 GHz

1.8 dB @ 2.6 GHz

4.3 dB @ 2.6 GHz

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

12

OL-32387-01

Antenna Options by Deployment Type

Table 5 lists the antenna options by deployment type.

Table 5 Antenna Options by Deployment Type

Deployment Type Description

Indoor The antenna is installed indoors on a

grounded metal surface and
attached directly to a router.

Indoor, with extension The antenna is installed on a

grounded metal surface and
attached to a router with extension
cables.

Outdoor flush The antenna is installed outdoors to

a grounded metal surface and
attached directly to a router
mounted indoors.

Antenna Options by Deployment Type

Antenna Accessories
Required

None

• 4G-CAB-LMR240-25

• 4G-CAB-LMR240-50

• 4G-CAB-LMR240-75

• 4G-CAB-ULL-20

• 4G-CAB-ULL-50

None

Safety Precautions

This section contains the following warning statements. A warning means danger. You are in a situation
that could cause bodily injury. Before working on an equipment, be aware of the hazards involved with
electrical circuitry and standard safety practices to prevent accidents.

Statement 1052—Installing and Grounding the Antenna

Warning

Statement 1024—Ground Conductor

Warning

Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits,
or where it can come into contact with such circuits. When installing the antenna, take extreme care
not to come into contact with such circuits, as they may cause serious injury or death. For proper
installation and grounding of the antenna, refer to national and local codes (for example, U.S.:NFPA
70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection
authority or an electrician if you are uncertain that suitable grounding is available.

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

13

Safety Precautions

Statement 1025—Use Copper Conductors Only

Warning

Use copper conductors only.

Statement 1046—Installing or Replacing the Unit

Warning

Caution For your physical safety, and to help you install your antenna successfully, follow these safety

When installing or replacing the unit, the ground connection must always be made first and
disconnected last.

precautions.

• If you are installing an antenna for the first time, for your own safety as well as others, seek

professional assistance. Your Cisco sales representative can explain which mounting method to use
for the size and type of antenna you are about to install.

• Before you install an antenna, contact your Cisco account representative to explain which mounting

method to use for the size and type of antenna that you are about to install.

• Find someone to help you—installing an antenna is often a two-person job.

• Select your installation site with safety, as well as performance, in mind. Remember that electric

power lines and phone lines look alike. For your safety, assume that any overhead line can kill you.

• Contact your electric power company. Tell them your plans and ask them to come and look at your

proposed installation.

• Plan your installation carefully and completely before you begin. Each person involved in an

in stallatio n should be a ssign ed to a speci fic task, and sh ould k now w hat t o do and when to do i t. One
person should be in charge of the operation to issue instructions and watch for signs of trouble.

• When installing your antenna, follow these guidelines:

–

Do not use a metal ladder.

–

Do not work on a wet or windy day.

–

Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved
shirt or jacket.

• If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable,

and metal guy wires are all excellent conductors of electrical current, even the slightest touch of any
of these parts to a power line completes an electrical path through the antenna and the installer.

• If any part of the antenna system should come in contact with a power line, do not touch it or try to

remove it yourself. Call your local power company to have it removed safely.

• If an accident should occur with the power lines, call for qualified emergency help immediately.

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

14

OL-32387-01

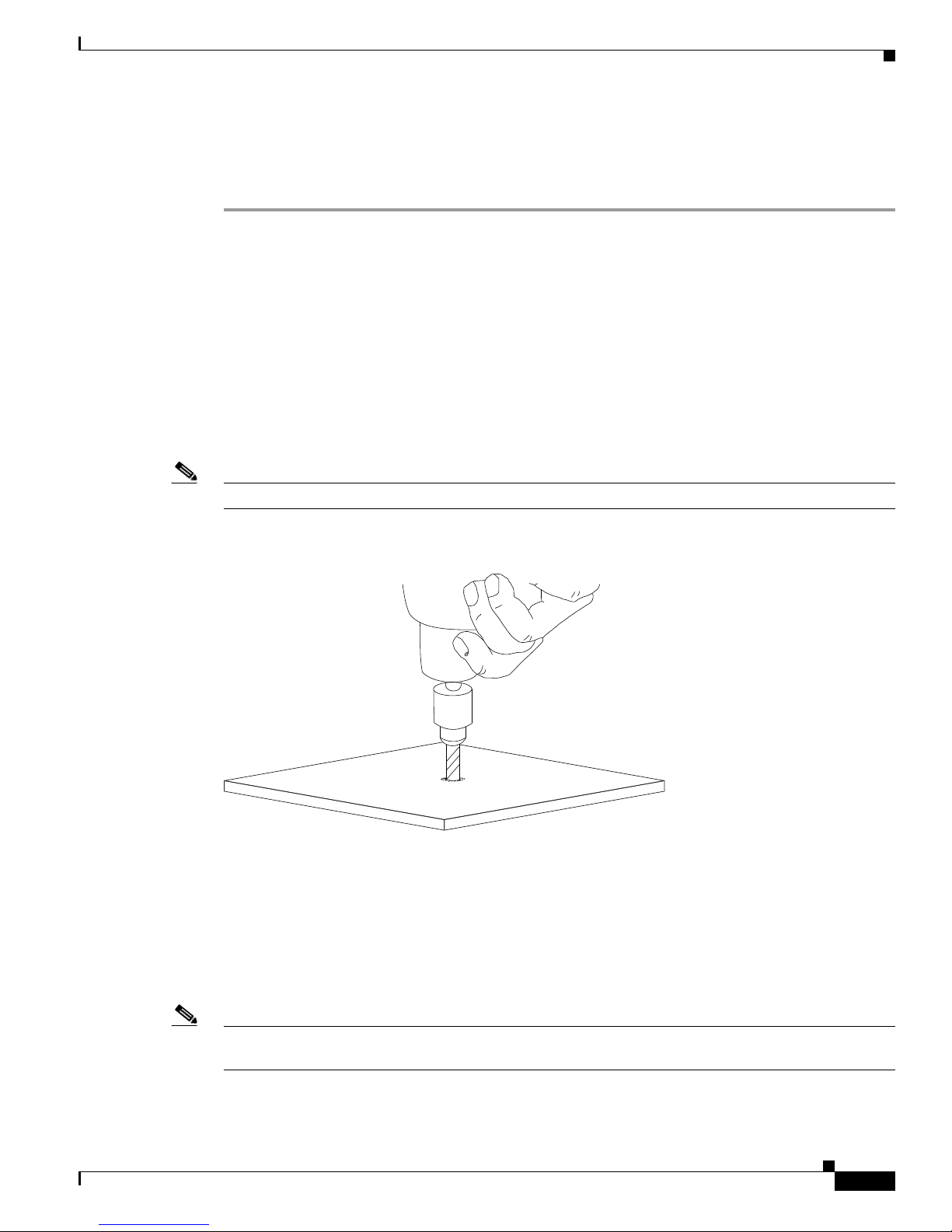

Installation Instructions

The following section contains steps for installing the 4G-LTE-ANTM-O-3 antenna:

Step 1 While choosing the location, keep the following in mind:

• Attempt to center the antenna on a flat plane.

• Attempt to position the antenna so that it has 8 inches of flat plane in any given direction.

• Attempt to space at least 16 inches from an adjacent antenna or metallic structure and choose a

location with gentle surface curves to ensure proper sealing.

• Ensure that there is a space that is 2 inches deep and 2 inches in diameter below the mounting surface

to allow sufficient clearance for the mounting stud, hardware, and cables.

• Ensure that the diameter of the hole is 5/8 inch.

Step 2 Drill a hole through the mounting surface where the center of the antenna is located, as shown in

Figure 10.

Note Ensure that the hole is deburred of sharp edges to prevent cable damage during installation.

Installation Instructions

Figure 10 Drill the Mounting Surface

372748

Step 3 Clean the mounting surface around the hole. The surface must be free of any debris, which would

otherwise prevent the antenna's inner foam gasket from adhering to or the outer rubber gasket from
forming a seal.

Step 4 Remove the nut from the mounting stud and cables one by one.

Step 5 Insert the mounting stud through the hole and then thread the cables through the serrated face nut one

by one.

Note It is important that the orientation of the serrated face nut should be correct. Otherwise, the serrated part

of the lock nut will not bite into the mounting stud.

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

15

Installation Instructions

4G-LTE-ANTM-O-3-B

INSTALLATION
TORQUE 4.5Nm

4G LTE 3 in 1 outdoor Black
antenna 700MHZ
www.cisco.com/go/4g

SN: 14300881

RoHs

Complaint

MPN: 07-01329-01

Made in: CN

10

1

2

3

372915

372753

Figure 11 shows the bottom view of the antenna.

Figure 11 Bottom View of the Antenna

1 Product ID and Serialization Label 2 MPN and Torque Label

3 Liner

Step 6

Position the antenna onto the mounting surface and tighten the nut hand-tight, as shown in Figure 12.
Tighten it further using a wrench until the antenna is fully seated. Visually inspect the outer rubber
antenna gasket to ensure that it has been compressed and sealed tightly against the mounting surface and
radome.

Figure 12 Tighten the Nut after the Antenna is fully seated

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

16

OL-32387-01

Deployment Scenarios

Router

MAIN

SIM MODEM

DIV

GPS

+5V AC or DC input

option available

Power

Adapter

372746

Figure 13 shows the deployment of the 4G-LTE-ANTM-O-3 antenna on an ATM with a single router.

Note All the three antenna cables are SubMiniature version A (SMA-male) connectors, but the MAIN and the

Diversity (DIV) of the router has the Threaded Neill–Concelman (TNC-female) connectors, and the GPS
has an SMA-female connector. In this case, an SMA-female to TNC-male adapter needs to be used to
connect the SMA-male connectors to the MAIN and DIV of the router because they cannot be connected
to the SMA-male connectors directly.

Figure 13 Deployment of an Antenna with One Router

Deployment Scenarios

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

17

Deployment Scenarios

MAIN

SIM MODEM

DIV

GPS

+5V

AC or DC
power adapters
are available

Power

Adapter

Router A

Router B

MAIN

SIM MODEM

DIV

GPS

+5V

Power

Adapter

RF Splitter

RF Splitter

372747

Figure 14 shows the deployment of 4G-LTE-ANTM-O-3 on an ATM with dual routers.

Figure 14 Deployment of an Antenna with Dual Routers

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

18

OL-32387-01

Antenna Ports

EHWIC­4G-LTE

WWAN

RSSI

RSVD

GPS

MO/

MAIN

M1/
DIV

LTE

EVDO

GPS

372961

2 3 4 65 7 8

1 19

8

Antenna Ports

This section describes the antenna ports, their locations on the router, and the recommended
antenna-installation locations. You can connect an antenna to the ports of a Cisco Enhanced High-Speed
WAN Interface Card (EHWIC) or Cisco 819 series router.

Connecting the Antenna to the Cisco 819 Series Router or Cisco EHWIC

The antenna ports are shown in Figure 15, and the front panel details of the Cisco 819 series router are
shown in Figure 16.

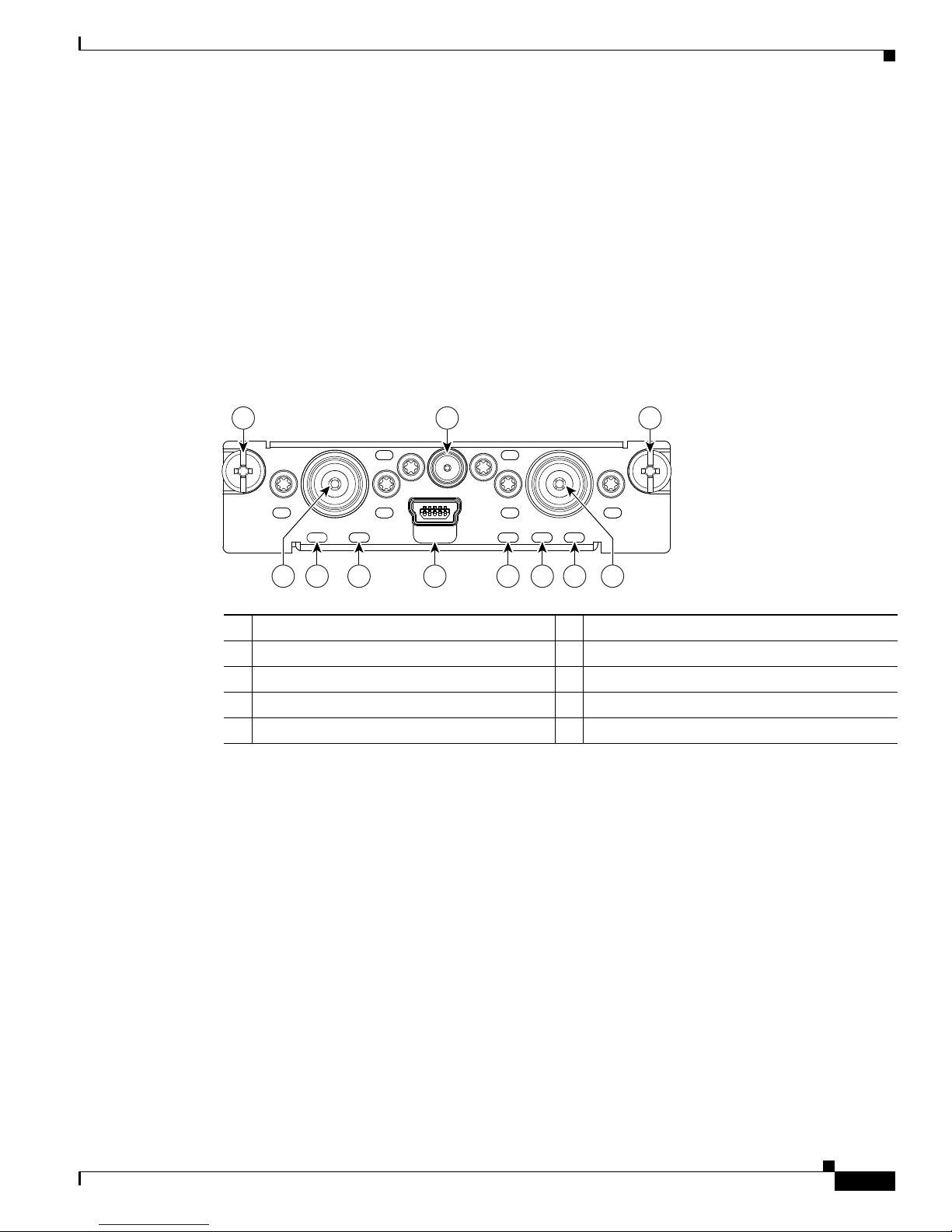

Figure 15 Insert Base of Antenna into Router Antenna Port

1 Mounting Screws 6 LED—LTE

2 LED—WWAN 7 LED—GPS

3 LED—RSSI

2

8 Antenna Connectors—M1/DIV, M0/MAIN

1

4 RSVD (reserved) port, USB 2.0 mini type B 9 Antenna Connector—GPS

5 LED—EVDO

1. GPS = Global Positioning System.

2. RSSI = Received Signal Strength Indicator.

3. EVDO = Evolution-Data Optimized.

3

OL-32387-01

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

19

Related Documentation

285447

1 43 6 7 9 10 11 13

5 128

2

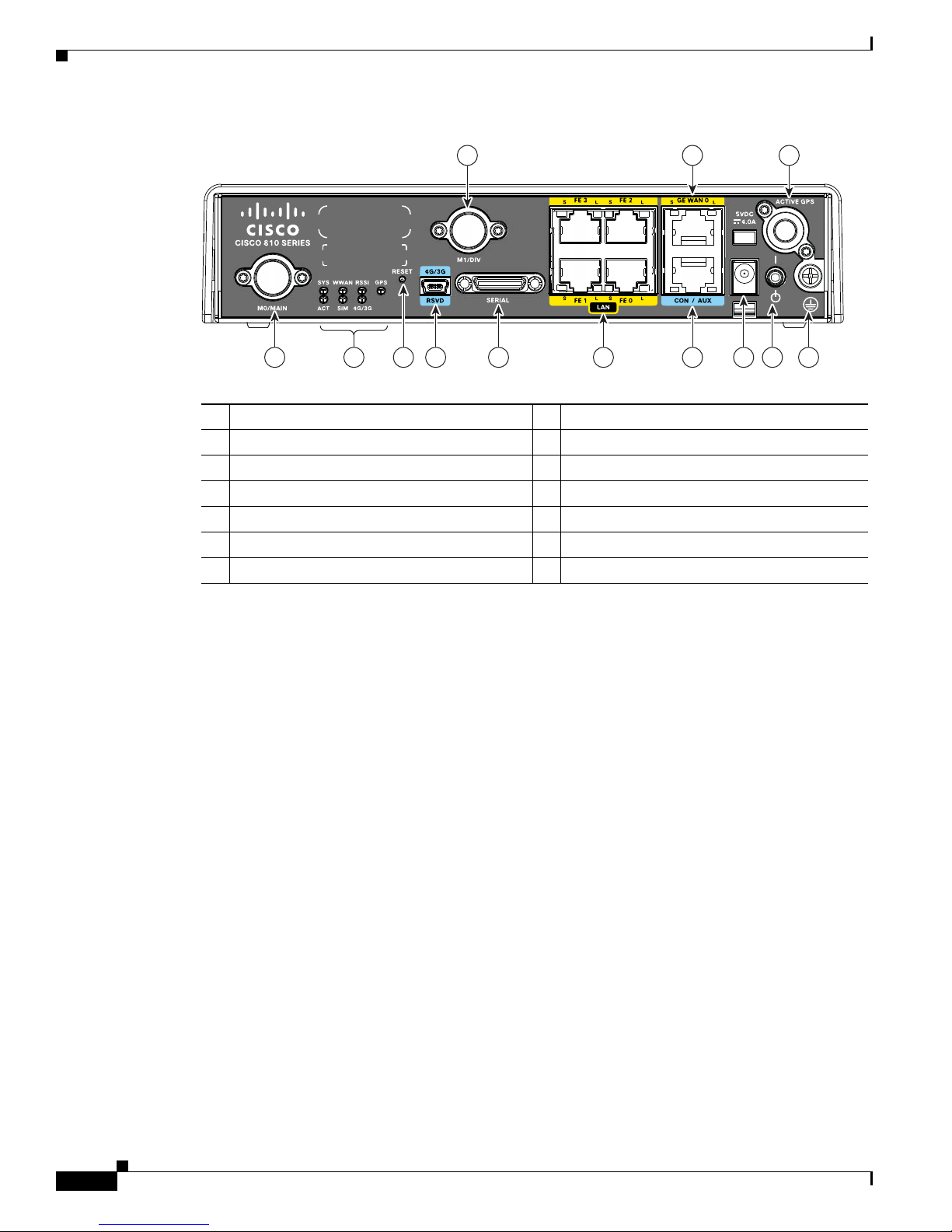

Figure 16 Front Panel Details of Cisco 819 4G LTE ISR

1 4G Antenna connector—M0/MAIN 8 GE WAN port

2 LEDs 9 Antenna Connector—GPS Console/Aux port

3 Reset button 10 Power input

4 4G/3G port 11 Power switch

5 4G Antenna connector—M1/DIV 12 Active GPS antenna connector

6 Serial port 13 Ground

7 FE port

Related Documentation

• For information about antennas and modules, see:

www.cisco.com/go/cg-modules

• For information about omnidirectional and directional antennas, see:

http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00807f34d3.shtml

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and
revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS)
feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds
are a free service and Cisco currently supports RSS version 2.0.

This document is to be used in conjunction with the documents listed in the “Related Documentation”
section.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of
Cisco
The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

@2014 Cisco Systems, Inc. All rights reserved.

trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.

Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide

20

OL-32387-01
