Cisco 4331 Assembly Manual

Page 1
© 2017 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo, Mobilizing Your World and DIRECTV are registered trademarks and service marks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks are the property of their respective owners.
Date 05/01/2017

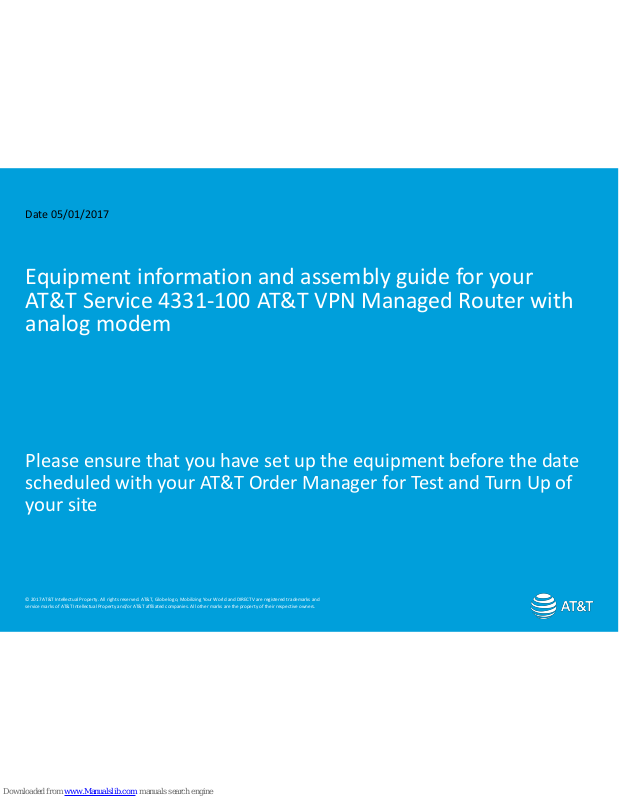

Equipment information and assembly guide for your AT&T Service 4331-100 AT&T VPN Managed Router with analog modem
Please ensure that you have set up the equipment before the date scheduled with your AT&T Order Manager for Test and Turn Up of your site
Page 2
4331 AT&T VPN Managed Router Installation Guide with analog modem
2
What is In the Box
The following components are included in your router package:
Router power cable
Site Documentation Package
Cisco 4331Router
RJ45 Cable
Labelled ISE-853
USRobotics V.Everything 56K
Analog Corporate Modem
Modem power cable
RJ11 modem cable
Labelled ISE644
Console Cable
Page 3
4331 AT&T VPN Managed Router Installation Guide with analog modem
3
Understanding your router
Rear View of Cisco 4331
Front View of Cisco 4331
GE0/0/1
RJ-45 Console Port
Power
Socket
On/Off Switch
GE0/0/0
SM-X-1T3/E3 service-module
Page 4
4331 AT&T VPN Managed Router Installation Guide with analog modem
4
Understanding your out-of-band modem
Front View of modem
Rear View of modem
Power
Input
Power on/off
RJ11
in/out use
port
marked
‘Jack’
RJ-45
Console Port
Page 5
4331 AT&T VPN Managed Router Installation Guide with analog modem
5
Step 1: Set up router and connect the router to power outlet
To power outlet
Page 6
4331 AT&T VPN Managed Router Installation Guide with analog modem
6
Step 2: Set up modem and connect to power outlet
To power outlet
Page 7
4331 AT&T VPN Managed Router Installation Guide with analog modem
7
Step 3: Connect POTS to Modem and Connect Console Cable to Router
Console Cable
To wall jack
RJ11 modem cable
Labelled ISE644
Connect telephone line (analog POTS line) from modem to wall jack using RJ11 cable
Connect console cable to the blue-edged console port in router
Page 8
4331 AT&T VPN Managed Router Installation Guide with analog modem
8
Step 4: Connect Console Cable to Modem
Connect console cable to modem
If there are dual routers and a Call Director
refer to Service Director Assembly Guide for
alternate step 4
Page 9
4331 AT&T VPN Managed Router Installation Guide with analog modem
9
Step 5: Connect the Router to WAN Access Circuits
RJ45 Cable
Labelled ISE-853
Connect the cable from the Smart Jack to the T3 service-module port or
per instructions in your Site Documentation Package.
Page 10
4331 AT&T VPN Managed Router Installation Guide with analog modem
10
Step 6: Connect Router to your Local Area Network (LAN)
Customer-provided
LAN Cable
For LAN connection, plug your RJ-45 Ethernet cable into the GE0/0/1 port on the back of the router (Lower left as shown) or per instructions in your Site Documentation Package.
The other end of the Ethernet cable can be plugged into a server, computer, private network, etc. Power up installed equipment.
Page 11
4331 AT&T VPN Managed Router Installation Guide with analog modem
