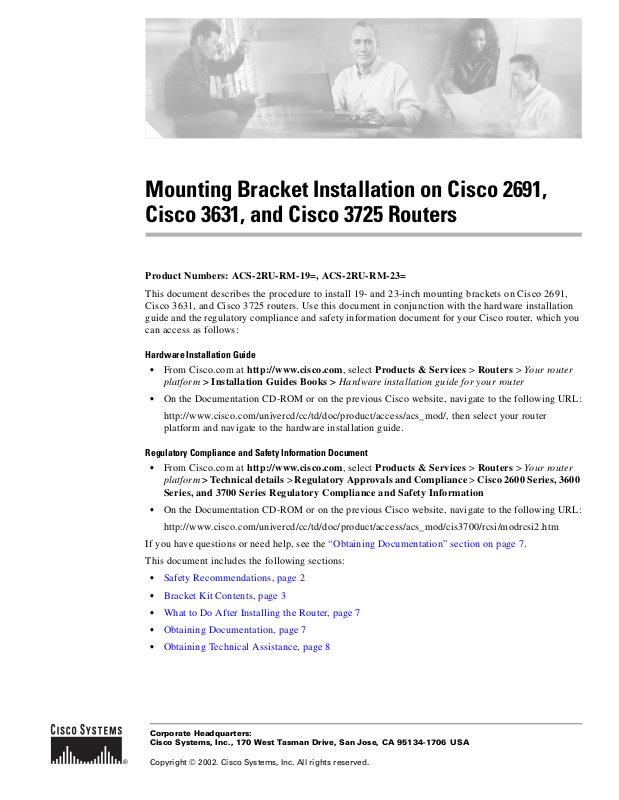

Mounting Bracket Installation on Cisco 2691,
Cisco 3631, and Cisco 3725 Routers
Product Numbers: ACS-2RU-RM-19=, ACS-2RU-RM-23=
This document describes the procedure to install 19- and 23-inch mounting brackets on Cisco 2691,
Cisco 3631, and Cisco 3725 routers. Use this document in conjunction with the hardware installation
guide and the regulatory compliance and safety information document for your Cisco router, which you
can access as follows:
Hardware Installation Guide
• From Cisco.com at http://www.cisco.com, select Products & Services > Routers > Your router
platform > Installation Guides Books > Hardware installation guide for your router
• On the Documentation CD-ROM or on the previous Cisco website, navigate to the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_mod/, then select your router
platform and navigate to the hardware installation guide.
Regulatory Compliance and Safety Information Document
• From Cisco.com at http://www.cisco.com, select Products & Services > Routers > Your router
platform > Technical details > Regulatory Approvals and Compliance > Cisco 2600 Series, 3600
Series, and 3700 Series Regulatory Compliance and Safety Information
• On the Documentation CD-ROM or on the previous Cisco website, navigate to the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_mod/cis3700/rcsi/modrcsi2.htm
If you have questions or need help, see the “Obtaining Documentation” section on page 7.
This document includes the following sections:
• Safety Recommendations, page 2
• Bracket Kit Contents, page 3
• What to Do After Installing the Router, page 7
• Obtaining Documentation, page 7
• Obtaining Technical Assistance, page 8

Corporate Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Copyright © 2002. Cisco Systems, Inc. All rights reserved.
Safety Recommendations
Safety Recommendations
Follow these guidelines to ensure general safety:
• Keep the chassis area clear and dust-free during and after installation.
• Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and roll up
your sleeves.
• Wear safety glasses when working under any conditions that might be hazardous to your eyes.
• Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Warning
Waarschuwing
Varoitus
Attention
Means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. To see translations of the warnings that appear
in this publication, refer to the Regulatory Compliance and Safety Information document that
accompanied this device.
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel
kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van
de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van
standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de
waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory
Compliance and Safety Information (Informatie over naleving van veiligheids- en andere
voorschriften) raadplegen dat bij dit toestel is ingesloten.
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan.
Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä
vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien
varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety
Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
causer des blessures ou des dommages corporels. Avant de travailler sur un équipement,
soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les
procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des
traductions d’avertissements figurant dans cette publication, consultez le document
Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de
sécurité) qui accompagne cet appareil.
2
Warnung
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer
Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen,
seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der
Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser
Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance
and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das
zusammen mit diesem Gerät geliefert wurde.
78-15162-01
Tools and Equipment Needed
Avvertenza
Advarsel
Aviso
¡Advertencia!
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi
ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di
incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel
documento Regulatory Compliance and Safety Information (Conformità alle norme e
informazioni sulla sicurezza) che accompagna questo dispositivo.
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade.
Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske
kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker.
Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i
dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og
sikkerhetsinformasjon) som ble levert med denne enheten.
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos
físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os
perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam
prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação,
consulte o documento Regulatory Compliance and Safety Information (Informação de
Segurança e Disposições Reguladoras) que acompanha este dispositivo.
Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de
manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y
familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una
traducción de las advertencias que aparecen en esta publicación, consultar el documento
titulado Regulatory Compliance and Safety Information (Información sobre seguridad y
conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.
Varning!
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till
personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna
med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de
varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety
Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna
anordning.
Tools and Equipment Needed
You need the following tools and equipment to install rack-mount brackets:
• Number 2 Phillips screwdriver
Bracket Kit Contents
This mounting-bracket kit contains the following items:
• Bracket pair for mounting a router in a 19-inch rack
• Bracket pair for mounting a router in a 23-inch NEBS/ETSI rack
• Screws for attaching brackets to the router chassis
78-15162-01
Figure 1 shows the 19-inch bracket; Figure 2 shows the 23-inch brackets.
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
3
Bracket Kit Contents
Note The slots in the wide bracket are for securing cables with cable ties.
Figure 1 Brackets for 19-Inch Rack-Mounting
LEFT
Slots for
cable tie
attachment
RIGHT
Narrow bracket for
chassis side opposite fans
Wide bracket for
chassis side with fans
Figure 2 Brackets for 23-Inch Rack Mounting
23" ETSI, NEBS
LEFT
Slots for
cable tie
attachment
For chassis side
For chassis side
opposite fans
with fans
72283
RIGHT
23" ETSI, NEBS
82532
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
4
78-15162-01
Attaching Brackets to Router Chassis
Attach the mounting brackets to the chassis in one of the following ways, using the screws provided in
the bracket kit:
• Front mounting (see Figure 3.)
• Rear mounting (see Figure 4.)
• Center mounting with front panel forward (see Figure 5.)
• Center mounting with rear panel forward (see Figure 6.)
Use a number 2 Phillips screwdriver to install the bracket screws.
Note Be sure to attach the wider bracket (marked RIGHT) to the side with the cooling fans. This provides
extra clearance for cooling air.
Figure 3 Bracket Installation—Front Mounting
23" ETSI, NEBS
LEFT
LEFT
Attaching Brackets to Router Chassis
Left bracket
for 23-inch rack
Left (narrow) bracket
for 19-inch rack
Use two screws on each side.
Figure 4 Bracket Installation—Rear Mounting
23" ETSI, NEBS
RIGHT
RIGHT
N
M
-H
D
V
BANK 4
BANK 3
BANK 2
A
L
V
W
I
C
L
P
2
M
S
F
E
T
E
E
1
M
C
A
D
N
U
A
L
C
T
R
L
B
R
E
F
E
O
2
R
BANK 1
BANK 0
E
IN
S
T
A
L
L
A
TIO
C
T
N
R
L
R
E
1
V0
EN
Right bracket
for 23-inch rack
Right (wide) bracket
for 19-inch rack
Four screws are required on each side.
82802
RIGHT
RIGHT
23" ETSI, NEBS
Right (wide) bracket
for 19-inch rack
Right bracket
for 23-inch rack
82692
TD
RD
LP
AL
CD
SEE M
AN
UA
L B
D
EFO
S
U
R
E IN
STALLATIO
TD
5
RD
6
K
N
LP
AL
CD
SEE M
AN
UAL
BEFO
D
S
U
R
E IN
STALLATION
5
6
K
SEE
M
A
NU
AL BEF
O
RE IN
S
TA
LLA
TIO
N
LEFT
LEFT
23" ETSI, NEBS
Left (narrow) bracket
for 19-inch rack
Left bracket
for 23-inch rack
78-15162-01
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
5
Installing the Router in a Rack
Figure 5 Bracket Installation—Center Mounting with Front Panel Forward
Left bracket
for 23-inch rack
Figure 6 Bracket Installation—Center Mounting with Rear Panel Forward
23" ETSI, NEBS
LEFT
RIGHT
LEFT
Left (narrow) bracket
for 19-inch rack
RIGHT
Use two screws on each side.
RIGHT
Right (wide) bracket
for 19-inch rack
RIGHT
23" ETSI, NEBS
Right bracket
for 23-inch rack
82803
Right bracket
NM-HDV
B
A
N
K
4
BA
N
K
3
B
A
L
V
W
I
C
L
P
2
M
F
T
E
1
C
D
C
A
T
N
R
L
K
R
E
2
2
B
A
N
K
1
B
A
N
K
0
for 23-inch rack
Right (wide) bracket
for 19-inch rack
Installing the Router in a Rack
Install the chassis in the rack using the appropriate rack-mounting screws. Use two screws on each side.
Warning
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special
precautions to ensure that the system remains stable. The following guidelines are provided to
ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing
the unit in the rack.
S
E
E
M
A
N
U
A
L
B
E
F
O
R
E
I
N
S
T
A
L
L
A
T
C
I
O
T
N
R
TD
L
R
E
1
RD
LP
AL
CD
SE
E M
A
V
N
U
0
A
L B
D
E
S
FO
U
R
E
IN
S
TA
TD
LL
AT
56
RD
ION
K
E
N
LP
AL
CD
S
E
E
MA
N
U
AL
BE
D
S
FO
U
R
E
IN
S
TA
L
LA
5
TIO
6
K
N
S
E
E M
A
NU
A
L
B
EF
O
R
E IN
S
TAL
LA
T
IO
N
Use two screws on each side.
82690
LEFT
LEFT
Left (narrow) bracket
for 19-inch rack
Left bracket
for 23-inch rack
Note To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance
and Safety Information document that accompanied this device.
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
6
78-15162-01
What to Do After Installing the Router
After you have installed the router, refer to one or more of the following documents for information
about the required chassis grounding, LAN and WAN connections, power connections, and router
configuration:
• Quick start guide that shipped with your router
• Hardware installation guide, available on the CD-ROM that shipped with your router and online at
Cisco.com
• Cisco IOS software configuration documentation, available on the CD-ROM that shipped with your
router and online at Cisco.com
For additional information about obtaining documentation, see the “Obtaining Documentation” section
below.
Obtaining Documentation
These sections explain how to obtain documentation from Cisco Systems.
What to Do After Installing the Router
World Wide Web
You can access the most current Cisco documentation on the World Wide Web at this URL:
http://www.cisco.com
Translated documentation is available at this URL:
http://www.cisco.com/public/countries_languages.shtml
Documentation CD-ROM
Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM
package, which is shipped with your product. The Documentation CD-ROM is updated monthly and may
be more current than printed documentation. The CD-ROM package is available as a single unit or
through an annual subscription.
Ordering Documentation
You can order Cisco documentation in these ways:
• Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from
the Networking Products MarketPlace:
http://www.cisco.com/cgi-bin/order/order_root.pl
78-15162-01
• Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription
Store:
http://www.cisco.com/go/subscription
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
7
Obtaining Technical Assistance
• Nonregistered Cisco.com users can order documentation through a local account representative by
calling Cisco Systems Corporate Headquarters (California, U.S.A.) at 408 526-7208 or, elsewhere
in North America, by calling 800 553-NETS (6387).
Documentation Feedback
You can submit comments electronically on Cisco.com. In the Cisco Documentation home page, click
the Fax or Email option in the “Leave Feedback” section at the bottom of the page.
You can e-mail your comments to bug-doc@cisco.com.
You can submit your comments by mail by using the response card behind the front cover of your
document or by writing to the following address:
Cisco Systems
Attn: Document Resource Connection
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Obtaining Technical Assistance
Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can
obtain online documentation, troubleshooting tips, and sample configurations from online tools by using
the Cisco Technical Assistance Center (TAC) Web Site. Cisco.com registered users have complete access
to the technical support resources on the Cisco TAC Web Site.
Cisco.com
Cisco.com is the foundation of a suite of interactive, networked services that provides immediate, open
access to Cisco information, networking solutions, services, programs, and resources at any time, from
anywhere in the world.
Cisco.com is a highly integrated Internet application and a powerful, easy-to-use tool that provides a
broad range of features and services to help you with these tasks:
• Streamline business processes and improve productivity
• Resolve technical issues with online support
• Download and test software packages
• Order Cisco learning materials and merchandise
• Register for online skill assessment, training, and certification programs
If you want to obtain customized information and service, you can self-register on Cisco.com. To access
Cisco.com, go to this URL:
http://www.cisco.com
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
8
78-15162-01
Technical Assistance Center
The Cisco Technical Assistance Center (TAC) is available to all customers who need technical assistance
with a Cisco product, technology, or solution. Two levels of support are available: the Cisco TAC
Web Site and the Cisco TAC Escalation Center.
Cisco TAC inquiries are categorized according to the urgency of the issue:
• Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities,
product installation, or basic product configuration.
• Priority level 3 (P3)—Your network performance is degraded. Network functionality is noticeably
impaired, but most business operations continue.
• Priority level 2 (P2)—Your production network is severely degraded, affecting significant aspects
of business operations. No workaround is available.
• Priority level 1 (P1)—Your production network is down, and a critical impact to business operations
will occur if service is not restored quickly. No workaround is available.
The Cisco TAC resource that you choose is based on the priority of the problem and the conditions of
service contracts, when applicable.
Obtaining Technical Assistance
Cisco TAC Web Site
You can use the Cisco TAC Web Site to resolve P3 and P4 issues yourself, saving both cost and time.
The site provides around-the-clock access to online tools, knowledge bases, and software. To access the
Cisco TAC Web Site, go to this URL:
http://www.cisco.com/tac
All customers, partners, and resellers who have a valid Cisco service contract have complete access to
the technical support resources on the Cisco TAC Web Site. The Cisco TAC Web Site requires a
Cisco.com login ID and password. If you have a valid service contract but do not have a login ID or
password, go to this URL to register:
http://www.cisco.com/register/
If you are a Cisco.com registered user, and you cannot resolve your technical issues by using the Cisco
TAC Web Site, you can open a case online by using the TAC Case Open tool at this URL:
http://www.cisco.com/tac/caseopen
If you have Internet access, we recommend that you open P3 and P4 cases through the Cisco TAC
Web Si te.
Cisco TAC Escalation Center
The Cisco TAC Escalation Center addresses priority level 1 or priority level 2 issues. These
classifications are assigned when severe network degradation significantly impacts business operations.
When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer
automatically opens a case.
78-15162-01
To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to this URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
9
Obtaining Technical Assistance
Before calling, please check with your network operations center to determine the level of Cisco support
services to which your company is entitled: for example, SMARTnet, SMARTnet Onsite, or Network
Supported Accounts (NSA). When you call the center, please have available your service agreement
number and your product serial number.
