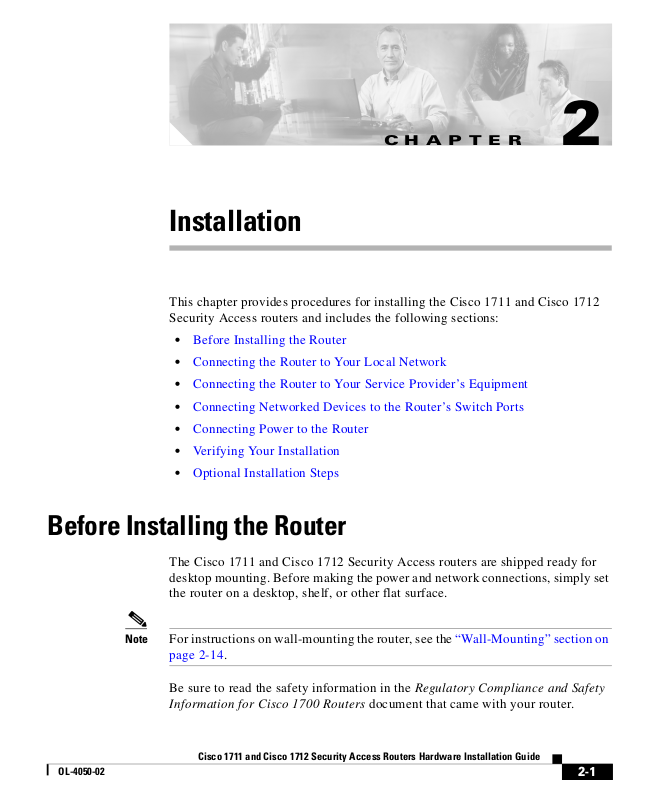

This chapter provides procedures for installing the Cisco 1711 and Cisco 1712 Security Access routers and includes the following sections:
Before Installing the Router
Connecting the Router to Your Local Network
Connecting the Router to Your Service Provider’s Equipment
Connecting Networked Devices to the Router’s Switch Ports
Connecting Power to the Router
Verifying Your Installation
Optional Installation Steps

Before Installing the Router

The Cisco 1711 and Cisco 1712 Security Access routers are shipped ready for desktop mounting. Before making the power and network connections, simply set the router on a desktop, shelf, or other flat surface.
Note For instructions on wall-mounting the router, see the “Wall-Mounting” section on
page 2-14.
Be sure to read the safety information in the Regulatory Compliance and Safety Information for Cisco 1700 Routers document that came with your router.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
2-1

Connecting the Router to Your Local Network

Chapter 2 Installation
Warning
Warning
Caution Do not place anything on top of the router that weighs more than 10 pounds
Read the installation instructions before you connect the system to its power source.
Do not work on the system or connect or disconnect cables during periods of lightning activity.
(4.5 kg). Excessive weight on top of the router could damage the chassis.
Connecting the Router to Your Local Network
The Cisco 1711 and Cisco 1712 Security Access routers are connected to your local Ethernet network through the yellow 10/100 Ethernet port. You must provide the following items for this connection:
A straight-through, RJ-45-to-RJ-45, Ethernet cable
A 10/100-Mbps Ethernet hub or switch
Warning
The ports labeled 10/100 ETHERNET and CONSOLE are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because BRI circuits are treated like telephone-network voltage, avoid connecting the SELV circuits to the telephone network voltage (TNV) circuits. (To see translated versions of this warning, refer to the Regulatory Compliance and Safety Information for Cisco 1700 Routers document that came with the router.)
2-2
Caution Always connect the Ethernet cable to the yellow ports on the router. Do not
connect the cable to an ISDN S/T or U port (on a WIC) or to an NT-1 that is connected to a WIC. Accidentally connecting the cable to the wrong port can damage your router.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Note For additional information and technical specifications about the 1-port analog
Connecting the Router to Your Local Network
The Cisco 1711 Security Access router is a fixed configuration router that includes a 1-port analog modem card (WIC-1-AM) that is installed in the WAN interface card (WIC) slot 1.
The Cisco 1712 Security Access router is a fixed configuration router that includes a 1-port Integrated Services Digital Network Basic Rate Interface (ISDN-BRI) S/T interface card (WIC-1B-S/T) that is installed in WIC slot 1.
Both the Cisco 1711 and Cisco 1712 Security Access routers also include an integrated 4-port 10/100-Mbps Ethernet switch in WIC slot 0, which is supported only on secure Cisco IOS images.
modem interface, WIC-1-AM card, refer to the V.90 Modem WAN Interface Cards
on the Cisco 1700 Series Routers.
For additional information and technical specifications about the 1-port ISDN BRI (S/T interface), WIC-1B-S/T card, refer to the Cisco 3600/2600 Series ISDN
BRI Connectivity Options.
OL-4050-02
Note The WIC-1-AM, WIC-1B-S/T and the Ethernet switch WIC are not field
replaceable.
To connect the Cisco 1711
Security Access router or the Cisco 1712 Security
Access router to the local network, follow these steps:
Step 1 Connect one end of the cable to the yellow Ethernet port (labeled
10/100 ETHERNET), as shown in Figure 2-1 on page 2-4.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-3
Connecting the Router to Your Local Network
Figure 2-1 Connecting the Router to the Local Network
W
IC
4E
S
W
4x
WIC0OK
3x
ACT LNK ACT LNK ACT LNK
2x
FDX
Cisco 1712
ACT LNK
1x
LINK100
C
O
N
10/100
E
T
H
E
R
N
ET
A
10/100
Ethernet port
Chapter 2 Installation
S
O
L
E
B1
B2
S
E
E
M
A
N
U
A
L
B
E
F
CD
O
R
E
IN
S
T
A
L
BRI
L
A
T
IO
U
X
MODOK
N
WIC1OK
S/T
+5, +12, -12 VDC
Modem
WIC-1AM
WIC-1-AM
SP CN OH
LINE 0PHONE
or
B2
B1
SEE MANUAL BEFORE INSTALLATION
WIC-1B-S/T
SEE MANUAL BEFORE INSTALLATION
CD
BRI S/T
2-4
AUI
8
7
6
5
4
3
2
1
Straight-through
Ethernet cable
Ethernet hub or switch
(10, 100, or 10/100 Mbps)
Step 2
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
Connect the other end of the cable to a network port on the hub or switch.
91650
OL-4050-02
Chapter 2 Installation

Connecting the Router to Your Service Provider’s Equipment

Connecting the Router to Your Service Provider’s Equipment
You can also connect the Cisco 1711 or Cisco 1712 Security Access router to your service provider’s broadband (xDSL or cable) modem equipment by following these steps:
Step 1 Connect one end of the cable to the yellow Ethernet port (labeled
10/100 ETHERNET). See Figure 2-2 for an illustration of this connection.
Figure 2-2 Connecting the Router to Your Service Provider’s Equipment
OL-4050-02
WIC 4ESW
A
C
T
L
4x
N
K
A
C
T
L
3
x
N
Cisco 1712
K
A
C
T
L
2x
N
K
A
C
T L
1x
W
IC
0O
K
F
D
X
N
K
100
L
IN
K
10/100
10/100 ETHERNET
CONSOLE
B1
B2
S
E E
M
A
N U
A
L
B
E
F
CD
O
R
E
IN
S
T
A
L
B
L
A
R
T
AUX
I
IO
N
S
/T
M
O
D
O
K
W
IC
1
O
K
+5, +12, -12 VDC
Modem
WIC-1AM
Ethernet port
1
2
Cable modem/DSL hub
Straight-through
Ethernet cable
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
WIC-1-AM
SP CN OH
LINE 0PHONE
or
B2
B1
SEE MANUAL BEFORE INSTALLATION
WIC-1B-S/T
CD
SEE MANUAL BEFORE INSTALLATION
BRI S/T
91718
2-5
Chapter 2 Installation

Connecting Networked Devices to the Router’s Switch Ports

Step 2 Connect the other end of the cable to a network port on your service provider’s
broadband (xDSL or cable) modem equipment
.
Connecting Networked Devices to the Router’s Switch Ports
The Cisco 1711 and Cisco 1712 Security Access routers support connections from a computer with a NIC or other networked device (such as hubs or switches) to the router’s integrated 4-port 10/100 Mbps Ethernet switch.
Follow these steps to connect other networked devices to the router’s switch ports:
Step 1 Connect one end of an Ethernet cable to the Ethernet Port (RJ-45) as shown in
Figure 2-3.
2-6
Figure 2-3 Connecting Networked Devices to the Router’s Switch Ports
WIC 4ESW
A
C
T L
4x
N
K
A
C
T L
3x
N
Cisco 1712
K
A
C T
L
2x
N
K
A
C
T L
1x
W
IC
0
N
O
K
F
D
X
1
0
0
Ethernet port
CONSOLE
K
L
IN
K
B1
B2
SEE MANUAL BEFORE INSTALLATION
CD
B
R
AUX
I
S
/T
M
O
D
O
K
W
IC
1
O
K
+5, +12, -12 VDC
Modem
WIC-1AM
(RJ-45)
WIC-1B-S/T
1
2
3
4
5
6
Straight-through
Ethernet cable
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
Ethernet hub
WIC-1-AM
SP CN OH
LINE 0PHONE
or
B2
B1
TIO
A
LL
A
T
S
IN
E
R
FO
E
L B
A
U
N
A
M
E
E
S
SEE MANUAL BEFORE INSTALLATION
BRI
CD
S/T
N
91622
OL-4050-02
Chapter 2 Installation
Step 2 Connect the other end of the cable to a port on the hub, switch, or the Ethernet
Note If you are connecting a computer to the router’s switch port, it will take about

Connecting Power to the Router

port on your computer.
Note The example provided in Figure 2-3 on page 2-6 shows connectivity to
a hub. The router’s Ethernet switch port can be connected to other networked devices, such as a switch or computer with a NIC. If you are connecting the router’s switch port to another switch, use a crossover cable.
30 seconds for connectivity to be established due to the Spanning-Tree Protocol (STP) disabling the ports until a loop-free topology is determined. When you use this type of connection, you must configure the spanning-tree portfast command on the router’s switch port. The spanning-tree portfast command causes a spanning tree port to enter the forwarding state immediately, bypassing the listening and learning states.
Caution You can use the portfast feature on switch ports that are connected to a single
workstation or PC only to allow those devices to connect to the network immediately, rather than waiting for spanning tree to converge. Do not use the portfast feature on ports that are connected to networking devices such as hubs, routers, switches, bridges, or concentrators.
Connecting Power to the Router
Read the following warnings before connecting the router to power.
Warning
OL-4050-02
The power supply is designed to work with TN power systems.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-7
Connecting Power to the Router
Chapter 2 Installation
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120VAC, 15AU.S. (240VAC, 16A international) is used on the phase conductors (all current-carrying conductors).
Warning
This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use.
Follow these steps to connect power to the router and to turn the router on:
Step 1 Connect the attached power-supply cord to the power socket (labeled +5, +12,
-12 VDC) on the router rear panel, as shown in Figure 2-4 on page 2-9.
2-8
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Figure 2-4 Connecting the Power Supply
W
IC
4
E S
W
ACT LNK
4x
ACT LNK
WIC0OK
3x
ACT LNK
2x
ACT LNK
1x
C
O
N
S
O
L
FDX
100
LINK
10/100 ETHERNET
E
A
U
X
Cisco 1701
B1
B2
SEE MANUAL BEFORE INSTALLATIO
MODOK
Connecting Power to the Router
CD
B
R
I
N
S
/T
WIC1OK
+5, +12, -12 VD
C
OL-4050-02
Separate
power cord
Power supply
Attached
power supply cord
Power socket
Modem
WIC-1AM
WIC-1-AM
SP CN OH
or
B2
B1
SEE MANUAL BEFORE INSTALLATION
SEE MANUAL BEFORE INSTALLATION
LINE 0PHONE
BRI
CD
S/T
WIC-1B-S/T
Step 2
Connect one end of the separate power cord to the socket on the power supply.
Step 3 Connect the other end of the separate power cord to a power outlet.
Step 4 Press the router power switch to ON ( | ).
Step 5 Confirm that the router has power by checking that the PWR LED on the front
panel is on.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-9
91651

Verifying Your Installation

Verifying Your Installation
You can verify that you have correctly installed the router by checking the following LEDs:
PWR (front panel)—On when power is being supplied to the router.
OK (front panel)—On when the router software is loaded and functional.
Blinking means that the router is performing a power-on self-test (POST).
WIC0/WIC1 OK (back panel)—On when a WIC is correctly installed in the
corresponding WIC slot.
ETH ACT (front panel)—Blinking when there is network traffic on the local
10/100 Ethernet LAN.
WIC0ACT or WIC1 ACT (front panel)—See Tab le 1-3.
LINK (back panel)—On when the router is correctly connected to the local
Ethernet LAN through the 10/100 ETHERNET port.
MOD OK (back panel)—On when the VPN hardware encryption module is
installed and recognized by IOS.
Chapter 2 Installation

Optional Installation Steps

This section describes some installation steps that you might or might not use, depending on your site and on how you are configuring the router. This section describes the following procedures:
Connecting a PC to the Router’s Console Port
Connecting a Modem on the AUX Port
Wall-Mounting
Stacking the Router
Unstacking the Router
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-10
OL-4050-02
Chapter 2 Installation

Connecting a PC to the Router’s Console Port

If you want to configure the router by using the Cisco IOS command-line interface, you must connect the router console port to a terminal or PC. The cable and adapter required for this connection are included with the router.
To configure the router by using a PC, the PC must have some type of terminal emulation software installed. The software should be configured with the following parameters:
9600 baud
8 data bits
No parity bits
1 stop bit
Note Refer to the Cisco 1700 Router Software Configuration Guide for detailed
information about configuring the router using Cisco IOS software.
To connect the Cisco 1711 or Cisco 1712 Security Access router to a terminal or PC, follow these steps:
Optional Installation Steps
OL-4050-02
Step 1 Connect the blue console cable to the blue console port on the back of the router,
as shown in Figure 2-5 on page 2-12.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-11
Optional Installation Steps
Figure 2-5 Connecting the Console Cable to the Router
Cisco 1701
Blue console cable
WIC0OK
Chapter 2 Installation
WIC 4ESW
ACT LNK
4x
ACT LNK
3x
ACT LNK
2x
ACT LNK
1x
FDX
100
LINK
10/100 ETHERNET
CONSOLE
AUX
Console port
B1
B2
SEE MANUAL BEFORE INSTALLATION
MODOK
WIC1OK
CD
BRI S/T
Modem
WIC-1AM
WIC-1-AM
SP CN OH
SEE MANUAL BEFORE INSTALLATION
LINE 0PHONE
+5, +12, -12 VDC
or
To PC or terminal
Step 2
Connect the DB-9 end of the console cable to the console port (also called the serial port) on your PC. If this adapter does not fit your PC console port, you must provide an adapter that fits.

Connecting a Modem on the AUX Port

When a modem is connected to the auxiliary port, a remote user can dial into the router and configure it. You can use the blue console cable that came in the accessory kit.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-12
B2
B1
SEE MANUAL BEFORE INSTALLATION
WIC-1B-S/T
OL-4050-02
BRI
CD
S/T
91652
Chapter 2 Installation
Note An external modem is not required for use on the Cisco 1711 Security Access
Step 1 Connect the RJ-45 end of the cable to the black AUX port on the back of the
Optional Installation Steps
router WIC-1-AM card.
Follow these steps to connect a modem to the router, using the console cable:
router, as shown in Figure 2-6.
Figure 2-6 Connecting a Modem to the Router’s AUX Port
OL-4050-02
Cisco 17xx
WIC0OK
Console cable
W
IC
4
E
S
W
AC
T LNK
4x
A
CT LNK
3x
ACT LN
2x
K
A
CT LN
1x
FDX
100
LINK
AUX port (RJ-45)
Modem
K
10/100 ETHERNET
C
O
N
S
O
L
E
B1
B2
S
E
E
M
A
N
U
A
L
B
E
F
CD
O
R
E
IN
S
T
A
L
BRI
L
A T
IO
A
U
X
MODOK
N
WIC1OK
S/T
+5, +12, -12 VDC
Modem
WIC-1AM
WIC-1-AM
B2
B1
SEE MANUAL BEFORE INSTALLATION
WIC-1B-S/T
DB-9-to-DB-25 adapter
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
or
SEE
SP
MANUAL
CN
BEFORE
OH
INSTALLATION
LINE 0PHONE
BRI
CD
S/T
91653
2-13
Optional Installation Steps
Step 2 Connect the DB-9 end of the cable to the DB-9 end of the DB-9-to-DB-25 adapter.
Step 3 Connect the DB-25 end of the adapter to the modem.

Wall-Mounting

The Cisco 1711 and Cisco 1712 Security Access routers can be wall-mounted using two number six, 3/4-inch screws and the molded mounting brackets on the bottom of the hub, as shown in Figure 2-7. You must provide the screws. We recommend using pan-head or round-head screws.
Figure 2-7 Wall-Mount Brackets—Bottom of Router
Chapter 2 Installation
Front panel of router
2-14
Mounting
bracket
Bottom
of router
Mounting
bracket
3.75"
(9.52 cm)
Mounting bracket
Mounting bracket
12016
To mount the router on a wall or other surface:
Step 1 Install the two screws 3.75 inches (9.52 centimeters) horizontally apart on a wall
or other vertical surface.
The screws should protrude 0.25 inch (0.64 centimeter) from the surface of the wall.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Step 2 Hang the router on the screws with either the left side or right side mounting
brackets so that
The LEDs are visible to the user—Because the LEDs indicate the router
operating status, they need to be easily visible.
The power supply does not hang from its cable—If the power supply is not
supported, it might disconnect from the cable that connects it to the router.
Caution If you install the screws in drywall, use hollow-wall anchors (1/8 inch
by 5/16 inch) to secure the screws. If the screws are not properly anchored, the strain of the cables connected to the router rear-panel connectors could pull the router from the wall.

Stacking the Router

You can stack one Cisco 1711 Security Access router and/or one Cisco 1712 Security Access router in a four-device stack, along with other Cisco products designed to be stacked with the router. You can stack each device directly on top of another device.
Optional Installation Steps
OL-4050-02
Note The Cisco 1711 and Cisco 1712 Security Access routers are not shipped with the
stacking equipment described in this section; however, the equipment is included with all other Cisco products that are designed to be stacked.
Each Cisco product designed to be stacked with the router comes with a stacking clip and a fastener for keeping the multiple devices together in a stack. Before you stack the devices, assemble the clip and fastener as shown in Figure 2-8 on
page 2-16.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-15
Optional Installation Steps
Figure 2-8 Assembling Stacking Clip and Fastener
Chapter 2 Installation
Push plastic fastener
through small hole
at the end of the
stacking clip.
H11542
2-16
After assembling the clip and fastener, follow these steps to stack the router with another device:
Step 1 Place the clip on top of the lower device, as shown in Figure 2-9 on page 2-17.
Slide the clip forward so that the front tabs slide into the vent slots. Make sure that the rear hooks fit over the edge of the lower device.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Chapter 2 Installation
Figure 2-9 Stacking the Router
W
I C
4
E S
W
ACT L
4x
7xx
Front
tabs
NK
ACT L
3x
NK
ACT L
2x
NK
W
ACT L
1x
LINK
NK
10/100 ETHERNET
CONSOLE
AUX
IC0OK
FDX
100
Cisco 1
Plastic
fastener
Bottom of router
M
OD OK
W
IC
1
OK
+5, +12, -12
Optional Installation Steps
VD
C
OL-4050-02
SPEED
100BaseTX
LED
10BaseT
SOLID
1
2
3
BLINK
4
5
6
7
8
5X 6X 7X
8X
Rear
hooks
MDI MDI-X
91654
SEE MANUAL BEFORE INSTALLATION
LINE 0PHONE
Modem
WIC-1AM
WIC-1-AM
SP CN OH
Rear
hooks
Back panel of
lower hub
or
B1
SEE MANUAL BEFORE INSTALLATION
S/T
BRI
CD
B2
WIC-1B-S/T
Step 2
Position the router onto the clips so that the rear hooks fit over the edge of the router.
Step 3 Snap the router to the clip by pushing it down. Make sure that the plastic fastener
fits into the bottom of the router.
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-17
Optional Installation Steps

Unstacking the Router

Follow these steps to unstack the router from another device:
Step 1 Press up on the tab over the center of the lower device to release the clip from the
vent, as shown in Figure 2-10.
Figure 2-10 Unstacking the Router
3
2
W
IC
4
E
S
W
A
C
T LN
4x
K
AC
T LN
Cisco 17xx
3x
K
A
C
T LN
2x
K
A
C
T LN
WIC0
OK
1x
K
FDX
LINK100
10
10/100 ETHERNET
/100 E
1
SPEED
100BaseTX
10BaseT
T
SOLID BLINK
Chapter 2 Installation
C
O
N
SOLE
H
E
R
N
E
T
AU
X
LED
1
2
3
4
5
6
7
8
MOD OK
W
IC
1
OK
+
5
, +
1
2
,
-1 2
V
D
C
5X
6X
7X
8X
MDI MDI-X
2-18
WIC-1-AM
SEE
SP
MANUAL
CN
Modem
WIC-1AM
BEFORE
OH
INSTALLATION
LINE 0PHONE
or
BRI
CD
B2
B1
SEE MANUAL BEFORE INSTALLATION
WIC-1B-S/T
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
S/T
91655
OL-4050-02
Chapter 2 Installation
Step 2 Slide the clip and router toward you.
Step 3 Use both hands to lift the router and the stacking clip off the lower device.
Optional Installation Steps
Afterward, remove the clip from the bottom of the router.
OL-4050-02
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
2-19
Optional Installation Steps
Chapter 2 Installation
2-20
Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide
OL-4050-02
Loading...
