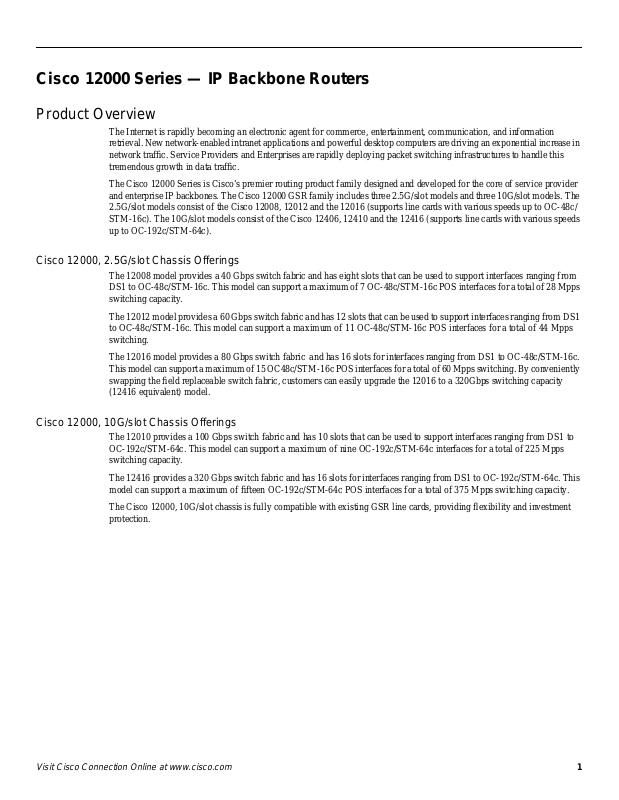

Cisco 12000 Series — IP Backbone Routers

Product Overview

The Internet is rapidly becoming an electronic agent for commerce, entertainment, communication, and information retrieval.New network-enabled intranet applications and powerfuldesktop computers are driving an exponential increase in network trafﬁc. Service Providers and Enterprises are rapidly deploying packet switching infrastructures to handle this tremendous growth in data trafﬁc.

The Cisco 12000 Series is Cisco’s premier routing product family designed and developed for the core of service provider and enterprise IP backbones. The Cisco 12000 GSR family includes three 2.5G/slot models and three 10G/slot models. The

2.5G/slot models consist of the Cisco 12008, 12012 and the 12016 (supports line cards with various speeds up to OC-48c/ STM-16c). The 10G/slot models consist of the Cisco 12406, 12410 and the 12416 (supports line cards with various speeds up to OC-192c/STM-64c).

Cisco 12000, 2.5G/slot Chassis Offerings

The 12008 model provides a 40 Gbps switch fabric and has eight slots that can be used to support interfaces ranging from DS1 to OC-48c/STM-16c.This model can support amaximum of 7 OC-48c/STM-16c POS interfaces for atotal of 28 Mpps switching capacity.

The 12012 model provides a 60 Gbps switch fabricand has 12 slots that can be used to support interfaces ranging from DS1 to OC-48c/STM-16c. This model can support a maximum of 11 OC-48c/STM-16c POS interfaces for a total of 44 Mpps switching.

The 12016 model provides a 80 Gbps switch fabric and has 16 slots for interfaces ranging from DS1 to OC-48c/STM-16c. This model can support amaximumof 15 OC48c/STM-16c POS interfacesforatotal of 60 Mpps switching.Byconveniently swapping the ﬁeld replaceable switch fabric, customers can easily upgrade the 12016 to a 320Gbps switching capacity (12416 equivalent) model.

Cisco 12000, 10G/slot Chassis Offerings

The 12010 provides a 100 Gbps switch fabric and has 10 slots that can be used to support interfaces ranging from DS1 to OC-192c/STM-64c. This model can support a maximum of nine OC-192c/STM-64c interfaces for a total of 225 Mpps switching capacity.

The 12416 provides a 320 Gbps switch fabric and has 16 slots for interfaces ranging from DS1 to OC-192c/STM-64c. This model can support a maximum of ﬁfteen OC-192c/STM-64c POS interfaces for a total of 375 Mpps switching capacity.

The Cisco 12000, 10G/slot chassis is fully compatible with existing GSR line cards, providing ﬂexibility and investment protection.

Visit Cisco Connection Online at www.cisco.com

Figure 18-2: Cisco 12008 Series, Front View

EJECT

SLOT-0

SLOT-1

RESET

AUX

CONSOLE

LINK

COLL

MII

RJ-45

GIGABIT ROUTE PROCESSOR

Alarm

ACO/LT

Alarms

Critical

Major

Minor

CSC

Fail

Enabled

Fan

Fail

PWR SPLY

LINECARD

PWR SPLY

LINECARD

SFC

Fail

Enabled

CSC-8

12082

The Cisco 12000 Series products are built to meet the bandwidth, performance, services and reliability requirements of today’s IP core backbones.

Scalable Bandwidth

• Modular, multigigabit crossbar switching fabric allows bandwidth to scale in either 40Gbps (12008), 60Gbps (12012),

80Gbps (12016), 200Gbps (12410) or 320Gbps (12416).

• High density, high speed interfaces ranging from DS1 to OC-192c/STM64c, that can be easily added as needed.

• Packet over SONET/SDH interfaces at 155 Mbps (OC3/STM1), 622 Mbps (OC12c/STM4c), 2.5 Gbps (OC48c/

STM16c), and 10Gbps (OC192c/STM64c) data rates.

• Asynchronous Transfer Mode (ATM) interfaces at 155 Mbps (OC3/STM1) and 622 Mbps (OC12c/STM4c) data rates

• LAN interfaces 1 Gbps (Gigabit Ethernet) and others to follow

• Frame based interfaces (PPP, Frame Relay) at 45 Mbps (DS3), 155 Mbps (OC3/STM1), 622 Mbps (OC12c/STM4c)

• Channelized interfaces at622 Mbps (OC-12) channelized to 45 Mbps (DS-3), 622 Mbps (OC-12/STM-4) channelizedto

155 Mbps (OC-3/STM-1), and 45 Mbps (T3) channelized to DS-1 (1.5Mbps)

• Scalable Performance

• Innovative switch fabric design supports virtual output queues (VoQs) that eliminate head-of-line blocking (HOLB) and

increaseoverallsystemefﬁciencyandsupportspartial fulﬁllment for multicast trafﬁc where replication ofmulticasttrafﬁc is performed by the switch fabric.

• Distributed architecture delivers scalable Layer 3 switching performance through intelligent line cards that can be added

incremental interfaces are required

• Micro-programmable application speciﬁc integrated circuits (ASICs) based queuing provides line rate forwarding for

unicast and multicast trafﬁc that ﬁlls SONET/SDH transmission facilities to capacity, ensuring best return on investment on expensive bandwidth

Scalable Services

• Industry leading Cisco IOS software

2 Cisco Product Catalog, December, 2000

• State of the art queuing and congestion management techniques: Random Early Detection (RED), Weighted RED

(WRED) and Deﬁcit Round Robin (DRR) that provides an enhanced Weighted Fair Queuing mechanism

• MPLS Switching support to deliver the scalable trafﬁc engineering features

• Carrier Class Design

• Redundancy in all key system components, i.e. processors, switch fabric, line cards, power and cooling, to minimize

network disruption in the event of a failure

• Hot-swap capability enables components to be added or removed without service disruption

• Switch fabric redundancy provides fail-over to backup fabric with no data or user session loss

• APS/MPS enables SONET/SDH resiliency capabilities for providing interface redundancy

• NetworkEquipmentBuilding System (NEBS) and EuropeanTelecommunications StandardsInstitute(ETSI) compliance

for installation in service provider central-ofﬁces.

Key Features and Beneﬁts

Cisco 12000 Series Architecture

System Level The Cisco 12000 Series is based on a high speed distributed routing architecture combined with state-of-the-art switching

core that delivers Layer 3 routing at gigabit speeds. TheCisco 12000 Series is optimizedforperformingroutingand packet forwarding functions to transport IPdatagramsacross

a network. The routing function is performed in the Gigabit Route Processors (GRP) responsible for running the routing protocols and building the routing tables from the network topology. This information is then used to build the forwarding tables distributed to the line cards. In addition, the GRP is also responsible for the system control and administrative functions.

• The packet forwarding functions are performed by each of the line card (LC). A copy of the forwarding tables computed

by the GRP is distributed to each of the line cards in the system. Each line card performs independent lookup of a destinationaddress for each datagram received on a local copyoftheforwardingtable and the datagram is switchedacross a crossbar switch fabric to the destination line card.

All cards areinstalled from the frontof the chassisand plug into a passive backplane. This backplanecontains serial lines that interconnect all of the line cards to the switch fabric cards as well as other connections for power and maintenance functions. Each slot in the Cisco 12000 Series has up to 4 serial line connections (1.25 Gbps), one to each of the switch fabric cards (see below) to provide a total capacity of 5 Gbps per slot (2.5 Gbps full duplex). The 12410/12416 utilizes 4 sets of 4 serial line connections in each slot, providing each slot with a switching capacity of 10 Gbps full duplex.

• Switch Fabric

At the heart of the Cisco 12000 Series is a multi-gigabit crossbar switch fabric that is optimized to providehigh capacity switching at gigabit rates.The crossbar switch enableshigh performance for tworeasons: connections from theline cards to a centralized fabric are point-to-point links that can operate at very high speeds; multiple bus transactions can be supported simultaneously increasingthe aggregate bandwidth ofthe system. ACisco 12000 Seriesswitching fabric must be conﬁgured to full fabric(40Gbps for 12008, 60Gbpsfor 12012, 80 Gbpsfor12016, 200Gbps for 12410,and320Gbps for 12416) in order to support all the currentline cards. Please note that the number of fabriccards needed to be installed for a full fabric set will differ according to each chassis.

The switch fabric includes twocard types: Switch FabricCards(SFC) and Clock andSchedulerCards (CSC). Each Cisco 12000 Series must haveat least one CSCin the chassis.The CSC handles requestsfrom line cards,issues grants to access the fabric and provides a reference clock to all the cards in the system to synchronize data transfer across the crossbar. The SFC receives the scheduling information and clocking reference from the CSC cards and performs the switching functions.

Visit Cisco Connection Online at www.cisco.com

It provides the following key functions:

• Gigabit speed interconnections between line cards (5 Gbps per slot)

• State-of-the-art scheduling algorithm combined with Virtual Output Queues to eliminate head-of-line blocking (HOLB)

achieving 99% efﬁciency

• Hardware based multicast

• High Availability via redundancy (1:4 for SFC, 1:1 for CSC) with loss-less failover and hot-swap capability.

• Gigabit Route Processor

The Gigabit Route Processor (GRP) is a high performance engine that provides the routing intelligence for the Cisco 12000 Series. It is dedicated to determining the network topology and calculating the best path across the network. The GRP has the following hardware characteristics:

• 200 MHz R5000 CPU

• 128MB CPU DRAM default for 2.5Gbps packet forwarding line cards or below

• 256 CPU DRAM default for 10Gbps packet forwarding line cards (OC192c/STM-64c and 4OC48c/STM-16c)

• 512 KB Layer 2 cache

• 512 KB conﬁguration NVRAM

• 8 MB boot Flash

• Two PCCMIA Type II software upgrades

• Ethernet (RJ45 and MII connectors) for Network Management access

• Local Console and modem ports (DB-25 EIA/TIA-232c)

It provides the following key functions:

• Process Interior Gateway Protocols (IGP) such as IS-IS, IGRP, EIGRP to determine the network topology

• Process External Gateway Protocols (EGP) such as BGP

• Create and maintain the routing table (up to 1 million route entries)

• Distribute and update Express Forwarding(EF) tables on the line cards and maintain copies of each linecard’s EF tables

for card initialization

• General maintenance functions such as diagnostics, console support and line card monitoring

• In-band management through SNMP MIB, Telnet, BOOTP and TFTP

• Line Card

Line cards connectthe Cisco 12000Series to otherdevices via electrical or optical media. The line cards are designed for the transmission of IP packets over PPP,Frame Relay or ATM interfaces. The features and functions ofthe line cards are interface speciﬁc.

Packet over SONET/SDH (POS)

POS interfaces on the Cisco 12000 Series enable connections to other Cisco 12000 Series or other Cisco routers, such as Cisco 7500 or 7200 via optical interfaces.These interfaces can be circuits provisioned over a SONET/SDH infrastructureor dark ﬁbers (native ﬁber links) connectionsorwavelengthsofWaveDivisionMultiplexing(WDM) systems. The Cisco12000 Series offers the following POS interfaces:

• 4 OC3/STM1 port per line card

• 1 OC12c/STM4c ports per line card

• 4 OC12c/STM4c ports per line card

• 6 Channelized T3 ports to (DS1) per line card

• 1 Channelized OC12 port (to DS3) per line card

4 Cisco Product Catalog, December, 2000

• 1 Channelized OC12/STM4 port (to STS3c/STM1) per line card

• 1 OC48c/STM16c ports per line card

• 4 OC48c/STM16c ports per line card

• 1 OC192c/STM64c port per line card

Asynchronous Transfer Mode (ATM)

ATM interfaces on the Cisco 12000 Series enable connections to other Cisco 12000 Series or other Cisco routers, such as Cisco 7500 or 7200 via ATM networks. The Cisco 12000 Series offers the following ATM interfaces:

• 4 OC3c/STM1c ports per line card

• 1 OC12c/STM4c ports per line card

Ethernet

Gigabit Ethernet (GE) and Fast Ethernet (FE) interfaces on the Cisco 12000 Series enable connections to other Cisco 12000 Series or other Cisco routers, such as Cisco 7500 or 7200 via ﬁber optic links. The Cisco 12000 Series offers the following Gigabit Ethernet interfaces:

• 1 GE port per line card

• 3 GE port per line card

• 8 port FE line card

Dynamic Packet Transport (DPT)

Based on the Spatial Reuse Protocol (SRP), Cisco's Dynamic Packet Transport (DPT) technology is a media-independent MAC layer implementation that operates over a dual ring network topology. DPT transports IP packets over long transmission distances at multi-gigabit speeds, while providing support for bandwidth scalability and packet survivability. DPT interfaces on the Cisco 12000 Series enable connections to other Cisco 12000 Series, Cisco 7200 or 7500 routers, and ONS 15190 IP Transport Concentrators. The Cisco 12000 Series offers the following DPT interfaces:

• 2 OC12c/STM4c ports per line card

• OC-48 one-port line card

Speciﬁcations

Hardware

Table 18-13: Power Requirements for the Cisco12000 Chassis Specification 12008 12012 12016/12416 12410

DC Input Voltage (nominal) -48 or -60 VDC -48 or -60 VDC -48 or -60 VDC -48 or -60 VDC DC Input Voltage (range) -40.5 to -75 VDC -40.5 to -75 VDC -40.5 to -75 VDC -40.5 to -75 VDC

AC Input Voltage (nominal) 200, 208, 220, 240 VAC (50/

60 Hz)

AC Input Voltage (range) 180-264 VAC (47-63 Hz) 180-264 VAC (47-63 Hz) 170-264 VAC (47-63 Hz) 170-264 VAC (47-63 Hz)

200, 208, 220, 240 VAC (50/ 60 Hz)

Input Supply Power (each) DC: 1620 W (1 each) DC: 2381 W (1 each) DC: 2105 W (2 each) DC: 2430 W (1 each)

AC: 1932 VA (1 each) AC: 1475 VA (2 each) AC: 2477 VA (2 each) AC: 2791 VA (1 each)

Visit Cisco Connection Online at www.cisco.com

Specification 12008 12012 12016/12416 12410

Input Supply Power (total) DC: 1620 W (1 each) DC: 2381 W (1 each) DC: 4210 W (2 each) DC: 2430 W (1 each)

AC: 1932 VA (1 each) AC: 2950 VA (2 each) AC: 4954 VA (2 each) AC: 2791 VA (1 each)

DC Input Current (each maximum)

AC Input Current (each maximum)

Input Cabinet Power (max) DC: 1620 W DC: 2381 W DC: 4210 W DC: 2430 W

Heat Dissipation (total maximum)

Power Supply Conﬁguration DC: 1 min, 2 for 2N Redund. DC: 1 min, 2 for 2N Redund. DC: 4 req for 2N Redund. DC: 2 req for 2N Redund.

40.0A max. at -40.5VDC 58.8A max. at -40.5VDC 52.0A max. at -40.5VDC 60.0A max. at -40.5VDC

33.8A max. at -48VDC 49.6A max. at -48VDC 43.9A max. at -48VDC 50.0A max. at -48VDC

27.0A max. at -60 VDC 39.7A max. at -60 VDC 35.1A max. at -60 VDC 40.0A max. at -60 VDC

21.6A max. at -75 VDC 31.7A max. at -75 VDC 28.1A max. at -75 VDC 32.0A max. at -75 VDC

10.7 A max. at 180VAC 8.2A max. at 180VAC 14.6A max. at 170VAC 16.4A max. at 170VAC

9.7A max. at 200VAC 7.4A max. at 200VAC 12.4A max. at 200VAC 14.0A max. at 200VAC

9.3A max. at 208VAC 7.1A max. at 208VAC 11.9A max. at 208VAC 13.4A max. at 208VAC

8.8A max. at 220VAC 6.7A max. at 220VAC 11.2A max. at 220VAC 12.7A max. at 220VAC

8.1A max. at 240VAC 6.1A max. at 240VAC 10.3A max. at 240VAC 11.6A max. at 240VAC

7.3A max. at 264VAC 5.6A max. at 264VAC 9.4A max. at 264VAC 10.6A max. at 264VAC

AC: 1835 W AC: 2801 W AC: 4706 W AC: 2791 W

DC: 1620W@5,530 Btu/hr DC: 2381W@8,129 Btu/hr DC: 4210W@14,373 Btu/hr DC: 2430W@8,296 Btu/hr AC: 1835W@6,265 Btu/hr AC: 2801W@9,563 Btu/hr AC: 4706W@16,066 Btu/hr AC: 2791W@9,528 Btu/hr

AC: 1 min, 2 for 2N Redund. AC: 2 min, 3 for N+1

Redund.

AC: 3 req for N+1 Redund. AC: 2 req for 2N Redund.

AC: 4 req for 2N Red.

Notes: Power calculations are

Table 18-14: Physical and Environmental Speciﬁcations for the Cisco 12000 Description Cisco 12008 Cisco 12012 Cisco 12016/12416 Cisco 12410

Vibration/ Noise level

Temperature Operating 32 to 104˚F (0 to 40˚C) Same as Cisco 12008 Same as Cisco 12008 32 to 122˚F (0 to 50˚C)

Humidity Operating 10 to 85% noncondensing Same as Cisco 12008 Same as Cisco 12008 10 to 85% noncondensing

Operating 5 to 200 Hz, 0.5 g (1 oct/min.) Same as Cisco 12008 Same as Cisco 12008 0.35 Grms from 3 to 500 Hz Storage 200 to 500 Hz, 2 g (1 oct/min.) Same as Cisco 12008 Same as Cisco 12008 1.0 Grms from 3 to 500 Hz

Storage -4 to 149˚F (-20 to 65˚C) Same as Cisco 12008 Same as Cisco 12008 -4 to 149˚F (-20 to 65˚C)

Storage 5 to 90% noncondensing Same as Cisco 12008 Same as Cisco 12008 5 to 95% noncondensing

maximum to support seven1 port OC48 line cards

AC input poweris limited to 1100VA before power supply upgrade.

Power calculations are maximum to support eleven 1 port OC48 line cards

Power calculations are maximum to support ﬁfteen 1 port OC-48 cards for 12016; and ﬁfteen 1 port OC192c/STM-64c line cards

Power calculations are maximum to support eight 1 port OC192c/STM-64c line cards

6 Cisco Product Catalog, December, 2000

Description Cisco 12008 Cisco 12012 Cisco 12016/12416 Cisco 12410

Dimensions (H x W x D)

Weight Unit 187 lbs (84.9 kg) 380 lb (172.5 kg) 415lb(188 kg);

Unit 24.85 x 17.4 x 21.2 in.

(63.1 x 44.2 x 53.8 cm)

Shipping 33.5 x 25.0 x 39.5 in.

(90.2 x 63.5 x 1003. cm)

Shipping 220 lbs (100 kg) 492 lb (223.4 kg) 580lb(263.6kg);

56.0 x 17.3 x 21.0 in. (142.2 x 43.9 x 53.3 cm)

67.0 x 24.88 x 39.39 in. (170.2 x 63.2 x 100 cm)

72.5 x 118.75 x 22.0 in. (184.2 x 47.6 x 55.9 cm) Includes front covers,

rack mount ﬂanges, and cable-management system

89 X 34 X 40 in. (226 x 86.3 x 101.6 cm)

440 lb (220 kg) for 4AC Conﬁguration

620 lb (281.2 kg) for 4 AC Conﬁguration

37.0 x 17.39 x 23.0 in (93.98 x 44.17 x 58.42 cm)

Not Available

275 lb (124.74 kg)

Not Available

Line Card and GRP Memory Options

There are two conﬁgurable memory types on the GRP:

• Flash (PCMCIA)

• DRAM used to hold system software, routing tables, and other data

Default GRP memory is 20 MB PCMCIA Flash, and 128 MB DRAM, expandable to 256 MB There are two conﬁgurable memory types on each of the Cisco 12000 line cards:

Software

• Packet memory (buffers)

Default packet memory: 128 MB (64 MB Tx, 64 MB Rx) for Engine 0 or 256 MB (128 MB Tx/128 MB Rx) for Engine 1 and 2 - Line card

dependent 512 MB (256 MB Tx, 256 MB Rx) for Engine 4; optional upgrade of (512 MB Tx, 512 MB Rx)

• Route table memory

Default route table memory is: 128MB for line cards with 2.5Gbps packet forwarding engines(Engine 0, 1, and 2) 256MB for line cards with 10Gbps packet forwarding engines.

The system software is based on IOS Version 11.2 or IOS Version 12.0(S), but it has been optimized to support IP only. A software license is required for each Cisco 12000 series system. The license must accompany each system and chassis purchase, and is tied to the Cisco 12000 chassis serial number.If you are ordering only Cisco 12000 GSR spares, you need not order a software license.

Table 18-15: Software Features for Cisco 12000 Series

Routing Protocols Interior: RIP, OSPF, IS-IS, ISO/CLNP, EIGRP, EGP

Exterior: BGP

Routed Protocols TCP/IP, UDP/IP

Visit Cisco Connection Online at www.cisco.com

BGP4 Support • Route Reﬂections

Management SNMP, Telnet, MIB II

Ordering Information

Where to buy Cisco products

Visit http://www.cisco.com/public/ordering_info.shtml

Conﬁguration Guidelines

This section provides helpful information for planning your Cisco 12000 and chassis conﬁguration. The Cisco 12008 supports eight slots andthe Cisco 12012 supports12 slots. Eitherone ortwo of the slotsare used forgigabit routeprocessors, depending upon whether redundancy is required. In the Cisco 12012, 11 slots are available for a variety of fully hotswappable line cards. Seven such slots are available in the Cisco 12008.

• MED (Multi-Exit Discriminators)

• Communities

• DPA (Destination Preference Attribute)

• Flat/Weighted Route Dampening

• Confederations

• Next Hop-Self

• GP Multipath

• Static Routing (IGP)

Cisco 12000 Series chassis slots are universal and can be populated with any combination of GRPs and line cards. The following table shows one possible conﬁguration.

Table 18-16: Slot Guidelines for Cisco 12008, Cisco 12012, and Cisco 12016/12416 Slot Number Cisco 12008 Cisco 12012 Cisco 12016/12416

0 GRP GRP GRP 1 Redundant GRP (if required) or line

card 2 - 3 Line card Line card Line card 4 - 7 Line card Line card Line card 8-11 N/A Redundant GRP for slot 11 or Line

12-15 N/A N/A Line card

Table 18-17: Slot Guidelines for Cisco 12000 Series Slot Number Cisco 12008

0 GRP 1 - 8 Line card 9 Redundant GRP or Line card 10-15 N/A

Line card Redundant GRP (if required) or line

card

Line card

card

At the heart of the Cisco 12000 Series is a multigigabit crossbar switching fabric that provides synchronized gigabit-speed interconnections for all of the other cards in the system. The switching fabricfor the Cisco 12016, 12012and 12008 consists of up to four switching cards, supplemented by a ﬁfth card that provides 1:4 or 1:1 redundancy. The switching cards for the Cisco 12008, 12012, 12410, and 12016/12416 are not interchangeable.

8 Cisco Product Catalog, December, 2000

Note Redundancy in all key system components (processors, switch fabric, line cards, cooling and power) minimizes

possible network disruption ifa failure occurs. Thefollowingtable shows the validredundancy options foreach Cisco 12000 Series product.

Table 18-18: Redundancy Matrix for Cisco 12000 System Element Cisco 12008/12012/12410/12016/12416

Switch cards Yes GRP Yes Line cards (APS) Yes Fans Yes Power supplies Yes

Ordering Information

Use the following steps to make up your order for a router in the Cisco 12000 Series:

• Selectthe base system.Cisco 12000Series12/60 for the60 GbpsCisco 12012, orCisco 12000Series8/40 for the 40Gbps

Cisco 12008 or Cisco 12000 Series 16/80-AC for the 80 Gbps Cisco 12016 AC system, or Cisco 12000 Series16/80-DC for the 80 Gbps Cisco 12016 DC System.

• Add the following to the order:

—Base system software license —Type of power supply (AC/DC) [DC power is the default] - no choice on the Cisco 12000 Series16/80 - two bundles —Proper power cord (AC only) —Increased GRP memory (if necessary)

• Add the required line card and increase the line card’s packet buffer and DRAM memory, if necessary.

• Add redundant components:

—Switch cards —GRP (two max.) —Power supplies

Visit Cisco Connection Online at www.cisco.com

Table 18-19: Sample Conﬁgurations for Cisco 12008 Description Product Number

Cisco 12008 , 40 Gbps; 1 GRP, 1 CSC, 3 SFCs, 1 DC GSR 8/40 256 MB GRP and LC program/route memory (2 x 128 MB) MEM-GRP/LC-256 Cisco 12008 GSR redundant DC supplies (2 DC supplies) PWR-GSR8-DC/2 IP IOS SFGSR-11.2.9 Cisco 12008 GSR scheduler/fabric/alarm GSR8-CSC/ALRM= 1-port OC48c/STM16 SONET/SDH Short Reach 1310nm with SC connector OC48E/POS-SR-SC 256 MB GRP and LC program/route memory (2 x 128 MB) - default MEM-GRP/LC-256

Product and Part Numbers

Part Numbers for the Cisco 12000 Part Description Part Number

Cisco 12000 Series of Gigabit Switch Routers (GSR)

Cisco 12416 320 Gbps; 1GRP, 2CSC, 3SFC, 2 Alarm, 3AC

Same As GSR16/320-AC But W/ 4AC And Requires 8 Foot Rack

Cisco 12416 320 Gbps; 1GRP, 2CSC, 3SFC, 2 Alarm, 4DC

Cisco 12410 200 Gbps; 1GRP, 2CSC, 5SFC, 2 Alarm, 3AC

Cisco 12016 80 Gbps; 1GRP,2CSC, 3SFC, 2Alarm, 3AC, 8Rails

Same As GSR16/80-AC-8R But W/ 4AC And Requires 8 Foot Rack

Cisco 12016 80 Gbps; 1GRP,2CSC, 3SFC, 2Alarm, 4DC, 8Rails

Cisco12012 GSR 60Gbps;1GRP,1CSC,3SFC,1DC

Cisco12008 GSR 40Gbps;1GRP,1CSCGSR8,3SFC-GSR8,1DC

Cisco 12000 Series Processors

Route Processor, 128MB and 20MB Flash, ECC support

Route Processor, 128MB and 20MB Flash, ECC support, Spare

GSR Route Processor, Redundant Option GRP-B/R

Cisco 12000 Series GSR Base System Software/ IOS Software

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 56

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

GSR 16/320-AC

GSR 16/320-AC4

GSR 16/320-DC

12410/200

GSR16/80-AC-8R

GSR16/80-AC4-8R

GSR16/80-DC-8R

GSR12/60

GSR8/40

GRP-B

GRP-B=

I120K5Z-12.0.13S

S120K3Z-12.0.13S

S120K3Z-12.0.13S=

S120K5Z-12.0.13S

10 Cisco Product Catalog, December, 2000

Part Description Part Number

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

Cisco 12000 Series IOS SERVICE PROVIDER

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 56

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

Cisco 12000 Series IOS SERVICE PROVIDER

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 56

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 56

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

Cisco 12000 Series IOS SERVICE PROVIDER

Cisco 12000 Series IOS SERVICE PROVIDER/SECURED SHELL 3DES

Cisco 12000 Series IOS BOOT IMAGE S120-12.0.9S= Cisco 12000 Series IOS SERVICE

PROVIDER/SECURED SHELL 56 Cisco 12000 Series IOS SERVICE

PROVIDER/SECURED SHELL 3DES Cisco 12000 Series IOS SERVICE

PROVIDER Cisco 12000 Series IOS SERVICE

PROVIDER Cisco 12000 Series IOS BOOT IMAGE S120-12.0.10S Cisco 12000 Series IOS BOOT IMAGE S120-12.0.10S=

S120K5Z-12.0.13S=

S120Z-12.0.13S

S120Z-12.0.13S=

S120K3Z-12.0.12S

S120K3Z-12.0.12S=

S120K5Z-12.0.12S

S120K5Z-12.0.12S=

S120Z-12.0.12S

S120Z-12.0.12S=

S120K3Z-12.0.11S

S120K5Z-12.0.11S=

S120K3Z-12.0.11S=

S120K5Z-12.0.11S

S120Z-12.0.11S

S120Z-12.0.11S=

I120K5Z-12.0.12S

I120K5Z-12.0.11S

I120K5Z-12.0.10S

I120K5Z-12.0.9S

S120K3Z-12.0.9S

S120K3Z-12.0.9S=

S120K5Z-12.0.9S

S120K5Z-12.0.9S=

S120Z-12.0.9S

S120Z-12.0.9S=

Visit Cisco Connection Online at www.cisco.com

Part Description Part Number

Cisco 12000 Series IOS SERVICE

S120K3Z-12.0.10S

PROVIDER/SECURED SHELL 56 Cisco 12000 Series IOS SERVICE

S120K3Z-12.0.10S=

PROVIDER/SECURED SHELL 56 Cisco 12000 Series IOS SERVICE

S120K5Z-12.0.10S

PROVIDER/SECURED SHELL 3DES Cisco 12000 Series IOS SERVICE

S120K5Z-12.0.10S=

PROVIDER/SECURED SHELL 3DES Cisco 12000 Series IOS SERVICE

S120Z-12.0.10S

PROVIDER Cisco 12000 Series IOS SERVICE

S120Z-12.0.10S=

PROVIDER

Cisco 12000 Series Switch Fabric and Clock Schedulers

Cisco 12016 80 Gbps GSR Scheduler/

GSR16/80-CSC=

Fabric Spare Cisco 12016 80 GbpsGSR Switch Fabric

GSR16/80-SFC=

Spare Cisco 12016/12416 Alarm Card Spare GSR16-ALRM= Cisco 12012 GSR Scheduler/Fabric GSR12-CSC= Cisco 12012 Redundant GSR Scheduler/

GSR12-CSC/R

Fabric Cisco 12012 GSR Switch Fabric GSR12-SFC= Cisco 12008 GSR Scheduler/Fabric/Alarm GSR8-CSC/ALRM Cisco 12008 GSR Scheduler/Fabric/Alarm

GSR8-CSC/ALRM=

spare Cisco 12008 Redundant CSC GSR8-CSC/ALRM/R Cisco 12008 GSR Switch Fabric GSR8-SFC=

Cisco 12016 Power Supply

GSR16 DC POWER SUPPLY PWR-GSR16-DC Cisco 12016 GSR DC Power Supply Spare

PWR-GSR16-DC=

(1 DC Power Supply) Cisco 12016 GSR DC Power Supply Shelf

PWR-GSR16-DC-SH=

Spare GSR16 AC POWER SUPPLY PWR-GSR16-AC Cisco 12016 GSRACPower Supply Spare

PWR-GSR16-AC=

(1 AC Power Supply) Cisco 12016 GSR AC Power Supply Shelf

PWR-GSR16-AC-SH=

Spare Cisco 12016 GSR AC Power Supply Cord,USCAB-GSR16-US

Cisco 12016 GSR AC Power Supply Cord, Australia

Cisco 12016 GSR AC Power Supply Cord, Europe

Cisco 12016 GSR AC Power Supply Cord, Italy

Cisco 12016 GSR AC Power Supply Cord,UKCAB-GSR16-UK

Cisco 12016 GSR AC Power Supply Cord, US Spare

12 Cisco Product Catalog, December, 2000

CAB-GSR16-AU

CAB-GSR16-EU

CAB-GSR16-IT

CAB-GSR16-US=

Part Description Part Number

Cisco 12016 GSR AC Power Supply Cord, Australia Spare

Cisco 12016 GSR AC Power Supply Cord, Europe Spare

Cisco 12016 GSR AC Power Supply Cord, Italy Spare

Cisco 12016 GSR AC Power Supply Cord, UK Spare

Cisco 12012 Power Supply Options

Cisco 12012 GSR AC Supply Option (2 AC Supplies)

Cisco 12012 GSR AC Supply Spare (1 AC Supply)

Cisco 12012 GSR Redundant ACSupplies (4 AC Supplies)

Cisco 12012 GSR DC Supply PWR-GSR12-DC Cisco 12012 GSR DC Supply PWR-GSR12-DC= Cisco 12012 GSR Redundant DC Supplies

(2 DC Supplies) Cisco 12012 GSR AC Power Supply Cord,USCAB-GSR12-US

Cisco 12012 GSR AC Power Supply Cord,USCAB-GSR12-US=

CAB-GSR16-AU=

CAB-GSR16-EU=

CAB-GSR16-IT=

CAB-GSR16-UK=

PWR-GSR12-AC/2

PWR-GSR12-AC=

PWR-GSR12-AC/4

PWR-GSR12-DC/2

Cisco 12012 GSR AC Power Supply Cord, Australia

Cisco 12012 GSR AC Power Supply Cord, Europe

Cisco 12012 GSR AC Power Supply Cord, Italy

Cisco 12012 GSR AC Power Supply Cord,UKCAB-GSR12-UK=

Cisco 12012 GSR AC Power Supply Cord, Argentina

Cisco 12008 Power Supply Options

Cisco 12016 GSR DC Power Supply Spare (1 DC Power Supply)

Cisco 12016 GSRACPower Supply Spare (1 AC Power Supply)

Cisco 12008 GSR AC Supply Option (1 AC Supply)

Cisco 12008 GSR AC Supply Spare (1 AC Supply)

Cisco 12008 GSR Redundant ACSupplies (2 AC Supplies)

Cisco 12008 GSR DC Supply PWR-GSR8-DC Cisco 12008 GSR DC Supply PWR-GSR8-DC= Cisco 12008 GSR Redundant DC Supplies

(2 DC Supplies) Cisco 12008 GSR AC Power Supply Cord,USCAB-GSR8-US

CAB-GSR12-AU=

CAB-GSR12-EU=

CAB-GSR12-IT=

CAB-GSR12-ACR

PWR-GSR16-DC=

PWR-GSR16-AC=

PWR-GSR8-AC

PWR-GSR8-AC=

PWR-GSR8-AC/2

PWR-GSR8-DC/2

Cisco 12008 GSR AC Power Supply Cord,USCAB-GSR8-US=

Visit Cisco Connection Online at www.cisco.com

Part Description Part Number

Cisco 12008 GSR AC Power Supply Cord, Australia

Cisco 12008 GSR AC Power Supply Cord, Europe

Cisco 12008 GSR AC Power Supply Cord, Italy

Cisco 12008 GSR AC Power Supply Cord,UKCAB-GSR8-UK

Cisco 12008 GSR AC Power Supply Cord,UKCAB-GSR8-UK=

CAB-GSR8-AU

CAB-GSR8-AU=

CAB-GSR8-EU

CAB-GSR8-EU=

CAB-GSR8-IT

CAB-GSR8-IT=

Cisco 12008 GSR AC Power Supply Cord, Argentina

Cisco 12000 Series Line Cards

4 Port OC-48c/STM-16c SONET/SDH 1310nm SR with SC

4 Port OC-48c/STM-16c SONET/SDH 1310nm SR with FC

4 Port OC-48c/STM-16c SONET/SDH 1550nm LR with SC

4 Port OC-48c/STM-16c SONET/SDH 1550nm LR with FC

1 Port OC-192c/STM-64c SONET/SDH 1310nm SR with SC

1 Port OC-192c/STM-64c SONET/SDH 1550nm IR with SC

4 Port OC-48c/STM-16c SONET/SDH 1310nm SR with SC Spare

4 Port OC-48c/STM-16c SONET/SDH 1310nm SR with FC Spare

4 Port OC-48c/STM-16c SONET/SDH 1550nm LR with SC Spare

4 Port OC-48c/STM-16c SONET/SDH 1550nm LR with FC Spare

1 Port OC-192c/STM-64c SONET/SDH 1310nm SR with SC Spare

1 Port OC-192c/STM-64c SONET/SDH 1550nm IR with SC Spare

4port OC3/STM1 Packet Over SONET/ SDH Line Card, Single-Mode

4port OC3/STM1 Packet Over SONET/ SDH Line Card, Multi-Mode w

4port OC3/STM1 Packet Over SONET/ SDH Line Card, Multi-Mode

1port OC12/STM4 Packet Over SONET/ SDH Line Card, Single-Mode

CAB-GSR8-ACR

4OC48/POS-SR-SC

4OC48/POS-SR-FC

4OC48/POS-SR-SC

4OC48/POS-LR-FC

OC192/POS-SR-SC

OC192/POS-IR-SC

4OC48/POS-SR-SC=

4OC48/POS-SR-FC=

4OC48/POS-SR-SC=

4OC48/POS-LR-FC=

OC192/POS-SR-SC=

OC192/POS-IR-SC=

LC-4OC3/POS-SM

LC-4OC3/POS-SM=

LC-4OC3/POS-MM

LC-4OC3/POS-MM=

LC-1OC12/POS-SM

14 Cisco Product Catalog, December, 2000

Part Description Part Number

1port OC12/STM4 Packet Over SONET/ SDH Line Card, Single-Mode

1 port OC12/STM4 Packet Over SONET/ SDH Line Card, Multi-Mode

1port OC12/STM4 Packet Over SONET/ SDH Line Card, Multi-Mode

Single mode Long reach Quad OC-3 POS/ STM1linecard

4 port OC3/STM1 ATM Line Card intermediate reach

4 port OC3/STM1 ATM Line Card intermediate reach, spare

4 port OC3/STM1 multimode ATM line card

4 port OC3/STM1 multimode ATM line card, spare

4 port OC-12/STM4 ATMLC Intermediate Reach spare

4 port OC-12/STM4 ATM Line Card multimode spare

4 Port OC-12/STM-4 SONET/SDH Single Mode IR with SC

4 port OC-12/STM4 SONET/SDH SingleMode IR with SC=

4 Port OC-12/STM-4 SONET/SDH Multimode with SC

4 port OC-12/STM4 SONET/SDH MultiMode with SC=

1 port OC12/STM4 ATM Line Card, Single-Mode

1port OC12/STM4 ATM Line Card, Single-Mode

1 port OC12/STM4 ATM Line Card, Multi-Mode

1port OC12/STM4 ATM Line Card, Multi-Mode

SRP Single Ring OC12 Linecard multimode optics

OC12 SRP single ring linecard, multimode, spare

OC12 SRP MM line card OC12/SRP-MM-SC-B OC12 SRP MM line card OC12/SRP-MM-SC-B= SRP Single Ring OC12 Linecard -

SingleMode, IR optics OC12 SRP single ring linecard, single

mode, IR, spare OC12 SRP IR line card OC12/SRP-IR-SC-B OC12 SRP IR line card OC12/SRP-IR-SC-B= SRP Single Ring OC12 Linecard -

SingleMode, LR optics OC12 SRP single ring linecard, single

mode, LR, spare

LC-1OC12/POS-SM=

LC-1OC12/POS-MM

LC-1OC12/POS-MM=

4OC3/POS-LR-SC=

4OC3/ATM-IR-SC

4OC3/ATM-IR-SC=

4OC3/ATM-MM-SC

4OC3/ATM-MM-SC=

4OC12/ATM-IR-SC=

4OC12/ATM-MM-SC=

4OC12E/POS-IR-SC

4OC12E/POS-IR-SC=

4OC12E/POS-MM-SC

4OC12E/POS-MM-SC=

LC-1OC12/ATM-SM

LC-1OC12/ATM-SM=

LC-1OC12/ATM-MM

LC-1OC12/ATM-MM=

OC12/SRP-MM-SC

OC12/SRP-MM-SC=

OC12/SRP-IR-SC

OC12/SRP-IR-SC=

OC12/SRP-LR-SC

OC12/SRP-LR-SC=

Visit Cisco Connection Online at www.cisco.com

Part Description Part Number

OC12 SRP LR line card OC12/SRP-LR-SC-B OC12 SRP LR line card OC12/SRP-LR-SC-B= OC12 SRP single ring linecard, single

mode 1550, XR OC12 SRP single ring linecard, single

mode 1550, XR OC48 SRP Linecard, Single Mode, Long

Reach OC48 SRP Linecard, Single Mode, Short

Reach Two OC48/SRP-LR-SC Line Cards with

MATE Cable Two OC48/SRP-SR-SC Line Cards with

MATE Cable 1 Port OC-48c/STM-16c SONET/SDH

1310nm SR with SC 1 port OC48c/STM16 SONET/SDH

Enhanced 1310nm SR with SC Spar 1 Port OC-48c/STM-16c SONET/SDH

1310nm SR with FC 1 port OC48c/STM16 SONET/SDH

Enhanced 1310nm SR with FC Spar 1 Port OC-48c/STM-16c SONET/SDH

1550nm LR with FC 1 port OC48c/STM16 SONET/SDH

Enhanced 1550nm LR with FC 1 Port OC-48c/STM-16c SONET/SDH

1550nm LR with SC 1 port OC48c/STM16 SONET/SDH

Enhanced 1550nm LR with SC 8 port OC3/STM1 SONET/SDH Single-

Mode LC with LC conn Spare 8 port OC3/STM1 SONET/SDH Multi-

Mode LC with MTRJ conn Spare 16 port OC3/STM1 SONET/SDH Single-

Mode LC with LC conn Spare 16 port OC3/STM1 SONET/SDH Multi-

Mode LC with MTRJ conn GSR12000 three-port GE line card 3GE-GBIC-SC GSR12000 three-port GE line card 3GE-GBIC-SC= GSR12000 single port Gigabit Ethernet

line card GSR12000 single port Gigabit Ethernet

line card, Spare 1000base-SX GBIC module,

multimode,standardized for GSR12000 1000base-SX GBIC module, multimode

ﬁber, SC connector 1000base-LH GBIC

module,singlemode,standardized for GSR12000

OC12/SRP-XR-SC

OC12/SRP-XR-SC=

OC48/SRP-LR-SC=

OC48/SRP-SR-SC=

OC48/SRP-LR-PAIR=

OC48/SRP-SR-PAIR=

OC48E/POS-SR-SC

OC48E/POS-SR-SC=

OC48E/POS-SR-FC

OC48E/POS-SR-FC=

OC48E/POS-1550-FC

OC48E/POS-1550-FC=

OC48E/POS-1550-SC

OC48E/POS-1550-SC=

8OC3/POS-SM=

8OC3/POS-MM=

16OC3/POS-SM=

16OC3/POS-MM=

GE-GBIC-SC-B

GE-GBIC-SC-B=

GE-SX/LH-SC=

GBIC-SX-MM

GBIC-SX-MM=

GBIC-LH-SM

16 Cisco Product Catalog, December, 2000

Part Description Part Number

1000base-LH GBIC module, singlemode

GBIC-LH-SM=

ﬁber, SC connector GBIC very long reach GBIC module for

GBIC-ZX-SM

the GE line card GBIC very long reach GBIC module for

GBIC-ZX-SM=

the GE line card 6 port DS3 line card 6DS3-SMB 6 port DS3 line card 6DS3-SMB= 12 port DS3 line card 12DS3-SMB 12 port DS3 line card 12DS3-SMB= Channelized OC-12/STM-4 withfour STS-

CHOC12/STS3-IR-SC=

3c/STM-1 POS paths 1 port Channelize OC-12 with 12 DS3s LC-OC12-DS3 1 port Channelize OC-12 with 12 DS3s

LC-OC12-DS3=

spare GSR 8-port 100baseFX, SC connector,

8FE-FX-SC-B

version B GSR 8-port 100baseFX, SC connector,

8FE-FX-SC-B=

version B Eight port Fast Ethernet 100baseTX

8FE-TX-RJ45=

interface, RJ45 connector 8-port 100baseTX, RJ45 connector type,

8FE-TX-RJ45-B

version B 8-port 100baseTX, RJ45 connector type,

8FE-TX-RJ45-B=

version B Cisco Optical Regenerator (OC-48

OR-OC48/STM16-SC

bidirectional regenerator)

Cisco 12000 Series Memory Options and Upgrades

20MB PCMCIA Flash Memory MEM-GRP-FL20 20MB PCMCIA Flash Memory MEM-GRP-FL20= 64MB GRP and L.C. Upgrade Kit

MEM-GRP/LC-64=

(1x64MB) 128MB GRP and L.C. Program/Route

MEM-GRP/LC-128

Memory (1x128MB) 128MB GRP and L.C. Upgrade Kit

MEM-GRP/LC-128=

(1x128MB) 256MB GRP and L.C. Program/Route

MEM-GRP/LC-256

Memory (2x128MB) 256MB GRP and L.C. Upgrade Kit

MEM-GRP/LC-256=

(2x128MB) Line Card Buffer Memory,64MB/64MB

MEM-LC-PKT-128=

(Tx/Rx) Line Card BufferMemory,128MB/128MB

MEM-LC1-PKT-256=

(Tx/Rx) Line Card BufferMemory,256MB/256MB

MEM-PKT-512-UPG

(Tx/Rx) Line Card BufferMemory,256MB/256MB

MEM-PKT-512-UPG=

(Tx/Rx)

Cisco 12000 Series System Upgrades

Visit Cisco Connection Online at www.cisco.com

Part Description Part Number

Cisco 12416 80 Gbps GSR Scheduler/

GSR16/320-CSC=

Fabric Spare Cisco 12416 80 Gbps GSR Switch Fabric

GSR16/320-SFC=

Spare Cisco 12410 200 Gbps GSR Scheduler/

GSR12410/200-CSC=

Fabric Spare Cisco 12410 200 Gbps GSR Switch Fabric

GSR12410/200-SFC=

Spare Cisco12008 10Gbps to 40Gbps Upgrade

GSR8/10-40-UPG=

Kit;3SFCs Cisco12012 15Gbps to 60Gbps Upgrade

GSR12/15-60-UPG=

Kit;3SFCs

Cisco 12016 Spares and Accessories

Cisco 12016 GSR Blower Assembly Spare GSR16-BLOWER= Same As GSR16-CHASSIS= But With 8

GSR16-CHASSIS-8R=

Rails Cisco 12016 80 Gbps GSR Backplane

GSR16/80-BCKPLNE=

Spare INVALID PRODUCT-SEE 'ACS-GSR16-

'ACS-GSR16-CCBLM=

CBLM-B=', 'ACS-GSR16-CBLM-T= Cisco 12016 GSR Air Filter Kit ACS-GSR16-FLTR= GSR 12016 Plastic Covers Spare Kit ACS-GSR16-PLSTC=

Cisco 12012 Spares and Accessories

GSR12 Air Filter Upgrade Kit GSR12-FLT-UPG= Enhanced Air Filter for GSR12 GSR12-FLTR-ENH= Cisco 12012 GSR Blower Assy Spare GSR12-BLOWER= Cisco 12012 GSR Card Cage Assy Spare GSR12-CARDCAGE= Cisco 12012 GSR Alarm Card GSR12-ALRM= Cisco 12012 GSR Shipping Container

PKG-GSR12=

Spare Cisco 12012 GSR Chassis Cable

ACS-GSR12-CCBLM=

Management Kit Spare Cisco 12012 GSR Air Filter Spare ACS-GSR12-FLTR= Cisco 12012 GSR Top Blower Plastic

ACS-GSR12-TOPCVER=

Cover Cisco 12012 GSR Bottom Blower Plastic

ACS-GSR12-BTMCVER=

Cover Cisco 12012 GSR DC Power Supply

ACS-GSR12-PWRCVR=

Plastic Cover Cisco 12000 Series Line Card Cable

ACS-GSR-LCCBLM=

Management Kit Spare Cisco 12012 Series Blank Power Supply

MAS-GSR12-PWRBLNK=

Panel Spare Cisco 12000 Series Blank Line Card Panel

MAS-GSR-BLANK=

Spare

Cisco 12008 Spares and Accessories

Cisco 12008 GSR Chassis Assy Spare CHAS-GSR8= Cisco 12008 GSR System blower assy

GSR8-SYSBLOWER=

spare

18 Cisco Product Catalog, December, 2000

Part Description Part Number

Cisco 12008 GSR Pwr Supply blower assy spare

Cisco 12008 Top Trim GSR8-TTRIM= Cisco 12008 GSR Shipping Container

Spare Cisco 12008 GSR Chassis Cable

Management Kit Spare Cisco 12008 GSR Rack Mount Kit Spare ACS-GSR8-RMK= Cisco 12008 Series Blank Power Supply

Panel Spare Cisco 12008 GSR System Air Filter

upgrade kit

Cisco 12000 Lines Cards Accessories

Cable pair SMB to BNC - female 2CBLE-SMB-BNC-F Cable pair SMB to BNC - female -spare 2CBLE-SMB-BNC-F= Cable pair SMB to BNC - male 2CBLE-SMB-BNC-M Cable pair SMB to BNC - male - spare 2CBLE-SMB-BNC-M=

Cisco GSR Manager Version 2.0

Cisco GSR Manager Version 2.0 GSR-EMS-2.0 GSR Management License Spare GSR-MGMT-LIC=

GSR8-PWRBLOWER=

PKG-GSR8=

ACS-GSR8-CCBLM=

MAS-GSR8-PWRBLNK=

GSR8-FLTASM-UPG=

Documentation

For part numbers for product speciﬁc documentation, visit http://www.cisco.com/univercd/cc/td/doc/pcat/swdo__d1.htm

Table 18-20: Cisco 12000 Documentation Ordering Information Description Product Number

Regulatory Compliance and Safety Information for the Cisco 12000 Series Gigabit Switch Router 78-4347-01 Cisco 12008 Installation and Conﬁguration Guide 78-4953-01 Cisco 12008 AC Input Power Supply Replacement Instructions 78-4954-01 Cisco 12008 DC Input Power Supply Replacement Instructions 78-4955-01 Cisco 12000 Memory Replacement Instructions 78-4338-02 Cisco 12000 Route Processor Installation and Conﬁguration 78-4339-02 Cisco 12008 Switch Card Replacement Instructions 78-4956-01 Cisco 12008 Fan Tray Replacement Instructions 78-4957-01 Cable-Management System Replacement Instructions 78-4958-01 Quad OC-3c/STM-1 Packet Over-SONET Line Card Installation and Conﬁguration 78-4333-02 OC-12c/STM-4 Packet Over-SONET Line Card Installation and Conﬁguration 78-4341-02 Asynchronous Transfer Mode Line Card Installation and Conﬁguration 78-4344-02 Cisco 12008 Packing/Unpacking Instructions 78-4960-02

Services and Support

There are no special support or service requirements for the GSR series. You can obtain technical support from the Technical Assistance Center (TAC), and SmartNet contracts are available.

For Cisco services and support information, access the following URL: http://www.cisco.com/public/Support_root.shtml

Visit Cisco Connection Online at www.cisco.com

Description Product Number

Training

Cisco provides a broad range of comprehensive educational offerings including seminars and events and certiﬁcation programs to help customer and partners stay current on Cisco’s products, solutions, and technologies.

For Cisco training information, access the following URL: http://www.cisco.com/warp/public/10/wwtraining/index.shtml

Documents

The Channelized OC-12 to DS3 Line Card Installation and Conﬁguration Guide can be ordered by using Part Number 78-5011-01. For Cisco documentation information, access the following URLs on the World Wide Web: http://www.cisco.com http://www-china.cisco.com http://www-europe.cisco.com.

20 Cisco Product Catalog, December, 2000

Cisco Systems 12000 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
