Cirrus Logic CS5345 User Manual

1.8 V to 5 V

Low-Latency

Anti-Alias Filter

Internal Voltage

Reference

Multibit

Oversampling

ADC

Multibit

Oversampling

ADC

Low-Latency

Anti-Alias Filter

High Pass

Filter

High Pass

Filter

Stereo Input 1

Serial
Audio

Output

3.3 V to 5 V 3.3 V to 5 V

MUX

PGA

PCM Serial Interface

Register Configuration

Level

Translator

Left PGA Output
Right PGA Output

Stereo Input 2
Stereo Input 3

Stereo Input 4 /
Mic Input 1 & 2

Stereo Input 5
Stereo Input 6

PGA

+32 dB

+32 dB

Level Translator

Reset

I²C/SPI

Control Data

Interrupt

Overflow

CS5345

104 dB, 24-Bit, 192 kHz Stereo Audio ADC

A/D Features

 Multi-Bit Delta Sigma Modulator
 104 dB Dynamic Range
 -95 dB THD+N
 Stereo 6:1 Input Multiplexer
 Programmable Gain Amplifier (PGA)

– ± 12 dB Gain, 0.5 dB Step Size
– Zero Crossing, Click-Free Transitions

 Stereo Microphone Inputs

– +32 dB Gain Stage
– Low-Noise Bias Supply

 Up to 192 kHz Sampling Rates
 Selectable Serial Audio Interface Formats

– Left-Justified up to 24-bit
– I²S up to 24-bit

 High-Pass Filter or DC Offset Calibration

System Features

 Power-Down Mode
 +3.3 V to +5 V Analog Power Supply, Nominal
 +3.3 V to +5 V Digital Power Supply, Nominal
 Direct Interface with 1.8 V to 5 V Logic Levels
 Pin-Compatible with CS4245

General Description

The CS5345 integrates an analog multiplexer, program­mable gain amplifier, and stereo audio analog-to-digital
converter. The CS5345 performs stereo analog-to-digi­tal (A/D) conversion of up to 24-bit serial values at
sample rates up to 192 kHz.

A 6:1 stereo input multiplexer is included for selecting
between line-level and microphone-level inputs. The
microphone input path includes a +32 dB gain stage
and a low-noise bias voltage supply. The PGA is avail­able for line or microphone inputs and provides
gain/attenuation of ± 12 dB in 0.5 dB steps.

The output of the PGA is followed by an advanced 5th­order, multi-bit delta sigma modulator and digital filter­ing/decimation. Sampled data is transmitted by the
serial audio interface at rates from 4 kHz to 192 kHz in
either Slave or Master Mode.

Integrated level translators allow easy interfacing be­tween the CS5345 and other devices operating over a
wide range of logic levels.

The CS5345 is available in a 48-pin LQFP package in
Commercial (-10° to +70° C) grade. The CDB5345 Cus­tomer Demonstration board is also available for device
evaluation and implementation suggestions. Please re­fer to “Ordering Information” on page 42 for complete
details.

http://www.cirrus.com

Copyright  Cirrus Logic, Inc. 2012

(All Rights Reserved)

AUG '12

DS658F4

TABLE OF CONTENTS

1. PIN DESCRIPTIONS ......................................................................................................................... 5

2. CHARACTERISTICS AND SPECIFICATIONS ...................................................................................... 7

SPECIFIED OPERATING CONDITIONS ............................................................................................. 7

ABSOLUTE MAXIMUM RATINGS .......................................................................................................7

ADC ANALOG CHARACTERISTICS ................................................................................................... 8

ADC ANALOG CHARACTERISTICS ................................................................................................. 10

ADC DIGITAL FILTER CHARACTERISTICS ......................................................................... ... ... ... ... 11

PGAOUT ANALOG CHARACTERISTICS .......................................................................................... 12

PGAOUT ANALOG CHARACTERISTICS .......................................................................................... 13

PGAOUT ANALOG CHARACTERISTICS .......................................................................................... 14

DC ELECTRICAL CHARACTERISTICS ............................................................................................. 15

DIGITAL INTERFACE CHARACTERISTICS ................... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... ... 16

SWITCHING CHARACTERISTICS - SERIAL AUDIO PORT ............................................................. 17

SWITCHING CHARACTERISTICS - CONTROL PORT - I²C FORMAT ............................................ 20

SWITCHING CHARACTERISTICS - CONTROL PORT - SPI FORMAT .. ... ... ... .... ... ... ... ... .... ... ... ...... 21

3. TYPICAL CONNECTION DIAGRAM ................................................................................................... 22

4. APPLICATIONS ................................................................................................................................... 23

4.1 Recommended Power-Up Sequence ............................................................................................. 23

4.2 System Clocking ............................................................................................................................. 23

4.2.1 Master Clock ............................ ... ... .... ... ... ... .... ... .......................................... ... ...................... 23

4.2.2 Master Mode .................................. .... .......................................... ... ... ... ................................ 24

4.2.3 Slave Mode ........................... ... ... ... .... ................................................................................... 24

4.3 High-Pass Filter and DC Offset Calibration .............................................................. ......................24

4.4 Analog Input Multiplexer, PGA, and Mic Gain ................................................................................26

4.5 Input Connections ........................................................................................................................... 26

4.6 PGA Auxiliary Analog Output ......................................................................................................... 26

4.7 Control Port Description and Timing ............................................................................................... 27

4.7.1 SPI Mode .................................. ... ... .......................................... ............................................. 27

4.7.2 I²C Mode ................................ .......................................... ...................................................... 27

4.8 Interrupts and Overflow .................................................................................................................. 29

4.9 Reset .............................................................................................................................................. 29

4.10 Synchronization of Multiple Devices ............................................................................................. 29

4.11 Grounding and Power Supply Decoupling .................................................................................... 29

5. REGISTER QUICK REFERENCE ........................................................................................................ 31

6. REGISTER DESCRIPTION .................................................................................................................. 32

6.1 Chip ID - Register 01h .................................................................................................................... 32

6.2 Power Control - Address 02h ......................................................................................................... 32

6.2.1 Freeze (Bit 7) .................................. .... ... .......................................... ...................................... 32

6.2.2 Power-Down MIC (Bit 3) ........................................................................................................ 32

6.2.3 Power-Down ADC (Bit 2) ....................................................................................................... 32

6.2.4 Power-Down Device (Bit 0) ...................................................... .... ... ... ... .... ... ......................... 32

6.3 ADC Control - Address 04h ............................................................................................................ 33

6.3.1 Functional Mode (Bits 7:6) .................................................................................................... 33

6.3.2 Digital Interface Format (Bit 4) .............................................................................................. 33

6.3.3 Mute (Bit 2) ............................................................................................................................ 33

6.3.4 High-Pass Filter Freeze (Bit 1) ....... .......................................... ............................................. 33

6.3.5 Master / Slave Mode (Bit 0) ................................... .......................................... ... ................... 33

6.4 MCLK Frequency - Address 05h .................................................................................................... 34

6.4.1 Master Clock Dividers (Bits 6:4) ..... .... .......................................... ... ... ... .... ... ... ... ................... 34

6.5 PGAOut Control - Address 06h ...................................................................................................... 34

6.5.1 PGAOut Source Select (Bit 6) ............................................................................................... 34

6.6 Channel B PGA Control - Address 07h .......................................................................................... 34

CS5345

2 DS658F4

6.6.1 Channel B PGA Gain (Bits 5:0) ............................................................................................. 34

6.7 Channel A PGA Control - Address 08h .......................................................................................... 35

6.7.1 Channel A PGA Gain (Bits 5:0) ............................................................................................. 35

6.8 ADC Input Control - Address 09h ................................................................................................... 35

6.8.1 PGA Soft Ramp or Zero Cross Enable (Bits 4:3) .................................................................. 35

6.8.2 Analog Input Selection (Bits 2:0) ........................................................................................... 36

6.9 Active Level Control - Address 0Ch ................................................................................................ 36

6.9.1 Active High/Low (Bit 0) .......................................................................................................... 36

6.10 Interrupt Status - Address 0Dh ..................................................................................................... 36

6.10.1 Clock Error (Bit 3) ... ... ... .... ... ... ... ... .... ... ... .......................................... ... .... ... ... ... ... ................ 37

6.10.2 Overflow (Bit 1) .................................................................................................................... 37

6.10.3 Underflow (Bit 0) .................................................................................................................. 37

6.11 Interrupt Mask - Address 0Eh .... ... ... ............................................................................................. 37

6.12 Interrupt Mode MSB - Address 0Fh .............................................................................................. 37

6.13 Interrupt Mode LSB - Address 10h ............................................................................................... 37

7. PARAMETER DEFINITIONS ................................................................................................................ 38

8. FILTER PLOTS .................................................................................................................................. 39

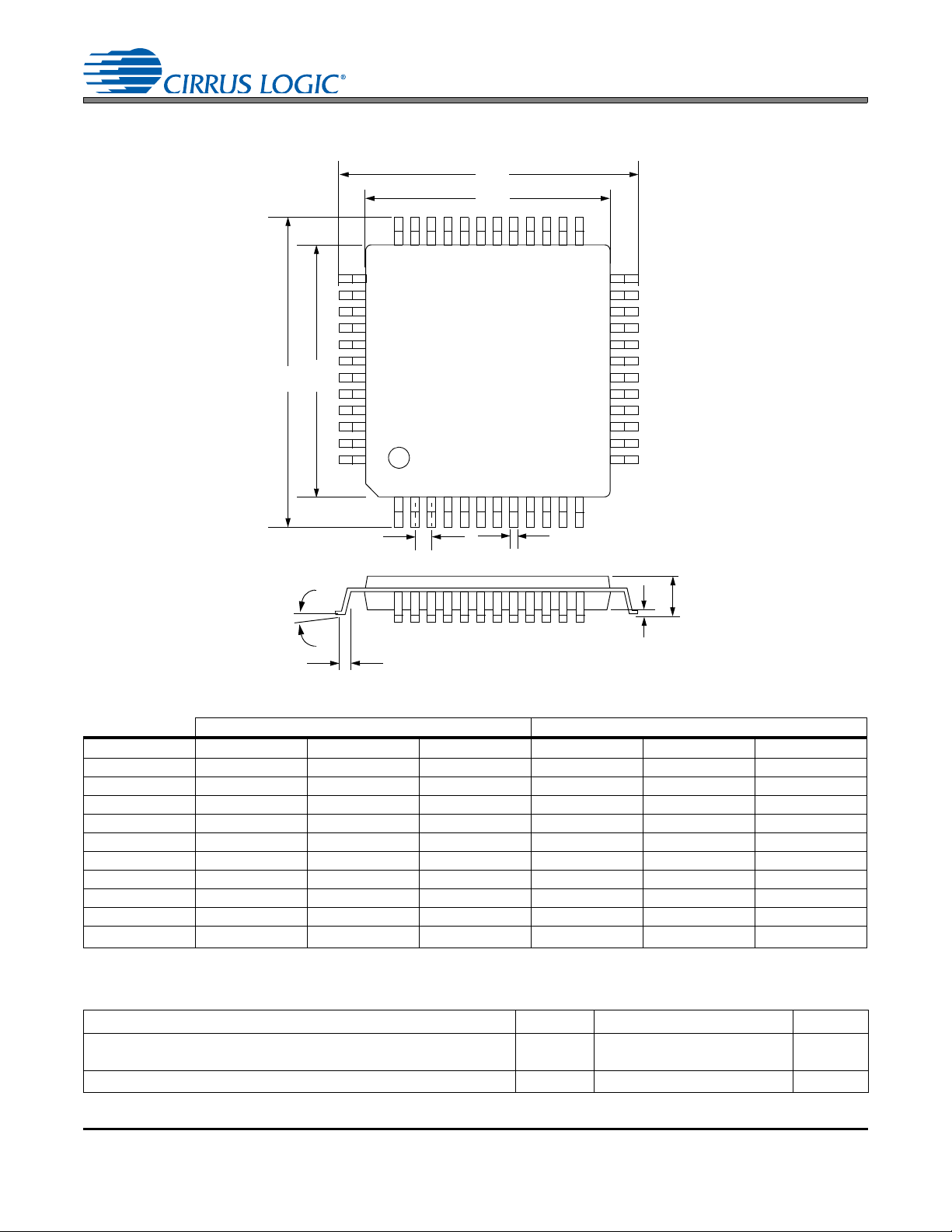

9. PACKAGE DIMENSIONS .................................................................................................................... 41

10. THERMAL CHARACTERISTICS AND SPECIFICATIONS ............................................................. 41

11. ORDERING INFORMATION ........................................................................................................ 42

12. REVISION HISTORY ....................................... ... ... ... .... ... ... ... .... ......................................................... 42

LIST OF FIGURES

CS5345

Figure 1.Master Mode Serial Audio Port Timing ....................................................................................... 18

Figure 2.Slave Mode Serial Audio Port Timing ......................................................................................... 18

Figure 3.Format 0, Left-Justified up to 24-Bit Data ................................................................................... 19

Figure 4.Format 1, I²S up to 24-Bit Data ................................................................................................... 19

Figure 5.Control Port Timing - I²C Format ................................................................................................. 20

Figure 6.Control Port Timing - SPI Format ................................................................................................ 21

Figure 7.Typical Connection Diagram ....................................................................................................... 22

Figure 8.Master Mode Clocking ................................................................................................................ 24

Figure 9.Analog Input Architecture ............................................................................................................ 26

Figure 10.Control Port Timing in SPI Mode ................................. .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ......... 27

Figure 11.Control Port Timing, I²C Write ................................................................................................... 28

Figure 12.Control Port Timing, I²C Read ................................................................................................... 28

Figure 13.Single-Speed Stopband Rejection ............................................................................................ 39

Figure 14.Single-Speed Stopband Rejection ............................................................................................ 39

Figure 15.Single-Speed Transition Band (Detail) ...................................................................................... 39

Figure 16.Single-Speed Passband Ripple ................................................................................................ 39

Figure 17.Double-Speed Stopband Rejection ........................................................................................... 39

Figure 18.Double-Speed Stopband Rejection ........................................................................................... 39

Figure 19.Double-Speed Transition Band (Detail) .................................................................................... 40

Figure 20.Double-Speed Passband Ripple ............................................................................................... 40

Figure 21.Quad-Speed Stopband Rejection ............................................................................................. 40

Figure 22.Quad-Speed Stopband Rejection ............................................................................................. 40

Figure 23.Quad-Speed Transition Band (Detail) .................................... ................................................... 40

Figure 24.Quad-Speed Passband Ripple .............................. ... .......................................... ... ... .... ... ......... 40

LIST OF TABLES

Table 1. Speed Modes .............................................. ... ... .... .......................................... ... ... ...................... 23

Table 2. Common Clock Frequencies ....................................................................................................... 23

Table 3. MCLK Dividers ............................................................................................................................ 24

Table 4. Slave Mode Serial Bit Clock Ratios ............................................................................................. 24

DS658F4 3

CS5345

Table 5. Device Revision .......................................................................................................................... 32

Table 6. Freeze-able Bits .......................................................................................................................... 32

Table 7. Functional Mode Selection ............................. .......................................... ................................... 33

Table 8. Digital Interface Formats ............................................................................................................. 33

Table 9. MCLK Frequency ........................................................................................................................ 34

Table 10. PGAOut Source Selection ......................................................................................................... 34

Table 11. Example Gain and Attenuation Settings ................................................................................... 35

Table 12. PGA Soft Cross or Zero Cross Mode Selection ............... ......................................................... 36

Table 13. Analog Input Multiplexer Selection ............................................................................................ 36

4 DS658F4

1. PIN DESCRIPTIONS

1
2
3

4
5
6
7
8
9
10
11
12

13 14 15 16 17 18 19 20 21 22 23 24

48 47 46 45 44 43 42 41 40 39 38 37

36
35
34
33
32
31
30

29
28
27
26
25

VLSSDA/CDOUT

AGND

OVFL

SCL/CCLK

AD0/CS

AD1/CDIN

VLC

RESET

AIN3A
AIN3B
AIN2A
AIN2B
AIN1A
AIN1B

VA

AFILTB

VQ

TSTO

FILT+

TSTO

AIN4A/MICIN1

AIN4B/MICIN2

AIN5A

AIN5B

AFILTA

TSTO
NC
NC
AGND
AGND
VA
PGAOUTB
PGAOUTA
AIN6B
AIN6A
MICBIAS

INTVDDGND

MCLK

LRCK

SCLK

SDOUTNCNCNCTSTI

CS5345

CS5345

Pin Name # Pin Description

SDA/CDOUT 1

SCL/CCLK 2 Serial Control Port Clock (Input) - Serial clock for the serial control port.
AD0/CS

AD1/CDIN 4

VLC 5
RESET

AIN3A
AIN3B

AIN2A
AIN2B

DS658F4 5

Serial Control Data (Input/Output) - SDA is a data I/O in I²C

the control port interface in SPI

Address Bit 0 (I²C) / Control Port Chip Select (SPI) (Input) - AD0 is a chip address pin in I²C Mode;

3

CS
Address Bit 1 (I²C) / Serial Control Data Input (SPI) (Input) - AD1 is a chip address pin in I²C Mode;

CDIN is the input data line for the control port interface in SPI Mode.
Control Port Power (Input) - Determines the required signal level for the control port interface. Refer

to the Recommended Operating Conditions for appropriate voltages.
6 Reset (Input) - The device enters a low-power mode when this pin is driven low.
78Stereo Analog Input 3 (Input) - The full-scale level is specified in the ADC Analog Characteristics

specification table.
910Stereo Analog Input 2 (Input) - The full-scale level is specified in the ADC Analog Characteristics

specification table.

TM

Mode.

is the chip-select signal for SPI format.

®

Mode. CDOUT is the output data line for

CS5345

AIN1A
AIN1B

AGND 13 Analog Ground (Input) - Ground reference for the internal analog section.
VA 14 Analog Power (Input) - Positive power for the internal analog section.
AFILTA 15 Antialias Filter Connection (Output) - Antialias filter connection for the channel A ADC input.
AFILTB 16 Antialias Filter Connection (Output) - Antialias filter connection for the channel B ADC input.
VQ 17 Quiescent Voltage (Output) - Filter connection for the internal quiescent reference voltage.
TSTO 18 Test Pin (Output) - This pin must be left unconnected.
FILT+ 19 Positive Voltage Reference (Output) - Positive reference voltage for the internal sampling circuits.
TSTO 20 Test Pin - This pin must be left unconnected.
AIN4A/MICIN1

AIN4B/MICIN22122
AIN5A

AIN5B
MICBIAS 25
AIN6A

AIN6B
PGAOUTA

PGAOUTB
VA 30 Analog Power (Input) - Positive power for the internal analog section.

AGND

NC
TSTO 35 Test Pin (Output) - This pin must be left unconnected.
VLS 36
TSTI 37 Test Pin (Input) - This pin must be connected to ground.

NC

SDOUT 41 Serial Audio Data Output (Output) - Output for two’ s complement serial audio data.
SCLK 42 Serial Clock (Input/Output)

LRCK 43
MCLK 44 Master Clock (Input) - Clock source for the ADC’s delta-sigma modulators.

DGND 45 Digital Ground (Input) - Ground reference for the internal digital section.
VD 46 Digital Power (Input) - Positive power for the internal digital section.
INT 47 Interrupt (Output) - Indicates an interrupt condition has occurred.
OVFL 48 Overflow (Output) - Indicates an ADC overflow condition is present.

1112Stereo Analog Input 1 (Input) - The full-scale level is specified in the ADC Analog Characteristics

specification table.

Stereo Analog Input 4 / Micropho ne Input 1 & 2 (Input) - The full-scale level is specified in the ADC

Analog Characteristics specification table.

2324Stereo Analog Input 5 (Input) - The full-scale level is specified in the ADC Analog Characteristics

specification table.

Microphone Bias Supply

teristics are specified in the DC Electrical Characteristics specification table.

2627Stereo Analog Input 6 (Input) - The full-scale level is specified in the ADC Analog Characteristics

specification table.

2829PGA Analog Audio Output (Output) - Either an analog output from the PGA block or high impedance.

See “PGAOut Source Select (Bit 6)” on page 34.

31

Analog Ground (Input) - Ground reference for the internal analog section.

32
3334No Connect - These pins are not connected internally and should be tied to ground to minimize any

potential coupling effects.

Serial Audio Interface Power (Input) - Determines the required signal level for the serial audio inter-

face. Refer to the Recommended Operating Conditions for appropriate voltages.

38,

No Connect - These pins are not connected internally and should be tied to ground to minimize any

39,

potential coupling effects.

40

Left Right Clock (Input/Output) - Determines which channel, Left or Right, is currently active on the

serial audio data line.

(Output) - Low-noise bias supply for external microphone. Electrical charac-

- Serial clock for the serial audio interface.

6 DS658F4

2. CHARACTERISTICS AND SPECIFICATIONS

SPECIFIED OPERATING CONDITIONS

AGND = DGND = 0 V; All voltages with respect to ground.

Parameters Symbol Min Nom Max Units

DC Power Supplies: Analog

Digital

Logic - Serial Port

Logic - Control Port

Ambient Operating Temperature (Power Applied) T

VA

VD
VLS
VLC

Notes: 1. Maximum of VA+0.25 V or 5.25 V, whichever is less.

ABSOLUTE MAXIMUM RATINGS

AGND = DGND = 0 V All voltages with respect to ground. (Note 2)

Parameter Symbol Min Max Units

DC Power Supplies: Analog

Digital

Logic - Serial Port

Logic - Control Port
Input Current (Note 3)
Analog Input Voltage
Digital Input Voltage Logic - Serial Port

Logic - Control Port
Ambient Operating Temperature (Power Applied)
Storage Temperature

VLS
VLC

V

V
V

A

VA
VD

I

in

INA

IND-S
IND-C

T

A

T

stg

CS5345

3.13

3.13

1.71

1.71

-10 - +70 C

AGND-0.3 VA+0.3 V

5.0

3.3

3.3

3.3

-0.3

-0.3

-0.3

-0.3

- 10 mA

-0.3

-0.3

-50 +125 C

-65 +150 C

5.25

(Note 1)

5.25

5.25

+6.0
+6.0
+6.0
+6.0

VLS+0.3
VLC+0.3

V
V
V
V

V
V
V
V

V
V

2. Operation beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.

3. Any pin except supplies. Transient currents of up to ±100 mA on the analog input pins will not cause
SCR latch-up.

DS658F4 7

CS5345

ADC ANALOG CHARACTERISTICS

Test conditions (unless otherwise specified): AGND = DGND = 0 V; VA = 3.13 V to 5.25 V; VD = 3.13 V to 5.25 V
or VA + 0.25 V, whichever is less; VLS = VLC = 1.71 V to 5.25 V; T
signal: 1 kHz sine wave; measurement bandwidth is 10 Hz to 20 kHz; Fs = 48/96/192 kHz.; All connections as
shown in Figure 7 on page 22.

Line-Level Inputs

Parameter Symbol Min Typ Max Unit

Dynamic Performance for VA = 4.75 V to 5.25 V

Dynamic Range

PGA Setting: -12 dB to +6 dB

A-weighted

unweighted

(Note 6) 40 kHz bandwidth unweighted

PGA Setting: +12 dB Gain

A-weighted

unweighted

(Note 6) 40 kHz bandwidth unweighted

Total Harmonic Distortion + Noise (Note 5)

PGA Setting: -12 dB to +6 dB

-1 dB

-20 dB

-60 dB

(Note 6) 40 kHz bandwidth -1 dB

PGA Setting: +12 dB Gain

-1 dB

-20 dB

-60 dB

(Note 6) 40 kHz bandwidth -1 dB

THD+N

Dynamic Performance for VA = 3.13 V to 3.46 V

Dynamic Range

PGA Setting: -12 dB to +6 dB

A-weighted

unweighted

(Note 6) 40 kHz bandwidth unweighted

PGA Setting: +12 dB Gain

A-weighted

unweighted

(Note 6) 40 kHz bandwidth unweighted

Total Harmonic Distortion + Noise (Note 5)

PGA Setting: -12 dB to +6 dB

-1 dB

-20 dB

-60 dB

(Note 6) 40 kHz bandwidth -1 dB

PGA Setting: +12 dB Gain

-1 dB

-20 dB

-60 dB

(Note 6) 40 kHz bandwidth -1 dB

THD+N

Line-Level Inputs

Parameter Symbol

Interchannel Isolation - 90 - dB

= -10° to +70° C for Commercial; Input test

A

98
95

-

92
89

-

-

-

-

-

-

-

-

-

93
90

-

89
86

-

-

-

-

-

-

-

-

-

104
101

98
98

95
92

-95

-81

-41

-92

-92

-75

-35

-89

101

98
95

95
92
89

-92

-78

-38

-84

-89

-72

-32

-81

-89

-86

-86

-83

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

dB
dB
dB

dB
dB
dB

dB
dB
dB
dB

dB
dB
dB
dB

dB
dB
dB

dB
dB
dB

dB
dB
dB
dB

dB
dB
dB
dB

Commercial Grade

UnitMin Typ Max

8 DS658F4

CS5345

DC Accuracy

Gain Error --10 %
Gain Drift -

Line-Level Input Characteristics

Full-scale Input Voltage 0.51*VA 0.57*VA 0.63*VA V
Input Impedance (Note 4) 6.12 6.8 7.48 k
Maximum Interchannel Input Impedance

Mismatch

-5-%

Line-Level and Microphone-Level Inputs

Commercial Grade

Parameter Symbol

DC Accuracy

Interchannel Gain Mismatch - 0.1 - dB

Programmable Gain Characteristics

Gain Step Size - 0.5 - dB
Absolute Gain Step Error - - 0.4 dB

4. Valid for the selected input pair.

100 - ppm/°C

UnitMin Typ Max

pp

DS658F4 9

ADC ANALOG CHARACTERISTICS

(Continued)

Microphone-Level Inputs

Parameter Symbol Min Typ Max Unit

Dynamic Performance for VA = 4.75 V to 5.25 V

Dynamic Range

PGA Setting: -12 dB to 0 dB

A-weighted

unweighted

PGA Setting: +12 dB

A-weighted

unweighted

Total Harmonic Distortion + Noise (Note 5)

PGA Setting: -12 dB to 0 dB

-1 dB

-20 dB

-60 dB

PGA Setting: +12 dB

-1 dB

Dynamic Performance for VA = 3.13 V to 3.46 V

Dynamic Range

PGA Setting: -12 dB to 0 dB

A-weighted

unweighted

THD+N

77
74

65
62

77
74

CS5345

83
80

71
68

-

-

-

-

-80

-60

-20

-68

83
80

-

-

-

-

-74

-

-

-

-

-

dB
dB

dB
dB

dB
dB
dB

dB

dB
dB

PGA Setting: +12 dB

A-weighted

unweighted

Total Harmonic Distortion + Noise (Note 5)

PGA Setting: -12 dB to 0 dB

-1 dB

-20 dB

-60 dB

PGA Setting: +12 dB

-1 dB

Interchannel Isolation - 80 - dB

THD+N

65
62

71
68

-

-

-

-

-80

-60

-20

-68

-

-

-74

-

-

-

dB
dB

dB
dB
dB

dB

DC Accuracy

Gain Error - 5 -%
Gain Drift -

300 - ppm/°C

Microphone-Level Input Characteristics

Full-scale Input Voltage 0.013*VA 0.017*VA 0.021*VA V
Input Impedance (Note 7) -60-k

pp

5. Referred to the typical line-level full-scale input voltage

6. Valid for Double- and Quad-Speed Modes only.

7. Valid when the microphone-level inputs are selected.

10 DS658F4

CS5345

ADC DIGITAL FILTER CHARACTERISTICS

Parameter (Notes 8, 10) Symbol Min Typ Max Unit

Single-Speed Mode

Passband (-0.1 dB) 0 - 0.4896 Fs
Passband Ripple - - 0.035 dB
Stopband 0.5688 - - Fs
Stopband Attenuation 70 - - dB
Total Group Delay (Fs = Output Sample Rate) t

gd

Double-Speed Mode

Passband (-0.1 dB) 0 - 0.4896 Fs
Passband Ripple - - 0.025 dB
Stopband 0.5604 - - Fs
Stopband Attenuation 69 - - dB
Total Group Delay (Fs = Output Sample Rate) t

gd

Quad-Speed Mode

Passband (-0.1 dB) 0 - 0.2604 Fs
Passband Ripple - - 0.025 dB
Stopband 0.5000 - - Fs
Stopband Attenuation 60 - - dB
Total Group Delay (Fs = Output Sample Rate) t

gd

High-Pass Filter Characteristics

Frequency Response -3.0 dB

-0.13 dB (Note 9)
Phase Deviation @ 20 Hz (Note 9) -10 -Deg
Passband Ripple --0dB

Filter Settling Time

-12/Fs - s

-9/Fs - s

-5/Fs - s

-120-

5

10

/Fs s

-

Hz
Hz

8. Filter response is guaranteed by design.

9. Response shown is for Fs = 48 kHz.

10. Response is clock-dependent and will scale with Fs. Note that the response plots (Figures 13 to 24) are
normalized to Fs and can be de-normalized by multiplying the X-axis scale by Fs.

DS658F4 11

CS5345

PGAOUT ANALOG CHARACTERISTICS

Test conditions (unless othe rwise specified): AGND = DGND = 0 V; VA = 3.13 V to 5.25 V; VD = 3.13 V to 5.25 V or
VA + 0.25 V, whichever is less; VLS = VLC = 1.71 V to 5.25 V; T

wave; Measurement bandwidth: 10 Hz to 20 kHz; Fs = 48/96/192 kHz; Synchronous mode; All connections as
shown in Figure 7 on page 22.

VA = 4.75 V to 5.25 V

Parameter Symbol Min Typ Max Unit

Dynamic Performance with PGA Line-Level Input Selected

Dynamic Range

PGA Setting: -12 dB to +6 dB

A-weighted

unweighted

PGA Setting: +12 dB Gain

A-weighted

unweighted

Total Harmonic Distortion + Noise (Note 11)

PGA Setting: -12 dB to +6 dB

-1 dB

-20 dB

-60 dB

PGA Setting: +12 dB Gain

-1 dB

-20 dB

-60 dB

Dynamic Performance with PGA Mic-Level Input Selected

Dynamic Range

PGA Setting: -12 dB to 0 dB

A-weighted

unweighted

= -10° to +70° C; Input test signal: 1 kHz sine

A

THD+N

98
95

92
89

-

-

-

-

-

-

77
74

104
101

98
95

-80

-81

-41

-80

-75

-35

83
80

-

-

-

-

-74

-

-

-74

-

-

-

-

dB
dB

dB
dB

dB
dB
dB

dB
dB
dB

dB
dB

PGA Setting: +12 dB

A-weighted

unweighted

Total Harmonic Distortion + Noise (Note 11)

PGA Setting: -12 dB to 0 dB

-1 dB

-20 dB

-60 dB

PGA Setting: +12 dB

-1 dB

THD+N

65
62

71
68

-

-

-

-

-74

-60

-20

-68

-68

-

-

-

-

-

dB
dB

dB
dB
dB

dB

11. Referred to the typical Line-Level Full-Scale Input Voltage.

12 DS658F4

PGAOUT ANALOG CHARACTERISTICS

(Continued)

VA = 3.13 V to 3.46 V

Parameter Symbol Min Typ Max Unit

Dynamic Performance with PGA Line-Level Input Selected

Dynamic Range

PGA Setting: -12 dB to +6 dB

A-weighted

unweighted

PGA Setting: +12 dB Gain

A-weighted

unweighted

Total Harmonic Distortion + Noise (Note 11)

PGA Setting: -12 dB to +6 dB

-1 dB

-20 dB

-60 dB

PGA Setting: +12 dB Gain

-1 dB

-20 dB

-60 dB

Dynamic Performance with PGA Mic Level-Input Selected

Dynamic Range

PGA Setting: -12 dB to 0 dB

A-weighted

unweighted

THD+N

93
90

89
86

77
74

CS5345

101

98

95
92

-

-

-

-

-

-

-80

-78

-38

-80

-72

-32

83
80

-74

-74

-

-

-

-

-

-

-

-

-

-

dB
dB

dB
dB

dB
dB
dB

dB
dB
dB

dB
dB

PGA Setting: +12 dB

A-weighted

unweighted

Total Harmonic Distortion + Noise (Note 11)

PGA Setting: -12 dB to 0 dB

-1 dB

-20 dB

-60 dB

PGA Setting: +12 dB

-1 dB

THD+N

65
62

71
68

-

-

-

-

-74

-60

-20

-68

-68

-

-

-

-

-

dB
dB

dB
dB
dB

dB

DS658F4 13

CS5345

PGAOUT ANALOG CHARACTERISTICS

(Continued)

VA = 3.13 V to 5.25 V

Parameter Symbol Min Typ Max Unit

DC Accuracy with PGA Line Level Input Selected

Interchannel Gain Mismatch - 0.1 - dB
Gain Error - 5- %
Gain Drift -

DC Accuracy with PGA Mic Level Input Selected

Interchannel Gain Mismatch - 0.3 - dB
Gain Error ­Gain Drift - 300 - ppm/°C

Analog Output

Frequency Response 10 Hz to 20 kHz (Note 12) -0.1dB - +0.1dB dB
Analog In to Analog Out Phase Shift - 180 - deg
DC Current draw from a PGAOUT pin I
AC-Load Resistance R
Load Capacitance C

OUT

L
L

--1A

100 - - k

- - 20 pF

12. Guaranteed by design.

100 - ppm/°C

5- %

14 DS658F4

CS5345

DC ELECTRICAL CHARACTERISTICS

AGND = DGND = 0 V, all voltages with respect to ground. MCLK=12.288 MHz; Fs=48 kHz; Master Mode.

Parameter Symbol Min Typ Max Unit

Power Supply Current VA = 5 V
(Normal Operation) VA = 3.3 V

VD, VLS, VLC = 5 V

VD, VLS, VLC = 3.3 V

Power Supply Current VA = 5 V
(Power-Down Mode) (Note 13) VLS, VLC, VD=5 V

Power Consumption
(Normal Operation) VA, VD, VLS, VLC = 5 V

VA, VD, VLS, VLC = 3.3 V

(Power-Down Mode) VA, VD, VLS, VLC = 5 V
Power Supply Rejection Ratio (1 kHz) (Note 14) PSRR - 55 - dB

VQ Characteristics

Quiescent Voltage VQ - 0.5 x VA - VDC
DC Current from VQ (Note 15) I
VQ Output Impedance Z
FILT+ Nominal Voltage FILT+ - VA - VDC
Microphone Bias Voltage MICBIAS - 0.8 x VA - VDC
Current from MICBIAS I

I

A

I

A

I

D

I

D

I

A

I

D

-

-

-

Q

MB

-

-

-

-

-

-

-

-

-

-- 1A

Q

-23 -k

-- 2mA

41
37
39
23

0.50

0.54

400
198

4.2

50
45
47
28

-

-

485
241

-

mA
mA
mA
mA

mA
mA

mW
mW
mW

13. Power-Down Mode is defines as RESET

= Low with all clock and data lin es held static an d no ana log

input.

14. Valid with the recommended capacitor values on FILT+ and VQ as shown in the Typical Connection
Diagram.

15. Guarante ed by design. The DC current draw represents the a llowed current draw due to typi cal leakage
through the electrolytic de-coupling capacitors.

DS658F4 15

CS5345

10

6

LRCK

---------------- -

DIGITAL INTERFACE CHARACTERISTICS

Test conditions (unless otherwise specified): AGND = DGND = 0 V; VLS = VLC = 1.71 V to 5.25 V.

Parameters (Note 16) Symbol Min Typ Max Units

High-Level Input Voltage

VL = 1.71 V Serial Port

Control Port

VL > 2.0 V Serial Port

Control Port

Low-Level Input Voltage Serial Port

Control Port

High-Level Output Voltage at I

= 2 mA Serial Port

o

Control Port

Low-Level Output Voltage at I

= 2 mA Serial Port

o

Control Port
Input Leakage Current I
Input Capacitanc e (Note 17) --1pF

Minimum OVFL Active Time - - s

16. Serial Port signals include: MCLK, SCLK, LRCK, SDOUT.
Control Port signals include: SCL/CCLK, SDA/CDOUT, AD0/CS

17. Guaranteed by design.

V

IH

V

IH

V

IH

V

IH

V

IL

V

IL

V

OH

V

OH

V

OL

V

OL
in

0.8xVLS

0.8xVLC

0.7xVLS

0.7xVLC

-

-

VLS-1.0
VLC-1.0

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

0.2xVLS

0.2xVLC

-

-

0.4

0.4

--±10A

V
V
V
V

V
V

V
V

V
V

, AD1/CDIN, RESET, INT, OVFL.

16 DS658F4

CS5345

10

9

128Fs

-------------------- -

10

9

64Fs

----------------- -

10

9

64Fs

----------------- -

SWITCHING CHARACTERISTICS - SERIAL AUDIO PORT

Logic ‘0’ = DGND = AGND = 0 V; Logic ‘1’ = VL, CL = 20 pF. (Note 18)

Parameter Symbol Min Typ Max Unit

Sample Rate Single-Speed Mode

Double-Speed Mode

Quad-Speed Mode

MCLK Specifications

MCLK Frequency fmclk 1.024 - 51.200 MHz
MCLK Input Pulse Width High/Low tclkhl 8--ns

Master Mode

LRCK Duty Cycle - 50 - %
SCLK Duty Cycle - 50 - %
SCLK falling to LRCK edge t
SCLK falling to SDOUT valid t

Slave Mode

LRCK Duty Cycle 405060%
SCLK Period

Single-Speed Mode

Fs
Fs
Fs

sdo

t

sclkw

4

50

100

slr

-10 - 10 ns

-

-

-

50
100
200

kHz
kHz
kHz

0 - 36 ns

-

-

ns

Double-Speed Mode

Quad-Speed Mode

SCLK Pulse Width High t
SCLK Pulse Width Low t
SCLK falling to LRCK edge t
SCLK falling to SDOUT valid t

18. See Figure 1 and Figure 2 on page 18.

t

sclkw

t

sclkw

sclkh

sclkl

sdo

-

-

-

-

ns

ns

30 - - ns
48 - - ns

slr

-10 - 10 ns
0 - 36 ns

DS658F4 17

slr

t

SDOUT

SCLK

Output

LRCK

Output

sdo

t

slr

t

SDOUT

SCLK

Input

LRCK

Input

sdo

t

sclkh

t

sclkl

t

sclkw

t

Figure 1. Master Mode Serial Audio Port Timing

Figure 2. Slave Mode Serial Audio Port Timin g

CS5345

18 DS658F4

CS5345

Figure 3. Format 0, Left-Justified up to 24-Bit Data

LRCK

SCLK

SDATA

+3 +2 +1+5 +4

-1 -2 -3 -4 -5

+3 +2 +1+5 +4

MSB

-1 -2 -3 -4

Channel A - Left

Channel B - Right

LSBLSBMSB

Figure 4. Format 1, I²S up to 24-Bit Data

LRCK

SCLK

SDATA

+3 +2 +1+5 +4

MSB

-1 -2 -3 -4 -5

+3 +2 +1+5 +4

-1 -2 -3 -4

Channel A - Left

Channel B - Right

LSB MSB LSB

DS658F4 19

SWITCHING CHARACTERISTICS - CONTROL PORT - I²C FORMAT

t

buf

t

hdst

t

low

t

hdd

t

high

t

sud

Stop Start

SDA

SCL

t

irs

RST

t

hdst

t

rc

t

fc

t

sust

t

susp

Start

Stop

Repeated

t

rd

t

fd

t

ack

Figure 5. Control Port Timing - I²C Format

Inputs: Logic 0 = DGND = AGND = 0 V, Logic 1 = VLC, CL=30pF.

Parameter Symbol Min Max Unit

SCL Clock Frequency f
RESET

Rising Edge to Start t
Bus Free Time Between Transmissions t
Start Condition Hold Time (prior to first clock pulse) t
Clock Low time t
Clock High Time t
Setup Time for Repeated Start Condition t
SDA Hold Time from SCL Falling (Note 19) t
SDA Setup time to SCL Rising t
Rise Time of SCL and SDA (Note 20) t
Fall Time SCL and SDA (Note 20) t
Setup Time for Stop Condition t
Acknowledge Delay from SCL Falling t

buf

hdst

low
high
sust
hdd

sud

rc
fc

susp

ack

scl
irs

, t
, t

rd
fd

- 100 kHz

500 - ns

4.7 - µs

4.0 - µs

4.7 - µs

4.0 - µs

4.7 - µs
0-µs

250 - ns

-1µs

- 300 ns

4.7 - µs

300 1000 ns

CS5345

19. Data must be held for sufficient time to bridge the transition time, t

20. Guaranteed by design.

, of SCL.

fc

20 DS658F4

SWITCHING CHARACTERISTICS - CONTROL PORT - SPI FORMAT

t

r2

t

f2

t

dsu

t

dh

t

sch

t

scl

CS

CCLK

CDIN

t

css

t

pd

CDOUT

t

csh

RST

t

srs

Figure 6. Control Port Timing - SPI Format

Inputs: Logic 0 = DGND = AGND = 0 V, Logic 1 = VLC, CL=30pF.

Parameter Symbol Min Max Units

CCLK Clock Frequency f
RESET
CS High Time Between Transmissions t
CS Falling to CCLK Edge t
CCLK Low Time t
CCLK High Time t
CDIN to CCLK Rising Setup Time t
CCLK Rising to DATA Hold Time (Note 21) t
CCLK Falling to CDOUT Stable t
Rise Time of CDOUT t
Fall Time of CDOUT t
Rise Time of CCLK and CDIN (Note 22) t
Fall Time of CCLK and CDIN (Note 22) t

Rising Edge to CS Falling t

sck

srs
csh
css

scl
sch
dsu

dh
pd
r1

f1

r2

f2

-6.0MHz

500 - ns

1.0 - s
20 - ns
66 - ns
66 - ns
40 - ns
15 - ns

-50ns

-25ns

-25ns

- 100 ns

- 100 ns

CS5345

21. Data must be held for sufficient time to bridge the transition time of CCLK.

22. For f

<1 MHz.

sck

DS658F4 21

3. TYPICAL CONNECTION DIAGRAM

VLS

0.1 µF

+1.8V

to +5V

DGND

VLC

0.1 µF

+1.8V

to +5V

SCL/CCLK
SDA/CDOUT

AD1/CDIN

RESET

2 k

See Note 1

AGND

AD0/CS

Note 1: Resistors are required
for I²C control port operation

Micro-

Controller

0.1 µF

VA

* Capacitors must be C0G or equivalent

Digital Audio

Capture

LRCK

SDOUT

MCLK

SCLK

PGAOUTA

PGAOUTB

2.2nF

AFILTA
AFILTB

OVFL

2.2nF

3.3 µF

3.3 µF

47 µF

0.1 µF

VQ
FILT+

10 µF

AGND

**

2 k

INT

47 µF

AIN1A

Left Analog Input 1

10 µF

10 µF

1800 pF

1800 pF

100 k

100 k

100 

100 

AIN1B

Right Analog Input 1

AIN2A

Left Analog Input 2

10 µF

10 µF

1800 pF

1800 pF

100 k

100 k

100 

100 

AIN2B

Right Analog Input 2

AIN3A

Left Analog Input 3

10 µF

10 µF

1800 pF

1800 pF

100 k

100 k

100 

100 

AIN3B

Right Analog Input 3

AIN4A/MICIN1

Left Analog Input 4

10 µF

10 µF

1800 pF

1800 pF

100 k

100 k

100 

100 

AIN4B/MICIN2

Right Analog Input 4

AIN5A

Left Analog Input 5

10 µF

10 µF

1800 pF

1800 pF

100 k

100 k

100 

100 

AIN5B

Right Analog Input 5

AIN6A

Left Analog Input 6

10 µF

10 µF

1800 pF

1800 pF

100 k

100 k

100 

100 

AIN6B

Right Analog Input 6

MICBIAS

AGND

0.1 µF

*

*

*

*

*

*

*

*

*

*

*

*

NC
NC
NC
NC
NC

TSTI
TSTO
TSTO
TSTO

10 µF

+3.3V to +5V

0.1 µF

10 µF

0.1 µF

VAVD

+3.3V to +5V

R

L

See Note 2

Note 2 The value of RL is
dictated by the microphone
carteridge.

CS5345

Figure 7. Typical Connection Diagram

CS5345

22 DS658F4

4. APPLICATIONS

4.1 Recommended Power-Up Sequence

1. Hold RESET low until the power supply, MC LK, and LRCK are stable. In this state, the Control Port is
reset to its default settings.

2. Bring RESET
trol port will be accessible.

3. The desired register settings can be loaded while the PDN bit remains set.

4. Clear the PDN bit to initiate the power-up sequence.

4.2 System Clocking

The CS5345 will operate at sampling frequencies from 4 kHz to 200 kHz. This range is divided into three
speed modes as shown in Table 1.

high. The device will remain in a low power state with the PDN bit set by default. The con-

Mode Sampling Frequency

Single-Speed 4-50 kHz
Double-Speed 50-100 kHz
Quad-Speed 100-200 kHz

Table 1. Speed Modes

CS5345

4.2.1 Master Clock

MCLK/LRCK must maintain an integer ratio as shown in Table 2. The LRCK frequency is equal to Fs, the
frequency at which audio samples for each channel are clocked out of the device. The FM bits (See “Func-

tional Mode (Bits 7:6)” on page 33.) and the MCLK Freq bits (See “MCLK Frequency - Address 05h” on
page 34.) configure the device to generate the proper clocks in Master Mode, and receive the proper

clocks in Slave Mode. Table 2 illustrates several standard audio sample rates and the required MCLK and
LRCK frequencies.

LRCK

(kHz)

32

44.1
48
64

88.2
96

128

176.4
192

Mode

64x 96x 128x 192x 256x 384x 512x 768x 1024x

- ---8.1920 12.2880 16.3840 24.5760 32.7680

- ---11.2896 16.9344 22.5792 33.8680 45.1584

- ---12.2880 18.4320 24.5760 36.8640 49.1520

- - 8.1920 12.2880 16.3840 24.5760 32.7680 - -

- - 11.2896 16.9344 22.5792 33.8680 45.1584 - -

- - 12.2880 18.4320 24.5760 36.8640 49.1520 - -

8.1920 12.2880 16.3840 24.5760 32.7680 - - - -

11.2896 16.9344 22.5792 33.8680 45.1584 - - - -

12.2880 18.4320 24.5760 36.8640 49.1520 - - - -

MCLK (MHz)

QSM

Table 2. Common Clock Frequencies

DSM SSM

DS658F4 23

In both Master and Slave Modes, the external MCLK must be divided down based on the MCLK/LRCK

÷256

÷128

÷64

÷4

÷2

÷1

00

01

10

00

01

10

LRCK

SCLK

000

001

010

÷1

÷1.5

÷2

011

100

÷3

÷4

MCLK

FM Bits

MCLK Freq Bits

Figure 8. Master Mode Clocking

ratio to achieve a post-divider MCLK/LRCK ratio of 256x for SSM, 128x for DSM, or 64 x for QSM. Table 3
lists the appropriate dividers.

MCLK/LRCK Ratio MCLK Dividers

4.2.2 Master Mode

As a clock master, LRCK and SCLK will operate as outputs. LRCK and SCLK are internally derived from
MCLK with LRCK equal to Fs and SCLK equal to 64 x Fs as shown in Figure 8.

64x --÷1

96x --÷1.5
128x -÷1÷2
192x -÷1.5÷3
256x ÷1 ÷2 ÷4
384x ÷1.5 ÷3 -
512x ÷2 ÷4 -
768x ÷3 - -

1024x ÷4 - -

Mode SSM

Table 3. MCLK Dividers

DSM QSM

CS5345

4.2.3 Slave Mode

In Slave Mode, SCLK and LRCK operate as inputs. The Left/Right clock signal must b e equal to the sam­ple rate, Fs, and must be synchronously derived from the supplied master clock, MCLK.

The serial bit clock, SCLK, must be synchronously derived from the master clock, MCLK, and be equal to
128x, 64x, 48x or 32x Fs, depending on the desired speed mode. Refer to Table 4 for required clock ra­tios.

Single-Speed Double-Speed Quad-Speed

SCLK/LRCK Ratio 32x, 48x, 64x, 128x 32x, 48x, 64x 32x, 48x, 64x

Table 4. Slave Mode Serial Bit Clock Ratios

4.3 High-Pass Filter and DC Offset Calibration

24 DS658F4

When using operational amplifiers in the input circuitry driving the CS5345, a small DC offset may be driven
into the A/D converter. The CS5345 includes a high-pass filter after the decimator to remove any DC offset

CS5345

which could result in recording a DC level, possibly yielding clicks when switching between devices in a mul­tichannel system.

The high-pass filter continuou sly subtracts a measure of th e DC offset from the output of the decimation
filter. If the HPFFreeze bit (See “High-Pass Filter Freeze (Bit 1)” on page 33.) is set during normal operation,
the current value of the DC offset for the each channel is frozen and this DC offset will continue to be sub­tracted from the conversion result. This feature makes it possible to perform a system DC offset calibration
by:

1. Running the CS5345 with the high-pass filter enabled until the filter settles. See the Digital Filter Char­acteristics section for filter settling time.

2. Disabling the high-pass filter and freezing the stored DC offset.

A system calibration performed in this way will eliminate offsets anywhere in the signal path between the
calibration point and the CS5345.

DS658F4 25

4.4 Analog Input Multiplexer, PGA, and Mic Gain

PGA

MUX

+32 dB

AIN1A
AIN2A
AIN3A

AIN4A/MICIN1

AIN5A
AIN6A

PGA

MUX

+32 dB

AIN1B
AIN2B
AIN3B

AIN4B/MICIN2

AIN5B
AIN6B

Analog Input

Selection Bits

Channel A

PGA Gain Bits

Channel B

PGA Gain Bits

Out to ADC
Channel A

Out to ADC
Channel B

Figure 9. Analog Input Architecture

The CS5345 contains a stereo 6-to-1 analog input multiplexer followed by a programmable gain amplifier
(PGA). The input multiplexer can select one of six possible stereo analog input sources and route it to the
PGA. Analog inputs 4A and 4B are able to insert a +32 dB gain stage before the input multiplexer, allowing
them to be used for microphone-level signals without the need for any external gain. The PGA stage pro­vides 12 dB of gain or attenuation in 0.5 dB steps. Figure 9 shows the architecture of the input multiplexer,
PGA, and microphone gain stages. .

CS5345

The “Analog Input Selection (Bits 2:0)” on page 36 outlines the bit settings necessary to control the input
multiplexer and mic gain. “Channel B PGA Control - Address 07h” on page 34 and “Channel A PGA Control

- Address 08h” on page 35 outline the register settings necessary to control the PGA. By default, line-

level inp ut 1 is selected, and the PGA is set to 0 dB.

4.5 Input Connections

The analog modulator samples the input at 6.144 MHz (MCLK=12.288 MHz). The digital filter will reject sig­nals within the stopband of the filter. However, there is no rejection for input signals which are
(n

 6.144 MHz) the digital passband frequency, where n=0,1,2,... Refer to the Typical Connection Diagram

for the recommended analog input circuit that will attenuate noise energy at 6.144 MHz. The use of capac­itors which have a large voltage coefficient (such as general-purpose ceramics) must be avoided since
these can degrade signal linearity. Any unused analog input pairs should be left unconne cted.

4.6 PGA Auxiliary Analog Output

The CS5345 includes an auxiliary analog output through the PGAOUT pins. These pins can be configured
to output the analog input to the ADC as selected by the input MUX and gained or attenuated with the PGA,
or alternatively, they may be set to h igh-im peda nce. Se e th e ““PGAOut Source Select (Bit 6)” on page 34”
for information on configuring the PGA auxiliary analog output.

The PGA auxiliary analog output can source very little current. As current from the PGAOUT pins increases,
distortion will increase. For this reason, a high-input impedance buffer must be used on the PGAOUT pins
to achieve full performance. Refer to the table in “PGAOUT Analog Characteristics” on pag e 12 for accept­able loading conditions.

26 DS658F4

4.7 Control Port Description and Timing

MAP

MSB

LSB

DAT A

byte 1

byte n

R/W

R/W

ADDRESS

CHIP

ADDRESS

CHIP

CDIN

CCLK

CS

CDOUT

MSB

LSB

MSB

LSB

1001111

1001111

MAP = Memory Address Pointer, 8 bits, MSB first

High Impedance

Figure 10. Control Port Timing in SPI Mode

The control port is used to access the registers, allowing the CS5345 to be configured for the desired oper­ational modes and formats. The operation of the control port may be completely asynchronous with r espect
to the audio sample rates. However, to avoid potential interference problems, the control port pins should
remain static if no operation is required.

The control port has two modes: SPI and I²C, with the CS5345 acting as a slave device. SPI Mode is se­lected if there is a high-to-low transition on the AD0/CS
Mode is selected by connecting the AD0/CS

pin through a resistor to VLC or DGND, thereby permanently

selecting the desired AD0 bit address state.

4.7.1 SPI Mode

In SPI Mode, CS is the CS5345 chip-select signal; CCLK is the control por t bit clock (input into the CS5345
from the microcontroller); CDIN is the input data line from the mi crocon tr oller; CDOUT is the ou tput data
line to the microcontroller. Data is clocked in on the rising edge of CCLK and out on the falling edge.

CS5345

pin, after the RESET pin has been brought high. I²C

Figure 10 shows the operation of the control port in SPI Mode. To write to a register, bring C S

low. The
first seven bits on CDIN form the chip address and must be 1001111. The eighth bit is a read/write indi­cator (R/W

), which should be low to write. The next eight bits form the Memory Address Pointer (MAP),
which is set to the address of the register that is to be updated. The next eight bits are the data that will
be placed into the register designated by the MAP. During writes, the CDOUT output stays in the Hi-Z
state. It may be externally pulled high or low with a 47 k resistor, if desired.

To read a register, the MAP has to be set to the correct address by executing a partial write cycle which
finishes (CS
dress and set the read/write bit (R/W

high) immediately after the MAP byte. To begin a read, bring CS low, send out the chip ad-

) high. The next falling edge of CCLK will clock out the MSB of the

addressed register (CDOUT will leave the high-impedance state).
For both read and write cycles, the memory address pointer will automatically increment following each

data byte in order to facilitate block reads and writes of successive registers.

4.7.2 I²C Mode

DS658F4 27

In I²C Mode, SDA is a bidirectional data line. Data is clocked into and out of the part by the clock, SCL.
There is no CS

pin. Pins AD0 and AD1 form the two least-significant bits of the chip addr ess and sho uld

CS5345

4 5 6 7 24 25

SCL

CHIP ADDRESS (WRITE) MAP BYTE DATA

DATA +1

START

ACK

STOP

ACKACKACK

1 0 0 1 1 AD1 AD0 0

SDA

6 6 5 4 3 2 1 0 7 6 1 0 7 6 1 0 7 6 1 0

0 1 2 3 8 9 12 16 17 18 19 10 11 13 14 15 27 28

26

DATA +n

Figure 11. Control Port Timing, I²C Write

SCL

CHIP ADDRESS (WRITE)

MAP BYTE

DATA

DATA +1

START

ACK

STOP

ACK

ACK

ACK

1 0 0 1 1 AD1 AD0 0

SDA

1 0 0 1 1 AD1 AD0 1

CHIP ADDRESS (READ)

START

7 6 5 4 3 2 1 0

7 0 7 0 7 0

NO

16 8 9 12 13 14 15 4 5 6 7 0 1 20 21 22 23 24

26 27 28

2 3 10 11 17 18 19 25

ACK

DATA + n

STOP

Figure 12. Control Port Timing, I²C Read

be connected through a resistor to VLC or DGND as desired. The state of the pins is sensed while the
CS5345 is being reset.

The signal timings for a read and write cycle are shown in Figure 11 and Figure 12. A Start condition is
defined as a falling transition of SDA while the clock is high. A Stop condition is a rising transition while
the clock is high. All other transitions of SDA occur while the clock is low. The first byte sent to the CS5345
after a Start condition consists of a 7-bit chip address field and a R/W
The upper 5 bits of the 7-bit address field are fixed at 10011. To communicate with a CS5345, the chip
address field, which is the first byte sent to the CS5345, should match 10011 followed by the settings of
the AD1 and AD0. The eighth bit of the address is the R/W

bit. If the operation is a write, the next byte is
the Memory Address Pointer (MAP) which selects the register to be read or written. If the operation is a
read, the contents of the register pointed to by the MAP will be output. Following each data byte, the mem­ory address pointer will automatically increment to facilitate block reads and writes of successive regis­ters. Each byte is separated by an acknowledge bit. The ACK bit is output from the CS5345 after each
input byte is read, and is input to the CS5345 from the microcontroller after each transmitted byte.

bit (high for a read, low for a write).

Since the read operation cannot set the MAP, an aborted write operation is us ed as a preamble. As shown
in Figure 12, the write operation is aborted after the acknowledge for the MAP byte by sending a stop con­dition. The following pseudocode illustrates an aborted write operation followed by a read operation.

Send start condition.
Send 10011xx0 (chip address & write operation).
Receive acknowledge bit.
Send MAP byte.
Receive acknowledge bit.
Send stop condition, aborting write.
Send start condition.
Send 10011xx1 (chip address & read operation).
Receive acknowledge bit.

28 DS658F4

Receive byte, contents of selected register .
Send acknowledge bit.
Send stop condition.

4.8 Interrupts and Overflow

The CS5345 has a comprehensive interrupt capability. The INT output pin is intended to drive the interrupt
input pin on the host microcontroller. The INT pin may function as either an active high CMOS driver or an
active low open-drain driver (see “Active High/Low (Bit 0)” on page 36). When configured as active low
open-drain, the INT pin has no active pull-up transistor, allowing it to be used for wired-OR hook-ups with
multiple peripherals connected to the microcontr oller interrupt input pin. In this co nfiguration, an external
pull-up resistor must be placed on the INT pin for proper operation.

Many conditions can cause an interrupt, as listed in the interrupt status register descriptions (see “Interrupt

Status - Address 0Dh” on page 36). Each source may be masked off through mask register bits. In addition,

each source may be set to rising edge, falling edge, or level-sensitive. Combined with the option of level­sensitive or edge-sensitive modes within the mi crocontroller, many differ ent configurations are possible, de­pending on the needs of the equipment designer.

The CS5345 also has a dedicated overflow output. The OVFL pin functions as active low open drain and
has no active pull-up transistor, thereby requiring an external pu ll-up resistor. The OVFL pin ou tputs an OR
of the ADCOverflow and ADCUnderflow conditions available in the Interrup t Status register; however, these
conditions do not need to be unmasked for proper operation of the OVFL pin.

CS5345

4.9 Reset

When RESET is low, the CS5345 enters a low-power mode and all internal states are reset, including the
control port and registers, the outputs are muted. When RESET
al, and the desired settings should be loaded into the control registers. Wr iting a 0 to the PDN bit in the Pow­er Control register will then cause the part to leave the low-power state and begin operation.

The delta-sigma modulators settle in a matter of microseconds after the analog section is powered, either
through the application of power or by setting the RESET
much longer to reach a final value due to the presence of external capacitance on the FILT+ pin. Dur ing this
voltage reference ramp delay, SDOUT will be automatically muted.

It is recommended that RESET
operating condition to prevent power-glitch-related issues.

be activated if the analog or digital su pplie s drop b elow th e recom me nded

4.10 Synchronization of Multiple Devices

In systems where multiple ADCs are required, care mu st be taken to achie ve simultaneous sampling . To
ensure synchronous sampling, the master clocks and left/right clocks must be the same for all of the
CS5345s in the system. If only one master clock source is needed, one solution is to place one CS5345 in
Master Mode, and slave all of the other CS5345s to the one master. If multiple master clock sources are
needed, a possible solution would be to supply all clocks from the same external source and time the
CS5345 reset with the inactive edge of master clock. This will ensure that all converters begin sampling on
the same clock edge.

is high, the control port becomes operation-

pin high. However, the voltage reference will take

4.11 Grounding and Power Supply Decoupling

As with any high-resolution converter, the CS5345 requires careful attention to power supply and grounding
arrangements if its potential performance is to be realized. Figure 7 shows the recommended power ar­rangements, with VA connected to a clean supply. VD, which powers the digital filter, may be run from the

DS658F4 29

CS5345

system logic supply (VLS or VLC) or may be powered from the analog supply (VA) via a resistor. In this
case, no additional devices should be powered from VD. Power supply decou pling capacitors should be a s
near to the CS5345 as possible, with the low value ceramic capacitor being the nearest. All signals, espe­cially clocks, should be kept away from the FILT+ and VQ pins in order to avoid unwanted coupling into the
modulators. The FILT+ and VQ decoupling capacitors, particularly the 0.1 µF, m ust be positioned to mini­mize the electrical path from FILT+ and AGND. The CS5345 evaluation board demonstrates the optimum
layout and power supply arrangements. To minimize digital noise, connect th e CS5 345 digital ou tp uts only
to CMOS inputs.

30 DS658F4

CS5345

5. REGISTER QUICK REFERENCE

This table shows the register names and their associated default values.

Addr Function 7 6 5 4 3 2 1 0

01h Chip ID PART3 PART2 PART1 PART0 REV3 REV2 REV1 REV0

1110 0 0 0 1

02h Power Control Freeze Reserved Reserved Reserved PDN_MIC PDN_ADC Reserved PDN

0000 0 0 0 1

03h Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

0000 1 0 0 0

04h ADC Control FM1 FM0 Reserved DIF Reserved Mute HPFFreeze M/S

0000 0 0 0 0

05h MCLK

Frequency

06h PGAOut

Control

07h PGA Ch B

Gain Control

08h PGA Ch A

Gain Control

09h Analog Input

Control

0Ah -

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

0Bh

0Ch Active Level

Control

0Dh Interrupt Status Reserved Reserved Reserved Reserved ClkErr Reserved Ovfl Undrfl

0Eh Interrupt Mask Reserved Reserved Reserved Reserved ClkErrM Reserved OvflM UndrflM

0Fh Interrupt Mode

MSB

10h Interrupt Mode

LSB

Reserved MCLK

Freq2

0000 0 0 0 0

Reserved PGAOut Reserved Reserved Reserved Reserved Reserved Reserved

0100 0 0 0 0

Reserved Reserved Gain5 Gain4 Gain3 Gain2 Gain1 Gain0

0000 0 0 0 0

Reserved Reserved Gain5 Gain4 Gain3 Gain2 Gain1 Gain0

0000 0 0 0 0

Reserved Reserved Reserved PGASoft PGAZero Sel2 Sel1 Sel0

0001 1 0 0 1

0000 0 0 0 0

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Active_H/L

1100 0 0 0 0

0000 0 0 0 0

0000 0 0 0 0

Reserved Reserved Reserved Reserved ClkErr1 Reserved Ovfl1 Undrfl1

0000 0 0 0 0

Reserved Reserved Reserved Reserved ClkErr0 Reserved Ovfl0 Undrfl0

0000 0 0 0 0

MCLK

Freq1

MCLK

Freq0

Reserved Reserved Reserved Reserved

DS658F4 31

CS5345

6. REGISTER DESCRIPTION

6.1 Chip ID - Register 01h

76543210

PART3 PART2 PART1 PART0 REV3 REV2 REV1 REV0

Function:
This register is Read-Only. Bits 7 through 4 are the part number ID, which is 1110b (0Eh), and the remaining

bits (3 through 0) indicate the device revision as shown in Table 5 below.

REV[2:0] Revision

001 A
010 B, C0

011 C1

Table 5. Device Revision

6.2 Power Control - Address 02h

76543210

Freeze Reserved Reserved Reserved PDN_MIC PDN_ADC Reserved PDN

6.2.1 Freeze (Bit 7)

Function:
This function allows modifications to be made to certain control port bits without the changes taking effect

until the Freeze bit is disabled. To make multiple changes to these bits take effect simultaneously, set the
Freeze bit, make all changes, then clear the Freeze bit. The bits affe cted by the Freeze function are listed
in Table 6.

Name Register Bit(s)

Mute 04h 2
Gain[5:0] 07h 5:0
Gain[5:0] 08h 5:0

6.2.2 Power-Down MIC (Bit 3)

Function:
The microphone preamplifier block will enter a low-power state whenever this bit is set.

6.2.3 Power-Down ADC (Bit 2)

Function:
The ADC pair will remain in a reset state whenever this bit is set.

6.2.4 Power-Down Device (Bit 0)

Table 6. Freeze-able Bits

Function:
The device will enter a low-power state whenever this bit is set. The power-down bit is set by default and

must be cleared before normal operation can occur. The contents of the control re gisters are retained
when the device is in power-down.

32 DS658F4

CS5345

6.3 ADC Control - Address 04h

76543210

FM1 FM0 Reserved DIF Reserved Mute HPFFreeze M/S

6.3.1 Functional Mode (Bits 7:6)

Function:
Selects the required range of sample rates.

FM1 FM0 Mode

0 0 Single-Speed Mode: 4 to 50 kHz sample rates
0 1 Double-Speed Mode: 50 to 100 kHz sample rates
1 0 Quad-Speed Mode: 100 to 200 kHz sample rates
11Reserved

T able 7. Functional Mode Selection

6.3.2 Digital Interface Format (Bit 4)

Function:
The required relationship between LRCK, SCLK and SDOUT is defined by the Digital Interface Format

bit. The options are detailed in Table 8 and may be seen in Figure 3 and Figure 4.

DIF Description Format Figure

0 L ef t-J us tifie d, up to 24 -b it da ta (defa ult ) 0 3
1 I²S, up to 24-bit data 1 4

Table 8. Digital Interface Formats

6.3.3 Mute (Bit 2)

Function:
When this bit is set, the serial audio output of the both channels is muted.

6.3.4 High-Pass Filter Freeze (Bit 1)

Function:
When this bit is set, the internal high-pass filter is disabled. The current DC offset value will be frozen and

continue to be subtracted from the conversion result. See “High-Pass Filter and DC Offset Calibration” on

page 24.

6.3.5 Master / Slave Mode (Bit 0)

Function:
This bit selects either master or slave operation for the serial audio port. Setting this bit selects Master

Mode, while clearing this bit selects Slave Mode.

DS658F4 33

CS5345

6.4 MCLK Frequency - Address 05h

76543210

Reserved

MCLK
Freq2

6.4.1 Master Clock Dividers (Bits 6:4)

Function:
Sets the frequency of the supplied MCLK signal. See Table 9 for the appropriate settings.

MCLK Divider MCLK Freq2 MCLK Freq1 MCLK Freq0

MCLK

Freq1

÷1 000

÷1.5 001

÷2 010
÷3 011

÷4 100
Reserved 101
Reserved 11x

MCLK
Freq0

Table 9. MCLK Frequency

Reserved Reserved Reserved Reserved

6.5 PGAOut Control - Address 06h

76543210

Reserved PGAOut Reserved Reserved Reserved Reserved Reserved Reserved

6.5.1 PGAOut Source Select (Bit 6)

Function:
This bit is used to configure the PGAOut pins to be either high impedance or PGA outputs. Refer to

Table 10.

PGAOut PGAOutA & PGAOutB

0 High Impedance
1 PGA Output

Table 10. PGAOut Source Selection

6.6 Channel B PGA Control - Address 07h

76543210

Reserved Reserved Gain5 Gain4 Gain3 Gain2 Gain1 Gain0

6.6.1 Channel B PGA Gain (Bits 5:0)

Function:
See “Channel A PGA Gain (Bits 5:0)” on page 35.

34 DS658F4

CS5345

6.7 Channel A PGA Control - Address 08h

76543210

Reserved Reserved Gain5 Gain4 Gain3 Gain2 Gain1 Gain0

6.7.1 Channel A PGA Gain (Bits 5:0)

Function:
Sets the gain or attenuation for the ADC input PGA stage. The gain may be adjusted from -12 dB to

+12 dB in 0.5 dB steps. The gain bits are in two’s complement with the Gain0 bit set for a 0.5 dB step.
Register settings outside of the ±12 dB range are reserved and must not be used. See Table 11 for ex­ample settings.

Gain[5:0] Setting

101000 -12 dB
000000 0 dB
011000 +12 dB

T able 11. Example Gain and Attenuation Settings

6.8 ADC Input Control - Address 09h

76543210

Reserved Reserved Reserved PGASoft PGAZero Sel2 Sel1 Sel0

6.8.1 PGA Soft Ramp or Zero Cross Enable (Bits 4:3)

Function:
Soft Ramp Enable
Soft Ramp allows level changes, both muting and attenuation, to be implemente d by incrementally ramp-

ing, in 1/8 dB steps, from the current level to the new level at a rate of 1 dB per 8 left/right clock periods.
See Table 12.

Zero Cross Enable
Zero Cross Enable dictates that signal-level changes, either by attenuation changes or muting, will occur

on a signal zero crossing to minimize audible artifacts. The requested level change wi ll occur after a time­out period between 512 and 1024 sample periods (10.7 ms to 21.3 ms at 48 kHz sample rate) if the signal
does not encounter a zero crossing. The zero cross function is independ ently monitored and implemented
for each channel. See Table 12.

Soft Ramp and Zero Cross Enable
Soft Ramp and Zero Cross Enable dictate that signal-level changes, either by attenuation chan ges or mut-

ing, will occur in 1/8 dB steps and be implemented on a signal zero crossing. The 1/8 dB level change will
occur after a time-out period between 512 and 1024 sample periods (10.7 ms to 21.3 ms at 48 kHz sam­ple rate) if the signal does not encounter a zero crossing. The zero cross function is independently mon­itored and implemented for each channel. See Table 12.

DS658F4 35

PGASoft PGAZeroCross Mode

0 0 Changes to affect immediately
0 1 Zero Cross enabled
1 0 Soft Ramp enabled
1 1 Soft Ramp and Zero Cross enabled (default)

Table 12. PGA Soft Cross or Zero Cross Mode Selection

6.8.2 Analog Input Selection (Bits 2:0)

Function:
These bits are used to select the input source for the PGA and ADC. Please see Table 13.

Sel2 Sel1 Sel0 PGA/ADC Input

0 0 0 Microphone-Level Inputs (+32 dB Gain Enabled)
0 0 1 Line-Level Input Pair 1
0 1 0 Line-Level Input Pair 2
0 1 1 Line-Level Input Pair 3
1 0 0 Line-Level Input Pair 4
1 0 1 Line-Level Input Pair 5
1 1 0 Line-Level Input Pair 6
1 1 1 Reserved

CS5345

Table 13. Analog Input Multiplexer Selection

6.9 Active Level Control - Address 0Ch

76543210

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Active_H/L

6.9.1 Active High/Low

Function:
When this bit is set, the INT pin functions as an active high CMOS driver.
When this bit is cleared, the INT pin functions as an active low open drain driver and will require an exter-

nal pull-up resistor for proper operation.

(Bit 0)

6.10 Interrupt Status - Address 0Dh

76543210

Reserved Reserved Reserved Reserved ClkErr Reserved Ovfl Undrfl

For all bits in this register, a ‘1’ means the associated interrupt condition has occurred at leas t once since
the register was last read. A ‘0’ means the associated interrupt condition has NOT occurred since the last
reading of the register. Status bits that are masked off in the associated mask register will always be ‘0’ in
this register. This register defaults to 00h.

36 DS658F4

CS5345

6.10.1 Clock Error (Bit 3)

Function:
Indicates the occurrence of a clock error condition.

6.10.2 Overflow (Bit 1)

Function:
Indicates the occurrence of an ADC overflow condition.

6.10.3 Underflow (Bit 0)

Function:
Indicates the occurrence of an ADC underflow condition.

6.11 Interrupt Mask - Address 0Eh

76543210

Reserved Reserved Reserved Reserved ClkErrM Reserved OvflM UndrflM

Function:
The bits of this register serve as a mask for the Status sources found in the register “Interrupt Status - Ad-

dress 0Dh” on page 36. If a mask bit is set to 1, the error is unmasked, meaning that its occurrence will affect

the INT pin and the status register. If a mask bit is set to 0, the error is masked, meaning that its occurrence
will not affect the INT pin or the status register. The bit positions align with the corresponding bits in the Sta­tus register.

6.12 Interrupt Mode MSB - Address 0Fh

6.13 Interrupt Mode LSB - Address 10h

76543210

Reserved Reserved Reserved Reserved ClkErr1 Reserved Ovfl1 Undrfl1
Reserved Reserved Reserved Reserved ClkErr0 Reserved Ovfl0 Undrfl0

Function:
The two Interrupt Mode registers form a 2-bit code for each Interrupt Status register function. There are

three ways to set the INT pin active in accordance with the interrupt condition. In the Rising -Edge Active
Mode, the INT pin becomes active on the arrival of the interrupt condition. In the Falling-Edge Active Mode,
the INT pin becomes active on the removal of the interrupt condition. In Level-Active Mode, the INT pin re­mains active during the interrupt condition.

00 - Rising edge active
01 - Falling edge active
10 - Level active
11 - Reserved

DS658F4 37

7. PARAMETER DEFINITIONS

Dynamic Range

The ratio of the rms value of the signal t o the rms su m of all other spectral components over the specified
bandwidth. Dynamic Range is a signal-to-noise ratio measurement over the specified bandwidth made with
a -60 dBFS signal. 60 dB is added to resulting measurement to refer the measurement to full scale. This
technique ensures that the distortion components are below the noise level and do not affect the measure­ment. This measurement technique has been accepted by the Audio Engineering Society, AES17-1991,
and the Electronic Industries Association of Japan, EIAJ CP-307. Expressed in decibels.

Total Harmonic Distortion + Noise

The ratio of the rms value of the signal t o the rms su m of all other spectral components over the specified
bandwidth (typically 10 Hz to 20 kHz ), including distortion components. Expressed in decibels. Measured
at -1 and -20 dBFS as suggested in AES17-1991 Annex A.

Frequency Response

A measure of the amplitude r es po ns e va riatio n from 10 H z t o 20 kHz relative to the amplitude res po ns e at
1 kHz. Units in decibels.

Interchannel Isolation

A measure of crosstalk between the left and right channels. Measured for each channel at the converter's
output with no signal to the input under test and a full-scale signal applied to the other channel. Units in deci­bels.

CS5345

Interchannel Gain Mismatch

The gain difference between left and right channels. Units in decibels.

Gain Drift

The change in gain value with temperature. Units in ppm/°C.

38 DS658F4

8. FILTER PLOTS

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Frequency (normalized to Fs)

Amplitude (dB)

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

0.40 0.42 0.44 0.46 0.48 0.50 0.52 0.54 0.56 0.58 0.60

Frequency (normalized to Fs)

Amplitude (dB)

-10

-9

-8

-7

-6

-5

-4

-3

-2

-1

0

0.45 0.46 0.47 0.48 0.49 0.5 0.51 0.52 0.53 0.54 0.55

Frequency (normalized to Fs)

Amplitude (dB)

-0.10

-0.08

-0.06

-0.04

-0.02

0.00

0.02

0.04

0.06

0.08

0.10

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

Frequency (normalized to Fs)

Amplitude (dB)

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Frequency (normalized to Fs)

Amplitude (dB)

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

0.40 0.42 0.44 0.46 0.48 0.50 0.52 0.54 0.56 0.58 0.60

Frequency (normalized to Fs)

Amplitude (dB)

Figure 13. Single-Speed Stopband Rejection Figure 14. Single-Speed Stopband Rejection

CS5345

Figure 15. Single-Speed Transition Band (Detail) Figure 16. Single-Speed Passband Ripple

Figure 17. Double-Speed Stopband Rejection Figure 18. Double-Speed Stopband Rejection

DS658F4 39

-10

-9

-8

-7

-6

-5

-4

-3

-2

-1

0

0.46 0.47 0.48 0.49 0.50 0.51 0.52

Frequency (normalized to Fs)

Amplitude (dB)

-0.10

-0.08

-0.06

-0.04

-0.02

0.00

0.02

0.04

0.06

0.08

0.10

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50

Frequency (normalized to Fs)

Amplitude (dB)

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Frequency (normalized to Fs)

Amplitude (dB)

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85

Frequency (normalized to Fs)

Amplitude (dB)

-10

-9

-8

-7

-6

-5

-4

-3

-2

-1

0

0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50

Frequency (normalized to Fs)

Amplitude (dB)

-0.10

-0.08

-0.06

-0.04

-0.02

0.00

0.02

0.04

0.06

0.08

0.10

0.00 0.03 0.05 0.08 0.10 0.13 0.15 0.18 0.20 0.23 0.25 0.28

Frequency (normalized to F s)

Amplitude (dB)

Figure 19. Double-Speed Transition Band (Detail) Figure 20. Double-Speed Passband Ripple

CS5345

Figure 21. Quad-Speed Stopband Rejection Figure 22. Quad-Speed Stopband Rejection

Figure 23. Quad-Speed Transition Band (Detail) Figure 24. Quad-Speed Passband Ripple

40 DS658F4

9. PACKAGE DIMENSIONS

48L LQFP PACKAGE DRAWING

E1

E

D1

D

1

e

L



B

A1

A

CS5345

INCHES MILLIMETERS

DIM MIN NOM MAX MIN NOM MAX

A --- 0.055 0.063 --- 1.40 1.60

A1 0.002 0.004 0.006 0.05 0.10 0.15

B 0.007 0.009 0.011 0.17 0.22 0.27
D 0.343 0.354 0.366 8.70 9.0 BSC 9.30

D1 0.272 0.28 0.280 6.90 7.0 BSC 7.10

E 0.343 0.354 0.366 8.70 9.0 BSC 9.30

E1 0.272 0.28 0.280 6.90 7.0 BSC 7.10

e* 0.016 0.020 0.024 0.40 0.50 BSC 0.60

L 0.018 0.24 0.030 0.45 0.60 0.75



* Nominal pin pitch is 0.50 mm *Controlling dimension is mm. *JEDEC Designation: MS022

0.000° 4° 7.000° 0.00° 4° 7.00°

10.THERMAL CHARACTERISTICS AND SPECIFICATIONS

Parameters Symbol Min Typ Max Units

Package Thermal Resistance (Note 1) 48-LQFP
Allowable Junction Temperatur e

1. JA is specified according to JEDEC specifications for multi-layer PCBs.

DS658F4 41



JA



JC

-

-

--125

48
15

-

-

°C/Watt
°C/Watt

C

CS5345

Contacting Cirrus Logic Support

For all product questions and inquiries, contact a Cirrus Logic Sales Representative.
To find the one nearest you, go to www.cirrus.com

IMPORTANT NOTICE

Cirrus Logic, Inc. and its subsidiaries (“Cirrus”) believe that the information contained in this document is accurate and reliable. However, the information is subject
to change without noti ce and is p rovided “AS IS” wit hout warran ty of any k ind (expr ess or i mplied). Customers are advis ed to ob tain the latest version of relevant
information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale
supplied at the time of order acknowledgment, including those pertaining to warranty, indemnification, and limitation of liability. No responsibility is assumed by Cirrus
for the use of this information, including use of this information as the basis for manufacture or sale of any items, or for infringement of patents or other rights of third
parties. This document is the property of Cirrus and by furnishing this information, Cirrus grants no license, express or implied under any patents, mask work rights,
copyrights, trademarks, trade secrets or other inte llectual property rig hts. Cirrus owns the copyrights associated with the information contained herein and gives con­sent for copies to be made of the information only for use within your organization with respect to Cirrus integrated circuits or other products of Cirrus. This consent
does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale.

CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROP­ERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). CIRRUS PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARR ANTED FOR USE
IN AIRCRAFT SYSTEMS, MILITARY APPLICATIONS, PRODUCTS SURGICALLY IMPLANTED INTO THE BODY, AUTOMOTIVE SAFETY OR SECURITY DE­VICES, LIFE SUPPORT PRODUCTS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF CIRRUS PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD
TO BE FULLY AT THE CUSTOMER’S RISK AND CIRRUS DISCLAIMS AND MAKES NO WARRANTY, EXPRESS, STATUTO RY OR IMPL IED, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, WITH REGARD TO ANY CIRRUS PRODUCT THAT IS USED
IN SUCH A MANNER. IF THE CUSTOMER OR CUSTOMER’S CUSTOMER USES OR PERMITS THE USE OF CIRRUS PRODUCTS IN CRITICAL APPLICA­TIONS, CUSTOMER AGREES, BY SUCH USE, TO FULLY INDEMNIFY CIRRUS, ITS OFFICERS, DIRECTORS, EMPLOYEES, DISTRIBUTORS AND OTHER
AGENTS FROM ANY AND ALL LIABILITY, INCLUDING ATTORNEYS’ FEES AND COSTS, THAT MAY RESULT FROM OR ARISE IN CONNECTION WITH
THESE USES.

Cirrus Logic, Cirrus, the Cirrus Logic l ogo de si gns , an d Popg ua rd ar e tr a dema rk s o f Ci r ru s Lo gi c, I nc . All other brand and product names in this document may be
trademarks or service marks of their respective owners.

I²C is a registered trademark of Philips Semiconductor.
SPI is a trademark of Motorola, Inc.

11.ORDERING INFORMATION

Product Description Package Pb-Free Grade Temp Range Container Order #

CS5345

24-bit, 192 kHz

Stereo Audio ADC

48-LQFP Yes Commercial -10° to +70° C

CDB5345 CS5345 Evaluation Board No - - - CDB5345

Tray CS5345-CQZ

Tape & Reel CS5345-CQZ R

12.REVISION HISTORY

Release Changes

– Removed the MAP auto-increment functional description from the Control Port Description and Timing section

F1

F2

F3
F4

beginning on page 27.
– Added device revision information to the Chip ID - Register 01h description on page 32.
– Added Automotive Grade
– Changed MCLK to input only in the Pin Descriptions table on page 5.
– Updated the ADC Analog Characteristics ta ble on page 8.
– Updated the PGAOUT Analog Characteristics table on page 12.
– Updated the DC Electrical Characteri stics table on page 15.
– Updated the Digital Interface Characteristics table on page 16.
– Updated the Switching Characteristics - Serial Audio Port table on page 17.
– Updated the Switching Characteristics - Control Port - SPI Format table on page 21.
– Updated the Typical Connection Diagram on page 22.
– Switched Channel B PGA Control - Address 07h on page 34 and Channel A PGA Control - Address 08h on

page 35.

– Removed Automotive Grade
– Added Table 3.

42 DS658F4
