Cirrus Logic CS44800 User Manual

Features

CS44800

8-Channel Digital Amplifier Controller

 > 100 dB Dynamic Range - System Level
 < 0.03% THD+N @ 1 W - System Level
 32 kHz to 192 kHz Sample Rates
 Internal Oscillator Circuit Supports 24.576 MHz

to 54 MHz Crystals

 Integrated Sample Rate Converter (SRC)

– Eliminates Clock Jitter Effects
– Input Sample Rate Independent Operation

 Power Supply Rejection Realtime Feedback
 Spread Spectrum Modulation - Reduces EMI
 PWM Popguard

®

for Single-Ended Mode

PS_SYNC

Control

Auto Fs

Detect

DAI

Serial

Port

PWM

Clock

Volume

/ Limiter

Volume

/ Limiter

SRC

Volume

/ Limiter

Volume

/ Limiter

XTI

XTO

SYS_CLK

DAI_MCLK

DAI_SCLK

DAI_LRCK

DAI_SDIN1

DAI_SDIN2
DAI_SDIN3
DAI_SDIN4

XTAL

 Eliminates AM Frequency Interference
 Programmable Load Compensation Filters
 Support for up to 40 kHz Audio Bandwidth
 Digital Volume Control with Soft Ramp

– +24 to -127 dB in 0.25 dB Steps

 Per Channel Programmable Peak Detect and

Limiter

 SPI™ and I²C
 Separate 2.5 V to 5.0 V Serial Port and Host

®

Host Control Interfaces

Control Port Supplies

PSR_RESET
PSR_EN
PSR_MCLK
PSR_SYNC
PSR_DATA

PWMOUTA1+
PWMOUTA1­PWMOUTB1+
PWMOUTB1-

PWMOUTA2+
PWMOUTA2­PWMOUTB2+
PWMOUTB2-

PWMOUTA3+
PWMOUTA3­PWMOUTB3+
PWMOUTB3-

PWMOUTA4+
PWMOUTA4­PWMOUTB4+
PWMOUTB4-

Multibit

Σ∆

Modulator

Multibit

Σ∆

Modulator

Multibit

Σ∆

Modulator

Multibit

Σ∆

Modulator

Power

Supply

Rejection

PWM

Conversion

PWM

Conversion

PWM

Conversion

PWM

Conversion

MUTE

SCL/CCLK

SDA/CDOUT

AD1/CDIN

AD0/CS

RST

INT

http://www.cirrus.com

SPI/I2C Host
Control Port

Copyright © Cirrus Logic, Inc. 2006

(All Rights Reserved)

PWM

Backend

Control/

Status

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6

MARCH '06

DS632F1

CS44800

General Description

The CS44800 is a multi-channel digital-to-PWM Class D audio system controller including interpolation, sample rate
conversion, half- and full-bridge PWM driver outputs, and power supply rejection feedback in a 64-pin LQFP pack­age.The architecture uses a direct-to-digital approach that maintains digital signal integrity to the final output filter,
minimizing analog interference effects which negatively affect system performance.

The CS44800 integrates on-chip digital volume control, peak detect with limiter, de-emphasis, and 7 GPIO’s, allow­ing easy interfacing to many commonly available power stages. The PWM amplifier can achieve greater than 90%
efficiency. This efficiency provides for smalle r device package, less heat sink requirements, and smaller power
supplies.

The CS44800 is ideal for audio systems requiring wide dynamic range, negligible distortion an d low noise, such as
A/V receivers, DVD receivers, digital speaker and automotive audio systems.

2 DS632F1

TABLE OF CONTENTS

1. CHARACTERISTICS AND SPECIFICATIONS ...................................................................................... 8

SPECIFIED OPERATING CONDITIONS .............................................................................................. 8

ABSOLUTE MAXIMUM RATINGS ........................................................................................................ 8

DC ELECTRICAL CHARACTERISTICS ................................................ .... ... ... ... .... .............................. 9

DIGITAL INTERFACE CHARACTERISTICS ........................................................................................ 9

PWM OUTPUT PERFORMANCE CHARACTERISTICS .................................................................... 10

PWM FILTER CHARACTERISTICS ................................................................................................... 11

SWITCHING CHARACTERISTICS - XTI ............................................................................................ 11

SWITCHING CHARACTERISTICS - SYS_CLK .................................................................................. 12

SWITCHING CHARACTERISTICS - PWMOUTA1-B4 ....................................................................... 12

SWITCHING CHARACTERISTICS - PS_SYNC ................................................................................. 12

SWITCHING CHARACTERISTICS - DAI INTERFACE ...................................................................... 13

SWITCHING CHARACTERISTICS - CONTROL PORT - I²C FORMAT ............................................. 14

SWITCHING CHARACTERISTICS - CONTROL PORT - SPI FORMAT ............................................ 15

2. PIN DESCRIPTIONS ........................................................................................................................... 16

2.1 I/O Pin Characteristics ................................................................................................................ 20

3. TYPICAL CONNECTION DIAGRAMS .....................................................................................21

4. APPLICATIONS ................................................................................................................................... 23

4.1 Overview ... .......................................... ... .... ... .......................................... ... ... .... ............................ 23

4.2 Feature Set Summary ................................................................................................................... 23

4.3 Clock Generation .... .......................................... ... .... ... ... ... .... ......................................................... 24

4.3.1 FsIn Domain Clocking .......................................................................................................... 25

4.3.2 FsOut Domain Clocking ........................... ... .... ... ... .......................................... ... ... .... ... ... ...... 25

4.4 FsIn Clock Domain Modules ......................................................................................................... 27

4.4.1 Digital Audio Input Port .. .... .......................................... ... ... ... ... .... ... ... ... .... ... ......................... 27

4.4.2 Auto Rate Detect ............................................... ... ... .... ... ... ................................................... 31

4.4.3 De-Emphasis ........... ... ... .... ... ... .......................................... ... ... .... ... ... ... ................................ 31

4.5 FsOut Clock Domain Modules ....................................................................................................... 32

4.5.1 Sample Rate Converter .................................................. ... ... ... .... ... ... ... .... ... ......................... 32

4.5.2 Load Compensation Filter .................................................................................................... 32

4.5.3 Digital Volume and Mute Control ....................................... .......................................... ... ... ...32

4.5.4 Peak Detect / Limiter ............................................................................................................ 33

4.5.5 PWM Engines ....... ... .......................................... ... ... .... ... ... ... ... .... ... ... ................................... 33

4.5.6 Interpolation Filter ........................................................................... ... ... .... ... ... ... ................... 34

4.5.7 Quantizer .......... .... ... ... ... .... ... .......................................... ... ... ... .... ... ... ................................... 34

4.5.8 Modulator ................................................ ... .... ... ... .......................................... ... ... ................ 34

4.5.9 PWM Outputs ....................................................... ... .......................................... ... .... ............ 34

4.5.10 Power Supply Rejection (PSR) Real-Time Feedback ........................................................ 35

4.6 Control Port Description and Timing ............................................................................................. 36

4.6.1 SPI Mode ....... .......................................... ... .... ... ... ... .... ......................................... ................ 36

4.6.2 I²C Mode .. ... ... ... .... ... ... ... .... .......................................... ... ... ... ... .... ... ...................................... 37

4.6.3 GPIOs ......................................... ... .... ... .......................................... ... ... .... ............................ 38

4.6.4 Host Interrupt ................................. .... ... ... ... .... ... .......................................... ... ... ... ................ 38

5. POWER SUPPLY, GROUNDING, AND PCB LAYOUT ....................................................................... 39

5.1 Reset and Power-Up ..................................................................................................................... 42

5.1.1 PWM PopGuard® Transient Control .................................................................................... 42

5.1.2 Recommended Power-Up Sequence ................................................................................... 42

5.1.3 Recommended PSR Calibration Sequence ........................ ... .... ... ...................................... 43

5.1.4 Recommended Power-Down Sequence .............................................................................. 44

6. REGISTER QUICK REFERENCE ........................................................................................................ 46

7. REGISTER DESCRIPTION .................................................................................................................. 50

7.1 Memory Address Pointer (MAP) .......................... ............................. ............................. ................ 50

CS44800

DS632F1 3

CS44800

7.1.1 Increment (INCR) ................................................................................................................. 50

7.1.2 Memory Address Pointer (MAPx) ......................................................................................... 50

7.2 CS44800 I.D. and Revision Register (address 01h) (Read Only) ................................................. 50

7.2.1 Chip I.D. (Chip_IDx) ............................................................................................................. 50

7.2.2 Chip Revision (Rev_IDx) ...................................................................................................... 50

7.3 Clock Configuration and Power Control (address 02h) ................................................................. 51

7.3.1 Enable SYS_CLK Output (EN_SYS_CLK) ........................................................................... 51

7.3.2 SYS_CLK Clock Divider Settings (SYS_CLK_DIV[1:0]) ....................................................... 51

7.3.3 PWM Master Clock Divider Settings (PWM_MCLK_DIV[1:0]) ............................................. 51

7.3.4 Power Down XTAL (PDN_XTAL) ......................................................................................... 51

7.3.5 Power Down Output Mode (PDN_OUTPUT_MODE) ..................... ................................... ... 52

7.3.6 Power Down (PDN) .............................................................................................................. 52

7.4 PWM Channel Power Down Control (address 03h) ...................................................................... 52

7.4.1 Power Down PWM Channels (PDN_PWMB4:PDN_PWMA1) ............................................. 52

7.5 Misc. Configuration (address 04h) ................................................................................................ 53

7.5.1 Digital Interface Format (DIFX) ....................... ... ... ... .... ... .......................................... ... ... ...... 53

7.5.2 AM Frequency Hopping (AM_FREQ_HOP) ......................................................................... 53

7.5.3 Freeze Controls (FREEZE) .................................................................................................. 53

7.5.4 De-Emphasis Control (DEM[1:0]) ......................................................................................... 54

7.6 Ramp Configuration (address 05h) ............................................................................................... 54

7.6.1 Ramp-Up/Down Setting (RAMP[1:0]) .................................................................................. 54

7.6.2 Ramp Speed (RAMP_SPD[1:0]) ................................. ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... ... 54

7.7 Volume Control Configuration (address 06h) .......................... ... ... ... .... ... ... ... .... ............................ 55

7.7.1 Single Volume Control (SNGVOL) ....................................................................................... 55

7.7.2 Soft Ramp and Zero Cross Control (SZC[1:0]) .................. ... ... .... ... ... ... .... ... ......................... 55

7.7.3 Enable 50% Duty Cycle for Mute Condition (MUTE_50/50) ................................................. 55

7.7.4 Soft Ramp-Down on Interface Error (SRD_ERR) ............................. ....... ...... ...... ....... ...... ... 56

7.7.5 Soft Ramp-Up on Recovered Interface Error (SRU_ERR) ................................................... 56

7.7.6 Auto-Mute (AMUTE) ............................................................................................................. 56

7.8 Master Volume Control - Integer (address 07h) ............................................................................ 57

7.8.1 Master Volume Control - Integer (MSTR_IVOL[7:0]) ............................................................ 57

7.9 Master Volume Control - Fraction (address 08h) .......................................................................... 57

7.9.1 Master Volume Control - Fraction (MSTR_FVOL[1:0]) ......................................................... 57

7.10 Channel XX Volume Control - Integer (addresses 09h - 10h) ..................................................... 59

7.10.1 Channel Volume Control - Integer (CHXx_IVOL[7:0]) ..................... ................................... 59

7.11 Channel XX Volume Control1 - Fraction (address 11h) ............................................................ 59

7.12 Channel XX Volume Control2 - Fraction (address 12h) .............................................................. 59

7.12.1 Channel Volume Control - Fraction (CHXX_FVOL[1:0]) .................................................... 59

7.13 Channel Mute (address 13h) ....................................................................................................... 60

7.13.1 Independent Channel Mute (CHXX_MUTE) ....................................................................... 60

7.14 Channel Invert (address 14h) ...................... ....................................................... ......................... 60

7.14.1 Invert Signal Polarity (CHXX_INV) ..................... ... .... ... ... ... ... .... ... ... ... .... ............................ 60

7.15 Peak Limiter Control Register (address 15h) ............................................................................. 61

7.15.1 Peak Signal Limit All Channels (LIMIT_ALL) ...................................................................... 61

7.15.2 Peak Signal Limiter Enable (LIMIT_EN) .......... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ............ 61

7.16 Limiter Attack Rate (address 16h) .............................................................................................. 61

7.16.1 Attack Rate (ARATE[7:0]) .................................................................................................. 61

7.17 Limiter Release Rate (address 17h) ....................................................................................

7.17.1 Release Rate (RRATE[7:0]) ...............................................................................................62

7.18 Chnl XX Load Compensation Filter - Coarse Adjust

(addresses 18h, 1Ah, 1Ch, 1Eh, 20h, 22h, 24h, 26h) ........................................................................ 62

7.18.1 Channel Compensation Filter - Coarse Adjust (CHXX_CORS[5:0]) .................................. 62

7.19 Chnl XX Load Compensation Filter - Fine Adjust

(addresses 19h, 1Bh, 1Dh, 1Fh, 21h, 23h, 25h, 27h) ......................................................................... 63

..... 62

4 DS632F1

CS44800

7.19.1 Channel Compensation Filter - Fine Adjust (CHXX_FINE[5:0]) ......................................... 63

7.20 Interrupt Mode Control (address 28h) ......................................................................................... 63

7.20.1 Interrupt Pin Control (INT1/INT0) .......................................................................................63

7.20.2 Overflow Level/Edge Select (OVFL_L/E) ........................................................................... 64

7.21 Interrupt Mask (address 29h) ...................................................................................................... 64

7.22 Interrupt Status (address 2Ah) (Read Only) ...............................................................................64

7.22.1 SRC Unlock Interrupt (SRC_UNLOCK) ................. .... ... .......................................... ... ... ... ... 64

7.22.2 SRC Lock Interrupt (SRC_LOCK) ...................................................................................... 65

7.22.3 Ramp-Up Complete Interrupt (RMPUP_DONE) ................................................................. 65

7.22.4 Ramp-Down Complete Interrupt (RMPDN_DONE) ...................... ... ... .... ............................ 65

7.22.5 Mute Complete Interrupt (Mute_DONE) ............. ................................................................ 65

7.22.6 Channel Over Flow Interrupt (OVFL_INT) .................... ... ... ... .... ......................................... 65

7.22.7 GPIO Interrupt Condition (GPIO_INT) ................... .... ... ... ... .......................................... ... ... 65

7.23 Channel Over Flow Status (address 2Bh) (Read Only) .............................................................. 66

7.23.1 ChXX_OVFL ....................................................................................................................... 66

7.24 GPIO Pin In/Out (address 2Ch) ................................................................................................... 66

7.24.1 GPIO In/Out Selection (GPIOX_I/O) .................................................................................. 66

7.25 GPIO Pin Polarity/Type (address 2Dh) .................................... ... ... .......................................... ... 66

7.25.1 GPIO Polarity/Type Selection (GPIOX_P/T) ...................................................................... 66

7.26 GPIO Pin Level/Edge Trigger (address 2Eh) .............................................................................. 67

7.26.1 GPIO Level/Edge Input Sensitive (GPIOX_L/E) ........................ ... ... ... .... ... ......................... 67

7.27 GPIO Status Register (address 2Fh) .......................................................................................... 67

7.27.1 GPIO Pin Status (GPIOX_STATUS) .................................................................................. 67

7.28 GPIO Interrupt Mask Register (address 30h) .... .... ... ... ... .......................................... ... .... ... ... ... ... 68

7.28.1 GPIO Pin Interrupt Mask (M_GPIOX) ................................................................................. 68

7.29 PWM Configuration Register (address 31h) ............................................................................... 68

7.29.1 Over Sample Rate Selection (OSRATE) ............................................................................ 68

7.29.2 Channels A1 and B1 Output Configuration (A1/B1_OUT_CNFG) ......... ... ... ... ... ................ 68

7.29.3 Channels A2 and B2 Output Configuration (A2/B2_OUT_CNFG) ......... ... ... ... ... ................ 68

7.29.4 Channel A3 Output Configuration (A3_OUT_CNFG) ......................................................... 69

7.29.5 Channel B3 Output Configuration (B3_OUT_CNFG) ......................................................... 69

7.29.6 Channels A4 and B4 Output Configuration (A4/B4_OUT_CNFG) ......... ... ... ... ... ................ 69

7.30 PWM Minimum Pulse Width Register (address 32h) ................................................................. 69

7.30.1 Disable PWMOUTXX - Signal (DISABLE_PWMOUTXX-) ................................................. 69

7.30.2 Minimum PWM Output Pulse Settings (MIN_PULSE[4:0]) . .......................................... ... ... 70

7.31 PWMOUT Delay Register (address 33h) ................................................................................... 70

7.31.1 Differential Signal Delay (DIFF_DLY[2:0]) .......................... ....................................... ......... 70

7.31.2 Channel Delay Settings (CHNL_DLY[4:0]) ..................... ................................ ................... 70

7.32 PSR and Power Supply Configuration (address 34h) ................................................................. 73

7.32.1 Power Supply Rejection Enable (PSR_EN) ....... ... .... ... ... ... .......................................... ... ... 73

7.32.2 Power Supply Rejection Reset (PSR_RESET) .................................................................. 74

7.32.3 Power Supply Rejection Feedback Enable (FEEDBACK_EN) .................. ... ...... ....... ...... ... 74

7.32.4 Power Supply Sync Clock Divider Settings (PS_SYNC_DIV[2:0]) ............ .........................74

7.33 Decimator Shift/Scale (addresses 35h, 36h, 37h) ....................... ................................................ 74

7.33.1 Decimator Shift (DEC_SHIFT[2:0]) ..................................................................................... 74

7.33.2 Decimator Scale (DEC_SCALE[18:0]) ............................................................................... 75

7.34 Decimator Outd (addresses 3Bh, 3Ch, 3Dh) ............................................................................... 75

7.34.1 Decimator Outd (DEC_OUTD[23:0]) .................................................................................. 75

8. PARAMETER DEFINITIONS ................................................................................................................ 76

9. REFERENCES ...................................................................................................................................... 77

10. PACKAGE DIMENSIONS ......................................................................................................... 78

11. THERMAL CHARACTERISTICS .................................... ... ... .... ... ... ... ... .... ... ... ... ................................ 79

12. ORDERING INFORMATION .... ... .... ... ... ... ... .... ... ... ... .... ... ............................................. ... ................... 79

13. REVISION HISTORY ................................ ... .... ... ... ... .... ... ... .......................................... ... ................... 79

DS632F1 5

LIST OF FIGURES

Figure 1.Performance Characteristics Evaluation Active Filter Circuit ...................................................... 10

Figure 2.XTI Timings .............................................................................. ... ... .... ... ... ... .... ... ......................... 11

Figure 3.SYS_CLK Timings ...................................................................................................................... 12

Figure 4.PWMOUTxx Timings ............... ... ... ... ... .... ... ... ... .............................................. ... ......................... 12

Figure 5.PS_SYNC Timings ...................... ... ... ... .... ... ... ... .... ... ... ............................................. ................... 12

Figure 6.Serial Audio Interface Timing ... ... ... ... ............................................. .... ... ... ... .... ... ... ... ... ................ 13

Figure 7.Serial Audio Interface Timing - TDM Mode ................................................................................. 13

Figure 8.Control Port Timing - I²C Format ..................................................................... ... ... ... ... .... ............ 14

Figure 9.Control Port Timing - SPI Format ............................. ... ... .... ... ... ... ................................................ 15

Figure 10.CS44800 Pinout Diagram .................. .... ... ... ............................................. .... ... ... ... ... .... ............ 16

Figure 11.Typical Full-Bridge Connection Diagram .................. ... .... ......................................... .... ... ... ...... 21

Figure 12.Typical Half-Bridge Connection Diagram .................................................................................. 22

Figure 13.CS44800 Data Flow Diagram (Single Channel Shown) ........................................................... 24

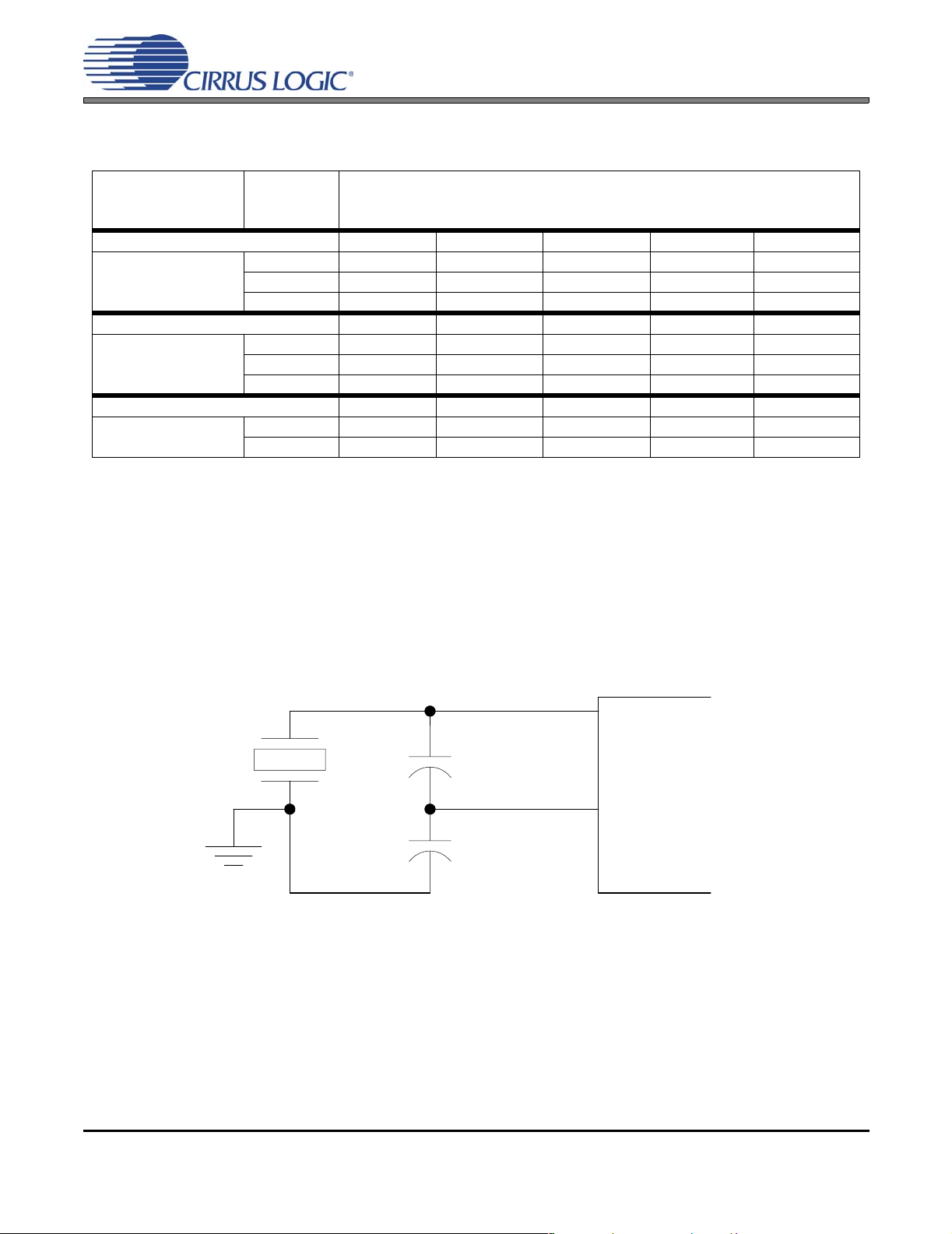

Figure 14.Fundamental Mode Crystal Configuration ................ ... .... ... ... ... ... ............................................. 25

Figure 15.3rd Overtone Crystal Configuration .......................................................................................... 26

Figure 16.CS44800 Internal Clock Generation ......................................................................................... 26

Figure 17.I²S Serial Audio Formats ........................................................................................................... 28

Figure 18.Left-Justified Serial Audio Formats ........................................................................................... 28

Figure 19.Right-Justified Serial Audio Formats ......................................................................................... 29

Figure 20.One Line Mode #1 Serial Audio Format .................................................................................... 29

Figure 21.One Line Mode #2 Serial Audio Format .................................................................................... 30

Figure 22.TDM Mode Serial Audio Format ............... ... ... .... ... ... ... .......................................... ... .... ... ......... 30

Figure 23.De-Emphasis Curve ........................................ .... ... ............................................. ... ... ................ 31

Figure 24.Control Port Timing in SPI Mode .............................................................................................. 36

Figure 25.Control Port Timing, I²C Slave Mode Write ............................................................................... 37

Figure 26.Control Port Timing, I²C Slave Mode Read ............................................................................... 37

Figure 27.Recommended CS44800 Power Supply Decoupling Layout .................................................... 39

Figure 28.Recommended CS44800 Crystal Circuit Layout ...................................................................... 40

Figure 29.Recommended PSR Circuit Layout ................ .... ... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ...... 41

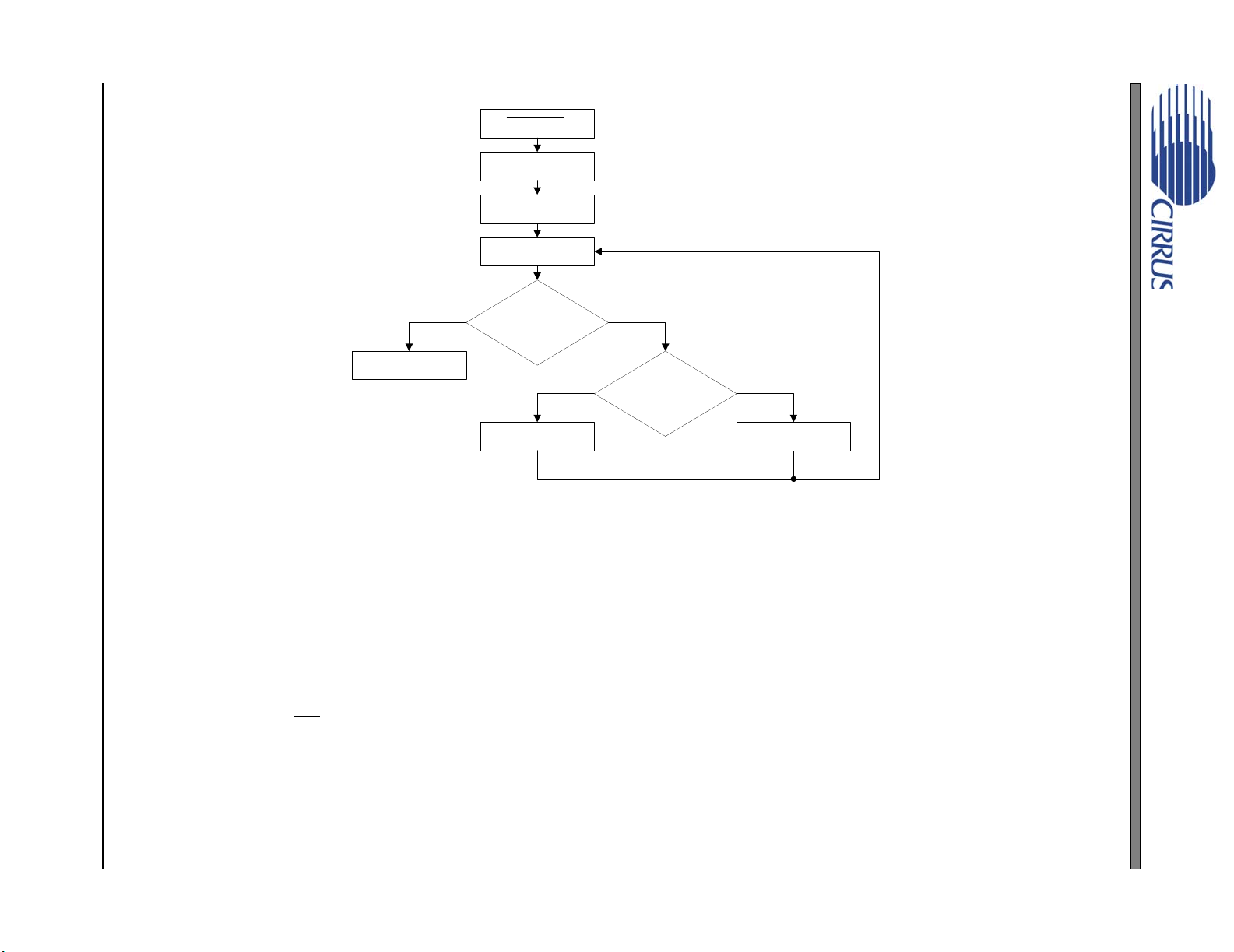

Figure 30.PSR Calibration Sequence ....................................................................................................... 44

Figure 31.PWM Output Delay ............ .... ... ... ... .......................................................................................... 72

Figure 32.64-Pin LQFP Package Drawing ................................................................................................ 78

CS44800

6 DS632F1

LIST OF TABLES

Table 1. Common DAI_MCLK Frequencies .............................................................................................. 25

Table 2. DAI Serial Audio Port Channel Allocations ................................................................................. 27

Table 3. Load Compensation Example Settings ....................................................................................... 32

Table 4. Typical PWM Switch Rate Settings ............................................................................................. 34

Table 5. Digital Audio Interface Formats ................................................................................................... 53

Table 6. Master Integer Volume Settings .................................................................................................. 57

Table 7. Master Fractional Volume Settings ............................................................................................. 58

Table 8. Channel Integer Volume Settings ............................................................................................... 59

Table 9. Channel Fractional Volume Settings ........................................................................................... 60

Table 10. Limiter Attack Rate Settings ................................... ............................................. ...................... 62

Table 11. Limiter Release Rate Settings ................................................................................................... 62

Table 12. Channel Load Compensation Filter Coarse Adjust ............. ...................................................... 63

Table 13. Channel Load Compensation Filter Fine Adjust ........................................................................ 63

Table 14. PWM Minimum Pulse Width Settings ........................ ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ...... 70

Table 15. Differential Signal Delay Settings .............................................................................................. 70

Table 16. Channel Delay Settings ................................ ... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ............................ 71

Table 17. Power Supply Sync Clock Divider Settings ............................................................................... 74

Table 18. Decimator Shift/Scale Coefficient Calculation Examples .......................................................... 75

CS44800

DS632F1 7

CS44800

1. CHARACTERISTICS AND SPECIFICATIONS

(All Min/Max characteristics and specifications are guaranteed over the Specified Operating Conditions. Typical
performance characteristics and spe cif icat ion s ar e de riv e d from measurements taken at nominal supply voltages
and T

= 25°C.)

A

SPECIFIED OPERATING CONDITIONS

(GND = 0 V, all voltages with respect to ground)

Parameter Symbol Min Typ Max Units

DC Power Supply

Digital 2.5 V VD 2.37 2.5 2.63 V
XTAL (Note 1) 2.5 V

3.3 V

5.0 V

PWM Interface 3.3 V

5.0 V

Serial Audio Interface 2.5 V

3.3 V

5.0 V

Control Interface 2.5 V

3.3 V

5.0 V

Ambient Operating Temperature

Commercial -CQZ
Automotive -DQZ

VDX 2.37

3.14

4.75

VDP 3.14

4.75

VLS 2.37

3.14

4.75

VLC 2.37

3.14

4.75

T

A

-10

-40

2.5

3.3

5.0

3.3

5.0

2.5

3.3

5.0

2.5

3.3

5.0

-

-

2.63

3.47

5.25

3.47

5.25

2.63

3.47

5.25

2.63

3.47

5.25

+70
+85

V
V
V

V
V

V
V
V

V
V
V

°C
°C

Notes:

1. When using external crystal, VDX = 3.14 V(min). When using clock signal input, VDX = 2.37 V(min).

ABSOLUTE MAXIMUM RATINGS

(GND = 0 V; all voltages with respect to ground.)

Parameters Symbol Min Max Units

DC Power Supply Digital

XTAL

PWM Interface

Serial Audio Interface

Control Interface
Input Current (Note 2) I
Digital Input Voltage PWM Interface

(Note 3) Serial Audio Interface

Control Interface
Ambient Operating Temperature -CQ

(power applied) -DQ
Storag e Temperature T

WARNING:Operation at or beyond these limits may result in permanent damage to the device. Normal operation

is not guaranteed at these extremes.

2. Any pin except supplies. Transient currents of up to ±100 mA on the input pins will not cause SCR latch-up.

3. The maximum over/under voltage is limited by the input current.

VD
VDX
VDP

VLS

VLC

in

V

IND-PWM

V

IND-S

V

IND-C

T

stg

A

-0.3

-0.3

-0.3

-0.3

-0.3

-±10mA

-0.3

-0.3

-0.3

-20

-50

-65 +150 °C

3.5

6.0

6.0

6.0

6.0

VDP+0.4

VLS+0.4

VLC+0.4

+85
+95

V
V
V
V
V

V
V
V

°C
°C

8 DS632F1

CS44800

DC ELECTRICAL CHARACTERISTICS

(GND = 0 V, all voltages with respect to ground; DAI_MCLK = 12.288 MHz, XTAL = 24.576 MHz, PWM Switch
Rate = 384 kHz unless otherwise specified.)

Parameter Symbol Min Typ Max Units

Normal Operation (Note 4)

Power Supply Current (Note 5) VD = 2.5 V

VDX = 3.3 V

VDP = 3.3 V

VLS = 3.3 V

VLC = 3.3 V (Note 6)

I
I
I
I

I

D
DX
DP

LS

LC

-

-

-

-

-

150

2

1.2
150
250

-

-

-

-

­Power Dissipation VD=2.5 V, VDX = VDP = VLS = VLC = 3.3 V - 387 500 mW
Power Supply Rejection Ratio (Note 7) (1 kHz)

(60 Hz)

PSRR -

15

-

40

-

­Power-Down Mode (Note 8)

Power Supply Current All Supplies except VDX (Note 9) I

pd

-80-µA

mA
mA
mA

µA
µA

dB
dB

4. Normal operation is defined as RST

= HI with a 997 Hz, 0 dBFS input.

5. Current consumption increas es with increasing XTAL clock rates and PWM switch rates. Variance be­tween DAI clock rates is negligible.

6. I

measured with no external loading on the SDA pin.

LC

7. Valid with PSRR function enabled and the recommended external ADC (CS4461) and filtering.

8. Power down mode is defined as RST

9. When RST

pin = LOW, the internal oscillator is active to provide a valid clock for the SYS_CLK output.

pin = LOW with all clock and data lines held static.

DIGITAL INTERFACE CHARACTERISTICS

(GND = 0 V, all voltages with respect to ground)

Parameters (Note 10) Symbol Min Typ Max Units

High-Level Input Voltage XTAL

PWM Interface

Serial Audio Interface

Control Interface

Low-Level Input Voltage XTAL

PWM Interface

Serial Audio Interface

Control Interface

High-Level Output Voltage at I

= -2 mA PWM Interface

o

Serial Audio Interface

V

Control Interface

Low-Level Output Voltage at I

= 2 mA PWM Interface

o

Serial Audio Interface

Control Interface

Input Leakage Current I

0.7xVDX

V

IH

0.7xVDP

0.7xVLS

0.7xVLC

-

V

IL

-

-

-

VDP-1.0

OH

VLS-1.0

VLC-1.0

-

V

OL

-

-

in

--±10µA

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Input Capacitance - - 8 pF

10. Serial Port signals include: SYS_CLK, DAI_MCLK, DAI_SCLK, DAI_LRCK, DAI_SDIN1-4
Control Port signals include: SCL/CCLK, SDA/CDOUT, AD0/CS

, AD1/CDIN, INT, RST, MUTE

PWM signals include: PWMOUTA1-B4, PSR_MCLK, PSR_SYNC, PSR_DATA, PS_SYNC, GPIO[6:0]

-

-

-

-

0.2xVDX

0.2xVDP

0.2xVLS

0.2xVLC

-

-

-

0.45

0.45

0.45

V
V
V
V

V
V
V
V

V
V
V

V
V
V

DS632F1 9

CS44800

PWM OUTPUT PERFORMANCE CHARACTERISTICS

(Logic “0” = GND = 0 V; Logic “1” = VLS = VLC; VD = 2.5 V; DAI_MCLK = 12.288 MHz; XTAL= 24.576 MHz; PWM
Switch Rate = 384 kHz; Fs = 32 kHz to 192 kHz; Measurement bandwidth is 10 Hz to 20 kHz unless otherwise
specified; Performance measurements taken with a full-scale 997 Hz.)

Parameter Symbol Min Typ Max Unit

Dynamic Performance (Note 11)

24-Bits A-Weighted

unweighted

16-Bits unweighted

Total Harmonic Distortion + Noise (Note 11)

24-Bits 0 dB

THD+N -

-20 dB

-60 dB
Idle Channel Noise / Signal-to-Noise Ratio - 110 - dB
Interchannel Isolation (1 kHz) - 100 - dB

11. Performance characteristics measured using filter shown in Figure 1.

102

99

-

-

-

108
105

96

-90

-77

-45

-

-

-

-85

-

-

dB
dB
dB

dB
dB
dB

PWMOUTxx+

PWMOUTxx-

­+

­+

Figure 1. Performance Characteristics Evaluation Active Filter Circuit

­+

­+

Analog
Output

10 DS632F1

CS44800

PWM FILTER CHARACTERISTICS

(Logic “0” = GND = 0 V; Logic “1” = VLS = VLC; VD = 2.5 V; DAI_MCLK = 12.288 MHz; XTAL = 24.576 MHz; PWM
Switch Rate = 384 kHz; Fs = 32 kHz to 192 kHz; Measurement bandwidth is 10 Hz to 20 kHz unless otherwise
specified.)

Parameter UnitMin Typ Max

Digital Filter Response (Note 12)

Passband
OSRATE = 0b to -0.01 dB corner

to -3 dB corner

OSRATE = 1b (Note 13) to -0.01 dB corner

to -3 dB corner

Frequency Response
OSRATE = 0b 10 Hz to 20 kHz
OSRATE = 1b (Note 13) 10 Hz to 40 kHz

Group Delay (Note 14) ms
De-emphasis Error Fs = 32 kHz

(Relative to 1 kHz) Fs = 44.1 kHz

Fs = 48 kHz

12. Filter response is not production tested but is characterized and guaranteed by design.

13. XTAL = 49.152 MHz; PWM Switch Rate = 768 kHz; Fs = 96 kHz to 192 kHz.

14. The equation for the group delay through the sample rate converter with OSRATE = 0b is (8.5 / Fsi) + (10
/ Fso) ± (4.5 / Fsi). The equation for the group delay through the sample rate converter with OSRATE = 1b
is (8.5 / Fsi) + (20 / Fso) ± (4.5 / Fsi).

0
0
0
0

-0.8

-1.2

-

-

-

-

-

-

-

-

-

-

-

-

1.6

24.0

3.3

44.5

+0.02
+0.02

±0.23
±0.14
±0.09

kHz
kHz
kHz
kHz

dB
dB

dB
dB
dB

SWITCHING CHARACTERISTICS - XTI

(VD = 2.5 V, VDP = VLC = VLS = 3.3 V, VDX = 2.5 V to 5.0 V; Inputs: Logic 0 = GND, Logic 1 = VDX)

Parameter Symbol Min Typ Max Unit

XTI period t
XTI high time t
XTI low time t
XTI Duty Cycle 45 50 55 %
External Crystal operating frequency 24.576 --- 54 MHz

clki

clkih

clkil

XTI

t

clkih

t

Figure 2. XTI Timings

clki

t

clkil

18.518 --- 40.69 ns

8.34 --- 22.38 ns

8.34 --- 22.38 ns

DS632F1 11

CS44800

SWITCHING CHARACTERISTICS - SYS_CLK

(VD = 2.5 V, VDP = VLC = VDX = 3.3 V, VLS = 2.5 V to 5.0 V, Cload = 50 pF)

Parameter Symbol Min Typ Max Unit

SYS_CLK Period t
SYS_CLK Duty Cycle 45 50 55 %

sclki

18.518 --- --- ns

SYS_CLK

t

sclki

Figure 3. SYS_CLK Timings

SWITCHING CHARACTERISTICS - PWMOUTA1-B4

(VD = 2.5 V, VLS = VLC = VDX = 3.3 V, VDP = 3.3 V to 5.0 V unless otherwise specified, Cload = 10 pF)

Parameter Symbol Min Typ Max Unit

PWMOUTxx Period t
Rise Time of PWMOUTxx VDP = 5.0 V

VDP = 3.3 V

Fall Time of PWMOUTxx VDP = 5.0 V

VDP = 3.3 V

pwm

t

r

t

f

2.60 - 1.18 µs

-

-

-

-

1.6

2.1

1.1

1.4

-

-

-

-

ns
ns

ns
ns

t

r

t

f

PWMOUTxx

t

pwm

Figure 4. PWMOUTxx Timings

SWITCHING CHARACTERISTICS - PS_SYNC

(VD = 2.5 V, VLS = VLC = VDX = 3.3 V, VDP = 3.3 V to 5.0 V, Cload = 20 pF)

Parameter Symbol Min Typ Max Unit

PS_SYNC Period t
PS_SYNC Duty Cycle 45 50 55 %

psclki

PS_SYNC

t

psclki

Figure 5. PS_SYNC Timings

592.576 --- --- ns

12 DS632F1

CS44800

SWITCHING CHARACTERISTICS - DAI INTERFACE

(VD = 2.5 V, VDX = VDP = VLC = 3.3 V, VLS = 2.5 V to 5.0 V; Inputs: Logic 0 = GND, Logic 1 = VLS.)

Parameters Symbol Min Max Units

RST

pin Low Pulse Width (Note 15) 1-ms
DAI_MCLK Duty Cycle (Note 16) 40 60 %
DAI_SCLK Duty Cycle 45 55 %
DAI_LRCK Duty Cycle 45 55 %
DAI Sample Rate (Note 17) F
DAI_SDIN Setup Time Before DAI_SCLK Rising Edge t
DAI_SDIN Hold Time After DAI_SCLK Rising Edge t
DAI_SCLK High Time t

sckh

DAI_SCLK Low Time t
DAI_LRCK Setup Time Before DAI_SCLK Rising Edge t
DAI_SCLK Rising Edge Before DAI_LRCK Edge t

lrckd

s
ds
dh

sckl

lrcks

32 192 kHz
10 - ns
10 - ns
20 - ns
20 - ns
25 - ns
25 - ns

15. After powering up, the CS44800, RST

should be held low until after the power supplies and clocks are set-

tled.

16. See Table 1 on page 26 for suggested MCLK frequencies.

17. Max DAI sample rate is 96 kHz for One Line and TDM modes of operation.

DAI_LRCK

DAI_SCLK

DAI_SDINx

t

lrckd

t

lrcks

t

sckh

t

ds

t

dh

t

sckl

Figure 6. Serial Audio Interface Timing Figure 7. Serial Audio Interface Timing - TDM Mode

DAI_LRCK

(input)

DAI_SCLK

(input)

DAI_SDIN1

t

lrcks

t

lrckd

t

lrcks

t

sckh

t

ds

t

dh

MSB MSB-1

t

sckl

DS632F1 13

CS44800

SWITCHING CHARACTERISTICS - CONTROL PORT - I²C FORMAT

(VD = 2.5 V, VDX = VDP = VLS = 3.3 V; VLC = 2.5 V to 5.0 V; Inputs: Logic 0 = GND, Logic 1 = VLC, CL=30pF)

Parameter Symbol Min Max Unit

SCL Clock Frequency f
Bus Free Time between Transmissions t
Start Condition Hold Time (prior to first clock pulse) t
Clock Low time t
Clock High Time t
Setup Time for Repeated Start Condition t
SDA Hold Time from SCL Falling (Note 18) t
SDA Setup time to SCL Rising t
Rise Time of SCL and SDA t
Fall Time SCL and SDA t
Setup Time for Stop Condition t

susp

scl

buf

hdst

low
high
sust

hdd

sud

r
f

- 100 kHz

4.7 - µs

4.0 - µs

4.7 - µs

4.0 - µs

4.7 - µs
10 - ns

250 - ns

-1000ns

-300ns

4.7 - µs

18. Data must be held for sufficient time to bridge the transition time, t

Repeated

Stop Start

Start

SDA

t

buf

t

hdst

t

high

SCL

t

low

t

hdd

Figure 8. Control Port Timing - I²C Format

t

sud

t

sust

, of SCL.

f

t

hdst

Stop

t

f

t

r

t

susp

14 DS632F1

CS44800

SWITCHING CHARACTERISTICS - CONTROL PORT - SPI FORMAT

(VD = 2.5 V, VDP = VLS = 3.3 V; VLC = 2.5 V to 5.0 V; Inputs: Logic 0 = GND, Logic 1 = VLC, CL=30pF)

Parameter Symbol Min Typ Max Units

CCLK Clock Frequency f
CS

High Time between Transmissions t

CS

Falling to CCLK Edge t
CCLK Low Time t
CCLK High Time t
CDIN to CCLK Rising Setup Time t
CCLK Rising to DATA Hold Time (Note 19) t
CCLK Falling to CDOUT Stable t
Rise Time of CDOUT t
Fall Time of CDOUT t
Rise Time of CCLK and CDIN (Note 20) t
Fall Time of CCLK and CDIN (Note 20) t

sck

csh

css

scl
sch
dsu

dh

pd

r1
f1
r2
f2

19. Data must be held for sufficient time to bridge the transition time of CCLK.

20. For f

<1 MHz.

sck

CS

0-6.0MHz

1.0 - - µs
20 - - ns
66 - - ns
66 - - ns
40 - - ns
15 - - ns

- - 50 ns

- - 25 ns

- - 25 ns

- - 100 ns

- - 100 ns

CCLK

CDIN

CDOUT

t

t

sch

t

dsu

scl

t

f2

t

dh

t

pd

t

css

t

r2

Figure 9. Control Port Timing - SPI Format

t

csh

DS632F1 15

2. PIN DESCRIPTIONS

CS44800

GND

PSR_EN

PS_SYNC

GND

XTI
XTO
VDX

SYS_CLK

DAI_MCLK

DAI_SCLK

DAI_LRCK

DAI_SDIN1
DAI_SDIN2
DAI_SDIN3

DAI_SDIN4

VLS

PWMOUTA1-

VDP

PWMOUTB1+

PWMOUTA1+

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1
2
3

4
5
6
7
8
9
10
11
12
13
14
15
16

PWMOUTB1-

GND

PWMOUTA2+

CS44800

PWMOUTA2-

VDP

PWMOUTB2+

PWMOUTB2-

GND

PSR_RESET

PSR_SYNC

PSR_DATAL

PSR_MCLK

GND

48

PW MO UT A3+

47

PW MO UT A3-

46

VDP

45

PW MO UT B3+

44

PW MO UT B3-

43

GND

42

PW MO UT A4+

41

PW MO UT A4-

40

VDP

39

PW MO UT B4+

38

PW MO UT B4-

37

GND

36

GPIO0

35
34

GPIO1

33

GPIO2

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

VLC

VD

GND

MUTE

SCL/CCLK

Figure 10. CS44800 Pinout Diagram

AD1/CDIN

SDA/CDOUT

INT

AD0/CS

RST

VD

GND

GPIO6

GPIO5

GPIO3

GPIO4

Pin Name Pin # Pin Description

16 DS632F1

CS44800

PS_SYNC 3

XTI 5
XTO 6 Crystal Oscillator Output (Output) - Crystal Oscillator output.
SYS_CLK 8
DAI_MCLK 9 Digital Audio Input Master Clock (Input) - Master audio clock.
DAI_SCLK 10

DAI_LRCK 11

DAI_SDIN1
DAI_SDIN2
DAI_SDIN3
DAI_SDIN4

MUTE 20

SCL/CCLK 21

Power Supply Synchronization Clock (Output) - The PWM synchronized clock to the
switch mode power supply.

Crystal Oscillator Input (Input) - Crystal Oscillator input or accepts an external clock
input signal that is used to drive the internal PWM core logic.

External System Clock (Output) - Clock output. This pin provides a divided down clock
derived from the XTI input.

Digital Audio Input Serial Clock (Input) - Serial clock for the Digital Audio Input Inter-
face. The clock frequency is a multiple of the Left/Right Clock running at Fs.

Digital Audio Input Left/Right Clock (Input) - Determines which channel, Left or Right,
is currently active on the serial audio data line. The rate is determined by the sampling fre­quency Fs.

12
13

Digital Audio Input Serial Data (Input) - Input for two’s complement serial audio data.

14
15

Mute (Input) - The device will perform a hard mute on all channels. All internal registers
are not reset to their default settings.

Serial Control Port Clock (Input) - Serial clock for the serial control port. Requires an
external pull-up resistor to the logic interface voltage in I²C mode as shown in the Typical
Connection Diagram.

SDA/CDOUT 22

AD1/CDIN 23

AD0/CS

INT 25

RST 26

GPIO6 29

GPIO5 30

GPIO4 31

24

Serial Control Data (Input/Output) - SDA is a data I/O line in I²C mode and requires an
external pull-up resistor to the logic interface voltage, as shown in the Typical Connection
Diagram.; CDOUT is the output data line for the control port interface in SPI mode.

Address Bit 1 (I²C)/Serial Control Data (SPI) (Input) - AD1 is a chip address pin in I²C
mode.;CDIN is the input data line for the control port interface in SPI mode.

Address Bit 0 (I²C)/Control Port Chip Select (SPI) (Input) - AD0 is a chip address pin in
I²C mode; CS

Interrupt Request (Output) - CMOS or open-drain interrupt request output. This pin is
driven to the configured active state to indicate that the PWM Controller has status data
that should be read by the host.

Reset (Input) - The device enters a low power mode and all internal registers are reset to
their default settings when low.

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-
ing a RST
be individually controlled by the Host Controller.

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-
ing a RST
be individually controlled by the Host Controller.

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-
ing a RST
be individually controlled by the Host Controller.

is the chip select signal in SPI mode.

condition. It can be configured as a general purpose input or output which can

condition. It can be configured as a general purpose input or output which can

condition. It can be configured as a general purpose input or output which can

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-

GPIO3 32

DS632F1 17

ing a RST
be individually controlled by the Host Controller.

condition. It can be configured as a general purpose input or output which can

GPIO2 33

GPIO1 34

GPIO0 35

CS44800

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-

ing a RST condition. It can be configured as a general purpose input or output which can
be individually controlled by the Host Controller.

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-
ing a RST
be individually controlled by the Host Controller.

General Purpose Input, Output (Input/Output) - This pin is configured as an input follow-
ing a RST
be individually controlled by the Host Controller.

condition. It can be configured as a general purpose input or output which can

condition. It can be configured as a general purpose input or output which can

PSR_MCLK 49

PSR_DATAL 50

PSR_SYNC 51

PSR_RESET 52

PSR_EN 2
PWMOUTA1+

PWMOUTA1­PWMOUTB1+
PWMOUTB1­PWMOUTA2+
PWMOUTA2­PWMOUTB2+
PWMOUTB2­PWMOUTA3+
PWMOUTA3­PWMOUTB3+
PWMOUTB3­PWMOUTA4+
PWMOUTA4­PWMOUTB4+
PWMOUTB4-

VDX 7 Crystal Power (Input) - Positive power supply for the Crystal section.
VD 19, 27 Digital Power (Input) - Positive power supply for the digital section.

Power Supply Rejection Master Clock (Output) - Master audio clock for externa l PSR
ADC (CS4461).

Power Supply Rejection Input Serial Data (Input) - Input for serial audio data from
external PSR ADC (CS4461).

Power Supply Rejection Sync Clock (Input) - Synchronization signal for external PSR
ADC (CS4461).

Power Supply Rejection Reset (Output) - The reset pin for the external Power Supply
Rejection circuitry.

Power Supply Rejection Enable (Output) - The enable pin for the external Power Supply
Rejection circuitry.

64
63
61
60
58
57
55
54

PWM Output (Output) - PWM control signals for the Class D amplifier backend.

47
46
44
43
41
40
38
37

VLC 17

VLS 16

VDP

18 DS632F1

39, 45,

56, 62

Host Interface Power (Input) - Determines the required signal level for the digital
input/output signals for the host interface.

Digital Audio Interface Power (Input) - Dete rmines the required signal level fo r the digital
input signals for the digital audio interface.

PWM Interface Power (Input) - Determines the required signal level for the digital
input/output signals for the PWM and GPIO interface.

GND

1, 4,
18, 28,
36, 42,
48, 53,

59

CS44800

Digital Ground (Input) - Ground reference for digital circuits.

DS632F1 19

CS44800

2.1 I/O Pin Characteristics

Power

Signal Name

RST VLC Input - 2.5 V and 3.3/5.0 V TTL Compatible.
SCL/CCLK VLC Input - 2.5 V and 3.3/5.0 V TTL Compatible, with Hysteresis.

SDA/CDOUT VLC
AD0/CS

AD1/CDIN VLC Input - 2.5 V and 3.3/5.0 V TTL Compatible, Internal pull-up.
INT VLC Output
MUTE VLC Input - 2.5 V and 3.3/5.0 V TTL Compatible.

DAI_SDINx VLS Input - 2.5 V and 3.3/5.0 V TTL Compatible.
DAI_SCLK VLS Input - 2.5 V and 3.3/5.0 V TTL Compatible.
DAI_LRCK VLS Input - 2.5 V and 3.3/5.0 V TTL Compatible.
DAI_MCLK VLS Input - 2.5 V and 3.3/5.0 V TTL Compatible.
SYS_CLK VLS Output 2.5-5.0 V, CMOS ­XTI VDX Input - 2.5 V and 3.3/5.0 V TTL Compatible, Internal pull-down.

Rail I/O Driver Receiver

Input /
Output

VLC Input - 2.5 V and 3.3/5.0 V TTL Compatible, Internal pull-up.

2.5-5.0 V,
CMOS/Open Drain

2.5-5.0 V,
CMOS/Open Drain

2.5 V and 3.3/5.0 V TTL Compatible, with Hysteresis.

-

XTO VDX Output - ­GPIOx VDP
PWMOUTAx+/- VDP Output 3.3/5.0 V, CMOS -

PWMOUTBx+/- VDP Output 3.3/5.0 V, CMOS ­PSR_MCLK VDP Output 3.3/5.0 V, CMOS ­PSR_SYNC VDP Input - 3.3/5.0 V TTL Compatible, Internal pull-up.
PSR_DATA VDP Input - 3.3/5.0 V TTL Compatible, Internal pull-up.
PSR_EN VDP Output 3.3/5.0 V, CMOS ­PSR_RESET VDP Output 3.3/5.0 V, CMOS ­PS_SYNC VDP Output 3.3/5.0 V, CMOS -

Input /
Output

3.3/5.0 V,
CMOS/Open Drain

3.3/5.0 V TTL Compatible.

20 DS632F1

3. TYPICAL CONNECTION DIAGRAMS

CS44800

+2.5 V

+3.3 V to

+5.0 V

+2.5 V to

+5.0 V

+2.5 V

to +5.0 V

10 µF

+

0.1 µF

0.1 µF

0.1 µF

24.576 MHz
to 54 MHz

0.1 µF

Digital

Audio

Processor

Micro-

Controller

See
Note

0.01 µF

0.01 µF

0.01 µF

XTAL

0.01 µF

Ω

2 k

Ω

2 k

0.1 µF

0.1 µF

0.01 µF

VD

VD

CS44800

VDX

XTI
XTO

VLS

SYS_CLK
DAI_MCLK

DAI_SCLK

DAI_LRCK
DAI_SDIN1
DAI_SDIN2

DAI_SDIN3

MUTE
INT

RST

SCL/CCLK

SDA/CDOUT
AD1/CDIN

AD0/CS

VLC

0.1 µF

0.01 µF

VDP

0.1 µF

0.01 µF

PWMOUTA1+
PWMOUTA1-

PWMOUTB1+

PWMOUTB1-

PWMOUTA2+

PWMOUTA2-

PWMOUTB2+

PWMOUTB2-

PWMOUTA3+
PWMOUTA3-

PWMOUTB3+

PWMOUTB3-

PWMOUTA4+
PWMOUTA4-

PWMOUTB4+

PWMOUTB4-

PSR_RESET

0.01 µF

GPIO1

GPIO0

GPIO2

GPIO4

GPIO5
GPIO3

GPIO6

PS_SYNC

PSR_MCLK

PSR_SYNC
PSR_DATA

PSR_EN

0.1 µF
10 µF

+3.3 V to +5.0 V

PWM IN1

CONTROL

PWM IN2
CONTROL

PWM IN3
CONTROL

PWM IN4
CONTROL

PWM IN5
CONTROL

PWM IN6
CONTROL

PWM IN7
CONTROL

PWM IN8
CONTROL

Power Supply Sync Clock

CS4461

ADC

OUT1

STATUS

OUT2

STATUS

OUT3

STATUS

OUT4

STATUS

OUT5

STATUS

OUT6

STATUS

OUT7

STATUS

OUT8

STATUS

Power Supply Rail

Optional

Front Left

Front Right

Surr. Left

Surr. Right

Center

Subwoofer

Rear Left

Rear Right

Note: Resistors are required for

I²C control port operation

GND

Figure 11. Typical Full-Bridge Connecti on Diagram

DS632F1 21

CS44800

+2.5 V

+3.3 V to

+5.0 V

+2.5 V to

+5.0 V

+2.5 V

to +5.0 V

Note: Resistors are required for

I²C control port operation

10 µF

+

0.1 µF

0.1 µF

0.1 µF

24.576 MHz
to 54 MHz

0.1 µF

Digital

Audio

Processor

Micro-

Controller

See
Note

0.01 µF

0.01 µF

0.01 µF

XTAL

0.01 µF

Ω

2 k

Ω

2 k

0.1 µF

0.1 µF

0.01 µF

VD

VD

CS44800

VDX

XTI
XTO

VLS

SYS_CLK
DAI_MCLK

DAI_SCLK

DAI_LRCK
DAI_SDIN1
DAI_SDIN2

DAI_SDIN3

MUTE

INT

RST

SCL/CCLK
SDA/CDOUT

AD1/CDIN

AD0/CS

VLC

0.1 µF

0.01 µF

VDP

GND

0.1 µF

0.01 µF

0.01 µF

PWMOUTA1+

PWMOUTA1-

PWMOUTB1+
PWMOUTB1-

GPIO2

PWMOUTA2+

PWMOUTA2-

PWMOUTB2+

PWMOUTB2-

GPIO3

GPIO0

PWMOUTA3+

PWMOUTA3-

PWMOUTB3+

PWMOUTB3-

GPIO4

PWMOUTA4+

PWMOUTA4-

PWMOUTB4+

PWMOUTB4-

GPIO5

GPIO1

PS_SYNC

PSR_MCLK

PSR_SYNC
PSR_DATA

PSR_EN

PSR_RESET

0.1 µF
10 µF

+3.3 V to +5.0 V

PWM IN1

PWM IN2

CONTROL

PWM IN1

PWM IN2

CONTROL

PWM IN1

PWM IN2

CONTROL

PWM IN1

PWM IN2

CONTROL

Power Supply Sync Clock

CS4461

OUT1

OUT2

STATUS

OUT1

OUT2

STATUS

OUT1

OUT2

STATUS

OUT1

OUT2

STATUS

Power Supply Rail

ADC

Optional

Front Left

Front Right

Surr. Left

Surr. Right

Center

Subwoofer

Rear Left

Rear Right

Figure 12. Typical Half-Bridge Connection Diagram

22 DS632F1

4. APPLICATIONS

4.1 Overview

The CS44800 is a multi-channel digital-to-PWM Class D audio system controller including interpolation,
sample rate conversion, half- and full-bridge PWM driver outpu ts, and power supply rejection fee dback in a
64-pin LQFP package. The architecture uses a direct-to-digital approach that mainta ins digital signal integ­rity to the final output filter, minimizing analog interference effects which negatively affect system perfor­mance.

The CS44800 integrates on-chip sample rate conversion, digital volume control, peak detect with volume
limiter, de-emphasis, programmable interrupt conditions, and the ability to change the PWM switch rate to
eliminate AM frequency interference. The CS44800 also has a programmable load compensation filter,
which allows the speaker load to vary while the output filter remains fixed, maintaining a flat frequency re­sponse. For single-ended half-bridge applications PWM Popguard
and realtime power supply feedback reduces noise coupling from the power supply. The PWM amplifier can
achieve greater than 90% effic iency. This effi ciency provides for a smaller device package, less heat sink
requirements, and smaller power supplies.

The CS44800 is ideal for audio systems requiring wide dynamic range, negligible distortion, and low noise
such as A/V receivers, DVD receivers, digital speaker, and automotive audio systems.

4.2 Feature Set Summary

CS44800

®

reduces the transient pops and clicks

Core Features

• 2.5 V digital core voltage, VD.

• VLC voltage pin for host interface logic levels between 2.5 V and 5.0 V.

• VLS voltage pin for digital audio interface logic levels between 2.5 V and 5.0 V.

• VDP voltage pin for PWM backend interface logic levels between 3.3 V and 5.0 V.

• VDX voltage pin for clock input signals between 2.5 V and 5.0 V.

Clocking

• Minimum of 128Fs DAI_MCLK for DAI serial interface.

• DAI interface uses automatic detection of LRCK/MCLK ratio to configure internal DAI/SRC clocks.

• All PWM Processing clocks generated internally via:
– An external crystal - 24.576 MHz to 54 MHz, or
– XTI input pin capable of supporting a clock signal at the VDX voltage level.

• Programmable divide of XTI by 1, 2, 4, 8 for SYS_CLK output.

• Programmable divide of XTI by 32, 64, 128, 256 for PS_SYNC (power supply synchronization signal).

Digital Audio Playback

• Supports 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz sample frequencies.

• High performance sample rate converter.

• 16, 20 and 24 bit audio sample lengths.

• De-emphasis for 32 kHz, 44.1 kHz, 48 kHz.

DS632F1 23

• Digital volume control with soft ramp.

• Individual channel volume gain, attenuation and mute capability; +24 to -127 dB in 0.25 dB steps.

• Master volume attenuation; +24 to -127 dB in 0.25 dB steps.

• Peak Detect and Volume Limiter with programmable attack and release rates.

• Signal-clipping interrupt indicator.

Additional Features

• Contains a two-stage digital output filter for speaker impedance compensation.

• Provides 7 programmable GPIO pins with interrupt generation for easily interfacing to a variety of com­monly available power state parts. Interrupts can be masked.

• Selectable over-sample rate for increased audio bandwidth.

• Power supply clock output, PS_SYNC, with programmable divider

CS44800

FsIn FsOut

Emphasis

1,2,4,8

128Fs

De-

DAI_MCLK
DAI_LRCK

DAI_SCLK
DAI_SDINx

XTO

XTI

SYS_CLK

1, 1.5, 2,
3, 4, 6, 8

Ratio Detect

Digital Audio

Input Port

XTAL /
CLKIN

Figure 13. CS44800 Data Flow Diagram (Single Channel Shown)

4.3 Clock Generation

The sources for internal clock generation for the PWM processing are as follows:

• FsIn Domain:

– DAI_MCLK, minimum 128Fs

• FsOut Domain:

– XTI/XTO (Fundamental or 3
– Clock signal on XTI (VDX is used to set logic voltage level)

SRC

SRC_MCLK (128Fs)

Master

Volume

Channel

Volume

2-pole Load

Compensation

Filter

2.25
Clock Control

Σ

VOL

MOD_MCLK

PWM_MCLK

1,1.5,

2,4

AM Freq. Hop

(AM_FREQ_HOP)

rd

overtone crystal), or

mute

Over Sample

(OSRATE)

LIMITER

PEAK

DETECT

Over Sample

(OSRATE)

x2

Multibit

Σ∆

Modulator

PSR

Feedback

PWM Engine

Delay

Delay

PWM_OUT+

PWM_OUT-

24 DS632F1
