Chrysler PT CRUISER CONVERTIBLE, PT CRUISER SEDAN Owner Manual
2008 PT Cruiser Sedan/Convertible
2008
OWNER’S MANUAL
PT Cruiser
Sedan/Convertible
VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler LLC shall be deemed to be deleted and the
name Chrysler Canada Inc. used in substitution therefor.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or optional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler LLC reserves the right to make changes in
design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previously manufactured.
Copyright © 2007 Chrysler LLC
SECTION PAGE
1
INTRODUCTION
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
4
UNDERSTANDING YOUR INSTRUMENT PANEL
5
STARTING AND OPERATING
6
WHAT TO DO IN EMERGENCIES
7
MAINTAINING YOUR VEHICLE
8
MAINTENANCE SCHEDULES
9
IF YOU NEED CONSUMER ASSISTANCE
TABLE OF CONTENTS
.............................................................3
...............................9
..............................119
................................... 219
.................................................287
...............................................357
...............................................375
..................................................433
..........................................459
1
2
3
4
5
6
7
8
9
10
INDEX
....................................................................469
10
CONTENTS
INTRODUCTION
1
m Introduction ...........................4
m How To Use This Manual .................. 4
m Warnings And Cautions ................... 6
m Vehicle Identification Number ............... 6
m Vehicle Modifications/Alterations ............7
4 INTRODUCTION
INTRODUCTION
This Owner’s Manual has been prepared with the assistance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by a Warranty Information Booklet
and various customer-oriented documents. You are
urged to read these publications carefully. Following the
instructions and recommendations in this manual will
help assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, rememberthat your authorized
dealer knows your vehicle best, has the factory-trained
technicians and genuine Mopart parts, and is interested
in your satisfaction.
HOW TO USE THIS MANUAL
Consult the table of contents to determine which section
contains the information you desire.
The detailed index, at the rear of this manual, contains a
complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner’s manual:
INTRODUCTION 5
1
6 INTRODUCTION
WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures that could result in an accident or bodily
injury. It also contains CAUTIONS against procedures
that could result in damage to your vehicle. If you do not
read this entire manual you may miss important information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
driver’s front corner of the instrument panel, visible
through the windshield. This number also appears on the
vehicle registration or title.
Vehicle Identification Number
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
INTRODUCTION 7
1
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
m A Word About Your Keys ..................13
▫ Ignition Key Removal ...................13
▫ Locking Doors With A Key ...............14
▫ Key-In-Ignition Reminder ................15
m Sentry Keyt — If Equipped ................15
▫ Replacement Keys ......................16
▫ Sentry Keyt Programming ................17
▫ General Information ....................18
m Steering Wheel Lock — If Equipped ..........18
2
▫ If You Wish To Manually Lock The Steering
Wheel ..............................18
▫ To Release The Steering Wheel Lock .........18
▫ Automatic Transaxle Ignition Interlock System . .19
m Door Locks ............................19
▫ Manual Door Locks .....................19
▫ Power Door Locks — If Equipped ..........20
▫ Child Protection Door Lock System —
If Equipped ..........................22

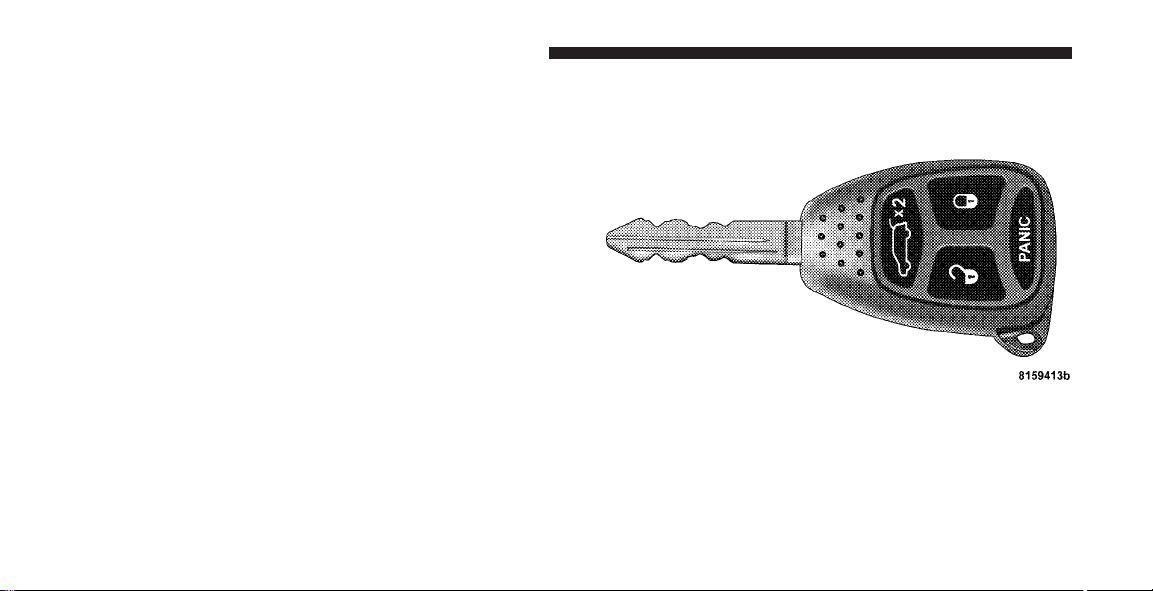

m Remote Keyless Entry (Sedan) ...............24
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
▫ To Unlock The Doors And Liftgate ..........24
▫ To Lock The Doors And Liftgate — If Equipped
With Power Options ....................25
▫ Panic Alarm ..........................26
▫ To Turn Off “Flash Lights With Lock” ........26
▫ To Program Additional Transmitters .........27
▫ General Information ....................28
▫ Transmitter Battery Service ...............29
m Remote Keyless Entry (Convertible) ...........30
▫ To Unlock The Doors ...................31
▫ To Lock The Doors .....................32
▫ To Unlatch The Deck Lid .................32
▫ Panic Alarm ..........................32
▫ To Turn Off “Flash Lights With Lock” ........33
▫ To Program Additional Transmitters .........33
▫ General Information ....................34
▫ Transmitter Battery Service ...............35
m Security Alarm System — If Equipped .........36
▫ To Set The Alarm ......................36
▫ To Disarm The System ...................37
▫ Security System Manual Override ...........37
m Liftgate (Sedan) .........................37
▫ Opening The Liftgate While The Security Alarm
Is Activated ..........................38
m Deck Lid (Convertible) ....................39
▫ Power Deck Lid Release (Convertible) ........39
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
m Emergency Seat Back Release (Sedan) .........40
m Emergency Deck Lid Release Latch
(Convertible) ...........................41
m Power Windows ........................42
▫ Auto Down Feature ....................43
▫ Rear Window Switches ..................43
▫ Wind Buffeting ........................44
m Occupant Restraints (Sedan) ................44
▫ Lap/Shoulder Belts .....................45
▫ Lap/Shoulder Seat Belt Untwisting Procedure . .52
▫ Adjustable Upper Shoulder Seat Belt
Anchorage ...........................52
▫ Seat Belt Pretensioners ...................53
▫ Enhanced Seat Belt Reminder System
(BeltAlertt) ..........................54
▫ Seat Belts And Pregnant Women ............54
▫ Driver And Front Passenger Supplemental
Restraint System (SRS) Airbag .............55
▫ Child Restraint ........................72
m Occupant Restraints (Convertible) ............81
▫ Lap/Shoulder Belts .....................82
▫ Lap/Shoulder Seat Belt Untwisting Procedure . .88
▫ Seat Belt Pretensioners ...................88
▫ Enhanced Seat Belt Reminder System
(BeltAlertt) ..........................89
▫ Seat Belts And Pregnant Women ............89
2
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
▫ Driver And Front Passenger Supplemental
Restraint System (SRS) ...................90
▫ Child Restraint .......................107
m Engine Break-In Recommendations ..........115
m Safety Tips ...........................115
▫ Exhaust Gas .........................115
▫ Safety Checks You Should Make Inside The
Vehicle .............................116
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ...................117
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
A WORD ABOUT YOUR KEYS
The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.

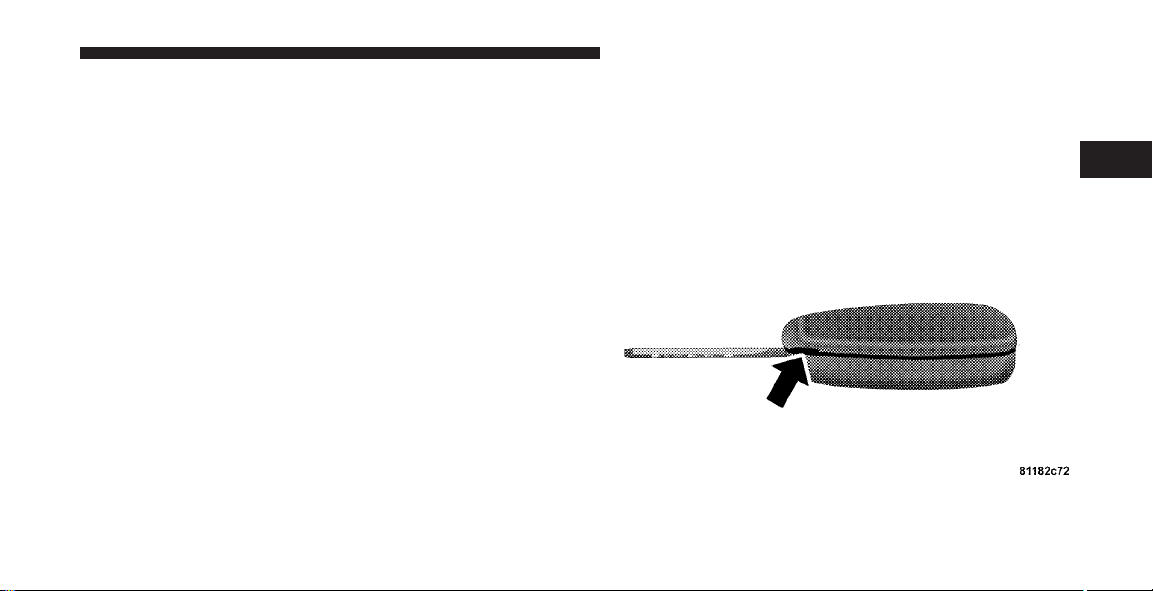

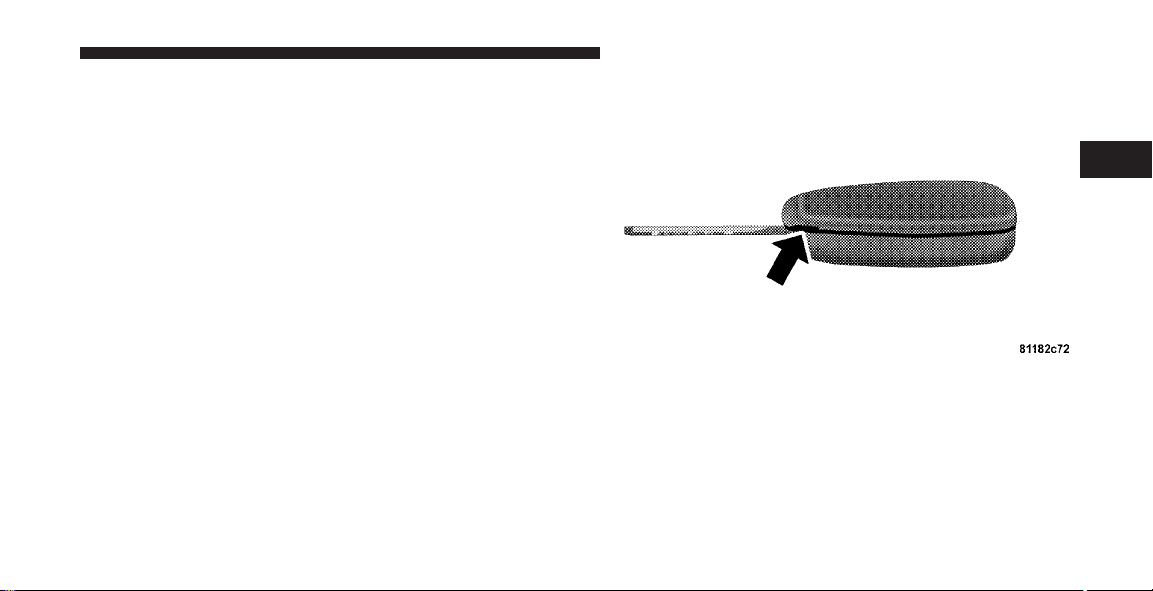

Vehicle Key
IGNITION KEY REMOVAL
Automatic Transaxle
Place the shift lever in PARK and make sure that the shift
knob push button has returned to the out position. Turn the
ignition switch to the ACC position, push the key and
cylinder inward, rotate the key to the LOCK position, and
remove the key.
Ignition Key Positions
2
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
NOTE: If you try to remove thekeybefore you place the
lever in PARK, the key may become trapped temporarily
in the ignition cylinder. If this occurs, rotate thekey to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seriously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Manual Transaxle—If Equipped
Turn the ignition switch to the ACC position, push the
key and cylinder inward, rotate the key to the LOCK
position, and remove the key.
LOCKING DOORS WITH A KEY
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
KEY-IN-IGNITION REMINDER
Opening the driver’s door when the key is inthe ignition,
sounds a signal to remind you to remove the key.
NOTE: With the driver’s door open, and the key in the
ignition, both the power door locks and Remote Keyless
Entry (RKE) will not function.
SENTRY KEYT — IF EQUIPPED
The Sentry Keyt Immobilizer System prevents unauthorized operation of the vehicle by disabling the engine.
The system will shut the engine off after two seconds of
running if an invalid key is used to start the vehicle. This
system utilizes ignition keys, which have an electronic
chip (transponder) embedded into them. Only keys that
have been programmed to thevehiclecan be used to start
and operate the vehicle.
The Sentry Keyt Immobilizer System does not need to be
armed or activated. Operation of the system is automatic
regardless of whether or not the vehicle is locked or
unlocked. During normal operation, the Theft Alarm/
Immobilizer Light will come on for three seconds immediately after the ignition switch is turned on for a bulb
check. Afterwards, if the bulb remains on, this indicates a
problem with the electronics.
If the bulb begins to flash after the bulb check, this
indicates that an invalid key has been used to start the
vehicle. Both of these conditions will result in the engine
being shut off after two seconds of running.
Keep in mind that a key, which has not been programmed is also considered an invalid key even if it is
cut to fit the ignition lock cylinder for that vehicle.
If the Theft Alarm/Immobilizer Light comes on during
normal vehicle operation, (the vehicle has been running
for longer than 10 seconds), a fault has been detected in
the electronics and the vehicle should be serviced as soon
as possible.
2
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
NOTE:
•
The Sentry Keyt Immobilizer System is not compatible with remotestartingsystems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
•
Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder equipped components on the
same keychain will not cause a key-related (transponder) fault unless the additional part is physically held
against the ignition key being used when starting the
vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Keyt has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four digit Personal Identification Number (PIN).
This PIN is required for replacement of keys by an
authorized dealer. Duplication of keys must be performed at an authorized dealer. This procedure consists
of programming a blank key to the vehicle electronics. A
blank key is one which has never been programmed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
NOTE: When having the Sentry Keyt Immobilizer
System serviced, bring all vehicle keys with you to the
dealer.
Sentry KeyT Programming
If you have two valid sentry keys, you can program new
sentry keys to the system by performing the following
procedure:
1. Cut the additional Sentry Keyt Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the “ON” position for at least three
seconds, but no longer than 15-seconds. Then, turn the
ignition switch to the “LOCK” position and remove the
first key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the “ON” position within 15
seconds. After ten seconds, a chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the “LOCK”
position and remove the second key.
4. Insert a blank Sentry Keyt into the ignition switch.
Turn the ignition switch to the “ON” position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the indicator light will turn on again for three seconds
and then turn off.
The new Sentry Keyt has been programmed. The Key-
less Entry Transmitter will also be programmed during
this procedure. Repeat this procedure to program up to a
total of 8 keys. If you do not have a programmed Sentry
Keyt, contact your dealer for details.
2
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
NOTE: If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be reprogrammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.
General Information
The Sentry Keyt system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•
This device may not cause harmful interference.
•
This device must accept any interference that may be
received, including interference that may cause undesired operation.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle without the ignition key. If the steering wheel is moved no
more than one—half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.
If You Wish To Manually Lock The Steering
Wheel:
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release The Steering Wheel Lock:
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE: If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
Automatic Transaxle Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK and the shift knob push-button
is out. It also prevents shifting out of PARK unless the
key is in the ACC, or ON positions, and the brake pedal
is depressed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
DOOR LOCKS
MANUAL DOOR LOCKS
Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the
keys are not inside the vehicle before closing the door.

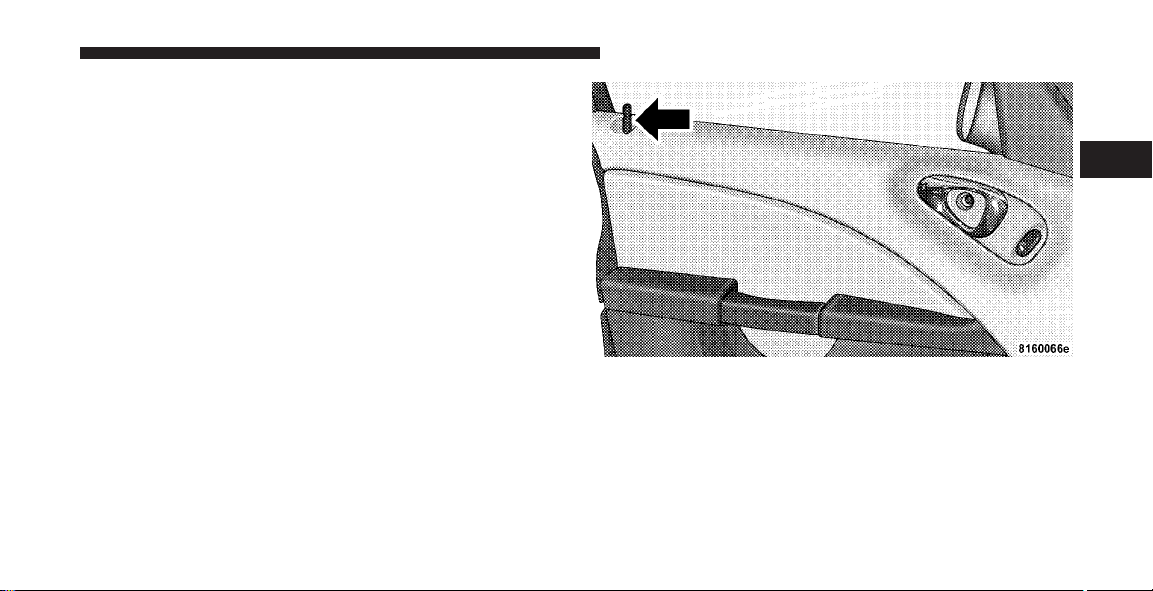

Door Lock Plunger
WARNING!
For personal security, and safety in the event of an
accident, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal injuries and death.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.
POWER DOOR LOCKS — IF EQUIPPED

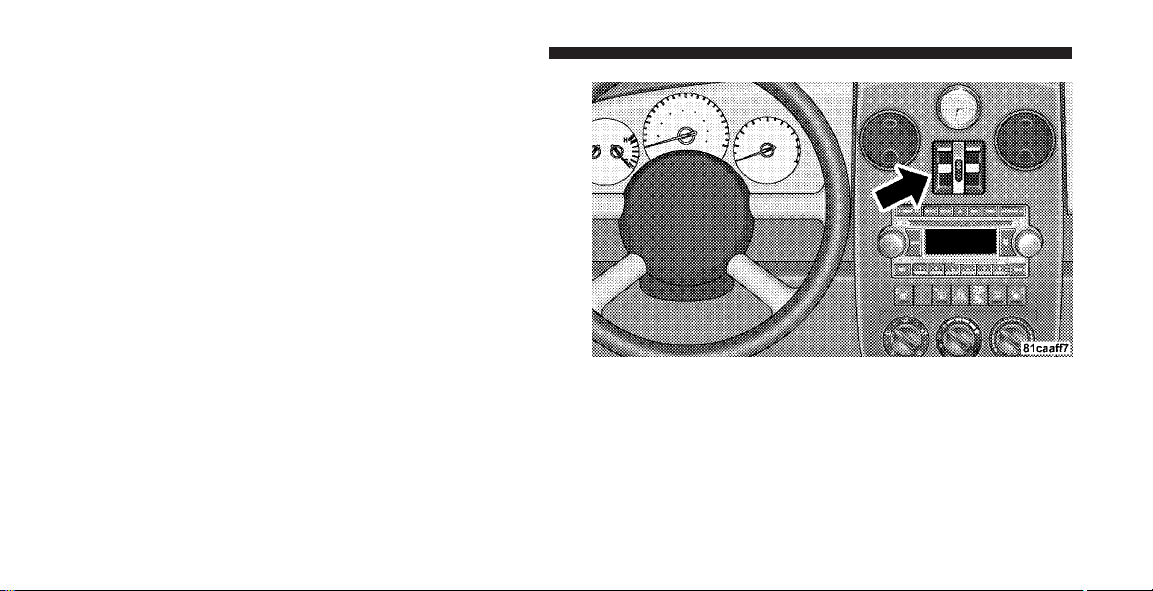

A door lock switch is on each front door panel. Press this
switch to lock or unlock the doors.
Power Door Lock Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
AUTOMATIC DOOR LOCKS — IF EQUIPPED
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Auto Lock feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were notpreviously locked using the power
door lock switch or remote keyless entry transmitter.
The Automatic Door Lock feature can be enabled or
disabled. Refer to “Personal Settings” (Customer Programmable Features) in the Electronic Vehicle Information Center (EVIC) — if equipped section of this manual
for details.
For vehicles not equipped with the EVIC the Automatic
Door Locks can be enabled or disabled by performing the
following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times ending up in the LOCK
position.
3. Depress the power door lock switch to lock the doors.
4. A single chime will indicate the completion of the
programming.
Auto Unlock
The doors will unlock automatically on vehicles with
power door locks if:
1. The Auto Unlock feature is enabled.
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).
2
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3. The transmission is in NEUTRAL or PARK.
4. The driver door is opened.
5. The doors were not previously unlocked.
6. The vehicle speed is 0 mph (0 km/h).
The Auto Unlock feature can be enabled or disabled.
Refer to “Personal Settings” (Customer Programmable
Features) in the Electronic Vehicle Information Center
(EVIC) — if equipped section of this manual.
For vehicles not equipped with the EVIC the Auto
Unlock Feature can beenabledor disabled by performing
the following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times ending up in the LOCK
position.
3. Depress the power door unlock switch to unlock the
doors.
4. Verify reprogramming by driving the vehicle.
NOTE: Use the Auto Door Locks and Auto Unlock
features in accordance with local laws.
CHILD PROTECTION DOOR LOCK SYSTEM — IF
EQUIPPED
To provide a safer environment for children riding in the
rear seat, the rear doors have the “child-protection” door
lock system.
To use the system, open each rear door and move the
control UP to engage. When the system on a door is
engaged, that door can only be opened by using the
outside door handle even if the inside door lock is in the
unlocked position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
WARNING!
Child Lock Control
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE: For emergency exit with the system engaged,
move the lock plunger up (unlocked position), roll down
window and open the door with the outside doorhandle.
2
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
REMOTE KEYLESS ENTRY (SEDAN)
Three Button Key
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.
NOTE: The line of transmission must not be blocked
with metal objects.
TO UNLOCK THE DOORS AND LIFTGATE:
Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE: The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
under “Personal Settings” in the EVIC section of this
manual. On non EVIC – equipped vehicles perform the
following steps:
The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
1. Press and hold the LOCK button on a programmed
keyfob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than 10 seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE: Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door withthe Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
TO LOCK THE DOORS AND LIFTGATE — IF
EQUIPPED WITH POWER OPTIONS:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” and “Flash Lamps
With Lock” feature can be turned on or off. On electronic
vehicle information center (EVIC) equipped vehicles refer to “Personal Settings” in the “Electronic Vehicle
2
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Information Center (EVIC)” section of this manual. On
non EVIC – equipped vehicles perform the following
steps:
1. Press the LOCK button for four to ten seconds.
2. While the LOCKbuttonis pressed (after four seconds),
press the PANIC button. Release both buttons.
The “Sound Horn On Lock” and “Flash Lamps With
Lock” feature can be reactivated by repeating this procedure.
PANIC ALARM
The panic mode flashes the park lights, and sounds the
horn for about three minutes or until the alarm is turned
off.
Using The Panic Alarm:
To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off and the interior lights will turn on.
The panic alarm will stay on for three minutes unlessyou
turn it off by pressing the PANIC button a second time or
if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE: When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
TO TURN OFF “FLASH LIGHTS WITH LOCK”:
NOTE: The Flash Lights With Lock feature can be
turned on or off. On Electronic Vehicle Information
Center (EVIC) equipped vehicles refer to 9Personal Settings9 in the EVIC section of this manual. On non EVIC equipped vehicles perform the following steps:
1. Press the UNLOCK button for four to ten seconds.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2. While the UNLOCK button is pressed, (after four
seconds) press the LOCK button. Release both buttons.
3. Test the flash lamps with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the
keyfob with the ignition in the LOCK position, and the
key removed.
NOTE: Pressing the LOCK button on the keyfob, while
you are in the vehicle, will activate the Security Alarm.
Opening a door with the Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Security Alarm.
The “Flash Lights On Lock/Unlock” feature can be
reactivated by repeating this procedure.
TO PROGRAM ADDITIONAL TRANSMITTERS:
Vehicles will be shipped from the assembly plants with
two keyfob transmitters programmed only for that vehicle. A total of eight fobs can be programmed for your
vehicle. Additional fobs can be programmed to your
vehicle through the use of a currently programmed fob.
NOTE: When entering program mode using that fob, all
other programmed fobs will be erased and you will have
to reprogram them for your vehicle.
Use the Following procedure to program additional key
fobs if the vehicle is not equipped with Sentry Keyt:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (Fastening theseatbelt will cancel
any chiming that may confuse you during this programming procedure).
3. Place the key into the ignition.
2
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
4. Turn the ignition to the ON position Do not start the
engine.
5. Press and hold the UNLOCK button on the keyfob.
6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a singlechimeis heard release both buttons.The
chime is an indication that you have successfully entered
program mode. All fobs that are to be programmed must
be done so within 60 seconds of when the chime was
heard.
8. Using the fob to be programmed, press and release
both the LOCK and UNLOCK buttons, simultaneously.
9. A single chime will be heard.
10. Within four seconds of hearing the chime, press and
release the UNLOCK button on the fob.
11. A single chime will be heard.
12. Repeat steps eight through ten to program up to six
additional fobs.
13. Turn the ignition to the OFF position.
14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed fobs function normally.
NOTE: If you do not have a programmed transmitter,
contact your dealer for details.
GENERAL INFORMATION
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
Loading...
