Data Stream 4 DMX Splitter
User Manual [EN]
12 pgs685.32 Kb0

Chauvet DJ Data Stream 4 DMX Splitter User Manual [EN]

Download
User Manual
TABLE OF CONTENTS
1. Before you Begin ................................................................................................................ 3
What Is Included .................................................................................................................................... 3
Unpacking Instructions .......................................................................................................................... 3
Text Conventions ................................................................................................................................... 3
Symbols ................................................................................................................................................. 3
Disclaimer .............................................................................................................................................. 3
Product at a Glance ............................................................................................................................... 4
Safety Notes .......................................................................................................................................... 4
2. Introduction ......................................................................................................................... 5
Product Overview .................................................................................................................................. 5
Product Dimensions .............................................................................................................................. 5
3. Setup .................................................................................................................................... 6
AC Power ............................................................................................................................................... 6
Fuse Replacement................................................................................................................................. 6
Mounting ................................................................................................................................................ 7
4. Operation ............................................................................................................................. 8
Operating Instructions ........................................................................................................................... 8
Setting up a DMX Serial Data Link ........................................................................................................ 8
5. Appendix ............................................................................................................................. 9
General Maintenance ............................................................................................................................ 9
General Troubleshooting ....................................................................................................................... 9
6. Technical Information ........................................................................................................10
Technical Specifications ...................................................................................................................... 10
Returns ................................................................................................................................................ 11
Contact Us ..............................................................................................................................12
Page 2 of 12 DataStream™ 4 User Manual Rev. 2

What Is
Included

Instructions
If the box or the contents (the product and included accessories) appear damaged from Failure to report damage to the carrier immediately may invalidate your claim. In
For other issues, such as missing components or parts, damage not related to shipping,
1–512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Critical installation, configuration, or operation information. Not damage to the product, or cause harm to the operator.
The information and specifications contained in this document are subject to change
assumes no responsibility or liability for any errors or omissions

1. BEFORE YOU BEGIN

Unpacking

Claims

Text
Conventions

Symbols

• DataStream™ 4
• Power Cord
Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.
shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet addition, keep the box and contents for inspection.
or concealed damage, file a claim with Chauvet within 7 days of delivery .
Convention Meaning
Symbol Meaning
• Warranty Card
• Quick Reference Guide

Disclaimer

without notice. Chauvet that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions.
You can download the latest version of this document from www.chauvetlighting.com.
© Copyright 2015 Chauvet. All rights reserved
Electronically published by Chauvet in the United States of America
M. Trouard 06/30/2015 A. Leon 06/30/15
following these instructions may make the product not work, c ause
Important installation or configuration information. The product may not function correctly if this information is not used.
Useful information.
Author Date Editor Date
DataStream™ 4 User Manual Rev. 2 Page 3 of 12
Product at a
x
x
x
P
x
P
P
x
P
x
. They
Make sure there are no flammable materials close to the unit while operating.
completely disconnect the product from power via the breaker or by unplugging it.
Glance

Safety Notes

Use on Dimmer Outdoor Use Sound-Activated DMX Master/Slave
Please read the following Safety Notes carefully before working with this product include important safety information about its installation, usage, and maintenance.
• Always connect this product to a grounded circuit to avoid the risk of electrocution.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power cord by pulling or tugging on the cord.
• If mounting this product overhead, always secure it to a fastening device using a
safety cable.
•
• Always make sure that the voltage of the outlet to which you are connecting this
product is within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moi sture .
• Never connect this product to a dimmer.
• Never carry this product from the power cord or any moving part.
• The maximum ambient temperatur e is 104 °F (40 °C). Do not operate this product at
higher temperatures.
• In the event of a serious operating problem, stop using the unit immediately.
• Never try to repair this product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
Auto Programs Power Cord Replaceable Fuse User-Serviceable Duty Cycle
• Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document.
Page 4 of 12 DataStream™ 4 User Manual Rev. 2

2. INTRODUCTION

Product Overview

Product Dimensions

Front View
DMX Outputs
DMX In
19 in
483 mm
1.8 in
46 mm
LED In Use
Indicators
LED ON
Indicator
DMX Signal
Indicator
3 & 5 Pin
DMX Link
Out/Throughput
Ears for
Rackmount
Power In
Fuse Holder
M8 Threaded
Insert
Back View
5.3 in
134 mm
DataStream™ 4 User Manual Rev. 2 Page 5 of 12
’s back panel, or refer to the
’s average
Always connect this product to a protected circuit (circuit breaker or fuse), making sure that it has an appropriate electrical ground to avoid the risk of
to a rheostat (variable resistor) or dimmer circuit,

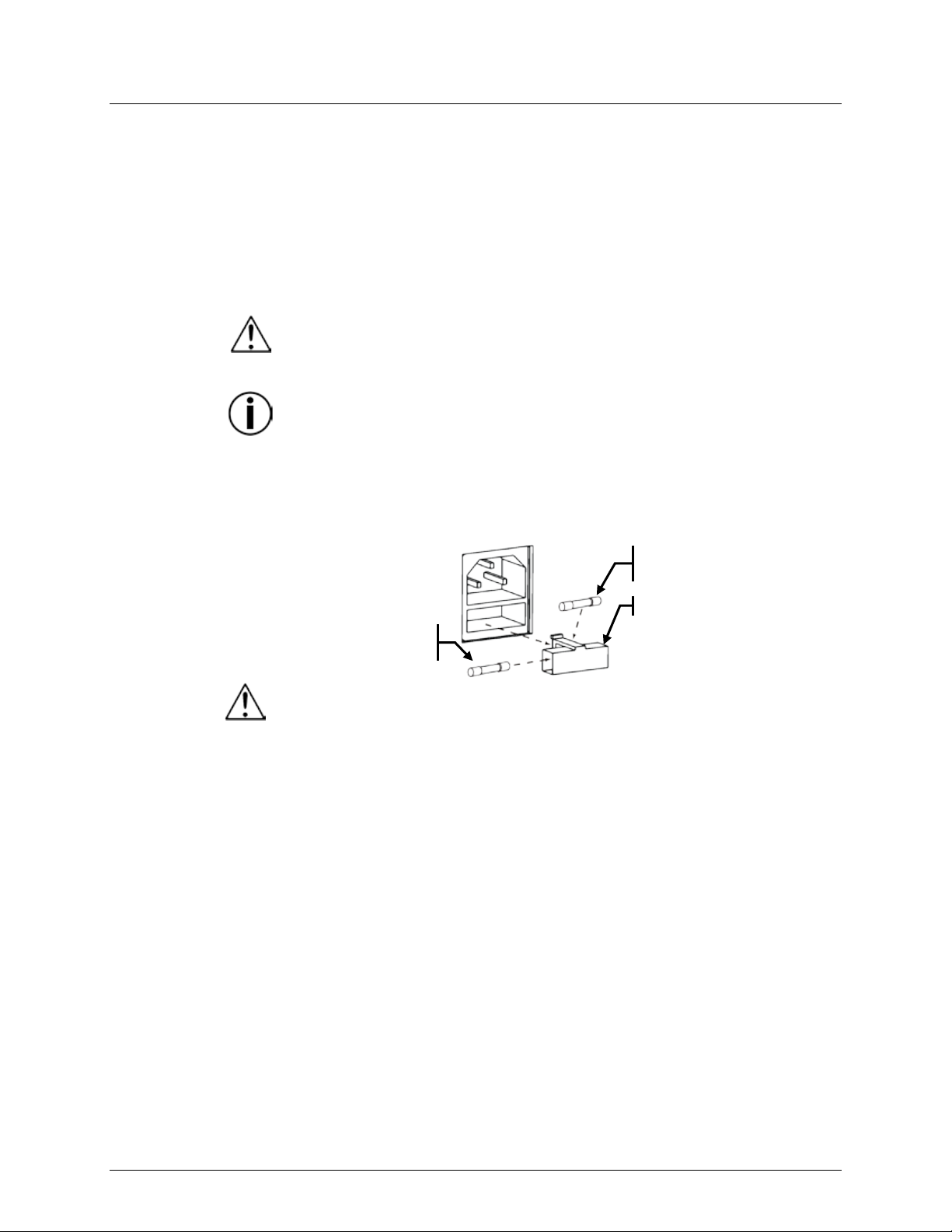

Installed fuse (held by plastic clip)
Spare fuse holder
(inside safety cap)
Safety cap

3. SETUP

AC Power

Fuse
Replacement
This product has an auto-ranging power supply and it can work with an input voltage of 100 to 240 VAC, 50/60 Hz.
To determine the power requirements for this product (power outlet and wiring), use the current value listed on the label affixed to the product product’s specifications chart. The listed current rating indicates the product current draw under normal conditions.
•
electrocution or fire.
• To eliminate wear and improve its lifespan, during periods of non-use
completely disconnect from power via breaker or by unplugging it.
Never connect this product even if the rheostat or dimmer channel serves only as a 0 to 100% switch.
1. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
2. Pry the fuse holder out of the housing.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Insert the fuse holder back in place and reconnect power.
Disconnect the product from the power outlet before replacing the fuse.
Page 6 of 12 DataStream™ 4 User Manual Rev. 2

Mounting

may be mounted in any position; however, make sure adequate
, always make sure that it will be easy to
can support its
Threaded Insert
Rack
Mounting
Holes
Before mounting this product, read and follow the Safety Notes.

Orientation

Rigging

Mounting Diagram

The DataStream™ 4 ventilation is provided around the produc t .
Before deciding on a location for this product access the unit for maintenance and programming purposes.
Make sure that the structure onto which you are mounting this product weight. See the Technical Specifications for weight information.
When mounting this product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss.
When ri gging th is product onto a truss, you should use a mounting clamp of appropriate weight capacity.
The product has an M8 threaded insert mounting hole located on the back of the unit for easy truss mounting. There are also two ears for rack mounting. This product uses 1U of space.
DataStream™ 4 User Manual Rev. 2 Page 7 of 12
Operating
boost the incoming DMX sig nal
outputs. Each of the 4 outputs is electronically isolated from the others
pin XLR
Setting up a
Connect the end of the cable coming from the controller which will have a (female)
f a (male)
Then, proceed to connect from the output as stated above to the input of the
DMX OUT
Splitter

4. OPERATION

Instructions
This is a DMX splitter, and it is designed to distribute / into 4 separate (with the exception of the “thru” or “link” output) and each output has 3- and 5­sockets to choose from.
Follow all DMX standards when using this device.
DMX In
1. Connect the (male) 3 / 5 pin connector side of the DMX cable to the output (female)
DMX Serial Data Link
3 / 5 pin connector of the controller.
2. 3 / 5 pin connector to the input connector of the next fixture consisting o 3 / 5 pin connector.
3. following fixture and so on.
DMX LINK OUT
Throughput
Fixtures
4-Way
Page 8 of 12 DataStream™ 4 User Manual Rev. 2
Symptom
Possible Solution(s)
Check for power on Mains No Signal Output, Signal Indicator Not Flashing
Check Input Source
No Signal Output, Signal Indicator is Flashing
Contact Chauvet Technical Support

5. APPENDIX

General Maintenance

To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage and environment are contributing factors in determining frequency. As a general rule, fixtures should be cleaned at least twice a month. Dust build up reduces performance and can cause overheating. This can lead to reduced life and increased mechanical wear. Be sure to power off the fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust collected on external vents and internal components.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit. Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully.

General Troubleshooting

Device has no power
If you still have a problem after trying the above solutions, please contact Chauvet Technical Support from the Contact Us page.
Check device's fuse, replace if necessary
DataStream™ 4 User Manual Rev. 2 Page 9 of 12
Dimensions and
Length
Width
Height
Weight
19 in (483 mm)
5.3 in (134 mm)
1.6 in (46 mm)
5.8 lb (2.6 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Rackmount Size
1U
Power
Power Supply Type
Range
Voltage Selection
Switching (Internal)
100 to 240 VAC, 50/60 Hz
Auto-ranging
Parameter
120 V, 60 Hz
240 V, 50 Hz
Consumption
3 W
5 W
Operating current
Fuse
Thermal
Maximum External Temp.
Cooling System
104 °F (40 °C)
Convection
DMX
I/O Connectors
Connector Type
3-Pin & 5-Pin XLR
Socket
Ordering
Product Name
Item Code
UPC Number
DATASTREAM4
09080128
781462202828

6. TECHNICAL INFORMATION

Technical Specifications

Weight
0.01 A 0.01 A
1 A, 250 V 1 A, 250 V
Page 10 of 12 DataStream™ 4 User Manual Rev. 2

Returns

Tech Support office and request a Return Merchandise
. Be prepared to provide the
You must send the merchandise prepaid, in its original box, and with its original packing
DO NOT write the RMA number directly on the box. Instead, write it on a properly
the following information on a piece of paper
properly. Any shipping damage resulting from inadequate
boxing are
reserves the right to use its own discretion to repair or replace returned
To return a product or reques t supp ort :
• If you live in the U.S., contact Chauvet World Headquarters (see Contact Us
).
• If you live in the UK or Ireland, contact Chauvet Europe Ltd.(see Contact Us).
• If you live in Mexico, contact Chauvet Mexico (see Contact Us).
• If you live in Benelux, contact Chauvet Europe BVBA (see Contact Us).
• If you live in any other country, DO NOT contact Chauvet. Instead, contact your
distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland.
If you live outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our Web site for contact details.
Call the corresponding Chauvet Authorization (RMA) number before shipping the product model number, serial number, and a brief description of the cause for the return.
and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product
returned without an RMA number.
affixed label.
Before sending the product, clearly write and place it inside the box:
• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
Be sure to pack the product packaging will be your responsibility. FedEx packing or double­recommended.
Chauvet product(s).
DataStream™ 4 User Manual Rev. 2 Page 11 of 12
C
WORLD HEADQUARTERS - Chauvet
General Information
Toll free: (800) 762-1084
Technical Support
World Wide Web www.chauvetlighting.com
UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.
General Information
Fax: +44 (0)1773 511110
Technical Support
MEXICO - Chauvet Mexico
General Information
Voice: +52 (728) 285-5000
Technical Support
CHAUVET EUROPE - Chauvet Europe BVBA
General Information
Voice: +32 9 388 93 97
Technical Support
contact your dealer. Follow their
instructions to request support or to return a product. Visit our website for contact details.
ONTACT US
Address: 5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 577-4455 Fax: (954) 929-5560
Voice: (954) 577-4455 (Press 4) Fax: (954) 756-8015 Email: tech@chauvetlighting.com
Address: Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice: +44 (0)1773 511115
Address: Av. Santa Ana 30 Parque Industrial Lerma Lerma, Mexico C.P. 52000
Address:Stokstraat 18 9770 Kruishoutem Belgium
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux
Email: uktech@chauvetlighting.com World Wide Web www.chauvetlighting.co.uk
Email: servicio@chauvet.com.mx World Wide Web www.chauvet.com.mx
Email: Eutech@chauvetlighting.eu World Wide Web www.chauvetlighting.eu
Page 12 of 12 DataStream™ 4 User Manual Rev. 2
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
