Chauvet DJ COREpar 40 USB Users Manual

Page 1
User Manual
Page 2
TABLE OF CONTENTS
What Is Included ............................................................................................................................. 3
Unpacking Instructions .................................................................................................................... 3
Claims ..................................................................................................................................................... 3
Text Conventions ............................................................................................................................ 3
Symbols .......................................................................................................................................... 3
Disclaimer ....................................................................................................................................... 3
Product at a Glance ........................................................................................................................ 4
Safety Notes .................................................................................................................................... 4
2. Introduction ................................................................................................................... 5
Product Overview ............................................................................................................................ 5
Product Dimensions ........................................................................................................................ 6
Fresnel Lens ................................................................................................................................... 7
AC Power ........................................................................................................................................ 7
Fuse Replacement .......................................................................................................................... 7
Power Linking ......................................................................................................................................... 8
Mounting ......................................................................................................................................... 9
Orientation .............................................................................................................................................. 9
Rigging ................................................................................................................................................... 9
4. Operation ......................................................................................................................10
Control Panel Operation................................................................................................................ 10
Menu Map ..................................................................................................................................... 10
DMX Linking .................................................................................................................................. 11
Configuration (DMX) ............................................................................................................................. 11
D-Fi USB Connectivity .................................................................................................................. 11
Configuration (D-Fi USB) ...................................................................................................................... 11
DMX Personality and Starting Address ................................................................................................. 12
DMX Channel Assignments and Values ....................................................................................... 12
8-CH ..................................................................................................................................................... 12
3-CH ..................................................................................................................................................... 12
Configuration (Standalone) ........................................................................................................... 13
Automatic Programs ............................................................................................................................. 13
Auto Program Speed ............................................................................................................................ 13
Sound-Active Mode .............................................................................................................................. 13
Sound Sensitivity .................................................................................................................................. 13
Preset Color Mode ................................................................................................................................ 13
Custom Color Mixing ............................................................................................................................ 13
Dimmer Speed ...................................................................................................................................... 13
Temperature ......................................................................................................................................... 13

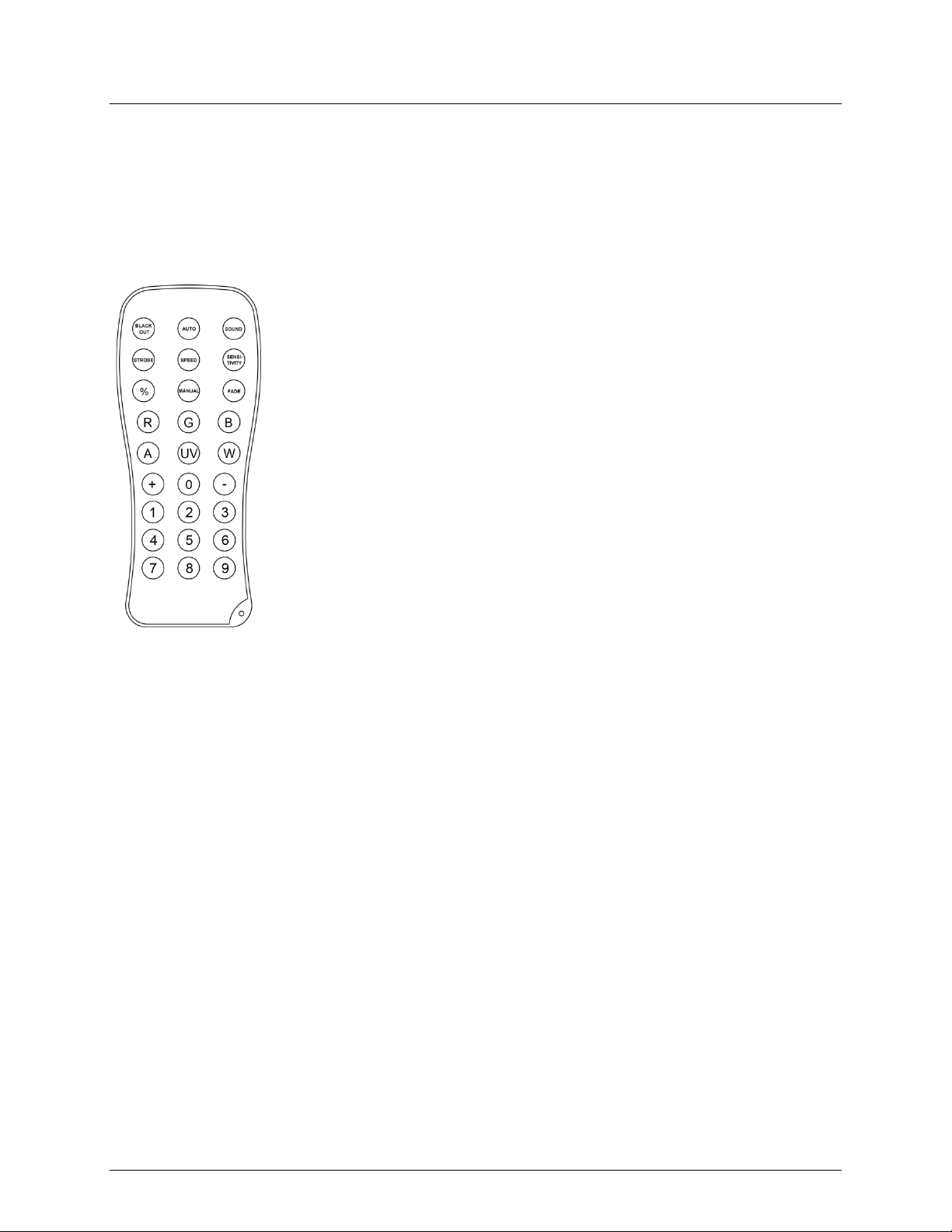

IRC-6 Infrared Remote Control ..................................................................................................... 14
IRC-6 Operation.................................................................................................................................... 14
Master/Slave Mode (wired) ........................................................................................................... 15
Master/Slave Mode (D-Fi USB) .................................................................................................... 15
4BAR Tri USB Expansion ..................................................................................................................... 15
5. Maintenance .................................................................................................................16
Product Maintenance .................................................................................................................... 16
6. Technical Specifications ..............................................................................................17
Returns .............................................................................................................................18
Contact Us .........................................................................................................................19
Page 2 of 19 COREpar 40 USB User Manual Rev. 1
Page 3

1. BEFORE YOU BEGIN

What Is
Included

Unpacking
Instructions

Carefully unpack the product immediately and check the container to make sure all the
If the box or the contents (the product and included accessories) appear damaged from
Failure to report damage to the carrier immediately may invalidate your claim. In
For other issues, such as missing components or parts, damage not related to shipping,
Text
1—512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected

Symbols

Critical installation, configuration, or operation information. Not
damage to the product, or cause harm to the operator.

Disclaimer

Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability
Author
Date
Editor
Updated

Claims

Conventions
COREpar 40 USB
Power Cord
parts are in the package and are in good condition.
shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet.
addition, keep the box and contents for inspection.
or concealed damage, file a claim with Chauvet within 7 days of delivery.
Convention Meaning
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to the product, accessories, or the user.
Warranty Card
Quick Reference Guide
following these instructions may make the product not work, cause
Important installation or configuration information. The product may not function correctly if this information is not used.
Useful information.
to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetlighting.com.
The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet.
© Copyright 2015 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, “COREpar 40 USB”, “D-Fi USB”, and “4BAR Tri USB”
are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
R. Isenstadt 08/21/15 M. Gregory 08/21/15
COREpar 40 USB User Manual Rev. 1 Page 3 of 19
Page 4
Product at a

Safety Notes

Do not touch the product’s housing when operating because it may be very hot.
completely disconnect the product from power via breaker or by unplugging it.
Glance
Use on Dimmer
Outdoor Use
Sound-Active
DMX
Master/Slave
Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance.
Always connect the product to a grounded circuit to avoid the risk of electrocution.
Always disconnect the product from the power source before cleaning or replacing
the fuse.
Avoid direct eye exposure to the light source while the product is on.
Make sure the power cord is not crimped or damaged.
Never disconnect the product from power cord by pulling or tugging on the cord.
If mounting the product overhead, always secure to a fastening device using a
safety cable.
Make sure there are no flammable materials close to the product when operating.
The product is not intended for permanent installation.
Always make sure that the voltage of the outlet to which you are connecting the
product is within the range stated on the decal or rear panel of the product.
The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
Be sure that no ventilation slots on the product’s housing are blocked.
Never connect the product to a dimmer.
Make sure to replace the fuse with another of the same type and rating.
Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket.
The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at higher temperatures.
In the event of a serious operating problem, stop using the product immediately.
Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use
Auto Programs
Auto-ranging Power Supply
Replaceable Fuse
User-Serviceable
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document.
Page 4 of 19 COREpar 40 USB User Manual Rev. 1
Page 5

2. INTRODUCTION

Product Overview

Front View
Bracket Adjustment Knob
Mounting Brackets
Back Panel View
Power Out
LCD Display
Fuse holder
Power In
D-Fi USB Port
Microphone
DMX In
DMX Out
Menu Buttons
Safety Cable
Pass Through
COREpar 40 USB User Manual Rev. 1 Page 5 of 19
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.
Page 6

Product Dimensions

5.2 in
132 mm
189 mm
9.5 in
242 mm
7.4 in
Page 6 of 19 COREpar 40 USB User Manual Rev. 1
Page 7

Fresnel Lens

This Fresnel lens produces a very even light that is soft at the edges, which makes the

AC Power

ranging power supply and it can work with an input
circuit breaker, power outlet, and wiring), use the current value listed on
’s average current draw under normal
(circuit breaker or fuse).
has an appropriate electrical ground to avoid the risk
unnecessary wear and improve its lifespan, during periods of
use completely disconnect the product from power via breaker or by
to a rheostat (variable resistor) or dimmer circuit, even
Fuse
Installed fuse (held by plastic clip)
Spare fuse holder
(inside safety cap)
Safety cap

3. SETUP

COREpar 40 USB a 2-in-1 light. Attach the Fresnel lens easily with the built-in magnets.
Magnetic
Fresnel Lens
The COREpar 40 USB has an auto­voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements ( the label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product conditions.
Always connect the product to a protected circuit Make sure the product of electrocution or fire.
To eliminate non­unplugging it.
Never connect the product if the rheostat or dimmer channel serves only as a 0 to 100% switch.
1. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
Replacement
COREpar 40 USB User Manual Rev. 1 Page 7 of 19
2. Pry the fuse holder out of the housing.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Insert the fuse holder back in place and reconnect power.
Disconnect the product from the power outlet before replacing the fuse.
Page 8

Power Linking

Power Linking
s on 120 VAC or up to
in other markets, you must consult with the
1st Product
2nd Product
3rd Product
Additional
Products
The product provides power linking via the Edison outlet located in the back of the product.
Diagram
Please see the diagram below for further explanation.
You can power link up to 11 COREpar 40 USB product 21 COREpar 40 USB products on 230 VAC.
The power linking diagram corresponds to the North American version of the product ONLY! If using the product local Chauvet distributor as power linking connectors and requirements may differ in your country or region.
Page 8 of 19 COREpar 40 USB User Manual Rev. 1
Page 9

Mounting

, read and follow the safety recommendations indicated in
may be mounted in any position; however, make sure adequate
can support
Mount the
of appropriate weight
knobs allow for directional adjustment when aiming the
15N
Double-
Bracketed Yoke
Safety Cable
Chauvet)
Bracket
Before mounting the product the Safety Notes.

Orientation

Rigging

The COREpar 40 USB ventilation is provided around the product.
Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes.
Make sure that the structure onto which you are mounting the product the product’s weight. See the Technical Specifications for weight information.
When mounting the product overhead, always use a safety cable. product securely to a rigging point, whether an elevated platform or a truss.
When rigging the product onto a truss, use a mounting clamp capacity.
When power linking multiple products, mount the products close enough for power linking cables to reach.
The bracket adjustment product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.
(such as CH-05 from
Mounting Clamp
(such as the CLP-
from Chauvet)
Mounting Diagram
COREpar 40 USB User Manual Rev. 1 Page 9 of 19
Page 10
Control Panel
To access the control panel functions, use the four buttons located underneath the
to see the button locations on the control
Button
Function
<DOWN>

Menu Map

3-CH
d 1–512
3-channel DMX mode
8-CH
d 1–512
8-channel DMX mode
C--
C 1–18
Preset static colors
P 1
7-color program (snap)
P 2
7-color program (fading)
P 3
18-color program (snap)
P 4
18-color program (fading)
S--
S 1–100
Program speed for P1–P4
(sound-active)
Snd1
7-color program (Sound-Active)
Snd2
18-color program (Sound-Active)
SenS
u 0–100
Sound Sensitivity Setting
r 0–255
g 0–255
b 0–255
OFF
dIM1
dIM2
dIM3
On
OFF
teMP
_ _
Displays the current product temperature

4. OPERATION

Operation
display. Please refer to the Product Overview panel.
<MENU>
<UP>
Press to find an operation mode or to back out of the current menu option
Press to scroll up the list of options or to find a higher value
Press to scroll down the list of options or to find a lower value
<ENTER>
Press to activate a menu option or a selected value
Mode Programming Steps Description
P--
(auto program)
Snd
U--
(custom colors)
Custom static colors Combines red, green, and blue
dIM
SEr
Dimmer speed mode, fast to slow, or off
IR function on or off
Page 10 of 19 COREpar 40 USB User Manual Rev. 1
Page 11

DMX Linking

The COREpar 40 USB works with a DMX controller. Information about DMX is in the
http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.
Configuration
Set the product in DMX mode to control with a DMX controller.
socket on the product.
D-Fi USB
The COREpar 40 USB is able to become a D-Fi wireless receiver/transmitter with the use
set the product's DMX Personality and DMX
USB port.
Once plugged in, the D-Fi USB will take over the product. Wired DMX, manual display control / menu buttons and IRC will be unavailable until you unplug the
1. D-Fi USB
3. IRC-6 Remote Control
Configuration
NOTE: DIP Switch 5 is for Transmitting OR Receiving, please choose carefully.
RECEIVING
TRANSMITTING
CHAUVET® DMX Primer, which is available from the Chauvet website
(DMX)
Connectivity
(D-Fi USB)
D-Fi USB DIP Switch
Channels
1. Connect the product to a suitable power outlet.
2. Connect a DMX cable from the DMX output of the DMX controller to the DMX input
of the D-Fi USB from Chauvet DJ. Simply Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.
D-Fi USB. The priority levels are:
2. Wired DMX
1. Set the DMX Personality and DMX address on your product.
2. Use the Chart provided to set BOTH:
the Channel, and then
the Receiving or Transmitting option.
4. Manual Digital Display/Menu Buttons
COREpar 40 USB User Manual Rev. 1 Page 11 of 19
Page 12
DMX Personality
Starting
selected DMX mode uses. If you choose a starting address that is too high, you could
If you are not familiar with the DMX protocol, download the DMX Primer from

DMX Channel Assignments and Values

Channel
Function
Value
Percent/Setting
1
Red
000  255
0–100%
2
Green
000  255
0–100%
3
Blue
Color Macros
(Overrides Ch. 1–3)
000 015
No function
016 255
Color macros
Strobe
(when CH6 is 000–031)
000 015
No function
016  255
Slow to fast
Speed (when CH6 is 032–223)
Sound Sensitivity
(when CH6 is 224–255)
000 010
Off
011  255
Control the sound sensitivity level
000 031
No function
032 063
Pulse effect 0–100%
064 095
Pulse effect 100%–0
096 127
Pulse effect 100%–0–100%
128 159
Auto fade transition
160 191
Auto snap transition (7 colors)
192 223
Auto snap transition (18 colors)
224 255
Sound-active mode
7
Dimmer
000  255
0–100%
000 051
Default dimmer speed set from menu
052 101
Dimmer speed mode OFF
102 152
Dimmer speed mode 1 (fast speed)
153 203
Dimmer speed mode 2 (medium speed)
204 255
Dimmer speed mode 3 (slow speed)
Channel
Function
Value
Percent/Setting
1
Red
000  255
0–100% 2
Green
3
Blue
000  255
0–100%
When selecting a starting DMX address, always consider the number of DMX channels the
and
Address
restrict the access to some of the product’s channels.
The COREpar 40 USB uses up to 8 DMX channels in an 8-CH DMX mode, which defines the highest configurable address to 505.
www.chauvetlighting.com.
To select the starting address, do the following:
1. Press <MENU> repeatedly until 3-CH or 8-CH shows on the display.
2. Press <ENTER> and d 1–512 will show on the display.
3. Use <UP> or <DOWN> to select the starting address.
4. Press <ENTER>.

8-CH

000 255 0–100%
4
5
000 255 Slow to fast
6
Programs
8
Dimmer Speed
Ch. 1–3 must be active

3-CH

000 255 0–100%
Page 12 of 19 COREpar 40 USB User Manual Rev. 1
Page 13

Configuration
(Standalone)

to a DMX string
s in standalone mode may transmit DMX
Automatic
To run the COREpar 40 USB in automatic mode, follow the instructions below:
4. Press <ENTER>.
Auto Program
To change the auto-program speed on the COREpar 40 USB, do the following:
3. Press <ENTER>. The product will return to the last selected mode.
Sound-Active
To run the COREpar 40 USB in sound-active mode, do the following:
4. Press <ENTER>.

Sound Sensitivity

To change the sound sensitivity on the COREpar 40 USB, follow the instructions below:
3. Press <ENTER>. The product will return to the last selected mode.
Preset Color
To run the COREpar 40 USB in preset color mode, follow the instructions below:
4. Press <ENTER>.
Custom Color
To custom mix a static color, follow the instructions below:
5. Repeat steps 3 and 4 until the product outputs as desired.

Dimmer Speed

To change dimmer speed on the COREpar 40 USB, do the following:
4. Press <ENTER>.

Temperature

To view the current temperature of the COREpar 40 USB, follow the instructions below:
2. Press <ENTER>.
Set the product in one of the standalone modes to control without a DMX controller.
Connect the product to a suitable power outlet.
Never connect a product that is operating in any standalone mode connected to a DMX controller. Product signals that could interfere with the DMX signals from the controller.
Programs
Speed
Mode
Mode
1. Press <MENU> repeatedly until P-- shows on the display.
2. Press <ENTER>.
3. Use <UP> and <DOWN> to select an auto program (P 1–4).
1. Press <MENU> repeatedly until S-- shows on the display.
2. Use <UP> and <DOWN> to increase or decrease the program speed (S 1–100).
1. Press <MENU> repeatedly until Snd shows on the display.
2. Press <ENTER>.
3. Use <UP> and <DOWN> to select a sound-active program (Snd1 or Snd2).
The product will only respond to low frequencies of music (bass and drums).
1. Press <MENU> repeatedly until SenS shows on the display.
2. Use <UP> and <DOWN> to increase or decrease the sound sensitivity (u 0–100).
1. Press <MENU> repeatedly until C-- shows on the display.
2. Press <ENTER>.
3. Use <UP> and <DOWN> to select a static color (C 1–18).
Mixing
1. Press <MENU> repeatedly until U-- shows on the display.
2. Press <ENTER> and one of the following will show on the display:
r_ _ _ (red)
g_ _ _ (green)
b_ _ _ (blue)
3. Press <ENTER> to cycle through the color settings.
4. When the desired color shows on the display, use <UP> or <DOWN> to increase or decrease the color value.
1. Press <MENU> repeatedly until dIM shows on the display.
2. Press <ENTER>.
3. Use <UP> and <DOWN> to select:
dIM1 (fast)
dIM2 (medium)
dIM3 (slow)
or
OFF.
COREpar 40 USB User Manual Rev. 1 Page 13 of 19
1. Press <MENU> repeatedly until teMP shows on the display.
Page 14
IRC-6 Infrared
Remote
The COREpar 40 USB is compatible with the IRC-6 infrared remote control from

IRC-6 Operation

Automatic Mode
You may have inadvertently activated Black Out.
Chauvet. To activate IR mode, follow the instructions below:
1. Press <MENU> repeatedly until SEr shows on the display.
Control
2. Press <ENTER> to accept.
3. Press <UP> or <DOWN> to select On or OFF.
4. Press <ENTER>.
Automatic mode will enable you to run the automatic programs on the product. To turn on Automatic mode:
1. Press <AUTO> on the IRC-6.
2. Press <+> or <–> to choose between the different auto programs.
To adjust the speed of the automatic program:
1. Press <SPEED> on the IRC-6.
2. Press <+> or <–> to either increase or decrease the speed of the program.
Sound-Active Mode
Sound-Active mode will enable the product to respond to the music. To turn on Sound-Active mode:
1. Press <SOUND> on the IRC-6.
2. Press <+> or <–> to
select Snd1 or Snd2.
To adjust sound sensitivity in Sound-Active mode:
1. Press <SENSITIVITY> on the IRC-6.
2. Press <+> or <–> to either increase or decrease sound sensitivity.
Manual Color Control
To choose a specific color with the IRC-6:
1. Press <MANUAL> on the IRC-6.
2. Press any number between <0>~<9> to choose your color.
To manually control the RGB percentage:
1. Press <MANUAL> on the IRC-6.
2. Press <R> (red), <G> (green), or <B> (blue) to choose your color.
3. Press <+> or <–> to increase or decrease the percentage of each color.
Miscellaneous Operation
To adjust the total output level:
1. Press <%> on the IRC-6.
2. Press <+> or <–> to increase or decrease the output level.
To adjust the strobe rate of the program:
1. Press <STROBE> on the IRC-6.
2. Press <+> or <–> to increase or decrease the strobe rate.
3. Press <STROBE> again to turn off the strobe.
To select only fading programs:
1. Press <FADE> on the IRC-6.
2. Press <+> or <–> to
select P 2 or P 4.
To black out the lights:
1. Press <BLACK OUT> on the IRC-6.
This will turn off all the lights until the button is pressed again. NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the
remote does not respond when a button is pressed, try pressing <BLACK OUT>.
Page 14 of 19 COREpar 40 USB User Manual Rev. 1
Page 15
Master/Slave
The Master/Slave mode allows a single COREpar 40 USB product (the “master”) to control
s (the “slaves”) without the need of a
2. Make the master product the first product in the DMX daisy chain.
Never connect a DMX controller to a DMX string configured for Master/Slave
Do not connect more than 31 slaves to the master.
Master/Slave
The D-Fi USB allows a single COREpar 40 USB product (the “master”) to control the
s (the “slaves”) without the need of a
will be set to operate in
s will be set
s will operate in
6. Plug in the D-Fi USB.
configured for Master/Slave
operation because the controller may interfere with the signals from the master.
4BAR Tri USB
Manual for the 4BAR Tri USB.
the actions of one or more COREpar 40 USB product
Mode
(wired)
DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:
1. Press <MENU> repeatedly until 3-CH or 8-CH shows on the display.
2. Press <ENTER> to accept.
3. Set the DMX address to d 1.
4. Connect the DMX input of the first slave product to the DMX output of the master product.
5. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave product.
6. Finish setting and connecting all the slave products.
Master product:
1. Set the master product to operate in either Stand-Alone mode or with the IRC-6.
Configure all the slave products before connecting the master to the daisy chain.
operation because the controller may interfere with the signals from the master.
actions of one or more COREpar 40 USB product
Mode
(D-Fi USB)
DMX controller or DMX cables. The master (transmitter) product either Stand-Alone mode or with the IRC-6, while the slave (receiver) product to operate in Slave mode. Once set and connected, the slave product unison with the master product. Configure the products as indicated below.
Slave products:
1. Press <MENU> repeatedly until 3-CH or 8-CH shows on the display.
2. Press <ENTER> to accept.
3. Set the DMX address to d 1.
4. Set the D-Fi USB to receive on a specific channel, 1–16.
5. Plug in the D-Fi USB.
6. Finish setting and connecting all the slave products.
Master product:
1. Press <MENU> repeatedly until the DMX personality the slaves are set to shows on the display.
2. Press <ENTER> to accept.
3. Set the DMX address to d 1.
4. Set the master product to operate in either Stand-Alone mode or with the IRC-6.
5. Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
All products must be set to the same DMX personality, DMX address, and D-Fi
channel.
Configure all the slave products before configuring the master to transmit.
Never connect a DMX controller to a D-Fi channel
The COREpar 40 USB can act as part of an expansion for the 4BAR Tri USB. For
Expansion
COREpar 40 USB User Manual Rev. 1 Page 15 of 19
instructions on configuring the product for 4BAR Tri USB Expansion mode, see the User
Page 16
Product
up reduces light output performance and can cause overheating. This can
mechanical wear. To maintain optimum
However, be aware that usage and environmental conditions could be contributing

5. MAINTENANCE

Dust build-
Maintenance
lead to reduction of the light source’s life and/or performance and minimize wear, clean your lighting products at least twice a month.
factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.
Page 16 of 19 COREpar 40 USB User Manual Rev. 1
Page 17
Dimensions and
Length
Width
Height
Weight
5.2 in (132 mm)
7.4 in (189 mm)
9.5 in (242 mm)
3.4 lb (1.6 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type
Range
Voltage Selection
Switching (internal)
100 to 240 VAC, 50/60 Hz
Auto-ranging
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
47 W
46 W
Operating Current
0.7 A
0.4 A
Power linking current (products)
8 A (11 products)
8 A (21 products)
Fuse
T 2 A, 250 V
T 2 A, 250 V
Power I/O
U.S./Worldwide
UK/Europe
Power input connector
IEC
IEC
Power output connector
Edison
IEC
Power Cord plug
Edison (U.S.)
Local plug
Light Source
Type
Power
Lifespan
COB LED
40 W
50,000 hours
Color
Quantity
Current
Tri-color RGB
1
2 A
Photometrics
Parameter
With Lens
Without Lens
Strobe Rate
0 to 33 Hz
0 to 33 Hz
Beam Angle
20°
40°
Field Angle
28°
85°
Illuminance @ 2 m
1,660 lux
243 lux
Thermal
Maximum External Temp.
Cooling System
104 °F (40 °C)
Convection
DMX
I/O Connectors
Channel Range
3-pin XLR
3 or 8
Ordering
Product Name
Item Code
UPC Number
COREpar 40 USB
03031056
781462214043

6. TECHNICAL SPECIFICATIONS

Weight
COREpar 40 USB User Manual Rev. 1 Page 17 of 19
Page 18
R
In case you need to get support or return a product:
If you are located outside the U.S., UK, Ireland, Mexico, or Benelux, contact your
products to them. Visit our website www.chauvetlighting.com for contact details.
Call the corresponding Chauvet Technical Support office and request a Return
returned without an RMA number.
Before sending the product, clearly write the following information on a piece of paper
recommended.
ETURNS
If you are located in the U.S., contact Chauvet World Headquarters.
If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
If you are located in Mexico, contact Chauvet Mexico.
If you are located in Benelux, contact Chauvet Europe BVBA.
If you are located in any other country, DO NOT contact Chauvet. Instead, contact
your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux.
distributor of record and follow their instructions on how to return Chauvet
Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return. Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product
Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.
and place it inside the box:
Your name
Your address
Your phone number
RMA number
A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are
Chauvet reserves the right to use its own discretion to repair or replace returned product(s).
Page 18 of 19 COREpar 40 USB User Manual Rev. 1
Page 19
C
USA WORLD HEADQUARTERS
General Information – Chauvet
Technical Support
www.chauvetlighting.com
EUROPE
General Information - Chauvet Europe BVBA
Technical Support
General Information - Chauvet Europe Ltd.
Technical Support
MEXICO
General Information - Chauvet Mexico
Voice: +52 (728) 285-5000
Technical Support
www.chauvet.com.mx
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.
ONTACT
US
Address: 5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 577-4455 Fax: (954) 929-5560 Toll free: (800) 762-1084
Address: Stokstraat 18 9770 Kruishoutem Belgium Voice: +32 9 388 93 97
Address: Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice: +44 (0)1773 511115 Fax: +44 (0)1773 511110
Address: Av. Santa Ana 30 Parque Industrial Lerma Lerma, Mexico C.P. 52000
Voice: (954) 577-4455 (Press 4) Fax: (954) 756-8015 Email: tech@chauvetlighting.com
World Wide Web
Email: Eutech@chauvetlighting.eu
World Wide Web
www.chauvetlighting.eu
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetlighting.co.uk
Email: servicio@chauvet.com.mx
World Wide Web
COREpar 40 USB User Manual Rev. 1 Page 19 of 19
Loading...
