Chauvet DJ Core 3x3 Users Manual

Download
User Manual
TABLE OF CONTENTS
1. Before You Begin .......................................................................................................... 3
Claims ....................................................................................................................................................... 3
2. Introduction ................................................................................................................... 5
3. Setup .............................................................................................................................. 7
Fuse Replacement .................................................................................................................................... 7
Power Linking ............................................................................................................................................ 8
Orientation ................................................................................................................................................. 9
Rigging ...................................................................................................................................................... 9
Coffin Locks ............................................................................................................................................. 10
4. Operation ......................................................................................................................11
Starting Address ...................................................................................................................................... 12
31-Channel .............................................................................................................................................. 13
27-Channel .............................................................................................................................................. 14
9-Channel ................................................................................................................................................ 15
5-Channel ................................................................................................................................................ 16
3-Channel ................................................................................................................................................ 16
Sound-Active Mode ................................................................................................................................. 17
Sound Sensitivity ..................................................................................................................................... 17
Auto Program .......................................................................................................................................... 17
Program Speed ....................................................................................................................................... 17
Static Colors ............................................................................................................................................ 18
Custom Color Mixing ............................................................................................................................... 18
Dimmer .................................................................................................................................................... 18
Fan Settings ............................................................................................................................................ 18
Master/Slave Mode .................................................................................................................................. 19
Two-by-Two (2 x 2) Master/Slave Mode .................................................................................................. 20
5. Technical Information ..................................................................................................21
6. Technical Specifications ..............................................................................................22
Returns .............................................................................................................................23
Contact Us ........................................................................................................................24
Page 2 of 24 CORE™ 3x3 User Manual Rev. 2
What Is

Unpacking
Instructions

and check the container to make sure all the
included accessories) appear damaged from
, damage not related to shipping,
Text
1–512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected

Symbols

Critical installation, configuration, or operation information. Not damage to the product, or cause harm to the operator.

Disclaimer

are subject to change ity for any errors or
Author
Date
Editor
Date

1. BEFORE YOU BEGIN

Included

Claims

Conventions
• CORE™ 3x3
• 5 mm Allen Key
• Hanging Bracket with Mounting
Hardware
Carefully unpack the product immediately parts are in the package and are in good condition.
If the box or the contents (the product and shipping, or show signs of mishandling, notify the carrier immediately, not CHAUVET®. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts or concealed damage, file a claim with CHAUVET® within 7 days of delivery.
Convention Meaning
Symbol Meaning
• Power Cord
• Warranty Card
• Quick Reference Guide
The information and specifications contained in this User Manual without notice. CHAUVET® assumes no responsibility or liabil omissions, and reserves the right to revise or recreate this manual at any time. Download the latest version from
© Copyright 2014 CHAUVET®. All rights reserved.
Electronically published by CHAUVET® in the United States of America.
A. Leon 08/06/14 M. Trouard 08/06/14
following these instructions may make the product not work, cause
Important installation or configuration information. The product may not function correctly if this information is not used.
Useful information.
www.chauvetlighting.com.
CORE™ 3x3 User Manual Rev. 2 Page 3 of 24
Product at a
x
P
x
P
P
P
P
x
P

Safety Notes

Do not touch the product’s housing when operating because it may be very hot.
This product is not intended for permanent installation.
Glance
Use on Dimmer Outdoor Use Sound-Activated DMX Master/Slave
These notes i nclude important information about the mounting, usage, and maintenance of this product; read before using the product.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing
the fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a
safety cable.
• Make sure there are no flammable materials close to the product when operating.
•
• Always make sure that the voltage of the outlet to which y ou are conne cti ng the
product is within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket.
• The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Contact the nearest authorized technical assistance center.
•
Auto Programs Auto-ranging Power Supply Replaceable Fuse User-Serviceable
• Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner.
Page 4 of 24 CORE™ 3x3 User Manual Rev. 2

2. INTRODUCTION

Overview

Back Panel View
Microphone
Display and
Control Buttons
DMX Out
DMX In
Power In
Fuse Holder
Power Out
CORE™ 3x3 User Manual Rev. 2 Page 5 of 24

Dimensions

13.6 in
344 mm
13.6 in
344 mm
6.2 in
156 mm
Page 6 of 24 CORE™ 3x3 User Manual Rev. 2

AC Power

ranging power supply and it can work with an input
circuit breaker, power outlet, and
breaker or fuse). Make
an appropriate electrical ground to avoid the risk of
a rheostat (variable resistor) or dimmer circuit, even
Fuse
Installed fuse (held by plastic clip)
Spare fuse holder
(inside safety cap)
Safety cap

3. SETUP

The CORE™ 3x3 has an auto­voltage range of 100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements ( wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s average current draw under normal conditions.
Always connect the product to a protected circuit (circuit sure the product has electrocution or fire.
Never connect the product to if the rheostat or dimmer channel serves only as a 0–100% switch.
Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder.
5. Replace with a fuse of the exact same type and rating.
6. Insert the fuse holder back in place and reconnect power.
Disconnect the product from power before replacing the fuse.
A spare fuse is not included; however, the safety cap has room for a spare.
Always replace a blown fuse with another of the same type and rating.
CORE™ 3x3 User Manual Rev. 2 Page 7 of 24

Power Linking

of the
Power Linking
The power linking diagram shown above corresponds to the North American
in other markets, you must
consult with the local CHAUVET® distributor as power linking connectors and
1st Product
2nd Product
3rd Product
Additional Products
The product provides power linking via the Edison/IEC outlet located in the back unit.
Diagram
You can power link up to 3 CORE™ 3x3 units on 120 VAC or up to 7 CORE™ 3x3 units on 230 VAC.
version of the product ONLY! If using the product requirements may differ in your country or region.
Page 8 of 24 CORE™ 3x3 User Manual Rev. 2

Mounting

, read and follow the safety recommendations indicated in
; however, make sure adequate
Mount the
appropriate for
always consider the length of the
knobs allow for directional adjustment when aiming the
Hanging/Mounting
Bracket
Mounting Clamp
Safety Cable
Before mounting the product the Safety Notes.

Orientation

The CORE™ 3x3 may be mounted in any position ventilation is provided around the produc t .

Rigging

• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
• Make sure that the structure or surface onto which you are mounting the product can support the product’s weight (see the Technical Specifications
).
• When mounting the product overhead, always use a safety cable. product securely to a rigging point, such as an elevated platform or a truss.
• When rigging the product onto a truss, you should use a mounting clamp of appropriate weight capacity. The bracket has a 13 mm hole, which is this purpose.
• When po wer linking m ultiple products, you must power linking cable and mount the products close enough for the cable to reach.
• The bracket adjustment product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.
• When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
Mounting Diagram
Bracket
Adjustment
Knobs
CORE™ 3x3 User Manual Rev. 2 Page 9 of 24

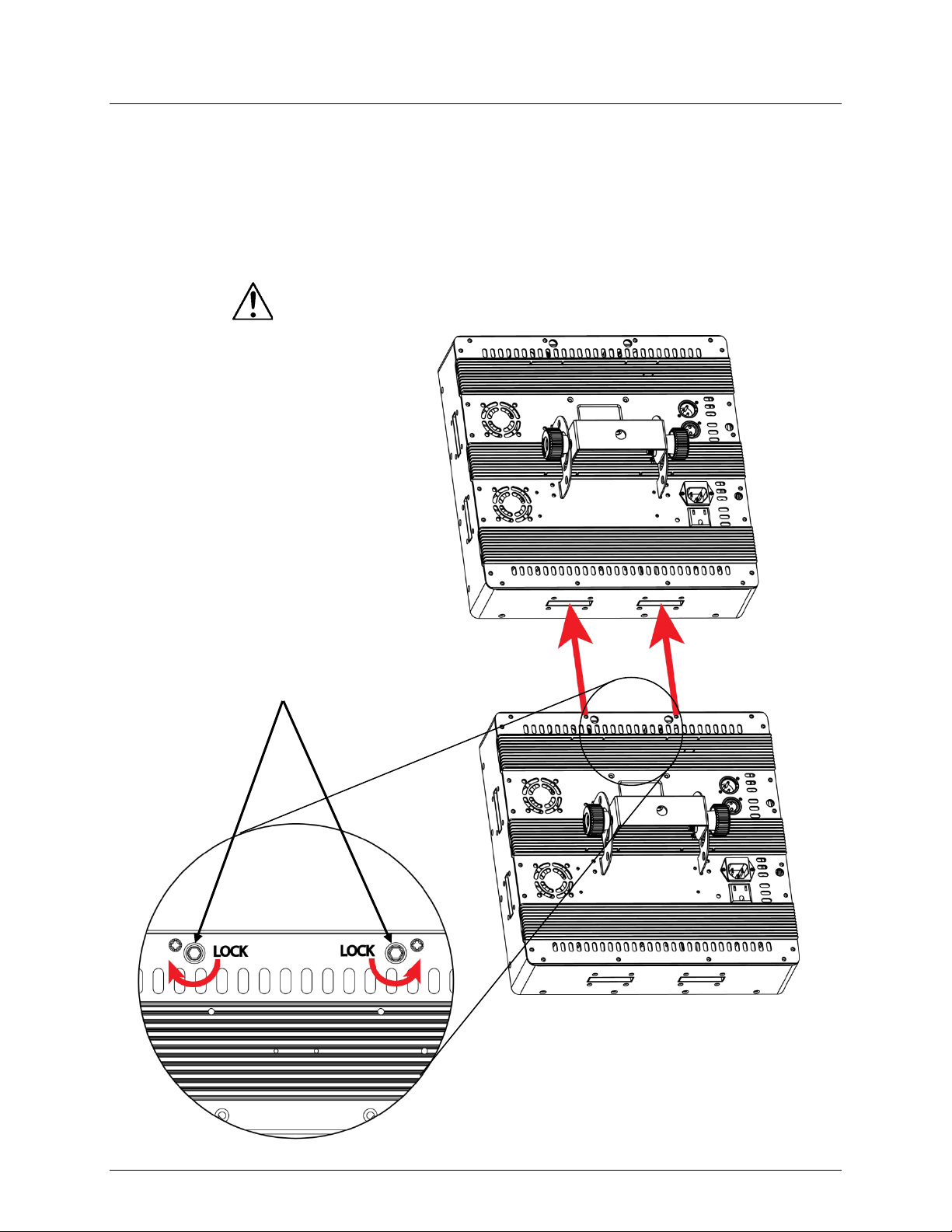

Coffin Locks

The coffin locks are for product alignment only and are not weight bearing. DO NOT
simply turn the key in the
3x3 products together using their coffin locks, be sure
Coffin Lock Keyways
The CORE™ 3x3 may be attached to another CORE™ 3x3 by using their coffin locks. hang product using only the coffin locks.
1. Place one CORE™ 3x3 next to the other, making sure to align the coffin lock’s male connector opening to the other product’s female connector opening.
2. Use the 5 mm Allen key to operate the locking mechanism. Once locked, the coffin lock hooks hold the CORE™ 3x3 units together.
Note: To unlock the coffin locks, using the Allen key again, opposite direction from how it was locked.
When attaching CORE™ each unit is independently mounted.
Page 10 of 24 CORE™ 3x3 User Manual Rev. 2

Control Panel
Operation

To access the control panel functions, use the four buttons located underneath the
<UP>

Menu Map

Main Level
Programming Levels
Description
9-CH
r b
Program Speed
S--
S 1–S100
g 0–g255
dIM1
Slave Modes
SLA
SLA1–SLA4

4. OPERATION

display.
Button Function
<MENU>
<DOWN>
<ENTER>
DMX
Personalities
and Starting
Address
Static Colors C--
Auto Program P-- P 1–P 6
Sound-Active
Mode
Sound
Sensitivity
Custom Color
Mixing
Dimmer dIM
Fan Settings FAN
Master Modes SEnd
Selects an operation mode or to backs out of the current menu option Scrolls up the list of options or selects a higher value Scrolls down the list of options or selects a lower value Activates a menu option or a selected value
3-CH 5-CH
d 1–d512 27CH 31CH
r g b
gb
rg
rgb
Snd
SEnS u 0–u100
r 0–r255
U--
b 0–b255
OFF
dIM2 dIM3
AUTO
HIGH SEd1 SEd4
Selects DMX personality and starting address
Red Green Blue Cyan Magenta Yellow White Auto programs Selects auto program speed (slow to fast)
Sound-Active mode
Sound sensitivity control Red (0–100%)
Green (0–100%) Blue (0–100%) Dimmer speed off Dimmer, fast speed Dimmer, medium speed Dimmer, slow speed Fan automatically turns on Fan always on Mode 1 (see Master/Slave Mode) Mode 4 (see Two-by-Two Master/Slave Mode Slave modes 1–4
)
CORE™ 3x3 User Manual Rev. 2 Page 11 of 24
Configuration
When selecting a starting DMX address, always consider the number of DMX channels
choose a starting address that is too high, you could
DMX mode, which
download the DMX Primer from

CORE™ 3x3 Sections for DMX Control

Set the product in DMX mode to control with a DMX controller.
(DMX)
1. Connect the product to a suitable power outlet.
2. Turn the product on.
3. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product.

Starting Address

the selected DMX mode uses. If you restrict the access to some of the product’s channels.
The CORE™ 3x3 uses up to 31 DMX channels in its 31-channel defines the highest configurable address to 482.
If unfamiliar with DMX or DIP switches,
www.chauvetlighting.com.
To select the starting address, do the following:
1. Press <MENU> repeatedly until 3-CH, 5-CH, 9-CH, 27CH, or 31CH shows on the display.
2. Press <ENTER> to activate the selected DMX personality and d 1–d512 shows on the display.
3. Use <UP> or <DOWN> to select the starting address.
4. Press <ENTER>.
Section 1 Section 2 Section 3
Section 4
Section 5
Section 8 Section 7
Section 6
Section 9
Page 12 of 24 CORE™ 3x3 User Manual Rev. 2

DMX Channe l Modes, Assignments, and Values

1
Red
000 ó 255
0–100%
2
Green
000 ó 255
0–100%
3
Blue
000 ó 255
0–100%
4
Red
000 ó 255
0–100%
5
Green
000 ó 255
0–100%
6
Blue
000 ó 255
0–100%
7
Red
000 ó 255
0–100%
8
Green
000 ó 255
0–100%
9
Blue
000 ó 255
0–100%
10
Red
000 ó 255
0–100%
11
Green
000 ó 255
0–100% 12
Blue
000 ó 255
0–100%
13
Red
000 ó 255
0–100%
14
Green
000 ó 255
0–100%
15
Blue
000 ó 255
0–100%
16
Red
000 ó 255
0–100%
17
Green
000 ó 255
0–100%
18
Blue
000 ó 255
0–100%
19
Red
000 ó 255
0–100%
20
Green
000 ó 255
0–100%
21
Blue
000 ó 255
0–100%
22
Red
000 ó 255
0–100%
23
Green
000 ó 255
0–100%
24
Blue
000 ó 255
0–100%
25
Red
000 ó 255
0–100%
26
Green
000 ó 255
0–100%
27
Blue
000 ó 255
0–100%
000 ó 010
No function
011 ó 040
Chase 1
041 ó 080
Chase 2
081 ó 120
Chase 3
121 ó 160
Chase 4
161 ó 200
Chase 5
201 ó 240
Chase 6 (run Chases 1–4)
241 ó 255
Sound-Active mode
29
Speed
000 ó 255
Auto programs speed (slow to fast)
30
Dimmer
000 ó 255
0–100%
000 ó 010
No function
011 ó 255
Strobe (slow to fast)

31-Channel

Channel Function Value Setting
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
28 Auto Programs
31 Shutter
Section 9
CORE™ 3x3 User Manual Rev. 2 Page 13 of 24

DMX Channel Modes, Assignments, and Values (cont.)

1
Red
000 ó 255
0–100%
2
Green
000 ó 255
0–100%
3
Blue
000 ó 255
0–100%
4
Red
000 ó 255
0–100%
5
Green
000 ó 255
0–100%
6
Blue
000 ó 255
0–100%
7
Red
000 ó 255
0–100%
8
Green
000 ó 255
0–100%
9
Blue
000 ó 255
0–100%
10
Red
000 ó 255
0–100%
11
Green
000 ó 255
0–100% 12
Blue
000 ó 255
0–100%
13
Red
000 ó 255
0–100%
14
Green
000 ó 255
0–100%
15
Blue
000 ó 255
0–100%
16
Red
000 ó 255
0–100%
17
Green
000 ó 255
0–100%
18
Blue
000 ó 255
0–100%
19
Red
000 ó 255
0–100%
20
Green
000 ó 255
0–100%
21
Blue
000 ó 255
0–100%
22
Red
000 ó 255
0–100%
23
Green
000 ó 255
0–100%
24
Blue
000 ó 255
0–100%
25
Red
000 ó 255
0–100%
26
Green
000 ó 255
0–100%
27
Blue
000 ó 255
0–100%

27-Channel

Channel Function Value Setting
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
Section 9
Page 14 of 24 CORE™ 3x3 User Manual Rev. 2

DMX Channel Modes, Assignments, and Values (cont.)

1
Dimmer
000 ó 255
0–100%
2
Red
000 ó 255
0–100% 3
Green
000 ó 255
0–100%
4
Blue
000 ó 255
0–100%
000 ó 010
No function
011 ó 255
Strobe (slow to fast)
000 ó 010
No function
011 ó 030
Red 100% + Green 0–100%
031 ó 050
Red 100%–0 + Green 100%
051 ó 070
Green 100% + Blue 0–100%
071 ó 090
Green 100%–0 + Blue 100%
091 ó 110
Red 0–100% + Blue 100%
111 ó 130
Red 100% + Blue 100%–0
131 ó 150
Red 100% + Green 0–100% + Blue 0–100%
151 ó 170
Red 100%–0 + Green 100%–0 + Blue 100%
171 ó 200
Red 100% + Green 100% + Blue 100%
201 ó 205
Color temperature 1
206 ó 210
Color temperature 2
211 ó 215
Color temperature 3
216 ó 220
Color temperature 4
221 ó 225
Color temperature 5
226 ó 230
Color temperature 6
231 ó 235
Color temperature 7
236 ó 240
Color temperature 8
241 ó 245
Color temperature 9
246 ó 250
Color temperature 10
251 ó 255
Color temperature 11
000 ó 010
No function
011 ó 040
Chase 1
041 ó 080
Chase 2
081 ó 120
Chase 3
121 ó 160
Chase 4
161 ó 200
Chase 5
201 ó 240
Chase 6 (run Chases 1–4)
241 ó 255
Sound-Active mode
8
Speed
000 ó 255
Auto programs speed (slow to fast)
000 ó 051
Dimmer mode manually set in Menu Options
052 ó 101
Dimmer mode off
102 ó 152
Dimmer mode 1 (fast speed)
153 ó 203
Dimmer mode 2 (middle speed)
204 ó 255
Dimmer mode 3 (slow speed)

9-Channel

Channel Function Value Setting
5 Shutter
6
Custom Color and Color Temperature
7 Auto Programs
9 Dimmer Mode
CORE™ 3x3 User Manual Rev. 2 Page 15 of 24

DMX Channel Modes, Assignments, and Values (cont.)

1
Dimmer
000 ó 255
0–100%
2
Red
000 ó 255
0–100% 3
Green
000 ó 255
0–100%
4
Blue
000 ó 255
0–100%
000 ó 010
No function
011 ó 255
Strobe (slow to fast)
1
Red
000 ó 255
0–100%
2
Green
000 ó 255
0–100%
3
Blue
000 ó 255
0–100%

5-Channel

3-Channel

Channel Function Value Setting
5 Shutter
Channel Function Value Setting
Page 16 of 24 CORE™ 3x3 User Manual Rev. 2
Configuration
Static,
s in
signals that could interfere with the DMX
(Standalone)
Set the product in one of the standalone modes to contr ol without a DMX controller.
1. Connect the product to power.
2. Turn the product on.
Never connect a product that is operating in any standalone mode (either Automatic, or Sound) to a DMX string connected to a DMX controller. Product standalone mode may transmit DMX signals from the controller.
Sound-Active
Mode

Sound Sensitivity

Auto Program

Program Speed

To enable the Sound-Active mode, do the following:
1. Press <MENU> repeatedly until Snd shows on the display.
2. Press <ENTER>.
To set the sound sensitivity, follow the instructions below:
1. Press <MENU> repeatedly until SEnS shows on the display.
2. Use <UP> or <DOWN> to select the desired sound sensitivity (u 0–u100).
3. Press <ENTER>.
The product will only respond to low frequencies of music (bass and drums).
To select an auto program, do the following:
1. Press <MENU> repeatedly until P-- shows on the display.
2. Press <ENTER> and P 1–P 6 shows on the display.
3. Use <UP> or <DOWN> to select the desired a uto program.
4. Press <ENTER>.
To set the auto program speed, follow the instructions below:
1. Press <MENU> repeatedly until S-- shows on the display.
2. Use <UP> or <DOWN> to select the desired auto program speed (S 1–S100, slow to fast).
3. Press <ENTER>.
CORE™ 3x3 User Manual Rev. 2 Page 17 of 24

Static Colors

Custom Color

Dimmer

To select a static color, do the following:
1. Press <MENU> repeatedly until C-- shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select the desired preset color:
• r (red)
• g (green)
• b (blue)
• gb (cyan)
• r b (magenta)
• rg (yellow)
• rgb (white)
4. Press <ENTER>.
To custom mix a color, follow the instructions below:
Mixing
1. Press <MENU> repeatedly until U-- shows on the display.
2. Press <ENTER> and one of the following colors shows on the display: rXXX (red), gXXX (green), or bXXX (blue).
3. Press <ENTER> repeatedly to select the desired color.
4. Use <UP> or <DOWN> to select the desired color value (0–100). NOTE: Selecting 0 will turn the color off.
5. Press <ENTER> to select color value and continue to the next color.
6. Repeat steps 3 to 5 until you create your desired color.

Fan Settings

To select a dimmer mode, do the following:
1. Press <MENU> repeatedly until dIM shows on the display.
2. Press <ENTER> and one of the following shows on the display:
• OFF (dimmer speed off)
• dIM1 (dimmer, fast speed)
• dIM2 (dimmer, medium speed)
• dIM3 (dimmer, slow speed)
3. Use <UP> or <DOWN> to select the desired dimmer mode.
4. Press <ENTER>.
To select a fan setting, follow the instructions below:
1. Press <MENU> repeatedly until FAN shows on the display.
2. Press <ENTER> and either AUTO (fan automatically turns on) or HIGH (fan always on) shows on the display.
3. Use <UP> or <DOWN> to select the desired fan setting.
4. Press <ENTER>.
Page 18 of 24 CORE™ 3x3 User Manual Rev. 2
Master/Slave
unit (the master) to control the
units (the slaves) without the need of a DMX
. Once set and connected, the slave units will operate in unison with the master
all the slave units before connecting the master unit to the DMX
Never connect a DMX controller to a DMX string configured for Master/Slave
may interfere with the signals from the
The Master/Slave mode allows a single CORE™ 3x3
Mode
actions of one or more CORE™ 3x3 controller. The master unit will be set to operate in Master mode 1 (and in either an Auto program or Sound-Active mode), while the slave units will be set to operate in Slave mode 1 unit, each slave duplicating the master exactly.
Configure the units as indicated below.
Slave units:
1. Press <MENU> on the slave units until SLA shows on the display .
2. Press <ENTER> and SLA1–SLA4 shows on the display.
3. Use <UP> or <DOWN> to select SLA1 (Slave mode 1).
4. Press <ENTER>.
5. Connect the DMX input of the subsequent slave units to the DMX output of the previous slave unit.
Master unit:
1. Press <MENU> on the master unit until SEnd shows on the display.
2. Press <ENTER> and either SEd1 or SEd4 shows on the display.
3. Use <UP> or <DOWN> to select SEd1 (Master mode 1).
4. Press <ENTER>.
5. Set the master unit to operate in either Auto program or Sound-Active mode.
6. Make the master unit the first unit in the DMX daisy chain.
• Configure
daisy chain.
•
operation because the controller master unit.
• Do not connect more than 31 slave units to the master unit.
CORE™ 3x3 User Manual Rev. 2 Page 19 of 24
Two-by-Two
Master/Slave
Master/Slave mode allows a single CORE™ 3x3 unit (the
will be set to
. Once set and
Placement of Units
The SEd4 setting in the master unit is for the two-by-two grid layout only. With shown to ensure all 4 units generate a properly coordinated show.
Additional
Two
SEd4 Mode
SLA2 Mode
Back Panel View
First 2x2 Setup
(as shown above)
Additional 2x2 Setups
Slave Unit
SLA1 Mode
Slave Unit
SLA2 Mode
Slave Unit
SLA3 Mode
Slave Unit
SLA4 Mode
The Two-by-Two (2 x 2)
(2 x 2)
master) to control the actions of 3 other CORE™ 3x3 units (the slaves) as if they were one unit, when positioned 2 units across by 2 units down. The master unit operate in Master mode 4 (and in either an Auto program or Sound-Active mod e), whi le
Mode
the slave units will be set to operate in Slave modes 2 through 4 connected, the four units will operate as one.
Configure the units as indicated below.
Slave units:
1. Press <MENU> on the slave units until SLA shows on the display .
2. Press <ENTER> and SLA1–SLA4 shows on the display.
3. Use <UP> or <DOWN> to select SLA2 for the slave next to the master, SLA3 for the slave diagonal to the master, and SLA4 for the slave underneath the master.
4. Press <ENTER> on the slave units.
5. Connect the DMX input of the subsequent slave units to the DMX output of the previous slave unit.
Master unit:
1. Press <MENU> on the master unit until SEnd shows on the display.
2. Press <ENTER> and either SEd1 or SEd4 shows on the display.
3. Use <UP> or <DOWN> to select SEd4 (Master mode 4).
4. Press <ENTER>.
5. Set the master unit to operate in either Auto program or Sound-Active mode.
6. Make the master unit the first unit in the DMX daisy chain.
Slave Unit
for Two-by-Two
Master/Slave Mode
Slave Unit
SLA3 Mode
Two-by-
Configurations
this two-by-two configurat io n, be sure to place the slave units in the positions
Page 20 of 24 CORE™ 3x3 User Manual Rev. 2
Master Unit
Slave Unit
SLA4 Mode
Product
performance and can cause overheating. This can
To maintain optimum
Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on
surfaces carefully after
because you could damage

5. TECHNICAL INFORMATION

Dust build-up reduces light output
Maintenance
lead to reduction of the light source’s life and mechanical wear. performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.
To clean the product, follow the instructions below.
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. the external surface/vents and reachable internal components.
4. Clean all external optics and glass/transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
6. Softly wipe any dirt or grime to the outside edges of the external optics or glass/transparent surfaces.
7. Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint.
Always dry the external optics and glass/transparent cleaning them.
Do not spin the cooling fans using compressed air them.
CORE™ 3x3 User Manual Rev. 2 Page 21 of 24
Dimensions and
Length
Width
Height
Weight
6.2 in (156 mm)
13.6 in (344 mm)
13.6 in (344 mm)
13.6 lb (6.2 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type
Range
Voltage Selection
Switching (internal)
100 to 240 V, 50/60 Hz
Auto-ranging
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
226 W
226 W
Operating current
1.9 A
0.9 A
Power linking current (units)
8 A (3 units)
8 A (7 units)
Fuse
T 3.15 A, 250 V
T 3.15 A, 250 V
Power I/O
US/Worldwide
UK/Europe
Power input connector
IEC
IEC
Power output connector
Edison
IEC
Power Cord plug
Edison (US)
Local plug
Light Source
Type
Power
Lifespan
LED
9 W
50,000 hours
Color
Quantity
Current
Tri-color (RGB)
9
1.5 A
Photo Optic
Parameter
Illuminance @ 2 m
1,025 lux
Beam angle
47°
Field angle
73°
Strobe rate
0 to 20 Hz
Thermal
Maximum External Temp.
Cooling System
104 °F (40 °C)
Fan-cooled
DMX
I/O Connectors
Connector Type
Channel Range
3-pin XLR
Sockets
3, 5, 9, 27 or 31
Ordering
Product Name
Item Code
UPC Number
CORE™ 3x3
03030688
781462210366

6. TECHNICAL SPECIFICATIONS

Weight
Page 22 of 24 CORE™ 3x3 User Manual Rev. 2

RETURNS

In any other country, DO NOT contact CHAUVET®. Contact your distributor. See
, contact your distributor of
Call the corresponding CHAUVET® Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number,
You must send the merchandise prepaid, in its original box, and with its original packing and
product returned without
Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on
and place it
properly. Any shipping damage resulting from inadequate packaging will
CHAUVET® reserves the right to use its own discretion to repair or replace returned
To return a product or request support:
• In the U.S., contact CHAUVET® World Headquarters (see Contact Us
• In the UK or Ireland, contact CHAUVET® Europe Ltd. (see Contact Us).
• In Mexico, contact CHAUVET® Mexico (see Contact Us).
www.chauvetlighting.com for distributors outside the U.S., United Kingdom, Ireland, or Mexico.
If you live outside the U.S., United Kingdom, Ireland, or Mexico record and follow their instructions on how to return CHAUVET® products to them. Visit our website for contact details.
serial number, and a brief description of the reason for the return.
accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any
an RMA number.
).
the box.
Before sending the product, clearly write the following information on a piece of paper inside the box:
• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
Be sure to pack the product be your responsibility. FedEx packing or double-boxing are recommended.
product(s).
CORE™ 3x3 User Manual Rev. 2 Page 23 of 24
C
WORLD HEADQUARTERS - CHAUVET®
General Information
Toll free: (800) 762-1084
Technical Support
Worl d Wide Web www.chauvetlighting.com
UNITED KINGDOM AND IRELAND - CHAUVET® Europe Ltd.
General Information
Fax: +44 (0)1773 511110
Technical Support
MEXICO - CHAUVET® Mexico
General Information
Voice: +52 (728) 285-5000
Technical Support
contact your dealer. Follow their instructions to request support
or to return a product. Visit our website for contact details.
ONTACT US
Address: 5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 577-4455 Fax: (954) 929-5560
Address: Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice: +44 (0)1773 511115
Address: Av. Santa Ana 30 Parque Industrial Lerma Lerma, Mexico C.P. 52000
Outside the U.S., United Kingdom, Ireland, or Mexico,
Page 24 of 24 CORE™ 3x3 User Manual Rev. 2
Voice: (954) 577-4455 (Press 4) Fax: (954) 756-8015 Email: tech@chauvetlighting.com
Email: uktech@chauvetlighting.com
Worl d Wide Web www.chauvetlighting.co.uk
Email: servicio@chauvet.com.mx
Worl d Wide Web www.chauvet.com.mx
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
