Installation/Operation Manual with Service Replacement Parts

Undercounter Dishwashers

M4 Series

UH330B

UH330B M4 Condensate Removal High Temperature with built-in booster Fresh Water Final Rinse

UH230 M4 High Temperature without built-in booster Fresh Water Final Rinse

UH130 M4 High Temperature without built-in booster Wash Refresh Final Rinse

UL130 M4 Low Temperature Chemical Sanitization Wash Refresh Final Rinse

UH230B M4 High Temperature with built-in booster Fresh Water Final Rinse

UH130B M4 High Temperature with built-in booster Wash Refresh Final Rinse

UH230B

3765 Champion Blvd., Winston-Salem, NC 27105 (336) 661-1556 Fax: (336) 661-1660 Toll-free: (800) 858-4477

Issue Date: 10.31.16

Manual P/N 115440 rev. J

For machines beginning with S/N W140946406 and above

2674 N. Service Road, Jordan Station Ontario, Canada L0R 1S0 (905) 562-4195 Fax: (905) 562-4618 Toll-free: (800) 263-5798

Printed in the USA

For future reference, record your dishwasher information in the box below.

Model Number__________________________ Serial Number_______________________

Voltage________________Hertz_____________ Phase__________________

Service Agent __________________________________ Tel:______________________

Parts Distributor _________________________________ Tel:______________________

National Service Department

In Canada: In the USA: Toll-free: (800) 263-5798 Toll-free: (800) 858-4477 Tel: (905) 562-4195 Tel: (336) 661-1556 Fax: (905) 562-4618 Fax: (336) 661-1660 email: service@moyerdiebellimited.com email: service@championindustries.com

ATTENTION:

The model no., serial no., voltage, Hz

and phase are needed to identify your

machine and to answer questions.

The machine data plate is located

on the lower front panel.

Please have this information ready

if you call for service assistance.

Make sure you are connected to the internet then enter an address below:

In the U.S.A.

http://www.championindustries.com/register

In Canada

http://www.championindustries.com/canada/register

PRODUCT REGISTRATION

IMPORTANT IMPORTANT

BY FA X

COMPLETE THIS FORM AND FAX TO:

(336) 661-1660 in the USA

1-(800) 204-0109 in Canada

PRODUCT REGISTRATION CARD

Model

Date of Installation:

Company Name:

Address:

Telephone #: ( ) ---

Serial #

(Street) Province Postal Code

Contact:

Installation Company:

Address:

Telephone #:

Contact:

FAILURE TO REGISTER YOUR PRODUCT MAY VOID YOUR WARRANTY

Revision History

A revision might be a part number change, a new instruction, or other information that was not available at print time. We reserve the right to make changes to these instructions without notice and without incurring any liability by making the changes. Equipment owners may request a revised manual, at no charge, by calling 1 (800) 858-4477 in the USA or by calling 1 (800) 263-5798 in Canada.

Revision Revised Serial Number Revision Date Pages Effectivity Description

11.5.14 All W140946406 Released First Edition

12.3.14 95-149 All Revised UH330B Part Nos.

3.2.15 FC, i All Corrected Effective Serial Number 154 All Changed UH330B fuse to 6 Amp on the schematic

4.27.15 116,118,119 All UH130, UH130B use 0706635 squeeze tube and pump

4.27.15 154 All Updated UH330B ampacity charts

5.13.15 129 All Changed 6A fuse P/N to 0513698

7.17.15 118-119 All Added Item 23, Rinse Aid pump motor, P/N 0510872-1

8.31.15 122-123 All Added P/N WS1 to Chemical Pump 134-135 All Revised Control Panel, changed P/N 0512213 to 0512214 154 All Added Chemical Alarm Schematic 0513371-1

10.21.15 114-115 W150954629 Added 5KW Booster Element 111235-1. Revised Rinse Aid Fittings.

11.11.15 84, 157 W150954629 Revised UH330B Timing Chart. Revised Wash Operation.

5.17.16 114-115 W150954629 Added Booster Service Kit, P/N 0714170 to Booster Assembly, Added Insulation P/N 0512790

10.31.16 145 All Changed Item 9 P/N to 0313404

Limited Warranty

LIMITED WARRANTY

Champion Industries (herein referred to as Champion), 3765 Champion Blvd., Winston-Salem, North Carolina 27105, and P.O. Box 301, 2674 N. Service Road, Jordan Station, Canada, L0R 1S0, warrants machines, and parts, as set out below.

Warranty of Machines: Champion warrants all new machines of its manufacture bearing the name "Champion" and

installed within the United States and Canada to be free from defects in material and workmanship for a period of one (1) year after the date of installation or ﬁfteen (15) months after the date of shipment by Champion, whichever occurs ﬁrst. [See below for special provisions relating to glasswashers.]

Warranty registration must be submitted to Champion within ten (10) days after installation either online on the Champion Industries website (http://www.championindustries.com/register) in the USA or http://www.championindustries.com/canada/ register in Canada or by fax on the form provided at the front of this manual. If warranty registration is not returned to Champion within such period, the warranty will expire after one year from the date of shipment.

Champion will not assume any responsibility for extra costs for installation in any area where there are jurisdictional problems with local trades or unions. If a defect in workmanship or material is found to exist within the warranty period, Champion, at its election, will either repair or replace the defective machine or accept return of the machine for full credit; provided; however, as to glasswashers, Champion's obligation with respect to labor associated with any repairs shall end (a) 120 days after shipment, or (b) 90 days after installation, whichever occurs ﬁrst. In the event that Champion elects to repair, the labor and work to be performed in connection with the warranty shall be done during regular working hours by a Champion authorized service technician. Defective parts become the property of Champion. Use of replacement parts not authorized by Champion will relieve Champion of all further liability in connection with its warranty. In no event will Champion's warranty obligation exceed Champion's charge for the machine. The following are not covered by Champion's warranty:

a. Lighting of gas pilots or burners. b. Cleaning of gas lines. c. Replacement of fuses or resetting of overload breakers. d. Adjustment of thermostats. e. Adjustment of clutches. f. Opening or closing of utility supply valves or switching of electrical supply current. g. Cleaning of valves, strainers, screens, nozzles, or spray pipes. h. Performance of regular maintenance and cleaning as outlined in operator’s guide. i. Damages resulting from water conditions, accidents, alterations, improper use, abuse, tampering, improper installation, or failure to follow maintenance and operation procedures. j. Wear on Pulper cutter blocks, pulse vanes, and auger brush.

Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or interior ﬁnish as a result of the above, (2) Use with utility service other than that designated on the rating plate, (3) Improper connection to utility service, (4) Inadequate or excessive water pressure, (5) Corrosion from chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical components due to connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such leaks caused by the installer, including those at machine table connections or by connection of chemical dispensing equipment installed by others, (8) Failure to comply with local building codes, (9) Damage caused by labor dispute.

Warranty of Parts: Champion warrants all new machine parts produced or authorized by Champion to be free from defects in material and workmanship for a period of 90 days from date of invoice. If any defect in material and workmanship is found to exist within the warranty period Champion will replace the defective part without charge.

DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. CHAMPION'S WARRANTY IS ONLY TO THE EXTENT REFLECTED ABOVE. CHAMPION MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED, TO ANY WARRANTY OF MERCHANTABILITY, OR FITNESS OF PURPOSE. CHAMPION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THE REMEDIES SET OUT ABOVE ARE THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN CHAMPION DISHWASHING MACHINES AND CHAMPION PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY LIABILITY FOR INCIDENTALS OR CONSEQUENTIAL DAMAGES.

Champion does not authorize any other person, including persons who deal in Champion dishwashing machines to change this warranty or create any other obligation in connection with Champion Dishwashing Machines.

Table of Contents

Models UH130, UH130B, UH230, UH230B, UL130, UH330B

Revision History ........................................................................................................ i

Limited Warranty ...................................................................................................... ii

Model Descriptions ................................................................................................... v

Installation - Models UH130, UH130B, UH230, UH230B ................................. 1

Receiving - Models UH130, UH130B, UH230, UH230B, UL130 ................................. 1

Placement - Models UH130, UH130B, UH230, UH230B, UL130 ................................ 1

Electrical Connections UH130, UH230 1 Phase w/o Booster ...................................... 2

Electrical Connections UH130B, UH230B 1 and 3 PH Wiring Diagrams ...................... 3

Connecting Incoming Power to the Main Terminal Block (1 and 3 PH) ........................... 4

Booster Heater Conversion from 1 to 3 PH ................................................................ 7

Water Connections - Models UH130, UH130B, UH230, UH230B ............................. 10

Drain Connection - Models UH130, UH130B, UH230, UH230B ............................... 11

Booster Fill Switch - (Filling the booster for the ﬁrst time) UH130B, UH230B Only ............ 14

Chemical Connections - Models UH130, UH130B, UH230, UH230B ........................ 16

Pumps and Injection Points - Detergent and Rinse-aid Dispensing Pumps ...................... 17

Pump Priming - Detergent and Rinse-aid Dispensing Pumps ........................................ 19

Pump and Fill Adjustments - Detergent and Rinse-aid Dispensing Pumps....................... 20

Operation - Models UH130, UH130B, UH230, UH230B ........................................... 22

Loading Dish Racks - All Models ............................................................................ 22

Normal Wash Mode - Models UH130 and UH130B Only ....................................... 24

Normal Wash Mode - Models UH230 and UH230B Only ....................................... 25

Rinse Sentry Mode - UH130B and UH230B ........................................................... 26

Extended Wash Mode - Models UH230 and UH230B Only ..................................... 26

Drain Mode - All Models ...................................................................................... 27

Cleaning - Models UH130, UH130B, UH230, UH230B .................................... 28

Cleaning the Wash Tank - All Models ...................................................................... 28

Cleaning the Wash Arms - All Models ..................................................................... 29

Cleaning the Rinse Arms - Models UH230, UH230B Only......................................... 30

Cleaning Scrap Screen and Sump Strainer - All Models ............................................ 31

De-liming - Models UH130, UH130B ...................................................................... 32

De-liming - Models UH230, UH230B ...................................................................... 33

Maintenance - Models UH130, UH130B, UH230, UH230B ............................... 34

Daily, Weekly, Monthly ........................................................................................ 34

continued on next page

iii

Table of Contents

Table of Contents (continued)

Models UL130, UH330B

Installation - UL130 ............................................................................35

Receiving ..............................................................................................................1

Placement ..............................................................................................................1

(Single Phase) Electrical Connections ...................................................................... 36

Water Connection ................................................................................................ 37

Drain Connection ................................................................................................. 38

Pumps and Injection Points - Detergent, Rinse-aid and Sanitizer Dispensing Pumps ........ 40

Pump Priming - Detergent, Rinse-aid and Sanitizer Dispensing Pumps .......................... 42

Pump and Tank Fill Adjustments .............................................................................. 43

Operation - UL130 ........................................................................................... 44

Loading Dish Racks ............................................................................................. 44

Normal Wash Mode ............................................................................................45

Extended Wash Mode ..........................................................................................46

Drain Mode ......................................................................................................... 47

Cleaning - UL130 ................................................................................ 48

Cleaning the Wash Tank ....................................................................................... 48

Cleaning the Wash Arms ......................................................................................48

De-liming .............................................................................................................50

Maintenance - UL130 ........................................................................... 52

Maintenance - Daily, Weekly, Monthly ................................................................... 52

Troubleshooting- UH130, UH130B, UH230, UH230B, UL130 ................................. 53

Installation - Model UH330B .............................................................................. 65

Receiving - All Models........................................................................................... 66

Placement - All Models .......................................................................................... 66

Electrical Connections - UH330B with Booster 1PH and 3PH Wiring Diagram ............. 67

Connecting Incoming Power to the Main Terminal Block 1PH and 3PH ........................68

Booster Heater Conversion from 1PH to 3PH Operation ............................................ 71

Completing the 1PH to 3PH Electrical Conversion .................................................... 73

Water Connection ................................................................................................ 74

Drain Connection ................................................................................................. 75

Chemical Connections - Chemical Injection Points .................................................... 78

Pump Priming - Detergent and Rinse-aid Dispensing Pumps ........................................ 79

Pump Adjustments - Detergent and Rinse-aid Dispensing Pumps .................................. 80

Table of Contents

Table of Contents (continued)

Model UH330B

Operation - Model UH330B ............................................................................... 82

Loading Dish Racks ............................................................................................ 82

Control Panel and Wash Mode ............................................................................. 84

Rinse Sentry Mode .............................................................................................. 85

Drain Mode ........................................................................................................ 86

Cleaning - Model UH330B ..................................................................... 87

Cleaning the Wash Tank ...................................................................................... 87

Cleaning the Rinse Arms ...................................................................................... 88

Cleaning the Wash Arms ..................................................................................... 88

Cleaning the Scrap Screen and Sump Strainer ........................................................ 89

De-liming ........................................................................................................... 90

Maintenance - Model UH330B ................................................................ 91

Daily, Weekly, Monthly ........................................................................................ 91

Troubleshooting - UH330B ..................................................................... 92

Service Replacement Parts ..................................................................... 95

Electrical Schematics and Timing Charts ................................................... 151

Model Descriptions

UH130B Wash Refresh Pumped Final Rinse

High temperature hot water sanitizing dishwasher with built-in 40°F/22°C rise booster heater or 70°F/39°C rise booster heater. Two built-in chemical dispensing pumps. Field convertible from single phase to three phase operation. 208-240VAC/60/1 and 3 phase

UH230B

Fresh Water Final Rinse

High temperature hot water sanitizing dishwasher with built-in 40°F/22°C rise booster heater or 70°F/39°C rise booster heater. Two built-in chemical dispensing pumps - Detergent, Rinse-aid Field convertible from single phase to three phase operation.

208-240VAC/60/1 and 3 phase

UH130

Wash Refresh Final Rinse

High temperature hot water sanitizing dishwasher without built-in booster heater. Two built-in chemical dispensing pumps - Detergent, Rinse-aid.

208-240VAC/60/1

UH230

Fresh Water Final Rinse

High temperature hot water sanitizing dishwasher without built-in booster heater. Two built-in chemical dispensing pumps - Detergent, Rinse-aid.

208-240VAC/60/1

UL130

Chemical Sanitizing Wash Refresh Final Rinse

Low temperature chemical sanitizing dishwasher with three built-in chemical dispensing pumps - Detergent, Rinse-aid, sanitizer.

120VAC/60/1

UH330B Heat Recovery/Condensate Removal with Dry Assist

Fresh Water Pumped Final Rinse

High temperature hot water sanitizing dishwasher with built-in electric booster. Two built-in chemical dispensing pumps - Detergent, Rinse-aid Field convertible from single phase to three phase operation. 208-240VAC/60/1 and 3 phase

Optional Equipment (consult factory)

Peg dish rack - P/N 101285 Flat-bottom dish rack - P/N 101273 70°F/39°C rise built-in booster heater (UH-230B, and UH130B Only) c 17" Stand 6" Stand

Receiving and Placement - Installation

Counter-top

Wall

3" [8cm] Min.

34"

[86cm]

Min.

Floor

Receiving - UH130, UH130B, UH230, UH230B, UL130

NOTE:

The installation of your dishwasher must be performed by qualiﬁed service personnel familiar with food service equipment and must comply with all local health codes. Problems due to improper installation are not covered by the Limited Warranty.

NOTE:

The installation of the dishwasher must comply with all local electrical, plumbing, health and safety codes or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1; and the Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations, NFPA 96.

Placement - UH130, UH130B, UH230, UH230B, UL130

CAUTION:

Be careful when lifting and moving the dishwasher to prevent damage to the machine.

1. Inspect the outside of the dishwasher carton for signs of damage.

2. Remove the carton and inspect the dishwasher for damage.

3. Check for any options or accessories that may have shipped with your dishwasher.

4. Compare the installation site utility connections with the dishwasher utility connections

and make sure they are the same.

5. The dishwasher can be installed as a free-standing unit or under a counter-top. The typical counter-top height in most locations is 34" [86cm].

6. It is highly recommended that the underside of the counter-top be clad in metal.

7. Under counter installations should provide storage space for the dishwasher chemical supply containers. Do not elevate the containers above the ﬁnished ﬂoor.

8. Chemical supply containers should be placed as close to the machine as possible and the chemical tubing taped to the back of the machine should be repositioned before permanently placing the machine.

9. Place the dishwasher in its permanent location.

10. The dishwasher has 4 adjustable feet for leveling.

11. Level the dishwasher front-to-back and side-to-side.

Installation - Model UH130, UH130B, UH230, UH230B

Electrical Connections - UH130, UH230 1PH without Built-in Booster

WARNING: Electrocution or serious injury may result when working on an energized circuit.

Disconnect power at the main breaker or service disconnect switch before working on the circuit.

Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.

Refer to the connection diagram below for single a phase machine without a built-in booster.

1. A three prong 4 foot power cord and plug is prewired with the machine for connection to a 115VAC power source.

SINGLE PHASE POWER CONNECTION

Model UH130

L1 N

115VAC

15A

4 ft. power cord w/plug supplied

! ATTENTION !

Models UH130 without a built-in booster are equipped with a 4 ft. power cord and plug. These

models require a 115VAC,15A receptacle.

! ATTENTION !

A qualiﬁed electrician must connect the main incoming power to the dishwasher in

accordance with all local codes and regulations or in the absence of local codes in

accordance with the National Electrical Code or the Canadian Electrical Code.

Model UH130, UH130B, UH230, UH230B - Installation

Electrical Connections - UH130B, UH230B with Built-in Booster

1PH and 3PH Wiring Diagrams

! ATTENTION !

ALL DISHWASHERS ARE SHIPPED FROM THE FACTORY WIRED FOR SINGLE PHASE

OPERATION UNLESS SPECIFIED AT THE TIME OF ORDER.

IF YOU ARE CONVERTING A SINGLE PHASE MACHINE TO THREE PHASE BE SURE

TO FOLLOW THE BOOSTER WIRING INSTRUCTIONS ON PAGES 7-8.

Refer to the connection diagrams below to connect main incoming power to the dishwasher.

THREE PHASE POWER CONNECTION

Models UH130B and UH230B

GRD

L1 L2 L3 N

115VAC

208-230

VAC

208-230 VAC

! VERY IMPORTANT !

THE ELECTRICAL POWER MUST BE A

4-WIRE PLUS GROUND SUPPLY WHICH

INCLUDES A CURRENT CARRYING NEUTRAL.

HOW TO CONNECT 3 PHASE POWER

1. Check the data plate on the front of the

dishwasher for the phase of the machine.

If the data plate says the machine is 3 Phase,

then connect a 3 PH power supply.

2. Remove the lower access panel.

3. Pull power connection box forward and out.

4. The Main Terminal Block has terminals for

L1, L2, L3, Neutral and Ground.

5. Connect ground, then connect

L1, L2, L3 to 208-230VAC.

6. Connect a current carrying neutral to N.

7. Main power connections are complete.

208-230

VAC

SINGLE PHASE POWER CONNECTION

Models UH130B and UH230B

GRD

Do not connect power to L3

L1 L2 L3 N

115VAC

208-230

VAC

! VERY IMPORTANT !

THE ELECTRICAL POWER MUST BE A

3-WIRE PLUS GROUND SUPPLY WHICH

INCLUDES A CURRENT CARRYING NEUTRAL.

HOW TO CONNECT 1 PHASE POWER

1. Check the data plate on the front of the

dishwasher for the phase of the machine.

If the data plate says the machine is 1 Phase,

then connect a 1 PH power supply.

2. Remove the lower access panel.

3. Pull power connection box forward and out.

4. The Main Terminal Block has connections

for L1, L2, L3, Neutral and Ground.

5. Connect ground, then connect

L1, L2 to 208-230VAC.

6. Connect a current carrying neutral to N.

DO NOT CONNECT POWER TO L3.

7. Main Power connections are complete.

0 VAC

Installation - Model UH130, UH130B, UH230, UH230B

Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH Machines with Boosters- UH130B, UH230B

WARNING: Electrocution or serious injury may result when working on an energized circuit.

Disconnect power at the main breaker or service disconnect switch before working on the circuit.

Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.

! VERY IMPORTANT !

PROVIDE A 3 FEET/1 METER SERVICE LOOP IN THE POWER SUPPLY

CABLE TO SERVICE THE DISHWASHER.

! SINGLE PHASE POWER REQUIREMENT !

SINGLE PHASE UH130B and UH230B

The electrical power must be a 3-wire plus ground supply which

includes a current carrying neutral.

! THREE PHASE POWER REQUIREMENT !

THREE PHASE UH130B and UH230B

The electrical power must be a 4-wire plus ground supply which

includes a current carrying neutral.

Model UH130, UH130B, UH230, UH230B - Installation

Connecting Incoming Power to the Main Terminal Block

for 1PH and 3PH Machines with Boosters- UH130B, UH230B

Refer to the photo below:

1. Remove the lower front dishwasher panel.

2. Remove the retaining fasteners (A) from the swing-out brackets and swing the chemical pump bracket (B) and the chemical circuit board bracket (C) out of the way as shown.

(continued on next page)

Main Terminal Block Cover

Installation - Model UH130, UH130B, UH230, UH230B

Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH Machines with Boosters

(continued from previous page)

Refer to the photo below:

3. Provide a 3 foot/1 meter service loop in the power supply cable to service the machine

4. Route the power cable from the rear of the machine to the terminal block making sure the cable does not touch the booster tank.

5. Connect the power cable to the terminal block bracket using a suitable strain relief connector.

6. Connect the power wires according to the wiring diagrams on page 3 for either single phase or three phase operation.

7. Swing the chemical pump bracket and the chemical board back into position and secure with the existing fasteners.

Main Terminal Block Cover Main Terminal Block

Model UH130, UH130B, UH230, UH230B - Installation

Booster Heater Conversion from 1PH to 3 PH Operation

! VERY IMPORTANT !

THE BOOSTER HEATER IS WIRED FOR 1PH OPERATION WHEN SHIPPED.

FOLLOW THE INSTRUCTIONS BELOW TO WIRE THE BOOSTER FOR 3PH.

WARNING: Electrocution or serious injury may result when working on an energized circuit.

Disconnect power at the main breaker or service disconnect switch before working on the circuit.

Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.

1. To convert the booster heater from single phase to three phase operation, locate the booster wire labeled 1H3 that is cable-tied to the booster hose.

2. Remove the shrink insulation from the terminal and connect to the booster heater element as shown in the wiring diagram on page 8.

The three phase booster wire (1H3) is cable-tied to the hose adjacent to the booster tank.

Installation - Model UH130, UH130B, UH230, UH230B

Booster Heater Conversion from 1PH to 3 PH Operation (continued)

! VERY IMPORTANT !

THE BOOSTER HEATER IS WIRED FOR 1PH OPERATION WHEN SHIPPED.

FOLLOW THE INSTRUCTIONS BELOW TO WIRE THE BOOSTER FOR 3PH.

3. Disconnect the existing booster heater wires and change the booster heater element

jumpers as shown in the illustration below

4. Connect wires 1H1, 1H2, and 1H3 as shown below.

Booster Heater

Connected for 1PH

Wire not

connected

1H2

1H1

1H3

Wiring Diagram - Booster heater element connections shown for 1 phase and 3 phase operation.

Booster Heater

Connected for 3PH

1H1

1H2

5. A replacement 3PH data plate is stowed on the back of the lower front access panel.

6. Replace the existing 1PH data plate on the front of the panel with the new 3PH data plate.

Discard the 1PH data plate.

7. Refer to the instructions on page 3 to connect the main incoming power to the

machine.

Model UH130, UH130B, UH230, UH230B - Installation

Completing the 1PH to 3PH Electrical Conversion

! ATTENTION !

CHANGE THE DATA PLATE ON THE LOWER FRONT PANEL OF THE MACHINE

AFTER THE MACHINE IS WIRED FOR 3PH AND THE BOOSTER HEATER IS CONNECTED

FOR 3PH.

1. The data plate on the dishwasher lower front panel must be changed after the

machine is converted from single phase operation to three phase operation.

2. Locate the replacement data plate stowed on the back of the lower front panel.

3. Remove the paper backing from the label and carefully place it over the existing

data plate label making sure it covers the label completely.

4 Re-install the lower front panel to complete the conversion.

A three phase data plate is located on the back of the lower front panel.

Installation - Model UH130, UH130B, UH230, UH230B11Model UH130, UH130B, UH230, UH230B - Installation

Water Connections - UH130, UH130B, UH230, UH230B

! VERY IMPORTANT !

Make sure the ﬂexible water supply and drain hoses are not kinked.

Plumbing connections must allow the machine to be pulled out for service and cleaning.

Plumbing connections must comply with national, provincial local plumbing and sanitary

codes. Only qualiﬁed service personnel familiar with food service equipment should install

the machine.

The installing plumber must thoroughly ﬂush the water supply line to remove all debris

BEFORE connecting the water supply line to the machine.

1. All models have a 6 ft. ﬂexible hot water ﬁll hose with a 3/4" female garden hose connector.

2. A 1/2" or larger main incoming supply line must be installed to the dishwasher.

3. A 1/2" or larger shut-off valve should be installed in the main water supply, as close to the dishwasher as possible for servicing.

FOR UH130: The UH130 has a built-in ﬂow control. The ﬂowing incoming hot water supply

pressure must be between 25-95 psi. The hot water supply must provide a minimum of 180°F/82°C, measured at the dishwasher.

FOR UH130B: The UH130B has a built-in ﬂow control. The ﬂowing incoming hot water supply pressure must be between 25-95 psi. The hot water supply must provide a minimum of 140°F/60°C, measured at the dishwasher for 40°F/22°C rise booster or 110°F/43°C for 70°F/39°C rise booster.

4. FOR UH230: The hot water supply must provide a minimum of 180°F/82°C, measured at the

dishwasher. A pressure regulating valve, PRV, (supplied), must be installed after the shut-off service valve if the incoming ﬂow pressure exceeds 20-22 psi.

FOR UH230B: The hot water supply must provide a minimum of 140°F/60°C, measured at the dishwasher for 40°F/22°C rise booster or 110°F/43°C for 70°F/39°C rise booster.

A pressure regulating valve, PRV, (supplied), must be installed after the shut-off service valve if the incoming ﬂow pressure exceeds 20-22 psi.

5. A water hardness of 3 grains/gal (US) [5.3 mg/L] or less is recommended. Excessively hard water will negatively impact wash results.

Drain Connections - UH130, UH130B, UH230, UH230B

! VERY IMPORTANT !

Do not connect the drain hose to a disposer. The dishwasher will not drain correctly.

Refer to the photo below.

1. All models are equipped with a 6 ft.. 5/8" I.D. drain hose. The maximum drain height connection must not exceed 3 ft.[1 m] and must be vented to prevent the wash tank from siphoning.

2. The drain hose is located at the rear of the dishwasher, and is secured to the rear of the machine by two clamps to maintain an anti-siphoning loop in the drain hose.

3. A 3/4" hose barb ﬁtting is strapped to the drain hose prior to shipment. The service part number for the hose barb is P/N 0512321.

4. Additional plumbing parts must be supplied by the plumbing installer.

5. The maximum drain ﬂow is 15 US gpm/12.4 imp gpm/60 lpm.

! ATTENTION !

FAILURE TO FOLLOW THE DRAIN CONNECTION INSTRUCTIONS MAY VOID THE WARRANTY.

3/4" DRAIN HOSE BARB FITTING

STRAPPED TO DRAIN HOSE

DO NOT REMOVE HOSE CLAMPS

NOR STRETCH HOSE

Installation - Model UH130, UH130B, UH230, UH230B

Drain Connection - UH130, UH130B, UH230, UH230B (continued)

NOTE

Plumbing connections must comply with national, provincial local plumbing and sanitary codes.

DO NOT REMOVE THE CLAMPS HOLDING THE DRAIN HOSE TO THE

BACK OF THE DISHWASHER.

DO NOT CONNECT THE DRAIN HOSE TO A DISPOSER.

DO NOT REDUCE THE SIZE OF THE DRAIN HOSE CONNECTION NOR USE A DOMESTIC

DRAIN FITTING.

DO NOT ADD ADDITIONAL LENGTH TO THE DRAIN HOSE.

DO NOT ALLOW THE DRAIN HOSE TO KINK.

For a Direct Drain Connection:

1. Install the drain hose to an 1-1/2" or larger vented "WYE" drain ﬁtting.

2. CONNECTION TO A "TEE" FITTING WILL PREVENT THE DISHWASHER FROM DRAINING COMPLETELY.

Drain Hose

Clamp

(Supplied by others)

3/4" NPT Hose Barb

Fitting

Drain Adapter Fitting

WYE Fitting

connect the dishwasher ﬂexible drain

hose to a vented WYE drain ﬁtting.

DO NOT

connect the dishwasher ﬂexible

drain hose to a TEE drain ﬁtting.

Model UH130, UH130B, UH230, UH230B - Installation

Drain Connection

UH130, UH130B, UH230, UH230B

For an Indirect Drain Connection:

1. A 1" [25.4mm] minimum air gap must be provided between the outlet of the dishwasher drain hose and the ﬂood-level rim of the ﬂoor drain, ﬂoor sink or any other locally approved drain receptacle. (See illustration below.)

Dishwasher Drain Hose

Minimum Air Gap 1” [25.4mm]

Floor

Floor Drain

! VERY IMPORTANT !

IMPROPER INSTALLATION OF MACHINE DRAIN HOSE.

Machine drain problems are often the result of improper installation and may not

be covered by the limited warranty.

Installation - Model UH130B, UH230B

Booster Fill Switch - (Filling the booster tank for the ﬁrst time) UH130B and UH230B only

! CAUTION !

AVOID PERMANENT DAMAGE TO THE BOOSTER HEATER

DO NOT TURN THE DISHWASHER POWER SWITCH

ON WHEN FILLING THE BOOSTER FOR THE FIRST TIME.

THE BUILT-IN BOOSTER TANK WAS DRAINED BEFORE SHIPMENT AND

MUST BE REFILLED BEFORE OPERATING THE DISHWASHER.

THE BOOSTER FILL SWITCH IS LOCATED BEHIND THE LOWER FRONT PANEL ON THE

RIGHT SIDE OF THE MACHINE.

To reﬁll the booster for the ﬁrst time:

1. Turn the main breaker or disconnect switch to the dishwasher ON.

2. DO NOT PUSH THE DISHWASHER ON-OFF/DRAIN POWER SWITCH TO THE ON POSITION.

3. Locate the booster ﬁll switch and note the switch is in the OFF position.

(continued on next page)

Model UH130B, UH230B - Installation

Booster Fill Switch - (Filling the booster tank for the ﬁrst time)

UH130B and UH230B only

4. PUSH AND HOLD the booster fill switch in the FILL position until water starts filling inside the wash compartment.

5. Release the FILL switch.

6. PUSH the booster fill switch to the ON position and release.

7. The booster fill operation is complete.

8. Replace the lower front panel on the machine.

Installation - Model UH130, UH130B, UH230, UH230B

Chemical Connections UH130, UH130B, UH230, UH230B

! VERY IMPORTANT !

ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT.

PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE.

DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR.

! VERY IMPORTANT !

Contact a chemical supplier for detergent and rinse-aid chemicals. The chemical supplier must

adjust the chemical dispensing pumps for water hardness and food soil types.

Chemical Dispensing Pumps

1. The detergent and rinse-aid pumps are located on the lower left-side of the machine behind the lower-front access panel.

2. Each pump is equipped with 6 feet [1.8 m] of pick-up tubes consisting of supply tubing, stiffener tubes, and strainers.

3. The pick-up tubes are stowed on the back of the machine for shipping.

4. A red label marked DETERGENT and a blue label marked RINSE-AID identify the chemical lines.

RINSE-AID

DETERGENT

The UH230, 230B pumps are located on

the left-side behind the lower front panel

of the dishwasher.

The UH130, 130B pumps are located on

the left-side behind the lower front panel

of the dishwasher.

Model UH130, UH130B, UH230, UH230B - Installation

Pumps and Injection Points - Detergent and Rinse-aid Dispensing Pumps

UH130, UH130B

! VERY IMPORTANT !

ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT.

PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE.

DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR.

Injection Point Locations

1. For UH130 and UH130B, the detergent and rinse-aid enter the wash tank compartment through a ﬁtting on back right corner of the wash compartment.

(continued on next page)

UH130,

UH130B

DETERGENT

and

RINSE-AID

INJECTION

POINT

Installation - Model UH130, UH130B, UH230, UH230B

Pumps and Injection Points - Detergent and Rinse-aid Dispensing Pumps UH230, UH230B

2. For UH230 and UH230B, the detergent enters the wash tank compartment through a ﬁtting on the back right corner of the wash compartment. Rinse- aid enters the ﬁnal rinse piping through a ﬁtting near the vacuum breaker.

UH230,

UH230B

DETERGENT

INJECTION

POINT

UH230,

UH230B

RINSE-AID

INJECTION

POINT

Model UH130, UH130B, UH230, UH230B - Installation

DELIME

Pumps and Injection Points - Detergent and Rinse-aid Dispensing Pumps

UH130, UH130B and UH230, UH230B

Priming the Dispensing Pumps

! VERY IMPORTANT !

The chemical dispensing pumps must be primed before operating the dishwasher and

whenever the chemical container is changed.

TEMPERATURE

1 5 0

WASH

UH130, UH130B Control Panel

TEMPERATURE

1 5 0

WASH

UH230, UH230B Control Panel

1 8 0

RINSE

1 8 0

RINSE

EXT WASH

DETERGENT

RINSE AID

PRIME

DETERGENT

RINSE AID

PRIME

START

1. The chemical dispensing pump supply lines must be primed before they will pump the chemicals properly.

2. Make sure the chemical containers are full and

DETERGENT

the correct pick-up tubes are in their containers.

3. Turn the dishwasher power switch ON. The switch will illuminate and the dishwasher will ﬁll with water.

4. Open the dishwasher door, then push and hold

RINSE AID

PRIME

the prime push button UP to the DETERGENT position until detergent is observed entering the wash tank compartment through the ﬁtting located on the back right corner of the tank. Release the push button.

POWER

OFF/DRAIN

POWER

OFF/DRAIN

5. Push and hold the prime push button DOWN to the Rinse-aid position until you see air bubbles moving through the rinse-aid tubing coming out of the chemical container. Release the push button.

6. Close the door to complete the priming operation.

(continued on next page)

Installation - Model UH130, UH130B, UH230, UH230B

Detergent and Rinse-aid Dispensing Pumps - Pump and Fill Adjustments UH130, UH130B and UH230, UH230B

! ATTENTION !

The amount of dispensed chemical is determined by the run time of the dispensing pump.

Refer to the photo below:

1. The chemical dispensing pump run and the tank ﬁll adjustment screws are located on the

end of the chemical circuit board swing-out bracket.

2. It is not necessary to swing the bracket out to make adjustments, but if desired, remove the mounting nut (A) and swing the bracket (B) out and to the right.

3. Refer to the next page for adjustment instructions.

! VERY IMPORTANT !

INSPECT & REPLACE THE CHEMICAL DISPENSING PUMP SQUEEZE TUBES EVERY SIX MONTHS.

! VERY IMPORTANT !

Contact a chemical supplier for detergent and rinse-aid chemicals. The

chemical supplier must adjust the chemical dispensing pumps for water

hardness and food soil types.

Model UH130, UH130B, UH230, UH230B - Installation

Detergent and Rinse-aid Dispensing Pumps - Pump and Fill Adjustments

UH130, UH130B and UH230, UH230B

Refer to the photo below:

To adjust the amount of chemicals dispensed by the pumps:

1. Make sure the chemical containers are full and the pick-up tubes are in their proper containers.

3. Turn the dishwasher power switch ON. The switch will illuminate and the dishwasher will ﬁll with water.

4. Run a normal dishwasher cycle and test detergent and rinse-aid concentrations according to the chemical supplier's instructions.

CAUTION: Excessive pressure to the potentiometers when adjusting can result in bent or broken adjusting screws.

5. Each dispensing pump has a clearly marked adjustment screw. Turn the screw CW to increase the run time of the dispensing pump and CCW to reduce the run time.

UH130, UH130B only To adjust the tank ﬁll:

1. The ﬁll adjustment screw will provide a small change in the tank water level.

2. If a large adjustment is needed, check the incoming water pressure and make sure the ﬁll hose is not kinked.

3. If the above items are okay then the size of the incoming water supply should be checked. The incoming water supply line must be a minimum of 1/2" or larger.

Use a 4mm

blade

screwdriver

Fill Adjustment

For UH130, UH130B

Only

Operation - Model UH130, UH130B and UH230, UH230B

Operation - UH130, UH130B and UH230, UH230B

Loading Dish Racks

! VERY IMPORTANT !

DO NOT OVERLOAD THE DISH RACK.

LOAD ONE DISH RACK INTO THE MACHINE AT A TIME.

1. Prescrap and rinse the wares before loading to remove large food particles.

2. Load soiled wares into the dish rack. Place plates and glasses in a peg rack. Place

cups and bowls in a ﬂat bottom rack. Place utensils in a single layer in a ﬂat-bottom rack. Place pots and pans in a ﬂat-bottom rack.

Do not overload the dish rack. Wash one dish rack at a time.

3. Slide one dish rack into the wash compartment making sure that wares do not interfere with the rotating spray arms. Do not wash more than one dish rack at a time.

Prescrap and rinse wares before

loading into the machine.

Load plates and glasses in a peg

rack.

Model UH130, UH130B and UH230, UH230B - Operation

Loading Dish Racks (continued)

Load pots and pans in a

ﬂat-bottom rack.

Load utensils in a single layer in a

ﬂat-bottom rack.

Load cups and bowls in a

ﬂat-bottom rack.

NEVER stack dish racks.

Wash one dish rack at a time.

Operation - Model UH130, UH130B

Operation - UH130, UH130B Only

Normal Wash Mode

UH130B Control Panel

TEMPERATURE

1 5 0

WASH

1 8 0

RINSE

DETERGENT

RINSE AID

PRIME

START

POWER

OFF/DRAIN

ON-OFF/DRAIN

Power Switch

Wash Temperature

Digital Display

Final Rinse Temperature

Digital Display

Prime

Push button

In-cycle Light

Start

Push button

1. Close the dishwasher front door.

2. Push the dishwasher Power Switch UP to turn the power ON.

3. The power switch will illuminate and the machine will ﬁll with water.

4. Wait until the wash temperature gauge indicates a minimum of 150ºF/66ºC.

PLACE AN EMPTY DISHRACK IN THE MACHINE AND RUN THE FIRST CYCLE EMPTY TO HEAT THE WASH TANK INTERIOR.

5. Load the dish rack into the machine. Wash one dish rack at a time.

6. Close the door, then press the START BUTTON for 1 second. The green in-cycle

light will illuminate and the wash cycle will begin. The total cycle is approximately 141 seconds.

7. Opening the door during a cycle will stop the dishwasher. If the door is open more than 5 seconds the cycle will restart from the beginning, if open less than 5 seconds the cycle will resume where it left off when the dishwasher door is closed.

8. The ﬁnal rinse cycle begins at the end of the wash cycle. The machine drains and then reﬁlls with fresh water hot water. Check the rinse temperature gauge during the ﬁnal rinse. It must indicate a minimum of 180-195ºF/82-91ºC. The ﬁnal rinse water is retained for the next wash cycle.

9. When the green cycle light goes out, open the door and remove the rack of clean wares.

! ATTENTION !

DOOR LEFT OPEN DURING WASH CYCLE

If the dishwasher door is left open for more than 5 seconds during the normal wash mode, then

the dishwasher cycle will reset to the beginning of the normal wash cycle.

! ATTENTION !

RINSE SENTRY MODE WILL EXTEND WASH CYCLE TIME

In the event that the ﬁnal rinse temperature has not reached 180-195ºF/82-91ºC after the

wash cycle, the rinse sentry will extend the wash cycle time until the booster reaches

180-195ºF/82-91ºC. If the proper temperature is not reached within 5 minutes, the machine

will leave the rinse sentry mode and complete the cycle.

DELIME

1 5 0

WASH

Model UH230 and UH230B Only - Operation

UH230 and UH230B Only - Operation

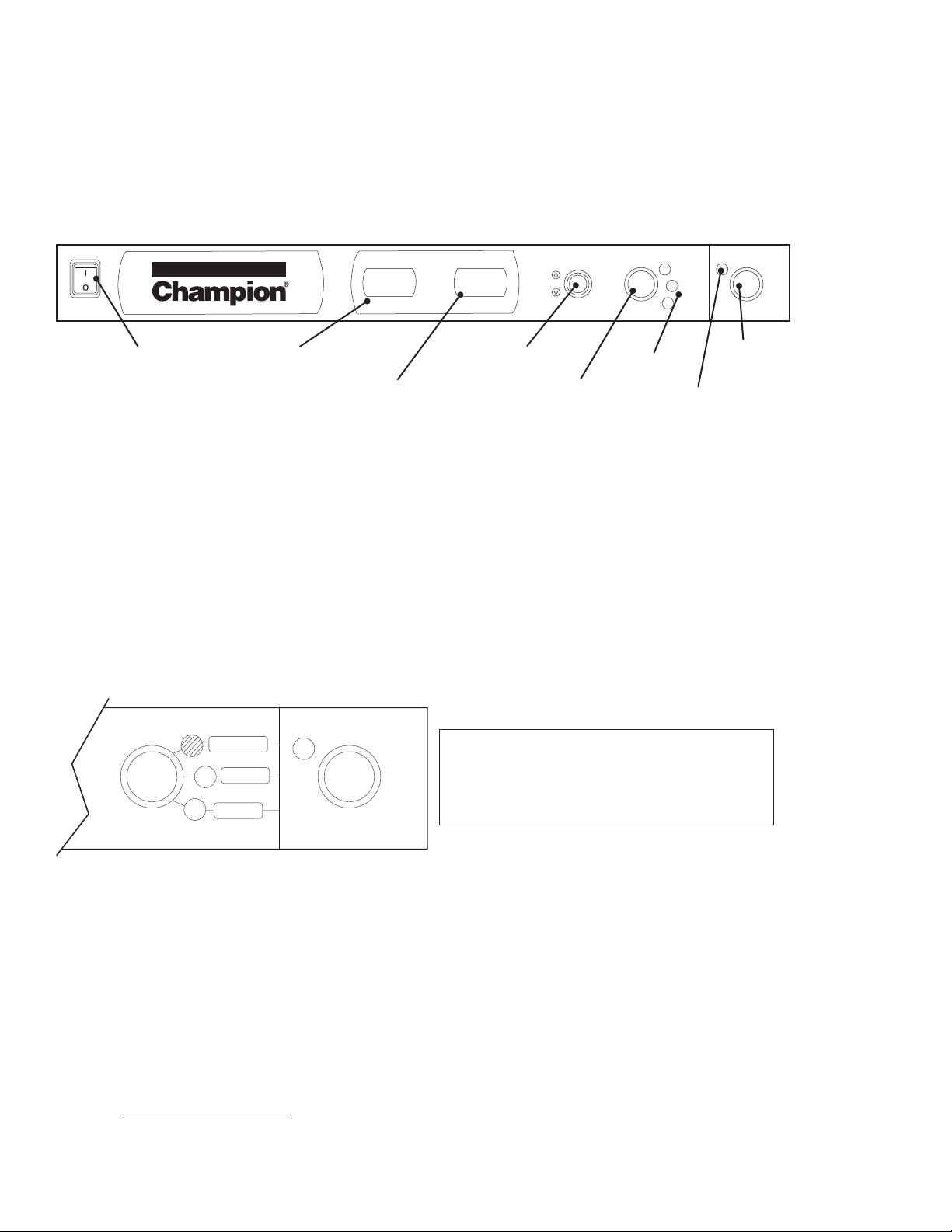

UH230B Control Panel

TEMPERATURE

1 8 0

RINSE

EXT WASH

Normal Wash Mode

DETERGENT

RINSE AID

PRIME

START

POWER

OFF/DRAIN

Prime

Push button

Cycle Light

ON-OFF/DRAIN

Power Switch

Start

Push button

Wash Temperature

Digital Display

Final Rinse Temperature

Digital Display

Extended Wash

Cycle Light

Extended Wash/

Delime Push button

1. Close the door.

2. Push the dishwasher Power Switch UP to turn the power ON.

3. The power switch will illuminate and the machine will ﬁll with water.

4. Check the pressure gauge as the machine ﬁlls and make sure the incoming water pressure

is between 20-22 PSI.

5. Wait until the wash temperature gauge indicates a minimum of 150ºF/66ºC.

PLACE AN EMPTY DISHRACK IN THE MACHINE AND RUN THE FIRST CYCLE EMPTY TO HEAT THE WASH TANK INTERIOR.

6. Load the dish rack into the machine. Wash one dish rack at a time.

7. Close the door, then press the START BUTTON for 1 second. The green in-cycle

light will illuminate and the wash cycle will begin. The total cycle is approximately 90 seconds.

8. Opening the door during a cycle will stop the dishwasher. If the door is open more than 5 seconds the cycle will restart from the beginning, if open less than 5 seconds the cycle will resume where it left off when the dishwasher door is closed.

9. The ﬁnal rinse cycle begins at the end of the wash cycle. The machine drains and retains a portion of the ﬁnal rinse water for the next wash cycle.

10. Check the rinse temperature gauge during the ﬁnal rinse. It must indicate a minimum of 180-195ºF/82-91ºC. The ﬁnal rinse water is retained for the next wash cycle.

11. Check the pressure gauge during the ﬁnal rinse to ensure the gauge reads 20-22 PSI.

12. When the green cycle light goes out, open the door and remove the rack of clean wares.

PSI

Check the pressure gauge during the ﬁnal rinse

to ensure the gauge reads 20-22 psi.

TEMPERATURE

8 8 8

WASH

DETERGENT

RINSE AID

RINSE

PRIMEEXT WASH

START

OFF/DRAIN

POWER

Operation - Model UH130, UH130B and UH230, UH230B27Models UH130, UH130B, UH230, UH230B - Operation

UH130B and UH230B Rinse Sentry Mode

! ATTENTION !

DOOR LEFT OPEN DURING WASH CYCLE

If the dishwasher door is left open for more than 5 seconds during the normal wash mode, then

the dishwasher cycle will reset to the beginning of the normal wash cycle.

! ATTENTION !

RINSE SENTRY MODE WILL EXTEND WASH CYCLE TIME

In the event that the ﬁnal rinse temperature has not reached 180-195ºF/82-91ºC after the

wash cycle, the rinse sentry will extend the wash cycle time until the booster reaches

180-195ºF/82-91ºC. If the proper temperature is not reached within 5 minutes, the machine

will leave the rinse sentry mode and complete the cycle.

Extended Wash Mode Model UH230, UH230B Only

The Extended Wash Mode is used to wash heavily soiled items such as pots, pans and other wares that require more washing time than the standard 90 second Normal Wash Mode. The dishwasher will remain in the Extended Wash Mode until the operator exits the mode or a maximum of 15 minutes, whichever occurs ﬁrst.

1. Load a dish rack into the dishwasher, close the door and press the START button.

2. The green in-cycle light will illuminate and the dishwasher will begin a normal wash cycle.

3. Wait 10 seconds for the detergent to enter the wash compartment before pressing the

EXT WASH button.

4. Press the EXT WASH button to place the dishwasher in the Extended Wash Mode.

5. The green extended wash light will illuminate indicating that the machine is in the

Extended Wash Mode.

6. The dishwasher will continue to wash for a maximum of 15 minutes unless the operator presses the EXT WASH button again.

EXT WASH

Press the EXT WASH button to place the

machine into the extended wash mode to

clean heavily soiled wares.

7. Press the EXT WASH button. The green extended wash light will go out indicating that the dishwasher has returned to the Normal Wash Mode.

8. The dishwasher will ﬁnish the wash cycle and perform a ﬁnal rinse of the wares.

UH130, UH130B and UH230, UH230B

Drain Mode

The dishwasher will enter the drain mode whenever the Power Switch is

pushed down to the OFF/DRAIN position.

POWER

START

OFF/DRAIN

1. Push the illuminated power switch down to the OFF/DRAIN position. The power switch light will go out.

2. The cycle light will illuminate and the machine will drain.

3. The machine, will ﬂush, perform 3 short drain cycles and then drain completely.

4. The cycle light will go out indicating that the drain cycle is complete. Do not open

the door until the light goes out.

! VERY IMPORTANT !

Draining Problems Related To Improper Installation.

Problems with draining are often the result of improper installation. The drain hose

is looped and clamped as shown in the photo below and must not be changed.

The drain hose is looped and clamped and must not be changed. Altering the drain hose routing may result in the machine's inability to drain or may cause the machine to siphon the water out of the machine.

Cleaning - Model UH130, UH130B, UH230, UH230B

Cleaning - UH130, UH130B and UH230, UH230B

! VERY IMPORTANT !

DRAIN AND CLEAN THE DISHWASHER EVERY 2 HOURS OF CONTINUOUS

OPERATION, AFTER EACH MEAL PERIOD, AND AT THE END OF THE DAY.

All Models

Cleaning the wash tank:

1. Remove the upper and lower spray arms and ﬂush clean in a sink.

2. Remove the scrap screen taking care that debris does not fall off the screen and into the

wash tank or sump. Flush the screen clean in a sink. Be sure to back-ﬂush the screen.

3. DO NOT strike the scrap screen on solid surfaces.

4. Check the sump for foreign material.

5. Clean the pump intake strainer in the bottom of the sump.

6. DO NOT scrub the interior with metal scrub pads.

7. Check the sump heating element for lime deposits and gently remove with a scouring

pad. DO NOT USE METALLIC SCRUB PADS.

8. Wipe the exterior of the dishwasher with a soft clean cloth and a mild detergent.

9. Leave the door open to aid in overnight drying.

! ATTENTION !

DO NOT USE METALLIC SCRUB PADS TO CLEAN THE MACHINE.

DO NOT SPRAY THE EXTERIOR OF THE MACHINE WITH WATER.

Model UH130, UH130B, UH230, UH230B - Cleaning

UH130, UH130B and UH230, UH230B - Cleaning

UH130, UH130B

1. Unscrew the retaining screw from the upper and lower interchangeable spray arms.

2. Flush the spray arms clean in a sink. Be sure to ﬂush the wash arm bearings.

Retaining

Screw

Wash Arm

Bearing

1. Unscrew the retaining screw from the upper and lower rinse arms. The rinse arms are interchangeable.

2. Remove the upper and lower wash arms and ﬂush clean in a sink.

3. Flush the wash arm bearings clean.

Overﬂow

Guard

Wash Arm

Bearing

UH130

UH130B

UH230, UH230B

Retaining

Screw

UH230

UH230B

Cleaning - Model UH130, UH130B, UH230, UH230B

Cleaning - UH230, UH230B Only

Spindle

Assembly

UH230, UH230B Rinse Arms

1. There are two rinse arms in the UH230, and UH230B. They are interchangeable.

2. Remove the spindle assembly and end plugs in each pipe and ﬂush the rinse pipes.

3. Inspect the rinse arm bearings for wear and replace as necessary.

End Plug

4. Clean the rinse arm nozzles with a small paper clip.

5. Reassemble the rinse arm assemblies.

Rinse Arm

Bearing

Nozzle

(continued on next page)

All Models Scrap Screen and Sump Strainer

1. Lift the scrap screen straight up and out of the machine to prevent food particles from falling into the tank sump.

2. Flush the scrap screen in a remote sink making sure to back-ﬂush both side of the screen.

3. Wipe the tank sump of water and debris.

4. Carefully inspect the pump intake strainer. This strainer is not removeable but must be thoroughly cleaned before reinstalling the scrap screen.

Model UH130, UH130B, UH230, UH230B - Cleaning

All Models - Cleaning

Scrap

Screen

Tank

Sump

! ATTENTION !

A CLOGGED OR

RESTRICTED SUMP

STRAINER WILL

PREVENT THE

PROPER WASHING,

RINSING AND

DRAINING OF THE

MACHINE.

Sump

Strainer

! ATTENTION !

WIPE THE EXTERIOR OF THE MACHINE WITH A SOFT CLOTH AND MILD

DETERGENT. DO NOT SPRAY THE EXTERIOR WITH WATER OR BLEACH.

LEAVE THE DOOR OPEN TO AID IN OVERNIGHT DRYING.

De-liming - Model UH130, UH130B, UH230, UH230B

De-liming Cautions and Warnings

A de-liming agent must be used in accordance with your chemical supplier's instructions.

DANGER:

Death or serious injury may result when de-liming solution is mixed with sodium hypochlorite sanitizing agent. Mixing may cause hazardous gases to form. De-liming solution and other acids must never be mixed with chlorine, iodine, bromine, or ﬂuorine.

CAUTION:

Skin contact with de-liming solutions can cause severe irritation and possible chemical burns. Always wear eye protection, rubber gloves and protective clothing when handling chemicals.

UH130 and UH130B De-liming Procedure

Follow the procedures below to de-lime the UH130, UH130B dishwasher.

1. Open the dishwasher door and remove any dish rack.

2. Turn the power switch on the dishwasher to the ON position.

3. Remove the detergent and rinse-aid chemical supply tubing from their chemical supply containers.

4. Place the detergent and rinse-aid tubing in a container of hot water.

5. Press and hold the prime switch UP in the DETERGENT position to ﬂush all of the detergent from the supply tubing. Release the switch.

6. Press and hold the prime switch DOWN in the RINSE AID position to ﬂush all of the rinse-aid from the supply tubing. Release the switch.

7. Close the door and run 4 empty cycles to ﬂush any chemicals from the dishwasher tank

8. Always wear eye protection, rubber gloves and protective clothing when handling chemicals.

9. Open the door and carefully add the de-liming chemical to the wash tank in accordance with the chemical supplier's instructions. Be careful to avoid splashing.

10. Close the door and press the START button to run a dishwasher cycle.

11. Check the de-liming results and if scale is still present repeat steps 8-9.

12. Run 4 empty cycles to ﬂush any de-liming chemicals from the machine.

13. Return chemical supply tubing to their containers and prime the chemical lines.

14. Return the dishwasher to normal operation.

Model UH130, UH130B, UH230, UH230B - De-liming

Read and Follow the De-liming Cautions and Warnings

on page 32 before de-liming the machine..

UH230 and UH230B De-liming Procedure

Follow the procedures below to de-lime the UH230, UH230B dishwasher.

1. Open the dishwasher door and remove any dish racks.

2. Turn the power switch on the dishwasher to the ON position.

3. Remove the detergent and rinse-aid chemical supply tubing from their chemical supply containers.

4. Place the tubing in a container of hot water.

5. Press and hold the prime switch UP in the DETERGENT position to ﬂush the detergent from the supply tubing. Release the switch.

6. Press and hold the prime switch DOWN in the RINSE AID position to ﬂush the rinse-aid from the supply tubing. Release the switch.

7. Turn the dishwasher power switch to OFF/DRAIN to drain the wash tank. The green cycle light will go out in about 2 minutes.

8. Always wear eye protection, rubber gloves and protective clothing when handling chemicals. Open the door and carefully add the de-liming chemical to the wash tank in

accordance with your chemical supplier's instructions. Be careful to avoid splashing.

9. Close the door and press the EXT WASH/DELIME switch three times. The EXT WASH/ DELIME indicator light will illuminate and the machine will run for 23 minutes.

10. Check the de-liming results and if scale is still present repeat steps 7-9.

11. Push the power switch ON to reﬁll the machine and return the dishwasher to normal operation.

12. Return chemical supply tubing to their containers and prime the chemical lines.

Maintenance - Model UH130, UH130B, UH230, UH230B

UH130, UH130B and UH230, UH230B - Maintenance

Follow the maintenance schedules below to keep the dishwasher operating most efﬁciently.

Daily Maintenance

1. Make sure the water supply is on and that the drain is not clogged.

2. Check the temperature gauges and/or displays to ensure they are operating.

3. Make sure the dish racks are in good condition.

4. Check the chemical containers and reﬁll as required.

5. Follow the cleaning procedures provided in the Cleaning Section.

Weekly Maintenance

1. Perform Steps 1-5 in the Daily Maintenance.

2. Inspect water lines for leaks.

3. Check for water leaks underneath the dishwasher.

4. Make sure the ﬂexible water ﬁll and drain hoses are not kinked.

5. Make sure that the dishwasher is level.

6. Clean accumulated lime deposits from the wash tank heating element.

7. Inspect the scrap screen and replace it if damaged.

8. Check the spray arms and replace or repair if damaged.

Monthly Maintenance

1. Perform the Daily and Weekly Maintenance listed above.

2. Clean the chemical dispenser pick-up tubing for the chemical dispensing pumps.

To clean the pick-up tubing:

1. Remove the pick-up tubes from their containers.

2. Place each tube in a separate container of hot water.

3. Press and hold the PRIME buttons UP and DOWN until water ﬂows into the wash tank

compartment.

4. Return the pick-up tubes to their containers.

5. Run 3 empty dishwasher cycles to ﬂush any chemicals from the dishwasher wash

compartment.

6. Return the pick-up tubes to their containers and prime the chemical lines.

NOTE:

There are no lubrication points on the dishwasher.

Model UL130 Low Temperature Chemical Sanitizing Dishwasher

Model UL130 Low Temperature Chemical Sanitizing Undercounter

Dishwasher

Installation - Model UL130

(Single Phase) Electrical Connections - UL130

WARNING: Electrocution or serious injury may result when working on an energized circuit.

Disconnect power at the main breaker or service disconnect switch before working on the circuit.

Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.

! ATTENTION !

A qualiﬁed electrician must connect the main incoming power to the dishwasher in

accordance with all local codes and regulations or in the absence of local codes in

accordance with the National Electrical Code or the Canadian Electrical Code.

Refer to the connection diagram below for single a phase machine without a built-in booster.

1. A three prong 4 foot power cord and plug is prewired with the machine for connection to a 115VAC power source.

SINGLE PHASE POWER CONNECTION

Model UL130

L1 N

115VAC

15A

4 ft. power cord w/plug supplied

! ATTENTION !

Model UL130 is equipped with a 4 ft. power cord and plug. These models require a

115VAC,15A receptacle.

Model UL130 - Installation

Water Connection - UL130

! VERY IMPORTANT !

Make sure that the ﬂexible water supply and drain hoses are not kinked.

Plumbing connections must allow the machine to be pulled out for service and cleaning.

Plumbing connections must comply with national, provincial local plumbing and sanitary codes. Only

qualiﬁed service personnel familiar with food service equipment should install

the machine.

The installing plumber must thoroughly ﬂush the water supply line to remove all debris

BEFORE connecting the water supply line to the machine.

1. All models have a 6 ft. ﬂexible hot water ﬁll hose with a 3/4" female garden hose

connector.

2. A 1/2" or larger main incoming supply line should be installed to the dishwasher.

3. We recommend that a 1/2" or larger shut-off valve be installed in the main water supply,

as close to the dishwasher as possible for servicing.

4. The UL130 has a built-in ﬂow control which requires that the incoming hot water supply

pressure must be between 25-95 psi.

5. The hot water supply must provide a minimum of 120°F/49°C, measured at the

dishwasher; however, 140°F/60°C is recommended.

6. A water hardness of 3 grains/gal (US) [51.3 mg/L] or less is recommended. Hard

water can adversely affect wash results.

Drain Connection - UL130

1. All models have a 6 ft.. 5/8" I.D. drain hose. The maximum drain height connection

must not exceed 3 ft.[0.9 m].

2. A 3/4" hose barb ﬁtting is strapped to the drain hose to connect the drain hose to a

wye drain ﬁtting. The service part number for the hose barb is P/N 0512321.

3. The maximum drain ﬂow is 15 US gpm/12.4 imp gpm/60 lpm.

DO NOT REMOVE HOSE

CLAMPS

NOR STRETCH HOSE

3/4" DRAIN HOSE BARB FITTING

STRAPPED TO DRAIN HOSE

Installation - Model UL130

Drain Connection - UL130 (continued)

NOTE

Plumbing connections must comply with national, provincial local plumbing and sanitary codes.

DO NOT REMOVE THE CLAMPS HOLDING THE DRAIN HOSE TO THE

BACK OF THE DISHWASHER.

DO NOT CONNECT THE DRAIN HOSE TO A DISPOSER.

DO NOT REDUCE THE SIZE OF THE DRAIN HOSE CONNECTION NOR USE A DOMESTIC

DRAIN FITTING.

DO NOT ADD ADDITIONAL LENGTH TO THE DRAIN HOSE.

DO NOT ALLOW THE DRAIN HOSE TO KINK.

For a Direct Drain Connection:

1. Install the drain hose to an 1-1/2" or larger "WYE" vented drain ﬁtting.

2. CONNECTION TO A "TEE" FITTING WILL PREVENT THE DISHWASHER FROM DRAINING COMPLETELY.

Drain Hose

Drain Adapter

Clamp

Fitting

(Supplied by others)

3/4" NPT Hose Barb

Fitting

WYE Fitting

connect the dishwasher ﬂexible drain

hose to a WYE drain ﬁtting.

DO NOT

connect the dishwasher ﬂexible

drain hose to a TEE drain ﬁtting.

Model UL130 - Installation

For an Indirect Drain Connection:

1. A 1" [25.4mm] minimum air gap must be provided between the outlet of the dishwasher drain hose outlet and the ﬂood-level rim of the ﬂoor drain, ﬂoor sink or any other locally approved drain receptacle. (See illustration below.)

Dishwasher Drain Hose

Minimum Air Gap 1” [25.4mm]

Floor

Floor Drain

! VERY IMPORTANT !

IMPROPER INSTALLATION OF MACHINE DRAIN HOSE.

Machine drain problems are often the result of improper installation and may not

be covered by the limited warranty.

Installation - Model UL130

Pumps and Injection Points - Detergent, Rinse-aid and Sanitizer Dispensing Pumps - UL130

! VERY IMPORTANT !

ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT.

PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE.

DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR.

! VERY IMPORTANT !

Contact a chemical supplier for detergent and rinse-aid chemicals. The chemical supplier

must adjust the chemical dispensing pumps for water hardness and food soil types.

1. The chemical dispensing pumps are located on a center bracket behind the lower-front access panel.

2. Each pump is equipped with 6 feet [1.8 m] of supply tubing, stiffener tubes, and strainers.

3. A RED label marked DETERGENT, a BLUE label marked RINSE-AID and a WHITE Label

marked SANITIZER identify the chemical lines.

4. The chemicals enter the wash tank compartment through a ﬁtting located on the rear righthand side of the wash compartment.

UL130

DETERGENT

RINSE-AID

and SANITIZER INJECTION

POINT

On the UL130, chemicals enter the wash tank

through a ﬁtting on the rear wall of the tank.

CHEMICAL

PICK-UP

TUBES

The chemical dispensing pick-up tubes are stowed at

the rear of the dishwasher.

Model UL130 - Installation

Pumps and Injection Points - Detergent, Rinse-aid and Sanitizer

Dispensing Pumps - UL130

! VERY IMPORTANT !

CHEMICAL SQUEEZE TUBES

SHOULD BE INSPECTED AND

REPLACED EVERY 6 MONTHS

RINSE-AID

SANITIZER

DETERGENT

The chemical dispensing pumps are located on the bracket behind

the lower-front access panel.

! VERY IMPORTANT !

5.25% sodium hypochlorite (chlorine beach) must be used as a sanitizing agent to provide

a minimum concentration of 50 ppm in the ﬁnal rinse for the USA and 100 ppm in Ontario,

Canada. The 50 ppm or 100 ppm concentration must be

checked using chlorine test strips to make sure that the proper concentration is maintained.

Installation - Model UL130

Pump Priming - Detergent, Rinse-aid and Sanitizer Dispensing Pumps

! VERY IMPORTANT !

The chemical dispensing pumps must be primed before operating the dishwasher and

whenever the chemical container is changed.

170

160

180

140

190

200

120

100

210

100

NSF

105

220

EXT. WASH

DELIME

SANITIZER

PRIME

RINSE AIDDETERGENT

START

OFF/DRAIN

POWER

UL130 Control Panel

1. Make sure the chemical containers are full and the correct pick-up tubes are in their containers.

2. Turn the dishwasher power switch ON. The switch will illuminate and the dishwasher will ﬁll with water.

3. Refer to the illustration below and note the two momentary push buttons provided to prime the detergent, sanitizer and rinse aid pumps.

4. Open the dishwasher door and observe the inlet chute on the rear right-hand side of the wash tank.

5. Push and hold the prime push button UP to the DETERGENT position until detergent is observed entering the wash tank compartment. Release the push button.

6. Push and hold the same push button DOWN until sanitizer is observed entering the wash tank compartment. Release the push button.

7. Push and hold the other push button UP to the RINSE AID position until rinse-aid is observed entering the wash tank compartment. Release the push button.

8. Priming is complete.

RINSE AIDDETERGENT

SANITIZER

PRIME

Model UL130 - Installation

Pump and Tank Fill Adjustments

! ATTENTION !

The amount of dispensed chemical is determined by the run time of the dispensing pump.

1. Adjustment screws are provided for the dispensing pumps and for the wash tank ﬁll. They are located on the right-hand side of the dishwasher behind the lower front access panel.

2. Make sure the chemical containers are full and the pick-up tubes are in their proper containers.

3. Turn the dishwasher power switch ON. The switch will illuminate and the dishwasher will ﬁll with water.

Use a 4mm

blade

screwdriver

4. Run a normal dishwasher cycle and test chmical concentrations according to the chemical supplier's instructions.

CAUTION:

Excessive pressure to the potentiometers when

adjusting can result in bent or broken adjusting

screws.

5. Each dispensing pump has a clearly marked adjustment screw. Turn the screw CW to increase the run time of the dispensing pump and CCW to reduce the run time of the dispensing pump.

6. The Fill adjustment screw will provide a small change in the tank water level. If a large adjustment is needed, check the incoming water pressure and make sure the ﬁll hose is not kinked. If the above items are okay then the size of the incoming water supply should be checked. The incoming water supply line must be a minimum of 1/2" or larger.

Operation - Model UL130

Loading Dish Racks

! VERY IMPORTANT !

Prescrap and rinse wares before loading

into the machine.

! VERY IMPORTANT !

DO NOT OVERLOAD THE DISH RACK.

LOAD ONE DISH RACK INTO THE MACHINE AT A TIME.

Load plates and glasses in a peg rack.

Load utensils in a single layer in a ﬂat bottom

rack.

1. Prescrap and rinse the wares before loading to remove large food particles.

2. Load soiled wares into the dish rack. Place plates and glasses in a peg rack. Place

cups and bowls in a ﬂat bottom rack. Place utensils in a single layer in a ﬂat-bottom rack. Place pots and pans in a ﬂat-bottom rack.

Do not overload the dish rack. Wash one dish rack at a time.

3. Slide one dish rack into the wash compartment making sure that wares do not interfere with the rotating spray arms. Do not wash more than one dish rack at a time.

Load cups and bowls in a ﬂat bottom rack.

Load pots and pans in a ﬂat bottom rack.

Model UL130 - Operation

Operation - Model UL130

Normal Wash Mode

170

160

180

Combination Wash and Final

Rinse Temperature Gauge

140

190

200

120

100

210

100

NSF

105

220

Extended Wash

Delime Switch

and Light

EXT. WASH

DELIME

Push buttons

Prime

SANITIZER

PRIME

Cycle Light

RINSE AIDDETERGENT

START

ON-OFF/DRAIN

Power Switch

Start

Push button

1. Close the dishwasher front door.

2. Push the dishwasher Power Switch UP to turn the power ON.

3. The power switch will illuminate and the machine will ﬁll with water.

4. Wait until the wash temperature gauge indicates a minimum of 120ºF/49ºC.

RUN THE FIRST CYCLE WITH AN EMPTY DISH RACK TO HEAT THE WASH TANK INTERIOR.

5. Load the dish rack into the machine. Wash one dish rack at a time.

6. Close the door, then press the START BUTTON for 1 second. The green in-cycle

light will illuminate and the wash cycle will begin. The total cycle is approximately 141 seconds.

OFF/DRAIN

POWER

8. The ﬁnal rinse cycle begins at the end of the wash cycle. The machine drains and then reﬁlls with fresh water hot water. Check the rinse temperature gauge during the ﬁnal rinse. It must indicate a minimum of 120ºF/49ºC. The ﬁnal rinse water is retained for the next wash cycle.

9. When the green cycle light goes out, open the door and remove the rack of clean wares.

! VERY IMPORTANT !

5.25% sodium hypochlorite (chlorine beach) must be used as a sanitizing agent to

provide a minimum concentration of 50 ppm in the ﬁnal rinse for the USA and 100 ppm

in Ontario, Canada. The 50 ppm or 100 ppm concentration must be

checked using chlorine test strips to make sure that the concentration is maintained.

Operation - Model UL130

Extended Wash Mode - Model UL130

The Extended Wash Mode is used to wash heavily soiled items such as pots, pans and other wares that require more washing time than the standard Normal Wash Mode. The dishwasher will remain in the Extended Wash Mode until the operator exits the mode or 15 minutes has elapsed.

1. Load a dish rack into the dishwasher, close the door and press the START button.

2. The green in-cycle light will illuminate and the dishwasher will begin a normal wash cycle.

3. Wait 10 seconds for the detergent to enter the wash compartment before pressing the

EXT WASH button.

Press the EXT WASH button to place the

machine into the extended wash mode to

clean heavily soiled wares.

EXT. WASH

DELIME

4. Press the EXT WASH button to place the dishwasher in the Extended Wash Mode.

5. The green extended wash light will illuminate indicating that the machine is in the

Extended Wash Mode.

6. The dishwasher will continue to wash for a maximum of 15 minutes or until the operator presses the EXT WASH button again whichever occurs ﬁrst.

7. Press the EXT WASH button. The green extended wash light will go out indicating that the dishwasher has returned to the Normal Wash Mode.

8. The dishwasher will ﬁnish the wash cycle and perform a ﬁnal rinse of the wares.

Model UL130 - Operation

The dishwasher will enter the drain mode whenever the Power Switch is pushed down to the OFF/DRAIN position.

POWER

Drain Mode

START

OFF/DRAIN

1. Push the illuminated power switch down to the OFF/DRAIN position. The power switch light will go out.

2. The cycle light will illuminate and the machine will drain.

3. The machine, will ﬂush, perform 3 short drain cycles and then drain completely.

4. The cycle light will go out indicating that the drain cycle is complete.

! VERY IMPORTANT !

Draining Problems Related To Improper Installation.

Problems with machine draining are often the result of improper installation. The drain hose

is looped and clamped as shown in the photo below and must not be changed.

Cleaning - Model UL130

Retaining

Screw

Wash Arm

Bearing

! VERY IMPORTANT !

DRAIN AND CLEAN THE DISHWASHER EVERY 2 HOURS OF CONTINUOUS

OPERATION, AFTER EACH MEAL PERIOD, AND AT THE END OF THE DAY.

Cleaning the wash tank:

1. Remove the upper and lower spray arms and ﬂush clean in a sink.

2. Remove the scrap screen taking care that debris does not fall off the screen and into the

wash tank or sump. Flush the screen clean in a sink. Be sure to back-ﬂush the screen.

3. DO NOT strike the scrap screen on solid surfaces.

4. Check the sump for foreign material.

5. Clean the wash pump strainer in the bottom of the sump.

6. DO NOT scrub the interior with metallic scrub pads.

7. Check the sump heating element for lime deposits and gently remove with a scouring

pad. DO NOT USE METALLIC PADS.

8. Wipe the exterior of the dishwasher with a soft clean cloth and a mild detergent. DO NOT USE BLEACH.

9. Leave the door open to aid in overnight drying.

Cleaning the wash arms:

1. There are two combination wash/rinse arms in the wash tank. They are interchangeable.

2. The wash arms are should be removed and thoroughly ﬂushed clean in a sink.

3. Special attention should be paid to the cleaning and inspection of the wash arm

bearings making sure they are clean and free of excessive wear.

4. If the bearings are damaged, contact an authorized service agent for replacement.

Model UL130 - Cleaning

Cleaning - Model UL130 (continued)

1. Lift the scrap screen straight up and out of the machine to prevent food particles from falling into the tank sump.

2. Flush the scrap screen in a remote sink making sure to back-ﬂush both side of the screen.

3. Wipe the tank sump of water and debris.

4. Carefully inspect the sump strainer. This strainer is not removable but must be thoroughly cleaned before reinstalling the scrap screen.

Scrap Screen and Sump Strainer

Scrap

Screen

Tank

Sump

! ATTENTION !

A CLOGGED SUMP

STRAINER WILL

PREVENT THE

PROPER WASHING,

RINSING AND

DRAINING OF THE

MACHINE.

Sump

Strainer

! ATTENTION !

WIPE THE EXTERIOR OF THE MACHINE WITH A SOFT CLOTH AND MILD

DETERGENT. DO NOT SPRAY THE EXTERIOR WITH WATER.

LEAVE THE DOOR OPEN TO AID IN OVERNIGHT DRYING.

De-liming - UL130

De-liming - Model UL130

DANGER:

CAUTION:

Skin contact with de-liming solutions can cause severe irritation and possible chemical burns. Always wear eye protection, rubber gloves and protective clothing when handling chemicals.

De-lime Mode - Model UL130

The EXT. WASH/DELIME switch is used to the de-lime the machine.

EXT. WASH

DELIME

Model UL130

Extended Wash/Delime Push button

Model UL130 - De-liming

Model UL130 De-liming

Follow the steps below to de-lime the UL130:

1. Open the dishwasher door and remove any dish racks.

2. Turn the power switch on the dishwasher to the ON position.

3. Remove the detergent and rinse-aid, and sanitizer chemical supply tubing from their chemical supply containers.

4. Place the tubing in a container of hot water.

5. Press and hold the prime switch UP in the DETERGENT position to ﬂush the detergent from the supply tubing. Release the switch.

6. Press and hold the prime switch DOWN in the SANITIZER position to ﬂush the sanitizer from the supply tubing. Release the switch.

7. Press and hold the rinse-aid prime switch UP in the RINSE AID position to ﬂush the rinse-aid from the supply tubing. Release the switch.

8. Turn the dishwasher power switch to OFF/DRAIN to drain the wash tank. The green cycle light will go out in about 2 minutes.

9. Always wear eye protection, rubber gloves and protective clothing when handling chemicals. Open the door and carefully add the de-liming chemical to the wash tank in

accordance with your chemical supplier's instructions. Be careful to avoid splashing.

10. Close the door and press the EXT WASH/Delime push button three times.

11. The EXT WASH green indicator light will illuminate and the machine will run for 23 minutes.

12. Check the de-liming results and if scale is still present repeat steps 9-11.

13. Push the power switch ON to reﬁll the machine and return the dishwasher to normal operation.

14. Return chemical supply tubing to their containers and prime the chemical lines.

Maintenance - Model UL130

Follow the maintenance schedules below to keep the dishwasher operating most efﬁciently.

Daily Maintenance

1. Make sure the water supply is on and that the drain is not clogged.

2. Check the temperature gauges and/or displays to ensure they are operating.

3. Make sure the dish racks are in good condition.

4. Check the chemical containers and reﬁll as required.

5. Follow the cleaning procedures provided in the UL130 Cleaning Section.

Weekly Maintenance

1. Perform Steps 1-5 in the Daily Maintenance.

2. Inspect water lines for leaks.

3. Check for water leaks underneath the dishwasher.

4. Make sure the ﬂexible water ﬁll and drain hoses are not kinked.

5. Make sure that the dishwasher is level.

6. Clean accumulated lime deposits from the wash tank heating element.

7. Inspect the scrap screen and replace it if damaged.

8. Check the spray arms and replace or repair if damaged.

Monthly Maintenance

1. Perform the Daily and Weekly Maintenance listed above.

2. Clean the chemical dispenser pick-up tubing for the chemical dispensing pumps.

To clean the pick-up tubing:

1. Remove the pick-up tubes from their containers.

2. Place each tube in a separate container of hot water.

3. Press and hold the PRIME buttons UP and DOWN until water ﬂows into the wash tank

compartment.

4. Return the pick-up tubes to their containers.

5. Run 3 empty dishwasher cycles to ﬂush any chemicals from the dishwasher wash

compartment.

6. Return the pick-up tubes to their containers and prime the chemical lines.

NOTE:

There are no lubrication points on the dishwasher.

Troubleshooting - All Models

Troubleshooting

All Models

Illustrations Page

Troubleshooting Chart - UH130, UH130B, UH230, UH230B .............................................54

Wash Codes Temperature Display Board - UH130, UH130B, UH230, UH230B, UH330B ........55

Rinse Codes Temperature Display Board - UH130, UH130B, UH230, UH230B, UH330B ......... 56

Booster Codes Temperature Display Board - UH130, UH130B, UH230, UH230B, UH330B ...... 57

Timer Board Connection Diagram - All Models ........................................................58

Timer Board Diagnostic Testing - UH130, UH130B, UH230, UH230B .................................59

Temperature Display Board Power Terminal Connections ...........................................60

Temperature Display Board M3-M4 Selector Slide Switch .......................................... 61

Temperature Display Board Diagnostics .................................................................. 62

Booster/Wash Tank Heater Interlock Circuit Operation - UH130B, UH230B, UH330B ......... 63

Troubleshooting - UH130, UH130B, UH230, UH230B, UL130

Condition Cause Solution

Dishwasher will not run.

Low or no water.

Chemicals won’t feed into dishwasher.

Low water pressure pumped from wash spray arms.

Poor wash results.

Door not closed. Main power OFF. Dishwasher OFF.

Main water supply off. Fill hose kinked. Low incoming water pressure Solenoid valve defective. Solenoid strainer clogged. Circuit board fuse blown.

Chemical supply low. Supply tubing damaged. Supply tubing kinked. Pick-up tube clogged Chemical circuit board fuse blown.

Clogged scrap screen. Clogged spray arms.

Clogged pump intake screen.

Excessively hard water. Water temperature low.

Thermistor defective. (See chemicals won’t feed

above.) (See low or no water above.) Detergent injector defective.

Chemical circuit board fuse blown. Wares incorrectly loaded.

in dishrack.

Close door completely. Check breaker on panel. Turn dishwasher power switch ON.

Open supply valve. Straighten fill hose. Set flowing water pressure to 20-22 PSI. Install repair kit or replace. Clean strainer. Contact service agent..

Refill chemical container. Replace tubing. Straighten tubing. Clean/replace tube. Contact service agent.

Clean scrap screen. Clean spray arms.

Inspect sump and clean pump intake screen.

Contact chemical supplier. Raise incoming water

temperature to 140°F Replace thermistor. (See chemicals won’t feed

above.) (See low or no water above.) Replace squeeze tube.

Replace injector motor. Clean tubing and pick-up.

Contact service agent. Reposition wares or reduce amount of

wares in dish racks.

Water has drained out of the wash tank while the dishwasher was idle.

Dishwasher stays in wash cycle.

Booster high limit tripped.

Wash tank high limit tripped.

Anti-siphon loop in drain hose has been removed.

Drain hose clamp is not holding the drain hose in proper position.

Building plumbing does not provide correct air vent to prevent siphoning.

Incoming water supply cold Rinse Sentry extends wash mode for a maximum time of 5-minutes to allow final rinse water booster temperature to reach 180˚F/82˚C.

Dishwasher is operating in Extended Wash Mode.(UH230B, Only)

Reset or replace high limit.

Re-route drain hose. DO NOT STRETCH HOSE

Replace/adjust hose clamp making sure goose-neck is maintained.

Contact service Agent and/or plumber.

Raise incoming water temperature. Adjust/replace final rinse booster

thermistor.

Push EXT WASH button to exit the Extended Wash mode.

UH130, UH130B, UH230, UH230B, UH330B - Digital Temperature Display Codes

Wash Display Codes

Digital Temperature Display Codes

Display codes that appear in the display windows indicate the operating condition of the machine. Refer to the illustrations below for the meaning of the codes.

WASH DISPLAY CODE

L o

WASH TEMP

H1 8 6

WASH TEMP RINSE TEMP

1 8 8

RINSE TEMP

CAUSE

Wash temperature

is below 100˚F

Wash temperature

is above 180˚F

Wash tank is empty and tank heater is on.

1 7 1

WASH TEMP

RINSE TEMP

E1 7 9

WASH TEMP

RINSE TEMP

CAUTION:

The tank may be extremely hot.

Defective wash thermistor or open, broken, wire between thermistor and board or loose connection.

Digital Temperature Display Codes - UH130, UH130B, UH230, UH230B, UH330B

Rinse Display Codes

RINSE DISPLAY CODE

1 5 9

WASH TEMP

1 5 6

WASH TEMP RINSE TEMP

L o

RINSE TEMP

HHH

CAUSE

Rinse temperature

is below 100˚F

Rinse temperature

is above 200˚F

1 4 9

WASH TEMP

RINSE TEMP

E1 4 6

RINSE TEMP

Booster tank is empty & booster heater is on.

CAUTION:

Temperature in the booster may be extremely hot

Defective rinse thermistor or open, broken, wire between thermistor and board or loose connection.

UH130, UH130B, UH230, UH230B, UH330B - Digital Temperature Display Codes

Booster Display Codes

Error Codes for Booster and Final Rinse Thermistors Only.

DISPLAY CODES

1 5 0

WASH TEMP

RINSE TEMP

1 5 0

WASH TEMP RINSE TEMP

CAUSE

Booster overtemp lockout because booster temperature is greater than 210˚F.

NOTE: Booster is locked out for 10 minutes before being re-energized.

Booster therrmistor is defective or disconnected, broken wires.

NOTE: After the therrmistor is reconnected, there is a 5 second delay before the display is re-energized.

1 5 0

WASH TEMP

RINSE TEMP

Both booster and ﬁnal rinse display thermistors are defective, unplugged, or open or broken wires between the display and thermistor.

NOTE: After a therrmistor is reconnected, there is a 5 second delay before the display is re-energized.

Timer Board Connection Diagram - All Models 

All Models - Timer Board Diagnostic Testing

Diagnostic Testing for the Solid State Timer Board, P/N 0712105

Beginning with S/N W081217467 and above

Before testing, Press the dishwasher power switch to OFF/DRAIN and allow the machine to complete the drain cycle.

Check the incoming voltages.

With the Power switch in the OFF/DRAIN position, press the START button 2 times.

If the drain valve opens and closes 5 times then the DRAIN VALVE is okay.

Open the door.

If the green cycle indicator light blinks continuously

for 10 seconds, then the DOOR SWITCH and the CYCLE LIGHT are okay.

Press and release the START button.

If the green cycle indicator light ﬂashes then the

START BUTTON is okay.

With the Power switch in the OFF/DRAIN position, press the START button 3 times.

The timer board and the following components are okay if the components run consecutively for a few seconds in the following order:

POWER

OFF/DRAIN

EXT WASH

DELIME

DETERGENT

RINSE AID

PRIME

START

PRESS START TWO TIMES

Indicator light

POWER

OFF/DRAIN

EXT WASH

DELIME

DETERGENT

RINSE AID

PRIME

START

Indicator light

POWER

OFF/DRAIN

EXT WASH

DELIME

DETERGENT

RINSE AID

PRIME

START

PRESS START AND RELEASE

POWER

OFF/DRAIN

EXT WASH

DELIME

DETERGENT

RINSE AID

PRIME

START

PRESS START THREE TIMES

1. Fill Valve

2. Detergent Pump

3. Rinse-aid Pump

4. Drain Valve opens and then closes

5. Wash Pump

6. Drain Pump or Sanitizer Pump

Troubleshooting - See below if one or more of the components in Step 5 did not run.

CONDITION

A single component in Step 5 does not run. Check the component that did not run.

Wash pump only component that runs (Except UH330B, 601HT) Check timer bd 4A fuse. (All except UH330B & 601HT)

Wash pump only component that runs (UH330B, 601HT ONLY)

Wash pump only component that won’t run. 4A/6A fuse okay.

None of the components in Step 5 run. Check neutral wire - see troubleshooting guide.

POSSIBLE CAUSE/SOLUTION

Check timer bd 6A fuse. (UH330B & 601HT ONLY)

Check pump/motor - see troubleshooting guide.

0512979 rev. B

Digital Temperature Display Board - All Models

Power Neutral

Power Terminals.

for display board

120VAC input

for booster control

120VAC input

Undercounter Temperature Display Board — P/N 0512106-1

Booster OUT

to booster contactor coil

120VAC ouput

Wash

Heater OUT

Booster IN

to wash tank heater

240VAC output

Heater

Fuse 20A

Wash

for wash tank heater

240VAC input

for wash tank heater

20 Amp fuse

All Models - Digital Temperature Display Board

Undercounter Temperature Display Board — P/N 0512106-1

M3 - M4 Model Selector Slide Switch

M3 Setting

Slide the selector switch to the M3 position

M4 Setting

Slide the selector switch to the M4 position

NOTE:

The machine will not operate properly if the

selector switch is set to the wrong position.

for machines equipped with thermistors only.

for machines equipped with thermostats.

Before installing a new version display board,

you must select the model type using the

M3 - M4 Switch located at the bottom center

of the circuit board.

! ATTENTION — VERY IMPORTANT !

Digital Temperature Display Board - UH130, UH130B, UH230, UH230B

Pushbutton

Rinse Test

for Wash and Rinse

Thermistors

Pushbutton

Wash Test

Wire Harness Plug

Undercounter Temperature Display Board

P/N 0512106-1

booster temperature. Full range

is 3/4 turns 180-200°F. DO

wash temperature. Full range is

3/4 turns 120-160°F. DO NOT

FORCE PAST THE STOPS.

NOT FORCE PAST THE STOPS.

E - Turn clockwise to increase the

D - Turn clockwise to increase the

When performing diagnostics the values are

displayed in °F even if the display is set for °C.

A F/C Slide switch is provided on the board

to change the display from the factory default

setting of °F to the optional °C.

is operating normally.

should appear in the wash

temperature display window

indicating the circuit board

Temperature Adjustments

SETTING

ONLY

SETTING

ONLY

in the rinse temperature display

window indicating the circuit

pushbutton for 10 seconds

A numerical value of 140

board is operating normally.

C - Push and hold the wash test

Temperature

Adjust

Temperature

Adjust

pushbutton. A numerical value

of 179-180 should appear

B - Push and hold the rinse test

Booster

Wash

operation, disconnect the harn-

ess from this plug. The wash and

rinse displays will display E.

A - When testing the circuit board

Diagnostics

Booster Heater/Wash Tank Heater Interlock Circuit Operation - UH130B, UH230B, UH330B

heater is connected for 1 PH

No power when booste heater is connected fo 1 PH

Auxiliary

Contactor

Booster Heater/Wash Tank Heater Interlock Circuit Operation

For Models UH130B, UH230B The booster heater/wash tank heater interlock circuit removes

power from the wash tank heater whenever the booster heater contactor energizes. The illustration below shows how the booster heater contactor is wired.

The booster heater contactor is located on the center of the base behind the lower front access panel.

Interlock Circuit Operation

1. The dishwasher ﬁlls with water when the main power switch on the dishwasher is turned on.

The booster heater thermistor calls for heat which energizes the booster heater contactor.

2. The auxiliary contact on the top of the contactor opens and removes power from the

wash tank heater.

3. When the booster heater thermister is satisﬁed, the booster heater contactor de-energizes

and the auxiliary contacts close applying power to the wash tank heater.

4. This operation is repeated whenever the booster thermistor calls for heat.

To wash tank heater 115VAC

1H3

1H1

1H2

To booster heater 1 PH 208-230VAC

Contactor

Booster Heater

From main

terminal block 115 VAC

From main terminal bloc 1 PH

208-230VAC

No power when booster heater is connected for 1 PH

Main Terminal Block (MTB)

No power when booster

L1 L2 L3 N

Auxiliary

To booster

heater contactor

Contactor

115VAC

1PH

208-230VAC

No power when booster

Blank Page

This Page

Intentionally

Left Blank

Model UH330B

Model UH330B High Temperature Undercounter Dishwasher with Heat Recovery and Built-in Booster

Installation - UH330B

Counter-top

Wall

2" [51mm] Min.

34"

[864cm]

Min.

Floor

42-3/8"

[1076 mm]

Min.

Receiving - UH330B

NOTE:

Turn to the front of this manual and follow the instructions to register your product online or by fax.

Placement - UH330B

CAUTION:

Be careful when lifting and moving the dishwasher to prevent damage to the machine.

NOTE:

The installation of the dishwasher must comply with local health codes.

NOTE: The dishwasher front-to-back dimension with the door open is 42-3/8" [1076 mm]. The clearance to the back wall is 2" [51mm].

1. Inspect the outside of the dishwasher carton for signs of damage.

2. Remove the carton and inspect the dishwasher for damage.

3. Check for any options or accessories that may have shipped with your dishwasher.

4. Compare the installation site utility connections with the dishwasher utility connections and

make sure they are the same.

5. The dishwasher can be installed as a free-standing unit or under a counter-top. The typical counter-top height in most locations is 34" [864 mm]. It is highly recommended that the underside of the counter-top be clad in metal.

6. Under counter installations should provide storage space for the dishwasher chemical supply containers. Do not elevate the containers above the ﬁnished ﬂoor.

7. Chemical supply containers should be placed as close to the machine as possible and the chemical tubing taped to the back of the machine should be repositioned before permanently placing the machine.

8. The dishwasher has 4 adjustable feet for leveling.

9. Place the dishwasher in its permanent location. and level it front-to-back and side-to-side.

Model UH330B - Installation

Electrical Connections - UH330B with Built-in Booster

1PH and 3PH Wiring Diagrams

! ATTENTION !

ALL DISHWASHERS ARE SHIPPED FROM THE FACTORY WIRED FOR SINGLE PHASE

OPERATION UNLESS SPECIFIED AT THE TIME OF ORDER.

IF YOU ARE CONVERTING A SINGLE PHASE MACHINE TO THREE PHASE BE SURE

TO FOLLOW THE BOOSTER WIRING INSTRUCTIONS ON PAGES 71-72.

Refer to the connection diagrams below to connect main incoming power to the dishwasher.

THREE PHASE POWER CONNECTION

Models UH330B

GRD

L1 L2 L3 N

115VAC

208-230

VAC

208-230 VAC

! VERY IMPORTANT !

THE ELECTRICAL POWER MUST BE A

4-WIRE PLUS GROUND SUPPLY WHICH

INCLUDES A CURRENT CARRYING NEUTRAL.

HOW TO CONNECT 3 PHASE POWER

1. Check the data plate on the front of the

dishwasher for the phase of the machine.

If the data plate says the machine is 3 Phase,

then connect a 3 PH power supply.

2. Remove the lower access panel.

3. Pull power connection box forward and out.

4. The Main Te rminal Block has terminals for

L1, L2, L3, Neutral and Ground.

5. Connect ground, then connect

L1, L2, L3 to 208-230VAC.

6. Connect a current carrying neutral to N.

7. Main power connections are complete.

208-230

VAC

SINGLE PHASE POWER CONNECTION

Models UH330B

GRD

Do not connect power to L3

L1 L2 L3 N

115VAC

208-230

VAC

! VERY IMPORTANT !

THE ELECTRICAL POWER MUST BE A

3-WIRE PLUS GROUND SUPPLY WHICH

INCLUDES A CURRENT CARRYING NEUTRAL.

HOW TO CONNECT 1 PHASE POWER

1. Check the data plate on the front of the

dishwasher for the phase of the machine.

If the data plate says the machine is 1 Phase,

then connect a 1 PH power supply.

2. Remove the lower access panel.

3. Pull power connection box forward and out.

4. The Main Terminal Block has connections

for L1, L2, L3, Neutral and Ground.

5. Connect ground, then connect

L1, L2 to 208-230VAC.

6. Connect a current carrying neutral to N.

DO NOT CONNECT POWER TO L3.

7. Main Power connections are complete.

0 VAC

Installation - Model UH330B

Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH Machines with Boosters - UH330B

WARNING: Electrocution or serious injury may result when working on an energized circuit.

Disconnect power at the main breaker or service disconnect switch before working on the circuit.

Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.

! VERY IMPORTANT !

PROVIDE A 3 FEET/1 METER SERVICE LOOP IN THE POWER SUPPLY

CABLE TO SERVICE THE DISHWASHER.

! SINGLE PHASE POWER REQUIREMENT !

SINGLE PHASE UH330B

The electrical power must be a 3-wire plus ground supply which

includes a current carrying neutral.

! THREE PHASE POWER REQUIREMENT !

THREE PHASE UH330B

The electrical power must be a 4-wire plus ground supply which

includes a current carrying neutral.

Model UH330B - Installation

Connecting Incoming Power to the Main Terminal Block

for 1PH and 3PH Machines with Boosters - UH330B

Refer to the photo below:

1. Remove the lower front dishwasher panel.

2. Remove the retaining fasteners (A) from the swing-out brackets and swing the chemical pump bracket (B) and the chemical circuit board bracket (C) out of the way as shown.

3. Remove the screw holding the main terminal block cover and set the cover aside.

Main Terminal Block Cover

(continued on next page)

Installation Model - UH330B

UH330B - Connecting Incoming Power to the Main Terminal Block for 1PH and 3PH

Refer to the photo below:

4. Provide a 3 foot/1 meter service loop in the power supply cable to service the machine

5. Route the power cable from the rear of the machine to the terminal block making sure the cable does not touch the booster heater.

6. Connect the power cable to the terminal block bracket using a suitable strain relief connector.

7. Connect the power wires according to the wiring diagrams on page 67 for either single phase or three phase operation.

8. Return the main terminal block bracket to its original position making sure the power cable does not touch the booster tank. Install the retaining screws.

9. Swing the chemical pump bracket and the chemical board back into position and secure with the existing fasteners.

Main Terminal Block Cover Main Terminal Block

Model UH330B - Installation

Booster Heater Conversion from 1PH to 3PH Operation

! VERY IMPORTANT !

THE BOOSTER HEATER IS WIRED FOR 1PH OPERATION WHEN SHIPPED.

FOLLOW THE INSTRUCTIONS BELOW TO WIRE THE BOOSTER FOR 3PH.

WARNING: Electrocution or serious injury may result when working on an energized circuit.

Disconnect power at the main breaker or service disconnect switch before working on the circuit.

Lock-out and tag the breaker or service disconnect switch to indicate that work is being performed on the circuit.

1. To convert the booster heater from single phase to three phase operation, locate the booster wire labeled 1H3 that is cable-tied to the booster hose.

2. Remove the shrink insulation from the terminal and connect to the booster heater element as shown in the wiring diagram on page 72.

The three phase booster wire (1H3) is cable-tied to the hose adjacent to the booster tank.

Installation - Model UH330B

Booster Heater Conversion from 1PH to 3PH Operation (continued)

! VERY IMPORTANT !

THE BOOSTER HEATER IS WIRED FOR 1PH OPERATION WHEN SHIPPED.

FOLLOW THE INSTRUCTIONS BELOW TO WIRE THE BOOSTER FOR 3PH.

3. Disconnect the existing booster heater wires and change the booster heater element

jumpers as shown in the illustration below

4. Connect wires 1H1, 1H2, and 1H3 as shown below.

Booster Heater

Connected for 1PH

Wire not

connected

1H2

1H1

1H3

Wiring Diagram - Booster heater element connections shown for 1 phase and 3 phase operation.

Booster Heater

Connected for 3PH

1H1

1H2

5. A replacement 3PH data plate is stowed on the back of the lower front access panel.

6. Replace the existing 1PH data plate on the front of the panel with the new 3PH data plate.

Discard the 1PH data plate.

7. Refer to the instructions on the next page to connect the main incoming power to the

machine.

Model UH330B - Installation

Completing the 1PH to 3PH Electrical Conversion

! ATTENTION !

CHANGE THE DATA PLATE ON THE LOWER FRONT PANEL OF THE MACHINE

AFTER THE MACHINE IS WIRED FOR 3PH AND THE BOOSTER HEATER IS CONNECTED

FOR 3PH.

1. The data plate on the dishwasher lower front panel must be changed after the

machine is converted from single phase operation to three phase operation.

2. Locate the replacement data plate stowed on the back of the lower front panel.

3. Remove the paper backing from the label and carefully place it over the existing

data plate label making sure it covers the label completely.

4 Re-install the lower front panel to complete the conversion.

A three phase data plate is located on the back of the lower front panel.

Installation - Model UH330B

Water Connection - UH330B

NOTE

Plumbing connections must comply with national, provincial local plumbing and sanitary codes.

! ATTENTION!

THE MODEL UH330B REQUIRES A SINGLE 1/2"

INCOMING COLD WATER SUPPLY LINE

Model UH330B

1. Equipped with a 6 ft. ﬂexible cold water ﬁll hose with a 3/4" female garden hose connector.

2. A 1/2" or larger main incoming supply line must be installed to the dishwasher.

3. We recommend that a 1/2" or larger shut-off valve be installed in the main water supply,

as close to the dishwasher as possible for servicing.

4. The UH330B has a built-in ﬂow control. The ﬂowing incoming cold water supply pressure must be between 25-95 psi.

5. A water hardness of 3 grains/gal (US) [51.3 mg/L] or less is recommended.

42-3/8" [1076mm]

26-3/4"

[679mm]

Side View Plan View

CW = 1/2" Cold Water Supply

55-80°F/12-26°C

Model UH330B - Installation

Drain Connection - UH330B

! VERY IMPORTANT !

IMPROPER INSTALLATION OF MACHINE DRAIN HOSE.

Machine drain problems are often the result of improper installation and may not

be covered by the limited warranty.

! VERY IMPORTANT !

Do not connect the drain hose to a disposer. The dishwasher will not drain correctly.

! IMPORTANT !

Make sure that the ﬂexible water supply and drain hoses are not kinked.

1. The UH330B is a pumped drain and is equipped with a 6 ft.. 5/8" I.D. drain hose. The maximum drain height connection must not exceed 3 ft.[1 m].

2. The drain hose is located at the rear of the dishwasher, and is secured to the rear of the machine provide an anti-siphoning loop in the drain hose.

3. A 3/4" hose barb ﬁtting is strapped to the drain hose prior to shipment. The service part number for the hose barb is P/N 0512321.

4. Additional plumbing parts must be supplied by the plumbing installer.

5. The maximum drain ﬂow is 15 US gpm/12.4 imp gpm/60 lpm.

42-3/8" [1076mm]

26-3/4"

[679mm]

Side View Plan View

DH = Drain Hose

5/8" I.D., 6 ft [1829 mm] Long

Installation - Model UH330B

Drain Connection - Model UH330B (continued) -

NOTE

Plumbing connections must comply with national, provincial local plumbing and sanitary codes.

DO NOT CONNECT THE DRAIN HOSE TO A DISPOSER. DO NOT REDUCE THE SIZE OF THE DRAIN HOSE CONNECTION. DO NOT ADD ADDITIONAL LENGTH TO THE DRAIN HOSE. DO NOT ALLOW THE DRAIN HOSE TO KINK.

For a Direct Drain Connection:

1. Install the drain hose to an 1-1/2" or larger "WYE" vented drain ﬁtting.

2. CONNECTION TO A "TEE" FITTING WILL PREVENT THE DISHWASHER FROM DRAINING COMPLETELY.

Drain Hose

Clamp

(Supplied by others)

connect the dishwasher ﬂexible drain

hose to a WYE drain ﬁtting.

3/4" NPT Hose Barb

Drain Adapter Fitting

Fitting

WYE Fitting

DO NOT

connect the dishwasher ﬂexible

drain hose to a TEE drain ﬁtting.

For an Indirect Drain Connection:

Dishwasher Drain Hose

Floor

Minimum Air Gap 1” [25.4mm]

Floor Drain

Model UH330B - Installation

Chemical Connections - Model UH330B

! VERY IMPORTANT !

ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT.

PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE.

DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR.

! VERY IMPORTANT !

Contact a chemical supplier for detergent and rinse-aid chemicals. The chemical supplier must

adjust the chemical dispensing pumps for water hardness and food soil types.

Chemical Dispensing Pumps

1. The detergent and rinse-aid pumps are located on the lower left-side of the machine behind the lower-front access panel.

2. Each pump is equipped with 6 feet [1.8 m] of pick-up tubes consisting of supply tubing, stiffener tubes, and strainers.

3. The pick-up tubes are stowed on the back of the machine for shipping.

4. A red label marked DETERGENT and a blue label marked RINSE-AID identify the chemical lines.

5. The chemical squeeze tubes should be inspected and replaced every six months.

RINSE-AID

DETERGENT

The chemical dispensing pumps are located on

the left-side behind the lower front panel

of the dishwasher.

The chemical dispensing pick-up tubes are

stowed on the back of the dishwasher.

Installation - Model UH330B

Chemical Connections - Model UH330B (continued)

! VERY IMPORTANT !

ALWAYS USE A COMMERCIAL-GRADE NON-CHLORINATED DETERGENT.

PLACE THE CHEMICAL SUPPLY CONTAINERS AS CLOSE TO THE MACHINE AS POSSIBLE.

DO NOT ELEVATE THE CHEMICAL CONTAINERS ABOVE THE FINISHED FLOOR.

Chemical Injection Points

1. The detergent enters the wash tank compartment through a ﬁtting at the right rear of the wash compartment.

2. Rinse-aid enters the ﬁnal rinse through a ﬁtting in the front of the booster tank.

DETERGENT

INJECTION

POINT

RINSE-AID

INJECTION

POINT

Model UH330B - Installation

Chemical Connections - Model UH330B

Priming the Dispensing Pumps

! VERY IMPORTANT !

The chemical dispensing pumps must be primed before operating the dishwasher and

whenever the chemical container is changed.

OFF/DRAIN

POWER

TEMPERATURE

1 5 0

WASH

UH330B Control Panel

1 8 0

RINSE

DETERGENT

RINSE AID

PRIME

NORMAL

EXTRA

HEAVY

1. The chemical dispensing pump supply lines must be primed before they will pump the chemicals properly.

2. Make sure the chemical containers are full and the correct pick-up tubes are in their containers.

3. Turn the dishwasher power switch ON. The

DETERGENT

switch will illuminate and the dishwasher will ﬁll with water.

4. Open the dishwasher door, then push and hold the prime push button UP to the DETERGENT position until detergent is observed entering

RINSE AID

PRIME

the wash tank compartment. Release the push button.

STARTCYCLE

5. Push and hold the prime push button DOWN to the Rinse-aid position until you see air bubbles moving through the rinse-aid tubing, then continue to hold the prime push button for approximately 1 minute and then release.

6. Close the door to complete the priming operation.

(continued on next page)

Installation - Model UH330B

Detergent and Rinse-aid Dispensing Pump Adjustments - Model UH330B

Chemical Dispensing Pump Adjustments

! ATTENTION !

The amount of dispensed chemical is determined by the run time of the dispensing time.

Refer to the photo below:

1. The chemical dispensing pump run adjustment screws are located on the end of the

chemical circuit board swing-out bracket.

2. It is not necessary to swing the bracket out to make adjustments, but if desired, remove

the mounting nut (A) and swing the bracket (B) out and to the right.

3. Refer to the next page for adjustment instructions.

! VERY IMPORTANT !

Contact a chemical supplier for detergent and rinse-aid chemicals. The chemical supplier must

adjust the chemical dispensing pumps for water hardness and food soil types.

Installation - Model UH330B

Detergent and Rinse-aid Dispensing Pump Adjustments - Model UH330B

Chemical Dispensing Pump Adjustments (continued)

! ATTENTION !

THE FILL AND SANITIZER ADJUSTMENT SCREWS ARE NOT USED ON THE

UH330B MACHINE.

Refer to the photo below:

To adjust the amount of chemicals dispensed by the pumps:

1. Make sure the chemical containers are full and the pick-up tubes are in their proper containers.

3. Turn the dishwasher power switch ON. The switch will illuminate and the dishwasher will ﬁll with water.

4. Run a normal dishwasher cycle and test detergent and rinse-aid concentrations according to the chemical supplier's instructions.

CAUTION: Excessive pressure to the potentiometers when adjusting can result in bent or broken adjusting screws.

5. Each dispensing pump has a clearly marked adjustment screw. Turn the screw CW to increase the run time of the dispensing pump and CCW to reduce the run time.

Use a 4mm

blade

screwdriver

Operation - Model UH330B

Loading Dish Racks

! VERY IMPORTANT !

DO NOT OVERLOAD THE DISH RACK.

LOAD ONE DISH RACK INTO THE MACHINE AT A TIME.

1. Prescrap and rinse the wares before loading to remove large food particles.

2. Load soiled wares into the dish rack. Place plates and glasses in a peg rack. Place

cups and bowls in a ﬂat bottom rack. Place utensils in a single layer in a ﬂat-bottom rack. Place pots and pans in a ﬂat-bottom rack.

Do not overload the dish rack. Wash one dish rack at a time.

3. Slide one dish rack into the wash compartment making sure that wares do not interfere with the rotating spray arms. Do not wash more than one dish rack at a time.

Prescrap and rinse wares before

loading into the machine.

Load plates and glasses in a peg

rack.

Model UH330B - Operation

Loading Dish Racks (continued)

Load pots and pans in a

ﬂat-bottom rack.

Load utensils in a single layer

in a ﬂat-bottom rack.

Load cups and bowls in a

ﬂat-bottom rack.

NEVER stack dish racks.

Wash one dish rack at a time.

Operation - Model UH330B

UH330B Control Panel

The illustration below shows the operator controls and temperature displays for the UH330B.

OFF/DRAIN

POWER

ON-OFF/DRAIN

Power Switch

Wash Temperature

Digital Display

Final Rinse Temperature

Digital Display

1 5 0

WASH

TEMPERATURE

1 8 0

RINSE

Push button

Prime

Cycle Selector

Push button

DETERGENT

RINSE AID

PRIME

NORMAL

Time Select

Lights

Cycle Light

EXTRA

HEAVY

Start

Push button

Wash Mode

1. Close the door.

2. Push the dishwasher ON-OFF/DRAIN switch UP to turn the power ON.

3. The power switch will illuminate and the machine will ﬁll with water. The cycle light

ﬂashes during the ﬁll cycle.

4. Wait approximately 30 minutes until the wash temperature gauge indicates a minimum of 150ºF/66ºC.

5. Scrap the wares to remove large food particles.

6. Load the dish rack into the machine. Wash one dish rack at a time.

NORMAL

EXTRA

HEAVY

Push the Cycle button once for Extra Cycle. Push twice for Heavy Cycle. Push the Cycle button three times to cancel the selection and return to Normal Cycle.

STARTCYCLE

7. The NORMAL cycle setting is the default cycle and does not have a green indicator light. The normal cycle is approximately 2-1/2 minutes long.

8. The EXTRA cycle is selected by pushing the cycle button once. The EXTRA green indicator light will ﬂash for 15 seconds. Pressing the START button before the ﬂashing EXTRA indicator stops ﬂashing starts a EXTRA wash cycle of approximately 3-1/2 minutes long. The EXTRA green indicator light will come on. and the green indicator light above the start switch will illuminate indicating the machine is in the wash mode.

(continued on next page)

Model UH330B - Operation

Operation - UH330B

Wash Mode (continued)

9. The HEAVY cycle is selected by pushing the cycle button twice. The HEAVY green indicator light will ﬂash for 15 seconds. Pressing the START button before the ﬂashing HEAVY indicator light stops ﬂashing starts the heavy wash cycle of approximately 4-1/2 minutes long. The HEAVY green indicator light will come on and the green indicator light above the start switch will illuminate indicating the machine is in the wash mode.

10. Opening the door during a cycle will stop the dishwasher. The cycle will resume automatically if the dishwasher door is closed within 5 seconds. If the door is open for more than 5 seconds the cycle will start from the beginning of the cycle.

11. The ﬁnal rinse cycle begins at the end of the wash cycle. The machine drains and retains a portion of the ﬁnal rinse water for the next wash cycle.

12. Check the rinse temperature gauge during the ﬁnal rinse. It must indicate a minimum of 180-195ºF/82-91ºC. The ﬁnal rinse water is retained for the next wash cycle.

13. When the green cycle light goes out, open the door and remove the rack of clean wares.

! ATTENTION !

DOOR LEFT OPEN DURING WASH CYCLE

If the dishwasher door is left open for more than 5 seconds during the wash mode

the dishwasher cycle will reset to the beginning of the selected wash cycle.

Rinse Sentry Mode

! ATTENTION !

RINSE SENTRY MODE WILL EXTEND WASH CYCLE TIME

In the event that the ﬁnal rinse temperature inside the booster tank has not reached

180-195ºF/82-91ºC after the wash cycle, the rinse sentry will extend the wash cycle time until

the booster reaches 180-195ºF/82-91ºC. If the proper temperature is not reached within 5

minutes, the machine will leave the rinse sentry mode and complete the cycle.

Operation - Model UH330B

! VERY IMPORTANT !

Draining Problems Related To Improper Installation.

Problems with machine draining are often the result of improper installation.

NEVER EXTEND OR ADD LENGTH TO THE DRAIN HOSE.

Drain Mode

The dishwasher will enter the drain mode whenever the ON-OFF/DRAIN power switch is pushed down to the OFF/DRAIN position. The switch is located on the left side of the control panel.

IF THE ON-OFF/DRAIN SWITCH IS PLACED IN THE OFF/DRAIN POSITION FOR MORE THAN 3 SECONDS, THE DISHWASHER WILL CONTINUE TO DRAIN EVEN IF THE SWITCH IS PUSHED BACK TO THE ON POSITION.

OFF/DRAIN

START

POWER

1. Remove any dish rack that may be inside the machine.

2. Push the illuminated power switch down to the OFF/DRAIN position.

The power switch light will go out.

3. The cycle light will illuminate and the machine will drain.

4. The cycle light will go out indicating that the drain cycle is complete.

DO NOT OPEN THE DOOR UNTIL THE LIGHT GOES OUT.

Model UH330B - Cleaning

Cleaning - Model UH330B

! VERY IMPORTANT !

DRAIN AND CLEAN THE DISHWASHER EVERY 2 HOURS OF CONTINUOUS

OPERATION, AFTER EACH MEAL PERIOD, AND AT THE END OF THE DAY.

! ATTENTION !

DO NOT USE STEEL WOOL SCRUB PADS TO CLEAN THE MACHINE.

DO NOT SPRAY THE EXTERIOR OF THE MACHINE WITH WATER.

To clean your machine:

1. Open the door and remove any dish rack inside the machine.

2. Drain the machine according to the instructions on the previous page.

3. Refer to the photo below. Remove the upper and lower wash and rinse arms.

4. Clean the overﬂow guard by hand with it installed in the machine.

Overﬂow

Guard

Rinse Arm

Wash Arm

Bearing

Wash Arm

Retaining

Screw

(continued on next page)

Cleaning - Model UH330B

Rinse Arms

Spindle

Assembly

1. There are two rinse arms. They are interchangeable.

2. Remove the spindle assembly and end plugs in each pipe and ﬂush the rinse pipes.

3. Inspect the rinse arm bearings for wear and replace as necessary.

4. Clean the rinse arm nozzles with a small paper clip.

5. Reassemble the rinse arm assemblies.

End Plug

Rinse Arm

Bearing

Wash Arms

1. There are two interchangeable wash arms.

2. Flush the wash arms thoroughly in a sink.

3. Inspect the wash arm bearings for wear and replace as necessary.

Nozzle

Scrap Screen and Sump Strainer

1. Lift the scrap screen straight up and out of the machine to prevent debris from falling into the tank sump.

2. Flush the scrap screen in a remote sink making sure to back-ﬂush both sides of the screen.

3. Wipe the tank sump of water and debris.

4. Carefully inspect the sump strainer. This strainer is not removeable but must be thoroughly cleaned before reinstalling the scrap screen.

Model UH330B - Cleaning

Scrap

Screen

Tank

Sump

! ATTENTION !

A CLOGGED OR

RESTRICTED SUMP

STRAINER WILL

PREVENT THE

PROPER WASHING,

RINSING AND

DRAINING OF THE

MACHINE.

Sump

Strainer

! ATTENTION !

WIPE THE EXTERIOR OF THE MACHINE WITH A SOFT CLOTH AND MILD

DETERGENT. DO NOT SPRAY THE EXTERIOR WITH WATER.

LEAVE THE DOOR OPEN TO AID IN OVERNIGHT DRYING.

De-liming - UH330B

De-liming Cautions and Warnings

A de-liming agent must be used in accordance with your chemical supplier's instructions.

DANGER:

CAUTION:

Skin contact with de-liming solutions can cause severe irritation and possible chemical burns. Always wear eye protection, rubber gloves and protective clothing when handling chemicals.

Follow the procedures below to de-lime the UH330B dishwasher.

1. Open the dishwasher door and remove any dish racks.

2. Turn the power switch on the dishwasher to the ON position.

3. Remove the detergent and rinse-aid chemical supply tubing from their chemical supply containers.

4. Place the tubing in a container of hot water.

5. Press and hold the prime switch UP in the DETERGENT position to ﬂush the detergent from the supply tubing. Release the switch.

6. Press and hold the prime switch DOWN in the RINSE AID position to ﬂush the rinse-aid from the supply tubing. Release the switch.

7. Turn the dishwasher power switch to OFF/DRAIN to drain the wash tank. The green cycle light will go out in about 2 minutes.

8. Always wear eye protection, rubber gloves and protective clothing when handling chemicals. Open the door and carefully add the de-liming chemical to the wash tank in

accordance with your chemical supplier's instructions. Be careful to avoid splashing.

9. Close the door and press the CYCLE push button three times. The green cycle indicator light will illuminate and the machine will run for 23 minutes.

10. Check the de-liming results and if scale is still present repeat steps 8-9.

11. Turn the power switch ON to reﬁll the dishwasher and to return the dishwasher to normal operation

12. Return chemical supply tubing to their containers and prime the chemical lines.

Champion UH130 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
