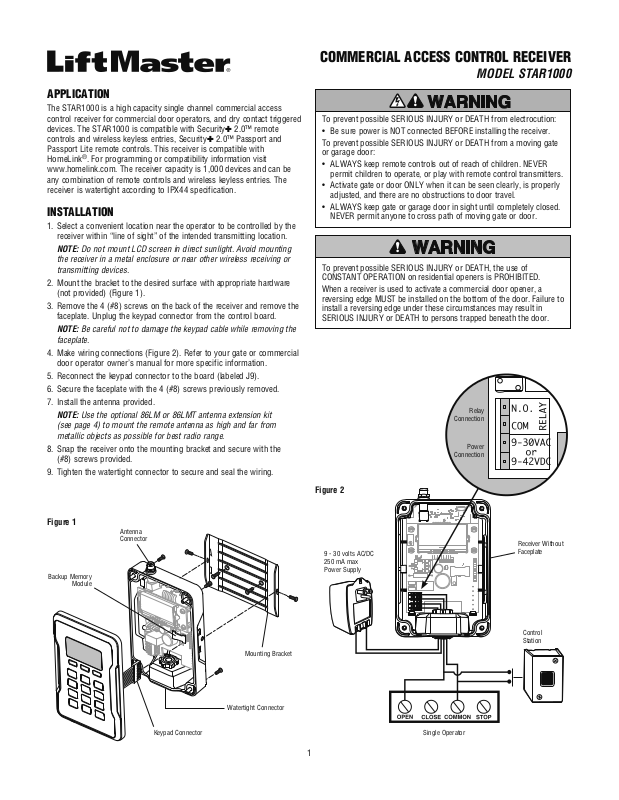

Chamberlain STAR1000 User Manual

0 (0)

APPLICATION

The STAR1000 is a high capacity single channel commercial access control receiver for commercial door operators, and dry contact triggered devices. The STAR1000 is compatible with Security✚ 2.0™ remote controls and wireless keyless entries, Security✚ 2.0™ Passport and Passport Lite remote controls. This receiver is compatible with HomeLink

. For programming or compatibility information visit www.homelink.com. The receiver capacity is 1,000 devices and can be any combination of remote controls and wireless keyless entries. The receiver is watertight according to IPX44 specification.

INSTALLATION

1. Select a convenient location near the operator to be controlled by the

receiver within “line of sight” of the intended transmitting location.

NOTE: Do not mount LCD screen in direct sunlight. Avoid mounting

the receiver in a metal enclosure or near other wireless receiving or transmitting devices.

2. Mount the bracket to the desired surface with appropriate hardware

(not provided) (Figure 1).

3. Remove the 4 (#8) screws on the back of the receiver and remove the

faceplate. Unplug the keypad connector from the control board.

NOTE: Be careful not to damage the keypad cable while removing the

faceplate.

4. Make wiring connections (Figure 2). Refer to your gate or commercial

door operator owner’s manual for more specific information.

5. Reconnect the keypad connector to the board (labeled J9).

6. Secure the faceplate with the 4 (#8) screws previously removed.

7. Install the antenna provided.

NOTE: Use the optional 86LM or 86LMT antenna extension kit

(see page 4) to mount the remote antenna as high and far from metallic objects as possible for best radio range.

8. Snap the receiver onto the mounting bracket and secure with the

(#8) screws provided.

9. Tighten the watertight connector to secure and seal the wiring.

COMMERCIAL ACCESS CONTROL RECEIVER

MODEL STAR1000

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing the receiver. To prevent possible SERIOUS INJURY or DEATH from a moving gate

or garage door:

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.

• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

To prevent possible SERIOUS INJURY or DEATH, the use of CONSTANT OPERATION on residential openers is PROHIBITED.

When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Relay

Connection

Power

Connection

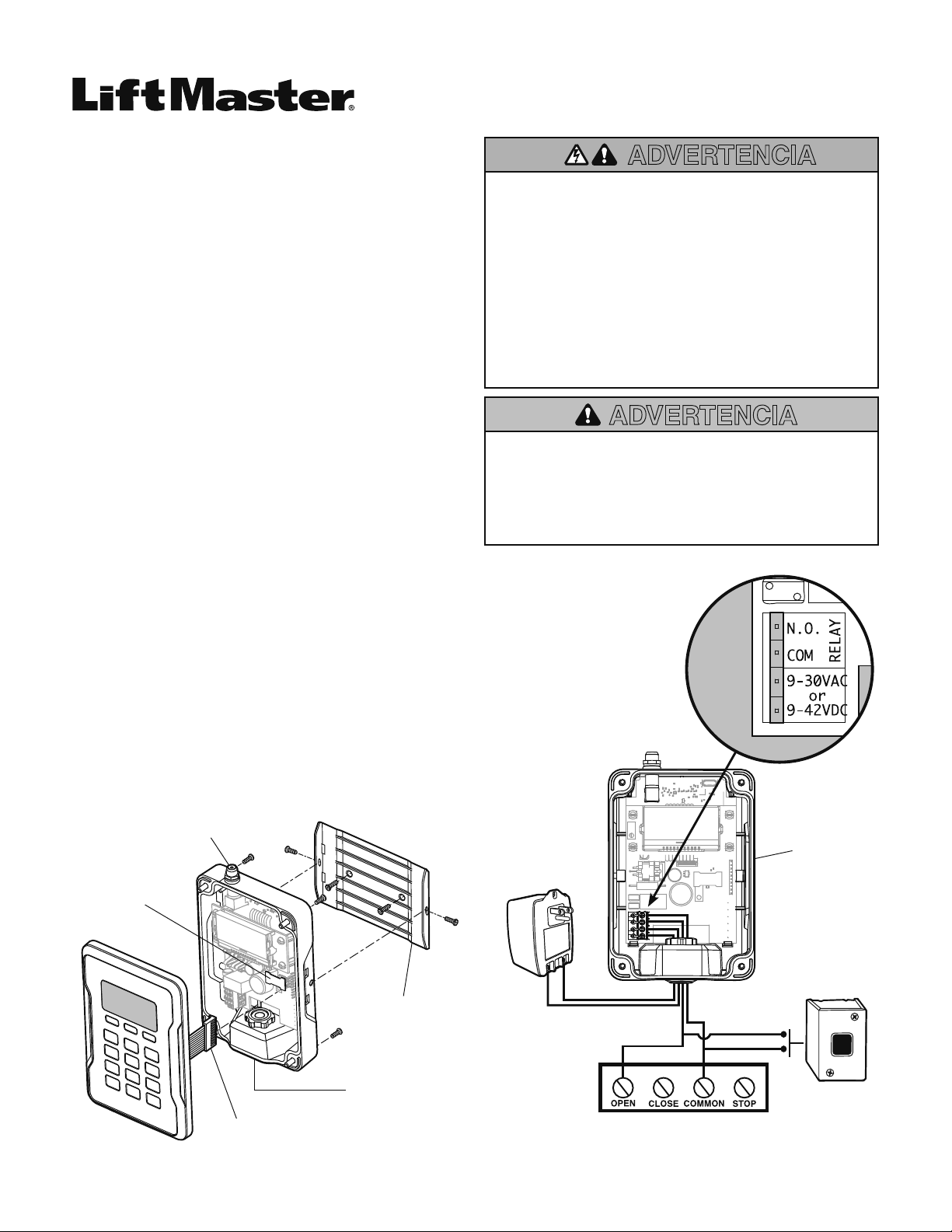

Figure 1

Backup Memory

Module

Antenna Connector

Keypad Connector

Mounting Bracket

Watertight Connector

Figure 2

9 - 30 volts AC/DC 250 mA max Power Supply

Single Operator

Receiver Without Faceplate

Control Station

USER INTERFACE

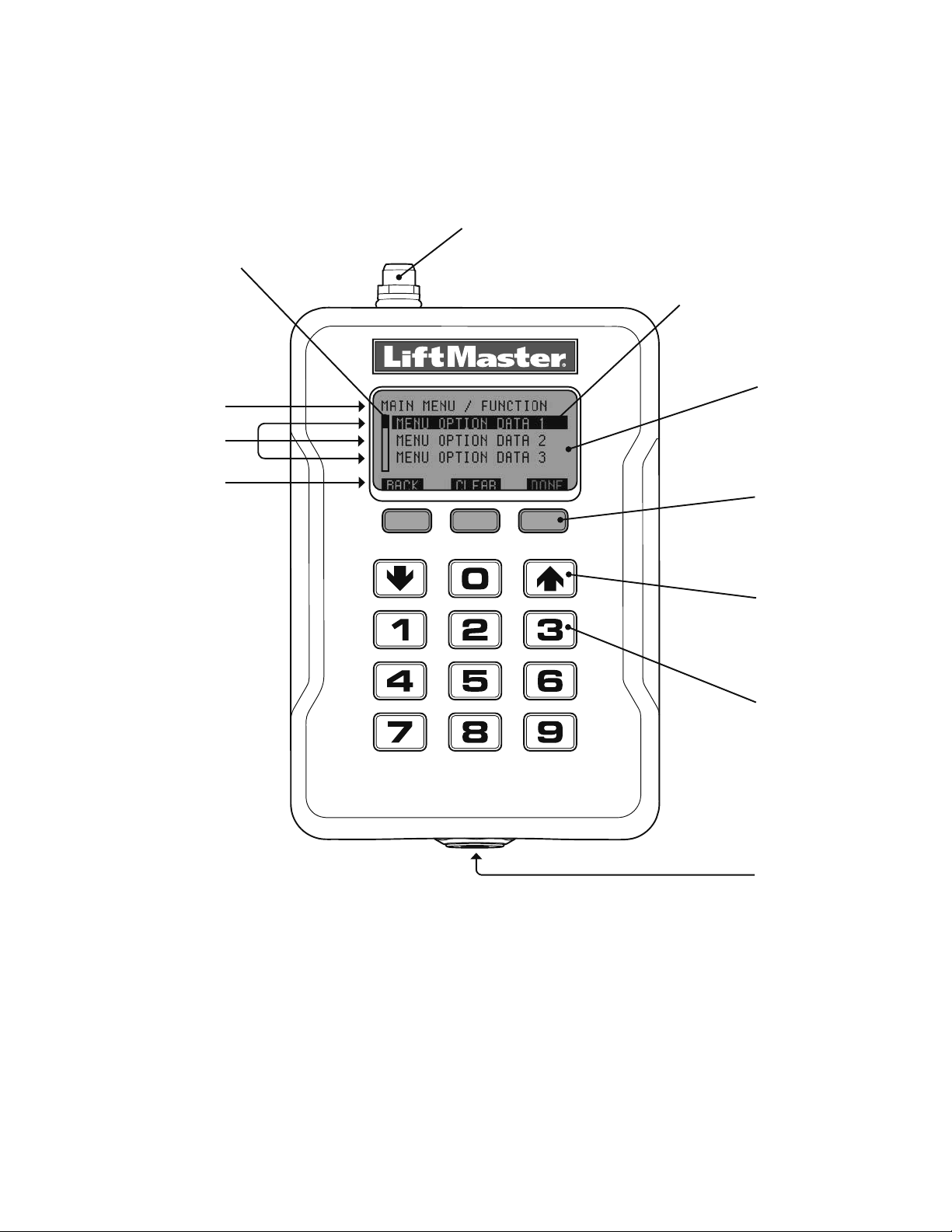

The STAR1000 user interface consists of a 22 character by 5 line LCD display, 3 “soft keys”, Down/Up arrows and a numeric keypad.

Scroll Indicator

If more than 3 options exist, a scroll indicator appears on the left margin of lines 2, 3, and 4. The scroll indicator shows the relative position within the list.

Line 1:

Menu and function mode.

Lines 2, 3, and 4:

Menu selections and data.

Line 5:

Soft key function modes.

Antenna Connection

For the direct antenna or the antenna extension kit.

Menu/Data selection shown in inverse font.

LCD Screen

System programming and status display.

“SOFT” Keys

Soft key functions are defined by the label on line 5 of the display. The functions change according to the menu selection.

Down/Up Keys

For navigation in the menus.

PROGRAMMING

The receiver has the ability to learn a combination of remote control transmitters and keyless entries up to 1,000 devices. See page 4 for a complete list of compatible accessories. Audible and visual warnings occur when the receiver capacity is exceeded. After 30 seconds of inactivity, the receiver times out and the LiftMaster Select “UNLOCK” and enter the PIN to continue.

Initial PIN set up:

The PIN restricts access to authorized administrators only. If you omit this step, anyone will be able to program the receiver. Upon initial power up, the system firmware revision is displayed for 5 seconds followed by the LiftMaster

logo. When a key is pressed, “CREATE PIN?”

is displayed.

logo is displayed.

Numeric Keypad

Numeric data is entered through the numeric keypad.

Insert wiring

1. Press “YES” to create PIN. If the PIN is lost you may request a reset code by pressing “RESET”.

2. Enter a 6-digit PIN, and press “YES”; enter the 6-digit PIN a second time and press “YES” to program the PIN. If you make a mistake, press “CLEAR” to change your entry. To exit the enter PIN screen, select “BACK”.

3. When your 6-digit PIN is programmed correctly, the LCD display reads “KEYPAD UNLOCKED”. Select “OK” to continue to the Main Menu. After 30 seconds of inactivity, the receiver times out and the LiftMaster

logo is displayed. Select “UNLOCK” and enter PIN

to continue.

PROGRAMMING COMMANDS

The table below describes the commands used to program the receiver.

MAIN MENU COMMAND DESCRIPTION

LEARN MENU

DELETE MENU

SUSPEND MENU

QUERY MENU

SETTINGS

LEARN DEVICE BLOCK LEARN DEVICE LEARN TO LOC #

DELETE DEVICE DELETE ALL DEVICES

SUSPEND DEVICE

SUSPEND ALL DEVICES

UNSUSPEND DEVICE UNSUSPEND ALL DEVICES

LOC # USED LOC # AVAILABLE LOC # SUSPENDED

CHANGE PIN DEALER INFO

FIRMWARE VERSION BEEP MEMORY DUPLICATE MEMORY

RESTORE MEMORY

RELAY CONTRAST LANGUAGE FACTORY DEFAULT

Program a device to the receiver. Block program a range of devices to the receiver. Program a device to a 4-digit number location.

Delete a specified device that has been programmed to the receiver. Delete all programmed devices.

Temporarily disables the function of a specified device that has been programmed to the receiver.

Temporarily disables the function of ALL devices programmed to the receiver.

Re-enable the function of a suspended device. Re-enable the function of ALL suspended devices.

Displays a range of used locations starting from a specified location. Displays a range of empty locations starting from a specified location. Displays a range of suspended locations starting from a specified

location.

Change the 6-digit PIN number for the receiver. Display and edit the dealer 11-digit contact phone number.

Displays the current firmware version. Turn the audible feedback on or off. Creates a memory backup. A backup memory module must be

installed. Restores a memory backup from a memory module.

NOTE: Content of memory backup module will over-write any information already stored in the receiver memory.

Sets the relay activation time from .25 to 1 second. Press Down or Up arrows to adjust LCD contrast. Sets menu language: English (Default), Spanish, and French. Reset receiver to factory default settings.

DIAGNOSTICS

The receiver emits a series of audible beeps to signal programming and error events. The table at right lists all of the events and their audible notifications. The On/Off column indicates that the audible notification for the event may be disabled in the BEEP SETTINGS menu.

EVENT AUDIBLE

NOTIFICATIONS

Key press Single YES Successful Add Double Successful Delete Triple Successful Suspend Double Successful Unsuspend Double Master PIN entry error Long Programming error Long Location out of range Long Generic Success Double Generic Error Long Received unknown Tx Slow YES Received known Tx Double YES Received known suspended Tx Long YES

ON/OFF

SPECIFICATIONS

System Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 devices Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 30 Volts AC, 9 - 42 Volts DC Operating Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA Maximum Stand By Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA Maximum Surge Suppression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 kV Min Operating Temp Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +65°C @ 50% Rh, -40°F to +149°F @ 50% Rh Storage and Shipping Temp Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C @ 50% Rh Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Security✚ 2.0™ Only (310, 315, 390, 433.30, 433.92,

434.54, 868.30, 868.95, 869.85 MHz)

Relay Contact Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 amp @ 24V AC/DC

COMPATIBLE ACCESSORIES

Remote Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 811LM, 813LM, 892LT, 894LT, 891LM, 893LM,

Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 877LM, and 877MAX

Antenna Extension Kits:

15' Extension Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86LM 25' Extension Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86LMT

24VAC Transformer for screw terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95LM

890/893/895MAX, PPV1, PPV3, PPK1, PPK3, PPK1PH, PPK3PH, PPLV1, PPLK1, AND PPLK1PH

REPAIR PARTS

Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K76-36681 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K1D7530-4 Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K13-36651-1

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards for Home or office use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-2806
