Catler DF 4010 User Manual
Instruction Manual
Includes recipes
Deep Fryer
DF 4010
DEEP FRYER
CONTENTS
3 Congratulations
4 Catler recommends safety rst
6 Know your Deep Fryer DF 4010
7 Assembling your Deep Fryer DF 4010
8 Operating your Deep Fryer DF 4010
11 Care and cleaning
12 Cooking guide
13 Handy tips
R1 Recipes
CONTENTS
2
3
Congratulations
on the purchase of your new Deep Fryer DF 4010
CONGRATULATIONS
CATLER RECOMMENDS SAFETY FIRST
We at Catler are very safety conscious. We design and manufacture consumer products with
the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a
degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR DEEP FRYER DF 4010
• Read all instructions before operating this
appliance and save for future reference.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the appliance by a person responsible
for their safety. Children should be
supervised to ensure that they will not
play with the appliance.
• Always turn the appliance o , rst turn o
at the power outlet and then unplug cord
when not in use before attempting to move
the appliance, before cleaning or storing.
• Do not immerse the appliance controller,
supply cord or plug in water or any other
liquid.
• Do not leave the appliance unattended
when in use.
• Always use the appliance on a dry, level
surface.
• Do not let the cord touch hot surfaces,
become knotted or hang from the edge of
benchtops.
• Do not place this appliance on or near a hot
gas or electric burner, or where it could
touch a heated oven.
• This appliance is for household use only.
Do not use this appliance for other than
its intended use. Do not use in moving
vehicles or beats. Do not use outdoors.
• Regularly inspect the supply cord, plug
and actual appliance for any damage. If
found damaged in any way, immediately
cease use of the appliance and return the
entire appliance to the nearest authorised
Catler Servise Centre for examination,
replacement or repair.
• Keep this unit clear of walls, curtains and
other heat sensitive materials (minimum
distance 20 cm). Do not place unit under
shelving or ammable materials when in
use.
• Always follow the maximum and
minimum quantities of oil stated in the
instructions and recipes.
• Do not exceed the maximum ll level
(3 litres). Never over ll the bowl with oil.
Extreme caution must be used when the
appliance is lled with hot oil. Always
allow the appliance to cool before
removing the oil.
• Do not move the deep fryer during
cooking or whist hot.
• When deep frying, ensure no water
comes in contact with hot oil as this will
cause splattering. Ensure that the deep
fryer is dry before adding any oil.
• Never lean over the deep fryer when
lifting the lid. Excess trapped steam
created during the cooking process will
be released when the lid is opened.
CATLER RECOMMENDS SAFETY FIRST
4
• Never pour oil out of the deep fryer when
either the unit or oil is shot. Allow both
the unit and contents to cool completely
before removing oil.
• It is not recommended to add extra oil
when hot as splashing may occur.
• Always ensure the heater element and
controller are correctly positioned onto
the bowl assembly and lled to min/max
before connecting to a power outlet.
• Do not use the deep fryer on metal
surfaces, for example, a sink drain board.
• At no time should the deep fryer be left
unattended when in use.
• Do not place anything on top of the deep
fryer when the lid is closed, when in use
and when stored.
• The installation of a residual current
device (safety switch) is recommended
to provide additional safety protection
when using electrical appliances. It is
advisable that a safety switch with a rated
residual operating current not exceeding
300 mA be installed in the electrical
circuit supplying the appliance. See your
eletrician for professional advice.
5
CATLER RECOMMENDS SAFETY FIRST
KNOW YOUR DEEP FRYER DF 4010
Power ‘On’ switch
‘On’ and ‘Ready’
lights
Large viewing window
3 litre oil capacity
1 kg food capacity

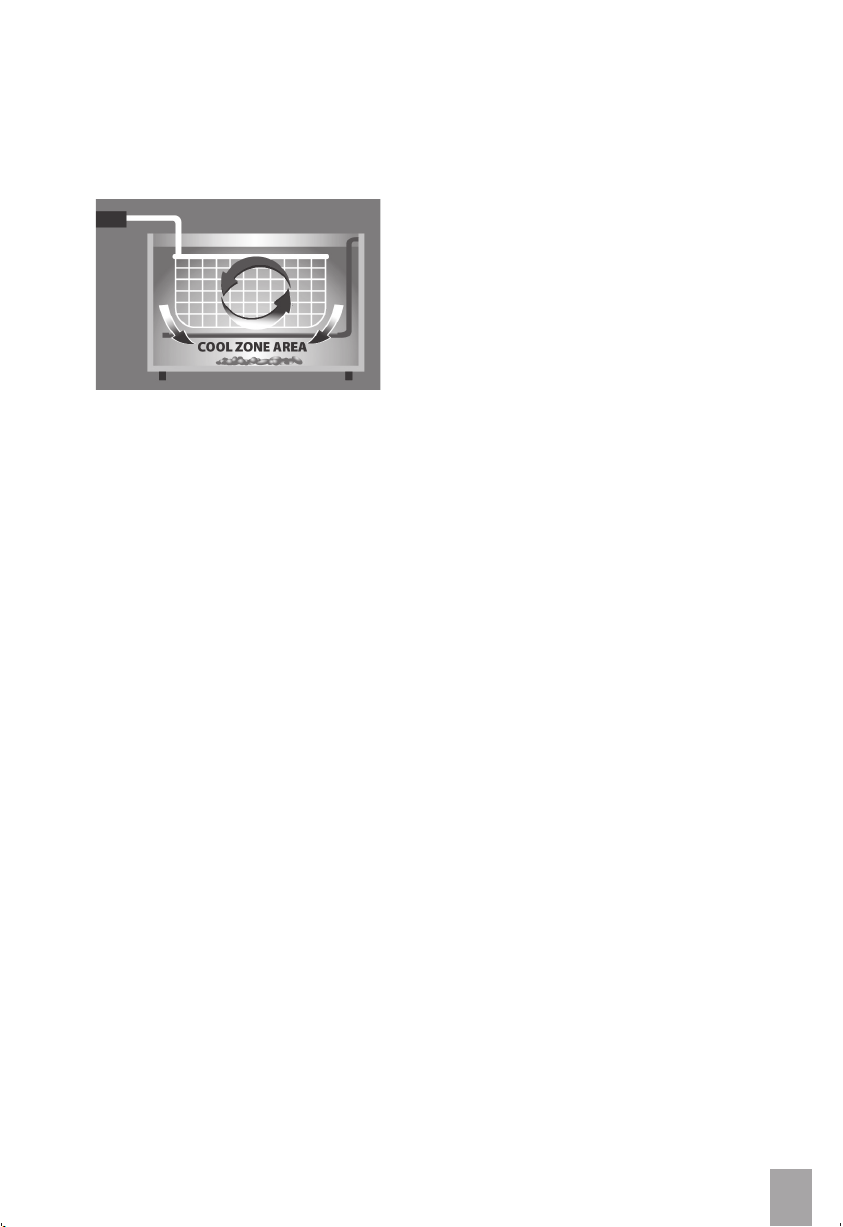

‘Cool Zone’
technology
Removable
stainless
steel bowl
Variable
temperature
control
Stylish stainless
steel exterior
Frying basket with fold
down handle
Powerful
2 200 watt
removable
element
Mesh lter
KNOW YOUR DEEP FRYER DF 4010
6
ASSEMBLING YOUR DEEP FRYER DF 4010
1. Remove lid by simply lifting o deep
fryer.
2. The hinged basket is designed for compact
storage (Fig. 1).
1

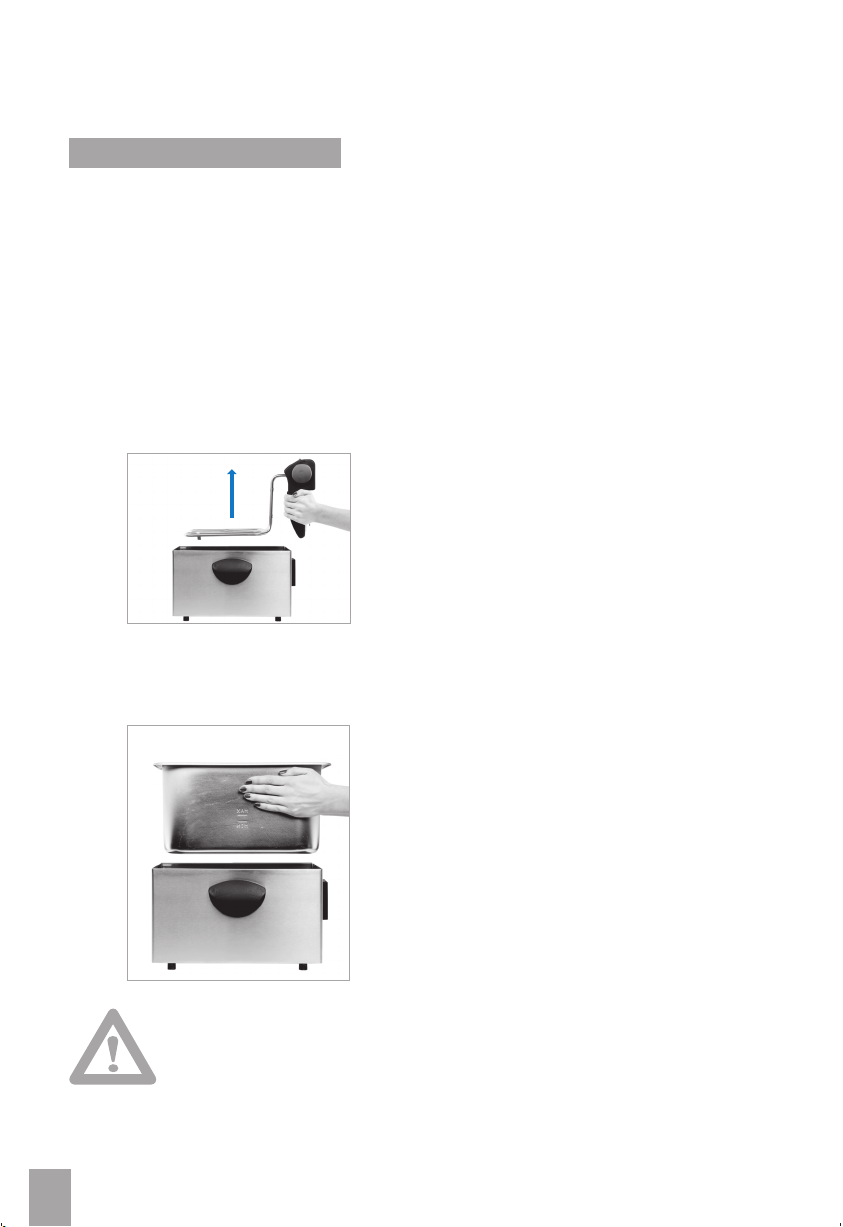

3. To extend handle, pull handle and lift
backwards.
4. Lift back panel upwards and away from
unit (Fig. 2).
2
5. Remove bowl by grasping rim of bowl and
lifting upwards (Fig. 3).
3
6. Reverse these steps to reassemble your
new deep fryer.
The stainless steel removable bowl can only be
inserted one way.
NOTE
7
ASSEMBLING YOUR DEEP FRYER DF 4010
WHEN ASSEMBLING YOUR DEEP FRYER FOR USE, PLEASE ENSURE THE
TONGUES (FIG.1) ON THE CONTROL ASSEMBLY ARE INSERTED INTO THE
GROOVES (FIG. 2) ON THE DEEP FRYER. THE DEEP FRYER WILL NOT OPERATE
UNLESS CORRECTLY ASSEMBLED.
1
TONGUE
2
GROOVES
OPERATING YOUR DEEP FRYER DF 4010
Before rst use
Remove all packaging materials and any
promotional labels from your deep fryer.
Wash the lid, removable bowl and wire frying
basket in hot soapy water and dry throughly.
Wipe inside of the bowl with a damp cloth
and dry thoroughly.
1. Place the deep fryer on a dry, level
surface. Ensure the deep fryer is not too
close to the edge of the bench top, and
that the power cord or basket handle
does not hang over the edge.
2. With the basket out of the deep fryer, add
oil to the bowl. Ensure not to add less
than the minimum level mark or exceed
the maximum level mark (3 litres).
Important: NEVER exceed the maximum ll
level (3 litres).
NOTE
3. Replace the lid.
4. Plug the power cord into a 230 V power
outlet and turn on the power ´On´
switch.
5. Turn the temperature control dial to the
desired temperature. The red ´Power On´
light will illuminate.
Your Deep Fryer DF 4010 is tted with a special
interlock switch and will not operate if not
properly assembled.
NOTE
6. Preheat the oil at the selected temperature
until the ´Green´ temperature ready light
illuminates.
When cooking the rst batch of food, allow the
deep fryer to cycle on and o twice (as indicated
by the green temperature ´Ready´ light) before
placing the food into the deep fryer. This will
take approximately 15–20 minutes.
NOTE
POWER CORD NEEDS TO BE FULLY EXTENDED BEFORE USE.
ALWAYS ADD THE REQUIRED AMOUNT OF OIL BEFORE SWITCHING THE
POWER ON AT THE POWER OUTLET.
OPERATING YOUR DEEP FRYER DF 4010
8
7. When the oil has preheated, place the
basket into the deep fryer in the raised
position, with the basket handle in the
extended horizontal position (Fig. 4).
4
8. Add food to the basket. Do not ll the
basket so that it is more than two-thirds
full.
9. Holding the fryer basket handle lift from
the holding position and gently lower
the basket into the oil.
10. You may choose to cook with the lid on
or o the deep fryer.
Uniform-sized pieces will cook more evenly.
NOTE
11. When the food is cooked, raise the
basket out of the oil to drain, then turn
temperature control dial back to 150°C
then turn the power ´O ´ with the power
switch, then unplug the power cord.
12. Keep the basket in the raised position for
a few minutes to drain the oil from the
food before serving.
13. If continuing to cook allow the unit to
regest until the ´Green´ temperature
light illuminates.
14. Allow the deep fryer to fully cool before
emptying the oil or cleaning the unit.
9
OPERATING YOUR DEEP FRYER DF 4010
DURING AND IMMEDIATELY AFTER COOOKING, YOU MAY SEE STEAM
RISING THROUGH THE FILTER VENT OPENINGS IN THE LID. THIS IS NORMAL,
HOWEVER AVOID TOUCHING THIS AREA DURING COOKING TO PREVENT
STEAM BURNS AS THE STEAM THAT IS GENERATED IS AT A HIGH
TEMPERATURE.
AS THE BASKET ITSELF GETS VERY HOT, ONLY USE THE HANDLE TO HOLD
OR CARRY THE BASKET FOR SERVING.
