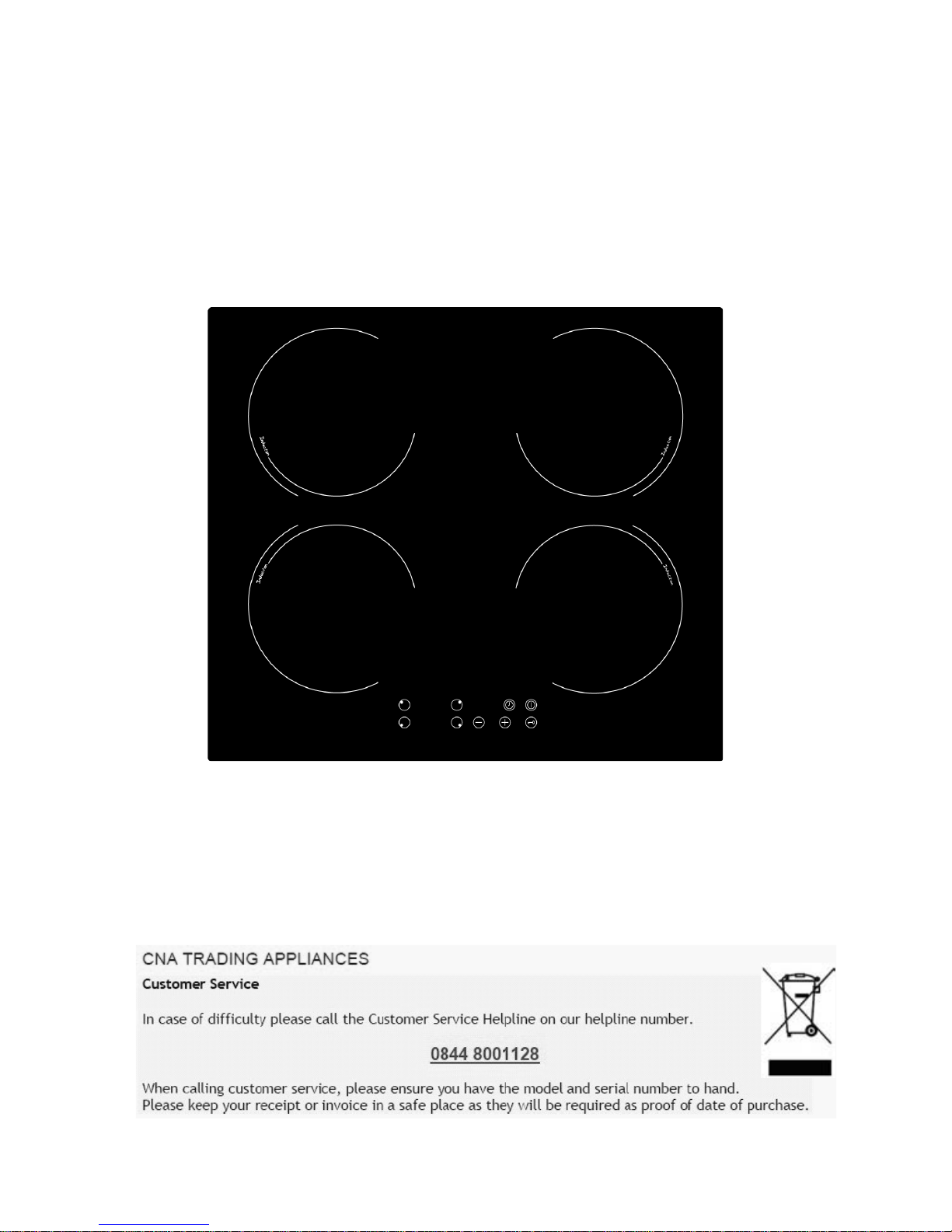

Page 1
Instruction Manual of IND60T Induction Hob
Model: IND60T
IM IND60T_20100202
- 1 -
Page 2
Dear Customer:
Thank you for purchasing
the CNA
induction hob. We hope it will give many
years of good
serv
ice.
Please read
this ins
truction manual carefully before using the
hob and kee
p it in a saf
e
place for future refere
nce.
z Product Introduction
The IND60T induction hob caters for all kind of cooking, with its
making it the ideal choice for today's family.
The induction hob is extremely user-friendly, durable and safe.

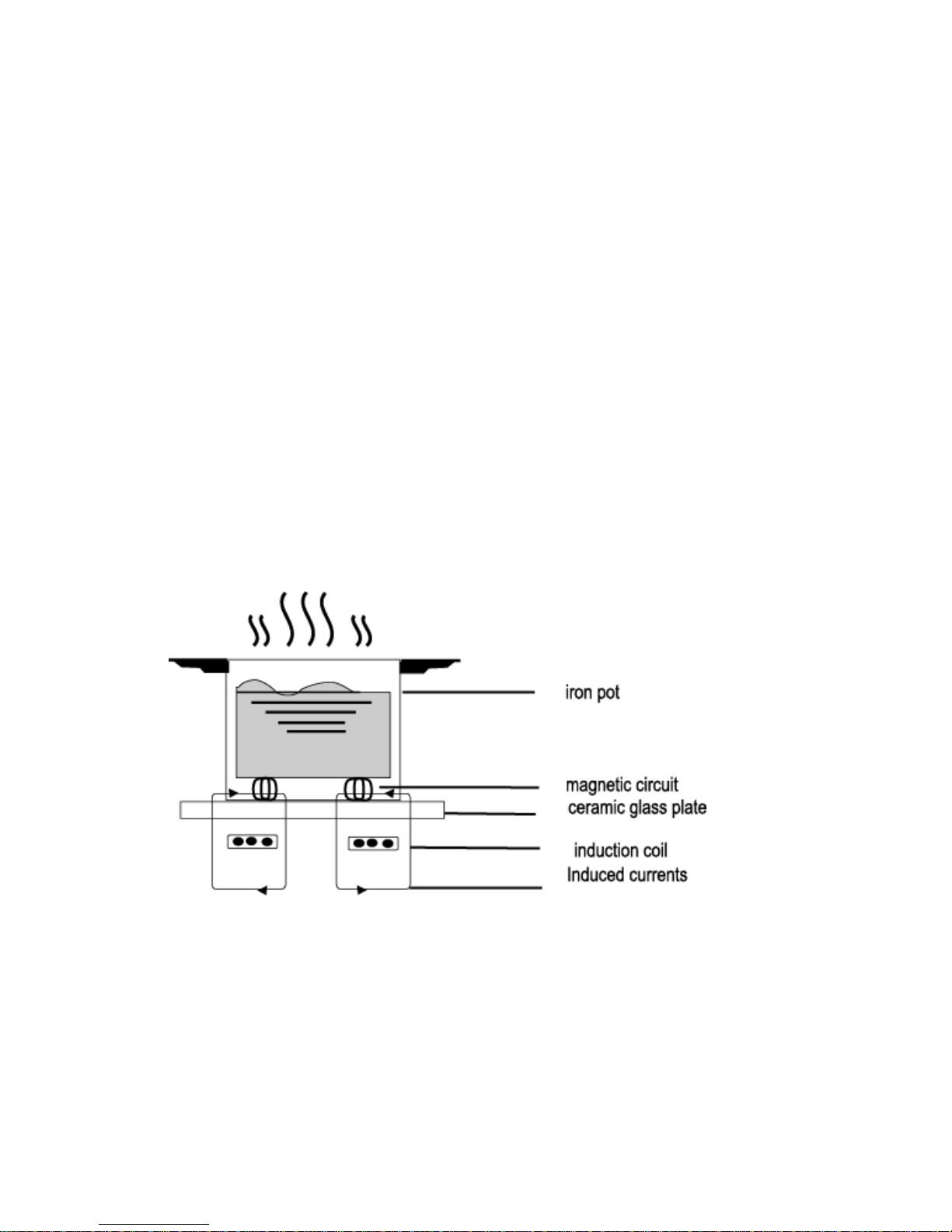

z Working Principle
The induction hob comprises a coil, a hotplate made of ferromagnetic material and a
control system. Electrical current generates a powerful magnetic field through the coil. This
produces a large n umber of vortices which in turn generate heat which is then transmitted
through the cooking zone to the cooking vessel.
z Safety
This hob was specially designed for domestic use. In its constant search to improve its
products, CNA reserves the right to modify any technical, programme or aesthetic
aspects of the appliance at any time.
1. Protection from over-heating
A sensor monitors the temperature in the cooking zones. When the temperature exceeds a
safe level, the cooking zone is automatically switched off.
- 2 -
electromagnetic cooking zones, and its micro-computerised controls and multi-functions,
Page 3
2. Detection of small or non-magnetic items
3. Residual heat indicator
When the hob has been operating for some ti
me,there will be some residual heat. The
letter “H” ap
pears to warn you that it is too hot to touch the surface.
4. Auto shut down
Another safe
ty feature of the induction
hob is auto
shutdown. This occurs whenever you
forget to switch o
ff a cooking zone.
The default shu
tdown times are shown in the table below:
Power leve
l The heating zone shut down automatically af
ter
1~3 8 hours
4~6 4 hours
7~9 2 hours
When the pan is removed from the cooking zone, it stops heating immediately and
switches i
tself off after the buzzer has sounded for one minute.
Warning:
Anyo
ne who has been fitted with a heart pacemaker should co nsult a doctor before using
the induction hob. This hob complies with all current standards on electro-magnetic safety
and in keeping with the legal requirements 89/336/CE & Directives
Installation
1. Cut a hole in the worktop of the dimension shown in the diagram below. A minimum of
50 mm s
pace should be left around the hole. The worktop should be at least 30 mm thick
and made of
heat-resistant material.
As shown in Figure (1)
Figure (
1)
2. It is essential that the induction ho
b is well ventilated and that the air intake and exit are
not blocked.
Make sure the hob is correctly installed as shown in Figure(2).
- 3 -
When a unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item
(e.g. knife, fork, key) has been left on the hob, the hob goes automatically on to standby
a minute later.
i
n
i
m
m
c
5
c
5
i
n
i
m
m
c
5
i
n
i
m
m
6
5
c
m
9
4
c
m
Figure (1)
Page 4
Figure (
2)
Caution:
For safet
y, the gap between the hob and any cupboard above it should be at least 750 mm.
3. Fix the h
ob to the worktop using the four brackets on the base of the hob. The position of
the brackets can be adjusted according to the thickness of the top.
Caution:
(1) The induction hob must be installed by a properly qualified person.
Never try to install the appliance yourself.
(2) The induction hob must not be installed ab ove refrigerator
s, freezers, dishwashers or
tumble dr
yers.
(3) The induction hob should be installed so that optimum radiation of heat is possible.
(4) The wall and the area above the hob should be able to withstand heat.
(5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant.
Connection to power supply
The socket should be connected in complian
ce with the relevant standard, to an
omnipolar circuit breaker. 30 A
MP minimum supply
The method of connection is
shown in Figure 3.
- 4 -
Air intake
Air exit
mini 5 cm
mini 5 mm
mini 2 cm
mini 750 mm
Page 5
(1)If the cable is damaged or needs replacing, this should be done by an aft
er-sales
technician using the proper tools, so as to avoid any accidents.
(2)If the appliance is being connected directly to the mains supply , an omnipolar circuit
breaker must be installed with a minimum gap of 3 mm between the contacts.
(3)The installer must ensure that the correct electrical connection has been made and that
it complies with safety regulations.
(4)The cable must not be bent or compressed.
(5)The cable must be checked regularly and only replaced by a properly qualified person.
z Diagram of induction hob:
Power regulating key
Control panel Air vent
Ceramic plate
Air entry
Heating zone selection key ON/OFF Timer key
System key
- 5 -
Means for all-pole disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules
Control panel
Air vent
Ceramic plate
Air entry
1
2
3
4
220-240V~
32A
Page 6
Instructions for Use
Preparation before using:
When the power is switc
hed on, the buzzer will sound once and all the indicators will come
on for one second and t
hen go out. The hob is now in st andby mode.Place the pan in the
centre of the cooking zone.
Operating instruction
s
When the ON/OFF key is pressed, all the indicators show "-". Select the power level by
pressing the "+" or "-" key for the releva
nt hotplate. To begin with the indicator shows
"5".Adjust up or down b
y pressing the "+" or "-" key .If you press the "+" and "-" keys
simultaneously,the power setting returns to "0" and all the cooking zone switches off.See
the
table on Page 6 for the power specific to each cooking zone.
Warning:
When the O
N/OFF key is pressed, the induction hob retu rns to st
andby mode if no other
operation is carried out within one minute.
- 6 -
Timing function
Press the ti
ming key and the indicator will start flashing. Then set the time for between 1
and 99 minu
tes, by pressing the "+" an d "-" keys. Pressing the "+" key once increases the
time by one minute; pressing the "-" key once decreases the time by one minute. When the
set time exceeds 99 minutes, it will a
utomatically return to "0" minutes. If the "-" and "+"
keys are pressed simultaneously, the indicator will display"0".
Timer confirmation
(1) Select
the power level of the cooking zone and then press the "Timer" key. The timer
can now be
set.
(2) When the timing indicator has been flashi
ng for 5 seconds, the set time will be
automatically confirmed.
(3).
After selecting a set time, confirm by pressing the "Timer" key.
Schematic diagram of the control panel
Heating zone selection key ON/OFF
Timer key
System key
Power Regulating key
Page 7
T
i
mer cancellation
Af
ter setting
the time again, hold down
the "T
imer"
key for 5 seconds.
This will cancel
the
timer and the indicator will revert to "0".
Safety mode
To ensure the safety of
children, the induction hob
is
fitted with
an interlock
device.
T
o
lock: hold
down the "Int
erlock" ;
the hob then goes
into "Interlo
ck" mode,
the timer
shows "LO
" and the rest of the keys are disabled except the "ON/OFF"key
.
Unlocking : Hold down the "Interlock"
key for 2 seconds and the hob will return to normal
working.
The maxim
um power of cooking zones is as follows:
Max. power
(W)
Heating zone
1
150
0
2
2000
3
2000
4
1500
The abo
ve may va
ry according to the size of
the p
an and the ma
terial it is ma
de from
Selection of heating appliances
Iron
oil frying pan S tainless steel pot Iron pan Iron kettle
- 7 -
Enamel stainless steel kettle Enamel cooking utensil Iron plate
You may have a number of different cooking vessels
1. This induction hob can
identify a variety of cooking vessels, which you can test by one
of the following methods:
Place the v
essel on the cooking zone. If the corresponding cooking zone displays a powe
r
level, then the vessel is
suitable. If "U" flashes, then the vessel is not suitable
2. Hold a m
agnet to the vessel. If the magnet is attracted to the vessel, it is suitable for use
with the induction hob.
Warning:
The base of
the vessel must contain magnetic material. It mu st have a flat bottom with a
diameter of more than
12 cm.
Page 8
z Care and Maintenance:
If the power cable is damaged it should be replaced by our service
agent or by another suitably qualified person.
For indoor use only.
Never wash the induction hob directly with water.
Never have the induction hotplate to work without food inside,
otherwise its operational performance may be affected.
Always open
sealed cont
ainers, such
as cans, before he
ating them,
otherwise they may expl
ode.
When a cooking zone has been on for a long time the surface
remains hot for some time afterwards - so do not touch the ceramic
surface.
- 8 -
From time to time check that nothing (e.g. glass, paper, etc.)is
obstructing the air intake beneath the induction hob.
Do not leave metallic objects, such as knives, forks, spoons and lids
on the hob as they may get hot.
Never use the induction hob near another appliance which
generates a high temperature ,such as a gas cooker or a paraffin
heater.
Do not store detergents or flammable materials beneath the hob.
Page 9
If the surface of the hob is cracked , switch off the appliance to avoid
any possibility of electric shocks.
Do not place rough or uneven vessels on the hob, as they may
damage the ceramic surface.
Clean the induction hob regularly to stop foreign objects from getting
into the fan and preventing the appliance from working properly.
Keep children or infirm persons away from the appliance. Never let
them use it unsupervised.
DISPOSAL:
Do not dispose this
product as u nsorted
municipal waste.
Collection of such
waste separately for
special treatment is
necessary.
This appliance is labeled in compliance with European directive
2002/96/EC for Waste Electrical and Electronic Equipment (WEEE).
By ensuring that this appliance is disposed of correctly, you will help
prevent any possible damage to the environment and to human
health, which might otherwise be caused if it were disposed of in the
wrong way.
The symbol
on the product indicates that it may not be treated as
normal household waste. It should be taken to a collection point for
the recycling of electrical and electronic goods.
This appliance requires specialist waste disposal. For further
information r egarding the treatment, recovery an d recycling of this
product please contact your local council, your household waste
- 9 -
disposal service, or the shop where you purchased it.
b. Children should be supervised to ensure that they do not play with the appliance.
a. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
c. The appliance is not intended to be operated by means of an external timer or separate
remote-control system.
NOTE:
d. A steam cleaner is not to be used to clean.
e. After use, switch off the hob element by its control and do not rely on the pan detector.
Page 10
Care and Maintenance
The surface of the induction hob may be easily cleaned in the following way:
Type of contam-ination Method of cleaning Cleaning materials
Rings and lime scale Apply white vinegar to the area,
wipe it dry with soft cloth or use
a commercially available product
Special hob cleaner such as
Hob Brite
Burnt on stains Use a special scraper for ceramic
glass to remove residue (a silicon
product is best)
Special hob cleaner such as
Hob Brite
Warning: Disconnect the power supply before cleaning.
Avoiding banging pots and pans down on the hob.
The glass surface is tough but not un-breakable.
Avoid rubbing with any abrasive or with the base of the pans etc as in time this will deteriorate the
markings on the top of the ceramic hob.
Avoid using pans with rough or dented bases which can cause scratches to the glass surface.
Place the pans in the middle of the cooking zone.
Do not leave any empty pan on the heating zone.
Failure Display and Inspection
If any abnormality occurs, the induction hob will automatically go into protective mode and
display one of the following codes:
F0/F1/F2 Fan failure Contact the service company
F3-F8 Temperature sensor failure Contact the service company
E1/E2 Abnormal voltage in power
supply
Check if power supply is
normal. Power on after power
supply returns to normal.
E3/E4 Abnormal temperature Check the pan
E5/E6
Poor heat radiation in
cooking zone
Restart when cooking zone
cools down
The above table shows how to assess and check common faults. Do not dismantle the
appliance yourself, otherwise you may damage the induction hob.
Customer Care Service
If a fault should occur, before calling After Sales Service, please do the following:
-Check that the appliance is correctly connected.
-Read the failure and display table above If you are still unable to resolve the problem, switch
off the appliance, do not try to dismantle it, and call After Sales Service.
Special Declaration
The contents of this manual have been carefully checked. However, the company cannot be held
responsible for any misprints or omissions. Also, any technical modifications may be included in a
revised version of the manual without notice. The appearance and colour of the appliance in this
manual may differ from the actual one.
- 10 -
Loading...
