Page 1
CB14
CB14
XW
CB14 Full Flush
Asphalt Compactors
CB14 CB14 XW CB14 XW CB14
Full Flush
Cat®C1.1 Diesel Engine
Gross power (ISO 14396) at 2400 rpm 16.1 kW/22 hp 16.1 kW/22 hp 16.1 kW/22 hp 16.1 kW/22 hp
Net power (ISO 9249) at 2400 rpm 15.5 kW/21 hp 15.5 kW/21 hp 15.5 kW/21 hp 15.5 kW/21 hp
Compaction width 800 mm 900 mm 1000 mm 900 mm
Operating weight (with ROPS) 1620 kg 1710 kg 1840 kg 1600 kg
Page 2
Caterpillar®C1.1 Engine
The C1.1 engine provides efficient power with low sound levels while meeting EU Stage IIIa
engine emission requirements.
Power. The liquid cooled Caterpillar C1.1 engine provides
a gross power of 16.1 kW (22 hp) at 2400 rpm for
excellent performance with low sound levels maximizing
operator comfort.
Optimum Fuel Efficiency. Low engine speed at 2400 rpm
provides better fuel consumption enabling more time
spent working and minimum time spent refueling.
Large Cooling Package. The large cooling package with
integrated water and oil cooler keeps engine temperatures
low in order to maximize fuel efficiency and minimize
emissions.
Serviceability. All routine service points are located to
provide the best possible access for ease of service.
Hydraulic test ports are provided for simplified system
diagnostics and SOS ports ensure mess-free oil sampling.
Vibratory System and Drum
The vibratory system provides good balance between frequency and amplitude in order to
meet various job site conditions.

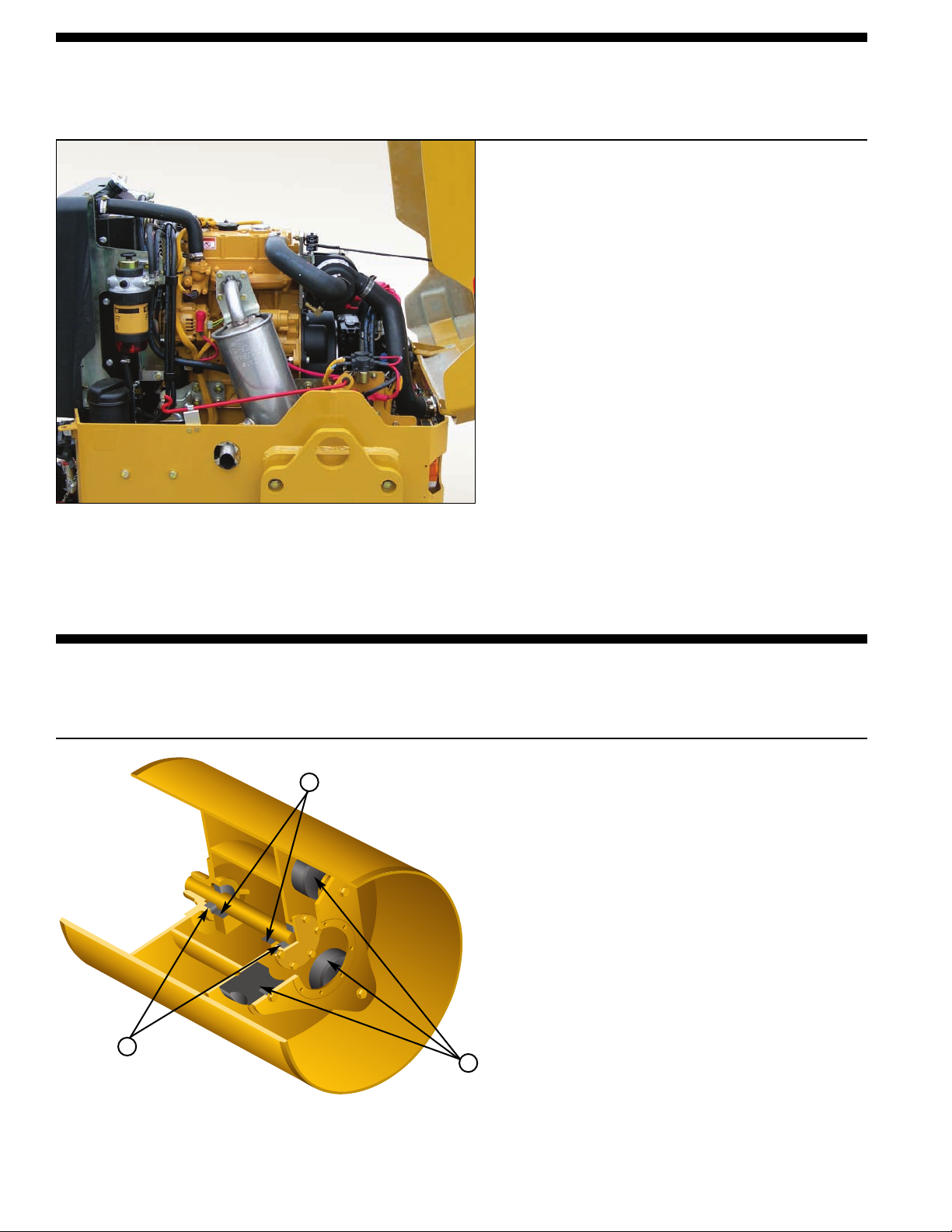

Balanced frequency and amplitude. The machines
1
3
1 Fixed Eccentric Weights
2 Replaceable Rubber Mounts
3 Self-Lubricating Bearings
incorporate a frequency of 53.3 Hz and an amplitude of
0.4 mm in order to provide a smooth mat.
Vibration selection. Drum vibration for CB14 and
CB14 XW versions can be selected for either both drums or
for front drum only. Drum vibration for CB14 Full Flush is
on rear drum.
Automatic Vibratory Control. The vibratory system
includes an automatic start feature that activates whenever
the propel lever is moved from the neutral position.
Dual Drum Drive. Continuous full drum drive traction
with hydraulic motors fitted in series providing optimum
tractive effort in all applications.
Rolled steel plate. Drums are constructed of rolled steel
plate and are finished to reduce surface irregularities.
2
Versatile drum scrapers. A spring-loaded self-adjusting
scraper and a fixed scraper is fitted to each drum to prevent
material build up.
2
Page 3

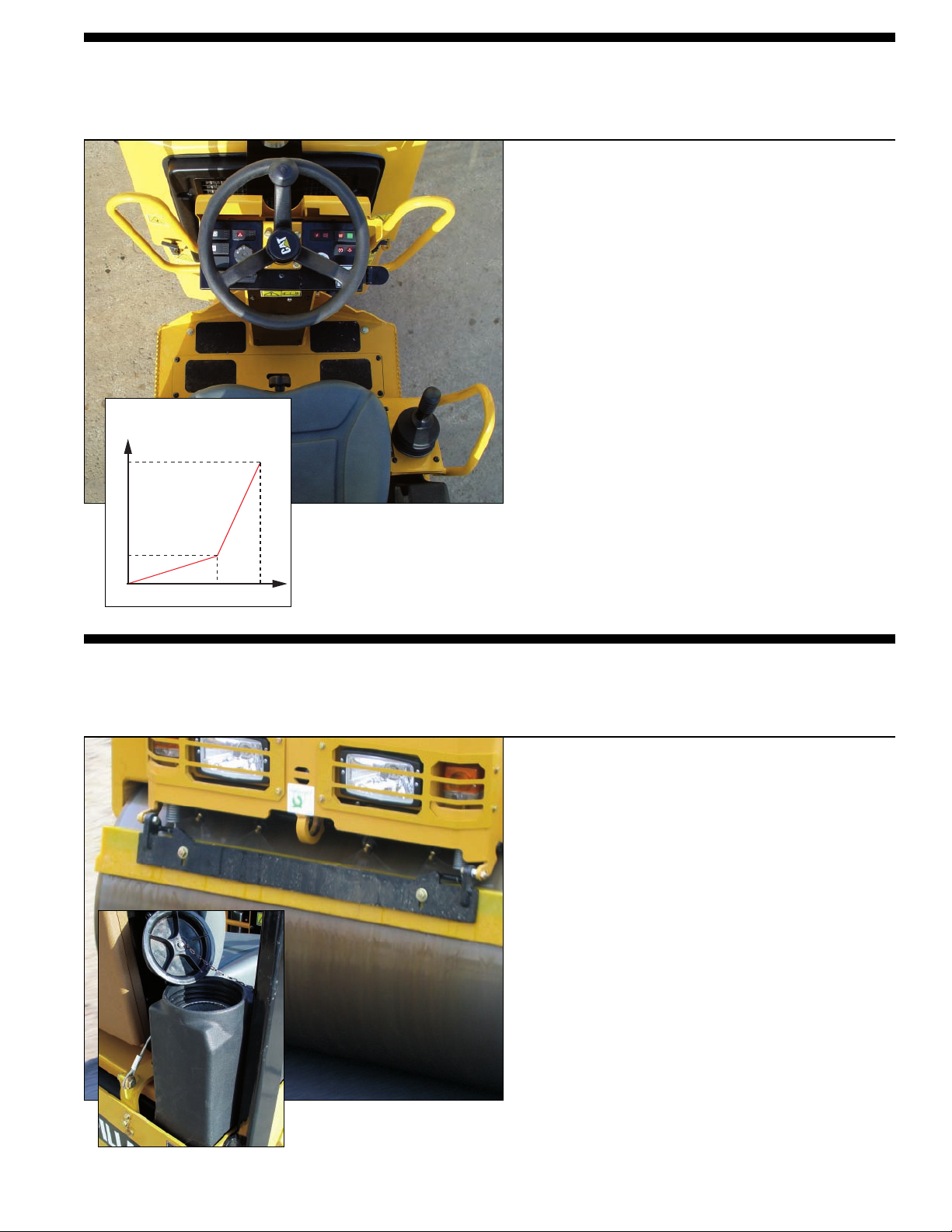

Operator’s Station
The ergonomic operating environment with comprehensive controls and good visibility
promotes day-long productivity and ease of use.
Isolated Operator’s Station. The fully-isolated and roomy
operator’s station provides optimum operator comfort for
day-long productivity. Rubber mounts on operator
platform and seat reduces the vibrations transmitted to the
operator, console and steering wheel.
Fully-Equipped Console. The easy-to-understand instrument
panel cluster integrates a hour meter and light indicators for
machine functions. The key switch includes an automatic
engine pre-heat feature in order to assist in cold-weather
starting. The steering wheel includes a steering knob for
easy maneuverability in turns. A 12-volt outlet for
plugging in personal electronic devices is also included.
Hydraulic Propel Lever’s
Regulating Curve
A
B
CD
A Maximum Speed
B Low Speed
C Half Stroke
D Maximum Stroke
Smooth Operation. The hydraulic propel lever’s two step
regulating curve provides smooth and precise control at
low speed. Machine speed increases gradually in the first
half of lever stroke for optimum control in confined areas.
The second half of lever stroke enables maximum transfer
speed to be reached rapidly.
Unobstructed visibility. Sloped engine enclosure and low
profile rear end provide unobstructed visibility to the front
and drum edges.
Foldable ROPS Option. The foldable ROPS structure folds
either backwards or forwards and does not require tools.
Water Spray System
Corrosion-proof system and extended-life components provide reliable operation.
Water Tank. A 150 liter high-capacity polyethylene water
tank is protected within the machine frame. The tank
design provides extended operation and a single fill point.
Efficient Water Coverage. Corrosion-free plastic spray bars
fed by the standard gravity fed water system provide
optimum water coverage on both drums.
Large water tank fill port
with removable filter
Large Water Tank Fill and Drain. The large water tank fill
port and grouped drains allow the system to be filled and
drained within minutes.
Pressurized Water Spray System Option. Three-mode spray
function and pressurized water spray system option with
constant or intermittent capabilities provides extended
operation between refills.
Water Filtration. Triple water filtration reduces machine
downtime caused by system clogs.
Spray Nozzles and Filters. The water spray nozzles,
included with the pressurized water spray system option,
and filters are easily removed by hand without the need of
special tools.
3
Page 4

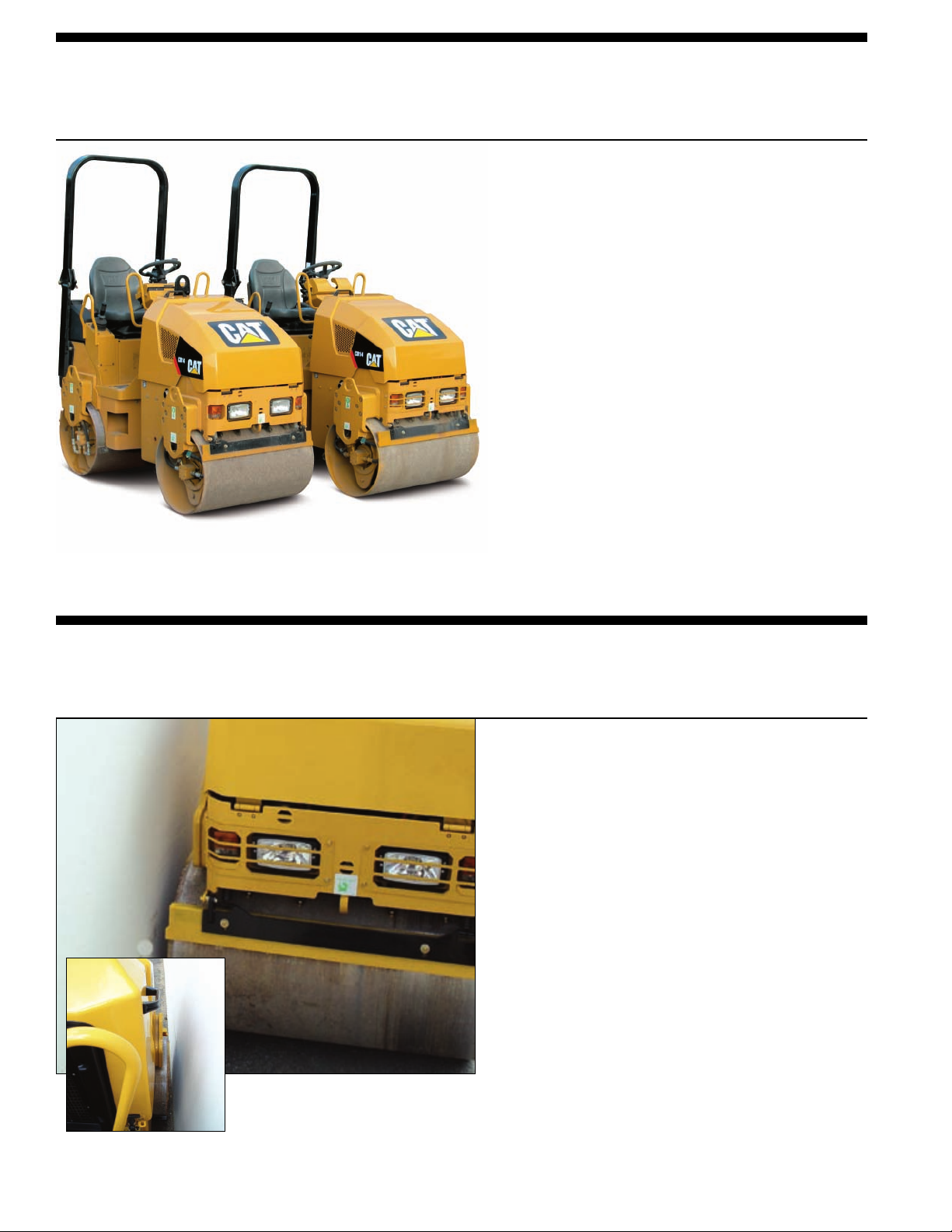

Extra Wide Drums – CB14 XW
Wider drums on the CB14 XW provide increased production results on larger job sites.
Increased Production. The CB14 XW is available in
two versions; 900 mm wide drums and 1000 mm wide
drums. These two versions enable increased mat width
coverage in fewer overlapping passes.
Offset Drum Enhances Versatility – CB14 Full Flush
An offset front driving drum provides flush compaction for increased machine versatility.
Full flush compaction. The front 900 mm offset driving
drum allows the compactor to operate against a wall,
curb or other vertical obstructions achieving complete
compaction coverage.
Visibility. Optimum visibility to the front offset drum
edge provides the operator with complete control when
working close to vertical obstructions or barriers.
4
Page 5
Serviceability
The CB14, CB 14 XW and CB14 Full Flush provide the reliability and serviceability that
you’ve come to expect from Caterpillar.

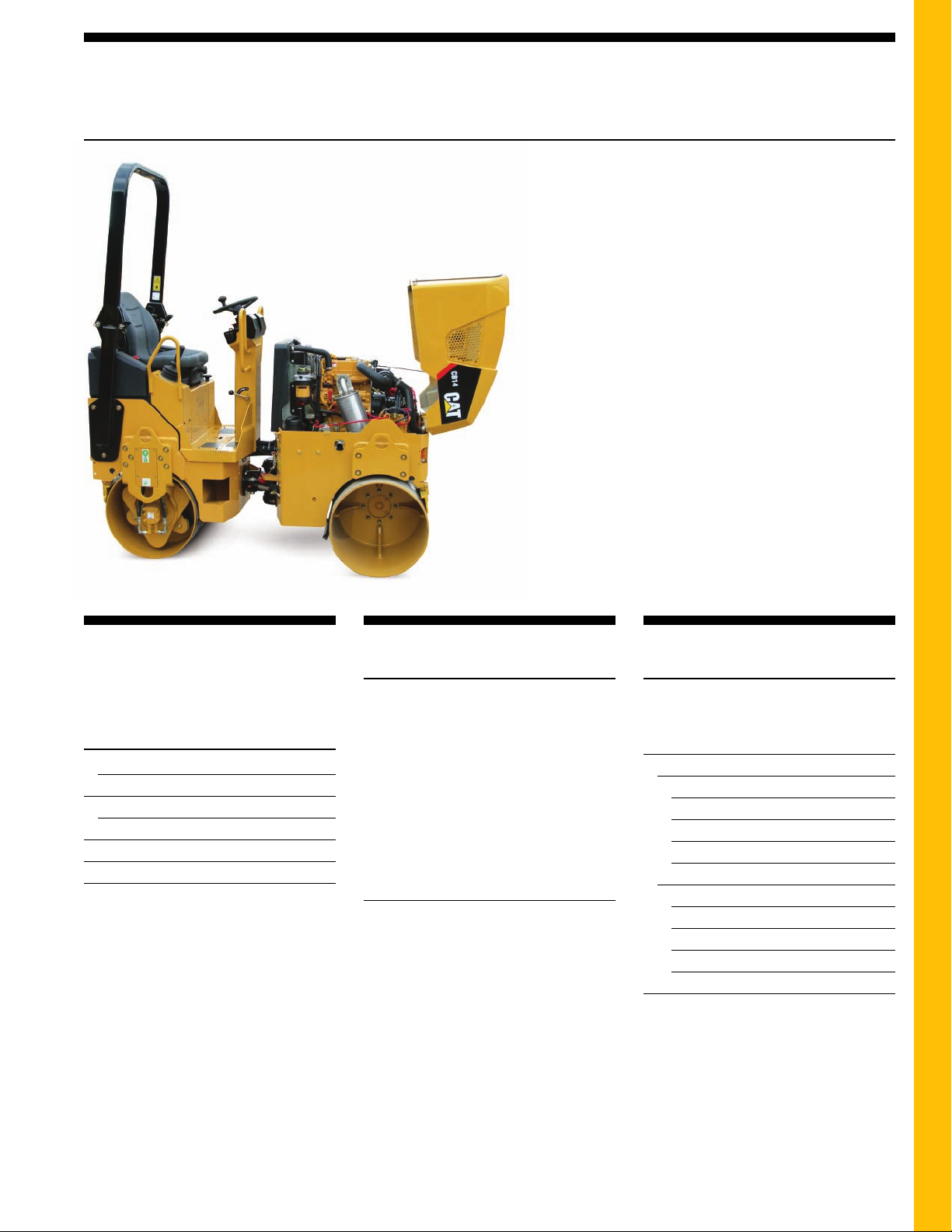

Engine Enclosure. Fiberglass engine enclosure pivots
upward and locks open with a prop rod.
Vibe Lubrication. Oil-bath lubrication of eccentric weight
bearings reduces routine maintenance to 1 year/500 hour
intervals.
Service Points. External engine components, hydraulics
and routine service points are clustered in easy-to-access
locations.
Oils. Extended-life oils increase maintenance intervals
for the vibratory system, hydraulic system and engine oil.
Engine oil change interval has been extended to 500 hours.
Drains. Remote-mounted drains for engine, hydraulic oil
and cooling system provide simplified collection of fluids.
Hydraulic Test Ports. Quick-connect hydraulic test ports
simplify system diagnosis.
Electrical System. Electrical wiring is color-coded and
numbered for simple troubleshooting. Nylon-braided wrap
and all-weather connectors ensure electrical system
integrity.
Engine
Four-stroke cycle, three cylinder
Caterpillar C1.1 diesel engine
meets European Stage IIIa emission
requirements.
Gross Power 2400 rpm
ISO 14396 16.1 kW/22 hp
Net Power 2400 rpm
ISO 9249 15.5 kW/21 hp
Bore 77 mm
Stroke 81 mm
Displacement 1131 cm
n
All engine horsepowers are metric
including front cover.
n
Net power ratings are tested at the
reference conditions for the specified
standard.
n
Net power advertised is the power
available at the flywheel when the
engine is equipped with fan, air
cleaner, muffler and alternator.
n
Dual-element, dry-type air cleaner
with visual restriction indicator.
Transmission
n
Dual hydrostatic drum drive with
hydraulic motors fitted in series.
n
Variable-displacement piston-type
pump supplies pressure flow to fixeddisplacement hydraulic motors that
drive the front and rear drums.
n
A propel lever located at the
operator’s station provides smooth
control of the infinitely variable
speeds in both forward and reverse.
3
Speed
Forward and reverse 0-8.5 km/h
Steering
Priority-demand hydraulic power-assist
steering system provides smooth, firm
machine handling.
Minimum turning radius
Inside drum edge mm
CB14 2650
CB14 XW (900 mm) 2625
CB14 XW (1000 mm) 2600
CB14 Full Flush L2650/R2600
Outside drum edge
CB14 3050
CB14 XW (900 mm) 3075
CB14 XW (1000 mm) 3100
CB14 Full Flush L3100/R3050
Steering angle 32°
CB14, CB14 XW and CB14 Full Flush specifications
5
Page 6
Instrumentation
n
The control console includes: steering
wheel with knob, roading light
switch, horn, water spray system
switch, vibratory drum selector
switch, turn signals, hazard flasher
control, parking brake, engine
ignition with preheat and working
light switch (if equipped).
n
The instrument panel cluster
integrates the service hour meter and
also the light indicators for: working
lights (if equipped), water spray,
roading lights, parking brake, engine
coolant temperature, alternator, engine
oil temperature, vibratory system,
engine preheat and turn signals.
n
The vibratory system is actuated with
a switch on the top of the propel
lever.
n
When the vibratory system is
activated, a vibration indicator light
illuminates.
n
The vibratory system includes an
automatic start feature that activates
whenever the propel lever is moved
from the neutral position and
deactivates when moved into neutral.
n
The engine throttle control is operated
via a lever positioned to the right side
of the steering column.
n
The control console, the hood and the
literature compartment are equipped
with lockable covers.
Brakes
Brake systems meet EN500-4.
The braking system will automatically
engage if a pressure drop in the
hydraulic system occurs.
Service
Closed-loop hydrostatic drive system
provides dynamic braking during
machine operation.
Secondary and Parking
Spring-applied/hydraulically released
brake on front and rear drums. Actuated
by switch on console or automatically
when pressure is lost in brake circuit or
when engine is shut off.
Water Spray System
n
The standard gravity fed water spray system is equipped with a plastic spray bar for
corrosion resistance. The water tank is reinforced polyethylene.
n
The optional pressurized water spray system is equipped with spray nozzles and an
electric water pump that provides either continuous or intermittent spray.
Intermittent spray setting increases spray time by 50 percent over continuous
setting.
n
Triple filtration includes a filter on the tank fill spout, an in-line filter at the water
pump and filters on each spray nozzle. Spray nozzles with drop stop feature are
easily removed without tools for cleaning (if equipped with the optional pressurized
water spray system).
n
Four spray nozzles are fitted over the rear drum and three nozzles over the front
drum for optimum water coverage (if equipped with the optional pressurized water
spray system).
Frame
Electrical System
Optional Equipment
Roll Over Protective Structure (ROPS)
Foldable ROPS
Pressurized Water Spray
Working Light Package
Lights Protection
Rotating Beacon
Battery Disconnect Switch
Suspension Seat with Seat Switch
Spark Arrestor Muffler
Single Lifting Point
Biodegradable Hydraulic Oil
Fabricated from heavy gauge steel plate
and rolled sections. The two sections are
joined by two hardened steel pins that
are supported by heavy-duty roller
bearings. A vertical pin provides a ±32°
steering angle and the frame/yoke
provides ±8° oscillation for a smooth
ride and uniform drum loading.
6
CB14, CB14 XW and CB14 Full Flush specifications
The 12-volt electrical system includes
one maintenance-free Cat®battery and
color-coded and numbered wiring
wrapped in nylon braid. The system
includes a 40-amp alternator.
Page 7
Compaction
Characteristics
Vibration selections
CB14 Front or both
CB14 XW Front or both
CB14 Full Flush Rear
Eccentric weight drive Hydraulic
Frequency 53 Hz
Nominal amplitude
CB14 0.4 mm
CB14 XW (900 mm) 0.38 mm
CB14 XW (1000 mm) 0.4 mm
CB14 Full Flush 0.4 mm
Centrifugal force per drum
CB14 10.3 kN
CB14 XW (900 mm) 10.3 kN
CB14 XW (1000 mm) 11.4 kN
CB14 Full Flush 10.3 kN
Static linear load
CB14 10.1 kg/cm
CB14 XW (900 mm) 9.5 kg/cm
CB14 XW (1000 mm) 9.2 kg/cm
CB14 Full Flush 9.4 kg/cm

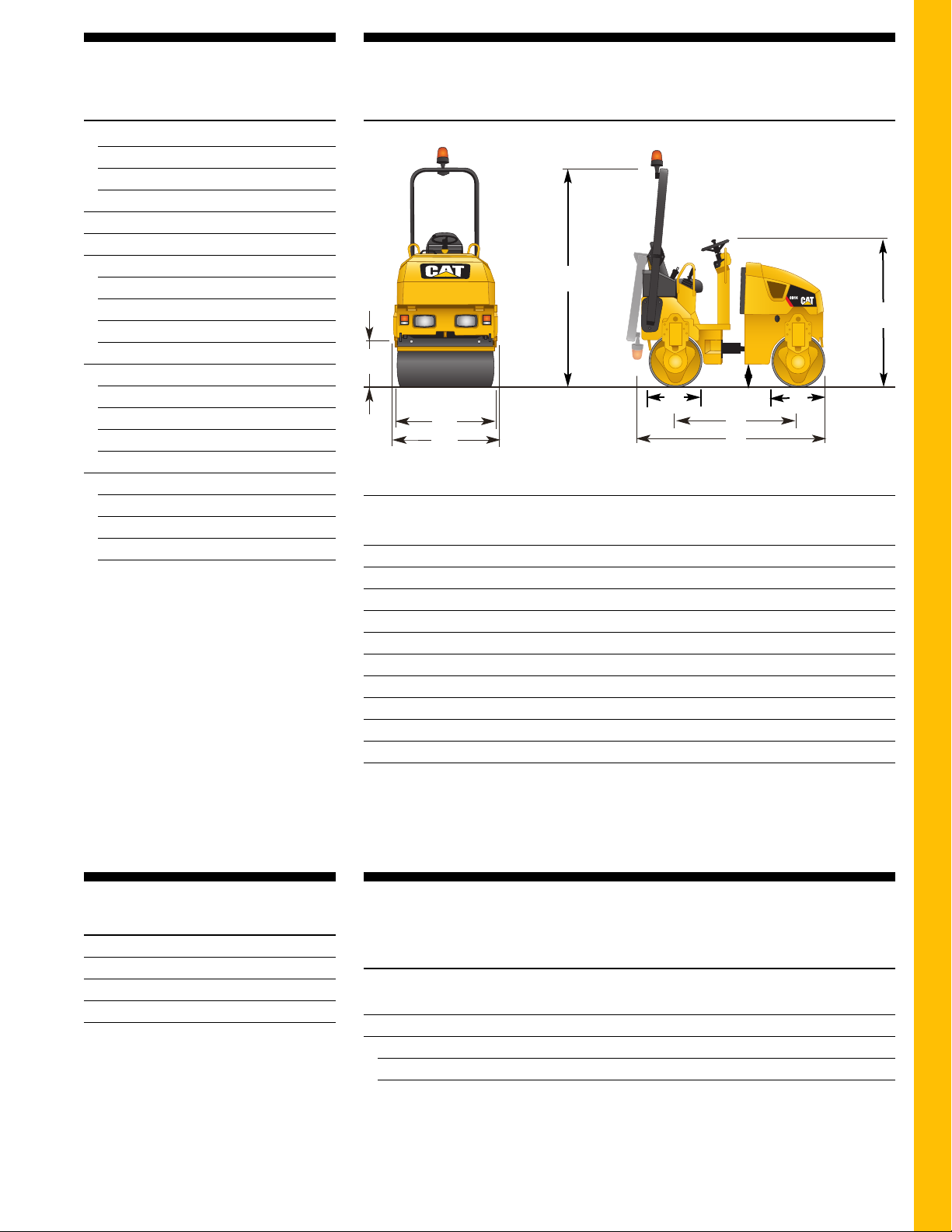

Dimensions
All dimensions are approximate.
F
E
H
C
J
K
CB14 CB14 XW CB14
A Length 2050 2050 2050
B Wheelbase 1300 1300 1300
C Drum diameter 575 575 575
Drum shell thickness 10 10 10
E Height at steering wheel 1630 1630 1630
F Height at ROPS 2395 2395 2395
G Ground clearance 250 250 250
H Curb clearance 370 370 370/*
J Compaction width 800 900/1000 900
K Machine width 884 984/1084 960
* Offset drum on right side
G
C
B
A
(900/1000 mm) Full Flush
mm mm mm
Service Refill Capacities
Liters
Fuel Tank 30
Engine oil with filter 4.9
Hydraulic fluid tank 34
Water spray system 150
Weights
Operating weights include lubricants, 80 kg operator, full fuel tank, full hydraulic
system and half-full water tanks (all weights are approximate).
CB14 CB14 XW CB14
(900/1000 mm) Full Flush
kg kg kg
Operating weight with ROPS 1620 1710/1840 1600
at front drum 740 785/840 720
at rear drum 880 925/1000 880
CB14, CB14 XW and CB14 Full Flush specifications
7
Page 8
CB14, CB14 XW and CB14 Full Flush Asphalt Compactors
®
HEHG3561-2 (10/2009) hr
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at
Materials and specifications are subject to change without notice. Featured machines in photos
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
may include additional equipment. See your Caterpillar dealer for available options.
© 2009 Caterpillar -- All rights reserved
www.cat.com
Loading...
