Page 1
®
CB34
CB34
Utility Compactors
XW
CC34
Utility Combi Compactor
CB34 CB34 XW CC34
Cat®C2.2 Diesel Engine
Gross power (ISO 14396) at 2400 rpm 34.1 kW/46 hp 34.1 kW/46 hp 34.1 kW/46 hp
Net power (ISO 9249) at 2400 rpm 33 kW/45 hp 33 kW/45 hp 33 kW/45 hp
Compaction width 1300 mm 1400 mm 1300 mm
Operating weight (with ROPS) 3940 kg 4200 kg 3670 kg
Page 2

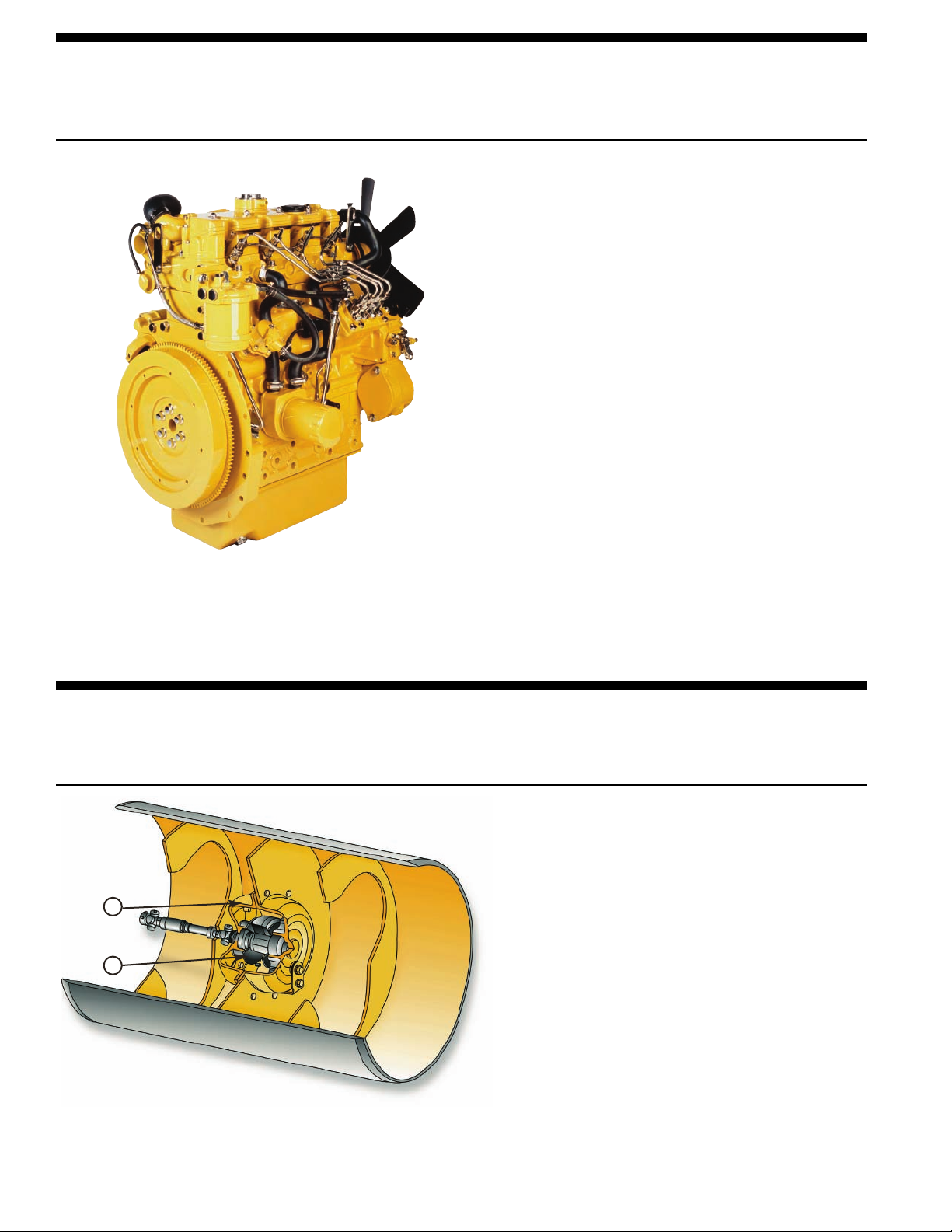

Caterpillar®C2.2 Engine
The C2.2 engine provides efficient power while meeting EU Stage IIIa engine emission
requirements.
Power. The liquid cooled Caterpillar C2.2 engine provides
a gross power of 34.1 kW (46 hp) and a torque of 143 Nm
for excellent performance and reliability on grades and in
tough conditions.
Large Cooling Package. The large cooling package with
integrated water and oil cooler keeps engine temperatures
low in order to maximize fuel efficiency and minimize
emissions.
High Ambient Cooling Option. The high ambient cooling
provides capability to achieve greater production rates at
high ambient temperatures.
Reduced Sound Levels. Low sound levels are achieved in
both operating speeds. An intermediate throttle position
enables even quieter operation for optimum operator
comfort.
Vibratory System
The vibratory system provides good balance between frequency and amplitude in order to
meet various job site conditions.
Dual Frequency Vibratory System. The standard vibratory
system incorporates two frequencies in order to provide
increased application versatility.
Vibration Selection. A vibratory selection switch provides
standard front, rear and both drum vibratory capabilities.
1
2
1 Eccentric Weight Housing
2 Exclusive Eccentric Weight
Automatic Vibratory Control. The vibratory system
includes an automatic start feature that activates whenever
the propel lever is moved from the neutral position.
Rear Drum Vibe Delay. The vibe delay function controls
the start of the rear drum in order to assist power
management on slopes.
Pod-style weight housings. They are assembled and sealed
at the factory to ensure cleanliness, extended bearing life
and easy field exchange/service.
Bearing lubrication. Change interval for bearing
lubrication is every 3 years or 3000 hours.
2
Page 3

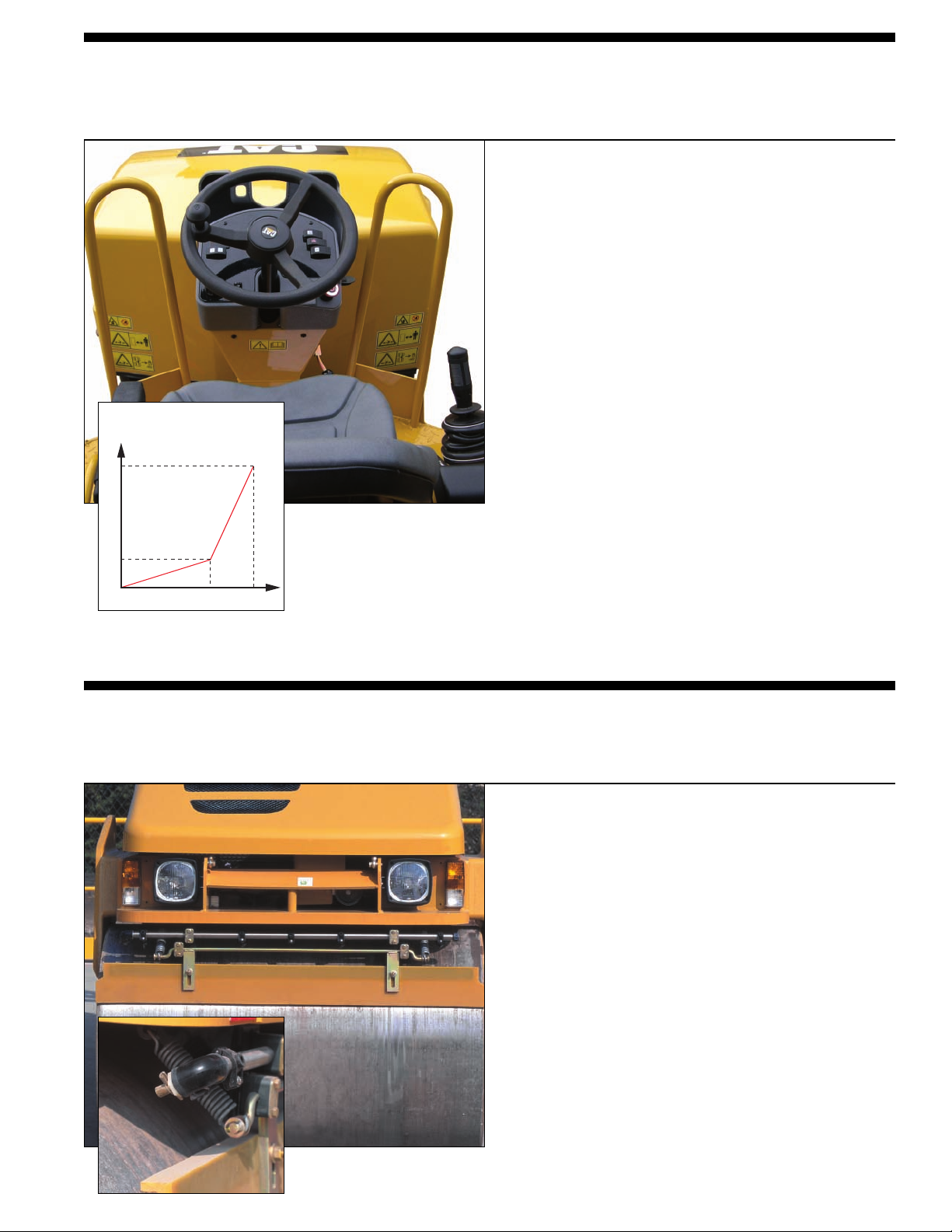

Operator’s Station
The convenient, comfortable operating environment with sliding seat provides good visibility
and promotes day-long productivity.
Operator’s Station. The operator’s station incorporates
a fully-equipped console and an adjustable sliding
suspension seat. Arm and wrist rests provide better
operator comfort for day-long productivity. The steering
wheel includes a steering knob for easy maneuverability in
turns.A 12-volt outlet for plugging in personal electronic
devices is also included.
Instrument Panel. The easy-to-understand instrument
panel cluster integrates a fuel level indicator, hour meter
and light indicators for machine functions.The key switch
includes an automatic engine pre-heat feature in order to
assist in cold-weather starting.
Hydraulic Propel Lever’s
Regulating Curve
A
B
CD
A Maximum Speed
B Low Speed
C Half Stroke
D Maximum Stroke
Smooth Operation. The hydraulic propel lever’s two step
regulating curve provides smooth and precise control at
low speed. Machine speed increases gradually in the first
half of lever stroke for optimum control in confined areas.
The second half of lever stroke enables maximum transfer
speed to be reached rapidly.
Foldable ROPS (optional). The foldable ROPS includes
two gas struds that assist the operator when raising or
lowering for transport. The ROPS structure folds
backwards and does not require special tools.
Unobstructed visibility. Sloped engine enclosure, low
profile rear end and sliding operator's station provide
unobstructed visibility to the drum edges or wheel
contact points.
Water Spray System
Corrosion-proof system and extended-life components provide reliable operation.
Water Tank. A 300 liter high-capacity polyethylene water
tank is enclosed within the machine frame. The tank design
provides extended operation and a single fill point.
Spray Capabilities. The standard pressurized water spray
system with constant or intermittent capabilities provides
extended operation between refills.
Water Pump and Filters. The extended life water pump and
filters are conveniently located for easy access while
providing optimum spray and flow.
Water Filtration. Triple water filtration reduces machine
downtime caused by system clogs.
Large Water Tank Fill and Drain. The large water tank fill
and grouped drains allow the system to be filled and drained
within minutes.
Spray Nozzles and Filters. Water spray nozzles and filters
are easily removed by hand without the need of special
tools.
3
Page 4

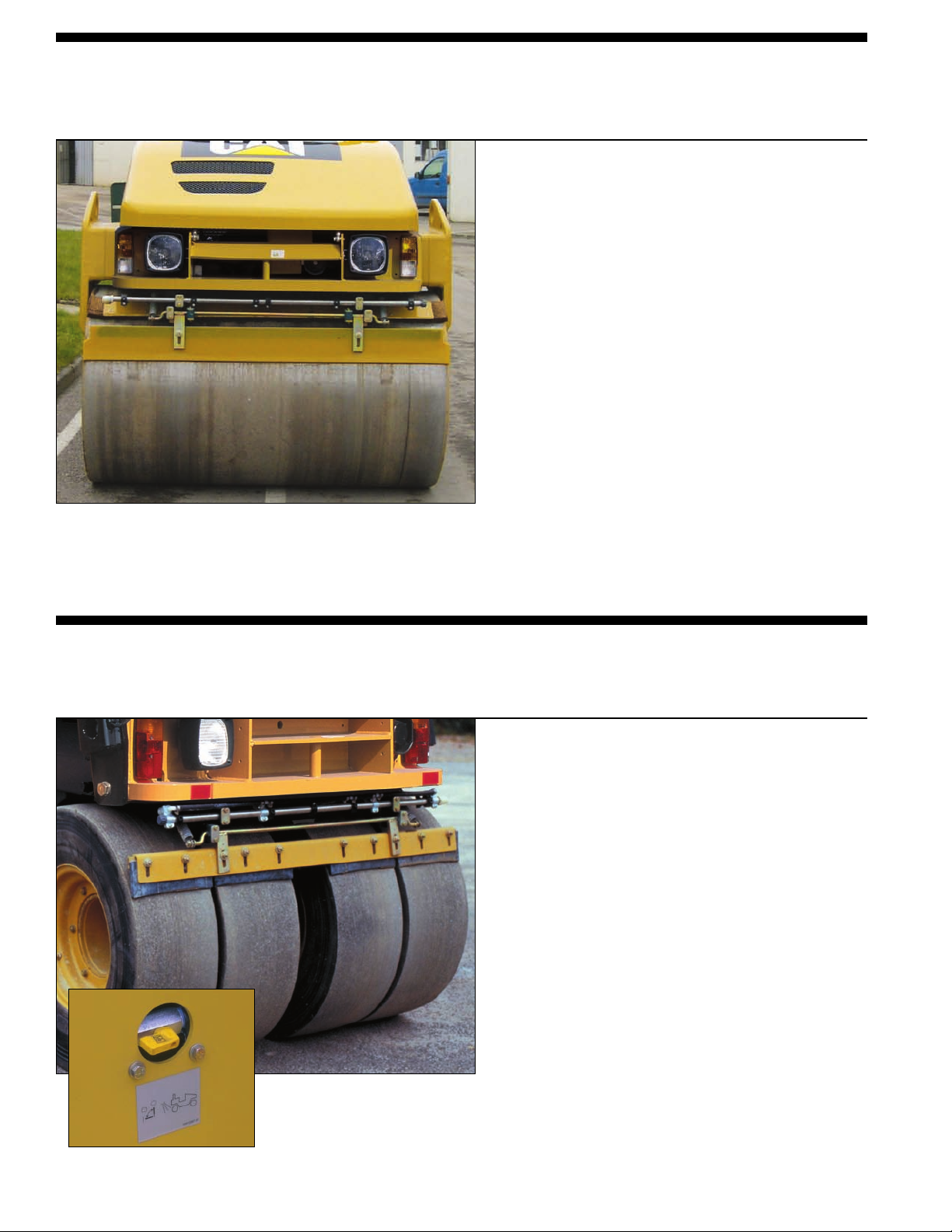

Extra Wide Drums – CB34 XW
Wider drums on the CB34 XW provide increased production results on larger job sites.
Increased Production. The CB34 XW is equipped with
1400 mm wide drums and can cover greater mat widths
in fewer overlapping passes. The rolling pattern changes
with an increased production.
Increased Amplitude. Wider drums, increased amplitude
and dual frequency balanced with the amplitude setting
makes this machine an excellent choice of machinery on
thin asphalt lift mats and larger job sites.
Tyres Enhance Versatility – CC34
The CC34 incorporates a steel, front drum with rear pneumatic tyres. The pneumatic tyres
provide even compaction on uneven surfaces.
Front drum and rear rubber tyres. Steel front drum and
rubber tires at the rear allow a single machine to function
as both a double drum and pneumatic compactor.
Rubber tires. Four rubber tyres (10.5/80 - 16 6-ply)
generate a high ground contact pressure that penetrates
deep into the lift.
Flexible tires. Because the tyres are flexible, horizontal
pressures develop, assisting with compaction.
Adjustable scraper. Each tyre is fitted with a replaceable,
adjustable scraper. The scrapers can be positioned above
the tyres when they are not needed.
Emulsion Filing Port. The emulsion filling port is located
at the rear of the machine and can be accessed without
opening the rear hood.
Optional tyre spray system
control activates the solvent
sprayed to prevent asphalt from
adhering to the tyres surface.
4
Page 5

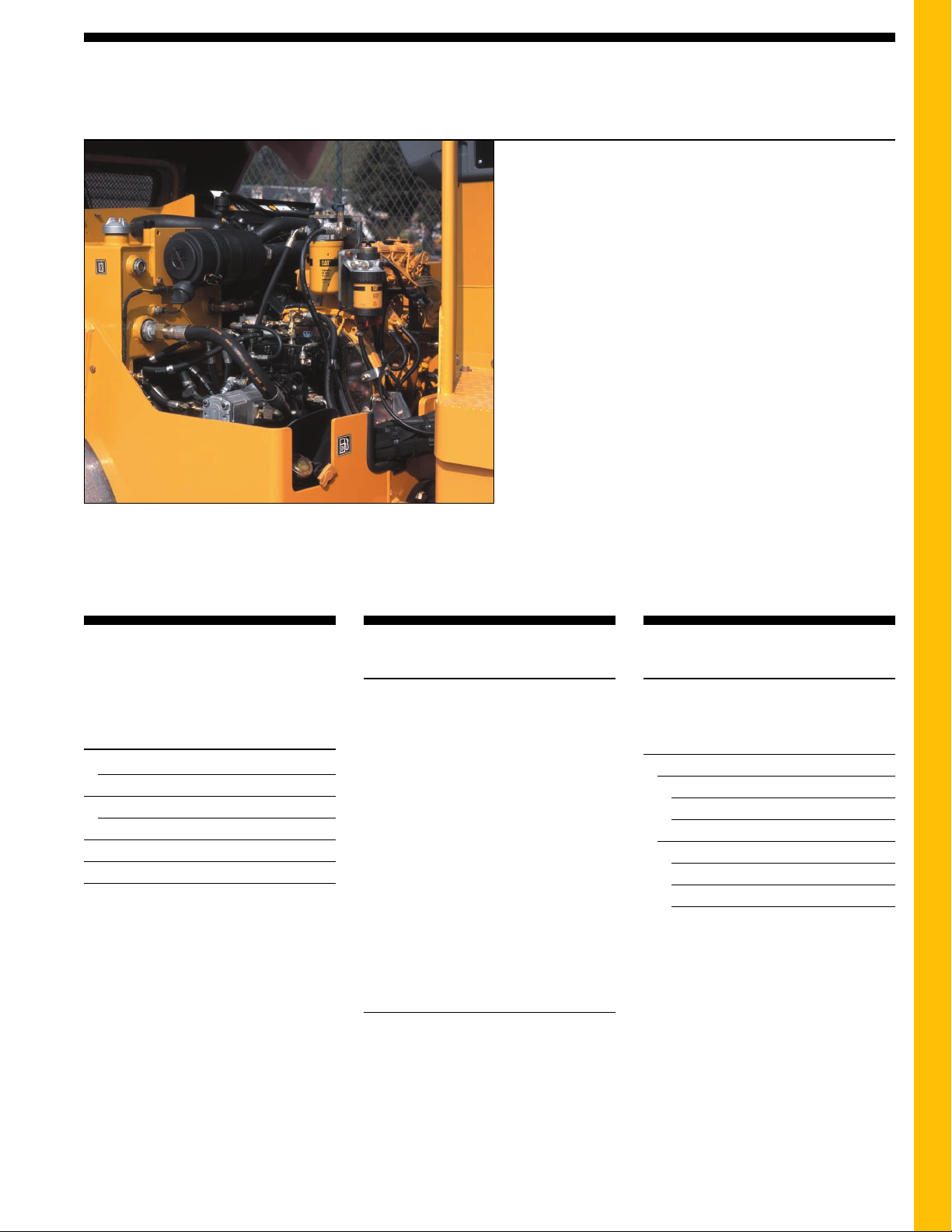

Serviceability
The CB34, CB34 XW and CC34 machines provide the reliability and serviceability that
you’ve come to expect from Caterpillar.
Engine Enclosure. Fiberglass engine enclosure pivots
upward and locks open with a prop rod.
Vibe Lubrication. Oil-bath lubrication of eccentric weight
bearings reduces routine maintenance to 3 year/3000 hour
intervals.
Service Points. External engine components, hydraulics and
routine service points are clustered in easy-to-access
locations.
Oils. Extended-life oils increase maintenance intervals
for the vibratory system, hydraulic system and engine oil.
Engine oil change interval has been extended to 500 hours.
Drains. Remote-mounted drains for engine, hydraulic oil
and cooling system provide simplified collection of fluids.
Hydraulic Test Ports. Quick-connect hydraulic test ports
simplify system diagnosis.
Electrical System. Electrical wiring is color-coded and
numbered for simple troubleshooting. Nylon-braided wrap
and all-weather connectors ensure electrical system
integrity.
Engine
Four-stroke cycle, four cylinder
Caterpillar C2.2 diesel engine meets
European Stage IIIa emission
requirements.
Gross Power 2400 rpm
ISO 14396 34.1 kW/46 hp
Net Power 2400 rpm
ISO 9249 33 kW/45 hp
Bore 84 mm
Stroke 100 mm
Displacement 2216 cm
n
All engine horsepowers are metric
including front cover.
n
Net power ratings are tested at the
reference conditions for the specified
standard.
n
Net power advertised is the power
available at the flywheel when the
engine is equipped with fan, air
cleaner, muffler and alternator.
n
Dual-element, dry-type air cleaner
with visual restriction indicator.
Transmission
CB34 and CB34 XW – Variable-
displacement piston pump supplies
pressure flow to fixed-displacement
hydraulic motors that drive the front and
rear drums.
CC34 – Variable-displacement piston
pump supplies pressure flow to a fixeddisplacement hydraulic motor that drives
the front drum, and the pump supplies
pressure flow to two fixed-displacement
3
motors that drive the rear wheels.
For the three machines, a propel lever
located at the operator’s station provides
smooth control of the infinitely variable
speeds in both forward and reverse.
Speed
Forward and reverse 0-12.5 km/h
Steering
Priority-demand hydraulic power-assist
steering system provides smooth, firm
machine handling.
Minimum turning radius
CB34/ CC34
Inside drum edge 3000 mm
Outside drum edge 4300 mm
CB34 XW
Inside drum edge 2950 mm
Outside drum edge 4350 mm
Steering angle 35°
CB34, CB34 XW and CC34 specifications
5
Page 6
Instrumentation
n
The control console includes: steering
wheel with knob, water spray system
switch, vibratory drum selector
switch, horn, hazard flasher control,
turn signals, warning and working
light switches, engine start switch
with preheat and the secondary brake.
n
The instrument panel cluster
integrates the fuel level indicator,
service hour meter and also the light
indicators for: roading lights,
secondary brake, hydraulic oil
temperature, engine coolant
temperature, alternator, engine oil
pressure, vibration on, engine preheat
and the turn signals.
n
The vibratory system is actuated with
a switch on the top of the propel
lever.
n
When the vibratory system is
activated, a vibration indicator light
illuminates.
n
The engine throttle control is operated
via a three-position lever for low,
intermediate and high engine speed.
n
The control console, the hood and the
literature compartment are equipped
with lockable covers.
Brakes
Brake systems meet EN500-4.
The braking system will automatically
engage if a pressure drop in the
hydraulic system occurs.
Service
Closed-loop hydrostatic drive system
provides dynamic braking during
machine operation.
Secondary and Parking
Spring-applied/hydraulically released
brake on front and rear drums. Actuated
by switch on console or automatically
when pressure is lost in brake circuit or
when engine is shut off.
Water Spray System
n
Spray bars are constructed of stainless
steel for corrosion resistance. The
water tank is reinforced polyethylene.
n
An electric water pump provides
either continuous or intermittent
spray. Intermittent spray setting
increases spray time by 50 percent
over continuous setting.
n
Triple filtration includes a filter on
the tank fill spout, an in-line filter at
the water pump and filters on each
spray nozzle. Spray nozzles are easily
removed without tools for cleaning.
Tyre Spray System Option
n
Tyre Spray System allows a solvent
to be sprayed on the tire surfaces,
helping prevent asphalt from adhering
to the tyres.
n
One spray nozzle is positioned above
each tyre.
n
The system is controlled with an
on/off switch on the control console.
Electrical System
The 12-volt electrical system includes
one maintenance-free Cat®battery and
color-coded and numbered wiring
wrapped in nylon braid. The system
includes a 65-amp alternator.
Wheels and Tyres
CC34 – 10.5/80 - 16 6-ply tyres are
standard. Each tyre is equipped with
a replaceable scraper.
n
The scrapers help clean asphalt or soil
off the tyres. The scrapers can be
retracted when they are not needed.
n
An optional traction control device on
the rear tyres, activated by a foot
control from the operator's platform,
increases tractive effort and minimizes
drum spinning in slippery conditions.
Frame
Fabricated from heavy gauge steel plate
and rolled sections. The two sections are
joined by two hardened steel pins that
are supported by heavy-duty roller
bearings. A vertical pin provides a ±35°
steering angle and the frame/yoke
provides ±10° oscillation for a smooth
ride and uniform drum loading.
6
CB34, CB34 XW and CC34 specifications
Final Drives
CB34 and CB34 XW – High-torque, low-
speed hydraulic motors directly drive
each drum.
CC34 – High-torque, low-speed hydraulic
motor directly drives the front drum, and
two high-torque, low-speed hydraulic
motors directly drive the
rear wheels.
Service Refill Capacities
Liters
Fuel Tank 57
Engine oil with filter 10.6
Hydraulic fluid tank 48
Water spray system 300
Tyre spray system 20
Page 7
Compaction
Characteristics
Vibration selections
CB34 Front, Rear and both
CB34 XW Front, Rear and both
CC34 Front
Eccentric weight drive Hydraulic
Frequency
CB34/CC34 69/61 Hz
CB34 XW 53/48 Hz
Nominal amplitude
CB34/CC34 0.37 mm
CB34 XW 0.5 mm
Centrifugal force per drum
CB34/CC34 33.1 kN
CB34 XW 29.5 kN
Static linear load
CB34 15.2 kg/cm
CC34/CB34 XW 15 kg/cm
Optional Equipment
Roll Over Protective Structure (ROPS)
Foldable ROPS
Sun Canopy
Traction Control (CB34 and CB34 XW)
Rear Tyres Traction (CC34 only)
Working Light Package
Roading and Working Light Package
Lights Protection
Rotating Beacon
Battery Disconnect Switch
Engine Tachometer
Suspension Seat with Seat Switch
Pump Brake Release (CC34 only)
Coco Mats
Water Distribution Mats
Spark Arrestor Muffler
Non-Machined Drum Edges
Drum-End Guard System
High Ambient Cooling
Tyre Wetting System (CC34 only)
Italian Road Homologation

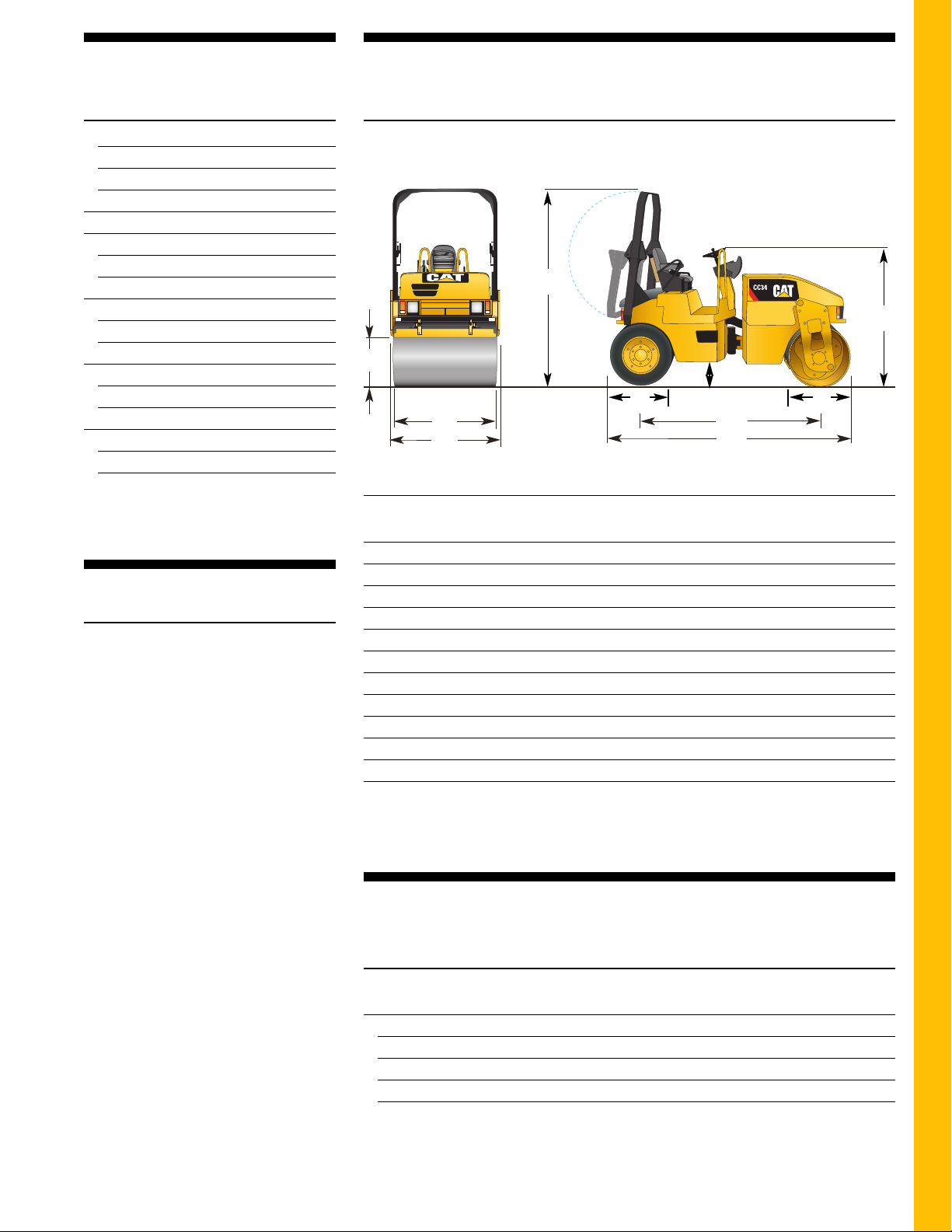

Dimensions
All dimensions are approximate.
F
E
H
D
J
K
A Length 3120 3120
B Wheelbase 2320 2320
C Drum diameter 800 800
Drum shell thickness 13 15.5
D Tyre diameter (CC34) –/770 –
E Height at steering wheel 1847 1847
F Height at ROPS 2557 2557
Height with ROPS folded 1890 1890
G Ground clearance 284 284
H Curb clearance 602 602
J Compaction width 1300 1400
K Machine width 1390 1490
G
C
B
A
CB34/CC34 CB34 XW
mm mm
Weights
Operating weights include lubricants, 80 kg operator, full fuel tank, full hydraulic
system and half-full water tanks (all weights are approximate).
CB34 CB34 XW CC34
kg kg kg
Operating weight with ROPS 3940 4200 3670
at front drum 1940 2070 1950
at rear drum 2000 2130 –
at rear wheels – – 1720
weight per rear wheel – – 430
CB34, CB34 XW and CC34 specifications
7
Page 8
CB34 and CB34 XW Utility Compactors
®
CC34 Combi Utility Compactor
HEHG3653-1 (10/2009) hr
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at
Materials and specifications are subject to change without notice. Featured machines in photos may include additional
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
equipment. See your Caterpillar dealer for available options.
© 2007 Caterpillar – All rights reserved
www.cat.com
Loading...
