Page 1
AD60
Underground Articulated Truck
Preliminary
Engine Operating Specifications
Engine Model Cat
Gross Power – SAE J1995 (1st gear/2-7th gear) 579/600 kW 776/805 hp Gross Machine Operating Weight 110 000 kg 242,508 lb
Net Power – SAE J1349 (1st gear/2-7th gear) 540/560 kW 725/751 hp
®
C27 ACERT™ Nominal Payload Capacity 60 000 kg 132,277 lb
Page 2
AD60 Features
One Supplier
Caterpillar designed and manufactured major
power and drive train components for reliability
and performance.
High Performance Engine
The Cat ® C27 engine with ACERT™ Technology
offer the perfect balance between power,
robustdesign and economy.
Power Shift Transmission
Reliable and rugged design to deliver power
andefficiency for peak power train performance.
Engine/Power Train Integration
Intelligent and robust electronics integrate all
power and drive train components for overall
optimum performance.
Robust Braking
Cat oil-cooled multiple disc brakes offer
exceptional, fade resistant braking in all haul
roadconditions.
Comfortable Cab
Ergonomically designed for all-day comfort,
controland productivity.
Truck Body
A variety of Caterpillar designed and built bodies
and liners ensure optimal performance and
reliability in tough mining applications.
Enhanced Serviceability
Designed with improved service points
and grouped service locations to simplify
maintenanceand repair.
Contents
Power Train – Engine .........................................4
Power Train – Transmission ..............................5
Engine/Power Train Integration ........................6
Cat Brake System................................................7
Operator Comfort ................................................8
Truck Body Systems ...........................................9
Structures...........................................................10
Serviceability .....................................................10
Customer Support .............................................11
Safety ..................................................................12
Speci cations ....................................................13
Standard Equipment .........................................18
Optional Equipment...........................................19
2
Page 3

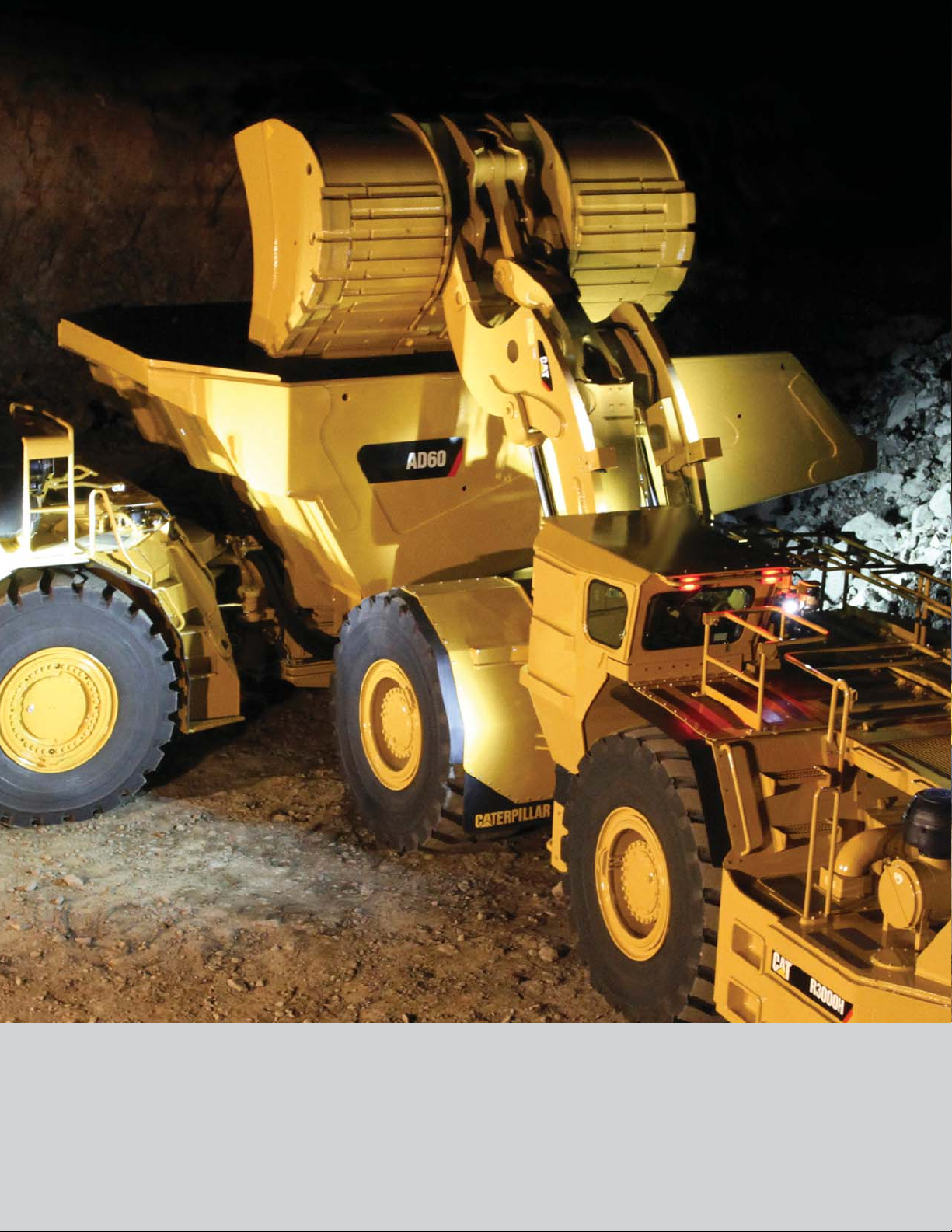

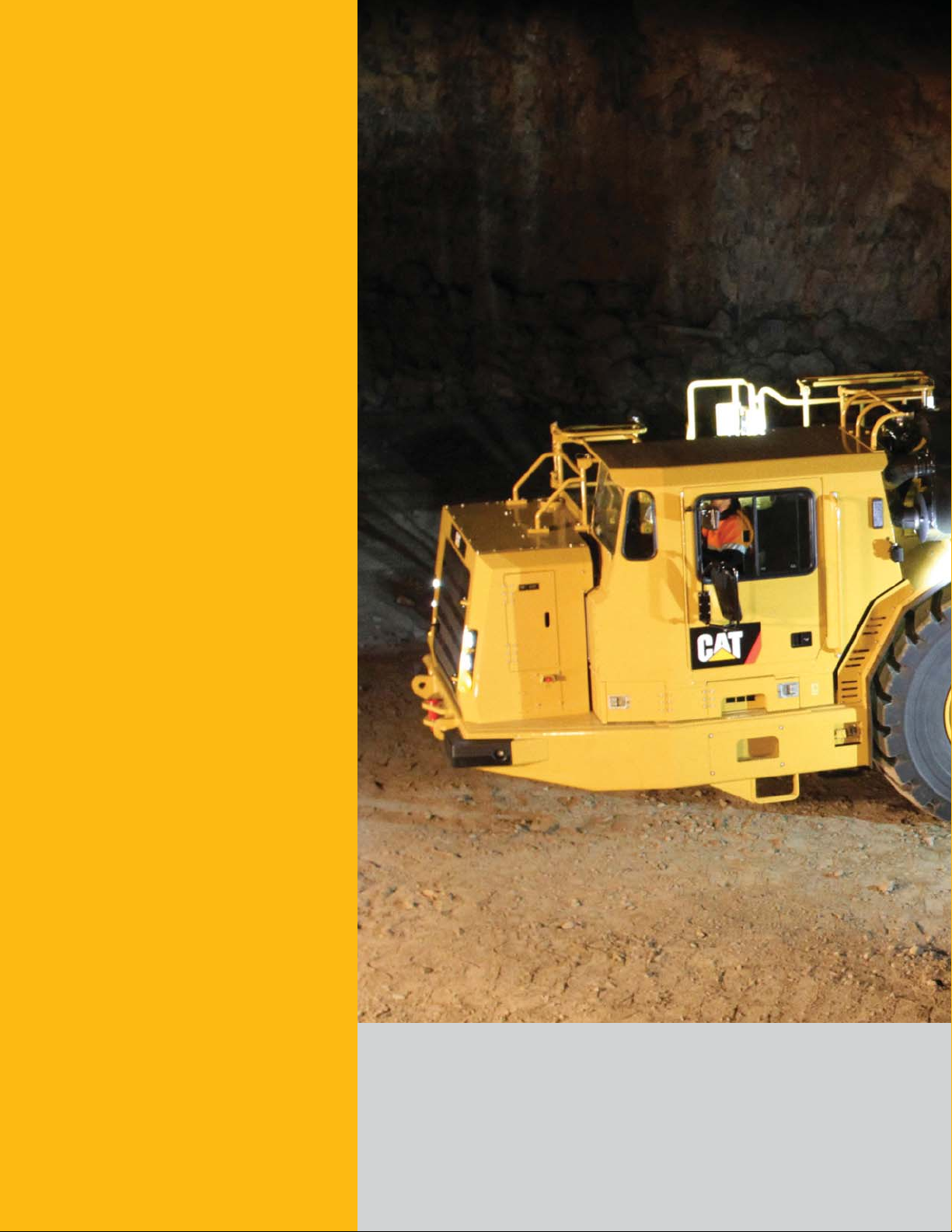

The AD60 Underground Articulated Truck is designed forhigh production, low cost-perton hauling in underground mining applications. Rugged construction and simplied
maintenance guarantee long life with lowoperating costs.
Engineered for performance, designed for comfort, built to last.
3
Page 4

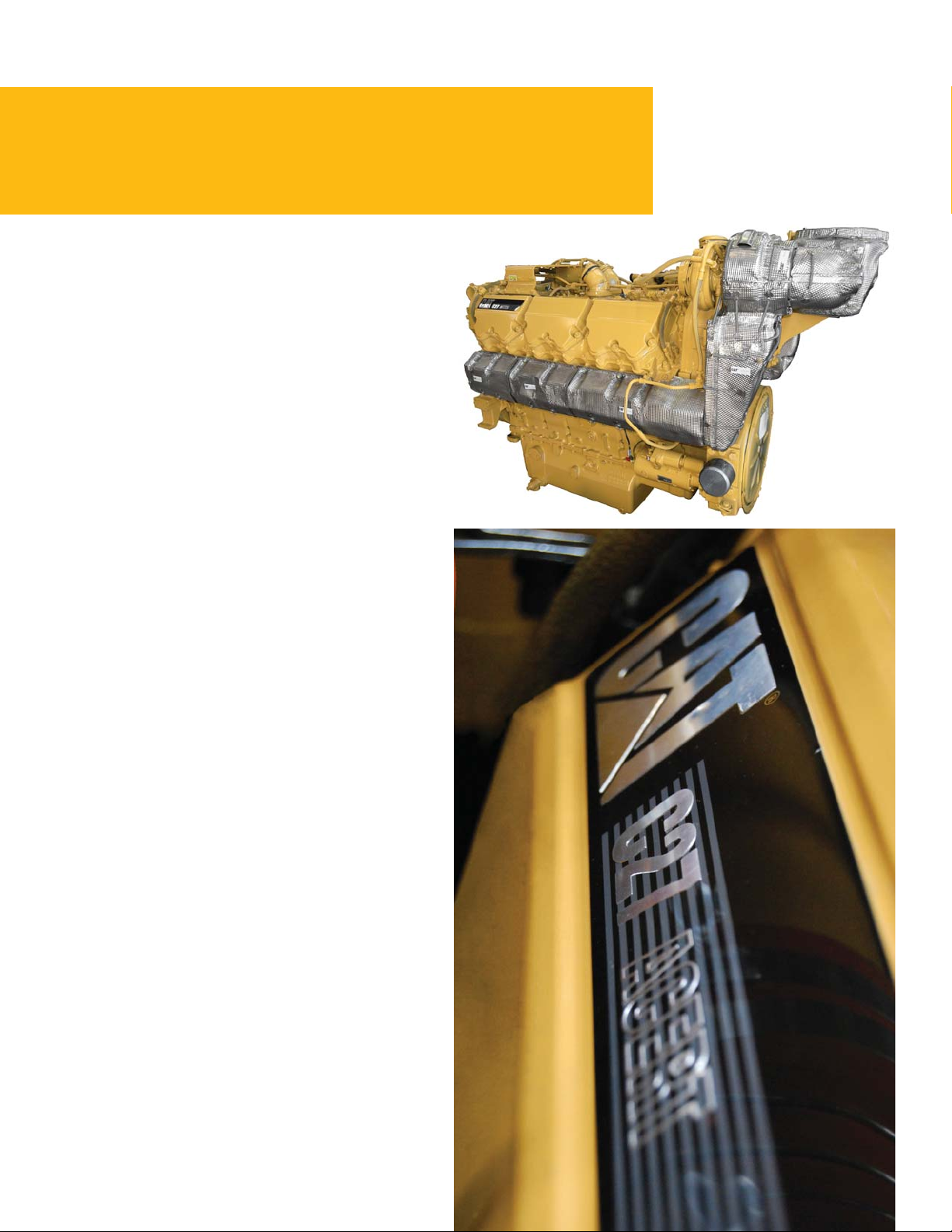

Power Train – Engine
The Cat C27 engine is built for power,
reliabilityand efciency.
ACERT Technology
The Cat C27 is U.S. EPA Tier 2 and EU Stage II compliant.
Itdelivers higher power and greater durability for maximum
hauling performance in the most demanding mining applications.
Complete system integration of the engine andtransmission
optimizes performance and efciency.
Power Increase
The 21.8% power increase over previous models provides
unequalled lugging force during acceleration and less
down-shifting on grade. Improved software and updates
inengine technology further improve transmission shifting
anddecrease fuel consumption.
Watercooled Turbocharged and ATAAC
Air-to-air aftercooling provides improved fuel economy by
packing cooler, denser air into cylinders for more complete
combustion of fuel and lower emissions.
Electronic Unit Injection (EUI)
The electronically controlled unit injection fuel system senses
operating conditions and regulates fuel delivery for optimum
fuel efciency. The proven high-pressure fuel system provides
improved response times and more efcient fuel burn with
lower emissions and less smoke.
Electronic Control Module (ECM)
ECM utilizes advanced engine management software to
monitor, control and protect the engine utilizing self-diagnosing
electronic sensors. The computerized system senses operating
conditions and power requirements and adjusts engine for
peak performance and most efcient operation at all times.
Design
Caterpillar designed one-piece cast iron block provides
maximum strength and durability. Two-piece articulated
pistons with forged steel crowns are designed to withstand
higher cylinder pressure.
4
Page 5

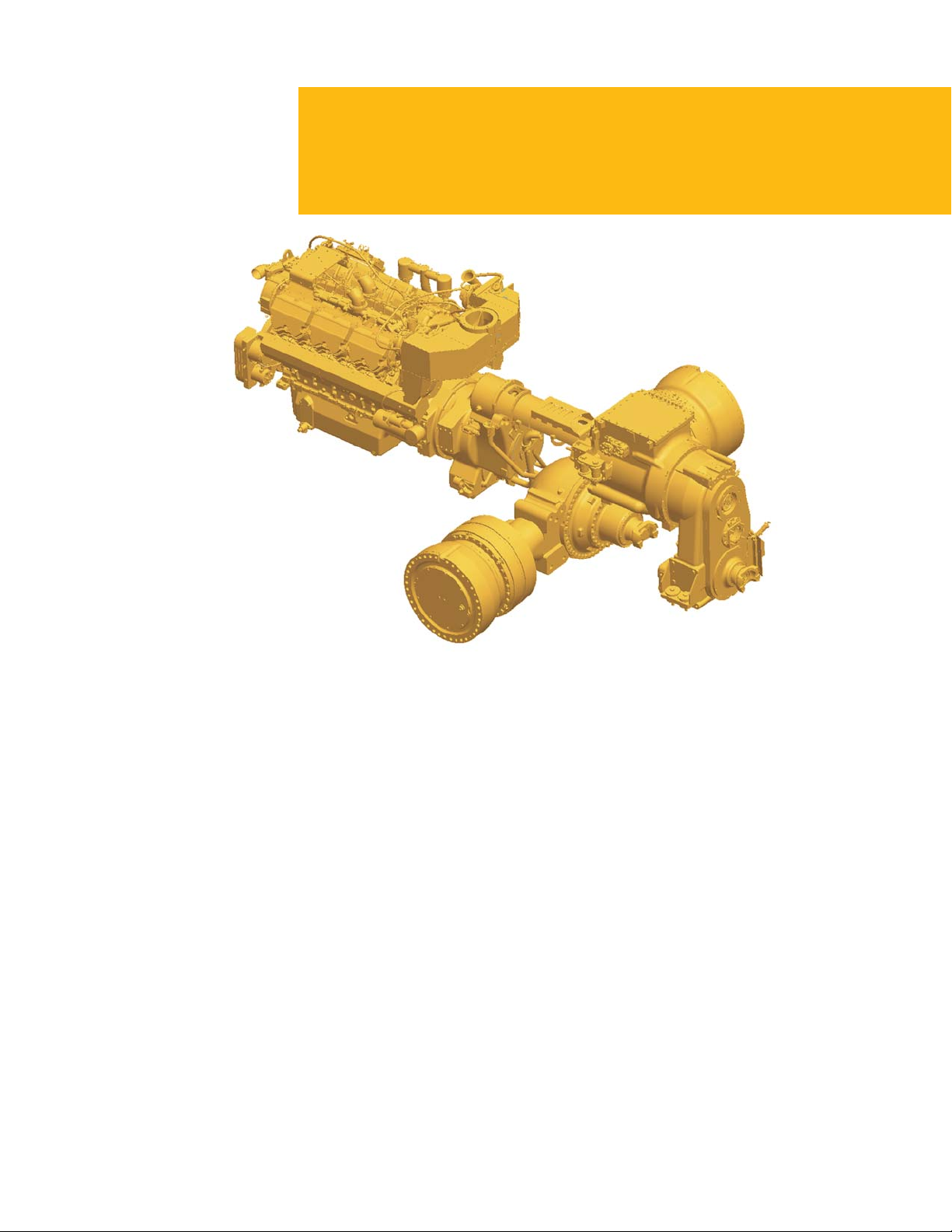

Power Train – Transmission
More power to the ground for greater productivity.
Mechanical Power Train
The Cat mechanical drive power train and power shift transmission provide unmatched operating efciency and control on steep
grades, in poor underfoot conditions, and on haul roads and drives with high rolling resistance.
Transmission
The Cat seven-speed planetary power shift transmission is matched with the direct-injection C27 engine with ACERT Technology
todeliver constant power over a wide range of operating speeds. Individual clutch modulation provides smooth clutch engagements
tooptimize performance and extend clutch life.
Lock-Up Torque Converter
Combines maximum rimpull and cushioned shifting of torque converter drive with the efciency and performance of direct drive.
Whenengaged, lock-up provides superior power train efciency by delivering more power to the wheels.
Lock-Up Clutch
Quickly releases and re-engages to reduce power train torque loads for smoother shifting, long life and a more comfortable ride.
Remote Transmission Oil Cooler
Increases cooling capacity in the transmission oil circuit to ensure optimal performance on long, uphill loaded hauls.
5
Page 6
Engine/Power Train Integration
Intelligent electronics for overall
optimalperformance.

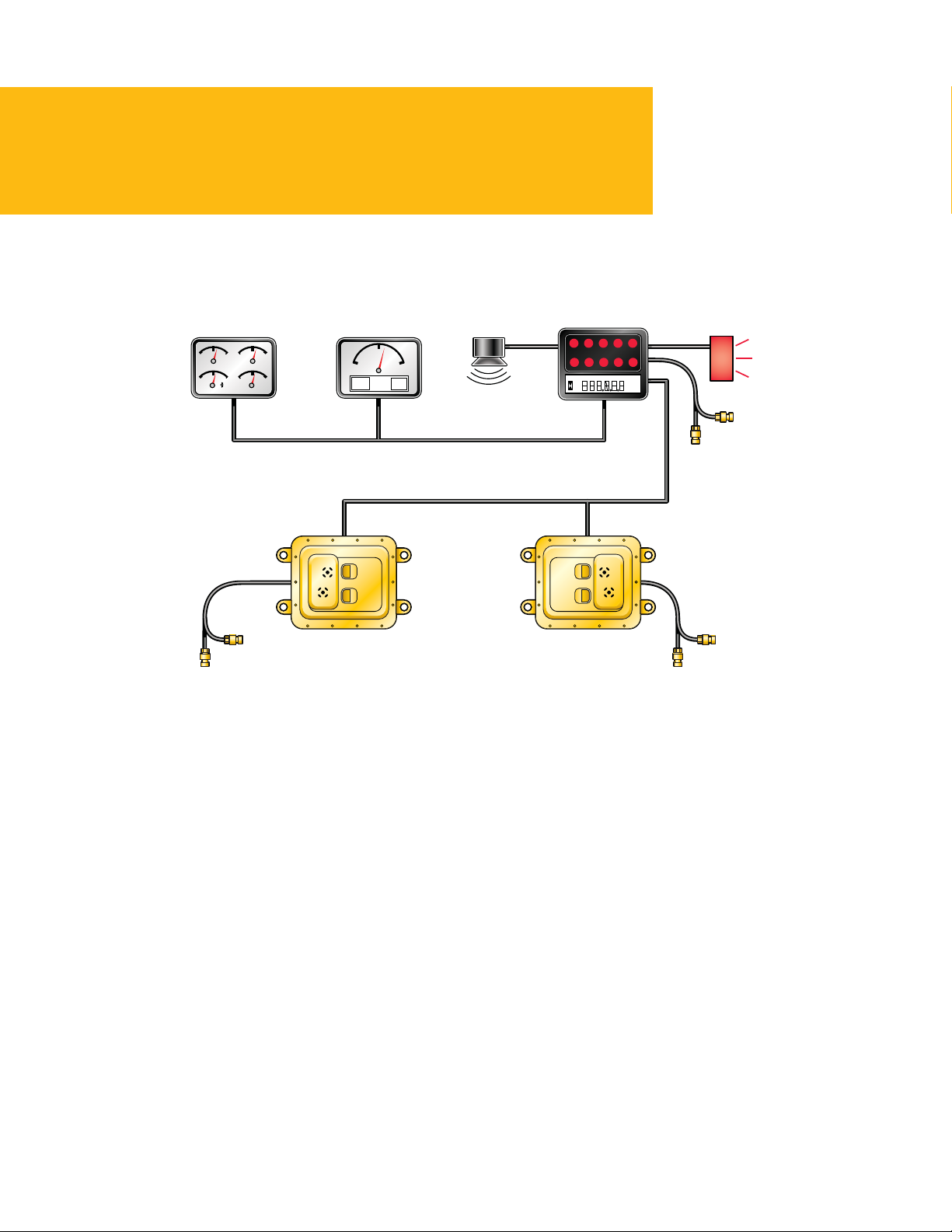

CAT MONITORING SYSTEM
Gauge Cluster
Module
Power Train/Chassis ECM
Components Components
Speedometer/
Tachometer
Module
Mph
12
Km/h
3f
Display Data Link
Action Action
Alarm Lamp
Cat Data Link
Main Display
Module
Miles Rpm LiterKpa
Km
c°
Engine ECM
Serv
Code
X10
Input
Components
InputInput
Cat Data Link
Electronically integrates machine computer systems to optimize overall power train performance, increase reliability and component
life, and reduce operating costs.
• Controlled Throttle Shifting – Regulates engine RPM, torque converter lock-up and transmission clutch engagement for smoother
shifts and longer component life.
• Economy Shift Mode – Decreases fuel consumption, lowers noise levels and potentially longer engine life.
• Directional Shift Management – Regulates engine speed to prevent damage caused by high speed directional changes.
• Body-up Shift Inhibitor – Prevents the transmission from shifting above a pre-programmed gear without the body fully lowered.
Electronic Technician (Cat ET)
Cat ET service tool provides service technicians with easy access to stored diagnostic data through CatData Link to simplify problem
diagnosis and increase availability.
Overspeed Protection
The transmission control electronically senses engine conditions and automatically up-shifts to preventoverspeeding.
6
Page 7
Cat Brake System
Superior control for operator condence.
Integrated Braking System
The Cat oil-cooled braking system delivers reliable performance and control in the most extreme underground mining conditions.
Theintegrated system combines the service, secondary, parking brake and retarding functions in the same robust system for optimum
braking efciency.

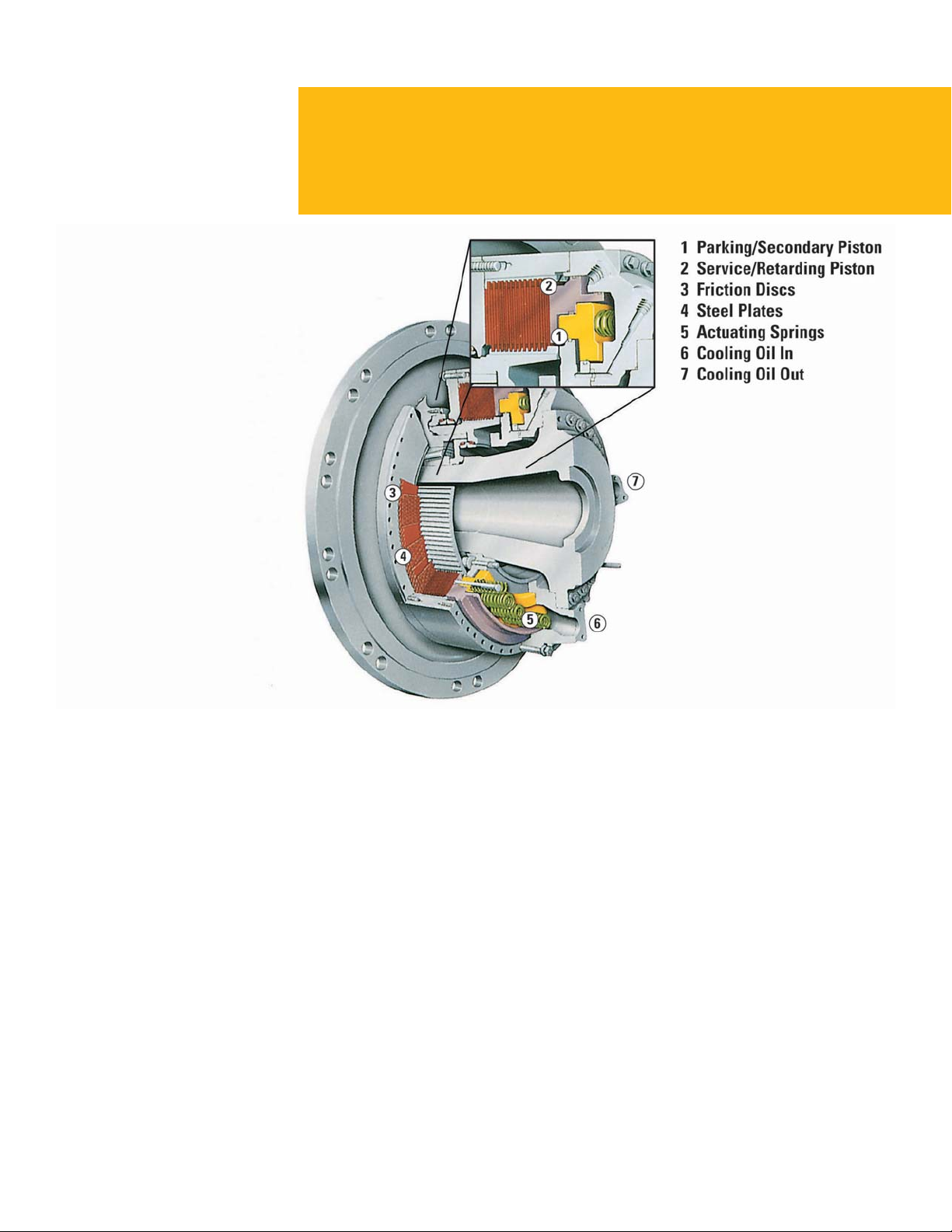

Oil-Cooled Multiple Disc Brakes
Four-wheel, forced oil-cooled, multiple disc service brakes are continuously cooled by a water-to-oil heat exchangers for non-fade
braking and retarding performance. They are also completely enclosed to prevent contamination and reduce maintenance.
Automatic Retarder Control (ARC)
Electronically controls retarding on grade to maintain optimum engine RPM and oil cooling. Additional braking may be applied using
themanual retarder or the brake pedal. ARC also allows the operator to maintain optimum engine speeds for faster downhill hauls
andgreater productivity. The ARC automatically activates when engine speed exceeds factory preset levels.
Superior Control
Automatic brake modulation offers a smoother ride and greater control, allowing the operator to concentrate on driving.
7
Page 8

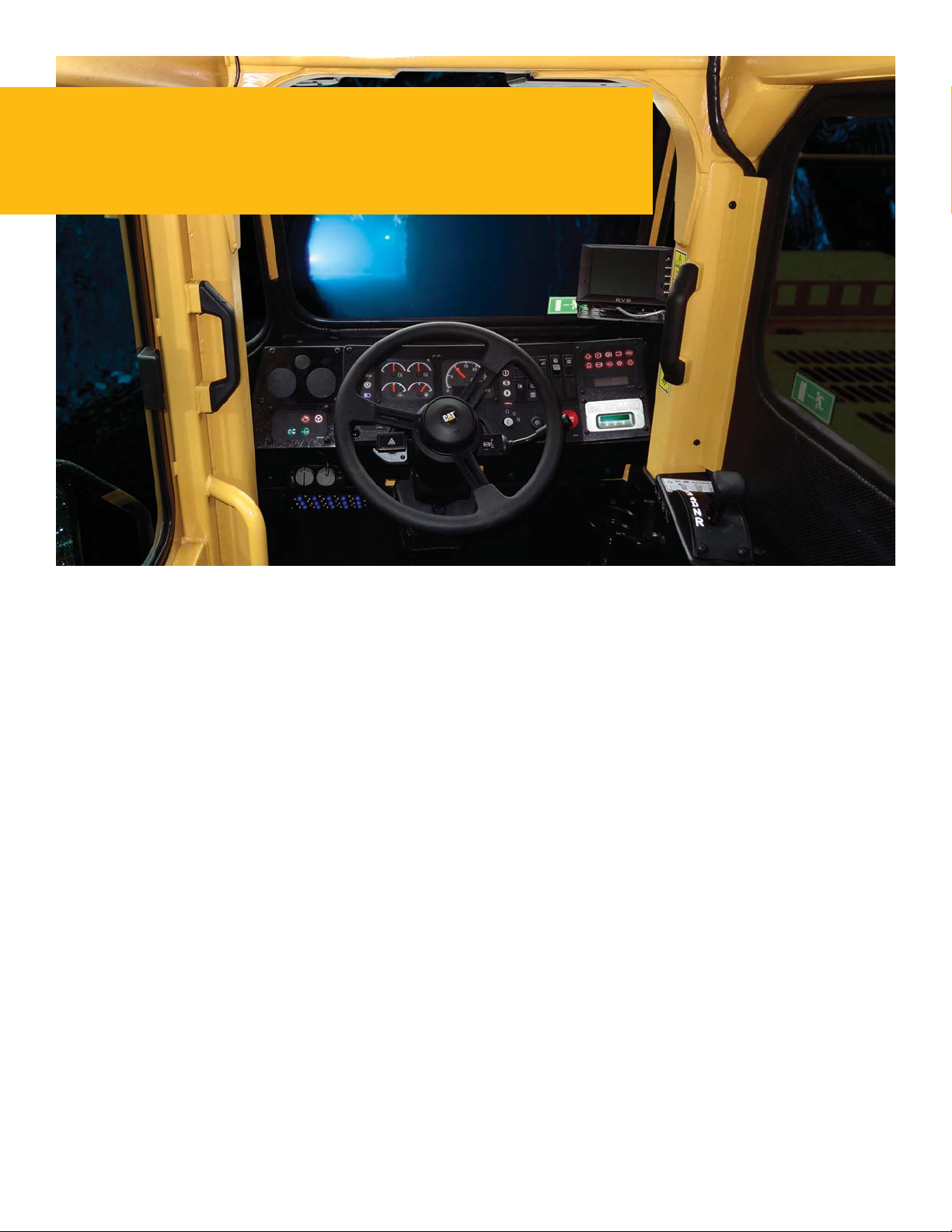

Operator Comfort
Ergonomically designed for all-day comfort,
control and productivity.
The AD60 operator station is ergonomically designed for total machine control in a comfortable, productive and safe environment.
Allcontrols, levers, switches and gauges are positioned to maximize productivity and minimize operator fatigue.
Protective Structure
Integral to the cab and frame, both the Rollover Protective Structure (ROPS) and Falling Objects Protective Structure (FOPS)
areresiliently mounted to the mainframe to isolate the operator from vibration for a more comfortable ride.
Standard Enclosed Cab
Standard sound-suppressed ROPS cab provides a quiet, secure and comfortable air-conditioned working environment with fresh,
pressurized, temperature-controlled air circulation.
Cat Comfort Air Suspension Seat
Ergonomic, fully adjustable suspension seat provides optimal operator comfort. Designed to minimize vertical and lateral motion of the
operator. Thick cushions reduce pressure on lower back and thighs. Wide, retractable seat belts provide a secure, comfortable restraint.
Steering Column
Comfort wheel with tilt steering provides a comfortable driving position, secure grip and greater control.
Monitoring System
Cat Electronic Monitoring System (Cat EMS) continuously provides critical machine data to keep the machine performing
attopproduction levels. Displays are backlit for easy viewing.
8
Page 9
Truck Body Systems
Rugged performance and reliability in
toughunderground mining applications.
Body Design
Cat truck bodies are designed for optimal strength,
capacity,durability and low cost per ton.

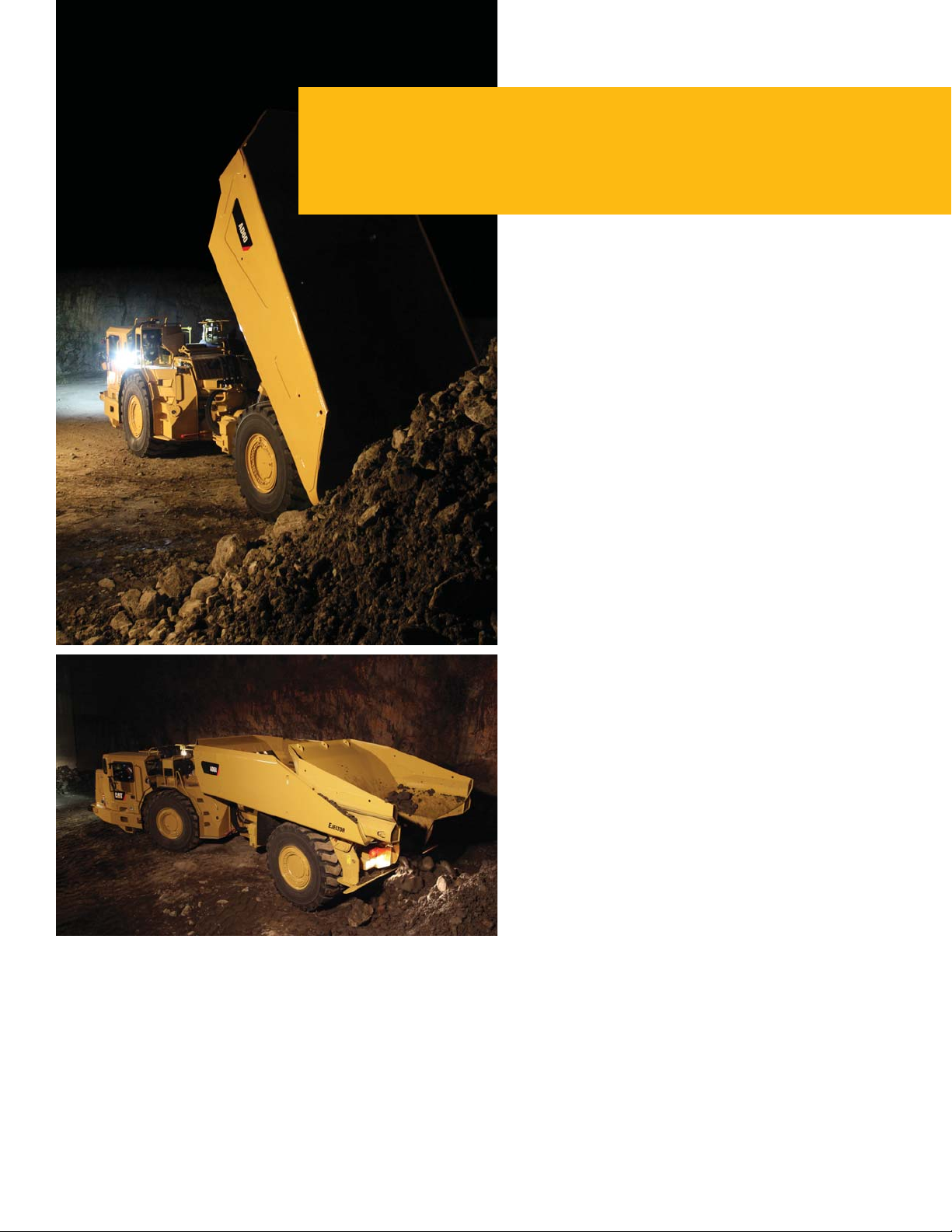

Cat Truck Bodies
Caterpillar has two body styles to meet your application:
• Dump Body
• Ejector Body
The ejector body offers clean load ejection and can be
easilyremoved and switched with a dump body for greater
machine versatility.
Body Selection
Selection of the right body depends on material, haul road,
and dump conditions. The better the match of body to
application, the greater the efciency. Its diverging ow
design gives clean load ejection, which maximizes production
and avoids material carryback.
Body/Chassis Integration
Cat truck bodies are designed and matched with the
integrated chassis system for optimum structural reliability,
durability and long life.
Fast Hoist Cycle Times
Single-stage hoist cylinders provide fast dump cycle times
of12 seconds for raise and 24 seconds for lower.
Truck Payload Management System (TPMS)
The standard TPMS system calculates the payload the
truckiscarrying and determines truck cycle times.
9
Page 10
Structures
Rugged Cat structures – the backbone
oftheAD60’s durability.

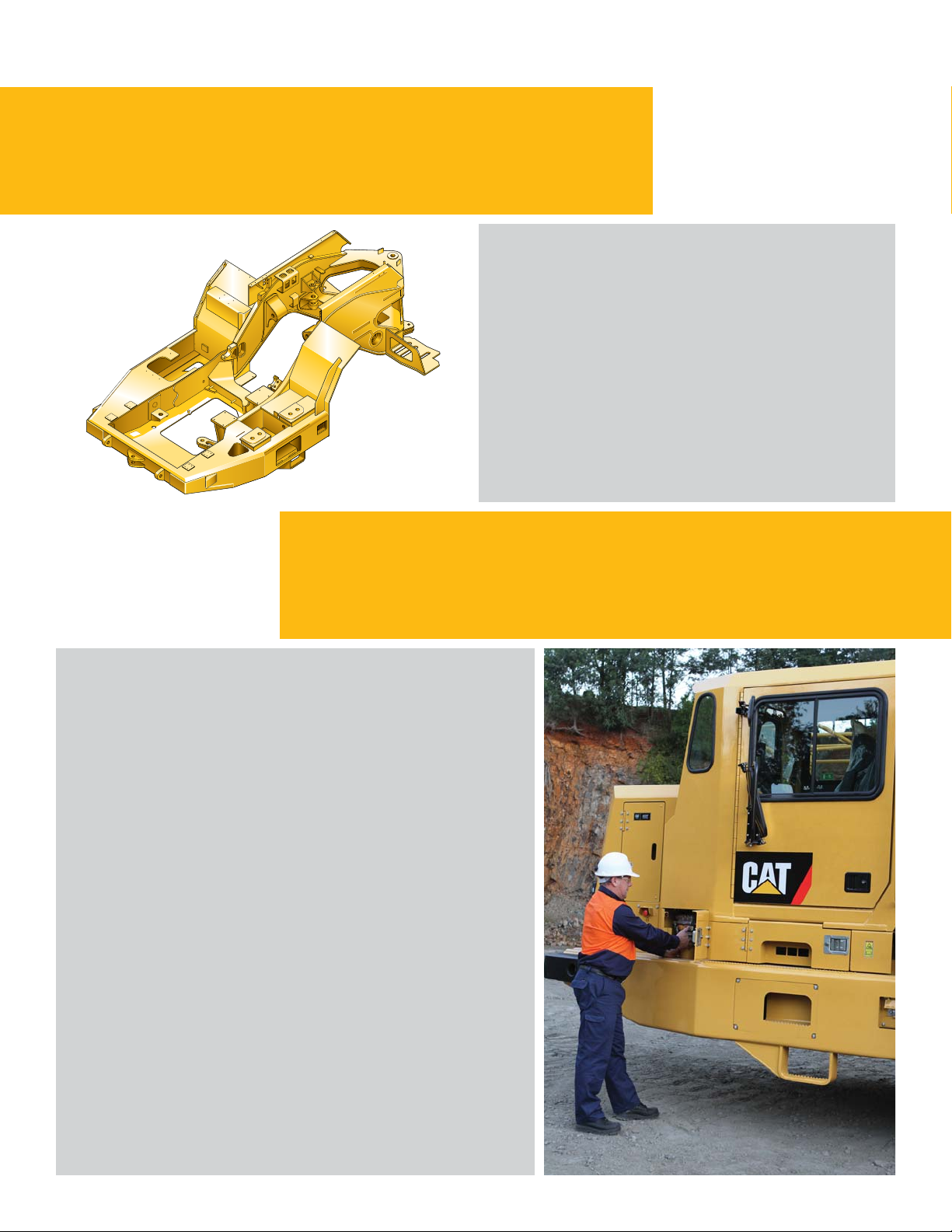

Frame Design
The frame uses box-section design with stiff frame beams
toresist twisting forces giving it a longer structural life.
Articulating/Oscillating Hitch
This system provides steering and oscillation and enables the
truck to maintain all wheel ground contact in rough terrain.
Serviceability

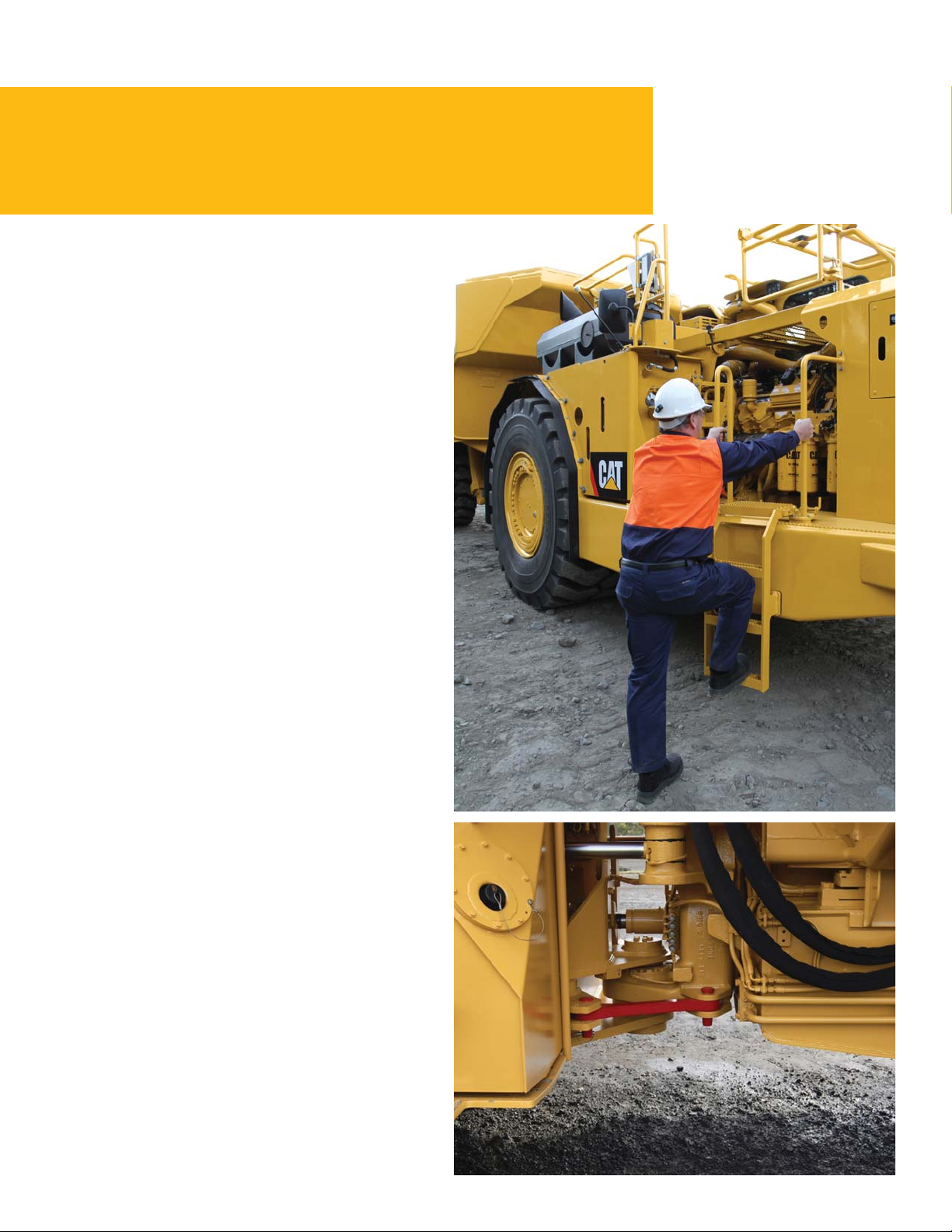

Ground-Level Service Access
Easy access to daily service points allows convenient servicing to
tanks, lters, lubrication points, compartment drains and sight gauges
for quick uid level checks.
Diagnostics – Cat Electronic Technician
Electronic control system enables quick diagnosis of engine conditions
and effective maintenance and repairs utilizing the Cat ET Service Tool.
VIMS Guardian 3rd Generation System
This standard technology enables your equipment to provide detailed,
up-to-the-minute data about its own health and working conditions by
monitoring key temperatures, pressures, and more. The system gathers
historical trends, histograms, events and more for off-board analysis.
More time for production.
Sight Gauges
Makes uid level checks quick and easy. These include the hydraulic,
transmission and coolant reservoirs.
10
Page 11
Customer Support
Cat dealer services keep underground
miningequipment productive.
Dealer Capability
Cat dealers will provide the level of support you need, on a global scale. Dealer expert technicians have the knowledge, experience,
training and tooling to handle your repair and maintenance needs. They offer 24/7 product support via a worldwide network of reliable
and prompt parts distribution facilities, dealer service centers, and technical training facilities to keep your equipment up and running.
Service Support
Cat equipment is designed and built to provide maximum productivity and operating economy throughout its working life.
Cat dealers offer a wide range of service plans that will maximize return on your investment, including:
• Preventive Maintenance Programs
• Diagnostic Programs, such as Scheduled Oil Sampling and Technical Analysis
• Rebuild and Reman Options
• Customer Support Agreements
Technology Products
Cat dealers offer a range of advanced technology products designed to improve efciency, productivity and lower costs.
Operator Training
Your Cat dealer can arrange operator training to improve productivity, decrease downtime, reduce operating costs and enhance safety.
11
Page 12
Safety
Designed with safety as the rst priority.
Product Safety
Caterpillar has been and continues to be proactive in
developing mining machines that meet or exceed safety
standards. Safety is an integral part of all machine and
systems designs.
Engine Shutoff Switch
A secondary engine shutoff switch is located at ground level.
Integral ROPS Cab
Integral to the cab and frame, the ROPS is resiliently mounted
to the frame to isolate the operator from vibration for a more
comfortableride.
Brake Systems
Four corner oil-cooled braking system provides excellent
control. The service brakes and retarding system are actuated
by modulated hydraulic pressure, while the parking brake
function is spring applied and hydraulic released. This system
assures braking in the event of loss of hydraulic pressure.
Operator Present System
Automatically engages parking brake, neutralizes steering,
implement and transmission control, and shuts down the
engine in the event the operator fails to apply the park brake
prior to exiting the cab.
Standard Safety Features
Anti-skid upper deck surfaces, upper deck handrails, 3-point
cabin and machine access, push out safety glass, excellent
visibility, suspension seat, passenger/training seat, inertia
reelretractable belts, steering frame lock, rear window guard,
body retaining pins, automatic retarder control, exhaust heat
shielding and rewall tted standard, hitch hydraulic hoses –
burst protection sleeves tted, tailgate retaining pins
(ejectorbody), alternate exit via windows, ground level
compartment sight glasses, hotandcold side of engine.
SAFETY.CAT.COM™
For more complete information on safety, please visit
http://safety.cat.com.
12
Page 13
AD60 Underground Articulated Truck Specifications
Engine
Engine Model Cat C27 ACERT
Rated Power 2,000 rpm
Gross Power – SAE J1995 579/600 kW 776/805 hp
(1stgear/2-7th gear)
Net Power – SAEJ1349 540/560 kW 725/751 hp
(1stgear/2-7th gear)
Net Power – ISO9249 540/560 kW 725/751 hp
Net Power – 80/1269/EEC 540/560 kW 725/751 hp
Bore 137.2 mm 5.4 in
Stroke 152.4 mm 6 in
Displacement 27 L 1,648 in
• Power ratings apply at a rated speed of 2,000 rpm when tested
under the reference conditions for the speci ed standard.
• Ratings based on SAE J1995 standard air conditions of 25°C
(77°F) and 100 kPa (29.61 Hg) barometer. Power based on
fuel having API gravity of 35 at 16° C (60° F) and an LHV of
42780kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
• Engine derate will commence at an altitude of 557 m (1,827 ft).
• Compliant with U.S. Environmental Protection Agency Tier 2
emission standards.
3
Operating Specifications
Nominal Payload Capacity
Gross Machine Operating Weight
60 000 kg
110 000 kg
132,277 lb
242,508 lb
Weight Distribution
Empty
Front Axle
Rear Axle
Loaded
Front Axle
Rear Axle
68.6%
31.4%
49.8%
50.2%
Transmission
Forward 1 6.6 km/h 4.1 mph
Forward 2 9.3 km/h 5.8 mph
Forward 3 12.5 km/h 7.5 mph
Forward 4 16.8 km/h 10.4 mph
Forward 5 22.7 km/h 14.1 mph
Forward 6 30.7 km/h 19.1 mph
Forward 7 41.5 km/h 25.8 mph
Reverse 1 8.7 km/h 5.4 mph
• Maximum travel speeds with standard 35×65 R33 tires.
Final Drives
Differential Ratio 3.46:1
Final Drive Ratio 5.5:1
Total Reduction Ratio 19.04:1
Weights
Empty
Front Axle
Rear Axle
Loaded
Front Axle
Rear Axle
49 969 kg
34 279 kg
15 690 kg
110 000 kg
55 440 kg
54 560 kg
110,163 lb
75,572 lb
34,591 lb
242,508 lb
122,224 lb
120,284 lb
Body Hoist
Raise 12 Seconds
Lower 24 Seconds
Total Cycle Time 36 Seconds
13
Page 14
AD60 Underground Articulated Truck Specifications
Body Capacities
Dump Body – 1 26.9 m
Dump Body – 2 32.6 m
Dump Body – 3 33.8 m
Dump Body – 4 36.6 m
Ejector Body – 1 26.9 m
Ejector Body – 2 29.4 m
• Heaped SAE 2:1.
3
3
3
3
3
3

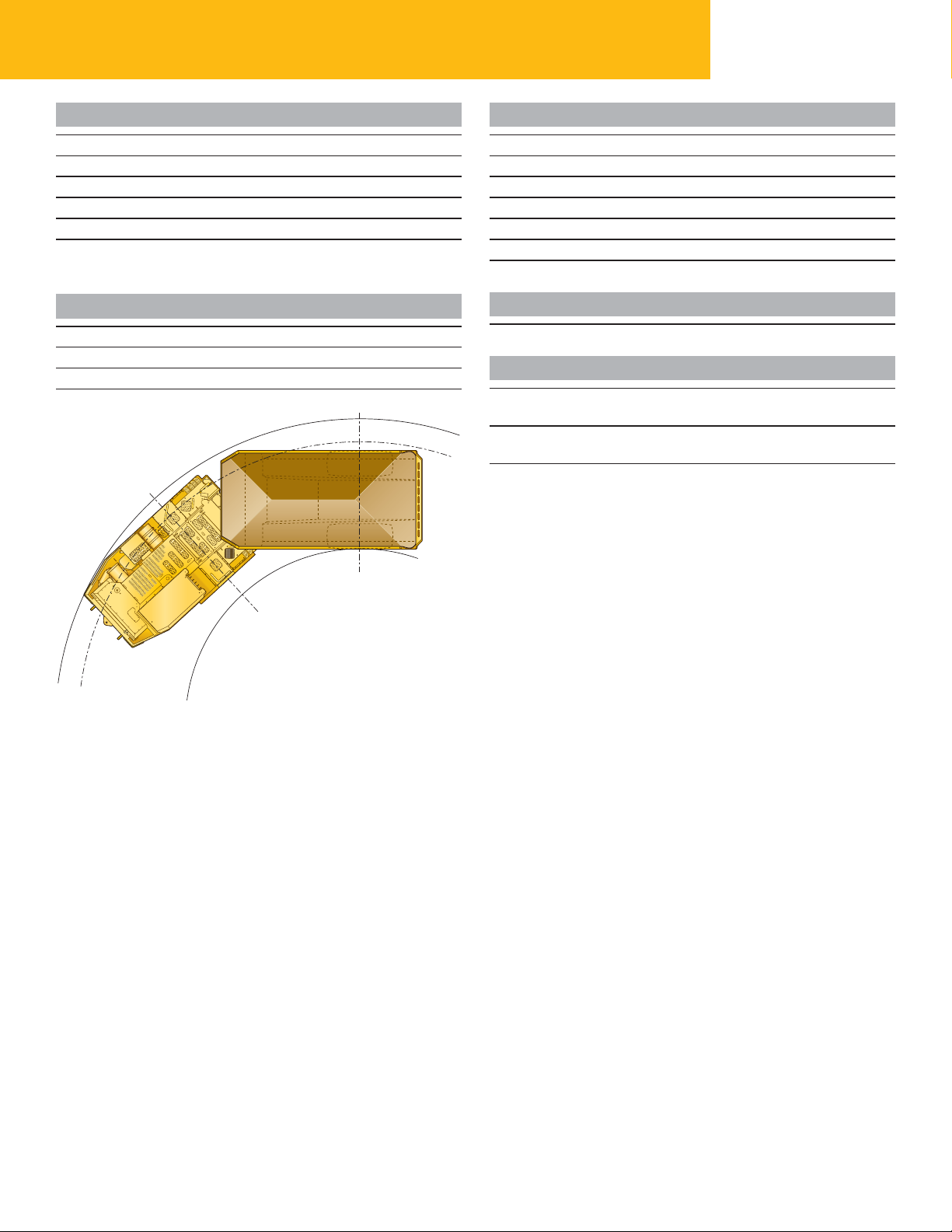

Turning Dimensions
Outside Clearance Radius 10 005 mm
Inside Turning Radius 5540 mm
Frame Oscillation 10°
Articulation Angle 42.5°
35.2 yd
42.6 yd
44.2 yd
47.9 yd
35.2 yd
38.5 yd
393.9 in
218.1 in
Service Refill Capacities
3
3
3
3
3
3
Engine Crankcase with Filter
Transmission
Hydraulic Tank
Cooling System
Front Differentials and Final Drives
Rear Differentials and Final Drives
Fuel Tank
99 L
53 L
258 L
138 L
138 L
138 L
940 L
26.2 gal
14 gal
68.2 gal
36.5 gal
36.5 gal
36.5 gal
248.3 gal
Tires
Tire Size 35 × 65 R33
Standards
ISO 3450, AS2958.1,
Brakes CAN-CSA424.30-M90
ISO 3449, SAE J231,
Cab/FOPS AS2294.3,EN13627
ISO 3471, SAE J1040,
Cab/ROPS AS2294.2,EN13510
14
Page 15

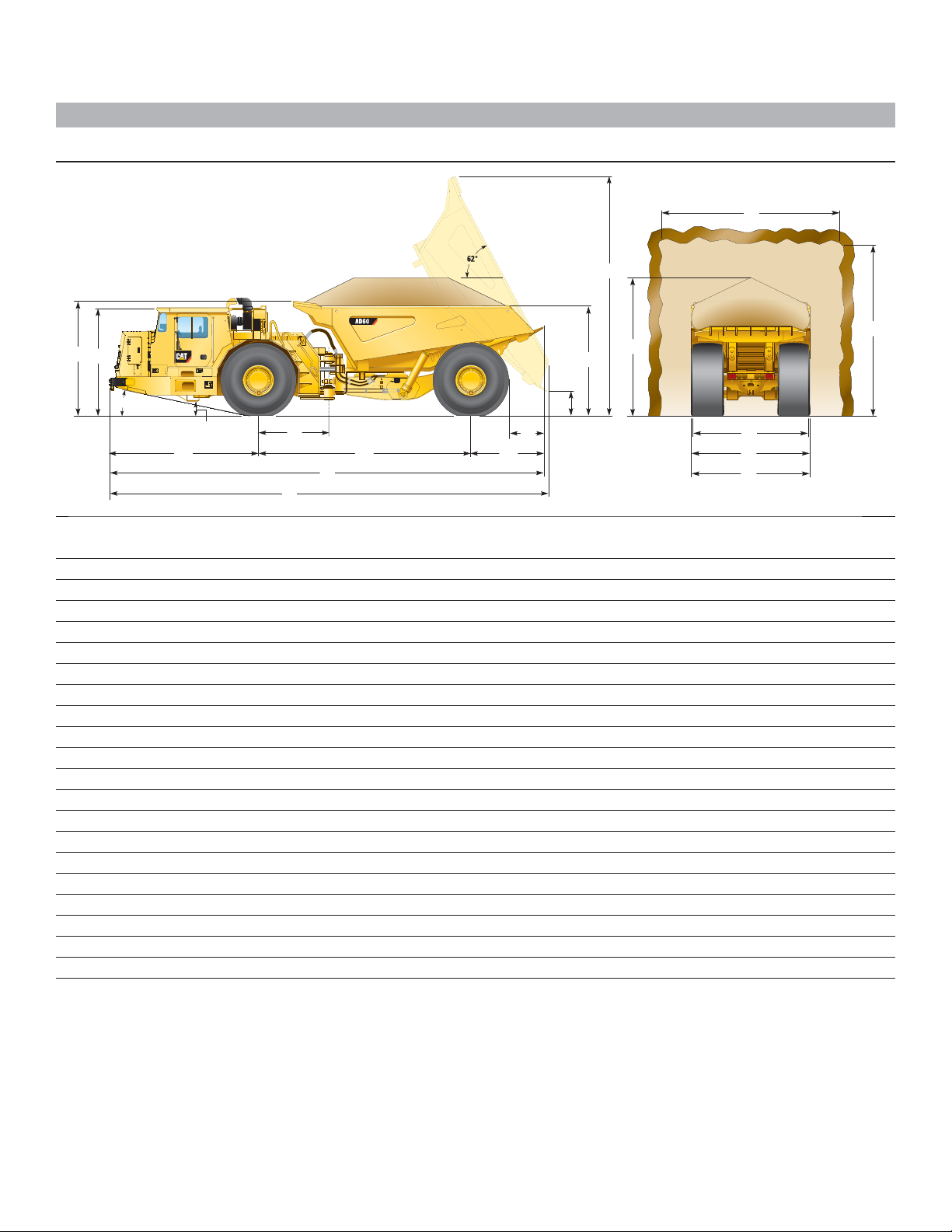

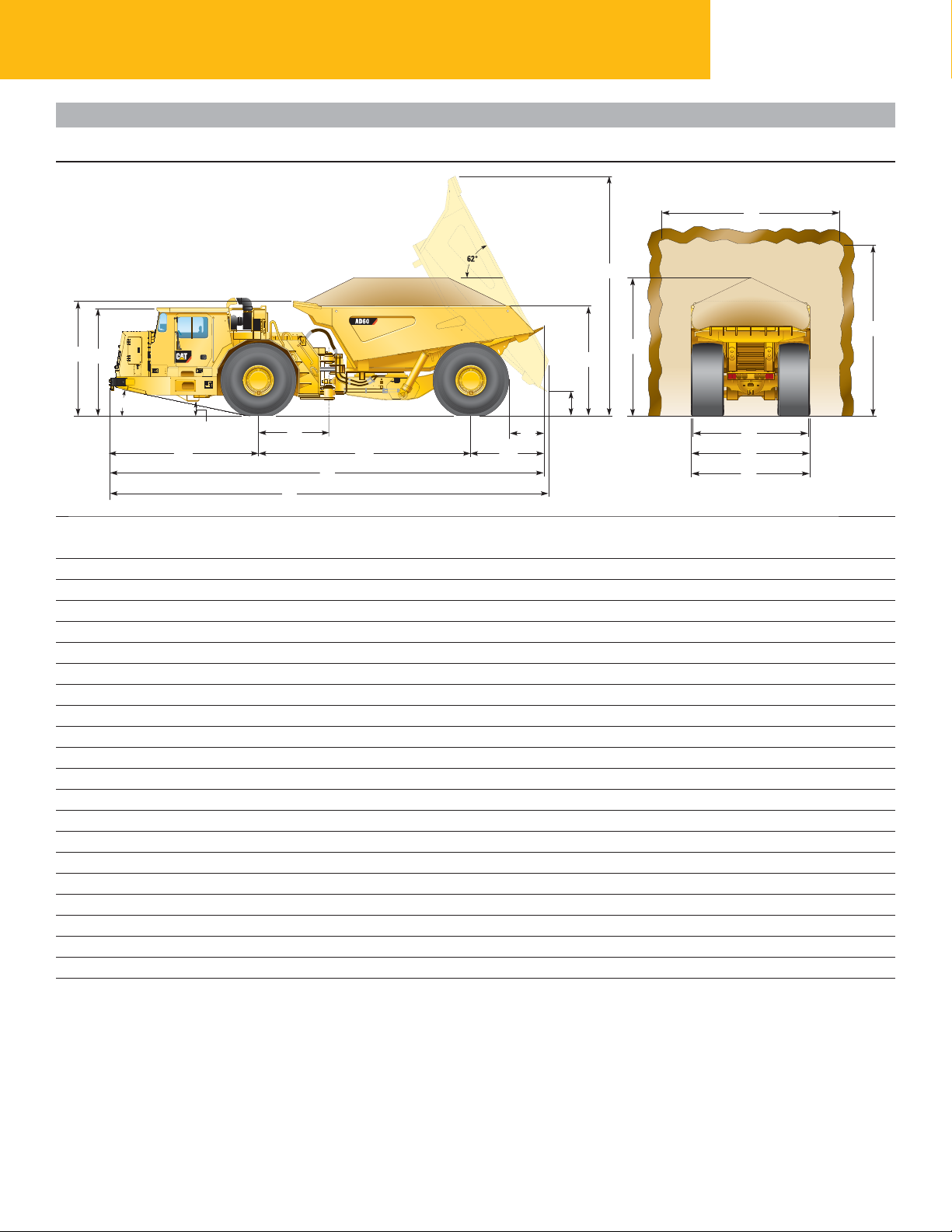

Dimensions
All dimensions are approximate.
1
2
18
5
19
7
3
12°
10
6
11
12
9
8
13
14
4
15
16
17
370-2757 370-2758 370-2755 370-2756
Dump Body Dump Body Dump Body Dump Body
3
Body Capacity 26.9 m
35.2 yd3 32.6 m3 42.6 yd3 33.8 m3 44.2 yd3 36.6 m3 47.9 yd
mm in mm in mm in mm in
Height – Top of Empty Body 3202 126.1 3418 134.6 3556 140.0 3560 140.2
1
Height – Top of ROPS 3000 118.1 3000 118.1 3000 118.1 3000 118.1
2
Height – Body Loading 3045 119.9 3326 130.9 3426 134.9 3473 136.7
3
Height – Dump Clearance** 514 20.2 514 20.2 514 20.2 514 20.2
4
Height – Top of Raised Body 6969 274.4 7202 283.5 7322 288.3 7334 288.7
5
Height – Ground Clearance 393 15.5 393 15.5 393 15.5 393 15.5
6
Height – Top of Load (SAE 2:1) 3848 151.5 4178 164.5 4183 164.7 4333 170.6
7
Length – Maximum Body Raised 12 064 475.0 12 180 479.5 12 222 481.2 12 241 481.9
8
Length – Overall Body Down 12 040 474.0 12 040 474.0 12 040 474.0 12 040 474.0
9
Length – Front Axle to Front Bumper 4164 163.9 4164 163.9 4164 163.9
10
Length – Front Axle to Hitch 1920 75.6 1920 75.6 1920 75.6 1920 75.6
11
Length – Wheel Base 5900 232.3 5900 232.3 5900 232.3 5900 232.3
12
Length – Rear Axle to Tail 1976 77.8 1976 77.8 1976 77.8 1976 77.8
13
Length – Rear Wheel to Raised Body 857 33.7 857 33.7 857 33.7 857 33.7
14
Width – Overall Tire 3250 128.0 3250 128.0 3250 128.0 3250 128.0
15
Width – Machine with Body 3346 131.7 3480 137.0 3480 137.0 3480 137.0
16
Width – Machine without Body 3346 131.7 3346 131.7 3346 131.7 3346 131.7
17
Recommended Clearance Width* 5000 196.9 5000 196.9 5000 196.9 5000 196.9
18
Recommended Clearance Height* 5000 196.9 5000 196.9 5000 196.9 5000 196.9
19
4164 163.9
3
* Clearance dimensions are for reference only.
** Measurement taken with tailgate down for ejector body.
15
Page 16
AD60 Underground Articulated Truck Specifications
Dimensions
All dimensions are approximate.
5
1
2
7
3
18
19
12°
10
6
11
12
9
8
13
14
4
15
16
17
370-2736 361-8561
Ejector Body Ejector Body
Body Capacity 26.9 m
3
35.2 yd
3
29.4 m
3
mm in mm in
Height – Top of Empty Body 3436 135.3 3643 143.4
1
Height – Top of ROPS 3000 118.1 3000 118.1
2
Height – Body Loading 3255 128.1 3457 136.1
3
Height – Dump Clearance** 954 37.6 954 37.6
4
Height – Top of Raised Body — — — —
5
Height – Ground Clearance 393 15.5 393 15.5
6
Height – Top of Load (SAE 2:1) 4109 161.8 4284 168.7
7
Length – Maximum Body Raised — — — —
8
Length – Overall Body Down 12 125 477.4 12 125 477.4
9
Length – Front Axle to Front Bumper 4164 163.9 4164 163.9
10
Length – Front Axle to Hitch 1920 75.6 1920 75.6
11
Length – Wheel Base 5900 232.3 5900 232.3
12
Length – Rear Axle to Tail 2061 81.1 2061 81.1
13
Length – Rear Wheel to Raised Body — — — —
14
Width – Overall Tire 3250 128.0 3250 128.0
15
Width – Machine with Body 3560 140.2 3560 140.2
16
Width – Machine without Body 3346 131.7 3346 131.7
17
Recommended Clearance Width* 5000 196.9 5000 196.9
18
Recommended Clearance Height* 5000 196.9 5000 196.9
19
38.5 yd
3
* Clearance dimensions are for reference only.
** Measurement taken with tailgate down for ejector body.
16
Page 17

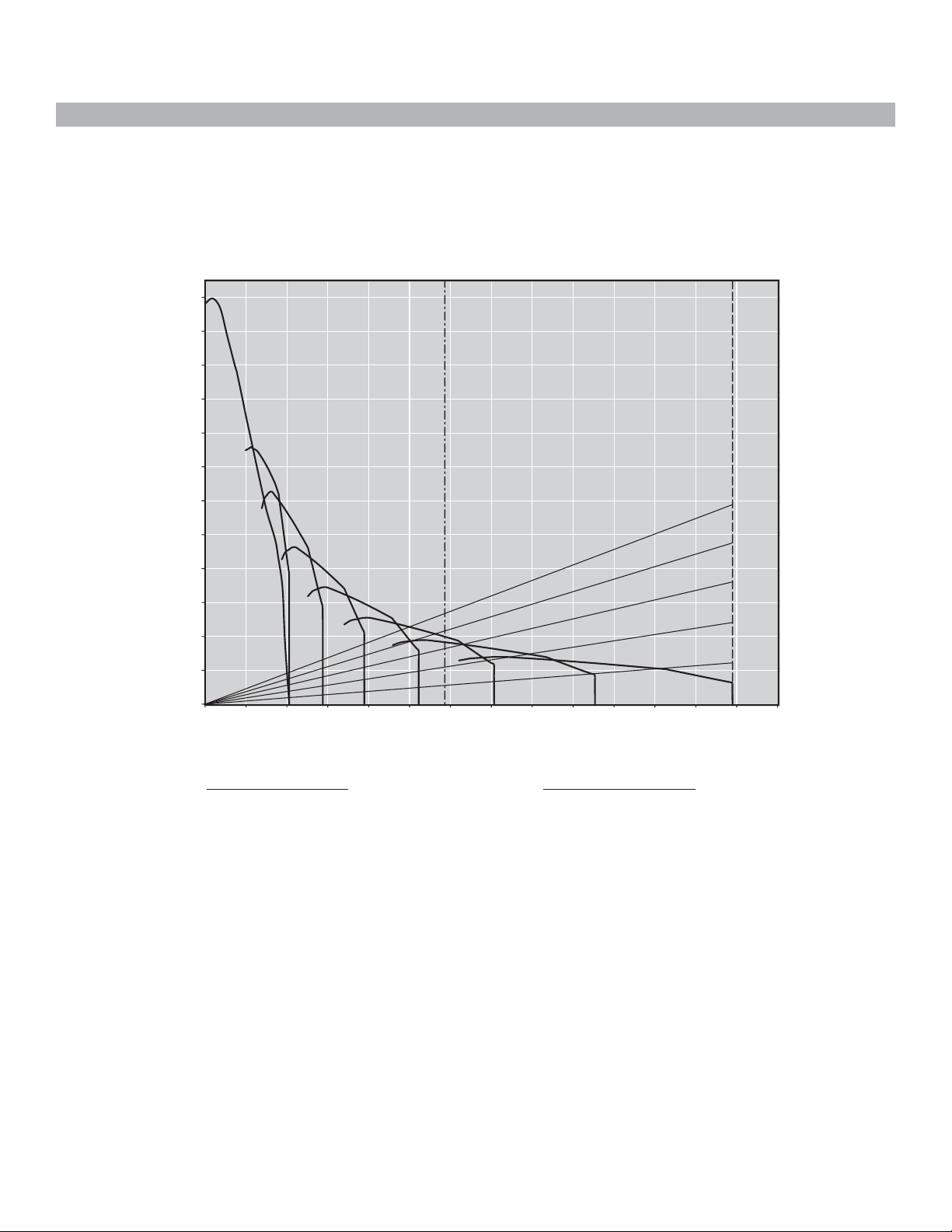

Gradeability/Speed/Rimpull
To determine gradeability performance: Read from gross weight down to the percent of total resistance. Total resistance equals
actual percent grade plus rolling resistance as a general guide use 2% for rolling resistance in underground application or refer to the
Caterpillar Performance Handbook. From the total resistance point, read horizontally to the curve with the highest obtainable gear,
then down to maximum speed. Usable rimpull will depend upon traction available and weight on drive wheels.
GROSS WEIGHT
110 kg × 1000
243 lb × 1000
lbf
120
110
100
90
80
70
534
489
445
400
356
311
50
N
110
1A
E L
1B
267
60
222
50
178
40
RIMPULL N × 1000 (lb × 1000)
133
30
89
20
44
10
0
3.2 6.4 9.7 12.9 16.1 19.3 22.5 25.7 29.0 32.2 35.4 38.6 41.8 45.1
0
2 4 6 8 10 12 14 16 18 20 22 24 26 28
KEY KEY
1A – 1st Gear (Converter Drive)
1B – 1st Gear
2 – 2nd Gear
3 – 3rd Gear
4 – 4th Gear
5 – 5th Gear
6 – 6th Gear
7 – 7th Gear
25%
2
20%
3
15%
TOTAL RESISTANCE
(Grade plus Rolling)
4
5
10%
6
7
5%
km/h
mph
SPEED
E – Empty 50 000 kg (110,231 lb)
L – Loaded 110 000 kg (242,509 lb)
17
Page 18
AD60 Standard Equipment
Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
• Alarm, back-up
• Alternator, 95 amp
• Batteries, maintenance free
• Battery disconnect switch-ground level
• Brake and tail lights
• Corrosive protection spray
• Engine shutdown switch
• Headlights with dimmer switch
• Hydraulic tank low level sensor
• Jump start receptacle
• Rear work light (cab mounted)
• Reversing lights
• Starting and charging system (24-volt)
OPERATOR ENVIRONMENT
• Brake drag indicator
• Cab pressurizer
• Cat Comfort TLV2 air suspension seat
• Cat Electronic Monitoring System
(CatEMS)
• Diagnostic connector
• Operator Present System
• Rearview mirrors
• Radio ready
• ROPS/FOPS cab with air conditioning
• Storage compartment
• Tilt/telescopic steering wheel
• Trainer/passenger seat and seat belt
• Turn signal indicators
• Windshield wiper and washer
POWER TRAIN
• All wheel oil cooled disc brakes
• Automatic retarder control
• Auto shift transmission
– 7 speed forward/1 speed reverse
• Control throttle shifting
• 12 cylinder C27 ACERT ATAAC
dieselengine
• Long life coolant
• Parking brakes (four wheels)
• Programmable gear blockout with body up
• Programmable ground speed limiting
• Torque converter with automatic lockup
OTHER STANDARD EQUIPMENT
• Articulated and oscillated hitch
• Belly guards
• Body up alarm
• Centralized lubrication points
• Dump body (26.9 m
• Exhaust catalytic converter/muf er
• Exhaust covers
• Firewall
• Frame lifting lugs
• Front and rear tow pin
• Front axle suspension
• Front rubber bumpers
• Oil sample adapters
• Remote transmission hydraulic oil cooler
• Secondary Steering System
• Tires – 35/65 R33 VSNT radial tires
• TPMS (Truck Payload Measurement
System)
• TPMS remote display payload indicator
• Ventilated hood and covers
• VIMS Guardian 3rd generation
3
– 35.2 yd3)
18
Page 19
Optional Equipment
Optional equipment may vary. Consult your Cat dealer for details.
AD60 Optional Equipment
• Bodies
– Body impact liners, heavy duty
– Body wear liners, heavy duty
– Dump – 32.6 m
– Dump – 33.8 m
– Dump – 36.6 m
– Ejector – 26.9 m
– Ejector – 29.4 m
3
(42.6 yd3)
3
(44.2 yd3)
3
(47.9 yd3)
3
(35.2 yd3)
3
(38.5 yd3)
• Color camera and monitoring system
• Engine shutdown on re system activation
• Fast ll system
– Coolant
– Engine
– Fuel
– Hydraulic
– Transmission
• Fire extinguisher, hand held
• ID numbers for rims
• Idle timer
• Electrical isolation switches
• Onboard re suppression system, 65L
• Retractable visor group
• Seat covers
• Spare rim
19
Page 20
AD60 Underground Articulated Truck
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2012 Caterpillar Inc.
All rights reserved
Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
20
AEHQ6808 (08-2012)
Loading...
