Page 1

Engine

Engine Model Cat®C18 ACERT™ Gross Power – SAE J1995 438 kW 587 hp

Operating Specifications

Nominal Payload Capacity 45 000 kg 99,208 lb Gross Machine Operating Weight 85 000 kg 187,393 lb

Body Capacities

Dump Body – Standard 21.3 m

27.9 yd

• Heaped SAE 2:1

AD45B

Underground Articulated Truck

Page 2

AD45B Underground Articulated Truck

Engineered for performance, designed for comfort, built to last.

Top Performance.

The AD45B underground articulated truck is designed for high production, low cost-perton hauling in underground mining applications.

Reliable, Durable Operation.

Rugged construction and easy maintenance guarantee long life with low operating costs.

Serviceability

The AD45B is designed for quick and easy servicing. Simplified service and maintenance features reduce downtime, allowing the machine to spend less time being serviced and more time in the mine. pg. 11

Structures

Cat®truck frames are built to optimize torsional load displacement in high impact applications. High strength steels provide flexibility, durability and resistance to impact loads, even in cold climates. pg. 10

Engine/Power Train Integration

The Cat Data Link electronically combines engine, transmission, brake and operational information to optimize overall truck performance. Stored diagnostic data can be accessed via the Electronic Technician (Cat ET) to improve troubleshooting and reduce downtime. pg. 6

Power Train – Transmission

The Cat seven-speed planetary power shift transmission and mechanical power train is matched with the electronic unit injection C18 engine with ACERT™ technology to provide consistent power and efficiency for peak power train performance. pg. 5

Power Train – Engine

The Cat®C18 engine with ACERT™ Technology delivers the power and reliability necessary to perform in the most demanding underground mining applications. Designed for efficient operation, excellent fuel efficiency, lower emissions, reduced engine noise and lower operating costs. pg. 4

Page 3

Safety

Caterpillar sets the standard when it comes to safety in the design and manufacturing of heavy equipment for the mining industry. Safety is not an afterthought at Caterpillar, but an integral part of all machine and systems designs. pg. 13

Customer Support

Caterpillar®dealers provide unmatched product support, anywhere in the world. With industry-best parts availability and a wide range of maintenance and service options, Cat dealers have what it takes to keep your mining machines productive. pg. 12

Truck Body Systems

Caterpillar truck bodies are designed as a system to achieve rated payload and provide the lowest cost-per-ton hauling system when matched with Cat Underground Mining Loaders. A variety of Caterpillar designed and built truck bodies ensure optimal performance and reliability. pg. 9

Operator’s Station

The ergonomic cab is designed for operator comfort and ease of operation allowing the operator to focus on productivity. Controls and gauges are positioned within easy reach for optimum efficiency and superior control. pg. 8

Caterpillar®Brake System

Cat oil-cooled, multiple disc brakes offer exceptional, fade-resistant braking and retarding for maximum performance and productivity in all conditions. Automatic Retarder Control (ARC) optimizes braking efficiency. pg. 7

Page 4

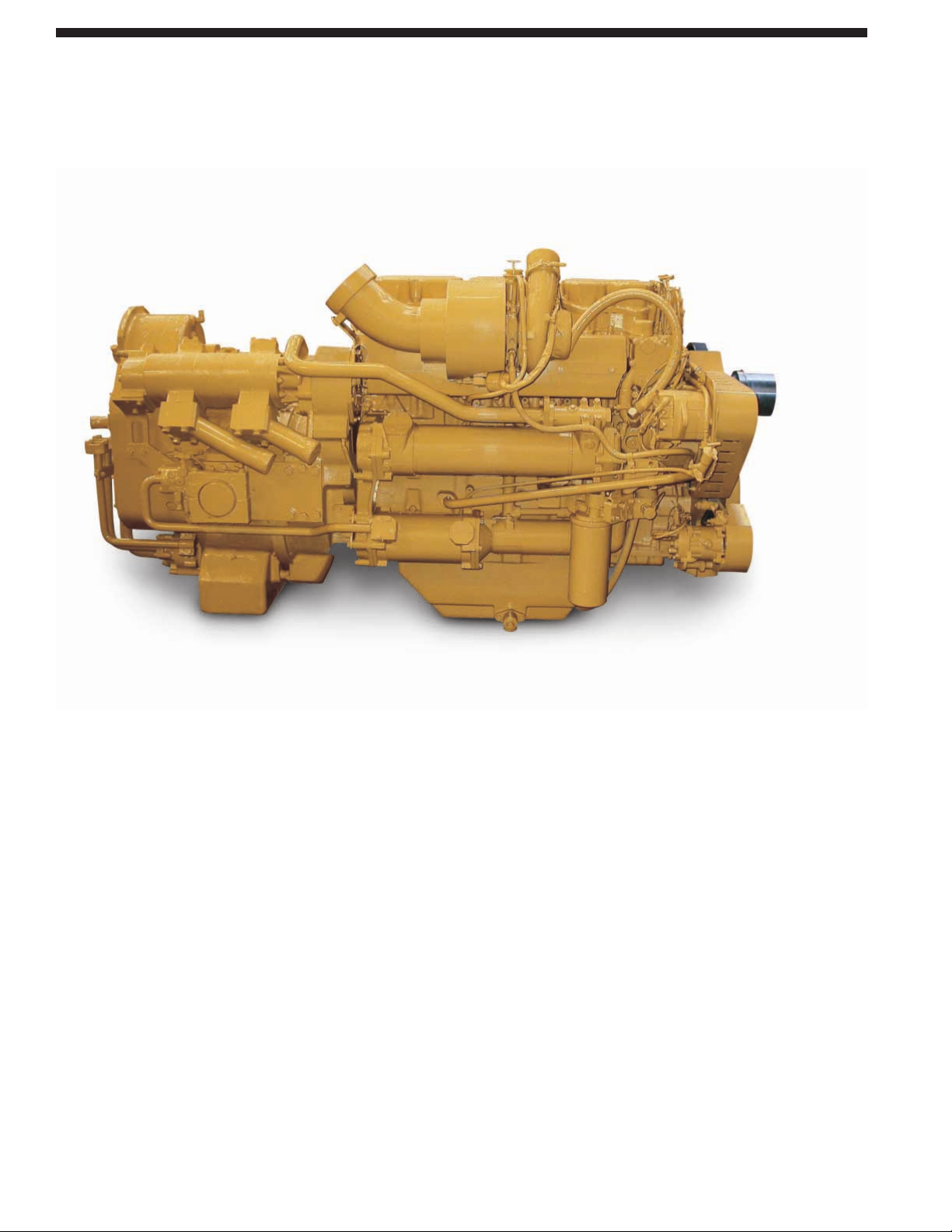

Engine. The Cat C18 engine with ACERT™ technology delivers higher power and greater durability for maximum hauling performance in the most demanding mining applications. Complete system integration of the engine and transmission optimizes performance and efficiency.

Power Increase. The 15.5% power increase over previous models provides unequalled lugging force during acceleration and less down-shifting on grade. Improved software and updates in engine technology further improve transmission shifting and decrease fuel consumption.

Watercooled Turbocharged and ATAAC.

Air-to-air aftercooling provides improved fuel economy by packing cooler, denser air into cylinders for more complete combustion of fuel and lower emissions.

Electronic Unit Injection (EUI).

The electronically controlled unit injection fuel system senses operating conditions and regulates fuel delivery for optimum fuel efficiency. The proven high-pressure fuel system provides improved response times and more efficient fuel burn with lower emissions and less smoke.

Electronic Control Module (ECM).

ECM utilizes advanced engine management software to monitor, control and protect the engine utilizing self-diagnosing electronic sensors. The computerized system senses operating conditions and power requirements and adjusts engine for peak performance and most efficient operation at all times.

Design. Caterpillar®designed one-piece cast iron block provides maximum strength and durability. Two-piece articulated pistons with forged steel crowns are designed to withstand higher cylinder pressure.

EPA Compliant. The Cat C18 Engine with ACERT™ technology is compliant with U.S. Environmental Protection Agency Tier 3 Emission Standards.

Power Train – Engine

The Cat®C18 engine with ACERT™ Technology delivers the power and reliability necessary to perform in the most demanding underground mining applications.

Page 5

Mechanical Power Train. The Cat mechanical drive power train and power shift transmission provide unmatched operating efficiency and control on steep grades, in poor underfoot conditions, and on haul roads and drives with high rolling resistance.

1) Transmission. The Cat seven-speed planetary power shift transmission is matched with the direct-injection C18 engine with ACERT™ technology to deliver constant power over a wide range of operating speeds.

Robust Design. Designed for rugged underground mining conditions, the proven planetary power shift transmission is built for long life between overhauls.

2) Lock Up Torque Convertor. Combines maximum rimpull and cushioned shifting of torque converter drive with the efficiency and performance of direct drive. When engaged, lock-up provides superior power train efficiency by delivering more power to the wheels.

Lock-Up Clutch. Quickly releases and re-engages to reduce power train torque loads for smoother shifting, long life and a more comfortable ride.

Smooth Shifting. Individual clutch modulation provides smooth clutch engagements to optimize performance and extend clutch life.

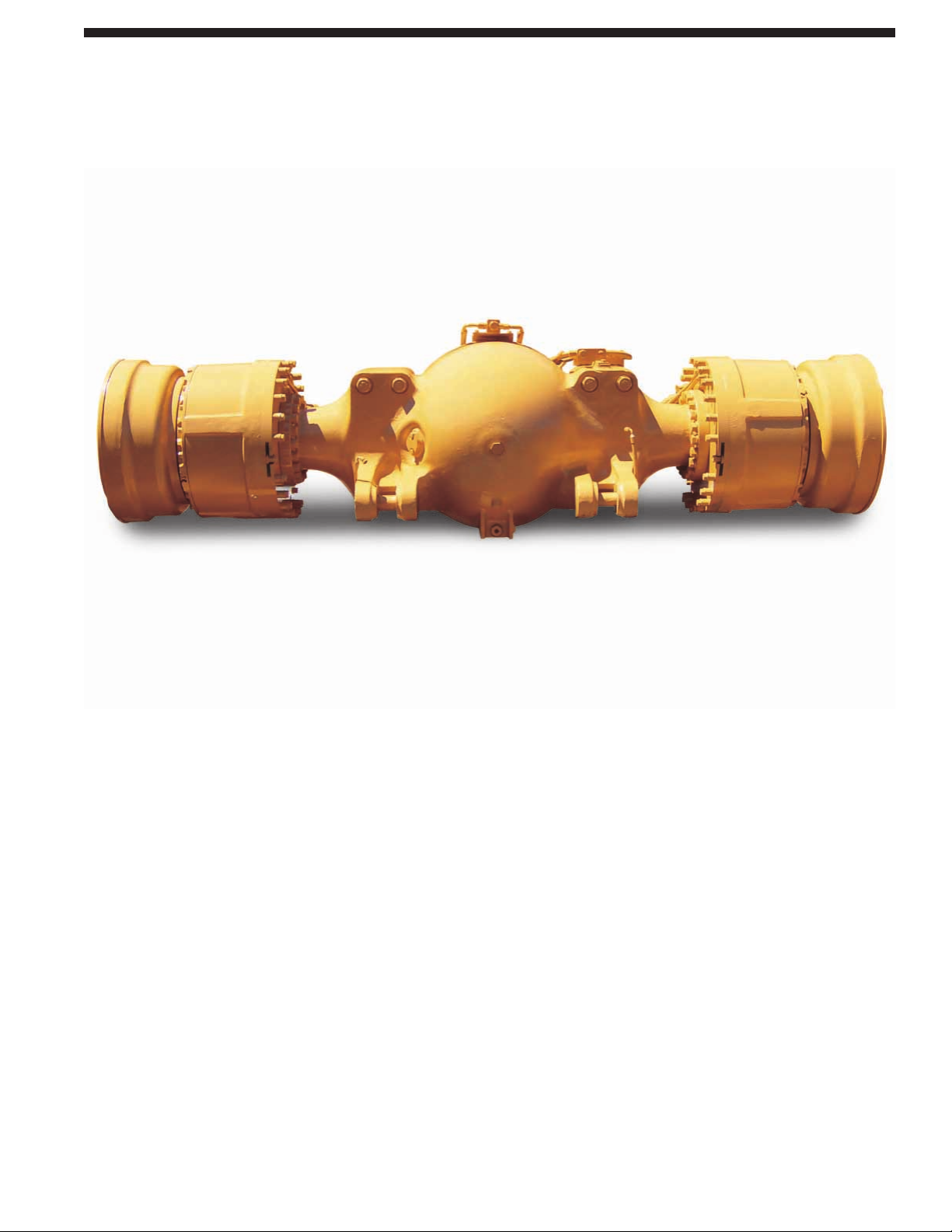

3) Final Drives. Cat final drives work as a system with the planetary power shift transmission to deliver maximum power to the ground. Built to withstand the forces of high torque and impact loads, final drives provide high torque multiplication to further reduce drive train stress.

Full Floating Axles. Full floating axles relieve internal stresses and increase durability. Rolled splines also provide increased service life.

Power Train – Transmission

Cat power train delivers more power to the ground for greater productivity and lower operating costs.

Page 6

Cat Data Link. Electronically integrates machine computer systems to optimize overall power train performance, increase reliability and component life, and reduce operating costs.

• Controlled Throttle Shifting. Regulates engine RPM during shifting to reduce power train stress and clutch wear by controlling engine speed, torque converter lock-up and transmission clutch engagement for smoother shifts and longer component life.

• Economy Shift Mode. Reduces engine speeds, resulting in decreased fuel consumption, lower noise levels and potentially longer engine life.

• Directional Shift Management.

Regulates engine speed during directional shifts to prevent damage caused by high speed directional changes.

• Body-up Shift Inhibitor. Prevents the transmission from shifting above a preprogrammed gear without the body fully lowered.

Electronic Technician (Cat ET). Cat ET service tool provides service technicians with easy access to stored diagnostic data through Cat Data Link to simplify problem diagnosis and increase availability.

Diagnostic Capability. Critical data from the electronic engine and transmission controls, including transmission shifting, engine speed and fuel consumption, provides service technicians with enhanced diagnostic capability to reduce downtime and operating costs.

Overspeed Protection. The transmission control electronically senses engine conditions and automatically up-shifts one gear to prevent overspeeding. If overspeeding occurs in top gear, the lock-up clutch is disengaged.

Engine/Power Train Integration

Electronically combines critical power train components to work more intelligently and optimize overall truck performance.

Page 7

Integrated Braking System. The Cat oilcooled braking system delivers reliable performance and control in the most extreme underground mining conditions. The integrated system combines the service, secondary, parking brake and retarding functions in the same robust system for optimum braking efficiency.

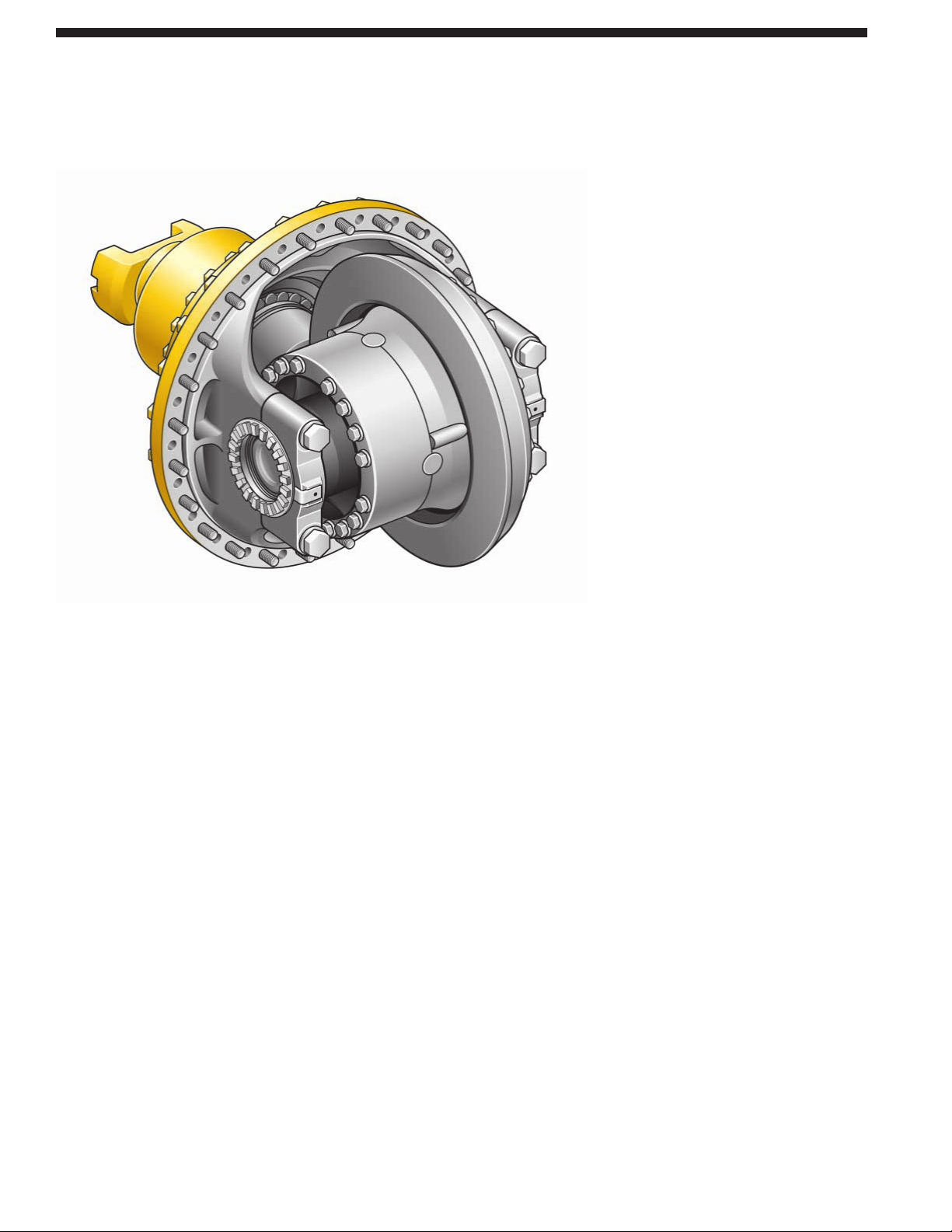

Oil-Cooled Multiple Disc Brakes.

Caterpillar four-wheel, forced oil-cooled, multiple disc service brakes are continuously cooled by a water-to-oil heat exchanger for exceptional, nonfade braking and retarding performance.

Brake Design. Cat oil-cooled disc brakes are designed with large discs and plates for reliable, adjustment-free operation and performance. Brakes are completely enclosed and sealed to prevent contamination and reduce maintenance.

Long Life. An oil film prevents direct contact between the discs. This design absorbs the braking forces by shearing the oil molecules and carrying heat away to extend brake life.

Automatic Retarder Control (ARC).

Electronically controls retarding on grade to maintain optimum engine rpm and oil cooling. Additional braking may be applied using the manual retarder or the brake pedal.

Faster Speeds. ARC allows the operator to maintain optimum engine speeds for faster downhill hauls and greater productivity.

Superior Control. Automatic brake modulation offers a smoother ride and better control in slippery conditions, allowing the operator to concentrate on driving.

Ease of Operation. ARC increases operating ease, resulting in greater operator confidence with less fatigue.

Engine Overspeed Protection.

Automatically activates ARC when engine speed exceeds factory preset levels, regardless of operator inputs, to avoid potentially damaging engine overspeeds.

Fuel Efficiency. The engine provides additional retarding by running against compression on downhill hauls. During retarding applications the engine ECM reduces fuel injection to minimum value or exceptional fuel economy.

Caterpillar Brake System

Reliable braking with superior control gives the operator the confidence to focus on productivity.

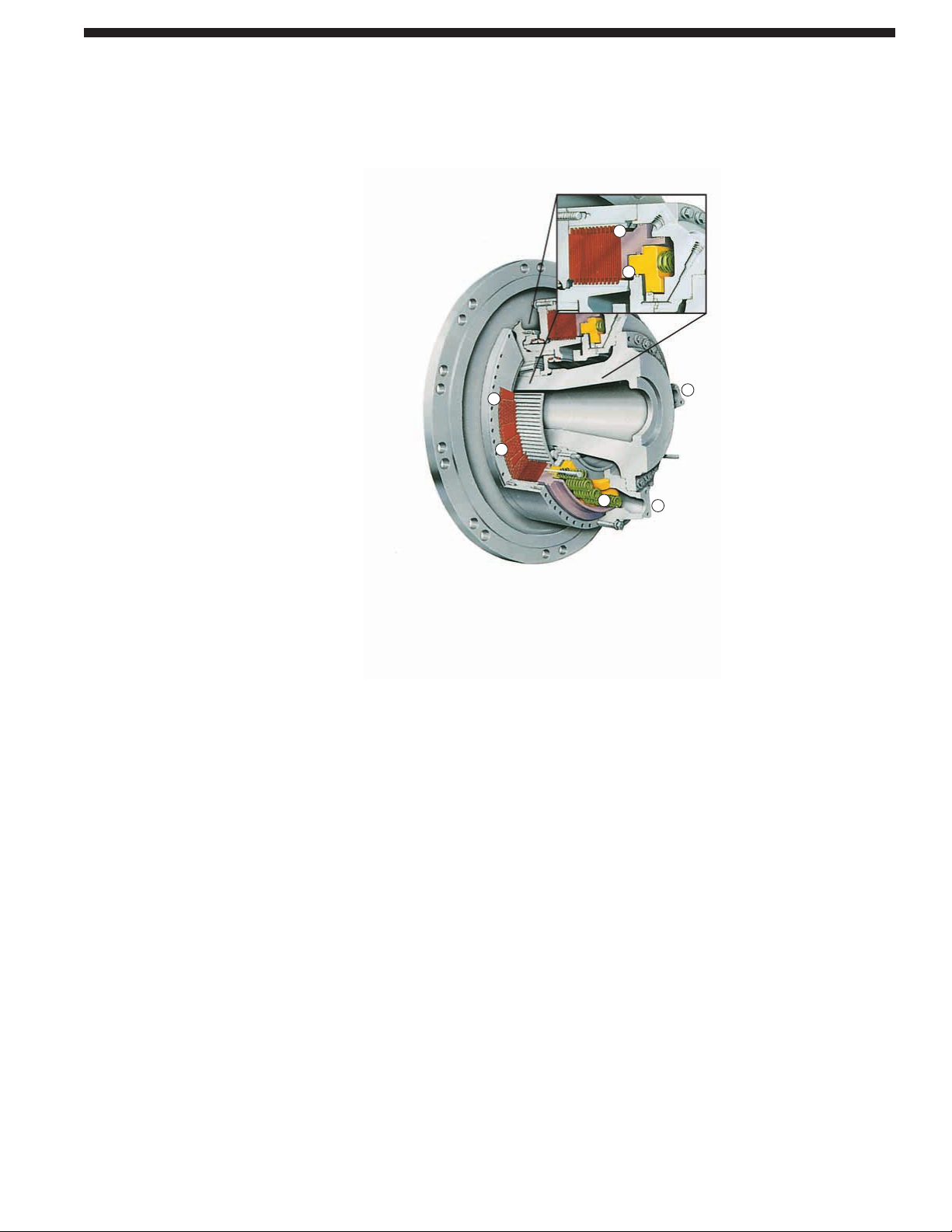

1 Parking/Secondary Piston 2 Service/Retarding Piston 3 Friction Discs 4 Steel Plates 5 Actuating Springs 6 Cooling Oil In 7 Cooling Oil Out

Page 8

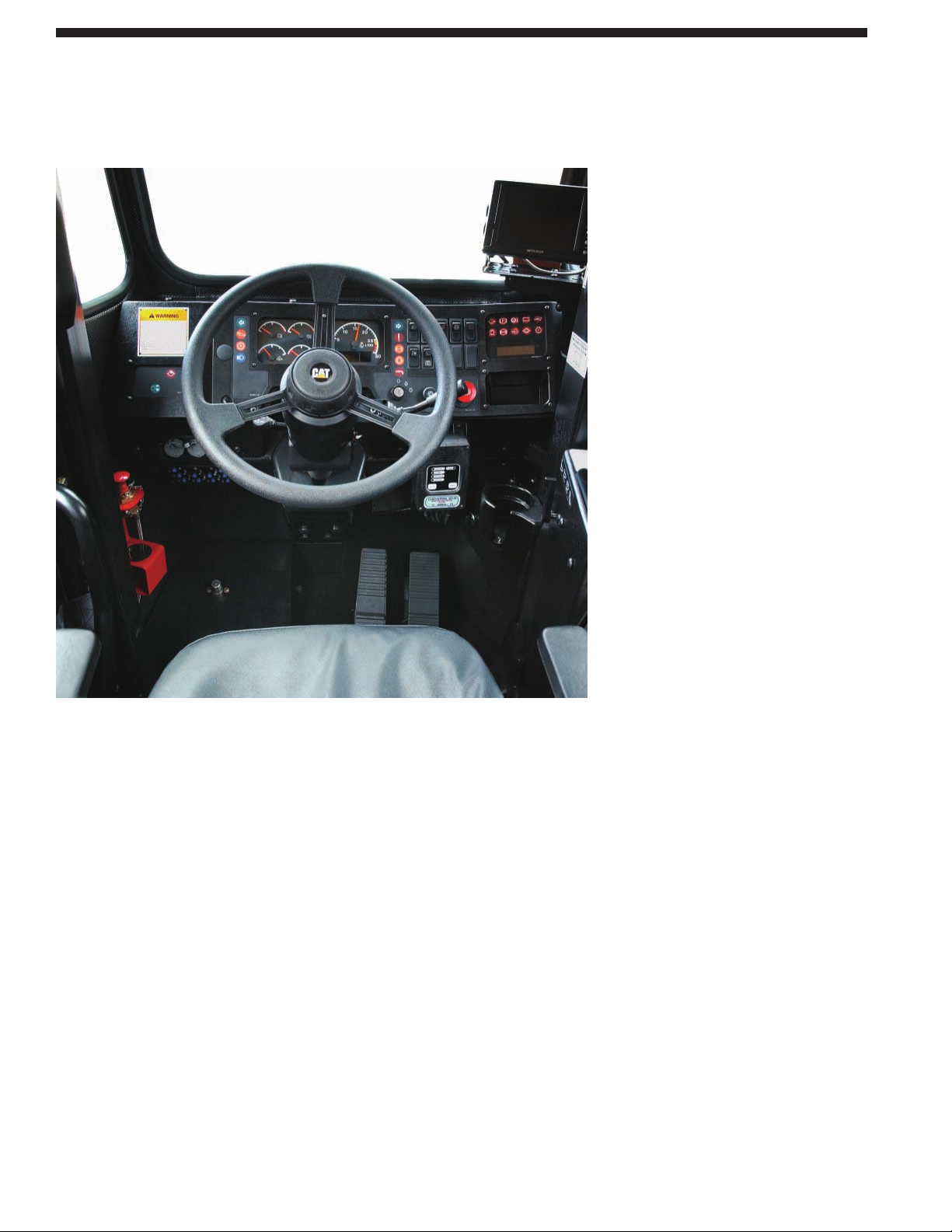

Ergonomic Layout. The AD45B operator

station is ergonomically designed for total machine control in a comfortable, productive and safe environment. All controls, levers switches and gauges are positioned to maximize productivity and minimize operator fatigue.

Protective Structure. Integral to the cab and frame, both the Rollover Protective Structure (ROPS) and Falling Objects Protective Structure (FOPS) are resiliently mounted to the mainframe to isolate the operator from vibration for a more comfortable ride.

Optional Enclosed Cab. Optional soundsuppressed ROPS cab provides a quiet, secure working environment. Enclosed design provides fresh, pressurized, temperature-controlled air circulation with air-conditioned comfort and a more comfortable working environment.

Suspension Seat. Ergonomically designed, fully adjustable suspension seat with adjustable armrests provide optimal operator comfort. Thick cushions reduce pressure on lower back and thighs. Wide, retractable seat belts provide a secure, comfortable restraint.

Steering Column. Comfort wheel with tilt steering provides a comfortable driving position, secure grip and greater control.

Monitoring System. Caterpillar Electronic Monitoring System (CEMS) continuously provides critical machine data to keep the machine performing at top production levels. Displays are backlit for easy viewing.

• Gauge Cluster. Maintains a constant display of vital machine functions, including: engine coolant temperature, brake oil temperature, engine oil pressure and fuel level.

• Speedometer/Tachometer Module. Monitors three systems: engine speed, ground speed and gear indicator.

• Message Center. The Caterpillar Electronic Monitoring System (CEMS) includes 4 warning categories and provides visual and audible warning system outputs to alert operators of abnormal machine health conditions.

Interlock. If the operator fails to apply the park brake prior to exiting the cab, the interlock system will detect the absence of operator input and apply the park brake, neutralize the steering, implements and transmission and command the engine ECM to shut down the engine.

Operator’s Station

Ergonomically designed for operator comfort, superior control and high productivity.

Page 9

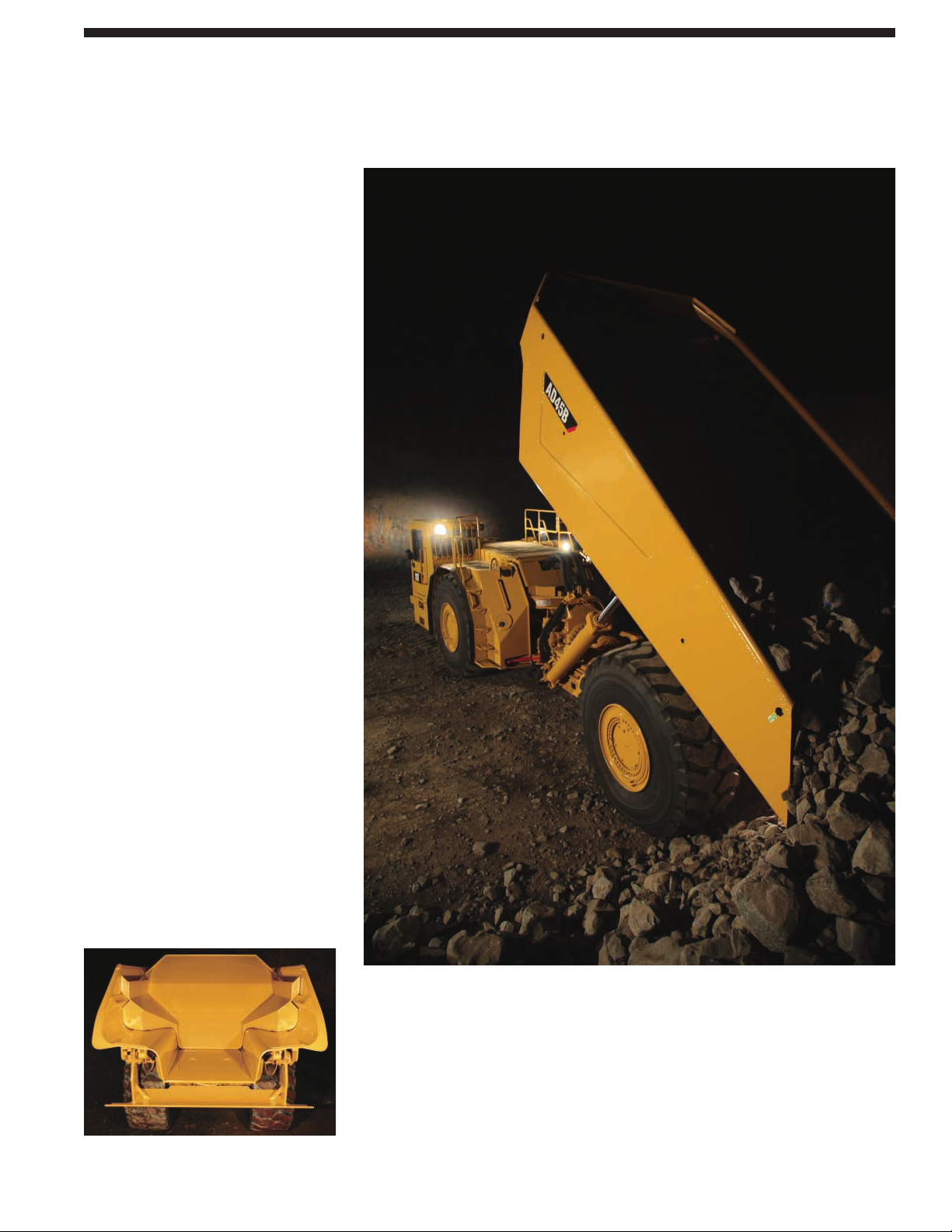

Cat Truck Bodies. Caterpillar offers two specific body styles for the most efficient hauling solutions at the lowest cost-per-ton.

• Dump Body

• Ejector Body

The ejector body can now be easily removed and a dump body fitted for greater machine versatility.

Body Selection. Selection of the right body depends on material, haul road, and dump conditions. The better the match of body to application, the greater the efficiency. Your Cat dealer can help you select the right body system for your site specific application.

Body Design. Cat truck bodies are designed for optimal strength, capacity and durability. With improved design and the use of Hardox steel, longer service life and lower cost per ton figures are now evident.

Body/Chassis Integration. Caterpillar truck bodies are designed and matched with the integrated chassis system for optimum structural reliability, durability and long life.

Fast Hoist Cycle Times. Single-stage hoist cylinders provide fast dump cycle times of 16 seconds for raise and 21 seconds for lower.

Load Carrying Capacity. Large target area provides high load carrying capacity. Its diverging flow design gives clean load ejection, which maximizes production and avoids material carryback.

Truck Payload Management System (TPMS). The optional TPMS system

calculates the payload the truck is carrying and determines truck cycle times.

Ejector Body. The ejector body offers clean load ejection and the capability to work in areas with restricted overhead clearance and soft underfoot conditions.

Truck Body Systems

Cat designed and built for rugged performance and reliability in tough underground mining applications.

Page 10

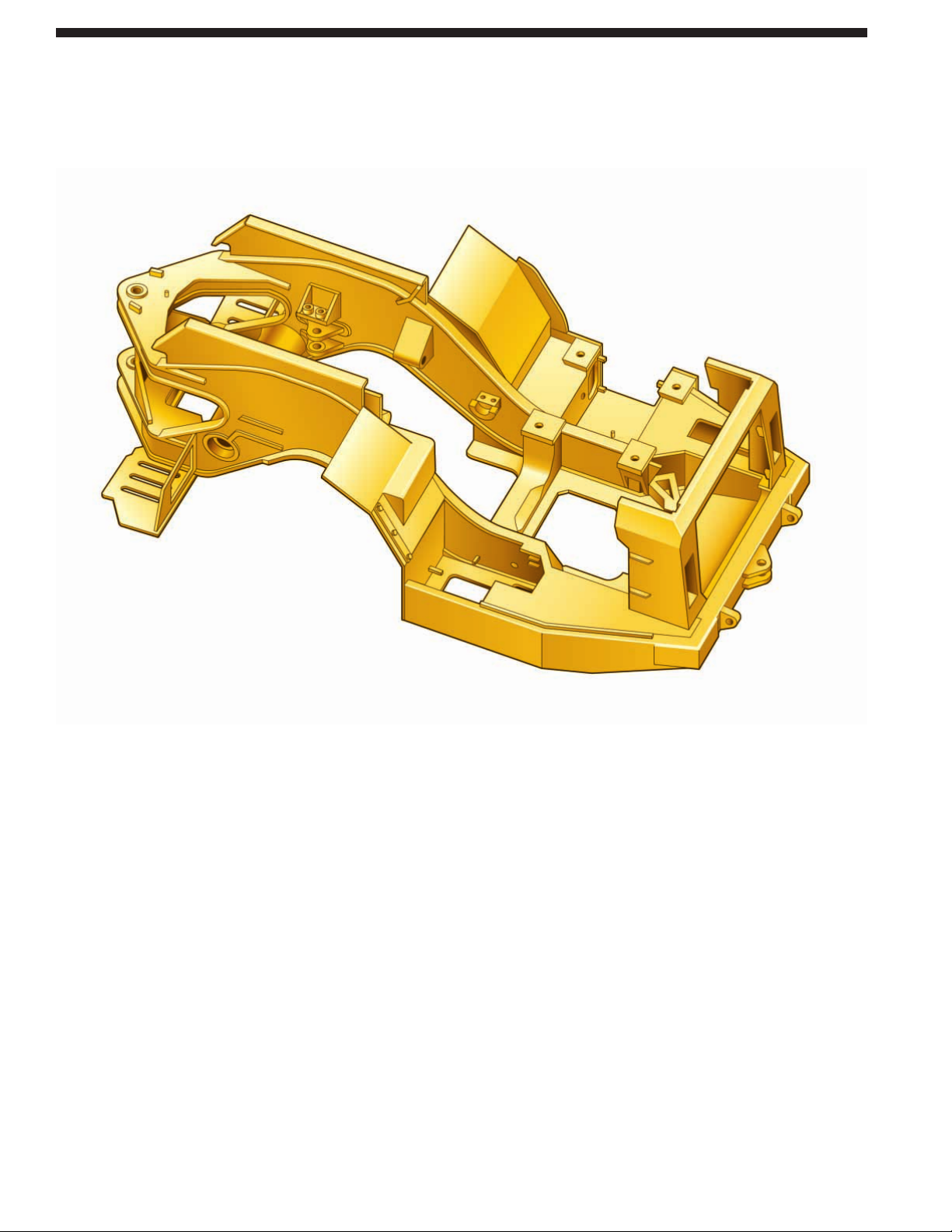

Frame Design. The frame incorporates a box-section design with wide and stiff frame beams to handle torque loads. The frame design decreases stress in the hitch area and optimizes suspension geometry. Materials and weld joints are matched to optimize the life of the structure.

Articulating/Oscillating Hitch.

The articulating hitch provides the truck with steering articulation and the oscillation ensures the truck maintains all wheel ground contact in rough terrain. Hardened steel pins, taper roller bearings and oscillating stops allows the rear frame to move independently from the front frame.

Suspension System. The suspension system is designed to dissipate haul road and loading impacts for longer frame life.

Suspension Cylinders. Two independent variable rebound suspension cylinders absorb shocks before forces get to the mainframe for longer frame life and a more comfortable ride.

Structures

Rugged Cat structures are the backbone of the AD45B underground mining truck’s durability.

Page 11

Service Access. Easy access to daily service points simplifies servicing and reduces time spent on regular maintenance procedures.

Ground-Level Access. Allows convenient servicing to tanks, filters, lubrication points and compartment drains.

Diagnostics. Electronic control system enables quick diagnosis of engine conditions and effective maintenance and repairs utilizing the Cat Electronic Technician (Cat ET) Service Tool.

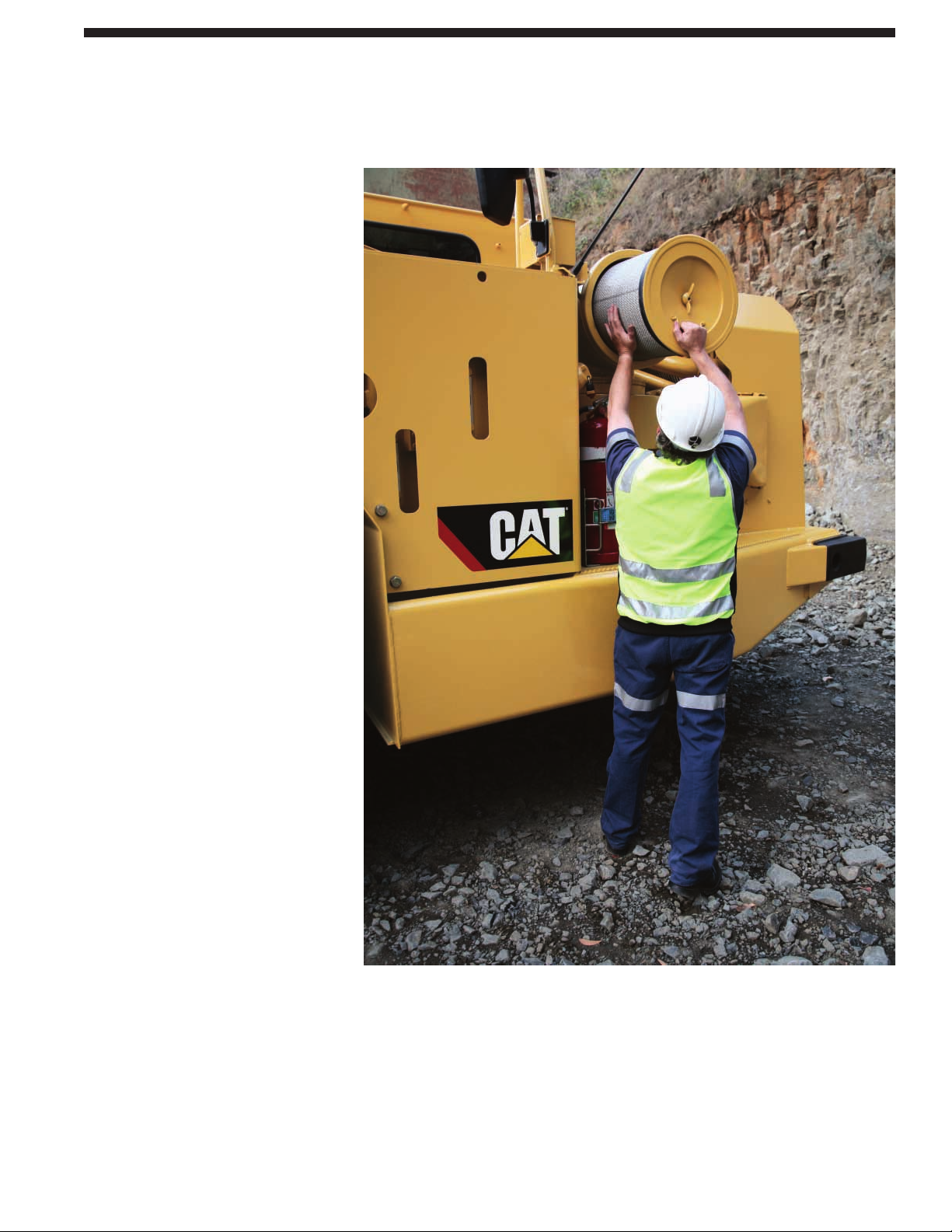

Air Filters. Radial seal air filters are easy to change, reducing time required for air filter maintenance.

Sight Gauges. Makes fluid level checks quick and easy. These include the hydraulic, transmission and coolant reservoirs.

Sealed Electrical Connectors. Electrical connectors are sealed to lock out dust and moisture. Harnesses are covered for protection. Wires are color and number coded for easy diagnosis and repair.

Scheduled Oil Sampling. S•O•S

sampling valves speed sampling and analysis reliability.

Serviceability

Less time spent on maintenance means more time on the haul roads.

Page 12

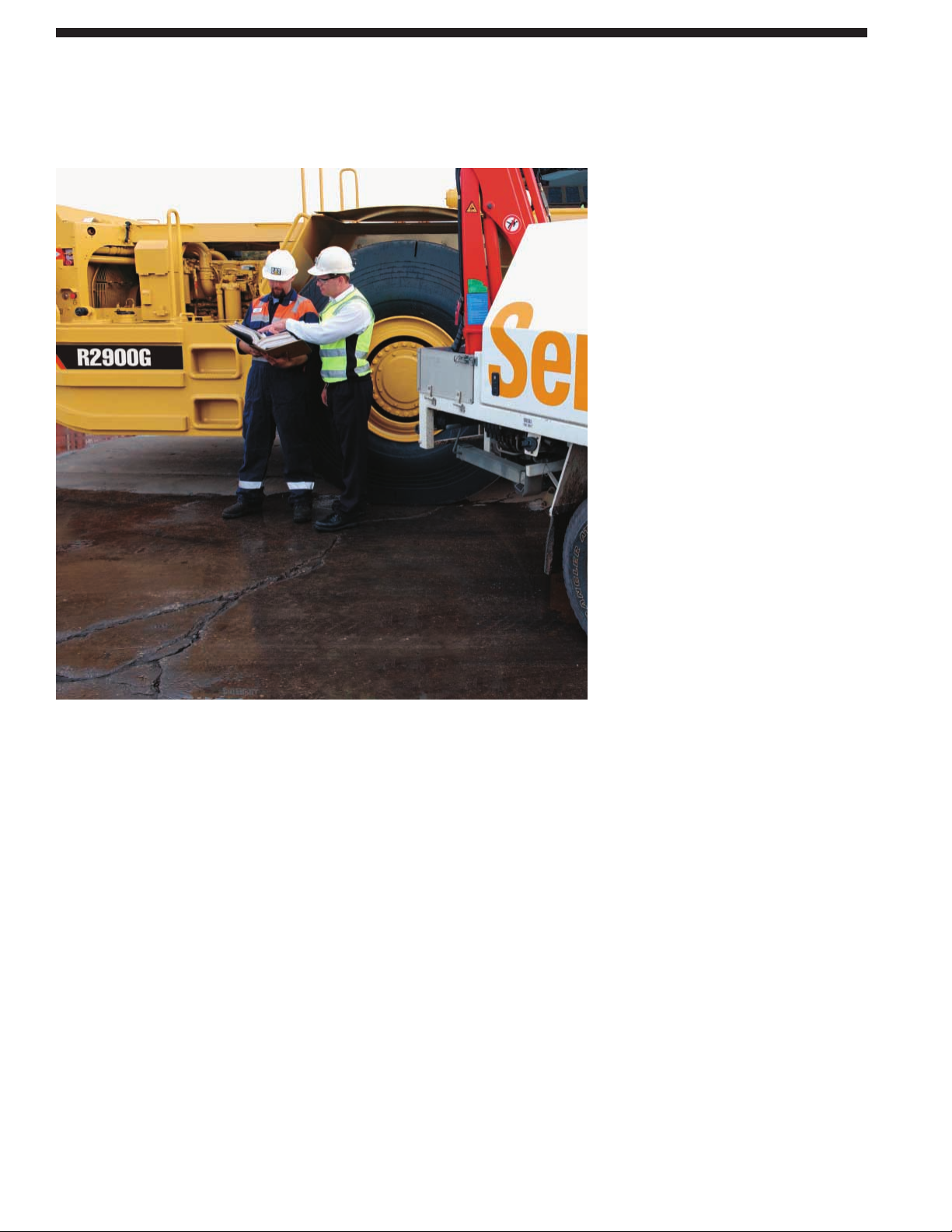

Commitment Makes the Difference.

Cat dealers offer a wide range of solutions, services and products that help you lower costs, enhance productivity and manage your operation more efficiently. Support goes far beyond parts and service. From the time you select a piece of Cat equipment until the day you rebuild, trade or sell it, the support you get from your Cat dealer makes the difference that counts.

Dealer Capability. Cat dealers will provide the level of support you need, on a global scale. Dealer expert technicians have the knowledge, experience, training and tooling necessary to handle your repair and maintenance needs, when and where you need them.

Product Support. Cat dealers believe superior products deserve superior support. When Cat products reach the field, they are supported by a worldwide network of parts distribution facilities, dealer service centers, and technical training facilities to keep your equipment up and running. Cat customers rely on prompt, dependable parts availability and expertise through our global dealer network, ready to meet your needs 24/7.

Service Support. Every piece of Cat equipment is designed and built to provide maximum productivity and operating economy throughout its working life. Cat dealers offer a wide range of service plans that will maximize uptime and return on your investment, including:

• Preventive Maintenance Programs

• Diagnostic Programs, such as Scheduled Oil Sampling and Technical Analysis

• Rebuild and Reman Options

• Customer Support Agreements

Technology Products. Cat dealers offer a range of advanced technology products designed to improve fleet efficiency, increase productivity, and lower costs.

www.cat.com. For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com.

Customer Support

Caterpillar dealers have what it takes to keep Underground Mining Equipment productive.

Page 13

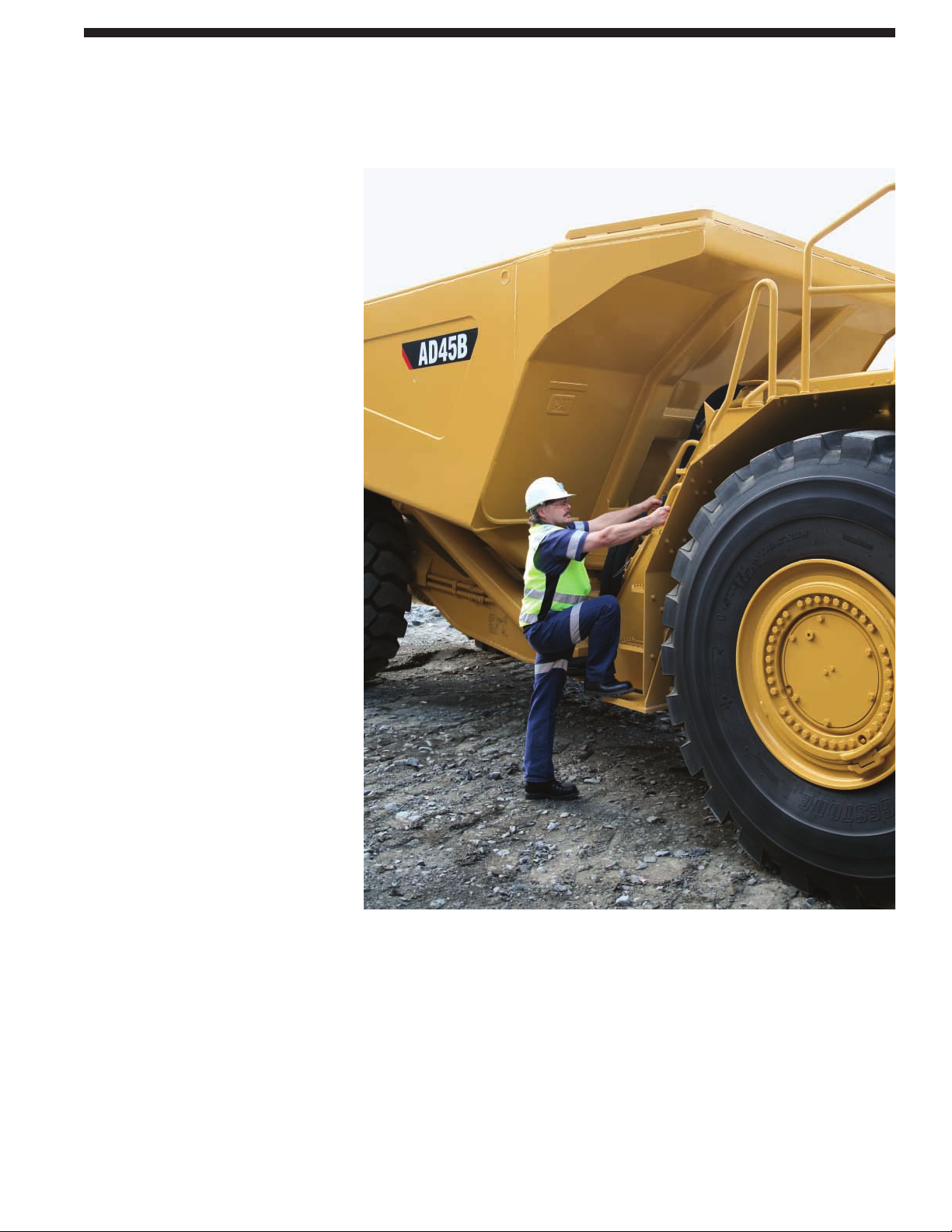

Product Safety. Caterpillar has been and continues to be proactive in developing mining machines that meet or exceed safety standards. Safety is an integral part of all machine and systems designs.

Engine Shutoff Switch. A secondary engine shutoff switch is located at ground level.

Integral ROPS Cab. Integral to the cab and frame, the ROPS is resiliently mounted to the frame to isolate the operator from vibration for a more comfortable ride.

Brake Systems. Four corner oil-cooled braking system provides excellent control. The service brakes and retarding system are actuated by modulated hydraulic pressure, while the parking brake function is spring applied and hydraulic released. This system assures braking in the event of loss of hydraulic pressure.

Standard Safety Features.

• Anti-Skid upper deck surfaces

• Upper deck handrails

• 3-point cabin and machine access

• Push out safety glass

• Excellent visibility

• Suspension seat

• Passenger/training seat

• Inertia reel retractable belts

• Steering frame lock

• Rear window guard

• Integrated fire suppression system

• Body retaining pins

• Automatic retarder control

• Exhaust heat shielding and firewall fitted standard

• Hitch hydraulic hoses – burst protection sleeves fitted

• Tailgate retaining pins (ejector body)

• Alternate exit via windows

• Ground level compartment sight glasses

• Hot and cold side of engine

Safety

Caterpillar mining machines and systems are designed with safety as their first priority.

Page 14

AD45B Underground Articulated Truck specifications

Transmission

Forward 1 8 km/h 4.9 mph Forward 2 10.9 km/h 6.8 mph Forward 3 15.1 km/h 9.4 mph Forward 4 20.6 km/h 12.8 mph Forward 5 28.1 km/h 17.4 mph Forward 6 38.1 km/h 23.7 mph Forward 7 52 km/h 32.3 mph Reverse 1 7.5 km/h 4.6 mph Reverse 2 10.1 km/h 6.3 mph

• Maximum travel speeds with standard 29.5 x R29 tires.

Final Drives

Differential Ratio 3.46:1 Final Drive Ratio 5.65:1 Total Reduction Ratio 19.55:1

Body Hoist

Raise 16 Seconds Lower 21 Seconds Total Cycle Time 37 Seconds

Body Capacities

Dump Body – Standard 21.3 m

27.9 yd

Dump Body – Optional 25.1 m

32.8 yd

Ejector Body – Optional 22.9 m

30 yd

• Heaped SAE 2:1

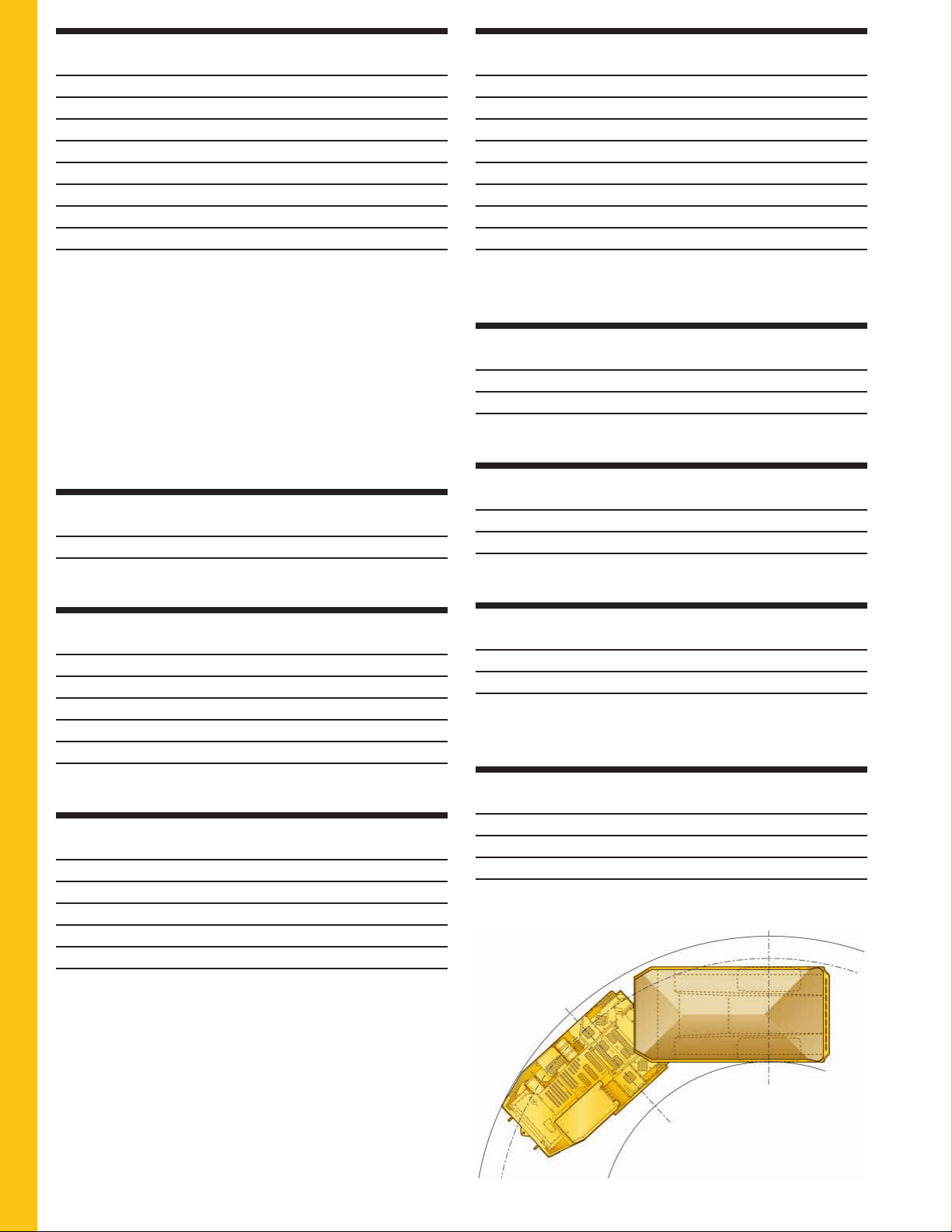

Turning Dimensions

Outside Clearance Radius* 9291 mm 365.8 in Inside Clearance Radius* 5310 mm 209 in Frame Oscillation 10º Articulation Angle 42.5º

* Clearance dimensions are for reference only.

Engine

Engine Model Cat C18 ACERT™ Rated Power 2,000 RPM Gross Power – SAE J1995 438 kW 587 hp Net Power – SAE J1349 414 kW 556 hp Net Power – ISO 9249 414 kW 556 hp Net Power – 80/1269/EEC 414 kW 556 hp Bore 145 mm 5.7 in Stroke 183 mm 7.2 in Displacement 18.1 L 1,104.53 in

• Power ratings apply at a rated speed of 2,000 rpm when tested under the reference conditions for the specified standard.

• Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).

• Engine derate will commence at an altitude of 2700 m (8,858 ft).

• Compliant with U.S. Environmental Protection Agency Tier 3 emissions standards.

Operating Specifications

Nominal Payload Capacity 45 000 kg 99,208 lb Gross Machine Operating Weight 85 000 kg 187,393 lb

Weights

Empty 40 000 kg 88,184 lb

Front Axle 27 600 kg 60,847 lb Rear Axle 12 400 kg 27,337 lb

Loaded 85 000 kg 187,393 lb

Front Axle 38 760 kg 85,451 lb Rear Axle 46 240 kg 101,942 lb

Weight Distribution

Empty

Front Axle 69% Rear Axle 31%

Loaded

Front Axle 45.6% Rear Axle 54.4%

Page 15

AD45B Underground Articulated Truck specifications

Tires

Tire Size 29.5 x R29

Standards

Brakes ISO3450, AS2958.1,

CAN-CSA424.30-M90

Cab/FOPS ISO3449, SAEJ231,

AS2294.3, EN13627

Cab/ROPS ISO3471, SAEJ1040,

AS2294.2, EN13510

Service Refill Capacities

Engine Crankcase with Filter 64 L 16.9 gal Transmission 60 L 15.9 gal Hydraulic Tank 266 L 70.3 gal Cooling System 85 L 22.5 gal Front Differentials and Final Drives 77 L 20.3 gal Rear Differentials and Final Drives 83 L 21.9 gal Fuel Tank 764 L 201.8 gal

Page 16

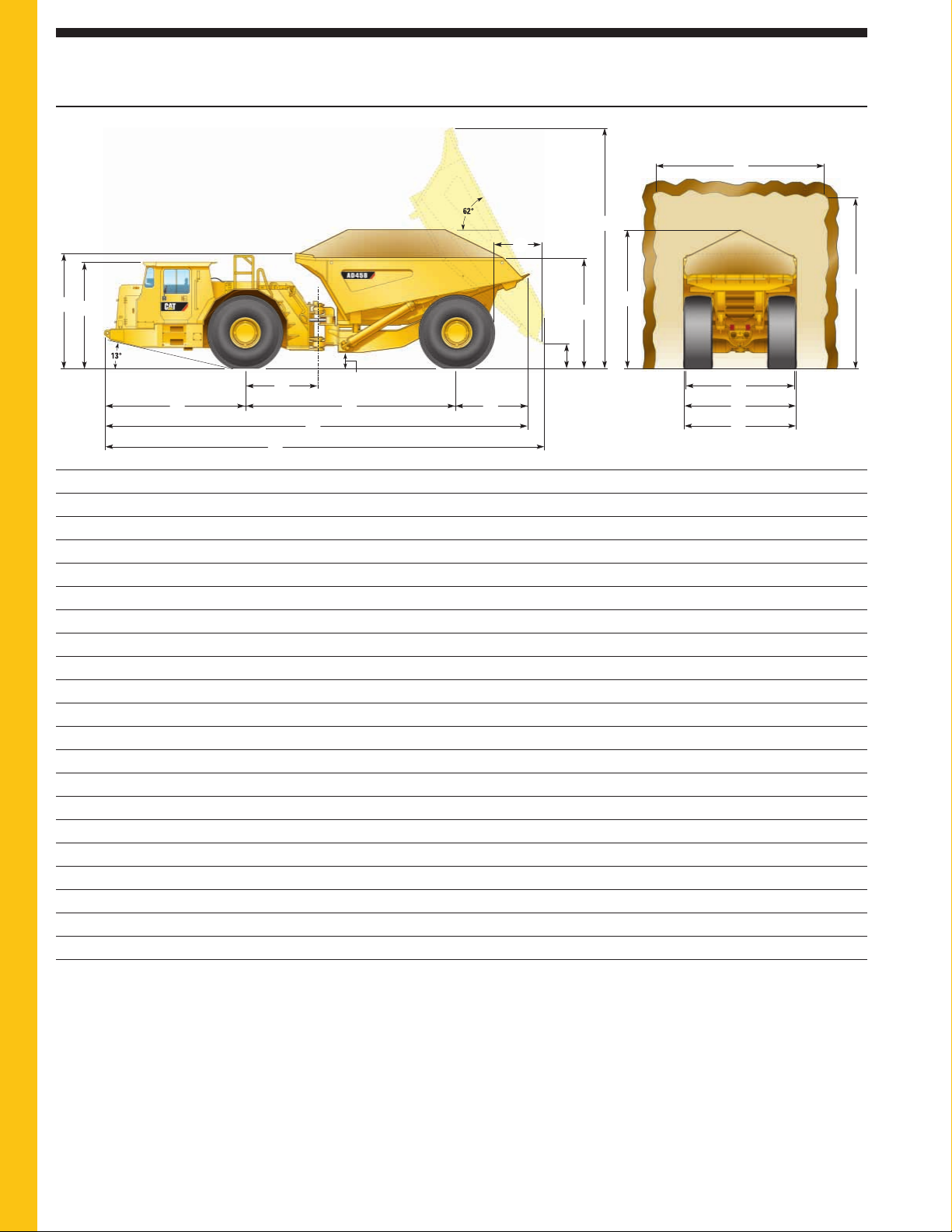

Dimensions

AD45B Underground Articulated Truck specifications

All dimensions are approximate.

267-5319 (Standard Body) 275-0710 273-2823

Dump Body 21.3 m3(27.9 yd3) 25.1 m3(32.8 yd3)–

Ejector Body – – 22.9 m3(30 yd3)

1 Height to Top of Body 3036 mm (10'0") 3181 mm (10'5") 3463 mm (11'4") 2 Height to Top of ROPS 2817 mm (9'3") 2817 mm (9'3") 2817 mm (9'3") 3 Front Axle to Front Bumper 3718 mm (12'2") 3718 mm (12'2") 3718 mm (12'2") 4 Centerline of Front Axle to Centerline of Hitch 1920 mm (6'4") 1920 mm (6'4") 1920 mm (6'4") 5 Overall Length 11 194 mm (36'9") 11 194 mm (36'9") 11 305 mm (37'1") 6 Max Overall Length 11 622 mm (38'2") 11 682 mm (38'4") 11 305 mm (37'1") 7 Wheelbase 5570 mm (18'3") 5570 mm (18'3") 5570 mm (18'3") 8 Ground Clearance 441 mm (1'5") 441 mm (1'5") 441 mm (1'5")

9 Rear Axle to Tail 1906 mm (6'3") 1906 mm (6'3") 2017 mm (6'3") 10 Rear Wheel to Body Raised 1268 mm (4'2") 1268 mm (4'2") 946 mm (3'1") 11 Dump Clearance 665 mm (2'2") 665 mm (2'2") 1001 mm (3'3") 12 Loading Height 2925 mm (9'7") 3070 mm (10'1") 3179 mm (10'5") 13 Overall Height – Body Raised 6357 mm (20'10") 6603 mm (21'8") – 14 Tunnel Clearance Width 4500 mm (14'9") 4500 mm (14'9") 4500 mm (14'9") 15 Tunnel Clearance Height 4500 mm (14'9") 4500 mm (14'9") 4500 mm (14'9") 16 Overall Tire Width 3000 mm (9'10") 3000 mm (9'10") 3000 mm (9'10") 17 Overall Width (Including Body) 3000 mm (9'10") 3200 mm (10'6") 3200 mm (10'6") 18 Overall Width (Excluding Body) 3000 mm (9'10") 3000 mm (9'10") 3000 mm (9'10") 19 Height to Top of Load (SAE 2:1) 3655 mm (12'0") 3705 mm (12'2") 3705 mm (12'2")

Page 17

AD45B Underground Articulated Truck specifications

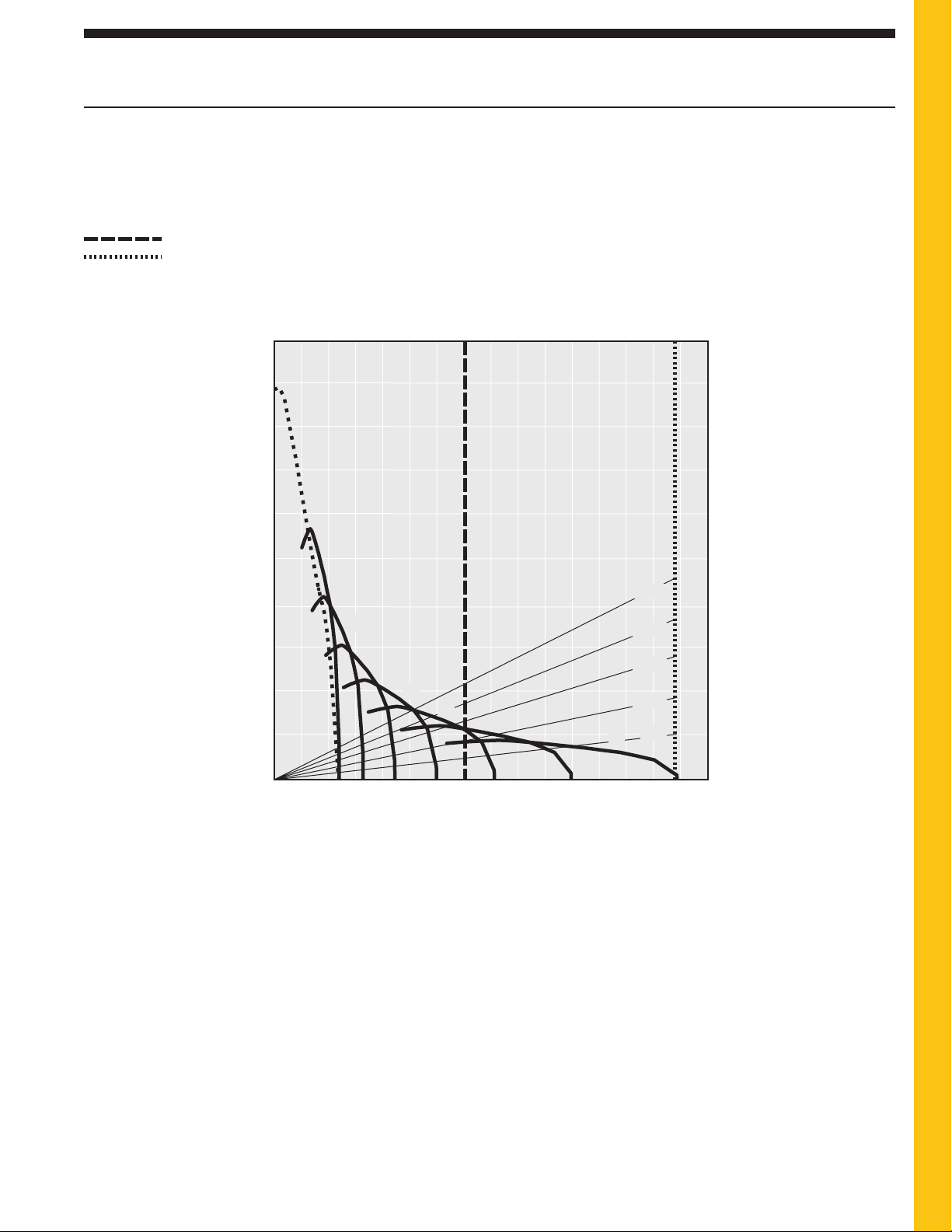

Gradeability/Speed/Rimpull

To determine gradeability performance: Read from gross weight down to the percent of total resistance. Total resistance equals actual percent grade plus rolling resistance as a general guide use 2% for rolling resistance in underground application or refer to the Cat Performance Handbook. From the total

Typical Field Empty Weight Loaded Weight

Gross Weight

445

lbf N

100

400

356

311

267

222

178

133

Rimpull N x 1000 (lb x 1000)

resistance point, read horizontally to the curve with the highest obtainable gear, then down to maximum speed. Usable rimpull will depend upon traction available and weight on drive wheels.

25%

20%

Total Resistance

(Grade plus Rolling)

15%

10%

0 mph

2468101214161820222426283032

3.2 6.4 9.6 12.9 16.0 19.3 22.5 25.7 28.9 32.1 35.4 38.6 41.8 45.1 48.3 51.5

1A – 1st Gear Torque Convertor Drive 1B – 1st Gear Direct Drive 2 – 2nd Gear Direct Drive 3 – 3rd Gear Direct Drive 4 – 4th Gear Direct Drive 5 – 5th Gear Direct Drive 6 – 6th Gear Direct Drive 7 – 7th Gear Direct Drive

km/h

Speed

E – Empty 40 000 kg (88,185 lb) L – Loaded 85 000 kg (187,393 lb)

Page 18

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

POWER TRAIN

6 cylinder C18 ACERT™ ATAAC diesel engine Long life coolant Automatic retarder control All wheel disc brakes (oil cooled) Parking brakes (four wheels) Autoshift transmission 7 speed forward/2 speed reverse Torque converter with automatic lockup Control throttle shifting Programmable ground speed limiting Programmable gear blockout with tray up Engine air intake pre cleaner Four wheel drive

OTHER STANDARD EQUIPMENT

Belly guards

29.5  R29 VSNT radial tires Front and rear tow pin Articulated and oscillated hitch Exhaust catalytic converter/muffler Tray-up alarm Centralized lubrication points Frame lifting lugs Exhaust covers Dump body (21.3 m3, 27.9 yd3) Firewall Front axle suspension Front rubber bumpers

ELECTRICAL

Alternator, 95 amp Reversing alarm Reversing lights Headlights with dimmer switch Rear work light (cab mounted) Caterpillar electronic monitoring system (CEMS) Ground level disconnect switch (2 post) Jump start receptacle Brake and tail light Ground level shutdown switch Corrosive protection spray 24v electric starting

OPERATOR ENVIRONMENT

Open ROPS/FOPS operator station Suspension operator seat with retractable seat belt Tilt/telescopic steering wheel Rear view mirrors Trainer/passenger seat and seat belt Interlock system includes ABA

AD45B Underground Articulated Truck specifications

Page 19

AD45B Underground Articulated Truck specifications

Optional Equipment

Optional equipment may vary. Consult your Caterpillar dealer for details.

Fast Fill System

Coolant Engine Fuel Hydraulic

Transmission Fire Extinguisher, Hand Held Fire Suppression System Secondary Steering, Ground Driven EAM (Electronic Access Module) TPMS (Truck Payload Measurement System) Brake Oil Pressure Gauges

Air Conditioned Cab, ROPS/FOPS

Windshield Wiper Water Window, Sliding Operator Heater, Cab

Bodies

Body, (25.1 m3, 32.8 yd3) Ejector, (22.9 m3, 27.9 yd3)

Body Liners, Heavy Duty Camera/Monitor, Reversing Dual speed Control Exhaust Particulate Filter

Page 20

For more complete information on Cat products, dealer services,

and industry solutions, visit us on the web at www.cat.com

Printed in U.S.A.

Materials and specifications are subject to change without notice.

Featured machines in photos may include additional equipment.

See your Caterpillar dealer for available options.

CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and

the POWER EDGE trade dress, as well as corporate and product identity used

herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ5603-01 (8-07)

AD45B Underground Articulated Truck
