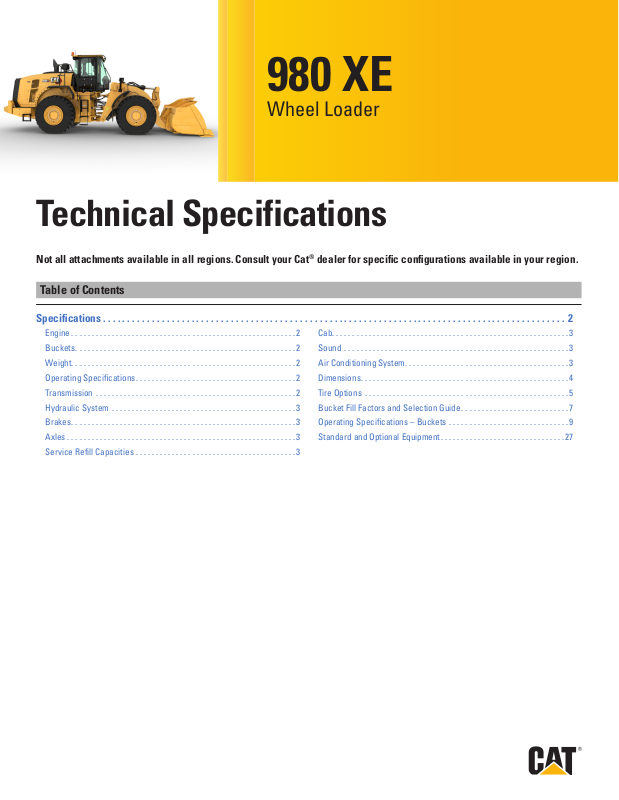

CAT 980 XE Technical Specifications

980 XE

Wheel Loader

Technical Specifications

Not all attachments available in all regions. Consult your Cat® dealer for specic congurations available in your region.

Engine Model Cat C13 Engine Power @ 1,700 rpm ISO 14396:2002 Gross Power @ 1,700 rpm SAE J1995:2014 Net Power @ 1,700 rpm ISO 9249:2007, SAE J1349:2011 Engine Torque (1,200 rpm) ISO 14396:2002 Gross Torque (1,200 rpm) SAE J1995:2014 Net Torque (1,100 rpm) ISO 9249:2007, SAE J1349:2011 Bore 130 mm 5.12 in Stroke 157 mm 6.18 in Displacement 12.5 L 763 in

• Cat engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

• The net power advertised is the power available at the ywheel when the engine is equipped with fan, alternator, air cleaner and aftertreatment.

313 kW 420 hp

317 kW 425 hp

293 kW 393 hp

2185 N·m 1,612 lbf-ft

2206 N·m 1,627 lbf-ft

2086 N·m 1,539 lbf-ft

3

Buckets

Bucket Capacities 4.0-14.5 m35.25-19.0 yd

Operating Specifications

Static Tipping Load – Full 40° Turn

With Tire Deection 19 706 kg 43,432 lb No Tire Deection 20 965 kg 46,208 lb

Breakout Force 227 kN 51,008 lbf

• For a machine conguration as dened under “Weight.”

• Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verication between calculations and testing.

Transmission

Forward 1 7.0 km/h 4.4 mph Forward 2 13.6 km/h 8.4 mph Forward 3 24.0 km/h 14.9 mph Forward 4 39.5 km/h 24.5 mph Reverse 1 8.1 km/h 5.0 mph Reverse 2 15.5 km/h 9.6 mph Reverse 3 29.5 km/h 18.3 mph Reverse 4 n/a n/a

• Maximum travel speed in standard vehicle with empty bucket andstandard L4 tires with 935 mm (37 in) roll radius.

3

Weight

Operating Weight 30 344 kg 66,877 lb

• Weight based on a machine conguration with Bridgestone

29.5R25 VSNT L4 radial tires, full uids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.

2

980 XE Wheel Loader Specifications

Hydraulic System

Implement Pump Type Variable Displacement

Piston, Electo-Hydraulic

Implement System:

Maximum Pump Output (1,400 rpm) 457 L/min 121 gal/min

Maximum Operating Pressure 34 300 kPa 4,975 psi

Optional 3rd Function MaximumFlow

Optional 3rd Function MaximumPressure at Work Tool

Hydraulic Cycle Time with Rated Payload:

Raise from Carry Position 5.3 sec

Dump, at Maximum Raise 1.7 sec

Lower, Empty, Float Down 3.1 sec

Total 10.1 sec

240 L/min 63 gal/min

20 684 kPa 3,000 psi

Brakes

Brakes Brakes meet ISO 3450:2011

standards

Axles

Front Fixed, open differential

Rear Oscillating, open

differential

Sound

With Cooling Fan Speed at Maximum Value:

Operator Sound Pressure Level (ISO 6396:2008) 70 dB(A)

Exterior Sound Power Level (ISO 6395:2008) 110 dB(A)

Exterior Sound Pressure Level (SAE J88:2013) 75 dB(A)*

* Distance of 15 m (49.2 ft), moving forward in second gear ratio.

With Cooling Fan Speed at 70% of Maximum Value:**

Operator Sound Pressure Level (ISO 6396:2008) 70 dB(A)

Exterior Sound Power Level 107 dB(A)***

** For machines in European Union countries and in countries

that adopt the “EU Directives.”

*** European Union Directive “2000/14/EC” as amended by

“2005/88/EC.”

Air Conditioning System

• The air conditioning system on this machine contains the uorinated greenhouse gas refrigerant R134a (Global Warming Potential =

1430). The system contains 1.6 kg (3.52 lb) of refrigerant which has

a CO2 equivalent 2.288 metric tonnes (2.522 tons).

Service Refill Capacities

Fuel Tank 426 L 112.5 gal

DEF Tank 21 L 5.5 gal

Cooling System 52 L 13.7 gal

Crankcase 37 L 9.8 gal

Transmission 77 L 20.3 gal

Differentials and Final Drives – Front 84 L 22.2 gal

Differentials and Final Drives – Rear 84 L 22.2 gal

Hydraulic Tank 153 L 40.4 gal

Cab

ROPS/FOPS ROPS/FOPS meet

ISO3471:2008 and ISO 3449:2005 Level II standards

3

980 XE Wheel Loader Specifications

Dimensions

All dimensions are approximate.

19

24

B†

6

5

4

3

2

1

8

9

7

10

11

12†

17†

18

20

21

A†

16†

14

15

13

22

26

23

Standard Lift High Lift

Height to Axle Centerline 899 mm 2'11" 899 mm 2'11"

1

Height to Top of Hood 3064 mm 10'1" 3064 mm 10'1"

2

Height to Top of Exhaust Pipe 3764 mm 12'5" 3764 mm 12'5"

3

Height to Top of ROPS 3829 mm 12'7" 3829 mm 12'7"

4

Height to Top of Product Link Antenna 3835 mm 12'7" 3835 mm 12'7"

5

Height to Top of Warning Beacon 4108 mm 13'6" 4108 mm 13'6"

6

Ground Clearance 456 mm 1'5" 456 mm 1'5"

7

Center Line of Rear Axle to Edge of Counterweight 2661 mm 8'9" 2661 mm 8'9"

8

Center Line of Rear Axle to Hitch 1900 mm 6'3" 1900 mm 6'3"

9

Wheelbase 3800 mm 12'6" 3800 mm 12'6"

10

Overall Length (without bucket) 8155 mm 26'10" 8355 mm 27'5"

11

Shipping Length (with bucket level on ground)*† 9673 mm 31'9" 9875 mm 32'5"

12

Hinge Pin Height at Carry Height 632 mm 2'0" 682 mm 2'2"

13

Hinge Pin Height at Maximum Lift 4554 mm 14'11" 4775 mm 15'7"

14

Lift Arm Clearance at Maximum Lift 3881 mm 12'8" 4125 mm 13'6"

15

Dump Clearance at Maximum Lift and 45º Discharge*† 3287 mm 10'9" 3508 mm 11'6"

16

Reach at Maximum Lift and 45º Discharge*† 1481 mm 4'10" 1484 mm 4'10"

17

Dump Angle at Maximum Lift and Dump (on stops)* 52 degrees 55 degrees

18

Rack Back at Maximum Lift* 61 degrees 61 degrees

19

Rack Back at Carry Height* 48 degrees 50 degrees

20

Rack Back at Ground* 40 degrees 40 degrees

21

Clearance Circle (dia) to Counterweight 13 692 mm 45'0" 13 692 mm 45'0"

22

Clearance Circle (dia) to Outside of Tires 13 700 mm 45'0" 13 700 mm 45'0"

23

Clearance Circle (dia) to Inside of Tires 7180 mm 23'7" 7180 mm 23'7"

24

Width over Tires (unloaded) 3240 mm 10'8" 3240 mm 10'8"

25

Width over Tires (loaded) 3260 mm 10'9" 3260 mm 10'9"

Tread Width 2440 mm 8'0" 2440 mm 8'0"

26

25

†Dimensions are listed in Operating Specifications charts. All height and tire related dimensions are with Bridgestone 29.5R25 VSNT L4 radial tires (see Tire Option Chart for other tires). "Width over Tires" dimensions are over

the bulge and include growth.

• All dimensions are approximate and based on machine equipped with 5.4 m3 (7.1 yd3) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires. (see Operating Specifications for other buckets)

4

980 XE Wheel Loader Specifications

Tire Options

Tire Brand Bridgestone Michelin Michelin Michelin Bridgestone Michelin Tire Size 29.5R25 29.5R25 29.5R25 29.5R25 29.5R25 29.5R25 Tread Type L–4 L–4 L–5 L–5 L–3 L–3 Tread Pattern VSNT XLDD1 XLDD2 XMINED2 VJT XHA2

Width over Tires – Maximum (empty)* 3240 mm 3258 mm 3256 mm 3275 mm 3263 mm 3270 mm

10'8" 10'9" 10'9" 10'9" 10'9" 10'9"

Width over Tires – Maximum (loaded)* 3260 mm 3302 mm 3296 mm 3294 mm 3289 mm 3296 mm

10'9" 10'10" 10'10" 10'10" 10'10" 10'10"

Change in Vertical Dimensions (average of front and rear)

Change in Horizontal Reach –1 mm 3 mm 3 mm 20 mm 23 mm

Change in Clearance Circle to Outside of Tires 42 mm 36 mm 34 mm 29 mm 36 mm

Change in Clearance Circle to Inside of Tires –42 mm –36 mm –34 mm –29 mm –36 mm

Change in Operating Weight (without Ballast) –156 kg 208 kg 532 kg –684 kg –700 kg

Change in Static Tipping Load – Straight –119 kg 158 kg 405 kg –520 kg –532 kg

Change in Static Tipping Load – Articulated –103 kg 138 kg 352 kg –453 kg –463 kg

Rear Axle Oscillation Angle ±13 degrees ±13 degrees ±13 degrees ±13 degrees ±13 degrees ±13 degrees

Maximum Single-wheel Rise and Fall 549 mm 549 mm 549 mm 549 mm 549 mm 549 mm

1'10" 1'10" 1'10" 1'10" 1'10" 1'10"

*Width over tire bulge and includes tire growth.

–7 mm –6 mm 5 mm –23 mm –40 mm

–0.3" –0.2" 0.2" –0.9" –1.6"

0" 0.1" 0.1" 0.8" 0.9"

1.7" 1.4" 1.3" 1.1" 1.4"

–1.7" –1.4" –1.3" –1.1" –1.4"

–344 lb 459 lb 1,173 lb –1,508 lb –1,544 lb

–262 lb 349 lb 892 lb –1,147 lb –1,174 lb

–228 lb 304 lb 777 lb –998 lb –1,022 lb

Tire Brand Bridgestone Bridgestone Maxam Maxam Maxam Brawler Tire Size 29.5R25 29.5R25 29.5R25 29.5R25 29.5R25 29.5-25 Tread Type L–5 L–5 L–3 L–4 L–5 Solid Tread Pattern VSDT VSDL MS302 MS405DX MS503 Traction/Smooth

Width over Tires – Maximum (empty)* 3272 mm 3250 mm 3270 mm 3256 mm 3268 mm 3227 mm

10'9" 10'8" 10'9" 10'9" 10'9" 10'8"

Width over Tires – Maximum (loaded)* 3301 mm 3275 mm 3290 mm 3282 mm 3304 mm 3230 mm

10'10" 10'9" 10'10" 10'10" 10'11" 10'8"

Change in Vertical Dimensions (average of front and rear)

Change in Horizontal Reach 0 mm –10 mm 6 mm 19 mm –3 mm 30 mm

Change in Clearance Circle to Outside of Tires 41 mm 15 mm 30 mm 22 mm 44 mm –30 mm

Change in Clearance Circle to Inside of Tires –41 mm –15 mm –30 mm –22 mm –44 mm 30 mm

Change in Operating Weight (without Ballast) 500 kg 708 kg –528 kg –388 kg 252 kg 5772 kg

Change in Static Tipping Load – Straight 380 kg 538 kg –402 kg –295 kg 192 kg 4390 kg

Change in Static Tipping Load – Articulated 331 kg 469 kg –350 kg –257 kg 167 kg 3821 kg

Rear Axle Oscillation Angle ±13 degrees ±13 degrees ±13 degrees ±13 degrees ±13 degrees ±8 degrees

Maximum Single-wheel Rise and Fall 549 mm 549 mm 549 mm 549 mm 549 mm 340 mm

*Width over tire bulge and includes tire growth.

4 mm 20 mm –19 mm –33 mm –6 mm 9 mm

0.1" 0.8" –0.8" –1.3" –0.2" 0.4"

0" –0.4" 0.2" 0.7" –0.1" 1.2"

1.6" 0.6" 1.2" 0.9" 1.7" –1.2"

–1.6" –0.6" –1.2" –0.9" –1.7" 1.2"

1,103 lb 1,561 lb –1,164 lb –856 lb 556 lb 12,727 lb

838 lb 1,187 lb –885 lb –651 lb 423 lb 9,679 lb

730 lb 1,033 lb –771 lb –566 lb 368 lb 8,425 lb

1'10" 1'10" 1'10" 1'10" 1'10" 1'1"

5

980 XE Wheel Loader Specifications7980 XE Wheel Loader Specifications

Tire Options

Tire Brand Michelin Bridgestone Bridgestone Maxam Tire Size 875/65R29 875/65R29 875/65R29 875/65R29 Tread Type L–3 L–3 L–4 L–4 Tread Pattern XHA2 VTS VLTS MS405DX

Width over Tires – Maximum (empty)* 3373 mm 3341 mm 3344 mm 3357 mm

11'1" 11'0" 11'0" 11'1"

Width over Tires – Maximum (loaded)* 3384 mm 3359 mm 3366 mm 3382 mm

11'2" 11'1" 11'1" 11'2"

Change in Vertical Dimensions (average of front and rear)

Change in Horizontal Reach 18 mm 20 mm 19 mm 19 mm

Change in Clearance Circle to Outside of Tires 124 mm 99 mm 106 mm 122 mm

Change in Clearance Circle to Inside of Tires –124 mm –99 mm –106 mm –122 mm

Change in Operating Weight (without Ballast) –40 kg 240 kg 316 kg 308 kg

Change in Static Tipping Load – Straight –30 kg 183 kg 240 kg 234 kg

Change in Static Tipping Load – Articulated –26 kg 159 kg 209 kg 204 kg

Rear Axle Oscillation Angle ±8 degrees ±8 degrees ±8 degrees ±8 degrees

Maximum Single-wheel Rise and Fall 340 mm 340 mm 340 mm 340 mm

–25 mm –19 mm –16 mm –34 mm

–1" –0.8" –0.6" –1.3"

0.7" 0.8" 0.7" 0.7"

4.9" 3.9" 4.2" 4.8"

–4.9" –3.9" –4.2" –4.8"

–88 lb 529 lb 697 lb 679 lb

–67 lb 402 lb 530 lb 516 lb

–58 lb 350 lb 461 lb 450 lb

1'1" 1'1" 1'1" 1'1"

*Width over tire bulge and includes tire growth.

6

Bucket Fill Factors and Selection Guide

The bucket size must be chosen based on the density of the material and on the expected fill factor. The Cat Performance Series Buckets with longer floor, larger bucket opening, increased repository angle, rounded side boards and integrated spill guard demonstrate fill factors significantly higher than previous generation or non-Cat buckets. The actual volume handled by the machine is thus often larger than the rated capacity.

Loose Material Fill Factor (%)* Material Density

Earth/Clay

Sand and Gravel

Aggregate: 25-76 mm (1 to 3 in)

19 mm (0.75 in) and smaller

Rock: 76 mm (3 in) and larger

*As a % of ISO 7546 rated capacity. Note: Fill Factors achieved will also depend on whether the product is washed or not washed.

115 1.5-1.7

110 1.6-1.7

105 1.8

100 1.6

Material Density kg/m

5.4 m3 (7 yd3)

General

Purpose

Pin OnHook On

Standard Linkage

General

Purpose

General

Purpose

Pin OnPin On

5.7 m3 (7.5 yd3)

6 m3 (7.75 yd3)

6.4 m3 (8.25 yd3)

5.4 m3 (7 yd3)

5.7 m3 (7.5 yd3)

5.4 m3 (7 yd3)

5.7 m3 (7.5 yd3)

6 m3 (7.75 yd3)

6.4 m3 (8.25 yd3)

3

900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400

5.4 m3 (7 yd3)6.2 m3 (8 yd3)

5.7 m3 (7.5 yd3)6.6 m3 (8.5 yd3)

6 m3 (7.75 yd3)6.9 m3 (9 yd3)

6.4 m3 (8.25 yd3)7.4 m3 (9.75 yd3)

5.4 m3 (7 yd3)6.2 m3 (8 yd3)

5.7 m3 (7.5 yd3)6.6 m3 (8.5 yd3)

5.4 m3 (7 yd3)6.2 m3 (8 yd3)

5.7 m3 (7.5 yd3)6.6 m3 (8.5 yd3)

6 m3 (7.75 yd3)6.9 m3 (9 yd3)

6.4 m3 (8.25 yd3)7.4 m3 (9.75 yd3)

5.4 m3 (7 yd3)

General

Purpose

Aggregate Handler High Lift

Material Density lb/yd

115% 110% 105% 100% 95%

Note: All buckets are showing Bolt-On Edges.

5.7 m3 (7.5 yd3)

6 m3 (7.75 yd3)

6.4 m3 (8.25 yd3)

Bucket Fill Factor

3

1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876 4,044

5.4 m3 (7 yd3)6.2 m3 (8 yd3)

5.7 m3 (7.5 yd3)6.6 m3 (8.5 yd3)

6 m3 (7.75 yd3)6.9 m3 (9 yd3)

6.4 m3 (8.25 yd3)7.4 m3 (9.75 yd3)

980 XE Wheel Loader Specifications

Bucket Fill Factors and Selection Guide

The bucket size must be chosen based on the density of the material and on the expected fill factor. The Cat Performance Series Buckets with longer floor, larger bucket opening, increased repository angle, rounded side boards and integrated spill guard demonstrate fill factors significantly higher than previous generation or non-Cat buckets. The actual volume handled by the machine is thus often larger than the rated capacity.

Loose Material Fill Factor (%)* Material Density

Earth/Clay

Sand and Gravel

Aggregate: 25-76 mm (1 to 3 in)

19 mm (0.75 in) and smaller

Rock: 76 mm (3 in) and larger

*As a % of ISO 7546 rated capacity. Note: Fill Factors achieved will also depend on whether the product is washed or not washed.

115 1.5-1.7

110 1.6-1.7

105 1.8

100 1.6

Material Density kg/m

4.2 m3 (5.5 yd3)

Rock,

Spade

4.5 m3 (6 yd3)

Coal 8.2 m3 (10.75 yd3)

Pin OnHook On

Waste 10.7 m3 (14 yd3)

Standard Linkage

14.5 m3 (19 yd3)

Woodchip

14.3 m3 (18.75 yd3)

Rock 4 m3 (5.25 yd3)

4.2 m3 (5.5 yd3)

Rock,

Spade

Pin OnPin On

4.5 m3 (6 yd3)

Coal 8.2 m3 (10.75 yd3)

Waste 10.7 m3 (14 yd3)

Coal 8.2 m3 (10.75 yd3)

3

300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300

4.3 m3 (5.5 yd3)5.2 m3 (6.75 yd3)

8.2 m3 (10.75 yd3)9.4 m3 (12.25 yd3)

10.7 m3 (14 yd3)12.3 m3 (16 yd3)

14.5 m3 (19 yd3)16.7 m3 (21.75 yd3)

14.3 m3 (18.75 yd3)16.45 m3 (21.5 yd3)

4 m3 (5.25 yd3)4.8 m3 (6.25 yd3)

4.3 m3 (5.5 yd3)5.2 m3 (6.75 yd3)

8.2 m3 (10.75 yd3)7.4 m3 (9.75 yd3)

10.7 m3 (14 yd3)12.3 m3 (16 yd3)

8.2 m3 (10.75 yd3)9.4 m3 (12.25 yd3)

4 m3 (5.25 yd3)4.8 m3 (6.25 yd3)

3.8 m3 (5 yd3)4.6 m3 (6 yd3)

Waste 10.7 m3 (14 yd3)

Woodchip 14.5 m3 (19 yd3)

Aggregate Handler High Lift

Material Density lb/yd

Bucket Fill Factor

115% 110% 105% 100% 95%

Note: All buckets are showing Bolt-On Edges.

3

506 674 843 1,011 1,180 1,348 1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876

8

10.7 m3 (14 yd3)12.3 m3 (16 yd3)

12 m3 (15.75 yd3)16.7 m3 (21.75 yd3)

980 XE Wheel Loader Specifications

Operating Specifications – Buckets

Linkage Standard Linkage

Bucket Type General Purpose – Pin On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

Cutting Edges

3

m

yd

m

yd

5.40 5.40 5.00 5.70 5.70 5.30

3

7.00 7.00 6.50 7.50 7.50 7.00

3

5.90 5.90 5.50 6.30 6.30 5.80

3

7.75 7.75 7.25 8.25 8.25 7.50

mm 3447 3535 3535 3447 3535 3535

ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3287 3121 3121 3219 3051 3051

ft/in 10'9" 10'2" 10'2" 10'6" 10'0" 10'0"

mm 1481 1618 1618 1529 1664 1664

ft/in 4'10" 5'3" 5'3" 5'0" 5'5" 5'5"

mm 2966 3177 3177 3050 3261 3261

ft/in 9'8" 10'5" 10'5" 10'0" 10'8" 10'8"

mm 88 88 53 88 88 53

in 3.4" 3.4" 2.1" 3.4" 3.4" 2.1"

mm 9673 9915 9915 9757 9999 9999

ft/in 31'9" 32'7" 32'7" 32'1" 32'10" 32'10"

mm 6435 6435 6435 6258 6258 6258

ft/in 21'2" 21'2" 21'2" 20'7" 20'7" 20'7"

mm 7612 7725 7725 7635 7749 7749

ft/in 25'0" 25'5" 25'5" 25'1" 25'6" 25'6"

kg 22 809 22 623 23 066 22 564 22 377 22 817

lb 50,271 49,861 50,839 49,732 49,321 50,288

kg 24 219 24 032 24 493 23 977 23 788 24 245

lb 53,380 52,967 53,984 52,845 52,429 53,436

kg 19 706 19 520 19 936 19 478 19 291 19 703

lb 43,432 43,022 43,939 42,931 42,518 43,427

kg 20 965 20 777 21 209 20 740 20 552 20 979

lb 46,208 45,794 46,745 45,713 45,296 46,239

kN 227 224 242 214 211 227

lbf 51,008 50,477 54,405 48,132 47,613 51,158

kg 30 344 30 482 30 307 30 427 30 565 30 390

lb 66,877 67,182 66,795 67,060 67,365 66,978

Teeth and

Segments Tips

Bolt-On

Cutting Edges

Teeth and Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

9

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Standard Linkage

Bucket Type General Purpose – Pin On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and 45° Discharge

17†

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at Maximum Lift

B†

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

yd

Cutting

Edges

3

m

6.00 6.00 5.80 6.40 6.40 6.10

3

7.75 7.75 7.50 8.25 8.25 8.00

3

6.60 6.60 6.40 7.00 7.00 6.70

3

8.75 8.75 8.25 9.25 9.25 8.75

Teeth and

Segments Tips

mm 3447 3535 3535 3447 3535 3535

ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3201 3034 3034 3145 2977 2977

ft/in 10'6" 9'11" 9'11" 10'3" 9'9" 9'9"

mm 1551 1686 1686 1603 1737 1737

ft/in 5'1" 5'6" 5'6" 5'3" 5'8" 5'8"

mm 3078 3289 3289 3155 3366 3366

ft/in 10'1" 10'9" 10'9" 10'4" 11'0" 11'0"

mm 88 88 53 88 88 53

in 3.4" 3.4" 2.1" 3.4" 3.4" 2.1"

mm 9785 10 027 10027 9862 10 104 10 104

ft/in 32'2" 32'11" 32'11" 32'5" 33'2" 33'2"

mm 6284 6284 6284 6604 6604 6604

ft/in 20'8" 20'8" 20'8" 21'8" 21'8" 21'8"

mm 7643 7757 7757 7664 7779 7779

ft/in 25'1" 25'6" 25'6" 25'2" 25'7" 25'7"

kg 22 424 22 237 22 672 22 253 22 064 22 530

lb 49,423 49,011 49,970 49,046 48,631 49,657

kg 23 839 23 649 24 103 23 676 23 485 23 969

lb 52,541 52,124 53,123 52,182 51,762 52,829

kg 19 343 19 155 19 564 19 183 18 994 19 429

lb 42,632 42,219 43,119 42,280 41,864 42,822

kg 20 608 20 418 20 843 20 457 20 266 20 717

lb 45,420 45,002 45,938 45,087 44,667 45,661

kN 210 207 222 199 197 211

lbf 47,182 46,666 50,092 44,880 44,374 47,515

kg 30 523 30 661 30 486 30 585 30 723 30 548

lb 67,272 67,577 67,190 67,408 67,713 67,326

Bolt-On

Cutting

Edges

Teeth and Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

10

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Standard Linkage

Pin On –

Bucket Type Pin On – Coal

Bolt-On Cutting

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

3

m

3

yd

3

m

3

yd

mm 3638 4434 3882 3882 3882

Edges

8.20 14.50 10.70 10.70 9.90

10.75 19.00 14.00 14.00 13.00

9.00 16.00 11.80 11.80 10.90

11.75 21.00 15.50 15.50 14.25

ft/in 11'11" 14'6" 12'8" 12'8" 12'8"

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

mm 2931 2739 2834 2755 3067 ft/in 9'7" 8'11" 9'3" 9'0" 10'0"

mm 1625 1802 1693 1620 1460 ft/in 5'4" 5'10" 5'6" 5'3" 4'9"

mm 3336 3597 3453 3457 3123 ft/in 10'11" 11'9" 11'3" 11'4" 10'2"

mm 93 104 74 74 114

in 3.6" 4.1" 2.9" 2.9" 4.5"

Overall Length

12†

mm 10 047 10 317 10 181 10 265 9851 ft/in 33'0" 33'11" 33'5" 33'9" 32'4"

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

mm 6551 7047 6958 6958 7130 ft/in 21'6" 23'2" 22'10" 22'10" 23'5"

mm 7805 8243 7956 7995 7863 ft/in 25'8" 27'1" 26'2" 26'3" 25'10"

kg 21 810 21 013 20 785 20 918 23 001

lb 48,069 46,314 45,810 46,103 50,695 Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

kg 23 281 22 640 22 296 22 432 24 756

lb 51,313 49,898 49,141 49,441 54,563

kg 18 738 17 862 17 728 17 861 19 707

lb 41,300 39,368 39,072 39,366 43,436

kg 20 060 19 328 19 089 19 225 21 287

lb 44,213 42,600 42,073 42,373 46,917

kN 177 151 172 170 204

lbf 39,906 33,932 38,687 38,377 45,993

Operating Weight*

kg 30 931 32 192 31 817 31 733 31 581

lb 68,171 70,951 70,124 69,939 69,605

Woodchip Pin On – Waste

Bolt-On Cutting

Edges

Bolt-On Cutting

Edges

Rubber

Edge

Pin On –

Waste, Dozing

Bolt-On Cutting

Edges

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

11

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Standard Linkage

Bucket Type Flat Floor – Pin On

Bolt-On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Cutting

Edges

m35.70 5.70 5.50 5.60 5.70 9.90 9.90 10.70 10.70

3

yd

m36.30 6.30 6.10 6.20 6.30 10.90 10.90 11.80 11.80

3

yd

mm 3447 3535 3535 3580 3580 3882 3882 3882 3882

Teeth and Segments Tips

7.50 7.50 7.25 7.25 7.50 13.00 13.00 14.00 14.00

8.25 8.25 8.00 8.00 8.25 14.25 14.25 15.50 15.50

ft/in 11'3" 11'7" 11'7" 11'8" 11'8" 12'8" 12'8" 12'8" 12'8"

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

mm 3120 2943 2943 3216 2976 3067 2989 2834 2755

ft/in 10'2" 9'7" 9'7" 10'6" 9'9" 10'0" 9'9" 9'3" 9'0"

mm 1444 1566 1566 1389 1627 1460 1387 1693 1620

ft/in 4'8" 5'1" 5'1" 4'6" 5'4" 4'9" 4'6" 5'6" 5'3"

mm 3075 3286 3286 2968 3306 3123 3127 3453 3457

ft/in 10'1" 10'9" 10'9" 9'8" 10'10" 10'2" 10'3" 11'3" 11'4"

mm 88 88 53 59 59 74 74 74 74

in 3.4" 3.4" 2.1" 2.3" 2.3" 2.9" 2.9" 2.9" 2.9"

Overall Length

12†

mm 9782 10 024 10 024 9652 9991 9851 9935 10 181 10 265

ft/in 32'2" 32'11" 32'11" 31'8" 32'10" 32'4" 32'8" 33'5" 33'9"

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

mm 6257 6257 6257 6500 6493 7169 7169 6946 6946

ft/in 20'7" 20'7" 20'7" 21'4" 21'4" 23'7" 23'7" 22'10" 22'10"

mm 7642 7756 7756 7662 7757 7863 7904 7956 7995

ft/in 25'1" 25'6" 25'6" 25'2" 25'6" 25'10" 25'12" 26'2" 26'3"

kg 22 062 21 878 22 298 21 379 21 422 23 032 23 164 20 900 21 030

lb 48,626 48,220 49,146 47,120 47,215 50,762 51,054 46,065 46,350 Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

kg 23 432 23 246 23 682 22 749 22 792 24 808 24 944 22 413 22 545

lb 51,644 51,234 52,195 50,139 50,234 54,677 54,978 49,398 49,689

kg 19 030 18 846 19 241 18 321 18 365 19 728 19 860 17 843 17 972

lb 41,943 41,536 42,407 40,380 40,476 43,481 43,773 39,327 39,612

kg 20 254 20 068 20 477 19 543 19 586 21 330 21 466 19 206 19 338

lb 44,640 44,230 45,132 43,074 43,169 47,011 47,312 42,330 42,622

kN 210 208 223 222 222 213 211 172 171

lbf 47,288 46,772 50,212 50,021 50,063 47,906 47,479 38,805 38,491

Operating Weight*

kg 30 552 30 690 30 515 31 363 31 311 31 478 31 396 31 706 31 623

lb 67,336 67,641 67,254 69,123 69,010 69,377 69,196 69,879 69,696

Flat Floor

– Pin On –

HD BGE

Flush

Mounted

Tips

Flat Floor

– Pin On

– BGE

Flush

Mounted

Tips

Bolt-On

Cutting

Edges

(Steel)

Flat Floor – Pin On

– Light Material

Bolt-On

Cutting

Edges

(Rubber)

Bolt-On

Cutting

Edges

(Steel)

Bolt-On

Cutting

Edges

(Rubber)

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

12

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Standard Linkage

Bucket Type Rock, Spade*** – Pin On Rock, Spade HD*** – Pin On

Edge Type Tips

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

3

m

yd

m

yd

4.20 4.40 4.50 4.70 4.20 4.30

3

5.50 5.75 6.00 6.25 5.50 5.50

3

4.60 4.80 5.00 5.20 4.60 4.70

3

6.00 6.25 6.50 6.75 6.00 6.25

mm 3524 3524 3524 3524 3546 3546 ft/in 11'6" 11'6" 11'6" 11'6" 11'7" 11'7"

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

mm 3132 3132 3133 3133 3223 3223 ft/in 10'3" 10'3" 10'3" 10'3" 10'6" 10'6"

mm 1768 1768 1767 1767 1724 1724 ft/in 5'9" 5'9" 5'9" 5'9" 5'7" 5'7"

mm 3279 3279 3278 3278 3184 3184 ft/in 10'9" 10'9" 10'9" 10'9" 10'5" 10'5"

mm 48 83 48 83 40 75

in 1.9" 3.2" 1.9" 3.2" 1.5" 2.9"

Overall Length

12†

mm 9992 9992 9991 9991 9894 9894 ft/in 32'10" 32'10" 32'10" 32'10" 32'6" 32'6"

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

mm 6202 6202 6193 6193 6415 6415 ft/in 20'5" 20'5" 20'4" 20'4" 21'1" 21'1"

mm 7740 7740 7739 7739 7721 7721 ft/in 25'5" 25'5" 25'5" 25'5" 25'4" 25'4"

kg 23 913 23 435 23 543 23 050 23 696 23 246

lb 52,705 51,651 51,890 50,804 52,226 51,235 Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

kg 25 353 24 871 24 986 24 489 25 210 24 750

lb 55,879 54,817 55,070 53,974 55,564 54,550

kg 20 702 20 232 20 347 19 866 20 430 19 986

lb 45,628 44,593 44,846 43,784 45,027 44,050

kg 21 985 21 513 21 635 21 149 21 781 21 328

lb 48,456 47,415 47,683 46,613 48,006 47,007

kN 230 213 229 212 248 228

lbf 51,746 47,885 51,543 47,693 55,815 51,417

Operating Weight*

kg 30 729 31 030 31 025 31 327 31 266 31 567

lb 67,725 68,390 68,378 69,043 68,909 69,574

Teeth and Segments Tips

Teeth and

Segments Tips

Teeth and Segments

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

13

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Standard Linkage

Bucket Type Hook On – Fusion™ – General Purpose

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

yd

Cutting

Edges

3

m

5.40 5.40 5.00 5.70 5.70 5.30 14.50

3

7.00 7.00 6.50 7.50 7.50 7.00 19.00

3

5.90 5.90 5.50 6.30 6.30 5.80 16.00

3

7.75 7.75 7.25 8.25 8.25 7.50 21.00

Teeth and Segments Tips

mm 3447 3535 3535 3447 3535 3535 4433.4

ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7" 14'6"

mm 3183 3017 3017 3117 2950 2950 2668

ft/in 10'5" 9'10" 9'10" 10'2" 9'8" 9'8" 8'9"

mm 1588 1724 1724 1640 1775 1775 1915

ft/in 5'2" 5'7" 5'7" 5'4" 5'9" 5'9" 6'3"

mm 3116 3327 3327 3200 3411 3411 3727

ft/in 10'2" 10'11" 10'11" 10'6" 11'2" 11'2" 12'2"

mm 93 93 58 93 93 58 75

in 3.6" 3.6" 2.3" 3.6" 3.6" 2.3" 2.9"

mm 9827 10 069 10 069 9911 10 153 10 153 10 423

ft/in 32'3" 33'1" 33'1" 32'7" 33'4" 33'4" 34'3"

mm 6532 6532 6532 6599 6599 6599 7172

ft/in 21'6" 21'6" 21'6" 21'8" 21'8" 21'8" 23'7"

mm 7694 7817 7817 7721 7845 7845 8395

ft/in 25'3" 25'8" 25'8" 25'4" 25'9" 25'9" 27'7"

kg 21 361 21 177 21 611 21 136 20 950 21 367 18 903

lb 47,080 46,674 47,631 46,584 46,175 47,094 41,662

kg 22 728 22 542 22 996 22 511 22 324 22 757 20 315

lb 50,092 49,682 50,685 49,615 49,202 50,157 44,774

kg 18 354 18 169 18 575 18 140 17 954 18 346 15 989

lb 40,452 40,046 40,941 39,981 39,572 40,436 35,240

kg 19 576 19 390 19 815 19 372 19 185 19 591 17 262

lb 43,147 42,737 43,673 42,697 42,284 43,179 38,046

kN 203 201 216 193 190 204 141

lbf 45,829 45,315 48,584 43,399 42,894 45,873 31,880

kg 31 086 31 224 31 049 31 196 31 334 31 159 32 572

lb 68,513 68,817 68,431 68,755 69,060 68,673 71,789

Bolt-On

Cutting

Edges

Teeth and Segments Tips

Hook On –

Fusion –

Woodchip

Bolt-On

Cutting

Edges

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

14

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage High Lift Linkage

Bucket Type General Purpose – Pin On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

Cutting Edges

3

m

yd

m

yd

5.40 5.40 5.00 5.70 5.70 5.30

3

7.00 7.00 6.50 7.50 7.50 7.00

3

5.90 5.90 5.50 6.30 6.30 5.80

3

7.75 7.75 7.25 8.25 8.25 7.50

mm 3447 3535 3535 3447 3535 3535 ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3508 3342 3342 3439 3272 3272 ft/in 11'6" 10'11" 10'11" 11'3" 10'8" 10'8"

mm 1484 1621 1621 1532 1667 1667 ft/in 4'10" 5'3" 5'3" 5'0" 5'5" 5'5"

mm 3126 3337 3337 3210 3421 3421 ft/in 10'3" 10'11" 10'11" 10'6" 11'2" 11'2"

mm 86 86 51 86 86 51

in 3.4" 3.4" 2" 3.4" 3.4" 2"

mm 9875 10 114 10 114 9959 10 198 10 198 ft/in 32'5" 33'3" 33'3" 32'9" 33'6" 33'6"

mm 6656 6656 6656 6478 6478 6478 ft/in 21'11" 21'11" 21'11" 21'4" 21'4" 21'4"

mm 8114 8226 8226 8137 8250 8250 ft/in 26'8" 27'0" 27'0" 26'9" 27'1" 27'1"

kg 20 833 20 650 21 063 20 603 20 419 20 828

lb 45,917 45,513 46,424 45,410 45,004 45,906

kg 22 033 21 849 22 276 21 805 21 619 22 043

lb 48,562 48,156 49,098 48,058 47,649 48,583

kg 18 354 18 171 18 563 18 137 17 953 18 342

lb 40,453 40,049 40,914 39,975 39,569 40,426

kg 19 430 19 245 19 650 19 215 19 029 19 431

lb 42,823 42,416 43,309 42,351 41,941 42,826

kN 230 228 245 217 215 231

lbf 51,775 51,273 55,258 48,860 48,369 51,964

kg 30 477 30 616 30 440 30 560 30 699 30 523

lb 67,171 67,476 67,089 67,354 67,659 67,272

Teeth and Segments Tips

Bolt-On

Cutting Edges

Teeth and

Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

15

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage High Lift Linkage

Bucket Type General Purpose – Pin On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

Cutting Edges

3

m

yd

m

yd

6.00 6.00 5.80 6.40 6.40 6.10

3

7.75 7.75 7.50 8.25 8.25 8.00

3

6.60 6.60 6.40 7.00 7.00 6.70

3

8.75 8.75 8.25 9.25 9.25 8.75

mm 3447 3535 3535 3447 3535 3535 ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3421 3254 3254 3366 3198 3198 ft/in 11'2" 10'8" 10'8" 11'0" 10'5" 10'5"

mm 1554 1688 1688 1606 1740 1740 ft/in 5'1" 5'6" 5'6" 5'3" 5'8" 5'8"

mm 3238 3449 3449 3315 3526 3526 ft/in 10'7" 11'3" 11'3" 10'10" 11'6" 11'6"

mm 86 86 51 86 86 51

in 3.4" 3.4" 2" 3.4" 3.4" 2"

mm 9987 10 226 10 226 10 064 10 303 10 303 ft/in 32'10" 33'7" 33'7" 33'1" 33'10" 33'10"

mm 6504 6504 6504 6824 6824 6824 ft/in 21'5" 21'5" 21'5" 22'5" 22'5" 22'5"

mm 8144 8258 8258 8166 8279 8279 ft/in 26'9" 27'2" 27'2" 26'10" 27'2" 27'2"

kg 20 466 20 282 20 688 20 302 20 117 20 550

lb 45,108 44,702 45,596 44,747 44,338 45,293

kg 21 669 21 483 21 904 21 512 21 324 21 773

lb 47,760 47,350 48,276 47,413 47,000 47,988

kg 18 004 17 820 18 205 17 850 17 664 18 074

lb 39,682 39,275 40,125 39,342 38,932 39,835

kg 19 084 18 898 19 296 18 937 18 749 19 172

lb 42,062 41,651 42,530 41,737 41,323 42,255

kN 213 211 226 202 200 214

lbf 47,897 47,409 50,884 45,564 45,084 48,270

kg 30 656 30 795 30 619 30 718 30 857 30 681

lb 67,566 67,871 67,484 67,703 68,007 67,621

Teeth and Segments Tips

Bolt-On

Cutting Edges

Teeth and

Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

16

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage High Lift Linkage

Bucket Type General Purpose – Pin On – Abrasion

Edge Type Bolt-On Cutting Edges Teeth and Segments Tips

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

3

yd

m

3

m

3

6.00 6.00 5.70

7.75 7.75 7.50

6.60 6.60 6.30

8.75 8.75 8.25

mm 3447 3546 3546 ft/in 11'3" 11'7" 11'7"

mm 3422 3258 3258 ft/in 11'2" 10'8" 10'8"

mm 1553 1688 1688 ft/in 5'1" 5'6" 5'6"

mm 3237 3446 3446 ft/in 10'7" 11'3" 11'3"

mm 86 86 51

in 3.4" 3.4" 2"

mm 9986 10 221 10 221 ft/in 32'10" 33'7" 33'7"

mm 6744 6744 6744 ft/in 22'2" 22'2" 22'2"

mm 8144 8261 8261 ft/in 26'9" 27' 2" 27'2"

kg 20 403 20 245 20 663

lb 44,968 44,621 45,541

kg 21 598 21 439 21 872

lb 47,604 47,253 48,206

kg 17 949 17 791 18 187

lb 39,560 39,212 40,086

kg 19 022 18 862 19 272

lb 41,924 41,573 42,476

kN 213 211 226

lbf 47,914 47,479 50,911

kg 30 655 30 773 30 593

lb 67,563 67,822 67,427

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

17

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage High Lift Linkage

Bucket Type Pin On – Flat Floor

Bolt-On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Cutting

Edges

m35.70 5.70 5.50 5.60 5.70 9.94 9.94 10.70 10.70

yd37.50 7.50 7.25 7.25 7.50 13.00 13.00 14.00 14.00

m36.30 6.30 6.10 6.20 6.30 10.90 10.90 11.80 11.80

yd38.25 8.25 8.00 8.00 8.25 14.25 14.25 15.50 15.50

mm 3447 3535 3535 3580 3580 3882 3882 3882 3882

ft/in 11'3" 11'7" 11'7" 11'8" 11'8" 12'8" 12'8" 12'8" 12'8"

mm 3340 3163 3163 3436 3196 3288 3209 3054 2976

ft/in 10'11" 10'4" 10'4" 11'3" 10'5" 10'9" 10'6" 10'0" 9'9"

mm 1447 1569 1569 1392 1630 1463 1390 1696 1623

ft/in 4'8" 5'1" 5'1" 4'6" 5'4" 4'9" 4'6" 5'6" 5'3"

mm 3235 3446 3446 3128 3466 3283 3287 3613 3617

ft/in 10'7" 11'3" 11'3" 10'3" 11'4" 10'9" 10'9" 11'10" 11'10"

mm 86 86 51 57 57 72 72 72 72

in 3.4" 3.4" 2" 2.2" 2.2" 2.8" 2.8" 2.8" 2.8"

mm 9984 10 223 10 223 9855 10 194 10 051 10 129 10 381 10 459

ft/in 32'10" 33'7" 33'7" 32'4" 33'6" 33'0" 33'3" 34'1" 34'4"

mm 6477 6477 6477 6721 6714 7389 7389 7167 7167

ft/in 21'3" 21'3" 21'3" 22'1" 22'1" 24'3" 24'3" 23'7" 23'7"

mm 8143 8257 8257 8164 8259 8364 8404 8456 8494

ft/in 26'9" 27'2" 27'2" 26'10" 27'2" 27'6" 27'7" 27'9" 27'11"

kg 20 155 19 973 20 366 19 456 19 500 20 794 20 923 18 938 19 065

lb 44,423 44,022 44,888 42,882 42,979 45,831 46,114 41,741 42,020

kg 21 323 21 140 21 546 20 623 20 666 22 274 22 406 20 216 20 345

lb 46,996 46,592 47,487 45,453 45,549 49,093 49,384 44,556 44,840

kg 17 730 17 548 17 922 17 011 17 055 18 173 18 302 16 501 16 627

lb 39,077 38,677 39,501 37,494 37,590 40,055 40,338 36,368 36,647

kg 18 777 18 594 18 979 18 056 18 099 19 514 19 646 17 656 17 784

lb 41,386 40,982 41,831 39,796 39,891 43,009 43,301 38,914 39,198

kN 213 211 227 225 226 216 215 175 174

lbf 48,005 47,516 51,005 50,767 50,810 48,670 48,327 39,438 39,194

kg 30 685 30 824 30 648 31 496 31 445 31 611 31 529 31 839 31 756

lb 67,630 67,935 67,548 69,418 69,304 69,671 69,490 70,174 69,991

Teeth and Segments Tips

Pin On –

Flat Floor

HD BGE

Flush

Mounted

Tips

Pin On –

Flat Floor

BGE Pin On – Flat Floor

Flush

Mounted

Tips

Bolt-On

Cutting

Edges

(Steel)

Bolt-On

Cutting

Edges

(Rubber)

Bolt-On

Cutting

Edges

(Steel)

Bolt-On

Cutting

Edges

(Rubber)

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

18

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage High Lift Linkage

Pin On –

Bucket Type Pin On – Coal

Bolt-On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Cutting Edges

3

m

yd

m

yd

8.20 14.50 10.70 10.70 9.90 4.00

3

10.75 19.00 14.00 14.00 13.00 5.25

3

9.00 16.00 11.80 11.80 10.90 4.40

3

11.75 21.00 15.50 15.50 14.25 5.75

mm 3638 4434 3882 3882 3882 3405

ft/in 11'11" 14'6" 12'8" 12'8" 12'8" 11'2"

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

mm 3152 2960 3054 2976 3288 3710

ft/in 10'4" 9'8" 10'0" 9'9" 10'9" 12'2"

mm 1628 1805 1696 1623 1463 1224

ft/in 5'4" 5'11" 5'6" 5'3" 4'9" 4'0"

mm 3496 3757 3613 3617 3283 2798

ft/in 11'5" 12'3" 11'10" 11'10" 10'9" 9'2"

mm 91 102 72 72 112 107

in 3.6" 4" 2.8" 2.8" 4.4" 4.2"

Overall Length

12†

mm 10 248 10 517 10 381 10 459 10 051 9562

ft/in 33'8" 34'7" 34'1" 34'4" 33'0" 31'5"

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

mm 6771 7267 7179 7179 7351 6156

ft/in 22'3" 23'11" 23'7" 23'7" 24'2" 20'3"

mm 8305 8742 8456 8494 8364 8018

ft/in 27'3" 28'9" 27'9" 27'11" 27'6" 26'4"

kg 19 848 18 950 18 824 18 954 20 772 21 333

lb 43,745 41,766 41,488 41,774 45,782 47,019 Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

kg 21 095 20 313 20 100 20 232 22 234 22 514

lb 46,494 44,770 44,301 44,593 49,005 49,622

kg 17 397 16 443 16 386 16 516 18 159 18 799

lb 38,343 36,242 36,116 36,402 40,022 41,433

kg 18 521 17 677 17 540 17 672 19 481 19 852

lb 40,820 38,961 38,658 38,950 42,936 43,755

kN 180 153 175 173 207 295

lbf 40,529 34,486 39,320 39,080 46,707 66,366

Operating Weight*

kg 31 064 32 325 31 950 31 866 31 715 31 130

lb 68,465 71,245 70,418 70,233 69,899 68,610

Woodchip Pin On – Waste

Bolt-On

Cutting Edges

Bolt-On

Cutting Edges

Rubber

Edge

Pin On –

Waste, Dozing

Bolt-On

Cutting Edges

Pin On –

Rock HD***

Bolt-On

Cutting Edges

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

19

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage High Lift Linkage

Bucket Type Pin On – Rock, Spade*** Pin On – Rock, Spade HD***

Edge Type Tips

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

3

m

yd

m

yd

4.20 4.40 4.50 4.70 4.20 4.30

3

5.50 5.75 6.00 6.25 5.50 5.50

3

4.60 4.80 5.00 5.20 4.60 4.70

3

6.00 6.25 6.50 6.75 6.00 6.25

mm 3524 3524 3524 3524 3546 3546

ft/in 11'6" 11'6" 11'6" 11'6" 11'7" 11'7"

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

mm 3353 3353 3354 3354 3443 3443

ft/in 11'0" 11'0" 11'0" 11'0" 11'3" 11'3"

mm 1770 1770 1770 1770 1727 1727

ft/in 5'9" 5'9" 5'9" 5'9" 5'8" 5'8"

mm 3439 3439 3438 3438 3344 3344

ft/in 11'3" 11'3" 11'3" 11'3" 10'11" 10'11"

mm 46 81 46 81 38 73

in 1.8" 3.2" 1.8" 3.2" 1.5" 2.8"

Overall Length

12†

mm 10 194 10 194 10 192 10 192 10 095 10 095

ft/in 33'6" 33'6" 33'6" 33'6" 33'2" 33'2"

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

mm 6422 6422 6414 6414 6636 6636

ft/in 21'1" 21'1" 21'1" 21'1" 21'10" 21'10"

mm 8240 8240 8240 8240 8222 8222

ft/in 27'1" 27'1" 27'1" 27'1" 27'0" 27'0"

kg 21 867 21 403 21 507 21 030 21 589 21 153

lb 48,196 47,172 47,402 46,351 47,582 46,621 Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

kg 23 094 22 626 22 736 22 254 22 872 22 427

lb 50,899 49,867 50,110 49,049 50,410 49,429

kg 19 302 18 844 18 953 18 485 18 984 18 552

lb 42,542 41,533 41,774 40,741 41,840 40,890

kg 20 399 19 938 20 053 19 581 20 133 19 693

lb 44,959 43,944 44,198 43,158 44,374 43,404

kN 233 216 232 215 252 232

lbf 52,526 48,615 52,323 48,423 56,658 52,202

Operating Weight*

kg 30 862 31 164 31 158 31 460 31 399 31 701

lb 68,020 68,685 68,673 69,337 69,203 69,868

Teeth and Segments Tips

Teeth and Segments

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, fullfluids, operator,

standardcounterweight, ride control, cold start, roading fenders, powertrain guard, secondary steering and sound suppression. † Illustration shown with Dimension charts. *** Rock bucket specifications are given on Bridgestone 29.5R25 VSDT L5 Radial tires. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAE Standard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

20

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Aggregate Handler Linkage

Bucket Type General Purpose – Pin On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

Cutting Edges

3

m

yd

m

yd

5.40 5.40 5.00 5.70 5.70 5.30

3

7.00 7.00 6.50 7.50 7.50 7.00

3

5.90 5.90 5.50 6.30 6.30 5.80

3

7.75 7.75 7.25 8.25 8.25 7.50

mm 3447 3535 3535 3447 3535 3535

ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3287 3121 3121 3219 3051 3051

ft/in 10'9" 10'2" 10'2" 10'6" 10'0" 10'0"

mm 1481 1618 1618 1529 1664 1664

ft/in 4'10" 5'3" 5'3" 5'0" 5'5" 5'5"

mm 2966 3177 3177 3050 3261 3261

ft/in 9'8" 10'5" 10'5" 10'0" 10'8" 10'8"

mm 88 88 53 88 88 53

in 3.4" 3.4" 2.1" 3.4" 3.4" 2.1"

mm 9677 9919 9919 9761 10 003 10 003

ft/in 31'9" 32'7" 32'7" 32'1" 32'10" 32'10"

mm 6435 6435 6435 6258 6258 6258

ft/in 21'2" 21'2" 21'2" 20'7" 20'7" 20'7"

mm 7612 7725 7725 7635 7749 7749

ft/in 25'0" 25'5" 25'5" 25'1" 25'6" 25'6"

kg 24 404 24 218 24 676 24 149 23 963 24 416

lb 53,786 53,377 54,386 53,226 52,814 53,812

kg 25 939 25 752 26 229 25 687 25 498 25 971

lb 57,171 56,758 57,809 56,615 56,199 57,240

kg 21 012 20 826 21 254 20 776 20 589 21 013

lb 46,312 45,902 46,845 45,792 45,380 46,313

kg 22 406 22 218 22 663 22 173 21 984 22 425

lb 49,383 48,969 49,949 48,870 48,454 49,425

kN 227 224 242 214 211 227

lbf 51,008 50,477 54,405 48,132 47,613 51,158

kg 30 985 31 123 30 948 31 068 31 206 31 031

lb 68,290 68,595 68,208 68,473 68,778 68,391

Teeth and

Segments Tips

Bolt-On

Cutting Edges

Teeth and Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator,

aggregatecounterweight, ride control, cold start, roading fenders, power train guard, secondary steering and sound suppression. ** Aggregate Handler configuration is not compatible with rock buckets, and high lift. † Illustration shown with Dimension charts. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAEStandard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO 14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

21

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Aggregate Handler Linkage

Bucket Type General Purpose – Pin On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

Cutting Edges

3

m

yd

m

yd

6.00 6.00 5.80 6.40 6.40 6.10

3

7.75 7.75 7.50 8.25 8.25 8.00

3

6.60 6.60 6.40 7.00 7.00 6.70

3

8.75 8.75 8.25 9.25 9.25 8.75

mm 3447 3535 3535 3447 3535 3535

ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3201 3034 3034 3145 2977 2977

ft/in 10'6" 9'11" 9'11" 10'3" 9'9" 9'9"

mm 1551 1686 1686 1603 1737 1737

ft/in 5'1" 5'6" 5'6" 5'3" 5'8" 5'8"

mm 3078 3289 3289 3155 3366 3366

ft/in 10'1" 10'9" 10'9" 10'4" 11'0" 11'0"

mm 88 88 53 88 88 53

in 3.4" 3.4" 2.1" 3.4" 3.4" 2.1"

mm 9789 10 031 10 031 9866 10 108 10 108

ft/in 32'2" 32'11" 32'11" 32'5" 33'2" 33'2"

mm 6284 6284 6284 6604 6604 6604

ft/in 20'8" 20'8" 20'8" 21'8" 21'8" 21'8"

mm 7643 7757 7757 7664 7779 7779

ft/in 25'1" 25'6" 25'6" 25'2" 25'7" 25'7"

kg 24 006 23 819 24 268 23 828 23 639 24 121

lb 52,910 52,498 53,487 52,517 52,102 53,163

kg 25 547 25 357 25 826 25 377 25 186 25 688

lb 56,305 55,888 56,920 55,932 55,512 56,618

kg 20 638 20 451 20 871 20 472 20 283 20 732

lb 45,488 45,074 46,000 45,121 44,705 45,693

kg 22 038 21 849 22 286 21 882 21 691 22 157

lb 48,572 48,155 49,118 48,228 47,807 48,834

kN 210 207 222 199 197 211

lbf 47,182 46,666 50,092 44,880 44,374 47,515

kg 31 164 31 302 31 127 31 226 31 364 31 189

lb 68,685 68,990 68,603 68,822 69,126 68,740

Teeth and

Segments Tips

Bolt-On

Cutting Edges

Teeth and

Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator,

aggregatecounterweight, ride control, cold start, roading fenders, power train guard, secondary steering and sound suppression. ** Aggregate Handler configuration is not compatible with rock buckets, and high lift. † Illustration shown with Dimension charts. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAEStandard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO 14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

22

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Aggregate Handler Linkage

Bucket Type Pin On – Flat Floor

Bolt-On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Cutting

Edges

m35.70 5.70 5.50 5.60 5.70 9.90 9.90 10.70 10.70

yd37.50 7.50 7.25 7.25 7.50 13.00 13.00 14.00 14.00

m36.30 6.30 6.10 6.20 6.30 10.90 10.90 11.80 11.80

yd38.25 8.25 8.00 8.00 8.25 14.25 14.25 15.50 15.50

mm 3447 3535 3535 3580 3580 3882 3882 3882 3882

ft/in 11'3" 11'7" 11'7" 11'8" 11'8" 12'8" 12'8" 12'8" 12'8"

mm 3120 2943 2943 3216 2976 3067 2989 2834 2755

ft/in 10'2" 9'7" 9'7" 10'6" 9'9" 10'0" 9'9" 9'3" 9'0"

mm 1444 1566 1566 1389 1627 1460 1387 1693 1620

ft/in 4'8" 5'1" 5'1" 4'6" 5'4" 4'9" 4'6" 5'6" 5'3"

mm 3075 3286 3286 2968 3306 3123 3127 3453 3457

ft/in 10'1" 10'9" 10'9" 9'8" 10'10" 10'2" 10'3" 11'3" 11'4"

mm 88 88 53 59 59 74 74 74 74

in 3.4" 3.4" 2.1" 2.3" 2.3" 2.9" 2.9" 2.9" 2.9"

mm 9786 10 028 10 028 9656 9995 9854 9939 10 184 10 269

ft/in 32'2" 32'11" 32'11" 31'9" 32'10" 32'4" 32'8" 33'5" 33'9"

mm 6257 6257 6257 6500 6493 7169 7169 6946 6946

ft/in 20'7" 20'7" 20'7" 21'4" 21'4" 23'7" 23'7" 22'10" 22'10"

mm 7642 7756 7756 7662 7757 7863 7904 7956 7995

ft/in 25'1" 25'6" 25'6" 25'2" 25'6" 25'10" 26'0" 26'2" 26'3"

kg 23 621 23 437 23 870 22 951 22 995 24 706 24 839 22 458 22 587

lb 52,061 51,655 52,609 50,585 50,681 54,453 54,745 49,498 49,782

kg 25 111 24 925 25 376 24 443 24 486 26 646 26 783 24 108 24 240

lb 55,346 54,936 55,928 53,874 53,968 58,729 59,030 53,134 53,425

kg 20 307 20 122 20 528 19 609 19 653 21 095 21 227 19 116 19 245

lb 44,757 44,350 45,244 43,219 43,315 46,493 46,785 42,132 42,417

kg 21 661 21 475 21 896 20 962 21 005 22 869 23 006 20 625 20 758

lb 47,741 47,330 48,259 46,202 46,296 50,405 50,705 45,459 45,750

kN 210 208 223 222 222 213 211 172 171

lbf 47,288 46,772 50,212 50,021 50,063 47,906 47,479 38,805 38,491

kg 31 193 31 331 31 156 32 004 31 953 32 119 32 037 32 347 32 264

lb 68,749 69,054 68,667 70,537 70,423 70,790 70,609 71,293 71,110

Teeth and Segments Tips

Pin On –

Flat Floor

HD BGE

Flush

Mounted

Tips

Pin On –

Flat Floor

BGE Pin On – Flat Floor

Bolt-On

Flush

Mounted

Tips

Cutting

Edges

(Steel)

Bolt-On

Cutting

Edges

(Rubber)

Bolt-On

Cutting

Edges

(Steel)

Bolt-On

Cutting

Edges

(Rubber)

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator,

aggregatecounterweight, ride control, cold start, roading fenders, power train guard, secondary steering and sound suppression. ** Aggregate Handler configuration is not compatible with rock buckets, and high lift. † Illustration shown with Dimension charts. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAEStandard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO 14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

23

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Aggregate Handler Linkage

Pin On –

Bucket Type Pin On – Coal

Bolt-On

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

mm 3638 4434 3882 3882 3882

yd

3

m

3

m

3

Cutting Edges

8.20 14.50 10.70 10.70 9.90

10.75 19.00 14.00 14.00 13.00

9.00 16.00 11.80 11.80 10.90

11.75 21.00 15.50 15.50 14.25

ft/in 11'11" 14'6" 12'8" 12'8" 12'8"

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

mm 2931 2739 2834 2755 3067

ft/in 9'7" 8'11" 9'3" 9'0" 10'0"

mm 1625 1802 1693 1620 1460

ft/in 5'4" 5'10" 5'6" 5'3" 4'9"

mm 3336 3597 3453 3457 3123

ft/in 10'11" 11'9" 11'3" 11'4" 10'2"

mm 93 104 74 74 114

in 3.6" 4.1" 2.9" 2.9" 4.5"

Overall Length

12†

mm 10 051 10 321 10 184 10 269 9854

ft/in 33'0" 33'11" 33'5" 33'9" 32'4"

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

mm 6551 7047 6958 6958 7130

ft/in 21'6" 23'2" 22'10" 22'10" 23'5"

mm 7805 8243 7956 7995 7863

ft/in 25'8" 27'1" 26'2" 26'3" 25'10"

kg 23 380 22 613 22 342 22 475 24 672

lb 51,530 49,840 49,243 49,536 54,378 Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

kg 24 984 24 390 23 991 24 127 26 590

lb 55,065 53,756 52,876 53,176 58,604

kg 20 023 19 168 19 000 19 133 21 072

lb 44,131 42,248 41,878 42,171 46,443

kg 21 486 20 794 20 509 20 645 22 823

lb 47,356 45,831 45,202 45,502 50,302

kN 177 151 172 170 204

lbf 39,906 33,932 38,687 38,377 45,993

Operating Weight*

kg 31 572 32 833 32 458 32 374 32 223

lb 69,584 72,364 71,537 71,352 71,018

Woodchip Pin On – Waste

Bolt-On

Cutting Edges

Bolt-On

Cutting Edges Rubber Edges

Pin On –

Waste, Dozing

Bolt-On

Cutting Edges

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator,

aggregatecounterweight, ride control, cold start, roading fenders, power train guard, secondary steering and sound suppression. ** Aggregate Handler configuration is not compatible with rock buckets, and high lift. † Illustration shown with Dimension charts. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAEStandard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO 14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

24

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Aggregate Handler Linkage

Bucket Type Hook On – Fusion – General Purpose

Edge Type

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

Bolt-On

Cutting Edges

3

m

yd

m

yd

5.40 5.40 5.00 5.70 5.70 5.30

3

7.00 7.00 6.50 7.50 7.50 7.00

3

5.90 5.90 5.50 6.30 6.30 5.80

3

7.75 7.75 7.25 8.25 8.25 7.50

mm 3447 3535 3535 3447 3535 3535

ft/in 11'3" 11'7" 11'7" 11'3" 11'7" 11'7"

mm 3183 3017 3017 3117 2950 2950

ft/in 10'5" 9'10" 9'10" 10'2" 9'8" 9'8"

mm 1588 1724 1724 1640 1775 1775

ft/in 5'2" 5'7" 5'7" 5'4" 5'9" 5'9"

mm 3116 3327 3327 3200 3411 3411

ft/in 10'2" 10'11" 10'11" 10'6" 11'2" 11'2"

mm 93 93 58 93 93 58

in 3.6" 3.6" 2.3" 3.6" 3.6" 2.3"

mm 9831 10 072 10 072 9915 10 156 10 156

ft/in 32'4" 33'1" 33'1" 32'7" 33'4" 33'4"

mm 6532 6532 6532 6599 6599 6599

ft/in 21'6" 21'6" 21'6" 21'8" 21'8" 21'8"

mm 7694 7817 7817 7721 7845 7845

ft/in 25'3" 25'8" 25'8" 25'4" 25'9" 25'9"

kg 22 905 22 721 23169 22 672 22 487 22 917

lb 50,483 50,078 51,065 49,970 49,561 50,509

kg 24 393 24 207 24 678 24 170 23 983 24 431

lb 53,763 53,353 54,391 53,271 52,858 53,845

kg 19 618 19 434 19 851 19 398 19 212 19 615

lb 43,239 42,833 43,753 42,753 42,344 43,232

kg 20 971 20 785 21 223 20 762 20 574 20 993

lb 46,221 45,812 46,777 45,759 45,346 46,268

kN 203 201 216 193 190 204

lbf 45,829 45,315 48,584 43,399 42,894 45,873

kg 31 727 31 865 31 690 31 837 31 975 31 800

lb 69,926 70,231 69,844 70,168 70,473 70,086

Teeth and

Segments Tips

Bolt-On

Cutting Edges

Teeth and

Segments Tips

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator,

aggregatecounterweight, ride control, cold start, roading fenders, power train guard, secondary steering and sound suppression. ** Aggregate Handler configuration is not compatible with rock buckets, and high lift. † Illustration shown with Dimension charts. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAEStandard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO 14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

25

980 XE Wheel Loader Specifications

Operating Specifications – Buckets (continued)

Linkage Aggregate Handler Linkage

Bucket Type Hook On – Fusion – Woodchip

Edge Type Bolt-On Cutting Edges

Capacity – Rated

Capacity – Rated at 110% Fill Factor

Width

Dump Clearance at Maximum Lift

16†

and45° Discharge

Reach at Maximum Lift and

17†

45° Discharge

Reach at Level Lift Arm and Bucket Level

Digging Depth

A†

Overall Length

12†

Overall Height with Bucket at

B†

Maximum Lift

Loader Clearance Circle Radius with Bucket atCarry Position

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force (§)

Operating Weight*

3

yd

m

3

m

3

14.50

19.00

16.00

21.00

mm 4433

ft/in 14'6"

mm 2668

ft/in 8'9"

mm 1915

ft/in 6'3"

mm 3727

ft/in 12'2"

mm 75

in 2.9"

mm 10 427

ft/in 34'3"

mm 7172

ft/in 23'7"

mm 8395

ft/in 27'7"

kg 20 387

lb 44,935

kg 21 928

lb 48,331

kg 17 202

lb 37,913

kg 18 613

lb 41,024

kN 141

lbf 31,880

kg 33 214

lb 73,202

* Static tipping loads and operating weights shown are based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator,

aggregatecounterweight, ride control, cold start, roading fenders, power train guard, secondary steering and sound suppression. ** Aggregate Handler configuration is not compatible with rock buckets, and high lift. † Illustration shown with Dimension charts. (§) Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C. (§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including SAEStandard J732C governing

loader ratings. (ISO) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. (Rigid Tire) Compliance to ISO 14397-1:2007 Sections 1 thru 5. Other buckets are available and offerings vary by region. Consult your local Cat dealer for further details.

26

980 XE Wheel Loader Specifications

Standard and Optional Equipment

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Cab, pressurized, sound suppression

Door, remote opening system

EH implement controls, parking brake

Steering, joystick

Monitored seat belt

4-point seat belt

Entertainment radio (FM, AM, USB, Bluetooth®)

Entertainment radio (DAB+)

CB radio ready

Seat, suede/cloth, air suspension, heated

Seat, leather/cloth, air suspension, heated/cooled Touchscreen display

Visibility: mirrors, rear-vision camera

360° vision system

Cat Detect rear radar system

Dedicated rearview screen

Mirrors, heated

Air conditioner, heater, defroster (auto temp, fan)

Sun visor, front, retractable

Sun visor, rear, retractable

Window cleaning platform, front

Windows, front, safety laminated rounded glass

Windows, front, heavy-duty, or full guards

ON-BOARD TECHNOLOGIES*

Cat Payload Scale

Autodig with Auto Set Tires

Operator ID & machine security

Application Proles

Job Aids

Controls Help and eOMM

Cat Advanced Payload

Cat Payload Printer

*Not legal for trade.

Standard Optional



HYDRAULICS

Implement system, electro-hydraulic with variable displacement piston pump

Steering system, load sensing with dedicated variable displacement piston pump

Ride control, dual accumulators

3rd auxiliary function with ride control

Oil sampling valves, Cat XT™ hoses

Quick coupler control

POWERTRAIN

Cat C13 engine

Electric fuel priming pump

Fuel-water separator and secondary fuel lter Engine, air precleaner

Turbine, air precleaner

Radiator, high debris

Cooling fan, reversible

Axles, open differentials

Axles, limited slip differential(s) Axles, ecology drains

Axles, AOC ready, extreme temperature seals Axles, oil cooler

Transmission, continuous variable

Rimpull control

Throttle lock mode

Hill and speed hold on grade

Service brakes, hydraulic, fully enclosed wet disc, wear indicators Park brake, caliper on front axles, spring applied-pressure released

ELECTRICAL

Starting and charging system, 24V

Starter, electric, heavy-duty

Cold start, 120V or 240V

Lights: halogen, 4 work lights, 2 rearvision lights

Lights: roading with turn signals

Lights: LED

Seat belt monitoring beacon

Warning beacon

Reversing strobe lights

Standard Optional



(continued on next page)

27

980 XE Wheel Loader Specifications

Standard and Optional Equipment (continued)

Standard and optional equipment may vary. Consult your Cat dealer for details.

MONITORING SYSTEM

Front dash with analog gauges, LCD display, and warning lights

Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)

LINKAGE

Standard lift, Z-bar

High lift, Z-bar

Kickouts: lift and tilt

ADDITIONAL EQUIPMENT

Cat Autolube system

Fenders, roading

Guards: powertrain, crankcase, cab, cylinders, rear

Biodegradable hydraulic oil

High-speed oil change system

Fast ll fuel tank Toolbox

Wheel chocks

Secondary steering system, electrical

Standard Optional



SPECIAL CONFIGURATIONS

Aggregate handler

Waste and scrap

Forestry

Standard Optional



28

980 XE Wheel Loader Specifications

For more complete information on Cat products, dealer services, andindustry solutions, visit us on the web atwww.cat.com.

Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

© 2021 Caterpillar. All Rights Reserved. CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, Product Link, Fusion, XT, "Caterpillar Corporate Yellow", the "Power Edge" and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

AEXQ3163-00 (3-2021)

Build Number: 14A

(N Am, Eur)

CAT 980 XE Technical Specifications

Technical Specifications

Table of Contents

Buckets

Operating Specifications

Transmission

Weight

Hydraulic System

Brakes

Axles

Sound

Air Conditioning System

Service Refill Capacities

Dimensions

Tire Options

Standard and Optional Equipment
