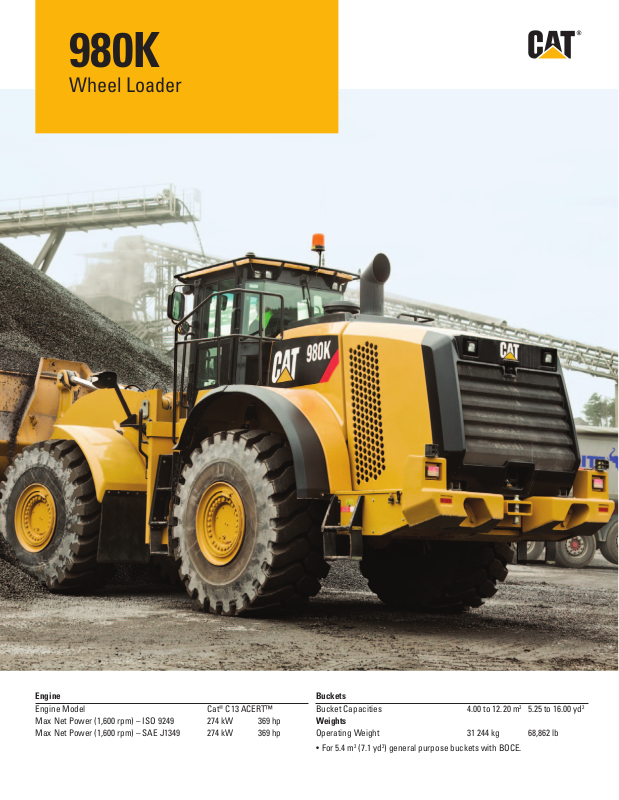

Caterpillar 980K BROCHURE

980K

Wheel Loader

Engine Buckets

Engine Model Cat
Max Net Power (1,600 rpm) – ISO9249 274 kW 369 hp Weights
Max Net Power (1,600 rpm) – SAE J1349 274 kW 369 hp Operating Weight 31 244 kg 68,862 lb

®

C13 ACERT™ Bucket Capacities 4.00 to 12.20 m3 5.25 to 16.00 yd

• For 5.4 m

3

(7.1 yd3) general purpose buckets with BOCE.

3

980K Key Features and Bene ts

Performance Series Buckets

With standard Performance Series Buckets, operators
bene t from reduced dig times and better material
retention; ultimately translating into signi cant
productivity and fuel ef ciency improvements.

Load Sensing Hydraulics

Load sensing hydraulics produce  ow and pressure
for the implement system upon demand and only
in amounts necessary to perform the needed work
functions, enhancing machine productivity and
fuelef ciency.

Operator Environment

The new four post ROPS cab provides enhanced
comfort, visibility, and productivity resulting in a
more ef cient operator.

Cat® C13 ACERT™ Engine

The innovative Cat C13 ACERT engine is optimized
for maximum fuel ef ciency and increased power
density while meeting Tier 4 Interim/Stage IIIB
emission standards.

Lockup Torque Converter

The optional lockup torque converter on the
980K signi cantly enhances productivity and
fuel ef ciency while performing load and carry
applications, especially on grades.

Powershift Transmission

The K Series™ transmissions incorporate a new
shifting strategy that delivers smoother shifts,
faster acceleration, and increased travel speed
when climbing a grade.

Fuel Ef ciency

The 980K wheel loaders have been integrated as
a system; from the linkage and work tool carrying
the payload, to the engine, transmission and torque
converter moving the machine, the system has
been optimized to achieve the lowest cost perton.

Contents

Reliability ..............................................................3

Durability ..............................................................4

Productivity ..........................................................5

Versatility ..............................................................6

Operator Environment ........................................8

Serviceability .....................................................10

Sustainability .....................................................11

Customer Support .............................................11

Owning Costs .....................................................12

Operating Costs .................................................13

Wheel Loader Speci cations .........................14

Standard and Optional Equipment .................22

2

The Cat® 980K was designed to improve operator
comfort, performance, and productivity, all while
meeting Tier 4 Interim/Stage IIIB emission standards.
The Performance Series Buckets enhance visibility and
decrease cycle times. The unmatched, revolutionary
world-class cab creates a comfortable, ef cient, safe,
and productive operator environment. The innovative
CatC13 ACERT™ engine is optimized for maximum fuel
efciency and increased power density while meeting
Tier 4 Interim/Stage IIIB emission standards. Thereliability,
durability, and versatility of the 980Kresult in a machine
that is better built to meet your needs. Allday. Every day.

Reliability

Tested and Proven. Ready to Work.

Structures

The K Series™ features many of the components designed
andproven reliable over generations of product design.

Strata Precleaner

The system removes 93% of the dust particles before the
air has reached the primary engine air lter. As air enters
the precleaner, stationary vanes cause the incoming air to
spin. The resulting centrifugal force spins dust and dirt to
the outer walls where they are ejected out into the exhaust
stream, while the clean air ows down the center of the tube
and continues into the primary air lter. The primary bene t
is extended  lter life.

Cold Start/High Altitude Package

A new optional cold start package includes a fan pump
bypass, transmission pump bypass, additional battery
capacity, and an engine heater plug/cord. The bypass
systemsreduce the parasitic load on the engine, while the
additional battery capacity increases the cold cranking
revolutions during startup. With the new optional cold start
package available on K Series™, starting capability has been
dramatically improved in cold weather conditions. Thesystem
also improves starting capability at high altitudes.

Monitoring Programs

Monitoring product health is key to maintaining reliability of
any equipment. Many programs offered by Caterpillar make
the tracking of the customer’s machine health quick and
easy. These programs include Product Link, VisionLink™,
and S·O·S

SM

Services.

Renowned Cat Dealer Support

From helping you choose the right machine to knowledgeable
support, Cat dealers provide the best when it comes to sales
and service. Manage costs with preventive maintenance
programs like Scheduled Oil Sampling (S·O·SSM) analysis
orelaborate Customer Support Agreements. Stay productive
with best-in-class parts availability. Cat dealers can even
helpyou with operator training to help boost your pro ts.
And when it’s time for machine rebuild, your Cat dealer can
help you save even more with Genuine Cat Reman parts.
Receive the same warranty and reliability as new products
atcost savings of 40 to 70 percent for power train and
hydraulic components.

3

Durability

Better Built to Meet Your Needs

Frames

The robotically welded two-piece structural frame design
provides a rugged and reliable foundation for the machine
that improves stability, performance, and serviceability.
Arobust articulating hitch system joins the front and rear
frames improving durability. Enhanced lines routings across
the hitch joint streamline the manufacturing process and
improve reliability and durability.

Engine

The new Cat C13 ACERT engine was designed to optimize
power density. It uses a combination of technologies to reduce
regulated emissions while ensuring high performance and
excellent fuel efciency. An upgraded ADEM™ 4 electronic
control module manages the combustion process and a
newhigh-pressure Mechanical Electronic Unit Injector
(MEUI-C) fuel system allows precise injection timing for
aclean, efcient fuel burn. Therugged Cat Clean Emissions
Module is securely rubber mounted on its own platform
above the engine and contains a Diesel Oxidation Catalyst,
Diesel Particulate Filter and Cat Regeneration System.
Regeneration, the process by which soot is removed from
theDiesel Particulate Filter, is completely automatic and
does not interrupt the machine’s work cycle.

Emissions

The 980K features a Cat C13 ACERT engine and a
CatClean Emissions Module to deliver the performance
andefciency that customers demand, while meeting Tier4
Interim/Stage IIIB emission standards. The six-cylinder
electronic engine is turbocharged and aftercooled.
ACERT™Technology is a combination of building blocks
that includes electronics, fuel systems, airmanagement
systems and aftertreatment components. The system is
optimized based on engine size, the type of application and
the geographic location in which it will work. The technologies
are applied systematically and strategically to meet high
customer expectations for productivity, fuel ef ciency,
reliability and service life.

Axles

The axles are designed to handle extreme applications
resulting in reliable performance and extended life. The front
axle is rigidly mounted to the frame in order to withstand
internal torque loads and still maintain support for the wheel
loader. The rear axle can oscillate to ±13 degrees helping to
ensure all four wheels stay on the ground providing stability
even in the roughest terrain.

4

Productivity

Move More. All Day. Every Day.

Z-bar Linkage

The proven Z-bar linkage with Performance Series Buckets offer excellent penetration into the pile, high breakout forces, good
roll back angles, and faster dig times. The results are improved tire life, superior fuel efciency, and exceptional production
capabilities; all helping to enable a sustainable solution for your business.

Load Sensing Hydraulics

New load sensing hydraulics produce ow and pressure for the implement system upon demand and only in amounts necessary to
perform the needed work functions, enhancing machine productivity and fuel efciency. Implement controllability is improved
through simultaneous implement operation and repeatable ne modulation, enabling greater operator comfort through ease
ofoperation.

Ride Control

Ride control provides the operator with a smoother ride over rough terrain, enabling a more comfortable ride at higher speeds.
The benet is reduced cycle times, higher productivity and better fuel efciency while performing load and carry applications.
The system works by using an accumulator to dampen the linkage motion, acting as a shock absorber.

Lockup Torque Converter

The optional lockup torque converter on the 980K signicantly enhances productivity and fuel efciency while performing load
and carry applications, especially on grades. The lockup clutch eliminates torque converter losses, ultimately resulting in lower
fuel consumption while achieving higher travel speeds up a grade.

Transmission

The K Series™ transmissions incorporate a new shifting strategy that delivers smoother shifts, faster acceleration, and better
performance climbing a grade. When placing the transmission into forward gear, the machine will automatically start in
secondgear. With the further enhancement of a torque based 2 to 1 downshift, the downshift will only occur based on machine
load. Owners and operators will fully benet from utilizing the automatic 1-4 transmission mode, which results in lower fuel
consumption and optimal machine performance.

5

Versatility

Work Tool Options to Meet Your Needs

Work Tools for Many Job Site Requirements

An extensive range of work tools and bucket styles are
available to customize the machine for your operation.
Thelist includes: Performance Series Buckets; Specialty
Buckets (Multipurpose, Side Dump, Waste Handling,
Woodchip); Pallet Forks, Millyard and Logging Forks, Rakes
(with or without top clamps); and Plows (angle or V-style).
Each is available either with pin on or quick couplerinterface.

Performance Series Buckets:
Load Easy, Fuel Efcient, Carry More

Performance Series Buckets utilize a system-based approach
to balance bucket shape with the machine’s linkage, weight,
lift and tilt capacities. Operators benet from reduced dig
times and better material retention; ultimately translating
into signicant productivity and fuel ef ciency improvements.

Lower Operating Costs

Performance Series Buckets feature a longer oor that easily
digs through the pile and provides excellent visibility for the
operators to see when the bucket is full. Less time digging
inthe pile results in lower fuel consumption and improved
tire life. A unique spill guard protects the cab and linkage
components from material over ow.

Higher Productivity

Performance Series Buckets achieve higher ll factors –
ranging from 100% to 115% depending on the machine
application and material type. The buckets feature optimized
geometry with a bucket opening matched to the machine’s
linkage and incorporate a curved side prole to maximize
material retention. The optimized design results in unsurpassed
production capabilities.

Performance Series Bucket Styles

Performance Series Buckets are available for General
Purpose, Material Handling, Rock, Heavy Duty Rock
andCoal style buckets.

6

Specialty Buckets

Heavy Duty Quarry Rock Buckets are designed for bank or
faceloading material where high impact/high abrasion is
encountered. Buckets include thicker base edge, liner package
and addition wear plates.

Slag Buckets are designed for use in steel mills and slag
processing centers. They feature increased material thickness
in critical structural components to provide maximum
durability for hot or cold slag handling.

Waste Handling Buckets are designed to move large volumes
of low-density waste in transfer stations, land lls and
recycling yards. Large capacities give maximum production
when loading conveyors, trucks or hoppers.

Woodchip Buckets are optimized for moving large volumes
ofwood chips in forestry and millyard settings. They feature
a  at oor and straight edge designed to scoop the bucket
full and help heap the load high.

Quick Couplers and Work Tool Attachments

A Wheel Loader equipped with a quick coupler is a much
more versatile machine. Buckets and work tools can be
changed without leaving the cab – allowing the machine
toquickly move from task to task.

Pallet Forks are available for material handling.
Millyard and Logging Forks are available for forestry

applications.
Specialty Work Tool Attachments such as plows for snow

removal are available for the 980K. Contact your local
Catdealer for more details on tools available for
yourapplication.

7

Operator Environment

Safe. Comfortable. Ef cient.

Electro-Hydraulic (EH) Joystick Steering with Force
Feedback (Speed Sensitive)

The industry leading EH joystick steering system combines
operator comfort and precision control to provide a
sustainable work environment for the operator. The system
incorporates a force feedback motor that automatically adjusts
the effort needed to tilt the ergonomic joystick based on
ground speed, resulting in superior control in all applications
and climates. For customers who prefer a steering wheel, an
electro-hydraulic steering wheel is available as an option.

Implement Controls (EH)

Seat mounted single axis implement control levers provide
the operator with precise control of the work tool, all
whilemoving with the seat for maximum comfort. In cab
programmable kick-outs and automatic cylinder snubbing
maximize operator comfort and productivity throughout
their shift. Optional implement joysticks are available
for 2V and 3V hydraulics.

Seat

The Cat Optimized Seating System is 6-way adjustable
toaccommodate operators of all sizes. The seat has a one
piecehigh back that supports the lumbar area of the back
upthrough the shoulders. Both armrests are large and can
beadjusted up, down, fore, and aft to enhance comfort and
convenience. An optional feature for the cab seat is a heated
backrest and cushion.

Sound and Vibration

New viscous cab mounts connect the cab to the frame of
themachine, decreasing noise and vibration the operator
issubjected to. This contributes to a well-rested operator
who remains efcient and productive. All Day. Every Day.

Information Display

The central display panel has a large text box,  ve analog
likegauges, and LED warning indicators. The large text box
provides in-language information about machine operation,
feature activation and system troubleshooting and calibration.
With the 5 large analog-type gauges the operator can easily
identify if key systems are within normal operating range.
Aresettable trip totals function has been incorporated to
display information for average fuel consumed, total fuel
consumed, idle fuel, idle time, operating hours, odometer, etc.
The navigation buttons are located on the side of the screen
and help assist with set up and other various functions.

8

Automatic Climate Control and Air Quality

The new climate control system automatically adjusts the air
temperature and fan speed to maintain the operator’s preferred
climate setting. The cab air ltration system recirculates 90%
of the cab air and is now serviced from outside the cab,
enabling maximum air quality and cab cleanliness. The new
air conditioning sealing system keeps refrigerant contained
preventing system shutdown. Combined together these systems
help the operator to remain efcient and productive all shift long.

Entry and Exit

Well-placed grab bars and a ladder inclination angle of
10-degrees forward makes the walk into the cab feel more likea
staircase than a ladder. The new wider front hinged door can
be opened and closed while seated, greatly improving ingress
and egress. Two new left-hand and right-hand sliding windows
can also be opened and closed with one hand while seated
forcomfortable communication to personnel on theground.

Visibility

Visibility has been enhanced by removing the steering wheel,
adding a convex windshield, and eliminating two cab posts.
The cab has a clean and clear panoramic view for safe operation
of the machine. External rearview mirrors are mounted on the
cab to provide all around visibility. The external mirrors fold
horizontally to provide fast, safe access to clean the window
from the front platform. Optional heated and powered mirrors
are available to further improve visibility in cold climates.

Rearview Camera

With the new standard rearview camera, visibility is greatly
enhanced. The camera is located in a pocket on the grill to
protect it from damage and the elements. The camera can
beset to activate only when the transmission is in reverse to
helpeliminate distractions in the cab, especially when in dark
environments. Two rear work lights are located in the rear
grill and can be activated to illuminate the area behind the
machine in low light conditions.

Control Panels and Park Brake Switch

Two control panels located on the front right ROPS post
consist of large membrane switches making them easy to
activate while wearing gloves. The membrane switches contain
LED’s to denote activation/mode and have a positive feel and
“click” to signal activation. The ISO symbols located on each
membrane switch are molded all the way through to ensure
the image will not wear off over time. A new “help” feature
explains the function of each membrane switch. A two position
rocker switch activates the electro-hydraulic park brake and
is automatically applied upon machine shutdown.

9

Serviceability

Easy to Maintain. Easy to Service.

Electrical Service Center

The electrical service center provides grouped ground level
access to numerous electrical features, enhancing safety
andconvenience for operators and service technicians. It is
conveniently located towards the rear of the machine and
contains the maintenance free batteries, a fuse relay panel,
main disconnect switch, hood tilt switch, and the jump start
receptacle. The ground level engine shutdown switch is
located near the cab access ladder.

Engine Access

The K Series™ retains the Cat sloped “one-piece” tilting hood,
which has become one of our brand’s hallmarks and provides
industry-leading access to the engine, Cat Clean Emissions
Module (CEM) and other components but with fresh new
styling clearly distinct from the H Series. New to the loaders
is a rear clamshell hood design that allows quick access to
the engine oil dipstick and ll, fuel ll port, and cooler cores.

Cooling System

The cooling system is readily accessible for clean out and
maintenance. With six cooling ns per inch and a perforated
grill, most airborne debris entering the system passes through
the cooler cores. The cooler cores swing out providing easy
access for cleaning; an option variable pitch fan is available
to automatically purge the cooler cores by periodically
reversing the air ow.

Hydraulic Service Center

The hydraulic components are all conveniently located
behind the hinged right side access ladder at a new single
ground level service center improving safety and reducing
service time. Accessible from the service center are the
transmission and hydraulic oil lters, brake accumulators,
pressure test ports, etc.

10

Sustainability

Conserving Resources

The 980K is designed to compliment your business plan,
reduce emissions and minimize the consumption of
naturalresources.

• Improved fuel efciency – less fuel consumed results
inlower emissions.

• Engine air lter life doubled to reduce cost and waste.

• Machine is built with a 96% recyclability rate
(ISO16714) to conserve valuable natural resources
andfurther enhance machine end of life value.

• Improved operator efciency through enhanced visibility
and reduced noise/vibration levels.

• Product Link family of products and solutions that
collect, communicate, store and deliver product and
job-site information to maximize productivity and
reducecosts.

• Major components are rebuildable, eliminating waste
and saving money by giving the machine and/or major
components a second – and even third – life.

Customer Support

Ready to Help. Anytime. Anywhere.

Machine Selection

Cat dealers are ready to help evaluate machine options;
from new or used machine sales, to rental or rebuild
options, Cat dealers can provide an optimal solution
tomeet customer business needs.

Product Support

Cat dealers are with customers every step of the way
tomaximize machine uptime by providing unsurpassed
worldwide parts support, trained technicians and
customer support agreements.

Operation

To help maximize the return on your investment,
Catdealers offer various training resources to improve
operating techniques.

Financing

Cat dealers offer nancing options to meet a variety
ofcustomer needs.

11

Owning Costs

Proven Best Investment

Customer Support Agreements

A Customer Support Agreement (CSA) is an arrangement
between you and your Cat dealer that helps you lower your
total cost per ton. CSAs are exible, allowing them to
betailored to your business needs. They can range from
simplePreventive Maintenance Kits to elaborate Total
CostPerformance Guarantees. Having a CSA with your
Catdealer enables more time for you to do what you
dobest– run your business.

Monitoring Systems

Monitoring product health is key to optimizing the life
ofaninvestment into a Cat Wheel Loader.

• Cat Product Link – Cat Product Link allows remote

monitoring of equipment to improve overall  eet
management effectiveness. Product Link is deeply
integrated into machine systems. Events and diagnostic
codes, as well as hours, fuel, idle time and other detailed
information are transmitted to a secure web based
application, VisionLink™. VisionLink includes
powerfultools to convey information to users and
dealers, including mapping, working and idle time,
fuellevel andmore.

• S·O·SSM Services – Helps manage component life and

decrease machine downtime, increasing productivity and
efciency. Regular uid sampling can help track what
isgoing on inside your machine. Wear related problems
arepredictable and easily repairable. Maintenance can
be done to accommodate your schedule, resulting in
increased uptime and exibility in maintenance repairs
before failure.

12

Parts Availability

Caterpillar provides an unsurpassed level of personalized
service to help you work more cost effective and ef cient.
Byutilizing a worldwide parts network Cat dealers help
minimize machine downtime and save money by delivering
replacement parts within 24 hours.

Resale Value

Owning quality equipment is an important factor in
maintaining resale value. Caterpillar is not only known
formachines that are better built, but provides product
anddealer support to maintain the reliability and durability
of your machine.

Operating Costs

Save Time and Money by Working Smart

Data from customer machines show Cat wheel loaders are among the most fuel efcient machines in the industry.
Severalfeatures contribute to this excellent fuel ef ciency:

• Performance Series Buckets – Deliver faster ll times and better material retention, ultimately reducing cycle times while

improving productivity and fuel ef ciency.

• Load-Sensing Hydraulics – Provides only the hydraulic ow required by the implement and steering systems for improved

fuel efciency and greater rimpull.

• ACERT™ Engine – Power dense engine enables a more fuel-efcient method to meet emissions regulations.

• Fuel Management System (FMS) – Optimizes power for maximum fuel savings with minimal impact on production.

• Engine Idle Shutdown – Automatic engine and electrical system shutdown conserves fuel.

• Lockup Torque Converter – Transfers more power to the ground and optimizes fuel efciency in all applications.

• Shift Strategy – Reduced torque interruption increases driveline efciency, conserving fuel. Auto 1-4 transmission mode

keeps engine rpm low, reducing fuel consumption while delivering optimal machine performance.

Machine conguration, operator technique, and job site layout can impact fuel consumption by as much as 30 percent.

• Machine Con guration – Select the correct work tool and tire type based on machine application. Radial tires are preferred;

ensure proper ination pressures. Heavier tires burn more fuel. Keep engine rpm low by using auto 1-4 transmission mode.

• Job Site Layout – Spot loading targets in the right position. Avoid traveling more than twice the machine length during

short cycle loading. Reduce transport distance for load and carry cycles by optimizing job site layout.

• Loading Bucket – Load in rst gear and keep engine rpm low. Raise and tilt bucket smoothly and do not use a “pumping”

motion. Avoid lift lever detent and use transmission neutralizer.

• Loading Truck or Hopper – Do not raise the work tool any higher than necessary. Keep engine rpm low and unload

incontrolled manner.

• Idle – Set the parking brake to engage Engine Idle Management System.

13

980K Wheel Loader Speci cations

Engine Operating Specications Hydraulic System

Engine Model Cat® C13 ACERT™
Max Gross Power

(1,600 rpm) –
SAEJ1995

Max Net Power
(1,600 rpm) –
ISO9249

Max Net Power
(1,600 rpm) –
SAEJ1349

Max Net Power
(1,800 rpm) –
EEC80/1269

Peak Gross Torque
(1,300 rpm) –
SAEJ1995

Peak Net Torque 1959 N·m 1,445 ft-lb
(1,200 rpm) –
SAEJ1349

Bore 130 mm 5.1 in
Stroke 157 mm 6.2 in
Displacement 12.5 L 762.8 in

• Cat engine with ACERT Technology–
meets Tier 4 Interim/Stage IIIB emission
standards.

303 kW 406 hp

274 kW 369 hp

274 kW 369 hp

274 kW 369 hp

2089 N·m 1,541 ft-lb

Weights

Operating Weight 31 244 kg 68,862 lb

3

• For 5.4 m
with BOCE.

(7.1 yd3) general purpose buckets

Buckets

Bucket Capacities 4.00 to

12.20 m

• Refer to bucket selection chart.

3

5.25 to

16.00 yd

Static Tipping Load
Full 37° Turn –
ISO14397-1*

Static Tipping Load
Full 37° Turn –
Rigid Tires**

Breakout Force 238 kN 53,548 lb

3

• For 5.4 m
buckets with BOCE.

* Full compliance to ISO (2007) 14397-1

Sections 1 thru 6, which requires 2%
verication between calculations and
testing.

** Compliance to ISO (2007) 14397-1

Sections 1 thru 5.

(7.1 yd3) general purpose

Transmission

Standard Torque Converter

Forward 1 6.8 km/h 4.2 mph
Forward 2 12.1 km/h 7.5 mph
Forward 3 21.5 km/h 13.4 mph

3

Forward 4 37.8 km/h 23.5 mph
Reverse 1 7.8 km/h 4.8 mph
Reverse 2 13.9 km/h 8.6 mph
Reverse 3 24.5 km/h 15.2 mph
Reverse 4 42.8 km/h 26.6 mph

Lockup Torque Converter

Forward 1 6.9 km/h 4.3 mph
Forward 2 13 km/h 8.1 mph
Forward 3 23 km/h 14.3 mph
Forward 4 40.7 km/h 25.3 mph
Reverse 1

3

Reverse 2
Reverse 3
Reverse 4

• Maximum travel speed in standard vehicle
with empty bucket and standard L4 tires
with 930 mm (37 in) roll radius.

19 267 kg 42,464 lb

20 484 kg 45,148 lb

7.9 km/h

14.8 km/h

26.1 km/h

40.0 km/h

4.9 mph

9.2 mph

16.2 mph

24.9 mph

Steering System Piston
Pump Type

Implement System– 460 L/min 121.5 gal/
Maximum Pump min
Output (2,200 rpm)

Implement System – 31 000 kPa 4,496 psi
Maximum Operating
Pressure

Implement System– 300 L/min 79.3 gal/
Optional 3rd Function min
Maximum Flow

Implement System– 20 700 kPa 3,000 psi
Optional 3rd Function
Maximum Pressure

Hydraulic Cycle 6.4 Seconds
Time – Raise from
Carry Position

Hydraulic Cycle 1.7 Seconds
Time – Dump,
atMaximum Raise

Hydraulic Cycle 3.3 Seconds
Time – Lower, Empty,
Float Down

Hydraulic Cycle
Time – Total 11.4 Seconds

• Cycle time with rated payload.

Brakes

Brakes Meet OSHA,

SAEJ1473 OCT90
and ISO 3450-1985
required standards

14

Axles Cab Service Rell Capacities

Front Fixed
Rear Oscillating

± 13 degrees

Maximum Single- 548 mm 21.6 in
Wheel Rise and Fall

Tires

• Choose from a variety of tires to match
your application.

• Choices include:

29.5R25 VMT BS L3 Radial

29.5-25 SRG LD FS E3/L3 Bias

29.5R25 XHA2 MX L3 Radial

29.5R25 XLDD1 MX L4 Radial

29.5R25 VSNT BS L4 Radial

29.6-25 SDT LD FS L5 Bias

29.5R25 VSDL BS L5 Radial

29.5R25 XLDD2 MX L5 Radial

29.5R25 X MINE D2 MX L5 Radial

• NOTE: In certain applications (such as
load and carry), the loader’s productive
capabilities might exceed the tires’ tonnes­km/h (ton-mph) capabilities. Caterpillar
recommends that you consult a tire supplier
to evaluate all conditions before selecting a
tire model. Other special tires are available
on request.

ROPS/FOPS Meets SAE and

ISOstandards

• Cat cab with a four post integrated Rollover
Protective Structure (ROPS) are standard
inNorth America and Europe.

• ROPS meets SAE J1040 APR88 and
ISO3471:1994 criteria.

• Falling Objects Protective Structure (FOPS)
meets SAE J231 JAN81 and ISO:1992
Level II criteria.

Sound

• The sound values indicated below are
forspecic operating conditions only.
Machine and operator sound levels will
vary at different engine and/or cooling fan
speeds. Hearing protection may be needed
when the machine is operated with a cabin
that is not properly maintained, or when
the doors and/or windows are open for
extended periods or in a noisy environment.

• The operator sound pressure level for a
standard machine con guration, measured
according to the procedures speci ed
in ISO 6396:2008, is 72 dB(A) with the
cooling fan speed set at maximum value.

• The machine sound power level for a
standard machine con guration, measured
according to the procedures speci ed in
ISO 6395:2008, is 112 dB(A) with the
cooling fan speed set at maximum value.

• The machine sound pressure level for
a standard machine con guration,
measured according to the procedures
specied in SAE J88:2006, is 78 dB(A).
The measurement was conducted under
the following conditions: distance of 15 m
(49.2 ft), moving forward in an intermediate
gear ratio, static hydraulic cycle (with no
payload) and with the cooling fan speed
setat maximum value.

• The operator sound pressure level for
a machine installed with a Low Sound
package, measured according to the
procedures specied in ISO 6396:2008,
is72dB(A) with the cooling fan speed
setatmaximum value.

• The machine sound power level for a
machine installed with a Low Sound
package, measured according to the
procedures specied in ISO 6396:2008,
is109 dB(A) with the cooling fan speed
setat maximum value.

Fuel Tank – 447 L 118.1 gal
Standard

Cooling System 63 L 16.6 gal
Crankcase 37 L 9.8 gal
Transmission 66 L 17.4 gal
Differentials and 84 L 22.2 gal

Final Drives – Front
Differentials and 84 L 22.2 gal

Final Drives – Rear
Hydraulic Tank 170 L 44.9 gal

15

980K Wheel Loader Speci cations

Dimensions

All dimensions are approximate and based on L4 Michelin 29.5R25 XLDD1 Radial tires.

10

17

16

19

18

Height to Top of Rops

1

Height to Top of Exhaust Pipe

2

Height to Top of Hood

3

Ground Clearance With 29.5R25 (See Tire Option Chart for Other Tires)

4

B-Pin Height – Standard

5

1

2

3

B-Pin Height – High-Lift
Center Line of Rear Axle to Edge of Counterweight

6

Wheelbase

7

B-Pin Height @ Carry – Standard

8

Center Line of Rear Axle to Hitch

9

Rack Back @ Maximum Lift

10

Dump Angle @ Maximum Lift

11

Rack Back @ Carry

12

Rack Back @ Ground

13

Height to Center Line of Axle

14

Lift Arm Clearance

15

Lift Arm Clearance @ High Lift

15

11

5

12

13

14

6

9

4

7

3809 mm
3737 mm
3109 mm

12'6"
12'4"
10'2"

460 mm
4539 mm
4760 mm

14'11"

15'7"
2510 mm
3700 mm

12'1"

673 mm

1850 mm

8

1'6"

8'2"

2'

6'1"
61 degrees
52 degrees
49 degrees
41 degrees

885 mm
3795 mm
4041 mm

2'11"
12'6"
13'4"

Turning Radius

All dimensions are approximate and based on L4 Michelin 29.5R25 XLDD1 Radial tires.

Clearance Circle to Outside of Tires

16

Clearance Circle to Inside of Tires

17

Width Over Tires

18

Clearance Circle to Outside Edge ofCounterweight

19

16

7183 mm
3875 mm
3307 mm
7160 mm

23'6"
12'8"
10'9"
23'6"

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

m

yd

m

yd

mm

ft/in

mm

ft/in

mm

ft/in

mm

ft/in

mm

in

mm

ft/in

mm

ft/in

mm

ft/in

kg

lb

kg

lb

kg

lb

kg

lb

kN

lb

kg

lb

3

3

3

3

Bolt-On

Edges

5.40

7.06

5.00

6.54
3447
11'3"
3273
10'8"
1556

5'1"
3040
9'11"

103

4"
9509
31'3"
6421
21'1"

15 853

52'1"

21 822
48,096
23 185
51,101
19 267
42,464
20 484
45,148

238
53,548
31 244
68,862

Rock – Pin On***General Purpose – Pin On

Teeth and

Segments Teeth Segments Teeth

5.40 5.00 4.40 4.30

7.06 6.54 5.75 5.62

5.00 4.60 3.20 3.10

6.54 6.02 4.19 4.05
3535 3535 3504 3504
11'7" 11'7" 11'5" 11'5"
3107 3107 3101 3101
10'2" 10'2" 10'2" 10'2"
1693 1693 1844 1844

5'6" 5'6" 6'0" 6'0"
3252 3252 3360 3360
10'8" 10'8" 11'0" 11'0"

103 68 106 71

4" 2.6" 4.1" 2.8"
9750 9750 9844 9844
32'0" 32'0" 32'4" 32'4"
6421 6421 6184 6184
21'1" 21'1" 20'4" 20'4"

16 076 16 076 16 093 16 093

52'9" 52'9" 52'10" 52'10"

21 637 22 066 22 178 22 640
47,689 48,635 48,880 49,900
22 999 23 445 23 554 24 027
50,691 51,673 51,915 52,955
19 082 19 489 19 555 20 010
42,058 42,953 43,100 44,103
20 298 20 719 20 782 21 246
44,738 45,666 45,804 46,826

235 254 222 241
52,996 57,101 50,093 54,147
31 383 31 207 31 842 31 547
69,167 68,780 70,178 69,528

Bolt-On

Edges

4.40

5.75

3.21

4.20
3504
11'5"
3101
10'2"
1844

6'0"
3360
11'0"

106

4.1"
9844
32'4"
6184
20'4"

16 094

52'10"
22 141
48,799
23 508
51,812
19 536
43,057
20 754
45,742

223
50,282
31 767
70,013

Teeth and

* Static tipping loads and operating weights shown are based on a machine configuration with Michelin 29.5R25 XLDD1 L4 Radial tires,

full fluids, operator, standard counterweight, standard transmission, cold start, roading fenders, Product Link, open differential axles

(front/rear), power train guard, secondary steering, and sound suppression.
** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.
*** Rock bucket specifications are given on Michelin 29.5R25 XLDD2 L5 Radial tires.
(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.
(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.
(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

17

980K Wheel Loader Speci cations

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

m

yd

m

yd

mm

ft/in

mm

ft/in

mm

ft/in

mm

ft/in

mm

in

mm

ft/in

mm

ft/in

mm

ft/in

kg

lb

kg

lb

kg

lb

kg

lb

kN

lb

kg

lb

3

3

3

3

Coal –
PinOn

Bolt-On

Edges

8.20

10.73

6.47

8.46

3638

11'11"

2917

9'6"

1700

5'6"
3411
11'2"

108

4.2"
9883
32'6"
6536
21'6"

16 234

53'4"

20 819
45,887
22 238
49,012
18 293
40,318
19 567
43,125

186
41,956
31 831
70,156

High Lift

Change

inSpecs

220

8"

160

6"

201

8"

221

9"

175

7"

–1831

–4,036

–2026

–4,467

–1656

–3,651

–1836

–4,048

3
813
115
253

* Static tipping loads and operating weights shown are based on a machine configuration with Michelin 29.5R25 XLDD1 L4 Radial tires,

full fluids, operator, standard counterweight, standard transmission, cold start, roading fenders, Product Link, open differential axles

(front/rear), power train guard, secondary steering, and sound suppression.
** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.
*** Rock bucket specifications are given on Michelin 29.5R25 XLDD2 L5 Radial tires.
(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.
(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.
(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

18

Aggregate Package Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

m

yd

m

yd

mm

ft/in

mm

ft/in

mm

ft/in

mm

ft/in

mm

in

mm

ft/in

mm

ft/in

mm

ft/in

kg

lb

kg

lb

kg

lb

kg

lb

kN

lb

kg

lb

General Purpose – Pin On

Bolt-On Teeth and Bolt-On Teeth and

Edges Segments Teeth Edges Segments Teeth

3

5.70 5.70 5.30 6.00 6.00 5.80

3

7.46 7.46 6.93 7.85 7.85 7.59

3

4.50 4.50 4.30 5.30 5.30 5.10

3

5.89 5.89 5.62 6.93 6.93 6.67
3447 3535 3535 3447 3535 3535
11'3" 11'7" 11'7" 11'3" 11'7" 11'7"
3204 3037 3037 3187 3019 3019
10'6" 9'11" 9'11" 10'5" 9'10" 9'10"
1604 1738 1738 1625 1760 1760

5'3" 5'8" 5'8" 5'4" 5'9" 5'9"
3124 3336 3336 3152 3364 3364
10'3" 10'11" 10'11" 10'4" 11'0" 11'0"

103 103 68 103 103 68

4" 4" 2.6" 4" 4" 2.6"
9593 9834 9834 9621 9862 9862
31'6" 32'4" 32'4" 31'7" 32'5" 32'5"
6243 6243 6243 6269 6269 6269
20'6" 20'6" 20'6" 20'7" 20'7" 20'7"

15 898 16 123 16 123 15 913 16 138 16 138

52'2" 52'11" 52'11" 52'3" 53'0" 53'0"

23 011 22 826 23 262 22 869 22 683 23 116
50,717 50,308 51,271 50,404 49,994 50,949
24 485 24 298 24 753 24 346 24 158 24 609
53,967 53,554 54,557 53,659 53,245 54,239
20 261 20 075 20 489 20 123 19 937 20 347
44,656 44,247 45,158 44,353 43,943 44,846
21 597 21 409 21 839 21 462 21 274 21 700
47,600 47,186 48,133 47,302 46,888 47,827

224 222 239 220 218 234
50,542 50,003 53,707 49,551 49,016 52,596
32 020 32 159 31 983 32 116 32 255 32 079
70,572 70,877 70,490 70,784 71,089 70,702

* Static tipping loads and operating weights shown are based on a machine configuration with Michelin 29.5R25 XLDD1 L4 Radial tires,

full fluids, operator, standard counterweight, standard transmission, cold start, roading fenders, Product Link, open differential axles

(front/rear), power train guard, secondary steering, and sound suppression.
** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.
*** Rock bucket specifications are given on Michelin 29.5R25 XLDD2 L5 Radial tires.
(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.
(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.
(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

19

980K Wheel Loader Speci cations

Aggregate Package Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

m

yd

m

yd

mm

ft/in

mm

ft/in

mm

ft/in

mm

ft/in

mm

in

mm

ft/in

mm

ft/in

mm

ft/in

kg

lb

kg

lb

kg

lb

kg

lb

kN

lb

kg

lb

Material Handling – Pin On

Bolt-On Teeth and

Edges Segments Teeth

3

5.70 5.70 5.50

3

7.46 7.46 7.19

3

5.06 5.06 4.86

3

6.62 6.62 6.36
3447 3535 3535
11'3" 11'7" 11'7"
3105 2928 2928
10'2" 9'7" 9'7"
1519 1641 1641
4'11" 5'4" 5'4"
3149 3361 3361
10'4" 11'0" 11'0"

103 103 68

4" 4" 2.6"
9618 9859 9859
31'7" 32'5" 32'5"
6242 6242 6242
20'6" 20'6" 20'6"

15 911 16 137 16 137

52'3" 53'0" 53'0"

22 514 22 331 22 749
49,621 49,217 50,139
23 945 23 760 24 194
52,774 52,367 53,325
19 810 19 627 20 024
43,662 43,258 44,132
21 106 20 921 21 332
46,519 46,111 47,017

221 218 234
49,662 49,126 52,720
32 145 32 284 32 108
70,848 71,153 70,766

* Static tipping loads and operating weights shown are based on a machine configuration with Michelin 29.5R25 XLDD1 L4 Radial tires,

full fluids, operator, standard counterweight, standard transmission, cold start, roading fenders, Product Link, open differential axles

(front/rear), power train guard, secondary steering, and sound suppression.
** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.
*** Rock bucket specifications are given on Michelin 29.5R25 XLDD2 L5 Radial tires.
(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.
(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.
(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

20

Bucket Selection Charts

Material Density kg/m 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

General
Purpose

5.40 m (7.06 yd)

6.21 m (8.12 yd)

5.40 m (7.06 yd)

Rock

Pin On

Standard Linkage

Material Density lb/yd 1,180 1,348 1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876 4,044 4,213

Bucket Density

115% 110% 105% 100% 95%

Material Density kg/m 800 900700 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

General
Purpose

Pin On

High Lift Linkage

Material Density lb/yd 1,3481,180 1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876 4,044 4,213

Bucket Density

115% 110% 105% 100% 95%

Material Density kg/m 800 900 1000 1100 1200700 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

General
Purpose

ate

Pin On

Aggreg

Package Linkage

Material
Handling

Material Density lb/yd 1,3481,180 1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876 4,044 4,213

Bucket Density

115% 110% 105% 100% 95%

4.40 m (5.75 yd)

8.20 m (10.73 yd)

Coal

5.40 m (7.06 yd)

Rock

4.40 m (5.75 yd)

8.20 m (10.73 yd)

Coal

5.70 m (7.46 yd) 6.56 m (8.58 yd)

6.00 m (7.85 yd)

5.70 m (7.46 yd) 6.56 m (8.58 yd)

9.43 m (12.33 yd) 8.20 m (10.73 yd)

6.21 m (8.12 yd)

9.43 m (12.33 yd) 8.20 m (10.73 yd)

5.06 m (6.62 yd)

5.06 m (6.62 yd)

6.90 m (9.02 yd)

4.40 m (5.75 yd)

5.40 m (7.06 yd)

4.40 m (5.75 yd)

5.70 m (7.46 yd)

6.00 m (7.85 yd)

5.70 m (7.46 yd)

All buckets are showing Bolt-On Edges.
Material Handling buckets are at oor buckets.

Bucket Fill Factors

(as a % of ISO Rated Capacity)

Loose Material Performance Series Bucket

Earth/Clay
Sand and Gravel
Aggregate: 25-76 mm (1 to 3 in)

19 mm (0.75 in) and smaller

Rock

115
115
110
105
100

21

980K Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Brakes, full hydraulic enclosed wet-disc
withIntegrated Braking System (IBS)

Brake wear indicators
Diesel Particulate Filter (DPF)
Engine, Cat C13 that meets Tier 4 Interim/

Stage IIIB emission standards
Fast fuel system ready
Fan, radiator, electronically controlled,

hydraulically driven, temperature sensing,
on demand

Fuel Management System (FMS)
Fuel priming pump (electric)
Fuel/water separator
Guard, vandalism
Power train guard
Precleaner, engine air intake
Radiator, unit core (6 fpi) with ATAAC
Switch, transmission neutralizer lockout
Torque converter (free wheel stator)
Transmission, automatic planetary

powershift (4F/4R)
Variable Shift Control (VSC)

ELECTRICAL

Alarm, back-up
Alternator, 150-amp brushless
Batteries, (4) maintenance free 1,000 CCA
Ignition key; start/stop switch
Lighting system:

– Four halogen work lights
– Two halogen roading lights

(withsignals)

– Two halogen rear vision lights

(hoodmounted)
Main disconnect switch
Receptacle start (cables not included)
Starter, electric, heavy duty
Starting and charging system (24-volt)

OPERATOR ENVIRONMENT

Air conditioner, heater, and defroster
(autotemp and fan)

Beverage holders (2) with storage
compartment for cell phone/MP3 player

Bucket/Work tool function lockout
Cab, pressurized and sound suppressed,

(ROPS/FOPS) radio ready (entertainment)
includes antenna, speakers and converter
(12-volt 10-amp)

Camera, rearview
Coat hook (2)
EH controls, lift and tilt function
EH parking brake
Computerized Monitoring System
Instrumentation, gauges:

– Digital gear range indicator
– DPF soot loading percent
– Engine coolant temperature
– Fuel level
– Hydraulic oil temperature
– Speedometer/tachometer
– Transmission oil temperature

Instrumentation, warning indicators:

– Axle oil temperature
– Battery voltage hi/low
– Engine air  lter restriction
– Engine intake manifold temperature
– Engine oil pressure
– Fuel level and pressure hi/low
– Hydraulic oil  lter restriction
– Hydraulic oil low
– Parking brake
– Primary steering oil pressure
– Service brake oil pressure

– Transmission  lter bypass
Horn, electric
Light, two dome (cab)
Mirrors, rearview external

(includes spot mirrors)
Post mounted membrane switch keypads
Receptacle, 12-Volt
Seat, Cat Comfort (cloth) air suspension
Seat belt, retractable, 51 mm (2") wide
Steering, EH joystick, speed sensing

withforce feedback
Sun visor, front
Wet-arm wipers/washers (front and rear)

– Intermittent front wiper
Window, sliding (left and right side)
Viscous mounts

TIRES

A tire must be selected from the mandatory
attachments section. Base machine price
includes a tire allowance

FLUIDS

Premixed 50% concentration of Extended
Life Coolant with freeze protection to
–34° C (–29° F)

OTHER STANDARD EQUIPMENT

Auto idle shutdown
Couplings, Cat O-ring face seals
Ecology drains for engine, transmission,

andhydraulics
Ether aid
Fenders, steel front with mud- ap/rear

withextension
Filters:

– Fuel, primary/secondary
– Engine air, primary/secondary
– Engine oil
– Hydraulic oil

– Transmission
Fuel cooler
Grease zerks
Grill, airborne debris
Guard, crankcase
Hitch, drawbar with pin
Hood, non-metallic power tilting

with rear clamshell
Hoses, Cat XT
Hydraulic oil cooler (swing out)
Hydraulic system, load sensing
Kickout, lift and tilt, automatic

(adjustable in cab)
Linkage, Z-bar, cast crosstube/tilt lever
Oil sampling valves
Platform, window washing
Product Link
Remote diagnostic pressure taps
Ride control, 2V
Service center (electrical and hydraulic)
Sight gauges: engine coolant, hydraulic oil,

and transmission oil level
Steering, load sensing
Toolbox
Vandalism protection caplocks

22

Optional equipment may vary. Consult your Cat dealer for details.

980K Optional Equipment

Power Train

– Differentials

– Open, front or rear

– Limited slip, front or rear
– Extreme temperature seals
– Seal guards
– Axle oil cooler
– Axle oil cooler ready

Hydraulics arrangement, 3V
Standard transmission with lockup

torqueconverter
Heavy duty transmission
Heavy duty transmission with lockup

torque converter
Cold start/high altitude package (120V)
Comfort package
Work lighting package, halogen
Work lighting package, HID
Aggregate loader package
2 Pass loader package
Forestry package

Industrial package
Cab protection package
Steel mill package
High lift, 2 valve
High lift, 3 valve
Quick coupler (contact Cat Work Tools)
Bucket and work tool options

(contact Cat Work Tools)
Lights, signal LED
Product Link, satellite
Control, aggregate autodig
Joystick, 2 valve
Joystick, 3 valve
Payload control system
Printer, payload CNTL system
Radio, AM/FM CD/MP3 player
Radio, CB (ready)
Radio, Satellite-XM (Bluetooth capable)
Radio, Satellite-Sirus (Bluetooth capable)
Steering secondary
Filter, carbon fresh air

Seat belt, 76 mm (3") wide
Sun visor, rear
Security system, machine
Cooling, high ambient
Guard, power train
Guard, front window
Guard, complete cab
Guard, front window (Logger)
Autolube
Fenders, roading with fender extensions

front/rear
Precleaner, HVAC
Precleaner, turbine
Precleaner, turbine/trash
Oil change system, high speed
Sound suppression (low) NACD
Fan, variable pitch
Antifreeze, –50° C (–58° F)
EH steering wheel (availability TBD)

23

980K Wheel Loader

For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com

© 2011 Caterpillar Inc.
All rights reserved

Materials and specications are subject to change without notice. Featured machines in
photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and
the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.

28

AEHQ6233 (07-2011)
