Caterpillar 824H, 834H BROCHURE

824H/834H

Coal Scoops

Engine – 824H Engine – 834H

Engine Model Cat
Direct Drive – GrossPower 299 kW 401 hp Direct Drive – GrossPower 414 kW 555 hp
Net Power – ISO9249 264 kW 354 hp Net Power – ISO9249 390 kW 523 hp

Weights – 824H Weights – 834H

Operating Weight 30 874 kg 68,064 lb Operating Weight 49 070 kg 108,180 lb

®

C15 ACERT™ Engine Model Cat® C18 ACERT™

Scoop Features

Productivity

Productivity is critical to your bottom line.
Cat®coalscoops offer features and systemsthat
help improve performance andloweryour costs.

Reliability

Cat coal scoops offer  eld proven components and
systems, high hour machine lifestandards and
multiple rebuild options forcontinued uptime and
long machine life.

Safety

Caterpillar continues to be proactive in developing
machines that meet or exceed safety standards.
Safety is an integral part of all machines and
system designs, and can be seen throughout
thecoal scoops.

Serviceability

Easy access to the engine and other key
serviceability features make servicing customer
machines and in- eld component exchange quick,
easy, and ef cient.

Operator Comfort

Cat coal scoops have been ergonomically designed
to enhance operator comfort, allowing for higher
operating ef ciencies and production.

Contents

Productivity ..........................................................3

Reliability ..............................................................4

Safety ....................................................................5

Serviceability .......................................................6

Operator Comfort ................................................7

Customer Support ...............................................8

824H/834H Specications ..................................9

824H/834H Standard Equipment .....................13

824H/834H Optional Equipment .......................14

Notes ...................................................................15

2

Cat® coal scoops have been proven in the eld, helping
customers achieve top efciency and productivity while
keeping costs down. With the 824H and 834H, youget a
purpose built machine that provides industry leading
uptime, safety, serviceability and operator comfort.

Productivity

Improving your bottom line

20% Rimpull

Selected

l

l

s

u

e

p

k

m

i

a

r

R

B

%

0

2

(

100% Rimpull

Selected

)

Left Pedal

Purpose Built Front Linkage

Cat coal scoops have the unique capability of maximizing your production by both dozing and carrying
a load with each pass. A purpose built hydraulic system is optimized for use with this work toolto
maximize machine productivity and efficiency.

Auto Idle Kickdown (AIK) (834 only)

If an operator is not actively operating the machine for a period of time, the AIK system will temporarily
reduce the engine speed to save fuel. After an automated engine speed reduction, the system will
automatically resume the engine speed to the previous setting when the operator engages the implement
control pod of the F-N-R switch to the STIC™ Steer.

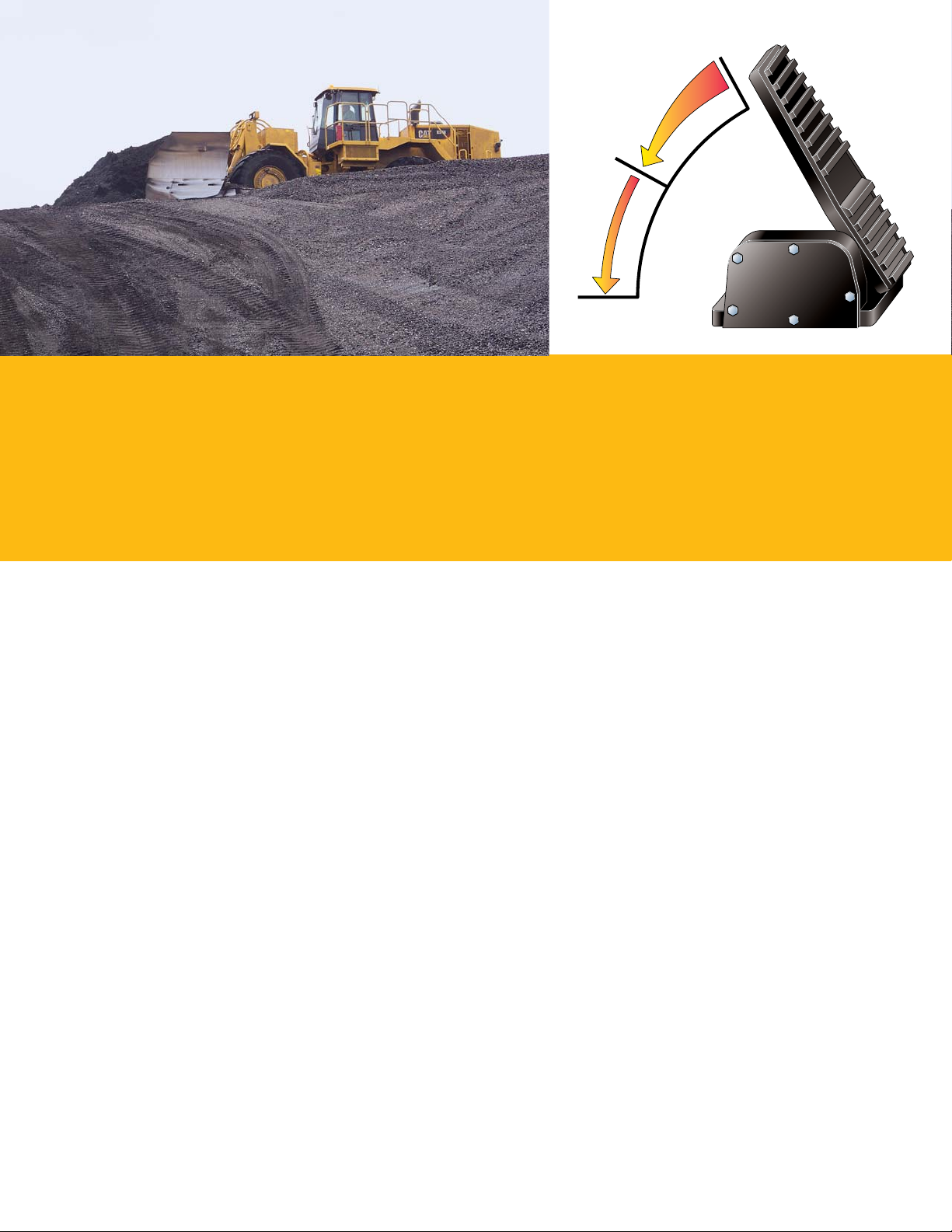

Impeller Clutch Torque Converter (ICTC) Left Pedal Control

The ICTC works with throttle lock to allow the operator to modulate rimpull to the wheels and slow the
machine down without reducing engine speed. This allows the machine to maintain full hydraulic power
for blade and steering control which gives the 824H and 834H a hydrostatic feel while keeping the benefits of
the world’s most efficient and powerful drive train and powershift transmission with lock-up control system.

Oscillating Rear Axle

The fixed front, oscillating rear axle ensures four-wheel ground contact for optimum traction and stability.
The front axle is rigidly mounted to the front loader frame, while the rear axle is allowed to oscillate.
This configuration allows the operator’s view of the scoop to remain constant as the rear axle oscillates
enabling the operator to maintain a smooth and properly graded work area in any underfoot conditions.

Load Sense Steering

The steering system utilizes a variable displacement pump for maximum machine performance by directing
power through the steering system only when needed. This improves efficiency and reduces heat build up.

3

Reliability

Maximizing uptime, long life – it’s what you expect for your bottom line

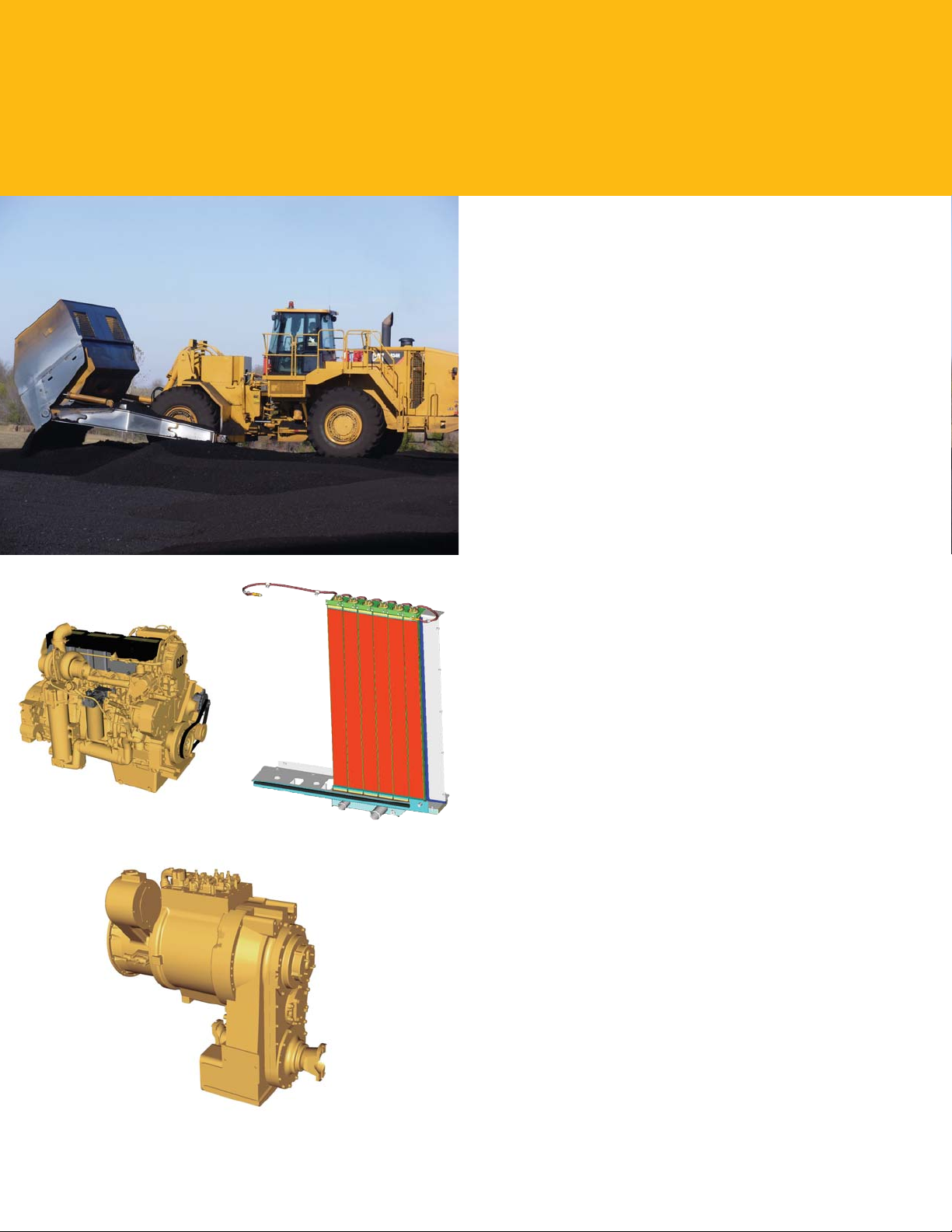

Cat C15/C18 Engine with ACERT™ Technology

The Cat C15/C18 engine with ACERT technology is U.S. EPA
Tier 3 and EU Stage III compliant. It features increased
horsepower and efficient fuel management for quick response,
high productivity and exceptional service life. A sculptured
cylinder block provides greater strength and is lighter weight.

Cat Planetary, Power Shift Transmission

Electronic shifting provides smooth, consistent shifts.
Largediameter clutches coupled with four planet gear
trainsprovide added durability for extended, trouble free life.

Structures

Combining the use of robotic welding and castings in
criticalhigh stress areas, more than 80 percent ofthe
machine structure is robotically welded to provide highly
consistent welds and increased strength. Castings are also
used in several areas to increase strength by helping spread
the loads and reduce the number of parts.

Axle-Shaft, Oil Disc Brakes

These brakes are adjustment free, fully hydraulic and
completely sealed. Disc face grooves provide cooling
evenwhen brakes are applied for a longer component life.

• Location of brakes allow for improved serviceability.
The axle shaft brake design allows for brake service
while leaving the final drive intact.

• Axle-shaft brakes require less force by operating on the
low torque side of the axle. Combined with improved
axle oil circulation for increased cooling, the oil-enclosed,
multiple disc brake design improves durability.

4

Safety

Built to protect you

Entry and Exit

Getting on and off the machine is one of the leading causes of injury on a job site. Cat coal scoops have
anumber of features to ensure your operator gets safely on and off the machine. They include primary
and secondary stairwell exits, punch stamped tread plates, ground level nighttime stairwell light switch,
full perimeter railings on upper platforms, side platform emergency egress and toe kicks and optional
roading fenders.

Rearview Camera

With the new optional rearview camera, visibility is greatly enhanced. The camera is located in a pocket
on the grill to protect it from damage and the elements. The camera can be set to activate only when the
transmission is in reverse to help eliminate distractions in the cab, especially when in dark environments.

Visibility

Cat coal scoops offer a number of standard and optional features to enhance job site visibility.
Standardand optional features include articulated wiper/washer system with intermittent features,
optional rear vision camera, optional high intensity discharge lights, optional warning beacon and
optional turn signals.

5

Serviceability

Easy to maintain. Easy to service.

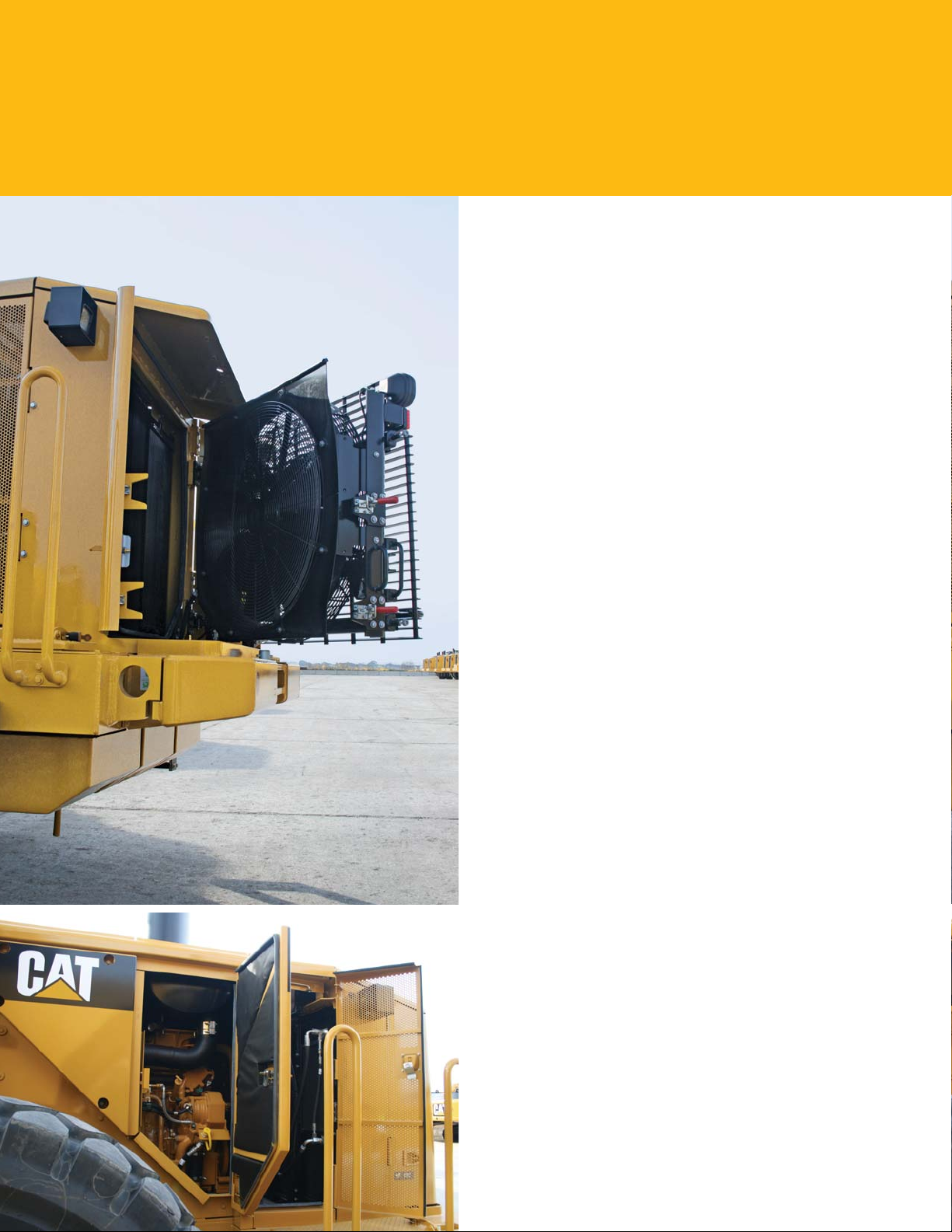

Optional Swing Out Radiator Fan

The optional swing out radiator fan provides for easy access
to the radiator cores for easy cleaning and inspection.

Optional Auto Reversing Fan

The fan reverses automatically at preset intervals toremove
debris from the inlet screen. It can also be reversed manually
from the cab.

Hydraulically Driven Demand Fan

The demand fan automatically adjusts fan speed for optimal
cooling, resulting in reduced power draw on the engine, better
fuel efficiency and more power for hydraulics and rimpull.

Component Access

Swing out doors on both sides of the engine compartment
provide easy access to the engine oil dipstick and filler spout,
S·O·SSM ports, fuel filters air conditioner compressor, engine oil
filters, alternators, starting receptacle, air filter service indicator,
cooler fill and ether starting aid. There are also ground level
viewable sight gauges on all major systems and centralized
remote pressure taps.

Shutdown and Lockout Features

An electrical disconnect switch and hydraulic lockout switch
allow service technicians to perform maintenance while the
machine stays static. Other shutdown or lockout devices
include ground level engine shutdown and ground level
steering hitch lock lever.

6

Operator Comfort

Best-in-class working environment

Best-in-Class Working Environment

A comfortable operator is a productive operator, which is why Caterpillar has designed the 824H and
834H with a best in-class working environment for this size scoop. The world class cab incorporates
features for operator comfort and ergonomics, visibility and ease of operation.

An updated Implement Pod is fully adjustable and designed for low-effort comfort. Switches and
controls are located within easy reach of the operator.

Interior noise levels are reduced to a quiet 73 dB(A).

Options include heated seat for cold weather operations and Bluetooth, MP3, or satellite radio options.

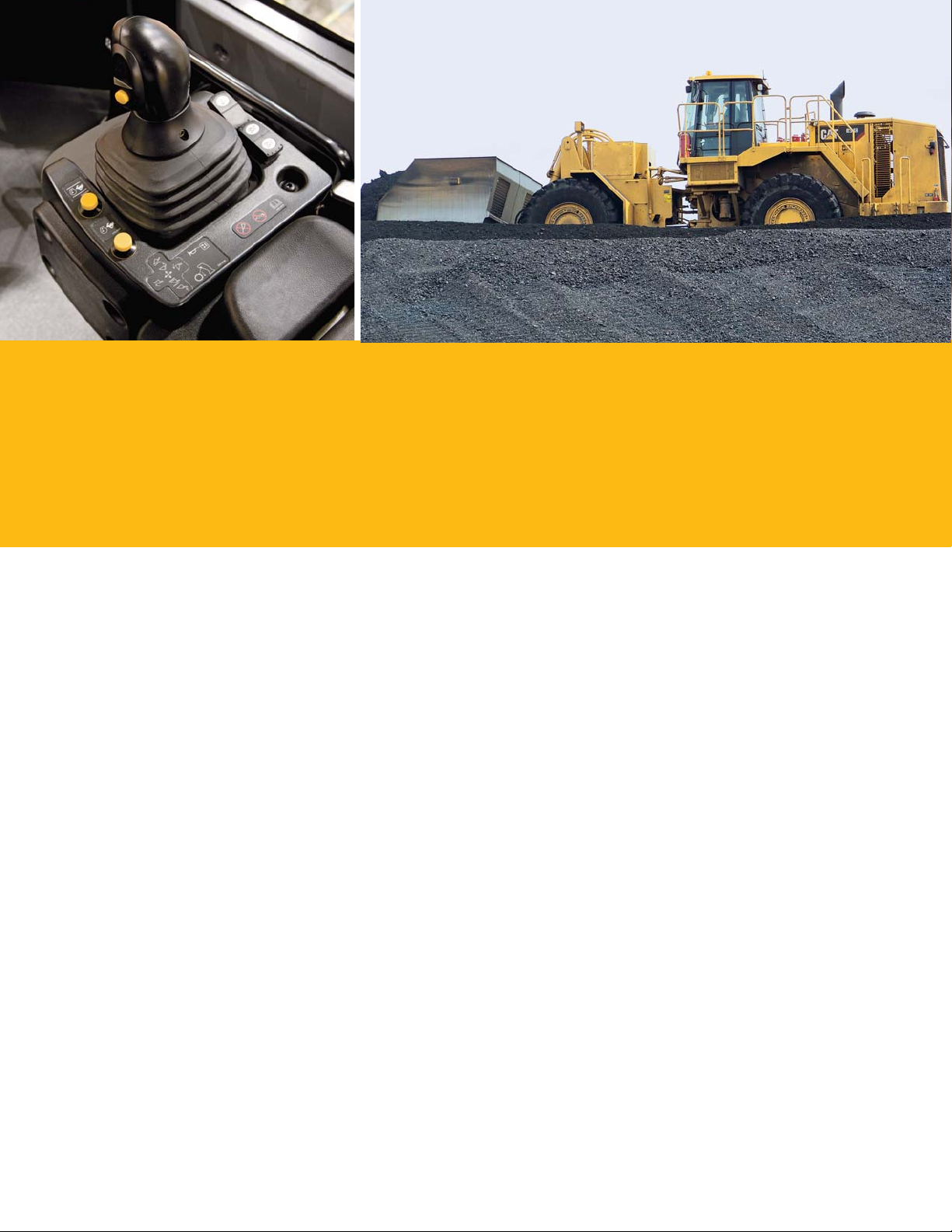

STIC Steering System (834H only)

The STIC steer controller uses a single lever for steering and transmission control. Left-hand operations
enable the operator to shift and change directions without letting goof the steering controls.

Idle Shutdown (834 only)

This new feature will automatically shutdown the engine after the machine has been in a safe idling
statefor an extended amount of time. The operator in the cab will be audibly and visually warned before
the shutdown occurs.

7

Customer Support

Count on Cat dealers for business solutions

Selection

Cat dealers can help customers compare and choose the right machine for their business.

Financing

Cat dealers offer financing options to meet a variety of needs.

Operation

Improve operating technique for better productivity and profit with the latest Cat dealer training resources.

Product Support

Cat dealers are with customers every step of the way with unsurpassed worldwide parts support, trained
technicians and customer support agreements.

8

824H/834H Specifications

Engine – 824H Service Refill Capacities – 824H Cab – 824H

Engine Model Cat® C15 ACERT™

Direct Drive –
GrossPower

Direct Drive –
Flywheel Power

Converter Drive –
Gross Power

Converter Drive –
Flywheel Power

Net Power –
ISO9249

Net Power –
EEC80/1269

Bore 137 mm 5.4 in

Stroke 171 mm 6.7 in

Displacement 15.2 L 928 in

299 kW 401 hp

264 kW 354 hp

299 kW 401 hp

264 kW 354 hp

264 kW 354 hp

264 kW 354 hp

3

Weights – 824H

Operating Weight 30 874 kg 68,064 lb

Axles – 824H

Front Planetary-Fixed

Oscillating Rear ±13

Fuel Tank 700 L 185 gal

Cooling System 83 L 21.9 gal

Crankcase 34 L 9 gal

Transmission 62 L 16.4 gal

Differentials and 90 L 23.8 gal
Final Drives – Front

Differentials and
Final Drives – Rear

Hydraulic Tank

90 L

88 L

23.8 gal

23.2 gal

Scoop Capacities – 824H

Carry

Doze

13.5 m

27 m

3

17.5 yd

3

35 yd

3

Transmission – 824H

Converter Drive

Forward 1

Forward 2

Forward 3

Forward 4

Reverse 1

Reverse 2

Reverse 3

Reverse 4

6.1 km/h

10.5 km/h

18.3 km/h

32.1 km/h

6.9 km/h

12 km/h

20.8 km/h

36.6 km/h

3.8 mph

6.5 mph

11.5 mph

20 mph

4.3 mph

7.5 mph

13 mph

22.7 mph

Brakes – 824H

Brakes Meet SAE/

ISO34501996

Cab ROPS/FOPS is

standard

Sound Performance Meet ANSI/SAE,
Levels SAE and

ISOstandards

ROPS/FOPS Meets SAE and

ISOstandards

• Integrated Rollover Protective Structure
(ROPS) and Falling Objects Protective
Structure (FOPS) is standard in
NorthAmerica, Europe and Japan.

• Operator sound exposure Leq (equivalent
sound pressure level) measured according

3

to the work cycle procedures speci ed in
ANSI/SAE J1166 OCT98 is 78 dB(A)
for the cab offered by Caterpillar when
properly installed, maintained and tested
with the doors and windows closed.

• Hearing protection may be needed when
operating with an open operator station
and cab (when not properly maintained or
doors/windows open) for extended periods
or in noisy environment.

• Exterior sound pressure level for the
standard machine measured at a distance
of 15 m (49.2 ft) according to the test
procedures specied in SAE J88 JUN86,
mid-gear moving operation is 81 dB(A).

• Sound power level is 114 dB(A) measured
according to the dynamic test procedure
and conditions specied in ISO 6395:1988/
Amd. 1:1996 for a standard machine
con guration.

• For CE marked con gurations, labeled
sound power level is 109 dB(A) measured
according to the test procedures and
conditions specied in 2000/14/EC.

• ROPS meets SAE J1394, SAEJ1040 APR88,
ISO 3471-1:1986 and ISO3471:1994.

• FOPS meets SAE J231 JAN81 and
ISO3449-1992 Level II.

9

824H/834H Specications

Engine – 834H Service Refill Capacities – 834H Cab – 834H

Engine Model Cat® C18 ACERT™

Direct Drive – 414 kW 555 hp
GrossPower

Direct Drive – 349 kW 468 hp
Flywheel Power

Converter Drive – 413 kW 554 hp
Gross Power

Converter Drive – 372 kW 499 hp
Flywheel Power

Net Power – 390 kW 523 hp
ISO9249

Net Power – 373 kW 501 hp
EEC80/1269

Bore 145 mm 5.71 in

Stroke 183 mm 7.2 in

Displacement 18.1 L 1,104.5 in

Weights – 834H

Operating Weight 49 070 kg 108,180 lb

Axles – 834H

Front Planetary-Fixed

Oscillating Rear ±13

Fuel Tank 793 L 209.5 gal

Cooling System 107 L 28.3 gal

Crankcase 60 L 15.9 gal

Transmission 83 L 21.9 gal

Differentials and 186 L 49.1 gal
Final Drives – Front

Differentials and
Final Drives – Rear

Hydraulic Tank 267 L 70.5 gal

190 L 50.2 gal

Scoop Capacities – 834H

Carry 23 m

Doze 46 m

Transmission – 834H

3

Converter Drive

Forward 1 6.8 km/h 4.2 mph

Forward 2 11.6 km/h 7.2 mph

Forward 3 20.3 km/h 12.6 mph

Forward 4 35.4 km/h 22 mph

Reverse 1 6.8 km/h 4.2 mph

Reverse 2 12.2 km/h 7.6 mph

Reverse 3 21.4 km/h 13.3 mph

Reverse 4 N/A N/A

Direct Drive

Forward 1 Lock Up Disabled

Forward 2 12.4 km/h 7.7 mph

Forward 3

Forward 4

Reverse 1 7.2 km/h 4.5 mph

Reverse 2 13 km/h 8.1 mph

Reverse 3 23 km/h 14.3 mph

Reverse 4 N/A N/A

3

3

22.1 km/h

38.5 km/h

13.7 mph

23.9 mph

Brakes – 834H

Brakes Meet SAE/

ISO 3450 1996

30 yd

60 yd

Cab Integrated Rollover

Protective Structure
(ROPS)/Falling
Object Protective
Structure (FOPS)
standard

Sound Performance
Levels

ROPS/FOPS Meet SAE and

• Operator sound exposure Leq (equivalent

3

3

sound pressure level) measured according
to the work cycle procedures speci ed in
ANSI/SAE J1166 OCT 98 is 77 dB(A)
for the cab offered by Caterpillar when
properly installed and maintained and
tested with the doors and windows closed.

• Hearing protection may be needed when
operating with an open operator station
and cab (when not properly maintained or
doors/windows open) for extended periods
or in noisy environment.

• Exterior sound pressure level for the
standard machine measured at a distance
of 15 m (49.2 ft) according to the test
procedures specied in SAE J898 JUN86,
mid-gear-moving operation is 81 dB(A).

• Sound power level is 115 dB(A) measured
according to the dynamic test procedure
and conditions specied in ISO 6395:1988/
Amd. 1:1996 for a standard machine
con guration.

• For “CE” marked con gurations, the
labeled sound power level is 110 dB(A)
measured according to the test procedures
and conditions specied in 2000/14/EC.

• ROPS meets SAE J1394, SAE J1040 APR88,
ISO 3471-1:1986 and ISO3471:1994
standards.

• FOPS meets SAE J231 JAN81 and
ISO3449-1992 Level II standards.

Meets ANSI/SAE,
SAE and
ISOstandards

ISOstandards

10

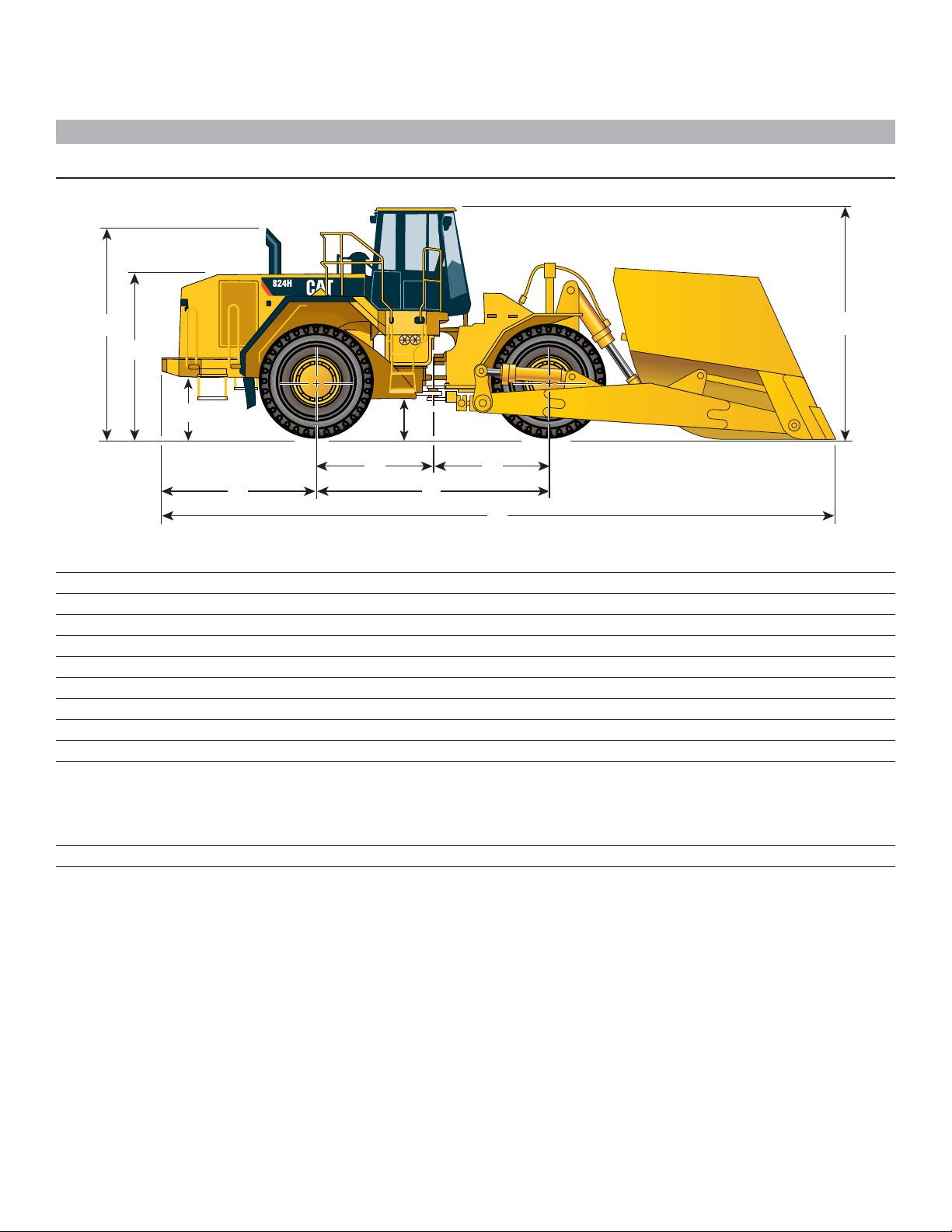

Dimensions – 824H

All dimensions are approximate.

2

3

4

10

6 7

5

8

9

mm ft

Height to top of cab 3700 12.14

1

Height to top of exhaust pipe 3590 11.78

2

Height to top of hood 2635 8.64

3

Ground clearance to bumper 885 2.90

4

Center line of rear axle to edge of bumper 2787 8.82

5

Center line of rear axle to hitch 1850 6.07

6

Center line of front axle to hitch 1850 6.07

7

Wheelbase 3700 12.14

8

Length with scoop on ground 10 453 34.30

9

Ground clearance 358 1.17

10

1

824H Scoop Specifications Capacity (Carry) Capacity (Doze) Overall Width Height

3

m

yd

3

3

m

yd

3

mm ft mm ft

Coal Scoop 13.5 17.5 27 35 4058 13.3 1992

6.5

11

824H/834H Specications

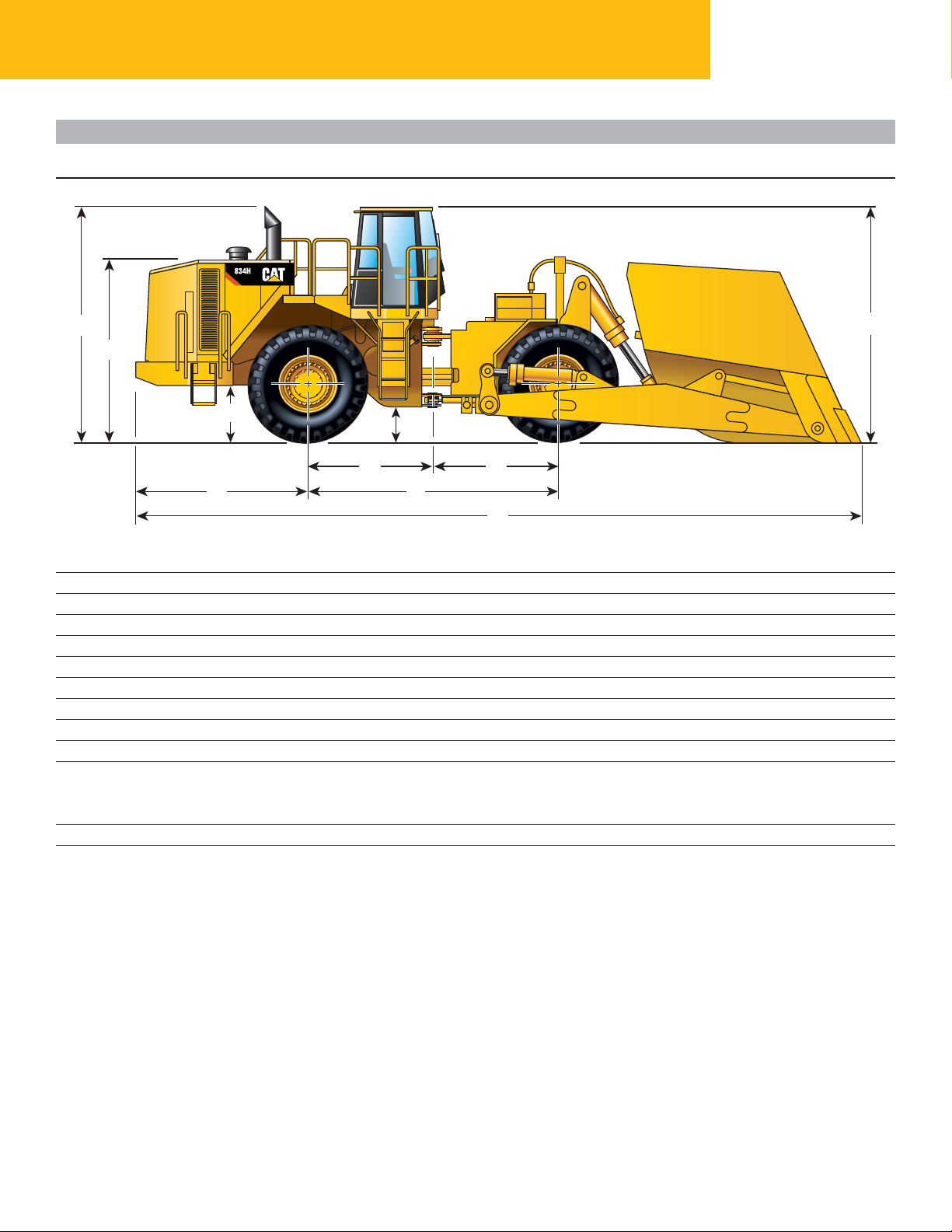

Dimensions – 834H

All dimensions are approximate.

2

3

4

5

Height to top of cab

1

Height to top of exhaust pipe

2

Height to top of hood

3

Ground clearance to bumper

4

Center line of rear axle to edge of bumper

5

Center line of rear axle to hitch

6

Center line of front axle to hitch

7

Wheelbase

8

Length with scoop on ground

9

Ground clearance

10

1

10

6

7

8

9

mm

4083

4104

3146

970

3132

2275

2275

4550

11 916

531

ft

13.40

13.46

10.32

3.18

10.28

7.46

7.46

14.93

39.10

1.74

834H Scoop Specifications

Coal Scoop

12

Capacity (Carry)

3

m

23 30

yd

Capacity (Doze)

3

3

m

46 60

yd

3

Overall Width

mm ft

4854 15.9

Height

mm ft

2382 7.8

Standard equipment may vary. Consult your Cat dealer for details.

824H/834H Standard Equipment

ELECTRICAL

Alarm, back-up
Alternator (100-amp)
Batteries, maintenance-free
Deutsch terminal connectors
Electrical system (24-volt)
Lighting system, halogen (front and rear),

access stairway
Starter, electric (heavy-duty)
Starting receptacle for emergency starts

OPERATOR ENVIRONMENT

Air conditioner
Cab, sound suppressed and pressurized
Internal four-post rollover protective

structure
(ROPS/FOPS), radio ready (entertainment)

includes antenna, speakers and converter

(12-volt, 15 amp), 12-volt power port,

tinted glass
Cigar lighter (12-volt, 15-amp) and ashtray
Coat hook
Electro-hydraulic lift, tilt and dump
Heater and defroster
Horn, electric
Light, cab (dome)
Lock-up clutch disable switch
Lunch box and beverage holders
Monitoring system (EMS-III)
Action alert system, three category
Instrumentation, gauges:
Engine coolant temperature
Fuel level
Hydraulic oil temperature
Speedometer/tachometer

Transmission oil temperature
Instrumentation, warning indicators
Axle/brake oil temperature (front/rear)
Brake oil pressure
Electrical system, low voltage
Engine intake/combustion air temperature
Engine oil pressure
Engine overspeed
Fuel pressure
Hydraulic oil  lter status
Parking brake status
Transmission  lter status
Mirrors, rearview (externally mounted)
Rimpull select switch
Seat, Comfort Series (cloth), air suspension
Seat belt, retractable, 76 mm (3 in) wide
STIC control system with steering lock
Tilt and lift control system lock
Transmission gear indicator
Wet-arm wipers/washers (front and rear)
Intermittent front wiper

POWER TRAIN

Brakes, full hydraulic, enclosed, wet-disc
Multiple disc service brakes
Case drain  lters
Demand fan
Fuel priming pump (electric)
Parking brake
Precleaner, engine air intake
Radiator, Next Generation Modular

Radiator (NGMR)
Separated cooling system
Starting aid (ether) automatic

Throttle lock
Torque converter, impeller clutch with

lockup control system and rimpull
control system (switch and dial in cab)

Transmission, planetary, autoshift (4F/3R)

OTHER STANDARD EQUIPMENT

Doors, service access (locking)
Engine, crankcase, 500 hour interval

withCH-4 oil

Grouped Electronic Clutch Pressure

Control, remote mounted pressure taps
Hitch, drawbar with pin
Hood, metallic with lockable service doors
Hydraulic oil cooler
Mufer (under hood)
Oil sampling valves
Steering, load sensing
Vandalism protection caplocks
Venturi stack

TIRES, RIMS AND WHEELS

A tire must be selected from the mandatory

attachments section – base machine
price includes atire allowance

ANTIFREEZE

Premixed 50 percent concentration

ofExtended Life Coolant with freeze
protection to –34° C (–29° F)

13

824H/834H Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

Lock-up clutch (834H only)
Cab, guard front windows
Cab, rear fan and grill
Cab, rubber-mounted glass
Camera, rear vision
Computer Aided Earthmoving System
(CAES) attachment ready option
Differentials, No-SPIN (rear)

Fast  ll system
Heater, engine coolant
Heater, fuel
Lighting, HID
Light, warning  ashing strobe
Light, warning rotating beacon
Mirror, inside (panoramic)
Oil Change System, high speed

Precleaners
Radio, AM/FM/CD/MP3
Radio, CB (ready)
Radio, Satellite, Bluetooth
Sound suppression
Switch, disconnect, remote mounted
Visor, front

14

Notes

15

824H/834H Coal Scoops

For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com

© 2012 Caterpillar Inc.
All rights reserved

Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.

AEHQ6669 (02-2012)
