Engine
Engine Model Cat®C9 ACERT™
Gross Power 189 kW 253 hp
Net Power 173 kW 232 hp
Weights
Operating Weight 23 748 kg 52,364 lb
• Machine configured with heaviest options, 80 kg (176 lb)
operator and full fuel tank
816F
Series 2
Landfill Compactor
®
®
Page 2
2
816F Series 2 Landfill Compactor
An extremely versatile machine, the 816F2 is built with uncompromising quality for
operating in harsh landfill conditions.
One World...One Machine.
The Cat
®
816F Series 2 Landfill Compactor
offers...Exceptional trash protection,
Greater productivity, Excellent machine
stability and operator comfort, while
meeting U.S. Environmental Protection
Agency Tier 3 emissions regulations and
Stage IIIA EU Emissions Directive 97/68/EC.
Combine all this with the finest customer
support system in the world through the
Caterpillar dealer network and you get
the lowest operating costs with the best
up-time in the industry.
Complete Customer Support
Your Cat dealer is your one safe
source for all your equipment needs.
They offer a wide range of services that
will fit your operation and keep you
working longer with lower costs. pg. 14
Landfill Blades
Several blades are available through
Cat®Work Tools and Services for
dozing and spreading refuse to match
your site requirements. pg. 7
Tips and Wheels
Caterpillar®designed and manufactured
steel wheels match the power train for the
durability you expect. These, combined
with standard Plus Tips or chopper
wheels, will provide excellent traction
and sidehill stability to offer the most
productive and efficient compaction.
pg. 6
Trash Protection and Cooling System
Numerous standard trash resistant
features including our proven axle
guard system and a sheet metal hood
design combine with the Next Generation
Modular Radiator to reduce productionrobbing trash build-up and provide
added cooling capacity. pg. 4
✔

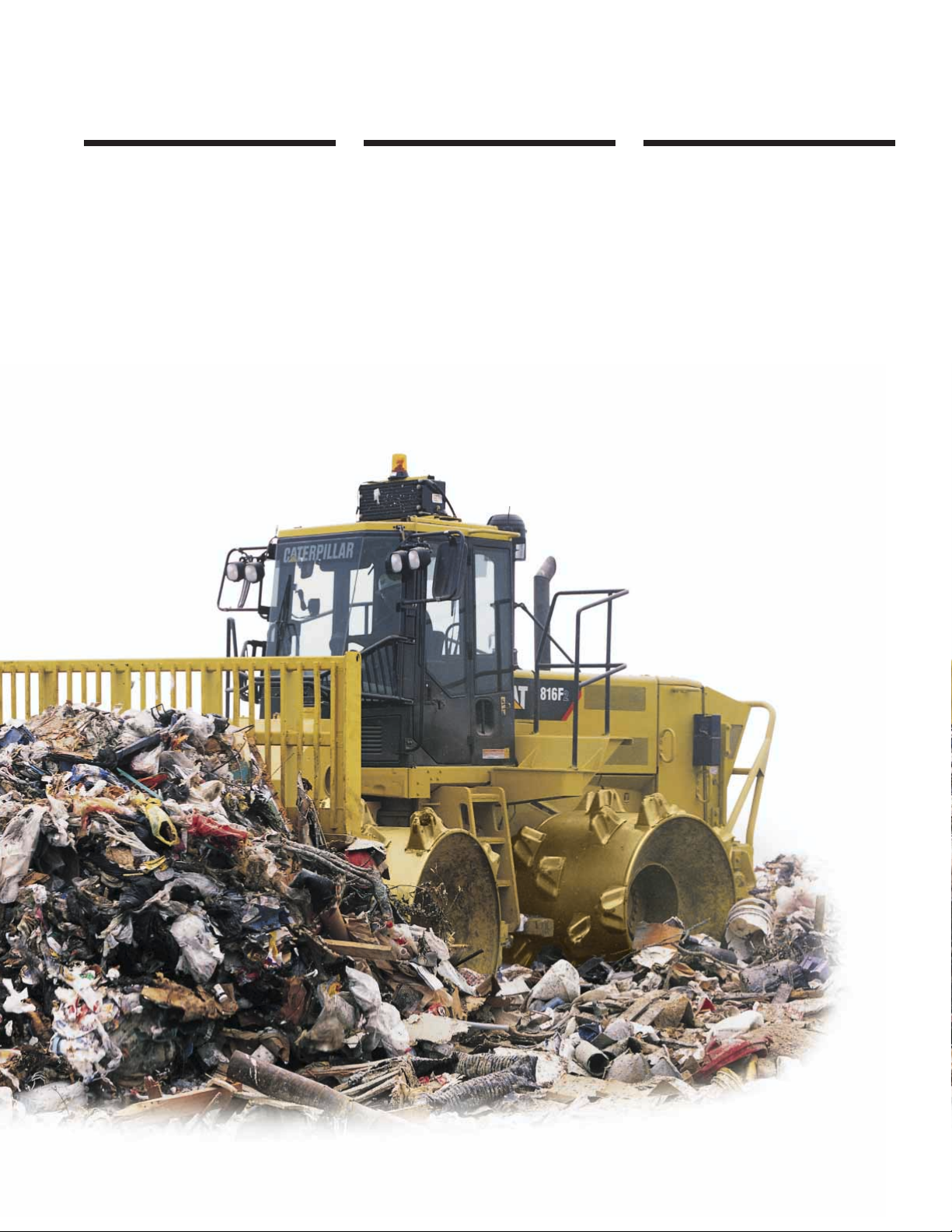

Page 3
✔ New Feature
3
Serviceability
Many convenient features such as hinged
service doors; accessible scheduled
maintenance points; conveniently
located sight gauges; in-cab, blade-type
fuses and a separated cooling system
make servicing easy. pg. 12
Operator’s Station
Operator comfort and productivity
are maximized by excellent visibility,
careful positioning of levers, switches
and gauges, attention to air quality and
sound control, as well as built-in storage
for your operator’s personal items. pg. 10
Power Train
The Cat®C9 engine with ACERT™
Technology delivers maximum power
and combines with the Electronic
Clutch Pressure Control and planetary,
powershift transmission to offer
superior performance and reliability
in landfill applications. pg. 8
✔
Page 4

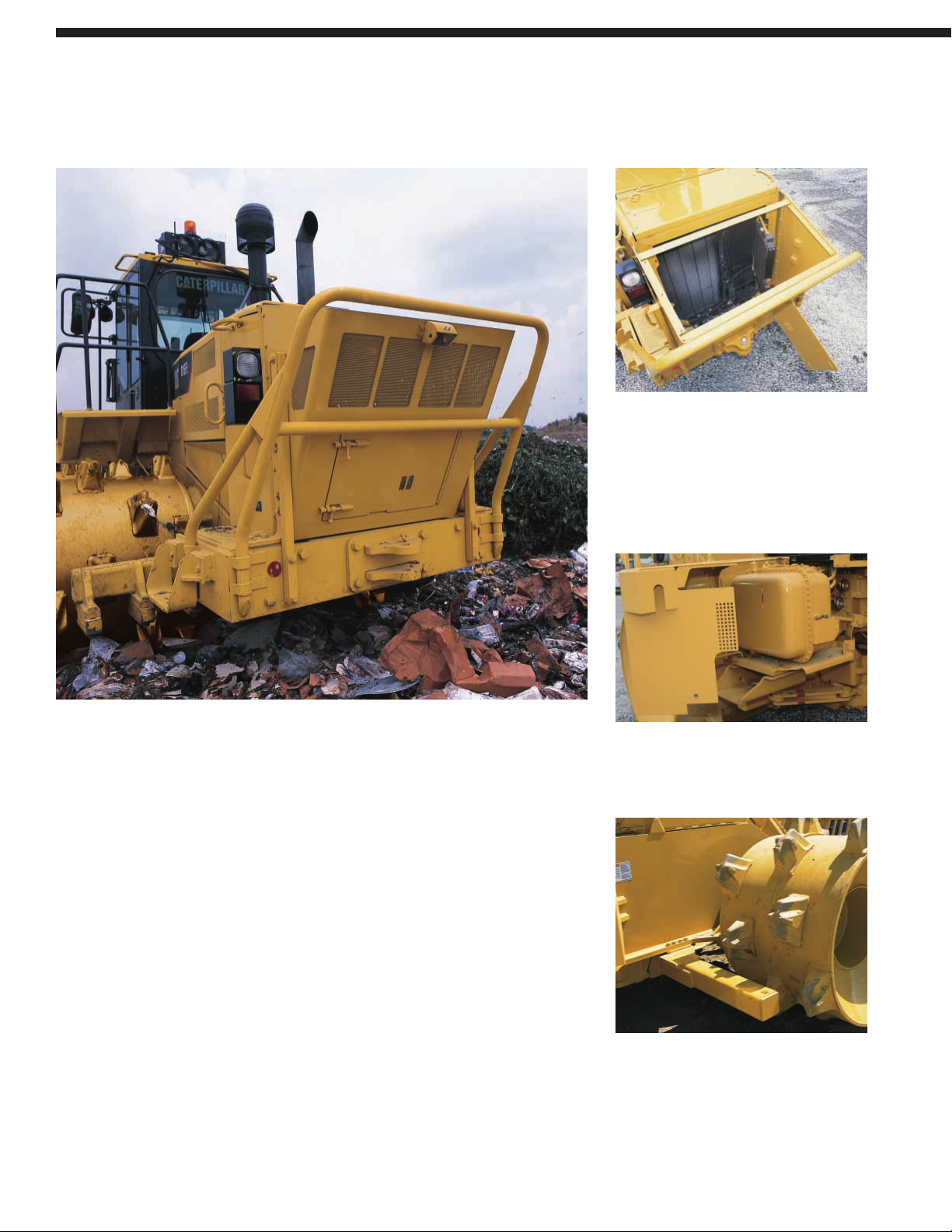

Radiator and Cooling System.
The radiator and cooling system are
designed specifically for the 816F2
landfill compactor operating at
100 percent engine load. At these
conditions, the ambient capability is
above the benchmark of 43° C (119° F),
demonstrating the machine’s purposebuilt cooling system.

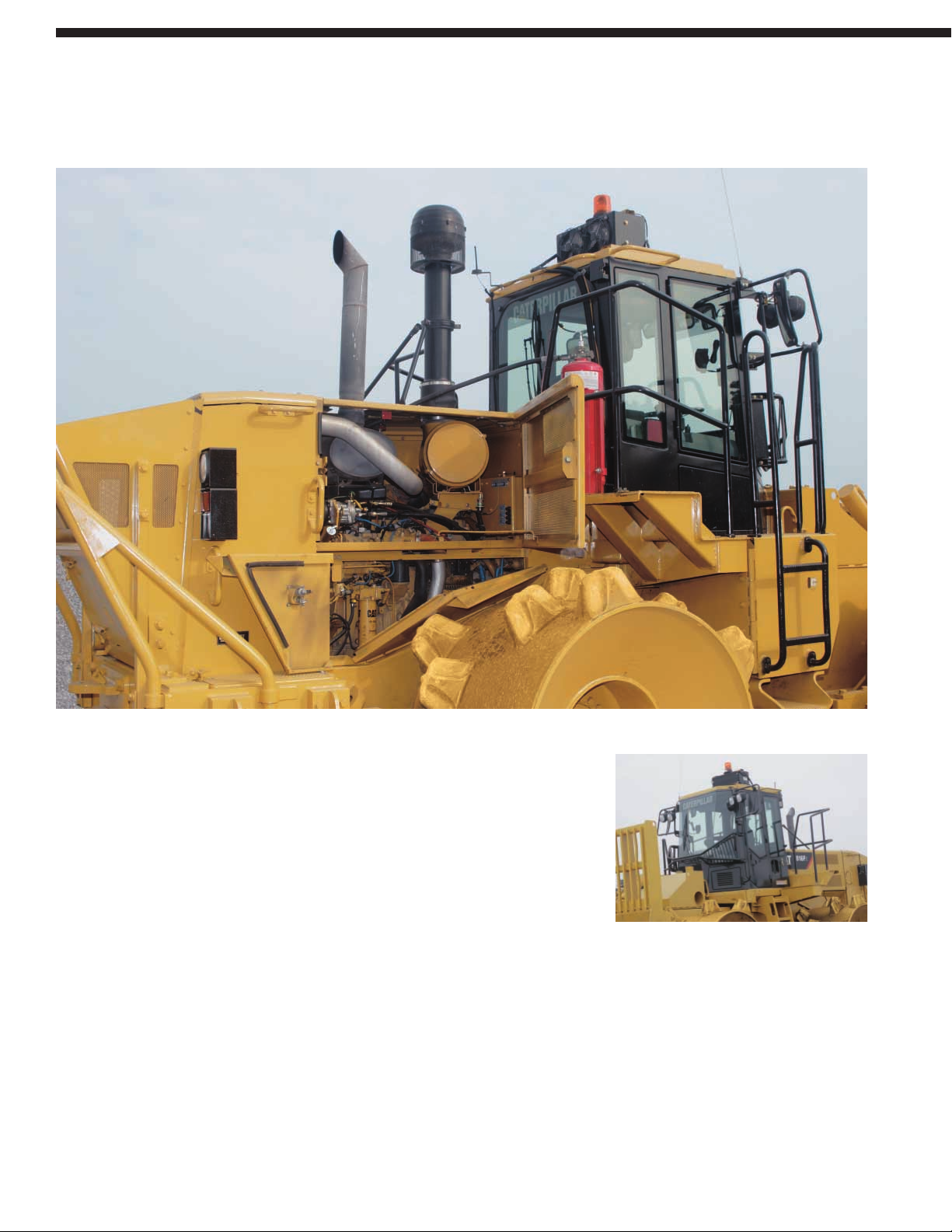

Scoop Hood. Angled and protected to
prevent trash from collecting.
Hinged Door. Easy access for cleaning
and service.
High Radiator Air Inlet. Helps prevent
trash from entering the radiator area
and maintaining proper airflow.
Roof-Mounted Air Conditioner.
Makes the cooling package easier to
clean because the A/C core is not located
at the rear of the machine with other
cores. Also reduces the frequency of
condenser core cleaning, providing
better cooling to the cab for longer
periods of time.
Radiator Precleaner Screen.
Prevents trash from entering radiator
compartment, reducing clean-out time.
Next Generation Modular Radiator
(NGMR). With parallel flow and
six cores standard improves cooling
capabilities. The tubes, header plate,
tank and side sheets are brass and
copper brazed for high joint integrity.
The NGMR also features 6FPI trash
resistant cores that prevent debris from
building up and plugging the radiator.
Swing-Out Hydraulic Oil Core.
Allows easy cleaning and inspection
without tools.
Suction Fan. Allows ambient air to cool,
providing better cooling capacity. It also
pressurizes the engine compartment,
preventing trash build up.
Hydraulic Tank and Steering Cylinders.
The cylinders are guarded to resist
damage, and the tank is armored
for protection.
Striker Bars. Located in front of and
behind the rear wheels and behind
the front wheels provide substantial
protection from trash that can be
thrown or carried by the wheels.
4
Designed to keep your operation working in one of the toughest heavy equipment
applications...the solid waste landfill.
Trash Protection and Cooling System
Page 5

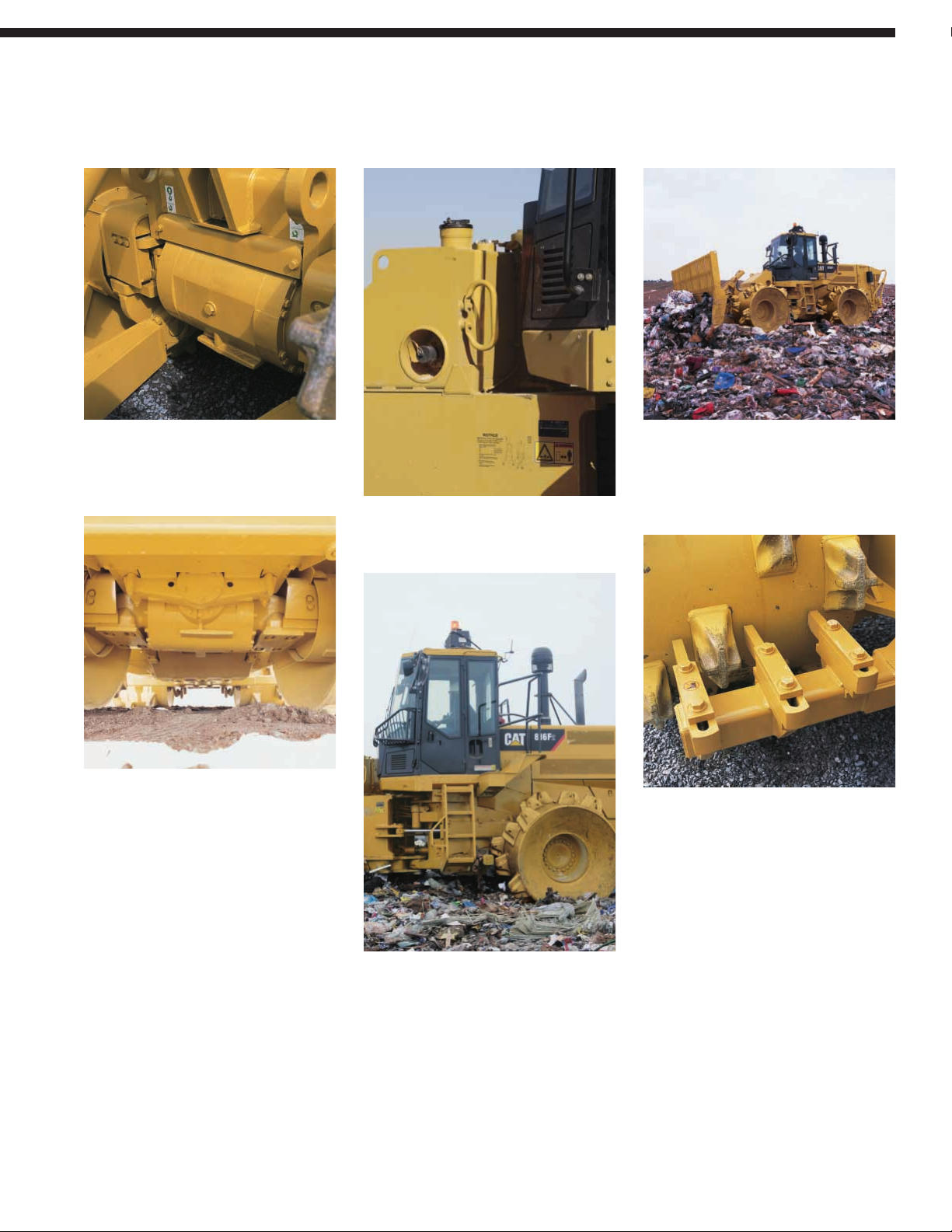

Standard Axle Guards. Prevent trash
build-up on the axles, protect the axle
seal guards and help prevent duo-cone
seal failure.
Hinged Engine and Power Train Guards.
Help prevent trash build-up and shield
components from demolition debris,
trash, wire, rebar and harmful chemicals
while allowing easy cleaning.
Integral Rear Bumper. Protects the
radiator, fan, batteries and engine but
allows for easy accessibility.
Fuel Tank. Is easy to reach and is
positioned away from debris for
protection and maximum capacity.
Left Side Platform. Rear cab access
is easier with the left side platform.
Optional Front Window Guard.
Prevents debris from damaging the
lower portion of the front window with
protection that goes across the bottom
of the front cab glass.
Optional Wheel and Tip Cleaner
Fingers. Welded onto the standard
striker bars, these adjustable fingers
keep the wheels from plugging when
working in cohesive materials such as
clay or mud.
5
Page 6
Standard Equipment. The standard
machine offering is the long-life Plus
Tip that provides excellent traction and
side-hill stability with a self-cleaning
layout that resists plugging. The selfcleaning chopper blades for shredding
material are optional. All choices are
specifically designed for our Cat
steel wheels.

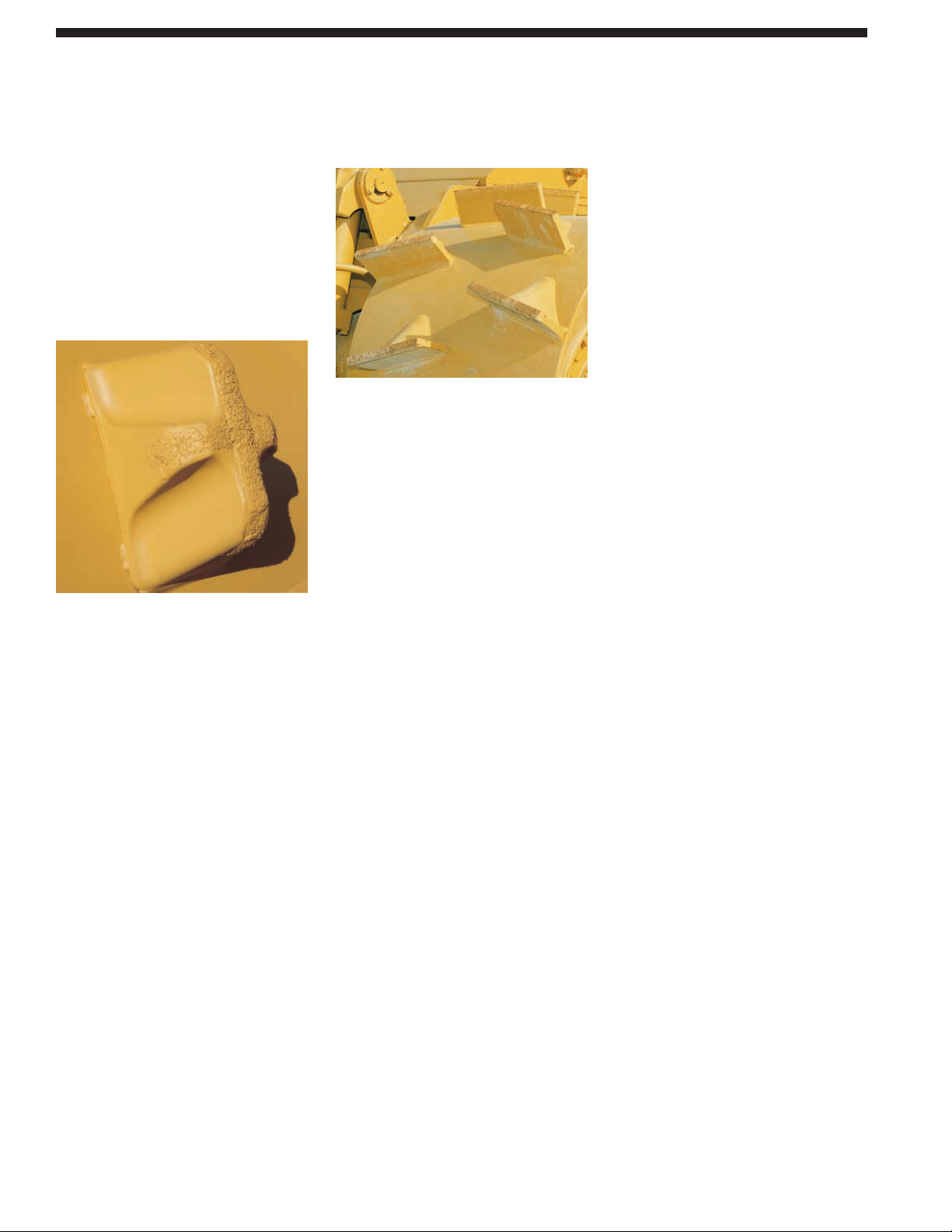

Plus Tips. Plus Tips with Abrasion
Resistant Material (ARM) have a plusshaped design for superior compaction
and sidehill stability on sloped material.
A widely spaced 20 tip pattern requires
fewer tips than other manufacturers
and results in less plugging, lower
replacement costs and maximum
compaction. Plus Tips are guaranteed
for 10,000 hours or four years of wear
life. They offer the lowest cost per hour
of any compactor tips in the industry.
Self Cleaning Chopper Wheels. The self
cleaning chopper wheels are designed
to deliver maximum compaction and
traction. Aggressive chopping action
is provided by 20 blades per wheel.
Heat-treated DH-2™, ARM steel
blades provide longer wear.
The staggered, chevron blade
arrangement evenly distributes chopping
coverage. Blade center gussets help
assure maximum refuse demolition.
Blades are mounted differently on the
front and rear wheels to maximize
chopping and compaction in both
forward and reverse.
Smooth Wheel Option. If our tip
selection does not meet your needs,
consider Cat smooth steel wheels.
This option ensures that no matter
what landfill tip you prefer, you get
Cat wheels built to our stringent
specifications.
Our manufacturing and research
engineers work together to design, build
and test a complete power train system.
The wheels, a critical component to the
total system, are manufactured in the
same facility as our landfill compactors.
This ensures the entire system is
complemented by each component.
Altering critical components can
compromise our power train system
that is designed for peak performance.
If an off-the-shelf manufacturer’s wheels
are installed that do not meet our design
specifications and do not balance the
load over our final drives, bearing life
could be reduced substantially and cause
premature wear out of other components,
resulting in unnecessary downtime.
This situation runs contrary to the
Caterpillar goal to keep our customers
operating with maximum productivity,
performance and compaction.
This wheel option also allows our
standard axle guard system to work
with the components for which it
was designed.
6
Tips and Wheels
Caterpillar offers a choice of tips and blades welded on our own steel wheels that will fit
your needs. No matter what your choice may be, it is part of the total system our compactors
offer: maximum production, performance and compaction.
Page 7

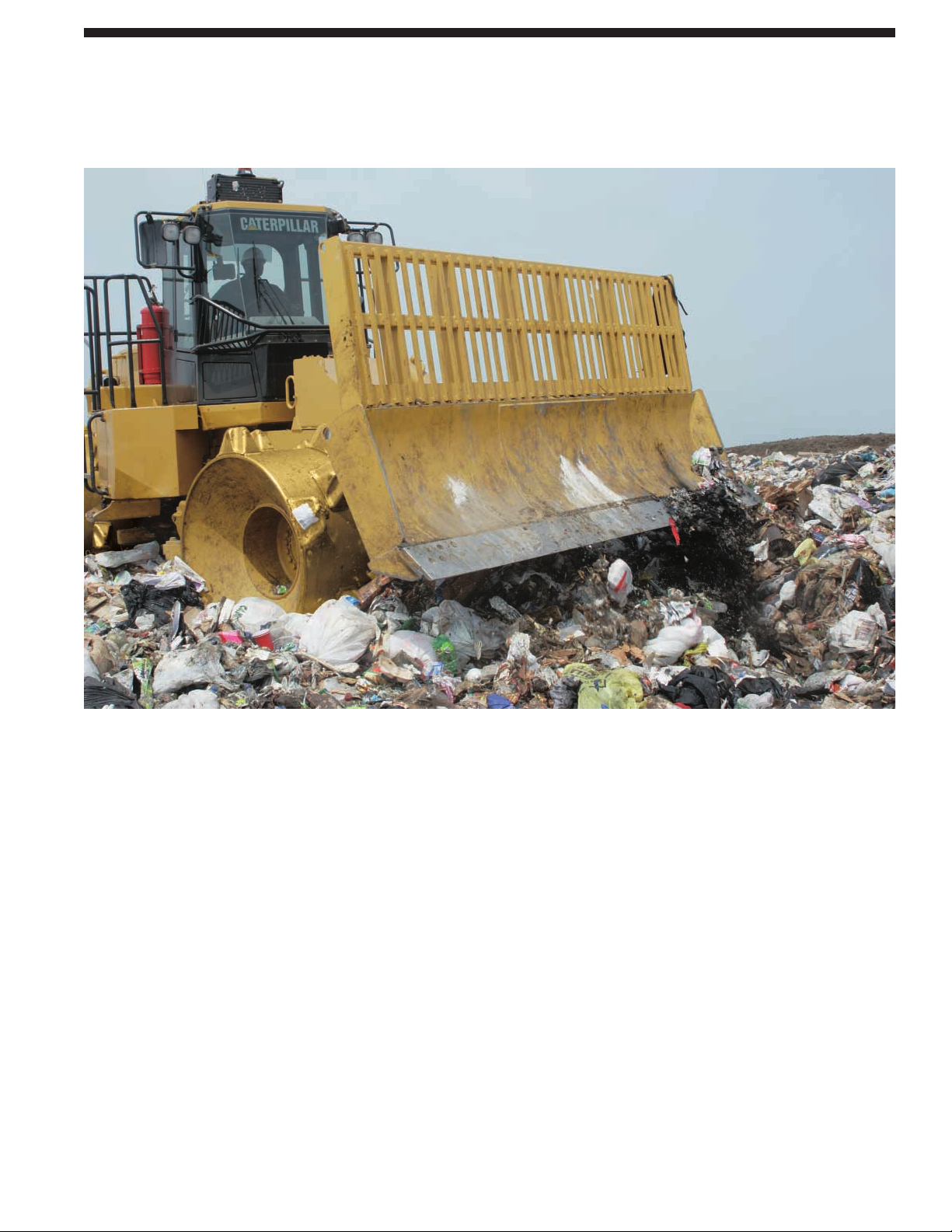

Straight Blade. The straight blade is a
standard attachment and an ideal blade
for most waste management
applications.
• Built to withstand the rigors of
heavy duty dozing
• Versatile blade for most applications
• Trash rack design provides excellent
visibility
• Design incorporates Cat cutting edges
U-Blade. The U-blade dozes refuse
while helping to retain load.
• Capacities and widths are set to
achieve increased productivity
• Special design can spread cover
material as well as doze refuse
• Wing angles up to 25 degrees help
retain the load while dozing
• Top rack is designed to allow
excellent operator visibility
• Cat cutting edges and ground
engaging tools (G.E.T.) are standard
Semi-U-Blade. The Semi-U blade offers
the spreading benefits of the straight
blade but with the ends slightly angled
in for U-blade benefits such as added
control and carrying capabilities.
Contact Cat Work Tools and Services
for more information on U-blades and
Semi-U blades.
7
Landfill Blades
Several blade options are available to match your spreading and dozing requirements.
Page 8

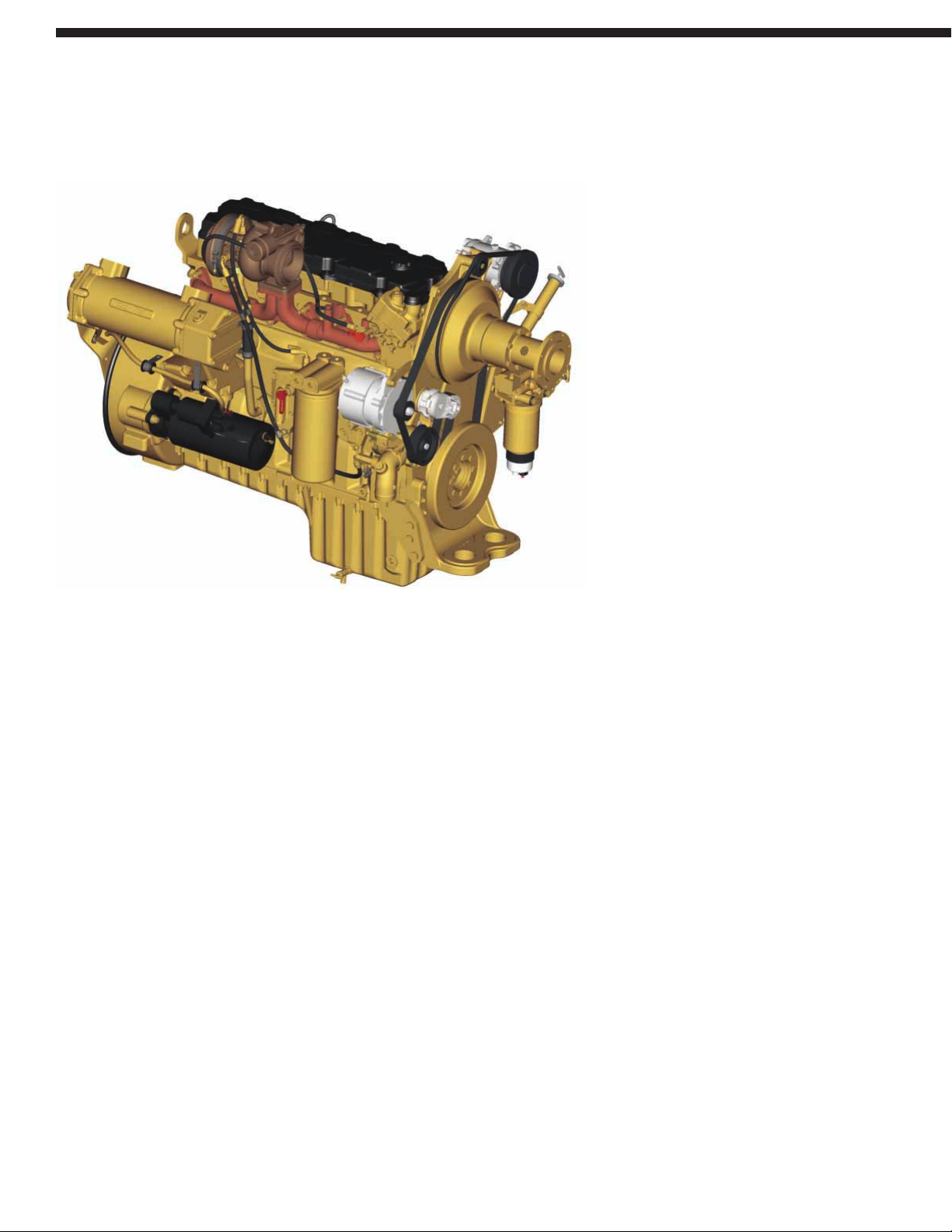

Cat®C9 ACERT Engine. The C9 engine
with ACERT™ Technology delivers,
at a rated speed of 2,100 rpm, net power
of 173 kW (232 hp) and meets the
U.S. Environmental Protection Agency
Tier 3 emissions regulations and
Stage IIIA EU Emissions Directive
97/68/EC. With high horsepower and
low displacement, this innovative
engine provides excellent fuel economy
and durability which can significantly
reduce operating costs.
Torque Rise. The electronically
controlled, computer-actuated unit
injection fuel system provides high
injection pressure and more precisely
controlled fuel delivery as the engine
lugs back from rated speed, resulting
in increased torque above the rated
power during heavy loads on machine.
ADEM™ IV Fuel System. A Cat electronic
control module provides improved
engine response, performance, fuel
efficiency, troubleshooting diagnostics
and reduced emissions. It allows
integration with the electronic
transmission control for maximum
power train efficiency.
Turbocharger. The turbocharger packs
more dense air into the cylinders for
more complete combustion and lower
emissions, improving performance and
engine efficiency. These benefits are
especially useful at high altitudes.
Air-to-Air Aftercooler. Emissions are
reduced by providing cooler inlet air
for more efficient combustion. This also
extends the life of the piston rings
and bore.
Dual Cooling Jets. Located in the block,
dual cooling jets spray oil on the piston
skirt and cylinder bores to keep ring
temperatures low for long ring and liner
life with excellent oil control.
Pistons. Two-piece, articulated pistons
with forged steel crowns offer excellent
strength and aluminum skirts for
reduced weight. The pistons are oil
cooled for increased heat dissipation
and longer life.
Valves. Four valves per cylinder allow
for good air flow, enhancing fuel
efficiency and heat rejection. The valves
and unit injection system are camshaftactuated for precise timing.
Crankshaft. Steel-forged, carburized
and induction-hardened, the crankshaft
offers long-term durability and is
dynamically balanced for smooth
operation. The crankshaft is also
completely regrindable, and the
connecting rods can be removed
through the tops of the cylinders
for easy servicing.
Cat Engine Oil. Recommended for use
in Cat diesel engines, Cat Engine Oil
is formulated to optimize engine life
and performance. The engine oil
change interval is 500 hours.
Cat Remanufactured Parts. A large
choice of factory remanufactured
parts and dealer proposed repair
options increase machine availability
and reduce total repair costs.
8
The Cat power train makes dependable performance a standard feature.
Power Train
Page 9
Heavy-Duty Axles and Brakes.
The axles and brakes are designed to
last in all kinds of operating conditions.
Two front axle disc brakes provide
improved braking capability and better
heat dissipation. Planetary final drives
use free-floating, bronze sleeve bearings
in the planet gears.
• Oil-disc brakes are adjustment-free
and fully enclosed to lock out
contaminants
Front Axle. The front axle is rigidly
mounted to the frame to support the
weight of the compactor, internal torque
loads and external loads applied during
compacting operation.
Rear Axle. A trunnion, two trunnion
supports and associated bearings make
up the rear axle which oscillates plus or
minus eight degrees, ensuring four wheel
ground contact for traction and stability.

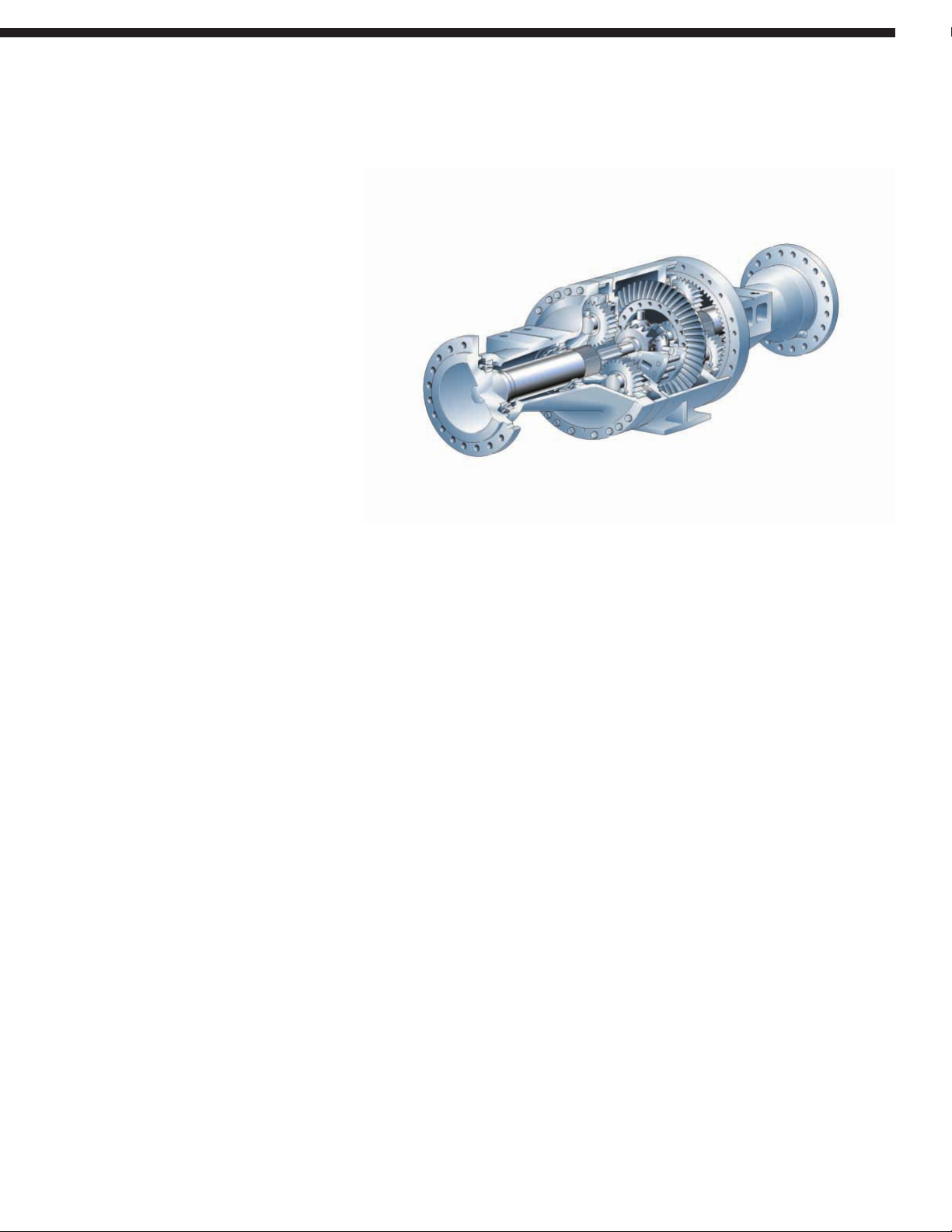

Four-Piece Axle. The four-piece axle
contains two axle shaft housings – the
center housing and the intermediate
housing. Features and benefits of the
four-piece axle design include:
• Inboard brakes on the front axle only
are positioned immediately adjacent
to the differential and operate on the
low torque side of the final drive,
requiring less braking force to stop
the machine
No-SPIN Differentials. Optional
No-SPIN differentials are available
for improving traction in poor
underfoot conditions.
• Front No-SPIN differentials for
corner loading, uneven floor
applications where weight transfer
occurs within the front axle.
• Rear No-SPIN differentials for
uphill load operations or any other
application where increased weight
is transferred to the rear axle.
Both front and rear No-SPIN differentials
are needed only for extreme poor
underfoot conditions or for straight
ahead heavy dozing applications.
(NOTE: Both front and rear No-SPIN
differentials installed, may reduce
steering performance and maneuverability
in tight turning radius applications as
well as increase operating costs.)
Electronic Power Shift Transmission.
Designed, developed and built by
Caterpillar, the transmission allows full
power speed and directional changes.
Fully modulated gear shifts significantly
contribute to operator comfort and
increase machine productivity as well
as component life.
Electronic Clutch Pressure Control
(ECPC)/Controlled Throttle Shifting
(CTS). ECPC and CTS sense input from
both the transmission and the operator
controls in the cab to modulate each
individual clutch through a proportional
electro-hydraulic valve. This results
in smoother shifts in both speed and
direction. Energy is modulated into the
clutches, resulting in longer clutch life.
9
Page 10
10
Comfort and control – a top quality operator’s station helps maximize productivity.

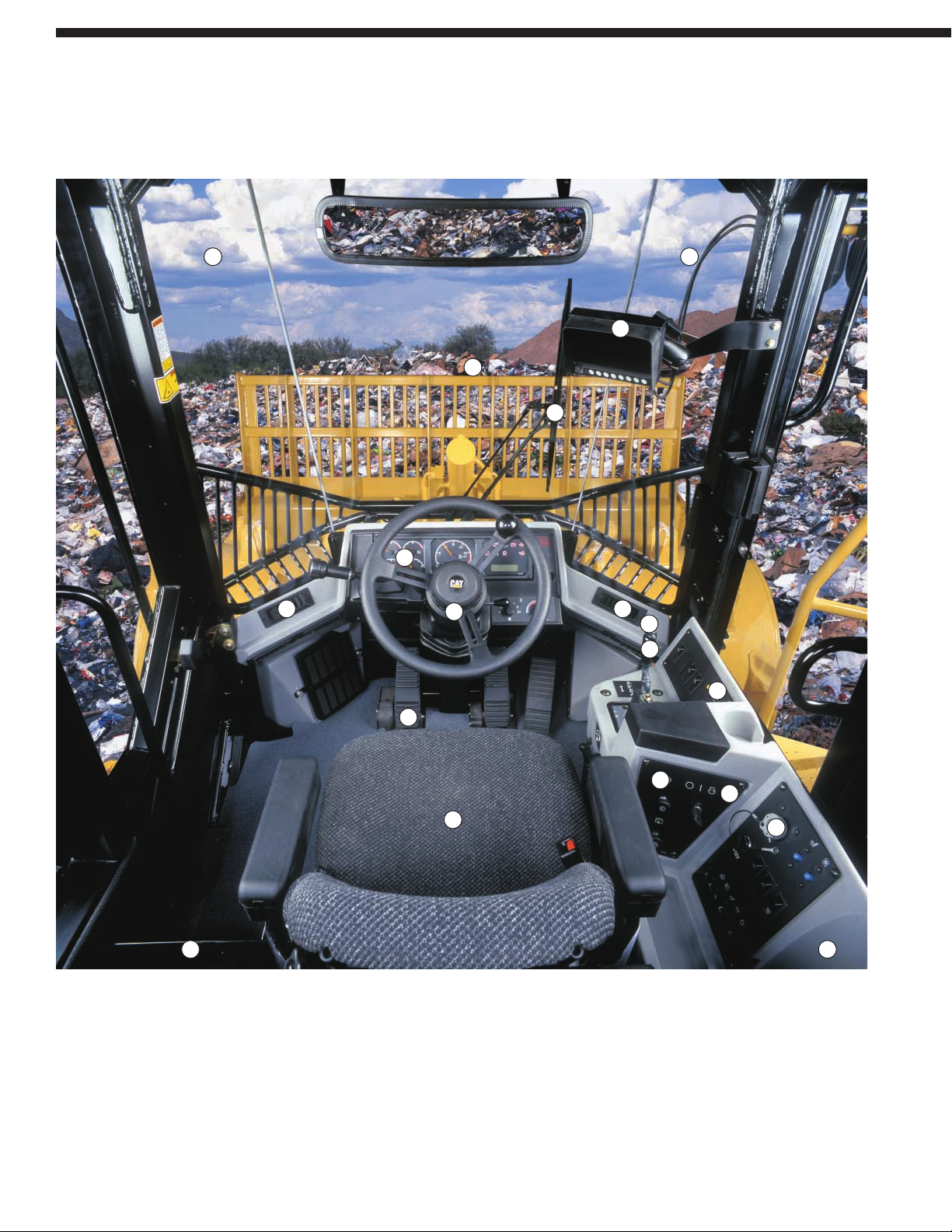

Operator’s Station
1
2
6
7
3
4
5
1
1
8
12
9
13
1010
14
11
9
13
Page 11
1 Exceptional All-Around Viewing Area.
The large viewing area reduces strain
and fatigue, making operators more
productive. With the rear vision camera
attachment, the operator can more easily
see what is behind the machine by way
of an in-cab monitor.
2 Caterpillar®Monitoring System.
With electronic analog gauges, the
Caterpillar Monitoring System is a
highly effective and reliable warning
and diagnostic system.
As a warning system, it constantly
checks machine functions and tells
the operator when there is a problem.
Easy-to-read gauges display fuel level,
temperatures for engine coolant,
transmission and hydraulic oil, engine
rpm and gear range. Hour meter,
odometer and analog tachometer
readings are also displayed.
As a diagnostic system, it identifies
conditions, shows current readings and
plays back maximum or highest readings
registered during recent operations.
The right side panel contains a threelevel warning system, providing full time
monitoring of key functions. The system
alerts the operator of immediate or
impending problems with air inlet
temperature, brake oil pressure, electrical
system, low voltage, engine oil pressure,
engine over-speed, fuel filter status,
parking brake status, steering oil pressure
and transmission filter status.
3 Quick Gear Kick Up/Down Button.
The operator can easily downshift or
upshift to a different gear with the kick
up/down button. It is a convenient way
to shift that saves time and effort.
4 Ignition Key Start/Stop Switch.
The ignition key/switch is positioned
for easy machine starting and stopping.
5 12-Volt Power Supply and Electronic
Technician (Cat ET) Diagnostics.
The power supply inside the cab can
power radios, telephones or a laptop
computer. This is particularly useful
for powering a laptop running Cat ET
to access the enhanced engine and
transmission control system diagnostics.
6 Steering Column. The steering column
adjusts to multiple positions. A leatherlike steering wheel and transmission
control provide a sure grip and
comfortable feel. The horn is
conveniently located in the center
of the steering wheel.
7 Pilot-Operated Blade Controls.
Conveniently located blade controls
allow for precise blade movement.
8 Operator Seat. The operator seat
is designed for comfort and support.
Seat cushions reduce pressure on the
lower back and thighs while allowing
unrestricted arm and leg movement.
9 Built-In Storage Space. Conveniently
located storage is designed to hold
cups, lunch box, insulated bottle and
personal items.
10 Air Vents. Vents located throughout
the cab keep fresh air flowing while
improving the cab’s heating, cooling,
defrosting and defogging capabilities.
11 Throttle Lock. With throttle lock,
the operator can set the engine speed
and remove his foot from the governor
(accelerator) pedal much like cruise
control in an automobile. Using this
feature increases productivity, fuel
efficiency and improves operator comfort.
12 Decelerator Pedal. The decelerator
pedal on the left acts as both a brake
and an engine decelerator to override
the engine speed selected by the throttle
lock. This enables the operator to slow
down when the throttle lock is engaged
and to return to throttle lock without
pressing a button. This aids in
maneuvering around trucks, tractors
or any other obstacle.
13 Windshield Washers/Wipers.
Wipers with in-the-blade washer
delivery system are standard features
on front and rear windows. The front
wiper has intermittent speed capability.
14 Rear Vision Camera Monitor.
Connected to a camera mounted on
the radiator guard, this monitor allows
the operator to see the area behind
the machine.
Radio Ready. The radio ready cab
includes a 12-volt converter (2-amp),
speakers, antenna, all wiring and
brackets for entertainment or
communications radio installation.
11
Page 12
Engine Access. An all metal engine
enclosure and hinged access doors
allow for easy daily maintenance and
inspection.
Engine Shutdown Switch. The engine
shutdown switch is located inside the
left engine enclosure panel for easy
access and extended switch life.
Left Side Service Access. The engine
oil filter, grease points (lower), air filter
(front), power train oil dipstick (top),
power train oil fill (below cab), power
train oil filter and high speed engine oil
fill are easily accessed through the left
side service door.
Right Side Service Access. The fuel
filter, water separator, fuel primer and
engine oil dipstick are all within easy
reach through the right side service door.
Hydraulic Oil Cooler. The hinged
hydraulic cooler can be swung open
without special tools.
Roof-Mounted Air Conditioning
Condenser. The hinged air conditioning
condenser swings open and coupled
with the hydraulic oil cooler, allows the
cooling system to be cleaned quickly
and easily.
12
If maintenance is simple and accessible, it gets done.
Serviceability
Page 13

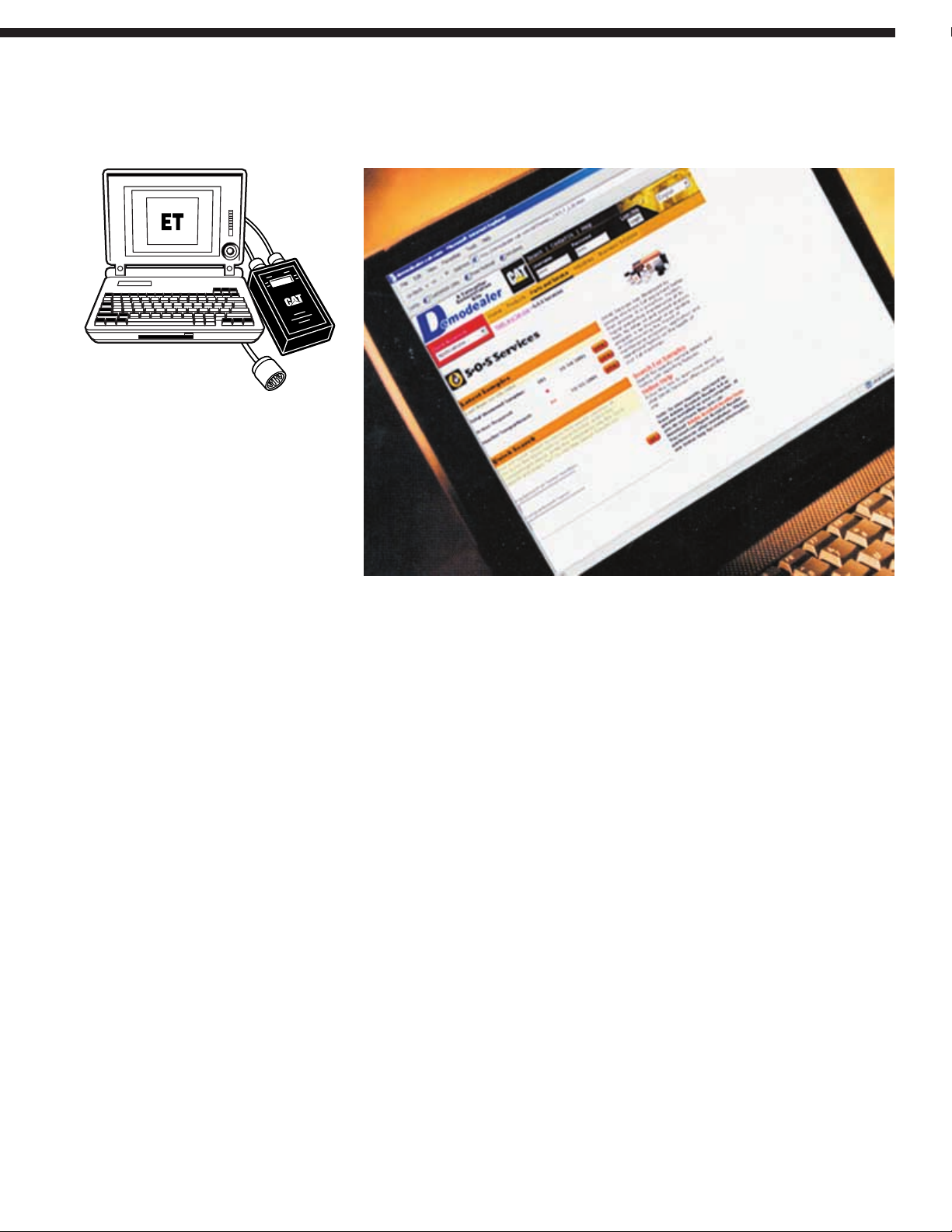

Cat Electronic Technician (ET). Cat ET
is a software program which allows the
service technician to find and identify a
problem on a machine and analyze how
to fix it quickly. It has the capability to
access the Electronic Control Modules
from a laptop computer.
Cat ET is also used for:
• Viewing active and non-active
diagnostic codes and clearing them
after repair
• Displaying the status of all parameters
such as engine speed, gear engaged,
control levers position, control
switch position, etc.
• Performing diagnostic tests and
calibrations of electro-hydraulic
components
• Viewing current configuration and
changing parameter settings
• Flashing new Cat software in the
Electronic Control Modules
• Recording all parameters during
machine operation
A customer version of Cat ET is
also available for your fleet of Cat
equipment. Contact your Cat dealer
for more information.
Caterpillar Scheduled Oil Sampling.
S·O·S
SM
analysis helps ensure better
performance, longer life and increased
customer satisfaction. It is an extremely
thorough and reliable early warning
system which detects traces of metals,
dirt and other contaminants in your
engine, axle, transmission and hydraulic
oil. It can predict potential trouble
early, thus avoiding costly downtime.
Your Cat dealer can give you results
and specific recommendations shortly
after receiving your sample.
S·O·S Analysis. Each test can provide
specific types of diagnostic information:
• Oil condition analysis identifies loss of
lubricating properties by quantifying
combustion products such as soot,
sulfur, oxidation and nitrates
• Wear analysis monitors components
wear by detecting, identifying and
assessing the amount and type of
metal wear elements found in the oil
• Chemical and physical tests detect
the physical presence of unwanted
fluids (water, fuel, antifreeze)
500 Hour Oil Change Interval.
Uptime and production increase by
doubling the time between oil and filter
changes without requiring increased oil
sump capacity.
Operator Station. The operator station can
be removed or replaced in approximately
45 minutes without having to disconnect
hydraulic lines. Quick disconnect
couplings allow fast disconnect of the
air conditioning unit without releasing
refrigerant.
Blade-Style Fuses. Fuse serviceability
and reliability are improved with bladestyle fuses located in the cab.
Battery Box. The right side bumper
holds the battery box for convenient
access to the maintenance-free batteries.
Tool Box. The left side bumper holds
the tool box, giving it additional
protection against the harsh landfill
environment.
13
Page 14
Machine Selection. Make detailed
comparisons of the machines under
consideration before purchase.
Cat dealers can estimate component
life, preventative maintenance cost
and the true cost of lost production.
Purchase. Look past initial price.
Consider the financing options available
as well as day-to-day operating costs.
Look at dealer services that can be
included in the cost of the machine
to yield lower equipment owning and
operating costs over the long run.
Customer Support Agreements.
Cat dealers offer a variety of product
support agreements and work with
customers to develop a plan that best
meets specific needs. These plans can
cover the entire machine, including
work tools, to help protect the
customer’s investment.
Product Support. You will find nearly
all parts at our dealer parts counter.
Cat dealers use a worldwide computer
network to find in-stock parts to
minimize downtime.
Save money with genuine Cat Reman
parts. You receive the same warranty
and reliability as new products at cost
savings of 40 to 70 percent.
Operation. Improving operating
techniques can boost your profits.
Your Cat dealer has training video
tapes, literature and other ideas to help
you increase your productivity, including
Certified Operator Training classes to
help maximize the return on your
machine investment.
Maintenance Services. More equipment
buyers are planning for effective
maintenance before buying equipment.
Choose from your dealer’s wide range
of maintenance services at the time you
purchase your machine. Repair option
programs guarantee the cost of repairs
up front. Diagnostic programs such
as S·O·S and Coolant Sampling and
Technical Analysis help you avoid
unscheduled downtime.
Replacement. Repair, rebuild or replace?
Your Cat dealer can help you evaluate
the cost involved so you can make the
right choice.
14
Complete Customer Support
When you buy a Cat machine, you also get the Caterpillar total commitment to customer
support from the true landfill equipment experts...the Caterpillar dealer network.
Page 15
15
816F Series 2 Landfill Compactor specifications
Wheels – Plus Tip Teeth with Abrasion Resistant
Material (ARM)
Drum Width 1016 mm 3 ft 4 in
Drum Diameter 1300 mm 4 ft 3 in
Tips per Wheel 20
Wheels – Chevron-Pattern, Chopper Blades
Drum Width 1016 mm 3 ft 4 in
Drum Diameter 1300 mm 4 ft 3 in
Blades per Wheel 20
Straight Blade
Width Over End Bits 3657 mm 11 ft 11 in
Moldboard Length 3556 mm 11 ft 9 in
Height 1914 mm 6 ft 4 in
Service Refill Capacities
Fuel Tank 446 L 117.8 gal
Cooling System 55 L 14.5 gal
Crankcase 34 L 9 gal
Transmission 50 L 13.2 gal
Differentials and Final Drives – 43 L 11.4 gal
Front
Differentials and Final Drives – 43 L 11.4 gal
Rear
Hydraulic System (including Tank) 137 L 36.2 gal
Hydraulic Tank 88 L 23.2 gal
Weights
Operating Weight 23 748 kg 52,364 lb
• Machine configured with heaviest options, 80 kg (176 lb)
operator and full fuel tank
Engine
Engine Model Cat®C9 ACERT™
Gross Power 189 kW 253 hp
Net Power 173 kW 232 hp
Net Power ISO 3046-2 173 kW 232 hp
Net Power ISO 9249 175 kW 235 hp
SAE J1349 173 kW 232 hp
EEC 80/1269 175 kW 235 hp
Torque Rise 19%
Bore 112 mm 4.4 in
Stroke 149 mm 5.9 in
Displacement 8.8 L 537 in
3
• Engine meets U.S. Environmental Protection Agency Tier 3
emissions regulations and Stage IIIA EU Directive/97/68/EC
• Engine power ratings apply at 2,100 rpm when tested under
the specific standard conditions for the specified standard
• Power rating conditions based on standard air conditions
of 25° C (77° F) and 100 kPa (29.8 Hg) dry barometer, using
25° API gravity fuel having an LHV of 42 780 kJ/kg (18,390 Btu/lb)
when used at 29° C (85° F) [reference a fuel density of
828.9 g/L (7.001 lb/gal)]
• Torque rise at 1,200 rpm
Transmission
Forward 1 5.6 km/h 3.5 mph
Forward 2 9.5 km/h 5.9 mph
Reverse 1 6.3 km/h 4 mph
Reverse 2 10.6 km/h 6.6 mph
Hydraulic System
Vane Pump Output at 2,015 rpm 112 L/min 29.6 gal/min
and 6900 kPa (1,000 psi)
Relief Valve Setting 15 500 kPa 2,248 psi
Lift Cylinder Bore Stroke 120.65 mm 913.9 mm
4.75 in 36 in
Axles
Front Fixed
Oscillating Rear ±8°
Brakes
Standards Meet OSHA regulations
Page 16
16

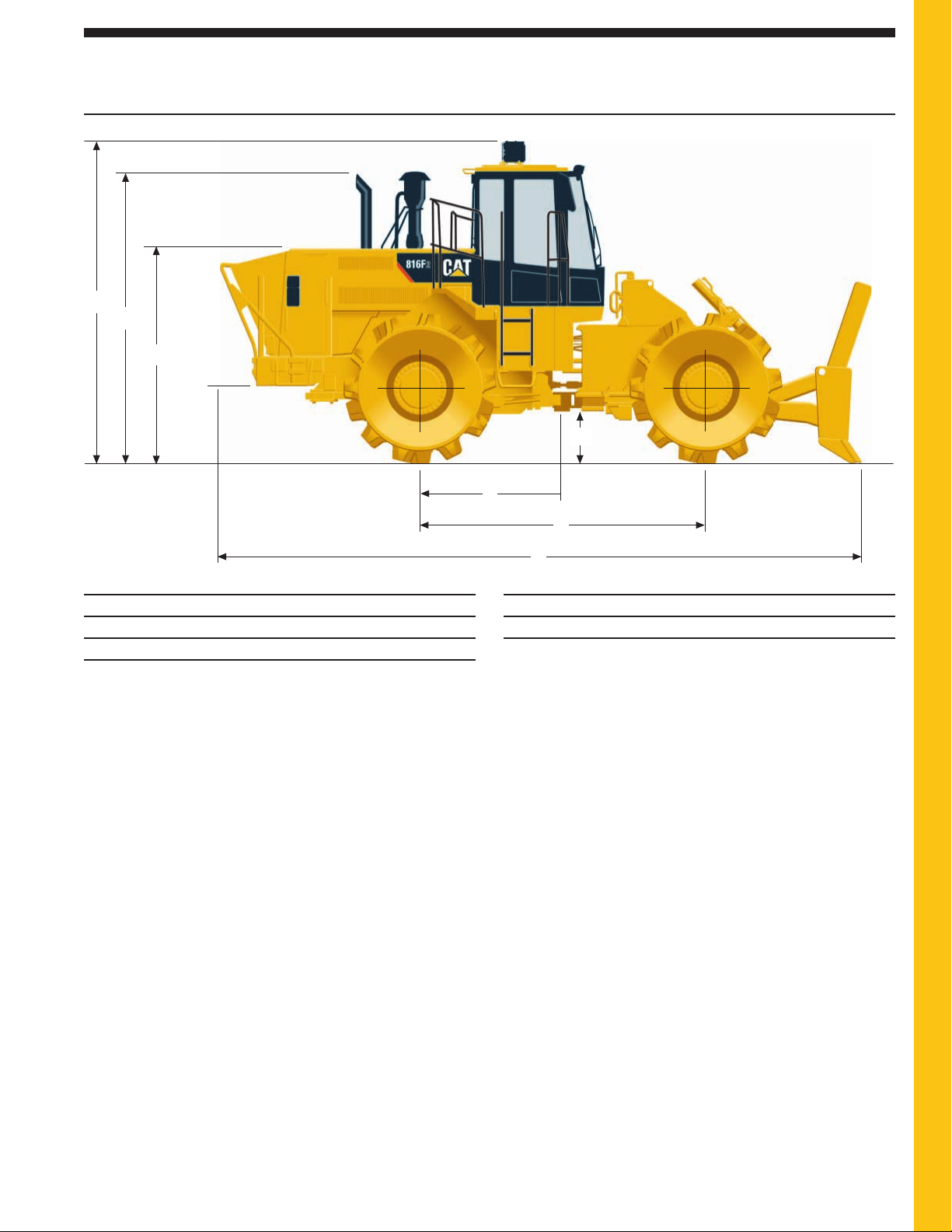

816F Series 2 Landfill Compactor specifications
Dimensions
Ground Clearance to Bumper 804 mm 2 ft 8 in
Ground Clearance to Striker Bars 650 mm 2 ft 2 in
Center Line of Rear Axle 1896 mm 6 ft 3 in
to Edge of Bumper
Width over Wheels 3338 mm 10 ft 12 in
Width over Endbits (Blade) 3657 mm 11 ft 12 in
Turning Radius – Outside End Bits 6464 mm 21 ft 3 in
Blade Width Straight 3556 mm 11 ft 9 in
Drum Width 1016 mm 3 ft 4 in
Cab
ROPS/FOPS Meet SAE and
ISO standards
• Cat®cab and Rollover Protective Structure/Falling Object
Protective Structure (ROPS/FOPS) are standard in
North America, Europe and Japan
• Standard air conditioning system contains R134a refrigerant
• ROPS meets SAE J394, SAE 1040 APR88 and ISO 3471-1986
standards
• FOPS meets SAE J231 JAN81 and ISO 3449-194 standards
Sound Performance
Standards Meet required sound
standards
• The operator exposure Leq (equivalent sound pressure level)
measured according to the work cycle procedures specified
in ANSI/SAE J1166 OCT98 is 78 dB(A), for the cab offered by
Caterpillar, when properly installed, maintained and tested
with the doors and windows closed
• Hearing protection may be needed when operating with
an open operator station and cab (when not properly
maintained or doors/windows open) for extended periods
or in noisy environment
• The exterior sound pressure level for the standard machine
measured at a distance of 15 m (49 ft 2 in) according to the
test procedures specified in SAE J88 JUN86 mid-gearmoving operation is 80 dB(A)
• The sound power level is 111 dB(A) measured according
to the dynamic test procedure and conditions specified
in ISO 6395:1988/Amd. 1:1996 for a standard machine
configuration
Page 17
17
816F Series 2 Landfill Compactor specifications
Dimensions
All dimensions are approximate.
1 Height to Top of Cab with A/C 3801 mm 12 ft 9 in
2 Height to Top of Exhaust Pipe 3462 mm 11 ft 5 in
3 Height to Top of Hood 2489 mm 8 ft 2 in
4 Center Line of Rear Axle 1675 mm 5 ft 6 in
to Hitch
5 Wheelbase 3350 mm 10 ft 11 in
6 Length with Blade on Ground 7854 mm 25 ft 10 in
7 Ground Clearance 456 mm 1 ft 6 in
1
2
3
7
4
▲
5
6
Page 18
Standard Equipment
Standard equipment may vary. Consult your Caterpillar dealer for details.
POWER TRAIN
Brakes, fully hydraulic, enclosed, wet-disc
Service, parking and secondary
Engine, Cat®C9 ACERT™
ATAAC and ADEM A4 controller
Engine cooling fan (suction)
Fuel priming pump (electric)
Muffler
Radiator, Next Generation Modular (NGMR)
Starting aid (ether)
Torque converter
Transmission, planetary (2 forward/2 reverse speeds)
Electronic Clutch Pressure Control
OTHER STANDARD EQUIPMENT
Cat O-ring face seals/couplings
XT™ hoses
Coolers
Engine oil
Hydraulic oil
Transmission oil
Hitch, drawbar with pin
Hood, metallic with lockable service doors
Hydraulic oil cooler
Oil sampling valves
Striker bars (all wheels)
Vandalism protection caplocks
Wheels (1016 mm/40 in) with weld-on Plus Tips with
extended inner rim
BULLDOZER
Bulldozer blade, hydraulics and linkage are not included
in standard equipment
ANTIFREEZE
Premixed 50 percent concentration of Extended Life Coolant
with freeze protection to –34° C (–29° F)
ELECTRICAL
Alarm, backup
Alternator (80 amp)
Batteries, maintenance-free (2)
Diagnostic connectors
Lighting system, halogen (front, rear and cab-mounted)
Starting and charging system (24-volt)
Starting receptacle for emergency starts
GUARDS
Axle (front and rear)
Drive shaft
Hinged crankcase
Hydraulic tank
Power train
Steering cylinder
OPERATOR ENVIRONMENT
Air conditioner, roof-mounted
Blade control system locks
Cab, pressurized and sound suppressed (ROPS/FOPS)
includes antenna, speakers and converter (12-volt,
10-15 amp)
Coat hook
Cigar lighter and ashtray
Caterpillar Monitoring System
Instrumentation, Gauges
Engine coolant temperature
Fuel level
Hydraulic oil temperature
Speedometer/Tachometer
Transmission oil temperature
Instrumentation, Warning Indicators
Air inlet temperature
Brake oil pressure
Electrical system, low voltage
Engine oil pressure
Engine overspeed
Fuel filter status
Parking brake status
Steering oil pressure
Transmission filter status
Dome light (cab)
Fuses, blade style (in-cab)
Heater and defroster
Horn, electric (steering wheel mounted)
Hydraulic steering
Lunchbox and beverage holders
Mirrors, rearview (internally-mounted)
Seat, KAB mechanical suspension
Seat belt, retractable, 76 mm (3 in) wide
Wet-arm wipers/washers (front and rear)
Intermittent front wiper
18
816F Series 2 Landfill Compactor specifications
Page 19
19
816F Series 2 Landfill Compactor specifications
Optional Equipment (with approximate change in operating weight)
Optional equipment may vary. Consult your Caterpillar dealer for specifics.
kg lb
ELECTRICAL
Camera, rear vision 1.8 4
HID lights ——
Light, rotating beacon 4 9
PRODUCT LINK COMMUNICATIONS
Product Link, North America 1.8 4
Product Link, International 1.8 4
OPERATOR ENVIRONMENT
Seat, comfort, air suspension 32 71
Mirrors, outside-mounted 28 62
Mirror, internal (panoramic) 5 11
Visor, cab 2.2 5
Radios ——
Radio CD AM/FM 1.8 4
Radio CD AM/FM (SIRIUS Satellite) 0 0
Radio CD AM/FM (XM Satellite) 0 0
POWER TRAIN
Differential, No-SPIN, front 1.8 4
Differential, No-SPIN, rear 1.8 4
HYDRAULICS
Hydraulics, 2 valve 0 0
STARTING AIDS
Heater, engine coolant (120 volt) 0.9 2
Heater, engine coolant (240 volt) 0.9 2
STRIKER BARS
Striker bars with cleaner fingers 372 820
MISCELLANEOUS ATTACHMENTS
Fast fuel system (Shaw Aero) 5 11
Guard, front window 24 53
Oil change system, high speed 1.4 3
Precleaner, turbine/trash 13 29
Sound suppression, exterior 52 114
ANTIFREEZE
Extended Life Coolant –50° C (–58° F) 0 0
BLADES
Straight 1957 4315
Contact Cat Work Tools and Services
for U or Semi-U blades or any additional
blade options
WHEELS
Contact your Cat dealer or see price list
for all options and weights
kg lb
Page 20
For more complete information on Cat products, dealer services,
and industry solutions, visit us on the web at www.cat.com
© 2006 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Caterpillar dealer for available options.
CAT, CATERPILLAR, ACERT, their respective logos, “Caterpillar Yellow,” and the
POWER EDGE™ trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
AEHQ5728 (10-06)
Replaces AEHQ5487-03
816F Series 2 Landfill Compactor
R
Loading...
