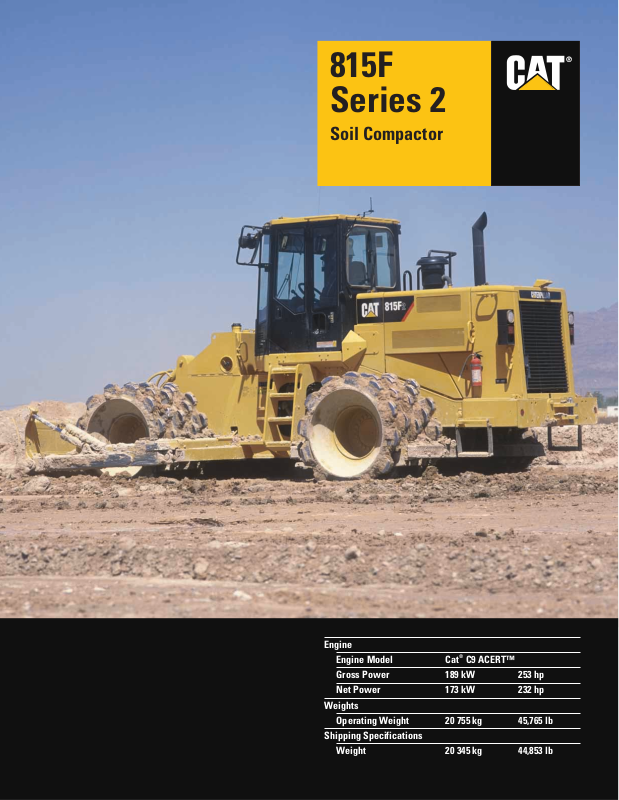

Caterpillar 815F SERIES 2 BROCHURE

Engine

Engine Model Cat®C9 ACERT™

Gross Power 189 kW 253 hp

Net Power 173 kW 232 hp

Weights

Operating Weight 20 755 kg 45,765 lb

Shipping Specifications

Weight 20 345 kg 44,853 lb

815F
Series 2

Soil Compactor

®

®

2

815F Series 2 Soil Compactor

The Cat®815F Series 2 is specifically designed for heavy-duty compaction operations.

The new 815F Series 2 Soil Compactor
offers greater power, productivity and
compaction. Combine this with the finest
customer support system in the world –
the Caterpillar

®

dealer network of service
and parts – and you get the lowest operating
cost with the best up-time in the industry!

Complete Customer Support

Your Cat dealer is your one safe source
for all your equipment needs. They offer
a wide range of services that will fit
your operation and keep you working
longer with lower cost. pg. 13

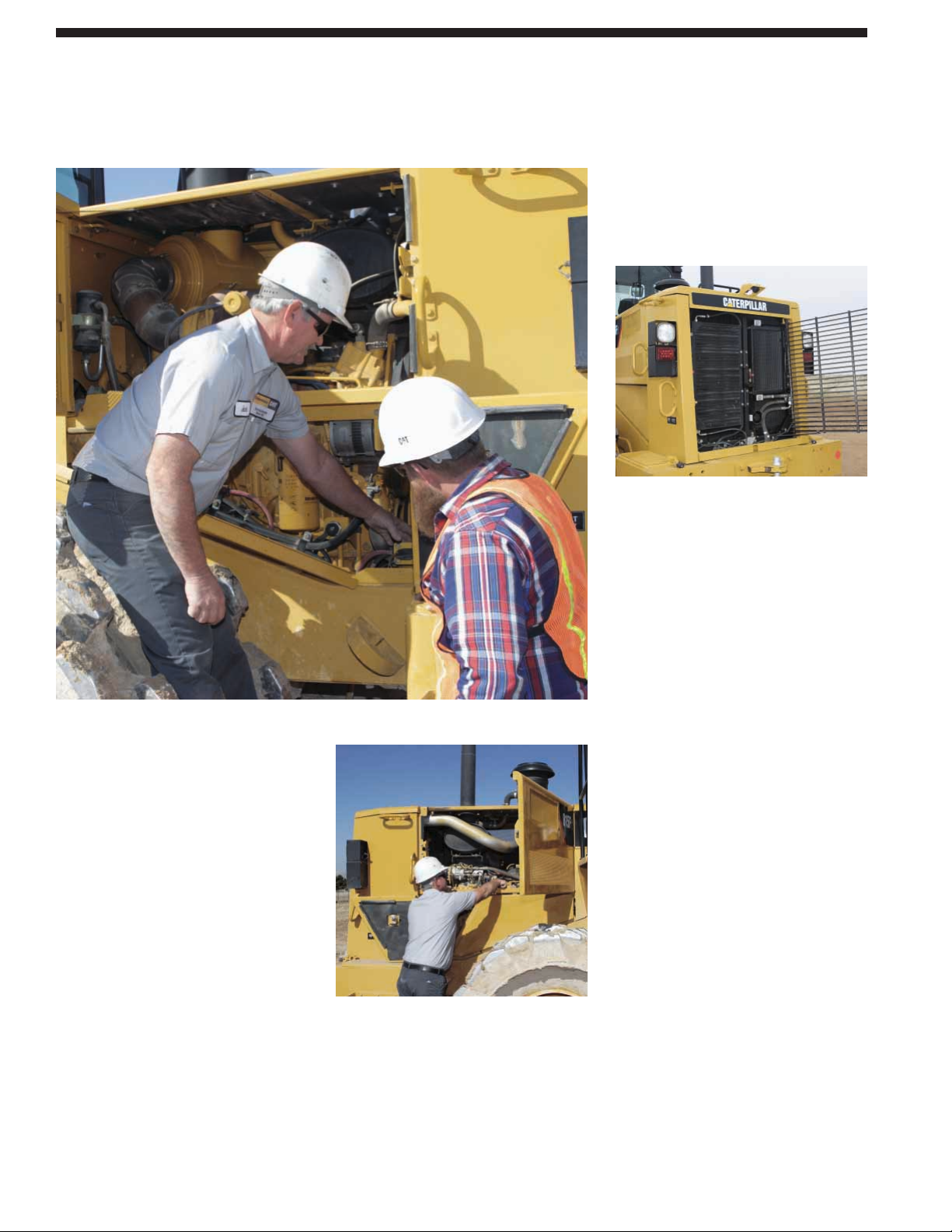

Serviceability

Many convenient service features such
as hinged service doors, accessible
scheduled maintenance points,
conveniently located sight gauges,
in-cab blade-type fuses and a separated
cooling system make servicing easy.

pg. 12

✔

Tamping Wheels and Tips

Tamping wheels, with a modified
chevron pattern for the tips, offer
greater traction, penetration and
compaction for high production.
The new cast bases make cleaning
the wheels easier when moving the
815F Series 2 to a new work site. pg. 7

✔

Structures

Advanced design, materials and robotic
welding contribute to increased durability
and overall machine strength. pg. 6

Power Train

The Cat®C9 engine with ACERT™
Technology delivers maximum power
and combines with Electronic Clutch
Pressure Control and planetary powershift
transmission to offer superior
performance and reliability in heavy­duty compaction applications. pg. 4

✔

✔ New Feature

3

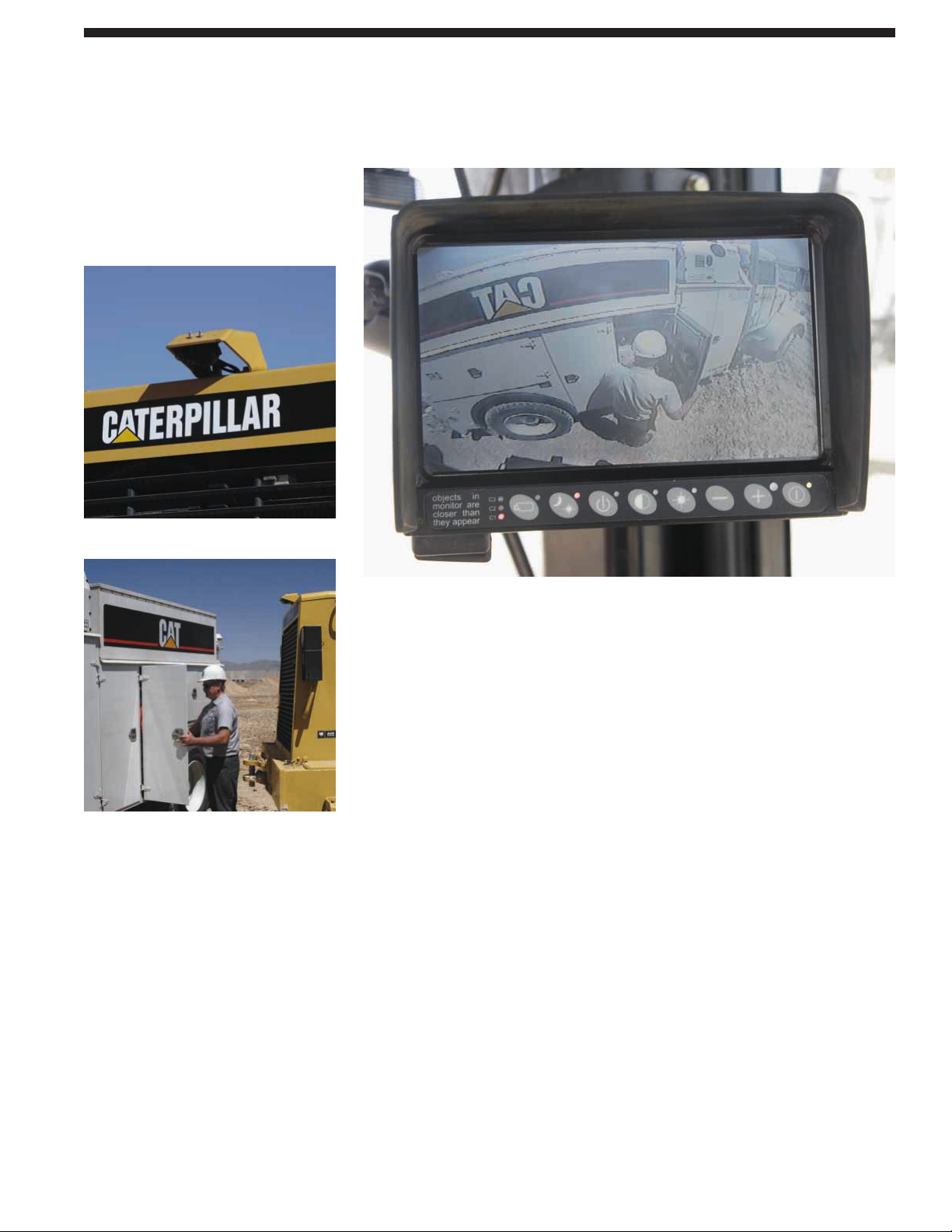

Optional Features

Air suspension seat, air conditioning,
No-SPIN rear differential, fast fill
adapter and cleaner bars are available
to enhance the 815F Series 2. A rear
view monitor and satellite radio options
help make the operator more efficient
and comfortable. pg. 11

✔

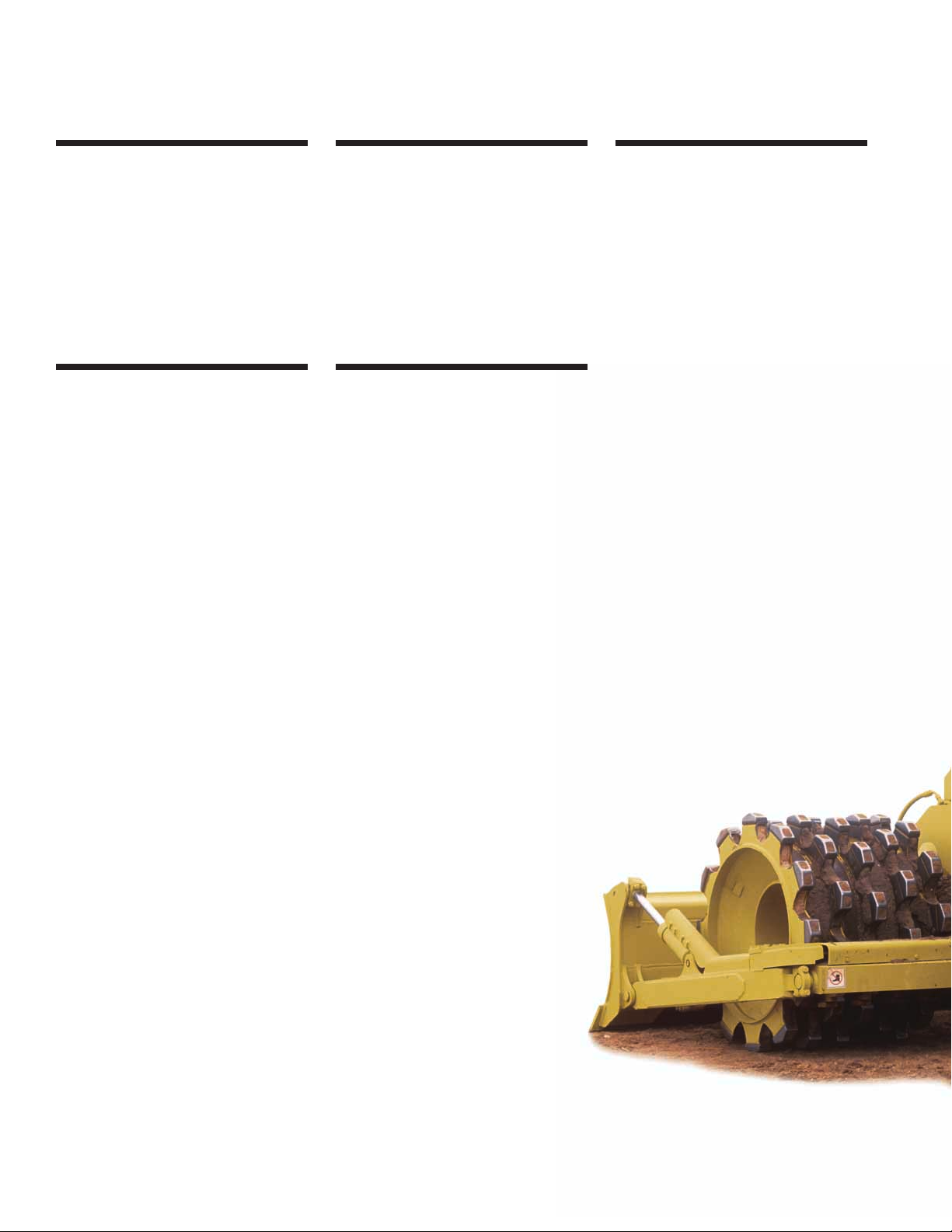

Blade

Designed for general production
dozing, road grading, spreading
and clean-up work. pg. 10

Operator Station and Controls

Operator comfort and productivity are
maximized by an excellent viewing
area, careful positioning of levers,
switches and gauges, attention to air
quality and sound control, as well as
built-in convenience for the operator’s
personal items. pg. 8

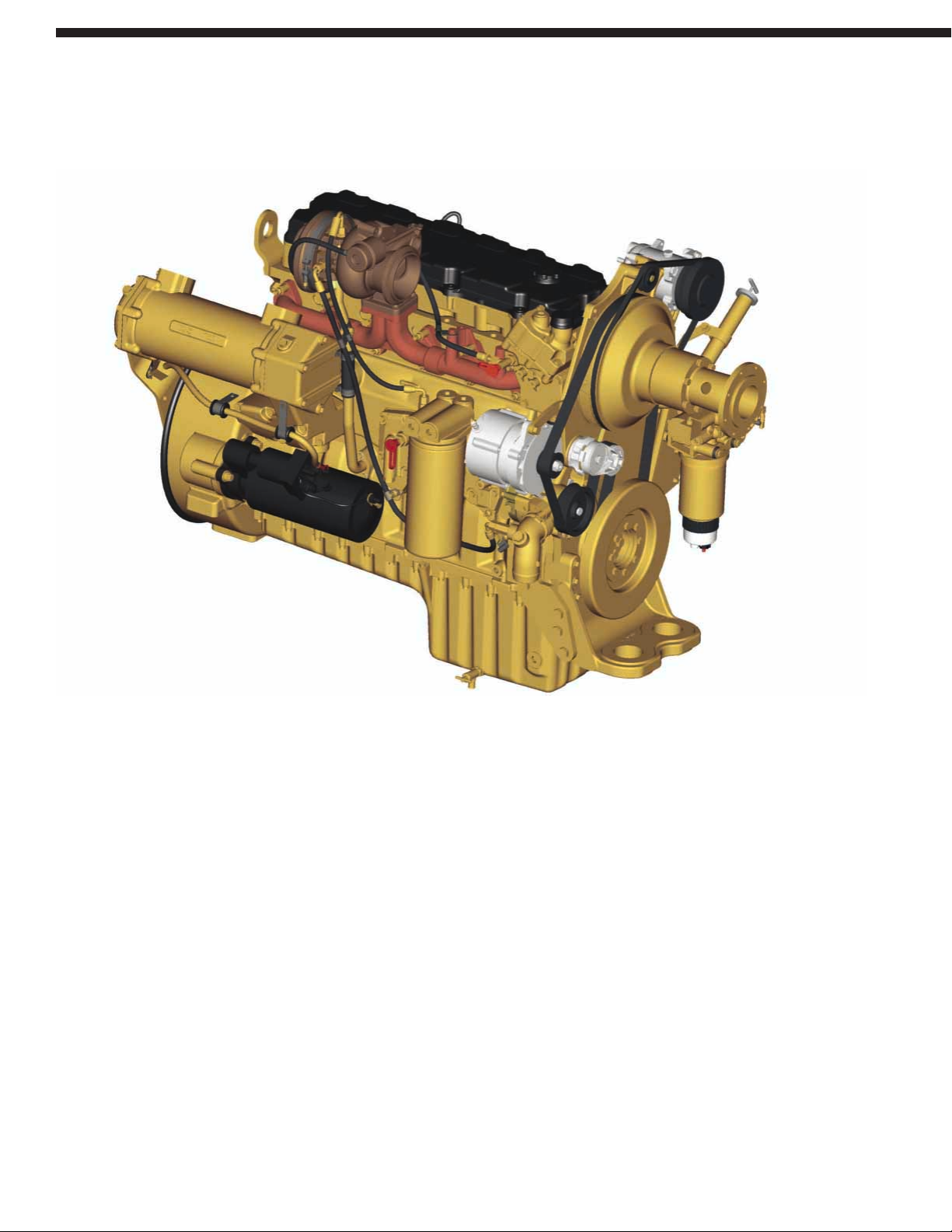

Cat®C9 ACERT Engine. Delivers, at a
rated speed of 2,100 rpm, net power
of 173 kW (232 hp) and meets the
U.S. Environmental Protection Agency
Tier 3 emissions regulations and
Stage IIIA EU Emissions Directive
97/68/EC. With high horsepower and
low displacement, this innovative engine
provides excellent fuel economy and
durability which can significantly
reduce operating costs.

Torque Rise. Is increased as a result of
the electronically controlled, computer­actuated unit injection fuel system that
provides high injection pressure and
more precisely controlled fuel delivery
as the engine lugs back from rated speed.

ADEM™ IV Fuel System. Is a Caterpillar

®

electronic control module which provides
improved engine response, performance,
fuel efficiency, troubleshooting
diagnostics and reduced emissions.
It allows integration with the electronic
transmission control for maximum
power train efficiency.

Turbocharger. Packs more dense air
into the cylinders for more complete
combustion and lower emissions,
improving performance and engine
efficiency. These benefits are especially
useful at high altitudes.

Air-to-Air Aftercooler. Reduces smoke
and emissions by providing cooler
inlet air for more efficient combustion.
This also extends the life of the piston
rings and bore.

Dual Cooling Jets. In the block spray
oil on the piston skirt and cylinder
bores keep ring temperatures low for
long ring and liner life with excellent
oil control.

Pistons. Are two piece articulated-type
with forged steel crowns for excellent
strength and aluminum skirts for
reduced weight. The pistons are oil
cooled for increased heat dissipation
and longer life.

Valves. Four per cylinder allow for
good air flow, enhancing fuel efficiency
and heat rejection. Valves and unit
injection system are camshaft-actuated
for precise timing.

4

The 815F Series 2 delivers top performance, durability and reliability.

Power Train

Crankshaft. Is steel-forged, carburized

and induction-hardened for long-term
durability. It is dynamically balanced
for smooth operation. The crankshaft
is completely regrindable, and the
connecting rods can be removed
through the tops of the cylinders for
easy servicing.

Cat Engine Oil. Is formulated to optimize
engine life and performance and is
strongly recommended for use in
Cat diesel engines. Engine oil change
interval is 500 hours.

Cat Remanufactured Parts. Are available,
along with dealer proposed repair options,
which increase machine availability and
reduce total repair costs.

Cat Planetary Powershift Transmission.

Features heavy-duty components to
handle tough jobs. The 345.4 mm
(13.6 in) planet drives operate in all
gears, forward and reverse. The addition
of Electronic Clutch Pressure Control
(ECPC) contributes to improved shift
quality, reduced torque spikes and
overall transmission durability.

Heavy-Duty Axles and Brakes.

Are designed to last in all kinds of
operating conditions. Two front axle
disc brakes provide improved braking
capability and better heat dissipation.
Planetary final drives use free-floating,
bronze sleeve bearings in the planet gears.

• Oil disc brakes are adjustment-free
and fully enclosed to lock out
contaminants.

Front Axle. Is rigidly mounted to the
frame to support the weight of the
compactor, internal torque loads
and external loads applied during
compacting and dozing operations.

Rear Axle. Includes a trunnion,
two trunnion supports and associated
bearings, allowing it to oscillate plus
or minus 12 degrees.

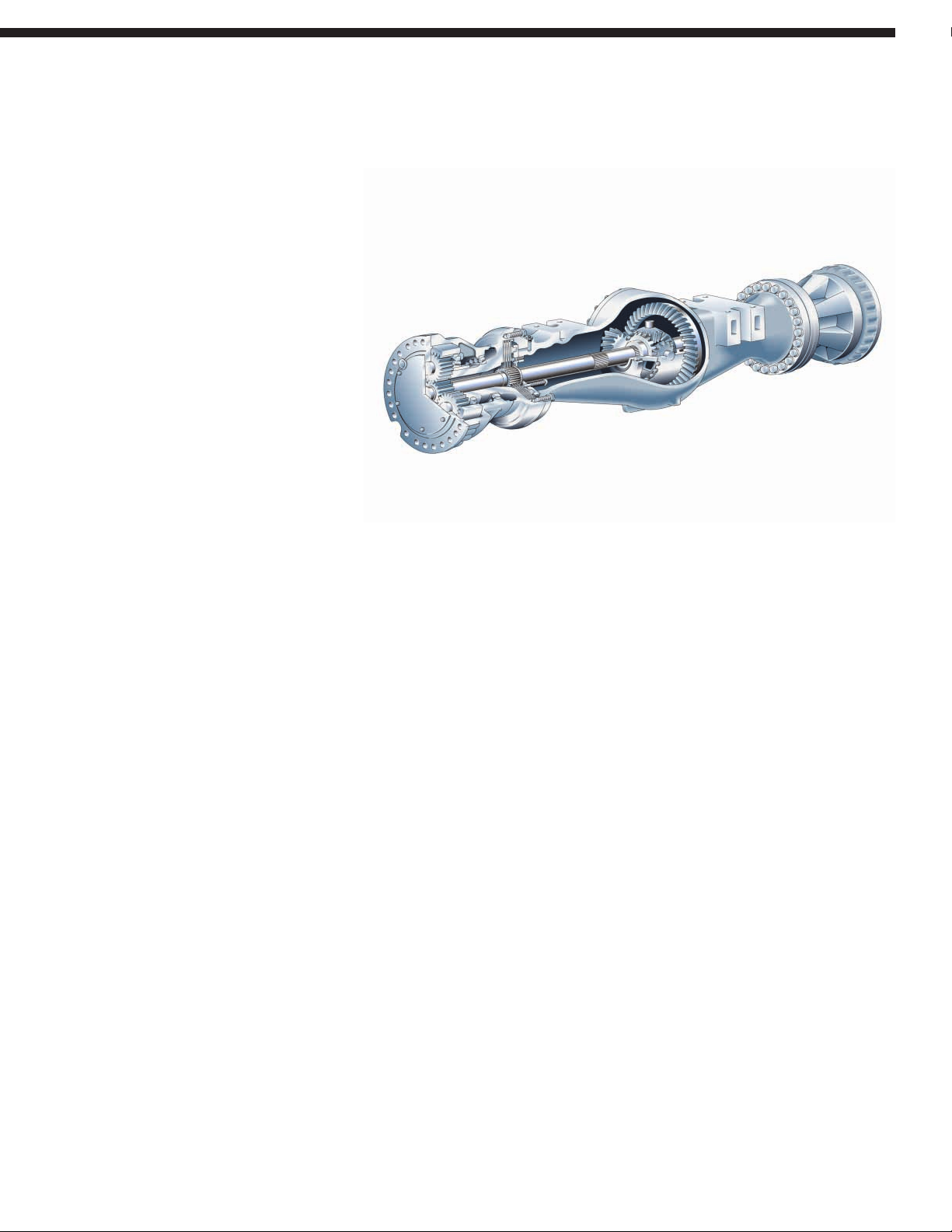

Four Piece Axle. Contains two axle
shaft housings – the center housing and
the intermediate housing. Features and
benefits of this design include:

• Inboard brakes on the front axle only
are positioned immediately adjacent
to the differential and operate on
the low torque side of the final drive,
requiring less braking to stop the
machine.

5

Structure Construction. Combines the use
of robotic welding on up to 90 percent
of the 815F Series 2 with castings in
several areas to increase strength by
helping spread the loads and reduce
the number of parts. This provides
highly consistent welds with deep plate
penetration and excellent plate fusion.
The benefits are increased durability
and fatigue strength. The computer
controlled machining ensures the
alignment of pin bore, axle pad,
cab mount and transmission/engine
components.

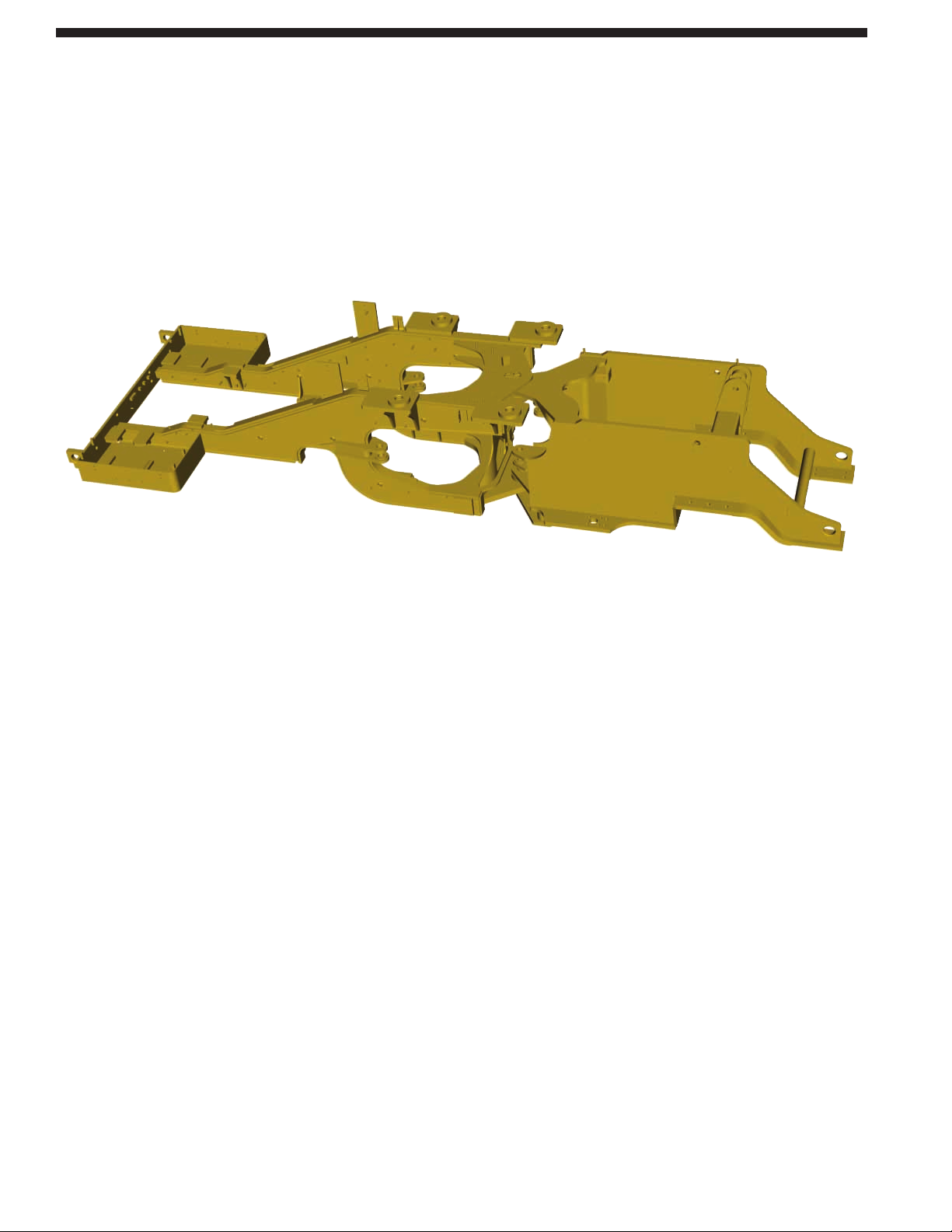

Box Section Engine Frame. Designed to
resist twisting and torsional forces, the
box section engine end frame provides
a solid foundation for the axles, engine
and transmission.

Front Frame. With two plates provides
maximum structural strength during
compaction and dozing applications.

Spread Hitch Design. Improves load
distribution by reducing loads to the
hitch bearings. The large center hitch
design improves hydraulic line routing
and makes service access easier.

Upper and Lower Hitch Pins.

Pivot on double-tapered roller bearings.
Box-style sections in the hitch pins and
crossmember assembly improve frame
structure strength. Increased diameter
lower hitch pins add to the robust design.

Engine and Transmission Mounts.

With rubber isolation mount design
reduces noise and vibration.

6

Structures

Enhanced design and materials provide superior strength to the purpose built structures
of the 815F Series 2.

Wheel Design. Gives the operator four­wheel width coverage in just two passes
with front and rear wheel tracking that
eliminates gaps and overlaps.

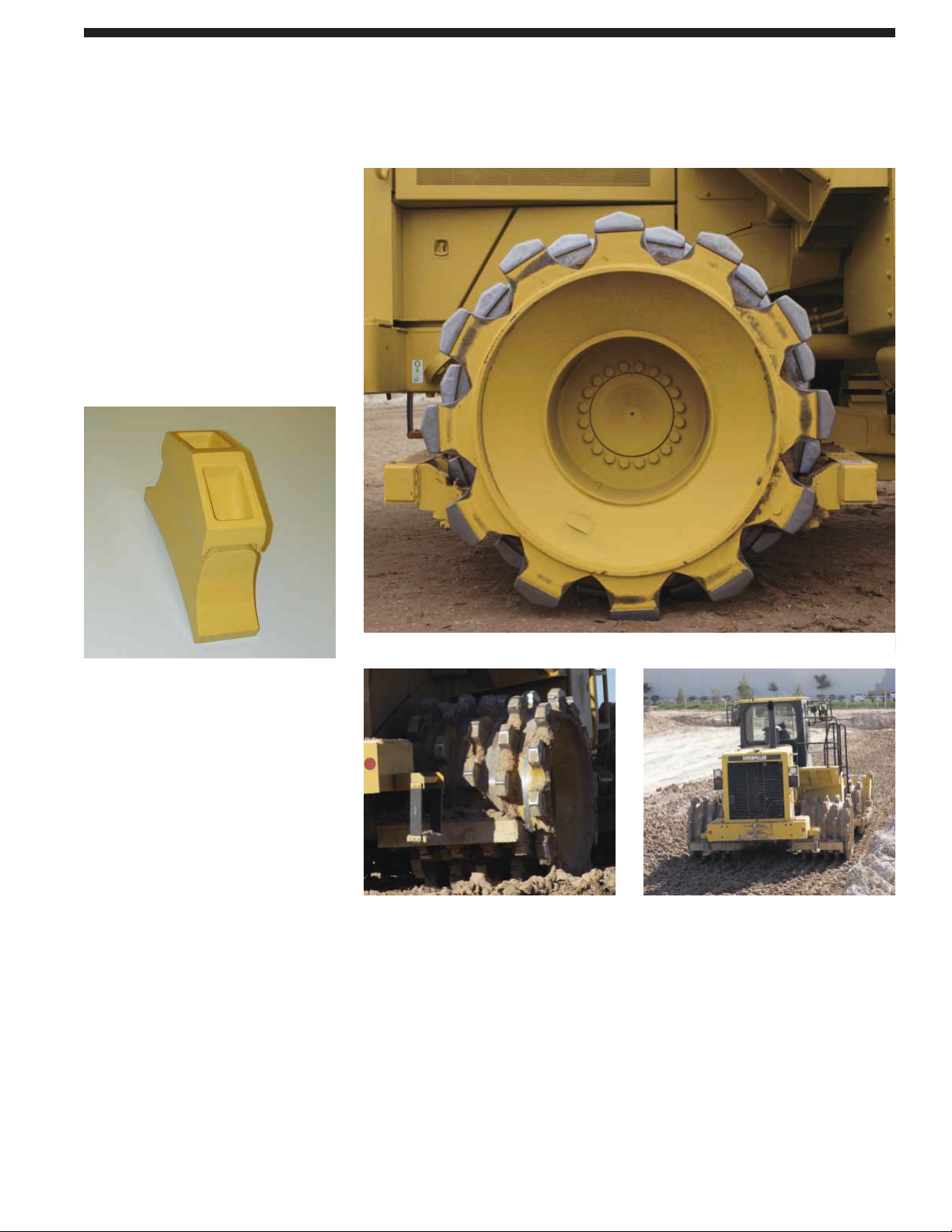

Chevron Tamping Wheel Tip Design.

Is used for equal compaction in forward
or reverse. Tips are full perimeter and
are replaceable. The tip is welded to a
base assembly, which is then welded
directly to the drum. There are 12 tips
per row and 60 tips per wheel for
excellent compaction.

Symmetrical Tamping Wheel Tip
Pattern. Has a modified chevron tamping

wheel tip design to provide greater
ground pressure, more compaction,
a smooth ride and excellent traction.
Tip height is 190 mm (7.5 in) and
width is 168 mm (6.6 in).

Cleaner Bars. Help keep the drums free
of carry-over dirt regardless of rolling
direction. A pass-through bolt design
allows for easier serviceability.

Adjustable Cleaner Bar Tip.

Are constructed from cutting edge steel
that is heat treated and direct hardened,
which increases the wear life and
translates into lower operating costs.

Compaction. Is achieved from the bottom
of the lift to the top. The tapered pads walk
out of the lift without “fluffing” the soil.
The top of the lift is compacted and the
surface is relatively smooth and sealed
so hauling units are able to maintain a
high speed when traveling over the fill.
815F Series 2 travel speed allows for
four forces of compaction: pressure,
manipulation, impact and vibration.
Since it can also spread fill, the number
of spreader tractors may be able to
be reduced.

7

Tamping Wheels and Tips

The heart of any compaction system.

8

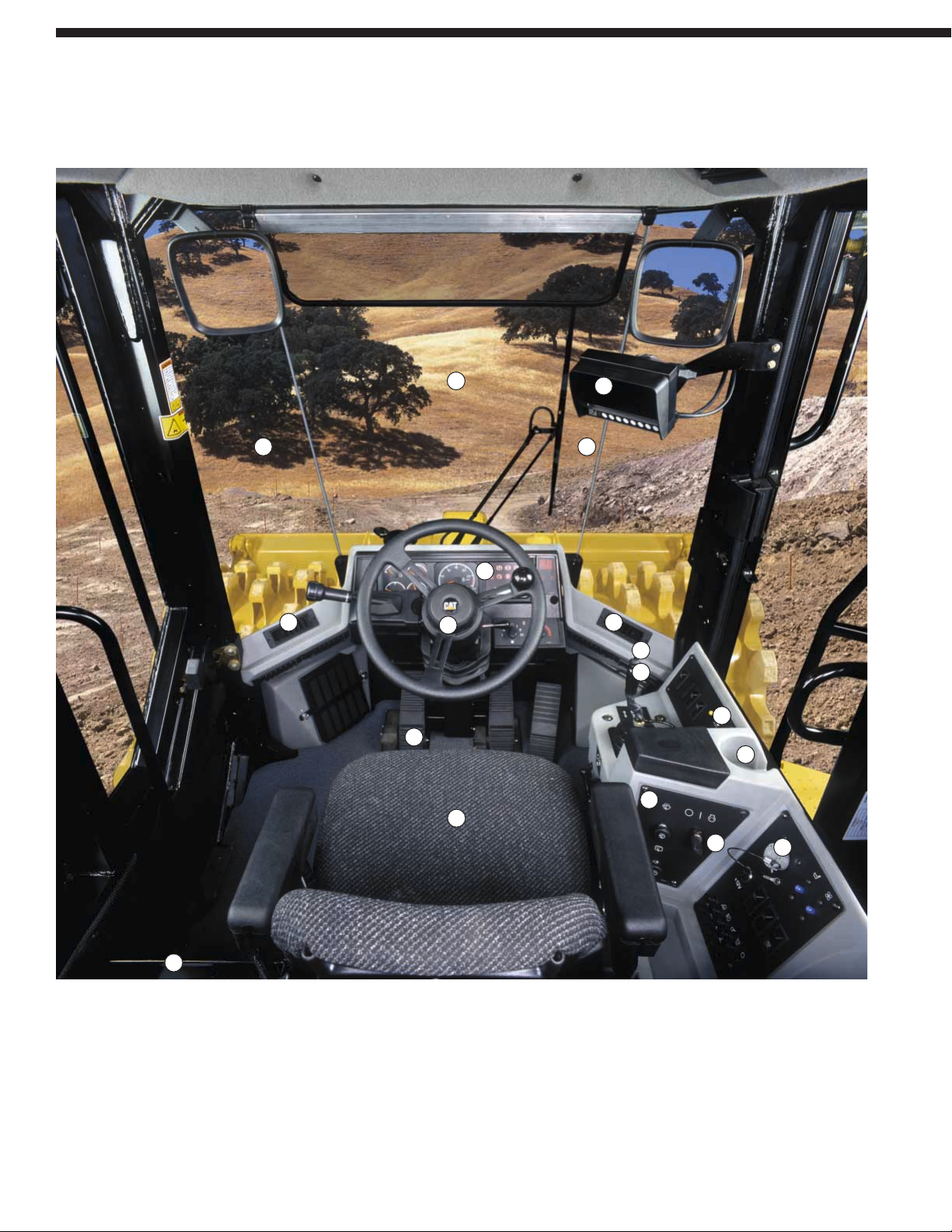

Comfort and control...with a top quality operator’s station productivity is maximized.

Operator Station and Controls

1

2

6

7

3

4

5

1

1

8

12

9

13

1010

14

11

9

1 Exceptional All-Around Viewing Area.

Reduces strain and fatigue, making
operators more productive.

2 Caterpillar®Monitoring System.

With electronic analog gauges is a
highly effective and reliable warning
and diagnostic system.

As a warning system, it constantly
checks machine functions and tells
the operator when there is a problem.
Easy-to-read gauges display fuel level,
temperatures for engine coolant,
transmission and hydraulic oil, engine
rpm and gear range. Hour meter,
odometer and analog tachometer
readings are also displayed.

As a diagnostic system, it identifies
conditions, shows current readings and
plays back maximum or highest readings
registered during recent operations.

The right side panel contains a three
level warning system, providing
full-time monitoring of key functions.
The system alerts the operator of
immediate or impending problems with
air inlet temperature, brake oil pressure,
electrical system, low voltage, engine
oil pressure, engine over-speed, fuel
filter status, parking brake status,
steering oil pressure and transmission
filter status.

3 Quick Gear Kick Up/Down Button.

Allows the operator easily downshift
or upshift to a different gear. It is a
convenient way to shift that saves time
and effort.

4 Ignition Key Start/Stop Switch.

Is positioned for easy machine starting
and stopping.

5 12-Volt Power Supply and Electronic
Technician (Cat ET) Diagnostics.

Is provided inside the cab for powering
radios, telephones or a laptop computer.
This is particularly useful for powering
a laptop running Cat ET to access the
enhanced engine and transmission
control system diagnostics.

6 Steering Column. Adjusts to multiple
positions. The leather-like steering
wheel and transmission control
provide a sure grip and comfortable
feel. The horn is conveniently located
in the center of the steering wheel.

7 Pilot-Operated Blade Controls.

Are conveniently located and allow
for precise blade movement.

8 Operator Seat. Is designed for comfort
and support. Seat cushions reduce
pressure on the lower back and thighs
while allowing unrestricted arm and
leg movement.

• A fully adjustable air suspension
seat with self-contained compressor
is available as an option.

9 Built-In Storage Space. Is designed
to hold cups, lunch box, insulated bottle
and personal items.

10 Repositioned Vents. Throughout
the cab keep fresh air flowing while
improving the cab’s heating, cooling,
defrost and defog capability.

11 Throttle Lock. Allows an operator
to set the engine speed and remove his
foot from the governor (accelerator)
pedal much like cruise control on an
automobile. Using this feature increases
productivity, fuel efficiency and
improves operator comfort.

12 Decelerator Pedal. On the left acts as
both an engine decelerator and a brake
that overrides the engine speed selected
by the throttle lock. This enables the
operator to slow down when throttle
lock is engaged and to return to throttle
lock without pressing a button. It aids
in maneuvering around scrapers, haul
trucks, tractors or any other obstacle.

13 Windshield Washers/Wipers.

With in-the-blade washer delivery
system are standard features on front
and rear windows. The front wiper has
intermittent speed capability.

14 Rear Vision Camera Monitor.

Connected to a camera mounted on
the radiator guard, this monitor allows
the operator to see the area behind
the machine.

9

Blade Package. Consists of the blade,
push-arms, trunnion mounting, dozer­length skid plate with replaceable wear
plates, reversible cutting edges, self­sharpening end bits, hydraulic lines
guard and hydraulic lift cylinders.

Operator Controls. The tilt cylinder is an
option that gives the 815F Series 2 more
versatility when dozing. The controls
are seat-mounted and located in a
convenient location to the right of
the operator.

Outside Mounted Straight Blade.

With multiple box section construction
includes a heat treated moldboard and
DH-2™ steel cutting edges and end bits
for long life. The outside mounting is a
stronger design because stresses are put
on the frame rather than the blade so
blade flexing is reduced. It also allows
for higher lift and a wider blade can be
used than with an inside mounted design.

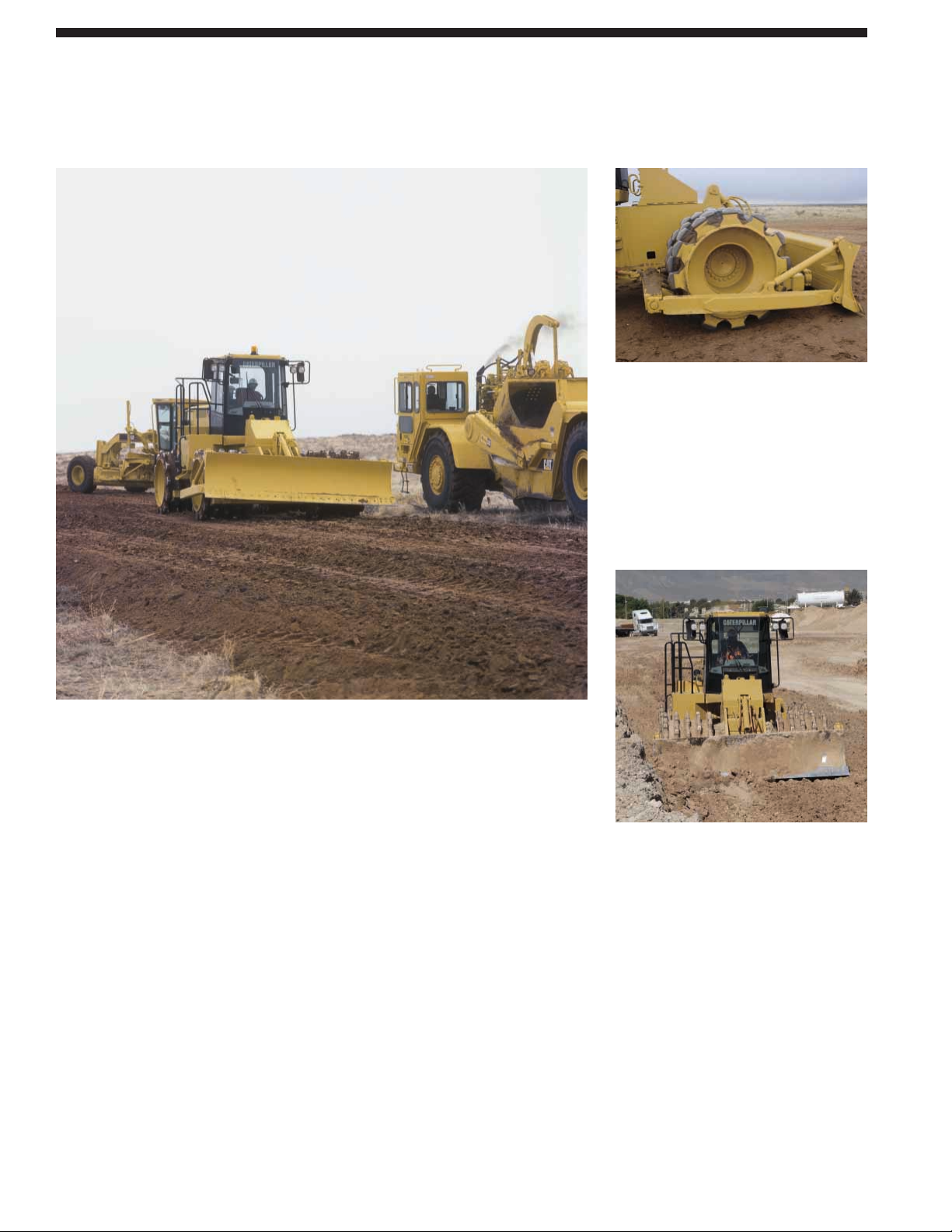

Applications. The 815F Series 2 excels
at compacting, spreading fill, backfilling
and boosting scrapers. With the ability to
work at higher speeds over other types
of soil compactors, the 815F Series 2
can keep up with a fast-moving scraper
fleet or an articulated truck hauling
operation. When speed and dozing
capability are required job duties for
a soil compactor, the 815F Series 2
has no equal.

10

Blade

Multiple box-section construction with heat-treated moldboard and DH-2 steel cutting edges
and end bits contribute to long blade life.

Rear Vision Camera. Uses a camera
mounted on the radiator guard and
a monitor in the cab to allow the
operator to see the area directly
behind the machine.

Air Suspension Seat. Provides added
comfort for the operator so productivity
stays high.

Air Conditioner. Uses blended air and
R134a refrigerant for immediate
temperature changes.

Radios. Several radio options are
available factory installed: AM/FM CD
or AM/FM CD with satellite radio
(a service contract is required from
a satellite radio provider).

Product Link. Allows the customer
and/or dealer to monitor the machine
from a remote location.

Rear No-SPIN Differential. Replaces the
rear standard differential. It delivers
maximum traction in low traction or
inconsistent ground conditions.

Fast Fill Adapter. Used during peak
periods when high production is needed
and little down time can be afforded for
fueling. Fuel is pumped into the tank
through a filling nozzle at rates up to

378.5 liters (100 gallons) per minute.

As fuel enters the tank, air is forced
out through an open vent. When the
tank is full, the vent closes and the
filling nozzle automatically shuts off.

High Speed Oil Change. Uses an
evacuation system to speed up the
engine oil change which helps to
reduce the service time.

Turbine Pre-Cleaner Group. Replaces
the standard stratatube air cleaner with
a turbine-style air intake cleaner which
is useful in dry, dusty work conditions.

Heavy Duty Cleaner Bar Tips. The shape
of these tips enables them to penetrate the
wheel more efficiently than the standard
cleaner bar tips, thereby reducing
wheel drag and improving machine
performance. Constructed from cutting
edge steel used for blades and buckets,
this high alloy steel is heat treated and
direct hardened, which increases tip
wear life by up to 240 percent over
other designs in sticky, abrasive soil
applications.

High Intensity Discharge (HID) Lights.

Adds four lights on the cab and two on
the radiator guard to brighten up the
work area. HID lights are two times
brighter than the standard halogen lights.

Note: These lights will be available
mid-2007.

11

Optional Features

Available options augment the 815F Series 2 to meet your needs.

Engine Access. All metal engine
enclosure and hinged access doors
allow for easy daily maintenance
and inspection.

Left Side Service Access. Provides
convenient entry to the engine oil filter,
grease points (lower), air filter (front),
power train oil dipstick (top), coolant
sight gauge (top), power train oil fill
(below cab), power train oil filter and
high speed engine oil fill.

Right Side Service Access. Puts the
the fuel filter and water separator, fuel
primer and engine oil dipstick within
easy reach.

500 Hour Oil Change Interval.

Increases uptime and production by
doubling the time between oil and filter
changes without requiring increased oil
sump capacity.

Hinged Hydraulic Oil Cooler. Can be
swung open without special tools.

Hinged Air Conditioning Condenser.

Swings open and coupled with the
swing out oil cooler allows the cooling
system to be cleaned quickly and easily.

Operator Station. Can be removed or
replaced in about 45 minutes without
having to disconnect hydraulic lines.
Quick disconnect couplings allow fast
disconnect of the air conditioning unit
without releasing refrigerant.

Engine Shutdown Switch. Is located
inside the left engine enclosure panel
for simple access and extended
switch life.

Battery Box. Is located in the right side
bumper for convenient access to the
maintenance-free batteries.

Tool Box. Is located in the left side
bumper for additional protection
against harsh work environments.

In-Cab Blade-Style Fuses. Are new
to the 815F Series 2 to improve fuse
serviceability and reliability.

12

Serviceability

If maintenance is simple and accessible, it gets done and that’s how it is on the 815F Series 2.

Machine Selection. Make detailed
comparisons of the machines under
consideration before purchase.
Cat dealers can estimate component
life, preventative maintenance cost
and the true cost of lost production.

Purchase. Look past initial price.
Consider the financing options available
as well as day-to-day operating costs.
Look at dealer services that can be
included in the cost of the machine
to yield lower equipment owning and
operating costs over the long run.

Customer Support Agreements.

Cat dealers offer a variety of product
support agreements and work with
customers to develop a plan that best
meets specific needs. These plans can
cover the entire machine, including
attachments, to help protect the
customer’s investment.

Product Support. You will find nearly
all parts at our dealer parts counter.
Cat dealers use a worldwide computer
network to find in-stock parts to
minimize downtime.

You can save money with genuine
Cat Reman parts and receive the same
warranty and reliability as new products
at cost savings of 40 to 70 percent.

Operation. Improving operating
techniques can boost your profits.
Your Cat dealer has training video
tapes, literature, application and
equipment training courses, along
with many other ideas to help you
increase productivity.

Maintenance Services. More equipment
buyers are planning for effective
maintenance before buying equipment.
Choose from your dealer’s wide range
of maintenance services at the time you
purchase your machine. Repair option
programs guarantee the cost of repairs
up front. Diagnostic programs such as
S·O·SSMand Coolant Sampling and
Technical Analysis help you avoid
unscheduled repairs.

Replacement. Repair, rebuild or replace?
Your Cat dealer can help you evaluate
the cost involved so you can make the
right choice.

13

Complete Customer Support

Caterpillar®dealers are the equipment experts to help you with all your equipment needs.

14

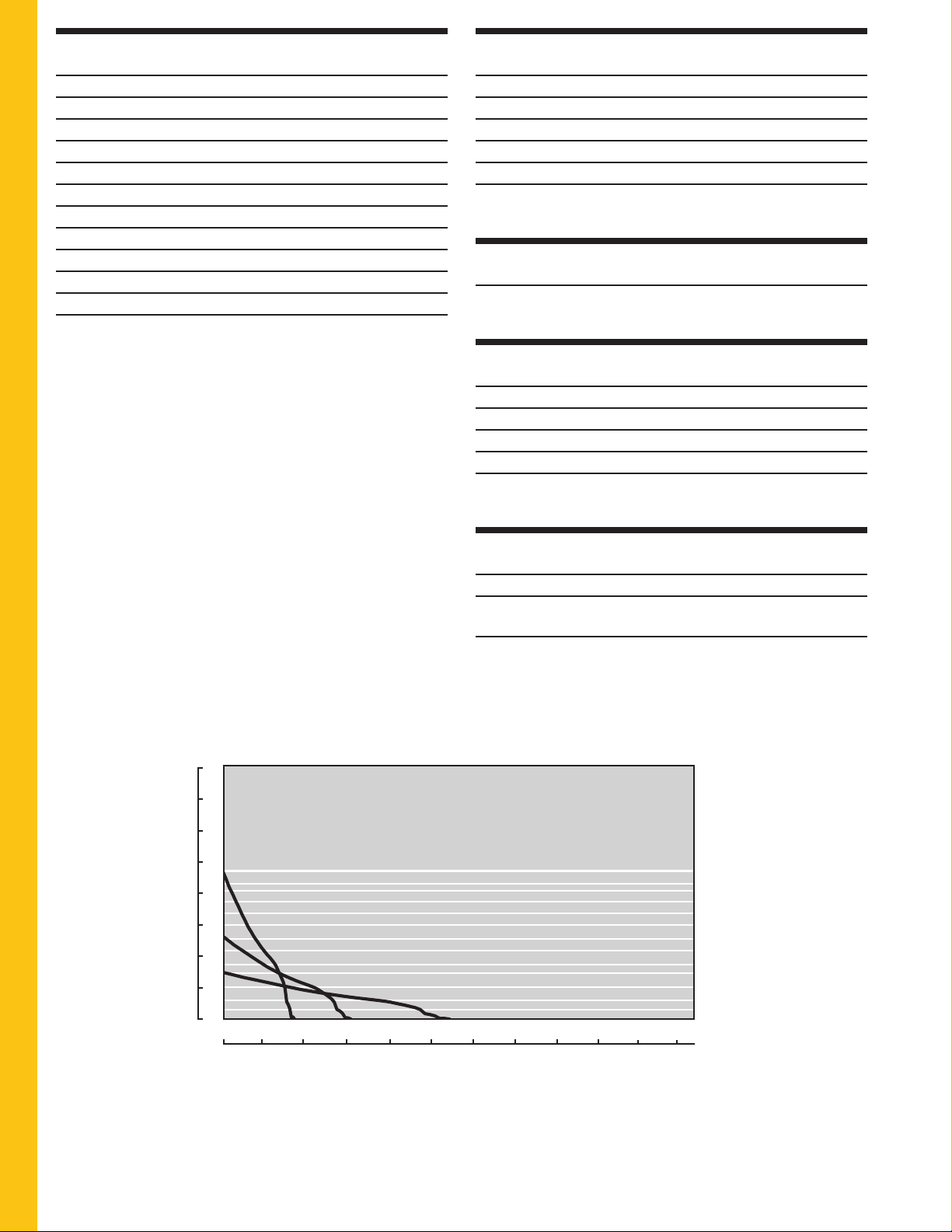

815F Series 2 Soil Compactor specifications

Transmission

Forward 1 6.2 km/h 3.9 mph
Forward 2 10.7 km/h 6.7 mph
Forward 3 17.6 km/h 11 mph
Reverse 1 7 km/h 4.4 mph
Reverse 2 12.1 km/h 7.6 mph
Reverse 3 19.5 km/h 12.2 mph

Steering

Steering Angle ±42°

Wheels

Drum Width 991 mm 3 ft 3 in
Drum Diameter 1029 mm 3 ft 5 in
Outside Diameter 1425 mm 4 ft 9 in
Tips per Wheel 60
Tips per Row 12

Hydraulic System

Relief Valve Setting 15 550 kPa 2,255 psi
Lift Cylinder Bore  Stroke 101.6 mm  627 mm

3.99 in  24.68 in

Tilt Cylinder Bore  Stroke 101.6 mm  167 mm
(option) 3.99 in  6.6 in

Engine

Engine Model Cat®C9 ACERT™
Gross Power 189 kW 253 hp
Net Power 173 kW 232 hp
ISO 3046-2 173 kW 232 hp
ISO 9249 175 kW 235 hp
SAE J1349 173 kW 232 hp
EEC 80/1269 175 kW 235 hp
Torque Rise 30%
Bore 112 mm 4.4 in
Stroke 149 mm 5.9 in
Displacement 8.8 L 537 in

3

Cylinders 6

• Engine meets U.S. Environmental Protection Agency Tier 3
emissions regulations and Stage IIIA EU Directive/97/68/EC.

• Engine power ratings apply at 2,100 rpm when tested under
the specific standard conditions for the specified standard.

• Power rating conditions based on standard air conditions
of 25° C (77° F) and 100 kPa (29.8 Hg) dry barometer, using
25° API gravity fuel having an LHV of 42 780 kJ/kg
(18,390 Btu/lb) when used at 29° C (85° F) [reference a fuel
density of 828.9 g/L (7.001 lb/gal)].

• Torque rise at 1,200 rpm.

lbs x

kg x

1000

1000

90

40

80

35

70

30

60

25

1

50

20

40

Rimpull (lbf)

15

30

10

20

5

10

0

0

0

60
55

50
45

40
35

30
25

26 28

20
15

10

5
2

mph

(Grade + Rolling)

Total Resistance (%)

2

3

24

2

4

68

10

14

12 16

18

22

20

04 8 12 16202428 32 36

Machine Ground Speed (mph)

40 44

km/h

15

815F Series 2 Soil Compactor specifications

Blades

Moldboard Length 3652 mm 11 ft 12 in
Height, Including Cutting Edge 860 mm 2 ft 10 in
Maximum Depth of Cut 215 mm 9 in
Maximum Lift Above Ground 814 mm 2 ft 9 in
Blade Tip Angle – Total 59.2º
Blade Tilt Angle – Right – 6.5º

Mechanical
Blade Tilt Angle – Left – 5.4º

Mechanical
Width Over End Bits 3761 mm 12 ft 4 in

Weights

Operating Weight 20 755 kg 45,765 lb

Service Refill Capacities

Fuel Tank 446 L 117.8 gal
Cooling System 55 L 14.5 gal
Crankcase 34 L 9 gal
Transmission 50 L 13.2 gal
Differentials and Final Drives – 65 L 17.1 gal

Front
Differentials and Final Drives – 65 L 17.1 gal

Rear
Hydraulic Tank 88 L 23.2 gal

Dimensions

Height to Bottom of Ladder 463 mm 1 ft 7 in
Width Over End Bits 3791 mm 12 ft 5 in
Width Over Drums 3243 mm 10 ft 8 in

Operating Specifications

Turning Radius Blade – Outside 6452 mm 21 ft 3 in
Turning Radius Blade – Inside 2967 mm 9 ft 9 in

Shipping Specifications

Weight 20 345 kg 44,853 lb
Height 3347 mm 11 ft
Width 3652 mm 11 ft 12 in
Depth 6845 mm 22 ft 6 in

Axles

Front Fixed
Rear Oscillating ±12°

Brakes

Standards Meet OSHA regulations

Cab

ROPS/FOPS Meet SAE and

ISO standards

• Cat cab and Rollover Protective Structure/Falling Object
Protective Structure (ROPS/FOPS) are standard in North
America, Europe and Japan.

• ROPS meets SAE J394, SAE 1040 APR88 and ISO 3471-1986
standards.

• FOPS meets SAE J231 JAN81 and ISO 3449-194 standards.

Sound Performance

Standards Meet required sound

standards

• The operator exposure Leq (equivalent sound pressure level)
measured according to the work cycle procedures specified
in ANSI/SAE J1166 OCT98 is 78 dB(A), for the cab offered by
Caterpillar, when properly installed, maintained and tested
with the doors and windows closed.

• Hearing protection may be needed when operating with
an open operator station and cab (when not properly
maintained or doors/windows open) for extended periods
or in noisy environment.

• The exterior sound pressure level for the standard machine
measured at a distance of 15 m (49.2 ft) according to the test
procedures specified in SAE J88 JUN86 mid-gear-moving
operation is 80 dB(A).

• The sound power level is 111 dB(A) measured according
to the dynamic test procedure and conditions specified
in ISO 6395:1988/Amd. 1:1996 for a standard machine
configuration.

16

815F Series 2 Soil Compactor specifications

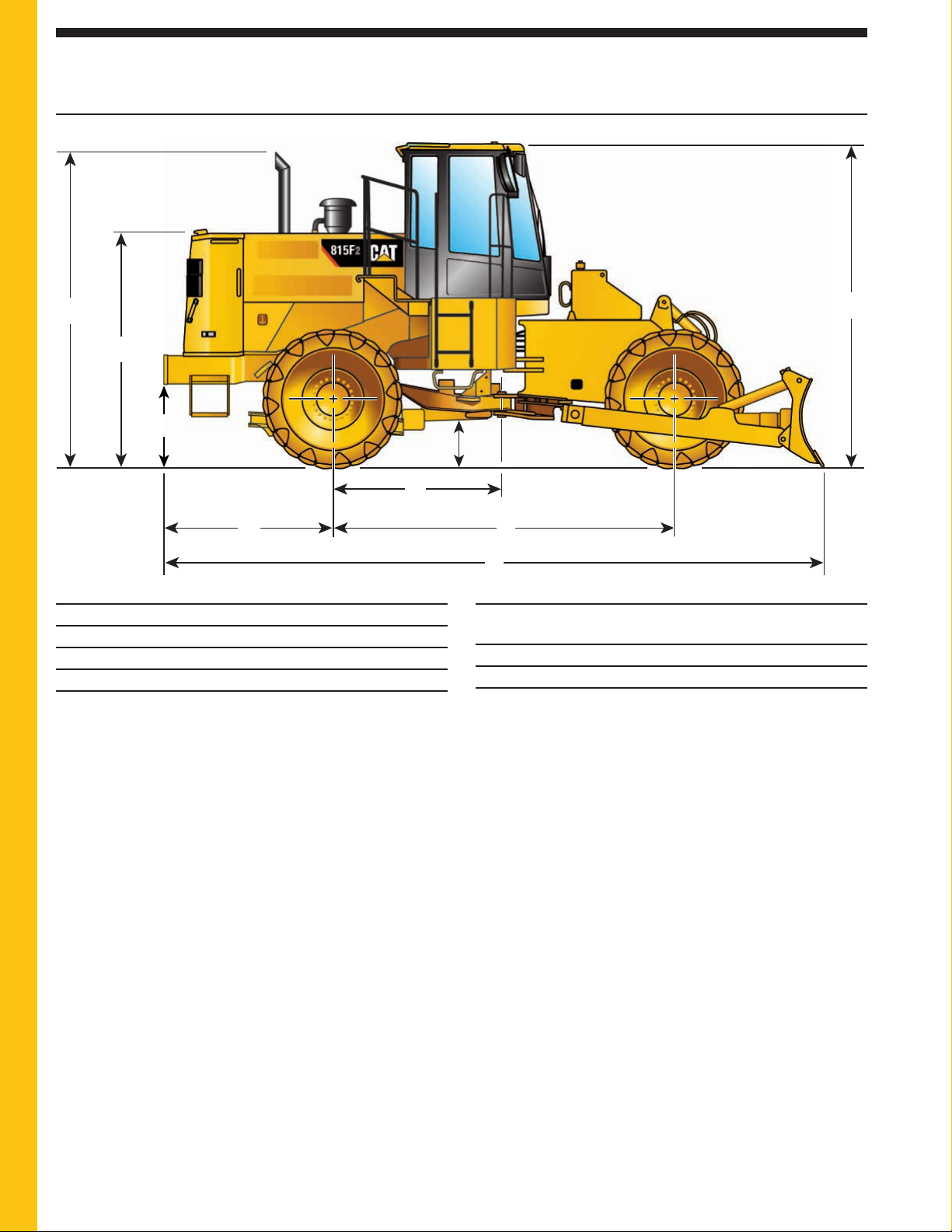

Dimensions

All dimensions are approximate.

1 Height to Top of Cab 3347 mm 10 ft 12 in
2 Height to Top of Exhaust Pipe 3225 mm 10 ft 7 in
3 Height to Top of Hood 2395 mm 7 ft 11 in
4 Height to Rear Bumper 770 mm 2 ft 7 in
5 Center Line of Rear Axle to 1871 mm 6 ft 2 in

Edge of Rear Bumper

6 Center Line of Rear Axle 1675 mm 5 ft 6 in

to Hitch

7 Wheelbase 3350 mm 10 ft 12 in
8 Length with Blade on Ground 6845 mm 22 ft 6 in
9 Ground Clearance 390 mm 1 ft 4 in

2

3

4

5

1

9

6

7

8

17

815F Series 2 Soil Compactor specifications

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

POWER TRAIN

Brakes, fully hydraulic, enclosed, wet-disc
Engine, Cat®C9 ACERT™
Fuel priming pump
Muffler
Radiator, Next Generation Modular (NGMR)
Starting aid (ether)
Torque converter
Transmission, planetary (3 forward/3 reverse speeds)

Electronic Clutch Pressure Control

OTHER STANDARD EQUIPMENT

Cat O-ring face seals/couplings
XT™ hoses
Cleaner bars
Guards

Crankcase
Power train
Parking brake
Radiator

Drive shaft
Hood, metallic with lockable service doors
Hitch, drawbar with pin
Hydraulic oil cooler
Oil sampling valves
Trunnion
Tamper wheels
Vandalism protection caplocks

BULLDOZERS

Bulldozer blade, hydraulics and linkage are not included

in standard equipment

ANTIFREEZE

Premixed 50 percent concentration of Extended Life

Coolant with freeze protection to –34° C (–29° F)

ELECTRICAL

Alarm, backup
Alternator (80 amp)
Batteries, maintenance-free (2)
Diagnostic connectors
Lighting system, halogen (front, rear and cab-mounted)
Starting and charging system (24-volt)
Starting receptacle for emergency starts

OPERATOR ENVIRONMENT

Blade control system locks
Cab, pressurized and sound suppressed (ROPS/FOPS)

includes antenna, speakers and converter (12-volt,

10-15 amp)
Coat hook
Cigar lighter and ashtray
Caterpillar Monitoring System

Instrumentation, Gauges

Engine coolant temperature

Fuel level

Hydraulic oil temperature

Speedometer/Tachometer

Transmission oil temperature

Instrumentation, Warning Indicators

Air inlet temperature

Brake oil pressure

Electrical system, low voltage

Engine oil pressure

Engine over-speed

Fuel filter status

Parking brake status

Steering oil pressure

Transmission filter status
Dome light (cab)
Fuses, blade style (in-cab)
Heater and defroster
Horn, electric (steering wheel mounted)
Hydraulic steering
Lunchbox and beverage holders
Mirrors, rearview (interior mounted)
Seat, mechanical suspension
Seat belt, retractable, 76 mm (3 in) wide
Steering column, adjustable
Wet-arm wipers/washers (front and rear)

Intermittent front wiper

18

815F Series 2 Soil Compactor specifications

Optional Equipment

(with approximate change in operating weight)
Optional equipment may vary. Consult your Caterpillar dealer for specifics.

kg lb

Air conditioner 36 80

Air suspension seat 32 71

Attachment cleaner bar/tips 141 311

Bulldozer arrangement 1393 3,072

includes blade, hydraulic cylinder,
push arms, mounting gp and lines

Canopy, ROPS –176 –389

Differential, No-SPIN rear 1.8 4

Extended Life Coolant –50° C (–58° F) 0 0

External mirrors 28 62

Fast fuel adapter 2.7 6

Heater, engine coolant 1.8 4

kg lb

HID lights 9.8 21.6

High speed oil change 3.4 7.5

Hydraulic tilt cylinder 111 245

Internal (panoramic) mirror 1.9 11

Pre-cleaner group – turbine 7 15.4

Product Link 4.4 9.7

Radios

Radio CD AM/FM 1.6 3.5

Radio CD AM/FM (SIRIUS Satellite) 5.8 12.8

Radio CD AM/FM (XM Satellite) 5.8 12.8

Rear vision camera 7.9 17.4

Visor, cab 2.3 5

19

Notes

815F Series 2 Soil Compactor specifications

For more complete information on Cat products, dealer services,

and industry solutions, visit us on the web at www.cat.com

© 2007 Caterpillar

All Rights Reserved

Printed in U.S.A.

Materials and specifications are subject to change without notice.

Featured machines in photos may include additional equipment.

See your Caterpillar dealer for available options.

CAT, CATERPILLAR, their respective logos, ACERT, “Caterpillar Yellow” and the

POWER EDGE trade dress, as well as corporate and product identity used herein,

are trademarks of Caterpillar and may not be used without permission.

AEHQ5727-01 (7-07)

Replaces AEHQ5727

815F Series 2 Soil Compactor

R
