Casio XJ-SC215, XJ-S47, XJ-S57, XJ-S52, XJ-S42 User Manual

...
DATA PROJECTOR
E
XJ-SC210/XJ-SC215 XJ-S32/XJ-S37 XJ-S42/XJ-S47 XJ-S52/XJ-S57
* USB Port Equipped Models
User’s Guide
z Be sure to read the precautions in the
separate User’s Guide (Basic Operation). For details about setting up the projector and lamp replacement, see the User’s Guide (Basic Operation).
z Be sure to keep all user documentation handy
for future reference.
* * *
*
• DLP is a registered trademark of Texas Instruments of the United States.
• Microsoft, Windows, and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
• Other company and product names may be registered product names or trademarks of their respective owners.
• The contents of this User’s Guide are subject to change without notice.
• Copying of this manual, either in part or its entirety is forbidden. You are allowed to use this manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD.
• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising out of the use of this product or this manual.
• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data due to malfunction or maintenance of this product, or any other reason.
• The sample screens shown in this manual are for illustrative purposes only, and may not be exactly the same as the screens actually produced by the product.
2

Contents

About this manual... .......................................................................................... 4
USB Port Equipped Model Users................................................................................. 4
Operation During Projection ..........................................5
Image Operations During Projection ................................................................. 5
Adjusting Image Brightness ......................................................................................... 5
Selecting the Color Mode............................................................................................. 6
Zooming an Image .......................................................................................................6
Momentarily Cutting Off the Input Source Image ......................................................... 7
Freezing an Image .......................................................................................................7
Displaying a Pointer in the Projected Image ................................................................ 8
Changing the aspect ratio of the projected image ....................................................... 9
Eco Mode ........................................................................................................ 10
Using the [FUNC] Key ..................................................................................... 10
Configuring Advanced Projector Settings.................. 11
Basic Setup Menu Operations ........................................................................ 11
Displaying the Setup Menu ........................................................................................ 11
Configuring Setup Menu Settings .............................................................................. 11
Basic Setup Menu Example....................................................................................... 12
Password Protecting the Projector.................................................................. 14
Inputting a Password ................................................................................................. 14
Using the Password Feature...................................................................................... 14
Entering the Password when Turning On the Projector .............................................16

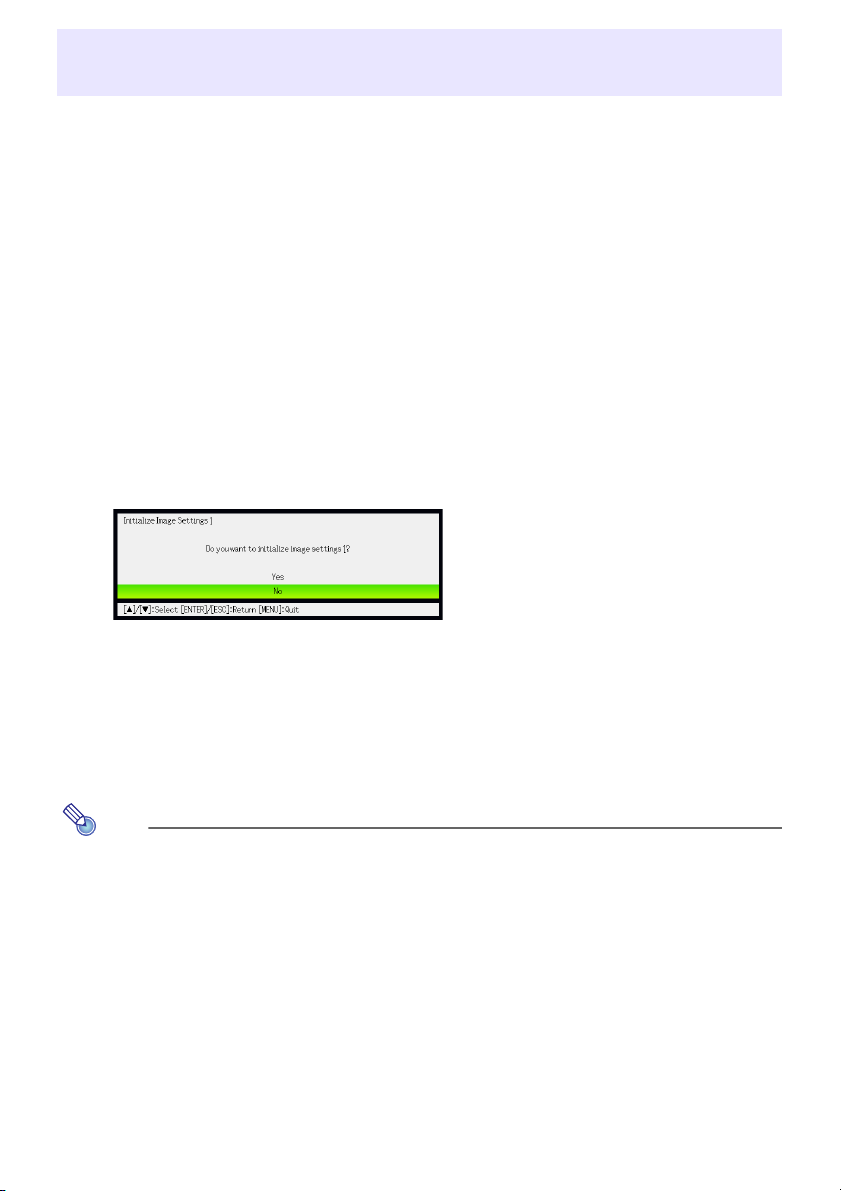

Restoring Projector Settings to Their Initial Factory Defaults.......................... 17
Setup Menu Contents ..................................................................................... 18
Image Adjustment 1 Main Menu ................................................................................ 19
Image Adjustment 2 Main Menu ................................................................................ 20
Volume Adjustment Main Menu ................................................................................. 21
Screen Settings Main Menu.......................................................................................22
Input Settings Main Menu .......................................................................................... 24
Option Settings 1 Main Menu..................................................................................... 25
Option Settings 2 Main Menu..................................................................................... 26
USB Settings Main Menu Items (USB Port Equipped Models Only).......................... 28
Operational Info Main Menu....................................................................................... 28
Restore All Defaults Main Menu.................................................................................29
3
Appendix........................................................................ 30
Remote Controller Signal Range .................................................................... 30
Projection Distance and Screen Size.............................................................. 31
Aspect Ratio Setting and Projection Image during RGB Input........................ 32
Supported Signals ........................................................................................... 33

About this manual...

z This manual assumes that you are already familiar with the contents of the separate
“User’s Guide (Basic Operation)”.
z All of the operations in this manual are explained using the remote controller that comes
with the projector. The following key operations can also be performed on the projector instead of the remote controller: [MENU], [S], [T], [X], [W], [ENTER], [ESC], [ ], [INPUT], [AUTO], [ZOOM +], [ZOOM –], [FOCUS S], [FOCUS T].
To perform this remote controller operation:
[ENTER] Button in the center of the cursor keys
[ZOOM +], [ZOOM –] [ZOOM] button in combination with the [X] and [W] (or [S] and
[FOCUS S], [FOCUS T]

USB Port Equipped Model Users

This manual does not include information about using the XJ-SC215/XJ-S37/XJ-S47/XJ-S57 model projector while a USB device is connected to its USB port. For details about connecting USB devices to the projector and procedures you need to perform to project images from a USB device, see “USB Function Guide” on the bundled CD-ROM.
Use this projector button:
[T]) buttons
[FOCUS] button in combination with the [S] and [T] (or [X] and [W]) buttons
4

Operation During Projection

This section explains the various types of operations you can perform while the projector is projecting an image.

Image Operations During Projection

You can perform the following operations while projecting an image.
z Image brightness adjustment z Color mode selection z Image zooming z Momentary cut off of the input source image and projection of a black or blue screen, or
a logo
z Image freeze z Pointer display in the projected image z Aspect ratio switching

Adjusting Image Brightness

Note
(for USB port equipped model users)
Use the setup menu (page 11) to adjust image brightness when you have an external device connected to the projector’s USB port.
To adjust image brightness
Press the [BRIGHT] key.
1
z This displays the brightness adjustment window.
Use the [W] and [X] keys to adjust image brightness.
2
To hide the window, press the [ESC] key.
3
5

Selecting the Color Mode

You can select from among five different color mode settings to optimize the projected image in accordance with image contents and projection conditions.
To change the color mode
Press the [COLOR MODE] key.
1
z This displays the color mode selection window. The currently selected color mode is the
one whose button is selected (filled in).
Use the [T] and [S] keys to move the highlighting to the color mode you want
2
to select, and then press the [ENTER] key.
z This will select the button next to the highlighted color mode name. z For details on what each color mode does, see “Color Mode” under “Image Adjustment 1
Main Menu” on page 19.
To hide the window, press the [ESC] key.
3

Zooming an Image

Press the [D-ZOOM +] key.
1
z This will enlarge the center of the projected image one step.
To zoom in on the center of the projected image more, press the [D-ZOOM +]
2
key again. To zoom out, press the [D-ZOOM –] key.
z Each press of [D-ZOOM +] zooms in (increases the zoom factor), while [D-ZOOM –]
zooms out. Holding down either key continuously scrolls the zoom factor.
While an image is zoomed, use [S], [T], [W], and [X] to scroll the view to
3
other parts of the image.
To exit the zoom operation, press the [ESC] key.
4
6

Momentarily Cutting Off the Input Source Image

Press the [BLANK] key.
1
z This temporarily cuts off the image from the input source and projects a black screen in
its place.
To resume projection of the image from the input source, press the [BLANK] key
2
(or [ESC] key).
Note
You can specify projection of a black screen or blue screen, or a logo. For details, see “Blank Screen” under “Screen Settings Main Menu” on page 23.

Freezing an Image

Pressing the [FREEZE] key freezes the projected image.
To freeze the projected image
While an image is being projected from an input source, press the [FREEZE]
1
key.
z This will capture the image that is on the screen at the moment you press [FREEZE]
and stores it in projector memory. That image remains projected on the screen.
To restore projection of the image from an input source, press the [ESC] key.
2
7

Displaying a Pointer in the Projected Image

You can select from among different pointer styles, including various arrow styles, for display in the projected image. Pointers can be used during a presentation to indicate or highlight a specific part of the image.
Note
Depending on the pointer style you are using, the pointer may not display properly when you are using keystone correction. If this happens, use the [KEYSTONE +] and [KEYSTONE –] keys to change the keystone correction value to zero.
To display a pointer in the image
Press the [POINTER] key.
1
z This will cause a pointer to appear in the image. z You also can use the setup menu to specify the pointer type that appears first when you
press the [POINTER] key. For details, see “Pointer” under “Option Settings 2 Main Menu” on page 26.
Use the cursor keys to move the pointer to the location you want.
2
z Holding down a cursor key moves the cursor at high speed.
To modify the pointer as described below, press the [STYLE] key.
3
For this pointer type: Pressing [STYLE] will change it like this:
J J
J
J J
J
J J
J
J J
J
Toggle between flashing and not flashing
8
To select the pointer type
Press the [POINTER] key to display the pointer.
1
Keep pressing the [POINTER] key until the pointer you want is displayed.
2
z Each press of the [POINTER] key cycles through the available pointer types.
To clear the pointer from the image
Press the [ESC] key.

Changing the aspect ratio of the projected image

Press the [ASPECT] key to change the aspect ratio of the projected image. How the aspect ratio changes depends on the current input source.
Input Source Pressing [ASPECT] will do this:
VIDEO or component Toggles the aspect ratio of the image between 4:3 and 16:9. When the
RGB Toggles the aspect ratio of the image between 4:3 and “Maintain”.
Note
z For details about how the aspect ratio setting affects the projected image when the
input source is RGB, see “Aspect Ratio Setting and Projection Image during RGB Input” (page 32).
z You also can change the aspect ratio setting using the setup menu. For details, see
“Aspect Ratio” under “Screen Settings Main Menu” on page 22.
input source is a component signal with an aspect ratio of 16:9, the projection aspect ratio also will become 16:9 automatically and pressing the [ASPECT] key will not change it.
Selecting 4:3 will project with an aspect ratio of 4:3, regardless of the input source aspect ratio. Selecting “Maintain” will project while maintaining the aspect ratio of the input source.
Important!
Note that enlarging or reducing the size of an image using the [ASPECT] key for commercial purposes or public presentation may infringe on the legally protected copyright of the copyright holder of the original material.
9

Eco Mode

Turning on the Eco Mode reduces lamp brightness to save power. The projector’s cooling fan also operates at a slower speed while the Eco Mode is turned on, which results in quieter operation. Turn on the Eco Mode when your priority is quieter operation. Turn off the Eco Mode when your priority is maximum brightness.
To turn the Eco Mode on or off
Press [ECO] to toggle the Eco Mode on and off.
Note
(for USB port equipped model users)
Use the setup menu (page 11) to select the lamp mode when you have an external device connected to the projector’s USB port.

Using the [FUNC] Key

Pressing the [FUNC] key displays the menu shown below.
You can use this menu to perform the operations described below.
z Adjust image brightness
Highlight “Brightness” and then press the [ENTER] key.
• This performs the same operation as pressing the [BRIGHT] key ( key) described on page 5.
z Turn the Eco Mode on or off
Highlight “Eco Mode” and then press the [ENTER] key.
• This performs the same operation as pressing the [ECO] key ( page 10.
z Select the aspect ratio of the projected image
Highlight “Aspect Ratio” and then press the [ENTER] key.
• This performs the same operation as pressing the [ASPECT] key ( page 9.
key) described on
U
key) described on
Note
(for USB port equipped model users)
When you have an external device connected to the projector’s USB port, use the [FUNC], [ ], [ “USB Function Guide” on the bundled CD-ROM.
], and [] keys to control the connected device. For details, see the
U
10

Configuring Advanced Projector Settings

Your projector has a setup menu that you can use to configure advanced settings.

Basic Setup Menu Operations

Displaying the Setup Menu

Pressing the [MENU] key displays the menu shown below in the center of the projection screen.
Main menu
The main menu includes nine (10 on the USB port equipped models) main menu items. The currently selected main menu item is the one that is highlighted.
Sub-menu
The sub-menu shows each individual setting under each main menu item, and its current setting.
Guidance text
Guidance text provides a brief description of the main key operations available for the operation you are currently performing.
To exit the setup menu
Press the [MENU] key.

Configuring Setup Menu Settings

Press the [MENU] key to display the setup menu.
1
Use the [T] and [S] keys to select the main menu item you want by
2
highlighting it.
Press the [ENTER] key.
3
Use the [T] and [S] keys to select the sub-menu item you want by highlighting
4
it.
Perform the required operation on the selected sub-menu item screen.
5
z The guidance text explains the operations you need to perform to configure each setting.
To return to the main menu from the sub-menu, press the [ESC] key.
6
To exit the setup menu, press the [MENU] key.
7
11

Basic Setup Menu Example

The procedure below shows how to configure the following three settings:
• Image Adjustment 1 J Contrast
• Image Adjustment 1 J Color Mode
• Option Settings 1 J Eco Mode
Note
z Certain settings on the setup menu cannot be changed while there is no input signal
to the projector. Because of this, you should configure setup menu settings after selecting an input source and starting projection.
z This example covers basic steps only. For more detailed information, see “Setup Menu
Contents” on page 18.
To configure the “Image Adjustment 1 J Contrast” setting
Press the [MENU] key to display the setup menu.
1
“Image Adjustment 1” is initially selected on the main menu, so simply press
2
the [ENTER] key.
Press the [T] key once to select “Contrast”.
3
Use the [W] (lighter) and [X] (darker) keys to adjust contrast.
4
12
To configure the “Image Adjustment 1 J Color Mode” setting
Press the [T] key once to select “Color Mode”.
5
Press the [ENTER] key.
6
z This displays the color mode menu.
Use the [T] and [S] keys to select the color mode you want, and then press
7
the [ENTER] key.
After selecting the color mode you want, press the [ESC] key.
8
To configure the “Option Settings 1 J Eco Mode” setting
Press the [ESC] key.
9
Press the [T] key five times to select “Option Settings 1”.
10
Press the [ENTER] key.
11
Press the [T] key two times to select “Eco Mode”.
12
Use the [W] and [X] keys to select “On” or “Off”.
13
After you are finished, press the [MENU] key to exit the setup menu.
14
13

Password Protecting the Projector

The password feature lets you keep unauthorized individuals from using the projector. You can specify whether password input is required whenever you turn on the projector, and you can specify and change the password as required. Use the setup menu “Option Settings 1 J Power On Password” setting to configure power on password settings.

Inputting a Password

The password of your projector is not really a “word” made up of letters, but rather a sequence of remote controller key inputs. The following is the 8-key sequence that represents the initial factory default password.
[INPUT][AUTO][BLANK][FREEZE][S][T][W][X]

Using the Password Feature

Note the following precautions whenever you use the password feature.
• The password feature protects against unauthorized use of the projector. Note that it is not an anti-theft measure.
• You will need to enter the initial factory default password the first time you use the projector after turning on the password feature. Change the initial factory default password to a different one of your choice as soon as possible after turning on the password feature.
• Remember that password operations are always performed using the remote controller, so you should take care not to lose or misplace the remote controller.
• Also note that you will not be able to input the password if the remote controller battery is dead. Replace the remote control battery as soon as possible after it starts to go low.
If you forget your password...
You will not be able to use the projector if you forget the password for some reason. If you forget the password, you will need to bring the following two items to your CASIO distributor to have the password cleared. Note that you will be charged to have the password cleared.
1. Personal identification (original or copy of you driver’s license, employee I.D., etc.)
2. Projector unit
Note that your CASIO distributor will not be able to clear the password of your projector unless you bring both of the items listed above. Also, keep the projector’s warranty in a safe place.
Important!
Having your password cleared using the procedure described above will return all of the settings of your projector, except for the lamp time, to their initial factory defaults.
14
Keep a written record of your password!
You will not be able to use the projector if you forget its password. We strongly suggest that you keep a written or other type of record of the password so you can look it up when necessary.
To change the password
Press the [MENU] key to display the setup menu.
1
Use the [T] key to select “Option Settings 1”, and then press the [ENTER] key.
2
Use the [T] key to select “Power On Password”, and then press the [ENTER]
3
key.
z This will display a dialog box prompting you to enter the current password.
Enter the current password.
4
z If the projector is still protected by the factory default password, perform the key
operation shown below to enter it.
[INPUT][AUTO][BLANK][FREEZE][S][T][W][X]
After entering the current password, press the [ENTER] key.
5
z This displays the Power On Password setting screen.
Use the [T] key to select “Change Password”, and then press the [ENTER] key.
6
z This will display a dialog box prompting you to enter the new password.
Enter a key sequence up to eight key operations long.
7
z You can use any of the following keys as part of your password key sequence.
[INPUT], [AUTO], [BLANK], [FREEZE], [VOLUME], [COLOR MODE], [D-ZOOM +], [D-ZOOM –], [KEYSTONE +], [KEYSTONE –], [MENU], [POINTER], [ ], [
[T], [W], [X]
After entering the new password, press the [ENTER] key.
8
z This will display a dialog box prompting you to enter the same password again.
Re-enter the same password key sequence you entered in step 7 and then press
9
[ENTER].
z The message “Your new password has been registered.” indicates that the password has
been changed. Press the [ESC] key.
z If the password you entered in this step is different from the one you entered in step 7,
the message “The password you input is wrong.” appears. Press the [ESC] key to return to step 7.
, [FUNC]
15
], [], [S],
U
To turn password protection on and off
Display the Power On Password setting screen by performing steps 1 through 5
1
of the procedure under “To change the password” on page 15.
z At this time, make sure that “Power On Password” is selected on the Power On
Password setting screen.
Use the [W] and [X] keys to select “On” or “Off”.
2
z Changing the power on password setting from “On” to “Off” causes the confirmation
dialog box shown below to appear.
Press the [ENTER] key to confirm that you want to turn on power on password protection, or [ESC] to exit the dialog box without doing anything.
After you are finished, press the [MENU] key to exit the setup menu.
3

Entering the Password when Turning On the Projector

When you turn on the projector while password protection is turned on will cause a password input dialog box to appear on the projection screen. All projector operations will be accessible to you after you input the correct password and press the [ENTER] key.
Note
You can perform the projection size adjustment operation ([ZOOM +] / [ZOOM –] keys), focus operation ([FOCUS S] / [FOCUS T] keys), and power off operation ([ ] key) while the password input dialog box is on the projection screen.
16

Restoring Projector Settings to Their Initial Factory Defaults

You can use the procedures in this section to restore all of the settings on a particular main menu or all of the settings on the setup menu to their initial factory defaults.
To restore all settings on a particular main menu to their initial factory defaults
Press the [MENU] key to display the setup menu.
1
Use the [T] and [S] keys to select the main menu whose settings you want to
2
restore to their initial factory defaults.
z You can select Image Adjustment 1, Image Adjustment 2, Volume Adjustment, Screen
Settings, Input Settings, Option Settings 1, or Option Settings 2.
Press the [ENTER] key.
3
Use the [T] key to select “Restore Menu Defaults”.
4
Press the [ENTER] key.
5
z This will display a confirmation screen like the screen shown below.
Use the [S] key to select “Yes”.
6
To restore the settings of the main menu to their initial defaults, press the
7
[ENTER] key.
z To exit the operation without doing anything, press [ESC] instead of [ENTER].
After you are finished, press the [MENU] key to exit the setup menu.
8
Note
z The language setting and the password are not returned to their initial factory defaults
if you select Option Settings 1 in step 2.
z For details about how the above procedure initializes settings, see the explanations of
the settings under “Setup Menu Contents” on page 18.
17
To restore all settings on the setup menu to their initial factory defaults
Press the [MENU] key to display the setup menu.
1
Use the [T] key to select “Restore All Defaults”, and then press the [ENTER]
2
key.
Use the [T] key to select “Restore All Defaults” sub-menu, and then press the
3
[ENTER] key.
z This displays a confirmation message asking if you want to initialize all settings.
Use the [S] key to select “Yes”.
4
To restore all settings on the setup menu to their initial defaults, press the
5
[ENTER] key.
z This will restore all of the settings to their initial factory defaults, except for the
Language, Lamp Time, and password settings.
z To exit the operation without doing anything, press [ESC] instead of [ENTER].
After you are finished, press the [MENU] key to exit the setup menu.
6

Setup Menu Contents

This section contains tables that provide detailed explanations of all of the items included on the setup menu. The following describes the type of information that appears in each of the columns of the tables.
Setting Name
This column shows the names of the settings as they appear on the sub-menu.
Input
This column shows the input source for which each setting is supported. Input source names are abbreviated as R (RGB input), C (component video input), V (video input), and U (USB input, USB port equipped models only). The letter N indicates that the setting can be configured while there is no input signal.
Setting Unit
The setting unit indicates how a setting is stored. “Source Specific” in this column indicates that separate settings can be stored for each individual input source. For example, you could store an “Image Adjustment 1 J Brightness”
setting of –1 for RGB input and a setting of +1 for VIDEO input. “Single” in this column indicates that a single setting is stored and applied, regardless of the
input source.
Description
This column provides details about the setting item and how to select it. The initial default setting is indicated by an asterisk (*).
18

Image Adjustment 1 Main Menu

Setting Name Input
Setting
Unit
Description
Brightness RCVU Source
Specific
Contrast RCVU Source
Specific
Sharpness RCV Source
Specific
Saturation RCV Source
Specific
Tint RCV Source
Specific
Color Mode RCVU Source
Specific
Use this sub-menu to adjust the brightness of the projected image. A larger value produces a brighter image.
Use this sub-menu to adjust the contrast of the projected image. A larger value produces a stronger contrast.
Use this sub-menu to adjust the sharpness of the outlines in the projected image. A larger value makes the image sharper, while a smaller value makes it softer.
Use this sub-menu to adjust the color saturation of the projected image. A larger value increases color saturation.
Use this sub-menu to adjust the tint of the projected image. A larger value makes the overall image more bluish, while a smaller value makes the overall image more reddish. This setting is supported only when the signal is NTSC or NTSC4.43.
You can select from among five different color mode settings to optimize the projected image in accordance with image contents and projection conditions.
Presentation:
Use this setting for standard presentations in a well-lit area.
Standard:
Use this setting when you want to highlight the colors of your presentation.
Graphics:
Use this setting when you want photographs and graphics to appear natural.
Theater:
Use this setting to bring out the dark portions of your images.
Blackboard:
Use this setting for easy viewing when projecting onto a blackboard.
Color Balance RCVU Source
Specific
This sub-menu lets you adjust the color balance of the projected image.
Preset:
You can select from among three preset color balance settings: Warm, Normal,* Cold.
Color:
You can adjust the intensity of red, green, and blue within the range of –50 to +50. The intensity of a color increases along with the setting value. Color settings can be adjusted individually only when “Normal” is selected as the “Preset” setting.
19
Setting Name Input
Setting
Unit
Description
Noise Filter RCV Source
Restore Menu Defaults
RCVU Source
Specific
Specific
This setting is valid when VIDEO is selected as the input source.
Normal*:
Select this setting when projecting a movie.
High:
Select this setting when projecting still images. In particular, this setting should be used when projecting still images from a digital camera connected to the projector’s VIDEO terminal.
Use this sub-menu to return all of the sub-menu items on the Image Adjustment 1 main menu to their initial default settings. z Restoring menu defaults when there is no input signal
will restore defaults for the currently selected input source.

Image Adjustment 2 Main Menu

Setting Name Input
Ver ti cal Positio n
Horizontal Positio n
Frequency R Signal
RCV Signal
RCV Signal
Setting
Unit
Specific
Specific
Specific
Use this sub-menu to adjust the vertical position of the input source image within the projection area.
Use this sub-menu to adjust the horizontal position of the input source image within the projection area.
When vertical bands appear in the projected image while RGB is selected as the input source, it means that the frequency setting is not correct. When this happens, use this setting to adjust the frequency manually.
Description
Phase R Signal
Specific
Important!
If, for some reason, your manual frequency settings cause the image input from the computer to disappear from the projection, you can press the [AUTO] key to perform an auto adjust operation, which should cause the image to appear.
When there is flickering in the projected image while RGB is selected as the input source, it means that the phase setting is not correct. When this happens, use this setting to adjust the phase manually.
20
Setting Name Input
Setting
Unit
Description
Restore Menu Defaults
RCV Source
Specific
Use this sub-menu to return all of the sub-menu items on the Image Adjustment 2 main menu to their initial default settings. z Restoring menu defaults when there is no input signal
will restore defaults for the currently selected input source.
z “Image Adjustment 2” main menu “Vertical Position”,
“Horizontal Position”, “Frequency”, and “Phase” defaults can be restored for the current signal type (XGA/60Hz, SXGA/60Hz,etc.) only.
About the “Signal Specific” Setting Unit
For the items that have “Signal Specific” in the “Setting Unit” column of the above table, the setting is saved for the specific type of signal (XGA/60Hz, SXGA/60Hz, etc.) that is being input when the setting is performed, and not for a specific input source.

Volume Adjustment Main Menu

Setting Name Input
Volume RCVUN Source
Restore Menu Defaults
RCVUN Source
Setting
Unit
Specific
Specific
Description
Use this sub-menu to adjust the volume level of the projector’s speaker. z Changing this setting when there is no input signal
changes the volume setting of the currently selected signal source.
Use this sub-menu to return Volume to its initial default setting. z Restoring menu defaults when there is no input signal
will restore defaults for the currently selected input source.
21

Screen Settings Main Menu

Setting Name Input
Setting
Unit
Description
Keystone Correction
Aspect Ratio RCV Source
RCVUN Single Use this sub-menu to correct vertical keystoning of the
Specific
projected image.
Use this sub-menu to select an aspect ratio setting for the projected image.
4:3*:
Projects with an aspect ratio of 4:3. This is the initial default setting when the input source is either video or component video.
16:9 (VIDEO or component input source only):
Projects with an aspect ratio of 16:9 (movie, Hi-Vision, etc.) Selecting this option when projecting a video movie from an input source that has been squeezed from 16:9 to 4:3 will project the image with a normal aspect ratio.
Maintain* (RGB input source only):
Projects while maintaining the aspect ratio of the input source. This is the initial default setting when the input source is RGB.
Note
z When the input source is a component signal
with an aspect ratio of 16:9, the aspect ratio is fixed at 16:9 and the setting cannot be changed.
z For details about how the aspect ratio setting
affects the projected image when the input source is RGB, see “Aspect Ratio Setting and Projection Image during RGB Input” (page 32).
Important!
Note that enlarging or reducing the size of an image for commercial purposes or public presentation may infringe on the legally protected copyright of the copyright holder of the original material.
Projection Mode
Ceiling Mount RCVUN Single Use this sub-menu to configure the projector for use in
RCVUN Single Use this sub-menu to specify whether projection will be
from the front of the screen or the back of the screen.
Front*:
Select this option to project from the front of the screen.
Rear:
Select this option to project from the back of the screen. This setting flips the front projected image horizontally.
an installation in which it is positioned upside down.
On:
Flips the projected image horizontally and vertically.
Off*:
Projects a normal image.
22
Setting Name Input
Setting
Unit
Description
Startup Screen RCVUN Single Use this sub-menu to specify whether or not a startup
No Signal Screen
Blank Screen RCVUN Single Use this sub-menu to specify what should be projected
Restore Menu Defaults
RCVUN Single Use this sub-menu to specify what should be projected
RCVUN Source
Specific
screen should be projected whenever the projector is turned on.
Logo:
Select this option to project the projector’s built-in logo screen at startup.
None*:
Select this option when you do not want to project a startup screen.
when there is no input signal to the projector.
Blue*:
Select this option to project a blue screen.
Black:
Select this option to project a black screen.
Logo:
Select this option to project the projector’s built-in logo screen.
after the [BLANK] key is pressed.
Blue:
Select this option to project a blue screen.
Black*:
Select this option to project a black screen.
Logo:
Select this option to project the projector’s built-in logo screen.
Use this sub-menu to return all of the sub-menu items on the Screen Settings main menu to their initial default settings. z Restoring menu defaults when there is no input signal
will restore defaults for the currently selected input source.
z Note that the “Keystone Correction”, “Projection Mode”,
“Startup Screen”, “No Signal Screen”, and “Blank Screen” settings are always returned to their initial defaults, regardless of the currently selected input source.
23

Input Settings Main Menu

Setting Name Input
Setting
Unit
Description
COMPUTER Te r mi n a l
Video Signal RCVUN Single Use this sub-menu to specify manually the type of signal
RCUVN Single Use this sub-menu to specify manually the type of signal
being input from the projector’s COMPUTER terminal.
Auto*:
Automatically detects the signal being input from the COMPUTER terminal and configures the appropriate input protocol.
RGB:
Select this option when a computer is connected to the COMPUTER terminal. For details about connecting a computer, see “Connecting a Computer to the Projector” in the “User’s Guide (Basic Operation)”.
Component:
Select this setting when the projector’s COMPUTER terminal is connected to the component video output terminal of a video device using an optionally available YK-3 component video cable. For information about connection, see “Connecting to a Component Video Output Device” in the “User’s Guide (Basic Operation)”.
being input from the projector’s AV terminal.
Auto*:
Select this setting to have the projector switch the video signal system automatically in accordance with the input signal from the video device that is connected to the AV terminal.
NTS C / N TSC 4 .4 3 / PA L / PA L -M / PAL- N / PA L60 / SECAM:
Each setting selects the applicable video system. Use these settings when you want to specify only one specific video signal for the AV terminal.
Signal Name Indicator
Restore Menu Defaults
RCVUN Single Use this sub-menu to specify whether or not the name of
RCVUN Source
Specific
the currently selected signal source should be displayed in the projected image.
On*:
Select this option to turn on display of the name of the currently selected signal source in the projected image.
Off:
Select this option to turn off display of the signal source name.
Use this sub-menu to return all of the sub-menu items on the Input Settings main menu to their initial default settings. z Restoring menu defaults when there is no input signal
will restore defaults for the currently selected input source.
z Note that the “Signal Name Indicator” setting is always
returned to its initial default, regardless of the currently selected input source.
24

Option Settings 1 Main Menu

Setting Name Input
Setting
Unit
Description
Auto Keystone Correction
Auto Adjust RCVUN Single Use this sub-menu to select whether the projector should
Eco Mode RCVUN Single Use this sub-menu to turn the Eco Mode on or off.
Auto Power Off
RCVUN Single Use this sub-menu to turn auto keystone correction on or
off.
On*:
Select this option to turn on auto keystone correction.
Off:
Select this option to turn off auto keystone correction.
detect the RGB input signal type (resolution, frequency) and adjust the projection image accordingly (auto adjust).
1*:
Select this option to turn on auto adjust.
2:
Select this option to turn on auto adjust when a 1360 × 768 or 1400 × 1050 signal is not projected correctly.
Off:
Select this option to turn off auto adjust.
On:
Select this option to reduce lamp brightness and save power. This setting also reduces the speed of the projector’s cooling fan, which reduces operation noise.
Off:
Select this option to project at maximum brightness.
RCVUN Single Use this sub-menu to turn Auto Power Off on or off. See
“Turning Off the Projector” in the “User’s Guide (Basic Operation)” for more information.
On*:
Select this option to turn on Auto Power Off.
Off:
Select this option to turn off Auto Power Off.
Powe r On Passw ord
Direct Power OnRCVUN Single Use this sub-menu to turn Direct Power On on or off.
RCVUN Single You can configure the projector to require input of a
password before operation is enabled. For details, see “Password Protecting the Projector” on page 14.
See “Direct Power On” in the “User’s Guide (Basic Operation)” for more information.
On:
Select this option to turn on Direct Power On.
Off*:
Select this option to turn off Direct Power On.
Important!
While Direct Power On is enabled, the projector will turn off automatically if no key operation is performed and no signal input is received within about 10 minutes after it is turned on. This is true regardless of the current Auto Power Off setting.
25
Setting Name Input
Setting
Unit
Description
Language RCVUN Single Use this sub-menu to specify the language to use for
Restore Menu Defaults
RCVUN Single This sub-menu returns all of the sub-menu items on the
messages, setup menus, etc. English / French / German / Italian / Spanish / Swedish / Chinese (Simplified) / Chinese (Traditional) / Korean / Japanese
Option Settings 1 main menu to their initial default settings. z The language setting and the password are not
returned to their initial factory defaults.
z Restoring menu defaults when there is no input signal
will restore defaults for the currently selected input source.
z The “Auto Adjust” item is returned to its initial default
only when RGB input is selected for the input source. All of the other items are returned to their initial defaults regardless of the currently selected input source.

Option Settings 2 Main Menu

Setting Name Input
Zoom Memory RCVUN Single Use this sub-menu to turn zoom memory on or off. Zoom
Setting
Unit
Description
memory lets you save the zoom setting when the projector is turned off, so it can be restored automatically the next time the projector is turned on.
On*:
Select this option when you want to restore the zoom setting that was in effect when the projector was last turned off, whenever it is turned on.
Off:
Select this option when you want the image to be projected at its maximum size whenever you turn on the projector.
Pointer RCVUN Single Use this sub-menu to specify the type of pointer that
Plug and Play (USB port equipped models only)
RCVUN Single Use this sub-menu to turn plug-and-play*
appears first when you press the [POINTER] key.
1
on or off.
On*:
Select this option to turn on plug-and-play. This will allow the projector detect when an external USB device is connected and make that device the input source automatically.
Off:
Select this option to turn off plug-and-play.
26
Setting Name Input
Setting
Unit
Description
USB Audio Out (USB port equipped models only)
High Altitude RCVUN Single Use this sub-menu to turn the high-altitude fan speed
RCVUN Single When playing back a movie file stored on a USB memory
device, you can select audio output from the projector’s built-in speaker or to the line output.
Speaker*:
Select this option to output of movie file audio from the speaker.
Line:
Select this option to output of movie file audio from the AV t er mi na l.
setting on or off in accordance with the altitude of the area where you are using the projector.
On:
Select this setting when using the projector in a high altitude (1,500 to 3,000 meters above sea level) area where air is thin. This setting increases cooling efficiency.
Off*:
Select this setting at normal altitudes (up to 1,500 meters).
Important!
Do not use this projector at altitudes greater than 3,000 meters above sea level.
Restore Menu Defaults
*1 When plug-and-play is turned on, the projector will make that device the input source
automatically. For details about plug-and-play, see “USB Function Guide” on the bundled CD-ROM.
RCVUN Single This sub-menu returns all of the sub-menu items on the
Option Settings 2 main menu to their initial default settings.
27

USB Settings Main Menu Items (USB Port Equipped Models Only)

The USB Settings main menu is available only when there is an external device connected to the USB port of the XJ-SC215/XJ-S37/XJ-S47/XJ-S57 model projector. For details, see “USB Function Guide” on the bundled CD-ROM.

Operational Info Main Menu

Setting Name Input
Setting
Unit
Description
Input Signal RCVUN Source
Signal Name RCVU Source
Resolution R Single This sub-menu item appears only when RGB is the input
Horizontal Frequency
Ver ti cal Frequency
Scan System RC Source
Lamp Time RCVUN Single This sub-menu item shows the cumulative number of
Reset Lamp Time
RCV Source
RCV Source
RCVUN Single Use this sub-menu item to reset the lamp time to 0
Specific
Specific
Specific
Specific
Specific
This sub-menu item shows the currently selected input signal (RGB, Component, or VIDEO). “- - - -” is indicated here when there is no input signal.
This sub-menu item shows the signal name of the signal being input to the projector. For details about signal names, see “Signal Name” under “Supported Signals” on page 33.
signal. It shows the number of vertical pixels of resolution of the RGB input signal.
This sub-menu item shows the horizontal frequency of the input signal.
This sub-menu item shows the vertical frequency of the input signal.
This sub-menu item appears only when RGB or component is the input signal, and shows the scanning frequency of the input signal. The input signal is interlace or non-interlace for an RGB signal input, and interlace or progressive for a component signal input.
hours the current lamp has been used to date. Use this value as a reference when deciding whether or not the current lamp needs to be replaced. For details about replacing the lamp, see “Replacing the Lamp” in the “User’s Guide (Basic Operation)”.
hours after replacing the lamp. For details about replacing the lamp and the lamp time reset operation, see “Replacing the Lamp” in the “User’s Guide (Basic Operation)”.
28

Restore All Defaults Main Menu

Setting Name Input
Setting
Unit
Description
Unit Operating Time
Restore All Defaults
RCVUN Single This sub-menu item shows the cumulative operating time
of this unit. This time cannot be initialized.
RCVUN Single This sub-menu returns all sub-menu items on all main
menus to their initial default settings. This operation can be performed regardless of the currently selected input source and regardless of whether or not a signal is currently being input. For details about this procedure, see “To restore all settings on the setup menu to their initial factory defaults” on page 18.
29

Appendix

Remote Controller Signal Range

When performing an operation on the remote controller, point it at the remote control signal receiver on the back or front of the projector. The following illustration shows the range of the remote controller signal.
±
30 degrees
max.
5 meters (16.4 feet) max.
±
30 degrees
max.
5 meters (16.4 feet) max.
Front
±
30
degrees max.
5 meters (16.4 feet) max.
5 meters (16.4 feet) max.
Back
5 degrees to 30 degrees
Remote Controller Range
The allowable distance between the remote controller and the projector is less when there is a sharp angle between the remote controller and the remote control signal receiver.
Important!
To avoid running down the battery, store the remote control unit so its buttons are not pressed inadvertently.
30

Projection Distance and Screen Size

Screen Size 200
5.7 m to 11.3 m (18.70 feet to 37.07 feet)
Screen Size 60
1.7 m to 3.4 m (5.58 feet to
11.15 feet)
Screen Size 40
1.1 m to 2.2 m (3.61 feet to 7.22 feet)
12 m
(39.37 feet)
10 m
(32.81 feet)
8 m
(26.25 feet)
6 m
(19.69 feet)
4 m
(13.12 feet)
2 m
(6.56 feet)
0
The following table shows the relationship between the distance and projected image size.
Projection Size Approximate Projection Distance
Screen Size
Diagonal
(cm)
Minimum
Distance (m)
Maximum
Distance (m)
Minimum Distance
(feet)
Maximum
Distance
40 102 1.1 2.2 3.61 7.22
60 152 1.7 3.4 5.58 11.15
80 203 2.3 4.5 7.55 14.76
100 254 2.8 5.6 9.19 18.37
150 381 4.3 8.5 14.11 27.89
200 508 5.7 11.3 18.70 37.07
Important!
Note that the distances provided above are for reference only.
(feet)
31

Aspect Ratio Setting and Projection Image during RGB Input

The video resolution of the projected image is 1024 × 768 pixels (4:3 aspect ratio). When RGB is input from a computer and projected by the projector, the input image is enlarged or reduced automatically to match the video resolution of the projector. How the enlargement and reduction is performed depends whether the aspect ratio setting is “4:3” or “Maintain” (page 9). The following shows how images are projected in accordance with the resolution of the input signal from the computer and the aspect ratio setting of the projector.
Input Signal Resolution
800 × 600
1024 × 768
1280 × 768
Projected Image (1024 × 768)
4:3 Maintain
1280 × 1024
32

Supported Signals

RGB Signal
Signal Name Resolution
VESA 640 × 480/60 640 × 480 31.5 60
640 × 480/72 640 × 480 37.9 73
640 × 480/75 640 × 480 37.5 75
640 × 480/85 640 × 480 43.3 85
800 × 600/56 800 × 600 35.2 56
800 × 600/60 800 × 600 37.9 60
800 × 600/72 800 × 600 48.1 72
800 × 600/75 800 × 600 46.9 75
800 × 600/85 800 × 600 53.7 85
1024 × 768/60 1024 × 768 48.4 60
1024 × 768/70 1024 × 768 56.5 70
1024 × 768/75 1024 × 768 60.0 75
1024 × 768/85 1024 × 768 68.7 85
1152 × 864/75 1152 × 864 67.5 75
1280 × 768/60 1280 × 768 47.8 60
1280 × 800/60 1280 × 800 49.7 60
1280 × 960/60 1280 × 960 60.0 60
1280 × 960/85 1280 × 960 85.9 85
1280 × 1024/60 1280 × 1024 64.0 60
1280 × 1024/75 1280 × 1024 80.0 75
1280 × 1024/85 1280 × 1024 91.1 85
1360 × 768/60
1400 × 1050/A
1440 × 900/60 1440 × 900 55.9 60
1680 × 1050/60 1680 × 1050 65.3 60
1600 × 1200/60 1600 × 1200 75.0 60
Other 1152 × 864/70 1152 × 864 64.0 70
1400 × 1050/B
*
*
*
1360 × 768 47.7 60
1400 × 1050 65.3 60
1400 × 1050 64.0 60
Horizontal
Frequency (kHz)
Ver tic al
Frequency (Hz)
* If these signals do not project correctly, change the “Option Settings 1 J Auto Adjust”
setting to “2” (page 25).
33
Component Signal
Signal Name
HDTV 1080p/50 62.5 50
1080p/60 67.5 60
720p/50 37.5 50
720p/60 45.0 60
1080i/50 31.3 50
1080i/60 33.7 60
SDTV 576p50 31.3 50
576i50 16.6 50
480p60 31.5 60
480i60 15.7 60
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Video Signal
Signal Name
NTSC 15.7 60
NTSC4.43 15.7 60
PA L 1 5. 6 5 0
PA L- M 15 . 7 6 0
PA L- N 1 5 .6 5 0
PA L6 0 15 . 7 6 0
SECAM 15.6 50
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
* Listing of a device in the above table does not guarantee that you will be able to
display its images correctly.
34
MA0806-B
Loading...
