USER’S GUIDE GUÍA DEL USUARIO

Please keep all information for future reference. Guarde toda información para tener como referencia futura.

PX800ES1B

Safety Precautions Before trying to use the piano, be sure to read the separate “Safety Precautions”.

Precauciones de seguridad

Antes de intentar usar el piano, asegúrese de leer las “Precauciones de seguridad” separadas.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS. When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord. For that purpose, locate the apparatus in a way that secures easy access to the power cord.

Declaration of Conformity

Model Number: PX-800 Trade Name: CASIO COMPUTER CO., LTD. Responsible party: CASIO, INC. Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER -SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Company and product names used in this manual may be registered trademarks of others.

This mark applies in EU countries only.

CASIO Europe GmbH Bornbarch 10, 22848 Norderstedt, Germany

This mark applies to the PX-800V only.

Please kee

all information for future reference.

Contents

Assembling the Stand .............................................................................................. E-35

Unpacking................................................................. E-35

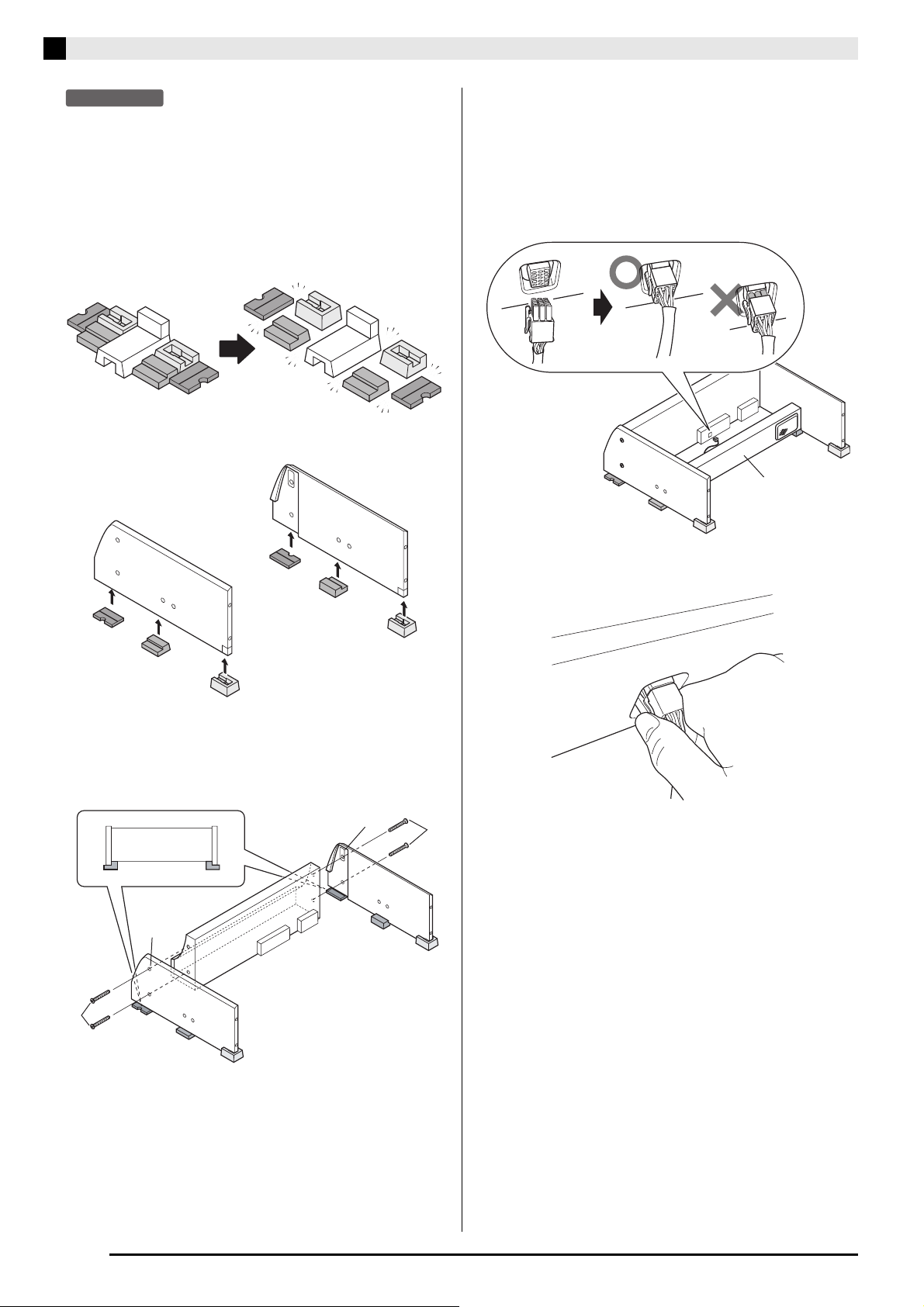

Assembling the Stand............................................... E-35

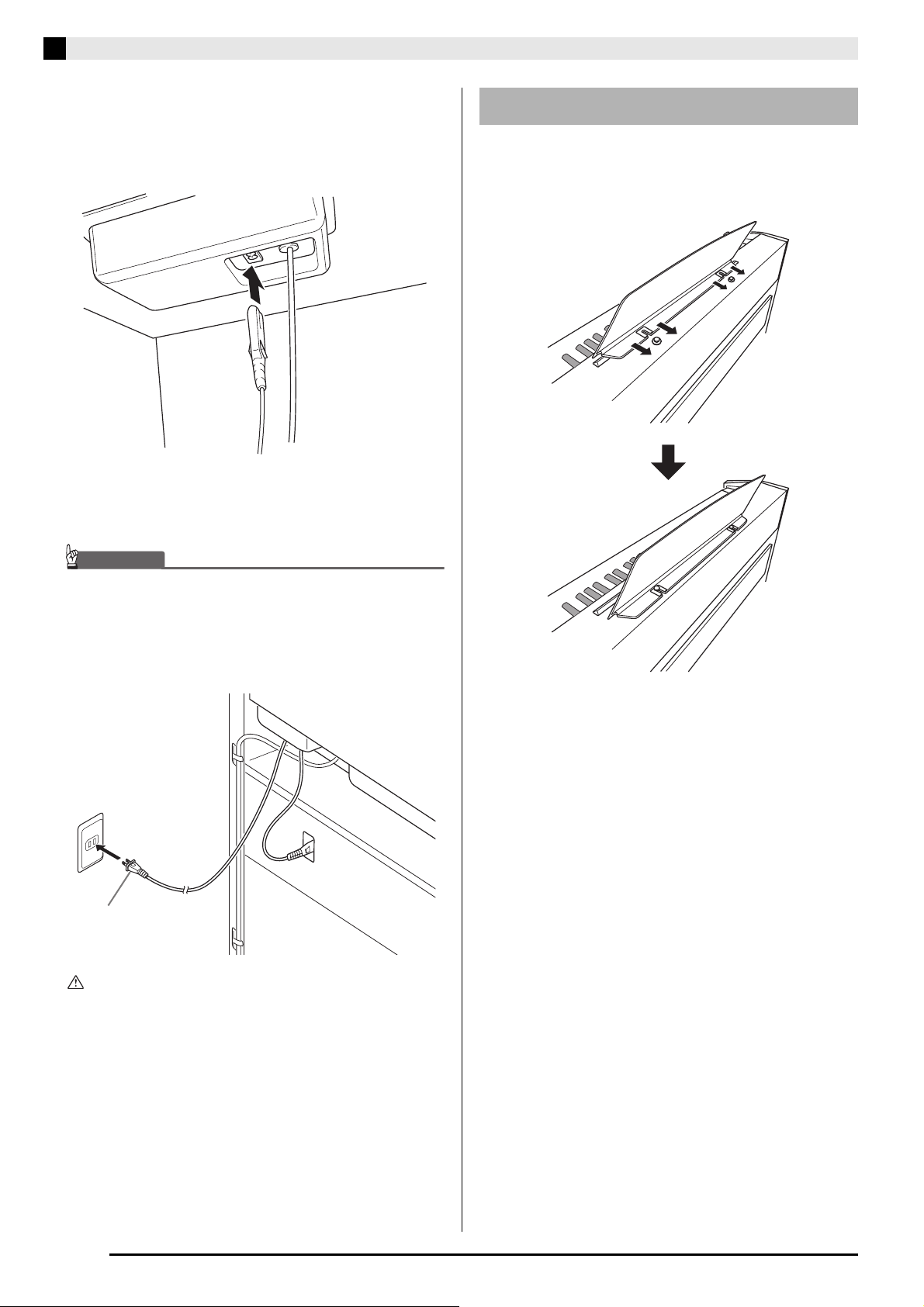

To connect cords.......................................................E-39

To install the music stand..........................................E-40

General Guide ................................... E-2

TEMPO/SETTING Button........................................... E-4

– (T/NO) Button and + (S/YES) Button .................... E-4

Power Supply .................................... E-5

Connections ...................................... E-6

Connecting Headphones............................................ E-6

Connecting Audio Equipment or an Amplifier............. E-6

Bundled and Optional Accessories............................. E-6

Playing with Different Tones ........... E-7

Selecting and Playing a Tone..................................... E-7

To assign a tone to the VARIOUS/GM TONES

keyboard key .............................................................. E-9

To adjust the brilliance of a tone................................. E-9

Layering Two Tones................................................. E-10

Splitting the Keyboard between Two Tones ............. E-10

Using Effects............................................................. E-11

Using the Digital Piano’s Pedals............................... E-13

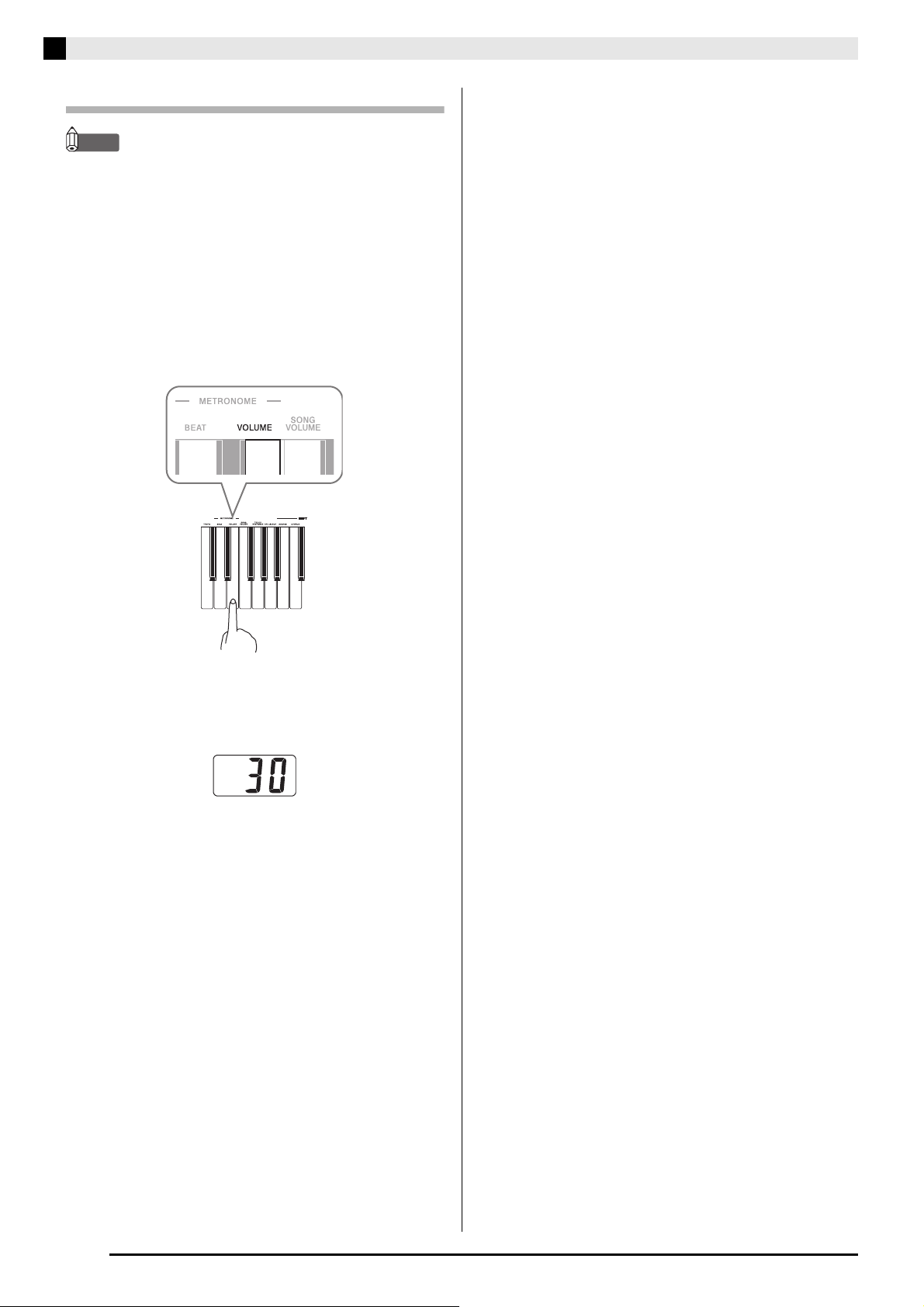

Using the Metronome ............................................... E-13

Playing Back Built-in Songs .......... E-15

Playing Back All of the Built-in Songs....................... E-15

Playing Back a Specific Music Library Song............. E-16

Practicing with a Music Library Song........................ E-16

Recording and Play Back............... E-17

Songs and Tracks..................................................... E-17

To record to a specific track of a specific song......... E-18

To record to one track of a song while listening

to the playback of the other track.............................. E-19

Playing Back from Digital Piano Memory.................. E-19

Deleting Recorded Data ........................................... E-20

Connecting to a Computer............. E-26

Connecting to the MIDI Terminal ..............................E-26

Connecting to the USB Port......................................E-26

USB Mode and MIDI Mode.......................................E-27

Expanding the Selections in the Music Library .........E-28

To install the SMF conversion software

(SMF Converter) .......................................................E-28

Using an SD Memory Card............. E-29

Inserting and Removing an SD Memory Card .......... E-30

Playing Back a File Stored on an

SD Memory Card ......................................................E-30

Transferring Song Data from an

SD Memory Card to Digital Piano Memory ...............E-31

Saving Song Data Recorded on the

Digital Piano to an SD Memory Card ........................E-32

Formatting an SD Memory Card ...............................E-33

SD Memory Card Errors............................................E-34

Reference......................................... E-41

Troubleshooting ........................................................E-41

Product Specifications...............................................E-43

Operating Precautions .............................................. E-44

Appendix............................................ A-1

Tone List .....................................................................A-1

Drum Assignment List.................................................A-2

Song List .....................................................................A-3

MIDI Implementation Chart

Configuring Settings with the

Keyboard ......................................... E-21

Keyboard Keys Used for Configuring Settings ......... E-21

To configure settings with the keyboard................... E-22

To configure a setting using the

TUNE/OTHERS key ................................................. E-22

To configure a setting using the

MIDI/OTHERS key.................................................... E-22

Keyboard Setting Reference..................................... E-23

E-1

General Guide

Bottom

* The power cord of the PX-800 is hard-wired to the digital piano.

2 6 753 4

E-2

8 9

Front

General Guide

CAUTION

• Make sure that the cover is fully open whenever you are playing on the keyboard. A partially open cover can suddenly close unexpectedly and pinch your fingers.

NOTE

• The names shown here are always indicated in bold when they appear within the text of this manual.

1-1 Power supply box

-2 AC power jack

2 Pedal connector

3 MIDI OUT/IN terminals

4 USB port

5 Speaker connector

6 LINE OUT R, L/MONO jacks

7 PHONES jack

8 Display

9 TONE lamp

bk SONG lamp

bl – (TTTT/NO) button, + (SSSS/YES) button

bm TONE/SONG button

bn SONG PLAY/STOP button

bo TEMPO/SETTING button

bp PART/TRACK button

L/1 lamp R/2 lamp

bq CARD button

br RECORDER button

PLAY lamp, REC lamp

bs GRAND PIANO button

bt METRONOME button

ck Power lamp

cl POWER button

cm VOLUME controller

cn SD CARD SLOT

E-3

General Guide

TEMPO/SETTING Button

The TEMPO/SETTING button is used when configuring a variety of different digital piano settings. The following are TEMPO/SETTING button basics.

z The lamp above the TEMPO/SETTING button

flashes while the button is depressed, and goes out when the button is released.

Flashing Off

z To change a setting, hold down the TEMPO/

SETTING button as you press the keyboard key that

is assigned the setting you want to select.

– (TTTT/NO) Button and + (SSSS/YES) Button

You can change a displayed setting by pressing the

– (TTTT/NO) or + (SSSS/YES) button as you hold down the TEMPO/SETTING button.

z Holding down either button changes the value at

high speed. Example: “Selecting and Playing a Tone” on page

E-7.

NOTE

• Pressing the – (TTTT/NO) and + (SSSS/YES) buttons at the

same time will return the displayed value to its default setting.

Example: “Selecting a Tone Using the Keyboard

Keys” on page E-8.

z See the “Keyboard Keys Used for Configuring

Settings” on page E-21 for details about the various settings that can be selected using TEMPO/ SETTING button and keyboard key combinations.

E-4

Power Supply

Your digital piano runs on standard household power. Be sure to turn off power whenever you are not using the digital piano.

Make sure that the POWER button is in the

OFF position (raised).

POWER button

(Power lamp on)

OFF

(Power lamp off)

Front

Power lamp

Connect the power cord that comes with the

digital piano to the AC power jack on the bottom of the digital piano.*

* PX-800V only

Plug the power cord into a household power

outlet.

IMPORTANT!

• Always make sure that the POWER button is the OFF position before plugging in or unplugging the power cord.

• The shape of the power cord plug and household power outlet receptacle differ according to country and geographical area. The illustration shows just one example of the shapes that are available.

• The power cord of the PX-800 is hard-wired to the digital piano.

z Make sure the power lamp is completely turned off

before unplugging the power cord from the power outlet. Be sure to read and observe all of the safety precautions concerning power supply.

E-5

Connections

IMPORTANT!

• Whenever connecting something to the digital piano, first use the VOLUME controller to set the volume to a low level. After connecting, you can adjust the volume to the level you want.

Connecting Headphones

Bottom

PHONES jack

Commercially available headphones

Stereo standard plug

Connect commercially available headphones to the

PHONES jack. Connecting headphones to the PHONES jack cuts off output to the speakers, which

means you can practice even late at night without bothering others. To protect your hearing, make sure that you do not set the volume level too high when using headphones.

NOTE

• Be sure to push the headphones plug into the PHONES jack as far as it will go. If you don’t, you may hear sound from only one side of the headphones.

IMPORTANT!

• The digital piano automatically adjusts sound output to optimize for headphone output (when headphones are connected) or built-in speaker output (when headphones are not connected). Note that this feature also affects the sound output from the LINE OUT R and L/MONO jacks.

Pin plug

Audio amplifier AUX IN jack, etc.

RIGHT (Red)

LEFT (White)

Standard jack

Keyboard amplifier, etc.

INPUT 1

Standard plug

INPUT 2

Guitar amplifier

Connecting Audio Equipment (Figure 1)

R (Right) is the right channel and L/MONO (Left) is the left channel. Use commercially available connection cords to connect as shown in Figure 1. Normally, you should set the input selector of the audio equipment to the terminal where the digital piano is connected (AUX IN, etc.) Adjust volume using the digital piano’s VOLUME controller.

Connecting a Music Amplifier (Figure 2)

R (Right) is the right channel and L/MONO (Left) is the left channel. Connecting to the L/MONO jack only outputs a mixture of both channels. Use a commercially available connection cord to connect as shown in Figure 2. Adjust volume using the digital piano’s VOLUME controller.

Connecting Audio Equipment or an Amplifier

You can connect audio equipment or a music amplifier to the digital piano and then play through external speakers for more powerful volume and better sound quality.

E-6

Bundled and Optional Accessories

Use only accessories that are specified for use with this digital piano. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

Playing with Different Tones

TONE

TEMPO/SETTING

METRONOME

GRAND PIANO

POWER

VOLUME

Selecting and Playing a Tone

Your digital piano has the following types of tones built in.

Tone Numbers Tone Type

01 to 12 Keyboard* 12 001 to 020 Various 20 021 to 148 GM (General MIDI) 128 149, 150 Drum Sets 2 sets

* You can select these tones using keyboard keys. The

name of the tones assigned to each keyboard key is marked above the keys. For details about selecting these tones, see “Selecting a Tone Using the Keyboard Keys” on page E-8.

Press the POWER button to turn on the

digital piano.

Number of Tones

(Please wait!)

(Preparing system)

(Complete!)

Select the tone you want.

z To select the GRAND PIANO tone, simply press the

GRAND PIANO button.

• To select another tone, find its tone name in the “Tone List” on page A-1 and note its tone number.

Example: To select Tone Number 07, Harpsichord

•Use the + and – buttons to change the displayed tone number until it matches the one you want (07 in this example).

IMPORTANT!

• When you turn on the digital piano, it performs a power up operation in order to prepare its system. The power up operation takes about 10 seconds, and is indicated by the following messages appearing on the display.

NOTE

• There are two sets of tone numbers, one set from 01 to 12

and another set from 001 to 150. Pressing the + button while 12 is displayed will change the tone number to 001. Similarly, pressing the – button while 001 is displayed will change the tone number to 12.

• Holding down either button changes the displayed value at high speed.

Use the VOLUME controller to adjust the

volume level.

Try playing something on the digital piano.

E-7

Playing with Different Tones

NOTE

•The DSP* effect will be applied if you select a tone with DSP.

• Note that the digital piano’s DSP resources are limited. Because of this, selecting a tone with DSP can cause notes that are currently being played to cut off (if they are being played using a tone with DSP), or it can remove the DSP effect from an operation (layer, split, demo tune) that was previously assigned a tone with DSP. (* See page E-12)

Selecting a Tone Using the Keyboard Keys

Tone Setting Keys

A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2

A0 : 01 Grand Piano B

0 : 02 Grand Piano 2

1 : 03 Grand Piano 3

1 :04 Electric Piano 1

1 :05 Electric Piano 2

1 :06 Electric Piano 3

1 :07 Harpsichord

While holding down the TEMPO/SETTING button, press the keyboard key that corresponds to the

A1 : 08 Vibraphone B

1 : 09 Pipe Organ

2 : 10 Percussive Organ

2 : 11 Strings

2 : 12 Acoustic Bass

2 : 001 to 150 Various/GM Tones

tone you want to select.

• This will cause the lamp above the button to flash and the tone number of the selected tone to appear on the display.

* A note does not sound when you press the keyboard key to select a tone.

E-8

Playing with Different Tones

To assign a tone to the VARIOUS/GM TONES keyboard key

While holding down the TEMPO/SETTING

button, press the VARIOUS/GM TONES keyboard key. Keep the TEMPO/SETTING button depressed until you finish step 2 of this procedure.

To adjust the brilliance of a tone

While holding down the TEMPO/SETTING

button, press the BRILLIANCE keyboard key. Keep the TEMPO/SETTING button depressed until you finish step 2 of this procedure.

• This will cause the TEMPO/SETTING button to flash

and the tone number of the Various, GM, or Drum Sets Tone currently assigned to the keyboard key to appear on the display.

Use the + and – buttons to display the tone

number of the Various, GM, or Drum Sets Tone you want to assign to the VARIOUS/GM TONES key.

Example: 019 FANTASY

NOTE

• If a drum set is assigned to the VARIOUS/GM TONES key, keyboard keys sound drum sounds. See page A-2 for information about the drum sounds that are assigned to each of the keyboard keys.

• This will cause the lamp above the TEMPO/ SETTING button to flash and the currently selected brilliance value to appear on the display.

Use the + and – buttons to change the

displayed value.

For this type of sound:

Soft and smooth –3 to –1 Bright and sharp 1 to 3

NOTE

• Pressing the + and – buttons at the same time while holding down the TEMPO/SETTING button (step 2) will return the brilliance setting to its default value.

Select a value in this range:

E-9

Playing with Different Tones

Layering Two Tones

Use the following procedure to layer two tones, so they sound at the same time.

Hold down the TEMPO/SETTING button until

you finish step 2 of this procedure.

While holding down the keyboard key that

corresponds to the main tone, press any nearby keyboard key that corresponds to another tone.

• The second key you press is the layered tone. We will be changing it in step 3, below.

To unlayer the keyboard, select another tone

by pressing the GRAND PIANO button or by using the procedure under “Selecting a Tone Using the Keyboard Keys” (page E-8).

NOTE

• You can adjust the balance between the main tone and layered tone. See “Configuring Settings with the Keyboard” on page E-21 for more information.

Splitting the Keyboard between Two Tones

Example: While holding down the GRAND PIANO 2

key, press the GRAND PIANO 3 key.

GRAND PIANO 2 GRAND PIANO 3

• The tone numbers of the layered tone will appear on the display.

You can assign different tones to keys on the left side and the right side of the keyboard.

Low Range High Range

STRINGS GRAND PIANO 2

Use the procedure under “Selecting and

Playing a Tone” on page E-7 to select the high range tone.

Example: GRAND PIANO 2

While holding down the TEMPO/SETTING

button, press the SPLIT ON/OFF keyboard key. Keep the TEMPO/SETTING button depressed until you finish step 3 of this procedure.

Split Point

Use the + and – buttons to change the

displayed tone number to the one you want to select.

Example: 11 STRINGS

Try playing something on the keyboard.

E-10

Playing with Different Tones

Use the + and – buttons to turn keyboard split

on or off.

When the display shows this:

oFF Keyboard split off

on Keyboard split on

• Releasing the TEMPO/SETTING button will cause the display to change to the number of the currently selected low-range tone.

Use the procedure under “Selecting and

It means this:

Playing a Tone” on page E-7 to select the low range tone.

Example: 11 STRINGS

NOTE

• You can also specify the location of the keyboard split point. See “Configuring Settings with the Keyboard” on page E-21 for more information.

• You can configure the keyboard so it is layered with two tones in the high range. To do this, first perform the layer operation (page E-10). After that, split the keyboard as described above.

To configure reverb and chorus effect settings

While holding down the TEMPO/SETTING

button, press the REVERB or CHORUS keyboard key. Keep the TEMPO/SETTING button depressed until you finish step 2 of this procedure.

• This will cause the lamp above the TEMPO/ SETTING button to flash and the currently selected

reverb or chorus value to appear on the display.

Reverb

Using Effects

Reverb. . . .Makes your notes resonate.

Chorus . . .Adds more breadth to your notes. Acoustic Resonance . . .

When the damper pedal is pressed, reproduces the harmonic resonance within a grand piano.

DSP . . . . . .Digitally processes tones to for more

sophisticated effects. Each tone is preset with a default DSP effect (drawbar organ tone + rotary speaker, for example).

Chorus

E-11

Playing with Different Tones

Use the + and – buttons to change the

displayed value.

• Reverb Value

To do this: Select this setting:

Turn off reverb oFF

1: Room

Turn on reverb

•Chorus Value

To do this: Select this setting:

Turn off chorus oFF

Turn on chorus

2: Small Hall 3: Large Hall 4: Stadium

1: Light Chorus 2: Medium Chorus 3: Deep Chorus 4: Flanger (Whooshing effect)

To turn acoustic resonance and DSP on or off

While holding down the TEMPO/SETTING

button, press the ACOUSTIC RESONANCE or DSP keyboard key. Keep the TEMPO/ SETTING button depressed until you finish step 2 of this procedure.

• This will cause the lamp above the TEMPO/ SETTING button to flash and the currently selected

acoustic resonance or DSP setting to appear on the display.

Acoustic Resonance

DSP

E-12

Use the + and – buttons to change the

displayed setting.

Playing with Different Tones

Using the Metronome

When the display shows this:

oFF Effect off on Effect on

NOTE

• While the keyboard is layered, the DSP on/off setting affects the layered tone only. While the keyboard is split, the DSP on/off setting affects the low range tone only.

• Turning on DSP will apply the DSP effect to tones with DSP only. It will not be applied to any other type of tone.

It means this:

Using the Digital Piano’s Pedals

Your digital piano comes equipped with three pedals: damper, soft, and sostenuto

Press the METRONOME button.

• This starts the metronome.

• The two lamps above the SONG PLAY/STOP button

flash in time with the metronome beat.

To change the beat, hold down the

METRONOME button as you use the + and –

buttons to make adjustments.

• You can select a beat value in the range of 2 through

6. Specifying 0 as the setting plays a straight click, without any chime. This setting lets you practice with a steady beat.

While holding down the TEMPO/SETTING

button, use the + and – buttons to adjust the tempo in a range of 20 to 255 beats per minute.

Soft pedal

Sostenuto pedal

Damper pedal

Pedal Functions

zzzz Damper Pedal

Pressing the damper pedal while playing will cause the notes you play to reverberate for a very long time.

• When GRAND PIANO, GRAND PIANO 2, or GRAND PIANO 3 is selected as the tone, pressing this pedal will cause notes to reverberate just like the damper pedal on an acoustic grand piano. Half-pedal operation (pressing the pedal part way) is also supported.

zzzz Soft Pedal

Pressing this pedal while playing suppresses notes played on the keyboard after the pedal was pressed, and makes them sound softer.

zzzz Sostenuto Pedal

Only the notes of the keys that are depressed when this pedal is pressed are sustained until the pedal is released.

Press the METRONOME button again to stop

the metronome.

NOTE

• You can also set the beat setting (step 2) using the procedure described under “Configuring Settings with the Keyboard” on page E-21.

E-13

Playing with Different Tones

To adjust the metronome volume

NOTE

• You can perform the following procedure at any time, regardless of whether or not the metronome is sounding.

While holding down the TEMPO/SETTING

button, press the METRONOME VOLUME keyboard key. Keep the TEMPO/SETTING button depressed until you finish step 2 of this procedure.

• This will cause the lamp above the TEMPO/ SETTING button to flash and the current metronome

volume setting to appear on the display.

Use the + and – buttons to change the

metronome volume setting in the range of 0 to 42.

E-14

Playing Back Built-in Songs

SONG

TONE

TONE/SONG

SONG PLAY/STOP

PART/TRACK

While holding down the TONE/SONG button,

IMPORTANT!

• After you select a built-in song, it can take a number of seconds for the song data to be loaded. While the data is being loaded, the song number will flash on the display, and the keyboard keys and button operations will be disabled. If you are playing something on the keyboard, the following operation will cause output to stop.

Playing Back All of the Built-in Songs

Your digital piano has a total of 72 built-in songs. You can use the procedure to play back all of the songs, one after the other.

press the SONG PLAY/STOP button.

• This will start sequential playback from keyboard tone demo tune t.01, up to the last Music Library song L.60.

• You can play along with a song on the keyboard as it is playing. The tone assigned to the keyboard is the one that is preset for the song that is playing.

• You can use the + and – buttons to skip sequentially between songs during playback.

• Pressing the + and – buttons at the same time will return to keyboard tone demo tune t.01.

Press the SONG PLAY/STOP button again to

stop built-in song play.

Type

Keyboard tone demo tune*

Music Library 60

* A “keyboard tone demo tune” is a demo tune that

use the tone that is currently assigned to the keyboard for its melody.

Number of Songs

Display Indicator

TONE lamp flashes,

song number displayed

SONG lamp flashes, song number displayed

E-15

Playing Back Built-in Songs

Playing Back a Specific Music Library Song

The Music Library includes both preset songs (01 to

60), plus up to 10 songs (61 to 70) that have been saved to digital piano memory from a computer* or loaded SD memory card (page E-29). You can use the procedure below to select one of these songs and play it back. * You can download music data from the Internet and

then transfer it from your computer to digital piano memory. See “Expanding the Selections in the Music Library” on page E-28 for more information.

Press the TONE/SONG button so the SONG

lamp is lit.

• Each press of the TONE/SONG button toggles between the TONE and SONG indicator lamps.

• This will cause the currently selected song number to appear on the display.

Practicing with a Music Library Song

You can turn off the left hand part or right hand part of a Music Library song and play along on the piano.

NOTE

• The Music Library includes a number of duets. While a duet is selected, you can turn off the first piano <Primo> or second piano <Secondo> tone and play along with the song.

PREPARATION

• Select the song you want to practice and adjust the tempo. See “Configuring Settings with the Keyboard” on page E-21.

• A number of tunes have tempo changes part way through in order to produce specific musical effects.

Use the PART/TRACK button to turn off a

part.

•Each press of the PART/TRACK button cycles

through the part settings as shown below. The indicator lamps above the button show which part is turned off.

Find the song number of the song you want to

play in the song list on page A-3.

Use the + and – buttons to display the song

number of the song you want to play.

Press the SONG PLAY/STOP button.

• This starts the playback of the song.

To stop playback, press the SONG PLAY/

STOP button again.

• Playback will stop automatically when the end of the song is reached.

NOTE

•Pressing the + and – buttons at the same time will select

song number 01.

• You can change tempo, volume, and pre-count settings for playback. See “Configuring Settings with the Keyboard” on page E-21 for more information.

Left hand

Right hand

Both parts

Right hand

part off

Left hand

Press the SONG PLAY/STOP button.

• This starts playback, without the part you turned off in step 1.

Play the missing part on the keyboard.

To stop playback, press the SONG PLAY/

STOP button again.

part off

E-16

Recording and Play Back

SONG PLAY/STOP

PART/TRACK

RECORDER

METRONOME

You can store the notes you play in digital piano memory for later playback. You can have up to five songs in memory at one time.

Songs and Tracks

A track is a container of recorded data, and each song consists of two tracks: Track 1 and Track 2. You can record each track separately and then combine them so they play back together as a single song.

Track 1

Song

Track 2

Record

Memory Capacity

• Digital piano memory can hold about 50,000 notes total, for five songs. Each song can contain up to about 10,000 notes.

• Recording stops automatically and the REC lamp goes out if the number of notes in memory exceeds the maximum.

While playing back. . .

Record

Recording Data Storage

• Starting a new recording deletes any data that was previously recorded in memory.

• Should power fail during recording, all of the data in the track you are recording will be deleted.

• You can save memory data to external media, if you want. See “Using an SD Memory Card” on page E-29 for more information.

IMPORTANT!

• CASIO COMPUTER CO., LTD. takes no responsibility for any damages, lost profits, or claims by third parties arising from the deletion of recorded data due to malfunction, repair, or for any other reason.

• After you select a song, it can take a number of seconds for the song data to be loaded. While the data is being loaded, the song number will flash on the display, and the keyboard keys and button operations will be disabled. If you are playing something on the keyboard, the following operation will cause output to stop.

Using the RECORDER Button

Each press of the RECORDER button cycles through the recording options in the sequence shown below.

Playback

Standby

Record

Standby

Normal

Recorded Data

•Keyboard play

•Tone used

• Pedal operations

• Reverb and chorus settings

• Tempo setting

• Layer and split settings (Track 1 only)

Lit Flashing Off

E-17

Recording and Play Back

To record to a specific track of a specific song

After recording to either of the tracks of a song, you can record to the other track while listening to playback what you recorded in the first track.

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display a song

number (1 to 5).

Press the RECORDER button so the REC

lamp is flashed.

Select the tone and effects you want to use in

your recording, and set the tempo you want.

•Tone (page E-7)

* After selecting the tone you want, press the TONE/

SONG button one more time so the SONG lamp is

lit.

• Effect (page E-11)

• Tempo (page E-24)

NOTE

• It is a good idea to use a relatively slow tempo when recording.

• If you want the metronome to sound during recording, press the METRONOME button.

Start playing something on the keyboard.

• Recording will start automatically.

To stop recording, press the SONG PLAY/

STOP button again.

• This will cause the REC lamp to go out, and the lamp

above the button of the track to which you recorded will light.

• To play back the track you just recorded, press the

SONG PLAY/STOP button.

After you are finished recording or playing

back, press the RECORDER button so the PLAY lamp and REC lamp are off.

• At this time the L/1 lamp will flash to indicate that the

digital piano is standing by for recording to Track 1.

Use the PART/TRACK button to select the

track to which you want to record.

• Make sure that the indicator lamp for the record track is flashing. Track 1: L/1 lamp Track 2: R/2 lamp

Example: Track 1 Selected

E-18

Recording and Play Back

To record to one track of a song while listening to the playback of the other track

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display a song

number (1 to 5).

This indicator appears when the track already contains recorded data.

Press the RECORDER button so the REC

lamp is flashed.

• This will cause the L/1 lamp to flash.

Playing Back from Digital Piano Memory

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display a song

number (1 to 5).

NOTE

• When a song has something recorded in both tracks, you can turn off one track and play back just the other track, if you want. Whether a track is on or off is indicated by the lamps above the PART/TRACK button. Each press of the PART/TRACK button cycles through the different possible track on/off settings.

Use the PART/TRACK button to select the

track to which you want to record.

• Make sure that the indicator lamp for the record track is flashing.

Example: To listen to playback of Track 1 as you record

to Track 2

Lit (Play) Flashing (Record Standby)

Select the tone and effects you want to use

for your recording.

Press the SONG PLAY/STOP button or play

something on the keyboard.

• This will start both playback of the recorded track and recording to the other track.

To stop recording, press the SONG PLAY/

STOP button.

Press the SONG PLAY/STOP button.

This starts playback of the song and/or track you selected.

NOTE

• You can change the tempo setting as a track is playing.

• You cannot change the tone setting during playback.

• Press the SONG PLAY/STOP button again to stop

playback.

E-19

Recording and Play Back

Deleting Recorded Data

The following procedure deletes a specific track of a song.

IMPORTANT!

• The procedure below deletes all of the data of the selected track. Note that the delete operation cannot be undone. Check to make sure you really do not need the data in digital piano memory before you perform the following steps.

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display the

number of the song (1 to 5) that contains the track you want to track.

Press the RECORDER button so the REC

lamp is flashed.

Use the PART/TRACK button to select the

track you want to delete.

• This causes the lamp of the selected track to flash.

Hold down the RECORDER button until “dEL”

(dELete) appears on the display.

Press the SSSS/YES button.

• This deletes the selected track and enters record standby.

• To cancel the delete operation, press the TTTT/NO button in place of the SSSS/YES button.

E-20

Configuring Settings with the Keyboard

TEMPO/SETTING

You can use the TEMPO/SETTING button in combination with the keyboard keys to configure a wide range of digital piano settings, including the key, keyboard touch, MIDI settings, etc.

• The same basic procedure (explained under “To configure settings with the keyboard” on page E-22) can be used

for all settings. The only difference is the keyboard key that you press.

• See the “Keyboard Setting Reference” on page E-23 for information about the settings you can configure using

this procedure.

Keyboard Keys Used for Configuring Settings

A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4

E-21

Configuring Settings with the Keyboard

To configure settings with the keyboard

Use the “Keyboard Setting Reference” on

page E-23 to find the setting you want to configure, and note its keyboard key.

Example: To change the key, you would need to use the

keyboard key labeled TRANSPOSE

While holding down the TEMPO/SETTING

button, press the keyboard key for the setting you want to configure. In this example, we will press the TRANSPOSE key. Keep the TEMPO/SETTING button depressed until you finish step 3 of this procedure.

• The TEMPO/SETTING button lamp will flash and the current setting of the item you are configuring will appear on the display.

To configure a setting using the TUNE/OTHERS key

Pressing the TUNE/OTHERS key in step 2 of the above procedure will toggle between the two settings described below.

Tuning setting

Pre-count setting (“P” stands for “Pre-count”.)

To configure a setting using the MIDI/OTHERS key

Pressing the MIDI/OTHERS key in step 2 of the above procedure will cycle between the two settings described below.

Use the + and – buttons to change the

setting.

Example: Lower the TRANSPOSE by one semitone by

changing the displayed value to –1.

Release the TEMPO/SETTING button to

complete the setting procedure.

• This causes the indicator lamp above the button to turn off.

Send Channel setting (“C” stands for “Channel”.)

Local Control setting (“L” stands for “Local”.)

NOTE

• Pressing the + and – buttons at the same time will change

the displayed setting to its default value.

E-22

Configuring Settings with the Keyboard

Keyboard Setting Reference

■ Keyboard

To change this

setting:

Keyboard touch response

Key of the keyboard TRANSPOSE –6 to 0 to 5 Raises or lowers the tuning of the digital piano in

Keyboard tuning TUNE/OTHERS –50 to 0 to 50 Raises or lowers the overall pitch of the digital piano

Use this keyboard

key:

TOUCH RESPONSE oFF : Off

1 : Strong sound is

produced even when relatively light pressure is

applied. 2:Normal 3 : Normal sound is

produced even

when relatively

strong pressure is

applied.

Settings Description

Specifies the relative touch of the keyboard keys.

semitone steps.

NOTE

• Using TRANSPOSE to raise the key of the

digital piano can cause notes at the highest range of a tone to become distorted.

to match another instrument. The setting range is plus or minus 50 cents (100 cents = 1 semitone) from the standard pitch of A4 = 440.0Hz. When configuring this setting, use the procedure under “To configure a setting using the TUNE/ OTHERS key” on page E-22.

E-23

Configuring Settings with the Keyboard

■ Tones

To change this

setting:

Tone selection TONE See “Tone List” on

Layered tone volume balance

Split on/off SPLIT ON/OFF on: On, oFF: Off See page E-10. Split point SPLIT POINT A0 to C8* Specifies the location of the keyboard split point.

Brilliance BRILLIANCE –3 to 0 to 3 See page E-9. Reverb REVERB oFF (Off), 1 to 4 See page E-11. Chorus CHORUS oFF (Off), 1 to 4 See page E-11. DSP EFFECT on: On, oFF: Off See page E-12. Acoustic Resonance EFFECT on: On, oFF: Off See page E-12.

*Display Indicator

Use this keyboard

key:

page A-1.

LAYER BALANCE –24 to 0 to 24 Specifies the volume balance between layered tones.

Settings Description

See page E-8.

A lower value reduces the volume level of the layered tone.

The selected keyboard key is the lowest note of the high range (right) keyboard.

Display

Settings ABCDEFGF

■ Song/Metronome

To change this

setting:

Tempo TEMPO 20 to 255 Specifies the tempo of Music Library songs, the

Metronome beat METRONOME BEAT 0, 2 to 6 Turns the metronome on or off. Metronome volume METRONOME

Song volume SONG

Pre-count TUNE/OTHERS P.on: On

Use this keyboard

key:

VOLUME

Settings Description

metronome, recording and playback, etc.

0 to 42 Specifies the metronome volume.

0 to 42 Specifies the volume of built-in song playback,

independent of overall volume control using the VOLUME controller.

Turns the pre-count before playback of a Music

P.oF: Off

Library song on or off. When configuring this setting, use the procedure under “To configure a setting using the TUNE/OTHERS key” on page E-

22.

NOTE

• When playing a song from the user area or from

an SD memory card, the pre-count may not sound, even though the pre-count setting is turned on.

E-24

Configuring Settings with the Keyboard

■ MIDI

To change this

setting:

Send Channel MIDI/OTHERS C.01 to C.16 Specifies one of the MIDI channels (1 through 16) as

Local Control MIDI/OTHERS L.on: On

Use this keyboard

key:

L.oF:

Settings Description

the Send Channel, which is used for sending MIDI messages to an external device. When configuring this setting, use the procedure under “To configure a setting using the MIDI/OTHERS key” on page E-22.

When Local Control is turned on, pressing the

Off

keyboard’s keys plays the notes using the currently selected built-in tone, and also sends the applicable MIDI messages out the MIDI OUT port. Turning off Local Control cuts off the digital piano’s sound source, so no sound is produced by the digital piano when keys are pressed. This capability comes in handy when you want to turn off the digital piano’s keyboard and play on an external sequencer or other device. When configuring this setting, use the procedure under “To configure a setting using the MIDI/OTHERS key” on page E-22.

E-25

Connecting to a Computer

Connecting to the MIDI Terminal

What is MIDI?

MIDI is a standard for digital signals and connectors that allows musical instruments, computers, and other devices, regardless of manufacturer, to exchange data with each other.

NOTE

• For details about MIDI implementation, visit:

http://world.casio.com/

MIDI Connections

Connecting your computer or other external MIDI device to the digital piano’s MIDI OUT/IN terminals makes it possible for them to exchange MIDI messages and record and playback keyboard notes on the connected device.

Bottom

MIDI Cable

MIDI OUT MIDI IN

Connecting to the USB Port

The digital piano’s USB port makes it quick and simple to connect to a computer. You can install a USB MIDI driver from the CD-ROM that comes bundled with the digital piano onto a computer equipped with a USB port. After that, you can connect the digital piano to your computer and run commercially available MIDI software on your computer to exchange MIDI data with the digital piano. You can also transfer data you downloaded from the CASIO MUSIC SITE to the digital piano. Note that you need to purchase a commercially available USB cable to connect the digital piano’s USB port to a computer’s USB port.

To connect to a computer using the USB port

On the computer to which you plan to

connect, install the USB MIDI driver from the CD-ROM that comes bundled with the digital piano.

NOTE

• Before installing the USB MIDI driver, be sure to read the

contents of the “readme.txt” file in the “English” folder on the bundled CD-ROM.

• For details about how to install the USB MIDI driver, see

the “CASIO USB MIDI Driver User’s Guide” (manual_e.pdf)

that is also on the bundled CD-ROM.

MIDI Settings

You can use the procedure in “Configuring Settings with the Keyboard” (page E-21) to configure MIDI settings. See page E-25 for a description of the settings and information about how to configure them.

Use a commercially available USB cable (A-B

type) to connect the digital piano to the computer.

E-26

Connecting to a Computer

IMPORTANT!

• Make sure that the digital piano is turned off before connecting or disconnecting the USB cable to it.

Computer

USB port

USB connector

Digital piano USB port

USB cable

(A-B type)

*1 You need to have Adobe Reader or Acrobat Reader

installed on your computer in order to view the contents of the “CASIO USB MIDI Driver User’s Guide” (manual_e.pdf). If your computer does not have Adobe Reader or Acrobat Reader installed already, use the procedure below to install it.

Driver Minimum Computer System Requirements

The following are the minimum computer system requirements for running the USB MIDI driver.

zzzz Universal

• IBM AT or compatible computer

• USB port that provides normal operation under

Windows

• CD-ROM drive (for installation)

• At least 2MB of free hard disk space (not including

space required for Adobe Reader)

zzzz Windows XP

• Pentium 300MHz or higher

• 128MB minimum memory

zzzz Windows 2000

• Pentium 166MHz or higher

• 64MB minimum memory

zzzz Windows Me, Windows 98SE, Windows 98

• Pentium 166MHz or higher

• 32MB minimum memory

To install Adobe Reader (Acrobat Reader*2)

Place the CD-ROM that comes with the

digital piano into your computer’s CD-ROM drive.

On the CD-ROM, navigate to the “Adobe”/

“English” folder and double-click “ar601enu.exe” (or “ar505enu.exe

”). Follow the instructions that appear on your computer screen to install the driver.

*2 Adobe Reader cannot be installed using the

“ar601enu.exe” file on a computer running Windows 98. If your computer is running Windows 98, click “ar505enu.exe” to install Acrobat Reader.

Minimum Computer System Requirements

Supported Operating Systems

Windows® XP Professional, Windows® XP Home

Edition, Windows Windows

98SE, Windows® 98

2000 Professional, Windows® Me,

USB Mode and MIDI Mode

Your digital piano has two data communication modes: a USB mode and a MIDI mode. The digital piano will enter the USB mode automatically whenever a connection is established between it and the USB driver running on a connected computer. If there is no computer connected to the USB port, the digital piano will enter the MIDI mode.

USB Mode

USB enabled

The above indicator appears for about three seconds after a USB connection is established. For details about using the MIDI device functions in the USB mode, see the “CASIO USB MIDI Driver User’s Guide” (manual_e.pdf) on the bundled CD-ROM.

MIDI Mode

USB disabled

The above indicator appears for about three seconds after a USB connection terminated. The MIDI mode is used when sending and receiving data over the digital piano’s MIDI terminals.

E-27

Connecting to a Computer

Expanding the Selections in the Music Library

You can store up to 10 songs you have downloaded with your computer as songs 61 through 70 of the Music Library and practice along with them as they play, just as you do with the built-in songs. You can also use the CASIO SMF conversion software (SMF Converter) to convert SMF data you have purchased or created and save it as a Music Library song.

SMF data

CASIO SMF conversion software

Music Library (Songs 61 to 70)

NOTE

• You will not be able to transfer data from a computer to

the digital piano during playback or recording of song data, during a data save or recall operation, etc. Wait until the current operation is complete before transferring data.

To install the SMF conversion software (SMF Converter)

Place the CD-ROM that comes with the

digital piano into the CD-ROM drive of a computer that is equipped with a USB port.

Navigate to the CD-ROM and double-click the

“SMFConv-e.exe” file. Next, follow the instructions that appear on your computer screen to install the software.

• Before installing SMF Converter, be sure to read the

contents of the “smfreadme.txt” file. A version of this file is provided in each language folder on the CD-ROM.

For information about using SMF Converter, doubleclick [index.html] in the [help] folder, which was created when you installed SMF Converter. You can also access user documentation from the Windows [Start] menu by clicking [Programs] – [CASIO] – [SMF Converter] – [manual].

• A browser that supports frames (like Internet

Explorer 4 or Netscape Navigator 4.04 or higher) is required to view the SMF Converter manual.

Minimum Computer System Requirements

zzzz Operating System

Windows 98SE Windows Me Windows XP Professional Windows XP Home Edition

zzzz Storage

At least 10 MB of available disk space

zzzz USB Interface

You also can download the SMF conversion software from the CASIO Website.

CASIO MUSIC SITE

http://music.casio.com/

• In addition to the software itself, the CASIO MUSIC

SITE will also provide you with information about its installation and use. You can also find out the latest news about your digital piano and other CASIO musical instruments, and much more.

E-28

NOTE

• Your digital piano supports SMF Format 0 and Format 1.

Using an SD Memory Card

SONG

/NO, /YES

SONG PLAY/STOP

TONE/SONG

TEMPO/SETTING

CARD

RECORDER

Your digital piano’s SD memory card slot makes it possible for you to store song data on a commercially available SD memory card. The digital piano also can read SMF song data and CASIO format song data from an SD memory card.

z Supported SD Memory Cards

The maximum supported SD memory card size is 1 GB. Use of any SD memory card with greater capacity is not supported.

z Supported Data Types and SD Memory Card

Operations

SD Memory Card Slot

*3 The digital piano will not be able to correctly

play a file that has more than 17 tracks.

z Data Display Information

Song Number (01 to 99)Data Type

IMPORTANT!

• Use only SD memory cards. Operation is not guaranteed when any other type of memory card is used.

Supported SD

Memory Card

Operations

transfer to user area, save to SD memory

card*

transfer to user area

recorder area, save to SD memory card

Data Type

SMF Data (Format 0)

SMF Data (Format 1)*

Song data converted using CASIO SMF conversion software (CASIO Format Data)

Song data recorded on the digital piano (CASIO Format Data)

File Name

Display

Extension

U (v) .MID Playback,

C (d) .CM2 Playback,

r (q) .CSR Transfer to

*1 If the first two characters of the filename of song

data are not a two-digit number from 01 to 99, one of the letters in parentheses (according to data type) will be displayed as the data type indicator.

*2 Song data recorded with the digital piano can be

saved as SMF Format 0 data.

SD Memory Card and SD Memory Card Slot Precautions

IMPORTANT!

• Whenever handling an SD memory card, be sure to observe the instructions and precautions in the user documentation that comes with it.

• SD memory cards have a write-protect switch that protects against accidental deletion of data.

• Avoid using an SD memory card in the following types of areas. Such conditions can corrupt data stored on the memory card.

• Areas subjected to high temperature, high humidity, and corrosive gas

• Areas subjected to strong electrostatic charge and digital noise

• Never touch the contacts of an SD memory card when loading it or removing it from the digital piano.

• Never remove the SD memory card from the digital piano or turn off the digital piano while it is reading data from or writing data to the memory card. Doing so can corrupt the data on the memory card and damage the SD memory card slot.

• Never insert anything besides an SD memory card into the SD memory card slot. Doing so creates the risk of malfunction.

• Inserting an SD memory card that carries an electrostatic charge into the SD memory card slot can cause malfunction of the digital piano. If this happens, turn off the digital piano and then back on again.

E-29

Using an SD Memory Card

• An SD memory card can become quite warm after very long use in the SD memory card slot. This is normal and does not indicate malfunction.

• An SD memory card has a limited service life. After very long use, you may start to experience problems with storing data to, or reading or deleting data from the memory card. When this happens, you need to purchase a new SD memory card.

* Note that CASIO COMPUTER CO., LTD. shall not be

held liable for any loss of data stored on an SD memory card.

Using an SD Memory Card with the Digital Piano

When using an SD Memory card, first be sure to format the memory card on the digital piano. For details, see “Formatting an SD Memory Card” on page E-33.

Inserting and Removing an SD Memory Card

IMPORTANT!

• Note that the SD memory card must be oriented correctly when you insert it into the SD memory card slot. Trying to force the memory card into the slot can damage the card and the slot.

• Never remove the SD memory card from the card slot or turn off the digital piano while any data access operation (save, read, format) is being performed. Doing so can corrupt the data on the memory card and damage the SD memory card slot.

To insert an SD memory card

With the SD memory card facing upwards as

shown in the illustration, angle the card downwards as you insert it into the SD memory card slot.

• Push the card into the slot until you hear it click into

place.

To remove an SD memory card

IMPORTANT!

• Before removing the SD memory card, check to make

sure that the lamp above the CARD button is not lit. If the lamp is lit or flashing, it means that the card is being accessed, and that you should not remove it.

Gently press the SD memory card slightly

further into the slot and then release it.

• This will cause the memory card to disengage and

eject partially.

Pull the memory card out of the slot.

Playing Back a File Stored on an SD Memory Card

Playback of SMF format data and song data converted using SMF conversion software to CASIO CM2 format.

IMPORTANT!

• Note the following important precautions whenever playing back a data file you copied to a memory card with a computer. To perform the procedure below, you must have an SD memory card to which SMF data has been copied from a computer. Insert an SD memory card that has been formatted on the digital piano into the memory card slot of your computer, and copy the data you want to play back from your computer into the memory card folder named “MUSICDAT”. Note that you will not be able to play back the data on the digital piano if it is not located inside the “MUSICDAT” folder. If you create a sub-directory inside of the “MUSICDAT” folder, the digital piano will not be able to load any data inside the subdirectory.

• After you select a song data, it can take a number of seconds for the song data to be loaded. While the data is being loaded, the song number will flash on the display, and the keyboard keys and button operations will be disabled. If you are playing something on the keyboard, the following operation will cause output to stop.

Press the CARD button.

• The CARD button lamp will light and a song number

will appear on the display.

E-30

Front

CASIO format song

Use the + and – buttons to display the song

number of the song you want to play.

Press the SONG PLAY/STOP button to start

playback.

Using an SD Memory Card

To stop playback, press the SONG PLAY/

STOP button.

After you are finished using the SD memory

card, keep pressing the CARD button until its lamp turns off.

NOTE

• You can change tempo, volume, and pre-count settings

for playback. See “Configuring Settings with the Keyboard” on page E-21 for more information.

Transferring Song Data from an SD Memory Card to Digital Piano Memory

You can use the procedures in this section to transfer song data from an SD memory card to the digital piano user area

*1 Music Library Songs 61 to 70 *2 Memory area where songs recorded on the digital

or recorder area.

piano are stored.

zzzz Supported Data

User Area. . . . . . .SMF format data and song data

converted using SMF conversion software (CASIO CM2 format)

Recorder Area. . .Song data recorded on the digital

piano (CASIO CSR format)

To transfer song data from an SD memory card to the digital piano user area

Press the TONE/SONG button so the SONG

lamp is lit.

Use the + and – buttons to display the

number of the user area song (Music Library song number 61 through 70) to which you want to transfer the data.

This mark indicates that the currently displayed user area song number has data stored already.

Hold down the CARD button until its lamp

starts to flash slowly and “LdU” (Load User area) appears on the display.

Use the + and – buttons to display the file

number of the data you want to transfer to digital piano memory.

PREPARATION

• Insert the SD memory card that contains the data you

want to transfer into the digital piano’s SD memory card slot.

IMPORTANT!

• Never perform any operation on the digital piano while data is being saved to or transferred from an SD memory card. Performing any operation can cause SD memory card data to be deleted or damaged, making transfer of the data impossible.

When everything is the way you want, press

the TEMPO/SETTING button to begin data transfer.

• The message “CPL” (ComPLete) will appear on the

display to let you know when data transfer is complete. The number of the user area to which the data was transferred will be shown on the display.

z To interrupt an ongoing data transfer operation,

press the CARD button.

z If the user area song number you select already

contains data, pressing TEMPO/SETTING in step 5 will display “rEP” (rEPlace) to confirm that you want to replace the existing data with the data you are transferring. Press the the data. To cancel the operation, press the button in place of the

SSSS/YES button to replace

SSSS/YES button.

TTTT/NO

E-31

Using an SD Memory Card

To transfer song data from an SD memory card to the recorder area

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display the

number of the recorder area song (1 through

5) to which you want to transfer the data.

This mark indicates that the currently displayed song number has data stored already.

Saving Song Data Recorded on the Digital Piano to an SD Memory Card

You can save song data that you recorded on the digital piano to an SD memory card as SMF Format 0 data or CASIO CSR data.

PREPARATION

• Insert an SD memory card that has been formatted on the

digital piano into the digital piano’s SD memory card slot. Make sure that the write-protect switch of the SD memory card is not in the write-protect position.

IMPORTANT!

Press the RECORDER button so the PLAY

lamp is lit.

Hold down the CARD button until its lamp

starts to flash slowly and “Ldr” (Load recorder area) appears on the display.

Use the + and – buttons to display the song

number of the data you want to transfer to digital piano memory.

When everything is the way you want, press

the TEMPO/SETTING button to begin data transfer.

• The message “CPL” (ComPLete) will appear on the

display to let you know when data transfer is complete. The number of the recorder area to which the data was transferred will be shown on the display.

z To interrupt an ongoing data transfer operation,

press the CARD button.

z If the recorder area song number you select already

SSSS/YES button to replace

SSSS/YES button.

TTTT/NO

Use the + and – buttons to display the song

number (1 to 5) of the song you want to save.

Hold down the CARD button until its lamp

starts to flash slowly and “Ldr” (Load recorder area) appears on the display.

Press the CARD button again.

• This will cause the CARD button lamp to flash at a

higher speed and “SvC” (Save as CSR file) to appear on the display. This indicates that the song will be saved as CASIO format CSR data.

• If you want to save the song as SMF Format 0 data,

press the CARD button again. This will cause “SvS” (Save as SMF0 file) to appear on the display.

E-32

Using an SD Memory Card

Use the + and – buttons to select the file

number where you want to save the song data.

This mark indicates that the currently displayed song number has data stored already.

When everything is the way you want, press

the TEMPO/SETTING button to begin saving data.

• The message “CPL” (ComPLete) will appear on the

display to let you know when the save operation is complete.

z To interrupt an ongoing save operation, press the

CARD button.

z If the SD memory card already contains a data file

with the same file number, pressing TEMPO/ SETTING in step 6 will display “rEP” (rEPlace) to confirm that you want to replace the existing file with the file you are saving. Press the to replace the file.

• To cancel the operation, press the

place of the

SSSS/YES button.

SSSS/YES button

TTTT/NO button in

Press the SSSS/YES button to start formatting.

• “PLS” (PLeaSe wait) remains on the display while the

formatting operation is performed. Never try to perform any other operation on the digital piano while the memory card is being formatted. The message “CPL” will appear on the display to let you know when the format operation is complete.

z To cancel the format operation, press the

button in place of the

Release the TEMPO/SETTING button to

SSSS/YES button.

complete the formatting procedure.

• This causes the indicator lamp above the button to

turn off.

TTTT/NO

Formatting an SD Memory Card

Use the procedures in this section to format an SD memory card.

IMPORTANT!

• Before performing the procedure below, check to make sure that the SD memory card does not contain any data you might need.

• The SD memory card format performed by your digital piano is a “quick format”. If you want to completely delete all of the data on the card, format it on you computer or using some other device.

PREPARATION

• Insert the SD memory card you want to format into the digital piano’s SD memory card slot. Make sure that the write-protect switch of the SD memory card is not in the write-protect position.

While holding down the TEMPO/SETTING

button, press the CARD button. Keep the TEMPO/SETTING button depressed until you

finish step 2 of this procedure.

• This will cause “For” (Format) to appear on the

display.

E-33

Using an SD Memory Card

SD Memory Card Errors

Display

Message

Cause Action

No SD memory card loaded in the SD memory card slot or the card is not loaded correctly.

You are trying to load data from an SD memory card that does not contain any data that is supported by this digital piano.

The SD memory card is damaged or the card was removed while it was being accessed.

The SD memory card is full. Use a different SD memory card.

An SD memory card was removed while some operation was in progress.

Attempt to overwrite the song data file that is read-only.

The data file you are trying to transfer to the digital piano is too large.

You are attempting to load SMF (Standard MIDI File) data that is not Format 0 or Format 1.

You are trying to store data to an SD memory card that is write-protected.

There is a problem with the SD memory card data format or the data is corrupted.

Correctly insert the SD memory card into the SD memory card slot. (Page E-30)

1. Use an SD memory card that contains files that can be loaded into digital piano memory.

2. When copying data was copied to an SD memory card from a computer, copy it to the “MUSICDAT” folder. (Page E-30)

1. Use an SD memory card that was formatted on the digital piano. (Page E-33)

2. Use a different SD memory card.

Never remove a card from the card slot while a card access operation is in progress.

Save the file to a different SD memory card or under a different number.

When playing back a file stored on an SD memory card or loading data to the user area, select a data file that is no larger than about 318 KB. When loading song data to the recorder area, you can only select song data that was recorded on this model of digital piano.

Use only Format 0 or Format 1 SMF data.

1. Use a different SD memory card.

2. If you want to write to the SD memory card, change the write-protect position to enable writing. (Page E-29)

Use different data or a different SD memory card.

E-34

Assembling the Stand

Unpacking

PREPARATION

• Before starting assembly, check to make sure that you

have all the parts shown below. You can find the screws in a plastic bag inside of the polystyrene foam packing material.

• This stand does not include any of the tools required for

assembly. It is up to you to prepare a large Philips head (+) screwdriver for assembly.

(a) (b)

Assembling the Stand

CAUTION

• The stand should be assembled by two people working

together.

• The stand should be assembled on a flat surface.

• Do not remove the tape securing the keyboard cover in

place until assembly is complete. Removing the tape can cause the keyboard cover to open and close during assembly, creating the risk of personal injury to your hands and fingers.

• Take care that you do not pinch your fingers between

parts when assembling them.

• When placing the digital piano on the floor, be sure to

place it on something soft (a blanket, cushion, etc.). Do not place the digital piano directly onto the floor.

NOTE

• When attaching the digital piano and the speaker box C

to side panels A and B, lay the entire assembly on its side.

• Be sure to follow the proper procedure when assembling

the stand. Be especially careful in the case of steps 2 and

3. Reversing these two steps creates the risk that the connector will not be plugged in fully.

Side panel ........................... ×1

Speaker box ........................ ×1

Screws ................................ ×8

Screw caps (Brown) ............ ×8

Pedal unit ............................ ×1

Screws ................................ ×2

Crips.................................... ×2

Bracket................................ ×1

Screw caps (Black) ............. ×2

Polystyrene foam packing

material (Required for stand

assembly.)........................... ×1

E-35

Assembling the Stand

PREPARATION

• Before starting assembly of the stand, divide the

polystyrene foam packing material K into the sections shown in Figure 1. Use the packing material to secure side panels A and B as shown in Figure 2. You will have an easier time assembling the stand if the side panels are raised as shown in the illustration.

• If you do not have any packing material available for

some reason, use a magazine or some other thick item.

Figure 1

Figure 2

Plug the speaker box C cable into the

speaker connector on the bottom of the digital piano.

• Stand the speaker box C up on its edge as shown in

the illustration when connecting the cable.

• Press the plug fully into the connector as far as it will

go.

Attach side panels A and B to the digital

piano. Secure the side panels using four screws D.

• When disconnecting the connector, press the hook as

shown in the illustration below as you pull out.

E-36

Assembling the Stand

With the speaker box C laying on its side as

shown in the illustration, secure side panels A and B to the speaker box C. Secure the side panels using four screws D.

• Align the screw holes of the speaker box C with the

screw holes of the side panels as you install the screws D.

• Partially tighten the screws on one side of the speaker

box C and then fully tighten the screws on the other side.

• Next, fully tighten the screws that you partially

tightened.

• You can also install the speaker box C so it faces

towards the back of the stand.

After ensuring that all of the screws are fully

tightened, remove the packing material and stand up the stand.

• Cover each of the eight side panel screws with screw

caps E.

• Insert screw caps at the locations indicated in the

illustration and press them in as far as they will go.

Attach the brackets I to the pedal unit F,

and temporarily secure them with screws G.

-(a)

Remove the screws that hold the corner

-(b)

brackets in place on the back corners (the corners away from the pianist) of the side panels.

E-37

Assembling the Stand

Turn around the corner brackets as shown in

the illustration, and insert them between pedal unit brackets I

-(a)

and I

-(b)

, and the

edges of the side panels.

-(a)

-(b)

WARNING

• The corner brackets help to prevent the stand from

tipping over. Whenever the stand is in a location that is not up against a wall, reorient the corner brackets as shown in the illustration. Leaving the corner brackets in their original orientations can make it easy for the stand to tip over towards the back, creating the risk of personal injury.

-(b)

Secure the corner brackets to the stand using

the screws you removed in step 6.

IMPORTANT!

• When tightening the corner bracket screws, press down on the pedal unit to ensure that the pedal part comes into contact with the floor.

Locating the Stand against a Wall

Leaving the anti-tipping brackets in their original orientation, insert the pedal unit brackets between the anti-tipping brackets and the edges of the side panels.

• The side panels have joint connectors inside that engage with the corner bracket screws. If you have trouble inserting the screws into the joint connector screw holes, use a screwdriver to rotate the joint connector and adjust the position of the screw hole for easier access. See the detail drawing (marked with a star) in the above illustration.

E-38

To tighten the joint connector and screw

(1) Rotate the screw counterclockwise about three

turns to ensure that the screw is in the center of the joint connector.

(2) Slowly rotate the screw clockwise and confirm that

it tightens without resistance. If you feel any resistance, it means that the screw is not engaging properly with the joint connector. Rotate the screw counterclockwise again and try to get it to engage properly.

(3) If you experience problems getting the screw to

engage properly, use a screwdriver to rotate the joint connector 180 degrees. Next perform steps (1) and (2) again to engage the screw from the screw hole on the other side.

* Forcibly tightening a screw while it is not engaged

properly can strip the threads of the screw and joint connector, making them unusable.

Securely tighten the screws G that you

temporarily tightened in step 5.

Assembling the Stand

To connect cords

Orienting the pedal unit plug as shown in the

illustration, plug it into the pedal connector on the bottom of the digital piano. Secure the pedal cord with clips H.

• Attach the clips H at two locations to the stand’s side

panel as shown in the illustration.

Pedal unit plug

Cover the screw heads with the caps J.

10.

Connect the speaker power cord that comes

out of the power supply box to the speaker box.

Speaker power cord

Check to make sure that the POWER button

is in the OFF position (raised). If power is on, press the POWER button to turn it off.

E-39

Assembling the Stand

Plug the power cord that comes with the

digital piano into the AC power jack on the bottom of the digital piano.

* PX-800V only

Plug the power cord into a household power

outlet.

To install the music stand

Slide the music stand under the two bolts on

the top of the digital piano as shown in the illustration and then tighten the bolts.

IMPORTANT!

• The shape of the power cord plug and household power outlet receptacle differ according to country and geographical area. The illustration shows just one example of the shapes that are available.

• The power cord of the PX-800 is hard-wired to the digital piano.

Power plug

CAUTION

• The screws of the stand can work loose due to the effects of temperature and humidity changes, vibration, etc. Because of this, you need to periodically check the screws for proper tightness. Retighten any loose screws you find.

• To power the digital piano, use a power outlet that allows easy access when plugging in or unplugging the power cord.

E-40

Reference

Troubleshooting

Problem Cause Action See Page

No sound is produced when I press a keyboard key.

The pitch of the digital piano is off.

No sound is produced when I try to play back a built-in song or a recorded song.

When I play something on the digital piano, my connected external MIDI sound source does not sound.

No sound is produced when playing MIDI data from a computer.

When connected to a computer over a USB connection, playing on the keyboard produces unnatural sounds.

I can’t store data to an SD memory card.

I can’t load data from an SD memory card.

1. The VOLUME controller is set to

“MIN”.

2. Headphones are connected to the digital piano.

3. MIDI Local Control is turned off.

1. The digital piano’s key setting is something other than “0”.

2. Digital piano tuning is incorrect.

1. The VOLUME controller is set to “MIN”.

2. Headphones are connected to the digital piano.

1. The digital piano’s send channel is different from the send channel of the external MIDI sound source.

2. The volume or expression setting of the external sound source is “0”.

The USB cable is not connected correctly.

The computer’s MIDI THRU function is turned on.

1. The SD memory card is writeprotected.

2. The card is not inserted properly into the SD memory card slot.

3. There is not enough room available on the SD memory card.

4. The capacity of the SD memory card is not supported by the digital piano.

5. The SD memory card is damaged.

1. The card is not inserted properly into the SD memory card slot.

2. The capacity of the SD memory card is not supported by the digital piano.

3. The SD memory card is damaged.

4. When the data was copied to the card from a computer, it was copied to a folder other than “MUSICDAT”.

1. Rotate the VOLUME controller more

towards “MAX”.

2. Unplug the headphones from the digital piano.

3. Turn on the Local Control setting.

1. Change the key setting to “0”, or turn digital piano power off and then back on again.

2. Adjust digital piano tuning, or turn the digital piano off and then back on again.

1. Rotate the VOLUME controller more towards “MAX”.

2. Unplug the headphones from the digital piano.

1. Change the send channel settings of the digital piano and/or the external MIDI sound source so they are the same.

2. Adjust the volume and expression settings of the external sound source.

Check to make sure that the USB cable is connected correctly.

Turn off MIDI THRU on the computer, or turn off digital piano Local Control.

1. Change the write-protect position to enable writing.

2. Insert the card properly.

3. Use a different SD memory card.

4. Use an SD memory card with a supported capacity.

5. Use a different SD memory card.

1. Insert the card properly.

2. Use an SD memory card with a supported capacity.

3. Use a different SD memory card.

4. Move the data to the “MUSICDAT” folder.

) E-7

) E-6

) E-25 ) E-23

) E-23

) E-7

) E-6

) E-25

) External

sound source user’s guide

) E-26

) E-25

) E-29

) E-30

) E-29

) E-30

) E-29

) E-30

E-41

Reference

Problem Cause Action See Page

Playback stops part way through while transferring song data from my computer.

“E-A” appears on the display immediately after power is turned on.

A tone’s quality and volume sounds slightly different depending where it is played on the keyboard.

Digital noise from the USB cable or power cord caused data communication your computer and digital piano to be interrupted.

Built-in flash memory is corrupted. Contact your nearest CASIO service

This is an unavoidable result of the digital sampling process,* and does not indicate malfunction. * Multiple digital samples are taken for the low range, middle range, and high range of the original

musical instrument. Because of this, there may be a very slight difference in tonal quality and volume between sample ranges.

Stop song playback, disconnect the USB cable from the digital piano, and then reconnect it. Next, try playing back the song again.

If this does not solve the problem, quit the MIDI software you are using, disconnect the USB cable from the digital piano, and then reconnect it. Next, restart the MIDI software and then try playing back the song again.

provider.

) E-26

E-42

Reference

Product Specifications

All of the items in these specifications apply to the PX-800 and PX-800V, unless specifically noted otherwise.

Model PX-800/PX-800V

Keyboard 88-key piano keyboard, with Touch Response

Maximum Polyphony 128 notes

Tones 162 (with Layer and Split)

Effects DSP, Reverb (4 types), chorus (4 types), Acoustic Resonance, Brilliance (–3 to +3)

Metronome • Beats: 0, 2, 3, 4, 5, 6

Demo Songs • Number of Songs: 72 songs (All-song repeat play)

Music Library • Number of Songs: 60

Recorder • Functions: Real-time recording, playback

Pedals Damper, soft, sostenuto

Other Functions • Touch Select: 3 types, Off

MIDI 16-channel multi-timbre receive

SD Memory Card • SD memory card slot

Inputs/Outputs • PHONES jack: Stereo standard jacks × 2

Speakers

Power Requirements PX-800: 120V

Power Consumption PX-800: 60W

Dimensions Digital Piano and Stand: 143.6 (W) × 29.8 (D) × 79.6 (H) cm (56

Weight Digital Piano and Stand: approximately 41.0 kg (90.3 lbs)

• Tempo Range: 20 to 255

User Songs: Up to 10 (Up to approximately 3.1 MB; up to approximately 318 KB per song)* * Based on 1 KB = 1024 bytes, 1 MB = 1024

• Song volume: Adjustable

• Part On/Off: L, R

• Number of Songs: 5

• Number of Tracks: 2

• Capacity: Approximately 50,000 notes total (Up to approximately 10,000 notes per song)

• Recorded Data Protection: Built-in flash memory

• Transpose: 1 octave (–6 to 0 to 5)

• Tuning: A4 = 440.0 Hz ±50 cents (variable)

• Supported SD Memory Cards: Up to 1 GB (Larger capacity cards not supported.)

• Functions: SMF playback, data storage, data recall, card format

Output impedance: 30

• MIDI OUT/IN terminals

• LINE OUT R, L/MONO jacks: Standard jacks × 2

• USB port: Type B

• Pedal connector

12cm × 2 + φ 5cm × 2 (Output 20W + 20W)

PX-800V: 220-240V

PX-800V: 60W

Output Voltage: 2.0V (RMS) MAX

Output impedance: 1.1 Output Voltage: 2.2V (RMS) MAX

bytes.

Ω

/16 × 11 12/16 × 31 6/16 inch)

• Specifications and designs are subject to change without notice.

• The power cord of the PX-800 is hard-wired to the digital piano.

• The power cord of the PX-800V is detachable.

E-43

Reference

Operating Precautions

Be sure to read and observe the following operating precautions.

■ Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high

humidity

• Areas subjected to temperature extremes

• Near a radio, TV, video deck, or tuner

The above devices will not cause malfunction of the product, but interference from the product can cause audio or video interference of a nearby device.

■ User Maintenance

• Never use benzene, alcohol, thinner, or other

chemical agents to clean the product.

• To clean the product or its keyboard, wipe with a

soft cloth moistened in a weak solution of water and a mild neutral detergent. Wring all excess moisture from the cloth before wiping.

• Any reproduction of the contents of this manual,

either in part or its entirety, is prohibited. Except for your own, personal use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

• IN NO EVENT SHALL CASIO BE LIABLE FOR

ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

• The contents of this manual are subject to change

without notice.

■ Included and Optional Accessories

Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

■ Weld Lines

Lines may be visible on the exterior of the product. These are “weld lines” that result from the plastic molding process. They are not cracks or scratches.

■ Musical Instrument Etiquette

Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the volume at levels that do not disturb others. Other steps you can take when playing late at night are closing the window and using headphones.

E-44

Appendix/Apéndice

Tone List/Lista de tonos

Program

No./

01 GRAND PIANO 0 48 64 — 02 GRAND PIANO 2 0 49 128 — 03 GRAND PIANO 3 1 48 64 — 04 ELEC PIANO 1 4 48 128 Enhancer 05 ELEC PIANO 2 5 49 64 3Band EQ 06 ELEC PIANO 3 5 48 128 Enhancer 07 HARPSICHORD 6 48 128 3Band EQ 08 VIBRAPHONE 11 48 128 Tremolo 09 PIPE ORGAN 19 49 128 — 10 PERC ORGAN 17 48 64 Rotary 11 STRINGS 49 48 128 3Band EQ 12 ACOUSTIC BASS 32 48 128 3Band EQ

001 MELLOW PIANO 0 50 64 — 002 ROCK PIANO 1 49 128 — 003 DANCE PIANO 1 50 128 — 004 MODERN PIANO 1 51 64 — 005 PIANO PAD 0 51 64 — 006 HONKY-TONK 3 48 64 — 007 OCTAVE PIANO 3 49 64 — 008 DYNO ELEC.PIANO 4 49 128 Auto Pan 009 POP ELEC.PIANO 4 50 64 Tremolo 010 E.GRAND 80 2 48 128 — 011 CLAVI 7 48 128 Enhancer 012 CHURCH ORGAN 19 48 64 — 013 DRAWBAR ORGAN 16 48 128 Rotary

014 ROCK ORGAN 16 49 128

015 STEEL STR.GUITAR 25 48 128 — 016 SYNTH-STRINGS 50 48 128 3Band EQ 017 CHOIR 52 48 64 — 018SYNTH-PAD 904864— 019 FANTASY 88 48 64 — 020 NEW AGE 88 49 64 3Band EQ

021 GM PIANO 1 0 0 128 — 022 GM PIANO 2 1 0 128 — 023 GM PIANO 3 2 0 128 — 024 GM HONKY-TONK 3 0 64 — 025 GM E.PIANO 1 4 0 128 — 026 GM E.PIANO 2 5 0 128 — 027 GM HARPSICHORD 6 0 128 — 028 GM CLAVI 7 0 128 — 029 GM CELESTA 8 0 128 — 030 GM GLOCKENSPIEL 9 0 128 — 031 GM MUSIC BOX 10 0 64 — 032 GM VIBRAPHONE 11 0 128 — 033 GM MARIMBA 12 0 128 — 034 GM XYLOPHONE 13 0 128 — 035 GM TUBULAR BELL 14 0 128 — 036 GM DULCIMER 15 0 64 — 037 GM ORGAN 1 16 0 128 — 038 GM ORGAN 2 17 0 64 — 039 GM ORGAN 3 18 0 64 — 040 GM PIPE ORGAN 19 0 64 — 041 GM REED ORGAN 20 0 128 — 042 GM ACCORDION 21 0 64 —

Tone Name/

Nombre de tonos

Various

Change/

Cambio de

programa

Bank Select

MSB

MSB de selección de banco

Maximum Polyphony /Polifonía

máxima

DSP

Drive

Rotary

No./

043 GM HARMONICA 22 0 128 — 044 GM BANDONEON 23 0 64 —

045

046

047 GM JAZZ GUITAR 26 0 128 — 048 GM CLEAN GUITAR 27 0 128 — 049 GM MUTE GUITAR 28 0 128 — 050 GM OVERDRIVE GT 29 0 64 — 051 GM DISTORTION GT 30 0 64 — 052 GM GT HARMONICS 31 0 128 — 053 GM ACOUSTIC BASS 32 0 128 — 054 GM FINGERED BASS 33 0 128 — 055 GM PICKED BASS 34 0 128 — 056 GM FRETLESS BASS 35 0 128 — 057 GM SLAP BASS 1 36 0 128 — 058 GM SLAP BASS 2 37 0 128 — 059 GM SYNTH-BASS 1 38 0 64 — 060 GM SYNTH-BASS 2 39 0 128 — 061 GM VIOLIN 40 0 128 — 062 GM VIOLA 41 0 128 — 063 GM CELLO 42 0 128 — 064 GM CONTRABASS 43 0 128 —

065

066 GM PIZZICATO 45 0 128 — 067 GM HARP 46 0 128 — 068 GM TIMPANI 47 0 128 — 069 GM STRINGS 1 48 0 128 — 070 GM STRINGS 2 49 0 128 —

071

072

073 GM CHOIR AAHS 52 0 128 — 074 GM VOICE DOO 53 0 128 — 075 GM SYNTH-VOICE 54 0 128 —

076

077 GM TRUMPET 56 0 128 — 078 GM TROMBONE 57 0 128 — 079 GM TUBA 58 0 128 — 080 GM MUTE TRUMPET 59 0 128 — 081 GM FRENCH HORN 60 0 64 — 082 GM BRASS 61 0 128 — 083 GM SYNTH-BRASS 1 62 0 64 — 084 GM SYNTH-BRASS 2 63 0 64 — 085 GM SOPRANO SAX 64 0 128 — 086 GM ALTO SAX 65 0 128 — 087 GM TENOR SAX 66 0 128 — 088 GM BARITONE SAX 67 0 128 — 089 GM OBOE 68 0 128 — 090 GM ENGLISH HORN 69 0 128 — 091 GM BASSOON 70 0 128 — 092 GM CLARINET 71 0 128 — 093 GM PICCOLO 72 0 128 — 094 GM FLUTE 73 0 128 — 095 GM RECORDER 74 0 128 — 096 GM PAN FLUTE 75 0 128 — 097 GM BOTTLE BLOW 76 0 128 — 098 GM SHAKUHACHI 77 0 64 —

Tone Name/

Nombre de tonos

GM NYLON STR.GUITAR

GM STEEL STR.GUITAR

GM TREMOLO STRINGS

GM SYNTHSTRINGS 1

GM SYNTHSTRINGS 2

GM ORCHESTRA HIT

Program Change/

Cambio de

programa

Bank Select

MSB

MSB de selección de banco

24 0 128 —

25 0 128 —

44 0 128 —

50 0 128 —

51 0 128 —

55 0 64 —

Maximum Polyphony /Polifonía

máxima

DSP

A-1

Appendix/Apéndice

Bank Select

MSB

MSB de selección de banco

Maximum Polyphony /Polifonía

máxima

No./

Tone Name/

Nombre de tonos

Program Change/

Cambio de

programa

099 GM WHISTLE 78 0 128 — 100 GM OCARINA 79 0 128 — 101 GM SQUARE LEAD 80 0 64 —

GM SAWTOOTH

102

LEAD

81 0 64 —

103 GM CALLIOPE 82 0 64 — 104 GM CHIFF LEAD 83 0 64 — 105 GM CHARANG 84 0 64 — 106 GM VOICE LEAD 85 0 64 — 107 GM FIFTH LEAD 86 0 64 — 108 GM BASS+LEAD 87 0 64 — 109 GM FANTASY 88 0 64 — 110 GM WARM PAD 89 0 128 — 111 GM POLYSYNTH 90 0 64 — 112 GM SPACE CHOIR 91 0 64 — 113 GM BOWED GLASS 92 0 64 — 114 GM METAL PAD 93 0 64 — 115 GM HALO PAD 94 0 64 — 116 GM SWEEP PAD 95 0 128 — 117 GM RAIN DROP 96 0 64 — 118 GM SOUND TRACK 97 0 64 — 119 GM CRYSTAL 98 0 64 — 120 GM ATMOSPHERE 99 0 64 — 121 GM BRIGHTNESS 100 0 64 — 122 GM GOBLINS 101 0 64 — 123 GM ECHOES 102 0 128 — 124 GM SF 103 0 64 — 125 GM SITAR 104 0 128 — 126 GM BANJO 105 0 128 — 127 GM SHAMISEN 106 0 128 — 128 GM KOTO 107 0 128 — 129 GM THUMB PIANO 108 0 128 — 130 GM BAGPIPE 109 0 64 — 131 GM FIDDLE 110 0 128 — 132 GM SHANAI 111 0 128 — 133 GM TINKLE BELL 112 0 128 — 134 GM AGOGO 113 0 128 — 135 GM STEEL DRUMS 114 0 64 — 136 GM WOOD BLOCK 115 0 128 — 137 GM TAIKO 116 0 128 — 138 GM MELODIC TOM 117 0 128 — 139 GM SYNTH-DRUM 118 0 128 —

GM REVERSE

140

CYMBAL

119 0 128 —

141 GM GT FRET NOISE 120 0 128 — 142 GM BREATH NOISE 121 0 128 — 143 GM SEASHORE 122 0 64 — 144 GM BIRD 123 0 64 — 145 GM TELEPHONE 124 0 128 — 146 GM HELICOPTER 125 0 128 — 147 GM APPLAUSE 126 0 64 — 148 GM GUNSHOT 127 0 128 —

Drum Sets

149 STANDARD SET 0 120 128 — 150 BRUSH SET 40 120 128 —

DSP

Drum Assignment List/ Lista de sonidos de batería

Key/Note Number

Número de clave/nota

E1 F1

B1 C2

E2 F2

B2 C3

E3 F3

B3 C4

E4 F4

B4 C5

E5 F5

B5 C6

E6 F6

28 29

35 36

40 41

47 48

52 53

59 60

64 65

71 72

76 77

83 84

88 89

F#1

C#2

F#2

C#3

F#3

C#4

F#4

C#5

F#5

C#6

NOTE

• “I” : indicates the same sound as STANDARD SET.

NOTA

• “I” : indica el mismo sonido que STANDARD SET.

STANDARD SET

HIGH Q SLAP SCRATCH PUSH SCRATCH PULL STICKS SQUARE CLICK METRONOME CLICK METRONOME BELL STANDARD 1 KICK 2 STANDARD 1 KICK 1 SIDE STICK STANDARD 1 SNARE 1 HAND CLAP 1 STANDARD 1 SNARE 2 LOW TOM 2 CLOSED HI-HAT LOW TOM 1 PEDAL HI-HAT MID TOM 2 OPEN HI-HAT MID TOM 1 HIGH TOM 2 CRASH CYMBAL 1 HIGH TOM 1 RIDE CYMBAL 1 CHINESE CYMBAL RIDE BELL TAMBOURINE 1 SPLASH CYMBAL COWBELL CRASH CYMBAL 2 VIBRA-SLAP RIDE CYMBAL 2 HIGH BONGO LOW BONGO MUTE HIGH CONGA OPEN HIGH CONGA LOW CONGA HIGH TIMBALE LOW TIMBALE HIGH AGOGO LOW AGOGO CABASA MARACAS SHORT HI WHISTLE LONG LOW WHISTLE SHORT GUIRO LONG GUIRO CLAVES HIGH WOOD BLOCK LOW WOOD BLOCK MUTE CUICA OPEN CUICA MUTE TRIANGLE OPEN TRIANGLE SHAKER JINGLE BELL BELL TREE CASTANETS MUTE SURDO OPEN SURDO APPLAUSE APPLAUSE 2

BRUSH SET

       

BRUSH KICK 2 BRUSH KICK 1 BRUSH SIDE STICK BRUSH TAP BRUSH SLAP BRUSH SWIRL

       

BRUSH CRASH CYMBAL 1



BRUSH RIDE CYMBAL 1



BRUSH RIDE BELL TAMBOURINE 2 BRUSH SPLASH CYMBAL



BRUSH CRASH CYMBAL 2



BRUSH RIDE CYMBAL 2

                             

A-2

Song List/Lista de canciones

No./Nº Song Name/Nombre de canciones

01 Nocturne Op.9-2 02 Fantaisie-Impromptu Op.66 03 Étude Op.10-3 “Chanson de l’adieu” 04 Étude Op.10-5 “Black Keys” 05 Étude Op.10-12 “Revolutionary” 06 Étude Op.25-9 “Butterflies” 07 Prélude Op.28-7 08 Valse Op.64-1 “Petit Chien” 09 Valse Op.64-2 10 Moments Musicaux 3 11 Impromptu Op.90-2 12 Marche Militaire 1 (Duet) 13 Frühlingslied [Lieder Ohne Worte Heft 5] 14 Fröhlicher Landmann [Album für die Jugend] 15 Von fremden Ländern und Menschen [Kinderszenen] 16 Träumerei [Kinderszenen] 17 Tambourin

Menuet BWV Anh.114 [Clavierbüchlein der Anna Magdalena

Bach] 19 Inventio 1 BWV 772 20 Inventio 8 BWV 779 21 Inventio 13 BWV 784 22 Praeludium 1 BWV 846 [Das Wohltemperierte Klavier 1] 23 Le Coucou 24 Gavotte 25 Sonatina Op.36-1 1st Mov. 26 Sonatine Op.20-1 1st Mov. 27 Sonate K.545 1st Mov. 28 Sonate K.331 3rd Mov. “Turkish March” 29 Rondo K.485 30 Für Elise 31 Marcia alla Turca 32 Sonate Op.13 “Pathétique” 1st Mov. 33 Sonate Op.13 “Pathétique” 2nd Mov. 34 Sonate Op.13 “Pathétique” 3rd Mov. 35 Sonate Op.27-2 “Moonlight” 1st Mov. 36 Rhapsodie 2 37 Waltz Op.39-15 (Duet) 38 Liebesträume 3 39 Blumenlied 40 La Prière d’une Vierge 41 Csikos Post 42 Humoresque Op.101-7 43 Melodie [Lyrische Stücke Heft 2] 44 Sicilienne Op.78 45 Berceuse [Dolly] (Duet) 46 Arabesque 1 47 La Fille aux Cheveux de Lin [Préludes] 48 Passepied [Suite bergamasque] 49 Gymnopédie 1 50 Je Te Veux 51 Salut d’Amour 52 The Entertainer 53 Maple Leaf Rag 54 L’arabesque [25 Etüden Op.100] 55 La Styrienne [25 Etüden Op.100] 56 Ave Maria [25 Etüden Op.100] 57 Le retour [25 Etüden Op.100] 58 La chevaleresque [25 Etüden Op.100] 59 No.13 [Études de Mécanisme Op.849] 60 No.26 [Études de Mécanisme Op.849]

61 - 70 User area songs/Canciones del área de usuario

Appendix/Apéndice

A-3

Model PX-800 Version : 1.0

MIDI Implementation Chart

Function... Transmitted Recognized Remarks

Basic Channel

Mode

Note Number

Velocity

After Touc h

Pitch Bender

Control Change

Default Changed

Default Messages Altered

Note ON Note OFF

Key’s Ch’s

0,32

6, 38

100, 101

120 121

1 - 16 1 - 16

Mode 3

21 - 108 0 - 127

9nH v = 1 - 127

8nH v = 64

X X

1 - 16 1 - 16

Mode 3

0 - 127*1True voice

9nH v = 1 - 127

9nH v = 0.8nH V =

X O

*1: Depends on tone *1: Depende del tono.

**:no relation **: sin relación

7 10 11 16 17 18 19 64 66 67 76 77 78 80 81 82 83 91 93

X X X X X X

X O O O

X O

O O O O O O O O O O O O O O O O O O O O O O O O O

Bank select Modulation Data entry Volume Pan Expression DSP Parameter0*2 DSP Parameter1*2 DSP Parameter2*2 DSP Parameter3*2 Damper Sostenuto Soft pedal Vibrato rate Vibrato depth Vibrato delay DSP Parameter4*2 DSP Parameter5*2 DSP Parameter6*2 DSP Parameter7*2 Reverb send Chorus send RPN LSB, MSB*3 All sound off Reset all controller

Program Change

:True #

System Exclusive

System Common

: Song Pos : Song Sel : Tune

System Real Time

Aux

: Clock : Commands

: Local ON/OFF : All notes OFF

Messages

: Active Sense : Reset

Remarks

Mode 1 : OMNI ON, POLY Mode 3 : OMNI OFF, POLY

0 - 127

X X X

O O

X X X X

*2 : For details, see MIDI Implementation at http://world.casio.com/. *2 : Si desea más información, vea Implementación MIDI en http://world.casio.com/ *3 : Pitch Bend Sensitivity, Fine Tune, Coarse Tune, Modulation Depth, Null *3 : Sensibilidad de inflexión de tono, afinación precisa, afinación poco precisa, profundidad de modulación, nulo *4 : Universal Real- time Exclusive Messages: Mast er Volume, Master Balance, Mast er Fine Tuning, Master Coarse Tun ing, Reverb Parameter,

Chorus Parameter, GM System Message

*4 : Mensajes exclusivos de sistemas universales en tiempo real: Volumen maestro, balance maestro, afinación precisa maestra, afinación

poco precisa maestra, parámetro de reverberación, parámetro de coro, mensaje de sistema GM

*5 : This model’s System Exclusive Message

• For details about footnotes 3 through 5, see MIDI Implementation at http://world.casio.com/

*5 : Mensaje exclusivo del sistema de este modelo

• Si desea más información sobre los pies de página, vea Implementación MIDI en http://world.casio.com/

Mode 2 : OMNI ON, MONO Mode 4 : OMNI OFF, MONO

0 - 127

X X X

X X

X O O X

*4, *5

O : Yes X : No

This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se ajusta a la legislación de protección ambiental en Alemania.

MA0706-B Printed in China PX800ES1B

Casio PX-800 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
