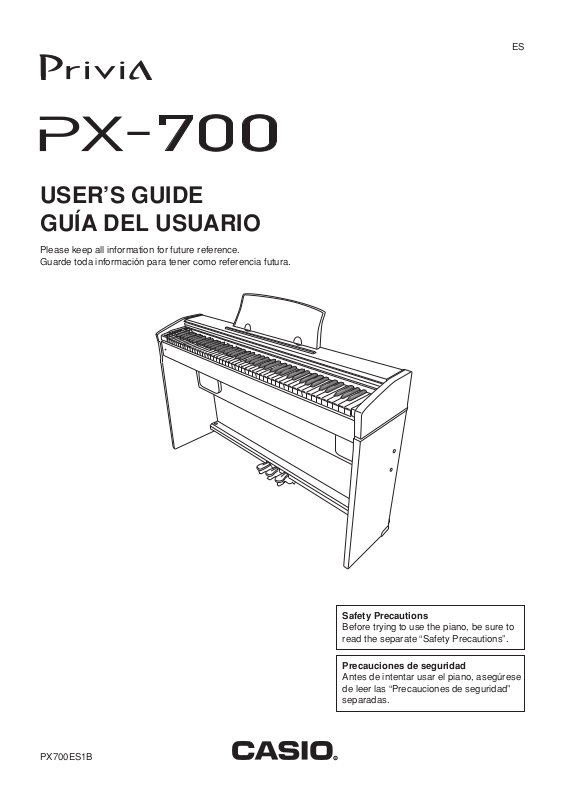

Casio PX700 User Manual

USER’S GUIDE GUÍA DEL USUARIO

Please keep all information for future reference. Guarde toda información para tener como referencia futura.

PX700ES1B

Safety Precautions Before trying to use the piano, be sure to read the separate “Safety Precautions”.

Precauciones de seguridad

Antes de intentar usar el piano, asegúrese de leer las “Precauciones de seguridad” separadas.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS. When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord. For that purpose, locate the apparatus in a way that secures easy access to the power cord.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Important!

Please note the following important information before using this product.

• Before using the AD-12 Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.

• The product is not intended for children under 3 years.

• Use only CASIO AD-12 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

This mark applies in EU countries only.

CASIO Europe GmbH Bornbarch 10, 22848 Norderstedt, Germany

406A-E-002A

Contents

General Guide ..........................E-2

Connecting Headphones ............................ E-2

About the FUNCTION button...................... E-3

Playing Back All the Music Library Tunes ..... E-3

Power Supply ...........................E-4

Using the AC Adaptor ................................. E-4

Playing with Different Tones ..... E-5

Selecting and Playing a Tone ..................... E-5

Adjusting the Brilliance of a Tone ............... E-5

Layering Two Tones .................................... E-6

Assigning Different Tones to the

Left and Right Sides of the Keyboard......... E-6

Using Tone Effects ...................................... E-7

Using the Piano’s Pedals ............................ E-7

Using the Built-in Metronome ..................... E-8

Learning to Play the Music

Library Tunes ...........................E-9

Playing a Music Library Tune ..................... E-9

Practicing a Music Library Tune ................. E-9

Assembling the Stand ...........E-15

Unpacking ................................................. E-15

Assembling the Stand ............................... E-15

Mounting the Digital Piano onto the Stand ....

Installing the Music Stand......................... E-17

E-17

Troubleshooting.....................E-18

Specifications.........................E-19

Operational Precautions ....... E-20

Locating the Unit ....................................... E-20

Care of the Unit......................................... E-20

Lithium Battery .......................................... E-20

Setting Control Key Chart .....E-21

Appendix ..................................A-1

Tone List ..................................................... A-1

Song List ..................................................... A-1

MIDI Implementation Chart

Adjusting Built-in Tune Volume ................... E-9

Recording to and Playing Back

from Song Memory ..................

Recording Your Keyboard Play ................. E-10

Playing Back from Song Memory ............. E-12

Deleting Song Memory Data .................... E-12

E-10

Other Settings ........................E-13

Changing the Keyboard Touch ................. E-13

Changing the Piano Key ........................... E-13

Changing the Pitch of the Piano to

Match Another Instrument ........................ E-13

Using Digital Piano Setup Memory ........... E-13

Using MIDI ................................................ E-14

406A-E-003B

Company and product names used in this

manual may be registered trademarks of others.

E-1

General Guide

Bottom

Headphone

3 4 5

Connecting Headphones

Connect commercially available headphones to the digital piano’s headphones jack. This cuts off the builtin speakers, which means you can practice even late at night without disturbing others. To protect your hearing, make sure that you do not set the volume level too high when using headphones.

IMPORTANT!

• Whenever connecting headphone, first set the VOLUME knob of the digital piano and the volume controller of the external equipment to relatively low volume settings. You can later adjust volume to the level you want after connections are complete.

E-2

Front

CAUTION

Make sure that the cover of the piano is fully open whenever you are playing on the keyboard. A partially open cover can suddenly close unexpectedly and pinch your fingers.

406A-E-004A

General Guide

PHONES jacks

Speaker connector

PEDAL connector

MIDI OUT/IN terminals

DC 12V jack

VOLUME knob

FUNCTION button

START/STOP button

NOTE

• Key, button, and other names are indicated in the text of this manual using bold type.

About the FUNCTION button

The FUNCTION button makes it possible to perform a variety of useful functions. Note the following general information about using the FUNCTION button.

PART/TRACK button, L/T1 (Left/Track1) indicator, R/T2 (Right/Track2) indicator

SONG MEMORY button, PLAY indicator, REC indicator

METRONOME button

SPLIT button

GRAND PIANO, TONE button

Power Indicator

POWER button

Playing Back All the Music Library Tunes

The following procedure plays back the Music Library tunes in sequence.

● An indicator lamp above the FUNCTION button flashes while it is depressed. The lamp goes out when you release the FUNCTION button.

Flashing Unlit

● The FUNCTION button is always used in combination with another button or keyboard key. You hold down the FUNCTION button as you press another button or keyboard key.

• The indicator lamp above the button flashes for a few

seconds at high speed to let you know that the setting is complete. Example: “Selecting and Playing a Tone” on page E-5

● For details about all the keyboard key functions you can perform with the FUNCTION button, see “Setting Control Key Chart” on page E-21.

While holding down the FUNCTION

button, press the START/STOP button at the same time.

• This starts sequential playback of the Music Library tunes.

• You can play along with the Music Library tunes on the keyboard, if you want. Tone assigned to the keyboard is the one that is preset for the Music Library tune that is playing.

Press the START/STOP button again to stop

Music Library tune play.

406A-E-005A

E-3

Power Supply

You can power this digital piano by plugging it into a standard household power outlet. Be sure you turn off power and unplug the power cord from the electrical outlet whenever the digital piano is not in use.

Using the AC Adaptor

Make sure that you use only the AC adaptor specified for this digital piano.

Specified AC Adaptor: AD-12

[Bottom]

DC 12V jack AC adaptor AD-12

AC outlet

Accessories and Options

Use only the accessories and options specified for this digital piano. Use of non-authorized items creates the danger of fire, electric shock, and personal injury.

Note the following important precautions to avoid damage to the power cord.

● During Use

• Never pull on the cord with excessive force.

• Never repeatedly pull on the cord.

• Never twist the cord at the base of the plug or

connector.

• The power cord should not be stretched tight while it is in use.

● During Movement

• Before moving the digital piano, be sure to unplug the AC adaptor from the power outlet.

● During Storage

• Loop and bundle the power cord, but never wind it around the AC adaptor.

IMPORTANT!

• Make sure that the product is turned off before connecting or disconnecting the AC adaptor.

• Using the AC adaptor for a long time can cause it to become warm to touch. This is normal and does not indicate malfunction.

E-4

406A-E-006A

Playing with Different Tones

Use the VOLUME knob to adjust the

Selecting and Playing a Tone

The piano comes with 11 built-in tones.

volume.

• The names of the tones are marked above the

keyboard keys to which they are assigned.

Tone Keys

GRAND PIANO

GRAND PIANO 2

ELEC PIANO 1

ELEC PIANO 2

HARPSICHORD



0 E1

A0 B0 C1 D1 E1

VIBRAPHONE



1C1

F1 G1

STRINGS

PERC ORGAN

PIPE ORGAN

RIDE ACO BASS

ACOUSTIC BASS

• The GRAND PIANO tone was recorded with stereo

sampling.

To select a tone

NOTE

• Changing the tone selection causes DSP* to switch automatically to the default setting for the newly selected tone. This causes any notes that are sounding at the time of the change to be interrupted momentarily. The DSP* will be set to the default setting for the newly selected tone when the note resumes. (*See page E-7)

Adjusting the Brilliance of a Tone

You can adjust the clarity and sharpness of a tone to suit your music and personal preferences.

While holding down the FUNCTION

button, use the keyboard keys shown below to adjust the brilliance of a tone to the level that you want.

Press the POWER button.

Select the tone you want.

● To select GRAND PIANO Press the GRAND PIANO button.

● To select one of the other tones

• While holding down the FUNCTION button,

press the keyboard key that corresponds to the tone you want to select.

• You can also select a tone by holding down

the FUNCTION button and pressing the GRAND PIANO button. Each press of the GRAND PIANO button cycles through the tone settings in sequence from 1 through A as shown in the illustration. * A note does not sound when you press a

keyboard key while holding down the FUNCTION button.

▲

왔 : produces a more mellow sound 왖 : produces a brighter sound

• To return the brilliance setting to its initial default, hold down the FUNCTION button and press both of the keyboard keys [왔] and [왖] at the same time.

▲

406A-E-007A

E-5

Playing with Different Tones

Layering Two Tones

Use the following procedure to layer to two tones, so they sound at the same time. Of the two keyboard keys you press to layer two tones, the one on the left is the main tone, while the one on the right is the layered tone.

While holding down the FUNCTION

button, simultaneously press the keyboard keys that correspond to the two tones that you want to layer.

Example: To layer GRAND PIANO 2 and STRINGS

GRAND PIANO 2

STRINGS

• The tones are now layered.

After you are finished using the layered

tones, press the GRAND PIANO button or select the tone to unlayer them.

Assigning Different Tones to the Left and Right Sides of the Keyboard

You can assign different tones to keys on the left side and the right side of the keyboard.

Low Range High Range

STRINGS GRAND PIANO 2

Select the tone you want to assign to the high

(right) side of the keyboard (see page E-5).

Example: GRAND PIANO 2

Press the SPLIT button.

• This causes the SPLIT indicator lamp to light.

Select the tone you want to assign to the low

(left) side of the keyboard (see page E-5).

• The keyboard is now split between the two

Example: STRINGS

After you are finished using the split

keyboard, press the SPLIT button again to unsplit it.

• This causes the SPLIT indicator lamp to go out.

Split Point

tones.

Adjusting the Volume Balance between Two Layered Tones

While holding down the FUNCTION

button, use the keyboard keys shown below to adjust the volume of the layered tones.

왗

왘

▲

C2▲C3

• To return the volume setting to its initial default, hold down the FUNCTION button and press both of the keys at the same time.

▲

Initial default (Center)

Volume of the main toneVolume of the layered tone

▲

Specifying the Keyboard Tone Split Point

While holding down the SPLIT button,

press the keyboard key where you want the left limit of the high range (right) tone to be.

Flash

Low range

Left limit of the high range

High range

E-6

406A-E-008B
