Casio PX-310 User Manual

USER’S GUIDE
GUÍA DEL USUARIO

Please keep all information for future reference.
Guarde toda información para tener como referencia futura.

ES

PX310ES1B

Safety Precautions
Before trying to use the piano, be sure to
read the separate “Safety Precautions”.

Precauciones de seguridad

Antes de intentar usar el piano, asegúrese
de leer las “Precauciones de seguridad”
separadas.

This recycle mark indicates that the packaging conforms to
the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se
ajusta a la legislación de protección ambiental en Alemania.

CASIO COMPUTER CO.,LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

P

MA0508-B Printed in China
PX310ES1B

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS.
When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord.
For that purpose, locate the apparatus in a way that secures easy access to the power cord.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s author­ity to operate the equipment.

Important!

Please note the following important information before using this product.

• Before using the AD-12 Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully
check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor
that is seriously damaged.

• The product is not intended for children under 3 years.

• Use only CASIO AD-12 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

This mark applies in EU countries only.

CASIO Europe GmbH
Bornbarch 10, 22848 Norderstedt, Germany

407A-E-002A

Contents

General Guide ..........................E-2

Attachment of the Score Stand .................. E-2

About the FUNCTION button...................... E-3

Numeric Input Keys and +/– Keys .............. E-4

Playing Back All the demo Tunes ............... E-4

Power Supply ...........................E-4

Using the AC Adaptor ................................. E-4

Connections .............................E-5

Connecting Headphones ............................ E-5

Connecting an audio or musical

instrument amplifier .................................... E-5

Connecting to a PEDAL Jack ..................... E-6

Playing with Different Tones ..... E-7

Selecting and Playing a Tone ..................... E-7

Selecting Main Tones and Variation Tones ... E-7

Recording to and Playing Back

from Song Memory ................. E-20

Recording Your Keyboard Play ................. E-21

Playing Back from Song Memory ............. E-22

Deleting Song Memory Data .................... E-23

Other Settings ........................E-24

Adjusting Accompaniment Volume ........... E-24

Changing the Keyboard Touch ................. E-24

Changing the Piano Key ........................... E-25

Changing the Pitch of the Piano to

Match Another Instrument ........................ E-25

Using Digital Piano Setup Memory ........... E-25

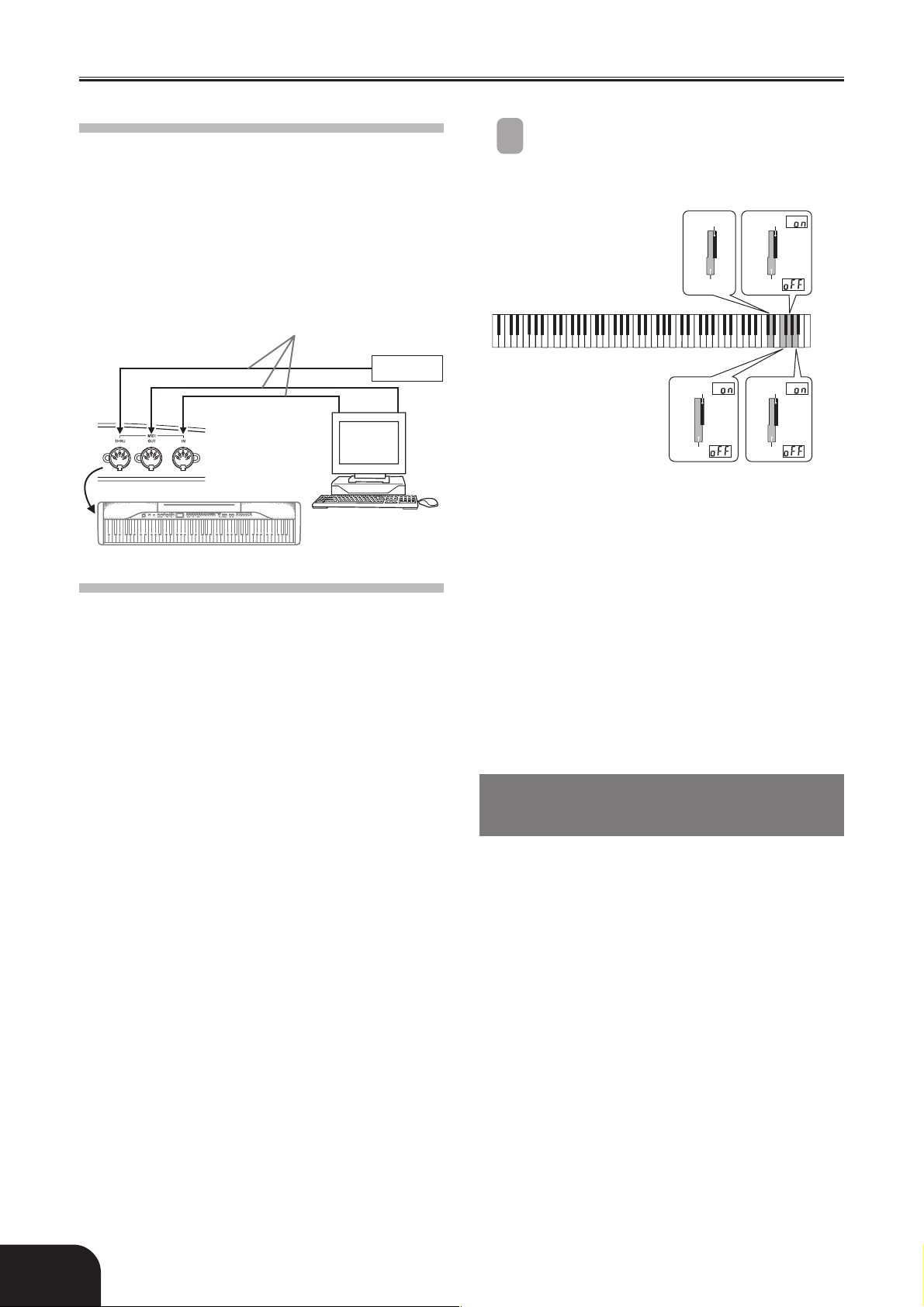

Using MIDI ................................................ E-25

Saving the Song Data You Download

from the Internet ....................................... E-26

Troubleshooting.....................E-28

Selecting an Advanced Tone, GM Tone,

or Drum Set ................................................ E-7

Adjusting the Brilliance of a Tone ............... E-8

Layering Two Tones .................................... E-8

Assigning Different Tones to the Left and

Right Sides of the Keyboard ....................... E-9

Using Tone Effects .................................... E-10

Using the Piano’s Pedals .......................... E-11

Playing Rhythms....................E-12

Using Auto Accompaniment...................... E-13

Playing Tunes You

Download from the Internet ....E-16

Practicing a Tune ...................................... E-17

Using Registration Memory ....E-18

What is registration memory? ................... E-18

Specifications.........................E-29

Operational Precautions ....... E-30

Locating the Unit ....................................... E-30

Care of the Unit......................................... E-30

Lithium Battery .......................................... E-30

Setting Control Key Chart .....E-31

Appendix ..................................A-1

Tone List ..................................................... A-1

Rhythm List ................................................. A-2

Drum Assignment List ................................. A-3

Fingered Chord Chart ................................. A-4

MIDI Implementation Chart

407A-E-003A

Company and product names used in this

manual may be registered trademarks of others.

E-1

General Guide

Bottom

1

Back Panel

2 3 4 5

Left Side Panel

67 8 9

0 A

E F G H I J K L M T V WQ R S UN O P

Attachment of the Score Stand

Insert the score stand into the slot at the top of the
digital piano as shown in the illustration.

B D

C

E-2

NOTE

• Each chapter of this manual starts with an illustration
of the piano’s console, which shows the buttons and
other controllers you need to operate.

FUNCTION

VOLUME

407A-E-004A

General Guide

1

PEDAL connector

2

DAMPER PEDAL jack

3

SOFT/SOSTENUTO PEDAL jack

4

LINE OUT R, L/MONO jacks

5

LINE IN R, L/MONO jacks

6

POWER button

7

DC 12V jack

8

MIDI THRU/OUT/IN terminals

9

PHONES jacks

0

RHYTHM/SONG SELECT buttons

A

TEMPO buttons

B

TONE buttons

C

TONE SELECT buttons

D

REGISTRATION buttons

E

VOLUME knob

F

FUNCTION button

G

INTRO/ENDING button

H

SYNCHRO/FILL-IN button

I

START/STOP, DEMO button

J

RHYTHM, USER SONG button

K

T1/L T2/R button

L

SONG MEMORY button

M

Display screen

N

TRANSPOSE buttons

O

TUNE buttons

P

BRILLIANCE buttons

Q

ADVANCED TONES/GM TONES button

R

VARIATION button

S

SPLIT button

T

REVERB, REVERB TYPE button

U

CHORUS, CHORUS TYPE button

V

BANK button

W

STORE button

NOTE

• Key, button, and other names are indicated in the text of this manual using bold type.

About the FUNCTION button

The FUNCTION button makes it possible to perform a variety of useful functions. Note the following general
information about using the FUNCTION button.

● An indicator lamp above the FUNCTION button flashes while it is depressed. The lamp goes out when you
release the FUNCTION button.

Flashing Unlit

● The FUNCTION button is always used in combination with another button or keyboard key. You hold down
the FUNCTION button as you press another button or keyboard key.

• The indicator lamp above the button flashes for a few seconds at high speed to let you know that the setting is complete.

Example: “Adjusting the Brilliance of a Tone” on page E-8

● For details about all the keyboard key functions you can perform with the FUNCTION button, see “Setting
Control Key Chart” on page E-31.

407A-E-005A

E-3

General Guide

Numeric Input Keys and +/–
Keys

● For a moment after you hold down the FUNCTION
button and then press another button to activate a
function, you can use certain keyboard keys to input
numbers or to increase (+) and decrease (–) setting
values.

● Since the keyboard keys operate as switches at this
time, notes do not sound when you press keyboard
keys.

See “To adjust the tempo” on page E-12 for an actual
example.

Playing Back All the demo Tunes

The following procedure plays back the demo tunes
in sequence.

While holding down the FUNCTION

1

button, press the DEMO button at the same
time.

• This starts sequential playback of the demo
tunes.

• You can play along with the demo tunes on the
keyboard, if you want. Tone assigned to the
keyboard is the one that is preset for the demo
tune that is playing.

Press the DEMO button again to stop demo

2

tune play.

Power Supply

You can power this digital piano by plugging it into a
standard household power outlet.
Be sure you turn off power and unplug the power cord
from the electrical outlet whenever the digital piano
is not in use.

Using the AC Adaptor

Make sure that you use only the AC adaptor specified
for this digital piano.

Specified AC Adaptor: AD-12

[Left Side Panel]

DC 12V jack

AC adaptor AD-12

Note the following important precautions to avoid
damage to the power cord.

● During Use

• Never pull on the cord with excessive force.

• Never repeatedly pull on the cord.

• Never twist the cord at the base of the plug or

connector.

• The power cord should not be stretched tight
while it is in use.

● During Movement

• Before moving the keyboard, be sure to unplug
the AC adaptor from the power outlet.

● During Storage

• Loop and bundle the power cord, but never wind
it around the AC adaptor.

IMPORTANT!

• Make sure that the product is turned off before connecting
or disconnecting the AC adaptor.

• Using the AC adaptor for a long time can cause it to
become warm to touch. This is normal and does not
indicate malfunction.

E-4

AC outlet

407A-E-006A

Connections

IMPORTANT!

• Whenever connecting external equipment, first set the
VOLUME knob of the digital piano and the volume
controller of the external equipment to relatively low
volume settings. You can later adjust volume to the level
you want after connections are complete.

• Be sure also to refer to the documentation that comes with
the external equipment for its proper connection
procedures.

Connecting Headphones

Connect commercially available headphones to the
digital piano’s PHONES jacks. This cuts off the built­in speakers, which means you can practice even late
at night without disturbing others. To protect your
hearing, make sure that you do not set the volume
level too high when using headphones.

[Left Side Panel]

PHONES jacks

Playing Output from External
Equipment through the Piano’s
Speakers 1

LINE IN R jack input sounds through the piano’s right
speaker, while LINE IN L/MONO jack input sounds
through the left speaker. Connecting to the LINE IN
L/MONO jack only causes the same output to be
produced from both speakers. It is up to you to
purchase connecting cables that are compatible with
the equipment you are connecting.

Connecting to Audio Equipment 2

Use commercially available cables to connect the
external audio equipment to the piano’s LINE OUT
jacks as shown in Figure 2. LINE OUT R jack output
is right channel sound, while LINE OUT L/MONO
jack output is left channel sound. It is up to you to
purchase connecting cables like the ones shown in the
illustration for connection of audio equipment.
Normally in this configuration you must set the audio
equipment’s input selector to the setting that specifies
the terminal (such as AUX IN) to which the piano is
connected. Use the piano’s VOLUME knob to adjust
the volume level.

Headphones

Connecting an audio or
musical instrument amplifier

Connecting to an audio or musical instrument
amplifier provides even clearer, more powerful sound
through external speakers.

Audio amplifier AUX IN, etc.

RIGHT
(Red)

LEFT
(White)

Tape recorder,
MIDI sound
source

Standard jacks

INPUT 1

INPUT 2

Guitar amplifier,
keyboard amplifier, etc.

PIN plugs

Standard plug

Connecting to a Musical Instrument
Amplifier 3

Use commercially available cables to connect the
amplifier to the piano’s LINE OUT jacks as shown in
Figure 3. LINE OUT R jack output is right channel
sound, while LINE OUT L/MONO jack output is left
channel sound. Connecting to the LINE OUT L/
MONO jack only outputs a mixture of both channels.
It is up to you to purchase connecting cable like the
one shown in the illustration for connection of the
amplifier. Use the piano’s VOLUME knob to adjust
the volume level.

407A-E-007A

E-5

Connections

Connecting to a PEDAL Jack

Depending on the type of operation you want the
pedal (SP-3) to perform, connect the pedal’s cable to
the digital piano’s PEDAL DAMPER jack or PEDAL
SOFT/SOSTENUTO jack. If you want to use both
jacks at the same time, you need to purchase another
optionally available pedal.
See “Using the Piano’s Pedals” on page E-11 for
information about using a pedal.

[Back Panel]

PEDAL jacks

SP-3

PEDAL connector

You can connect the optionally available Pedal Unit
(SP-30) to the PEDAL connector. You can then use the
pedals for expression that is similar to that available
on an acoustic piano.

[Bottom]

PEDAL connector

Accessories and Options

Use only the accessories and options specified for this
digital piano. Use of non-authorized items creates the
danger of fire, electric shock, and personal injury.

E-6

407A-E-008A

Playing with Different Tones

Press the VARIATION button so the

Selecting and Playing a Tone

Your piano has the following types of tones built in.

Main Tones 12

Variation Tones 12

Advanced Tones 40

GM Tones 128

Drum Sets 10

4

indicator lamp above it is lit.

• This selects the variation tone assigned to each
TONE button.

Example: CLAVI

• For information about variation tone assigned
to each button, see the Tone List on page A-1.

To toggle between the main tone

5

(VARIATION indicator lamp off) and variation
tone (VARIATION indicator lamp on), press
the VARIATION button or the TONE button.

Selecting Main Tones and
Variation Tones

Press the POWER button.

1

POWER button

Use the VOLUME knob to adjust the

2

volume level.

Press one of the 12 TONE buttons to select

3

the tone you want.

• The names of the main tones are marked above
the TONE buttons.

Example: To select JAZZ ORGAN

NOTE

• Changing the main tone, variation tone or
advanced tone selection causes DSP* to switch
automatically to the default setting for the newly
selected tone. This causes any notes that are
sounding at the time of the change to be interrupted
momentarily. The DSP* will be set to the default
setting for the newly selected tone when the note
resumes. (*See page E-10)

Selecting an Advanced Tone,
GM Tone, or Drum Set

You can use the following procedure to assign one of
the piano’s 40 Advanced Tones, 128 GM tones, or 10
drum sets to the ADVANCED TONES/GM TONES
button.

Press the ADVANCED TONES/GM TONES

1

button.

• This selects the tone that is currently assigned
to the ADVANCED TONES/GM TONES
button.

• The display continues to display the tune or
rhythm number.

VOLUME

407A-E-009B

FUNCTION

BRILLIANCE

Use the Tone List on page A-1 to find the

2

advanced tone, GM tone, or drum set
number you want.

Example: 008 (MARIMBA)

TONE SELECT

TONE ADVANCED

TONES/GM TONES

REVERBVARIATION

CHORUSSPLIT

E-7

Playing with Different Tones

While holding down the FUNCTION

3

button, press the ADVANCED TONES/GM
TONES button. Remember to keep the
FUNCTION button depressed.

• This causes the tone number of the tone that is
currently assigned to the ADVANCED TONES/
GM TONES button to appear on the display.

Example: 080 (GM VIOLIN)

While holding down the FUNCTION

4

button, use the keyboard keys shown below
to input the tone number of the tone you
want to assign to the ADVANCED TONES/
GM TONES button.

Example: 008 (MARIMBA)

Selecting the ADVANCED TONES/GM
TONES Button Variation Tone

To assign a variation tone to the ADVANCED TONES/
GM TONES button, perform the steps under
“Selecting an Advanced tone, GM Tone, or Drum Set”
on page E-7. After step 1, however, press the
VARIATION button so the indicator lamp above it is
lit.

• After you assign a tone as the variation tone, you
can select it by pressing the ADVANCED TONES/
GM TONES button.

Adjusting the Brilliance of a Tone

You can adjust the clarity and sharpness of a tone to
suit your music and personal preferences.

Holding down the FUNCTION button,

1

press the BRILLIANCE buttons to adjust the
brilliance of a tone to the level that you
want.

• This displays the number of the assigned tone.

After inputting the tone number you want,

5

release the FUNCTION button to exit the
GM tone setting screen.

NOTE

• You can also select a tone by holding down the
ADVANCED TONES/GM TONES button as you
use the TONE SELECT [ ] and [ ] buttons to
scroll through tone numbers on the display.

• The tone that you assign to the ADVANCED
TONES/GM TONES button is retained until you
turn off the keyboard.

• If a drum set is assigned to the ADVANCED
TONES/GM TONES button, keyboard keys sound
drum sounds when you press them. See page A-3
for information about the drum sounds that are
assigned to each of the keyboard keys.

[ ] : produces a more mellow sound
[

] : produces a brighter sound

• To return the brilliance setting to its initial
default, hold down the FUNCTION button and
press both of the BRILLIANCE buttons at the
same time.

Layering Two Tones

Use the following procedure to layer to two tones, so
they sound at the same time.
Of the two TONE buttons you press to layer two tones,
the one on the left is the main tone, while the one on
the right is the layered tone.

PREPARATION

• If you plan to use a variation tone, perform the procedure
on page E-7 to select the variation tone for the applicable
TONE button(s) before starting this procedure.

E-8

407A-E-010A

Simultaneously press the TONE buttons of

1

the two tones that you want to layer.

Example: Press GRAND PIANO 1 button and

STRINGS button at the same time.

Playing with Different Tones

Assigning Different Tones to the Left
and Right Sides of the Keyboard

You can assign different tones to keys on the left side
and the right side of the keyboard.

Low Range High Range

Split Point

• If the layer tone is a variation tone, the indicator
lamp above the VARIATION button will light.

GRAND PIANO 1

STRINGS

• The tones are now layered.

After you are finished using the layered

2

tones, press the one of the TONE buttons
again to unlayer them.

NOTE

• Note that you cannot layer the main tone and
variation tone assigned to the same TONE button.

Adjusting the Volume Balance between
Two Layered Tones

While holding down the FUNCTION

1

button, use the keyboard keys shown below
to adjust the volume of the layered tones.

왗

왘

STRINGS GRAND PIANO 1

Press the TONE button of the tone you want

1

to select for the high (right) range.

Example: GRAND PIANO 1

Press the SPLIT button.

2

• This causes the SPLIT indicator lamp to light.

Press the TONE button of the tone you want

3

to select for the low (left) range.

• The keyboard is now split between the two
tones.

Example: STRINGS

After you are finished using the split

4

keyboard, press the SPLIT button again to
unsplit it.

• This causes the SPLIT indicator lamp to go out.

Specifying the Keyboard Tone Split Point

While holding down the SPLIT button,

1

press the keyboard key where you want the
left limit of the high range (right) tone to
be.

Left limit of the high range

Flash

Low range

High range

▲

C1

407A-E-011A

▲

▲

▲

▲

▲

C2

C3

C4

C5

Initial default (Center)

▲

C6

C7

▲

Volume of the main toneVolume of the layered tone

• To return the volume setting to its initial default,
hold down the FUNCTION button and press
both of the keys at the same time.

▲

C8

▼

NOTE

• The split point setting also controls the point where
the keyboard splits between the accompaniment
keyboard (pages E-14, 15) and the melody
keyboard. Moving the split point also affects the
sizes of the accompaniment keyboard and the
melody keyboard.

E-9

Playing with Different Tones

Using Tone Effects

Reverb: Makes your notes resonate
Chorus: Adds more breadth to your notes

Turning Effects On and Off

Each press of the REVERB or CHORUS

1

button toggles the setting as shown below.

• You can determine the status of the effects by
checking the REVERB and CHORUS indicator
lamps.

Lit

On

Unlit

Off

[Chorus]

0: Chorus 1 1: Chorus 2 2: Chorus 3 3: Chorus 4

About DSP

DSP makes it possible to digitally produce complex
acoustic effects.
The DSP is assigned to each tone whenever you turn
on digital piano power.

Turning DSP On and Off

Changing the Effect Type

There are four reverb and four chorus types.

Turn on the effect you want to change.

1

While holding down the FUNCTION

2

button, press the REVERB or CHORUS
button to cycle through the effect type
settings as shown below.

[Reverb]

0: Room 1 1: Room 2 2: Hall 1 3: Hall 2

While holding down the FUNCTION

1

button, press one of the keyboard keys
shown below to turn DSP on or off.

On:

Off:

▲

▲

▲

▲

▲

C

1

C

2

C

3

C

4

▲

C

5

C

6

C

▲

▲

7

C

8

E-10

407A-E-012B

Playing with Different Tones

NOTE

• Under initial default settings, DSP is on for the main
tone, and layer and split are turned off. DSP can be
applied to only one part as shown below.

Initial Defaults
Layer Tone DSP On
Split Tone DSP On

Main

Tone

On
Off
Off

Layer

Tone

Off
On
Off

Split
Tone

Off
Off
On

• You can turn chorus on or off for each main tone,
layer tone, and split tone part.

• You cannot turn reverb on or off for each main tone,
layer tone, and split tone part.

Using the Piano’s Pedals

The digital piano is equipped with two pedal jacks, one
for a damper pedal and one for a soft/sostenuto pedal.

SP-3

Pedal functions

• Damper Pedal

Pressing the damper pedal while playing will cause
the notes you play to reverberate for a very long
time. When GRAND PIANO 1 is selected as the
tone, using this pedal causes note to reverberate just
like the pedal on an acoustic grand piano.

• Soft Pedal

Pressing this pedal while playing weakens notes
played on the keyboard after the pedal was pressed,
and makes them sound softer.

• Sostenuto Pedal

Only the notes of the keys that are depressed when
this pedal is pressed are sustained until the pedal
is released.

Selecting the Pedal Function

A pedal connected to the piano’s PEDAL jack can
operate as either a soft pedal or a sostenuto pedal.
When you turn on the keyboard, the pedal is initially
configured for soft pedal operation. You can perform
the following operation to select either soft or
sostenuto for the pedal operation.

While holding down the FUNCTION

1

button, use the keyboard keys shown below
to select either soft or sostenuto.

Sostenuto:

Soft:

▲

▲

▲

▲

▲

▲

▲

C1

C2

C3

C4

C5

C6

▲

C7

C8

Adjusting the Effect Applied when the
Damper Pedal is Pressed Half Way
(With optional SP-30 only)

You can specify to what extent the damper effect
should be applied when you press the damper pedal
half way. A setting in the range of 0 (no effect) to 42
(same effect as full press) can be specified.

While holding down the FUNCTION

1

button, press one of the keyboard keys
shown below to specify the setting you
want.

▲

▲

▲

▲

▲

▲

▲

▲

▲

C

1

C

2

C

3

C

4

C

5

C

6

왔 : Decreases the effect
왖 : Increases the effect

• To return the volume setting to its initial default,
hold down the FUNCTION button and press
both of the keys at the same time.

▲

C

7

C

8

407A-E-013A

E-11

Playing Rhythms

You can select from among 120 built-in rhythms.
Rhythms 0 through 109 include percussion instrument
sounds, but rhythms 110 through 119 do not. See the
next page for information about how to use rhythms
110 through 119.

Press the RHYTHM button so the RHYTHM

1

indicator lamp (above the button) is lit.

• Each press of the button toggles between the
upper indicator lamp and lower indicator lamp.

While holding down the FUNCTION

2

button, use the keyboard keys shown below
to input a rhythm number.

• If you want your accompaniment rhythm to
include percussion instrument sounds, select a
rhythm in the range of 0 through 109.

NOTE

• You can also cycle through the available rhythms
in step 2 by holding down the FUNCTION button
and pressing the RHYTHM/SONG SELECT [
or [

] button.

• Pressing the two RHYTHM/SONG SELECT
buttons at the same time selects rhythm 0.

To adjust the tempo

While holding down the FUNCTION

1

button, use the TEMPO [
buttons to change the tempo (speed).

• To return to its standard tempo setting, press
the TEMPO [
time.

] and [ ] buttons at the same

] and [ ]

]

Press the START/STOP button.

3

• This starts the rhythm.

Press the START/STOP button again to stop

4

the rhythm.

NOTE

• You can also use keyboard keys to change the tempo
setting.
(1) While holding down the FUNCTION button,

press the TEMPO button.

(2) While keeping the FUNCTION button

depressed, use the keyboard keys shown below
to input a number.

* Tempo Range: 30 to 255

E-12

FUNCTION

SELECT

INTRO/
ENDING

SYNCHRO/
FILL-IN

START/
STOP

RHYTHM

TEMPORHYTHM/SONG

407A-E-014A

Using Auto Accompaniment

With auto accompaniment, the keyboard
automatically plays rhythm, bass, and chord parts in
accordance with chords you select using simplified
keyboard fingerings, or chords you play. Auto
accompaniment makes it feel like you have your own
private backup group with you all the time.

NOTE

• Rhythms 110 through 119 consist of chord
accompaniments only, without any drums or other
percussion instruments. These rhythms do not
sound unless CASIO CHORD, FINGERED, or
FULL RANGE CHORD is selected as the
accompaniment mode. With such rhythms, make
sure that CASIO CHORD, FINGERED, or FULL
RANGE CHORD is selected before you try playing
chords.

To play with auto accompaniment

Playing Rhythms

Press the SYNCHRO/FILL-IN button.

2

• This configures the piano so rhythm and chord
accompaniment will start automatically when
you press any keys within the accompaniment
keyboard range.

Press the INTRO/ENDING button.

3

• This configures the piano so accompaniment
starts with an intro pattern.

Use a CASIO CHORD fingering to play the

4

first chord within the accompaniment
keyboard range.

• This will cause the intro pattern for the selected
rhythm to play, followed by the auto
accompaniment rhythm and chord pattern.

Use CASIO CHORD fingerings to play

5

other chords.

• See “How to Play Chords” on page E-14 for
information about how to finger chords with
the various chord modes.

• You can insert a fill-in pattern while an auto
accompaniment is playing by pressing the
SYNCHRO/FILL-IN button. A fill-in helps to
change the mood of the auto accompaniment
pattern.

PREPARATION

• Select the rhythm you want to use and adjust the tempo.

Select one of the three chord modes

1

(MODE).

NORMAL:

CASIO CHORD:

• Here we will select the CASIO CHORD mode.

• See page E-14 for information about how to use

the chord modes.

FULL RANGE CHORD:

FINGERED:

To stop auto accompaniment play, press the

6

INTRO/ENDING button.

• This will play an ending pattern for the selected
rhythm before stopping auto accompaniment
play.

NOTE

• You can start or stop auto accompaniment play
without an intro or ending pattern by pressing the
START/STOP button in steps 3 and 6.

• You can adjust the volume of auto accompaniment.
For more information see “Adjusting
Accompaniment Volume” on page E-24.

407A-E-015A

E-13

Playing Rhythms

How to Play Chords

The way you finger chords depends on the current
chord mode.

■ Normal

In this mode there is no auto accompaniment, so you
can play all of piano’s keys for standard-fingering
chords or melody notes.

■ CASIO CHORD

This method of chord play makes it possible for
anyone to easily play chords, regardless of previous
musical knowledge and experience. The following
describes the CASIO CHORD “Accompaniment
keyboard” and “Melody keyboard”, and tells you how
to play CASIO CHORDs.

CASIO CHORD Accompaniment Keyboard and
Melody Keyboard

Accompaniment

keyboard

Melody keyboard

Chord Types

CASIO CHORD accompaniment lets you play four
types of chords with minimal fingering.

Chord Types

Major chords

Press one accompaniment key.
Note that the chord produced
when you press an
accompaniment keyboard key
does not change octave,
regardless of which key you use
to play it.

Minor chords (m)

To play a minor chord, keep the
major chord key depressed and
press any other accompaniment
keyboard key located to the right
of the major chord key.

Seventh chords (7)

To play a seventh chord, keep the
major chord key depressed and
press any other two
accompaniment keyboard keys
located to the right of the major
chord key.

Example

C Major (C)



##

CCDE F

EFGAABBCCDE FE



#

C minor (Cm)



##

CCDE F

EFGAABBCCDE FE



#

C seventh (C7)



##

CCDE F

EFGAABBCCDE FE



#

IMPORTANT!

• The accompaniment keyboard can be used for playing
chords only. No sound will be produced if you try playing
single melody notes on the accompaniment keyboard.

• The split point (page E-9) is the point that separates the
Auto Accompaniment area and the melody area of the
keyboard. You can change the location of the split point,
which also changes the sizes of the keyboard areas.

Minor seventh chords (m7)

To play a minor seventh chord,
keep the major chord key
depressed and press any other

C minor seventh
(Cm7)



##

CCDE F

EFGAABBCCDE FE



#

three accompaniment keyboard
keys located to the right of the
major chord key.

NOTE

• It makes no difference whether you press black or
white keys to the right of a major chord key when
playing minor and seventh chords.

■ FINGERED

In this mode, you specify chords by playing them as you
would on a piano, inside the accompaniment keyboard
range. To specify a C-chord, you would play C-E-G

.

FINGERED Accompaniment Keyboard and Melody
Keyboard

E-14

Accompaniment

keyboard

Melody keyboard

407A-E-016A

Playing Rhythms

IMPORTANT!

• The accompaniment keyboard can be used for playing
chords only. No sound will be produced if you try playing
single melody notes on the accompaniment keyboard.

• The split point (page E-9) is the point that separates the
Auto Accompaniment area and the melody area of the
keyboard. You can change the location of the split point,
which also changes the sizes of the keyboard areas.

CCm

1

Caug *

2

Cm7 *



5 *1

C7

Cmadd9 CmM7 *

Csus4

Cmaj7 *

C7sus4

2

2

Cdim

2

C7 *



5

Cm7

Cadd9

Cdim7 *

1

NOTE

• See the “Fingered Chord Chart” on page A-4 for
details on playing chords with other roots.

*1: Inverted fingerings cannot be used. The lowest

note is the root.

*2: The same chord can be played without pressing

the 5th G.

■ FULL RANGE CHORD

This accompaniment method makes it possible to play
a total of 38 chord variations: the 15 available with
FINGERED plus 23 additional variations. The
keyboard interprets any input of three or more keys
that matches a FULL RANGE CHORD pattern to be a
chord. Any multi-key input that is not a FULL RANGE
CHORD pattern is interpreted as melody play. Because
of this, there is no need for a separate accompaniment
keyboard, and the entire keyboard from end-to-end
can be used for both melody and chords.

FULL RANGE CHORD Accompaniment Keyboard
and Melody Keyboard

Accompaniment keyboard/Melody keyboard

Chords Recognized by This Piano

The following table identifies patterns that are
recognized as chords by FULL RANGE CHORD.

Pattern Type

FINGERED

Standard

Fingerings

Example: To play the chord C major and .

Number of Chord Variations

The 15 chord patterns shown under
“FINGERED” on page E-14.

23 standard chord fingerings. The
following are examples of the 23
chords available with C as the bass
note.

C6 • Cm6 • C69



DCECFCGC A

D

••••• •

C

BCDmCDmCFmCGmCAmCBm

••••••

DdimCA



7

•••• •

Fm7CGm7C A

CF7C





B

C

C

C



add9

C

C
E

1

EG C

NOTE

• Except for the chords specified in note*1 above,
inverted fingerings (i.e. playing E-G-C or G-C-E
instead of C-E-G) will produce the same chords as
the standard fingering.

• Except for the exception specified in note*
all of the keys that make up a chord must be
pressed. Failure to press even a single key will not
play the desired FINGERED chord.

407A-E-017A

2

above,

E

G C

2

1 ..... Chord C

2 ..... Chord C

C
E

NOTE

• If there are more than six semitones between the
lowest note and the next note to the right, the lowest
note is interpreted as a bass note.

E-15

Playing Tunes You Download from the Internet

You can save music data for up to 10 tunes you
download from the Internet to the digital piano’s user
song area (No. 0 through 9). Once you store a song in
digital piano memory, you can play it back using the
following procedure.

Press the USER SONG button so the USER

1

SONG indicator lamp (below the button)
is lit.

• Each press of the button toggles between the
upper indicator lamp and lower indicator lamp.

While holding down the FUNCTION

2

button, press the keyboard keys shown
below to input a tune number.

NOTE

• You can also cycle through the available tunes in
step 2 by holding down the FUNCTION button and
pressing the RHYTHM/SONG SELECT [
[

] button.

• Pressing the two RHYTHM/SONG SELECT
buttons at the same time selects tune 0.

• You cannot use layer or split while playing a tune.

] or

Press the START/STOP button.

3

• This starts the playback of the tune.

Press the START/STOP button again to stop

4

tune playback.

FUNCTION

START/
STOP

RHYTHM/
SONG SELECT

T1/L T2/R

USER SONG

E-16

407A-E-018A

Playing Tunes You Download from the Internet

Practicing a Tune

You can turn off the left hand part or right hand part
of the user song* and play along on the digital piano.
* With song data, the left-hand part is assigned to

MIDI Channel 3, while the right-hand part is
assigned to MIDI Channel 4.

PREPARATION

• Select the tune you want to practice and adjust the tempo
(See “To adjust the tempo” on page E-12).

• The maximum tempo setting for each tune is double the
initial default tempo of the tune.

• A number of tunes have tempo changes part way through
in order to produce specific musical effects.

Use the T1/L T2/R button to turn parts on

1

or off.

• The indicator lamps above the button show the
current on/off status of the parts.

Press the START/STOP button.

2

• This starts playback of the tune, without the
part you selected in step 1.

Play the missing part on the piano’s

3

keyboard.

Press the START/STOP button again to stop

4

song playback.

407A-E-019A

E-17

Using Registration Memory

What is registration memory?

Registration memory lets you save up to 32 (4 areas ×
8 banks) digital piano setups (tone, rhythm, tempo,
etc.) for instant recall whenever you need them.

Registration Memory Setup Data

The following are the settings that can be saved for
each registration memory setup.

• Tone

• Rhythm

• Tempo

• Layer setting

• Split setting

• Split point

• Effect setting

• DSP setting

• Brilliance setting

• Accompaniment Volume

• Transpose setting

• Pedal function setting

• Damper pedal setting

• SYNCHRO/FILL-IN button setting

• MODE setting

NOTE

• All of the registration memory banks are preset
with default data.

• Registration memory functions are disabled while
you are using the User Song, Song Memory or
demo tune function.

How registration memory organizes
its data

Registration memory has four banks, and each bank
contains four areas. Use the BANK button to select a
bank, and the REGISTRATION buttons to select an
area.

21

123

1-1Bank 1 1-2 1-3 1-4

2-1Bank 2 2-2 2-3

3-1Bank 3 3-2 3-3 3-4

4-1Bank 4 4-2 4-3 4-4

5-1Bank 5 5-2 5-3 5-4

6-1Bank 6 6-2 6-3 6-4

7-1Bank 7 7-2 7-3 7-4

8-1Bank 8 8-2 8-3

1

Each press of the BANK button cycles through the
bank numbers, from 1 to 8.

2

Pressing a REGISTRATION button (1 to 4) selects
the corresponding area in the currently selected
bank.

NOTE

• Storing a new setup to a registration memory area
replaces the setup that was previous stored there.

4

2-4

8-4

E-18

STORE

BANK REGISTRATION

407A-E-020A

Using Registration Memory

To store a setup in registration
memory

On the digital piano, configure the tone,

1

rhythm, and other settings you want to save
as your setup.

• See “Registration Memory Setup Data” (page
E-18) for more information.

Use the BANK button to select the

2

registration memory bank where you want
to save the setup.

• This causes the number of the selected bank to
appear on the display for about two seconds. If
you do not perform the following step within
that time, the bank selection screen will
disappear.

Example: Bank 1 selected

To recall a setup from registration
memory

Use the BANK button to select the

1

registration memory bank that contains the
setup you want to recall.

• This causes the number of the selected bank to
appear on the display for about two seconds. If
you do not perform the following step within
that time, the bank selection screen will
disappear.

Press the REGISTRATION button (1 to 4)

2

for the area that contains setup you want
to recall.

WARNING

• The following step will replace the setup currently in the
area you select with the new setup. Make sure you do not
need the current setup before performing the next step.

While holding down the STORE button,

3

press the REGISTRATION button (1 to 4)
that corresponds to the area where you
want to store the setup.

• You can also change the bank selection at this
time by pressing the BANK button while
holding down the STORE button.

Example: After button 2 is pressed

Release the REGISTRATION and STORE

4

buttons.

NOTE

• If you press a REGISTRATION button without
selecting a bank first, the digital piano will recall
the setup from the applicable area in the bank you
previously last selected.

Registration memory contents are retained even
when you turn off digital piano power (page
E-25).

407A-E-021A

E-19

Recording to and Playing Back from Song Memory

You can store the notes you play in Song Memory for
later playback.

NOTE

• You cannot use layer or split with Song Memory
record operation.

Tracks

The song memory of this piano records and plays back
notes much like a standard tape recorder. There are
two tracks, each of which can be recorded separately.
Besides notes, each track can be assigned its own tone
number. During playback you can adjust the tempo
to change the speed of playback.

Start End

Track 1

Track 2

Auto Accompaniment

(rhythm, bass, chords), melody

Melody

Data recorded in track

Song Memory Capacity

• You can store a total of up to about 10,000 notes
(Track 1 + Track 2) in Song Memory.

• Recording stops automatically if the number of
notes in Song Memory exceeds the maximum while
you are recording. This is indicated by the REC
indicator lamp turning off.

Recorded Data Storage

This digital piano has a lithium battery to supply
power to retain memory contents even while power
is off.* The life of the lithium battery is five years after
the date of manufacture of the digital piano. Be sure
to contact your CASIO service provider about having
the lithium battery replaced every five years.

* Never turn off piano power while a record

operation is in progress.

IMPORTANT!

• If the data recorded in a single track uses up all the
available Song Memory capacity, you will not be able to
record anything in the other track.

• Recording new data to a track automatically deletes any
data previously stored in that track.

• Turning off power while a record operation is in progress
deletes anything recorded up to that point.

• CASIO COMPUTER CO., LTD. shall not be held
responsible for any losses by you or any third party due
to loss of data caused by malfunction or repair of this
digital piano, or by battery replacement.

SONG MEMORY Button Operation

Each press of the SONG MEMORY button cycles
through the functions shown below.

Playback

Standby

Record

Standby

Normal

Other Song Memory Data

The following data is included when recording to Song
Memory: keyboard play, selected tone, tempo setting
(Track 1 only), pedal operations, reverb and chorus
settings, DSP on/off setting, brilliance setting,
accompaniment volume setting, selected rhythm
(Track 1 only), chord mode (Track 1 only), and intro/
fill-in/ending control (Track 1 only).

INTRO/
ENDING

SYNCHRO/
FILL-IN

START/
STOP

SONG MEMORY

T1/L T2/R

Lit Flash

Unlit

E-20

407A-E-022A

Recording to and Playing Back from Song Memory

Recording Your Keyboard Play

You can record to either track with or without playback
of the other track.

To record to one track without playing
back the other

Press the SONG MEMORY button so the

1

PLAY indicator lamp is lit.

• Select the tone and effects you want to use in
your recording, and configure the tempo
settings.

Press the SONG MEMORY button so the

2

REC indicator lamp is flashing.

Start playing something on the keyboard.

3

• This will automatically start recording.

• Actually, there are a variety of different ways

to start the record operation. See “Starting the
Record Operation” below for more information.

When you are finished, press the START/

4

STOP button to stop recording.

• If you are using a rhythm, you can stop
recording with an ending pattern by pressing
the INTRO/ENDING button.

• Stopping recording causes the REC indicator
lamp to go out, and indicator lamp above the
button of the track to which you recorded to
light.

• To play back the track you just recorded, press
the START/STOP button again.

After you are finished recording or playing

5

back, press the SONG MEMORY button so
the PLAY lamp or REC lamp turns off.

Starting the Record Operation

You can use any of the following methods to start a
record operation in step 2 of the above procedure.

• At this time the TRACK 1/ LEFT indicator
lamp should also be flashing. This indicates that
the piano is standing by for recording to Track

1.

NOTE

• If you want to record to Track 2, press the T1/L
T2/R button here. This will cause the TRACK2/
RIGHT indicator lamp to flash, which indicates that
the piano is standing by for recording to Track 2.

• If you want to use a rhythm and/or auto
accompaniment during recording (to Track 1
only), select the rhythm and chord mode.

■ When recording to Track 1 with rhythm or auto
accompaniment

• Press the START/STOP button to start recording.

• Press the SYNCHRO/FILL-IN button to put the

piano into synchro start standby. Recording will
start when you finger a chord in the
accompaniment range of the keyboard.

• Press the INTRO/ENDING button to put the

piano into synchro start standby. Recording will
start and an intro pattern will play when you
finger a chord in the accompaniment range of the
keyboard.

■ When recording to Track 1 without rhythm or
auto accompaniment

• Recording will start as soon as you play anything

on the keyboard.

■ When recording to Track 2

• Press the START/STOP button or play something

on the keyboard to start recording.

407A-E-023A

E-21

Recording to and Playing Back from Song Memory

To record to a track while playing
back from the other

After you finish recording, you can play back Track 1
and Track 2 at the same time.

Example: To record to Track 2 while playing back the

contents of Track 1

Press the SONG MEMORY button so the

1

PLAY indicator lamp is lit.

• Select the tone and effects you want to use while
recording.

Press the T1/L T2/R button so TRACK 1/

2

LEFT indicator is lit.

Press the SONG MEMORY button again.

3

• This causes the TRACK 1/LEFT indicator lamp
to flash. Press the T1/L T2/R button, so it
causes the TRACK 2/RIGHT indicator lamp to
flash, which indicates that the piano is standing
by for recording to Track 2.

Playing Back from Song Memory

Press the SONG MEMORY button so the

1

PLAY indicator lamp is lit.

Use the T1/L T2/R button to select the track

2

you want to play back.

● The indicator lamps above the button show the
currently selected track.

• To play back Track 1, the TRACK 1/LEFT

indicator lamp should be lit.

• To play back Track 2, the TRACK 2/RIGHT

indicator lamp should be lit.

• To play back Track 1 and Track 2, both the

indicator lamps should be lit.

Press the START/STOP button.

3

• This starts playback of the track you selected.

• You can change the tempo setting as a track is

playing.

• You cannot change the tone setting during
playback.

• Press the START/STOP button again to stop
playback.

E-22

Press the START/STOP button or play

4

something on the keyboard to start
simultaneous playback from Track 1 and
recording to Track 2.

When you are finished, press the START/

5

STOP button again to stop recording.

407A-E-024A

Recording to and Playing Back from Song Memory

Deleting Song Memory Data

IMPORTANT!

• The procedure below deletes all of the data from the
selected track. Note that the delete operation cannot be
undone. Check to make sure you really do not need the
data in Song Memory before you perform the following
steps.

Press the SONG MEMORY button so the

1

REC indicator lamp is flashing.

Use the T1/L T2/R button to select the track

2

you want to delete.

• The indicator lamps above the button show the
currently selected track.

• To delete Track 1, the TRACK 1/LEFT indicator
lamp should be flashing.

• To delete Track 2, the TRACK 2/RIGHT
indicator lamp should be flashing.

Hold down the SONG MEMORY button

3

until the REC indicator lamp stops flashing
and remains lit.

Press the T1/L T2/R button.

4

• This deletes the selected track and enters the
standby state.

407A-E-025A

E-23

Other Settings

Adjusting Accompaniment
Volume

Perform the following operation to change the volume
level of the rhythm and chord accompaniment.

While holding down the FUNCTION

1

button, use the keyboard keys shown below
to raise (왖) or lower (왔 ) the
accompaniment volume.

▲

▲

▲

▲

▲

▲

▲

▲

▲

C1

C2

C3

C4

C5

C6

왖 : Raises the accompaniment volume
왔 : Lowers the accompaniment volume

▲

C7

C8

Changing the Keyboard Touch

This setting changes the relative touch of the keyboard
keys.

While holding down the FUNCTION

1

button, press one of the keyboard keys
shown below.

Weak: Strong:

Off:

▲

C

1

Off
Weak (Strong sound is produced even when

Normal
Strong (Normal sound is produced even when

Normal:

▲

▲

C

2

C

3

C

▲

▲

▲

C

5

4

▲

C

6

C

7

relatively light pressure is applied.)

relatively strong pressure is applied.)

▲

C

8

E-24

FUNCTION

TUNE

TRANSPOSE

407A-E-026A

Other Settings

Changing the Piano Key

Use this setting to raise or lower the overall key of the
keyboard in semitone steps.

Holding down the FUNCTION button,

1

press the TRANSPOSE buttons to raise or
lower the overall key of the keyboard.

[ ] : Raise

] : Lower

[

NOTE

• To return the piano key to C, hold down the
FUNCTION button and press the TRANSPOSE
[ ] and [ ] buttons at the same time.

• After using Transpose to raise the keyboard to a
high key, notes played at the highest range of the
keyboard may not sound properly for certain tones.

Using Digital Piano Setup
Memory

When setup memory is turned on, the digital piano
will remember its setup* whenever you turn it off. If
you turn off setup memory, settings will be cleared
when you turn off the digital piano.



 Turning off the digital piano while in the rhythm



mode

The next time you turn on the digital piano, non-local
control setting (see “Using MIDI” below) will be
configured in accordance with setup memory.



 Turning off the digital piano while in the user song



mode

The next time you turn on the digital piano, the
following settings will be configured in accordance
with setup memory.

Rhythm selection, accompaniment volume, keyboard
touch, pedal type, damper pedal setting, layered tone
volume balance, split point, send channel, accomp
MIDI out

While holding down the FUNCTION

1

button, press one of the keyboard buttons
shown below to turn setup memory on or
off.

Changing the Pitch of the Piano
to Match Another Instrument

Use this setting to raise or lower the overall pitch of
the piano. The setting range is plus or minus 50 cents
(100 cents = 1 semitone) from the standard pitch of
A4 = 440.0Hz.

Holding down the FUNCTION button,

1

press the TUNE buttons to raise or lower
the overall pitch of the piano.

[ ] : Raise

] : Lower

[

* Each press of the button changes the current setting by

approximately 1 cents (1/100 semitone).

NOTE

• Holding down the FUNCTION button and pressing
the TUNE buttons [
returns tuning to the standard A

] and [ ] at the same time

4 = 440.0Hz.

On:

Off:

▲

▲

▲

▲

▲

▲

▲

C1

C2

C3

C4

C5

C6

▲

C7

C8

Using MIDI

What is MIDI?

The letters MIDI stand for Musical Instrument Digital
Interface, which is the name of a worldwide standard
for digital signals and connectors that makes it possible
to exchange musical data between musical
instruments and computers (machines) produced by
different manufacturers.

NOTE

• For detailed information about MIDI Implementation,
visit the

CASIO website at: http://world.casio.com/.

407A-E-027B

E-25

Other Settings

MIDI Connections

To use a computer or other MIDI device to record and
playback the MIDI data produced by this keyboard,
you must connect the MIDI IN and MIDI OUT
terminals of both devices in order to send and receive
data.
There is a third MIDI terminal named MIDI THRU,
which passes any MIDI messages received by the
MIDI IN terminal on to another device.

MIDI cable: MK-5

MIDI IN

Computer etc.

Other
device

MIDI OUT MIDI IN

MIDI Settings

1

Send Channel

Use this setting to specify one of the MIDI channels
(1 through 16) as the Send Channel for sending
MIDI messages to an external device.

2

Accomp/Song MIDI Out

Use this setting to specify whether or not MIDI
messages for the piano’s auto accompaniment and
song memory playback should be sent.

3

MIDI IN Chord Judge

Specifies whether chord judge should be performed
on accompaniment range MIDI Note On messages
received from an external device.

4

Local Control

This setting controls whether or not power is cut off
internally from the piano’s keyboard and sound
source. Turning off Local Control cuts off power to
the keyboard and source, which means that the piano
does not produce any sound when played. This
comes in handy when you want to turn off the piano’s
keyboard and use its auto accompaniment feature to
accompany an external sequencer or other device

.

While holding down the FUNCTION

1

button, press one the keyboard keys shown
below to configure the setting you want.

3

+

–

▲

C

On:

Off:

▲

C

7

On:

Off:

▲

C

8

6

42

▲

▲

C

1

1

Send Channel

▲

C

2

C

3

– :Decreases value
+: Increases value

2

Accomp/Song MIDI Out

Off
On

3

MIDI IN Chord Judge

Off
On

4

Local Control

Off
On

1

▲

▲

C

4

C

5

On:

Off:

Saving the Song Data You
Download from the Internet

You can transfer song data from your computer to the
digital piano. You can store up to 10 tunes as user songs
0-9. For SMF data you purchase or create, you need to
use an SMF Converter to convert it to SMF 0 format
before transferring it to the digital piano.

E-26

407A-E-028A

Other Settings

To install the SMF Converter

On the computer to which you plan to

1

connect, install the SMF Converter that
comes on the CD-ROM that comes
bundled with the digital piano.

• On the CD-ROM, double-click “SMFConv­e.exe”, and then follow the instructions that
appear on your computer screen to install SMF
Converter.

* Before installing SMF Converter, be sure to read the

contents of the “smfreadme.txt” file in each language
folder on the CD-ROM.

For information about using SMF Converter, double­click “index.html” in the [help] folder, which was
created when you installed SMF Converter. You can
also access user documentation from the Windows
[Start] menu by clicking [Programs] - [CASIO] - [SMF
Converter] - [manual].

* A browser that supports frames (like Internet Explorer 4

or Netscape Navigator 4.04 or higher) is required to view
the SMF Converter manual.

To connect to a computer

Be sure to turn off the digital piano and your computer
before connecting them. You should also set the
volume controller of the digital piano to a relatively
low volume.

Connect the digital piano’s MIDI interface

1

to your computer’s MIDI interface.

CASIO MUSIC SITE

Internet
Service
Provider

Minimum Computer System Requirements

* Operating System:

Windows 98SE
Windows Me
Windows XP

* Storage

At least 10MB free HDD space

* MIDI interface

• You can also obtain a copy of the SMF Converter
by downloading it at the Web page shown below.
After downloading, install the software on your
computer.

CASIO MUSIC SITE

http://music.casio.com/

• In addition to the software itself, the CASIO MUSIC
SITE will also provide you with information about
its installation and use. You can also find out about
the latest news about your digital piano and other
CASIO musical instruments, and much more.

IN

OUT

MIDI IN

MIDI OUT

Turn on the digital piano, and then turn on

2

MIDI Interface

your computer or other connected device.

Start up the software you want to use on

3

your computer.

NOTE

• Performing a digital piano operation while
transferring data between it and a computer may
interrupt the data transfer. Do not perform any
digital piano operations while data transfer is in
progress.

407A-E-029A

E-27

Troubleshooting

Symptom

No sound produced when
keyboard keys are pressed.

Keyboard out of tune.

No sound produced by demo tune
play.

Possible Cause

1. VOLUME knob set to MIN.

2. Headphones connected to the
digital piano.

3. Local Control turned off.

4. Check the current
accompaniment mode setting.
Normally, the accompaniment
keyboard will not produce any
note while CASIO CHORD or
FINGERED is selected as the
accompaniment mode.

1. The piano key is set to a value
other than C.

2. Incorrect pitch setting of the
piano.

1. VOLUME knob set to MIN.

2. Headphones connected to the
digital piano.

Action

1. Move the VOLUME knob more
towards MAX.

2. Disconnect the headphones
from the digital piano.

3. Turn on Local control.

4. Change the accompaniment
mode to NORMAL.

1. Change the piano key setting to
C, or turn the digital piano
power off and then back on
again.

2. Correct the pitch setting, or turn
the digital piano power off and
then back on again.

1. Move the VOLUME knob more
towards MAX.

2. Disconnect the headphones
from the digital piano.

Reference

Page E-7

Page E-5

Page E-26
Page E-14

Page E-25

Page E-25

Page E-7

Page E-5

Memory contents deleted.

No sound produced by connected
external MIDI sound source when
the digital piano keys are pressed.

A tone’s quality and volume
sounds slightly different
depending where it is played on
the keyboard.

Lithium battery is dead.

1. The digital piano Send Channel
does not match the Send
Channel of the MIDI sound
source.

2. Volume or expression setting of
the external sound source is set
to 0.

This is an unavoidable result of the digital sampling process,* and does not indicate
malfunction.
* Multiple digital samples are taken for the low range, middle range, and high range of

the original musical instrument. Because of this, there may be a very slight difference
in tonal quality and volume between sample ranges.

Contact your CASIO Service
Provider for replacement of the
lithium battery.

1. Change the Send Channel
settings so they are identical.

2. Change the volume or
expression setting of the
external sound source to an
appropriate value.

Page E-30

Page E-26

See the

documentation

that comes with

the external

sound source.

E-28

407A-E-030B

Specifications

Model: PX-310

Keyboard:

Polyphony:

Tones: 12 panel tones + 12 variation tones + 40 advanced tones + 128 GM tones + 10 drum

Digital Effects: Reverb (4 types), Chorus (4 types), DSP, Brilliance

Demo Tunes: Sequential looping of all 3 tunes (Original)

Auto Accompaniment: • Number of Rhythms: 120

User Songs: • Number of Tunes: 10 tunes maximum (Approximately 145 KB*)

Song Memory: • Operations: Real-time recording, playback

Registration Memory: Number of Memory Areas: 32 (4 sets × 8 banks)

Pedals: Damper, Soft/Sostenuto (Selectable)

Other Functions: • Touch: 3 types, off

MIDI: 16 multi-timbre receive

Input/Output: • Headphones: Stereo mini jacks × 2

Speakers: (12cm × 6cm OVAL) × 2 + φ 5cm × 2 (Output: 8.0W + 8.0W)

Power Supply: AC Adaptor: AD-12

Power Consumption: 12V 18W

Dimensions: 132.3 × 27.8 × 13.2cm (52 1/16 × 10 15/16 × 5 3/16 inch)

Weight: Approximately 11.9 kg (26.2 lbs)

88 piano keys (with t

32 notes, maximum

sets; with layer, split

• Tempo Range: 30 to 255

• Controllers: START/STOP, INTRO/ENDING, SYNCHRO/FILL-IN

• Modes: Normal, CASIO CHORD, FINGERED, FULL RANGE CHORD

• Accompaniment Volume: Adjustable

• Part On/Off: Left hand, right hand

• Capacity: Approximately 10,000 notes (2 tracks total)

• Memory Backup: Built-in lithium battery (Battery Life: 5 years)

• Transpose: 1 octave (F to C to F)

• Tuning: A4 = 440.0Hz ±50 cents (adjustable)

• Pedal: Standard jacks × 2

• LINE OUT (R)(L/MONO): Standard jacks × 2

• LINE IN (R)(L/MONO): Standard jacks × 2

• Power: 12V DC

• MIDI (THRU) (OUT) (IN)

• Pedal connector (for optional SP-30 only)

ouch response)

* Based on 1 KB = 1024 bytes

Output impedance: 2.3kΩ
Output voltage: 1.0V (RMS) MAX

Input impedance: 9.0kΩ
Input voltage: 200mV

• Design and specifications are subject to change without notice.

407A-E-031B

E-29

Operational Precautions

Locating the Unit

Avoid the following locations.

• Areas exposed to direct sunlight and high humidity

• Areas subjected to very low temperatures

• Near a radio, TV, video deck, or tuner (unit can

cause interference with audio or video signals)

Care of the Unit

• Never use benzene, alcohol, thinner or other such
chemicals to clean the exterior of the unit.

• To clean the keyboard, use a soft cloth dampened
with a weak solution of a mild neutral detergent
and water. Wring out all excess moisture from the
cloth before wiping.

Lithium Battery

You may notice lines in the finish of the case of
this product. These lines are the result of the
molding process used to shape the plastic of the
case. They are not cracks or breaks in the plastic,
and are no cause for concern.

NOTE

• Unauthorized reproduction of this manual in its
entirety or in part is expressly forbidden. All rights
reserved.

• CASIO COMPUTER CO., LTD. shall not be held
liable for any damages or losses or any claims by
third parties arising from use of this product or this
manual.

• The contents of this manual are subject to change
without notice.

This unit is equipped with a lithium battery to provide
power needed to retain memory contents while unit
power is turned off. Should the lithium battery go
dead, all memory contents will be lost whenever you
turn unit power off. The normal life of the lithium
battery is five years from the time that the battery was
installed. Be sure to periodically contact your retailer
or authorized service provider to have the lithium
battery replaced. Note that you will be charged
separately for lithium battery replacement.

• Note that CASIO COMPUTER CO., LTD. shall not
be held liable for any damages or losses or any
claims by third parties arising from corruption or
loss of data caused by malfunction or repair of the
unit, or from battery replacement.

E-30

407A-E-032A

Setting Control Key Chart

C

1

C

2

C

3

C

4

C

5

C

6

C

7

C

8

Off

Normal

Weak

Soft

Sos

t

e

nuto

Damper Pedal Setting

Accompaniment Volume

Keyboard Touch

Pedal Function

Strong

Normal

FIN

GERED

C

A

S

IO CHORD

0

+

–

1

2

3

4

5

6

7

8

9

Chord Mode

+/–,

Number Input Keys

+

–

On

Off

On

Off

O

n

Off

On

Off

On

Off

Accomp/Song M

I

DI

Out

Send C

h

annel

Layered to

n

e

volum

e balance

DSP

*

The notes of the keys sound when pressed, even if the FUNCTION button is depressed.

MI

D

I

IN C

h

ord Ju

dge

Local Control

Setup M

emory

FU

LL-

RANGE

CHORD

*

While the FUNCTION button is depressed, the keyboard keys can be used to perform a variety of different setting functions.

• A value next to a note name indicates the relative position of the note on the keyboard as shown below.

407A-E-033A

E-31

Appendix/Apéndice

Tone List/Lista de sonidos

Panel Tones/Sonidos de panel

GRAND PIANO 1
ROCK PIANO
E.GRAND 80
ELEC.PIANO 1
ELEC.PIANO 2
60’S ELEC.PIANO
ROCK ORGAN
JAZZ ORGAN
STRINGS
SYNTH-VOICE
SYNTH-BRASS
FANTASY

22

2

22

33

3

33

16
16
32
32
16
32
32
16
32
32
16
16

5

4

55

44

0

100
4
2
4
5
4

16
17
49
54
62
88

GRAND PIANO 2

100

DANCE PIANO

48

PIANO PAD

48

DYNO ELEC.PIANO

49

FM ELEC.PIANO

52

VIBRAPHONE

51

DRAWBAR ORGAN

50

CLAVI

48

SYNTH-STRINGS

48

CHOIR

49

SYNTH-PAD

48

NEW AGE

55

44

Advanced Tones/Sonidos avanzados

11

1

11

0

LA PIANO

1

MELLOW PIANO

2

MODERN PIANO

3

HONKY-TONK

4

OCTAVE PIANO

5

POP ELEC.PIANO

6

SYNTH-STR E.PIANO

7

HARPSICHORD

8

MARIMBA

9

ROTARY DRAWBAR

10

ROTARY PERC.ORGAN

11

OVD ROTARY ORGAN

12

CHURCH ORGAN

13

CHAPEL ORGAN

22

2

22

33

3

33

32
16
16
16
16
16
16
32
32
32
16
32
16
32

55

44

5

4

55

44

3

100

2

100

5

100

8

100

9

100

4

50

4

53

6

49

12

48

16

50

17

49

16

52

19

49

19

50

GM Tones/Sonidos GM

11

1

11

GM PIANO 1

40

GM PIANO 2

41

GM PIANO 3

42

GM HONKY-TONK

43

GM E.PIANO 1

44

GM E.PIANO 2

45

GM HARPSICHORD

46

GM CLAVI

47

GM CELESTA

48

GM GLOCKENSPIEL

49

GM MUSIC BOX

50

GM VIBRAPHONE

51

GM MARIMBA

52

GM XYLOPHONE

53

GM TUBULAR BELL

54

GM DULCIMER

55

GM ORGAN 1

56

GM ORGAN 2

57

GM ORGAN 3

58

GM PIPE ORGAN

59

GM REED ORGAN

60

GM ACCORDION

61

GM HARMONICA

62

GM BANDONEON

63

GM NYLON STR.GUITAR

64

GM STEEL STR.GUITAR

65

GM JAZZ GUITAR

66

GM CLEAN GUITAR

67

GM MUTE GUITAR

68

GM OVERDRIVE GT

69

GM DISTORTION GT

70

GM GT HARMONICS

71

GM ACOUSTIC BASS

72

GM FINGERED BASS

73

GM PICKED BASS

74

GM FRETLESS BASS

75

GM SLAP BASS 1

76

GM SLAP BASS 2

77

GM SYNTH-BASS 1

78

GM SYNTH-BASS 2

79

GM VIOLIN

80

GM VIOLA

81

GM CELLO

82

GM CONTRABASS

83

GM TREMOLO STRINGS

84

GM PIZZICATO

85

GM HARP

86

GM TIMPANI

87

22

2

22

33

3

33

32
32
32
16
32
16
32
32
32
32
16
32
32
32
32
16
32
16
16
16
32
16
32
16
32
32
32
32
32
16
16
32
32
32
32
32
32
32
16
32
32
32
32
32
32
32
32
32

55

44

5

4

55

44

0

0

1

0

2

0

3

0

4

0

5

0

6

0

7

0

8

0

9

0

10

0

11

0

12

0

13

0

14

0

15

0

16

0

17

0

18

0

19

0

20

0

21

0

22

0

23

0

24

0

25

0

26

0

27

0

28

0

29

0

30

0

31

0

32

0

33

0

34

0

35

0

36

0

37

0

38

0

39

0

40

0

41

0

42

0

43

0

44

0

45

0

46

0

47

0

66

6

66

11

1

11

NYLON STR.GUITAR

14

STEEL STR.GUITAR

15

JAZZ GUITAR

16

CHORUS CLEAN GUITAR

17

OVERDRIVE GUITAR

18

ACOUSTIC BASS

19

RIDE BASS

20

FINGERED BASS

21

ANALOG SYNTH-BASS

22

VIOLIN

23

HARP

24

STRING ENSEMBLE

25

80’S SYNTH-STR

26

TRUMPET

27

11

1

11

88

GM STRINGS 1

89

GM STRINGS 2

90

GM SYNTH-STRINGS 1

91

GM SYNTH-STRINGS 2

92

GM CHOIR AAHS

93

GM VOICE DOO

94

GM SYNTH-VOICE

95

GM ORCHESTRA HIT

96

GM TRUMPET

97

GM TROMBONE

98

GM TUBA

99

GM MUTE TRUMPET

100

GM FRENCH HORN

101

GM BRASS

102

GM SYNTH-BRASS 1

103

GM SYNTH-BRASS 2

104

GM SOPRANO SAX

105

GM ALTO SAX

106

GM TENOR SAX

107

GM BARITONE SAX

108

GM OBOE

109

GM ENGLISH HORN

110

GM BASSOON

111

GM CLARINET

112

GM PICCOLO

113

GM FLUTE

114

GM RECORDER

115

GM PAN FLUTE

116

GM BOTTLE BLOW

117

GM SHAKUHACHI

118

GM WHISTLE

119

GM OCARINA

120

GM SQUARE LEAD

121

GM SAWTOOTH LEAD

122

GM CALLIOPE

123

GM CHIFF LEAD

124

GM CHARANG

125

GM VOICE LEAD

126

GM FIFTH LEAD

127

GM BASS+LEAD

128

GM FANTASY

129

GM WARM PAD

130

GM POLYSYNTH

131

GM SPACE CHOIR

132

GM BOWED GLASS

133

GM METAL PAD

134

GM HALO PAD

135

GM SWEEP PAD

33

3

33

32
16
16
32
16
32
16
32
32
16
16
16

22

2

22

22

2

22

33

3

33

32
32
32
32
32
32
16
32
32
32
32
16
16
32

33

3

33

32
32
32
32
32
32
32
16
32
32
32
32
16
32
32
16
32
32
32
32
32
32
32
32
32
32
32
32
32
16
32
32
16
16
16
16
16
16
16
16
16
32
16
16
16
16
16
32

5

4

55

44

1

100

6

100

7

100
4
5

11
16

7

50
52
90
88

44

4

44

24
25
26
27
27
32
32
33
38
40
46
48
50
56

44

4

44

48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95

2 Tone Name/Nombre de sonidos

3 Maximum Polyphony/Polifonía máxima

49

4 Program Change/Cambio de programa

48
49

5

49

6 Variation Tones/Sonidos de variación

48
48
49
48
49

55

5

55

48
48
48
48
51
49
50
48
52
48
48
49
50
48

55

5

55

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

Drum Sets/Ajustes de batería

0
0
0
0
0
0
0
0
0
0
0
0
0
0

1 No./N

55

44

o

Bank Select MSB/MSB de selección de banco

11

1

11

28

TROMBONE

29

STEREO BRASS

30

BREATHY ALTO SAX

31

ALTO SAX

32

TENOR SAX

33

CLARINET

34

FLUTE

35

SAWTOOTH LEAD

36

SQUARE LEAD

37

WAR M PAD

38

SPACE VOICE

39

STAR VOICE

11

1

11

GM RAIN DROP

136

GM SOUND TRACK

137

GM CRYSTAL

138

GM ATMOSPHERE

139

GM BRIGHTNESS

140

GM GOBLINS

141

GM ECHOES

142

GM SF

143

GM SITAR

144

GM BANJO

145

GM SHAMISEN

146

GM KOTO

147

GM THUMB PIANO

148

GM BAGPIPE

149

GM FIDDLE

150

GM SHANAI

151

GM TINKLE BELL

152

GM AGOGO

153

GM STEEL DRUMS

154

GM WOOD BLOCK

155

GM TAIKO

156

GM MELODIC TOM

157

GM SYNTH-DRUM

158

GM REVERSE CYMBAL

159

GM GT FRET NOISE

160

GM BREATH NOISE

161

GM SEASHORE

162

GM BIRD

163

GM TELEPHONE

164

GM HELICOPTER

165

GM APPLAUSE

166

GM GUNSHOT

167

11

1

11

168

STANDARD SET 1

169

STANDARD SET 2

170

ROOM SET

171

POWER SET

172

ELECTRONIC SET

173

SYNTH SET 1

174

SYNTH SET 2

175

JAZZ SET

176

BRUSH SET

177

ORCHESTRA SET

22

2

22

22

2

22

22

2

22

44

33

4

3

44

33

16

57

16

61

16

65

32

65

16

66

16

71

32

73

16

81

16

80

32

89

16

91

16

91

44

33

4

3

44

33

16

96

16

97

16

98

16

99

16

100

16

101

32

102

16

103

16

104

32

105

32

106

32

107

32

108

16

109

32

110

32

111

32

112

32

113

16

114

32

115

32

116

32

117

32

118

32

119

32

120

32

121

16

122

16

123

32

124

32

125

16

126

32

127

44

33

4

3

44

33

0

–

1

–

8

–

16

–

24

–

25

–

30

–

32

–

40

–

48

–

55

5

55

49
49
50
49
49
49
48
48
48
48
48
49

55

5

55

55

5

55

120
120
120
120
120
120
120
120
120
120

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

407A-E-067A

A-1

Appendix/Apéndice

Rhythm List/Lista de ritmos

1 No./N

o

11

1

11

8 BEAT

000 8 BEAT 1
001 8 BEAT 2
002 8 BEAT 3
003 8 BEAT POP 1
004 8 BEAT POP 2
005 60’S SOUL
006 8 BEAT DANCE
007 POP ROCK

16 BEAT

008 16 BEAT 1
009 16 BEAT 2
010 16 BEAT 3
011 SLOW 16 BEAT
012 16 BEAT SHUFFLE 1
013 16 BEAT SHUFFLE 2
014 FUNK
015 LATIN FUSION

POPS

016 POP 1
017 POP 2
018 GUITAR POP
019 SOUL
020 POP SHUFFLE
021 SOUL POP
022 WORLD POP
023 MELLOW R&B
024 60’S POP
025 OLDIES POP
026 POP WALTZ

BALLAD

027 8 BEAT BALLAD 1
028 8 BEAT BALLAD 2
029 16 BEAT BALLAD 1
030 16 BEAT BALLAD 2
031 16 BEAT BALLAD 3
032 6/8 BALLAD
033 ROCK BALLAD
034 POP BALLAD
035 OLDIES BALLAD
036 SERENADE

ROCK

037 ROCK 1
038 ROCK 2
039 R&B
040 SHUFFLE ROCK
041 60’S ROCK
042 SHUFFLE BOOGIE
043 BLUES
044 TWIST

DANCE

045 TRANCE
046 RAVE
047 TECHNO
048 HOUSE
049 LATIN HOUSE
050 DANCE
051 MODERN R&B
052 HIP-HOP
053 DANCE POP 1
054 DANCE POP 2
055 DISCO SOUL

JAZZ

056 FAST BIG BAND
057 MIDDLE BIG BAND
058 JAZZ COMBO 1
059 SWING
060 SLOW SWING
061 MODERN JAZZ
062 FOX TROT
063 QUICKSTEP
064 JAZZ WALTZ

EUROPIAN

065 POLKA
066 POLKA FOX
067 POP POLKA
068 MARCH
069 GERMAN MARCH
070 WALTZ 1
071 WALTZ 2
072 VIENNESE WALTZ
073 FRENCH WALTZ

2 Rhythm Name/Nombre de ritmo

22

2

22

11

1

11

LATIN/VARIOUS

074 BOSSA NOVA
075 SAMBA
076 MERENGUE
077 CUMBIA
078 CHA-CHA-CHA
079 BEGUINE
080 BOLERO
081 MAMBO
082 RHUMBA
083 TANGO
084 REGGAE
085 SKA
086 LATIN DISCO
087 BLUEGRASS
088 COUNTRY
089 COUNTRY SHUFFLE
090 COUNTRY WALTZ
091 FAST GOSPEL
092 SLOW GOSPEL
093 BROADWAY
094 DIXIE
095 PASODOBLE
096 HAWAIIAN
097 ADANI
098 BALADI
099 SYMPHONY

FOR PIANO

100 PIANO BALLAD 1
101 PIANO BALLAD 2
102 PIANO BALLAD 3
103 EP BALLAD 1
104 EP BALLAD 2
105 BLUES BALLAD
106 MELLOW JAZZ
107 JAZZ COMBO 2
108 RAGTIME
109 BOOGIE-WOOGIE
110 ARPEGGIO 1

111 ARPEGGIO 2
112 ARPEGGIO 3
113 PIANO BALLAD 4
114 6/8 MARCH
115 MARCH 2
116 2 BEAT
117 WALTZ 3
118 WALTZ 4
119 WALTZ 5

22

2

22

NOTE

• Rhythms 110 through 119 consist of chord accompaniments
only, without any drums or other percussion instruments.
These rhythms do not sound unless CASIO CHORD,
FINGERED, or FULL RANGE CHORD is selected as the
accompaniment mode. With such rhythms, make sure that
CASIO CHORD, FINGERED, or FULL RANGE CHORD
is selected before you try playing chords.

NOTA

• Los ritmos 110 al 119 consisten solamente de
acompañamientos de acordes, sin ninguna batería ni otros
instrumentos de percusión. Estos ritmos no suenan a
menos que CASIO CHORD, FINGERED o FULL RANGE
CHORD sean seleccionados como el modo de
acompañamiento. Con tales ritmos, asegúrese de que se
selecciona CASIO CHORD, FINGERED o FULL RANGE
CHORD, antes de tratar de ejecutar los acordes.

A-2

407A-E-068A

Drum Assignment List/Lista de asignación de batería

” ” Indicates the same sound as STANDARD SET 1./” ” Indica el mismo sonido que STANDARD SET 1.

Key/
Note number

C-1

0

C#-1

D-1

2



-1

E

E-1

4

F-1

5

F#-1

G-1

7



-1

A

9

A-1



-1

B

11

B-1

12

C0

C#0

14

D0



E 0

16

E0

17

F0

F#0

19

G0



A 0

21

A0



B 0

23

B0

24

C1

C#1

26

D1



E 1

28

E1

29

F1

F#1

31

G1



A 1

33

A1



B 1

35

B1

36

C2

C#2

38

D2



E 2

40

E2

41

F2

F#2

43

G2



A 2

45

A2



B 2

47

B2

48

C3

C#3

50

D3



E 3

52

E3

53

F3

F#3

55

G3



A 3

57

A3



B 3

59

B3

60

C4

C#4

62

D4



E 4

64

E4

65

F4

F#4

67

G4



A 4

69

A4



B 4

71

B4

72

C5

C#5

74

D5



E 5

76

E5

77

F5

F#5

79

G5



A 5

81

A5



B 5

83

B5

84

C6

C#6

86

D6



E 6

88

E6

89

F6

F#6

91

G6



A 6

93

A6



B 6

95

B6

96

C7

C#7

98

D7



E 7

100

E7

101

F7

F#7

103

G7



A 7

105

A7



B 7

107

B7

108

C8

C#8

110

D8



E 8

112

E8

113

F8

F#8

115

G8



A 8

117

A8



B 8

119

B8

120

C9

C#9

122

D9



E 9

124

E9

125

F9

F#9

127

G9

STANDARD SET 1 STANDARD SET 2

METRONOME CLICK
METRONOME BELL

1

METRONOME CLICK
METRONOME BELL

3

—
—

LOW TOM 2b

6

LOW TOM 1b
MID TOM 2b

8

MID TOM 1b
HIGH TOM 2b

10

HIGH TOM 1b
CRASH CYMBAL 1a
CRASH CYMBAL 1b

13

CRASH CYMBAL 1c
CRASH CYMBAL 2a

15

CRASH CYMBAL 2b
CRASH CYMBAL 2c
RIDE CYMBAL 1a

18

RIDE CYMBAL 1b
RIDE CYMBAL 1c

20

RIDE CYMBAL 2a
RIDE CYMBAL 2b

22

RIDE CYMBAL 2c

—
—

25

—

HIGH Q

27

SLAP
SCRATCH PUSH
SCRATCH PULL

30

STICKS
SQUARE CLICK

32

METRONOME CLICK
METRONOME BELL

34

STANDARD1 KICK 2
STANDARD1 KICK 1
SIDE STICK

37

STANDARD1 SNARE 1
HAND CLAP 1

39

STANDARD1 SNARE 2
LOW TOM 2
CLOSED HI-HAT

42

LOW TOM 1
PEDAL HI-HAT

44

MID TOM 2
OPEN HI-HAT

46

MID TOM 1
HIGH TOM 2
CRASH CYMBAL 1

49

HIGH TOM 1
RIDE CYMBAL 1

51

CHINESE CYMBAL
RIDE BELL
TAMBOURINE

54

SPLASH CYMBAL
COWBELL

56

CRASH CYMBAL 2
VIBRA-SLAP

58

RIDE CYMBAL 2
HIGH BONGO
LOW BONGO

61

MUTE HIGH CONGA

63

OPEN HIGH CONGA
LOW CONGA
HIGH TIMBALE

66

LOW TIMBALE
HIGH AGOGO

68

LOW AGOGO
CABASA

70

MARACAS
SHORT HI WHISTLE
LONG LOW WHISTLE

73

SHORT GUIRO
LONG GUIRO

75

CLAVES
HIGH WOOD BLOCK
LOW WOOD BLOCK

78

MUTE CUICA
OPEN CUICA

80

MUTE TRIANGLE
OPEN TRIANGLE

82

SHAKER
JINGLE BELL
BELL TREE

85

CASTANETS
MUTE SURDO

87

OPEN SURDO
APPLAUSE
APPLAUSE2

90

—
—

92

—
—

94

—
—
—

97

—
—

99

—
—
—

102

—
—

104

—
—

106

—
—

STANDARD KICK 1a

109

STANDARD KICK 1b
STANDARD KICK 1c

111

STANDARD KICK 1d
STANDARD KICK 2a
STANDARD KICK 2b

114

STANDARD KICK 2c
STANDARD KICK 2d

116

STANDARD1 SNARE a
STANDARD1 SNARE b

118

STANDARD1 SNARE c
STANDARD1 SNARE d
CLOSED HI-HAT a

121

CLOSED HI-HAT b
CLOSED HI-HAT c

123

CLOSED HI-HAT d
PEDAL HI-HAT a
PEDAL HI-HAT b

126

OPEN HI-HAT a
OPEN HI-HAT b

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

STANDARD2 KICK 2
STANDARD2 KICK 1

씯

STANDARD2 SNARE 1

씯

STANDARD2 SNARE 2

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

ROOM SET

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

ROOM KICK 2
ROOM KICK 1

씯

ROOM SNARE 1

씯

ROOM SNARE 2
ROOM LOW TOM 2

씯

ROOM LOW TOM 1

씯

ROOM MID TOM 2

씯

ROOM MID TOM 1
ROOM HI TOM 2

씯

ROOM HI TOM 1

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

POWER SET

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

POWER KICK 2
POWER KICK 1

씯

POWER SNARE 1

씯

POWER SNARE 2
POWER LOW TOM 2

씯

POWER LOW TOM 1

씯

POWER MID TOM 2

씯

POWER MID TOM 1
POWER HI TOM 2

씯

POWER HI TOM 1

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

DRUMS SET LIST

ELEC. SET

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

ELEC KICK 2
ELEC KICK 1

씯

ELEC SNARE 1

씯

ELEC SNARE 2
ELEC LOW TOM 2

씯

ELEC LOW TOM 1

씯

ELEC MID TOM 2

씯

ELEC MID TOM 1
ELEC HI TOM 2

씯

ELEC HI TOM 1

씯

REVERSE CYMBAL

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

SYNTH SET 1

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

SYNTH 1 KICK 2
SYNTH 1 KICK 1
SYNTH 1 RIM SHOT
SYNTH 1 SNARE 1
SYNTH HAND CLAP
SYNTH 1 SNARE 2
SYNTH 1 LOW TOM 2
SYNTH 1 CHH
SYNTH 1 LOW TOM 1
SYNTH 1 PHH
SYNTH 1 MID TOM 2
SYNTH 1 OHH
SYNTH 1 MID TOM 1
SYNTH 1 HI TOM 2
SYNTH 1 CYMBAL
SYNTH 1 HI TOM 1
SYNTH 1 RIDE

씯

씯

SYNTH 1 TAMBOURINE

씯

SYNTH 1 COWBELL

씯

씯

씯

씯

씯

SYNTH 1 HIGH CONGA
SYNTH 1 MID CONGA
SYNTH 1 LOW CONGA

씯

씯

씯

씯

씯

SYNTH 1 MARACAS

씯

씯

씯

씯

SYNTH 1 CLAVES

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

SYNTH SET 2 JAZZ SET BRUSH SET

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

SYNTH 2 KICK 2
SYNTH 2 KICK 1

씯

SYNTH 2 SNARE 1

씯

SYNTH 2 SNARE 2
SYNTH 2 LOW TOM 2
SYNTH 2 CHH
SYNTH 2 LOW TOM 1
SYNTH 2 PHH
SYNTH 2 MID TOM 2
SYNTH 2 OHH
SYNTH 2 MID TOM 1
SYNTH 2 HI TOM 2
SYNTH 2 CYMBAL 1
SYNTH 2 HI TOM 1
SYNTH 2 RIDE 1

씯

씯

씯

씯

씯

SYNTH 2 CYMBAL 2

씯

SYNTH 2 RIDE 2

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

JAZZ KICK 2
JAZZ KICK 1

씯

JAZZ SNARE 1
HAND CLAP 2
JAZZ SNARE 2

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

Appendix/Apéndice

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

BRUSH KICK 2
BRUSH KICK 1

씯

BRUSH TAP
BRUSH SLAP
BRUSH SWIRL

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

ORCHESTRA SET

씯

씯

씯

씯

—
—

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—

CLOSED HI-HAT
PEDAL HI-HAT
OPEN HI-HAT
RIDE CYMBAL 1

씯

씯

씯

씯

JAZZ KICK 1
CONCERT BASS DRUM

씯

CONCERT SNARE
CASTANETS
CONCERT SNARE
TIMPANI F



TIMPANI F
TIMPANI G



TIMPANI A
TIMPANI A



TIMPANI B
TIMPANI B
TIMPANI c



TIMPANI c
TIMPANI d



TIMPANI e
TIMPANI e
TIMPANI f

씯

씯

씯

CONCERT CYMBAL 2

씯

CONCERT CYMBAL 1

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

씯

—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—

씯

씯

씯

씯

씯

씯

씯

씯

407A-E-069A

A-3

Appendix/Apéndice

dim m7



5

M7

M

m

7

m7

dim7

Chord

Type

Root

C

D

E

F

G

A

B

C /(D )





(D )/E





F /(G )





(G )/A





(A )/B





aug

sus4

C

D

E

F

G

A

B

C /(D )





(D )/E





F /(G )





(G )/A





(A )/B





m add9

7sus4

mM7

7



5

add9

Chord

Type

Root

A-4

Fingered Chord Chart

Cuadro de acordes digitados (Fingered)

407A-E-070A

Model PX-310 MIDI Implementation Chart Version: 1.0

Function ... Transmitted Recognized Remarks

Basic Default
Channel Changed

Default

Mode Messages

Altered

Note
Number True voice

Velocity Note ON

Note OFF

After Key’s
Touch Ch’s

Pitch Bender

Control
Change

0,32
6,38

98,99

100,101

120
121

1-16
1-16

Mode 3

X

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

21-108

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

O

9nH V = 1-127

X

9nH V = 0

X
X

X

1

7
10
11
16
17
18
19
64
66
67
71
72
73
74
76
77
78
80
81
82
83
91
93

O
X
O
X
X
X
X
X
X
X

O
O*2
O*2

X

X

X

X

X

X

X

X

X

X

X

X

X

X

O

X

O

1-16
1-16

Mode 3

X

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

0-127

0-127

*1

O

9nH V = 1-127

X

9nH V = 0, 8nH V = **

X

O

O

O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O

*1: Depends on tone

*1: Depende del tono.

**: no relation
**: sin relación

Bank select
Modulation
Data entry
Volume
Pan
Expression
DSP Parameter0
DSP Parameter1
DSP Parameter2
DSP Parameter3
Damper
Sostenuto
Soft pedal
Resonance
Release Time
Attack Time
Brightness
Vibrato rate
Vibrato depth
Vibrato delay
DSP Parameter4
DSP Parameter5
DSP Parameter6
DSP Parameter7
Reverb send
Chorus send
NRPN LSB, MSB
RPN LSB, MSB
All sound off
Reset all controller

Program
Change :True #

System Exclusive

System : Song Pos
Common : Song Sel

: Tune

System : Clock
Real Time : Commands

Aux : Local ON/OFF

: All notes OFF

Messages : Active Sense

: Reset

Remarks

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

*2In accordance with pedal

2

*

O

0-127

O

X
X
X

O
O

X
X
X
X

De acuerdo al pedal.

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO
Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO

O

0-127

O

X
X
X

X
X

X
O
O

X

O
X

: Yes
: No

407A-E-071B
