Casio LK210, LK215ES1A User Manual

USER’S GUIDE GUÍA DEL USUARIO

LK210/215ES1A

GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Declaration of Conformity

Model Number: LK-210/LK-215 Trade Name: CASIO COMPUTER CO., LTD. Responsible party: CASIO, INC. Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important!

Please note the following important information before using this product.

• Before using the optional AD-5 Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.

• Never attempt to recharge batteries.

• Do not use rechargeable batteries.

• Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only CASIO AD-5 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

This mark applies in EU countries only.

CASIO Europe GmbH Bornbarch 10, 22848 Norderstedt, Germany

Safety Precautions

Congratulations on your selection of the CASIO electronic musical instrument.

• Before using the instrument, be sure to carefully read through the instructions contained in this manual.

• Be sure to keep all user documentation handy for future reference.

Symbols

Various symbols are used in this user’s guide and on the product itself to ensure that the product is used safely and correctly, and to prevent injury to the user and other persons as well as damage to property. Those symbols along with their meanings are shown below.

DANGER

This symbol indicates information that, if ignored or applied incorrectly, creates the danger of death or serious personal injury.

WARNING

This indication stipulates matters that have the risk of causing death or serious injury if the product is operated incorrectly while ignoring this indication.

Symbol Examples

This triangle symbol ( ) means that the user should be careful. (The example at left indicates electrical shock caution.)

This circle with a line through it ( means that the indicated action must not be performed. Indications within or nearby this symbol are specifically prohibited. (The example at left indicates that disassembly is prohibited.)

The black dot ( indicated action must be performed. Indications within this symbol are actions that are specifically instructed to be performed. (The example at left indicates that the power plug must be unplugged from the electrical socket.)

)

) means that the

CAUTION

This indication stipulates matters that have the risk of causing injury as well as matters for which there is the likelihood of occurrence of physical damage only if the product is operated incorrectly while ignoring this indication.

E-1

Safety Precautions

DANGER

Alkaline Batteries

Perform the following steps immediately if fluid leaking from alkaline batteries ever gets into your eyes.

1. Do not rub your eyes! Rinse them with water.

2. Contact your physician immediately.

Leaving alkaline battery fluid in your eyes can lead to loss of sight.

WARNING

Smoke, Strange Odor, Overheating

Continued use of the product while it is emitting smoke, a strange odor, or heat creates the risk of fire and electric shock. Take the following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor for power, unplug it from the wall outlet.

3. Contact your original retailer or an authorized CASIO Service Provider.

AC Adaptor

● Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.

• Be sure to use only the AC adaptor

that is specified for this product.

• Use only a power source whose

voltage is within the rating marked on the AC adaptor.

• Do not overload electrical outlets and

extension cords.

● Misuse of the AC adaptor’s electric cord can damage or break it, creating the risk of fire and electric shock. Always make sure you observe the following precautions.

• Never place heavy objects on the cord

or subject it to heat.

• Never try to modify the cord or subject

it to excessive bending.

• Never twist or stretch the cord.

• Should the electric cord or plug

become damaged, contact your original retailer or authorized CASIO Service Provider.

● Never touch the AC adaptor while your hands are wet. Doing so creates the risk of electric shock.

● Use the AC adaptor where it will not be splashed with water. Water creates the risk of fire and electric shock.

● Do not place a vase or any other container filled with liquid on top of the AC adaptor. Water creates the risk of fire and electric shock.

Batteries

Misuse of batteries can cause them to leak, resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.

• Never try to take batteries apart or allow them to become shorted.

• Never expose batteries to heat or dispose of them by incineration.

• Never mix old batteries with new ones.

• Never mix batteries of different types.

• Do not charge the batteries.

• Make sure the positive (+) and negative

(–) ends of the batteries are facing correctly.

Do not incinerate the product.

Never throw the product into fire. Doing so can cause it to explode, creating the risk of fire and personal injury.

Water and Foreign Matter

Water, other liquids, and foreign matter (such as pieces of metal) getting into the product create the risk of fire and electric shock. Take the following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor for power, unplug it from the wall outlet.

3. Contact your original retailer or an authorized CASIO Service Provider.

Disassembly and Modification

Never try to take this product apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, or other personal injury. Leave all internal inspection, adjustment, and maintenance up to your original retailer or authorized CASIO Service Provider.

E-2

Safety Precautions

Dropping and Impact

Continued use of this product after it has been damaged by dropping or subjecting it to strong impact creates the risk of fire and electric shock. Take the following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor for power, unplug it from the wall outlet.

3. Contact your original retailer or an authorized CASIO Service Provider.

Plastic Bags

Never place the plastic bag the product comes in over your head or in your mouth. Doing so creates the risk of suffocation. Particular care concerning this precaution is required where small children are present.

Keep off of the product and stand.*

Climbing onto the product or stand can cause it to tip over or become damaged. Particular care concerning this precaution is required where small children are present.

Location

Avoid locating the product on an unstable stand, on an uneven surface, or any other unstable location. An unstable location can cause the product to fall over, creating the risk of personal injury.

CAUTION

AC Adaptor

● Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.

• Do not locate the electric cord near a

stove or other sources of heat.

• Never pull on the cord when

unplugging from the electrical outlet. Always grasp the AC adaptor when unplugging.

● Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.

• Insert the AC adaptor into the wall

outlet as far as it will go.

• Unplug the AC adaptor from the wall

outlet during lightening storms or before leaving on a trip or other longterm absence.

• At least once a year, unplug the AC

adaptor from the wall outlet and wipe away any dust that is built up in the area around the prongs of the plug.

Relocating the Product

Before relocating the product, always unplug the AC adaptor from the wall outlet and disconnect all other cables and connecting cords. Leaving cords connected creates the risk of damage to the cords, fire, and electric shock.

Cleaning

Before cleaning the product, always unplug the AC adaptor from the wall outlet first. Leaving the AC adaptor plugged in creates the risk of damage to the AC adaptor, fire, and electric shock.

Batteries

Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.

• Use only batteries that are specified for use with this product.

• Remove batteries from the product if you do not plan to use it for a long time.

E-3

Safety Precautions

Connectors

Connect only the specified devices and equipment to the product’s connectors. Connection of a non-specified device or equipment creates the risk of fire and electric shock.

Location

Avoid the following locations for this product. Such locations create the risk of fire and electric shock.

• Areas subject to high humidity or large amounts of dust.

• In food preparation areas or other areas subject to oil smoke.

• Near air conditioning equipment, on a heated carpet, in areas exposed to direct sunlight, inside of a vehicle parked in the sun, or any other area that subjects the product to high temperatures.

Display Screen

• Never push on the display screen’s LCD panel or subject it to strong impact. Doing so can cause the LCD panel’s glass to crack, creating the risk of personal injury.

• Should the LCD panel ever crack or break, never touch the liquid inside of the panel. LCD panel liquid can cause skin irritation.

• Should LCD panel liquid ever get inside your mouth, immediately wash out your mouth with water and contact your physician.

• Should LCD panel liquid ever get into your eyes or onto your skin, rinse with clear water for at least 15 minutes, and then contact a physician.

Sound Volume

Do not listen to music at very loud volumes for long periods. Particular care concerning this precaution is required when using headphones. High volume settings can damage your hearing.

Health Precaution

In extremely rare cases, exposure to strong sudden light or flashing light can cause momentary muscle spasms, loss of consciousness, or other physical problems with some individuals.

• If you suspect that you might be susceptible to any condition such as this, be sure to consult with your physician before using this product.

• Use this product in an area that is well illuminated.

• Should you ever feel any symptoms similar to those described above when using this product, stop using it immediately and contact your physician.

Heavy Objects

Never place heavy object on top of the product. Doing so can make the product top heavy, causing the product to tip over or the object to fall from it, creating the risk of personal injury.

Correct Stand* Assembly

An incorrectly assembled stand can tip over, causing the product to fall and creating the risk of personal injury. Make sure you assemble the stand correctly, following the assembly instructions that come with it. Make sure you mount the product on the stand correctly.

* Stand is available as an option.

IMPORTANT!

When using batteries, be sure to replace them or shift to one of the alternate power sources whenever you notice any of the following symptoms.

• Dim power supply indicator

• Instrument does not turn on

• Dim, difficult to read display

• Abnormally low speaker/headphone volume

• Distortion of sound output

• Occasional interruption of sound when playing at high volumes

• Sudden power failure when playing at high volumes

• Dimming of the display when playing at high volume

• Continued sound output even after you release a key

• A totally different tone may sound

• Abnormal rhythm pattern and demo tune play

• Abnormally low microphone volume

• Distortion of microphone input

• Dim power supply indicator when a microphone is used

• Sudden power failure when using the microphone

• Dimming of keyboard lights when notes sound

• Loss of power, sound distortion, or low volume when playing from a connected computer

E-4

Main Features

❐ 264 tones

A wide selection of tones includes stereo piano and synthesized sounds, drum sets, and much more. Other features include digital effects that control the acoustical characteristic of tones.

❐ PIANO BANK button

The touch of a button takes you directly to piano tones and piano lessons.

❐ 3-Step Lesson System

The 3-Step Lesson System lets you practice at your own pace. The keyboard automatically grades your performances, so you can trace your progress as you improve.

• 3-Step Lesson System: Use any of the keyboard’s built-in tunes and SMF data from a memory card to learn to play as the keyboard keys light to teach you the correct notes. First practice the timing of the notes. Next, play along at your own pace. Soon you will be ready for step three, where you play along at normal speed. * Note that key lights may be difficult to see under direct sunlight or under other very bright lighting.

• Evaluation System: The keyboard can be configured to rate your performances during Step 3 lesson by assigning points.

❐ 100 built-in tunes, including piano pieces

Built-in tunes are divided into two groups: a Song Bank of 65 tunes with Auto Accompaniment, and a Piano Bank of 35 piano tunes. You can simply enjoy listening to the built-in tunes, or eliminate either hand part of a tune, and then play along on the keyboard.

❐ 120 rhythms

A selection of rhythms cover rock, pops, jazz and just about any other musical style imaginable.

❐ Auto Accompaniment

Simply play a chord and the corresponding rhythm, bass, and chord parts play along automatically.

❐ Musical Information System

A big LCD screen graphically shows you fingerings and notes, making keyboard play more informative and enjoyable than ever before.

❐ Storing and Playing Back Tune Data You Transferred from Your Computer

You can connect your keyboard to a computer, use special CASIO conversion software to convert SMF data you purchase or create to CASIO format, and then transfer it to the keyboard.

❐ Memory Card Slot

You can load a card with a standard MIDI file (SMF) and play it back on the keyboard.

E-5

Contents

Safety Precautions .................... E-1

Main Features ............................ E-5

General Guide............................ E-8

Attaching the Score Stand ..................... E-10

Quick Reference .......................E-11

To play the keyboard .............................. E-11

Power Supply .......................... E-12

Using batteries ....................................... E-12

Using the AC Adaptor ............................. E-13

Auto Power Off ....................................... E-13

Power On Alert ....................................... E-14

Memory Contents ................................... E-14

Connections ............................ E-14

Phones/Output Jack ............................... E-14

USB port ................................................ E-15

Sustain/Assignable Jack ........................ E-15

Microphone Jack .................................... E-15

Accessories and Options ....................... E-15

Playing a Built-in Tune............ E-19

To play back a Song Bank tune ............. E-19

To play back a Piano Bank tune ............. E-20

Musical Information System ................... E-20

Adjusting the Tempo............................... E-20

To pause playback ................................. E-21

To fast reverse ....................................... E-21

To fast forward ....................................... E-21

Looping a Musical Phrase ...................... E-21

To change the melody tone .................... E-22

To play all tunes in succession ............... E-22

Using the PIANO BANK Button ............. E-22

Using the SMF Data on the

Bundled CD-ROM .................................. E-22

3-Step Lesson.......................... E-23

Evaluation Mode .................................... E-24

Using the Lesson Functions and

Evaluation Mode .................................... E-25

Step 1 – Master the timing. .................... E-25

Step 2 – Master the notes. ..................... E-25

Step 3 – Play at normal speed. .............. E-26

Basic Operations..................... E-16

To play the keyboard .............................. E-16

Selecting a Tone..................................... E-16

Using Tone Effects ................................. E-17

Turning the Key Light System

On and Off.............................................. E-17

Using the Microphone Jack .................... E-17

E-6

Voice Fingering Guide............................ E-27

Using the Metronome ............................. E-27

Contents

Auto Accompaniment ............. E-28

Selecting a Rhythm ................................ E-28

Playing a Rhythm ................................... E-29

Using Auto Accompaniment ................... E-29

Using an Intro Pattern ............................ E-31

Using a Fill-in Pattern ............................. E-31

Using a Rhythm Variation ....................... E-31

Using a Fill-in Pattern with a Variation

Rhythm ................................................... E-32

Synchro Starting Accompaniment with

Rhythm Play ........................................... E-32

Finishing with an Ending Pattern ........... E-32

Keyboard Settings .................. E-33

Using Touch Response

(LK-215 Only) ......................................... E-33

Troubleshooting ...................... E-44

Specifications .......................... E-46

Operating Precautions............ E-47

Appendix .................................... A-1

Tone List / Note Table............................... A-1

Drum Assignment List .............................. A-4

FINGERED Chord Chart .......................... A-5

Rhythm List .............................................. A-6

Song List .................................................. A-7

MIDI messages that can be sent and received using the USB port

Adjusting Accompaniment and

Song Bank Volume ................................ E-33

Transposing the Keyboard ..................... E-34

Tuning the Keyboard .............................. E-34

Connection to a Computer ..... E-35

Connecting to a Computer ..................... E-35

Expanding the Selections in the

Song Bank Tunes................................... E-36

General MIDI Tone ................................. E-37

Changing the Settings ............................ E-37

Using a Memory Card ............. E-39

Getting Ready ........................................ E-40

Reading a Memory Card ........................ E-41

Memory Card Error Messages ............... E-42

Company and product names used in this manual may be registered trademarks of others.

E-7

General Guide

1 3

2 4

9 0 A B C D F G HE

5 576

LK-215

KJI L M N P

E-8

R S

U V W X Y Z \[

NOTE

• Illustrations in this User’s Guide shows the LK-210.

General Guide

MIC VOLUME slider

Power indicator

POWER/MODE switch

MAIN VOLUME slider

<LK-210> FUNCTION button

<LK-215> TOUCH RESPONSE/FUNCTION button

REVERB/CHORUS button

KEY LIGHT button

● SONG/PIANO BANK/RHYTHM CONTROLLER

REPEAT button, INTRO button

REW button, NORMAL/FILL-IN button

FF button, VARIATION/FILL-IN button

PAUSE button, SYNCHRO/ENDING button

PLAY/STOP button, START/STOP button

Rhythm controller indicator

Song/Piano Bank controller indicator

TEMPO buttons

SONG BANK button

PIANO BANK button

CARD button

Percussion instrument list

CHORD root names

Speaker

RHYTHM list

TONE list

SONG BANK list

Display

PIANO BANK list

Voice 1 to 5 list

TONE button

RHYTHM button

DATA ACCESS lamp

● 3-STEP LESSON

STEP 1 button

STEP 2 button

STEP 3 button

SCORING button

LEFT button

RIGHT button

[

METRONOME button

SPEAK button

Controller Indicators

Song/Piano Bank controller indicator

Pressing the SONG BANK or PIANO BANK button causes the Song/Piano Bank controller indicator to light. This indicates that buttons 8 through B are currently functioning as playback control buttons.

Rhythm controller indicator

Pressing the RHYTHM button to enter the Rhythm Mode causes the Rhythm controller indicator to light. This indicates that buttons 8 through B are currently functioning as rhythm control buttons.

NOTE

• Display examples shown in this User’s Guide are intended for illustrative purposes only. The actual text and values that appear on the display may differ from the examples shown in this User’s Guide.

• Viewing a liquid crystal display screen from an angle can change the appearance of display contrast. The display contrast of this keyboard is set to allow easy viewing for a person seated on a chair in front of the keyboard. Note that display contrast is fixed, and cannot be adjusted.

E-9

General Guide

*1 Attaching the Score Stand

Insert both ends of the music stand provided with the keyboard into the two holes on the top surface.

Rear Panel

]

[+]/[–]

buttons

Number buttons

SD CARD SLOT

• Negative values cannot be input using the number buttons. Use [+] (increase) and [–] (decrease) instead.

• For input of numbers to change a displayed number or setting.

E-10

USB port

c d e

SUSTAIN/ASSIGNABLE JACK

DC 9V jack

PHONES/OUTPUT jack

MIC IN jack

Quick Reference

SONG BANKPOWER/MODE

Power indicator

PLAY/STOP

This section provides a quick overview of keyboard operation using steps one and two of the 3-step lesson feature.

To play the keyboard

Set the POWER/MODE switch to NORMAL.

• This causes the power indicator to light.

Lit

Press the SONG BANK button.

PIANO BANK

Number buttons

STEP2

STEP1

Find the tune you want to play in the SONG BANK List, and then use the number buttons to input its two-digit number.

• See page A-7 for the SONG BANK List. Example: To select “54 ALOHA OE”, input 5 and then 4.

AlohaOe

Press the STEP 1 button or STEP 2 button.

• The keyboard sounds a count beat and waits for you to play something on the keyboard. The keys that you need to press first flash.

Play the melody along with the selected tune’s accompaniment.

• Play in accordance with the fingerings, notes, and dynamic marks that appear on the display.

FingeringNote pitch

Indicator appears

AlohaOe

E-11

Quick Reference

Power Supply

If you selected lesson Step 1

• Play the notes on the keyboard.

• Accompaniment (left-hand part) plays in time with

the notes.

• With Step 1, the correct melody note is played no matter which keyboard key you press.

If you selected lesson Step 2

• Play the correct notes on the keyboard.

• Press the keyboard key that lights. Note that with a

Piano Bank tune, the keyboard key light turns off as soon as you press the key.

• The keyboard key for the next note you will need to play flashes.

• Accompaniment (left-hand part) plays in time with the notes, as long as you press the correct keyboard keys.

This keyboard can be powered by current from a standard household wall outlet (using the specified AC adaptor) or by batteries. Always make sure you turn the keyboard off whenever you are not using it.

Using batteries

Always make sure you turn off the keyboard before loading or replacing batteries.

To load batteries

Remove the battery compartment cover.

Load 6 AA-size batteries into the battery compartment.

• Make sure that the positive (+) and negative (–) ends are facing correctly.

To stop play at any time, press the PLAY/STOP button.

To play an Etude or Concert Piece tune

When you get to step 2 of the above procedure, press the PIANO BANK button in place of the SONG BANK button.

Indicator appears

Find the tune you want to play in the PIANO BANK List, and then use the number buttons to input its two-digit number.

• See page A-7 for the PIANO BANK List.

Next, continue from step 4 of the above procedure.

Insert the tabs on the battery compartment cover into the holes provided and close the cover.

NOTE

• The keyboard may not function correctly if you load or replace batteries with power turned on. If this happens, turning the keyboard off and then back on again should return functions back to normal.

Important Battery Information

■ The following shows the approximate battery life.

Manganese batteries ............................... 1 hour

Alkaline batteries .................................... 4 hours

The above value is standard battery life at normal temperature, with the keyboard volume at medium setting. Temperature extremes or playing at very loud volume settings can shorten battery life.

E-12

Power Supply

WARNING

• Never try to take batteries apart or allow them to become shorted.

• Never expose batteries to heat or dispose of them by incineration.

• Never mix old batteries with new ones.

• Never mix batteries of different types.

• Do not charge the batteries.

• Make sure the positive (+) and negative (–) ends of

the batteries are facing correctly.

CAUTION

Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.

• Use only batteries that are specified for use with this product.

• Remove batteries from the product if you do not plan to use it for a long time.

NOTE

• Do not use an oxyride battery or any other type of nickelbased primary battery with this product. Incompatibility between such batteries and product specifications can result in shorter battery life and product malfunction.

Note the following important precautions to avoid damage to the power cord.

● During Use

• Never pull on the cord with excessive force.

• Never repeatedly pull on the cord.

• Never twist the cord at the base of the plug or connector.

• The power cord should not be stretched tight while it is

in use.

● During Movement

• Before moving the keyboard, be sure to unplug the AC adaptor from the power outlet.

● During Storage

• Loop and bundle the power cord, but never wind it around the AC adaptor.

IMPORTANT!

• Make sure that the keyboard is turned off before connecting or disconnecting the AC adaptor.

• Using the AC adaptor for a long time can cause it to become warm to the touch. This is normal and does not indicate malfunction.

Auto Power Off

When you are using battery power, keyboard power turns off automatically whenever you leave it on without performing any operation for about 6 minutes. When this happens, adjust the POWER/MODE switch to turn power back on.

Using the AC Adaptor

Make sure that you use only the AC adaptor specified for this keyboard.

Specified AC Adaptor: AD-5

[Rear Panel]

DC 9V jack

AC adaptor AD-5

AC outlet

NOTE

• Auto Power Off is disabled (it does not function) when you are using the AC adaptor to power the keyboard.

To disable Auto Power Off

Hold down the TONE button while turning on the keyboard to disable Auto Power Off.

NOTE

• When this function is turned off, the keyboard does not turn off automatically no matter how long it is left with no operation being performed.

• Auto Power Off is enabled again when you manually turn off power and then turn it back on again.

E-13

Power Supply

Connections

Power On Alert

Keyboard keys light to alert you if you leave power on and do not perform any operation for about 6 minutes. Note that keys light only, and no sound is produced. When this happens, press any button or keyboard key to clear the power on alert.

NOTE

• Power on alert operates only when you are powering the keyboard using the AC adaptor. It does not operate when you are using batteries.

To turn off power on alert

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button a number of times until “DEMO 2” appears on the display.

Use the [+] and [–] buttons to change the setting to “oFF”.

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button to clear the setting screen from the display.

Memory Contents

Even when the keyboard is turned off, user song data saved as Song Bank tunes are retained as long as power is being supplied to the keyboard. Unplugging the AC adaptor when batteries are not loaded or when batteries are dead cuts off the power supply. This causes all keyboard settings to be initialized to the initial factory defaults, and clears all data stored in memory.

Phones/Output Jack

PREPARATION

• Before connecting headphones or other external equipment, be sure to first turn down the volume settings of the keyboard and the connected equipment. You can then adjust volume to the desired level after connections are complete.

[Rear Panel]

PHONES/OUTPUT jack

Keyboard amp, guitar amp, etc.

Connecting Headphones (Figure 1)

Connecting headphones cuts off output from the keyboard’s built-in speakers, so you can play even late at night without disturbing anyone.

Audio Equipment (Figure 2)

Connect the keyboard to an audio equipment using a commercially available connecting cord with a standard plug on one end and two PIN plugs on the other end. Note that the standard plug you connect to the keyboard must be a stereo plug, otherwise you will be able to output only one of stereo channels. In this configuration, you normally set the input selector of the audio equipment to the terminal (usually marked AUX IN or something similar) where the cord from the keyboard is connected. See the user documentation that comes with your audio equipment for full details.

Audio connection

Stereo standard plug

White

LEFT

AUX IN or similar terminal

of audio amplifier

RIGHT

Red

PIN plug

Power Requirements

Note the following precautions whenever you want to ensure that current keyboard settings and memory contents are not lost.

• Make sure the keyboard is being supplied power through the AC adaptor before replacing its batteries.

• Before unplugging the AC adaptor, make sure that fresh batteries are loaded in the keyboard.

Make sure that keyboard power is turned off before replacing batteries or unplugging the AC adaptor.

E-14

Musical Instrument Amplifier (Figure 3)

Use a commercially available connecting cord to connect the keyboard to a musical instrument amplifier.

NOTE

• Be sure to use a connecting cord that has a stereo standard plug on the end you connect to the keyboard, and a connector that provides dual channel (left and right) input to the amplifier to which you are connecting. The wrong type of connector at either end can cause one of the stereo channels to be lost.

When connected to a musical instrument amplifier, set the volume of the keyboard to a relatively low level and make output volume adjustments using the amplifier’s controls.

Connections

Connection Example

To keyboard’s PHONES/OUTPUT

ack

Stereo standard plug

PIN plug (red)

PIN plug (white)

PIN jack

Standard plug

INPUT 1

INPUT 2

Keyboard or guitar amp

USB port

You can also connect the keyboard to a computer. See “Connecting to a Computer” on page E-35 for details.

Sustain/Assignable Jack

You can connect an optional sustain pedal (SP-3 or SP-20) to the SUSTAIN/ASSIGNABLE JACK to enable the capabilities described below.

For details on how to select the pedal function you want, see “SUSTAIN/ASSIGNABLE JACK (Default: SUS)” on page E-38.

SUSTAIN/ASSIGNABLE JACK

Microphone Jack

You can connect a commercially available microphone to the microphone jack and sing along with notes played on the keyboard. For details, see “Using the Microphone Jack” on page E-17.

Accessories and Options

Use only the accessories and options specified for this keyboard. Use of non-authorized items creates the danger of fire, electrical shock, and personal injury.

SP-20

Sustain Pedal

• With piano tones, depressing the pedal causes notes to linger, much like a piano’s damper pedal.

• With organ tones, depressing the pedal causes notes to continue to sound until the pedal is released.

Sostenuto Pedal

• As with the sustain pedal function described above, depressing the sostenuto pedal causes notes to be sustained.

• This difference between a sostenuto pedal and sustain pedal is the timing. With a sostenuto pedal, you press the keys and then depress the pedal before you release the keys.

• Only the notes that are sounding when the pedal is depressed are sustained.

Soft Pedal

Depressing the pedal softens the sound of the notes being played.

Rhythm Start/Stop Pedal

In this case, the pedal performs the same functions as the START/STOP button.

E-15

Basic Operations

MAIN VOLUME TONEREVERB/CHORUS

POWER/MODE [+] / [–]

MIC VOLUME

This section provides information on performing basic keyboard operations.

To play the keyboard

Set the POWER/MODE switch to NORMAL.

Use the MAIN VOLUME slider to set the volume to a relatively low level.

Play something on the keyboard.

Selecting a Tone

This keyboard comes with 264 built-in tones. Use the following procedure to select the tone you want.

To select a tone

Find the tone you want to use in the TONE List and note its tone number.

• Not all of the available tones are shown on the tone list printed on the keyboard console. For a complete list, see the “Tone List” on page A-1.

Press the TONE button.

Number buttonsKEY LIGHT

Use the number buttons to input the three-digit tone number of the tone you want to select.

Example: To select “049 ACOUSTIC BASS”, input 0, 4

and then 9.

Aco . Bsas

NOTE

• Always input all three digits for the tone number, including leading zeros (if any). If you input one or two digits and stop, the display will automatically clear your input after a few seconds.

• You can also increment the displayed tone number by pressing [+] and decrement it by pressing [–].

• When one of the drum sets is selected (tone numbers 256 through 263), each keyboard key is assigned a different percussion sound. See page A-4 for details.

Polyphony

The term polyphony refers to the maximum number of notes you can play at the same time. The keyboard has 32-note polyphony, which includes the notes you play as well as the rhythms and auto-accompaniment patterns that are played by the keyboard. This means that when a rhythm or autoaccompaniment pattern is being played by the keyboard, the number of notes (polyphony) available for keyboard play is reduced. Also note that some of the tones offer only 16-note polyphony.

• When rhythm or auto accompaniment is playing, the number of sounds simultaneously played is reduced.

E-16

Indicator appears

Basic Operations

Using Tone Effects

Reverb: Makes your notes resonate Chorus: Adds more breadth to your notes

Press the REVERB/CHORUS button to cycle through the effect settings as shown below.

• You can find out the current effect setting by looking at the REVERB and CHORUS indicators.

On On On Off

Reverb on Chorus on Both on Both off

After turning on the effect you want, use the number buttons or the [+]/[–] buttons to select the effect type you want.

• Note that you need to select an effect type with the number buttons or the [+]/[–] buttons within a few seconds after turning on an effect. If you don’t, the display will exit the setting screen.

Effect List

Reverb 0: Room 1

1: Room 2 2: Hall 1 3: Hall 2

Chorus 0: Chorus 1

1: Chorus 2 2: Chorus 3 3: Chorus 4

Using the Microphone Jack

Connecting a commercially available microphone* to the MIC IN jack makes it possible to sing along with the keyboard’s built-in tunes or with SMF playback. When connecting a microphone, be sure to first adjust the MIC VOLUME to a relatively low setting, and then adjust to the level you want after connecting. * If a microphone was included with your keyboard, use that

microphone. If your keyboard did not come with a microphone, use a commercially available microphone that satisfies the stipulated specifications.

Set the MIC VOLUME slider setting so it is on the “MIN” side.

Turn on the microphone’s on/off switch.

Use the MIC VOLUME slider to adjust microphone volume to the level you want.

[Rear Panel]

Microphone on/off switch

Microphone

Turning the Key Light System On and Off

Use the following procedure when you want to turn the key light system on or off.

To turn the key light system on and off

Press the KEY LIGHT button to toggle the key light system on and off.

• The KEY LIGHT indicator disappears when the key light system is turned off.

NOTE

• The key light system is turned on automatically whenever you turn on keyboard power.

MIC VOLUME slider

IMPORTANT!

• Be sure to use the microphone’s on/off switch to turn off the microphone and to disconnect the microphone from the keyboard whenever you are not using it.

E-17

Basic Operations

Recommended Microphone Type

• Dynamic microphone (standard plug)

IMPORTANT!

• Be sure to disconnect the microphone from the keyboard whenever you are not using it.

Howling (Feedback Noise)

Any of the following conditions can cause howling (feedback noise).

• Covering the head of the microphone with your hand

• Positioning the microphone too near to a speaker

Should howling occur, try grasping the microphone further away from the head, and move away from any nearby speaker.

Static Noise

Fluorescent lighting can cause static noise in the microphone signal. When this happens, move away from the lighting you suspect may be causing the static.

E-18

Playing a Built-in Tune

REW

REPEAT

Your keyboard comes with a total of built-in 100 tunes. You can play back built-in tunes for your own listening pleasure, or you can use them for practice and even sing-along. Builtin tunes are divided between the two groups described below.

• Song Bank Group: 65 tunes The tunes in this group are Auto Accompaniment tunes.

• Piano Bank Group: 35 tunes The piano tunes in this group are subdivided between 10 etudes and 25 concert pieces.

In addition to the built-in tunes, you can also play back the tunes you download over the Internet (page E-36).

PIANO BANK

SONG BANK

PLAY/STOPPAUSE

To play back a Song Bank tune

PREPARATION

• Adjust the main volume (page E-16).

Find the tune you want to play in the SONG BANK List, and note its number.

• See page A-7 for the SONG BANK List.

TONE

[+] / [–]

Number buttons

TEMPOFF

Use the number buttons to input the tune’s twodigit number.

Example: To select “54 ALOHA OE”, input 5 and then 4.

Song number Song name

AlohaOe

NOTE

• Tune Number 00 is the initial default Song Bank tune setting whenever you turn on keyboard power.

• You can also increment the displayed tune number by pressing [+] and decrement is by pressing [–].

Press the PLAY/STOP button to start play of the tune.

Staff display

AlohaOe

Press the SONG BANK button to enter the Song Bank Mode.

Indicator appears

Fingering

Chord name

Press the PLAY/STOP button to stop playback of the Song Bank tune.

• The tune you select continues to play until you stop it.

E-19

Playing a Built-in Tune

To play back a Piano Bank tune

Find the tune you want to play in the PIANO BANK List, and note its number.

• See page A-7 for the PIANO BANK List.

Press the PIANO BANK button to specify the Piano Bank group.

Indicator appears

NOTE

• Pressing the PIANO BANK button changes the tone to STEREO PIANO (Tone Number 000).

Use the number buttons to input the two-digit tune number you looked up in step 1.

Example: To select tune number 07 (ODE TO JOY), input

0 and then 7.

OdeTo

Musical Information System

When the keyboard is playing one of its built-in tunes, the display shows a variety of information about the tune.

Example: Display during Song Bank play

Staff display

AlohaOe

Fingering

Chord name

NOTE

• Chord names are not displayed for Piano Bank tunes.

Adjusting the Tempo

The tempo (beats per minute) can be set to a value in the range of 30 to 255. The tempo value you set is used for Song Bank, Piano Bank, 3-step lesson, and Auto Accompaniment chord play, as well as playback from memory card and metronome operation.

To set the tempo

NOTE

• Tune Number 00 is the initial default Piano Bank tune setting whenever you turn on keyboard power.

• You can also change the displayed tune number using the [+] and [–] buttons.

Press the PLAY/STOP button to start playback.

To stop playback, press the PLAY/STOP button.

• The tune you select continues to play until you stop it.

E-20

Use the TEMPO buttons to set the tempo.

: Increases the tempo value. : Decreases the tempo value.

Flash

Tempo value

NOTE

• While the tempo value is flashing, you can also use the number buttons or [+] and [–] to input a three-digit value. Note that you must input leading zeros, so 90 is input as 090.

• Pressing both the and TEMPO buttons at the same time automatically returns the currently selected rhythm to its default tempo.

• Piano Bank tunes have tempo changes part way through in order to produce specific musical effects.

Playing a Built-in Tune

To pause playback

Press the PAUSE button while a tune is playing to pause it.

Pressing the PAUSE button again resumes play from the point where it was paused.

To fast reverse

While a tune is playing or paused, hold down the REW button to skip in a reverse direction at high speed.

• The fast reverse operation skips back one measure at a time.

• The measure and beat numbers on the display change while the fast reverse operation is being performed.

Beat numberMeasure number

Releasing the REW button starts song playback from the measure whose number is shown on the display.

NOTE

• Fast reverse does not work while tune play is stopped.

• Certain playback conditions can cause it to take some

time before fast reverse starts after you press the REW button.

To fast forward

While a tune is playing or paused, hold down the FF button to skip forward at high speed.

• The fast forward operation skips forward one measure at a time.

• The measure and beat numbers on the display change while the fast forward operation is being performed.

Beat numberMeasure number

Releasing the FF button starts song playback from the measure whose number is shown on the display.

NOTE

• Fast forward does not work while tune play is stopped.

Looping a Musical Phrase

You can select one or more measures and “loop” them, which means that they play again and again until you stop playback.

While the tune is playing, press the REPEAT button while the measure you want to start from is playing.

• This causes the repeat indicator to flash on the display, and displays the measure number of the start measure.

When playback is within the measure you want to specify as the end of the loop, press the REPEAT button again.

• This displays the measure number of the end measure, and starts repeat play of the loop.

• To cancel repeat play of a loop, press the REPEAT button again so the repeat indicator is not displayed.

E-21

Playing a Built-in Tune

To change the melody tone

Press the TONE button.

Indicator appears

Find the tone you want in the TONE List, and then use the number buttons to input its three-digit number.

Example: To select “057 VIOLIN”, input 0, then 5, then

• You can select any one of the keyboard’s 264 built-in

tones.

Viol i n

NOTE

• You can also use the [+] and [–] buttons to change the melody tones.

• For two-hand tunes (Piano Bank tunes), the same tone is applied for both the left and right hand parts.

• Specifying the tune number for the same tune that is currently selected returns the melody tone to the default setting for that tune.

To play all tunes in succession

Press the SONG BANK button and PIANO BANK button at the same time.

• Playback starts from Song Bank tune number 00, followed in sequence by Piano Bank tunes.

To stop tune play, press the PLAY/STOP button.

Using the PIANO BANK Button

Pressing the PIANO BANK button provides instant access to piano tones and piano tune selection.

Initial Piano Bank Setting

Tone: 000 STEREO PIANO

To use the piano bank

Press the PIANO BANK button.

Indicator appears

Now try playing something on the keyboard.

• The notes you play sound with a piano tone.

If you want to playback the built-in tune, press the PLAY/STOP button.

• This causes the currently selected tune to play in an endless loop.

• To stop playback, press the PLAY/STOP button again.

Using the SMF Data on the Bundled CD-ROM

The CD-ROM that comes bundled with the keyboard contains demos as well as 25 tunes (SMF data) that you can use for step lessons. It also contains PDF format files that contain the sheet music of the included tunes. For a full list of the tunes that are included, open the “List.txt” file located inside the “MusicDataFolder” on the CD-ROM. For each tune, “List.txt” shows the tune name, SMF file name, PDF file name of the music score, and the type of lesson* for which the tune can be used. * A tune marked with an asterisk (*) can be used for a both-

hand lesson. A tune that is not marked with an asterisk can be used for a right-hand lesson.

NOTE

• While a tune is playing, you can use the number buttons or [+] and [–] to change to another tune.

• You can play along with the tunes on the keyboard.

E-22

NOTE

• You can load SMF data from the CD-ROM to the keyboard using an SD memory card (page E-41) or using the SMF converter tool (page E-36).

• You will need to have Adobe Reader or Acrobat Reader installed on your computer in order to view the contents of a music score PDF file. If neither of these applications is installed on your computer, see “Installing Adobe Reader (Acrobat Reader**)” on page E-35.

3-Step Lesson

PIANO BANK

SONG BANK

PLAY/STOP

With the 3-Step Lesson System, you can practice built-in tunes and SMF data from a memory card, and even plot your progress according to the evaluation points the keyboard awards you.

* See “Using a Memory Card” on page E-39 for information

about using the SMF data from a memory card for playback.

Lesson Progress

Step 1

Targeted Practice

EvaluationStep 2 Step 3

3-Step Lesson

The 3-step lesson feature takes you through the three distinct steps described below to help you learn to play tunes on the keyboard.

Step 1 – Master the timing.

In this step, pressing any key on the keyboard plays the correct note, so you can concentrate on getting the timing right without worrying about playing the right note. Accompaniment (left-hand part) waits until you press a key before proceeding to the next phrase.

Step 2 – Master the notes.

In this step, you use the display to learn which fingers you should use and how loud or soft to play, and the key light system to learn which keyboard keys to press. Accompaniment (left-hand part) waits until your play the correct note, so you can learn at your own pace.

TEMPO

[+] / [–]

Number buttons

METRONOME

SPEAK

STEP 1

STEP 2

STEP 3

RIGHT

LEFT

SCORING

Lesson Parts

3-Step Lesson lets you practice the right-hand part, left-hand part, or the parts for both hands.

Key Lighting System Operation and Display Contents During 3-step Lesson Play

Whenever you select an Auto Accompaniment tune for 3-step lesson play, the key lighting system shows you which keys to press, while the display shows you the notes and their fingerings.

Note Pitch

The keyboard key that should be pressed lights, while the actual pitch of the note appears in the display’s staff notation area. The fingers you should use to play the notes are also shown on the display.

Note Length

Keyboard keys stay lit for as long as the note should be played. The staff notation and fingerings also remain on the display for the length of the note.

Next Note

The keyboard key for the next note to be played flashes, while a number appears on the display near the finger you should use to play the next note.

Series of Same Pitch Notes

The keyboard key light turns off momentarily between the notes and lights again for each successive note. The staff notation and fingerings also turn off and back on again.

Step 3 – Play at normal speed.

This is where you enjoy actually playing the tunes you learn using Step 1 and Step 2. The key light system still shows you which keyboard keys to press, but accompaniment proceeds at normal speed regardless of whether or not you play the correct notes.

E-23

3-Step Lesson

Example: When play requires pressing keys with fingers 3, 2,

and then 1

Next note

Current note

Key light

1st Note 2nd Note 3rd Note

Flash

Lit

Flash

Lit

Flash

NOTE

• Note length is not indicated when you are using twohand tunes with 3-step lesson Steps 1 and 2. As soon as you press a lit key, it goes out and the next key to be played starts to flash.

• Note length is indicated by the key light system when you use a two-hand tune with Step 3. In this case, the next key to be pressed does not flash when you press a lit key and the next finger number does not appear on the display. Only the current finger number is shown.

3-step Lesson Tempo Setting

Use the procedure under “Adjusting the Tempo” on page E-20 to adjust the tempo for 3-step lesson play.

Evaluation Mode

The keyboard’s Evaluation Mode awards points to your performances during Step 3 of the 3-Step Lesson. A perfect score is 100. Also, the Evaluation Mode provides comments about your play on the monitor screen.

Evaluation Mode Display

Level Indicator (9 Levels): This indicator shows the evaluation of your current performance at a glance. The more segments that appear, the higher your points.

Example: 50 points

Timing Indicator: In the Evaluation Mode, the configuration

of the star changes with each note to let you know how your timing is. The more stars, the better your timing.

Evaluation Results

After you finish playing, the keyboard calculates an evaluation of your total performance, from beginning to end, and displays your total score on the monitor screen. The greater the score, the higher your evaluation is.

Dynamic Marks

The dynamic marks listed below appear on the display while tunes are playing. Adjust the pressure you apply to the keyboard in accordance with the mark that is on the display.

pianissimo: Very soft piano: Soft mezzo piano: Moderately soft mezzo forte: Moderately loud forte: Loud fortissimo: Very loud

(<) crescendo: Gradually louder

cresc. decresc.

E-24

(>) decrescendo: Gradually softer

Evaluation Rank Display Messages

Display Message

“Bravo!” <High> “Great!” “Not bad!”

Evaluation Ranges

“Again!” <Low>

“****” : indicates that the Evaluation Mode was exited

before an evaluation result could be obtained.

NOTE

• If you press the PLAY/STOP button and interrupt the Evaluation Mode part way through, the monitor screen shows the evaluation points you have accumulated up to that point. In this case, the keyboard does not display a message.

Using the Lesson Functions and Evaluation Mode

Perform the following steps to master your favorite tunes.

Step 1 – Master the timing.

Select the tune you want to use.

Press the RIGHT button or the LEFT button to specify the part you want to practice.

• If you want to practice both hands, press both buttons at the same time.

• Indicators appear around the hand on the display whose part is selected for practice.

Indicators

Press the STEP 1 button to start Step 1 play.

• After a count sounds, they keyboard stands by and waits for you to play the first note of the tune.

• Voice fingering guide will use a simulated human voice to call out fingering numbers during one-hand part practice. See “Voice Fingering Guide” on page E-27 for details.

Note pitch

Fingering

AlohaOe

Indicator appears

3-Step Lesson

Press any keyboard keys to play the notes.

• The key for the next note to be played flashes while the keyboard waits for you to play it. When you press any key to play the note, the key remains lit as the note plays.

• Accompaniment (left-hand part) waits until you press any key to play a note.

• If you accidentally press more than one key in succession, accompaniment is played for the corresponding number of notes.

• Pressing more than one key at the same time counts as a single note. Pressing a key while another key is held down is counted as two notes.

To stop play at any time, press the PLAY/STOP button.

Step 2 – Master the notes.

Select the tune you want to use.

Press the RIGHT button or the LEFT button to specify the part you want to practice.

• If you want to practice both hands, press both buttons at the same time.

Press the STEP 2 button to start Step 2 play.

• After a count sounds, the keyboard stands by and waits for you to play the first note of the tune.

• Voice fingering guide will use a simulated human voice to call out fingering numbers during one-hand part practice. See “Voice Fingering Guide” on page E-27 for details.

Fingering

AlohaOe

Indicator appears

E-25

3-Step Lesson

Follow the key light system to press the correct keyboard keys and play the notes.

• The key for the next note to be played flashes while the keyboard waits for you to play it. When you press any key to play the note, the key remains lit as the note plays.

• If multiple keys light on the on-screen keyboard guide when you are using a two-hand tune, it means that you must press all of the keys that are lit.

To stop play at any time, press the PLAY/STOP button.

Step 3 – Play at normal speed.

Select the tune you want to play.

Press the RIGHT button or the LEFT button to specify the part you want to practice.

• If you want to practice both hands, press both buttons at the same time.

Press the STEP 3 button to start Step 3 play.

• Accompaniment (left hand part) starts to play at normal speed.

Fingering

AlohaOe

Indicator appears

To stop play at any time, press the PLAY/STOP button.

Evaluation: Find out how the keyboard evaluates your Step 3 play.

Use the SCORING button to check the evaluation of your play in Step 3.

Press the SCORING button.

• This causes the SCORING indicator to appear on the display.

• A count beat sounds and then evaluation mode starts.

Indicator appears

Play in accordance with the guidance on the monitor screen.

• To stop evaluation, press the PLAY/STOP button. This displays only the points accumulated up to that point.

After you finished playing, your evaluation result appears on the display.

• For information about evaluation ranks, see “Evaluation Results” on page E-24.

• Pressing the SONG BANK button or PIANO BANK

button returns to the tune selection screen.

E-26

Brav!o

3-Step Lesson

Voice Fingering Guide

Voice fingering guide uses a simulated human voice to call out fingering numbers during Step 1 and Step 2 one-hand part practice. If you need to press a key with your thumb, for example, voice fingering guide says, “One!” In the case of a chord to be played with your thumb, middle and little finger, voice fingering guide says, “One, three, five!” Voice Fingering Guide calls out fingerings only when you do not press the proper key when you should.

Voice Fingering Guide

One : Thumb Two : Forefinger Three : Middle finger Four : Ring finger Five : Little finger

To turn voice fingering guide on or off

Press the SPEAK button to toggle voice fingering guide on (voice fingering guide indicator displayed) and off (indicator not displayed).

Indicator appears

NOTE

• Note that Voice Fingering is disabled in the Evaluation Mode.

• Exiting the Evaluation Mode automatically restores the Voice Fingering setting that was in effect when you entered the Evaluation Mode.

Using the Metronome

The metronome feature of this keyboard produces a bell sound for the first beat of each measure, followed by click sounds for each successive beat of the measure. It is the perfect tool for practicing tunes without accompaniment (rhythm).

To start the metronome

Press the METRONOME button to start sounding the metronome.

• This causes “Beat” to appear on the display. Perform step 2 within five seconds after “Beat” appears.

Use the number buttons or [+] and [–] to change the number of beats per measure.

• You can specify 0, or a value from 2 to 6 as the number of beats per measure.

Bea t

NOTE

• The bell (indicating the first beat of a measure) does not sound while one beat per measure is specified. All beats are indicated by a click sound. This setting lets you practice with a steady beat, without worrying about how many beats there are in each measure.

Use the TEMPO buttons to set the tempo.

• Press to increase the tempo (make if faster) or to decrease it (make it slower).

Flash

Tempo value

NOTE

• While the tempo value is flashing, you can also use the number buttons or [+] and [–] to input a three-digit value. Note that you must input leading zeros, so 90 is input as 090.

• Pressing both the and TEMPO buttons at the same time automatically returns the currently selected rhythm or tune to its default tempo.

To turn off the metronome, press the METRONOME button.

E-27

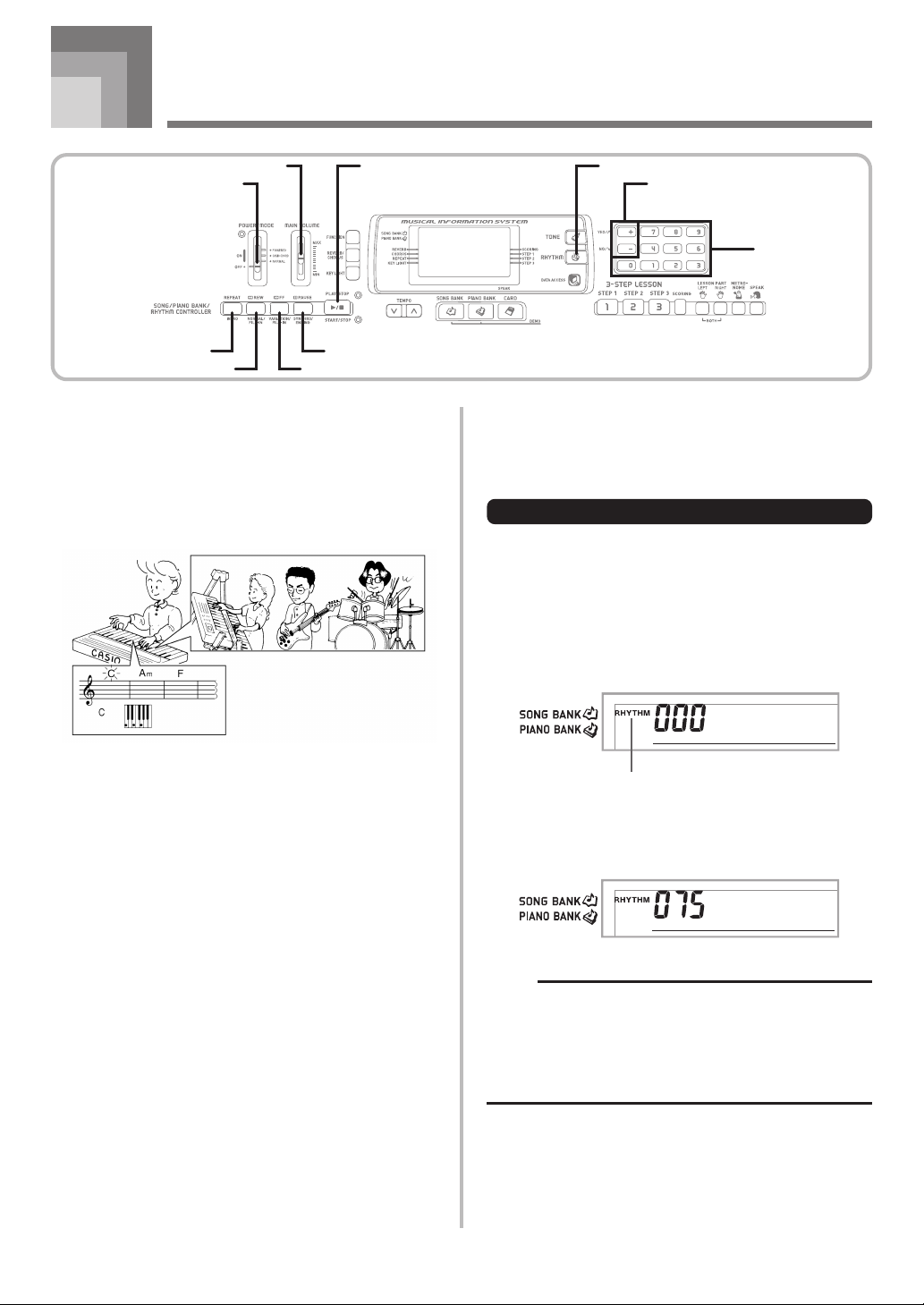

Auto Accompaniment

MAIN VOLUME

POWER/MODE

INTRO SYNCHRO/ENDING

VARIATION/FILL-INNORMAL/FILL-IN

This keyboard automatically plays bass and chord parts in accordance with the chords you finger. The bass and chord parts are played using sounds and tones that are automatically selected to select the rhythm you are using. All of this means that you get full, realistic accompaniments for the melody notes you play with your right hand, creating the mood of an one-person ensemble.

RHYTHMSTART/STOP

[+] / [–]

Number buttons

Selecting a Rhythm

This keyboard provides you with 120 exciting rhythms that you can select using the following procedure.

To select a rhythm

Find the rhythm you want to use in the RHYTHM List and note its rhythm number.

• Not all of the available rhythms are shown on the rhythm list printed on the keyboard console. For a complete list, see the “Rhythm List” on page A-6.

Press the RHYTHM button.

Pop 1

Indicator appears

Use the number buttons to input the three digit rhythm number for the rhythm you want to select.

Example: To select “075 RHUMBA”, input 0, 7 and then 5.

Rhumb a

NOTE

• You can also increment the displayed rhythm number by pressing [+] and decrement it by pressing [–].

• Some rhythms consist of chord accompaniments only, without any drums or other percussion instruments. Such rhythms do not sound unless CASIO CHORD or FINGERED is selected as the accompaniment mode.

E-28

Playing a Rhythm

Use the following procedure to start and stop rhythm play.

Auto Accompaniment

To stop Auto Accompaniment play, press the START/ STOP button again.

To play a rhythm

Set the POWER/MODE switch to NORMAL.

Press the START/STOP button to start play of the currently selected rhythm.

To stop rhythm play, press the START/STOP button again.

NOTE

• All of the keyboard keys are melody keys while the POWER/MODE switch is set to NORMAL.

Using Auto Accompaniment

The following procedure describes how to use the keyboard’s Auto Accompaniment feature. Before starting, you should first select the rhythm you want to use and set the tempo of the rhythm to the value you want.

To use Auto Accompaniment

Set the POWER/MODE switch to CASIO CHORD or FINGERED.

NOTE

• If you press the SYNCHRO/ENDING button and then the INTRO button in place of the START/STOP button in step 2, accompaniment will start with an intro pattern when you perform the operation in step 3. For details about these buttons, see pages E-31 and E-32.

• If you press the SYNCHRO/ENDING button in place of the START/STOP button in step 4, an ending pattern will play before accompaniment play is ended. For details about this button, see page E-32.

• You can adjust the accompaniment part volume level independently of the main volume. For details, see “Adjusting Accompaniment and Song Bank Volume” on page E-33.

CASIO CHORD

This method of chord play makes it possible for anyone to easily play chords, regardless of previous musical knowledge and experience. The following describes the CASIO CHORD “Accompaniment keyboard” and “Melody keyboard”, and tells you how to play CASIO CHORDs.

CASIO CHORD Accompaniment Keyboard and Melody Keyboard

Accompaniment

keyboard

Melody keyboard

Press the START/STOP button to start play of the currently selected rhythm.

Play a chord.

• The actual procedure you should use to play a chord depends on the current POWER/MODE switch position. Refer to the following pages for details on chord play.

CASIO CHORD .......................... Page E-29

FINGERED ................................... Page E-30

Rhumb a

Chord name

NOTE

• The accompaniment keyboard can be used for playing chords only. No sound will be produced if you try playing single melody notes on the accompaniment keyboard.

E-29

Auto Accompaniment

Chord Types

CASIO CHORD accompaniment lets you play four types of chords with minimal fingering.

Chord Types

Major chords

Major chord names are marked above the keys of the accompaniment keyboard. Note that the chord produced when you press an accompaniment keyboard does not change octave, regardless of which key you use to play it.

Minor chords (m)

To play a minor chord, keep the major chord key depressed and press any other accompaniment keyboard key located to the right of the major chord key.

Seventh chords (7)

To play a seventh chord, keep the major chord key depressed and press any other two accompaniment keyboard keys located to the right of the major chord key.

Minor seventh chords (m7)

To play a minor seventh chord, keep the major chord key depressed and press any other three accompaniment keyboard keys located to the right of the major chord key.

Example

C Major (C)

CDEF GABCDEF

C minor (Cm)

CDE F GAB CDEF

C seventh (C7)

CDEFGABCDE F

C minor seventh (Cm7)

CDEF GABCDEF

FINGERED

FINGERED provides you with a total of 15 different chord types. The following describes the FINGERED “Accompaniment keyboard” and “Melody keyboard”, and tells you how to play a C-root chord using FINGERED.

FINGERED Accompaniment Keyboard and Melody Keyboard

Accompaniment

keyboard

NOTE

• The accompaniment keyboard can be used for playing chords only. No sound will be produced if you try playing single melody notes on the accompaniment keyboard.

Caug

Csus4

Melody keyboard

Cdim

NOTE

• It makes no difference whether you press black or white keys to the right of a major chord key when playing minor and seventh chords.

Cm7



5 *1

Cmadd9

Cmaj7

C7sus4

CmM7



Cm7

Cadd9

Cdim7

See the FINGERED Chord Chart on page A-5 for details on playing chords with other roots.

*1: Inverted fingerings cannot be used. The lowest note is

the root.

*2: The same chord can be played without pressing the 5th G.

E-30

Auto Accompaniment

NOTE

• Except for the chords specified in note*1 above, inverted fingerings (i.e. playing E-G-C or G-C-E instead of C-EG) will produce the same chords as the standard fingering.

• Except for the exception specified in note*2 above, all of the keys that make up a chord must be pressed. Failure to press even a single key will not play the desired FINGERED chord.

Using an Intro Pattern

This keyboard lets you insert a short intro into a rhythm pattern to make startup smoother and more natural.

The following procedure describes how to use the Intro feature. Before starting, you should first select the rhythm you want to use, and set the tempo.

To insert an intro

Press the INTRO button to start the selected rhythm with an intro pattern.

• With the above setup, the intro pattern is played and the auto accompaniment with intro pattern starts as soon as you play chords on the accompaniment keyboard.

NOTE

• The standard rhythm pattern starts to play after the intro pattern is complete.

• Pressing the VARIATION/FILL-IN button while an intro pattern is playing causes the variation pattern to sound after the intro pattern is complete.

Using a Fill-in Pattern

Fill-in patterns let you momentarily change the rhythm pattern to add some interesting variation to your performances.

The following procedure describes how to use the Fill-in feature.

To insert a fill-in

Press the START/STOP button to start rhythm play.

Press the NORMAL/FILL-IN button to insert a fillin pattern for the rhythm you are using.

NOTE

• The fill-in pattern does not play if you press the NORMAL/FILL-IN button while an intro pattern is playing.

Using a Rhythm Variation

In addition to the standard rhythm pattern, you can also switch to a secondary “variation” rhythm pattern for a bit of variety.

To insert the variation rhythm pattern

Press the START/STOP button to start rhythm play.

Press the VARIATION/FILL-IN button to switch to the variation pattern for the rhythm you are using.

NOTE

• To switch back to the standard rhythm pattern, press the NORMAL/FILL-IN button.

E-31

Auto Accompaniment

Using a Fill-in Pattern with a Variation Rhythm

You can also insert a fill-in pattern while a variation rhythm pattern is playing.

To insert a fill-in into a rhythm variation

While a variation rhythm pattern is playing, press the VARIATION/FILL-IN button to insert a fill-in pattern for the variation rhythm you are using.

Synchro Starting Accompaniment with Rhythm Play

You can set up the keyboard to start rhythm play at the same time you play the accompaniment on the keyboard.

The following procedure describes how to use synchro start. Before starting, you should first select the rhythm you want to use, set the tempo, and use the POWER/MODE switch to select the chord play method you want to use (NORMAL, CASIO CHORD, FINGERED).

To use synchro start

Finishing with an Ending Pattern

You can end your performances with an ending pattern that brings the rhythm pattern you are using to a natural-sounding conclusion. The following procedure describes how to insert an ending pattern. Note that the actual ending pattern played depends on the rhythm pattern you are using.

To finish with an ending pattern

While the rhythm is playing, press the SYNCHRO/ ENDING button.

• This causes the ending pattern to play, which brings rhythm accompaniment to an end.

NOTE

• The timing when the ending pattern starts depends on when you press the SYNCHRO/ENDING button. If you press the button before the second beat of the current measure, the ending pattern starts playing immediately. Pressing the button at any point in the measure after the second beat results in the ending pattern playing from the beginning of the following measure.

Press the SYNCHRO/ENDING button to put the keyboard into synchro start standby.

Flash

Playing a chord and the rhythm pattern starts to play automatically.

NOTE

• If the POWER/MODE switch is set to NORMAL, only the rhythm plays (without a chord) when you play on the accompaniment keyboard.

• If you press the INTRO button before playing anything on the keyboard, the rhythm starts automatically with an intro pattern when you play something on the accompaniment keyboard.

• Pressing the VARIATION/FILL-IN button before playing anything on the keyboard causes play to start with the variation pattern when something is played on the keyboard.

• To cancel synchro start standby, press the SYNCHRO/ ENDING button one more time.

E-32

Keyboard Settings

<LK-215>

TOUCH RESPONSE/ FUNCTION

FUNCTION

Using Touch Response (LK-215 Only)

When touch response is turned on, the relative volume of sound output by the keyboard is varied in accordance with the amount of pressure applied, just like an acoustic piano.

Press the TOUCH RESPONSE/FUNCTION button to enter the Touch Response setting mode.

To cu

Use the [+] and [–] buttons to change the setting.

[+] / [–]

Number buttons

Adjusting Accompaniment and Song Bank Volume

You can adjust the volume of the accompaniment and Song Bank tunes independently of the notes you play on the keyboard. You can specify a volume level in the range of 000 (minimum) to 127 (maximum).

To adjust the accompaniment volume

<LK-210>

Press the FUNCTION button to enter the accompaniment volume or song volume setting mode.

To cu

NOTE

• The Touch Response setting screen that appears in Step 1 automatically clears from the display if you do not input anything within about five seconds.

• Accompaniment does not affect the touch response setting.

<LK-215>

Press the TOUCH RESPONSE/FUNCTION button until the accompaniment volume adjustment screen appears.

AcompoV

Current accompaniment volume setting

Use the number buttons or the [+]/[–] buttons to change the current volume setting value.

Example:110

AcompoV

NOTE

• The current accompaniment volume value that appears in Step 1 automatically clears from the display if you do not input anything within about five seconds.

• Pressing [+] and [–] buttons at the same time automatically sets an accompaniment volume of 115.

E-33

Keyboard Settings

To adjust built-in tune volume

Enter the Song Bank mode or Piano Bank mode, and then perform the procedure under “To adjust the accompaniment volume”.

• In this case, a song volume screen will appear in place of the accompaniment volume screen.

NOTE

• Pressing [+] and [–] buttons at the same time automatically sets an accompaniment volume of 127.

To adjust volume for playback of SMF data from a memory card

Load a memory card into the card slot, and then perform the procedure under “To adjust the accompaniment volume”.

• In this case, a song volume screen will appear in place of the accompaniment volume screen.

Transposing the Keyboard

Transpose lets you raise and lower the overall key of the keyboard in semitone units. If you want to play an accompaniment for a vocalist who sings in a key that’s different from the keyboard, for example, simply use transpose to change the key of the keyboard.

To transpose the keyboard

NOTE

• The keyboard can be transposed within a range of –12 to +12.

• The default transpose setting is “00” when keyboard power is turned on.

• If you leave the transpose screen on the display for about five seconds without doing anything, the screen is automatically cleared.

• The transpose setting also affects playback from Auto Accompaniment.

• To return the keyboard to its default key, perform the above procedure and press the [+] and [–] buttons at the same time in step 2.

• The effect of a transpose operation depends on the pitch of each note and on the tone you are currently using. If a transpose operation causes a note to be outside of the allowable range for a tone, the same note in the nearest octave within the range will be substituted.

Tuning the Keyboard

Use the following procedure to fine tune the keyboard to match the tuning of another musical instrument.

To tune the keyboard

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the tuning screen appears.

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the transpose screen appears on the display.

Use [+] and [–] to change the transpose setting of the keyboard.

Example: To transpose the keyboard five semitones

upwards.

Tran

E-34

Tune

Use the [+], [–], and the number buttons to adjust the tuning value.

Example: To lower tuning by 20

Tune

NOTE

• The keyboard can be tuned within a range of –50 cents to +50 cents. * 100 cents is equivalent to one semitone.

• The default tuning setting is “00” when keyboard power is turned on.

• If you leave the tuning screen on the display for about five seconds without doing anything, the screen is automatically cleared.

• The tuning setting also affects playback from Auto Accompaniment.

• To return the keyboard to its default tuning, perform the above procedure and press the [+] and [–] buttons at the same time in step 2.

Connection to a Computer

<LK-215>

TOUCH RESPONSE/ FUNCTION

FUNCTION [+] / [–]

Connecting to a Computer

The keyboard’s USB port makes it quick and simple to connect to a computer. After installing the USB MIDI driver onto your computer from the CD-ROM that comes with the keyboard, you will be able to use commercially available MIDI software on your computer to exchange data between the keyboard and your computer.

To install the USB MIDI driver

On the computer to which you plan to connect, install the USB MIDI driver that comes on the CDROM that comes bundled with the keyboard.

• For information about installing the USB MIDI driver, see the “CASIO USB MIDI Driver User’s Guide” (manual_e.pdf) on the “USB Manual and Driver CDROM”.

NOTE

• Before starting actual installation of USB MIDI driver, be sure to read the contents of the “readme.txt” file in the “English” folder on the CD-ROM.

Number buttons

RIGHTLEFT

Minimum Computer system Requirements

Supported Operating Systems

Operation is supported under Windows® XP Professional, Windows® XP Home Edition, Windows® 2000 Professional, Windows® Me, Windows® 98SE, and Windows® 98.

● Universal

• IBM AT or compatible computer

• USB port that provides normal operation under Windows

• CD-ROM drive (for installation)

• At least 2MB of free hard disk space (not including space

required for Adobe Reader)

● Windows XP

• 300MHz or higher Pentium processor

• At least 128MB of memory

● Windows 2000

• 166MHz or higher Pentium processor

• At least 64MB of memory

● Windows Me, Windows 98SE, Windows 98

• 166MHz or higher Pentium processor

• At least 32MB of memory

• Use Adobe Reader or Acrobat Reader to access the USB

MIDI driver user’s guide.*

* You need to have Adobe Reader or Acrobat Reader installed on

your computer in order to view the contents of the “CASIO USB MIDI Driver User’s Guide” (manual_e.pdf). If your computer does not have either Adobe Reader or Acrobat Reader installed, use the procedure below to install it.

Installing Adobe Reader (Acrobat Reader**)

• Place the “USB Manual and Driver CD-ROM” into your computer’s CD-ROM drive.

• On the CD-ROM, navigate to the folder named “Adobe”, open the folder named “English”, and then double-click “ar601enu.exe” (“ar505enu.exe”**). Follow the instructions that appear on your computer screen to install Adobe Reader.

** Adobe Reader cannot be installed on a computer running

Windows 98. If your computer is running under Windows 98, double-click “ar505enu.exe” to install Acrobat Reader.

NOTE

• Company and product names used herein are trademarks of their respective owners.

E-35

Connection to a Computer

Using the USB port

Note that you need to purchase a commercially available USB cable to connect the keyboard to a computer using the USB port. Once you establish a USB connection between the keyboard and a computer, you can exchange data between them.

To connect to a computer using the USB port

Use a commercially available USB cable to connect the keyboard to the computer.

Computer

USB port

USB cable

USB connector

Keyboard USB port

* Before installing SMF Converter, be sure to read the contents of

the “smfreadme.txt” file in each language folder on the CD-ROM.

For information about using SMF Converter, double-click “index.html” in the [help] folder, which was created when you installed SMF Converter. You can also access user documentation from the Windows [Start] menu by clicking [Programs] - [CASIO] - [SMF Converter] - [manual].

* A browser that supports frames (like Internet Explorer 4 or

Netscape Navigator 4.04 or higher) is required to view the SMF Converter manual.

Minimum Computer System Requirements

* Operating System:

Windows 98SE Windows Me Windows XP Home Edition/XP Professional

* Storage

At least 10MB free HDD space

* USB interface

• You can also obtain a copy of the SMF Converter by downloading it at the Web page shown below. After downloading, install the software on your computer.

CASIO MUSIC SITE

http://music.casio.com/

DATA ACCESS Lamp

• The DATA ACCESS lamp lights whenever the keyboard is exchanging data with a connected computer over a USB cable connection. Never disconnect the USB cable while the DATA ACCESS lamp is lit.

Expanding the Selections in the Song Bank Tunes

You can transfer song data from your computer to the keyboard. You can store up to 10 tunes (about 320 KB) as Song Bank tunes 65 through 74. For SMF data you purchase or create, you need to use an SMF Converter to convert it to CASIO format before transferring it to the keyboard.

To install the SMF Converter

On the computer to which you plan to connect, install the SMF Converter that comes on the CDROM that comes bundled with the keyboard.

• On the CD-ROM, double-click “SMFConv-e.exe”, and then follow the instructions that appear on your computer screen to install SMF Converter.

• In addition to the software itself, the CASIO MUSIC SITE will also provide you with information about its installation and use. You can also find out about the latest news about your keyboard and other CASIO musical instruments, and much more.

Song Data Storage

Song data saved as Song Bank tunes are retained even when power is turned off, as long as the keyboard is being supplied battery or AC adaptor power. If you remove the batteries or should the batteries go dead while the keyboard is not being supplied power by the AC adaptor, song data will be deleted. Be sure to supply power to the keyboard with the AC adaptor when replacing batteries.

NOTE

• This keyboard supports SMF 0 and 1 format data.

• Voice Fingering Guide and on-screen fingering indicators

are not supported for commercially available SMF data.

E-36

Connection to a Computer

General MIDI Tone

The General MIDI standard defines the tone numbering sequence, the drum sound numbering sequence, the number of MIDI channels that can be used, and other general factors that determine the sound source configuration. Because of this, musical data produced on a General MIDI sound source can be played back using similar tones and identical nuances as the original, even when played on another manufacturers sound source. This keyboard conforms with General MIDI standards, so it can be connected to a computer and used to play back General MIDI data that has been purchased, downloaded from the Internet, or obtained from any other source.

Changing the Settings

This section tells you how to make the settings required when connecting to a computer.

KEYBOARD CHANNEL (Default: 1)

The keyboard channel is the channel used to send messages from this keyboard to a computer. You can specify one channel from 1 to 16 as the keyboard channel.

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the KEYBOARD CHANNEL screen appears.

NAVIGATE CHANNEL (Default: 4)

When messages are received from a computer for play on this keyboard, the navigate channel is the channel whose note data appears on the display. You can select one channel from 01 to 16 as the navigate channel. Since this setting lets you use the data on any channel of commercially available SMF data to light on the on-screen keyboard guide, you can analyze how different parts of an arrangement are played.

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the NAVIGATE CHANNEL screen appears.

Na iv

Use the [+], [–], and the number buttons [0] through [9] to change the channel number.

Example: To specify channel 2

Na iv

To turn off specific sounds before playing back tune data that is being received

<<Navigate channel on/off>>

C .

Keyb

Use the [+], [–], and the number buttons to change the channel number.

Example: To specify channel 4

Keyb

C d

While playing tune data, press the RIGHT button.

• This cuts the sound of the navigate channel, but onscreen keyboard guide keys continue to light in accordance with the channel’s data as it is received. Press RIGHT button again to turn the channel back on.

<<Next lower channel from navigate channel on/off>>

While playing tune data, press the LEFT button.

• This cuts the sound of the channel whose number is one less than the navigate channel, but on-screen keyboard guide keys continue to light in accordance with the channel’s data as it is received. Press LEFT button again to turn the channel back on.

Example: If the navigate channel is channel 4, the above

operation turns off channel 3.

E-37

Connection to a Computer

LOCAL CONTROL (Default: On)

oFF: Anything played on the keyboard is output as a message

from the USB port, without being sounded by the internal sound source.

• Note that no sound is produced by the keyboard if LOCAL CONTROL is turned off and no external device is connected.

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the LOCAL CONTROL screen appears.

Example: When LOCAL CONTROL is on

Lo ac

Use the [+] and [–] or [0] and [1] buttons to turn the setting on and off.

Example: To turn LOCAL CONTROL off

Lo ac

ACCOMP OUT (Default: Off)

on: Auto Accompaniment is played by the keyboard and

the corresponding message is output from the USB port.

oFF: Auto Accompaniment messages are not output from the

USB port.

GM Mode Receive

When GM off is received and the mode switch is set to a chord mode, the Auto Accompaniment chord is specified in accordance with the received message. When GM on is received, Auto Accompaniment chords cannot be specified by received messages.

SUSTAIN/ASSIGNABLE JACK (Default: SUS)

SUS(sustain): Specifies a sustain*1 effect when the pedal is

SoS (sostenuto): Specifies a sostenuto*2 effect when the

SFt (soft): Specifies reduction of the sound’s volume when

rHy (rhythm): Specifies START/STOP button operation

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the SUSTAIN/ ASSIGNABLE JACK screen appears.

Example: When sustain is currently set

Use the [+] and [–] or [0], [1], [2], and [3] buttons to change the setting.

Example: To select rhythm

depressed.

pedal is depressed.

the pedal is depressed.

when the pedal is depressed.

Ja kc

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button until the ACCOMP OUT screen appears.

Example: When ACCOMP OUT is off

Ac mo

Use the [+] and [–] or [0] and [1] buttons to turn the setting on and off.

Example: To turn ACCOMP OUT on

Ac mo

E-38

uOpt

Ja kc

*1 Sustain

With piano tones and other sounds that decay, the pedal acts as a damper pedal, with sounds being sustained longer when the pedal is depressed. With organ tones and other continuous sounds, notes played on the keyboard continue to sound until the pedal is released. In either case, the sustain effect is also applied to any notes that are played while the pedal is depressed.

*2 Sostenuto

This effect performs the same way as sustain, except that it is applied only to notes that are sounding already when the pedal is depressed. It does not affect notes that are played after the pedal is depressed.

Using a Memory Card

<LK-215>

TOUCH RESPONSE/ FUNCTION

SD CARD SLOT

Your keyboard is equipped with a card slot that supports use of memory cards (commercially available SD memory card or optional CASIO song data card*). This makes it possible for the keyboard to directly read commercially available SMF data, which has been saved to a memory card from your computer, for listening pleasure and lessons. Memory card data can be used the same way as built-in tunes.

● Supported Memory Cards:

SD memory cards, optional CASIO song data cards*

● Supported SD Cards:

1 GB or less (Cards with capacity greater than 1 GB are not supported.)

● Maximum Number of Importable Songs: Up to 1,000

• The actual number of songs that can be imported depends on the size of each file. The actual number will be less than 1,000 when individual song files are large.

● Supported Data:

SMF Format 0, CASIO Original Format CM2

FUNCTION

IMPORTANT!

• Use only an SD memory card or an optional CASIO song data card* with this keyboard. Proper operation is not guaranteed when any other type of card is used.

Memory Card and Card Slot Precautions

IMPORTANT!

• Be sure to carefully read all documentation that comes with the memory card for important information about how to handle it.

• SD memory cards have a write protect switch, which you can use to protect against accidental deletion of data. After saving important data to an SD memory card, be sure to use the write protect switch to protect the data against accidental changes or deletion.

START/STOP

CARD

STEP 1

STEP 2

• Avoid storing and using memory cards in the following types of locations. Such conditions can cause corruption of data stored on the card.

• Areas subject to high temperatures, high humidity, or

corrosive agents

• Areas subject to strong electrostatic charge or

electrical noise

• Whenever handling a memory card, make sure that you never touch its contacts with your fingers.

• If the data access lamp is lit and the message “Pls Wait” is on the display, it means that data on the memory card is being accessed by a save, read, or delete operation. Never remove the memory card from the card slot or turn off the keyboard while the card is being accessed. Doing so can corrupt the data on the memory card or even damage the card slot.

• Never try to insert anything that is not an SD memory card or optional CASIO song data card* into the Keyboard’s memory card slot. Doing so can cause malfunction of the keyboard.

• Inserting a memory card that is charged with static electricity into the card slot can cause malfunction of the keyboard. If this happens, turn the keyboard off and then back on again.

• A memory card that has been in the card slot for a long time may feel hot when you remove it. This is normal and does not indicate malfunction.

• Note that a memory card has a limited service life. After long use, you may not be able to store data to, read data from, and/or delete data from a card. When this happens, you will need to purchase a new memory card.

* May not be available in some geographic areas.

CASIO COMPUTER CO., LTD. assumes no responsibility for any loss or damage to you or any third party arising out of the loss or corruption of data.

[+] / [–]

Number buttons

SCORING

STEP 3

E-39

Using a Memory Card

Inserting and Removing a Memory Card

IMPORTANT!

• Make sure you turn off the keyboard before inserting or removing a memory card.

• Be sure to orient the card correctly when inserting it. Never try to force a memory card into the card slot when you feel resistance.

• Never remove the memory card from the card slot or turn off the keyboard while card data is being accessed by a read or format operation. Doing so can corrupt the data on the memory card or even damage the card slot.

To insert a memory card into the card slot

With the front side of the memory card facing upwards, carefully slide it into the card slot. Slide the card all the way in until you hear it click securely into place.

Front

Getting Ready

IMPORTANT!

• Before you can use an SD memory card with this keyboard, you need to perform the procedure below to format it. After formatting the card, transfer SMF data from your computer to the card.

• Formatting an SD memory card with this keyboard automatically creates a folder named “MUSICDAT” on the card. When transferring SMF data from your computer to the card for use by the keyboard, be sure to store it in the “MUSICDAT” folder.

• Note that formatting a card that already contains data causes all of that data to be deleted. Data deleted by the format operation cannot be recovered. Before performing the procedure below, check to make sure that the media does not contain any data you might need.

PREPARATION

• Insert the SD memory card you want to format into the keyboard’s card slot. Make sure that the SD memory card’s write protect is removed, which enables writing.

To format an SD memory card

Press the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button a number of times until the card format setting screen appears.

To remove a memory card from the card slot

Press the memory card into the card slot and then release it. This will cause the card to come part way out of the keyboard.

Pull the memory card out of the card slot.

E-40

Fo mr

Press the [+] (YES) button.

• This will display a confirmation message asking whether you really want to format the media.

Press the [+] (YES) button to start formatting.

• The message “Pls Wait” will remain on the display to indicate that a procedure is being performed. Never try to perform any other operation on the keyboard while the card is being formatted. After formatting is complete, the keyboard returns to the mode you were in before you displayed the setting screen.

• To cancel the format operation, press the [–] (NO) button. This returns to the card format setting screen.

• If an error message appears on the display, see “Memory Card Error Messages” on page E-42. Pressing

the FUNCTION (LK-215: TOUCH RESPONSE/ FUNCTION) button while an error message is on the display returns to the card format setting screen.

Using a Memory Card

Reading a Memory Card

Press the CARD button.

Indicator appears

Use the number buttons to input the three-digit number that corresponds to the SMF data you want to select.

Perform one of the following operations.

■ To play back SMF data

-1 Press the START/STOP button.

• The keyboard will read the SMF data and play it.

■ To use SMF data in a 3-Step Lesson

-1 Press the STEP 1, STEP 2, or STEP 3 button.

• The keyboard will read the SMF data and start a lesson at the step you selected.

• An error message will appear if the selected SMF data file is larger than about 320 KB.

• If an error message appears, see “Memory Card Error Messages” on the following page for information about what you need to do.

• The channel specified as the navigate channel is assigned to the right-hand part, while the channel that is one less than the channel specified as the navigate channel is assigned to the left-hand part.

• Voice Fingering Guide and on-screen fingering indicators, are not supported for SMF data.

■ To evaluate your play using SMF Data

-1 Press the SCORING button.

• The keyboard will read the SMF data and enter the Evaluation Mode.

• An error message will appear if the selected SMF data file is larger than about 320 KB.

• If an error message appears, see “Memory Card Error Messages” on the following page for information about what you need to do.

• On-screen fingering indicators are not supported for SMF data.

Press the START/STOP button to stop SMF data play.

E-41

Using a Memory Card

Memory Card Error Messages

Display Message

Err No Card

Err No File

Err WrongDat

Err SizeOver

Err Protect

Err Format

Cause Action

There is no memory card loaded in the keyboard or the memory card you are using is not loaded correctly.

(1) The memory card song data that is supported

by the keyboard is not in the MUSICDAT folder.

(2) The memory card does not have a MUSICDAT

folder.

The data is damaged.

The file is too large to be played by this keyboard.

The memory card is write-protected.

(1) The memory card has a format that is not

supported by this keyboard.

(2) The memory card has a capacity that is not

supported by this keyboard.

(3) There is something wrong with the memory

card.

Load a memory card or correctly reinsert the memory card.

..................................................................... page E-40

(1) Move the files containing song data supported

by the keyboard to the MUSICDAT folder.

(2) Create a MUSICDAT folder and move the

applicable files into the folder. Formatting the card will create a MUSICDAT folder automatically.

..................................................................... page E-40

Take the necessary steps to replace the damaged data with normal data.

The maximum supported file size is 320 KB. Select a smaller file.

..................................................................... page E-41

Remove write protection and re-format the card.

............................................................. pages E-39, 40

(1) Use this keyboard to format the card.

............................................................... page E-40

(2) This keyboard supports cards with a capacity

of 1 GB or less.

............................................................... page E-39

(3) Use a different card.

Err Not SMF0

Err Card R/W

E-42

There is no Format 0 SMF format file. This keyboard supports Format 0 SMF files only.

The memory card cannot be written to or formatted for some reason.

Use a Format 0 SMF format file.

..................................................................... page E-39

Use a different card.

Using a Memory Card

Err Mem Full

The keyboard ran out of memory for SMF data reading during a playback, lesson or use of the evaluation feature.

After a few seconds, the “Err Mem Full” message will be replaced by one of the messages described below.

<“dEL UsrSong?”>

This message asks whether you want to delete the contents of Song Bank user area for storage of SMF data (10 songs) in order to make room for the SMF data you are trying to read. To clear this message and return to the Card Bank Mode screen, press the [–] (NO) button.

1) Press the [+] (YES) button if you want to delete Song Bank user area contents.

• This causes a confirmation message to appear on the display.

• If you want to cancel the delete operation, press the [–] (NO) button. This returns you to the

confirmation message.

2) Press the [+] (YES) button to delete Song Bank user area contents.

• After Song Bank user area contents are deleted, the keyboard automatically starts reading of the SMF data you originally selected, and then starts the playback, lesson, or evaluation.

Card Bank Mode screen

Playback

Step1 to 3

Scoring1 to 3

Err Mem Full

After a few seconds

dEL UsrSong?

YES(+) NO(–)

Sure ?

YES(+)

Pls Wait

NO(–)

The keyboard starts the playback, lesson, or evaluation

E-43

Troubleshooting

Problem Possible Cause See pageAction

No keyboard sound

Any of the following symptoms while using battery power.

• Dim power supply indicator

• Instrument does not turn on

• Dim, difficult to read display

• Abnormally low speaker/headphone volume

• Distortion of sound output

• Occasional interruption of sound when playing at high volumes

• Sudden power failure when playing at high volumes

• Dimming of the display when playing at high volume

• Continued sound output even after you release a key

• A totally different tone may sound

• Abnormal rhythm pattern and demo tune play

• Abnormally low microphone volume

• Distortion of microphone input

• Dim power supply indicator when a microphone is used

• Sudden power failure when using the microphone

• Dimming of keyboard lights when notes sound

• Loss of power, sound distortion, or low volume when playing from a connected computer

(1) Power supply problem.

(2) Power is not turned on.

(3) Volume setting is too low.

(4) The POWER/MODE switch is

in the CASIO CHORD or FINGERED position.

(5) LOCAL CONTROL is off.

Low battery power

(1) Correctly attach the AC

adaptor, make sure that batteries poles (+/–) are facing correctly, and check to make sure that batteries are not dead.

(2) Adjust the POWER/MODE

switch to turn on power.

(3) Use the MAIN VOLUME slider

to increase volume.

(4) Normal play is not possible on

the accompaniment keyboard while the POWER/MODE switch is set to CASIO CHORD or FINGERED. Change the POWER/MODE switch setting to NORMAL.

(5) Turn on LOCAL CONTROL.

Replace the batteries with a set of new ones or use the AC adaptor.

Page E-13

Page E-16

Page E-29

Page E-38

Pages E-12, 13

Auto Accompaniment does not sound.

Key light stays on.

Keys are lit though no sound is being produced.

Cannot record chord accompaniment data on a computer.

Static noise when a microphone is connected.

E-44

Accompaniment volume is set to

000.

Keyboard is waiting for play of the correct note during Step 1 or Step 2 play.

Power on alert is reminding you that power was left on without any operation being performed.

ACCOMP OUT is turned off.

Use of the microphone in the vicinity of fluorescent lighting.

Use the FUNCTION (LK-215: TOUCH RESPONSE/FUNCTION) button to increase the volume.

• Press the lit key to continue with Step 1 or Step 2 play.

• Press the PLAY/STOP button to quit Step 1 or Step 2 play.

Press any button or keyboard key to restore power to normal.

Turn on ACCOMP OUT.

Move the microphone away from source of the static.

Page E-33

Pages E-25, 26 Pages E-25, 26

Page E-14

Page E-38

Page E-17

Problem Possible Cause See pageAction

No microphone sound

Cannot recall data from a memory card.

Song play momentarily cuts out at some points during SMF play.

Auto accompaniment chords do not sound.

After transferring song data from my computer, playback stops part way through.

A tone’s quality and volume sounds slightly different depending where it is played on the keyboard.

Troubleshooting

(1) Microphone volume setting is

too low.

(2) Microphone on/off switch is

set to off.

(1) The memory card is not

inserted correctly into the card

slot. (2) The memory card is damaged. (3) The data has not been copied

to the memory card

MUSICDAT folder.

Data is fragmented.

The keyboard is in the Song Bank mode.

Digital noise from the USB cable or power cord caused data communication between your computer and keyboard to be interrupted.

This is an unavoidable result of the digital sampling process,* and does not indicate malfunction. * Multiple digital samples are taken for the low range, middle range, and high range of

the original musical instrument. Because of this, there may be a very slight difference in tonal quality and volume between sample ranges.

(1) Increase the microphone

volume setting.

(2) Change the microphone on/off

switch setting to on.

(1) Correctly insert the memory

card into the card slot.

(2) Use a different memory card. (3) Insert a formatted memory card

into the memory card slot of your computer, and copy the data you want to play back into the directory named “MUSICDAT”.

Perform either of the two following operations.

• Without deleting the original (fragmented) data, perform a “save as” operation to save the data under a different name. Next, try performing the operation using the newly saved data.

• If you saved the data to the card from another location, format the card (which will delete its contents), and then save the data to the card again. Next, try performing the operation using the newly saved data.

Press the RHYTHM button to enter the rhythm mode, which is indicated by the rhythm indicator on the display.

Stop playback, disconnect the USB cable from and then reconnect it to the keyboard’s USB port, and then try playing back the tune again. If this does not correct the problem, exit the MIDI software you are using, and then disconnect the USB cable from and then reconnect it to the keyboard’s USB port. Next, restart your MIDI software and try playback again.

Page E-17

Page E-40

–––

Page E-40

Page E-28

Page E-36

E-45

Specifications

Models: LK-210/LK-215

Keyboard: 61 standard-size keys, 5 octaves (with touch response <LK-215 only>) Key Light System: Can be turned on and off (up to 10 keys can be lit at the same time)

Tones: 264 (128 panel tones + 128 General MIDI tones + 8 drum sets)

Digital Effects: Reverb (4 types), Chorus (4 types) Polyphony: 32 notes maximum (16 for certain tones)

Auto Accompaniment

Rhythm Patterns: 120 Chords: 2 fingering methods (CASIO CHORD, FINGERED) Rhythm Controller: START/STOP, INTRO, NORMAL/FILL-IN, VARIATION/FILL-IN,

Accomp Volume: 0 to 127 (128 steps)

3-step Lesson: 3 lessons (Step 1, 2, 3)

Playback: Repeat play of a single tune Lesson Part: Left hand, right hand, both hands Evaluation Mode: Scoring Voice Fingering Guide: On/Off

Song Bank, Piano Bank

Number of Tunes: 100 (Song Bank: 65, Piano Bank: 35) Controllers: PLAY/STOP, PAUSE, FF, REW, REPEAT

User Songs: Number of Songs: Up to 10 download songs

Metronome: On/Off

Beat Specification: 0, 2 to 6

Other Functions

Tempo: Variable (226 steps, = 30 to 255) Transpose: 25 steps (–12 semitones to +12 semitones) Tuning: 101 steps (A4 = approximatery 440 Hz ±50 Cents)

Card

Supported Memory Cards: SD memory cards, optional CASIO song data cards*

Supported SD Cards: 1 GB or less (Cards with capacity greater than 1 GB are not supported.) Maximum Number of Importable Songs: Up to 1,000 Supported Data: SMF Format 0, CASIO Original Format CM2

Terminals

SUSTAIN/ASSIGNABLE JACK: PHONES/OUTPUT Jack: Stereo standard jack

Microphone In: Standard jack

USB port: TYPE B SD CARD SLOT

Power Jack: 9V DC

SYNCHRO/ENDING

Capacity: Approximately 320 KB*

* Calculated based on 1 KB = 1024 bytes.

* May not be available in some geographic areas.

Standard jack (sustain, sostenuto, soft, rhythm start/stop)

Output Impedance: 78 Ω Output Voltage: 4.5 V (RMS) MAX

Input impedance: 2 KΩ Input sensitivity: 10 mV

E-46

Specifications

Power Supply: 2-way

Batteries: 6 AA-size batteries Battery Life: Approximately 1 hour continuous operation on manganese batteries

AC Adaptor: AD-5 Auto Power Off: Turns power off approximately 6 minutes after last key operation. Enabled under

Speaker Output: <LK-210> 2.0W + 2.0W

Power Consumption: 9V 7.7W Dimensions: 94.5 × 37.3 × 13.5 cm (37 1/4 × 14 11/16 × 5 5/16 inch)

Weight: Approximately 4.7kg (10.4 lbs)(without batteries)

• Design and specifications are subject to change without notice.

Approximately 4 hours continuous operation on alkaline batteries

batter power only, can be disabled manually.

<LK-215> 2.5W + 2.5W

Operating Precautions

Be sure to read and observe the following operating precautions.

■ Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high humidity

• Areas subjected to temperature extremes

• Near a radio, TV, video deck, or tuner

The above devices will not cause malfunction of the product, but interference from the product can cause audio or video interference of a nearby device.

■ User Maintenance

• Never use benzene, alcohol, thinner, or other chemical agents to clean the product.

• To clean the product or its keyboard, wipe with a soft cloth moistened in a weak solution of water and a mild neutral detergent. Wring all excess moisture from the cloth before wiping.

■ Included and Optional Accessories

Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

■ Weld Lines

Lines may be visible on the exterior of the product. These are “weld lines” that result from the plastic molding process. They are not cracks or scratches.

■ Musical Instrument Etiquette

Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the volume at levels that do not disturb others. Other steps you can take when playing late at night are closing the window and using headphones.

• Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

• IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

• The contents of this manual are subject to change without notice.

E-47

Appendix/Apéndice

009

002

001

008

002

008

003

002

008

002

008

002

008

002

000

066

067

068

071

072

073

345

ón de banco

Tipo de gama

T.SAXYS

BARITONE SAX

OBOE

CLARINET

PIPE

PICCOLO

FLUTE 1

FLUTE 2

MELLOW FLUTE

091

092

093

094

095

096

097

098

3: Range Type/

6: Bank Select MSB/MSB de selecci

002

008

002

032

002

029

030

031

032

033

034

035

345

074

075

078

RECORDER

PAN FLUTE

WHISTLE

SYNTH-LEAD

099

100

101

002

037

038

039

080

081

080

081

082

SQUARE LEAD

SAWTOOTH LEAD

MELLOW SAW LEAD

SINE LEAD

SS LEAD

CALLIOPE

102

103

104

105

106

107

002

008

002

040

042

045

046

085

087

088

089

VOICE LEAD

BASS+LEAD

SYNTH-PAD

FANTASY

WARM PAD

111

110

108

109

002

003

002

048

049

048

050

051

089

090

WARM VOX

POLYSYNTH

POLY SAW

112

113

114

002

008

002

052

053

092

094

099

BOWED PAD

HALO PAD

ATMOSPHERE

115

116

117

002

008

002

054

055

102

100

103

BRIGHTNESS

ECHO PAD

STAR THEME

SPACE PAD

ETHNIC

118

119

120

121

002

056

057

058

059

104

SITAR

122

002

060

105

BANJO

123

002

061

114

107

106

108

SHAMISEN

KOTO

THUMB PIANO

STEEL DRUMS

124

125

126

127

003

008

002

061

062

000

001

002

GM TONE

GM PIANO 1

GM PIANO 2

GM PIANO 3

128

129

130

002

001

063

064

065

003

004

005

006

GM HONKY-TONK

GM E.PIANO 1

GM E.PIANO 2

GM HARPSICHORD

131

132

133

134

002

008

001

002

065

066

007

GM CLAVI

135

008

066

Cambio de programa

Nombre de sonido

2: Tone Name/

5: Program Change/

Polifonía máxima

Maximum Polyphony/

Tone List / Note Table

Lista de sonidos / Tabla de notas

1: No./N

OVERDRIVE GT

DISTORTION GT

FEEDBACK GT

046

047

048

002

001

000

345

PIANO

STEREO PIANO

GRAND PIANO

000

001

BASS

ACOUSTIC BASS

RIDE BASS

FINGERED BASS

PICKED BASS

FRETLESS BASS

049

050

051

052

053

002

003

001

008

002

001

000

001

000

003

BRIGHT PIANO

MELLOW PIANO

MODERN PIANO

DANCE PIANO

STRINGS PIANO

HONKY-TONK

002

003

004

005

006

007

SLAP BASS

SAW SYNTH-BASS

SQR SYNTH-BASS

STR/ORCHESTRA

VIOLIN

SLOW VIOLIN

CELLO

054

055

056

057

058

059

008

002

003

002

009

002

008

003

002

004

005

004

OCTAVE PIANO

ELEC.GRAND PIANO

MODERN E.G.PIANO

ELEC.PIANO

CHORUSED EP

MODERN E.PIANO

SOFT E.PIANO

011

008

009

010

012

013

014

PIZZICATO STRINGS

HARP

ENSEMBLE

STRINGS

SLOW STRINGS

CHAMBER

SYNTH-STRINGS 1

SYNTH-STRINGS 2

060

061

062

063

064

065

066

008

002

008

002

007

008

CLAVI

CHROMATIC PERC

CELESTA

018

019

011

009

GLOCKENSPIEL

VIBRAPHONE

020

021

005

006

E.PIANO PAD

HARPSICHORD

COUPLED HARPSICHORD

015

016

017

CHOIR AAHS

CHOIRS

VOICE DOO

SYNTH-VOICE

SYNTH-VOICE PAD

067

068

069

070

071

002

001

003

012

016

MARIMBA

ORGAN

DRAWBAR ORGAN 1

DRAWBAR ORGAN 2

DRAWBAR ORGAN 3

022

023

024

025

ORCHESTRA HIT

BRASS

TRUMPET

TROMBONE

TUBA

MUTE TRUMPET

072

073

074

075

076

002

003

008

004

002

017

016

017

018

PERC.ORGAN 1

PERC.ORGAN 2

ELEC.ORGAN 1

ELEC.ORGAN 2

JAZZ ORGAN

ROCK ORGAN

026

027

028

029

030

031

FRENCH HORN

BRASS

BRASS SECTION

BRASS SFZ

ANALOG SYNTH-BRASS

SYNTH-BRASS 1

SYNTH-BRASS 2

077

078

079

080

081

082

083

002

008

002

008

002

019

021

023

022

CHURCH ORGAN

CHAPEL ORGAN

ACCORDION

OCTAVE ACCORDION

BANDONEON

HARMONICA

GUITAR

032

033

034

035

036

037

REED

SOPRANO SAX

ALTO SAX 1

ALTO SAX 2

BREATHY A.SAX

084

085

086

087

002

008

002

008

024

025

026

NYLON STR.GUITAR

STEEL STR.GUITAR

12 STR.GUITAR

JAZZ GUITAR

OCT JAZZ GUITAR

038

039

040

041

042

TENOR SAX 1

TENOR SAX 2

BREATHY T.SAX

088

089

090

002

001

002

027

028

CLEAN GUITAR

ELEC.GUITAR

MUTE GUITAR

043

044

045

A-1

Appendix/Apéndice

000

120

126

127

000

008

016

024

345

GM APPLAUSE

GM GUNSHOT

DRUMS

254

255

000

067

068

069

STANDARD SET

ROOM SET

POWER SET

ELECTRONIC SET

256

257

258

259

000

070

071

072

073

120

025

032

040

048

SYNTH SET

JAZZ SET

BRUSH SET

ORCHESTRA SET

260

261

262

263

000

074

075

076

077

below.

• The meaning of each range type is described

NOTE

000

078

079

080

081

082

083

084

debajo.

• El significado de cada tipo de gama se describe

NOTA

000

085

086

087

088

089

090

091

092

093

094

095

096

097

000

098

000

099

000

100

000

101

000

102

000

103

000

104

000

105

000

106

000

107

000

108

000

109

000

110

000

111

000

112

000

113

000

114

000

115

000

116

000

117

000

118

000

119

000

120

000

121

000

122

000

123

000

124

000

125

345

GM BARITONE SAX

GM OBOE

GM ENGLISH HORN

195

196

197

000

008

009

010

345

GM BASSOON

GM CLARINET

GM PICCOLO

GM FLUTE

GM RECORDER

198

199

200

201

202

000

011

012

013

014

015

GM PAN FLUTE

GM BOTTLE BLOW

GM SHAKUHACHI

GM WHISTLE

GM OCARINA

GM SQUARE LEAD

203

204

205

206

207

208

000

016

017

018

019

020

021

GM SAWTOOTH LEAD

GM CALLIOPE

GM CHIFF LEAD

GM CHARANG

211

209

210

212

000

022

023

024

025

GM VOICE LEAD

GM FIFTH LEAD

GM BASS+LEAD

GM FANTASY

GM WARM PAD

GM POLYSYNTH

213

214

215

216

217

218

000

026

027

028

029

030

031

GM SPACE CHOIR

GM BOWED GLASS

GM METAL PAD

GM HALO PAD

GM SWEEP PAD

GM RAIN DROP

219

220

221

222

223

224

000

032

033

034

035

036

037

GM SOUND TRACK

GM CRYSTAL

GM ATMOSPHERE

GM BRIGHTNESS

225

226

227

228

000

038

039

040

041

GM GOBLINS

GM ECHOES

GM SF

GM SITAR

GM BANJO

229

230

231

232

233

000

042

043

044

045

046

GM SHAMISEN

GM KOTO

GM THUMB PIANO

GM BAGPIPE

GM FIDDLE

GM SHANAI

234

235

236

237

238

239

000

047

048

049

050

051

052

GM TINKLE BELL

GM AGOGO

GM STEEL DRUMS

GM WOOD BLOCK

GM TAIKO

240

241

242

243

244

000

053

054

055

056

057

GM MELODIC TOM

GM SYNTH-DRUM

GM REVERSE CYMBAL

GM GT FRET NOISE

GM BREATH NOISE

GM SEASHORE

GM BIRD

245

246

247

248

249

250

251

000

058

059

060

061

062

063

064

GM TELEPHONE

GM HELICOPTER

252

253

000

065

066

GM CELESTA

GM GLOCKENSPIEL

136

137

A-2

GM MUSIC BOX

GM VIBRAPHONE

GM MARIMBA

GM XYLOPHONE

GM TUBULAR BELL

GM DULCIMER

138

139

140

141

142

143

GM ORGAN 1

GM ORGAN 2

GM ORGAN 3

GM PIPE ORGAN

GM REED ORGAN

144

145

146

147

148

GM ACCORDION

GM HARMONICA

GM BANDONEON

GM NYLON STR.GUITAR

GM STEEL STR.GUITAR

GM JAZZ GUITAR

149

150

151

152

153

154

GM CLEAN GUITAR

GM MUTE GUITAR

GM OVERDRIVE GT

GM DISTORTION GT

GM GT HARMONICS

GM ACOUSTIC BASS

155

156

157

158

159

160

GM FINGERED BASS

GM PICKED BASS

GM FRETLESS BASS

GM SLAP BASS 1

GM SLAP BASS 2

GM SYNTH-BASS 1

GM SYNTH-BASS 2

GM VIOLIN

161

162

163

164

165

166

167

168

GM VIOLA

GM CELLO

GM CONTRABASS

GM TREMOLO STRINGS

GM PIZZICATO

169

170

171

172

173

GM HARP

GM TIMPANI

GM STRINGS 1

GM STRINGS 2

GM SYNTH-STRINGS 1

174

175

176

177

178

GM SYNTH-STRINGS 2

GM CHOIR AAHS

GM VOICE DOO

GM SYNTH-VOICE

GM ORCHESTRA HIT

GM TRUMPET

GM TROMBONE

GM TUBA

GM MUTE TRUMPET

179

180

181

182

183

184

185

186

187

GM FRENCH HORN

GM BRASS

GM SYNTH-BRASS 1

GM SYNTH-BRASS 2

GM SOPRANO SAX

GM ALTO SAX

GM TENOR SAX

188

189

190

191

192

193

194

Appendix/Apéndice



A=440Hz





Range Type/

Tipo de gama

(Standard type) (Tipo estándar)

“020 GLOCKENSPIEL”/

“095 PICCOLO”

“020 GLOCKENSPIEL”/

“095 PICCOLO”

Low pitch

instruments

Instrumentos de altura tonal baja

(Sound Effect)

(Efecto de sonido)

........Keyboard range

........Gama del teclado

........Available range (using transpose or a message receive)

........Gama disponible (usando la transposición o recepción de mensaje)





C-1 C9C8C7 G7C6C5C4C3C2C1C0 G9

No scale for tones. Sin escala para los sonidos.

A-3

Appendix/Apéndice

Key/Note number

Drumset 1

STANDARD SET

Drumset 2

ROOM SET

Drumset 3

POWER SET

Drumset 4

ELECTRONIC SET

E 1

F#1

A 1

B 1

C#2

E 2

F#2

A 2

B 2

C#3

E 3

F#3

A 3

B 3

C#4

E 4

F#4

A 4

B 4

C#5

E 5

F#5

A 5

B 5

C#6

E 6



Drumset 5

SYNTH SET

Drumset 6

JAZZ SET

Drumset 7

BRUSH SET

Drumset 8

ORCHESTRA SET

F#6

A 6

B 6



High Q

Slap

Scratch Push

Scratch Pull

Sticks

Square Click

Metronome Click

Metronome Bell

Standard Kick 2

Standard Kick 1

Side Stick

Standard Snare 1

Hand Clap 1

Standard Snare 2

Low Tom 2

Closed Hi-Hat

Low Tom 1

Pedal Hi-Hat

Mid Tom 2

Open Hi-Hat

Mid Tom 1

High Tom 2

Crash Cymbal 1

High Tom 1

Ride Cymbal 1

Chinese Cymbal

Ride Bell

Tambourine 1

Splash Cymbal

Cowbell

Crash Cymbal 2

Vibraslap

Ride Cymbal 2

High Bongo

Low Bongo

Mute High Conga

Open High Conga

Open Low Conga

High Timbale

Low Timbale

High Agogo

Low Agogo

Cabasa

Maracas

Short High Whistle

Long Low Whistle

Short Guiro

Long Guiro

Claves

High Wood Block

Low Wood Block

Mute Cuica

Open Cuica

Mute Triangle

Open Triangle

Shaker

Jingle Bell

Bell Tree

Castanets

Mute Surdo

Open Surdo

Applause 1

Applause 2

Fanfare

One

Two

Three

Four

Five

Room Kick 2

Room Kick 1

Room Snare 1

Room Snare 2

Room Low Tom 2

Room Low Tom 1

Room Mid Tom 2

Room Mid Tom 1

Room High Tom 2

Room High Tom 1

Power Kick 2

Power Kick 1

Power Snare 1

Power Snare 2

Power Low Tom 2

Power Low Tom 1

Power Mid Tom 2

Power Mid Tom 1

Power High Tom 2

Power High Tom 1

Elec. Kick 2

Elec. Kick 1

Elec. Snare 1

Elec. Snare 2

Elec. Low Tom 2

Elec. Low Tom 1

Elec. Mid Tom 2

Elec. Mid Tom 1

Elec. High Tom 2

Elec. High Tom 1

Reverse Cymbal

Jazz Kick 2

Jazz Kick 1

Jazz Snare 1

Jazz Snare 2

Jazz Kick 2

Jazz Kick 1

Brush Snare 1

Brush Slap

Brush Snare 2

Synth Kick 2

Synth Kick 1

Synth Rim Shot

Synth Snare 1

Hand Clap 2

Synth Snare 2

Synth Low Tom 2

Synth Closed HH 1

Synth Low Tom 1

Synth Closed HH 2

Synth Mid Tom 2

Synth Open HH

Synth Mid Tom 1

Synth High Tom 2

Synth Crash Cymbal

Synth High Tom 1

Synth Ride Cymbal

Synth Tambourine

Synth Cowbell

Synth High Bongo

Synth Low Bongo

Synth Mute Hi Conga

Synth Open Hi Conga

Synth Open Low Conga

Synth Maracas

Synth Claves

Closed Hi-Hat

Pedal Hi-Hat

Open Hi-Hat

Ride Cymbal 1

Jazz Kick 1

Concert BD 1

Concert SD

Castanets

Concert SD

Timpani F



Timpani G



Timpani A



Timpani B

Timpani c



Timpani d



Timpani e

Timpani f

Concert Cymbal 2

Concert Cymbal

➝

ón de batería

” Indicates the same

•“

NOTE

sound as STANDARD

SET.

” Indica el mismo

sonido que STANDARD

•“

NOTA

SET.

A-4

Drum Assignment List / Lista de asignaci

aug sus4

(D )





(G )





(D )





(G )





(A )





Chord

Type

Root

[5, 3, 1]

[5, 2, 1]

[5, 3, 1]

[5, 2, 1]

7 sus4 m add9 m M7 7



5 add9

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[4, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[4, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[4, 3, 2, 1]

[5, 4, 2, 1]

[4, 3, 2, 1]

[5, 3, 2, 1]

M m 7 m7 dim7

(D )





(G )





(D )





(G )





(A )





Chord

Type

Root

[5, 3, 1]

[5, 2, 1]

[5, 3, 1]

[5, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

M7 m7



5 dim

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2]

numbers

:Números de los

: Left hand finger

dedos de la mano

izquierda

Appendix/Apéndice

ón.

ecen sobre la presentación del teclado.

ón también apar

FINGERED Chord Chart

This table shows the left-hand fingerings (including inverted forms) for a number of often-used chords. These fingering

indications also appear on the keyboard’s display.

Cuadro de acordes digitados

Chords marked with asterisk (*) cannot be played in the Fingered Mode on this keyboard.

En este teclado, los acordes marcados con asterisco (*) no pueden ejecutarse en el modo de digitaci

Esta tabla muestra las digitaciones (incluyendo las formas invertidas) para varios de los acordes más a menudo usados. Estas

indicaciones de digitaci

A-5

Appendix/Apéndice

Rhythm List/Lista de ritmos

POPS I

000 POP 1 001 WORLD POP 002 8 BEAT POP 003 SOUL BALLAD 1 004 POP SHUFFLE 1 005 8 BEAT DANCE 006 POP BALLAD 1 007 POP BALLAD 2 008 BALLAD 009 FUSION SHUFFLE

POPS II

010 SOUL BALLAD 2 011 16 BEAT 1 012 16 BEAT 2 013 8 BEAT 1 014 8 BEAT 2 015 8 BEAT 3 016 DANCE POP 1 017 POP FUSION 018 POP 2 019 POP WALTZ

DANCE/FUNK

020 DANCE 021 DISCO 1 022 DISCO 2 023 EURO BEAT 024 DANCE POP 2 025 GROOVE SOUL 026 TECHNO 027 TRANCE 028 HIP-HOP 029 FUNK

ROCK I

030 POP ROCK 1 031 POP ROCK 2 032 POP ROCK 3 033 FOLKIE POP 034 POP SHUFFLE 2 035 ROCK BALLAD 036 SOFT ROCK 037 ROCK 1 038 ROCK 2 039 HEAVY METAL

ROCK II

040 60'S SOUL 041 60'S ROCK 042 SLOW ROCK 043 SHUFFLE ROCK 044 50'S ROCK 045 BLUES 046 NEW ORLNS R&R 047 TWIST 048 R&B 049 ROCK WALTZ

JAZZ

050 BIG BAND 1 051 BIG BAND 2 052 BIG BAND 3 053 SWING 054 SLOW SWING 055 FOX TROT 056 JAZZ COMBO 1 057 JAZZ VOICE 058 ACID JAZZ 059 JAZZ WALTZ

EUROPEAN

060 POLKA 061 POP POLKA 062 MARCH 1 063 MARCH 2 064 WALTZ 1 065 SLOW WALTZ 066 VIENNESE WALTZ 067 FRENCH WALTZ 068 SERENADE 069 TANGO

LATIN I

070 BOSSA NOVA 1 071 BOSSA NOVA 2 072 SAMBA 1 073 SAMBA 2 074 MAMBO 075 RHUMBA 076 CHA-CHA-CHA 077 MERENGUE 078 BOLERO 079 SALSA

LATIN II/VARIOUS I

080 REGGAE 081 PUNTA 082 CUMBIA 083 PASODOBLE 084 SKA 085 BLUEGRASS 086 DIXIE 087 TEX-MEX 088 COUNTRY 1 089 COUNTRY 2

VARIOUS II

090 FOLKLORE 091 JIVE 092 FAST GOSPEL 093 SLOW GOSPEL 094 SIRTAKI 095 HAWAIIAN 096 ADANI 097 BALADI 098 ENKA 099 STR QUARTET

FOR PIANO I

100 PIANO BALLAD 1 101 PIANO BALLAD 2 102 PIANO BALLAD 3 103 EP BALLAD 1 104 EP BALLAD 2 105 BLUES BALLAD 106 MELLOW JAZZ 107 JAZZ COMBO 2 108 RAGTIME 109 BOOGIE-WOOGIE

FOR PIANO II

110 ARPEGGIO 1 111 ARPEGGIO 2 112 ARPEGGIO 3 113 PIANO BALLAD 4 114 6/8 MARCH 115 MARCH 3 116 2 BEAT 117 WALTZ 2 118 WALTZ 3 119 WALTZ 4

NOTE

• Rhythms 110 through 119 consist of chord accompaniments only, without any drums or other percussion instruments. These rhythms do not sound unless CASIO CHORD or FINGERED is selected as the accompaniment mode. With such rhythms, make sure that CASIO CHORD or FINGERED is selected before you try playing chords.

NOTA

• Los ritmos 110 al 119 consisten solamente de acompañamientos de acordes, sin ninguna batería ni otros instrumentos de percusión. Estos ritmos no suenan a menos que CASIO CHORD o FINGERED sean seleccionados como el modo de acompañamiento. Con tales ritmos, asegúrese de que se selecciona CASIO CHORD o FINGERED, antes de tratar de ejecutar los acordes.

A-6

Appendix/Apéndice

PIANO BANK List

ETUDES

Lista PIANO BANK

00 MINUET IN G MAJOR

01 GAVOTTE (GOSSEC)

02 CHOPSTICKS

03 AVE MARIA (GOUNOD)

”

“FROM THE NEW WORLD

“EINE KLEINE NACHTMUSIK

SERENADE FROM

GOING HOME FROM

04 JESUS BLEIBET MEINE FREUDE

05 CANON (PACHELBEL)

06 PIANO SONATA op.13 “PATH ÉTIQUE” 2nd Mov.

07 ODE TO JOY

CONCERT PIECES

10 FÜR ELISE

11 TURKISH MARCH (MOZART)

12 THE ENTERTAINER

13 MAPLE LEAF RAG

’ADIEU”

ABLEAUX D’UNE

ÁK)

“T

“CHANSON DE L

PIANO SONATA op.27 no.2 “MOONLIGHT” 1st Mov

14 GYMNOPÉDIES no.1

15 ETUDE op.10 no.3

17 HUNGARIAN DANCES no.5

18 TRÄUMEREI

19 HUMORESKE (DVO

20 PROMENADE FROM

“CARMEN”

VAL DES

“LE CARNA

EXPOSITION”

ANIMAUX”

21 LE CYGNE FROM

22 CHANSON DU TOREADOR FROM

23 LARGO (HÄNDEL)

”

“AIDA”

“LOHENGRIN”

“THE FOUR SEASONS

“MIDSUMMER

NIGHT’S DREAM”

24 WEDDING MARCH FROM

25 AMERICAN PATROL

26 CSIKOS POST

27 DOLLY’S DREAMING AND AWAKENING

28 LA CHEVALERESQUE

29 PIANO SONATA K.545 1st Mov.

30 LA PRIÈRE D’UNE VIERGE

31 NOCTURNE op.9 no.2 (CHOPIN)

32 MARCHE MILITAIRE no.1

”

TRAVIATA”

“CARMEN”

“LA

“THE NUTCRACKER

33 BLUMENLIED

34 GRANDE VALSE BRILLANTE op.18 no.1

WHEN JOHNNY COMES MARCHING HOME

33 HOME SWEET HOME

34 MY WILD IRISH ROSE

35 ON TOP OF OLD SMOKEY

36 AMERICA THE BEAUTIFUL

37 DOWN IN THE VALLEY

38 I’VE BEEN WORKING ON THE RAILROAD

39 LITTLE BROWN JUG

40 AURA LEE

41 OH! SUSANNA

42 HOUSE OF THE RISING SUN

43 SHE WORE A YELLOW RIBBON

45 CAMPTOWN RACES

(“LION KING”THEME)

SONG BANK

Lista SONG BANK

00 CAN YOU FEEL THE LOVE TONIGHT

01 HARD TO SAY I’M SORRY

02 SEPTEMBER

03 WE WISH YOU A MERRY CHRISTMAS

04 JINGLE BELLS

05 SILENT NIGHT

06 JOY TO THE WORLD

07 O CHRISTMAS TREE

08 WHEN THE SAINTS GO MARCHING IN

09 BEAUTIFUL DREAMER

10 GREENSLEEVES

Song List/Lista de canciones

11 SWING LOW, SWEET CHARIOT

46 SWANEE RIVER (OLD FOLKS AT HOME)

47 JEANNIE WITH THE LIGHT BROWN HAIR

48 YANKEE DOODLE

49 RED RIVER VALLEY

50 TURKEY IN THE STRAW

51 MY OLD KENTUCKY HOME

52 HOME ON THE RANGE

53 JAMAICA FAREWELL

54 ALOHA OE

55 SAKURA SAKURA

56 SANTA LUCIA

57 WALTZING MATILDA

58 AIR FROM “SUITE no.3”

59 SPRING FROM

60 BRIDAL MARCH FROM

12 JOSHUA FOUGHT THE BATTLE OF JERICHO

13 AMAZING GRACE

14 AULD LANG SYNE

15 TWINKLE TWINKLE LITTLE STAR

16 LIGHTLY ROW

17 UNDER THE SPREADING CHESTNUT TREE

18 COME BIRDS

19 THE MUFFIN MAN

20 LONG LONG AGO

21 DID YOU EVER SEE A LASSIE?

22 LONDON BRIDGE

23 THE FARMER IN THE DELL

24 ON THE BRIDGE OF AVIGNON

25 SIPPIN’ CIDER THROUGH A STRAW

26 GRANDFATHER’S CLOCK

Canciones cargadas (canciones del usuario)

61 TRIUMPHAL MARCH FROM

62 HABANERA FROM

63 BRINDISI FROM

64 MARCH FROM

65~74 Loaded songs (user songs)/

YOUR HANDS

27 MICHAEL ROW THE BOAT ASHORE

28 DANNY BOY

29 ANNIE LAURIE

30 MY BONNIE

31 IF YOU’RE HAPPY AND YOU KNOW IT, CLAP

32 MY DARLING CLEMENTINE

A-7

Version: 1.0

Remarks

1-16

Recognized

See Tone List on page A-1.

en la página A-1.

*1: Vea la lista de sonidos

*1:

Mode 3

0-127

12-108

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

: no relation

: sin relación

O*3

9nH V = 1-127 O

9nH V = 0,8nH V = X

Bank select

Modulation

Data entry

Volume

Pan

O*3

O*4

Expression

Hold1

Sostenuto

1-16

Transmitted

LK-210/LK-215

MIDI messages that can be sent and received using the USB port

Models

Los mensajes MIDI pueden enviarse y recibirse usando el puerto USB

Function ...

Basic Default

Channel Changed

Mode 3

Default

Mode Messages

36-96

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

Altered

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

Note

Number True voice

8nH V = 64 X

Note OFF

Velocity Note ON

After Key’s

Touch Ch’s

0, 32

6, 38

Control 7

Pitch Bender

Change 10

O*5

Soft pedal

Reverb send

Chorus send

RPN LSB, MSB

O*4

All sound off

Reset all controller

0-127 O

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

[00]

: Yes

: No X

GM ON: [F0] [7E] [7F] [09] [01] [F7]

ón [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [01]

[vv] [F7] vv=00: Chorus1, 01: Chorus2, 02: Chorus3, 03: Chorus4

[vv] [F7] vv=00: Room1, 01: Room2, 04: Hall1, 03: Hall2

[00] [vv] [F7] vv=00: Room1, 01: Room2, 04: Hall1, 03: Hall2

[vv] [F7] vv=00: Chorus1, 01: Chorus2, 02: Chorus3, 03: Chorus4

• Chorus Type [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [02] [00]

• Reverb Type [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [01] [00]

O*6 *7

9nH V = 1-127 O

• Tipo de Chorus [F0] [7F] [7F] [04] [05] [01] [01] [01] [01] [02]

• Tipo de reverberaci

GM on/off GM ON : [F0] [7E] [7F] [09] [01] [F7] GM OFF : [F0]

[7E] [7F] [09] [02] [F7]

Activación/desactivación GM

9nH V = 1-127 O

GM OFF: [F0] [7E] [7F] [09] [02] [F7]

O*5

120

100, 101

121

0-127

O*6

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

Program

Change :True #

System Exclusive

System : Song Pos

Common : Song Sel

: Tune

System : Clock

Real Time : Commands

9nH V = 98, LK-215:

LK-210:

: All notes OFF

: Reset

Aux : Local ON/OFF

Messages : Active Sense

Remarks

ón COARSE TUNE, y PITCH BEND SENSE,

Modulation and after touch for each channel are the same effect.

La modulación y después del toque para cada canal tienen el

mismo efecto.

FINE TUNE, COARSE TUNE receive, and PITCH BEND SENSE,

FINE TUNE, recepci

RPN Null receive

recepción RPN.

In accordance with sustain/assignable jack setting

De acuerdo con el ajuste de la toma asignable.

Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO

Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO

This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se ajusta a la legislación de protección ambiental en Alemania.

CASIO COMPUTER CO.,LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

MA0701-A Printed in China

LK210/215ES1A
