USER’S GUIDE GUÍA DEL USUARIO
Please keep all information for future reference. Guarde toda información para tener como referencia futura.
ES
LK120/125ES1A
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).
NOTICE
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Important!
Please note the following important information before using this product.
• Before using the optional AD-E95100L Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.
• Never attempt to recharge batteries.
• Do not use rechargeable batteries.
• Never mix old batteries with new ones.
• Use recommended batteries or equivalent types.
• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.
• Replace batteries as soon as possible after any sign they are getting weak.
• Do not short-circuit the battery terminals.
• The product is not intended for children under 3 years.
• Use only CASIO AD-E95100L adaptor.
• The AC adaptor is not a toy.
• Be sure to disconnect the AC adaptor before cleaning the product.
This mark applies in EU countries only.
Manufacturer: CASIO COMPUTER CO.,LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Responsible within the European Union: CASIO EUROPE GmbH Casio-Platz 1, 22848 Norderstedt, Germany
Safety Precautions
Before using the instrument, be sure to carefully read through the instructions contained in this manual.
Symbols
Various symbols are used in this users guide and on the product itself to ensure that the product is used safely and correctly, and to prevent injury to the user and other persons as well as damage to property. Those symbols along with their meanings are shown below.
DANGER
This symbol indicates information that, if ignored or applied incorrectly, creates the danger of death or serious personal injury.
WARNING
This indication stipulates matters that have the risk of causing death or serious injury if the product is operated incorrectly while ignoring this indication.
Symbol Examples
This triangle symbol ( ) means that the user should be careful. (The example at left indicates electrical shock caution.)
This circle with a line through it (
) means that the indicated action must not be performed. Indications within or nearby this symbol are specifically prohibited. (The example at left indicates that disassembly is prohibited.)
The black dot ( indicated action must be performed. Indications within this symbol are actions that are specifically instructed to be performed. (The example at left indicates that the power plug must be unplugged from the electrical socket.)
) means that the
CAUTION
This indication stipulates matters that have the risk of causing injury as well as matters for which there is the likelihood of occurrence of physical damage only if the product is operated incorrectly while ignoring this indication.
E-1
DANGER
Alkaline Batteries
Perform the following steps immediately if fluid leaking from alkaline batteries ever gets into your eyes.
1. Do not rub your eyes! Rinse them with water.
2. Contact your physician immediately.
Leaving alkaline battery fluid in your eyes can lead to loss of sight.
WARNING
Smoke, Strange Odor, Overheating
Continued use of the product while it is emitting smoke, a strange odor, or heat creates the risk of fire and electric shock. Take the following steps immediately.
1. Turn off power.
2. If you are using the AC adaptor for power, unplug it from the wall outlet.
3. Contact your original retailer or an authorized CASIO Service Provider.
AC Adaptor
Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.
Be sure to use only the AC
adaptor that is specified for this product.
Use only a power source whose
voltage is within the rating marked on the AC adaptor.
Do not overload electrical
outlets and extension cords.
Misuse of the AC adaptor’s electric cord can damage or break it, creating the risk of fire and electric shock. Always make sure you observe the following precautions.
Never place heavy objects on
the cord or subject it to heat.
Never try to modify the cord
or subject it to excessive bending.
Never twist or stretch the cord.
Should the electric cord or plug
become damaged, contact your original retailer or authorized CASIO Service Provider.
Never touch the AC adaptor while your hands are wet. Doing so creates the risk of electric shock.
Use the AC adaptor where it will not be splashed with water. Water creates the risk of fire and electric shock.
Do not place a vase or any other container filled with liquid on top of the AC adaptor. Water creates the risk of fire and electric shock.
Batteries
Misuse of batteries can cause them to leak, resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.
Never try to take batteries apart or allow them to become shorted.
Never expose batteries to heat or dispose of them by incineration.
Never mix old batteries with new ones.
Never mix batteries of different types.
Do not charge the batteries.
Make sure the positive (+) and
negative (–) ends of the batteries are facing correctly.
E-2
Do not incinerate the product.
Never throw the product into fire. Doing so can cause it to explode, creating the risk of fire and personal injury.
Water and Foreign Matter
Water, other liquids, and foreign matter (such as pieces of metal, pencils, etc.) getting into the product create the risk of fire and electric shock. Take the following steps immediately.
1. Turn off power.
2. If you are using the AC adaptor for power, unplug it from the wall outlet.
3. Contact your original retailer or an authorized CASIO Service Provider.
Disassembly and Modification
Never try to take this product apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, or other personal injury. Leave all internal inspection, adjustment, and maintenance up to your original retailer or authorized CASIO Service Provider.
Plastic Bags
Never place the plastic bag the product comes in over your head or in your mouth. Doing so creates the risk of suffocation. Particular care concerning this precaution is required where small children are present.
Keep off of the product and stand.*
Climbing onto the product or stand can cause it to tip over or become damaged. Particular care concerning this precaution is required where small children are present.
Location
Avoid locating the product on an unstable stand, on an uneven surface, or any other unstable location. An unstable location can cause the product to fall over, creating the risk of personal injury.
Dropping and Impact
Continued use of this product after it has been damaged by dropping or subjecting it to strong impact creates the risk of fire and electric shock. Take the following steps immediately.
1. Turn off power.
2. If you are using the AC adaptor for power, unplug it from the wall outlet.
3. Contact your original retailer or an authorized CASIO Service Provider.
E-3
CAUTION
AC Adaptor
Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.
Do not locate the electric cord
near a stove or other sources of heat.
Never pull on the cord when
unplugging from the electrical outlet. Always grasp the AC adaptor when unplugging.
Insert the AC adaptor into the
wall outlet as far as it will go.
Unplug the AC adaptor from
the wall outlet during lightening storms or before leaving on a trip or other long­term absence.
At least once a year, unplug
the AC adaptor from the wall outlet and wipe away any dust that is built up in the area around the prongs of the plug.
Never use detergent to clean
the power cord, especially the plug and jack parts.
Cleaning
Before cleaning the product, always unplug the AC adaptor from the wall outlet first. Leaving the AC adaptor plugged in creates the risk of damage to the AC adaptor, fire, and electric shock.
Batteries
Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.
Use only batteries that are specified for use with this product.
Remove batteries from the product if you do not plan to use it for a long time.
Connectors
Connect only the specified devices and equipment to the product’s connectors. Connection of a non­specified device or equipment creates the risk of fire and electric shock.
Relocating the Product
Before relocating the product, always unplug the AC adaptor from the wall outlet and disconnect all other cables and connecting cords. Leaving cords connected creates the risk of damage to the cords, fire, and electric shock.
E-4
Location
Avoid the following locations for this product. Such locations create the risk of fire and electric shock.
Areas subject to high humidity or large amounts of dust.
In food preparation areas or other areas subject to oil smoke.
Near air conditioning equipment, on a heated carpet, in areas exposed to direct sunlight, inside of a vehicle parked in the sun, or any other area that subjects the product to high temperatures.
Display Screen
Never push on the display screens LCD panel or subject it to strong impact. Doing so can cause the LCD panels glass to crack, creating the risk of personal injury.
Should the LCD panel ever crack or break, never touch the liquid inside of the panel. LCD panel liquid can cause skin irritation.
Should LCD panel liquid ever get inside your mouth, immediately wash out your mouth with water and contact your physician.
Should LCD panel liquid ever get into your eyes or onto your skin, rinse with clear water for at least 15 minutes, and then contact a physician.
Heavy Objects
Never place heavy object on top of the product. Doing so can make the product top heavy, causing the product to tip over or the object to fall from it, creating the risk of personal injury.
Correct Stand* Assembly
An incorrectly assembled stand can tip over, causing the product to fall and creating the risk of personal injury. Make sure you assemble the stand correctly, following the assembly instructions that come with it. Make sure you mount the product on the stand correctly.
* Stand is available as an option.
Sound Volume
Do not listen to music at very loud volumes for long periods. Particular care concerning this precaution is required when using headphones. High volume settings can damage your hearing.
Health Precaution
In extremely rare cases, exposure to strong sudden light or flashing light can cause momentary muscle spasms, loss of consciousness, or other physical problems with some individuals.
If you suspect that you might be susceptible to any condition such as this, be sure to consult with your physician before using this product.
Use this product in an area that is well illuminated.
IMPORTANT!
When using batteries, be sure to replace them or shift to one of the alternate power sources whenever you notice any of the following symptoms.
Instrument does not turn on
Display that is flickering, dim, or difficult to read
Abnormally low speaker/headphone volume
Distortion of sound output
Occasional interruption of sound when playing at high
volume
Sudden power failure when playing at high volume
Flickering or dimming of the display when playing at high
volume
Continued sound output even after you release a key
A tone that is totally different from the one that is selected
Abnormal rhythm pattern and Song Bank play
Should you ever feel any symptoms similar to those described above when using this product, stop using it immediately and contact your physician.
E-5
Main Features
On-screen fingering and timing indicators
Easy-to-understand on-screen indicators help to simplify keyboard play, even for novices.
100 amazingly realistic tones
Enhanced auto-accompaniment function for greater versatility
50 built in auto-accompaniment patterns.
100 Built-in Song Bank tunes
A total of 100 built-in Song Bank tunes comes built in for playback enjoyment or play-along practice.
3-Step Lesson System
Develop your musical skills by following the keys as they light. First you become familiar with the timing of the notes by watching the keys light as you playback one of the 100 built-in Song Bank tunes. Next, practice playing along at a pace thats comfortable for you. Finally, try playing along at the normal tempo for the Song Bank tune.
A simulated human voice is used during Step 1 or Step 2 play to call out the fingers you should use to play the required notes (Voice Fingering). The timing of notes is also indicated on the display screen.
Auto Accompaniment
Simply specify a chord and the keyboard automatically produces the matching rhythm, bass, and chord patterns. One-touch fill-ins make accompaniments sound interesting and natural.
Transpose Function
An easy operation instantly changes the key of the keyboard.
E-6
Contents
Safety Precautions ................ E-1
Main Features ........................E-6
General Guide........................ E-8
Attachment of Score Stand ........................E-9
Quick Reference .................. E-10
Power Supply....................... E-11
Using a Household Power Outlet ............ E-11
Using Batteries ........................................ E-11
Auto Power Off.........................................E-12
Settings ....................................................E-12
Connections.........................E-13
Phones/Output Jack ................................ E-13
Accessories and Options ......................... E-13
3-Step Lesson System ........ E-20
Using 3-Step Lesson System .................. E-20
Voice Fingering Guide .............................E-22
Timing Indicator .......................................E-22
Step 1: Master the timing .........................E-23
Step 2: Master the melody ....................... E-24
Step 3: Play at normal speed .................. E-24
To practice the left hand part ...................E-25
Technical Reference............E-26
Troubleshooting .......................................E-26
Specifications ...........................................E-28
Operating Precautions ........E-29
Appendix ............................... A-1
Tone List..................................................... A-1
Rhythm List ................................................A-2
Basic Operations .................E-14
To switch power on and off ......................E-14
To change tones ......................................E-14
Other Useful Functions ............................ E-15
Playing the demo tunes ...........................E-16
Playing rhythms .......................................E-17
Using auto-accompaniment ..................... E-17
Improvising with the preset patterns ........ E-19
Fingered Chord Charts ..............................A-3
Song List ....................................................A-5
E-7
General Guide
1 2 3 4 5 6
7
8 A09 B 8
E-8
C D
E F G H
I J K L M N
1
POWER/MODE selector
2
VOLUME slider
3
SYNCHRO/FILL-IN button
4
START/STOP button
5
DEMO button
6
KEY LIGHT button
7
TEMPO/VALUE buttons
8
Speakers
9
100 SONG BANK list
0
Display
A
50 RHYTHMS list
B
100 TONES list
C
CHORD root names
D
Percussion instrument list
Rear Panel
E
RHYTHM button
F
TONE button
G
SONG BANK button
H
Number buttons
3-STEP LESSON
I
STEP 1 button
J
STEP 2 button
K
STEP 3 button
L
PART SELECT button
M
ONE KEY PLAY buttons
N
SPEAK button
O P
* Attachment of Score Stand
Insert both ends of the music stand provided with the keyboard into the two holes on the top surface.
O
PHONES/OUTPUT jack
For connection of commercially available headphones. Output from the speakers is automatically cut when headphones are connected.
P
DC 9.5V jack
E-9

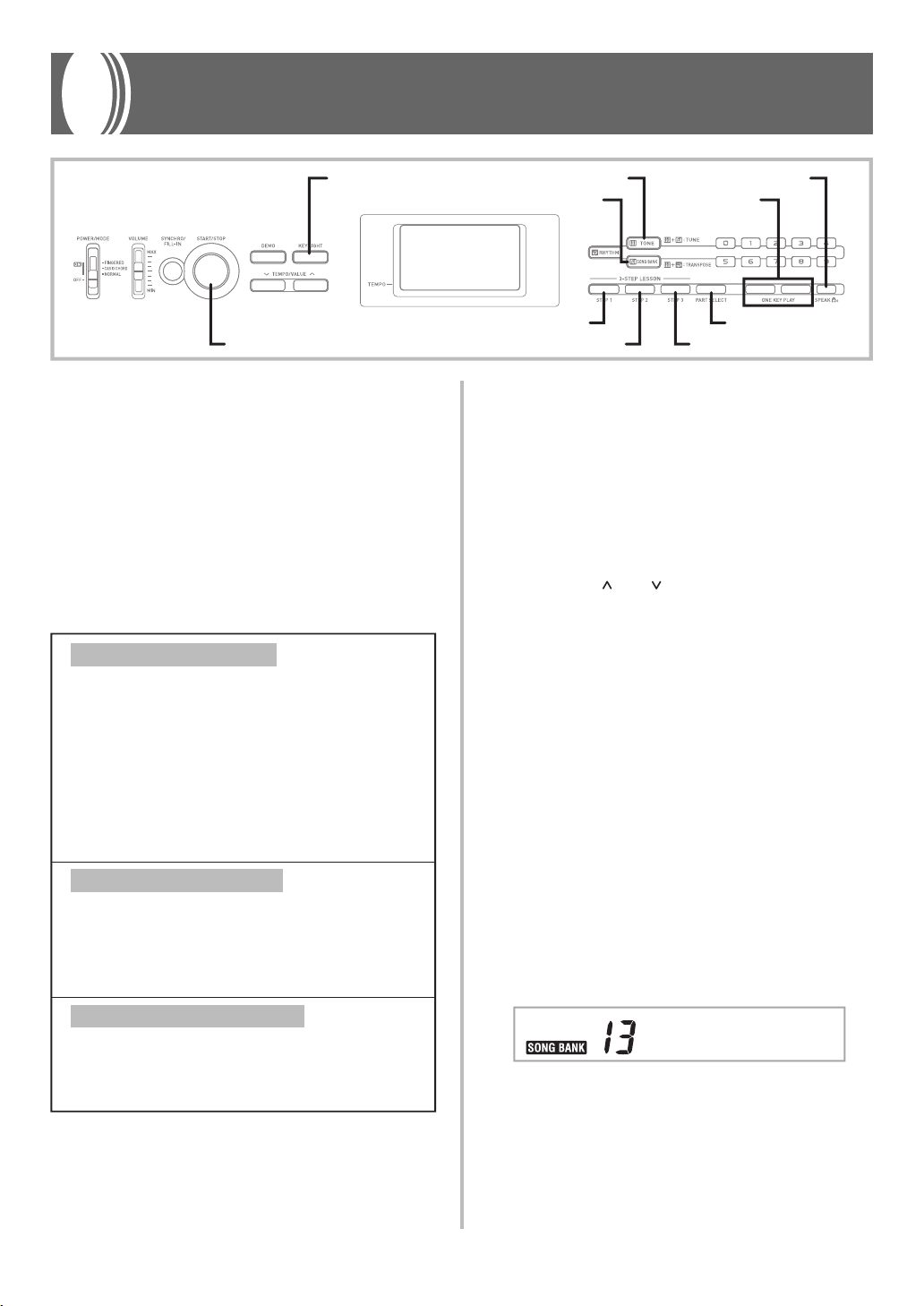

Quick Reference
This section provides a quick overview of keyboard operation using steps one and two of the 3-step lesson feature. See page E-20 for detailed explanations of these steps.
1 2 3
4 5 5
1
Set the POWER/MODE selector to NORMAL.
2
Press the SONG BANK button.
SONG BANK indicator appears
3
Find the tune you want to play in the Song Bank list, and then use the number buttons to input its two-digit number.
To select 13 TWINKLE TWINKLE LITTLE STAR”, input 1 and then 3.
Twinkle
Not all of the available songs are shown on the song bank list printed on the keyboard console. For a complete list, see the Song List on page A-5.
4
Press the STEP 1 button or STEP 2 button.
When you do, the STEP 1 indicator or STEP 2 indicator appears.
The keyboard sounds a count beat and waits for you to play something on the keyboard. The keys that you need to press first flash.
Play in accordance with the fingerings that appear on the display.
5
Play the melody part on the keyboard.
<If you pressed the STEP 1 button in Play the notes with the ONE KEY PLAY buttons.
The accompaniment tempo automatically adjusts to play along with your melody.
Play the notes on the keyboard.
A sub-melody (obbligato) plays in time with the melody.
With Step 1, the correct melody note is played no matter which keyboard key you press.
<If you pressed the STEP 2 button in 4 ...> Play the notes on the keyboard, pressing keys as they light.
Keep the key depressed as long as it stays lit.
If you selected any song from number 84 through 99,
the lit key goes out as soon as you press it.
The key that corresponds to the next note you need to play will flash.
After you press the correct melody key, accompaniment proceeds to the next note.
4
...>
E-10
kTwin le
Fingering
Power Supply
Prepare a household power outlet or batteries.
IMPORTANT!
• Be sure to comply with the “Safety Precautions” provided in this manual. Incorrect use of this product creates the risk of electric shock and fire.
• Always make sure that the Digital Keyboard is turned off before plugging in or unplugging the AC adaptor, or before loading or removing batteries.
Using a Household Power Outlet
Make sure that you use only the AC adaptor specified for this keyboard. Use of a different type of AC adaptor can cause malfunction.
Specified AC Adaptor: AD-E95100L (JEITA Standard plug)
Household power outlet
IMPORTANT!
• The AC adaptor will become warm to the touch after very long use. This is normal and does not indicate malfunction.
• To prevent breaking of the wire, take care to avoid putting any type of load on the power cord.
No bending! No winding!
• Never insert metal, pencils, or any other objects into the product's 9.5V DC terminal. Doing so creates the risk of accident.
DC 9.5V terminal
AC adaptor
Using Batteries
You can use six AA-size batteries for power.
• Use alkaline or zinc-carbon batteries. Never use oxyride or any other nickel based batteries.
Open the battery cover on the bottom of the Digital Keyboard, load the batteries, and then close the cover.
• Take care to ensure that the positive (+) and negative (–) ends of the batteries are facing correctly.
1.
Remove the battery compartment cover.
2.
Load 6 AA-size batteries into the battery compartment.
• Make sure that the positive (+) and negative (–) ends are facing correctly.
3.
Insert the tabs on the battery compartment cover into the holes provided and close the cover.
Important Battery Information
The following shows the approximate battery life.
Alkaline batteries .................................. 4 hours
Zinc-carbon batteries ............................ 1 hour
The above value is standard battery life at normal temperature, with the keyboard volume at medium setting. Temperature extremes or playing at very loud volume settings can shorten battery life.
Any of the following symptoms indicate low battery power. Replace batteries as soon as possible whenever any of the following occurs.
• Instrument does not turn on
• Display that is flickering, dim, or difficult to read
• Abnormally low speaker/headphone volume
• Distortion of sound output
• Occasional interruption of sound when playing at high volume
• Sudden power failure when playing at high volume
• Flickering or dimming of the display when playing at high volume
• Continued sound output even after you release a key
• A tone that is totally different from the one that is selected
• Abnormal rhythm pattern and Song Bank play
Tab
E-11
Auto Power Off
The Digital Keyboard will turn off automatically to preserve power if you do not perform any operation for about six minutes.
To disable Auto Power Off
Hold down the TONE button while turning on the keyboard to disable Auto Power Off.
NOTE
• When Auto Power Off is disabled, the keyboard does not turn off automatically no matter how long it is left with no operation being performed.
• Auto Power Off is automatically enabled whenever you turn on keyboard power.
Settings
All keyboard settings are returned to their initial defaults whenever keyboard power is turned back on after being turned off by operation of the POWER/MODE selector or Auto Power Off.
E-12
Connections
Phones/Output Jack
Before connecting headphones or other external equipment, be sure to first turn down the volume settings of the keyboard and the connected equipment. You can then adjust volume to the desired level after connections are complete.
[Rear Panel]
PHONES/OUTPUT jack
Stereo standard plug
3
Keyboard amp, guitar amp, etc.
2
Connecting Headphones (Figure 1)
Connecting headphones cuts off output from the keyboard’s built-in speakers, so you can play even late at night without disturbing anyone.
Audio Equipment (Figure 2)
Connect the keyboard to an audio equipment using a commercially available connecting cord with a standard plug on one end and two PIN plugs on the other end. In this configuration, you normally set the input selector of the audio equipment to the terminal (usually marked AUX IN or something similar) where the cord from the keyboard is connected. See the user documentation that comes with your audio equipment for full details.
Audio connection
1
White
AUX IN or similar terminal
of audio amplifier
LEFT
Red
RIGHT
PIN plug
Accessories and Options
Use only the accessories and options specified for this keyboard. Use of non-authorized items creates the danger of fire, electrical shock, and personal injury.
• You can get information about accessories that are sold separately for this product from the CASIO catalog available from your retailer, and from the CASIO website at the following URL.
http://world.casio.com/
Musical Instrument Amplifier (Figure 3)
Use a commercially available connecting cord to connect the keyboard to a musical instrument amplifier.
NOTE
• Be sure to use a connecting cord that has standard plugs on the ends you connect to the keyboard and amplifier.
[Connection Example]
To keyboard’s PHONES/OUTPUT jack
Standard plug
INPUT
Keyboard or guitar amp
E-13

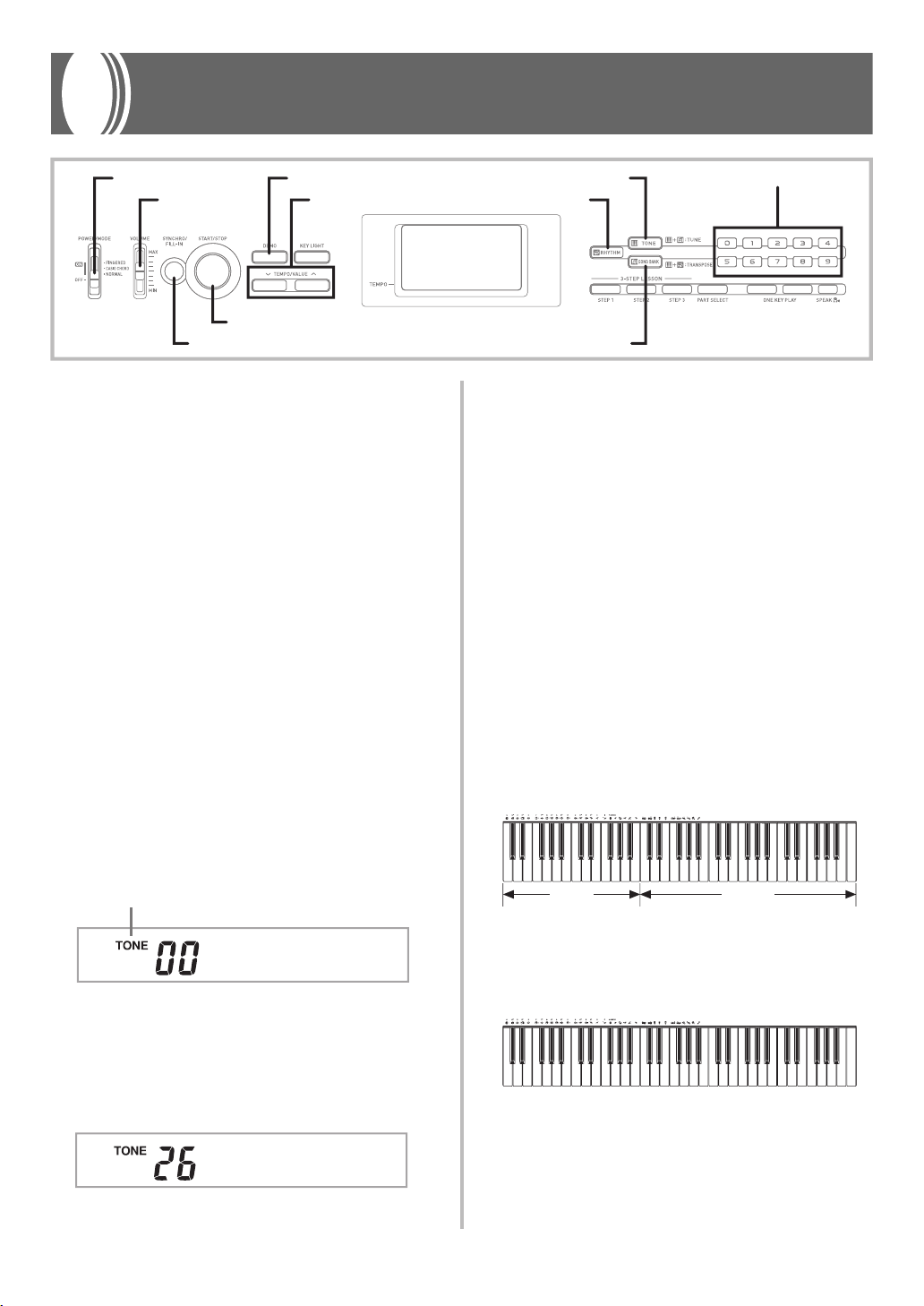

Basic Operations
POWER/MODE DEMO
VOLUME TEMPO/VALUE RHYTHM
START/STOP
SYNCHRO/FILL-IN SONG BANK
This part of the manual provides you with the basic information you need to use your keyboard.
To switch power on and off
1.
Set the POWER/MODE selector to NORMAL.
2.
Press the keyboard keys.
3.
Use the VOLUME slider to set the volume to a relatively low level.
4.
To switch power off, set the POWER/MODE selector to OFF position.
To change tones
1.
Find the tone you want to use in the “Tone List” (page A-1) and note its tone number.
TONE
NOTE
Always enter two digits for the tone number. If you enter only one digit, the display will automatically return to the previous tone number setting after a few seconds.
If you change the tone setting while a keyboard key is depressed, the tone does not change until you release the key and press a keyboard key again.
With certain tones (such as percussion sounds and sound effects), there may be very little or no change at all in the pitch, no matter which keyboard key you press.
If you input the wrong first digit for a tone number, you can return to the previous setting by pressing the TONE button.
Number buttons
Keyboard split tones
Some of the preset tones split the keyboard and assign two or more sounds. With such a preset tone, the sound produced depends on what position of the keyboard you play. For example, BASS/PIANO (tone 90) puts BASS on the left and PIANO on the right of the keyboard.
<Example>
BASS/PIANO (No.90)
2.
Press the TONE button.
Indicator appears
GrandPno
3.
Use the number buttons to input the 2-digit number that identifies the tone you want to select.
Example: To select 26 ACOUSTIC BASS, input 2 and
then 6.
Aco . Bass
E-14
BASS PIANO
PERCUSSION (No.99)
PERCUSSION (Tone 99) assigns 35 percussion sounds to the keyboard as shown below. The sounds assigned to each key are indicated above the keyboard.
BASS DRUM
SIDE STICK
ACOUSTIC SNARE
HAND CLAP
ELECTRIC SNARE
LOW TOM 2
CLOSED HI-HAT
LOW TOM 1
PEDAL HI-HAT
MID TOM 2
OPEN HI-HAT
MID TOM 1
HIGH TOM 2
CRASH CYMBAL 1
HIGH TOM 1
RIDE CYMBAL 1
CHINESE CYMBAL
RIDE BELL
TAMBOURINE
SPLASH CYMBAL
COWBELL
CRASH CYMBAL 2
CLAVES
RIDE CYMBAL 2
HIGH BONGO
LOW BONGO
MUTE HIGH CONGA
OPEN HIGH CONGA
LOW CONGA
HIGH TIMBALE
LOW TIMBALE
HIGH AGOGO
LOW AGOGO
CABASA
MARACAS
Polyphony
The term polyphony refers to the maximum number of notes you can play at the same time. This keyboard has 12-note polyphony, which includes the notes you play as well as the rhythms and auto-accompaniment patterns that are played by the keyboard. This means that when a rhythm or auto­accompaniment pattern is being played by the keyboard, the number of notes (polyphony) available for keyboard play is reduced. Also note that some of the tones offer only 6-note polyphony.
When rhythm or auto accompaniment is playing, the number of sounds simultaneously played is reduced.
Though you can sound up to 12 notes at one time, only the last four keyboard keys pressed light up.
Other Useful Functions
To change the key of the keyboard
The transpose feature of this keyboard lets you raise or lower its key in semitone increments. This means you can easily match to suit someones voice, and you can eliminate sharps and flats from music making it easier to play.
1.
While in any mode besides the Song Bank Mode (indicated when the SONG BANK indicator is lit), hold down the TONE button and press the RHYTHM button.
Perform step 2 within five seconds after performing step 1.
Trans
2.
Use the TEMPO/VALUE buttons to change the key of the keyboard.
Example: To change the tuning to B (indicated by -1
C
<Keys and their indicators>
F#G
Key :
Display :
since it is one tone below C, which is the normal tuning of the keyboard).
(
C
D
B
B (-1) tuningNormal tuning
#
C
DEFGA B
A
Trans
:
Pressing
:
Pressing
Trans
C
B C D E
B
A
(–)
)
FGA
E
Trans
C
B
E
(+)
F
<Note Names>

CD E F GA C
B
E-15
NOTE
If you leave the transpose screen on the display for about five seconds without doing anything, the screen is automatically cleared.
You cannot change the transpose setting while the keyboard is in the Song Bank Mode.
In step 2 of the above operation, you could also use the number buttons 0 to 5 to specify C through F.
Pressing both of the TEMPO/VALUE buttons ( same time returns the transpose setting to C(0).
The transpose setting is automatically set to C(0) whenever you turn keyboard power on.
The transpose setting is automatically set to C(0) whenever you press the SONG BANK button.
The pitch of a transposed note depends on the tone you are using. If the transpose operation causes a note to exceed the range of the tone you are using, the same note in the highest octave of the tones range is substituted.
The transpose operation does not affect tone number 99 (PERCUSSION) or auto-accompaniment rhythms.
Transposing tones 75 through 79 and 90 through 96 changes the range of keys to which each of the tones is assigned.
The transpose setting is automatically set to C(0) whenever you press the DEMO button.
/ ) at the
To tune the keyboard
A simple operation lets you tune the keyboard to another musical instrument.
NOTE
If you leave the tuning screen on the display for about five seconds without doing anything, the screen is automatically cleared.
In step 2 of the above procedure, you could also use the number buttons to input a value from 00 to 50.
Pressing both of the TEMPO/VALUE buttons ( same time returns the tuning setting to 00.
Pressing the SONG BANK button changes the tuning setting to 00.
The tuning setting does not affect any of Song Bank tunes.
You can tune the keyboard within a range of approximately
±50 cents (100 cents = 1 semitone).
The tuning setting is automatically set to 00 whenever you turn the keyboard on.
Pressing the DEMO button changes the tuning setting to 00.
The tuning operation does not affect rhythm (99 PERCUSSION).
/ ) at the
Playing the demo tunes
You can set up the keyboard to continually play its 100 built­in Song Bank tunes. Keyboard keys light to indicate the melody notes of the demo tune as it plays.
To start demo tune play
1.
While in any mode besides the Song Bank Mode (indicated when the SONG BANK indicator is lit), hold down the TONE button and press the SONG BANK button.
Perform step 2 within five seconds after performing step 1.
Tune
2.
Use the TEMPO/VALUE buttons to change the tuning of the keyboard.
Example: To lower tuning by 20
(
)
Tune
1.
Switch power on and adjust the volume level.
2.
Press the DEMO button.
Demo tune play continues in a sequential endless loop until you switch it off.
The number and name of the demo tune currently playing are shown on the display.
You can play along on the keyboard while a demo tune is playing back.
3.
You can change the demo tune play being played by pressing the number buttons.
The Song Bank tunes play back in tune number sequence, starting from the one you select.
To stop demo tune play
Press the DEMO button or START/STOP button again to stop demo tune play.
E-16
NOTE
Only the following buttons are enabled while a Song Bank tune is being played.
VOLUME slider
Number buttons
START/STOP button
POWER/MODE selector (OFF)
DEMO button
KEY LIGHT button
SPEAK button
You cannot change the tone being used for the melody of a
Song Bank tune.
Playing rhythms
This keyboard features a collection of 50 exciting built-in rhythm patterns. Each pattern provides percussion back up for all your performances.
To select and play a rhythm
1.
Set the POWER/MODE selector to NORMAL.
2.
Find the rhythm you want to use in the Rhythm List (page A-2) and note its rhythm number.
3.
Press the RHYTHM button.
When you do, the RHYTHM indicator appears.
The number and name that appear on the display
indicate the currently selected rhythm.
4.
Use the number buttons to input the 2-digit rhythm number for the rhythm you want to use.
Example: To select 37 SAMBA, input 3 and then 7.
6.
Use the TEMPO/VALUE buttons to adjust the tempo of the rhythm.
Each time you press one of the TEMPO/VALUE buttons while the tempo value is displayed, the tempo setting changes one step, within the range of 040 to
255.
The initial default tempo setting when you turn on power is 120.
After displaying the current tempo setting by pressing the TEMPO/VALUE button in step 6, you can also input the tempo setting you want by inputting a three­digit value with the number buttons.
Holding down either of the TEMPO/VALUE buttons changes the tempo setting at high speed.
To reset the tempo to the standard value of each rhythm, press both TEMPO/VALUE buttons.
7.
To stop rhythm play, press the START/STOP button again.
Using auto-accompaniment
This keyboard features 50 accompaniment patterns that let you add full accompaniments to your performances automatically. With auto-accompaniment, part of the keyboard is reserved as an accompaniment keyboard. As you play your chords on the accompaniment keyboard, the accompaniment pattern adjusts automatically to follow the progression you play. You get a choice between two different methods for chord play. FINGERED lets you play chords as you normally do, while CASIO CHORD makes it possible to play fully formed chords with one finger.
Samb a
Be sure to always specify a 2-digit number.
If you discover a mistake before you input the second
digit, press the RHYTHM button to return to the previously set rhythm number.
You can change to another rhythm even while the current rhythm is sounding.
5.
Press the START/STOP button to start play of the rhythm.
When you do, the selected rhythm starts to sound.
About the accompaniment keyboard
The lower (left) 1.5 octaves are reserved for use as an accompaniment keyboard whenever you select CASIO CHORD or FINGERED with the POWER/MODE selector. The panel above the accompaniment keyboard keys is marked with the names of the notes they play. The remainder of the keyboard (the part that is not included in the accompaniment keyboard) is called the melody keyboard. Please be sure to remember these terms, because they will be used throughout the rest of this manual.
Accompaniment
keyboard
The entire keyboard can be used for melody play while
( )
the POWER/MODE selector is set to NORMAL.
Melody keyboard
E-17
Using the CASIO CHORD system
The CASIO CHORD system lets you easily play the four main types of chords. Play of chords is simplified as shown in the chart below.
Keys
Pressing one accompaniment key
Pressing two accompaniment keys
Pressing
three
accompaniment
Type
Major chord
Minor chord
Seventh chord
C (C Major Chord)
Cm (C Minor Chord)
C7 (C Seventh Chord)
keys Pressing four
accompaniment keys
Minor seventh chord
Cm7 (C Minor Seventh Chord)
NOTE
The bottom (leftmost) note that you play determines the name of the chord. If the bottom note is a C for example, the keyboard produces a C chord.
When pressing more than one accompaniment key, it makes no difference whether the keys to the right of the bottom note are white or black.
Example
CC DE FFE GAABBCC DE FE
CC DE FFE GAABBCC DE FE
CC DE FFE GAABBCC DE FE
CC DE FFE GAABBCC DE FE
5.
Continue pressing different keys on the accompaniment keyboard to play your chord progression.
6.
To stop auto-accompaniment play, press the START/STOP button again.
Using standard fingerings
The FINGERED mode lets you play a wider variety of chords. In this mode, you can start play of an accompaniment pattern by pressing three or four of the accompaniment keyboard keys. This keyboard is capable of recognizing 15 different chords. The following shows the fingerings of these chords with a root of C. Note that you can omit the fifth notes (which are shown inside parentheses in the illustrations below) to produce 7, m7, M7, add9, madd9, and mM7 chords.
C
Caug
(*1)
Cm
Csus4
Cdim
C7
To play a CASIO CHORD auto-accompaniment
1.
Use the POWER/MODE selector to select CASIO CHORD.
2.
Select an auto-rhythm as described under To select and play a rhythm on page E-17.
3.
Start play of the rhythm.
If you want to start play of the normal rhythm pattern, press START/STOP.
You can also use synchro start (page E-19) to start rhythm play.
4.
Press either one or up to four keys on the accompaniment keyboard, and the corresponding accompaniment starts to play automatically.
Chord name
Cm7
5 (*1)
C7
Cmadd9
CM7
C7sus4
CmM7
Cm7
Cadd9
Cdim7
5
(*1)
*1 With this chords, the lowest note in your fingering is
always used as the root. Make sure that your fingering correctly identifies the root you want to use.
E-18
If you play one or two notes only in the left hand, or three notes that do not make up a recognizable chord formation, no sound will be produced. The FINGERED mode requires a conventional three or four-note chord formation to produce an auto-accompaniment. Also, note that auto­chords only work in conjunction with rhythm patterns, and not independently of them.
NOTE
The above examples show only one of the possible fingerings for each chord. Note that you can play the notes that form a chord in any combination. Each of the following fingerings for example, produces the same C chord.
IMPORTANT!
Improvising with the preset patterns
Pressing the START/STOP button to start rhythm play causes the normal version of the pattern to be played. You can also play a variation of the rhythm using the operation described below.
Using fill-in rhythm
You can insert a fill-in rhythm by pressing the SYNCHRO/ FILL-IN button while an auto-rhythm plays.
Using Synchro start
You can start the rhythm and accompaniment pattern at the same time, with your play of the accompaniment keyboard. To do this, follow the steps below.
Accompaniment
keyboard
See the Fingered Chord Charts on page A-3 for information on the fingerings of chords for all roots.
To play a FINGERED auto-accompaniment
1.
Use the POWER/MODE selector to select FINGERED.
2.
Select an auto-rhythm as described under To select and play a rhythm on page E-17.
3.
Start play of the rhythm.
If you want to start play of the normal rhythm pattern, press START/STOP.
You can also use synchro start (on this page) to start rhythm play.
4.
Play a chord on the accompaniment keyboard to start play of the auto-accompaniment.
1.
Set the POWER/MODE selector to the CASIO CHORD or FINGERED position.
2.
Select an auto-rhythm.
3.
Press the SYNCHRO/FILL-IN button.
4.
Press the accompaniment keys to play the first chord. As soon as you do, the auto­accompaniment pattern begins to play.
5.
To stop the auto-accompaniment pattern play, press the START/STOP button.
NOTE
If you set the POWER/MODE selector to NORMAL in step 1 on page E-17, the operation in step 4 starts play of the rhythm (percussion instruments) only.
Chord name
5.
Continue pressing keys on the accompaniment keyboard to play your chord progression.
6.
To stop auto-accompaniment play, press the START/STOP button again.
E-19
3-Step Lesson System
KEY LIGHT
START/STOP STEP 2
Using 3-Step Lesson System
Even individuals who cannot play the keyboard at all can follow along with the 100 built-in Song Bank tunes with the ONE KEY PLAY buttons. You can also use the 3-Step Lesson System to learn at your own pace. Play slowly at first until you are able to play along at normal speed. Of the 100 built-in tunes, numbers 00 through 83 feature auto­accompaniment (auto-accompaniment tunes), while 84 through 99 are played using both hands (two-hand tunes).
The 3-Step Lesson System can be used with the following 3­step lesson plan to master keyboard play.
Step 1: Master the timing
Pressing the ONE KEY PLAY buttons plays the melody for an auto-accompaniment tune or the right hand part for two-hand tunes. In both cases, the auto­accompaniment (the left hand part in the case of two­hand tunes) is played automatically by the keyboard. In place of the ONE KEY PLAY buttons, you can also press any key of the keyboard to play the melody or right hand part. The purpose of this step is to familiarize yourself with the timing required to play melody notes.
Step 2: Master the melody
In this step, you use the display to learn which fingers you should use to play, and the key light system to learn which keyboard keys to press. You can play at the pace you want, because the auto-accompaniment or left hand part waits until you press the correct key.
TONE
SONG BANK
STEP 1
NOTE
You may not be able to see the keyboard keys light under direct sunlight or in other brightly lit areas.
ONE KEY PLAY
STEP 3
SPEAK
PART SELECT
3-Step Lesson System Tempo Setting
You can use the procedure in step 6 of the procedure on page E-18 to set the tempo of the left-hand part for Song Bank and 3-Step Lesson System play (Step 1 through 3). This means you can use a slower tempo at the beginning, and then increase it as you learn. Press both of the TEMPO/ VALUE buttons ( and ) at the same time to return the tempo to its initial preset setting.
To play a built-in Song Bank tune
1.
Look up the number of the tune you want to play in the Song Bank list.
Not all of the available songs are shown on the song bank list printed on the keyboard console. For a complete list, see the Song List on page A-5.
2.
Press the SONG BANK button until the SONG BANK indicator appears.
This causes the number and name of the currently selected Song Bank tune to appear on the display.
3.
Input the two digit number for the tune you want to play.
Example: To select 13 TWINKLE TWINKLE LITTLE
STAR, input 1 and then 3.
Step 3: Play at normal speed
At this level, the keyboards keys still light to indicate which notes to play, but they no longer wait for you to press the correct key. The auto-accompaniment or left hand part is played at normal speed.
E-20
Twinkle
4.
Press the START/STOP button to start play of the selected tune.
The tune you select plays repeatedly, with the keyboard keys lighting to indicate the melody notes.
5.
To stop Song Bank tune play, press the START/ STOP button again.
6.
To exit the Song Bank Mode, press the SONG BANK button again.
When you do, the SONG BANK indicator goes out.
NOTE
Always enter two digits for the Song Bank number.
You can input a Song Bank tune number even while another
Song Bank tune is playing.
If you input the wrong first digit for a Song Bank tune number, you can return to the previous setting by pressing the SONG BANK button.
The RHYTHM button is disabled in the Song Bank Mode. If you want to play a rhythm, press the SONG BANK button to return to the normal mode first.
Key Lighting System Operation and Display Contents During Song Bank Play
Keyboard keys light to show the keys that should be pressed to play along with Song Bank tunes as they play back. At the same time, the display shows fingerings, chord names, tempo and other information.
Crossed Finger Indications
The display also shows when you have to cross fingers to play notes, and in which direction your fingers should cross.
Example: Display for playing the notes below with the right
Using the Song Bank
B and C indicate that the index finger should cross over
C and D indicate that the thumb should cross under the
hand
3311
the thumb.
index finger.
B
Crossed finger display
2 C
CEDAB
EDA
Key Lighting During Song Bank Play
When you play back a Song Bank tune, keyboard keys light to show you the notes that are being played.
Auto-accompaniment Song Bank Tune
Chord and melody part keys light.
Tempo value
kTw i n l e
FingeringChord name
Chord The root (the C-note of
a C-chord) and other notes that make up the chord alternately light.
NOTE
Some Song Bank tunes use chords (such as C6) that cannot be played with the FINGERED setting (page E-18). In the FINGERED mode, chords may sound different from the ones produced by Song Bank tune playback, even if you finger the chords as indicated by the lit keys.
Melody note lights.
Two-hand Song Bank Tune
Left hand and right hand part keys light.
Left hand part Right hand part
E-21
Key Lighting System Operation and Display Contents During 3-step Lesson Play
Whenever you select an Auto Accompaniment tune (00 to
83) for 3-step lesson play, the key lighting system shows you which keys to press, while the display shows you the fingerings.
Note Pitch
The keyboard key that should be pressed lights. The fingers you should use to play the notes are also shown on the display.
Note Length
Keyboard keys stay lit for as long as the note should be played. The fingerings also remain on the display for the length of the note.
Next Note
The keyboard key for the next note to be played flashes, while a number appears on the display near the finger you should use to play the next note.
Voice Fingering Guide
Voice fingering guide uses a simulated human voice to call out fingering numbers during Step 1 and Step 2 one-hand part practice. If you need to press a key with your thumb, for example, voice fingering guide says, One! In the case of a chord to be played with your thumb, middle and little finger, voice fingering guide says, One, three, five! Voice Fingering Guide calls out fingerings only when you do not press the proper key when you should.
To turn voice fingering guide on and off
Use the SPEAK button to turn voice fingering guide on and off.
Voice fingering guide indicator
Series of Same Pitch Notes
The keyboard key light turns off momentarily between the notes and lights again for each successive note. The fingerings also turn off and back on again.
Example: When play requires pressing keys with fingers
Next note
Current note
Key light
NOTE
Note length is not indicated when you are using two-hand tunes (84 to 99) with 3-Step Lesson Steps 1 and 2. As soon as you press a lit key, it goes out and the next key to be played starts to flash.
Note length is indicated by the key light system when you use a two-hand tune with Step 3. In this case, the next key to be pressed does not flash when you press a lit key and the next finger number does not appear on the display. Only the current finger number is shown.
3, 2, and then 1
1st Note 2nd Note 3rd Note
Flash
Lit
Flash
Lit
Flash
Lit
Timing Indicator
The timing indicator helps you become familiar with tunes you are playing for the first time by indicating the timing of notes you play on the keyboard. Timing is easier to see when you use a slow tempo during lesson play.
Using the Timing Indicator
The timing indicator shows the timing of notes contained in the currently selected part (R or L). Notes are indicated as two-segment blocks that scroll from the top of the display, down to the bottom. A note is played when its block reaches the bottom of the display.
Upcoming note timing
Note played here
Each two-segment block can indicate one or more notes, depending on the tune you are playing.
NOTE
The Timing Indicator shows note timing whenever you play back a Song Bank tune and during a 3-Step Lesson.
Note that the Timing Indicator shows approximate timing only.
E-22
Turning Off Key Lighting
1.
Press the KEY LIGHT button.
The KEY LIGHT indicator disappears when the key light system is turned off.
Press the KEY LIGHT button again to turn key lighting back on.
Step 1: Master the timing
1.
Press the STEP 1 button.
When you do, the STEP 1 indicator appears.
After a count sounds, the keyboard stands by and
waits for you to play the first note of the tune. If the tune includes intro measures, the keyboard enters standby after the intro measures are complete.
KEY LIGHT indicator
NOTE
Key lighting turns on automatically in any of the following cases:
When keyboard power is turned on.
When the SONG BANK button is pressed in the normal mode
(page E-20).
Number of Simultaneously Lit Keys
Up to four keyboard keys can be lit at the same time.
To change the tone used for the melody of a Song Bank tune
1.
Following step 3 of the procedure on page E-20, press the TONE button.
Both the SONG BANK indicator and TONE indicator appear, along with the tone number and name of the tone that is currently assigned to the keyboard.
2.
Input a value to select the tone you want to use.
NOTE
Selecting another Song Bank tune switches the tone setting to the newly selected tunes preset melody tone.
The tone assigned to the keyboard is the same one specified for the melody of the Song Bank tune.
The above procedure can be used to change the Song Bank melody tone before starting play or while play is already in progress.
You can also change the tone of two-hand tunes (tune numbers 84 to 99). Note however, that selecting a sustainable tone (like an organ tone) when using 3-Step Lesson Step 1 or Step 2 (in which accompaniment waits for correct input from you before proceeding), can cause notes of the auto accompaniment to be sustained while the keyboard is waiting for your input. If this happens, play something on the keyboard to stop the sustained note.
kTw i n l e
Fingering
2.
Press the ONE KEY PLAY buttons to play each note of the tune.
The accompaniment (left hand) part of the tune follows along as you play the melody (right hand) part.
The keyboard key that corresponds to the next note to be played flashes, and lights when you play the note.
The rhythm (percussion) part does not sound.
3.
Try pressing any one of the keyboard keys in place of the ONE KEY PLAY buttons.
Pressing any keyboard key plays the correct melody (right hand part) note.
Pressing more than one key at the same time counts as a single melody note. Pressing a key while another key is held down is counted as two melody notes.
The correct note is played even if you do not press the key that is lit.
4.
To stop play at any time, press the START/STOP button.
When you do, the STEP 1 indicator goes out.
E-23
Step 2: Master the melody
1.
Press the STEP 2 button.
When you do, the STEP 2 indicator appears.
After a count sounds, the keyboard stands by and
waits for you to play the first note of the tune. If the tune includes intro measures, the keyboard enters standby after the intro measures are complete.
kTw i n l e
Fingering
2.
Play the notes indicated by the 3-Step Lesson System.
The accompaniment (left hand) part of the tune follows along as you play the melody (right hand) part.
The keyboard key that corresponds to the next note to be played flashes, and lights when you play the note.
The rhythm (percussion) part does not sound.
Step 3: Play at normal speed
1.
Press the STEP 3 button.
When you do, the STEP 3 indicator appears.
Play starts after a count sounds.
kTw i n l e
Fingering
2.
Play along on the keyboard, following the keys as they light.
The accompaniment (left hand) part of the tune plays at normal speed, regardless of what you play on the keyboard.
With an auto-accompaniment tune, the keyboard key that corresponds to the next note to be played flashes, and lights when the note should be played.
With a two-hand tune, the applicable keyboard key remains lit as long as its note plays. In this case, however, the key for the next note to be played does not flash. Keys light when their notes start to play.
Press keyboard keys as they light. More than one key may light when you are playing a two-hand tune. Press all keys that light.
3.
To stop play at any time, press the START/STOP button.
When you do, the STEP 2 indicator goes out.
E-24
3.
To stop play at any time, press the START/STOP button.
When you do, the STEP 3 indicator goes out.
To practice the left hand part
Once you master right hand part play, you can use the two­hand tunes (numbers 84 through 99) to practice left hand part.
1.
Press the SONG BANK button until the SONG BANK indicator appears.
This causes the number and name of the currently selected Song Bank tune to appear on the display.
2.
Input the two digit number for the tune you want to play.
3.
Press the PART SELECT button to switch the left hand play.
Lit
4.
Press the STEP 1, STEP 2, or STEP 3 button.
When you do, the STEP 1, STEP 2, or STEP 3 indicator appears.
After a count beat sounds, the right-hand part starts to play and the keys for the left-hand part notes flash.
5.
Press the PART SELECT button to return the part selection to its previous setting.
6.
To interrupt play of the melody, press the START/ STOP button.
When you do, the STEP 1, STEP 2, or STEP 3 indicator disappears.
E-25
Technical Reference
Troubleshooting
Be sure to check the following table whenever you experience problems with keyboard operation.
CauseSymptom Action
No sound when keyboard keys are pressed.
Any of the following symptoms while using battery power.
Instrument does not turn on
Display that is flickering, dim, or difficult to read
Abnormally low speaker/headphone volume
Distortion of sound output
Occasional interruption of sound when playing at high volume
Sudden power failure when playing at high volume
Flickering or dimming of the display when playing at high volume
Continued sound output even after you release a key
A tone that is totally different from the one that is selected
Abnormal rhythm pattern and Song Bank play
1. Power supply problem.
2. Volume setting is too low.
3. Headphones are plugged into the keyboard.
4. The POWER/MODE selector is in the CASIO CHORD or FINGERED position.
5. Tone 99 PERCUSSION is selected and you are pressing keys that are not assigned tones.
Low battery power
1. Correctly attach the AC adaptor, make sure that batteries (+/–) are facing correctly, and check to make sure that batteries are not dead.
2. Use the VOLUME slider to increase volume.
3. Unplug the headphones from the PHONES/OUTPUT jack.
4. Normal play is not possible on the accompaniment keyboard while the POWER/MODE selector is set to CASIO CHORD or FINGERED. Change the POWER/MODE selector setting to NORMAL.
5. While 99 PERCUSSION is selected, you can use only keys that are marked on the console with illustrations of percussion instruments.
Replace the batteries with a set of new ones or use the AC adaptor.
See Page
Page E-11
Page E-14
Page E-13
Page E-17
Page E-14
Page E-11
Key light stays on.
RHYTHM button does not
work.
E-26
Keyboard is waiting for play of the correct note during Step 1 or Step 2 play.
Keyboard is in the Song Bank Mode.
1. Press the lit key to continue with Step 1 or Step 2 play.
2. Press the START/STOP button to quit Step 1 or Step 2 play.
Press the SONG BANK button to return to the normal mode.
Pages E-23, 24 Pages E-23, 24
Page E-20
Cannot change TRANSPOSE/ TUNE settings.
A tones quality and volume sounds slightly different depending where it is played on the keyboard.
CauseSymptom Action
Keyboard is in the Song Bank Mode.
Demo tune play is in progress.
This is an unavoidable result of the digital sampling process,* and does not indicate malfunction.
* Multiple digital samples are taken for the low range, middle range, and high range of
the original musical instrument. Because of this, there may be a very slight difference in tonal quality and volume between sample ranges.
Press the SONG BANK button to return to the normal mode.
Stop demo tune play.
See Page
Page E-20
Page E-16
E-27
Specifications
Model: LK-120/LK-125
Keyboard: 61 standard-size keys; 5 octaves Key Light System: Can be turned on and off (up to 4 keys can be lit at the same time)
Tones: 100 presets
Polyphony: 12 notes maximum 3-Step Lesson System: Number of simultaneosly lit keys; 4
Playback: 1 tune repeat playback Voice Fingering Guide: On/Off
Auto-accompaniment
Rhythm patterns: 50 presets Tempo: Adjustable, (216 steps, Chords: Two systems; CASIO CHORD, FINGERED Other: Fill-in pattern, Synchro start
Song Bank tunes: 100 tunes
Musical Information Function: Tone, Auto Accompaniment, Song Bank numbers and names; tempo, 3 step
Other Functions
Transpose: F# to C to F: half-note Tuning: Adjustable A4 = Approx. 440 Hz ±50 cents, Initial value: A4 = Approx. 440 Hz
Speakers: 10 cm diameter × 2 (Output: 2W+2W)
I/O Terminals
Power Supply: DC 9.5V jack Headphones/Output: Stereo standard jack (Output is monaural.)
Power Supply: 2-way
Batteries: 6 AA-size zinc-carbon batteries or alkaline batteries
AC adaptor : AD-E95100L Auto Power Off: Approximately 6 minutes after the last operation
Power Consumption: 9.5 V 7.7 W Dimensions: 94.9 × 30.4 × 9.3 cm (37 3/8 × 11 15/16 × 3 11/16 inch)
Weight: Approximately 3.4 kg (7.5 lbs) (without batteries)
3-Steps
= 40 to 255), initial value; 120
lesson display, chord name, fingering, timing indicator, key lighting, voice fingering
[output impedance: 78, output voltage: 4V (RMS) MAX]
Battery Life: Approximately 4 hours continuous operation on alkaline batteries
Approximately 1 hour continuous operation on zinc-carbon batteries
* Designs and specifications are subject to change without notice.
E-28
B
Operating Precautions
Be sure to read and observe the following operating precautions.
Location
Avoid the following locations for this product.
Areas exposed to direct sunlight and high humidity
Areas subjected to temperature extremes
Near a radio, TV, video deck, or tuner
The above devices will not cause malfunction of the product, but the product can cause interference in the audio or video of a nearby device.
User Maintenance
Never use benzine, alcohol, thinner, or other chemical agents to clean the product.
To clean the product or its keyboard, wipe with a soft cloth moistened in a weak solution of water and a mild neutral detergent.
Wring all excess moisture from the cloth before wiping.
Included and Optional Accessories
Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.
AC Adaptor Handling Precautions
Use a power outlet that is easily accessible so you can unplug the AC adaptor when a malfunction occurs or whenever else you need to do so.
The AC adaptor is intended for indoor use only. Do not use it where it might be exposed to splashing or moisture. Do not place any container, such as a flower vase, that contains liquid on the AC adaptor.
Store the AC adaptor in a dry place.
Use the AC adaptor in an open, well-ventilated area.
Never cover the AC adaptor with newspaper, a table cloth, a curtain, or any other similar item.
Unplug the AC adaptor from the power outlet if you do not plan to use the product for a long time.
Never try to repair the AC adaptor or modify it in any way.
AC adaptor operating environment
Temperature: 0 to 40°C Humidity: 10% to 90% RH
Output polarity:
Weld Lines
Lines may be visible on the exterior of the product. These are weld lines that result from the plastic molding process. They are not cracks or scratches.
Musical Instrument Etiquette
Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the volume at levels that do not disturb others. Other steps you can take when playing late at night are closing windows and using headphones.
Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal
use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.
IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,
DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
The contents of this manual are subject to change without notice.
The actual appearance of the product may be different from that shown in the illustrations in this Users Guide.
Company and product names used in this manual may be registered trademarks of others.
E-29
Appendix/Apéndice
Tone List
Lista de sonidos
PIANO
00 PIANO 1 01 PIANO 2 02 HONKY-TONK 03 STUDIO PIANO 04 ELEC PIANO 1 05 ELEC PIANO 2 06 ELEC PIANO 3 07 ELEC PIANO 4 08 HARPSICHORD 09 CLAVELECTRO
ORGAN
10 ELEC ORGAN 1 11 ELEC ORGAN 2 12 ELEC ORGAN 3 13 ELEC ORGAN 4 14 CHURCH ORGAN 15 PIPE ORGAN 16 REED ORGAN 17 ACCORDION 18 BANDONEON 19 HARMONICA
GUITAR/BASS
20 GUT GUITAR 21 ACOUS GUITAR 22 JAZZ GUITAR 23 ELEC GUITAR 24 MUTE GUITAR 25 DIST GUITAR 26 WOOD BASS 27 ELEC BASS 28 SLAP BASS 29 BANJO
STRINGS/ENSEMBLE
30 VIOLIN 31 CELLO 32 HARP 33 STRINGS 1 34 STRINGS 2 35 STRINGS 3 36 SYNTH-STR 1 37 SYNTH-STR 2 38 CHOIR 39 VOICE OOH
BRASS/REED/PIPE
40 TRUMPET 41 TUBA 42 BRASS ENS 43 FR.HORN 1 44 FR.HORN 2 45 BRASS 1 46 BRASS 2 47 SYN-BRASS 1 48 SYN-BRASS 2 49 SYN-BRASS 3 50 SOPRANO SAX 51 ALTO SAX 52 TENOR SAX 53 OBOE 54 CLARINET 55 PICCOLO 56 FLUTE 57 RECORDER 58 PAN FLUTE 59 WHISTLE
SYNTH-SOUND
60 SYN-LEAD 1 61 SYN-LEAD 2 62 SYN-LEAD 3 63 SYN-CALLIOPE 64 SYN-PAD 1 65 SYN-PAD 2 66 SYN-PAD 3 67 GLASS HMCA 68 COUNTRY FARM 69 SYN-BASS 70 PEARL DROP 71 COSMIC SOUND 72 SOUNDTRACK 73 SPACE PAD 74 VOICE BASS 75 APPLAUSE 76 SYNTH-SFX 77 VEHICLE 78 PHONE 79 FUNNY
LAYER
80 STR PIANO 81 STR E.PIANO 82 CHOIR E.P 83 CHOIR ORGAN 84 STR GUITAR 85 STR HARP 86 BRASS STR 87 VIB PAD 88 12 STR GTR 89 CHOIR STR
SPLIT/PERCUSSION
90 BASS/PIANO 91 BASS/E.PIANO 92 BASS/VIB 93 BASS/GUT GTR 94 V.BASS/OOH 95 STR/PIANO 96 STR/TRUMPET 97 VIBRAPHONE 98 MARIMBA 99 PERCUSSION
A-1
Rhythm List
Lista de ritmos
POPS I
00 CLUB POP 01 FUNKY POP 02 SOUL BALLAD 03 POP BALLAD 04 LITE POP
POPS II
05 16 BEAT FUNK 06 8 BEAT POP 07 POP ROCK 08 DANCE POP 09 POP FUSION 10 FOLKIE POP
ROCK
11 ROCK WALTZ 12 SLOW ROCK 13 SOFT ROCK 14 50’S ROCK 15 60’S SOUL 16 4 BEAT ROCK 17 ROCK 18 TWIST 19 NEW ORLNS R&R 20 R&B
JAZZ/FUSION
21 BIG BAND 22 SWING 23 FOX TROT 24 JAZZ WALTZ 25 LATIN FUSION
DANCE/FUNK
26 TECHNO 27 TRANCE 28 DISCO 29 FUNK 30 RAP
EUROPEAN
31 POLKA 32 MARCH 33 WALTZ 34 SLOW WALTZ 35 TANGO
LATIN
36 BOSSA NOVA 37 SAMBA 38 MAMBO 39 REGGAE 40 SKA 41 SALSA 42 FOLKLORE 43
VARIOUS
44 COUNTRY 45 TOWNSHIP 46 SLOW GOSPEL 47 BALADI 48 BAROQUE 49 NEW AGE
RUMBA CATALANA
A-2
Fingered Chord Charts
Cuadros de acordes digitados
This table shows the left-hand fingerings (including inverted forms) for a number of often-used chords.
Esta tabla muestra las digitaciones (incluyendo las formas invertidas) para varios de los acordes más a menudo usados.
4
5
numbers
1
:Números de los
dedos de la mano izquierda
: Left hand finger
3
2
A-3
Cannot be specified in FINGERED setting because of accompaniment keyboard limitations, but augmented
*
and diminished (seventh) chords made up of the same component notes (with different base note) can be used instead.
Chords with same component notes as B
Chords with same component notes as B aug ............ E
Chords with same component notes as A dim7 ......... C dim7, E
aug ........... D aug, F aug
aug, G aug
dim7, F dim7
Chords with same component notes as B dim7 ........ C dim7, E dim7, G dim7
Chords with same component notes as B dim7 .......... D dim7, F dim7, A dim7
No puede especificarse en el ajuste FINGERED debido a las limitaciones del teclado de acompañamiento, pero
*
en su lugar pueden usarse los acordes aumentados y disminuídos (séptima) compuestos por las mismas notas componentes (con diferente nota básica).
Acordes con las mismas notas componentes como B
Acordes con las mismas notas componentes como B aumentada ......... E
Acordes con las mismas notas componentes como A dim7 .................... C dim7, E
aumentada........ D aumentada, F aumentada.
aumentada, G aumentada.
dim7, F dim7.
Acordes con las mismas notas componentes como B dim7 ................... C dim7, E dim7, G dim7.
Acordes con las mismas notas componentes como B dim7 .................... D dim7, F dim7, A dim7.
A-4
Song List / Lista de canciones
SONG BANK / BANCO DE CANCIONES
00 JUPITER FROM THE PLANETS 01 DECK THE HALL 02 WE WISH YOU A MERRY CHRISTMAS 03 JINGLE BELLS 04 SILENT NIGHT 05 JOY TO THE WORLD 06 O CHRISTMAS TREE 07 WHEN THE SAINTS GO MARCHING IN 08 GREENSLEEVES 09 SWING LOW, SWEET CHARIOT 10 AMAZING GRACE 11 JOSHUA FOUGHT THE BATTLE OF JERICHO 12 AULD LANG SYNE 13 TWINKLE TWINKLE LITTLE STAR 14 LIGHTLY ROW 15 SUMM SUMM SUMM 16 THE MUFFIN MAN 17 LONG LONG AGO 18 ACH DU LIEBER AUGUSTIN 19 LONDON BRIDGE 20 SUR LE PONT DAVIGNON 21 UNDER THE SPREADING CHESTNUT TREE 22 SIPPIN CIDER THROUGH A STRAW 23 GRANDFATHERS CLOCK 24 THE NOBLE DUKE OF YORK 25 MICHAEL ROW THE BOAT ASHORE 26 DANNY BOY 27 ANNIE LAURIE 28 MY BONNIE 29
IF YOURE HAPPY AND YOU KNOW IT, CLAP YOUR HANDS 30 MY DARLING CLEMENTINE 31 HOME SWEET HOME 32 MY WILD IRISH ROSE 33 DOWN IN THE VALLEY 34 J’AI PERDU LE DO DE MA CLARINETTE 35 IVE BEEN WORKING ON THE RAILROAD 36 LITTLE BROWN JUG 37 ON TOP OF OLD SMOKEY 38 AMERICA THE BEAUTIFUL 39 AURA LEE 40 OH! SUSANNA 41 BEAUTIFUL DREAMER 42 HOUSE OF THE RISING SUN 43 SHE WORE A YELLOW RIBBON 44 WHEN JOHNNY COMES MARCHING HOME 45 CAMPTOWN RACES 46 SWANEE RIVER (OLD FOLKS AT HOME) 47 JEANNIE WITH THE LIGHT BROWN HAIR 48 YANKEE DOODLE 49 RED RIVER VALLEY
50 TURKEY IN THE STRAW 51 MY OLD KENTUCKY HOME 52 HOME ON THE RANGE 53 ALOHA OE 54 JAMAICA FAREWELL 55 SAKURA SAKURA 56 HOLDIRIDIA 57 LA CUCARACHA 58 LA PALOMA 59 SANTA LUCIA 60 CIELITO LINDO 61 TROIKA 62 SZLA DZIEWECZKA 63 WALTZING MATILDA 64 AJO MAMMA 65 RASA SAYANG 66 AIR FROM SUITE no.3 67 SPRING FROM THE FOUR SEASONS 68 TOY SYMPHONY 69 SYMPHONY no.101 CLOCK 2nd Mov. 70 SERENADE FROM EINE KLEINE NACHTMUSIK 71 ODE TO JOY 72 BRIDAL MARCH FROM LOHENGRIN 73 TRIUMPHAL MARCH FROM AIDA 74 BRINDISI FROM LA TRAVIATA 75 LA DONNA É MOBILE FROM RIGOLETTE 76 POLKA FROM THE BARTERED BRIDE 77 CHANSON DU TOREADOR FROM CARMEN 78 HABANERA FROM CARMEN 79 PRELUDE FROM “L’ARLÉSIENNE 80 LE CYGNE FROM LE CARNAVAL DES ANIMAUX 81 MARCH FROM THE NUTCRACKER 82 SCENE FROM SWAN LAKE 83 THAIS MEDITATION 84 THE ENTERTAINER 85 FÜR ELISE 86 PIANO SONATA op.13 PATHÉTIQUE 2nd Mov. 87 PIANO SONATA op.27-2 MOONLIGHT 1st Mov. 88 TURKISH MARCH (MOZART) 89 PIANO SONATA K.545 1st Mov. 90 VALSE op.64-1 PETIT CHIEN 91 CHOPSTICKS 92 FRÖHLICHER LANDMANN 93 AMERICAN PATROL 94 JESUS BLEIBET MEINE FREUDE 95 MINUET IN G MAJOR 96 GAVOTTE (GOSSEC) 97 CANON (PACHELBEL) 98 HUNGARIAN DANCES no.5 99
WEDDING MARCH FROM MIDSUMMER NIGHTS DREAM
A-5
This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany.
Esta marca de reciclaje indica que el empaquetado conforma a la legislación de protección ambiental en Alemania.
CASIO COMPUTER CO.,LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
K
MA1006-B Printed in China
LK120/125ES1A
Loading...
