DT-X11 Series

Quick Start Guide

(Version 1.03)

CASIO Computer Co., Ltd.

January 2009

Table of Contents

Editorial Record 4 Preface 5

Chapter 1. Product Overview

1.1 Hardware Specifications 6

1.2 Library Configuration 9

1.3 Developmen

t Reference Manuals 10

1.4 Sample Program 11

Chapter 2. Prerequisites 12

2.1 Skills Required 12

2.2 Hardware Required 13

2.3 Software Required 17

Chapter 3. Setting Up the Development Environment 18

3.1 Application Development 18

3.2 Installing CASIO SDK Files 19

Chapter 4. Setting Up Bridge Satellite Cradle 22

4.1 Configuring DIP S

witch Settings 24

Chapter 5. Connecting the DT-X11 to PC 25

5.1 Connection via PCMCIA or CF Card 26

5.2 Connections via ActiveS

ync 27

5.2.1 Via Direct IrDA 28

5.2.2 Via Direct USB 32

5.2.3 Through Bridge Satellite Cradle via USB 37

5.2.4 Through Bridge Satellite Cradle via RS-232C 39

5.3 Connection via Windo

s Mobile Device Center 41

5.4 Connection via WLAN 43

5.5 Connection via Bluetooth 45

5.6 Connection via Ethernet PC Card 47

5.7 Accessing Shared Network Drive via WLAN 48

5.8 Connection via Direct TCP/IP from Visual Studio 49

Chapter 6. Setting Up the Development Environment 50

6.1 Installing CAB Files 50

6.2 eMbedded Visual C++ 4.0 51

6.3 Visual Studio 2005 52

6.4 Visual Studio .NET 2003 53

Chapter 7. Device Emulator 54

7.1 Softw

are Required 54

7.2 Starting Up the Device Emulator 56

7.3 Using the Device Emulator 57

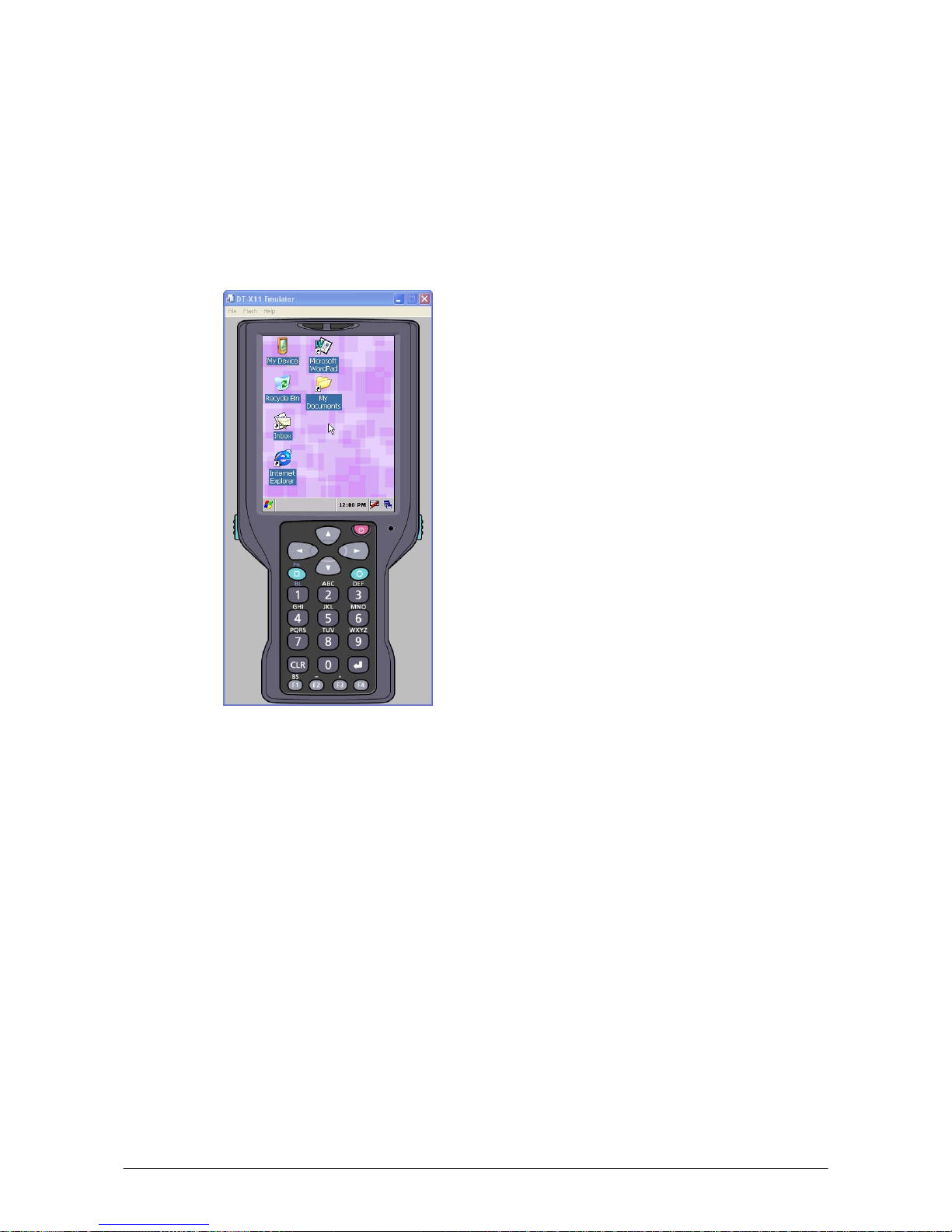

7.3.1 DT-X11 Device Emulator 57

7.3.2 I/O Simulator 58

7.3.3 Connecting via ActiveSync 63

7.4 Debugging Applications 66

7.4.1 Setting Build Configuration 66

7.4.2 Debugging Applications 66

Chapter 8. eMbedded Visual C++ 69

8.1 Building Simple eVC++ 4.0 Test Program 69

8.2 Using CASIO Libraries from eVC++ 4.0 71

Chapter 9. Visual Studio 73

9.1 Using CASIO .NET Libraries from VB .NET 74

9.2 Using CASIO .NET Libraries from C# 76

9.3 Using CASIO Libraries from C++ 78 Chapter 10. Resources 82 Chapter 11. Troubleshooting 83

No part

of this document may be produced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of CASIO Computer Co., Ltd. in Tokyo Japan. Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose.

Editorial Record

Manual Version

no.

Date edited Page Content

0.90 February 2006 Tentative version

1.00 March 2006 Original version 10 Explanation in Chapter 2.2 is updated. 11 Notes about the AC adaptors are added. 12 “-CN” models are added. 13 In Chapter 2.3, the list of software required is updated. 15 Chapter 3.1 “Application Development” is added. 16 Chapter 3.2 “Installing CASIO SDK Files” is added. 17 Chapter 3.3 “Installing CAB Files” is added. 18 Figure 3.1 in Chapter 3.4 is corrected. 19 Figure 3.2 in Chapter 3.5 is corrected.

39 to 40 Chapter 5.3 “USB Connection via Windows Mobile Device

Center” is added.

52 Chapter 6.3 “Sample Program” is added.

58 to 60 In Chapter 7.3 “Using CASIO Libraries from C++”,

development method for VCC++ Project with Visual Studio is added.

61 Chapter 7.4 “Sample Program” is added.

1.01 January 2008

62 to 75 Chapter 8 “Device Emulator” is added.

58 In Chapter 7.3, the explanation on page 58 is updated. 1.02 April 2008 77 In Chapter 10, note about “VCC++ application

development with Visual Studio 2005” is removed.

9 to 11 In Chapter 1, Library Configuration, Development

Reference Manuals, and Sample Program are added.

18 to 22, Chapter 3 is divided into two chapters, Installing SDK

to PC and Setting Up the Development Environment.

50 The configuration of the CAB files is changed.

54 to 68 Chapter of Device Emulator is relocated and

rearranged.

55 The limitation of audio system device in chapter of

Device Emulator is deleted.

56 to 62 In Chapter 7, images and usage of I/O Simulator are

changed.

17 to 22,

54 to 81

Microsoft Visual Studio 2008 is added to development platform.

1.03 January 2009

73 to 81 In Chapter 9, the sample is updated.

Preface

This guide clearly and concisely sets out the information developers need to know to get started with the CASIO DT-X11 development. Every method of connecting to your development system is covered and step by step instructions for installing and testing the CASIO SDKs are included.

The purpose of this guide is to get you to the point where you can start development; you should refer to the Library manuals for detailed information on the specific APIs.

1. Product Overview

1.1 Hardware Specifications

Table 1.1

Item Specification Remark

CPU, Memory

CPU Marvell® PXA255 Application Processor Operating clock; max 400 MHz RAM 64 MB

FROM 128 MB (user area; approx. 115 MB) FlashFX built in. OS Microsoft® Windows® CE 5.0 operating system C-MOS Imager (applicable to DT-X11M30E, DT-X11M30U and DT-X11M30RC)

Method C-MOS Imager, 752 x 480 (Wide VGA),

monochrome Emitting window Redirected downward at 45 degree Resolution 1-D:

2-D Stacked:

2-D Matrix:

Composite:

0.15mm

0.169mm

0.33mm

PCS 1-D:0.45 (minimum)

2-D:0.45 (minimum)

Print contrast signal

Readable distance (Resolution = 1.0 mm)

1-D:

2-D Stacked:

2-D Matrix:

Approx. 40 to 410 mm Approx. 50 to 250 mm

Approx. 60 to 130 mm Max. 29 mm When the distance is at 40 mm. Readable width Max. 265 mm When the distance is at 365 mm.

Focal distance 4.5 inches Readable 1D symbologies

EAN8/JAN8, EAN13/JAN12, UPC-A, UPC-E, Code39, Codabar(NW7), Interleaved 2of5(ITF), Code93, Code128(EAN128), MSI(Plessey), IATA, Code11, RSS-14, RSS Limited, RSS Expanded, ISBT

Readable 2D Stacked symbologies

Code49, PDF417, Micro PDF, Codablock F, EAN8/13 Composite, TLC39, UCC/EAN128 Composite, RSS-14(Stacked type), RSS Expanded(Stacked type), RSS Composite

Readable 2D Matrix symbologies

Aztec, DataMatrix, Maxicode, QR Code

Laser Scanner (applicable to DT-X11M10E and DT-X11M10RC)

Method Semi-conductor laser light Emitting window Direct Wave Length 650±10 nm Optical Output <1 mW No. of scannings 100±20 times per second Resolution 0.127 mm (minimum) PCS 0.45 (minimum) Print contrast signal Readable distance Approximately 40 to 300 mm

Max. 40 mm When the distance is at 40 mm. Readable width Max. 238 mm When the distance is at 300 mm.

Daylight for scanning 50,000 Lux or less Readable 1D bar code symbologies

EAN8/JAN8, EAN13/JAN13, UPCA, UPCE, Code39, Codabar(NW7), Interleaved 2of5(ITF), Code93, Code128(EAN128), MSI(Plessey), IATA, Industrial 2of5(IDF), RSS-14, RSS Limited, RSS Expanded

Continue.

Display

Display device 3.5-inch 2-Way TFT color LCD See note 5. No. of dots 240 (h) x 320 (w) Dot pitch 0.22 (h) x 0.22 (w) mm Display font Scalable font See note 1. Backlight LED

Indicator

Confirmation /Status LED x 2 pcs in red/green Left: Programmable

Right: Battery charge status

Input

Keyboard Numeric (Alphabet) keys, CLR key, Execute key,

Fn key, Text key, Cursor key

Control keys Power ON/OFF key, Reset switch Trigger keys 2 keys (on the left and right sides) Touch panel Plastic panel (Resolution 240 x 320)

Possible to display character input pad

IrDA interface

Standard IrDA ver.1.1 compatible Communication process Half duplex Synchronization Start/Stop bits Baud rate (in bps) 9,600/115,200/4M Comm. range 0 (contact) to 1m Max 0.25m at 4Mbps

Bluetooth®

Standard Bluetooth® Specification Ver.1.2 Communication range Approx. 3 m Depending on the surrounding

conditions.

Output power Maximum. 3dBm ( PowerClass 2)

Serial interface

Standard USB Slave Mini B 5 Pin. Baud rate Full speed (12 Mbps)

Audio

Earphone jackφ2.5mm 3-pole

Supports headset.

PC Card (applicable to DT-X11M10E, DT-X11M30E, and DT-X11M30U)

Standard PC Card Type I / Type II 3.3V Supply current 450 mA(5V), 500 mA(3.3V) Constant supply current values

WLAN (applicable to DT-X11M10RC and DT-X11M30RC)

Frequency category 2.4 GHz ISM bandwidth Standard IEEE802.11b See note 2. Modulation Direct Sequence Spread Spectrum Frequency range 2.400 to 2.4835 GHz Baud rate 11 Mbps (maximum) Communication range 50 m (indoor) to 150 m (outdoor) The range may vary depending on

the environment.

Number of channels 13 3 channels are available at the

same time.

Other feature Roaming between Access-Points

CF Card (applicable to DT-X11M10E, DT-X11M30E, and DT-X11M30U)

Card type CF card Types I/II (3.3V) CF Card Extension Unit (option) Supply current 300 mA (3.3V) maximum

Security PEAP MS-CHAP-V2, PEAP EAR-TLS,

MD5+WEP128

Continue.

Power

Operation Lithium-ion battery pack HA-A20BAT or DT-5025LBAT Memory backup Lithium battery (rechargeable) on board Built-in, not replaceable 50mAH

DT-X11M10E/M30E/M30U DT-X11M10RC/30RC Operating period (in

hours)

Approx. 8 (with HA-A20BAT)*3 Approx. 18 (with DT-5025LBAT)

Approx. 4 (with HA-A20BAT)

Approx. 10 (with DT-5025LBAT)

Memory back up period RAM : Approx. 10 minutes,

Clock : Approx. 2 weeks

- Lithium battery pack is fully charged.

- At room temperature.

Memory backup battery charge period

Approximately 4 days - Time period until when the battery is

fully charged.

- Battery pack is being installed.

- At room temperature.

Buzzer Sound pressure 70dB (minimum)

Notes:

1. A font that can be used to print characters of any size.

2. Concurrent use of WLAN communication with Bluetooth communication is not recommended.

3. Based on the operating cyclic ratio of “standby:calculation:scan” at 20:1:1

4. Based on the operating cyclic ratio of “standby:scan:wireless” at 6.5:1.5:2.

5. Dead Pixels

The LCD panel employed in this product uses high precision and substantial number of components which commonly cause a small number of the pixels not to light or to remain lit all the time. This is due to the characteristics of LCD panel yield in accuracy over 99.99% and permissible.

1.2 Library Configuration

The CASIO Software Development Kit (“SDK”) for DT-X11 series provides various libraries listed in the table.

Table 1.2

Library Description C++

C# System Library Library that is used to control the system. Yes Yes Laser Scanner L ibrary Library that is used to control the built-in laser scan engine. Yes Yes Bluetooth Library Library that is used to control the built-in Bluetooth module. Yes Yes Imager Library Library that is used to control the built-in CMOS Imager. Yes Yes JPEG Library Library that is used to handle and manipulate JPEG image

functions.

Yes -

FLINK Library Library that is used to control and carry out transmission/reception

of files between PC and other device.

Yes Yes

Note: The abbreviations used in the table are;

C++ : Visual C++ VB : Visual Basic .NET C# : Visual C# .NET

The names of the Dynamic Link Libraries for C++ and C#/VB for the device oriented libraries are listed in the table.

Table 1.3

Library Dynamic Link Library

Dynamic Link Library

(Class Library) System Library SystemLib.dll SystemLibNet.dll Laser Scanner Lib rary OBReadLib.dll OBReadLibNet.dll Bluetooth Library BluetoothLib.dll BluetoothLibNet.dll Imager Library ImagerLib.dll ImagerLibNet.dll JPEG Library JpegCe.dll None FLINK Library FlinkLib.dll MoFlinkLib.dll

1.3 Development Reference Manuals

Besides the various library manuals listed in Table 1.1, the CASIO Software Development Kit (“SDK”) for DT-X11 series provides also the development reference manuals listed in the table.

Table 1.4

Development Manual Description Quick Start Guide This reference manual. Hardware Manual Reference manual that describes hardware specifications in detail for each

dedicated option and DT-X11 series handheld terminal.

Software Manual Reference manual that describes software specifications in detail for all the

software integrated in DT-X11 series handheld terminal. System Library Manual Reference manual that describes individual functions in detail for System Library. Laser Scanner Library Manual

Reference manual that describes individual functions in detail for Laser Scanner

Library. Bluetooth Library Manual

Reference manual that describes individual functions in detail for Bluetooth

Library. Imager Library Manual Reference manual that describes individual functions in detail for Imager Library. JPEG Library Manual Reference manual that describes individual functions in detail for JPEG Library. FLINK Library Manual Reference manual that describes individual functions in detail for FLINK Library.

1.4 Sample Program

The following sample programs are included in the CASIO Software Development Kit (“SDK”).

Table 1.5

Sample Program Description

Common Device Control Library

BLUETOOTHLIBSAMPLE Connects the terminal to a Bluetooth printer and prints out data. CAMERALIBSAMPLE Takes pictures and displays them on the screen. See note. IMGLIBSAMPLE Scans bar codes using the Imager with settings set with the configuration

file. IMGLIBSAMPLE2 Program of IMGDemo.exe OBRLIBSAMPLE Reads a bar code using the Laser library. PRNLIBSAMPLE Prints out data on the built-in printer. See note. SYSTEMLIBSAMPLE Demonstrates the LED and buzzer functions.

JPEG Library JPEGSAMPLE Displays images in the JPEG file. FLINK Library FLINKLIBSAMPLE Demonstrate infrared communication via FLINK protocol between

terminals.

Note:

Some of the sample programs such as CAMERALIBSAMPLE and PRNLIBSAMPLE in the table

do not run because the respective devices are not integrated in the DT-X11 series handheld terminal.

2. Prerequisites

2.1 Skills Required

The following skills are required by developers aiming to develop application software for the DT-X11;

• Windows programming

• A good knowledge of one or more of the following:

- Visual C++

- Visual Basic .NET

- Visual C#

- Active Server Pages and web programming (not covered in detail in this guide)

The following skills or experiences are also desirable;

• Windows CE devices

• ActiveSync

• Some networking experience

2.2 Hardware Required

The following models of the DT-X11 series (see Table 2.1) and the dedicated options are available.

Table 2.1 Available models and features

Wireless Communication

Model No. Scan Engine

Bluetooth IEEE802.11b

PC Card

slot

Remark

DT-X11M10E Laser Scanner Yes No Yes DT-X11M10RC Laser Scanner Yes Yes No DT-X11M30E C-MOS Imager Yes No Yes DT-X11M30U C-MOS Imager Yes No Yes DT-X11M30RC C-MOS Imager Yes Yes No DT-X11M10E-CN Laser Scanner Yes No Yes DT-X11M10RC-CN Laser Scanner Yes Yes No DT-X11M30E-CN C-MOS Imager Yes No Yes DT-X11M30RC-CN C-MOS Imager Yes Yes No

See note.

Note: “-CN” in the “Model No.” boxes denotes that the model is dedicated for China only.

Dedicated Options

- HA-A20BAT (Battery Pack)

- DT-5025LBAT (Large-capacity Battery Pack)

- DT-160IOE (Bridge Satellite Cradle)

- DT-169CHGE (Cradle-type Battery Charger)

- DT-891WH (Wall Mount Unit)

- DT-167CHGE (Car Mounted Battery Charger)

- DT-827CAC (Car Power Cable)

- DT-5022CHG (Dual Battery Charger)

- AD-S45150AU (AC Adaptor with input capability of AC100V to 230V, and US power cord) See note 1.

- AD-S45150AE (AC Adaptor with input capability of AC100 to 230V, and Europe power cord) See note 1.

- AD-S60160BE (AC Adaptor with input capability of AC100V to 230V, and Europe power cord)

- AD-S60160BU (AC Adaptor with input capability of AC100V to 230V, and US power cord)

- AD-S42120AE (AC Adaptor with input capability of AC100 to 230V) See note 2.

- AD-S42120B (AC Adaptor with input capability of AC100 to 230V)

- DT-894CFU (CF Card Extension Unit)

- DT-892TCV (Communication Card Cover)

- DT-893LTCV (Communication Card Cover, Large size)

- AC-CORD-EU (Power cord for AD-S42120B/Europe)

- AC-CORD-US (Power cord for AD-S42120B/USA and Canada)

- AC-CORD-TW (Power cord for AD-S42120B/Taiwan)

- AC-CORD-KR (Power cord for AD-S42120B/Korea)

- AC-CORD-AU (Power cord for AD-S42120B/Australia)

- DT-882RSC (RS-232C Cable)

- DT-883RSC (RS-232C Cable)

- DT-887AXA (RS-232C Cable)

- DT-888RSC (RS-422 Cable)

- DT-380USB (USB Cable)

Notes:

1. The AC adaptor, AD-S45150AE (and AD-S45150AU), phased out current as of February 2008

and was replaced with the successor model, AD-S60160BE (and AD-S60160BU).

2. The AC adaptor, AD-S42120AE, phased out current as of February 2008 and was replaced with

the successor model, AD-S42120B.

See the following page for external views of the DT-X11 and its dedicated options.

External views of the DT-X11 and the options

Figure 2.1

Laser Scanner models

DT-X11M10E

DT-X11M10RC

DT-X11M10E-CN

DT-X11M10RC-CN

C-MOS Imager models

DT-X11M30E

DT-X11M30U *

DT-X11M30RC

DT-X11M30E-CN

DT-X11M30RC-CN

*; The model is

available in the USA

Canada.

Figure 2.2

Figure 2.3

2.3 Software Required

The following software tools and libraries are required in order to develop software for the DT-X11. Ensure that you download or purchase the correct Microsoft tools as appropriate.

C / C++

• Microsoft Visual Studio 2008 (not free of charge)

• Microsoft Visual Studio 2005 (not free of charge)

• Microsoft eMbedded Visual C++ 4.0

Download for free from;

http://www.Microsoft.com/downloads/details.asp

displaylang=en&FamilyID=1DACDB3D-

50D1-41B2-A107-FA75AE960856

• Microsoft eMbedded Visual C++ 4.0 SP4

Download for free from;

http://www.microsoft.com/downloads/details.as

px?familyid=4A4ED1F4-91D3-4DBE-986E-

A812984318E5&displaylang=en

• Microsoft ActiveSync 4.2 (or later)

Download for free from;

http://www.microsoft.com/downloads/details.as

px?FamilyID=7269173a-28bf-4cac-a682-58d

3233efb4c&DisplayLang=en

• Microsoft Windows Mobile Device Center 6.1 (for Windows Vista)

Download for free from;

http://www.microsoft.com/downloads

/details.as

px?familyid=46F72DF1-E46A-4A5F-A791-0

9F07AAA1914&displaylang=en

Visual Basic / Visual C#

• Microsoft Visual Studio 2008 (not free of charge)

• Microsoft Visual Studio 2005 (not free of charge)

• Microsoft Visual Studio .NET 2003 (not free of charge)

• Windows CE Utilities for Visual Studio .NET 2003 Add-on Pack 1.1

From Microsoft web site, see

http://www.microsoft.com/downloads/details.asp

familyid=7ec99ca6-2095-4086-b0cc-7c6c

39b28762&displaylang=en

• Microsoft ActiveSync 4.2 (or later)

Download for free from;

http://www.microsoft.com/downloads/details.as

px?FamilyID=7269173a-28bf-4cac-a682-58d

3233efb4c&DisplayLang=en

• Microsoft Windows Mobile Device Center 6.1 (for Windows Vista)

Download for free from;

http://www.microsoft.com/downloads/details.as

px?familyid=46F72DF1-E46A-4A5F-A791-0

9F07AAA1914&displaylang=en

3. Setting Up the Development Environment

3.1 Application Development

This chapter explains about what you need to set up for the development environment before starting your application development.

1. Installing Development Platform

Install Microsoft’s development platform which supports eMbedded Visual C++, Visual Studio 2005 and Visual Studio .NET 2003. For detail, refer to Chapter 2.3 “Software Required”.

2. Installing CASIO SDK

Instal

l CASIO’s SDK and various libraries if necessary. For installation method, refer to

Chapter 3.2 “Installing CASIO SDK Files”.

3. C

nnecting DT-X11 to PC (via ActiveSync or Windows Mobile Device Center)

Connect the DT-X11 to PC via Microsoft’s ActiveSync (for Windows XP or any other OS before Windows XP) or via Windows Mobile Device Center (for Windows Vista). For connection method, refer to Chapter 5 “Connecting the DT-X11 to PC”.

4. Setting Up th

e Development Environment

Copy

all necessary CASIO libraries to the DT-X11.

For detail, refer to Chapter 6 “Setting Up the Development Environment”.

5. Installing the

Devic

e Emulator

Install the Device Emulator for the DT-X11. For installation method, refer to Chapter 7 “Device Emulator”. If not necessary to install, go to “6. Application Development” below.

6. Application Development

Now, the

pplication development environment is set up and your development with the development platform can be started. After application is developed, transfer it to the Device Emulator or an actual terminal of the DT-X11 via ActiveSync or Windows Mobile Device Center for check on the operability. For application development method and transferring your application, refer to Chapters 8 “eMbedded Visual C++”, and 9 “Visual Studio”.

3.2 Installing CASIO SDK Files

Download the CASIO DT-X11 SDK installation CD image file from the following site and write it to a CD-ROM media.

http://www2.casio.co.jp/system_en/pa/PADealer/

(The site re

quires your user name and password. Enter your user name and password as issued by

CASIO.)

Notes:

• If you already installed DT-X11 SDK Ver. 1.xx in your PC, uninstall it before installing Ver.

2.xx.

• If any file of the version is remained in the following folders after uninstalling, delete it

manually.

C:\Program Files\CASIO\MBSYS C:\Program Files\Windows CE Tools\wce500

• If your PC runs in the Window Vista, first you must disable the User Account Control (“UAC”)

by following the process below before installing the CASIO SDK Files.

- Navigate to Control Panel → User Accounts → Enable or Disable the User

Account Control. Remove the check on User Account Control (UAC) to protect your PC, and then click OK button.

Installing ExportSDK

1. When the CASIO DT-X11 SDK CD-ROM is inserted into the CD-ROM drive of your PC, the

following screen appears automatically.

Figure 3.1

2. Click Installation List in Figure 3.1. The installation screen appears.

Figure 3.2

3. Click DT-X11 ExportSDK to display the Setup Wizard. Choose any one of the buttons in the

screen.

Installing Library

The DT-X11 Library is available for the below development platforms.

- Microsoft eMbedded Visual C++ 4.0

- Microsoft Visual Studio .NET 2003

- Microsoft Visual Studio 2005

- Microsoft Visual Studio 2008

Notes:

1. The Library header file (*.h) and the Import library file (*.lib) are installed in the following

folder.

C:\Program Files\CASIO\MBSYS\include Header file C:\Program Files\CASIO\MBSYS\lib\ARMV4I Import library file

2. The Class library DLL file (*.dll) is installed in the following folder.

C:\Program Files\CASIO\MBSYS\WindowsCE

3. When the Library is installed in your PC, the Help file (*.chm) is installed in the following folder.

C:\Program Files\CASIO\MBSYS\HELP

The Help file can be accessed by navigating to Start menu → All Programs → CASIO

Basic Development Kit → Help

Installing Online Help

Besides the Help file described above, the Online Help is also available for the below development

platforms. The installation of the Online Help is initiated in the Installation List for each

development platform.

- Microsoft Visual Studio .NET 2003

- Microsoft Visual Studio 2005

- Microsoft Visual Studio 2008

After the installation is complete, Microsoft Visual Studio starts up. The Online Help file can be

accessed by navigating to Help → Contents menu.

Installing Sample Program

When the Sample is chosen in the Installation List, the sample program folder in the CD-ROM

appears. The Sample program folder is available for each development platform. Copy one of the folders you wish to use into your PC.

- EVC for Microsoft embedded Visual C++

- VS2003 for Microsoft Visual Studio.NET 2003

- VS2005 for Microsoft Visual Studio 2005

- VS2008 for Microsoft Visual Studio 2008

If your sample program is with "Read-only" attribute set effect. Be sure to disable the attribute before using it.

4. Setting Up Bridge Satellite Cradle

Use the dedicated AC adaptor (AD-S42120B) available as option for the DT-160IOE Bridge Satellite Cradle to supply the power to the terminal. Always make sure that the power is being supplied to the cradle by the AC adaptor before performing any kind of communication with the terminal. The terminal draws the power via the cradle during communication.

1. After making sure that the Bridge Satellite Cradle power switch is turned off, plug the AC

adaptor into the AC adaptor jack on the back of the cradle.

Figure 4.1

2. Next, plug the AC adaptor into a power outlet on wall.

Figure 4.2

3. After making sure that the Bridge Satellite Cradle and your PC are both turned off, remove the

cap from each connection port on the cradle, and then perform one of the following steps to establish connection between the terminal and the PC. Be sure to keep the connection ports covered whenever you are not using them.

- RS-232C Connection

Connect an RS-232C cable (DT-887AXA) to the RS-232C port on the cradle. Connect the other end of the cable to your PC’s RS-232C port.

- USB Connection

Connect a USB cable (DT-380USB) to the USB port on the cradle. Connect the other end of the cable to your PC’s USB port.

4. Turn on the power. This causes the cradle’s power indicator lamp to light in red.

5. Making sure that their IR ports come into contact with each other, place the terminal onto the

cradle. This causes the cradle’s power indicator lamp to light in green.

• If the system is operating normally and communication is enabled, the system status

indicator lamp lights in green.

• The communication indicator lamp flashes in green when communication starts.

6. When charging is initiated, Indicator 2 (right side LED) on the DT-X11 lights up in red. When

charging has been completed, it changes its color from red to green.

Notes:

• A high-sensitivity communication element is used for IR communication. In order to ensure

successful communication, avoid using cellular phones or other devices that emit radio wave in the area where you are performing IR communication. If you need to use such a device, move away from the terminals that are in communication. In case of a cellular phone, keep it at least 30cm (11

") away.

• Take care to avoid allowing the cradle power contacts to become connected to each other, which

creates an electric short. Shorting the power contacts can damage the cradle.

4.1 Configuring DIP Switch Settings

Dismounting the bottom cover of the Bridge Satellite Cradle exposes the DIP switches. You can change the ON/OFF settings of the DIP switches to set the configuration. Please, set after switching OFF the power.

Figure 4.3

Note: Other DIP switch settings are used for testing and inspection purposes. Because of this, you should never use any DIP switch settings other than those described above.

5. Connecting the DT-X11 to PC

To make connection establishment with PC, use one of the methods, depending on the OS your PC runs, described below.

• ActiveSync (for Windows XP or any other OS earlier)

Use the ActiveSync to connect the DT-X11 to PC if the PC runs in Windows XP or other OS earlier than Windows XP. The ActiveSync can be downloaded at the URL below.

http://www.microsoft.com/downloads

/details.as

px?FamilyID=7269173a-28bf-4cac-a682-58d32

33efb4c&DisplayLang=en

• Windows Mobile Device Center (for Windows Vista)

Use the Windows Mobile Device Center to connect the DT-X11 to PC if the PC runs in Windows Vista OS. The Windows Mobile Device Center (“WMDC”) can be downloaded at the URL below.

http://www.microsoft.com/downloads

/details.as

px?familyid=46F72DF1-E46A-4A5F-A791-09F

07AAA1914&displaylang=en

5.1 Connection via PCMCIA or CF Card

An effective way of getting files from PC to the DT-X11 and vice versa is to use a PCMCIA Storage Card. Assuming you have a PC with a PC Card slot you can easily copy files to the card and transfer them to the DT-X11. Similarly, if your PC has a Compact Flash slot you can use the DT-X11’s PCMCIA slot with a CF card if you use a suitable CF-PCMCIA adaptor. Also, you could use the optional DT-894CFU (“CF Card Extension Unit”) to give the DT-X11 a dedicated Compact Flash slot.

5.2 Connections via ActiveSync

In nearly all cases during development work you will be communicating with the DT-X11 via

ActiveSync connection. There are many ways to connect the DT-X11 to PC via ActiveSync.

Table 5.1

Install to your PC

Connection

ActiveSync

Direct USB

driver

IrExpress USB

driver

IrExpress

Serial driver Direct IrDA Yes --- --- --Direct USB Yes Yes --- --Bridge Satellite Cradle via USB Yes --- Yes --Bridge Satellite Cradle via RS-232C Yes --- --- Yes WLAN Yes --- --- --Bluetooth Yes --- --- --Ethernet PC Card Yes --- --- ---

5.2.1 Via Direct IrDA

If your PC supports an IrDA port, it is possible to connect the DT-X11 to the PC via IrDA port using

ActiveSync.

Install ActiveSync to Your PC

If you have already installed ActiveSync 3.8, you may skip the steps 1 to 3 below.

1. First of all, install ActiveSync. Initiate the MSI file of ActiveSync 3.8. Then, click N

ext >

button. See Figure 5.1.

Figure 5.1

2. Click Next > button.

Figure 5.2

3. Hold the installation process when the menu in Figure 5.3 appears. Go to the next procedure

Establish Connection with Your PC in the next page.

Figure 5.3

Establish Connection with Your PC

1. Choose PC Connection icon in the Control Panel on the DT-X11.

2. Set PC Connection to IrDA. If it is not IrDA, tap Change Connection… button in PC

Connection tab (see Figure 5.4) and choose IrDA in the pull-down menu box in the window in Figure 5.4. Tap OK bu

tton twice.

Figure 5.4

3. On the PC, make sure Allow s

erial cable or infrared connection to this COM port has

been set effect and Infrared Port [IR] is chosen in the pull-down menu box (see Figure 5.5).

Figure 5.

4. Place the IrDA port located on the bottom side of the DT-X11 facing to the IrDA port on the PC

directly. Communication can be established if the distance is within zero to one meter. The maximum distance is 30cm when communicating at 4 Mbps.

5. From Start menu, navigate to Programs → Communication → ActiveSync and then start

up ActiveSync.

Establish Partnership

1. Now go back to the procedure Install ActiveSync to Your PC in Chapter 5.2.1 “Via Direct

IrDA”. Click Next > button in Figure 5.6.

Figure 5.6

2. Now the connection is established. You can choose either one of the radio buttons (see Figure

5.7) acc

ording to your need. Then click N

ext > button.

Figure 5.7

3. Now establishing connection is completed. You can start up eMbedded VC++ and create a

program and then deploy it into the DT-X11.

Figure 5.8

5.2.2 Via Direct USB

The DT-X11 has a mini USB connector on its left hand side. You can use this to directly connect the DT-X11 to your PC using a mini USB A-B cable.

Install ActiveSync to Your PC

1. If you have already installed ActiveSync 3.8, you may skip this step. For installing

ActiveSync, refer to Install ActiveSync to Your PC in Chapter 5.2.1 "Via Direct IrDA”.

Install USB Driver to Your PC

1. Connect a mini-USB cable to the port on the DT-X11, and connect the other end of the cable to

a USB port on your PC. When the DT-X11 is connected for the first time, a dialog appears to prompt you to install the suitable driver.

2. Download the USB driver “wceusbsh.inf” and “wceusbsh.sys” at the CASIO website and copy

them to appropriate folder in your PC.

3. Choose No, not this time and then click N

ext > button (see Figure 5.9).

Figure 5.9

4. Choose Install from a list or specific location [Advanced] and then click N

ext > button

(see Figure 5.10).

Figure 5.10

5. Click N

ext > button.

Figure 5.11

6. Choose Windows CE USB Devices icon (see Figure 5.12).

Figure 5.12

7. Click H

ave Disk… button (see Figure 5.13).

Figure 5.13

8. Click B

rowse… button (see Figure 5.14), and choose “wceusbsh.inf” in the folder you have

created in the step 2 of Install USB Driver to Your PC on page 32.

Figure 5.14

9. Then installing the driver will start.

Figure 5.15

10. Click C

ontinue Anyway button. A menu may prompt you to install the “wceusbsh.sys” file.

This happens if it is not in the same folder in where “wceusbsh.inf” is located. Download the file from the CASIO website and follow instruction appeared and then specify the location of the file.

Figure 5.16

11. Now installing the driver is completed.

Figure 5.17

Establish Connection with Your PC

1. Choose PC Connection icon in the Control Panel on the DT-X11.

2. Set PC Connection to USB. If it is not USB, tap Change Connection… button and choose

USB in the pull-down menu box in the window in Figure 5.18. Tap OK button twice.

Figure 5.18

3. On the PC, make sure Allow U

SB connection with this desktop computer. has been set

enabled (see Figure 5.19).

Figure 5.19

4. Fro

m Start menu, navigate to Programs → Communication → ActiveSync and then start

up ActiveSync.

Establish Partnership

For establishing the partnership, see the procedure Establish Partnership in Chapter 5.2.1 "Via

Direct IrDA” on page 31.

5.2.3 Through Bridge Satellite Cradle via USB

In order to communicate through the Bridge Satellite Cradle (DT-160IOE) via USB, you will need to install the IrXpress USB driver on your PC.

Install ActiveSync to Your PC

If you have already installed ActiveSync 3.8, you may skip this step. For detailed explanation on installing ActiveSync, see the procedure Install ActiveSync to Your PC in Chapter 5.2.1 "Via

rect IrDA” on page 31.

Install IrXpress USB Driver to Your PC

1. Initiate the IRXpressUSBIrDA.exe. Specify the folder in where the file has been saved and then

click N

ext > button.

Figure 5.20

2. Click N

ext > button.

Figure 5.21

3. Choose Yes, I want to restart my computer now. radio button, and then click Finish

button. Reboot your PC to set the IrXpress driver enabled.

Figure 5.22

Connect Bridge Satellite Cradle to Your PC

1. On the base of the Bridge Satellite Cradle you will find a bank of DIP switches. Ensure that

switch no. 6 is in the ON position to enable USB connection. If you change the switch settings, ensure that you power off and then on again so that the settings take effect.

2. Insert the client end of the USB cable into the USB port on the Bridge Satellite Cradle.

3. Insert the host end of the USB cable into a USB port on your PC.

4. The hardware will be detected and configured automatically.

Establish Connection to Your PC

For detailed explanation on establishing connection, see the procedure Establish Connection to Your PC in Chapter 5.2.1 "Via Direct IrDA” on page 28.

Establish Partnership

For detailed explanation on establishing the partnership, see the procedure Establish Partnership

in Chapter 5.2.1 "Via Direct IrDA” on page 31.

5.2.4 Through Bridge Satellite Cradle via RS-232C

In order to communicate through the Bridge Satellite Cradle (DT-160IOE) via RS-232C, you will need to install the IrXpress Serial Driver on your PC.

Install ActiveSync to Your PC

If you have already installed ActiveSync 3.8, you may skip this step. For detailed explanation on installing ActiveSync, see the procedure Install ActiveSync to Your PC in Chapter 5.2.1 "Via

rect IrDA” on page 28.

Install IrXpress Serial Driver to Your PC

1. Initiate the IRXpressSerialIrDA.exe. Specify the folder in where the file is saved, and then click

ext > button.

Figure 5.23

2. Click N

ext > button.

Figure 5.24

3. Choose Yes, I want to restart my computer now. radio button, and then click Finish

button (see Figure 5.25). Reboot your PC to set the IrXpress driver enabled.

Figure 5.25

Establish Connection to Your PC

1. On the base of the Bridge Satellite Cradle you will find a bank of DIP switches. Ensure that

switch no. 6 is in the OFF position to enable RS-232C connection. If you change the switch settings, ensure that you power off and then on again so that the settings take effect.

2. Plug one end of the 9 pin RS-232C cable (DT-887AXA) into the Serial port on the Bridge

Satellite Cradle.

3. Plug the other end of the RS-232C cable (DT-887AXA) into the correct COM port on your PC.

4. In order to set which COM port the IrXpress driver uses on your PC, choose Wireless Link in the

Control Panel.

5. Click Hardware tab and choose CASIO IrXpress Serial Infrared from the Devices list. Click

Properties.

6. Click Advanced tab. You can now choose the physical COM port to which the cradle is

attached and maximum connection speed (set this to 115200 bps). Click OK button and then OK

button again. The connection is now ready to use.

Establish Partnership

For detailed explanation on establishing the partnership, see the procedure Establish Partnership

in Chapter 5.2.1 "Via Direct IrDA” on page 31.

5.3 Connection via Windows Mobile Device Center

To establish connection via USB interface with PC runs in Windows Vista, use Windows Mobile Device Center (“WMDC”). The DT-X11 with the factory-setting (default) does not support the WMDC. Follow the procedure below to change the setting on the DT-X11.

Note that the CAB file, USBClientDTX11.110.CAB, must be installed in the DT-X11 prior to

establishing connection with the DT-X11 via Windows Mobile Device Center. For installation method, refer to Chapter 6.1 “Installing CAB Files”.

Procedure

1. Close

l applications running on the DT-X11.

2. Navigate to Settings → Control Panel → USB Connection.

3. Click Connect Utility tab (see red circle).

Figure 5.26

4. Choose Windows Mobile Device Center radio button and then click OK button.

Figure 5.27

5. A dialogue asking your final confirmation appears. Click YES button.

Figure 5.28

6. The DT-X11 starts up again.

7. Mount the DT-X11 on the cradle, and then follow a message appeared in the WMDC on the PC.

Notes:

• To resume the factory default setting, choose ActiveSync/LMWIN radio button in Step 4 on

the previous page, and start up the DT-X11 again.

• The WMDC version 6.1 or later will support the connection establishment via USB interface.

Any other versions of the WMDC earlier are not interoperable with Windows CE devices.

5.4 Connection via WLAN

The fastest and easiest way to connect the DT-X11 to your PC for development purpose is WLAN compliant with the IEEE802.11b standard. In this configuration, models with WLAN module integrated (applicable to DT-X11M10RC, M30RC, M10RC-CN, and M30RC-CN) are operable. Follow the steps below to establish connection between the DT-X11 and PC via WLAN.

Establish Partnership

Establish partnership first between the DT-X11 and PC via Direct IrDA or Direct USB, or via Bridge Satellite Cradle.

Set up WLAN Connection on the DT-X11

1. Initiate NetSearch tool by navigating to Programs → Communication → NetSearch.

Figure 5.29 displays a list of WLAN stations.

Figure 5.29

2. Navigate to Display → New Connection menu and set up the parameters shown in Basic

(see Figure 5.30), IP Setting (see Figure 5.31), and WLAN Setting (see Figure 5.32) tabs.

3. Enter the

SSID (see Figure 5.30) and other necessary security param

eters for the network. Tap

OK button and then close the configuration window.

4. A prompt that informs you that a reset is necessary to confirm these changes. Tap OK button.

Figure 5.30 Figure 5.31 Figure 5.32

Establish Connection to Your PC

1. On the PC, make sure Allow network [Ethernet] and Remote Access Service [RAS]

server connection with this desktop computer. has been set enabled (see Figure 5.33).

Figure 5.33

2. On the DT-X11, navigate to Start → Programs → Communication → LAN ActiveSync

to initiate the connection.

3. Ensure that Network Connection is the name of the connection method and that Connect to

line is the name of your PC.

4. Tap Connect … button and then the connection should be established.

5.5 Connection via Bluetooth

There are many peripherals such as USB dongles and PC Cards on the market that will allow you to add a Bluetooth serial port to a PC. This guide only covers the DT-X11 side of the connection and assumes that you have a suitably configured Bluetooth COM port available on your PC. Your PC may require a Passkey during connection; if so, you will be prompted on the DT-X11 at some point to enter the Passkey before the connection can be completed.

Establish Partnership

Establish partnership first between the DT-X11 and PC via Direct IrDA or Direct USB, or via Bridge Satellite Cradle.

Set up Bluetooth Connection on the DT-X11

1. On the DT-X11, navigate to Start → Settings → Control Panel → Bluetooth

Connection.

2. After a few seconds, a list of detected Bluetooth devices should appear. Identify the PC amongst

these and double tap its icon in the list.

3. A list of available services for the PC will appear. Bluetooth Serial Port should be among

them (the exact name may vary depending on the Bluetooth hardware you are using on the PC).

4. Tap and hold Bluetooth Serial Port icon (see Figure 5.34) and a pop-up menu should appear

with a

icon Use to connect for ActiveSync.

5. Tap this icon, and then it will change to an ActiveSync icon.

Figure 5.34

6. Tap Bluetooth Serial Port (or whatever the specific item is on your PC) and then ActiveSync

connection to the PC will be established.

7. If you tap and hold Bluetooth Serial Port icon in the screen that displays the PC side services,

you can choose Add Shortcut menu to create a shortcut to this connection.

8. Tap the blue icon in the Taskbar (see Figure 5.34) and choose Shortc

ut.

9. Tap a

nd hold the shortcut you created in the step 5 and tap Auto Connection in the context

menu (see Figure 5.35).

10. The ActiveSync connection will then be launched as soon as you start the Bluetooth connection

utility.

Figure 5.35

11. To disconnect the ActiveSync session it is best to double tap the connection icon in the Taskbar

and tap Disconnect button.

5.6 Connection via Ethernet PC Card

This procedure has been tested using a SOCKET LP-E (CF card) in a CF to PCMCIA converter.

Establish Partnership.

Establish partnership first between the DT-X11 and PC via either Direct IrDA or Direct USB, or via Bridge Satellite Cradle.

Set up Ethernet Connection on the DT-X11

1. Insert the LAN card into the PC Card slot on the DT-X11.

2. On the DT-X11, navigate to Start → Settings → Control Panel → Network and Dialup

Connections.

3. You should see NE20001 as an option. Highlight this and choose Properties from the

Connection menu.

4. Configure the settings suitably for your network.

5. On the Name Servers tab, you should enter the IP address of your PC on the Primary WINS

line.

Establish Connection to your PC

1. On the PC, make sure Allow network [Ethernet] and Remote Access Service [RAS]

server connection with this desktop computer. has been set enabled (see Figure 5.36).

Figure 5.36

2. O

n the DT-X11, navigate to Start → Programs → Communication → LAN ActiveSync

to initiate the connection.

3. Ensure that Network Connection is the name of the connection method and that Connect to

line is the name of your PC.

4. Tap Connect … button and then the connection should be made.

5.7 Accessing Shared Network Drive via WLAN

Assuming you have a valid network connection established, you can access shared drives on your

PC from the File Explorer on the DT-X11. The following shows the steps to initiate.

1. Configure a network connection on the DT-X11.

2. Double tap My Computer.

3. Type \\xxxx\ where xxxx is the network name of the PC.

4. A network logon dialog box will appear. Enter a valid User ID, Password and Network Domain.

5. Any shared network drives on the target PC will be displayed and you will be able to copy files

freely between them and the DT-X11.

5.8 Connection via Direct TCP/IP from Visual Studio

Visual Studio .NET 2003

If you have a network connection from the DT-X11 (for example, via WLAN) then you can use the Windows CE Utilities add-on pack (described in Chapter 3) to establish a direct link to the deve

lopment PC. Refer to the readme file supplied with the add-on pack for details.

Visual Studio 2005

Visual Studio 2005 does not support remote debugging via the direct TCP/IP connection.

6. Setting Up the Development Environment

6.1 Installing CAB Files

1. After installing the library files, the CAB files in Table 6.1 will be installed in the folder below.

C:\Program Files\CASIO\MBSYS\CAB

Table 6.1

Library CAB file Preinstalled System Library en_SystemLib.ARMV4I.CAB Yes Laser Scanner Library en_OBReadLib.ARMV4I.CAB Yes Bluetooth Library en_BluetoothLib.ARMV4I.CAB Yes Imager Library en_ImagerLib.ARMV4I.CAB Yes JPEG library en_JPEG.ARMV4I.CAB Yes FLINK library en_Flink.ARMV4I.CAB Yes (note 2)

Notes:

1. The library with "Yes" in "Preinstalled" column is preinstalled in the DT-X11 and in the

Device Emulator. Thus, it is not necessary to install it, unless it has been updated or changed.

2. The CAB file, en_Flink.ARMV4I.CAB, in the table does not operate for the DT-X11. Use the

FlinkLib.dll installed by default in the terminal.

2. Download the CAB file in Table 6.2 from the following site.

http://www2.casio.co.jp/system_en/pa/PADealer/

(The site requires your user name and password. Enter your user name and password as issued by

CASIO.)

Table 6.2

CAB file Description

USBClientDTX11.110.CAB USB client supported by Windows Mobile Device Center

3. Copy all the CAB files in Tables 6.1 and 6.2 to any folder on the DT-X11 via ActiveSync.

4. Carry out each CAB file.

5. When the installation starts, the installation status will appear.

6.2 eMbedded Visual C++ 4.0

ExportSDK for DT-X11 is required to develop application software with eMbedded Visual C++

4.0 (see note 1). Follow the steps below to install it.

1. Double click DT-X11_SDK.msi (see note 2) file and follow the prompts appeared on the screen

to install the SDK.

2. When prompted whether you want to install Custom or Complete installation, choose

Complete.

3. When the installation is finished, start up eMbedded Visual C++ 4.0.

4. Go to Chapter 8 and follow the instructions to verify that the SDK has been installed correctly.

If eMbe

dded C++ has been installed in your PC already, you will notice that you now have a new SDK and, once you select that new SDK, a new target device (DT-X11) in the comb-box menu in the Toolbar. Also, if you use any of the Remote Tools in eVC++ then you will find DT-X11 is listed as a new target (for example, try the Remote Registry Editor).

Notes:

1. If eMbedded Visual C++ 4.0 is used to develop application software, be sure to install Service

Pack 4 prior to the development.

2. Other SDK (e.g. standard SDK etc.) released before ExportSDK for DT-X11 is also operable.

3. If DT-X11_SDK is installed when standard SDK has been installed already, the following

dialog box in Figure 6.1 appears for warning.

Figure 6.1

4. Application software developed using MFC (Microsoft Foundation Class) for CASIO IT-10 is

not operable on the DT-X11.

5. Any application developed not using MFC is operable on the DT-X11.

6.3 Visual Studio 2005

There is no actual SDK available for Visual Studio as such. However, the CASIO libraries have been released for VB .NET and C#. See Chapter 9 for basic usage instructions. In this chapter, the remote debugging procedure using the DT-X11 for application development in VB .NET and C# environments is explained.

1. Establish connection with the DT-X11 via ActiveSync.

2. Open the application project for VB .NET or C# in Visual Studio 2005.

3. Click the button in square box drawn by red line (see Figure 6.2) to make sure that Visual Studio

has recognized the connection established with the DT-X11 via ActiveSync. If it does not,

start up ActiveSync again to establish connection.

Figure 6.2

4. Choose DT-X11 Device in the pull-down menu box in Figure 6.3.

Figure 6.3

5. If the debugger has started, debugging for the application can be carried out while checking each

operation by the application running on the DT-X11.

6.4 Visual Studio .NET 2003

There is no actual SDK available for Visual Studio as such. However, the CASIO libraries have been released for VB .NET and C#. See Chapter 9 for basic usage instructions. Microsoft has released an add-on for Visual Studio .NET 2003 that allows you to set the target CPU for a connected device (Visual Studio is unable to detect the target CPU of non-Pocket PC devices). Follow the steps below to install the add-on pack.

1. Download “Windows CE Utilities for Visual Studio .NET 2003 Add-on Pack 1.1” from the site

described in Chapter 2.3 “Software Required”.

2. Estab

lish

connection via ActiveSync between the DT-X11 and PC using any of the methods

described in Chapter 5 “Connecting the DT-X11 to PC”.

3. Navigate

to Tools → Select Windows CE Device CPU.

4. In Select the device architecture pull-down menu box, choose ARMV4I.

5. Click Configure.

6. Re-start Visual Studio .NET 2003.

You will now, for example, be able to choose Deploy <appname> from the Build menu and your

project will be deployed directly to the DT-X11. You will now also be able to remotely debug applications over your ActiveSync connection.

7. Device Emulator

The Device Emulator provides application developers with an environment that, without having

the actual device available, allows them to debug basic functions and performance of an application at source level by stepping through the code.

7.1 Software Required

The Device Emulator requires the software(s) listed below before installing the emulator.

Using Visual Studio 2008 or Visual Studio 2005

• ActiveSync 4.2 or a later version (If required)

http://www.microsoft.com/downloads/details.as

px?FamilyID=7269173a-28bf-4cac-a682-58d323

3efb4c&DisplayLang=en

• Visual Studio 2008 or Visual Studio 2005 (Required)

• CASIO DT-X11 SDK (Required)

• Standalone Device Emulator 3.0 (Optional. See note 2.)

http://www.microsoft.com/downloads/details.aspx?

displaylang=en&FamilyID=a6f6adaf-12e3-

4b2f-a394-356e2c2fb114

Using Visual Studio .NET 2003

• ActiveSync 4.2 or a later version (If required)

http://www.microsoft.com/downloads/details.aspx?FamilyID=7269173a-28bf-4cac-a682-58d32 33efb4c&DisplayLang=en

• Standalone Device Emulator 3.0 (If required. See notes 1 and 2.)

http://www.microsoft.com/downloads/details.aspx?

displaylang=en&FamilyID=a6f6adaf-12e3-4

b2f-a394-356e2c2fb114

• Visual Studio .NET 2003 (Required)

• CASIO DT-X11 SDK (Required)

Using eMbedded Visual C++ 4.0

• ActiveSync 4.2 or a later version (Required)

http://www.microsoft.com/downloads/details.as

px?FamilyID=7269173a-28bf-4cac-a682-58d32

33efb4c&DisplayLang=en

• Standalone Device Emulator 3.0 (If required. See notes 1 and 2.)

http://www.microsoft.com/downloads/details.aspx?

displaylang=en&FamilyID=a6f6adaf-12e3-4

b2f-a394-356e2c2fb114

• Microsoft eMbedded Visual C++ 4.0 (Required)

http://www.Microsoft.com/downloads/details.aspx?

displaylang=en&FamilyID=1DACDB3D-50

D1-41B2-A107-FA75AE960856

• Microsoft eMbedded Visual C++ 4.0 ServicePack4 (Required)

http://www.microsoft.com/downloads/details.as

px?familyid=4A4ED1F4-91D3-4DBE-986E-A8

12984318E5&displaylang=en

• CASIO DT-X11 SDK (Required)

Notes:

1. The software is not required if your PC already has Visual Studio 2005 installed.

2. To use Microsoft Device Emulator 3.0, follow the steps below.

2-1. Install DT-X11 ExportSDK and Device Emulator of the DT-X11 SDK. 2-2. Download Microsoft Device Emulator 3.0 and install it. 2-3. Edit the following file and save the change.

C:\Program Files\Windows CE Tools\wce500\DT-X11\Emulation\DT-X11.cdes

Before you change, the default parameter in the file is described as follows.

module=DevEmu500.exe

Change the parameter to the one below. Be sure to describe the whole parameter in single one

line.

module=C:\Program Files\Microsoft Device Emulator\1.0\ DeviceEmulator.exe

You can substitute the Device Emulator Version 3.0 released in Visual Studio 2008 for an engine of Device Emulator included in the DT-X11 SDK by the mentioned procedure above.

7.2 Starting Up the Device Emulator

After installing all required software described in Chapter 7.1, follow the steps below to start up the

Device Emulator on your PC.

1. Navigate to Start menu → All Programs → CASIO Device Emulator and click DT-X11.

Make sure that the DT-X11 Device Emulator has started up on the screen. See Figure 7.1. If

Figure 7.1 and Figure 7.2 appear on your PC, you are ready to use the emulator.

Figure 7.1 DT-X11 Device Emulator Figure 7.2 I/O Simulator

Terminology of Emulator and Simulator; The Emulator described in this reference manual is a software application that behaves in a very

similar way to the actual device by imitating individual hardware components or protocols present in the actual hardware.

On the other hand, the Simulator is also a software application that logically integrates application

programming interfaces (“API”) and certain other functions to allow debugging of the application

program using external events. The Emulator performs in a pseudo CPU and hardware

environment and it is impossible for the application to recognize whether it is in the actual device

environment or pseudo environment. However, actions carried out by the Simulator are not as

alike to those performed by actual components but merely mimic them very closely.

7.3 Using the Device Emulator

7.3.1 DT-X11 Device Emulator

The DT-X11 Device Emulator emulates various operations carried out by the actual DT-X11

terminal on the PC’s screen such as mouse operation, input on PC’s keyboard, displaying execution of applications, and operations by actual devices such as the scanner. Figure 7.3 shows an emulated DT

-X11 device on the screen of a PC.

Figure 7.3

Key Input

The emulator offers key input capability similar to that of the actual DT-X11 device. For instance, a key on the emulated keyboard of DT-X11 on the screen (see Figure 7.3) can be clicked with the PC mouse as well as key input made directly on the PC’s keyboard.

Reading Bar Codes

The emulator enables bar codes pre-registered in the I/O Simulator (see Figure 7.2) to be input when clicking Trigger key on the emulated keyboard (see Figure 7.3). Note however that the Trigger key mu

st be continuously pressed for a second or more otherwise an incorrect key input may result.

Sound

The emulator offers beep and sound capability similar to that of the actual DT-X11 device.

7.3.2 I/O Simulator

The I/O Simulator simulates registration of bar codes, generation of low battery warning, detection of terminal being mounted on cradle.

Registration of bar code symbologies

1. Registration

Click either ADD1D or ADD2D button (circled in red in Figure 7.4) to go into the bar code

registratio

n mode.

Figure 7.4

2. Bar code registration

Choose a bar code symbology in the Code Type pull-down menu that you wish to register in the I/O Simulator.

Figure 7.5

3. Registration of bar code and note

Enter bar code data in the Barcode field (see Figure 7.6) and a note about the bar code in the Note field if necess

ary. Click OK button to complete the bar code registration.

Figure 7.6

4. Completion of registration

After completion of the bar codes registration, the screen in Figure 7.7 shows a list of bar codes that

have been registered in the I/O Simulator. Prior to debugging with the Device Emulator,

make sure that you register all bar codes you wish to use in debugging.

Figure 7.7

5. Editing registered bar code content

Highlight a bar code in the list of registered bar codes (see Figure 7.7) and click Edit butto

Figure 7.8 appears for editing the bar code and its information.

Figure 7.8

6. Deleting registered bar code content

Highlight a bar code in the list of registered bar codes (see Figure 7.7) and click Del butto

Dialogue screen in Figure 7.9 appears for you to confirm the deletion. If it is okay to delete, click

Yes button, otherwise click No button.

Figure 7.9

Detecting Terminal in Cradle and Low Battery Warning

If you check the I/O Box and Low Battery boxes in STATE SETTING field (see Figure 7.10), the simulator simulates the respective events in the emulator.

Figure 7.10

I/O Box

If this box is checked, a notification is issued that the connection between the DT-X11 Device Emulator and cradle has been established. This notification can be utilized by the application.

Low Battery

If this box is checked, a notification that a low battery state has occurred is raised. The icon in the toolbar in the emulated screen appears too. The notification can be utilized by the application to recognize the low battery state in the hardware.

Indications

The I/O Simulator expresses a change of state that occurred in the DT-X11 Device Emulator.

• LED When the DT-X11 Device Emulator turns on the LED, the LED icon (LED2) in the I/O Simulator also turns

on. See Figure 7.11.

• Vibration When the DT-X11 Device Emulator vibrates, the vibration icon in the I/O Simulator also turns on. See Figure

7.11.

Figure 7.11

7.3.3 Connecting via ActiveSync

If debugging with the Device Emulator is carried out in either eMbedded Visual C++ 4.0 or Visual Studio 2008 or Visual Studio 2005, or transmission/reception of a file with the Device

Emulator is carried out, ActiveSync must be used.

Setting ActiveSync

1. Start up ActiveSync and then navigate to File → Connection Settings ….

Figure 7.12

2. In Connection Settings screen, check in the Allow con

nections to one of the following

box and choose DMA in the pull-down menu. See Figure 7.13.

Figure 7.13

Connection via ActiveSync

The ways to establish connection of the Device Emulator via ActiveSync are;

• Using Visual Studio 2008 or Visual Studio 2005

• Using Standalone Device Emulator 3.0 (if Visual Studio 2008 or Visual Studio 2005 is not

available.)

1. Start up the Device Emulator by referring to Chapter 7.2 “Starting Up the Device Emulator”.

2. Start up

Visual Studio 2008 or Visual Studio 2005, and then navigate to Tools → Device

Emulator Manager.

If Visual Studio 2008 or Visual Studio 2005 is not available, use the Standalone Device Emulator

3.0. C:\Program Files\Microsoft Device Emulator\1.0\dvcemumanager.exe

3. Right-click DT-X11 Emulator in Available Emulators list and then choose Cradle in the

popup menu. See Figure 7.14.

Figure 7.14

4. Make sure ActiveSync has started up and the icon in the status bar appears in Figure 7.15.

The icon indicates that the connection via ActiveSync has been established.

Figure 7.15

Figure 7.16

7.4 Debugging Applications

This chapter describes how to debug your application using the Device Emulator. Before starting

to “Build”, establish a connection between the DT-X11 and your PC via ActiveSync by referring to Chapter 7.3 “Using the Device Emulator”. For the bas

ic order of developing an application, refer to Chapters 8 “eMbedded Visual C++” and 9

“Visual Studio”.

7.4.1 Setting Build Configuration

When using Visual Studio 2008 or Visual Studio 2005

• Choose Debug in the Solution Configurations pull-down menu in Visual Studio 2008 or Visual

Studio 2005 and DT-X11 Emulator in the target device pull-down menu. See Figure 7.17.

Figure 7.17

When using eMbedded Visual C++ 4.0

• Choose DT-X11 in the Active WCE Configuration in the pull-down menu in eMbedded Visual

C++ 4.0, Win32 (WCE ARMV4I) Debug in the Active Configuration pull-down menu, and DT-X11 Device in the Device pull-down menu.

Figure 7.18

7.4.2 Debugging Applications

Basic Debug Operation

The debug operation used for the Device Emulator in both Visual Studio 2005 and eMbedded

Visual C++ 4.0 is the same as an ordinary debug operation using the actual terminal.

Debugging with the Device Emulator

With the Device Emulator, it is possible to set a break point in the source code of the application

for step-by-step debugging.

When using Visual Studio 2008 or Visual Studio 2005

1. Navigate to Debug menu → Start Debugging to start up the debugger.

Figure 7.19

2. Similar to ordinary debugging operations with an actual DT-X11, the Device Emulator allows

break point setting (circled in red in Figure 7.20) in the source code and step-by-step debugging.

Figure 7.

When using eMbedded Visual C++ 4.0

1. Establish a connection between the Device Emulator and PC via ActiveSync before starting

debugging in eMbedded Visual C++ 4.0. For establishing connection via ActiveSync, refer to Chapter 7.3.3 “Connecting via ActiveSync”.

2. Navigate

to Build in the menu bar → Start Debug → Go to start up debugging.

Figure 7.21

3. Similar to ordinary debugging operations with an actual DT-X11, the Device Emulator allows

break point setting (circled in red in Figure 7.22) in the source code and step-by-step debugging.

Figure 7.

8. eMbedded Visual C++

8.1 Building Simple eVC++ 4.0 Test Program

1. Initiate eVC++ 4.0.

2. Navigate to File → New in the File menu.

Figure 8.1

3. Highlight WCE Application in Projects tab (see Figure 8.1).

4. In Lo

cation field, navigate to the folder where you want to create the new project.

5. In Project name field, type in the name for the project.

6. In CP

Us pull-down menu, set Win32 (WCE ARMV4I) enabled. You can also set Win32(WCE

emulator) and Win32 (WCE x86) enabled.

7. In the next dialog, leave A typical “Hello World!” application checked. Click Finish button

and then click OK button.

8. Below the Toolbar you will see a line of pull-down menu lists. Look for the one that indicates

STANDARD SDK and choose DT-X11 from this list. The right most pull-down menu list will now change to DT-X11 Device (see red circle in Figure 8.2)

Figure 8.

9. Initiate an ActiveSync connection as described elsewhere in this guide.

10. Choose Rebuild All from Build menu (or use the appropriate icon on the Toolbar).

11. The program will be built and automatically downloaded to the DT-X11. By default, the program

will be copied to the root folder on the terminal. Run the program to check that the process was successful.

You are now ready to begin development work with the DT-X11. The full operation of eVC++ 4.0 and the use of features such as remote debugging are beyond the scope of this guide.

8.2 Using CASIO Libraries from eVC++ 4.0

The DT-X11 SDK provides the libraries for C++ applications. See Chapter 1.2 “Library

Configuration” for the list of libraries provided.

Each library consists of a header file, a dll and a library file. The dlls are built into the ROM of the DT-X11 and you do not need to download. The following is a simple example using one of the System Library functions in the simplest kind of WindowsCE program. The screen will flip 180° each time this program is carried out.

1. Make sure the four “.h” files for the CASIO libraries have been installed in \Program

Files\Windows CE Tools\wce500\DT-X11\include\ARMV4I\

(The path is the default but yours will be different if you install the SDK to other location).

2. Make sure the four “.lib” files for the CASIO libraries have been installed in \Program

Files\Windows CE Tools\wce500\DT-X11\lib\ARMV4I\.

3. In eVC++ 4.0, choose New from the File menu.

4. Highlight WCE Application. Choose a location and a name for the project and make sure the

ARMV4I option is checked. Click N

ext > button.

5. On the next dialog click A simple Windows CE application option. Click Finish button and

then click OK button.

6. Make sure the DT-X11 is the selected SDK and target device in the pull-down menu box.

7. Click ClassView tab in Solution Explorer and expand classes fully until you can see

WinMain() class. Double click it.

8. At the top of the source file, under #include stdafx.h code add the following code.

9. Move to the line // TO DO: Place code here and add the following code.

int result;

result = SysGet180Rotate(); if( result == FALSE ) { SysSet180Rotate( TRUE ); } else { SysSet180Rotate( FALSE ); }

10. On the Project menu, navigate to Add To Project → Files…

11. Change Files of type: pull-down menu to Library files (.lib).

12. Navigate to the folder where the CASIO library files are stored (see step no. 2 above), highlight

SystemLib file and click OK button.

13. Initiate ActiveSync to establish connection between the DT-X11 and the PC.

14. Choose Build All from Build menu. The project will be built and copied to the DT-X11.

15. Check the operation by running the program. You should find that each time the program is

carried out, the screen flips 180°.

#include SystemLib.h #include SystemLibdef.h

You should now be able to use the CASIO System Library in your C++ applications. See the Common Device Control Library manual for full detail of all the functions.

You can also use the CASIO samples as described in Chapter 1.4.

9. Visual Studio

This chapter explains the development procedure of the application that uses the following development platforms.

- Visual Studio 2008

- Visual Studio 2005

- Visual Studio .Net 2003

• Compact Framework 2.0 is implemented in the DT-X11. It is upper-compatible with Compact

Framework 1.0 implemented in the CASIO DT-X10 and IT-500.

• The functions of the Common Device Control Library which control various individual devices

integrated in the DT-X11 have different name spaces and names from those available for the previous CASIO handheld terminals. They are not compatible with the ones in the previous CASIO library.

• VB .NET application or C# application developed with Visual Studio .NET 2003, but not with

the CASIO dedicated libraries will run on the DT-X11.

• Application developed with any functions of CASIO dedicated library must be rewritten by

replacing the dedicated functions with the appropriate functions from the Device Common Library.

• New application for the DT-X11 can be developed using either VB .NET or C# in Visual

Studio .NET 2003 or Visual Studio 2005.

• It is recommended that Visual Studio .NET 2003 is used to modify applications developed for

other handheld terminals when porting them to the DT-X11.

• However, if Visual Studio 2005 is used to make modification, the solution/project of Visual

Studio .NET 2003 is automatically changed by Visual Studio 2005. This may result in different configuration of the output folder according to the parameter settings for the project file. Process your application development with care focusing to this change.

9.1 Using CASIO .NET Libraries from VB .NET

The DT-X11 SDK provides the libraries for VB applications. See Chapter 1.2 “Library

Configuration” for the list of libraries provided.

This chapter explains how to create and start up a simple test program using one of the System functions. The test program flashes the LED in red for 5 seconds.

1. Create a new VB .NET Smart Device Application in Visual Studio .NET.

2. Click Add Reference… from Project menu.

3. Click Browse and navigate to the folder where you have stored the CASIO .NET library files.

Highlight SystemLibNet.dll and click Open. Click OK button.

Figure 9.1

4. Add a button to the form, rename it Rotate, and double click it.

5. In the event function for the button click, add the following code.

Dim result As Int32 Dim msg As String

result = Calib.SystemLibNet.Api.SysSetLED( _ Calib.SystemLibNet.Def.LED_RED, 5, 8, 8)

'.NET vales of “true” and “false” are “-1” and “0” respectively. If result = -1 Then result = Calib.SystemLibNet.Api.SysGetLED() Select Case (result And &HF) Case Calib.SystemLibNet.Def.LED_OFF msg = "LED_OFF" Case Calib.SystemLibNet.Def.LED_RED msg = "LED_RED" Case Calib.SystemLibNet.Def.LED_GREEN msg = "LED_GREEN" Case Calib.SystemLibNet.Def.LED_ORANGE msg = "LED_ORANGE" Case Else msg = "LED_UNKNOWN" End Select MessageBox.Show(msg, "LED") End If

Note:

If you type this code manually you should see the IntelliSense offer you suitable options as

appropriate. If you do not, make sure you review steps 1 to 5 to make sure you have added the

reference correctly.

6. Initiate ActiveSync to establish connection between the DT-X11 and PC.

7. Choose Deploy <name of project> on Build menu.

8. The project will be built and copied to the DT-X11. By default, it will be copied to \Program

Files\<name of project> folder. SystemLibNet.dll will be deployed to the same folder.

9. Check that the program works correctly on the DT-X11.

You can also use the CASIO samples as described in Chapter 1.4.

9.2 Using CASIO .NET Libraries from C#

The DT-X11 SDK provides the libraries for C# applications. See Chapter 1.2 “Library Configuration” for the list of libraries provided.

This chapter explains how to create and start up a simple test program using one of the System functions. The test program flashes the LED in red for 5 seconds.

1. Create a new C# Smart Device Application in Visual Studio .NET.

2. Click Add Reference… from Project menu.

3. Click Browse and navigate to the folder where you have stored the CASIO .NET library files.

Highlight SystemLibNet.dll and click Open. Click OK button.

Figure 9.2

4. At the top of your source file add the following code.

Using Calib;

5. Add a button to your form, double click it and add the following code:

Int32 result = new Int32(); string msg;

result = SystemLibNet.Api.SysSetLED(SystemLibNet.Def.LED_RED, 5, 8, 8);

// .Net values “true” and “false” are “-1” and “0” respectively. if(result == -1) { result = SystemLibNet.Api.SysGetLED(); switch(result & 0x0000000F) { case SystemLibNet.Def.LED_OFF: msg = "LED_OFF"; break; case SystemLibNet.Def.LED_RED: msg = "LED_RED"; break; case SystemLibNet.Def.LED_GREEN: msg = "LED_GREEN"; break; case SystemLibNet.Def.LED_ORANGE: msg = "LED_ORANGE"; break; default: msg = "LED_UNKNOWN"; break; } MessageBox.Show( msg, "LED"); }

Note: If you add this code manually you should see the IntelliSense offer you suitable options as appropriate. If you do not see this, then review steps 2 to 4 in the previous page to make sure you have not made a mistake.

6. Initiate ActiveSync to establish connection between the DT-X11 and PC.

7. Choose Deploy <name of project> on Build menu.

8. The project will be built and copied to the DT-X11. By default, it will be copied to \Program

Files\<name of project> folder. SystemLibNet.dll will be deployed to the same folder.

9. Check that the program works correctly on the device.

You can also use the CASIO samples as described in Chapter 1.4.

9.3 Using CASIO Libraries from C++

This chapter explains how to create and start up a simple test program using one of the System functions. The test program flashes the LED in red for 5 seconds.

The intention of this chapter is just to check that the development environment is set up correctly. See Chapters 6.3 and 6.4 for information on how to set up a connection between the DT-X11 and Vi

sual Studio. You must install Visual Studio 2005 Service Pack 1 from Microsoft.

Before following the steps below, you will need to add the paths for the CASIO header and library

files to Visual Studio 2008 or Visual Studio 2005. Choose Tools-Options-Projects and Solutions-VC++ Directories. Change the “Platform” to “DT-X11” and add the path to the

CASIO header and library files to the respective lists for “Include files” and “Library files”.

1. First, create Win32 Smart Device Project with its device name DeviceApp for Visual C++

in Visual Studio 2008 or Visual Studio 2005.

2. Choose default platform in the S

elected SDKs field in the Platforms of Win32 Smart Device

Project Wizard and click < button.

Figure 9.3

3. Choose DT-X11 in the I

nstalled SDKs field and click > button.

Figure 9.4

4. Click Next > button while DT-X11 is kept being highlighted in the S

elected SDKs field.

Figure 9.5

5. Choose Console Application for the Application type in the Application Settings menu, and

click Finish button.

6. In Solution Explorer, click DeviceApp.cpp and then add the source code below subsequent

to “#include <commctrl.h>”.

#include <SystemLib.h> #if !defined(_countof) #define _countof(_Array) (sizeof(_Array) / sizeof(_Array[0])) #endif

7. Append the source code below in the main function of DeviceApp.cpp.

DWORD result; TCHAR msg[16];

result = SysSetLED(LED_RED, 5, 8, 8);

if(result == TRUE) { result = SysGetLED(); switch(result & 0x0000000F) { case LED_OFF: wcscpy_s( msg, _countof(msg), TEXT("LED_OFF") ); break; case LED_RED: wcscpy_s( msg, _countof(msg), TEXT("LED_RED") ); break; case LED_GREEN: wcscpy_s( msg, _countof(msg), TEXT("LED_GREEN") ); break; case LED_ORANGE: wcscpy_s( msg, _countof(msg), TEXT("LED_ORANGE") ); break; default: wcscpy_s( msg, _countof(msg), TEXT("LED_UNKNOWN") ); break; } MessageBox(NULL, msg, TEXT("LED"), MB_OK); }

8. Choose Properties in the Project of Visual Studio 2008 or Visual Studio 2005, and navigate to

Configuration Properties → Linker → Input → Additional Dependencies and then add SystemLib.lib (see red circle in Figure 9.6).

Figure 9.6

9. Choose

DT-X11 Device for the Target Device to establish connection with the PC.

10. Choose Debug in Visual Studio 2008 or Visual Studio 2005 and then click either Start

Debugging or Start Without Debugging.

11. The project will be built and copied to the “\Program Files\<name of project>” folder by default

in the DT-X11.

12. Check that the program runs correctly on the DT-X11.

You can also use the CASIO samples as described in Chapter 1.4.

10. Resources

Microsoft’s http://msdn.microsoft.com/mobility/ is an extremely comprehensive resource for programmers targeting Windows CE .NET based devices. It includes links to most other useful web based resources. You will find detailed Software, Library and .NET Library manuals on

http://world.casio.com/system/pa.

11. Troubleshooting

Connections from Visual Studio.NET 2003 to Pocket PC and Windows CE .NET devices can be difficult to establish. This appears to be a Visual Studio issue and is not limited to only CASIO handheld terminals. The good news is that once you have established an initial connection, you are unlikely to experience problems thereafter. Here are some things to try if you find that you have this problem:

• Start with an empty, out of the box device. If necessary, hard reset the DT-X11 by holding

down the power key, the CLR key and poking the reset hole on the back of the terminal. Follow the on-screen instructions to complete the hard reset. If in doubt, see the User Guide. Please note that this will erase any data currently held in RAM on the device.

• In Visual Studio, choose Tools-Options-Device Tools-Devices. Set the Platform to

Windows CE. Make sure that Transport is set to TCP Connect Transport. Note that once you have successfully connected you can use the Save as option to rename the connection

type to DT-X11 - this makes it clearer which device you are deploying to in future.

• Follow the instruction in the Windows CE Utilities for Visual Studio 2003 readme file in

order to identify the processor type of the connected device. For DT-X11, choose ARMV4I. The default location for the utilities is; \Program Files\Microsoft Visual Studio .NET 2003\CompactFrameworkSDK\WinCE Utilities.

• Establish the ActiveSync connection, and then initiate Visual Studio. Try to deploy a solution.

If it fails, exit Visual Studio, re-start it and try to deploy again.

• Try running the ProxyPorts.reg file that comes with the Windows CE Utilities for Visual

Studio 2003 from Microsoft. See the Readme file that comes with the utilities for detail about

this. After doing this, follow the steps above.

• Follow the other advice in the WinCE Utilities readme file.

• Run the Visual Studio .NET 2003 setup again. Uninstall Smart Device Programmability (by

removing the check boxes) and then re-install Smart Device Programmability.

Casio DT-X11M10E, DT-X11M10RC-CN, DT-X11M30E, DT-X11M30U, DT-X11M10RC Quick Start Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
