Casio ClassPad 330 User Manual
For ClassPad 330
OS Update
(ClassPad OS Version 3.04)
E
Application
User’s Guide
CASIO Education website URL
http://edu.casio.com
ClassPad website URL
http://edu.casio.com/products/classpad/
ClassPad register URL
http://edu.casio.com/dl/
RJA510188-4
OS Update Application
OS Update Application performs a multi-step process that performs the following operations.
• Backup of data currently in the memory of your ClassPad
• Update of your ClassPad to Version 3.04
• Restoration of the backed up data
Important!
• The new ClassPad OS provides users with new solutions and superior display performance. However, once
ClassPad OS has been updated, it cannot be returned to a version of ClassPad OS earlier than version 3.04.
• Note that you must perform all of the steps in the procedure below, from preparing the ClassPad OS Update on your
computer to finalizing the operating installation procedure. If, for some reason, you cancel the procedure during any of
the following steps, the installation will not be performed correctly and you will have to restart the procedure from step
1.
• Never disconnect the USB cable unless specifically instructed to do so. Doing so can cause the calculator to
malfunction.
• The Spreadsheet add-in application released by CASIO will not run when installed under ClassPad OS Version 3.04.
ClassPad OS Version 3.04 has built-in version of Spreadsheet that is newer than the add-in version.
ClassPad OS Update Basic Steps
See the following pages of this manual for the details about each of these basic steps.
1. On your computer, prepare the ClassPad OS Update data for installation.

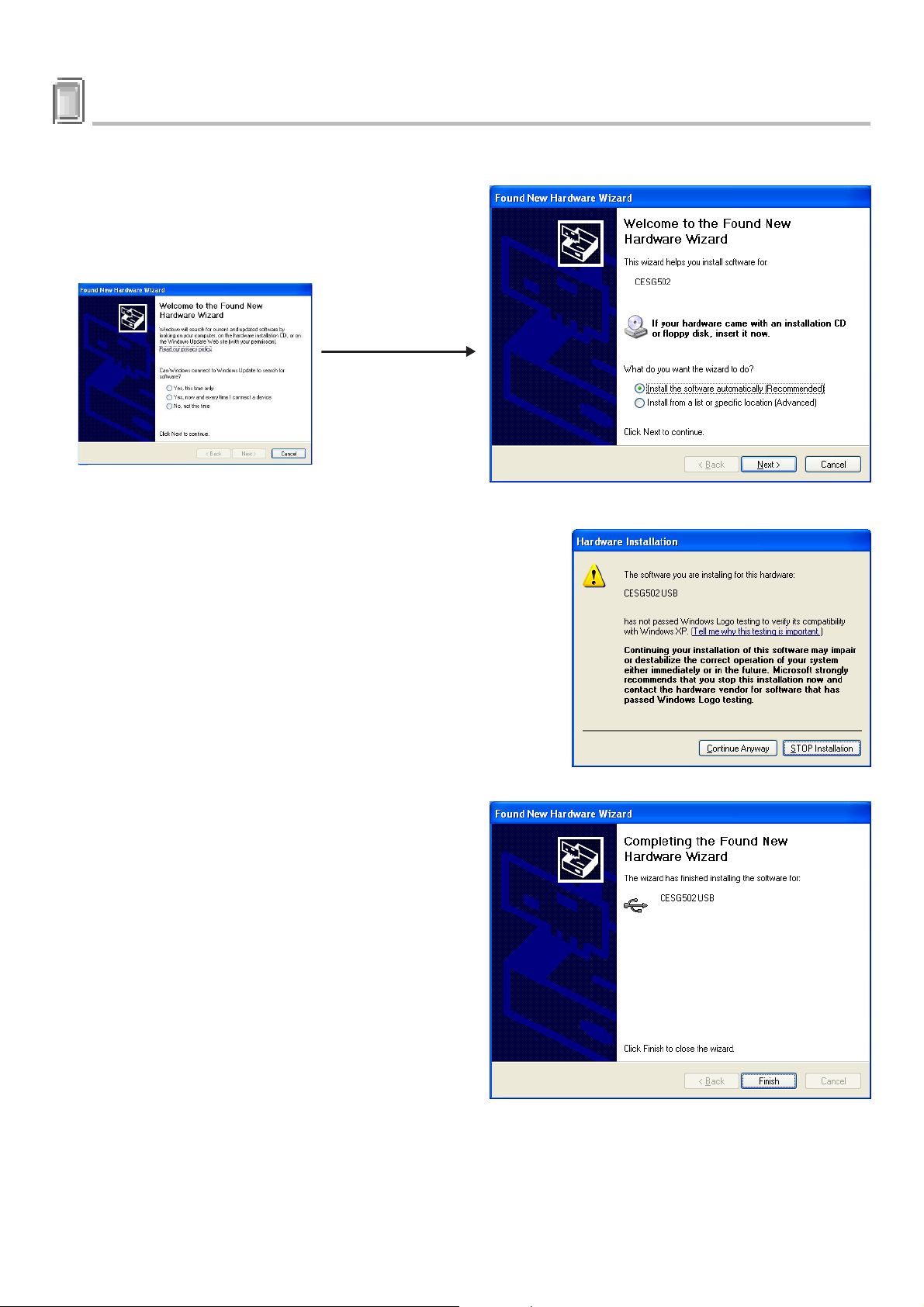

2. Install the ClassPad USB driver on your computer.
• This step is not necessary if the ClassPad USB driver (CESG502 USB) is already installed on your
computer.
3. Back up the data that is currently in the memory of your ClassPad.
4. Install the ClassPad OS Update on your ClassPad.

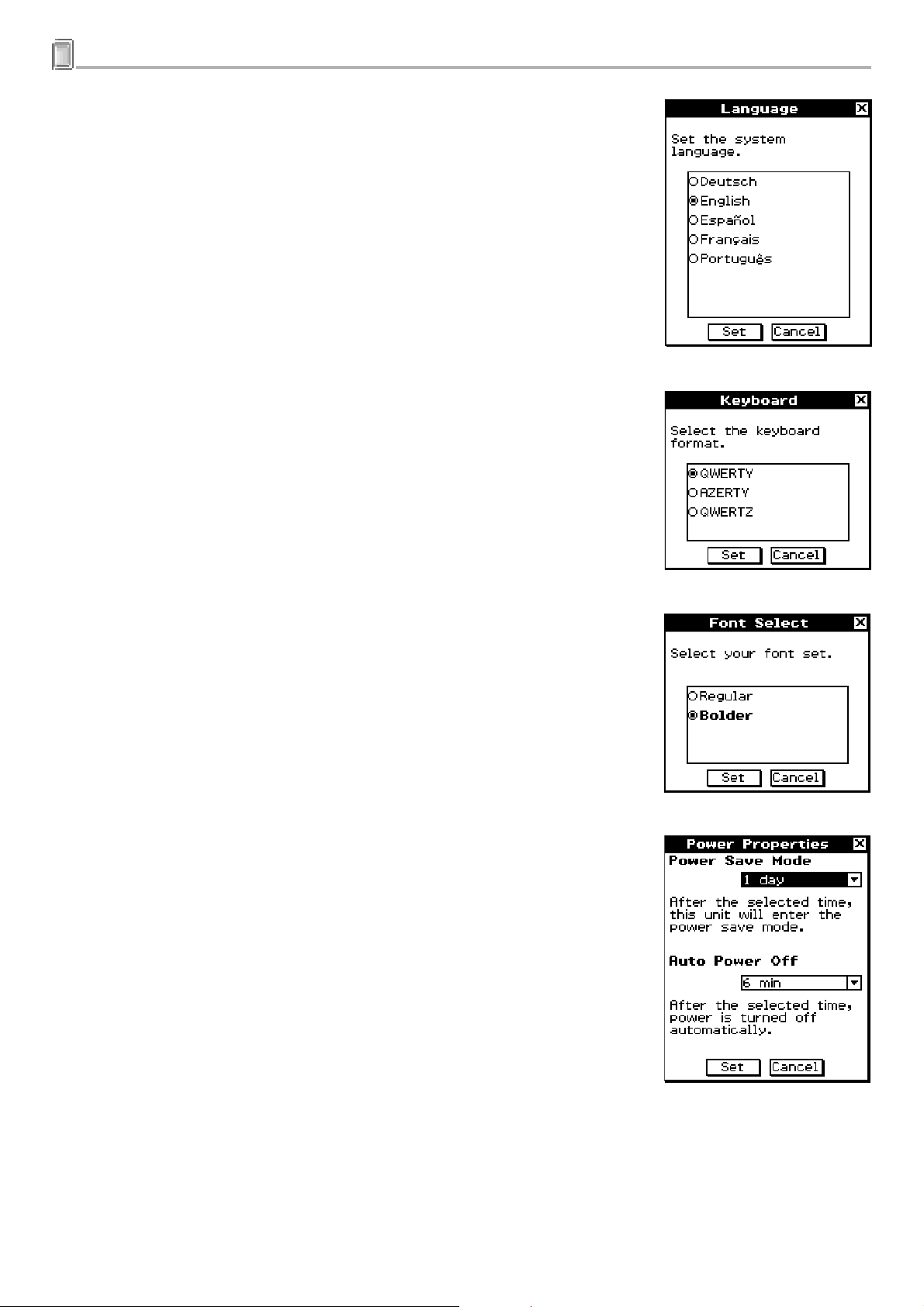

5. Re-configure ClassPad settings.
6. Restore the data that you backed up in step 3.
7. Finalize the installation update procedure.
System Requirements
Operating Systems: Windows® 2000 Professional, Windows® XP Home Edition, Windows® XP
Professional (32-bit), Windows Vista
Your hardware configuration needs higher than functionalities that operating system
recommends.
Computer: IBM PC/AT or compatible computer
Computer with one of the Windows
computers with an upgraded operating system and self-built computers.)
Disk Space: 100MB for installation and uninstall
®
(32-bit)
®
operating systems pre-installed (Excluding
Note: Actual requirements and product functionality may vary based on your system
configuration and operating system.
Other: USB port for direct connection. Do not connect via a USB hub.
Video adapter and display must support resolution of XGA (1024×768) or higher, 16 bit
or higher system color.
Adobe
®
Reader® 6.0 or later.
Note
• Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• Company and product names used herein are trademarks of their respective owners.
20080301
20090601
E-1
Contents
1. Prepare the ClassPad OS Update data on your computer............................ E-3
2. Install the ClassPad USB driver on your computer. ...................................... E-6
3. Back up the data that is currently in the memory of your ClassPad. .......... E-7
4. Install the ClassPad OS Update on your ClassPad. ...................................... E-8
5. Re-configure ClassPad settings...................................................................... E-9
6. Restore the data that you backed up in section 3. ...................................... E-11
7. Finalize the installation update procedure. .................................................. E-13
E-2
20080301
1 Prepare the ClassPad OS Update data on your
computer.
1
. On your computer, double-click “setup” or
“setup.exe”.
2
. Click [Yes].
3
. Click the [Next] button to advance to the next
screen.
4
. Carefully read the terms and conditions of the license agreement.
20080301
E-3
1 Prepare the ClassPad OS Update data on your computer.
5
. If you agree to the terms and conditions of the
license agreement, click “I accept the terms...”, and
then click the [Next] button.
• If you do not agree to the terms and conditions of
the license agreement, click “I do not accept the
terms ...” and then click the [Cancel] button to exit
the install procedure.
6
. Click the [Install] button.
The dialog box shown to the right appears.
[Yes] ... Performs backup/restore.
[No] ... Does not perform backup/restore.
Always backup and restore ... Select when updating a number of ClassPad units to always perform
backup/restore.
Never backup and restore ... Select when updating a number of ClassPad units to never perform
backup/restore.
7
. Click the [Yes] or [No] button to advance
to the next screen.
• The dialog box guides you through the
operations you need to perform on your
ClassPad.
E-4
This area guides you through the operations you need
to perform on your ClassPad.
20080301
