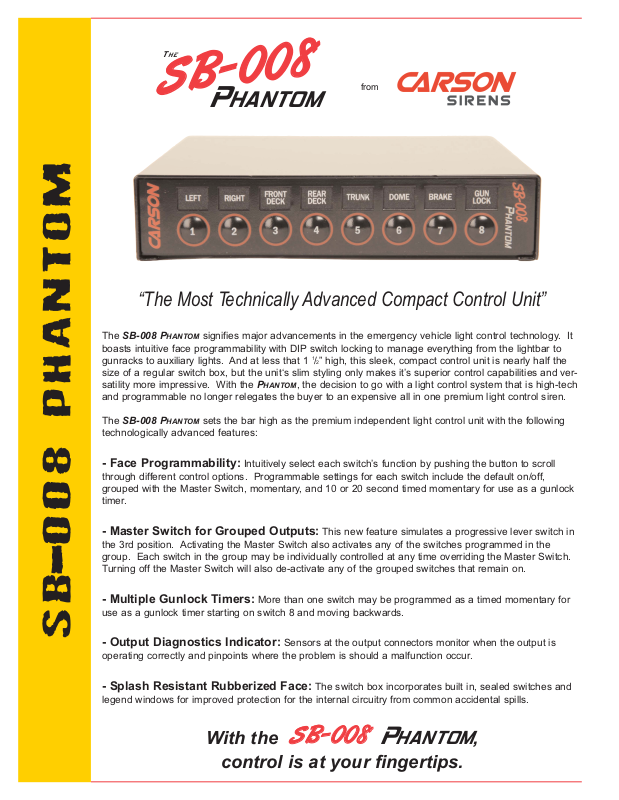

“The Most Technically Advanced Compact Control Unit”
The SB-008 PHANTOM signifies major advancements in the emergency vehicle light control technology. It
boasts intuitive face programmability with DIP switch locking to manage everything from the lightbar to
gunracks to auxiliary lights. And at less that 1 1/2” high, this sleek, compact control unit is nearly half the
size of a regular switch box, but the unit‘s slim styling only makes it’s superior control capabilities and versatility more impressive. With the PHANTOM, the decision to go with a light control system that is high-tech
and programmable no longer relegates the buyer to an expensive all in one premium light control siren.
HANTOM
P
from
The SB-008 P
technologically advanced features:
- Face Programmability: Intuitively select each switch’s function by pushing the button to scroll
through different control options. Programmable settings for each switch include the default on/off,
grouped with the Master Switch, momentary, and 10 or 20 second timed momentary for use as a gunlock
timer.
- Master Switch for Grouped Outputs: This new feature simulates a progressive lever switch in
the 3rd position. Activating the Master Switch also activates any of the switches programmed in the
group. Each switch in the group may be individually controlled at any time overriding the Master Switch.
Turning off the Master Switch will also de-activate any of the grouped switches that remain on.
- Multiple Gunlock Timers: More than one switch may be programmed as a timed momentary for
use as a gunlock timer starting on switch 8 and moving backwards.
- Output Diagnostics Indicator: Sensors at the output connectors monitor when the output is
operating correctly and pinpoints where the problem is should a malfunction occur.
- Splash Resistant Rubberized Face: The switch box incorporates built in, sealed switches and
legend windows for improved protection for the internal circuitry from common accidental spills.
HANTOM
sets the bar high as the premium independent light control unit with the following
With the
control is at your fingertips.
SSBB--000088
HANTOM
P
,
8
P
M
Specifications
Features
Switch Box
Light Control Voltage
Input Current
Standby Current
Output Current
Operation Temperature
Controls
Siren Connections
General
Size
Shipping Weight
9 - 16 VDC (negative ground)
160 Amps Max (80 Amps for switches 1-4, 80 Amps for
switches 5-8)
Less than 100 ma
20 Amps per output, each output independently
protected with built-in fuses
-15F to 140F
8 Push button switches with LED indicators,
backlighting of replaceable legends changes colors
when activated, and internal DIP switch option selector
2 #10 AWG lead wires for positive power input, 2
connectors with 4 outputs each, single connector with
#22 AWG lead wires for positive and negative for
enable and backlighting
1
6
/8” Wide, 1 3/8” High, 6 1/2” Deep
1
/2 Lbs
2
- 20 Amps capacity per output for 160 Amps total
- 8 Completely enclosed membrane push button
switches for splash resistant protection
- Master Switch grouping capabilities
- Multiple switches to operate as gunlock timers
- Face Programmable switches with DIP switch
program lock for on/off, grouped, momentary, and
timed momentary for gunlocks
- LED backlit for nighttime visibility, backlighting turns
red when switch is activated
- Externally exposed fuses for easy replacement and
to protect each output
- Output status for each switch indicated on the face
for diagnostics
- Alert indicator when switches are activated
- 88 Replaceable legends
- Detachable connectors with screwdown terminals for
all outputs
3
- Slim case is only 1
/8” high
- No-hassle 5-year limited warranty
SSBB--00008
P
HHAANNTTOOM
Whelen
PCC10
TST
Touch Tek VI
Face Programmability Yes
LED Backlighting that Changes
Color when Activated
Master Switch Control for
Groups of Switches
Yes Yes
Yes Yes
Gunlock Timer Selectable Yes Yes
Splash Resistant Enclosed
Membrane Switches
Yes Yes
Diagnostic Indicators for Each Output Yes Yes
Detachable Connectors with
Screwdown Terminal
Ye
s
Switch Box Height 1 3/8” 2 1/4” 2 5/8” 2 1/4” 2 1/4”
5-Year Warranty Yes
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing
damage. Do not operate siren without adequate hearing protection for you and anyone in
immediate vicinity. (Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Able 2/Sho-Me
05.8000
Able 2/Sho-Me
05.8040/42
PHANTOM and CARSON SIRENS are trademarks of Carson Manufacturing Company, Inc.
1.888.577.6877 www.carsonsirens.com
