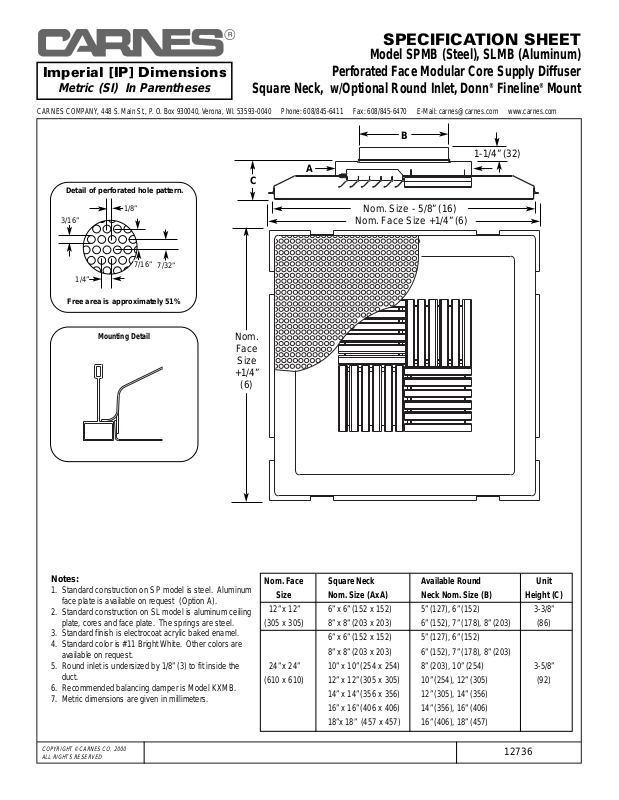

SPECIFICATION SHEET

Model SPMB (Steel), SLMB (Aluminum)

Perforated Face Modular Core Supply Diffuser

Square Neck, w/Optional Round Inlet, Donn®Fineline®Mount

Imperial [IP] Dimensions

Metric (SI) In Parentheses

1-1/4” (32)

Nom. Face Size +1/4”(6)

Nom.

Face

Size

+1/4”

(6)

Notes:

1. Standard construction on SP model is steel. Aluminum face plate is available on request (Option A).

2. Standard construction on SL model is aluminum ceiling plate, cores and face plate. The springs are steel.

3. Standard finish is electrocoat acrylic baked enamel.

4. Standard color is #11 Bright White. Other colors are available on request.

5. Round inlet is undersized by 1/8” (3) to fit inside the duct.

6. Recommended balancing damper is Model KXMB.

7. Metric dimensions are given in millimeters.

Nom. Face Square Neck Available Round Unit

Size Nom. Size (AxA) Neck Nom. Size (B) Height (C)

12” x 12” 6” x 6” (152 x 152) 5” (127), 6” (152) 3-3/8”

(305 x 305) 8” x 8” (203 x 203) 6” (152), 7” (178), 8” (203) (86)

6” x 6” (152 x 152) 5” (127), 6” (152) 8” x 8” (203 x 203) 6” (152), 7” (178), 8” (203)

24” x 24” 10” x 10” (254 x 254) 8” (203), 10” (254) 3-5/8”

(610 x 610) 12” x 12” (305 x 305) 10” (254), 12” (305) (92)

14” x 14” (356 x 356) 12” (305), 14” (356) 16” x 16” (406 x 406) 14” (356), 16” (406) 18”x 18” (457 x 457) 16” (406), 18” (457)

Nom. Size - 5/8” (16)

Detail of perforated hole pattern.

Free area is approximately 51%

1/8”

7/16”

1/4”

7/32”

3/16”

Mounting Detail
