Carnes KXFAA User Manual
COPYRIGHT CARNES CO.© 2003
ALL RIGHTS RESERVED
SUPERSEDES 12332-C
12332-D
Model KXFAA
Aluminum
Auxiliary Frame
Notes:
1. Recommended Ceiling opening: A +1/4” x B +1/4”.
2. If requested, screwholes are provided in the face.
3. Standard color is No. 11 Bright White.
4. Metric dimensions are listed in millimeters.
CARNES COMPANY, 448 S.Main St., P. O. Box 930040, Verona, WI.53593-0040 Phone: 608/845-6411 Fax:608/845-6470 carnes@car nes.com www.carnes.com

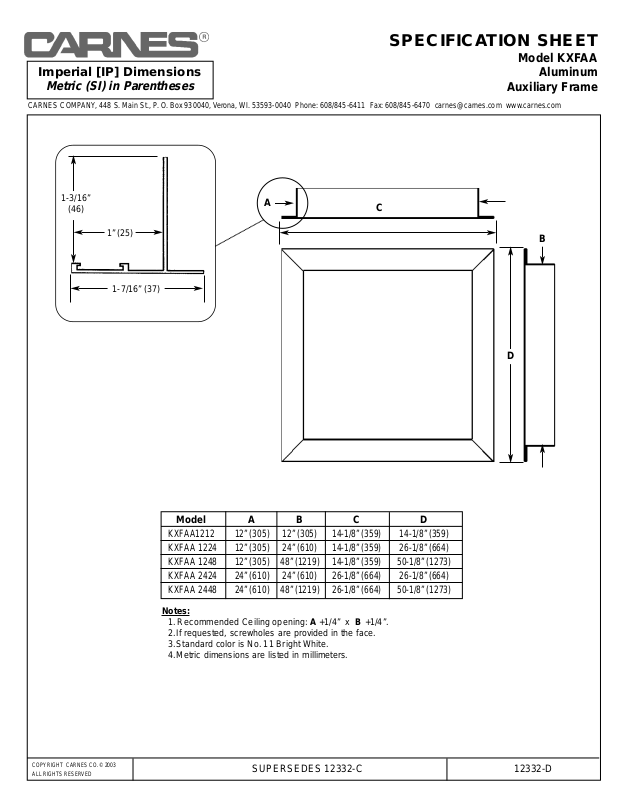

SPECIFICATION SHEET
Imperial [IP] Dimensions
Metric (SI) in Parentheses
1-3/16”
(46)
1-7/16” (37)
1” (25)
B
C
D
Model A B C D
KXFAA1212 12” (305) 12” (305) 14-1/8” (359) 14-1/8” (359)
KXFAA 1224 12” (305) 24” (610) 14-1/8” (359) 26-1/8” (664)
KXFAA 1248 12” (305) 48” (1219) 14-1/8” (359) 50-1/8” (1273)
KXFAA 2424 24” (610) 24” (610) 26-1/8” (664) 26-1/8” (664)
KXFAA 2448 24” (610) 48” (1219) 26-1/8” (664) 50-1/8” (1273)
A
