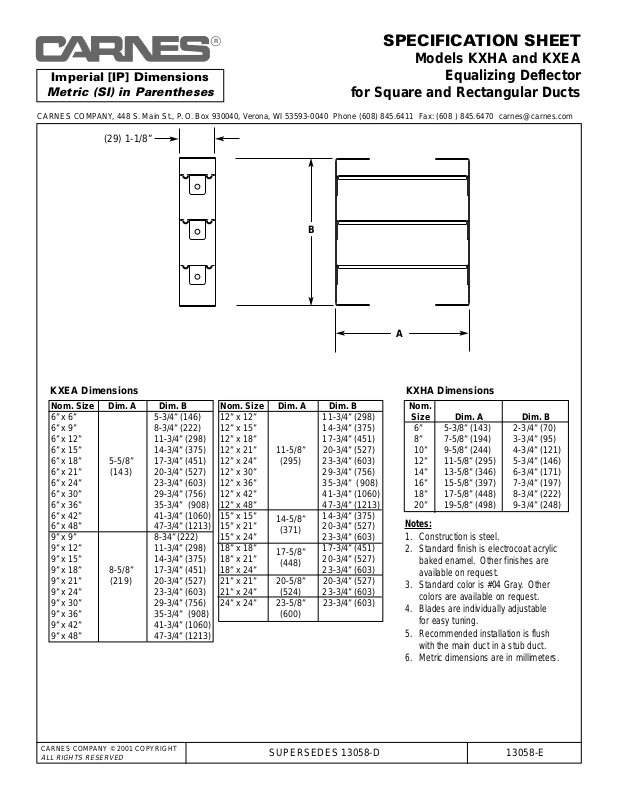

SPECIFICATION SHEET

Models KXHA and KXEA

Equalizing Deflector

for Square and Rectangular Ducts

CARNES COMPANY, 448 S. Main St., P.O.Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 carnes@car nes.com

CARNES COMPANY © 2001 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 13058-D 13058-E

(29) 1-1/8”

B

A

KXEA Dimensions

Nom. Size Dim. A Dim. B

6” x 6” 5-3/4” (146)
6” x 9” 8-3/4” (222)
6” x 12” 11-3/4” (298)
6” x 15” 14-3/4” (375)
6” x 18” 5-5/8” 17-3/4” (451)
6” x 21” (143) 20-3/4”(527)
6” x 24” 23-3/4” (603)
6” x 30” 29-3/4” (756)
6” x 36” 35-3/4” (908)
6” x 42” 41-3/4” (1060)
6” x 48” 47-3/4” (1213)
9” x 9” 8-34” (222)
9” x 12” 11-3/4” (298)
9” x 15” 14-3/4” (375)
9” x 18” 8-5/8” 17-3/4” (451)
9” x 21” (219) 20-3/4”(527)
9” x 24” 23-3/4” (603)
9” x 30” 29-3/4” (756)
9” x 36” 35-3/4” (908)
9” x 42” 41-3/4” (1060)
9” x 48” 47-3/4” (1213)

Nom. Size Dim. A Dim. B

12” x 12” 11-3/4” (298)
12” x 15” 14-3/4” (375)
12” x 18” 17-3/4” (451)
12” x 21” 11-5/8” 20-3/4” (527)
12” x 24” (295) 23-3/4” (603)
12” x 30” 29-3/4” (756)
12” x 36” 35-3/4” (908)
12” x 42” 41-3/4” (1060)
12” x 48” 47-3/4” (1213)
15” x 15” 14-3/4” (375)
15” x 21”

14-5/8”

20-3/4” (527)

15” x 24”

(371)

23-3/4” (603)
18” x 18” 17-3/4” (451)
18” x 21”

17-5/8”

20-3/4” (527)
18” x 24”

(448)

23-3/4” (603)
21” x 21” 20-5/8” 20-3/4” (527)
21” x 24” (524) 23-3/4” (603)
24” x 24” 23-5/8” 23-3/4” (603)

(600)

KXHA Dimensions

Nom.

Size Dim. A Dim. B

6” 5-3/8” (143) 2-3/4” (70)
8” 7-5/8” (194) 3-3/4” (95)
10” 9-5/8” (244) 4-3/4” (121)
12” 11-5/8” (295) 5-3/4” (146)
14” 13-5/8” (346) 6-3/4” (171)
16” 15-5/8” (397) 7-3/4” (197)
18” 17-5/8” (448) 8-3/4” (222)
20” 19-5/8” (498) 9-3/4” (248)

Notes:

1. Construction is steel.

2. Standard finish is electrocoat acrylic
baked enamel. Other finishes are
available on request.

3. Standard color is #04 Gray. Other
colors are available on request.

4. Blades are individually adjustable
for easy tuning.

5. Recommended installation is flush
with the main duct in a stub duct.

6. Metric dimensions are in millimeters.
