CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 16818 16818-A
SPECIFICATIONS
This air flow switch is installed in the
duct to prevent humidifier operation
when air flow is not occurring. This
switch provides a positive and economical method to detect loss of air flow
velocity. The switch may be installed on
the side, top, or bottom of a horizontal
duct. Installation can be made in a
vertical duct if the air flow is upward. A
horizontal flow velocity of 480 fpm or
upward vertical flow of 910 fpm is
required to operate the switch.
LOCATION
Wherever possible, the air flow switch should be installed in a
horizontal duct. Avoid downstream locations too close to
elbows, dampers, fans, or other areas of excessive turbulence.
Avoid running control wiring near high voltage primary wires.
ADJUSTMENT
The adjustment screw is factory set for minimum flow velocities.
To obtain higher velocities before the switch is actuated, turn
adjusting screw in clockwise direction.
Adjusting
Screw
3-13/16”
(97mm)
3-7/16”
(87mm)
1-19/32”
(40mm)
1-19/32”
(40mm)
7-23/32”
(196mm)
7-5/16”
(186mm)
3/16”
Dia.
Holes
(5mm)

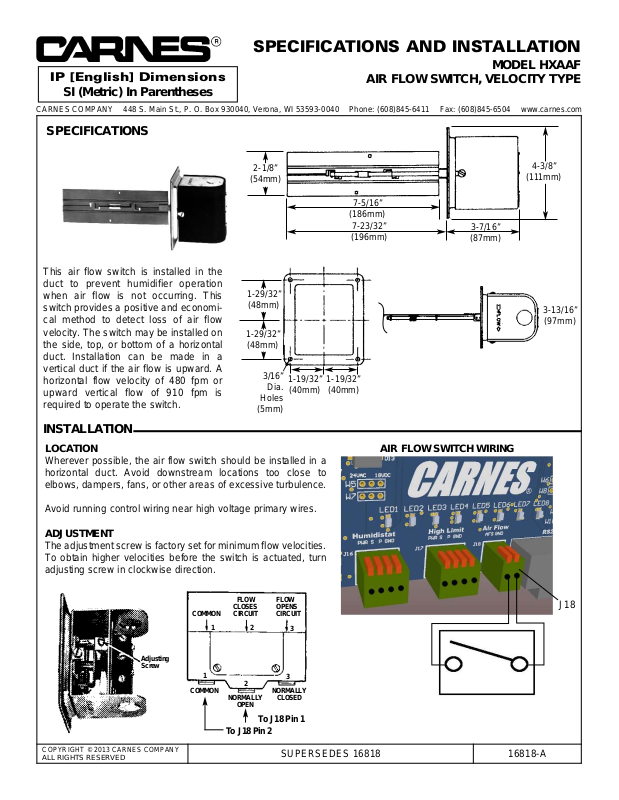

SPECIFICATIONS AND INSTALLATION
MODEL HXAAF
AIR FLOW SWITCH, VELOCITY TYPE
IP [English] Dimensions
SI (Metric) In Parentheses
FLOW FLOW
CLOSES OPENS
COMMON CIRCUIT CIRCUIT
1
1
2
2
3
3
COMMON
NORMALLY
OPEN
NORMALLY
CLOSED
To J18 Pin 2
To J18 Pin 1
INSTALLATION
2-1/8”
(54mm)
4-3/8”
(111mm)
1-29/32”
(48mm)
1-29/32”
(48mm)
AIR FLOW SWITCH WIRING
J18
