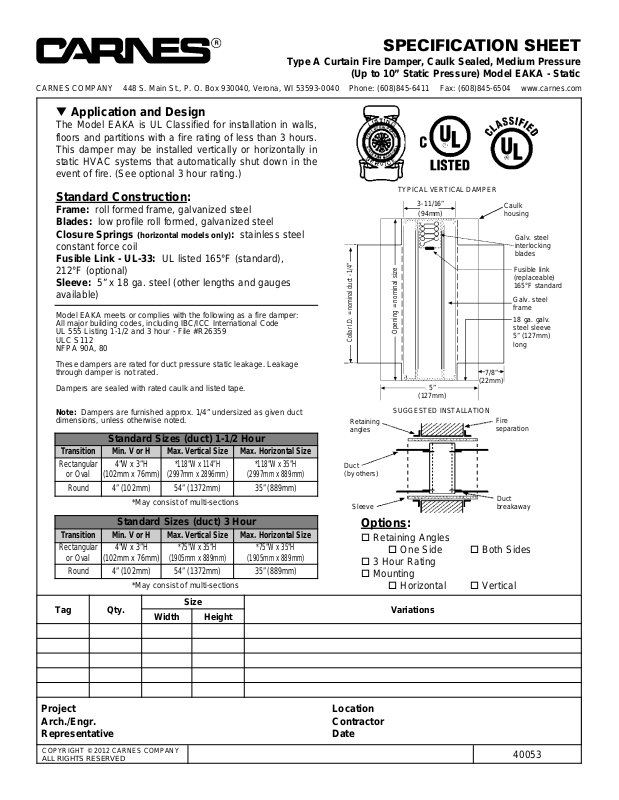

SPECIFICATION SHEET
Type A Curtain Fire Damper, Caulk Sealed, Medium Pressure
(Up to 10” Static Pressure) Model EAKA - Static
Tag Qty.
Size
Variations
Width Height
Project Location
Arch./Engr. Contractor
Representative Date
t Application and Design
The Model EAKA is UL Classified for installation in walls,
floors and partitions with a fire rating of less than 3 hours.
This damper may be installed vertically or horizontally in
static HVAC systems that automatically shut down in the
event of fire. (See optional 3 hour rating.)
Standard Construction:
Frame: roll formed frame, galvanized steel
Blades: low profile roll formed, galvanized steel
Closure Springs (horizontal models only): stainless steel
constant force coil
Fusible Link - UL-33: UL listed 165°F (standard),
212°F (optional)
Sleeve: 5” x 18 ga. steel (other lengths and gauges
available)
Model EAKA meets or complies with the following as a fire damper:
All major building codes, including IBC/ICC International Code
UL 555 Listing 1-1/2 and 3 hour - File #R26359
ULC S112
NFPA 90A, 80
These dampers are rated for duct pressure static leakage. Leakage
through damper is not rated.
Dampers are sealed with rated caulk and listed tape.
Note: Dampers are furnished approx. 1/4” undersized as given duct
dimensions, unless otherwise noted.
Standard Sizes (duct) 1-1/2 Hour
Transition Min. V or H Max. Vertical Size Max. Horizontal Size
Rectangular
or Oval
4”W x 3”H
(102mm x 76mm)
*118”W x 114”H
(2997mm x 2896mm)
*118”W x 35”H
(2997mm x 889mm)
Round 4” (102mm) 54” (1372mm) 35” (889mm)
*May consist of multi-sections
Options:
Retaining Angles
One Side Both Sides
3 Hour Rating
Mounting
Horizontal Vertical
3-11/16”
(94mm)
Collar I.D. = nominal duct - 1/4”
Galv. steel
interlocking
blades
Fusible link
(replaceable)
165°F standard
Galv. steel
frame
Standard Sizes (duct) 3 Hour
Transition Min. V or H Max. Vertical Size Max. Horizontal Size
Rectangular
or Oval
4”W x 3”H
(102mm x 76mm)
*75”W x 35”H
(1905mm x 889mm)
*75”W x 35”H
(1905mm x 889mm)
Round 4” (102mm) 54” (1372mm) 35” (889mm)
*May consist of multi-sections
Retaining
angles
Duct
(by others)
Sleeve
Fire
separation
Duct
breakaway
SUGGESTED INSTALLATION
Opening = nominal size
TYPICAL VERTICAL DAMPER
18 ga. galv.
steel sleeve
5” (127mm)
long
Caulk
housing
5”
(127mm)
7/8”
(22mm)
