Fire, Smoke & Ceiling Radiation Dampers
Fire Dampers
E-18 www.carnes.com

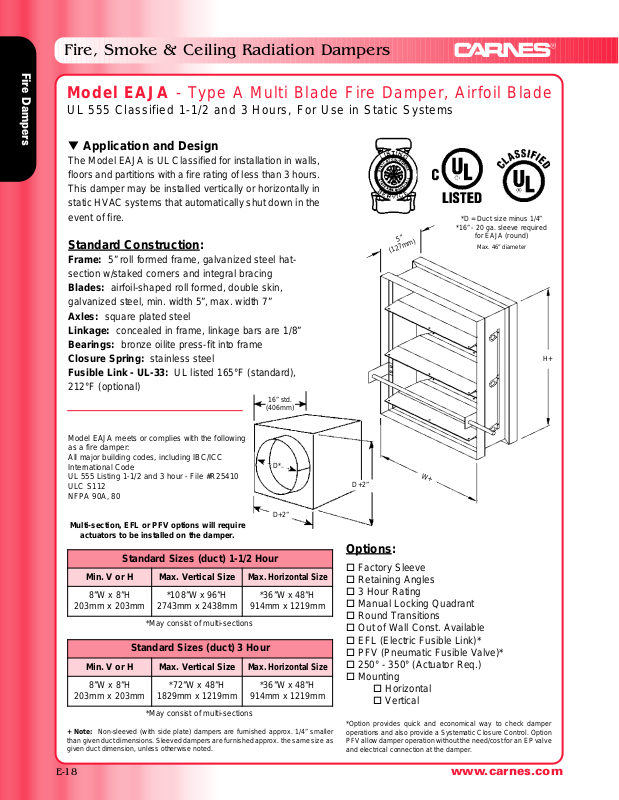

Model EAJA - Type A Multi Blade Fire Damper, Airfoil Blade
UL 555 Classified 1-1/2 and 3 Hours, For Use in Static Systems
t Application and Design
The Model EAJA is UL Classified for installation in walls, floors and partitions with a fire rating of less than 3 hours. This damper may be installed vertically or horizontally in static HVAC systems that automatically shut down in the event of fire.
Standard Construction:
Frame: 5” roll formed frame, galvanized steel hat-
section w/staked corners and integral bracing Blades: airfoil-shaped roll formed, double skin, galvanized steel, min. width 5”, max. width 7”
Axles: square plated steel Linkage: concealed in frame, linkage bars are 1/8” Bearings: bronze oilite press-fit into frame Closure Spring: stainless steel Fusible Link - UL-33: UL listed 165°F (standard),
212°F (optional)
Model EAJA meets or complies with the following as a fire damper: All major building codes, including IBC/ICC International Code UL 555 Listing 1-1/2 and 3 hour - File #R25410 ULC S112 NFPA 90A, 80
Multi-section, EFL or PFV options will require
actuators to be installed on the damper.
Standard Sizes (duct) 1-1/2 Hour
Min. V or H Max. Vertical Size
Max. Horizontal Size
8”W x 8”H
203mm x 203mm
*108”W x 96”H
2743mm x 2438mm
*36”W x 48”H
914mm x 1219mm
*May consist of multi-sections
Options
:
Factory SleeveRetaining Angles3 Hour RatingManual Locking QuadrantRound TransitionsOut of Wall Const. AvailableEFL (Electric Fusible Link)*PFV (Pneumatic Fusible Valve)*250° - 350° (Actuator Req.)Mounting
HorizontalVertical
*Option provides quick and economical way to check damper operations and also provide a Systematic Closure Control. Option PFV allow damper operation without the need/cost for an EP valve and electrical connection at the damper.
5”
(127mm)
H+
W+
+ Note: Non-sleeved (with side plate) dampers are furnished approx. 1/4” smaller than given duct dimensions. Sleeved dampers are furnished approx. the same size as given duct dimension, unless otherwise noted.
16” std.
(406mm)
D+2”
D+2”
*D = Duct size minus 1/4”
*16” - 20 ga. sleeve required
for EAJA (round)
Max. 46” diameter
D*
Standard Sizes (duct) 3 Hour
Min. V or H Max. Vertical Size
Max. Horizontal Size
8”W x 8”H
203mm x 203mm
*72”W x 48”H
1829mm x 1219mm
*36”W x 48”H
914mm x 1219mm
*May consist of multi-sections
Fire Dampers
www.carnes.com E-19
Fire, Smoke & Ceiling Radiation Dampers
Model EAJA - Type A Multi Blade Fire Damper
PERFORMANCE DATA
Pressure drop testing was done by an independent laboratory to the AMCA Standard 500-D, Fig. 5.3 ductwork upstream and downstream.
DAMPER SIZE 36 x 36
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0 .9 .8 .7
.6 .5
.4 .3
.25
.2
.15
.1
.09 .08 .07
.06 .05
.04 .03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000 3000 4000 6000
Single Section
w/Hand Quadrant
Multi-Section
w/Actuator
16”
Sleeve
Control Shaft
4-7/16”
6”
4”
1½”
UL Rated Fire Wall
Break Away Connection
Break Away Connection
Retaining Angle
Retaining
Angle
Hand Quad
Mounting Area
1½”
1½”
1½”
16”
Sleeve
2¼”
1 Hour
Fire Wall
Break Away Connection
Break Away Connection
Retaining Angle
Retaining
Angle
Actuator
Mounting Area
1½”
1½”
4¼”
1¾”
4¾”
Motor Location
DAMPER SIZE 24 x 24
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0 .9
.8 .7
.6 .5
.4 .3
.25
.2
.15
.1
.09 .08
.07 .06 .05
.04 .03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000 3000 4000 6000
1.5
2.0
2.5
DAMPER SIZE 12 x 12
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0 .9 .8 .7
.6 .5 .4
.3
.25
.2
.15
.1
.09 .08 .07
.06 .05
.04 .03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000
3000 4000 6000
1.5
2.0
2.5
