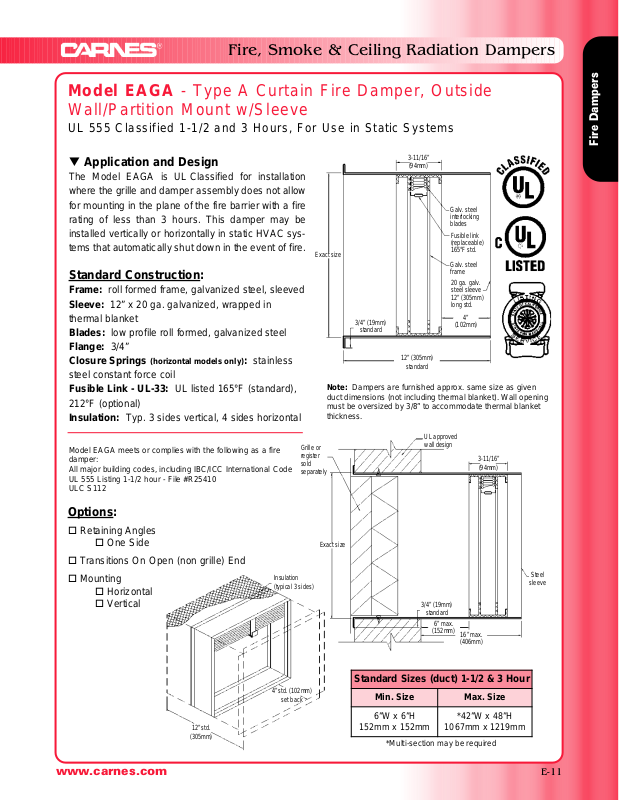

Carnes EAGA User Manual
Fire Dampers
www.carnes.com E-11
Fire, Smoke & Ceiling Radiation Dampers
Model EAGA - Type A Curtain Fire Damper, Outside
Wall/Partition Mount w/Sleeve
UL 555 Classified 1-1/2 and 3 Hours, For Use in Static Systems
t Application and Design
The Model EAGA is UL Classified for installation
where the grille and damper assembly does not allow
for mounting in the plane of the fire barrier with a fire
rating of less than 3 hours. This damper may be
installed vertically or horizontally in static HVAC systems that automatically shut down in the event of fire.
Standard Construction:
Frame: roll formed frame, galvanized steel, sleeved
Sleeve: 12” x 20 ga. galvanized, wrapped in
thermal blanket
Blades: low profile roll formed, galvanized steel
Flange: 3/4”
Closure Springs (horizontal models only): stainless
steel constant force coil
Fusible Link - UL-33: UL listed 165°F (standard),
212°F (optional)
Insulation: Typ. 3 sides vertical, 4 sides horizontal
Model EAGA meets or complies with the following as a fire
damper:
All major building codes, including IBC/ICC International Code
UL 555 Listing 1-1/2 hour - File #R25410
ULC S112
Options:
Retaining Angles
One Side
Transitions On Open (non grille) End
Mounting
Horizontal
Vertical
Galv. steel
interlocking
blades
Fusible link
(replaceable)
165°F std.
Galv. steel
frame
20 ga. galv.
steel sleeve
12” (305mm)
long std.
3/4” (19mm)
standard
3-11/16”
(94mm)
Exact size
12” (305mm)
standard
Standard Sizes (duct) 1-1/2 & 3 Hour
Min. Size Max. Size
6”W x 6”H
152mm x 152mm
*42”W x 48”H
1067mm x 1219mm
*Multi-section may be required
4”
(102mm)
12” std.
(305mm)
4” std. (102mm)
set back
Insulation
(typical 3 sides)
Grille or
register
sold
separately
UL approved
wall design
3-11/16”
(94mm)
Exact size
Steel
sleeve
3/4” (19mm)
standard
16” max.
(406mm)
6” max.
(152mm)
Note: Dampers are furnished approx. same size as given
duct dimensions (not including thermal blanket). Wall opening
must be oversized by 3/8” to accommodate thermal blanket
thickness.
