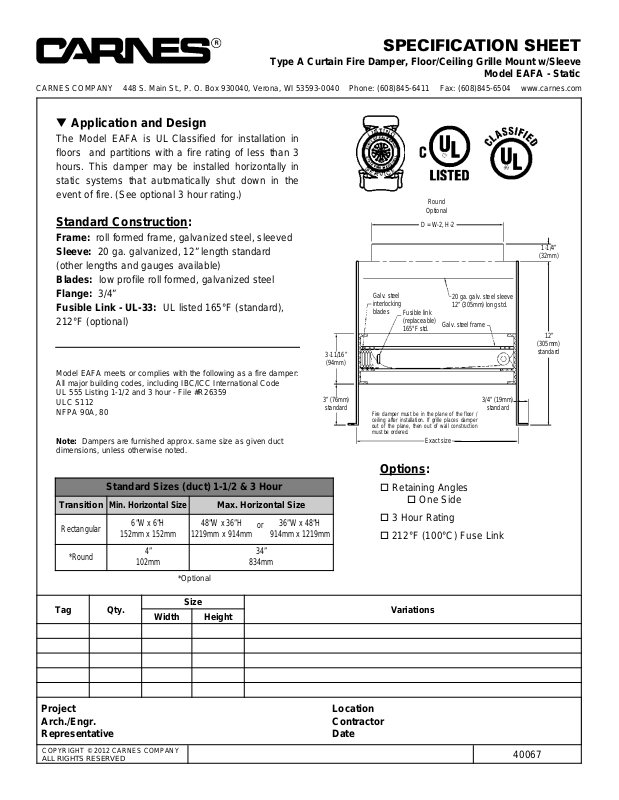

SPECIFICATION SHEET
Type A Curtain Fire Damper, Floor/Ceiling Grille Mount w/Sleeve
Model EAFA - Static
Tag Qty.
Size
Variations
Width Height
Project Location
Arch./Engr. Contractor
Representative Date
t Application and Design
The Model EAFA is UL Classified for installation in
floors and partitions with a fire rating of less than 3
hours. This damper may be installed horizontally in
static systems that automatically shut down in the
event of fire. (See optional 3 hour rating.)
Standard Construction:
Frame: roll formed frame, galvanized steel, sleeved
Sleeve: 20 ga. galvanized, 12” length standard
(other lengths and gauges available)
Blades: low profile roll formed, galvanized steel
Flange: 3/4”
Fusible Link - UL-33: UL listed 165°F (standard),
212°F (optional)
Model EAFA meets or complies with the following as a fire damper:
All major building codes, including IBC/ICC International Code
UL 555 Listing 1-1/2 and 3 hour - File #R26359
ULC S112
NFPA 90A, 80
Note: Dampers are furnished approx. same size as given duct
dimensions, unless otherwise noted.
Options:
Retaining Angles
One Side
3 Hour Rating
212°F (100°C) Fuse Link
1-1/4”
(32mm)
Galv. steel
interlocking
blades
Fusible link
(replaceable)
165°F std.
Galv. steel frame
20 ga. galv. steel sleeve
12” (305mm) long std.
3/4” (19mm)
standard
3-11/16”
(94mm)
Exact size
3” (76mm)
standard
12”
(305mm)
standard
D = W-2, H-2
Fire damper must be in the plane of the floor /
ceiling after installation. If grille places damper
out of the plane, then out of wall construction
must be ordered.
Round
Optional
Standard Sizes (duct) 1-1/2 & 3 Hour
Transition
Min. Horizontal Size
Max. Horizontal Size
Rectangular
6”W x 6”H
152mm x 152mm
48”W x 36”H
or
36”W x 48”H
1219mm x 914mm 914mm x 1219mm
*Round
4”
102mm
34”
834mm
*Optional
